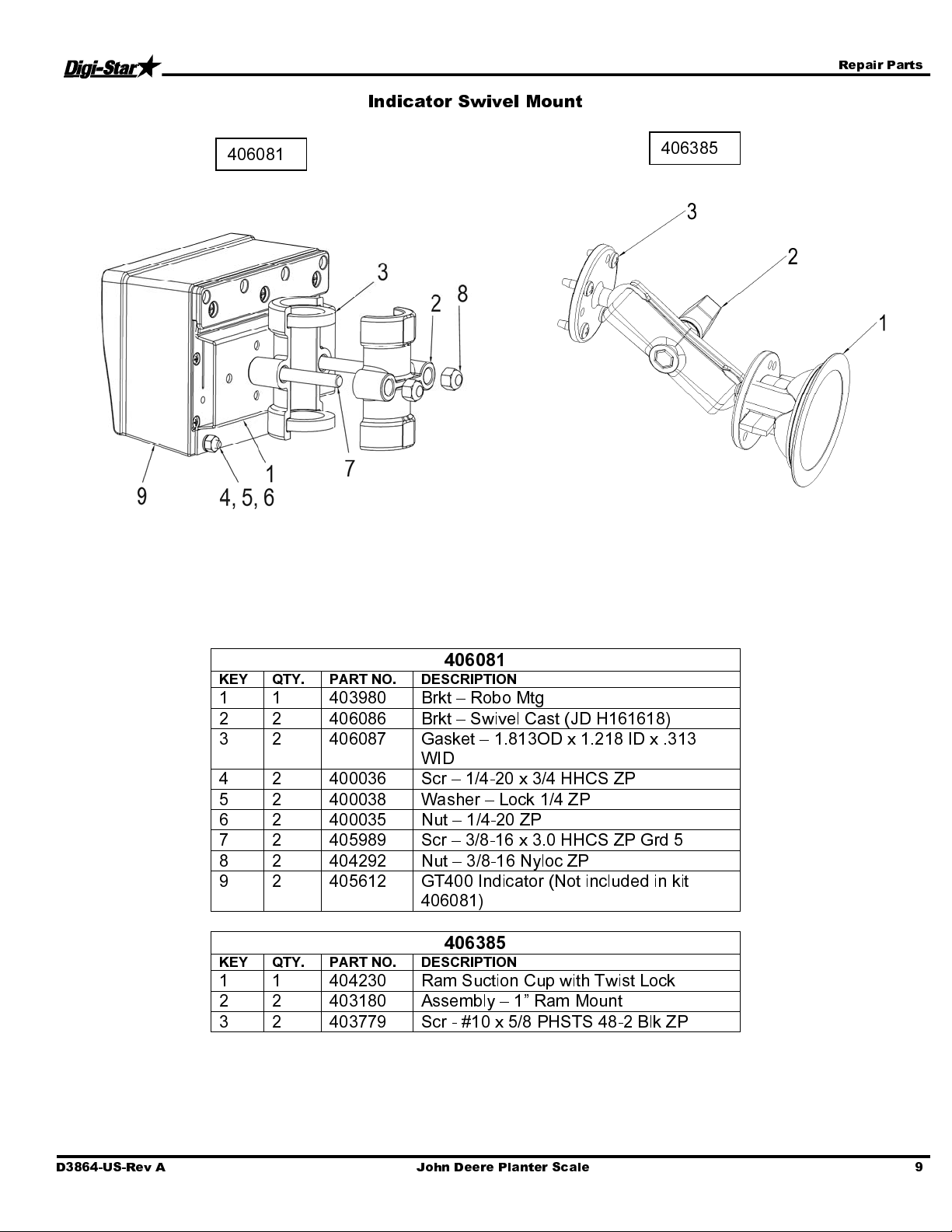

Indicator Swivel Mount ................................................................................................................................................................................... 9
LICENSE AGREEMENT .................................................................................................................................................................................. 10
All rights reserved. Reproduction of any part of this manual in any form whatsoever without Digi-Star’s express written permission is forbidden. The contents of this manual are subject
to change without notice. All efforts have been made to assure the accuracy of the contents of this manual. However, should any errors be detected, Digi-Star would greatly appreciate
being informed of them. The above notwithstanding, Digi-Star can assume no responsibility for errors in this manual or their consequence.
© Copyright! 2008 Digi-Star, Fort Atkinson (U.S.A.).
John Deere Planter Scale D3864-US-Rev A
Introduction
p
INTRODUCTION
Congratulations on the purchase of your new Digi-Star Planter Scale for John Deere 1990 30, 40 and 44 foot
seeder. This manual is for 1690 version or single rank units.
The scale system is specially designed to weigh the central commodity seed hopper. The scale will record and
monitor seed weigh going into or out of the CCS hopper.
This scale system is covered by the following US patents: 6732667, 7059258 and 7273017. The single-use
license is included with this document (see page 10).
This
SAFETY ALERT SYMBOL
symbol, be alert to the possibility of
NEVER OPERATE WITHOUT ALL COVERS, SHIELDS AND GUARDS IN PLACE. KEEP
HANDS, FEET AND CLOTHING AWAY FROM MOVING PARTS. FAILURE TO HEED MAY RESULT IN
SERIOUS PERSONAL INJURY OR DEATH.
Some covers and guards have been removed for illustrative/photographic purposes only in this manual.
For information on ordering repair parts, refer to Parts Section in this book.
This supersedes all previous published instructions.
indicates important safety messages in the manual. When you see this
PERSONAL INJURY
and carefully read the message that follows.
Important!
Charging Battery and Welding
Disconnect all cables from the weighing indicator before charging the battery or welding on the machine. If
cables are left connected, the weighing indicator and connected load cells could be damaged.
Important:
Do not weld near indicator, load cells or cables; remove from area to be welded. Place ground
close to area to be welded to prevent current from passing through electronic parts.
Scale Indicator
Remote Indicator
O
tional
Disconnect
all cords
J-Box
D3864-US-Rev A John Deere Planter Scale 1
Scale Bracket and Load Cell Mounting Installation
(
)
SCALE BRACKET AND LOAD CELL MOUNTING INSTALLATION
Load Cell
(Decal on Top Side)
3/4” x 3-1/2” Bolts
and 3/4 Locknuts
Rear Base
Plate
1. Loosen the frame bolts on the front legs.
2. Disassemble the rear legs and remove the angle bracket mounted to the leg and the main frame.
3. Jack up one of the rear legs approximately 1 inch.
4. Install and tighten the top bracket and hardware to the rear leg.
5. Assemble load cell to the rear base bracket by using the 3/4 x 3 1/2 in. bolts. Do not tighten bolts
completely. You may have to slide load cell while aligning the base and top brackets.
TO BE ON TOP OF LOAD CELL!
6. Bolt the rear base bracket to the main frame using 5/8 x 10” U-Bolts and 5/8 Flange Nut. Secure load cell
to rear top bracket with 3/4 x 2” bolt. Apply thread lock to threads before installing. This bolt cannot be
completely tightened; leave 1/16” between bottom of bolt head and top bracket.
7. Install brackets on other side. Do not tighten mounting bolts on rear legs until front legs are installed.
8. Disassemble the front legs from base plates. Jack up front leg and remove the base plate and yoke plate
bolted to the main frame.
2 John Deere Planter Scale D3864-US-Rev A
5/8” x 2” Bolts
Washer, Nut
3/4” x 2” Fine
Threaded
See Detail A
Rear Top
Bracket
5/8” Top Locking Flange Nut and
5/8 x 10” U-Bolts
Figure 1
Rear Leg Assembly
JD 1990 Single 30’, 40’ & 44’
(Right Side Shown)
Detail A
Use Figure 1 for steps 4 - 7
TOP DECAL NEEDS
Scale Bracket and Load Cell Mounting Installation
g
5/8” x 3-1/2” special
bolt and 5/8 flan
Front Top
Bracket
e
3/4” x 2” Fine Threaded
(See Detail A)
Top Bracket
Load Cell (Decal
on top side)
3/4 x 3-1/2”
bolts and 3/4”
Locknuts
Front Top
Bracket
3/4” x 3.5” Fine
Threaded
(See Detail A)
Load Cell
(Decal on Top Side)
Rear Base
Plate
Reuse Frame Plates and
5/8” Frame Bolts
Front Base
Plate
Reuse
Front Yoke
Plate
5/8” x 2” bolt,
5/8 Flat Washer,
5/8 Top-Lock
Flange Nut
5/8” Top Locking Flange Nut
and 5/8 x 8.75” U-Bolts
Figure 2
Front Leg Assembly
JD 1990 Single 30’
(Left Side Shown)
JD 1990 Single 40’ & 44’
Figure 3
Front Leg Assembly
(Right Side Shown)

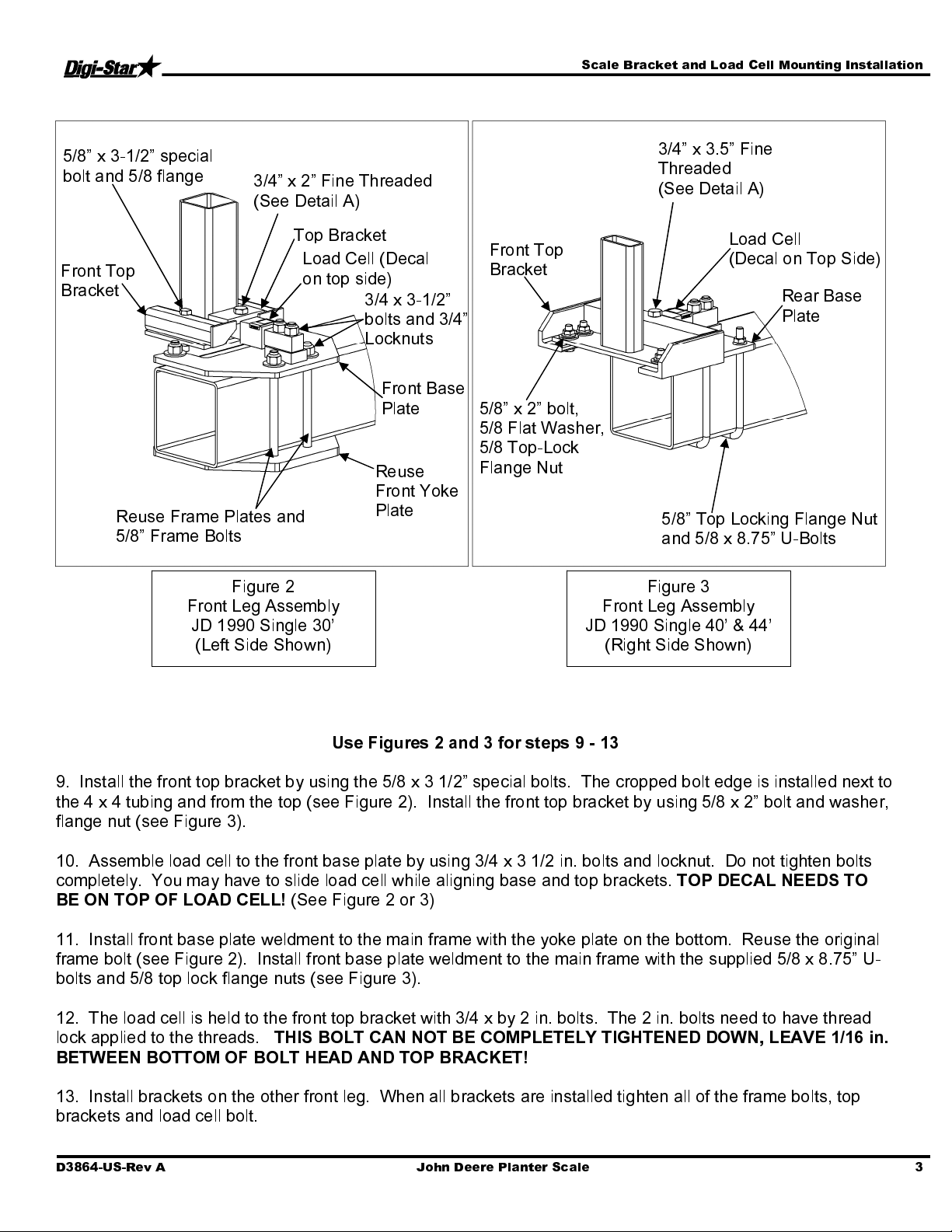

Use Figures 2 and 3 for steps 9 - 13
9. Install the front top bracket by using the 5/8 x 3 1/2” special bolts. The cropped bolt edge is installed next to
the 4 x 4 tubing and from the top (see Figure 2). Install the front top bracket by using 5/8 x 2” bolt and washer,
flange nut (see Figure 3).
10. Assemble load cell to the front base plate by using 3/4 x 3 1/2 in. bolts and locknut. Do not tighten bolts
completely. You may have to slide load cell while aligning base and top brackets.
BE ON TOP OF LOAD CELL!
(See Figure 2 or 3)
TOP DECAL NEEDS TO
11. Install front base plate weldment to the main frame with the yoke plate on the bottom. Reuse the original
frame bolt (see Figure 2). Install front base plate weldment to the main frame with the supplied 5/8 x 8.75” U-
bolts and 5/8 top lock flange nuts (see Figure 3).
12. The load cell is held to the front top bracket with 3/4 x by 2 in. bolts. The 2 in. bolts need to have thread
lock applied to the threads.
THIS BOLT CAN NOT BE COMPLETELY TIGHTENED DOWN, LEAVE 1/16 in.
BETWEEN BOTTOM OF BOLT HEAD AND TOP BRACKET!
13. Install brackets on the other front leg. When all brackets are installed tighten all of the frame bolts, top
brackets and load cell bolt.
D3864-US-Rev A John Deere Planter Scale 3
Junction Box Mounting

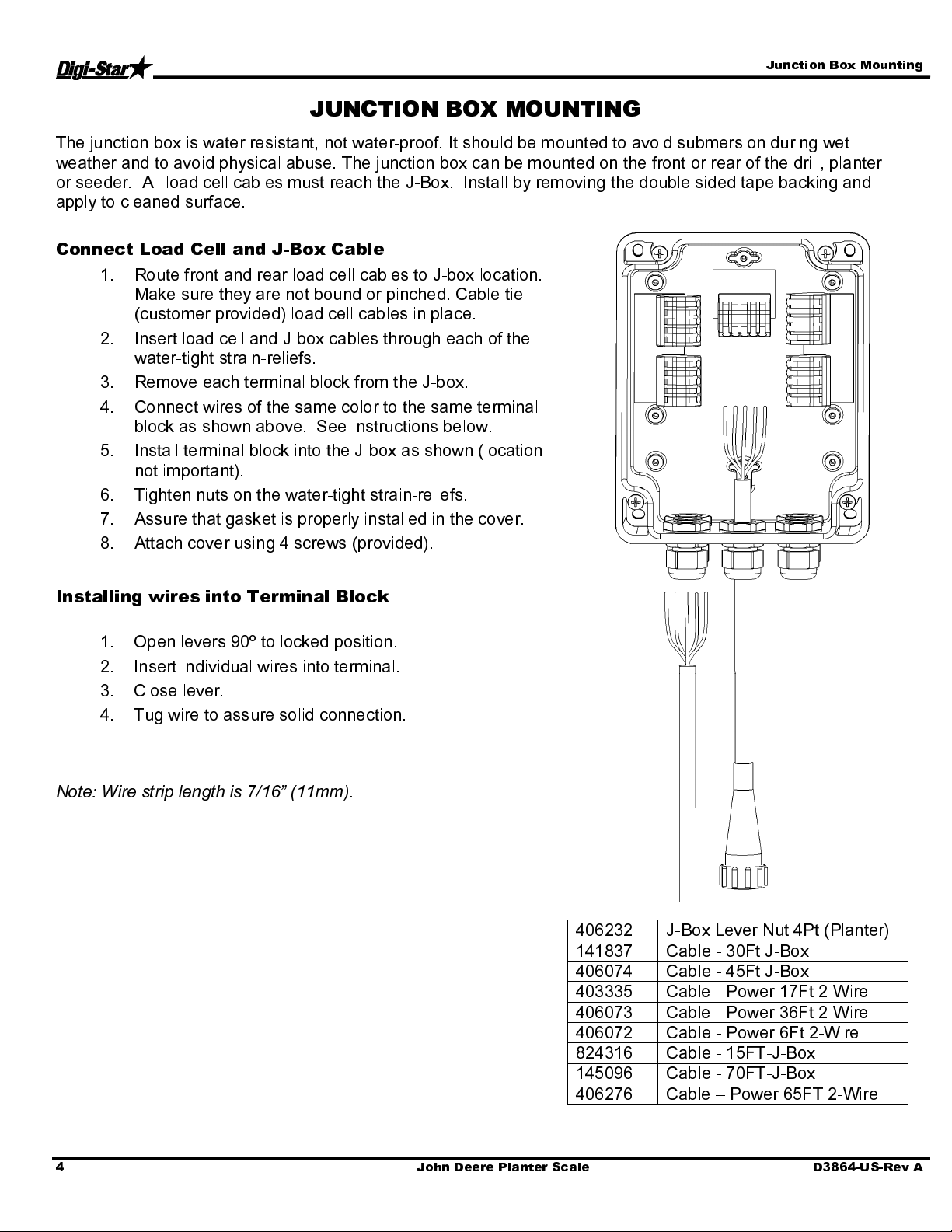

JUNCTION BOX MOUNTING
The junction box is water resistant, not water-proof. It should be mounted to avoid submersion during wet
weather and to avoid physical abuse. The junction box can be mounted on the front or rear of the drill, planter
or seeder. All load cell cables must reach the J-Box. Install by removing the double sided tape backing and
apply to cleaned surface.
Connect Load Cell and J-Box Cable
1. Route front and rear load cell cables to J-box location.
Make sure they are not bound or pinched. Cable tie
(customer provided) load cell cables in place.
2. Insert load cell and J-box cables through each of the
water-tight strain-reliefs.
3. Remove each terminal block from the J-box.
4. Connect wires of the same color to the same terminal
block as shown above. See instructions below.
5. Install terminal block into the J-box as shown (location
not important).
6. Tighten nuts on the water-tight strain-reliefs.
7. Assure that gasket is properly installed in the cover.
8. Attach cover using 4 screws (provided).
Installing wires into Terminal Block
1. Open levers 90º to locked position.
2. Insert individual wires into terminal.
3. Close lever.
4. Tug wire to assure solid connection.
Note: Wire strip length is 7/16” (11mm).
406232 J-Box Lever Nut 4Pt (Planter)
141837 Cable - 30Ft J-Box
406074 Cable - 45Ft J-Box
403335 Cable - Power 17Ft 2-Wire
406073 Cable - Power 36Ft 2-Wire
406072 Cable - Power 6Ft 2-Wire
824316 Cable - 15FT-J-Box
145096 Cable - 70FT-J-Box
406276 Cable – Power 65FT 2-Wire
4 John Deere Planter Scale D3864-US-Rev A
Indicator Mounting

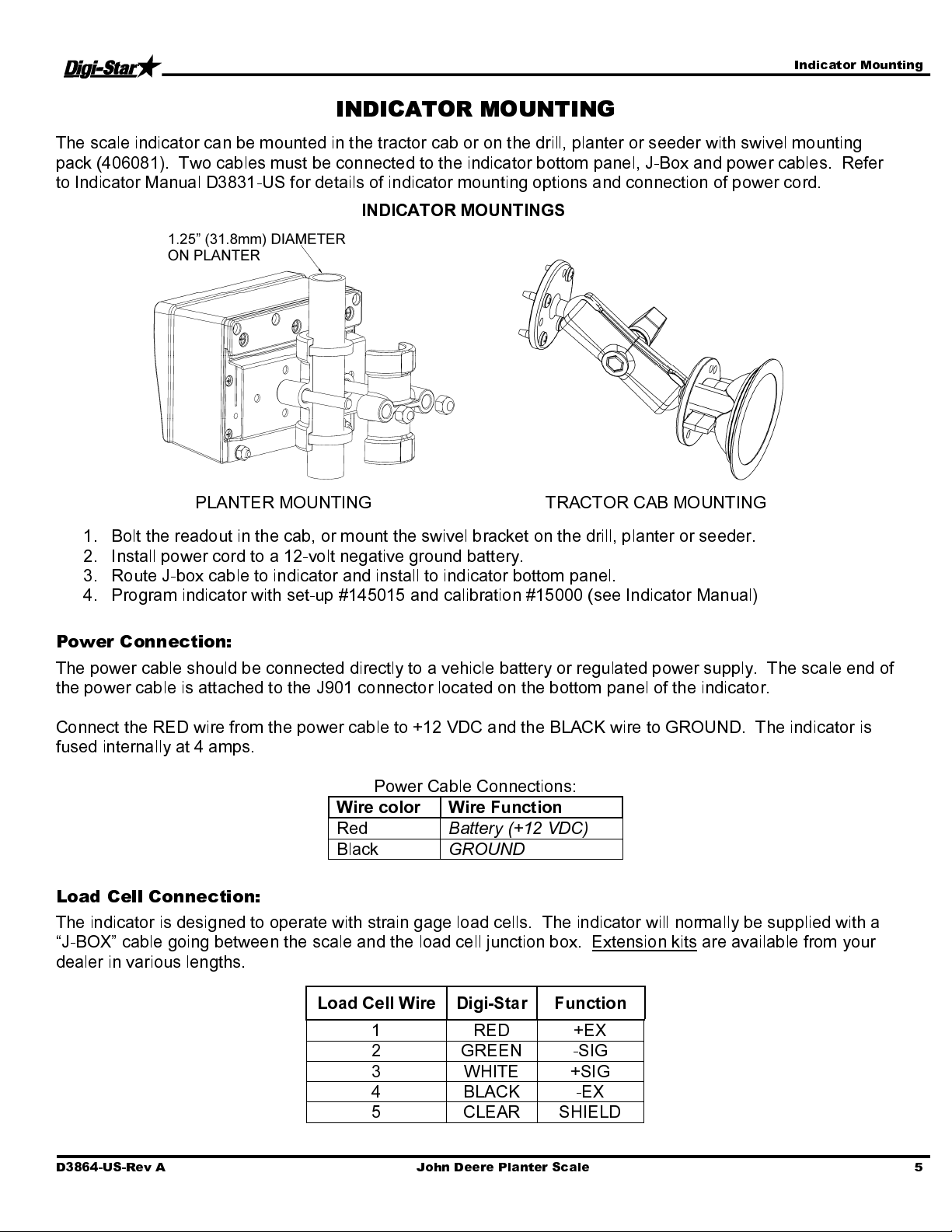

INDICATOR MOUNTING
The scale indicator can be mounted in the tractor cab or on the drill, planter or seeder with swivel mounting
pack (406081). Two cables must be connected to the indicator bottom panel, J-Box and power cables. Refer
to Indicator Manual D3831-US for details of indicator mounting options and connection of power cord.
PLANTER MOUNTING TRACTOR CAB MOUNTING
1. Bolt the readout in the cab, or mount the swivel bracket on the drill, planter or seeder.
2. Install power cord to a 12-volt negative ground battery.
3. Route J-box cable to indicator and install to indicator bottom panel.
4. Program indicator with set-up #145015 and calibration #15000 (see Indicator Manual)
INDICATOR MOUNTINGS
Power Connection:
The power cable should be connected directly to a vehicle battery or regulated power supply. The scale end of
the power cable is attached to the J901 connector located on the bottom panel of the indicator.
Connect the RED wire from the power cable to +12 VDC and the BLACK wire to GROUND. The indicator is
fused internally at 4 amps.
Power Cable Connections:
Wire color Wire Function
Red
Black
Battery (+12 VDC)
GROUND
Load Cell Connection:
The indicator is designed to operate with strain gage load cells. The indicator will normally be supplied with a
“J-BOX” cable going between the scale and the load cell junction box. Extension kits
are available from your
dealer in various lengths.
Load Cell Wire Digi-Star Function
1 RED +EX
2 GREEN -SIG
3 WHITE +SIG
4 BLACK -EX
5 CLEAR SHIELD
D3864-US-Rev A John Deere Planter Scale 5
Trouble Shooting

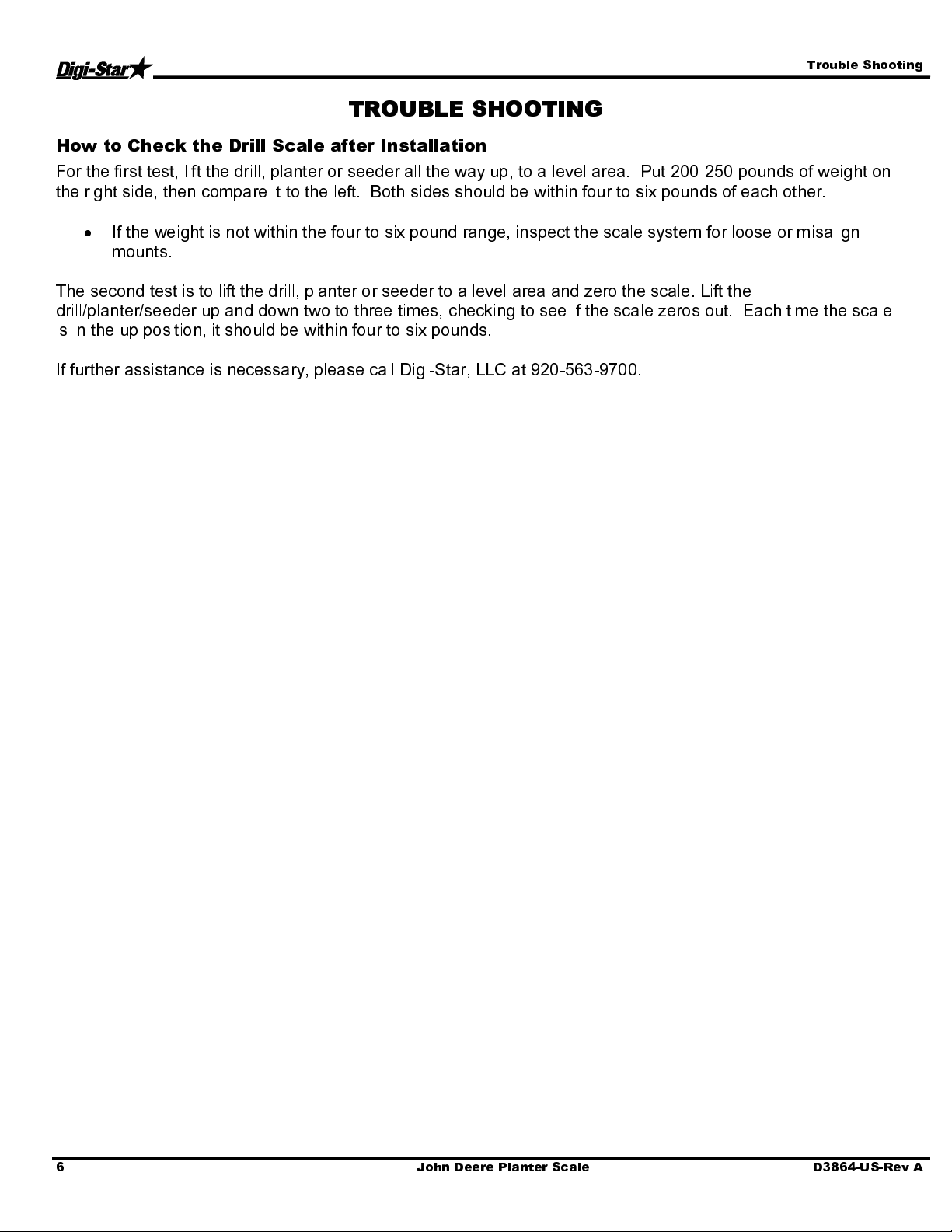

TROUBLE SHOOTING
How to Check the Drill Scale after Installation
For the first test, lift the drill, planter or seeder all the way up, to a level area. Put 200-250 pounds of weight on
the right side, then compare it to the left. Both sides should be within four to six pounds of each other.
•
If the weight is not within the four to six pound range, inspect the scale system for loose or misalign
mounts.
The second test is to lift the drill, planter or seeder to a level area and zero the scale. Lift the
drill/planter/seeder up and down two to three times, checking to see if the scale zeros out. Each time the scale
is in the up position, it should be within four to six pounds.
If further assistance is necessary, please call Digi-Star, LLC at 920-563-9700.
6 John Deere Planter Scale D3864-US-Rev A
Repair Parts
REPAIR PARTS
406142 Kit – Scale JD1990 CCS Single Rank 30’
406143 Kit – Scale JD1990 CCS Single Rank 30’ (Indicator in cab)
Front
Right
Left
KEY QTY. PART NO. DESCRIPTION
1 2 406031 Weld-Top Rear Brkt (JD1990-03)
2 2 406024 Weld-Base Rear Plate (JD1990-07)
3 2 406051 Weld-Top Frt Brkt (JD1990-05)
4 2 406014 Weld-30’ Frt Brkt (JD1990-02)
5 4 406067 Scr – 3/4-16 x 2.0 HHCS ZP Grd 5
6 8 406068 Scr – 3/4-10 x 3.5 HHCS Grd 8 ZP
7 8 405896 Scr – 5/8-11 x 2.0 HHCS Zp Grd 5
8 4 406071 Scr – 5/8-11 x 3.5 HHCS Zp Special
9 8 405858 Wash – 5/8 Flat Wide ZP
10 8 405921 Nut – 3/4-10 Top Lock ZP
11 20 406070 Nut – 5/8-11 Top-Lock Flange ZP
12 4 406025 Bolt-U 5/8-11 x 8.75W x 10.0L Grd 8 ZP
13 4 404284 Cell-1.5 Sq DB-21 Ft
Rear
D3864-US-Rev A John Deere Planter Scale 7
Repair Parts

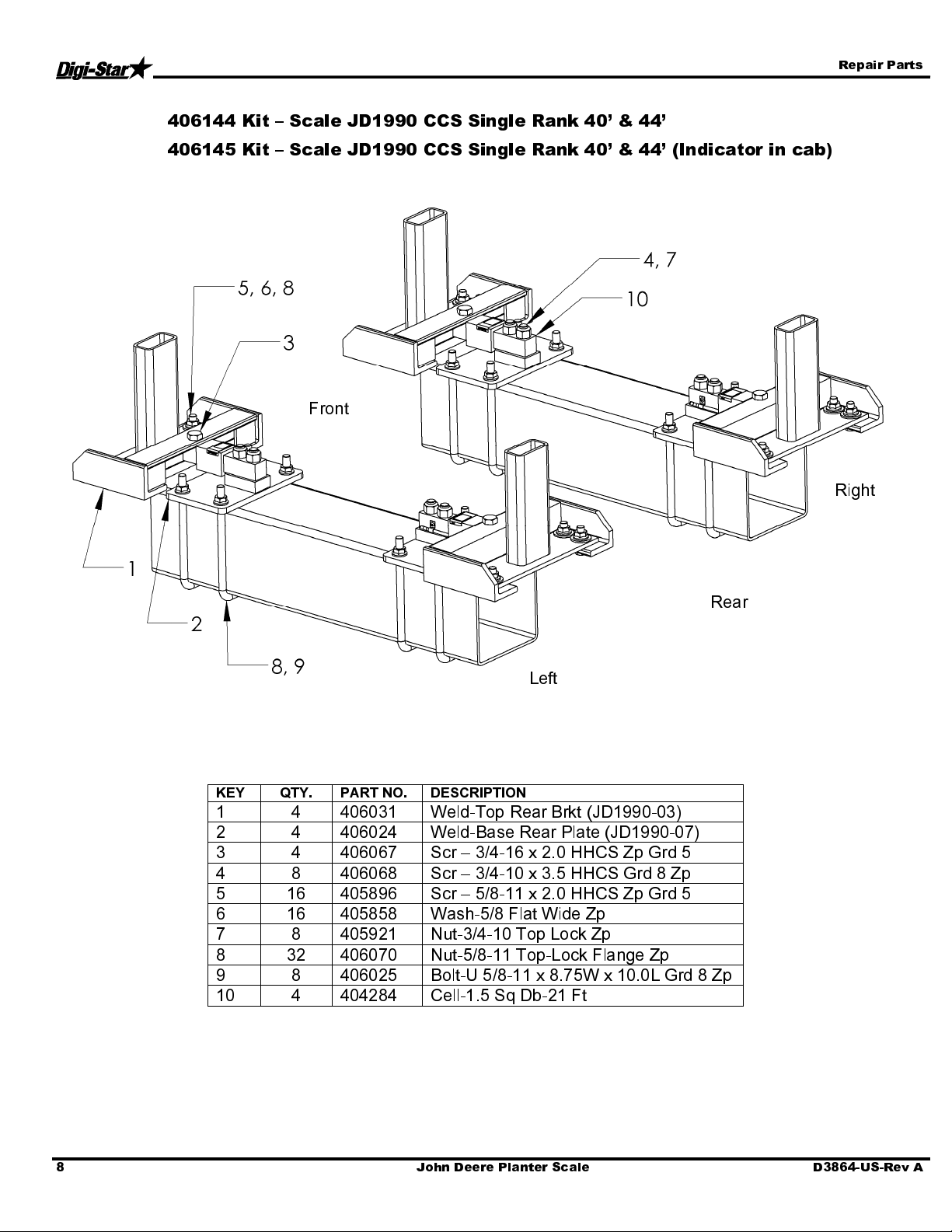

406144 Kit – Scale JD1990 CCS Single Rank 40’ & 44’
406145 Kit – Scale JD1990 CCS Single Rank 40’ & 44’ (Indicator in cab)
Front
Right
Rear
Left
KEY QTY. PART NO. DESCRIPTION
1 4 406031 Weld-Top Rear Brkt (JD1990-03)
2 4 406024 Weld-Base Rear Plate (JD1990-07)
3 4 406067 Scr – 3/4-16 x 2.0 HHCS Zp Grd 5
4 8 406068 Scr – 3/4-10 x 3.5 HHCS Grd 8 Zp
5 16 405896 Scr – 5/8-11 x 2.0 HHCS Zp Grd 5
6 16 405858 Wash-5/8 Flat Wide Zp
7 8 405921 Nut-3/4-10 Top Lock Zp
8 32 406070 Nut-5/8-11 Top-Lock Flange Zp
9 8 406025 Bolt-U 5/8-11 x 8.75W x 10.0L Grd 8 Zp
10 4 404284 Cell-1.5 Sq Db-21 Ft
8 John Deere Planter Scale D3864-US-Rev A
Repair Parts
Indicator Swivel Mount
406081
406385
406081
KEY QTY. PART NO. DESCRIPTION
1 1 403980 Brkt – Robo Mtg
2 2 406086 Brkt – Swivel Cast (JD H161618)
3 2 406087 Gasket – 1.813OD x 1.218 ID x .313
WID
4 2 400036 Scr – 1/4-20 x 3/4 HHCS ZP
5 2 400038 Washer – Lock 1/4 ZP
6 2 400035 Nut – 1/4-20 ZP
7 2 405989 Scr – 3/8-16 x 3.0 HHCS ZP Grd 5
8 2 404292 Nut – 3/8-16 Nyloc ZP
9 2 405612 GT400 Indicator (Not included in kit
406081)
406385
KEY QTY. PART NO. DESCRIPTION
1 1 404230 Ram Suction Cup with Twist Lock
2 2 403180 Assembly – 1” Ram Mount
3 2 403779 Scr - #10 x 5/8 PHSTS 48-2 Blk ZP
D3864-US-Rev A John Deere Planter Scale 9
License Agreement
LICENSE AGREEMENT
IMPORTANT NOTICE: Acceptance and use of the enclosed electronic scale products (hereinafter referred to as
“Purchased Product”) constitutes your agreement to the following terms and conditions. Please carefully read the
following terms and conditions before using or reselling the Purchased Product.
1. Limited License
(“Owner”) is the owner of the following U. S. Patents related to grain
drills: 6,732,667, 7,059,258, 7,273,017, 7,357,087, 7,448,335,
7,523,710 and any other patents which result from continuation
applications thereof (“Patents”). Owner hereby grants to the customer
(“Customer”) a non-exclusive, non-transferable, revocable, limited
license to use the technology described in the Patents to use the
Purchased Product to ass emble a seed planter prod uct covered by the
Patents (“Licensed Product”), and to sell and offer for sale o ne (1) unit
of the Licensed Product in accordance with the terms and conditions set
forth herein. Alternatively, Customer may resell the Purchased Product
to another entity for the purpose of that entity assembling one (1) unit of
a Licensed Product under a permitted sublicense from the Customer
with the same terms as this Agreement. If Customer would like to
assemble, use, sell or offer for sale more than one (1) L icense d Pr oduc t,
or resell more than on e (1) Purchased Product, Cust omer understands
and agrees that it must purchase ano ther Purc hased Produc t from Owner
or acquire a separate license by reque sting and purcha sing another uni t
of the same SKU number that resulted in this purchase.
2. Acceptance of Terms and Conditions
authority to enter into this binding agreement. If Customer does not
accept the terms and con ditions, Custo mer shall not us e the Purchased
Product. Customer understands and agrees that if it uses the Purchased
Product as permitted herein, it will be deemed to have accepted these
terms and conditions and they shall become a binding agreement.
3. Limitations on Use
Product only as expressly authorized in this Agreement, and that any
use not expressly authorized in th is Agr ee ment is prohibi ted. Cu stom er
agrees that it will not: (i) loan, rent, lea se, as sign, sublic ense, di stribut e
or otherwise transfer its rights under this Agreement to a third party,
other than to resell the Purchased Product to another entity for the
purpose of that entity asse mbling one unit of a Licensed Pro duct; (ii)
copy or reproduce the Licensed Product; or (ii i) grant any sublicenses
other than to an end user of the Licensed Product, or to another entity for
the purpose of that entity asse mbling one unit of a Licensed Pro duct.
Customer agrees to use reasonable efforts to prevent any unauthorized
use or copying of the Licensed Product and will notify Owner
immediately upon l earning of any such unauthorized use or copying.
Customer’s obligations under thi s section sh all survive any termi nation
of this Agreement or the license granted hereunder. Any unauthorize d
use of the Licensed Product will result in, among other things, the
immediate termination of this license.
4.
Ownership of Proprietary Rights
Licensed Product is covered intellectual and/or proprietary rights, and
that all such intellectual a nd proprietary rights are owned by Owner.
Customer hereby acknowledges that it has no rights in the
foregoing except as expressly granted herein.
5. NO WARRANTY
the Purchased Product and Customer acknowledges and agree s
that Owner will not assume any product liability or any other
. Digi-Star, LLC, a Wisconsin limited liability company
. Customer warrants that it has the
. Customer agrees that it will use the Licensed
. Customer acknowledges that the
. Customer agrees to fully test and evaluate
liability for the Purchased Product or the Licensed Product. The
Purchased Product is furnished to Customer “AS IS.”
otherwise provided by separate documentation
MAKES NO WARRANTIES, EITHER EXPRESS OR
IMPLIED, WITH RESPECT TO THE PURCHASED
PRODUCT. Customer agrees that Owner shall have no liabil ity
resulting from Customer’s use of the Purchased Product for any
indirect damages including consequential, incidental or special
damages for loss of profit, good will or otherwise. Customer
shall indemnify and hold Owner harmless from any and all
losses, expenses, damages, costs or expenses of any kind,
including but not limited to reasonable attorneys’ fees, incurred
by Owner resulting from Customer’s use of the Purchased
Product. NO ORAL OR WRITTEN STATEMENTS MADE BY
OWNER OR ITS EMPLOYEES INCLUDING BUT NOT
LIMITED TO STATEMENTS REGARDING CAPACITY,
SUITABILITY FOR USE, OR PERFORMANCE OF THE
PURCHASED PRODUCT SHALL BE DEEMED A
WARRANTY OR REPRESENTATION BY OWNER FOR
ANY PURPOSE NOR GIVE RISE TO ANY LIABILITY OR
OBLIGATION OF OWNER.
.
6. Remedies for Violations
remedies available at law and in equity for violations of this
Agreement, including but not limited to the right to recover t he
Licensed Product.
7. Fees
8. Entire Agreement
9. Severability
10. Governing Law
. In consideration for the rights granted under this
Agreement, Customer has paid a license fee that was included in
the amount invoiced to the Customer for the sale of the
Purchased Product.
. Except as expressly stated herein to the
contrary, this Agreement constitutes the entire agreement
between the parties regarding the subject matter hereof, and no
verbal or written prior statements or representations of any sort
made by any party shall be effective or valid for any purpose
whatsoever. This Agreement may be amended only upon the
mutual consent of all parties in writing.
. If any provision of this Agreement shall be held to
be invalid, illegal or unenforceable, the validity, legality and
enforceability of the remaining provisions shall not in any way
be affected or impaired thereby. The failure of any party to
enforce any provision of this Agreement shall not be considered
a waiver thereof, nor shall such failure prevent the future
enforcement of any such provision.
. This Agreement and the relationship between
the parties shall be governed in all respects by the laws of t he
State of Wisconsin and the United States of America. The
parties consent to the jurisdiction and venue of the Wisconsin
and United States courts located in Wisconsin for resolution of
any dispute under to this Agreement.
Owner reserves the right to seek all
Except as
, OWNER
Use or sale of the Licensed Product or of Purchased Product shall bind Customer to all terms and
conditions herein without the necessity of signatures on this Agreement.
10 John Deere Planter Scale D3864-US-Rev A
Loading...
