Denver DSB-4010 User Manual

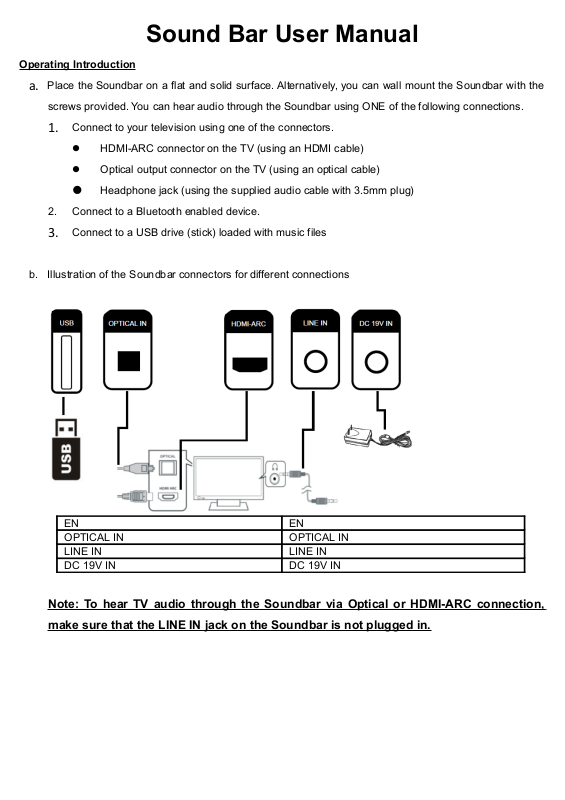

Sound Bar User Manual

Operating Introduction

a.

Place the Soundbar on a flat and solid surface. Alternatively, you can wall mount the Soundbar with the

screws provided. You can hear audio through the Soundbar using ONE of the following connections.

1.

Connect to your television using one of the connectors.

 HDMI-ARC connector on the TV (using an HDMI cable)

 Optical output connector on the TV (using an optical cable)



Headphone jack (using the supplied audio cable with 3.5mm plug)

2. Connect to a Bluetooth enabled device.

3.

Connect to a USB drive (stick) loaded with music files

b. Illustration of the Soundbar connectors for different connections

EN EN
OPTICAL IN OPTICAL IN
LINE IN LINE IN
DC 19V IN DC 19V IN

Note: To hear TV audio through the Soundbar via Optical or HDMI-ARC connection,

make sure that the LINE IN jack on the Soundbar is not plugged in.

c. The control panel on the Soundbar

Press the /MODE button to switch the Soundbar on or to standby.

When the LINE IN jack is plugged in, press and hold the /MODE button to

toggle the sources: Line In -> Bluetooth -> USB Drive.

When the LINE IN jack is not plugged in, press and hold the /MODE button to

toggle the sources: Bluetooth -> USB Drive -> HDMI-ARC -> Optical In.

Press the / MUTE button to start or pause play.

Press and hold the / MUTE button to mute or restore volume.

Press the VOL+/ button to increase volume.

Press and hold the VOL+/ button to skip to next audio file during USB play.

Press the VOL-/ button to decrease volume.

Press and hold the VOL-/ button to skip to previous audio file during USB

play.

d.

Source selection shown on the LED display

Line In source

Bluetooth source
