Denver DSB-2010 User Manual

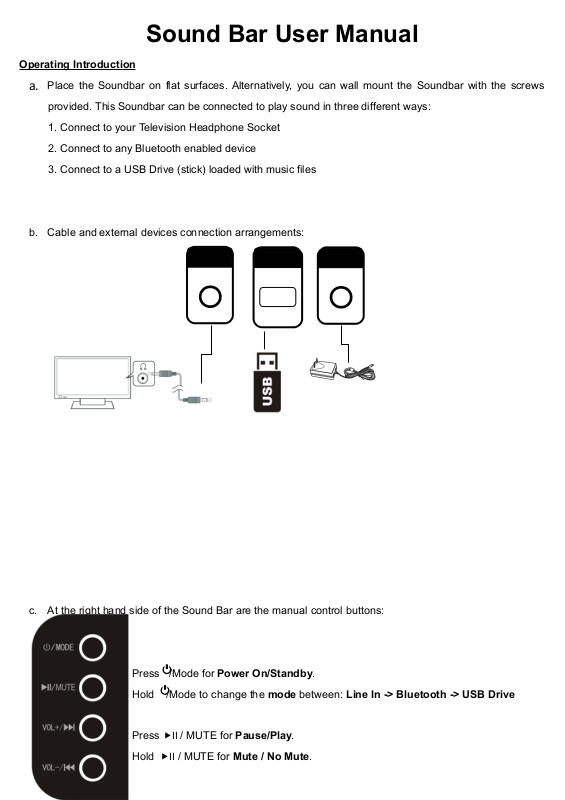

Sound Bar User Manual

Operating Introduction

a.

Place the Soundbar on flat surfaces. Alternatively, you can wall mount the Soundbar with the screws

provided. This Soundbar can be connected to play sound in three different ways:

1. Connect to your Television Headphone Socket

2. Connect to any Bluetooth enabled device

3. Connect to a USB Drive (stick) loaded with music files

b. Cable and external devices connection arrangements:

c. At the right hand side of the Sound Bar are the manual control buttons:

Press /Mode for Power On/Standby.

Hold /Mode to change the mode between: Line In -> Bluetooth -> USB Drive

Press

II

/ MUTE for Pause/Play.

Hold

II

/ MUTE for Mute / No Mute.

USB

LINE IN

DC 12V IN

Press VOL+ /

I

for Volume up.

Hold VOL+ /

I

for Next USB Drive Song.

Press VOL- /

I

for Volume down.

Hold VOL- /

I

for Previous USB Drive Song.

d.

Front LED Display showing the different input modes

Line In

Bluetooth

USB drive when USB Drive in (no USB drive
will flash Lod and skip to next mode in
seconds)

Front indicator Lights:

Red dot: Soundbar in standby

bt font: Flashing means Bluetooth is waiting to pair with your Bluetooth enabled device.

bt lit and static means a Bluetooth device is paired.
