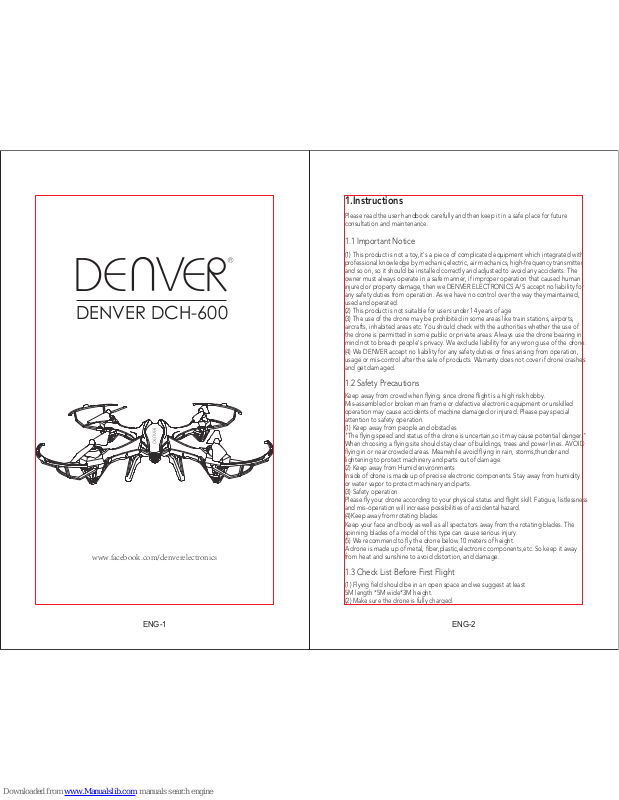

Denver DCH-600 User Manual

ENG-1 ENG-2

(1) This product is not a toy,it's a piece of complicated equipment which integrated with
professional knowledge by mechanic,electric, air mechanics, high-frequency transmitter
and so on, so it should be installed correctly and adjusted to avoid any accidents. The
owner must always operate in a safe manner, if improper operation that caused human
injured or property damage, then we DENVER ELECTRONICS A/S accept no liability for
any safety duties from operation. As we have no control over the way they maintained,
used and operated.
(2) This product is not suitable for users under 14 years of age
(3) The use of the drone may be prohibited in some areas like train stations, airports,
aircrafts, inhabited areas etc. You should check with the authorities whether the use of
the drone is permitted in some public or private areas. Always use the drone bearing in
mind not to breach people's privacy. We exclude liability for any wrong use of the drone.
(4) We DENVER accept no liability for any safety duties or nes arising from operation,
usage or mis-control after the sale of products. Warranty does not cover if drone crashes
and get damaged.

Keep away from crowd when ying, since drone ight is a high risk hobby.
Mis-assembled or broken main frame or defective electronic equipment or unskilled
operation may cause accidents of machine damaged or injured. Please pay special
attention to safety operation.
(1) Keep away from people and obstacles
"The ying speed and status of the drone is uncertain,so it may cause potential danger."
When choosing a ying site should stay clear of buildings, trees and power lines. AVOID
ying in or near crowded areas. Meanwhile avoid ying in rain, storms,thunder and
lightening to protect machinery and parts out of damage.
(2) Keep away from Humid environments
Inside of drone is made up of precise electronic components. Stay away from humidity
or water vapor to protect machinery and parts.
(3) Safety operation
Please y your drone according to your physical status and ight skill. Fatigue, listlessness
and mis-operation will increase possibilities of accidental hazard.
(4)Keep away from rotating blades
Keep your face and body as well as all spectators away from the rotating blades. The
spinning blades of a model of this type can cause serious injury.
(5) We recommend to y the drone below 10 meters of height.
A drone is made up of metal, ber,plastic,electronic components,etc. So keep it away
from heat and sunshine to avoid distortion, and damage.

1.Instructions

Please read the user handbook carefully and then keep it in a safe place for future
consultation and maintenance.

1.1 Important Notice

1.2 Safety Precautions

1.3 Check List Before First Flight

DENVER DCH-600

(1) Flying eld should be in an open space and we suggest at least
5M length *5M wide*3M height.
(2) Make sure the drone is fully charged.

www.facebook.com/denverelectronics

Left Trigger

(360° Flip Mode on/off)

Right Trigger
(signal lights on/off)

1.7*6PB Screw

1. Drone overview

2. Controller

Trim rotation

Power Indicator

Left Stick

(throttle and rotate)

Camera Button

(take photo)

Video Button

(recording on/off)

LCD Screen

Right Stick
(move left / right and
forward / back)

Trim left / right

Trim forward / back

360° Eversion
(instant ip)

Mode
(1: beginner, 2: expert)

PRODUCT PARTS

BLADE GUARD INSTALLATION

ENG-3 ENG-4

LED Signal Lights

LED Running

Lights

Black Blade A
Clockwise

White Blade A

Clockwise

White Blade B
Counter-clockwise

Black Blade B

Counter-clockwise

Blade Guard

LED Signal

Lights

(3) please strictly obey the order of turn-on, turn-off before operation.Whenstarting your
ight,rst turn on the transmitter,and connect power cable of drone last; When nishing
your ight,please disconnect the power cable of your drone rst,turn off transmitter last.
An upset in the order of connection may cause your drone loose control to threaten
yourself and others safety. Please follow a correct habit of turn-on and turn-off.
(4) make sure the connection is solid between battery or motor.
The ongoing vibration may cause bad connection of power terminal and make the
drone uncontrollable.

1.To reduce the risk of re or electric shock, do not expose this apparatus to rainor
moisture. The apparatus shall not be exposed to dripping or splashing and that objects
lled with liquids, such as vases, shall not be placed on apparatus.

2.The direct plug-in adapter is used as disconnect device, the disconnect device shall
remain readily operation.

3.This equipment is a Class II or double insulated electrical appliance. It has been
designed in such a way that it does not require a safety connection to electrical earth.

4.This lightning ash with arrowhead symbol within an equilateral triangle is intended to
alert the user to the presence of non-insulated “dangerous voltage” within the
product’s enclosure that may be of sufcient magnitude to constitute a risk of electric
shock. To reduce the risk of electric shock, do not remove cover (or back) as there are
user serviceable parts inside. Refer servicing to qualied personnel. The exclamation
point within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance instructions in the literature accompanying the
appliance.

5.Correct Disposal of this product. This marking indicates that this product should not be
disposed with other household wastes throughout the EU. To prevent possible harm to
the environment or human health from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of material resources. To return your
used device, please use the return and collection systems or contact the retailer where
the product was purchased.

Warning:

No function
