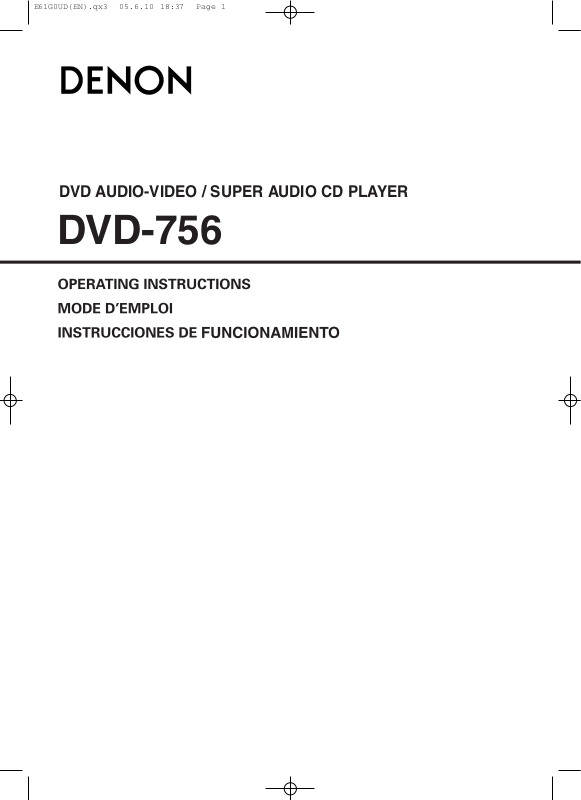

Denon DVD-756 User Manual

DVD-756

DVD AUDIO-VIDEO / SUPER AUDIO CD PLAYER

WARNING

PORTABLE CART WARNING

(Symbol provided by RETAC)

S3125A

: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

IMPORTANT SAFEGUARDS

Read Instructions - All the safety and operating instructions should be read before the product is operated.

2) Retain Instructions - The safety and operating instructions should be retained for future reference.

3) Heed Warnings - All warnings on the product and in the operating instructions should be adhered to.

4) Follow Instructions - All operating and use instructions should be followed.

5) Cleaning - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

6) Attachments - Do not use attachments not recommended by the product manufacturer as they may cause hazards.

7) Water and Moisture - Do not use this product near water - for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.

8) Accessories - Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer.

A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

10) Ventilation - Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

11) Power Sources - This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

12) Grounding or Polarization - This product may be equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

13)

Power-Cord Protection - Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

14) Lightning - For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage to the product due to lightning and power-line surges.

15) Power lines - An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

16) Overloading - Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

17) Object and Liquid Entry - Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

18) Servicing - Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

19) Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a) When the power-supply cord or plug is damaged, b) If liquid has been spilled, or objects have fallen into

the product, c) If the product has been exposed to rain or water, d) If the product does not operate normally by follow-

ing the operating instructions. Adjust only those

controls that are covered by the operating instruc-

tions as an improper adjustment of other controls

may result in damage and will often require exten-

sive work by a qualified technician to restore the

product to its normal operation, e) If the product has been dropped or damaged in

any way.

f) When the product exhibits a distinct change in per-

formance - this indicates a need for service.

20) Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

21) Safety Check - Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

22)

Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

–2–

PRECAUTIONS

Wall

10 cm or more

ON / STANDBY

756

Laser Safety

This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due to possible eye injury.

CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECI-

FIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

CAUTION: VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED. DO NOT STARE INTO

BEAM.

LOCATION: INSIDE, NEAR THE DECK MECHANISM.

FCC WARNING-This equipment may generate or use radio frequency energy. Changes or modifications to

this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

RADIO-TV INTERFERENCE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1) Reorient or relocate the receiving antenna.

2) Increase the separation between the equipment and receiver.

3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4) Consult the dealer or an experienced radio/TV technician for help.

English

This Class B digital apparatus complies with Canadian ICES-003.

CAUTION:TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

Non-use periods - Turn off the unit when it is not in use. Unplug the unit from the household AC outlet if it is not to be used for a long time. Unplug the unit during lightning storms.

Please read this operating instructions carefully before using your DVD player, and keep it for future reference.

Important

Use only discs marked with logos listed on page 6.

Power Supply

The main power supply is engaged when the main plug is plugged in a 120V, 60Hz AC outlet. To operate the unit, press the ON/STANDBY button to turn on the unit.

Warning

To avoid fire or electric shock, do not expose this unit to rain or moisture.

WARNING: LIVE PARTS INSIDE.

Cautions on Installation

Noise or disturbance of the picture may be generated if this unit or any other electronic equipment using microprocessors is used near a tuner or TV. If this happens, take the following steps:

• Install this unit as far as possible from the tuner or TV.

• Set the antenna wires from the tuner or TV away from this

unit’s power cord and input/output connection cords. Noise or disturbance tends to occur particularly when using

•

indoor antennas or 300Ω/ohms feeder wires. We recommend using outdoor antennas and 75Ω/ohms coaxial cables.

NOTE:

• For heat dispersal, do not install this equipment in a con-

fined space such as a book case or similar unit.

DO NOT REMOVE ANY SCREWS.

Installation Location

For safety and optimum performance of this unit:

•

Do not stand the unit up vertically. Install the unit in a horizontal and stable position. Do not place anything directly on top of the unit. Do not place the unit directly on top of the TV.

•

Shield it from direct sunlight and keep it away from sources of intense heat. Avoid dusty or humid places. Avoid places with insufficient ventilation for proper heat dissipation. Do not block the ventilation holes on the sides of the unit. Avoid locations subject to strong vibration or strong magnetic fields.

• Be sure to remove a disc and unplug the AC power cord from the outlet before carrying the unit.

–3–

PRECAUTIONS

Dew Warning

Moisture condensation may occur inside the unit when it is moved from a cold place to a warm place, or after heating a cold room or under conditions of high humidity. Do not use the DVD Player at least for 2 hours until its inside is dry.

Avoid the Hazards of Electrical Shock and Fire

• Do not handle the power cord with wet hands.

• Do not pull on the power cord when disconnecting it from

AC wall outlet. Grasp it by the plug.

• If, by accident, water is spilled on this unit, unplug the power cord immediately and take the unit to our Authorized Service Center for servicing.

Caution

1) Do not attempt to open the cabinet.There are no parts you can service inside. Refer all servicing to qualified service personnel.

Slot and openings in the cabinet and at the side or bottom are provided for ventilation. To ensure reliable operation and to protect the unit from overheating these opening must not be blocked or covered. Avoid enclosed spaces such as book cases unless proper ventilation is provided.

TABLE OF CONTENTS

■

IMPORTANT SAFEGUARDS . . . . . . . . . . . . . . . . . . . . 2

■

PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Laser Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Important . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Warning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Installation Location. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Cautions on Installation . . . . . . . . . . . . . . . . . . . . . . . . . 3

Dew Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Avoid the Hazards of Electrical Shock and Fire . . . . . . . 4

Caution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

■

INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

About Copyright. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Notice for the Progressive Scan Outputs . . . . . . . . . . . . 5

Supplied Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Symbols Used in this Manual. . . . . . . . . . . . . . . . . . . . . 5

■

ABOUT THE DISCS . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Playable Discs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

■

FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

■

FUNCTIONAL OVERVIEW . . . . . . . . . . . . . . . . . . . . . . 8

FRONT PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

REMOTE CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . 8

Tour of the Remote Control . . . . . . . . . . . . . . . . . . . . . . 9

Front Panel Display . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Displays During Operation . . . . . . . . . . . . . . . . . . . . . . 10

HDMI Modes and Actual Output Signals . . . . . . . . . . . 10

Loading the Batteries. . . . . . . . . . . . . . . . . . . . . . . . . . 10

■

CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Description - rear panel . . . . . . . . . . . . . . . . . . . . . . . . 11

Connection to an Audio System . . . . . . . . . . . . . . . . . . 12

Connection to 5.1-channel Surround Sound System. . . 13

Connection to a TV (for video) . . . . . . . . . . . . . . . . . . . 14

Connection to a TV with an HDMI Compatible Port . . . 15

■

DISC PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Basic Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

HDMI Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Pure Direct Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Brightness of the Front Panel Display. . . . . . . . . . . . . . 16

General Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Disc Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Title Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

CALLING UP A MENU SCREEN DURING

PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

DVD Audio Playback . . . . . . . . . . . . . . . . . . . . . . . . . . 17

PLAYBACK OF ALL GROUPS . . . . . . . . . . . . . . . . . 17

PLAYBACK FROM A DESIRED GROUP . . . . . . . . . 17

PAGE SELECTION . . . . . . . . . . . . . . . . . . . . . . . . . 17

PLAYBACK OF THE BONUS GROUP . . . . . . . . . . . 17

3) Keep the unit away from the radiator heat sources.

4) Avoid using near strong magnetic fields.

5) Do not push objects of any kind into this through the cabinet slot as they could touch current carrying parts or short circuit parts resulting in a fire or electric shock.

6) Never spill liquid of any kind on this unit. If liquid is spilled into the unit, consult qualified service engineer.

7) Use this unit in a horizontal (flat) position only.

8) This equipment is in Stand-by mode when it turns off whilst the power cord is connected.

9) Keep the set free from moisture,water and dust.

10) Handle the power cord carefully. Hold the plug when unplugging the code.

11) All the safety cautions and operating instructions should be read before the DVD player is operated.

12) Use caution not to pinch your finger in the disc slot.

13) Do not put heavy objects on the AC power cord.

14) Keep the AC power cord away from heat appliances.

15) Be sure to remove a disc and unplug the AC power cord from the outlet before carrying the DVD player.

16) Do not put any pressure to the DVD player when carrying.

17) Do not use the DVD player outdoors.

Still / Pause . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Resume. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Fast Forward / Reverse Search . . . . . . . . . . . . . . . . . . 17

Slow Forward / Slow Reverse . . . . . . . . . . . . . . . . . . . 17

Step by Step Playback. . . . . . . . . . . . . . . . . . . . . . . . . 17

Zoom. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Title / Chapter Search . . . . . . . . . . . . . . . . . . . . . . . . . 18

By using the SEARCH MODE button . . . . . . . . . . . . 18

using the SKIP buttons HG

Track Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

By using the SEARCH MODE button . . . . . . . . . . . . 18

using the SKIP buttons HG

Time Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Marker Setup Screen. . . . . . . . . . . . . . . . . . . . . . . . . . 18

Repeat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

REPEAT TITLE / CHAPTER. . . . . . . . . . . . . . . . . . . 19

REPEAT TRACK / GROUP / ALL . . . . . . . . . . . . . . . 19

A-B REPEAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Program Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Random Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

MP3 / JPEG / WMA Playback . . . . . . . . . . . . . . . . . . . 20

Changing the On-Screen Display . . . . . . . . . . . . . . . . . 21

Slide Show Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Dialog Speed. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Audio Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Subtitle Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Camera Angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Picture Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Sound Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Stereo Sound Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Virtual Surround . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Black Level Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

■

DVD SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Language Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Display Setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Audio Setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Speaker Setting for ANALOG AUDIO . . . . . . . . . . . . . . 26

Speaker Setting for HDMI AUDIO . . . . . . . . . . . . . . . . 27

Ratings Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

RATING LEVEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

IF YOU FORGET THE PASSWORD . . . . . . . . . . . . . 28

CONTROL LEVELS . . . . . . . . . . . . . . . . . . . . . . . . . 28

Others Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Reset to the Default Settings

(except for Ratings Control) . . . . . . . . . . . . . . . . . . . . 28

Language Code List . . . . . . . . . . . . . . . . . . . . . . . . . . 29

■

TROUBLESHOOTING GUIDE. . . . . . . . . . . . . . . . . . . 30

■

SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

■

MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

. . . . . . . . . . . . . 18

–4–

INTRODUCTION

RC-1010

The serial number of this product may be found on the back of the DVD player. No others have the same serial number as yours.You should record the number and other vital information here and retain this book as a permanent record of your purchase to aid identification in case of theft. Serial numbers are not kept on file.

Date of Purchase

Dealer Purchase from

Dealer Address

Dealer Phone No.

Model No.

Serial No.

About Copyright

Unauthorized copying, broadcasting, public performance and lending of discs are prohibited. This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

U. S. Patent Nos, 4,631,603, 4,819,098, 4,907,093, 5,315,448 and 6,516,132.

Notice for the Progressive Scan Outputs

Consumers should note that not all high definition television sets are fully compatible with this product and may cause artifacts to be displayed in the picture. In case of picture problems with 525 progressive scan output, it is recommended that the user switch the connection to the ‘standard definition’ output. If there are questions regarding your TV set compatibility with this 525p DVD player, please contact our customer service center.

English

Supplied Accessories

Please check to make sure the following items are included with the main unit in the carton.

Remote control

• • • • • •

“AA” (R6P)

batteries

• • • •

Audio cable

• • • • • • •

Video cable

• • • • • • • •

Operating

Instructions

Service Station

• •

• • • • • • • • •

List

Warranty

Card

• • • • • • • •

Symbols Used in this Manual

The following symbols appear below in some headings and notes in this manual, with the following meanings.

DVD-V

DVD-A

Audio CD

A NOTE ABOUT RECYCLING

This product’s packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations.

Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

: Description refers to playback of DVD-

Video discs. (including DVD-R/RW discs)

: Description refers to playback of DVD-

Audio discs.

: Description refers to playback of Audio

Super

CDs.

: Description refers to playback of Super

Audio CDs.

Make your contribution to the environment!!!

• Used up batteries do not belong in the dust bin.

• You can dispose of them at a collection point for used up batteries or special waste. Contact your council for details.

JPEG

WMA

–5–

: Description refers to playback of discs for-

MP3

matted with MP3.

: Description refers to viewing of JPEG

discs.

: Description refers to playback of discs for-

matted with WMA.

ABOUT THE DISCS

Playable Discs

Playable

discs

DVD-Audio

* 2, 3, 5

DVD-Video

* 1, 2, 3, 5

DVD-RW

DVD-R

* 1, 3, 4, 5, 6, 7, 8

Super

Audio CD

* 4, 5

CD-RW

CD-R

* 4, 5, 7

Picture CD

Mark (logo)

Region code

Recorded

signals

Digital audio

Digital video

(MPEG2)

Digital video

(MPEG2)

Digital audio

MP3

WMA

Digital picture

(JPEG)

Disc size

12 cm

8 cm

12 cm

8 cm

12 cm

8 cm

12 cmJPEG

Super

Audio CD

MP3,

JPEG,

WMA

Disc types

Example

Group 1 Group 2

Track 1

Example

Chapter 1 Chapter 2 Chapter 1

Example

Track 1

Example

Track 1

Track 3

Track 2 Track 1

Track 2

Group 1 Group 2

Track 2 Track 5

Track 4

Title 1 Title 2

Chapter 3 Chapter 4

Track 5

Track 4

Track 3

Track 4

Track 2

Chapter 2

Track 6

is a trademark of DVD Format/Logo Licensing Corporation.

is trademark of Eastman Kodak Company.

Windows Media and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.

If you cannot play back a disc which bears one of the marks above, check the following notes.

*1: This unit conforms to the NTSC color system. Discs recorded in other color systems such as PAL cannot

be played back. Certain DVD discs do not operate as described in this manual due to the intentions of the disc’s producers.

*2: *3: Scratched or stained discs may not be played back. *4: Some discs cannot be played back because of incompatible recording conditions, characteristics of the

recorder or special properties of discs.

*5: You can play back discs which bear the marks above. If you use nonstandardized discs, this unit may not

play them back. Even if they are played back, the sound or video quality will be compromised.

*6: Only the discs recorded in the video format and finalized can be played back.

Unfinalized discs cannot be played back. Depending on the recording status of a disc, the disc may not be played back at all or normally (the picture or sound may be distorted, etc.).

*7: If there is too much recording space left on a disc (the used portion is less than 55mm across), it may not

play back properly. Do not glue paper or put stickers on to the disc. These may damage the disc, and the unit may not read it correctly.

*8: *9: This player cannot play the disc contents protected by Windows Media Digital Rights Management (DRM).

¡ NEVER play back the following discs. Otherwise, malfunction may result!

DVD-RAM / CD-I / Photo CD / Video CD / DVD with region codes other than 1 or ALL / DVD-ROM for personal computers / CD-ROM for personal computers

¡ Any other discs without compatibility indications

CAUTION:

• Use caution not to pinch your finger in the disc slot.

• Be sure to remove a disc and unplug the AC power cord from the outlet before carrying the DVD player.

–6–

FEATURES

¡Progressive Scan system

Unlike conventional interlace scanning, the progressive scan system provides less flickering and images in higher resolution than that of traditional (525i/480i) television signals.

Analog 5.1-channel Dolby and DTS surround output

This player is equipped with analog 5.1-channel Dolby and DTS surround audio out jacks for playback.

¡HDMI (High Definition Multimedia Interface)

You can enjoy clearer video output when connecting this player to a display equipment with an HDMI-compatible port.

¡Dialog Speed

Playback in slightly faster or slower speed while keeping the sound quality as in the normal playback. Dialog speed is available only on discs recorded in the Dolby Digital format.

¡Still/Fast/Slow/Step playback

Various playback modes are available including still pictures, fast forward/reverse, slow motion and step frames.

¡Still Mode

The resolution of pictures while in the still (pause) mode can be adjusted.

¡Random Playback for Audio CD, Super Audio

CD, MP3, JPEG, DVD-Audio and WMA

This player can shuffle the playback order of tracks in random order.

¡Program Playback for Audio CD, Super Audio

CD, MP3, JPEG, DVD-Audio and WMA

You can program the playback order of tracks in a desired order.

¡DVD menus in a desired language

You can display DVD menus in a desired language, if available on a DVD.

¡Auto Power Off

The power turns off automatically if there is no activity at the player or its remote for more than 30 minutes (refer to page 28).

¡Subtitles in a desired language

You can select a desired language for subtitles if that language is available on a disc.

¡Selecting a camera angle

You can select a desired camera angle if a disc contains sequences recorded from different angles.

¡Choices for audio language and sound mode

You can select a desired audio language and sound mode if different languages and modes are available on a disc.

¡Ratings Control (Parental lock)

You can set the control level to limit playback of discs which may not be suitable for children.

Super Audio CD multi-channel playback compatibility

In addition to playing DVD-Video and DVD-Audio discs, this player can play multi-channel Super Audio CDs with a playback frequency range covering 100kHz and a dynamic range of 120dB or greater within the audible frequency range, and a maximum of 5.1 channels can be output.

¡Automatic detection of discs

This player automatically detects if a loaded disc is DVD-Video, DVD-Audio, Audio CD, Super Audio CD, MP3, JPEG, or WMA.

¡Playing back an MP3 disc

You can enjoy MP3 files which are recorded on CD-R/RW.

¡Direct Search

You can search the desired title, chapter, and track with numeric button during playback or in stop mode.

¡On-screen display

Information about the current operation can be displayed on a TV screen, allowing you to confirm the currently active functions (such as program playback) using the remote control.

¡Dimmer

The brightness of the display can be adjusted.

¡Screen Saver

The screen saver program starts if there is no activity at the player or its remote for more than 5 minutes. The brightness of the display is darken by 75%. The program is disactivated when there is any activity.

¡Picture Control

Picture Control adjusts Brightness, Contrast, Color, Gamma Correction and Sharpness of the specific display.

¡Search

Chapter search Title search: Search for a desired title. Group search: Search for a desired group. Page search: Search for a desired page. Track search: Search for a desired track. Time search: Search for a desired time point or a

: Search for a desired chapter.

title or a track.

¡Repeat

Chapter: Repeated playback of a chapter of the

Title: Repeated playback of a title of the disc. Tr ac k : All: Repeated playback of the entire disc.

A-B: Repeated playback of a part between

Group:

disc.

Repeated playback of a track of the disc.

(exclude DVD-Video)

two points. Repeated playback of a folder of the

DVD-Audio/Super Audio CD/MP3/JPEG/ WMA disc being played is possible.

¡Zoom

2-time or 4-time magnified screen can be displayed.

¡Marker

Electric reference points designated by user can be called back.

¡Resume Playback

User can resume playback from the point at which the playback has been stopped even if the power is turned off.

¡Component Video Out Jacks

Jacks located on the back of the DVD Player which are used to send high-quality video to a TV via Component Video In Jacks.

¡Bit rate indication ¡DRC (Dynamic Range Control)

You can control the range of sound volume.

¡Displaying a JPEG picture

Kodak Picture CDs can be played back. Still images stored in JPEG format on CD-R/RW can also be played back.

¡Reproducing WMA data

You can enjoy WMA files which are recorded on CD-R/RW.

¡Pure Direct

The sound quality of analog audio output is improved by turning off HDMI output, video signal output, and the front panel display.

“WMA” (Windows Media Audio) is a new audio codec developed by Microsoft®in the United States of America.

–7–

English

FUNCTIONAL OVERVIEW

ON / STANDBY

1 2 3 4 5

6/25

7/29

1213 11109

756

RC-1010

16 17

19 20

32 31

29 11

7 4

FRONT PANEL

REMOTE CONTROL

1. ON/STANDBY (POWER ON/OFF) Buttons [page 16]

2. Disc loading tray

3. OPEN/CLOSE Button [page 16]

4. PLAY Button [page 16]

5. STOP Button [page 16]

6. H (SKIP DOWN) Button [page 18]

7. G (SKIP UP) Button [page 18]

8. DIMMER Button [page 16]

9. PURE DIRECT Button [page 16]

Press to activate Pure Direct function to reduce noise level.

10. HDMI Button [page 16]

Press to set the HDMI connector’s video signal output mode.

11. STILL/PAUSE Button [page 17]

12. Display, Remote Sensor Window

13. HDMI indicator [page 16]

Lights up when there is video signal output from the HDMI OUT jack.

14. A-B REPEAT Button [page 19]

15. REPEAT Button [page 19]

16. RANDOM Button [pages 20]

17. ZOOM Button [page 18]

18. CLEAR Button [page 18]

19. ANGLE Button [page 23]

20.

MENU Button [page 16]

21. ENTER Button [page 16]

22. Cursor Buttons [page 16]

23. RETURN Button [page 19]

24. SEARCH MODE Button [page 18]

25. h (Fast Reverse SEARCH) Button [page 17]

Press more than 2 seconds when you use the front panel button for this function.

26. GROUP Button [page 17]

27. SUPER AUDIO CD SETUP Button [page 24]

28. PAGE Buttons [page 17]

29. g (Fast Forward SEARCH) Button [page 17]

Press more than 2 seconds when you use the front panel button for this function.

30. SETUP Button [page 25]

31. SUBTITLE Button [page 23]

32. TOP MENU Button [page 16]

33. DISPLAY Button [page 21]

34. AUDIO Button [page 23]

35. Numeric Buttons [page 16]

36. MODE Button [page 19]

The buttons with circled numbers can only be operated with the remote control.

–8–

FUNCTIONAL OVERVIEW

POWER Buttons

A-B REPEAT Button

REPEAT Button

MODE Button

SUBTITLE Button

DVD-Video/DVD-Audio

To switch the power between on and standby.

Press this to switch the power between on and

standby.

To mark a segment between A and B for repeated

playback.

To mark a segment between A and B for repeated

playback. (CD, Super Audio CD)

To repeat playback of a title, chapter, group or track.

To shuffle the playing order of groups and tracks.

(DVD-Audio)

To repeat playback of a track or disc. (CD, Super Audio CD)

To repeat playback of a track, group, or

disc. (MP3, JPEG, WMA)

RANDOM Button

To play back tracks in random order.

ZOOM Button

To program a specific playback order.

To activate the 3D sound (Virtual surround system).

(CD, MP3, WMA)

To magnify part of the picture (x2/x4).

ANGLE Button

To access various camera angles on the disc.

To access various subtitles on the disc.

AUDIO Button

DISPLAY Button

To access various audio functions on the disc.

To select STEREO, L-ch or R-ch. (CD)

To display the current disc or HDMI mode.

To search for a chapter, title, track, time or marker.

To return to a location on the disc rapidly.

OPEN/CLOSE Button

To search for a track.

To search for time or a marker. (CD, Super Audio CD)

To return to a location on the disc rapidly.

SEARCH MODE Button

Numeric Buttons

CLEAR Button

To open or close the disc tray.

To select a chapter, title, track or group directly.

To select a track directly.

To clear the markers.

To clear the numbers entered incorrectly.

To cancel the A point for A-B Repeat.

To clear the markers. (CD, Super Audio CD)

To clear the numbers entered incorrectly.

To cancel the A point for A-B Repeat. (CD, Super Audio CD)

CD/Super Audio CD/MP3/JPEG/WMA

To magnify part of the picture (x2). (JPEG)

MENU Button

TOP MENU Button

ENTER, Cursor Buttons

RETURN Button

SEARCH Buttons

To call up the menu on a disc.

To call up the top menu on a disc.

To move the cursor and determine its position.

SETUP Button

To return to the previous operation in the setup

menu.

To return to the previous operation in the setup menu.

To call up the setup menu.

SKIP Buttons

To skip chapters/titles/tracks.

To begin fast forward/reverse search or slow forward/

slow reverse.

STOP Button

PLAY Button

To stop playback.

To begin playback.

To stop playback.

To begin playback.

STILL/PAUSE Button

GROUP Button

SUPER AUDIO CD

SETUP Button

PAGE Buttons

To move the cursor and determine its position.

To skip tracks.

To pause playback.

To advance playback frame by frame.

To pause playback.

To select a desired background display image for playback. (DVD-Audio)

To begin playback from a desired group. (DVD-Audio)

To select the Super Audio CD setup. (Super Audio CD)

To call up the FILE LIST. (MP3, JPEG, WMA)

To return to the first item in the highest hierarchy

of the FILE LIST. (MP3, JPEG, WMA)

To begin fast forward/reverse search. (except JPEG)

To set Picture Control.

To set Black Level on/off.

To activate the 3D sound (Virtual surround system).

To set Dialog Speed.

To program a specific playback order. (DVD-Audio)

To play all groups. (DVD-Audio)

Tour of the Remote Control

Buttons on remote control work in different ways for DVD Video, DVD Audio, Audio CD, Super Audio CD, MP3, JPEG, and WMA : Refer to the following table for correct use.

English

–9–

FUNCTIONAL OVERVIEW

P.SCAN

SACD

A M

Lights up when the inserted disc is being played back.

Displays a type of the disc which is on the tray.

• DVD: DVD-Video

• DVD A: DVD-Audio

• M: Playing the MULTI-CH AREA of Super Audio CD

• CD:

Audio CD, MP3, JPEG, WMA

Lights up when the disc playback comes to a pause.

Lights up when the A-B repeat function is on.

Lights up when the repeat function is on.

Lights up when playing back in slow mode. (DVD)

Displays the elapsed time of the title or track. The number of a new title, chapter, group or track is displayed when a chapter or track is switched. Selected HDMI output mode is displayed.

Lights up when the ALL repeat function is on.

Lights up when the progressive scan system is activated.

Lights up when a Super Audio CD is on the tray.

Power on

No disc inserted or cannot read

Tray open

Tray closed

Loading the Disc

HDMI output mode (480p) is selected

Power off

HDMI output mode (720p) is selected

HDMI output mode (1080i) is selected

HDMI output mode (OFF) is selected

Front Panel Display

Displays During Operation

HDMI Mode and Actual Output Signals

Supported HDMI format of Display device

HDMI mode of this unit

OFF

480p 720p

480p 720p 1080i

480p 720p

480p 1080i

480p

OFF

480p 1080i

480p

OFF

480p

OFF

480p 480p 480p

OFF

720p

1080i

720p720p

1080i1080i

–10–

Loading the Batteries

1. Open the battery compartment cover.

2. Insert two “AA” (R6P) batteries, with each one oriented correctly.

3. Close the cover.

Cautions On Batteries

• Use “AA” (R6P) batteries in this remote control unit.

• Replace the batteries with new ones approximately

once a year, though this depends on the frequency with which the remote control unit is used.

• If the remote control unit does not operate within a close proximity of the main unit, replace the batteries with new ones, even if less than a year has passed.

• The included batteries serve only for verifying operation. Replace them with new batteries as soon as possible.

• When inserting the batteries, be careful to do so in the proper direction, following the and marks

in the remote control unit’s battery compartment.

• To prevent damage or battery fluid leakage:

• Do not mix a new battery with an old one.

• Do not mix two different types of batteries such

as alkaline and manganese.

• Do not short-circuit, disassemble, heat or dispose of batteries in flames.

• Remove the batteries when not planning to use the remote control unit for a long period of time.

• If the batteries should leak, carefully wipe off the fluid from the inside of the battery compartment, then insert new batteries.

CONNECTIONS

1 2 3 4 5 6 7 8

Description - Rear Panel

1. DIGITAL OUT Jacks

Use either an optical or coaxial digital cable to connect to an AV amplifier with a built-in decoder (AV control center).

2. HDMI OUT Jack

Use a HDMI connection cable (commercially available) to connect to a display with an HDMI compatible port.

3. AUDIO OUT Jacks

Connect to the Audio input jacks of A/V-compatible TV or wide screen TV, Stereo system.

4. VIDEO OUT Jack

Use a video cable to connect one of the jacks to Video input on your A/V-compatible TV, wide screen TV, or Stereo system.

5. COMPONENT VIDEO OUT Jacks

Use these jacks if you have a TV with Component Video in jacks. These jacks provide CR/P with S-Video, Component Video provides the best picture quality.

6. S-VIDEO OUT Jack

Use the S-Video cable to connect this jack to the S-Video jack on your A/V-compatible TV or wide screen TV for a higher quality picture.

7. REMOTE CONTROL IN/OUT Jacks

Connecting the DENON Satellite Remote Control to these jacks enables you to operate more than one DENON components with one remote control.

8. 5.1ch AUDIO OUT Jacks

Use speaker cables to connect these jacks to the 5.1 ch Audio input jacks of your AV amplifier with 5.1-channel input terminals.

When using the DENON Satellite Remote Control,

1. Connect the DENON Satellite Remote Control to the REMOTE CONTROL IN jack of this player. This allows you to operate this player with the Satellite Remote Control.

2. Connect another DENON component to the REMOTE CONTROL OUT jack of this player. This allows you to operate this player and the connected component with the same Satellite Remote Control.

NOTE:

• When there is video output from the HDMI OUT jack, no signal is output from the COMPONENT VIDEO OUT jacks.

Selecting Progressive Scan (525p/480p or Interlaced 525i/480i) Playback

¡If your TV is compatible with progressive scanning (525p/480p), connect the TV to the COMPONENT VIDEO OUT jacks of

the DVD player and set PROGRESSIVE to ON in the display setting. Next, set your TV to the progressive scan mode. Refer to page 25 for instructions on changing the display setting. P.SCAN will appear on the display of the unit.

¡If your TV is not compatible with progressive scanning, set PROGRESSIVE to OFF (refer to page 25).Make sure that P.SCAN

on the display of the unit lights off.

¡Use a commercially available adaptor if the video input jacks of your TV or monitor is the BNC type. ¡Progressive video signal will not be output from the COMPONENT VIDEO OUT during the HDMI output mode.

What is Progressive Scanning?

¡Unlike conventional interlace scanning, the progressive scan system provides less flickering and images in higher resolution

than that of traditional (525i/480i) television signals.

R, CB/PB

and Y video. Along

English

The DCDi (Directional Correlational De-interlacing) system of this DVD player produces smooth and natural video images, even if really dynamic, by eliminating the jagged edges. *“DCDi” is a trademark of Faroudja, a division of Genesis Microchip Inc.

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

“DTS” and “DTS Digital Surround” are registered trademarks of Digital Theater Systems, Inc.

–11–

CONNECTIONS

The following shows examples of connections commonly used to connect the DVD player to TV and other components. If using this DVD player to play back a DVD in a Dolby Digital 5.1 channel surround or DTS surround format, the DVD player outputs a Dolby Digital or DTS data stream from its OPTICAL or COAXIAL DIGITAL OUT jacks. By hooking up the player to a Dolby Digital or DTS decoder, you can enjoy more convincing, realistic ambience with powerful and high-quality surrounding sound of a professional standard which can be heard in movie theaters. Use a commercially available audio optical or coaxial digital cable (not included) for the audio connections.

NOTES:

• Be sure to turn off the power of all components in the system before connecting another component.

• Refer to the Instruction Manuals for your TV, stereo system and any other components to be connected to the

DVD player.

Connection to an Audio System

Method 1 Method 2

AUDIO

Audio Input Jacks

AV amplifier with a built in decoder

Stereo system

Digital Audio Input Jacks

(AV control center),

Dolby Digital decoder,

DTS decoder,

MD deck or DAT deck

Audio cable

(supplied)

Optical cable (commercially

available)

Audio Coaxial Digital cable (commercially

available)

DVD

AUDIO OUT

DIGITAL OUT

(analog)

• Method 1 DVD Player + Stereo system

• Method 2 DVD Player + AV amplifier with a built in decoder (AV control center), Dolby Digital decoder, DTS decoder,

MD deck or DAT deck

NOTES (for Method 2 only):

• When using an AV amplifier with a built in decoder (AV control center), Dolby Digital, or DTS decoder as shown in the Method 2, set DOLBY DIGITAL or DTS to BITSTREAM accordingly for audio output in the setup mode (refer to page 26). Set it to PCM for the decoder that is not used currently. Playing back a DVD using incorrect settings may generate noise distortion, and may also damage the speakers.

• The audio source on a disc in a Dolby Digital 5.1 channel surround format cannot be recorded as digital sound by an MD deck or DAT deck.

•

Set DOLBY DIGITAL page 26)

•

Harsh noise that could harm your ears or the speakers is generated when a DVD recorded in DTS is played while using a decoder, etc., that is not DTS-compatible.

•

When playing a copyright-protected over 96kHz (88.2kHz) PCM DVD, the digital sound will be down sampled at 48kHz (44.1kHz), even if you set LPCM SELECT to OFF (refer to page 26).

•

Super Audio CD sound is not output as digital sound.

DTS to PCM for audio output in the setup mode for connecting to an MD deck or DAT deck (

refer to

Optical cable (commercially available)

• Optical cable (commercially available) may be damaged when bent at sharp angles. Ensure cables are coiled in loops with a diameter of 15 cm or more when storing them.

• Use a cable which is 3m or shorter.

• Insert cable plugs firmly into the connectors when making connections.

• If a plug has dust or is dirty, clean it with a soft cloth before inserting it into a connector.

–12–

CONNECTIONS

Connection to 5.1-channel Surround Sound System

Analog 5.1-channel audio signals can be output from the DVD player. The multichannel audio signals recorded in packed PCM and the multichannel Super Audio CDs can be played back when an AV amplifier equipped with analog 5.1-channel audio inputs is connected.

Front speaker

(left)

Surround

speaker

(left)

NOTES:

• For 5.1-channel connections, set ANALOG AUDIO to MULTI CHANNEL in the setup mode and adjust Speaker Configuration, DELAY TIME and CHANNEL LEVEL settings (refer to page 27).

• You can enjoy high-quality analog sound by cutting off the video signal. Press the PURE DIRECT button on the front panel.

Center speaker

AV amplifier

with

5.1-channel

audio input jacks

Front speaker

Surround

speaker

(right)

Subwoofer

AUDIO

DVD

To 5.1-channel

Audio Input

Jacks

Speaker

Cable

(commercially

available)

5.1ch

AUDIO OUT

English

–13–

CONNECTIONS

S-VIDEO IN

VIDEO IN

CB/PBYCR/PR

COMPONENT

VIDEO IN

Connection to a TV (for video)

Basic audio

Method 1 Method 2 Method 3

Good


Better


Best picture

Audio

Cable

(supplied)

Video Cable

(supplied)

S-Video

Cable

(commercially

available)

Component

Video Cable

(commercially

available)

DVD

AUDIO OUT

(analog)

• Method 1 DVD Player + TV with Video Input Jack

• Method 2 DVD Player + TV with S-Video Input Jack

• Method 3 DVD Player + TV with Component Video Jacks

NOTES:

• Connect the DVD player directly to a TV. If the Audio/Video cables are connected to a VCR, pictures may be distorted due to the copy protection system.

• S-Video output connector The video signals are divided into colour (C) and brightness (Y) signals, achieving a clearer picture. If the TV is equipped with a S-Video input connector, we recommend connecting it to this unit’s S-Video output connector using a commercially available S-Video connection cord.

VIDEO OUT S-VIDEO OUT COMPONENT VIDEO OUT

HOW TO CONNECT TO A TV WITHOUT AUDIO/VIDEO INPUT JACKS

If your TV does not have RCA type audio and video input jacks it is still possible to connect this DVD player to your TV’s 75-ohm coaxial antenna terminal using an optional Stereo Audio/Video RF Modulator, not included. Connect the audio and video outputs of the DVD player to the audio and video inputs on the RF Modulator, and then connect the coaxial output of the RF Modulator (usually marked “TO TV”) to the 75 ohm coaxial antenna terminal on your TV. Follow the instruction supplied with the RF Modulator for more details. If your TV’s 75 ohm coaxial antenna terminal is already occupied by an antenna or cable box connection, remove that cable from your TV’s antenna terminal and reconnect it to the coaxial antenna input terminal of the RF Modulator (usually marked “ANT IN”), then connect the RF modulator to your TV’s antenna terminal as described above.

NOTE:

• The picture quality from DVD discs will not be as good if the DVD player is connected to the TV’s antenna terminal through an RF Modulator.

–14–

CONNECTIONS

To HDMI Input Connector

A display equipment with an HDMI compatible port

HDMI cable (commercially available)

Connection to a TV with an HDMI Compatible Port

A simple 1-cable connection (using a commercially available cable) with a device having an HDMI (HighDefinition Multimedia Interface) connector allows digital transfer of the digital images of DVD-Video and other sources, DVD-Video, and the multi-channel sound of DVD-Audio.

C Actual output modes by media

HDMI AUDIO Setting

2 CHANNEL MULTI CHANNEL

Audio Recording Format Dolby Digital Dolby Digital DTS DTS 2channel PCM DTS Multi PCMDVD-Video LPCM 2channel PCM 2channel PCM Multi PCM Multi PCM LPCM or PPCM

DVD-Audio

Audio CD 2channel PCM 2channel PCM 2channel PCM 2channel PCM MP3/WMA 2channel PCM 2channel PCM 2channel PCM 2channel PCM

Super

*1 If the connected equipment is not compatible with HDMI BITSTREAM, signals are output on PCM. *2 If the connected equipment is not compatible with HDMI Multi PCM, signals are output on down mixed PCM. *3 If the connected equipment is not compatible with HDMI ver. 1.0, signals are not output. *4 Sounds recorded on the multi/stereo area of Super Audio CDs are not output. *5 Transfer of signal from DVD audio discs that are copyright-protected by CPPM is only possible if both devices are HDMI Ver.1.1 compatible.

This player is HDMI Ver.1.1 compatible.

(with CPPM) *3 *5 LPCM or PPCM

(without CPPM)

Multi area *4 Stereo area *4Audio CD layer

BITSTREAM *1 PCM BITSTREAM *1 PCM *2

2channel PCM

2channel PCM 2channel PCM Multi PCM Multi PCM

2channel PCM 2channel PCM 2channel PCM 2channel PCM

To play back the digital video images of a DVD via an HDMI connection, it is necessary that both the player and the display equipment (or an AV amplifier) support a copyright protection system called HDCP (High-bandwidth Digital Content Protection System). HDCP is copy protection technology that comprises data encryption and authentication of the connected AV equipment. This player supports HDCP. Please read the operating instructions of your display equipment (or AV amplifier) for more information.

*HDMI: High-Definition Multimedia Interface

NOTES:

• When using an HDMI-incompatible or HDCP-incompatible display equipment, the image will not be viewed properly.

• When the PURE DIRECT button on the front panel is turned on, not only HDMI images but sounds are not output (refer to

page 16).

• Among the devices that support HDMI, some devices can control other devices via the HDMI connector; however, this play- er cannot be controlled by another device vice the HDMI connector.

• The audio signals from the HDMI connector (including the sampling frequency, the number of channels and bit length) may be limited by the equipment that is connected.

• When playing a Super Audio CD with an HDMI connection, audio cannot be transferred beyond the CD layer. Make an ana- log connection for this.

• Among the monitors that support HDMI, some do not support audio output (for example, projectors). In connections with equipment such as this, audio signals are not output from the HDMI output connector.

• When the set’s HDMI connector is connected to a DVI-D compatible monitor (HDCP compatible) with an HDMI-DVI convert- er cable (commercially available), the signals are output in digital RGB.

DOLBY DIGITAL/DTS SettingDOLBY DIGITAL/DTS Setting

Dolby Digital

Multi PCM

English

“HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.”

–15–

DISC PLAYBACK

Basic Playback

CDDVD-ADVD-V

Super

Audio CD

MP3

WMAJPEG

Getting started

• Turn on the power of the TV, amplifier and any other components which are connected to the DVD player.

• Make sure the TV and audio receiver (commercially available) are set to the correct channel.

Press the POWER ON button.

•“P-ON” will appear briefly on the display panel.

Press the OPEN/CLOSE button to open disc loading tray.

Place the disc in the tray, with the label facing up.

Press the PLAY button.

• The tray will close automatically, then playback will start from the first chapter or track of the disc. If the playback does not start automatically, press the PLAY button.

• When you play back the DVD with a title menu, it may appear on the screen. In this case, refer to “Title menu”.

Press the STOP button to stop playback.

NOTES:

• A “prohibited icon” may appear at the top-right corner on the TV screen during operation, warning that a prohibited operation has been encountered by the DVD player or the disc.

• With DVDs that use some titles for playback program signals, playback may start from the second title, or it may skip these titles.

• During the playback of two layered disc, pictures may stop for a moment. This happens when the 1st layer switches to the 2nd layer. This is not a malfunction.

• The operation may vary when you play back DVDs with disc menu. Refer to the manual accompanying the disc for details.

HDMI Setup

Press the HDMI button on the front panel to select the HDMI output mode. The output mode changes as follows every time the HDMI button is pressed.

• The HDMI indicator on the front panel lights up when HDMI output mode is on.

480P

OFF (Default):

480P: Video output from the HDMI OUT jack at 480p. 720P: Video output from the HDMI OUT jack at 720p. 1080: Video output from the HDMI OUT jack at 1080i.

No video outp

NOTES:

• Video and audio signals may distorted temporarily when switching to/from the HDMI output mode.

•

Use a display equipment with an HDMI-compatible port.

•

Progressive video signal will not be output from the COMPONENT VIDEO OUT during the HDMI output mode.

•

The HDMI indicator on the front panel flashes when you select the HDMI output mode but there is no HDMI cable.

• If you turn on the pure direct mode, both video and audio signals thru the HDMI output will be cut off (press the PURE DIRECT button again to recover).

• You can check the HDMI connection status by pressing the DISPLAY button during playback with the HDMI output mode (refer to page 22).

• If the TV is not compatible with newly selected HDMI output mode, the actual output mode will be kept the one before changing the selection. When this occurs, the newly selected mode will appear on the front panel display (see page 10) while the actual output resolution will be indicated by performing the on-screen display as described on page 22.

720P 1080OFF

ut from the HDMI OUT connector.

• Actual output signals for each HDMI mode are differ with the compatibility of the connected display device. Refer to the table on page 10 for details of output patterns of each HDMI mode.

Pure Direct Mode

Press the PURE DIRECT button on the front panel to output an analog audio signal only (no analog video and HDMI signals will be output and the display will be turned off). The higher quality sound will be achieved.

NOTES:

• When pressed the buttons below, the pure direct mode will be released. OPEN/CLOSE button (on both the remote and the front panel), SETUP or DISPLAY button (on the remote), ON/STANDBY or PURE DIRECT button (on the front panel).

• The PURE DIRECT button will not function while dis- playing the setup menu.

• If you turn on the pure direct mode while selecting HDMI mode, both video and audio signals will not be output.

Brightness of the Front Panel Display

Press the DIMMER button on the front panel to select the desired brightness of the front panel display. (BRIGHT, DIMMER or OFF)

• The default setting is BRIGHT.

NOTES:

• The brightness of the front panel display can be adjusted from the setup menu. Details are on page 28.

• When you turn on the power next time, the brightness of the front panel display will be as set in setup menu.

General Features

DVD may contain menus to navigate the disc and access special features. Press the appropriate Numeric buttons or use the Cursor buttons (K / L / s / B) to highlight your selection in the DVD main menu and press the ENTER button to confirm.

NOTE:

•

Unless otherwise stated, all operations described in this manual are based on remote control use. Some operations can be carried out using the menu bar on the TV screen.

Disc Menus

Press the MENU button.

• The DVD main menu will appear.

If the feature is not available, symbol may appear on the TV screen.

If disc menu is available on the disc, audio language, subtitle options, chapters for the title and other options will appear for selection.

Press the Cursor buttons (K / L / s / B) to select an item, and the ENTER button to confirm the selection.

Title Menu

Press the TOP MENU button.

• The title menu will appear.

If the feature is not available, symbol may appear on the TV screen.

Press the Cursor buttons (K / L / s / B) to select an item, and the ENTER button to confirm the selection.

• Playback will begin at the selected title.

–16–

DVD-ADVD-V

DVD-V

DVD-ADVD-V

DISC PLAYBACK

234

Button

1234

Button

CALLING UP A MENU SCREEN DURING PLAYBACK

• Press the MENU button to call up the DVD main menu.

•

Press the TOP MENU button to call up the title menu (DVD-V).

NOTE:

• Contents of menus and corresponding menu operations may vary among discs. Refer to the manual accompanying the disc for details.

DVD Audio Playback

PLAYBACK OF ALL GROUPS

In stop mode, press the MODE button.

ALL GROUP

DVD-AUDIO TOTAL 2:05:55

• The all group screen appears.

Press the PLAY button to begin playback.

PLAYBACK FROM A DESIRED GROUP

During playback or in the stop mode, press the

GROUP but-

1/12

ton.

Press the

Numeric buttons to

select a group.

• The group will be located and playback will start.

PAGE SELECTION

Some DVD-Audio discs that include still images feature a selection of images you can choose from.

During playback, press the PAG E +

or – button to select a desired

1/12

page number to be displayed.

PLAYBACK OF THE BONUS GROUP

Some discs are recorded with the Bonus Group that can be played back by entering a password. Refer to the disc jackets.

In stop mode, press the GROUP button to open the group search screen.

Press the

Numeric buttons to

DVD-AUDIO

BONUS GROUP

Please enter a 4-digit password.

select a bonus group number.

• The password popup window appears.

Press the Numeric buttons to enter the 4-digit password.

• When the correct password is entered, playback starts from the top of the bonus group.

NOTES:

•

In some cases the password window is displayed on the menu screen. Follow the instructions given on the screen.

• Once the password is entered, playback will be repeated until the disc is removed from the disc tray.

Still / Pause

CDDVD-ADVD-V

During playback, press the STILL/PAUSE button.

• Playback will pause and sound will be muted.

To continue playback, press the PLAY button.

NOTE:

• Set STILL MODE to FIELD on the display menu if pictures in the pause mode are blurred (refer to page 25).

Super

Audio CD

DVD-ADVD-V

DVD-A

All Group Playback

--no indication--

MP3

WMAJPEG

Resume

CDDVD-ADVD-V

During playback, press the STOP button.

• Resume message will appear on the TV screen.

Press the PLAY button, play- back will resume from the point at which playback was stopped.

• To cancel resume, press the STOP button twice.

NOTES:

• The resume information be saved even when the power is turned off.

• For MP3, JPEG or WMA, playback will resume from the beginning of the current track.

Audio CD

Fast Forward / Reverse Search

CDDVD-ADVD-V

During playback, press the h or g button repeatedly to select a desired forward or reverse speed.

• For DVDs, fast forward or reverse search speed is different depending on the disc. The approximate speed is 1 (x2), 2(x8), 3 (x20), 4 (x50), and 5 (x100).

• For Audio CDs, Super Audio CDs, MP3, and WMA, the approximate speed is 1 (x2), 2 (x8), and 3 (x16).

•

For Audio CDs, Super Audio CDs, MP3 and WMA, sound will be output at any speed of fast forward and reverse search.

To return to normal playback, press the PLAY button.

Super

Audio CD

Slow Forward / Slow Reverse

During playback, press the STILL/PAUSE button.

Press the

h or g button.

• Slow motion playback will begin and sound will be muted.

Press the h or g button repeat- edly to select a desired speed.

• Slow forward or reverse speed is different depending on the disc. Approximate speed is 1 (1/16), 2 (1/8), and 3 (1/2).

To return to normal playback, press

PLAY button.

the

NOTE:

•

Set STILL MODE to FIELD on the Display menu if pictures in the slow playback mode are blurred (refer to page 25).

Step by Step Playback

During playback, press the STILL/PAUSE button.

• Playback will pause and sound will be muted.

The disc advances frame by frame each time the

STILL/PAUSE button is pressed.

To exit step by step playback, press the PLAY button.

NOTE:

• Set STILL MODE to FIELD on the display menu if pictures in the pause mode are blurred (refer to page 25).

–17–

Super

MP3

WMAJPEG

Resume ON

Press 'PLAY' to play from here. To play the beginning, press 'STOP' first and then 'PLAY'.

WMAMP3

DVD-ADVD-V

only Moving picture

DVD-ADVD-V

only Moving picture

English

1:23:45

-:--:--

-- --:--:--

1 2 3 4 5 6 7 8 9 10 AC

x2 x4

/29

__/ 15

DISC PLAYBACK

Zoom

This function allows you to enlarge the video image and to pan through the zoomed image.

Press the ZOOM button during playback.

• Playback will continue.

Press the ZOOM button repeatedly to select a desired zoom factor: x2, x4 or off.

• Only x2 zoom is available for JPEG.

Use the Cursor buttons (K / L / s / B) to move the zoomed picture across the screen.

To exit zoom mode, press the ZOOM button.

NOTES:

•

Zoom function does not work while disc menu is shown.

• x4 zoom is not available on some discs.

• Navigation screen is not available on JPEG.

• You cannot pan through the zoomed picture on some

JPEG files.

only Moving picture

Title / Chapter Search

By using the SEARCH MODE button

Press the SEARCH MODE button repeatedly until the chapter search or the title search display appears during playback.

Enter the desired chapter/title number with the

By using the SKIP buttons

During playback, press the chapter. Press it repeatedly to skip to subsequent chapters. Press the rent chapter. Press it repeatedly to go to the previous chapters.

•

• If the SKIP

SKIP

Chapter number will appear briefly on the front display panel.

is paused, the playback after skipping to the next chapter will be also paused.

NOTES:

• Depending on the disc being played, the Numeric buttons can be used to search for a desired chapter by entering the chapter number directly. Refer to the manual accompanying the disc.

• The SKIPHHand GGbuttons are not available when playback is stopped.

• A disc that does not contain chapters within titles, the

SKIPHHand

Numeric buttons.

HH GG

SKIP

button to go back to the beginning of the cur-

HHorGG

button is pressed while the playback

buttons change the titles.

button to move to the next

JPEGDVD-ADVD-V

DVD-V

Track Search

CDDVD-A

There are two ways to begin playback a DVD-Audio, Audio CD, Super Audio CD, MP3, JPEG or WMA disc at a specific track.

By using the SEARCH MODE button

Press the SEARCH MODE button.

• The track search display appears.

Within 30 seconds, select a desired track number using the Numeric buttons.

• For the disc with less than 10 tracks, press the track number directly.

• For discs with 10 or more but less than 100 tracks, to play back a single-digit track, press 0 first, then the track number (e.g. for track 3, press 0, 3). To play back a double-digit track, press the track number.

•

For discs with 100 or more tracks, to play back a single- or a double-digit track, press 0 first, then the track number (e.g. for track 3, press 0, 0, 3, and for track 26, press 0, 2,

6). To play back a triple-digit track, press the track number.

• Press the CLEAR button to erase the incorrect input.

NOTE:

•

The +10 button can also bring up the track search display except for the disc with less than 10 tracks. For such a disc, track search can be done by just pressing the track number.

By using the SKIP buttons

During playback, press the next track. Press it repeatedly to skip to subsequent tracks. Press the current track. Press it repeatedly to go to the previous tracks.

•

Track number will appear briefly on the front panel display.

• If the SKIPHHor GGbutton is pressed while the playback is paused, the playback will be paused again after skipping to the next track.

NOTE:

SKIP

• The

SKIPHHand GGbuttons are not available when

playback is stopped.

Super

Audio CD

HH GG

SKIP

button to go back to the beginning of the

button to move to the

Time Search

CDDVD-ADVD-V

Press the SEARCH MODE button until the time search screen appears on the TV screen.

Within 30 seconds, enter a desired disc time point on the disc with the Numeric buttons.

• Playback will start at the specified time.

• For Time Search, “0” appears automatically when there

is no need to enter a number. For example, “0:0_:_ _” appears in the time search screen if the total time of the disc is less than 10 minutes.

Press the CLEAR button to erase an incorrect input.

Marker Setup Screen

CDDVD-ADVD-V

You can use markers to memorize your favorite places on a disc.

Press the SEARCH MODE button repeatedly until the display screen and Markers appear during playback.

Press the Cursor buttons (s or B) to select 1, 2, 3, 4, 5, 6, 7, 8, 9, or 10 and ensure that “_ : _ _ : _ _” appears in the display.

–18–

WMAJPEGMP3

Super

Audio CD

Super

Audio CD

DISC PLAYBACK

CD-DA TOTAL 0:03:30

PROGRAM

1 3:30

T T T T T T

2 4:30 3 5:00 4 3:10 5 5:10 6 1:30 7 2:30

1 3:30

1/2

1/1

When the disc reaches the point you want to remember, press the

ENTER button.

• The title or track and elapsed playback time will appear in the TV screen.

To return to the Marker later, press the SEARCH MODE

button repeatedly during playback and the Cursor buttons (s or B) button to choose a desired marker, then press the

Press the SEARCH MODE or RETURN button to exit.

ENTER button.

NOTES:

• Opening the disc tray, turning off the power or selecting AC at step and pressing the ENTER button will erase all Markers.

• To clear a marker, using the Cursor buttons (s or B), position the cursor on to the marker number to be cleared and press the CLEAR button.

• You can mark up to 10 points.

Repeat

• The REPEAT button is available only during playback.

REPEAT TITLE / CHAPTER

DVD-V

To activate Repeat function, press the REPEAT button during playback.

• The repeat mode changes as described below every time you press the button.

CHAPTER TITLEOFF

(repeat

off)

(current chapter repeat) (current title repeat)

NOTES:

• The Repeat Title/Chapter setting will be cleared when moving to other title or chapter.

• Repeat playback does not function during A-B repeat playback.

• Repeat Title/Chapter is not available with some scenes.

REPEAT TRACK / GROUP / ALL

To activate Repeat function, press the REPEAT button during playback.

• The repeat mode changes as described below every time you press the button.

TRACK ALLOFF

(repeat off)

(current track repeat) (entire disc repeat)

Super

Audio CD

NOTES:

• In the track repeat, the repeat setting will be cleared when moving to other track.

• Repeat playback does not function during A-B repeat playback.

WMAJPEGMP3DVD-A

OFF

(repeat off)

TRACK ALL

(current track

repeat)

GROUP

(current folder

repeat)

(entire disc

repeat)

A-B REPEAT

Press the A-B REPEAT button

CDDVD-ADVD-V

A -

Audio CD

at your chosen starting point.

• A- appears briefly on the TV screen.

Press the A-B REPEAT button again at your chosen end

A - B

point.

• A-B appears briefly on the TV screen, and the repeat sequence begins.

To exit the sequence, press the A-B REPEAT button.

OFF

NOTES:

• The A-B Repeat section can only be set within the current title (for DVD-Video), or current track (for DVDAudio, Audio CD, Super Audio CD).

• A-B Repeat is not available with some scenes on DVD.

• To cancel the A point which was set, press the CLEAR

button.

• A-B Repeat playback does not function during title, chapter, track or all repeat playback.

Program Playback

This function allows you to program a playback order of DVD-Audio, Audio CD, Super Audio CD, MP3, JPEG, or WMA in a desired sequence.

DVD-A

In stop mode, press the MODE button repeatedly until the program screen appears.

• The group selection screen will appear.

Press the Cursor buttons (

▲ or ▼) to select a group, then press the ENTER

button.

• The track selection screen will be displayed.

• It takes approximately five seconds untill the track

selection screen appears.

Press the Cursor buttons (▲ or ▼) to select a track, then press the

ENTER button.

• Press the Cursor button (s) button to go back to the group selection screen from the track selection screen.

Press the PLAY button to play back the pro- grammed tracks.

In stop mode, press the MODE button.

• The program screen will appear.

Press the Cursor buttons (

▲ or ▼) to select a track, then

press the

•

Press the CLEAR button to erase

ENTER button.

the most recently entered track.

Press the PLAY button to start programmed playback.

PROGRAM

DVD-AUDIO TOTAL 0:00:00

1 1:02:25

2 1:03:30

ALL CLEAR

1 1:02:25

1/1

Audio CD

Super

English

1/1

Super

NOTES:

• In the track or group repeat, the repeat setting will be cleared when moving to other track or group.

• For DVD-Audio, ALL repeat is effective only when all groups are being played back.

–19–

+ 43 hidden pages
