Denon DRA-397, DRA-297, DRA-37 User Manual

For U.S.A. & Canada model

Ver. 2

SERVICE MANUAL

MODEL

AM-FM STEREO RECEIVER

Please refer to the
MODIFICATION NOTICE.

DRA-397
DRA-297
DRA-37

注 意

サービスをおこなう前に、このサービスマニュアルを
必ずお読みください。本機は、火災、感電、けがなど
に対する安全性を確保するために、さまざまな配慮を
おこなっており、また法的には「電気用品安全法」に
もとづき、所定の許可を得て製造されております。
従ってサービスをおこなう際は、これらの安全性が維
持されるよう、このサービスマニュアルに記載されて
いる注意事項を必ずお守りください。

●

For purposes of improvement, specifications and
design are subject to change without notice.

●

Please use this service manual with referring to the
operating instructions without fail.

●

Some illustrations using in this service manual are
slightly different from the actual set.

Denon Brand Company, D&M Holdings Inc.

●

●

●

●

TOKYO, JAPAN

本機の仕様は性能改良のため、予告なく変更すること
があります。
補修用性能部品の保有期間は、製造打切後8年です。

修理の際は、必ず取扱説明書を参照の上、作業を行っ
てください。

本文中に使用しているイラストは、説明の都合上現物
と多少異なる場合があります。

X0282V.02 DE/CDM 0701

SAFETY PRECAUTIONS

The following check should be performed for the continued protection of the customer and service technician.

LEAKAGE CURRENT CHECK

Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis
resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power
cord is less than 460 kohms, the unit is defective.

DRA-397/297/37

CAUTION

Please heed the points listed below during servicing and inspection.

◎ Heed the cautions!

Spots requiring particular attention when servicing, such as
the cabinet, parts, chassis, etc., have cautions indicated on
labels or seals. Be sure to heed these cautions and the cau­tions indicated in the handling instructions.

◎ Caution concerning electric shock!

(1) An AC voltage is impressed on this set, so touching inter-

nal metal parts when the set is energized could cause
electric shock. Take care to avoid electric shock, by for ex­ample using an isolating transformer and gloves when
servicing while the set is energized, unplugging the power
cord when replacing parts, etc.

(2)There are high voltage parts inside. Handle with extra care

when the set is energized.

◎

Caution concerning disassembly and assembly!

Though great care is taken when manufacturing parts from
sheet metal, there may in some rare cases be burrs on the
edges of parts which could cause injury if fingers are moved
across them. Use gloves to protect your hands.

◎ Only use designated parts!

The set's parts have specific safety properties (fire resis­tance, voltage resistance, etc.). For replacement parts, be
sure to use parts which have the same properties. In particu­lar, for the important safety parts that are marked ! on wiring
diagrams and parts lists, be sure to use the designated parts.

◎ Be sure to mount parts and arrange the

wires as they were originally!

For safety reasons, some parts use tape, tubes or other insu­lating materials, and some parts are mounted away from the
surface of printed circuit boards. Care is also taken with the
positions of the wires inside and clamps are used to keep
wires away from heating and high voltage parts, so be sure to
set everything back as it was originally.

◎ Inspect for safety after servicing!

Check that all screws, parts and wires removed or discon­nected for servicing have been put back in their original posi­tions, inspect that no parts around the area that has been
serviced have been negatively affected, conduct an insulation
check on the external metal connectors and between the
blades of the power plug, and otherwise check that safety is
ensured.

(Insulation check procedure)
Unplug the power cord from the power outlet, disconnect the
antenna, plugs, etc., and turn the power switch on. Using a
500V insulation resistance tester, check that the insulation re­sistance between the terminals of the power plug and the ex­ternally exposed metal parts (antenna terminal, headphones
terminal, microphone terminal, input terminal, etc.) is 1MΩ or
greater. If it is less, the set must be inspected and repaired.

CAUTION

Many of the electric and structural parts used in the set have
special safety properties. In most cases these properties are
difficult to distinguish by sight, and using replacement parts
with higher ratings (rated power and withstand voltage) does
not necessarily guarantee that safety performance will be pre­served. Parts with safety properties are indicated as shown
below on the wiring diagrams and parts lists is this service
manual. Be sure to replace them with parts with the designat­ed part number.

(1) Schematic diagrams ... Indicated by the ! mark.

(2) Parts lists ... Indicated by the ! mark.

Concerning important safety parts

Using parts other than the designated parts
could result in electric shock, fires or other
dangerous situations.

注 意

サービス、点検時にはつぎのことにご注意願います。

◎注意事項をお守りください！

サービスのとき特に注意を必要とする個所についてはキャ
ビネット、部品、シャーシなどにラベルや捺印で注意事項を
表示しています。これらの注意書きおよび取扱説明書などの
注意事項を必ずお守りください。

◎感電に注意！

(1) このセットは、交流電圧が印加されていますので通電時

に内部金属部に触れると感電することがあります。従っ
て通電サービス時には、絶縁トランスの使用や手袋の着
用、部品交換には、電源プラグを抜くなどして感電にご
注意ください。

(2) 内部には高電圧の部分がありますので、通電時の取扱に

は十分ご注意ください。

◎分解、組み立て作業時のご注意！

板金部品の端面の『バリ』は、部品製造時に充分管理をして
おりますが、板金端面は鋭利となっている箇所が有りますの
で、部品端面に触れたまま指を動かすとまれに怪我をする場
合がありますので十分注意して作業して下さい。手の保護の
ために手袋を着用してください。

◎指定部品の使用！

セットの部品は難燃性や耐電圧など安全上の特性を持った
ものとなっています。従って交換部品は、使用されていたも
のと同じ特性の部品を使用してください。特に配線図、部品
表に!印で指定されている安全上重要な部品は必ず指定の
ものをご使用ください。

◎部品の取付けや配線の引きまわしは、

元どおりに！

安全上、テープやチューブなどの絶縁材料を使用したり、プ
リント基板から浮かして取付けた部品があります。また内部
配線は引きまわしやクランパーによって発熱部品や高圧部
品に接近しないように配慮されていますので、これらは必ず
元どおりにしてください。

◎サービス後は安全点検を！

サービスのために取り外したねじ、部品、配線などが元どお
りになっているか、またサービスした個所の周辺を劣化させ
てしまったところがないかなどを点検し、外部金属端子部
と、電源プラグの刃の間の絶縁チェックをおこなうなど、安
全性が確保されていることを確認してください。

（絶縁チェックの方法）

電源コンセントから電源プラグを抜き、アンテナやプラグな
どを外し、電源スイッチを入れます。500V 絶縁抵抗計を用
いて、電源プラグのそれぞれの端子と外部露出金属部［アン
テナ端子、ヘッドホン端子マイク端子、入力端子など］との
間で、絶縁抵抗値が１ MΩ 以上であること、この値以下の
ときはセットの点検修理が必要です。

注 意

本機に使用している多くの電気部品、および機構部品は安全
上、特別な特性を持っています。この特性はほとんどの場合、
外観では判別つきにくく、またもとの部品より高い定格（定
格電力、耐圧）を持ったものを使用しても安全性が維持され
るとは、限りません。安全上の特性を持った部品は、この
サービスマニュアルの配線図、部品表につぎのように表示し
ていますので必ず指定されている部品番号のものを使用願
います。

(1) 配線図…
(2) 部品表…

安全上重要な部品について

!マークで表示しています。
!マークで表示しています。

指定された部品と異なるものを使用した場合に
は、感電、火災などの危険を生じる恐れがあり
ます。

2

DRA-397/297/37

ADJUSTMENT

Idling Current

Required measurement equipment: DC Voltmeter

1. Preparation

(1) Avoid direct blow from an air conditioner or an electric

fan, and adjust the unit at normal room temperature 15 °C
~ 30 °C (59 °F ~ 86 °F).

(2) Presetting

• POWER (Power source switch) OFF

• SPEAKER (Speaker terminal) No load
(Do not connect speaker, dummy resistor, etc.)

2. Adjustment

(1) Remove top cover and set VR501FL, VR501FR on MAIN

Unit at fully counterclockwise ( ) position.

(2) Connect DC Voltmeter to test points (FRONT-Lch:

TP501, FRONT-Rch: TP502).

(3) Connect power cord to AC Line, and turn power switch

"ON".

(4) Presetting.

MASTER VOLUME : "---" counterclockwise ( min.)
MODE : TONE DEFEAT
FUNCTION : CD

(5) Within 2 minutes after the power on, turn VR501FL clock-

wise ( ) to adjust the TEST POINT voltage to 1.5 mV
± 0.5 mV DC.

(6) After 10 minutes from the preset above, turn VR501FL to

set the voltage to 2.0 mV ± 0.5 mV DC.

(7) Adjust the Variable Resistors of other channels in the

same way.

調整

アイドリング電流の調整

調整に必要な測定器 : DCVoltmeter

1. 準備

(1) セットをクーラ、扇風機のそばなど風通しの良い場所

を避け、通常の使用状態に置きます。セットの周囲温
度は 15〜30 ℃、湿度は常湿とします。

(2) プリセット

・電源スイッチ OFF
・スピーカ端子 無負荷

( スピーカ・ダミー抵抗器などを接続しない。)

2. 調整

(1) 上カバーをはずし、メイン基板の VR501FL,VR501FR を

反時計方向 ( )に回し切った状態にセットします。

(2) テストポイント (FRONT-Lch:TP501,FRONT-Rch:

に DCVoltmeterを接続します。

(3) 電源コードを AC100V（95〜105Vの範囲でも可）に接

続し、電源スイッチを "ON"にします。

(4) ON後、次のようにセットします。

・MASTERVOLUME（音量調節つまみ）→反時計方向

( )に回す、最小の状態にする。

・SPEAKER（スピーカ端子）→無負荷（スピーカ、

ダミー抵抗器などを接続しない。）

MODE:TONEDEFEAT 
FUNCTION:CD

(5) 2分以内に VR501FLを時計方向 ( ) に回しテストポ

イントの電圧を次のように調整します。

1.5mV ±0.5mVDC

(6) 予備調整から 10分後 VR501FLを回し、次のように電圧

を設定します。

2.0mV± 0.5mVDC

(7) 同じ方法で各チャネルの可変抵抗を調整します。

TP502)

DC Voltmeter

FLch

FRch

VR501FL

TP501

VR501FR

TP502

3

BLOCK DIAGRAM

DRA-397 model

DRA-397/297/37

4

DRA-297/37 model

DRA-397/297/37

5

LEVEL DIAGRAM

DRA-397/297/37

6

SEMICONDUCTORS

Only major semiconductors are shown, general semiconductors etc. are omitted to list.

主な半導体を記載しています。汎用の半導体は記載を省略しています。

1. IC’s

M30624FGPFG (IC401) FRONT P.W.B.

DRA-397/297/37

7

M30624FGPFG Terminal Function

DRA-397/297/37

PIN No. Port Function Port Name

1 P96 SIRIUS_TX O O/L SIRIUS data transmission

2 P95 SIRIUS MUTE O O/L SIRIUS MUTE control

3 P94 (HD CE) O O/L HD Radio enable output

4 P93 MULT3 SW O O/L ZONE3 output, HPFcontrol

5 P92 HD Radio TX/(SDA) O O/L HD Radio data transmission

6 P91 HD Radio RX/(SCL) I I HD Radio Data reception

7 P90 (HD CLK) O O/L HD Radio clock output

8 BYTE I - Ext. data bus bit width switching

9 CNVSS I - Processor mode switching

10 P87, XCIN (HD RESET) O O/L HD Radio reset output

11 P86, XCOUT FLT_RESET O O/L FLT reset output

12 /RESET I - Hard reset

13 XOUT O - Oscillator connection

14 VSS I - GND

15 XIN I - Oscillator connection

16 VCC1 I - 5V

17 P85 NMI I - NMI interruption input

18 P84, /INT2 RS232C_TX I I RS232C signal detection

19 P83, /INT1 REMOCON I I Remote control input

20 P82, /INT0 PROTECTION I I Unusual operation detection

21 P81 FLT_CLK O O/L FLT clock output

22 P80 FLT_DATA O O/L FLT data output

23 P77 FLT_CE1 O O/L FLT chip select output

24 P76 SPK_RLY_A O O/L Speaker A Relay control

25 P75 CPU_5V_SW O O/L CPU 5V control

26 P74 SPK_RLY_B O O/L Speaker B Relay control

27 P73 (NC) O/L

28 P72, CLK2 iPod_DET I I iPod connection detection

29 P71, RXD2/SCL2 iPod_RX I I iPod data reception

30 P70, TXD2/SDA2 iPod_TX O O/L iPod data transmission

31 P67, TXD1/SDA1 RS232C_TX O O/L RS232C data reception

32 P66, RXD1/SCL1 RS232C_RX I I RS232C data reception

33 P65, CLK1 PLL_DI I I PLL data input

34 P64 PLL_DO/XM-DAC_DO O O/L PLL/XM-DAC data output

35 P63, TxD0/SDA0 XM_TX O O/L XM data transmission

36 P62, RXD0/SCL0 XM_RX I I XM data reception

37 P61, CLK0 PLL_CLK/XM-DAC_CLK O O/L PLL/XM-DAC clock output

38 P60 PLL_CE O O/L PLL enable output

39 P57 /TUNED I I TUNED detection

40 P56 /STEREO I I STEREO broadcast detection

41 P55 RS232C_UPDATE_EPM

42 P54 VOL_UP I I Volume encoder input

43 P53 VOL_DOWN I I Volume encoder input

44 P52 SELECT_DOWN I I Select encoder input

45 P51 SELECT_UP I I Select encoder input

46 P50 RS232C_UPDATE_CE O O/L

47 P47 DC TRIGGER_2ON O O/L Trigger Out2 ON/OFF control

48 P46 FUNCTION_UP I I Function encoder input

49 P45 TUNER MUTE O O/L TUNER MUTE control

50 P44 E2PROM_SCL O O/L E2P Clock output

51 P43 E2PROM_SDA I/O O/L E2PROM data transmission and reception

52 P42 ZONE3_MUTE O O/L ZONE3 MUTE control

53 P41 ZONE2_MUTE O O/L ZONE2 MUTE control

54 P40 STBY LED_RED O O/L Standby LED(R) control

P-ON

I/O

Standby

Function

8

DRA-397/297/37

PIN No. Port Function Port Name

55 P37 HD Radio MUTE O O/L HD Radio MUTE control

56 P36 DC TRIGGER 1 O O/L Trigger Out1 ON/OFF control

57 P35 H/P RELAY O O/L H/P Relay control

58 P34 SW_MUTE O O/L SW MUTE control

59 P33 VIDEO OFF O O/L VIDEO Reg control

60 P32 HD Radio DET I I HD Radio Installing detection

61 P31 HD Radio P/E O O/L HD Radio power supply control

62 VCC2 I - 5V

63 P30 (NC)

64 VSS I - GND

65 P27 XM_DBPOWER O O/L XM Reg control

66 P26 XM_DIC_RESET O O/L XM DIC reset output

67 P25 XM_DAC_PDN O O/L XM DAC reset reset output

68 P24 XM_COMMAND O O/L XM DIC CBM output

69 P23 XM_REQ I I XM DIC Interrupt request

70 P22 H/P DET I I H/P connection detection

71 P21 POWER RELAY O O/L POWER RELAY control

72 P20 FUNCTION_DOWN I I Function encoder input

73 P17, /INT5 POWER DOWN I I CPU 5.6V detection

74 P16, /INT4 LOUDNESS ON O O/L LOUDNESS ON/OFF control

75 P15, /INT3 POWER I I POWER Key input detection

76 P14 MULT2 SW O O/L ZONE3 output, HPF control

77 P13 STBY_LED_GREEN O O/L Standby LED(G) control

78 P12 NJW1197W_LATCH O O/L NJW1197 latch output

79 P11 NJW1197W_CLK O O/L NJW1197 Clock output

80 P10 NJW1197W_DATA O O/L NJW1197 data output

81 P07 MAIN_MUTE O O/L MAIN MUTE control

82 P06 VIDEO_A O O/L VIDEO output control

83 P05 VIDEO_B O O/L VIDEO output control

84 P04 VIDEO_C O O/L VIDEO output control

85 P03 VIDEO_D O O/L VIDEO output control

86 P02 VIDEO_E O O/L VIDEO output control

87 P01 ZONE2_VIDEO_MUTE O O/L ZONE2 VIDEO MUTE control

88 P00 ZONE3_VIDEO_MUTE O O/L ZONE3 VIDEO MUTE control

89 P107 (NC)

90 P106, AN6 KEY_IN1 I I Key input

91 P105, AN5 KEY_IN2 I I Key input

92 P104, AN4 KEY_IN3 I I Key input

93 P103 (NC)

94 P102 SIRIUS P/E O O/L SIRIUS enable output

95 P101 XM MUTE O O/L XM MUTE control

96 AVSS I - GND

97 P100 XM_DACNS O O/L XM DAC chip select input

98 VREF I - standard voltage input

99 AVCC I - 5V

100 P97, RXD4/SCL4/STXD4 SIRIUS_RX I I SIRIUS data reception

P-ON

I/O

Standby

Function

9

NJW1197 (IC101) INPUT P.W.B.

DRA-397/297/37

PIN FUNCTION

BLOCK DIAGRAM

81

100

80

51

50

31

1

30

10

DRA-397/297/37

NJW1197 Terminal Function

No. SYMBOL FUNCTION No. SYMBOL FUNCTION

1 ROUT Rch output 51 DCR_IN Multi-channel selector Rch input

2 COUT Cch output 52 DCR_OUT Input selector Rch output

3 LSOUT LSch output 53 GND Ground

4 RSOUT RSch output 54 DCL_IN Multi-channel selector Lch input

5 LBOUT LBch output 55 DCL_OUT Input selector Lch output

6 RBOUT RBch output 56 GND Ground

7 SWOUT SWch output 57 REC_B1R Input selector Rch REC output B1

8 GND Ground 58 REC_B1L Input selector Lch REC output B1

9 FIL_BL2 Lch Bass filter terminal 2 59 REC_A4R Input selector Rch REC output A4

10 FIL_BL1 Lch Bass filter terminal 1 60 REC_A4L Input selector Lch REC output A4

11 FIL_TL Lch Treble filter terminal 61 REC_A3R Input selector Rch REC output A3

12 TCAP Switching noise rejection capacitor 62 REC_A3L Input selector Lch REC output A3

13 FIL_BR2 Rch Bass filter terminal 2 63 REC_A2R Input selector Rch REC output A2

14 FIL_BR1 Rch Bass filter terminal 1 64 REC_A2L Input selector Lch REC output A2

15 FIL_TR Rch Treble filter terminal 65 REC_A1R Input selector Rch REC output A1

16 V+ + Power supply voltage input 66 REC_A1L Input selector Lch REC output A1

17 ADR Chip address select input 67 VDDOUT Internal Digital +Power Supply Output

18 V- - Power supply voltage input 68 DATA Control data signal input

19 L1IN Input selector Lch input 1 69 CLOCK Clock signal input

20 DCCAP_SW Switching noise rejection capacitor 70 LATCH Latch signal input

21 R1IN Input selector Rch input 1 71 MUTE External Mute control

22 DCCAP_RB Switching noise rejection capacitor 72 FL+ Input selector gain control Lch no-inverted output

23 L2IN Input selector Lch input 2 73 FL- Input selector gain control Lch inverted output

24 DCCAP_LB Switching noise rejection capacitor 74 FR+ Input selector gain control Rch no-inverted output

25 R2IN Input selector Rch input 2 75 FR- Input selector gain control Rch inverted output

26 DCCAP_RS Switching noise rejection capacitor 76 GND Ground

27 L3IN Input selector Lch input 3 77 LSCIN Multi-channel LSch input C

28 DCCAP_LS Switching noise rejection capacitor 78 RSCIN Multi-channel RSch input C

29 R3IN Input selector Rch input 3 79 LBCIN Multi-channel LBch input C

30 DCCAP_C Switching noise rejection capacitor 80 RBCIN Multi-channel RBch input C

31 L4IN Input selector Lch input 4 81 GND Ground

32 DCCAP_R Switching noise rejection capacitor 82 LAIN Multi-channel Lch input A

33 R4IN Input selector Rch input 4 83 RAIN Multi-channel Rch input A

34 DCCAP_L Switching noise rejection capacitor 84 CAIN Multi-channel Cch input A

35 L5IN Input selector Lch input 5 85 LSAIN Multi-channel LSch input A

36 GND Ground 86 RSAIN Multi-channel RSch input A

37 R5IN Input selector Rch input 5 87 LBAIN Multi-channel LBch input A

38 GND Ground 88 RBAIN Multi-channel RBch input A

39 L6IN Input selector Lch input 6 89 SWAIN Multi-channel SWch input A

40 L9IN Input selector Lch input 9 90 GND Ground

41 R6IN Input selector Rch input 6 91 LBIN Multi-channel Lch input B

42 R9IN Input selector Rch input 9 92 RBIN Multi-channel Rch input B

43 L7IN Input selector Lch input 7 93 CBIN Multi-channel Cch input B

44 L10IN Input selector Lch input 10 94 LSBIN Multi-channel LSch input B

45 R7IN Input selector Rch input 7 95 RSBIN Multi-channel RSch input B

46 R10IN Input selector Rch input 10 96 LBBIN Multi-channel LBch input B

47 L8IN Input selector Lch input 8 97 RBBIN Multi-channel RBch input B

48 L11IN Input selector Lch input 11 98 SWBIN Multi-channel SWch input B

49 R8IN Input selector Rch input 8 99 GND Ground

50 R11IN Input selector Rch input 11 100 LOUT Lch output

11

F2602-1 XMDTIC (IC203) XM-READY P.W.B.

DRA-397/297/37

Functionnal Description

12

F2602-1 XMDTIC Pin Descriptions

DRA-397/297/37

13

DRA-397/297/37

BA7626F (IC601) MAIN P.W.B.

Block diagram

Monitor OUT

Truth table

ABE

LL

HL

LH

∗

∗

∗

H H L IN4

HHH IN5

Note 1:∗indicates "don't care" (H or L).

Monitor OUT

IN1

IN2

IN3

1

GND

IN5

GND

IN4

CTL E

IN3

CTL D

2

3

4

5

6

7

8

6dB

logic

6dB

logic

CDE VOUT1

LL

HL

LH

∗

∗

∗

HHL IN4

H H H IN5

IN2

IN3

16

IN1

CTL A

15

CC

V

14

13

V

CC

12

IN2

11

CTL B

10

OUT2

V

CTL C

9

CDE VOUT2

LL

HL

LH

∗

∗

∗

IN1

IN3

HHL IN4

HHH IN5

14

AK4385 (IC 207) XM-READY P.W.B.

DRA-397/297/37

MCLK

BICK

SDTI

LRCK

1

2

3

4

Top
View

PDN

CSN

CCLK

CDTI

5

6

7

8

Pin function

No. Pin Name I/O Function

1 MCLK I Master Clock Input Pin

An external TTL clock should be input on this pin.
2 BICK I Audio Serial Data Clock Pin
3 SDTI I Audio Serial Data Input Pin
4 LRCK I L/R Clock Pin
5 PDN I Power-Down Mode Pin

When at “L”, the AK4385 is in the power-down mode and is held in reset.

The AK4385 should always be reset upon power-up.
6 CSN I Chip Select Pin
7 CCLK I Control Data Input Pin
8 CDTI I Control Data Input Pin
9 AOUTR- O Rch Negative Analog Output Pin

10 AOUTR+ O Rch Positive Analog Output Pin
11 AOUTL- O Lch Negative Analog Output Pin
12 AOUTL+ O Lch Positive Analog Output Pin
13 VSS - Ground Pin
14 VDD - Power Supply Pin
15 DZFR O Rch Data Zero Input Detect Pin
16 DZFL O Lch Data Zero Input Detect Pin

Note: All input pins should not be left floating.

16

15

14

13

12

11

10

DZFL

DZFR

VDD

VSS

AOUTL+

AOUTL-

AOUTR+

9

AOUTR-

SN74LV08A (IC 204) XM-READY P.W.B.
SN74HCT08 (IC 205, 206, 211) XM-READY

1A
1B
1Y
2A
2B
2Y

GND

1

2

3

4

5

6

7

14

13

12

11

10

V

CC

4B
4A
4Y
3B

9

3A

8

3Y

15

24LC16B (IC 404) FRONT P.W.B

DRA-397/297/37

BLOCK DIAGRAM

WP

HV GENERATOR

24LC16B

8

V

CC

7

WP

6

SCL

5

SDA

SS

1

2

3

4

A0

A1

A2

V

CXA1511M (IC 201) XM-READY P.W.B.

85

Block Diagram and Pin Configuration

IN

1

4

Diode

1

I/O

CONTROL

LOGIC

SDA SCL

V

CC

VSS

Head

Amp

ABLC

2

C1 C2GND fo N.C. V

470, 680

Limiter

Amp

MEMORY

CONTROL

LOGIC

BPF

Comparator

BEF

0.01µ0.01µ

Delector &

3

XDEC

4

Integralor

6

5

EEPROM

ARRAY

PAGE LATCHES

YDEC

SENSE AMP

R/W CONTROL

Hysteresis

Comparator

200k

(fo = 40kHz)

7

OUT

8

CC

V

CC

=5V

NJM2068 (IC 104, 108-113, 120) INPUT P.W.B.

(IC 209) XM-READY

16

2. FL DISPLAY

16-ST-87GINK (FLT301) for DRA-397 model

DRA-397/297/37

17

DRA-397/297/37

18

HNA-16SM13T (FL301) for DRA-297, 37 model

DRA-397/297/37

59

TUNED

STEREO

RDS

CH

G16

TUNED

RDS

CH

G15 G13

STEREO

AUTO

Pin Assignment

AUTO

G14

ZONE2

REC

ZONE2

REC

PHONO

VCR

G12

PHONO

VCR

G11

CD

-

1

G10

CD

-

TUNER

-2-

TUNER

-2-

1

AUX

3 V.AUX

G9

3

G8

DVD /
CDR

G7

AUX

V.AUX

VDP TV

TAPE

/

G6

DVD /
CDR

G5

/

-1-

G4

VDP

TAPE

/

2

DBS

DIGITAL

G3

TV

-1-

PRO LOGICII
DIGITAL

ANALOG

G2

DBS

/

2

DIGITAL

1

G1

PRO LOGIC
DIGITAL

ANALOG

G1

S38

S13

S14

S15

S11

S12

S9

S10

S1

S6

S2

S7

S5

S3

S4

G2~G16

S3

S8

S13

S18

S23

S28

S33

S4

S9

S14

S19

S24

S29

S34

S5

S10

S15

S20

S25

S30

S35

S2

S1

S7

S6

S12

S11

S17

S16

S22

II

S21

S26

S31

S27

S32

PIN NO.
CONNECTION

PIN NO.
CONNECTION

PIN NO.
CONNECTION

1234 5

F1 F1 S1 S2 S3
21 22

S18

NP

23 24 25

S19 S20 S21 S22 S23 S24 S25 S26 S27 S28 S29 S30 S31 S32 S33 S34 S35 S36 S37

41 42 43 44 45

S38

G16 G15 G14 G13 G12 G11 G10 G9 G8 G7 G6 G5 G4 G3 G2 G1 F2 F2

Anode & Grid Assignment

G1

G2~G16

S1
S2

S3
S4
S5
S6
S7
S8
S9

TV

VDP

2

-

1

TAPE

S36
S37
S38

S1
S2
S3
S4
S5
S6
S7

S1
S2
S3
S4
S5
S6

S7
S8
S9

S9

G1 G2 G3 G4 G5 G6 G7 G8 G9 G10 G11 G12 G13 G14 G15

/

-

S38

DBS

S10
S11

S12
S13
S14

S15
S16
S17

S18

/(DVD)

/(CDR)

6

26

46

G1
S10
S11

S12
S13
S14
S15

DIGITAL

PRO LOGIC

CDR

V.AUX

78910111213141516171819

S5 S6 S7 S8 S9 S10 S11 S12 S13 S14 S15

S4

27 28 29 30 31 32 33 34

35 36 37 38 39 40

47 48 49 50 51 52 53 54 55 56 57

S16 S17

58 59

F1, F2 : Filament
G1~G16: Grid
S1~S38 : Anode

G2~G16

S10

S11

S12
S13
S14
S15
S16
S17

II

S18

S19
S20
S21
S22
S23
S24
S25
S26

S27

G1

G2~G16

S19
S20
S21
S22
S23
S24

S25
S26
S27

S28
S29
S30
S31
S32
S33
S34
S35

G1

G2~G16

S28
S29
S30
S31

S32
S33

S34
S35

G16

AUXDVD

TUNER

-

2

-

3

CD

-

PHONO

1

VCR

REC

ZONE2

STEREO

AUTO

TUNED

RDS

CH

20

19

PRINTED WIRING BOARDS

MAIN P.W.B. UNIT (for ALL model)

DRA-397/297/37

20

COMPONENT SIDE

DRA-397/297/37

21

FOIL SIDE

FRONT P.W.B.UNIT (for DRA-397 model)

DRA-397/297/37

DENON

DENON

DENON

DENON

COMPONENT SIDE

22

DRA-397/297/37

23

FOIL SIDE

FRONT P.W.B.UNIT (for DRA-297 model)

DRA-397/297/37

DENON

DENON

DENON

DENON

COMPONENT SIDE

24

DRA-397/297/37

25

FOIL SIDE

FRONT P.W.B.UNIT (for DRA-37 model)

DRA-397/297/37

DENON

DENON

DENON

DENON

COMPONENT SIDE

26

DRA-397/297/37

27

FOIL SIDE

INPUT P.W.B. UNIT (for ALL model)

DRA-397/297/37

COMPONENT SIDE

28

FOIL SIDE

CNT P.W.B. UNIT (for ALL model)

DRA-397/297/37

COMPONENT SIDE

29

FOIL SIDE

XM-READY P.W.B. UNIT (for ALL model) FUNCTUION SW P.W.B. UNIT (for DRA-37 model)

DRA-397/297/37

DENON

COMPONENT SIDE

COMPONENT SIDE

FOIL SIDE

30

FOIL SIDE

DRA-397/297/37

NOTE FOR PARTS LIST

• Part indicated with the mark "nsp" are not always in stock and possibly to

take a long period of time for supplying, or in some case supplying of part
may be refused.

• When ordering of part, clearly indicate "1" and "I" (i) to avoid mis-

supplying.

• Ordering part without stating its part number can not be supplied.

• Part indicated with the mark " ★ " is not illustrated in the exploded view.

• Not including General-purpose Carbon Film Resistor in the P.W.Board

parts list. (Refer to the Schematic Diagram for those parts.)

• Not including General-purpose Carbon Chip Resistor in the P.W.Board

parts list. (Refer to the Schematic Diagram for those parts.)

WARNING:

Parts marked with this symbol ! have critical characteristics.
Use ONLY replacement parts recommended by the manufacturer.

ll

Resistors

l

ll

Ex.: RN 14K 2E 182 G FR

Type Shape Power Resist- Allowable Others

and per- ance error
formance

RD : Carbon 2B : 1/8W F : ±1% P : Pulse-resistant type
RC : Composition 2E : 1/4W G : ±2% NL : Low noise type
RS : Metal oxide film 2H : 1/2W J : ±5% NB : Non-burning type
RW : Winding 3A : 1W K : ±10% FR : Fuse-resistor
RN : Metal film 3D : 2W M : ±20% F : Lead wire forming
RK : Metal mixture 3F : 3W

] Resistance

1 8 2 ⇒ 1800 ohm = 1.8 kohm

s

s

• Units: ohm

1 R 2 ⇒ 1.2 ohm

s

s

• Units: ohm

3H : 5W

Indicates number of zeros after effective number.
2-digit effective number.

1-digit effective number.
2-digit effective number, decimal point indicated by R.

部品表について

１．nsp 印の部品は常時在庫していませんので供給に長時間を要すること

があります。
場合によっては、供給をお断りすることがあります。

２．部品を発注する際は特に数字の " １ " と英字の "Ｉ" との区別をはっき

り記入してください。
３．部品番号を表示していない部品は供給できません。
４．!印の部品は安全上重要な部品です。交換するときは、安全および性

能維持のため必ず指定の部品をご使用ください。
５．★印のついている部品は分解図中には記載していません。
６．汎用カーボン抵抗器は記載していません。定数は回路図を参照願いま

す。
７．汎用カーボンチップ抵抗器は記載していません。定数は回路図を参照

願います。
８．部品表の抵抗器、コンデンサの品名記号の読み方は表を参照してくだ

さい。

RN 14K 2E 182 G FR

RD : 2B : 1/8 W F : ±1% P :
RC : 2E : 1/4 W G : ±2% NL :
RS : 2H : 1/2 W J : ±5% NB :
RW : 3A : 1 W K : ±10% FR :
RN : 3D : 2 W M : ±20% F :
RK : 3F : 3 W

∗

18 2

1R 2

3H : 5 W

1800

Ö

2

1.2

Ö

1

2 R

=1.8k

0

ll

l Capacitors

ll

Ex.: CE 04W 1H 2R2 M BP

Type Shape Dielectric Capacity Allowable Others

and per- strength error
formance

CE : Aluminum foil 0J : 6.3V F : ±1% HS : High stability type

electrolytic

CA : Aluminum solid 1A : 10V G : ±2% BP : Non-polar type

electrolytic
CS : Tantalum electrolytic 1C : 16V J : ±5% HR : Ripple-resistant type
CQ : Film 1E : 25V K : ±10% DL : For change and discharge
CK : Ceramic 1V : 35V M : ±20% HF : For assuring high

CC : Ceramic 1H : 50V Z : +80% U : UL part
CP : Oil 2A : 100V –20% C : CSA part
CM : Mica 2B : 125V P : +100% W : UL-CSA type
CF : Metallized 2C : 160V –0% F : Lead wire forming
CH : Metallized 2D : 200V C : ±0.25pF

] Capacity (electrolyte only)

2 2 2 ⇒ 2200µF

s

s

• Units: µF.

2 R 2 ⇒ 2.2µF

s

s

• Units: µF.

] Capacity (except electrolyte)

2 2 2 ⇒ 2200pF=0.0022µF

s

s

(More than 2) Indicates number of zeros after effective number.

• Units: pF.

2 2 1 ⇒ 220pF

s

s

(0 or 1) Indicates number of zeros after effective number.

• Units: pF.

• When the dielectric strength is indicated in AC, "AC" is included after the dieelectric

strength value.

2E : 250V D : ±0.5pF
2H : 500V = : Others
2J : 630V

Indicates number of zeros after effective number.
2-digit effective number.

1-digit effective number.
2-digit effective number, decimal point indicated by R.

2-digit effective number.

2-digit effective number.

requency

CE 04W 1H 2R2 M BP

CE : 0J : 6.3 V F : ±1% HS :

CA : 1A : 10 V G : ±2% BP :
CS : 1C : 16 V J : ±5% HR :
CQ : 1E : 25 V K : ±10% DL :
CK : 1V : 35 V M : ±20% HF :
CC : 1H : 50 V Z : +80% U : UL
CP : 2A : 100 V −20% C : CSA
CM : 2B : 125 V P : +100% W : UL-CSA
CF : 2C : 160 V − 0% F :
CH : 2D : 200 V C : ±0.25pF

2E : 250 V D : ±0.5pF
2H : 500 V = :

2J : 630 V

∗

22 2

22 2

2200µF

Ö

2

µ

F

2200pF=0.0022µF

Ö

(0 2 )

2

p

F

0

0

2R 2

22 1

Ö

1

2 R

µ

F

Ö

(0 0 1 )

2

p

F

AC

2.2µF

220pF

0

31

DRA-397/297/37

PARTS LIST OF P.W.B. UNIT

＊本表に記載されている部品は、補修用部品のため製品に使用している部品とは一部、形状、寸法などが異なる場合があります。
＊ The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.

＊"nsp" 印の部品は常時在庫していませんので供給に長時間を要することがあります。場合によっては、供給をお断りする場合があります。
＊ Part indicated with the mark “nsp” are not always in stock and possibly to take a long period of time for supplying, or in some case supplying of part may be refused.

MAIN P.W.B. UNIT ASSY

Ref. No. nsp Part No. Part Name Remarks Q'ty New

SEMICONDUCTORS GROUP

IC503 00D 963 0057 806 IC KIA78R05PI

IC504 00D 963 0313 809 IC KIA78R06PI

IC506 00D 263 1092 003 IC BA05T

IC601 00D 963 0083 304 IC BA7626F

Q501FL 00D 960 0196 603 TR KTC2874B

Q501FR 00D 960 0196 603 TR KTC2874B

Q502FL 00D 960 0196 205 TR KSA992F

Q502FR 00D 960 0196 205 TR KSA992F

Q503FL 00D 960 0196 205 TR KSA992F

Q503FR 00D 960 0196 205 TR KSA992F

Q504FL 00D 960 0196 506 TR KSC1845F

Q504FR 00D 960 0196 506 TR KSC1845F

Q508FL 00D 960 0196 506 TR KSC1845F

Q508FR 00D 960 0196 506 TR KSC1845F

Q509 00D 960 0196 302 TR KTA1268BL

Q510,511 00D 960 0005 202 TR KTC3198Y

Q512 00D 960 0196 302 TR KTA1268BL

Q513-515 00D 960 0005 202 TR KTC3198Y

Q516,517 00D 960 0196 302 TR KTA1268BL

Q518 00D 960 0196 700 TR KTC3200BL

Q519,520 00D 960 0196 302 TR KTA1268BL

Q521 00D 960 0189 005 TR KSA916Y for 297, 37

Q522 00D 960 0196 409 TR 2SC1740SR

Q523 00D 963 0121 208 TR KRC107M

Q524 00D 960 0196 409 TR 2SC1740SR

Q525-527 00D 963 0219 602 TR KRC106M

Q528,529 00D 960 0097 304 TR KRC102M

Q530 00D 963 0226 705 TR KTC1027Y for 397

Q601 00D 960 0068 207 TR KTA1504Y(ASY)

Q602 00D 960 0068 207 TR KTA1504Y(ASY) for 397

Q603 00D 960 0068 207 TR KTA1504Y(ASY)

Q604 00D 960 0068 207 TR KTA1504Y(ASY) for 397

Q605,606 00D 963 0245 003 TR KRC106S (NF)

Q620,621 00D 963 0159 102 TR KRC111S (NM)

D501FL 00D 963 0219 709 D,SWITCHING 1N4148W

D501FR 00D 963 0219 709 D,SWITCHING 1N4148W

D502FL 00D 963 0219 709 D,SWITCHING 1N4148W

D502FR 00D 963 0219 709 D,SWITCHING 1N4148W

D503FL 00D 963 0020 309 D,SWITCHING 1SS133T

D503FR 00D 963 0020 309 D,SWITCHING 1SS133T

D504-511 00D 963 0020 309 D,SWITCHING 1SS133T

D512 00D 960 0197 107 D,RECTIFIER KBPC604 6A

D513 00D 963 0058 407 D,SWITCHING IN4007 for 297, 37

D514 00D 963 0058 407 D,SWITCHING IN4007 for 397

D515-518 00D 963 0058 407 D,SWITCHING IN4007

D519-521 00D 963 0020 309 D,SWITCHING 1SS133T

J126780500370S

J126780600210S

J126050000020S

J171762600010S

J502287400010S

J502287400010S

J5000992F0050S

J5000992F0050S

J5000992F0050S

J5000992F0050S

J5021845F0000S

J5021845F0000S

J5021845F0000S

J5021845F0000S

J5001268B0050S

J5023198Y0000S

J5001268B0050S

J5023198Y0000S

J5001268B0050S

J5023200B0050S

J5001268B0050S

J5000916Y0050S

J5021740S0010S

J6020107M0010S

J5021740S0010S

J6020106M0010S

J6020102M0010S

J5021027Y0020S

J5201504Y0210S

J5201504Y0210S

J5201504Y0210S

J5201504Y0210S

J522010600210S

J522011100210S

K005041480020S

K005041480020S

K005041480020S

K005041480020S

K000013300520S

K000013300520S

K000013300520S

K047604000020S

K000400700520S

K000400700520S

K000400700520S

K000013300520S

32

DRA-397/297/37

Ref. No. nsp Part No. Part Name Remarks Q'ty New

D522-525 00D 963 0058 407 D,SWITCHING IN4007

D526-532 00D 963 0020 309 D,SWITCHING 1SS133T

D533 00D 960 0197 107 D,RECTIFIER KBPC604 6A

D534-538 00D 963 0058 407 D,SWITCHING IN4007

D539 00D 963 0020 309 D,SWITCHING 1SS133T

D601-604 00D 963 0219 709 D,SWITCHING 1N4148W

D605-606 00D 963 0219 709 D,SWITCHING 1N4148W for 397

ZD310,311 00D 960 0095 607 D,ZENER MTZJ5.6B for 397, 297

ZD501FL 00D 963 0279 804 D,ZENER UDZS4.3B

ZD501FR 00D 963 0279 804 D,ZENER UDZS4.3B

ZD502FL 00D 963 0295 503 D,ZENER UDZS3.6B

ZD502FR 00D 963 0295 503 D,ZENER UDZS3.6B

ZD503 00D 963 0314 206 D,ZENER MTZJ7.5B

ZD504,505 00D 963 0314 206 D,ZENER MTZJ20B for 397

ZD506 00D 963 0314 206 D,ZENER MTZJ20B

ZD507 00D 960 0095 704 D,ZENER MTZJ6.2B

ZD508 00D 960 0095 500 D,ZENER MTZJ5.1B

ZD509,510 00D 963 0148 605 LED,ROUND SML1216W for 297, 37

LED303 00D 963 0148 605 LEDSML1216W(RED/GREEN) for 397, 297

RESISTORS GROUP

R508FL 00D 960 9004 301 R,METAL FILM 47-J,1/4W

R508FR 00D 960 9004 301 R,METAL FILM 47-J,1/4W

R509FL 00D 960 9005 902 R,METAL FILM 1.2K-J,1/4W

R509FR 00D 960 9005 902 R,METAL FILM 1.2K-J,1/4W

R516FL 00D 963 9006 285 R,FIXED1WJ-5.6K

R516FR 00D 963 9006 285 R,FIXED1WJ-5.6K

R517FL 00D 963 9006 285 R,FIXED1WJ-5.6K

R517FR 00D 963 9006 285 R,FIXED1WJ-5.6K

R518FL 00D 963 0215 907 R,METAL FILM 4.7-J,1W

R518FR 00D 963 0215 907 R,METAL FILM 4.7-J,1W

R519FL 00D 963 0215 907 R,METAL FILM 4.7-J,1W

R519FR 00D 963 0215 907 R,METAL FILM 4.7-J,1W

R520FL 00D 963 9006 269 R,FIXED1WJ-0.22

R520FR 00D 963 9006 269 R,FIXED1WJ-0.22

R521FL 00D 963 9006 269 R,FIXED1WJ-0.22

R521FR 00D 963 9006 269 R,FIXED1WJ-0.22

R522FL 00D 963 9006 269 R,FIXED1WJ-0.22

R522FR 00D 963 9006 269 R,FIXED1WJ-0.22

R523FL 00D 963 9006 269 R,FIXED1WJ-0.22

R523FR 00D 963 9006 269 R,FIXED1WJ-0.22

R528FL 00D 963 9006 256 R,FIXED1WJ-10

R528FR 00D 963 9006 256 R,FIXED1WJ-10

R529FL 00D 963 9006 256 R,FIXED1WJ-10

R529FR 00D 963 9006 256 R,FIXED1WJ-10

R530FL 00D 963 9006 256 R,FIXED1WJ-10

R540 00D 963 0232 906 R,METAL FILM 47K-F,1/4W

R548,549 00D 963 0144 502 R,CEMENT 0.1-J 5W

R554 00D 963 0215 907 R,METAL FILM 4.7-J,1W

R555 00D 963 0310 404 R,METAL FILM 2.2K-J,1W for 297, 37

R556,557 00D 963 0216 003 R,METAL FILM 0.22-J,1W

R558 00D 963 0232 809 R,METAL FILM 10-J,1/4W

R562 00D 963 0244 305 R,METAL FILM 2.2M 0.5W

K000400700520S

K000013300520S

K047604000020S

K000400700520S

K000013300520S

K005041480020S

K005041480020S

K06005R644520S

K06604R34P410S

K06604R34P410S

K06603R64P400S

K06603R64P400S

K06007R544520S

K06020R044520S

K06020R044520S

K06006R244520S

K06005R144520S

K06018R044520S

K500052600030S

C060047063050S

C060047063050S

C060012263050S

C060012263050S

N113135656220S

N113135656220S

N113135656220S

N113135656220S

C0604R7065050S

C0604R7065050S

C0604R7065050S

C0604R7065050S

N113135622820S

N113135622820S

N113135622820S

N113135622820S

N113135622820S

N113135622820S

N113135622820S

N113135622820S

N113135610020S

N113135610020S

N113135610020S

N113135610020S

N113135610020S

C060047343530S

C141R10069000S

C0604R7065050S

C060022265050S

C060R22065050S

C060010063520S

C060022564520S

33

DRA-397/297/37

Ref. No. nsp Part No. Part Name Remarks Q'ty New

R565-567 00D 960 9005 642 R,METAL FILM 1.2K-J,1W

R576 00D 963 0310 501 R,METAL FILM 47K-J,1/4W

R577,578 00D 963 0216 003 R,METAL FILM 0.22-J,1W

R584 00D 963 0310 404 R,METAL FILM 2.2K-J,1W for 397

R612 00D 963 9005 639 R,METAL FILM 100-J,1W

R613 00D 963 9005 639 R,METAL FILM 100-J,1W for 397

R614 00D 963 9005 639 R,METAL FILM 100-J,1W

R615 00D 963 9005 639 R,METAL FILM 100-J,1W for 397

VR501FL 00D 963 0310 802 VR,SEMI CERMET 1KB

VR501FR 00D 963 0310 802 VR,SEMI CERMET 1KB

CAPACITORS GROUP

C329,330 00D 963 0233 303 C,CERAMIC 0.01UF-M/16V for 397, 297

C501FL 00D 963 0312 004 C,ELECT 22UF-M/25V

C501FR 00D 963 0312 004 C,ELECT 22UF-M/25V

C502FL 00D 963 0311 306 C,ELECT 10UF-M/50V

C502FR 00D 963 0311 306 C,ELECT 10UF-M/50V

C503FL 00D 963 0216 207 C,CERAMIC 220PF 500V

C503FR 00D 963 0216 207 C,CERAMIC 220PF 500V

C504FL 00D 963 0216 207 C,CERAMIC 220PF 500V

C504FR 00D 963 0216 207 C,CERAMIC 220PF 500V

C505FL 00D 963 0216 100 C,CERAMIC 33PF-J/500V

C505FR 00D 963 0216 100 C,CERAMIC 33PF-J/500V

C506FL 00D 963 0311 500 C,ELECT 100UF-M/10V

C506FR 00D 963 0311 500 C,ELECT 100UF-M/10V

C507FL - C,FILM 0.0022UF-J/100V

C507FR - C,FILM 0.0022UF-J/100V

C508FL 00D 963 0234 506 C,ELECT 47UF-M/50V (Pb Free)

C508FR 00D 963 0234 506 C,ELECT 47UF-M/50V (Pb Free)

C509FL 00D 963 0311 306 C,ELECT 10UF-M/50V

C509FR 00D 963 0311 306 C,ELECT 10UF-M/50V

C510FL 00D 963 9003 084 C,CERAMIC 100PF-K/500V

C510FR 00D 963 9003 084 C,CERAMIC 100PF-K/500V

C511FL 00D 963 9003 084 C,CERAMIC 100PF-K/500V

C511FR 00D 963 9003 084 C,CERAMIC 100PF-K/500V

C512FL 00D 960 9003 108 C,CERAMIC 0.022UF-Z/25V

C512FR 00D 960 9003 108 C,CERAMIC 0.022UF-Z/25V

C513FL 00D 963 9003 097 C,FILM -0.1UF-K/250V

C513FR 00D 963 9003 097 C,FILM -0.1UF-K/250V

C514FL 00D 963 0311 403 C,ELECT 10UF-M/100V

C515 00D 963 0020 202 C,CERAMIC 0.1UF-Z/50V

C516 00D 963 0311 607 C,ELECT 100UF-M/16V

C517 00D 963 0130 309 C,ELECT 470UF-M/6.3V

C518 00D 963 0020 202 C,CERAMIC 0.1UF-Z/50V

C519 00D 963 0244 606 C,ELECT 0.1UF-M/50V (Pb Free)

C520 00D 963 0312 606 C,ELECT 2.2UF-M/50V(GREEN CAP)

C521,522 00D 963 0233 303 C,CERAMIC 0.01UF-M/16V

C523-526 00D 963 9003 097 C,FILM -0.1UF-K/250V

C527 00D 963 0311 102 C,ELECT 1UF-M/50V (Pb Free)

C528 00D 963 9003 097 C,FILM -0.1UF-K/250V

C529,530 00D 963 0149 400 CAP.E.GENERIC 10000UF/63V(M)

C531 00D 963 0312 402 C,ELECT 220UF-M/50V SY (Pb Free)

C532,533 00D 963 0311 102 C,ELECT 1UF-M/50V(Pb Free) for 297, 37

C534-536 - C,FILM 0.047UF-J/100V

C060012265050S

C060047363050S

C060R22065050S

C060022265050S

C060010165060S

C060010165060S

C060010165060S

C060010165060S

C544102015130S

C544102015130S

D005103773530S

D040220084050S

D040220084050S

D040100087070S

D040100087070S

D009092212500S

D009092212500S

D009092212500S

D009092212500S

D00033006D050S

D00033006D050S

D040101082070S

D040101082070S

D02022206C060S

D02022206C060S

D040470087070S

D040470087070S

D040100087070S

D040100087070S

D00410106D050S

D00410106D050S

D00410106D050S

D00410106D050S

D005223594520S

D005223594520S

D02010407H080S

D02010407H080S

D04010008C050S

D005104597530S

D040101083090S

D040471081230S

D005104597530S

D040R10087080S

D0402R2087270S

D005103773530S

D02010407H080S

D040010087150S

D02010407H080S

N211210388110S

D040221087140S

D040010087150S

D02047306C060S

34

DRA-397/297/37

Ref. No. nsp Part No. Part Name Remarks Q'ty New

C537 00D 963 0312 703 C,ELECT 3300UF-M/35V

C538 00D 963 0311 801 C,ELECT 1000UF-M/35V(SHL)

C539,540 00D 963 0311 102 C,ELECT 1UF-M/50V (Pb Free)

C541 00D 963 9003 097 C,FILM -0.1UF-K/250V

C542 00D 963 0255 501 C,ELECT 18000UF-M/16V(10MM)

C543 00D 963 9006 191 C,CERAMIC AC13F472MDOA

C544 00D 963 0234 506 C,ELECT 47UF-M/50V (Pb Free) for 397

C544 00D 963 0312 101 C,ELECT 22UF-M/50V

C545 00D 963 0311 500 C,ELECT 100UF-M/10V

C546 - C,CERAMIC 0.1UF-K/50V

C547 00D 963 0311 102 C,ELECT 1UF-M/50V (Pb Free)

C548 00D 963 0312 509 C,ELECT 2200UF-M/16V

C549,550 00D 963 0311 306 C,ELECT 10UF-M/50V

C551-554 - C,FILM 0.01UF-J/100V

C555-557 00D 963 0233 400 C,CERAMIC 2200PF-K/16V

C558 00D 963 9003 097 C,FILM -0.1UF-K/250V for 397

C559 00D 963 0311 306 C,ELECT 10UF-M/50V

C560 00D 963 0311 704 C,ELECT 1000UF-M/16V

C561 00D 963 0311 607 C,ELECT 100UF-M/16V

C562,563 nsp 00D 963 0224 105 C,CERAMIC 1000PF-K/50V

C564 00D 963 0311 500 C,ELECT 100UF-M/10V

C565 00D 963 0233 400 C,CERAMIC 2200PF-K/16V

C566-567 00D 963 0311 102 C,ELECT 1UF-M/50V (Pb Free) for 397

C568 00D 963 0311 102 C,ELECT 1UF-M/50V (Pb Free)

C570-573 - C,CERAMIC 0.1UF-K/50V

C601 - C,CERAMIC 0.1UF-K/50V

C602 00D 963 9005 901 C,ELECT 470UF-M/10V

C603-605 00D 963 0312 004 C,ELECT 22UF-M/25V

C606-608 00D 963 9005 901 C,ELECT 470UF-M/10V

C609-611 00D 963 0311 500 C,ELECT 100UF-M/10V

C612 00D 963 0312 004 C,ELECT 22UF-M/25V

C613 nsp 00D 963 0234 001 C,CERAMIC 0.047UF-Z/50V

C614 00D 963 0312 004 C,ELECT 22UF-M/25V

C616 - C,CERAMIC 0.1UF-K/50V

C617 - C,CERAMIC 0.1UF-K/50V for 397

C618-620 00D 963 9003 372 R,THICK 0-J,1/16W

OTHERS PARTS GROUP

BD601-609 nsp 00D 963 0220 002 BEAD,COIL 121JT

CN304 00D 963 0301 109 CN,WIRE 350MM/2P

CN601 nsp 00D 963 0085 506 CN.WAFER 9P

CP306 nsp 00D 963 0160 900 CN.WAFER 2.0MM 8P for 397, 297

CP501 nsp 00D 963 0066 208 CN.WAFER 3.96MM

CP502 nsp 00D 960 0128 804 CN.WAFER 2.5MM 6P

CP503 00D 963 0315 302 CN.WAFER 7.92MM

CP504 00D 963 0262 604 CN.WAFER 7.92MM

CP506 nsp 00D 963 0097 507 CN.WAFER 2.0MM 15P

CP507 nsp 00D 963 0235 806 CN.WAFER 2.0MM

CP508 nsp 00D 960 0123 207 CN.WAFER 2.5MM 3P

CP509 00D 963 0315 205 CN.WAFER 7.92MM

CP510 nsp 00D 960 0123 207 CN.WAFER 2.5MM 3P

CP511 nsp 00D 963 0097 507 CN.WAFER 2.0MM 15P

D040332085050S

D040102085040S

D040010087150S

D02010407H080S

D040183083000S

D00847208K070S

D040470087070S

D040220087060S

D040101082070S

D011104577161S

D040010087150S

D040222083080S

D040100087070S

D02010306C060S

D005222773530S

D02010407H080S

D040100087070S

D040102083030S

D040101083090S

D011102777160S

D040101082070S

D005222773530S

D040010087150S

D040010087150S

D011104577161S

D011104577161S

D040471082060S

D040220084050S

D040471082060S

D040101082070S

D040220084050S

D011473597160S

D040220084050S

D011104577161S

D011104577161S

C20000006M160S

7611010000020S

L000351020160S

L101100030910S

L101220080010S

L104353280300S

L102526700600S

L108353280290S

L108202000220S

L101100041510S

L101220030000S

L102526700300S

L108353280280S

L102526700300S

L101100041510S

35

DRA-397/297/37

Ref. No. nsp Part No. Part Name Remarks Q'ty New

F501 00D 960 0005 804 HOLDER,FUSE CLIP

F501B 00D 960 0005 804 HOLDER,FUSE CLIP

F502 00D 960 0005 804 HOLDER,FUSE CLIP

F502B 00D 960 0005 804 HOLDER,FUSE CLIP

GND501,502 00D 960 9006 600 TERMINAL GND PLATE

JACK501 00D 963 0313 508 SOCKET,POWER RECEPTA 3P

JACK503 00D 963 0119 906

JACK601 00D 963 0257 004 TER,RCA 2PIN

JACK602 00D 963 0257 004 TER,RCA 2PIN for 397

JACK603 00D 963 0257 101 TER,RCA 3PIN

L501FL nsp 00D 963 0313 003 COIL,INDUCTOR 0.5UH

L501FR 00D 963 0313 003 COIL,INDUCTOR 0.5UH

RLY501,502 00D 960 0181 702 RELAY G5PA-28 24V 5A

RLY503 00D 963 0218 506 RELAY BC3-24 24V 2A

RLY504 00D 963 0218 205 RELAY HL3-1A-9SH DC9V 1A

SW324 00D 963 0145 802 SW,PUSH SDDL-005-S(C-UL)

SW325 00D 963 0200 103 SW,TACT SKHV10920A for 397

SW328 00D 963 0200 103 SW,TACT SKHV10920A for 397

SW330 00D 963 0200 103 SW,TACT SKHV10920A for 397, 297

TP501,502 nsp 00D 960 0161 405 CN.WAFER 3P

VEC305 00D 963 0095 208 SW,ENCODER EC16B24SA for 397, 297

! FS501,502 00D 963 0236 106 FUSE T8A /250V

! T501 00D 963 0232 100 POWER TRANS 120V/60HZ

TER,BOARD SCREW 8P JB-801A(V0)-02 G614801A0200YS

G645000050010S

G645000050010S

G645000050010S

G645000050010S

3790040876010S

G435206D00050S

G601206B0100YS

G601206B0100YS

G606303B1010YS

D330R50000000S

D330R50000000S

G680240502020S

G680240202040S

G680090102020S

G000122006060S

G180000270010S

G180000270010S

G180000270010S

L101530140310S

G121162400040S

N751228001110S

8200350150200S

36

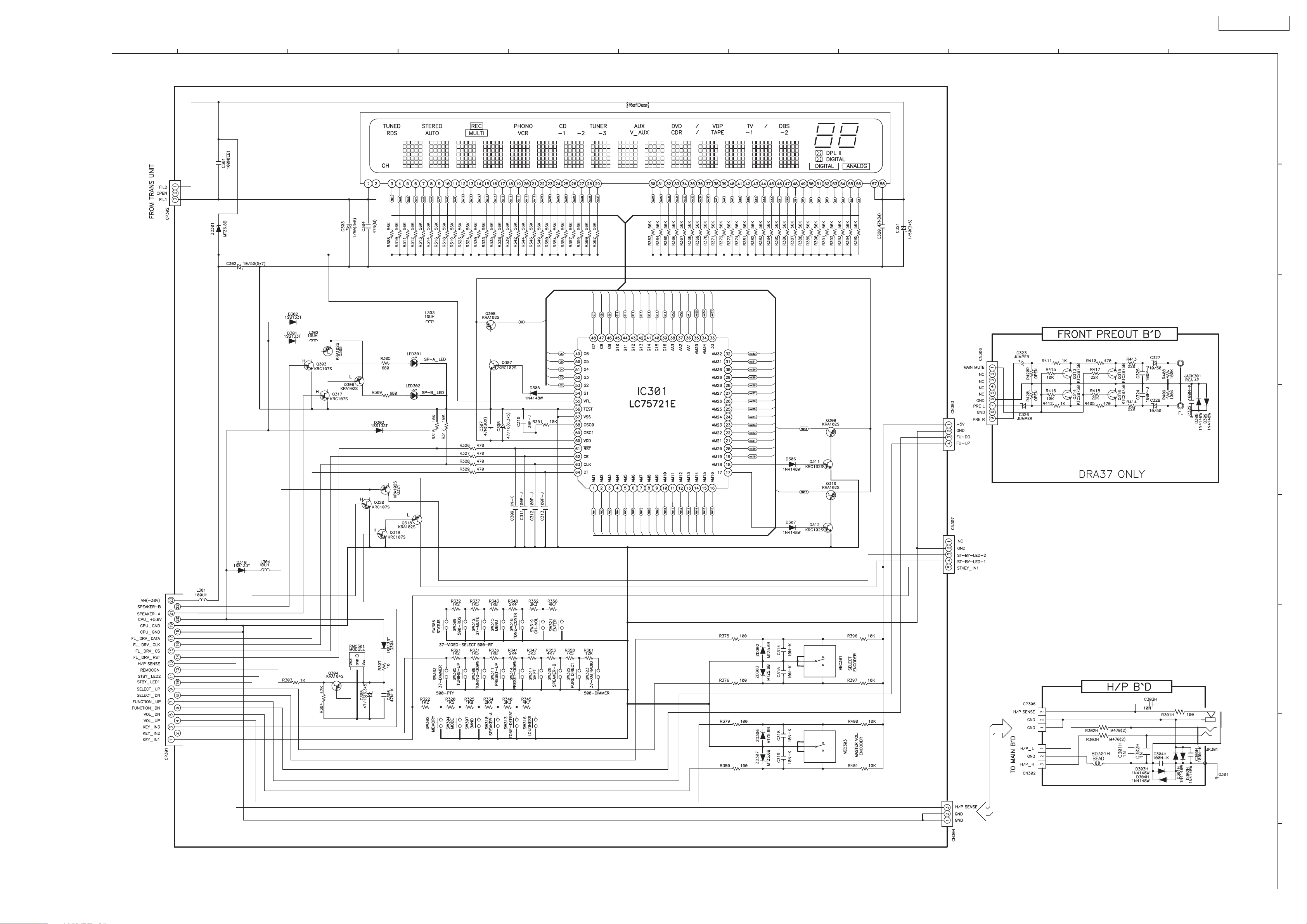

FRONT P.W.B. UNIT ASSY

Ref. No. nsp Part No. Part Name Remarks Q'ty New

SEMICONDUCTORS GROUP

IC301 00D 960 0180 004 IC LC7572 for 297, 37

IC401 00D 963 0354 402 IC CPU MICRO PROCESS(L020) for 397

IC401 00D 963 0354 509 IC CPU MICRO PROCESS(L017) for 297, 37

IC403 00D 960 0296 105 IC CJ7812F

IC404 00D 963 0313 605 IC 24LC16B

Q301 00D 963 0121 402 TR KRA104S for 397

Q303 00D 960 0005 202 TR KTC3198Y for 397

Q303 00D 963 0121 606 TR KRC107S for 297, 37

Q304 00D 963 0121 402 TR KRA104S for 297, 37

Q305,306 00D 963 0120 704 TR KRA102S(PB) for 297, 37

Q307 00D 963 0120 801 TR KRC102S (NB for 297, 37

Q308-310 00D 963 0120 704 TR KRA102S(PB for 297, 37

Q311,312 00D 963 0120 801 TR KRC102S (NB) for 297, 37

Q313-316 00D 963 0044 301 TR KTC2875B(MB) for 37

Q317 00D 963 0121 606 TR KRC107S (NH) for 297, 37

Q318 00D 963 0120 704 TR KRA102S(PB) for 297, 37

Q319,320 00D 963 0121 606 TR KRC107S (NH) for 297, 37

Q321 00D 963 0120 704 TR KRA102S(PB) for 297, 37

Q334 00D 963 0120 704 TR KRA102S(PB) for 397

Q335 00D 963 0121 606 TR KRC107S for 397

Q336 00D 963 0120 704 TR KRA102S(PB) for 397

Q337 00D 963 0121 606 TR KRC107S for 397

Q401 00D 963 0120 704 TR KRA102S(PB)

Q404 00D 963 0121 509 TR KTC3875S

Q405 00D 960 0285 006 TR KRC104S

Q408,409 00D 963 0044 301 TR KTC2875B

Q410 00D 963 0245 003 TR KRC106S (NF)

Q411 00D 963 0102 803 TR 2SA933S

Q412,413 00D 963 0044 301 TR KTC2875B

Q414 00D 963 0120 704 TR KRA102S(PB)

Q415 00D 963 0120 704 TR KRA102S(PB) for 397, 37

Q416 00D 963 0120 704 TR KRA102S(PB) for 397

Q417 00D 963 0120 704 TR KRA102S(PB)

Q607-610 00D 963 0044 301 TR KTC2875B for 397

Q613-616 00D 963 0044 301 TR KTC2875B for 397

D301 00D 963 0020 309 D,SWITCHING 1SS133T

D301H 00D 963 0219 709 D,SWITCHING 1N4148W

D302 00D 963 0020 309 D,SWITCHING 1SS133T

D302H 00D 963 0219 709 D,SWITCHING 1N4148W

D303 00D 963 0020 309 D,SWITCHING 1SS133T

D303H 00D 963 0219 709 D,SWITCHING 1N4148W

D304 00D 963 0020 309 D,SWITCHING 1SS133T for 297, 37

D304H 00D 963 0219 709 D,SWITCHING 1N4148W

D305 00D 963 0020 309 D,SWITCHING 1SS133T for 397

D305 00D 963 0219 709 D,SWITCHING 1N4148W for 37

D306 00D 963 0020 309 D,SWITCHING 1SS133T for 297

D306 00D 960 009 5607 D,SWITCHING 1N4148W for 37

D307 00D 963 0020 309 D,SWITCHING 1SS133T for 297

D307-309 00D 960 009 5607 D,SWITCHING 1N4148W for 37

D310 00D 963 0020 309 D,SWITCHING 1SS133T for 297, 37

M30624FGPFP

M30624FGPFP

DRA-397/297/37

J127757210010S

8952397000010

8952297000010

J126781200220S

J000241600050S

J520010400210S

J5023198Y0000S

J522107S00210S

J520010400210S

J520010200210S

J522010200210S

J520010200210S

J522010200210S

J5222875B0010S

J522107S00210S

J520010200210S

J522107S00210S

J520010200210S

J520010200210S

J522107S00210S

J520010200210S

J522107S00210S

J520010200210S

J522038750210S

J522104S00210S

J5222875B0010S

J522010600210S

J5000933S0050S

J5222875B0010S

J520010200210S

J520010200210S

J520010200210S

J520010200210S

J5222875B0010S

J5222875B0010S

K000013300520S

K005041480020S

K000013300520S

K005041480020S

K000013300520S

K005041480020S

K000013300520S

K005041480020S

K000013300520S

K005041480020S

K000013300520S

K005041480020S

K000013300520S

K005041480020S

K000013300520S

2

2

37

DRA-397/297/37

Ref. No. nsp Part No. Part Name Remarks Q'ty New

D404 00D 963 0020 309 D,SWITCHING 1SS133T

D405 00D 963 0219 709 D,SWITCHING 1N4148W

D407,408 00D 963 0219 709 D,SWITCHING 1N4148W

D409 00D 963 0058 407 D,SWITCHING IN4007

D411 00D 963 0020 309 D,SWITCHING 1SS133T

ZD301 00D 960 0095 801 D,ZENER MTZJ6.8B

ZD302-303 00D 960 0095 607 D,ZENER MTZJ5.6B

ZD304 00D 960 0095 607 D,ZENER MTZJ5.6B for 397

ZD305 00D 960 0095 607 D,ZENER MTZJ5.6B

ZD307 00D 960 0095 607 D,ZENER MTZJ5.6B for 297, 37

ZD401 00D 963 0047 502 D,ZENER MTZJ3.3B

LED301,302 00D 960 0197 204 LED,ROUND HL50RDRF4T for 297, 37

RESISTORS GROUP

R302H 00D 960 9009 270 R,METAL FILM 470-J,2W

R303H 00D 960 9009 270 R,METAL FILM 470-J,2W

R403 00D 963 0128 007 R,METAL FILM 1K-J,1/4W

R458 00D 963 0128 007 R,METAL FILM 1K-J,1/4W

R459 00D 963 0128 007 R,METAL FILM 1K-J,1/4W for 397, 37

R463 00D 963 0128 007 R,METAL FILM 1K-J,1/4W

R471 00D 963 0128 007 R,METAL FILM 1K-J,1/4W for 397

CAPACITORS GROUP

C301 - C,FILM 0.1UF-J/100V

C301H 00D 963 0233 206 C,CERAMIC 0.001UF-K/50V

C302 00D 963 0020 202 C,CERAMIC 0.1UF-Z/50V for 397

C302 00D 963 0311 209 C,ELECT 10UF-M/50V for 297, 37

C302H 00D 963 0233 206 C,CERAMIC 0.001UF-K/50V

C303 00D 960 9010 366 C,ELECT 47UF-M/16V for 397

C303 00D 963 0311 005 C,ELECT 1UF-M/50V(Pb Free) for 297, 37

C303H 00D 963 0233 303 C,CERAMIC 0.01UF-M/16V

C304 nsp 00D 963 0224 105 C,CERAMIC 1000PF-K/50V for 397

C304 - C,FILM 0.047UF-J/50V for 297, 37

C304H nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V

C305 00D 963 0311 005 C,ELECT 1UF-M/50V(Pb Free) for 397

C305 00D 960 9010 366 C,ELECT 47UF-M/16V for 297, 37

C305H nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V

C306 00D 963 9010 641 C,CERAMIC 0.047UF-K/16V for 397

C306 00D 963 0234 001 C,CERAMIC 0.047UF-Z/50V for 297

C307 - C,FILM 0.047UF-J/100V for 397

C307 - C,FILM 0.047UF-J/100V for 297, 37

C308 00D 963 0311 209 C,ELECT 10UF-M/50V for 397

C308 00D 960 9010 366 C,ELECT 47UF-M/16V for 297, 37

C309 00D 963 0020 202 C,CERAMIC 0.1UF-Z/50V for 397

C309 nsp 00D 963 0224 105 C,CERAMIC 1000PF-K/50V for 297, 37

C310 nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V for 397

C310 00D 963 0233 701 C,CERAMIC30PF-J/50V for 297, 37

C311,312 nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V

C313 00D 963 0233 303 C,CERAMIC 0.01UF-M/16V for 397

C313 00D 963 0223 601 C,CERAMIC 100PF-J/50V for 297, 37

C314 00D 963 0233 303 C,CERAMIC 0.01UF-M/16V for 397

C314 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V for 297, 37

K000013300520S

K005041480020S

K005041480020S

K000400700520S

K000013300520S

K06006R844520S

K06005R644520S

K06005R644520S

K06005R644520S

K06005R644520S

K06003R344520S

K500052015010S

C060047166520S

C060047166520S

C060010263050S

C060010263050S

C060010263050S

C060010263050S

C060010263050S

D02010406C060S

D005102177530S

D005104597530S

D040100087060S

D005102177530S

D040470083070S

D040010087090S

D005103773530S

D011102777160S

D020473167050S

D011103777160S

D040010087090S

D040470083070S

D011103777160S

D011473773160S

D011473597160S

D02047306C060S

D02047306C070S

D040100087060S

D040470083070S

D005104597530S

D011102777160S

D010101167160S

D010300167160S

D010101167160S

D005103773530S

D010101167160S

D005103773530S

D011103777160S

38

DRA-397/297/37

Ref. No. nsp Part No. Part Name Remarks Q'ty New

C315 00D 963 0233 303 C,CERAMIC 0.01UF-M/16V for 397

C315 nsp 00D 963 9004 698 C,CERAMIC0.01UF-K/50V for 297, 37

C316 00D 963 0233 303 C,CERAMIC 0.01UF-M/16V for 397

C317 00D 963 9010 641 C,CERAMIC 0.047UF-K/16V for 397

C318,319 nsp 00D 963 9004 698 C,CERAMIC0.01UF-K/50V for 297, 37

C320 - C,FILM 0.047UF-J/100V for 397

C320 - C,FILM 0.047UF-J/50V for 297, 37

C321 00D 963 0311 005 C,ELECT 1UF-M/50V(Pb Free)

C322 - C,CERAMIC 0.1UF-K/50V for 37

C323 - WIRE 1PJUMPER (0.6/52MM) for 37

C324-326 - C,CERAMIC100PF-J/50V for 37

C327,328 - C,ELECT 10UF-M/50V for 37

C401 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V

C402,403 nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V

C404 00D 963 0244 606 C,ELECT 0.1UF-M/50V (Pb Free)

C405 nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V

C406,407 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V

C408-410 nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V

C411,412 - C,CERAMIC 0.1UF-K/50V

C413,414 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V

C415 00D 963 0244 606 C,ELECT 0.1UF-M/50V (Pb Free)

C416 00D 963 0244 606 C,ELECT 0.1UF-M/50V (Pb Free) for 397, 37

C418 00D 960 9010 010 C,ELECT 4.7UF-M/50V

C420 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V

C423 00D 963 0244 606 C,ELECT 0.1UF-M/50V (Pb Free) for 397

C426 00D 963 0311 500 C,ELECT 100UF-M/10V

C429,430 00D 963 0311 306 C,ELECT 10UF-M/50V

C431 - C,CERAMIC 0.1UF-K/50V

C432 00D 963 0244 606 C,ELECT 0.1UF-M/50V (Pb Free)

C622-625 nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V for 397

C626 - C,CERAMIC 0.1UF-K/50V for 397

OTHERS PARTS GROUP

BD401,402 nsp 00D 963 0220 002 BEAD,COIL 121JT

CN302 00D 963 0314 400 CN,WIRE 240MM/3P

CN303 00D 963 0314 808 CN,WIRE 60MM/8P

CN304 00D 963 0246 002 CN,WIRE 80MM/3P

CN306 00D 963 0085 506 CN.WAFER 2.0MM 9P for 37

CN307 00D 963 0314 701 CN,WIRE 60MM/5P for 37

CP102 nsp 00D 963 0085 506 CN.WAFER 9P for 397

CP301 00D 963 0315 409 CN.FPC 1.25MM 23P

CP302 nsp 00D 963 0236 009 CN.WAFER 2.5MM 3P

CP306 nsp 00D 963 0235 806 CN.WAFER 2.0MM

CP401 00D 963 0149 303 CN.FPC 1.25MM 15P

CP402 00D 963 0087 902 CN.WAFER 2.0MM 17P

CP403 00D 963 0315 001 CN.WAFER 2.0MM 20P

CP404 nsp 00D 963 0206 505 CN.WAFER 2.0MM 9P

CP406 00D 963 0161 103 CN.FPC 1.25MM 23P

CP408 nsp 00D 963 0060 709 CN.WAFER 2.0MM 8P

CP410 nsp 00D 963 0087 504 CN.WAFER 2.0MM 19P

CP411 00D 963 0315 001 CN.WAFER 2.0MM 20P

CP413 nsp 00D 963 0206 505 CN.WAFER 2.0MM 9P WAFER for 397, 37

CP414,415 nsp 00D 963 0097 507 CN.WAFER 2.0MM 15P

D005103773530S

D011103777160S

D005103773530S

D011473773160S

D011103777160S

D02047306C060S

D020473167050S

D040010087090S

D011104577161S

L045084006040S

D010101167160S

D040100087070S

D011103777160S

D010101167160S

D040R10087080S

D010101167160S

D011103777160S

D010101167160S

D011104577161S

D011103777160S

D040R10087080S

D040R10087080S

D0404R7087250S

D011103777160S

D040R10087080S

D040101082070S

D040100087070S

D011104577161S

D040R10087080S

D010101167160S

D011104577161S

7611010000020S

L000241030010S

L000600080040S

L000800030110S

L101100030910S

L000600050030S

L101100030910S

L131102300010S

L102526803010S

L101220030000S

L131111500010S

L101100041710S

L101100042010S

L101100040910S

L131112300010S

L101220080000S

L101100041910S

L101100042010S

L101100040910S

L101100041510S

39

DRA-397/297/37

Ref. No. nsp Part No. Part Name Remarks Q'ty New

G301 - RING,TER WIRE 120MM/1P

8410121010060S

JACK104 00D 963 0146 209 TER,RCA 4PIN for 397

JACK301 TER,RCA 2PIN for 37

JK301 00D 963 0294 708 JACK,D6.5 PHONE

L301 nsp 00D 960 0128 008 COIL,INDUCTOR 100UH

L302-304 00D 960 0010 307 COIL,INDUCTOR 10UH for 297, 37

RMC301 00D 963 0217 808 MODULE,REMOCON NJL34H380A

SW301 00D 963 0095 305 SW,TACT SKHV10910D01 for 397

SW302-309 00D 963 0095 305 SW,TACT SKHV10910D01

SW310 00D 963 0095 305 SW,TACT SKHV10910D01 for 397

SW310 00D 963 0200 103 SW,TACT SKHV10920A for 297, 37

SW311 00D 963 0200 103 SW,TACT SKHV10920A for 397

SW311 00D 963 0095 305 SW,TACT SKHV10910D01 for 297, 37

SW312 00D 963 0095 305 SW,TACT SKHV10910D01

SW313,314 00D 963 0200 103 SW,TACT SKHV10920A

SW315 00D 963 0095 305 SW,TACT SKHV10910D01 for 397

SW315 00D 963 0200 103 SW,TACT SKHV10920A for 297, 37

SW316 00D 963 0200 103 SW,TACT SKHV10920A

SW317 00D 963 0200 103 SW,TACT SKHV10920A for 397

SW317 00D 963 0095 305 SW,TACT SKHV10910D01 for 297, 37

SW318-322 00D 963 0200 103 SW,TACT SKHV10920A

SW323 00D 963 0200 103 SW,TAC TSKHV10920A for 297, 37

VEC301,302 00D 963 0095 208 SW,ENCODER EC16B24SA

FLT301 00D 963 0300 906 DISPLAY,FLT 16-ST-87GINK for 397

FL301 00D 963 0257 305 DISPLAY,FLT 16SM13T for 297, 37

XTL401 00D 963 0217 701 RESONATOR ZTT12.00MT-TF

JP402 00D 963 0258 003 R,THICK 0-J,1/8W

JP403 00D 963 0258 003 R,THICK 0-J,1/8W

JP404 00D 963 0258 003 R,THICK 0-J,1/8W

JP405 00D 963 0258 003 R,THICK 0-J,1/8W

JP408 00D 963 0258 003 R,THICK 0-J,1/8W

JP416 00D 963 0258 003 R,THICK 0-J,1/8W

JP417 00D 963 0258 003 R,THICK 0-J,1/8W

JP418 00D 963 0258 003 R,THICK 0-J,1/8W

JP419 00D 963 0258 003 R,THICK 0-J,1/8W

JP420 00D 963 0258 003 R,THICK 0-J,1/8W for 397

JP422 00D 963 0258 003 R,THICK 0-J,1/8W

JP423 00D 963 0258 003 R,THICK 0-J,1/8W for 397, 37

JP424 00D 963 0258 003 R,THICK 0-J,1/8W for 397, 37

JP425 00D 963 0258 003 R,THICK 0-J,1/8W

JP427 00D 963 0258 003 R,THICK 0-J,1/8W

JP428 00D 963 0258 003 R,THICK 0-J,1/8W

- HOLDER FLT for 397

00D 960 0184 408 HOLDER FLT for 297, 37

G602405B01000S

G601207AE010YS

G402PJ612AG0YS

D330101001020S

D330100700520S

E940343800010S

G180040500010S

G180040500010S

G180040500010S

G180000270010S

G180000270010S

G180040500010S

G180040500010S

G180000270010S

G180040500010S

G180000270010S

G180000270010S

G180000270010S

G180040500010S

G180000270010S

G180000270010S

G121162400040S

K530168700010S

K530161300020S

E830120000060S

C200000061300S

C200000061300S

C200000061300S

C200000061300S

C200000061300S

C200000061300S

C200000061300S

C200000061300S

C200000061300S

C200000061300S

C200000061300S

C200000061300S

C200000061300S

C200000061300S

C200000061300S

C200000061300S

4320210536000S

4320200026000S

40

INPUT P.W.B. UNIT ASS'Y

Ref. No. nsp Part No. Part Name Remarks Q'ty New

SEMICONDUCTORS GROUP

IC101 00D 963 0295 202 IC NJW1197

IC104 00D 963 0202 305 IC NJM2068M

IC105-107 00D 963 0202 305 IC NJM2068M for 397

IC108-113 00D 963 0202 305 IC NJM2068M

IC115,116 00D 963 0116 103 IC MM74HC4053MX for 397

IC120 00D 963 0202 305 IC NJM2068M

Q151FL 00D 960 0196 807 FET/2SN FET 2SK117Y (TYPE2)

Q151FR 00D 960 0196 807 FET/2SN FET 2SK117Y (TYPE2)

Q152FL 00D 960 0196 807 FET/2SN FET 2SK117Y (TYPE2)

Q152FR 00D 960 0196 807 FET/2SN FET 2SK117Y (TYPE2)

Q153,154 00D 963 0121 402 TR KRA104S

Q155 00D 960 0285 006 TR KRC104S

D151FL 00D 963 0219 709 D,SWITCHING 1N4148W

D151FR 00D 963 0219 709 D,SWITCHING 1N4148W

D152FL 00D 963 0219 709 D,SWITCHING 1N4148W

D152FR 00D 963 0219 709 D,SWITCHING 1N4148W

ZD101,102 00D 963 0314 206 D,ZENER MTZJ7.5B

RESISTORS GROUP

R432,433 00D 963 9005 668 R,METAL FILM 220-J,1W

R436,437 00D 963 9005 639 R,METAL FILM 100-J,1W

CAPACITORS GROUP

C101,102 nsp 00D 963 0233 604 C,CERAMIC COG220PF-J/50V for 397

C103,104 00D 963 0311 306 C,ELECT 10UF-M/50V for 397

C105,106 00D 963 0312 305 C,ELECT 220UF-M/16V for 397

C107,108 nsp 00D 963 0223 601 C,CERAMIC COG100PF-J/50V for 397

C109,110 - C,FILM 0.024UF-J/50V for 397

C111,112 - C,FILM 0.0068UF-J/50V for 397

C113,114 00D 963 0311 306 C,ELECT 10UF-M/50V for 397

C119,120 nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V

C121 00D 963 9003 372 R,THICK 0-J,1/16W

C122 nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V

C123 - C,CERAMIC 0.1UF-K/50V for 397

C124 nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V

C126-128 nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V

C130 nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V

C131 00D 963 9003 372 R,THICK 0-J,1/16W

C132 nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V

C133-146 00D 963 0311 306 C,ELECT 10UF-M/50V

C147 00D 960 9010 010 C,ELECT 4.7UF-M/50V

C148 - C,CERAMIC 0.1UF-K/50V

C149 00D 963 0276 108 C,CERAMIC 3300PF-K/50V

C150 00D 963 0310 909 C,ELECT 1UF-M/50V

C151 00D 960 9010 010 C,ELECT 4.7UF-M/50V

C152 - C,CERAMIC 0.1UF-K/50V

C153 00D 963 0276 108 C,CERAMIC 3300PF-K/50V

C154-161 00D 963 9005 862 C,ELECT 47UF-M/16V

C162,163 00D 963 0311 306 C,ELECT 10UF-M/50V

C164 00D 963 0310 909 C,ELECT 1UF-M/50V

C165-172 00D 963 0311 306 C,ELECT 10UF-M/50V

C173,174 00D 963 0311 607 C,ELECT 100UF-M/16V

DRA-397/297/37

J084119700010S

J121206800020S

J121206800020S

J121206800020S

J040744053040S

J121206800020S

J5441170Y0050S

J5441170Y0050S

J5441170Y0050S

J5441170Y0050S

J520010400210S

J522104S00210S

K005041480020S

K005041480020S

K005041480020S

K005041480020S

K06007R544520S

C060022165050S

C060010165060S

D010221167160S

D040100087070S

D040221083110S

D010101167160S

D020243167050S

D020682167050S

D040100087070S

D010101167160S

C20000006M160S

D010101167160S

D011104577161S

D010101167160S

D010101167160S

D010101167160S

C20000006M160S

D010101167160S

D040100087070S

D0404R7087250S

D011104577161S

D011332777160S

D040010087070S

D0404R7087250S

D011104577161S

D011332777160S

D040470083080S

D040100087070S

D040010087070S

D040100087070S

D040101083090S

41

DRA-397/297/37

Ref. No. nsp Part No. Part Name Remarks Q'ty New

C175-177 - C,CERAMIC 0.1UF-K/50V

C180 - C,CERAMIC 0.1UF-K/50V for 397

C181 - C,CERAMIC 0.1UF-K/50V

C182-184 nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V

C185,186 00D 963 0311 306 C,ELECT 10UF-M/50V

C186FL 00D 963 0311 306 C,ELECT 10UF-M/50V

C186FR 00D 963 0311 306 C,ELECT 10UF-M/50V

C186L2 - C,FILM 0.068UF-K/63V for 397

C186L3 - C,FILM 0.068UF-K/63V for 397

C186R2 - C,FILM 0.068UF-K/63V for 397

C186R3 - C,FILM 0.068UF-K/63V for 397

C187 00D 963 0311 306 C,ELECT 10UF-M/50V

C187L2 - C,CERAMIC 0.1UF-K/50V for 397

C187L3 - C,CERAMIC 0.1UF-K/50V for 397

C187R2 - C,CERAMIC 0.1UF-K/50V for 397

C187R3 - C,CERAMIC 0.1UF-K/50V for 397

C187SW nsp 00D 963 0233 808 C,CERAMIC 47PF-J/50V

C188 00D 963 0311 306 C,ELECT 10UF-M/50V

C188FL - C,FILM 0.068UF-K/63V

C188FR - C,FILM 0.068UF-K/63V

C188SW nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V

C189 nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V

C189FL - C,FILM 0.024UF-J/50V

C189FR - C,FILM 0.024UF-J/50V

C189L2 00D 963 0311 306 C,ELECT 10UF-M/50V for 397, 37

C189L3 00D 963 0311 306 C,ELECT 10UF-M/50V for 397

C189R2 00D 963 0311 306 C,ELECT 10UF-M/50V for 397, 37

C189R3 00D 963 0311 306 C,ELECT 10UF-M/50V for 397

C189SW 00D 963 0311 306 C,ELECT 10UF-M/50V

C190 00D 963 0311 306 C,ELECT 10UF-M/50V

C190L2 - C,FILM 0.068UF-K/63V for 397, 37

C190L3 - C,FILM 0.068UF-K/63V for 397

C190R2 - C,FILM 0.068UF-K/63V for 397, 37

C190R3 - C,FILM 0.068UF-K/63V for 397

C191 00D 963 0311 306 C,ELECT 10UF-M/50V

C192 00D 963 9005 875 C,ELECT 47UF-M/25V

C193 - C,CERAMIC 0.1UF-K/50V

C194,195 00D 963 9005 875 C,ELECT 47UF-M/25V

C198 00D 963 0311 306 C,ELECT 10UF-M/50V

C201-203 00D 963 0311 306 C,ELECT 10UF-M/50V

C204,205 - C,CERAMIC 0.1UF-K/50V

C208-217 - C,CERAMIC 0.1UF-K/50V for 397

C218-219 - C,CERAMIC 0.1UF-K/50V for 397

C220 00D 963 9005 875 C,ELECT 47UF-M/25V

C221,222 - C,CERAMIC 0.1UF-K/50V

OTHERS PARTS GROUP

CN102 00D 963 0314 303 CN,WIRE 180MM/4P

CP101 00D 963 0314 905 CN.WAFER 2.0MM 20P

CP102 nsp 00D 963 0086 204 CN.WAFER 2.0MM 19P

JACK103 00D 960 0268 803 TER,RCA 6PIN

JACK104 00D 963 0146 209 TER,RCA 4PIN

JACK106 00D 963 0158 501 TER,RCA 2PIN for 397

L101,102 00D 963 0312 907 COIL,INDUCTOR 47UH for 397

L103-107 nsp 00D 963 0220 002 BEAD,COIL 121JT

D011104577161S

D011104577161S

D011104577161S

D010101167160S

D040100087070S

D040100087070S

D040100087070S

D020683078060S

D020683078060S

D020683078060S

D020683078060S

D040100087070S

D011104577161S

D011104577161S

D011104577161S

D011104577161S

D010470167160S

D040100087070S

D020683078060S

D020683078060S

D010101167160S

D010101167160S

D020243167050S

D020243167050S

D040100087070S

D040100087070S

D040100087070S

D040100087070S

D040100087070S

D040100087070S

D020683078060S

D020683078060S

D020683078060S

D020683078060S

D040100087070S

D040470084070S

D011104577161S

D040470084070S

D040100087070S

D040100087070S

D011104577161S

D011104577161S

D011104577161S

D040470084070S

D011104577161S

L000181040080S

L101100032010S

L101100031910S

G603603B09000S

G602405B01000S

G601207AE010YS

D330470001020S

7611010000020S

42

XM-READY P.W.B. UNIT ASS'Y

Ref. No. nsp Part No. Part Name Remarks Q'ty New

SEMICONDUCTORS GROUP

IC201 00D 960 0174 104 IC CXA1511M

IC201 00D 263 1092 003 IC BA05T

IC203 00D 262 3517 907 IC F2602

IC204 00D 262 2517 908 IC SN74LVO8APW

IC205,206 00D 262 2813 903 IC SN74AHCTO8

IC207 00D 963 0294 902 IC AK4385

IC208 00D 963 0300 702 IC LM1117S

IC209 00D 963 0202 305 IC NJM2068M

IC211 00D 262 2813 903 IC SN74AHCTO8

Q201 00D 963 0044 301 TR KTC2875B

Q202 00D 963 0245 003 TR KRC106S (NF)

Q203 00D 963 0121 402 TR KRA104S

Q204 00D 963 0044 301 TR KTC2875B

Q205 00D 963 0314 109 TR KRA106S (PF)

Q206 00D 963 0245 003 TR KRC106S (NF)

Q207 00D 963 0120 704 TR KRA102S(PB)

Q208-211 00D 963 0044 301 TR KTC2875B

Q212 00D 963 0245 003 TR KRC106S (NF)

Q213 00D 963 0120 704 TR KRA102S(PB)

D201-209 00D 963 0219 709 D,SWITCHING 1N4148W

ZD201 00D 960 0095 704 D,ZENER MTZJ6.2B

RESISTORS GROUP

R294,295 00D 963 9005 639 R,METAL FILM 100-J,1W

CAPACITORS GROUP

C201 - C,CERAMIC 0.1UF-K/50V

C202 00D 963 0311 102 C,ELECT 1UF-M/50V (Pb Free)

C203 - C,CERAMIC 0.1UF-K/50V

C204 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V

C205 nsp 00D 963 9006 528 C,CERAMIC 20PF-J/50V

C206 nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V

C207 00D 963 0311 306 C,ELECT 10UF-M/50V

C208 nsp 00D 963 9006 528 C,CERAMIC 20PF-J/50V

C209 nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V

C210,211 - C,CERAMIC 0.1UF-K/50V

C212 nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V

C213 - C,CERAMIC 0.1UF-K/50V

C214-218 nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V

C219 00D 960 9010 010 C,ELECT 4.7UF-M/50V

C220 - C,FILM 0.012UF-J/100V

C224 - C,CERAMIC 0.1UF-K/50V

C225,226 00D 963 0311 306 C,ELECT 10UF-M/50V

C227 - C,CERAMIC 8PF-D/50V

C228,229 00D 963 0311 306 C,ELECT 10UF-M/50V

C230 - C,CERAMIC 8PF-D/50V

C231 - C,FILM 0.012UF-J/100V

C232 00D 963 9005 875 C,ELECT 47UF-M/25V

C233-236 - C,CERAMIC 0.1UF-K/50V

DRA-397/297/37

J030151100010S

J126050000020S

J080260200010S

J040740800200S

J040740800190S

J042438500010S

J126111733030S

J121206800020S

J040740800190S

J5222875B0010S

J522010600210S

J520010400210S

J5222875B0010S

J520010600210S

J522010600210S

J520010200210S

J5222875B0010S

J522010600210S

J520010200210S

K005041480020S

K06006R244520S

C060010165060S

D011104577161S

D040010087150S

D011104577161S

D011103777160S

D010200167160S

D010101167160S

D040100087070S

D010200167160S

D010101167160S

D011104577161S

D010101167160S

D011104577161S

D010101167160S

D0404R7087250S

D02012306C060S

D011104577161S

D040100087070S

D010080117160S

D040100087070S

D010080117160S

D02012306C060S

D040470084070S

D011104577161S

43

DRA-397/297/37

Ref. No. nsp Part No. Part Name Remarks Q'ty New

C237 nsp 00D 963 0224 105 C,CERAMIC 1000PF-K/50V

C238 - C,CERAMIC 0.1UF-K/50V

C239 nsp 00D 963 0224 105 C,CERAMIC 1000PF-K/50V

C240 - C,CERAMIC 0.1UF-K/50V

C241 00D 963 0311 607 C,ELECT 100UF-M/10V (Pb Free)

C242 - C,CERAMIC 0.1UF-K/50V

C243 nsp 00D 963 0224 105 C,CERAMIC 1000PF-K/50V

C244 nsp 00D 963 0233 808 C,CERAMIC 47PF-J/50V

C245,246 00D 963 0311 306 C,ELECT 10UF-M/50V

C247 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V

C248,249 00D 963 0276 108 C,CERAMIC 3300PF-K/50V

C250-253 00D 963 0224 008 C,CERAMIC 470PF-J/50V

C254 00D 963 0244 606 C,ELECT 0.1UF-M/50V (Pb Free)

C255,256 00D 963 0311 306 C,ELECT 10UF-M/50V

C257,258 00D 963 0312 208 C,ELECT 22UF-M/50V,6*11

C259,260 00D 963 0311 306 C,ELECT 10UF-M/50V

C261,262 nsp 00D 963 9006 528 C,CERAMIC 20PF-J/50V

C263 - C,CERAMIC 0.1UF-K/50V

C264 nsp 00D 963 0224 105 C,CERAMIC 1000PF-K/50V

C265 00D 963 0311 306 C,ELECT 10UF-M/50V

C266,267 - C,CERAMIC 0.1UF-K/50V

C268-271 nsp 00D 963 0233 808 C,CERAMIC 47PF-J/50V

C272,273 - C,CERAMIC 0.1UF-K/50V

OTHERS PARTS GROUP

BD201 00D 963 0312 800 COIL,LINE BFS2550A0F1

BD202 nsp 00D 963 0234 603 COIL,BEAD MB-160808

BD203-209 nsp 00D 963 0220 002 BEAD,COIL 121JT

BD210-218 nsp 00D 963 0234 603 COIL,BEAD MB-160808

BD219-221 nsp 00D 963 0220 002 BEAD,COIL 121JT

BD225 nsp 00D 963 0220 002 BEAD,COIL 121JT

BD226 nsp 00D 963 0234 603 COIL,BEAD MB-160808

BD227 nsp 00D 963 0220 002 BEAD,COIL 121JT

CN202 00D 963 0314 905 CN.WAFER 2.0MM 20P

CN203 00D 963 0085 302 CN.WAFER 2.0MM 17P

CP201 nsp 00D 963 0068 303 CN.WAFER 2.0MM

GND201 - SHIELD PLATE GND

JACK201,202 00D 963 0244 703 JACK,D3.5 EARPHONE

JACK203 00D 205 1362 009 CN.WAFER 4PIN

JACK204 00D 963 0294 601 JACK,D3.5 EARPHONE

JACK205 00D 963 0146 005 TER,RCA 1PIN

JACK206 00D 963 0146 209 TER,RCA 4PIN

XTAL201 00D 963 0313 304 CRYSTAL FCX-02(45.1584MHz)

D011102777160S

D011104577161S

D011102777160S

D011104577161S

D040101082090S

D011104577161S

D011102777160S

D010470167160S

D040100087070S

D011103777160S

D011332777160S

D010471167160S

D040R10087080S

D040100087070S

D040220087100S

D040100087070S

D010200167160S

D011104577161S

D011102777160S

D040100087070S

D011104577161S

D010470167160S

D011104577161S

D320255000520S

D340160800060S

7611010000020S

D340160800060S

7611010000020S

7611010000020S

D340160800060S

7611010000020S

L101100032010S

L101100031710S

L101220090000S

3070045526010S

G40130802000YS

L109040000010S

G40100350000YS

G600107A0000YS

G602405B01000S

E80545R150010S

44

CTN P.W.B. UNIT ASS'Y

Ref. No. nsp Part No. Part Name Remarks Q'ty New

OTHERS PARTS GROUP

CN407 nsp 00D 963 0097 303 CN.WAFER 2.0MM 15P

CN409 nsp 00D 963 0097 303 CN.WAFER 2.0MM 15P

CN506 nsp 00D 963 0097 303 CN.WAFER 2.0MM 15P

CN511 nsp 00D 963 0097 303 CN.WAFER 2.0MM 15P

CP901 nsp 00D 963 0235 903 CN.WAFER 2.0MM

H901,902 nsp 00D 960 0184 000 BRACKET SCREW

FUNCTION SW P.W.B. UNIT ASS'Y (for DRA-37 model)

Ref. No. nsp Part No. Part Name Remarks Q'ty New

SEMICONDUCTORS GROUP

ZD310,311 00D 960 0095 607 D,ZENER MTZJ5.6B

DRA-397/297/37

L101100031510S

L101100031510S

L101100031510S

L101100031510S

L101220040000S

4010210196000S

K06005R644520S

LED303 00D 963 0148 605 LEDSML1216W(RED/GREEN)

CAPACITORS GROUP

C329,330 00D 963 0233 303 C,CERAMIC 0.01UF-M/16V

OTHERS PARTS GROUP

CP305 00D 963 0228 101 CN.WAFER 2.0MM

CP308 00D 960 0254 901 CN.WAFER 2.0MM

SW330 00D 963 0200 103 SW,TACT SKHV10920A

VEC305 00D 963 0095 208 SW,ENCODER EC16B24SA

K500052600030S

D005103773530S

L101220040010S

L101220050010S

G180000270010S

G121162400040S

45

Parts marked with this symbol have critical
characteristics.
Use ONLY replacement parts recommended by
the manufacturer.

WARNING:

印の部分は安全を維持するために重要
な部品です。従って交換時は必ず指定の
部品を使用してください。

EXPLODED VIEW

DRA-397/297 model

DRA-397/297/37

G

D

41

63

DRA397 BKE3

3

63

DRA397 BKE3

32

31

27

30

G

A

13

17

A

10

9

8

L

1

2

!

15

14

11

12

21

I

E

A

28

A

36

34

26

29

31

27

35

40

!

A

A

33

A

!

50

49

A

H

A

A

A

A

F

62

F

43

57

D

66

D

D

D

D

D

62

55

54

D

D

45

5

1

4

DRA397 BKE3

23

L

22

8

6

7

B

51

52

53

A

52

58

A

47

A

61

59

47

A

47

A

F

A

60

46

DRA-37 model

Parts marked with this symbol have critical
characteristics.
Use ONLY replacement parts recommended by
the manufacturer.

WARNING:

印の部分は安全を維持するために重要
な部品です。従って交換時は必ず指定の
部品を使用してください。

DRA-397/297/37

G

D

41

30

32

31

27

E

29

35

36

G

A

20

25

17

A

10

9

8

A

1

2

3

!

15

14

11

12

21

C

28

A

34

A

26

A

40

!

A

33

A

!

50

49

A

A

H

A

A

A

F

62

F

57

43

D

D

D

42

D

D

D

D

56

55

54

D

D

45

4

8

6

7

B

51

52

53

A

23

A

22

47

52

58

A

47

A

61

59

47

A

47

A

F

A

A

60

47

DRA-397/297/37

PARTS LIST OF EXPLODED VIEW

＊本表に記載されている部品は、補修用部品のため製品に使用している部品とは一部、形状、寸法などが異なる場合があります。
＊ The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.

＊"nsp" 印の部品は常時在庫していませんので供給に長時間を要することがあります。場合によっては、供給をお断りする場合があります。
＊ Part indicated with the mark “nsp” are not always in stock and possibly to take a long period of time for supplying, or in some case supplying of part may be refused.

Ref. No. nsp Part No. Part Name Remarks Q'ty New

44A - MAIN P.W.B. UNIT ASSY for 397

43A - MAIN P.W.B. UNIT ASSY for 297

43A - MAIN P.W.B. UNIT ASSY for 37

13 P.C.B FUNCTION UNIT for 297, 397

! 15 P.C.B POWER SW UNIT

43 P.C.B MAIN UNIT

57 P.C.B VIDEO UNIT

22A - FRONT P.W.B. UNIT ASSY for 397

21A - FRONT P.W.B. UNIT ASSY for 297

21A - FRONT P.W.B. UNIT ASSY for 37

14 P.C.B HEADPHONE UNIT

21 P.C.B FRONT UNIT

56 P.C.B PREOUT UNIT for 37

60 P.C.B CPU UNIT

62 P.C.B ZONE UNIT for 397

20A - FUNCTION P.W.B. UNIT ASSY for 37

20 P.C.B FUNCTION SW UNIT

25 P.C.B STANDBY SW UNIT

54 - XM-READY P.W.B. UNIT ASSY for 397

54 - XM-READY P.W.B. UNIT ASSY for 297

54 - XM-READY P.W.B. UNIT ASSY for 37

55 - INPUT P.W.B. UNIT ASSY for 397

55 - INPUT P.W.B. UNIT ASSY for 297

55 - INPUT P.W.B. UNIT ASSY for 37

59 - CNT P.W.B. UNIT ASSY for 397

59 - CNT P.W.B. UNIT ASSY for 297

59 - CNT P.W.B. UNIT ASSY for 37

1 00D 963 0304 203 PANEL FRONT for 397

1 00D 963 0304 300 PANEL FRONT for 297

1 00D 963 0316 107 PANEL FRONT for 37

2 00D 963 0051 501 BADGE DENON

3 00D 963 0298 306 KNOB INPUT ASSY for 397

3 00D 963 0138 301 KNOB INPUT for 297, 37

4 00D 963 0305 600 WINDOW DISPLAY for 397

4 00D 963 0305 503 WINDOW DISPLAY for 297

4 00D 963 0316 408 WINDOW DISPLAY for 37

5 00D 963 0316 709 BUTTON 2KEY for 397

6 00D 963 0298 209 KNOB VOLUME ASSY for 397

6 00D 963 0138 806 KNOB VOLUME for 297, 37

7 00D 963 0152 905 KNOB SELECT for 397

7 00D 963 0138 505 KNOB SELECT for 297, 37

8 nsp 00D 963 0138 000 BRACKET SIDE L/R

9 00D 963 0137 807 LENS STANDBY

10 00D 963 0184 106 BUTTON STANDBY

11 00D 963 0184 009 BUTTON POWER

12 00D 960 0191 417 LENS LED

7025HK0604010

7025HK0603010

7025HK0603040

7025HK0604011

7025HK0603011

7025HK0603041

7025HK0603044

7025HK0604013

7025HK0603013

7025HK0603043

7025HK0604012

7025HK0603012

7025HK0603042

7025HK0604014

7025HK0603014

7025HK0603045

3067212741000S

3067212741100S

3067212731000S

5630210028000S

5088211278000SZ

5087210961000S

50772119220L0S

50772119220K0S

5077212283010S

5097213171000S

5088211268020SZ

5087210981000S

5087210958000SZ

5087210971000S

4010211986000S

3710210503000S

5097212368000SZ

5097212358000SZ

3710210043001S

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1*

1*

1*

1

1

1

1*

1*

1*

1

1

1

1

1

2

1

1

1

2

48

DRA-397/297/37

Ref. No. nsp Part No. Part Name Remarks Q'ty New

17 00D 963 0094 801 BUTTON /3KEY(A) for 397, 297

17 00D 963 0094 801 BUTTON /3KEY(A) for 37

22 00D 963 0139 407 BUTTON 4KEY for 397, 297

22 00D 963 0316 602 BUTTON 4KEY for 37

23 00D 963 0139 106 BUTTON 3KEY for 397, 297

23 00D 963 0316 505 BUTTON 3KEY for 37

26 nsp 00D 960 0184 301 BRACKET HEAT SINK-F

27 00D 963 0280 107 TR,2SC3964 Q505FR, Q505FL

28 00D 960 0187 900 POSISTOR P43T7D330BW16

29 00D 963 0044 107 TR,2SB1560-Y for 397 Q507FR, Q507FL

29 00D 963 0313 906 TR,2SB2SB1559Y for 297, 37 Q507FR, Q507FL

30 nsp 00D 963 0247 108 CABINET

31 00D 963 0044 204 TR,2SD2390-Y for 397 Q506FR, Q506FL

31 00D 963 0314 002 TR,2SD2SD2389Y for 297, 37 Q506FL, Q506FR

32 nsp - HEAT SINK MAIN for 397

32 nsp - HEAT SINK MAIN for 297 , 37

33 nsp 00D 960 0184 204 BRACKET HEAT SINK-B

34 00D 263 1223 005 IC,PQ20RX11 IC505

35 00D 960 0299 209 IC,CJ7815F IC501

36 00D 963 0219 505 IC,CJ7915F IC502

! 40 00D 963 0307 103 POWER TRANS MAIN for 397

! 40 00D 963 0306 900 POWER TRANS MAIN for 297, 37

41 nsp 00D 963 0268 802 SHEET CABINET

42 00D 963 0304 504 CHASSIS BACK for 397

42 00D 963 0304 407 CHASSIS BACK for 297

42 - CHASSIS BACK for 37

45 00D 963 0145 608 TUNER,FM/AM

47 nsp 00D 960 0003 301 SUPPORTER PCB

49 nsp 00D 960 0192 403 STOPPER CORD AC

! 50 00D 963 0292 205 CORD ASSY

51 nsp - CHASSIS MAIN

52 nsp 00D 963 0137 904 FOOT

53 nsp 00D 963 0214 607 CUSHION FOOT

58 nsp - SUPPORTER P.C.

61 nsp 00D 960 0184 107 BRACKET SUPPORTER

62 nsp 00D 963 0316 903 RUBBER SHEET

63 nsp 00D 963 0317 009 PLATE TOP for 397

★ 64
★ 65
★ 66
★ 67
★ 68

SCREWS

A nsp 00D 963 0018 007 SCREW(3X8 B-TYPE ZNY/BH) for 397, 297

A nsp 00D 963 0018 007 SCREW(3X8 B-TYPE ZNY/BH) for 37

B nsp 00D 963 0136 701

C nsp 00D 960 9008 420

D nsp 00D 960 0108 701

D nsp 00D 960 0108 701

E nsp 00D 963 9006 175

F nsp 00D 963 0018 104 SCREW(3X17 B-TYPE ZNY/BH)

G nsp 00D 963 0048 307

H nsp 00D 960 9008 417

I nsp 00D 960 9008 420

L nsp 00D 963 0136 507

00D 963 0315 603 CABLE,FLAT CARD 1.25MM

00D 963 0315 506 CABLE,FLAT CARD

nsp 00D 960 0183 807 TERMINAL for 397

- LABEL RATING

nsp 00D 513 3333 005 LABEL (TRANS)

SCREW(3X8 BK WASHER PI12) 1500001456020S

SCREW(3X8 ZnY WASHER PI12)

SCREW(3X10 B-TYPE(DOT) BK/BH)

SCREW(3X10 B-TYPE(DOT) BK/BH)

SCREW(3X14 P+S-WASHER ZNY/HH)

SCREW(4X8 B-TYPE(DOT) BK/BH)

SCREW(4X8 P+S-WASHER ZNY/BH)

SCREW(3X8 ZnY WASHER PI12)

SCREW(3X8 PI9.5 B-TYPE ZNY)

for 37

for 397, 37

for 297

for 397, 297

for 397, 297

5090211741000S

5097211741000S

5097212341000S

5097213161000S

5097212331000S

5097213131000S

4010210396000S

J502396400000S

F320161001020S

J5011560Y0000S

J5011559Y1170S

3000210096400S

J5032390Y0000S

J5032389Y1170S

2120210968100S

2120210968000S

4010210386000S

J126201100010S

J126781500100S

J126791500070S

8200880690010S

8200880570010S

1210210235000S

3207211946200S

3207211946000S

3207211946100S

E903014000020S

4070001601010S

4380210002000S

L068125100020S

3200210146306S

4007210261000S

4050211295000S

4070210192000S

4010210206000S

4050212635000S

4470211066000S

N712151743810S

L301171230020S

3790000090000S

5527042410290S

B020030081B10S

B020030081B10S

1500001456010S

B020030103B11S

B020030103B11S

B018230141H11S

B020030171B10S

1500040083B10S

B028940081B10S

1500001456010S

1500001206010S

1

1

1

1

2

2

1

2

1

2

2

1

2

2

1

1

1

1

1

1

1

1*

3

1*

1*

1*

1

4

1

1

1

4

4

1

1

2

2

1

1

1

1

50

57

4

1

24

23

9

4

6

4

1

2

49

PACKING VIEW

DRA-397/297/37

6

3

5

10

9

2

15

4

1

4

14

16

17

7

7

8

13

13

12

13

PARTS LIST OF PACKING & ACCESSORIES

＊本表に記載されている部品は、補修用部品のため製品に使用している部品とは一部、形状、寸法などが異なる場合があります。
＊ The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.

＊"nsp" 印の部品は常時在庫していませんので供給に長時間を要することがあります。場合によっては、供給をお断りする場合があります。
＊ Part indicated with the mark “nsp” are not always in stock and possibly to take a long period of time for supplying, or in some case supplying of part may be refused.

Ref. No. nsp Part No. Part Name Remarks Q'ty New

1 nsp 00D 963 0241 405 POLY BAG SET

2 00D 963 0306 104 INSTRUCTION MANUAL for 397

2 00D 963 0305 901 INSTRUCTION MANUAL for 297

2 00D 511 4541 007 INSTRUCTION MANUAL for 37

3 00D 231 0089 007 AM ANTENNA WIRE

4 00D 963 0158 006 FM ANTENNA WIRE

5 00D 963 0307 307 REMOTE CONTROL for 397

5 00D 963 0307 404 REMOTE CONTROL for 297, 37

6 nsp 00D 963 0045 106 POLY BAG

7 nsp 00D 963 0193 101 CUSHION SNOW L/R

8 nsp 00D 963 0306 502 BOX GIFT for 397

8 nsp 00D 963 0306 405 BOX GIFT for 297

8 nsp 00D 963 0316 806 BOX GIFT for 37

9 - CARD WARRANTY

10 - CARD S.S. LIST

11 - BATTERY DRY

12 - LABEL UPC for 397

12 - LABEL UPC for 297

12 - LABEL UPC for 37

13 - LABEL CONTROL

14 nsp 00D 963 0268 006 POLY BAG ACCESSORY

15 - WARRANTY CARD-XM RADIO

16 00D 963 0310 307 REMOTE CONTROL for 397

17 - BATTERY DRY for 397

6327040059000S

5707210130240S

5707210130210S

5707210130230S

E605010110010S

E605010070001S

8300105200010S

8300105300010S

6330000240000S

6230210154001S

6007210310730S

6007210310720S

6007210310760S

5777001610036S

5777001620019S

-

5507002340800S

5507002360200S

5507002360230S

5500014920010S

6330210222000S

5727001230051S

8300105600010S

-

1

1*

1*

1*

1

1

1*

1*

1

1

1*

1*

1*

1

1

2

1

1

1

2

1

1

1*

2

50

WIRING DIAGRAM

DRA-397/297/37

51

DRA-397/297/37

52

DRA-397/297/37

53

DRA-397/297/37

NOTE FOR SCHEMATIC DIAGRAM

WARNING:

Parts marked with this symbol ! have critical characteristics.
Use ONLY replacement parts recommended by the manufactur­er.

CAUTION:

Before returning the unit to the customer, make sure you make
either (1) a leakage current check or (2) a line to chassis resis­tance check. If the leakage current exceeds 0.5 milliamps, or if
the resistance from chassis to either side of the power cord is
less than 460 kohms, the unit is defective.

WARNING:

DO NOT return the unit to the customer until the problem is lo­cated and corrected.

NOTICE:

ALL RESISTANCE VALUES IN OHM. k=1,000 OHM
M=1,000,000 OHM
ALL CAPACITANCE VALUES IN MICRO FARAD.
P=MICRO-MICRO FARAD
EACH VOLTAGE AND CURRENT ARE MEASURED AT
NO SIGNAL INPUT CONDITION.
CIRCUIT AND PARTS ARE SUBJECT TO CHANGE
WITHOUT PRIOR NOTICE.

配線図について

!印の部品は安全を維持するために重要な部品です。
従って交換時は必ず指定の部品を使用してください。

注）

(1) 指定なき抵抗値は Ω、ｋ は ｋΩ、M は MΩ を示す。
(2) 指定なきコンデンサーの値は µF、ｐ は ｐF を示す。

(3) 各部の電圧は無信号の値を示す。
(4) この配線図は基本配線図です。改良等のため変更する

ことがありますのでご了承ください。

54

DRA-397/297/37

SCHEMATIC DIAGRAMS (1/8)

12 3 4 5 6 7 8 9 10 11

A

B

C

D

E

SIGNAL LINE

SCHEMATIC DIAGRAMS (1/8)

INPUT UNIT
(for ALL model)

F

G

H

DRA-397/297/37

SCHEMATIC DIAGRAMS (2/8)

12 3 4 5 6 7 8 9 10 11

A

B

C

D

E

SCHEMATIC DIAGRAMS (2/8)

CPU/CNT UNIT
(for ALL model)

F

G

H

DRA-397/297/37

SCHEMATIC DIAGRAMS (3/8)

12 3 4 5 6 7 8 9 10 11

A

B

C

D

E

SIGNAL LINE

SCHEMATIC DIAGRAMS (3/8)

MAIN/POWER SW UNIT
(for ALL model)

F

G

H

DRA-397/297/37

SCHEMATIC DIAGRAMS (4/8)

1234567891011

A

B

C

D

E

SCHEMATIC DIAGRAMS (4/8)

VIDEO UNIT
FUNCTION SW UNIT
(for ALL model)

F

G

H

DRA-397/297/37

SCHEMATIC DIAGRAMS (5/8)

1234567891011

A

B

ZONE2 L
GND
ZONE2 R

MUTE ZONE2
ZONE3 L
GND

ZONE3 R

MUTE ZONE3

C

D

E

SCHEMATIC DIAGRAMS (5/8)

FRONT/HEAD PHONE/ZONE UNIT
(for DRA-397 model)

F

G

H

DRA-397/297/37

SCHEMATIC DIAGRAMS (6/8)

1234567891011

A

B

C

D

E

SCHEMATIC DIAGRAMS (6/8)

FRONT/HEAD PHONE/ZONE UNIT
(for DRA-297 model)

F

G

H

DRA-397/297/37

SCHEMATIC DIAGRAMS (7/8)

12 3 4 5 6 7 8 9 10 11

A

B

C

D

E

SCHEMATIC DIAGRAMS (7/8)

FRONT/HEAD PHONE
/FRONT PREOUT UNIT
(for DRA-37 model)

F

G

H

DRA-397/297/37

SCHEMATIC DIAGRAMS (8/8)

1234567891011

A

B

C

D

3

4

2

1

E

SCHEMATIC DIAGRAMS (8/8)

XM READY UNIT
(for ALL model)

F

G

H
