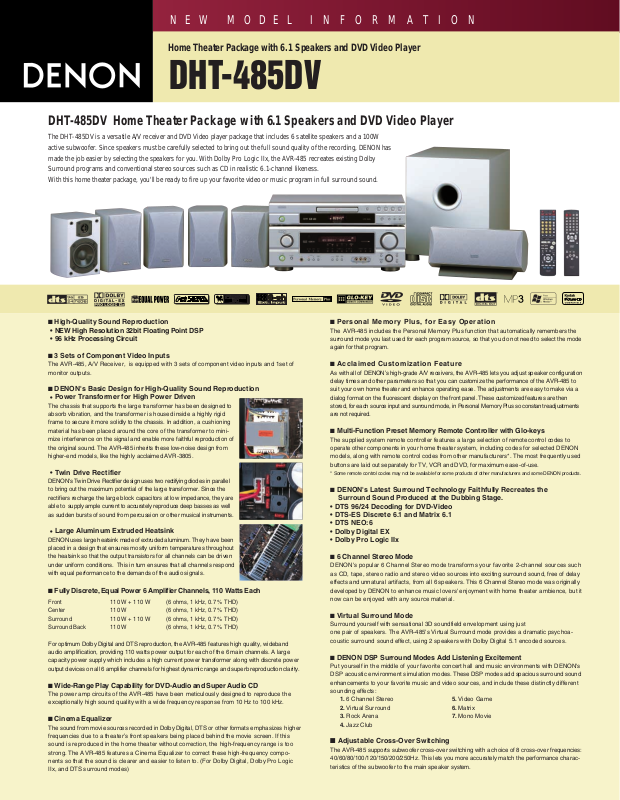

Home Theater Package with 6.1 Speakers and DVD Video Player

DHT-485DV

DHT-485DV Home Theater Package with 6.1 Speakers and DVD Video Player

The DHT-485DV is a versatile A/V receiver and DVD Video player package that includes 6 satellite speakers and a 100W
active subwoofer. Since speakers must be carefully selected to bring out the full sound quality of the recording, DENON has
made the job easier by selecting the speakers for you. With Dolby Pro Logic IIx, the AVR-485 recreates existing Dolby
Surround programs and conventional stereo sources such as CD in realistic 6.1-channel likeness.
With this home theater package, you'll be ready to fire up your favorite video or music program in full surround sound.

■ High-Quality Sound Reproduction

• NEW High Resolution 32bit Floating Point DSP

• 96 kHz Processing Circuit

■ 3 Sets of Component Video Inputs

The AVR-485, A/V Receiver, is equipped with 3 sets of component video inputs and 1set of
monitor outputs.

■ DENON's Basic Design for High-Quality Sound Reproduction

Power Transformer for High Power Driven

•

The chassis that supports the large transformer has been designed to
absorb vibration, and the transformer is housed inside a highly rigid
frame to secure it more solidly to the chassis. In addition, a cushioning
material has been placed around the core of the transformer to mini­mize interference on the signal and enable more faithful reproduction of
the original sound. The AVR-485 inherits these low-noise design from
higher-end models, like the highly acclaimed AVR-3805.

Twin Drive Rectifier

•

DENON's Twin Drive Rectifier design uses two rectifying diodes in parallel
to bring out the maximum potential of the large transformer. Since the
rectifiers recharge the large block capacitors at low impedance, they are
able to supply ample current to accurately reproduce deep basses as well
as sudden bursts of sound from percussion or other musical instruments.

Large Aluminum Extruded Heatsink

•

DENON uses large heatsink made of extruded aluminum. They have been
placed in a design that ensures mostly uniform temperatures throughout
the heatsink so that the output transistors for all channels can be driven
under uniform conditions. This in turn ensures that all channels respond
with equal performance to the demands of the audio signals.

■

Fully Discrete, Equal Power 6 Amplifier Channels, 110 Watts Each

Front 110 W + 110 W (6 ohms, 1 kHz, 0.7 % THD)
Center 110 W (6 ohms, 1 kHz, 0.7 % THD)
Surround 110 W + 110 W (6 ohms, 1 kHz, 0.7 % THD)
Surround Back 110 W (6 ohms, 1 kHz, 0.7 % THD)

For optimum Dolby Digital and DTS reproduction, the AVR-485 features high quality, wideband
audio amplification, providing 110 watts power output for each of the 6 main channels. A large
capacity power supply which includes a high current power transformer along with discrete power
output devices on all 6 amplifier channels for highest dynamic range and superb reproduction clarity.

■

Wide-Range Play Capability for DVD-Audio and Super Audio CD

The power amp circuits of the AVR-485 have been meticulously designed to reproduce the
exceptionally high sound quality with a wide frequency response from 10 Hz to 100 kHz.

■ Cinema Equalizer

The sound from movie sources recorded in Dolby Digital, DTS or other formats emphasizes higher
frequencies due to a theater’s front speakers being placed behind the movie screen. If this
sound is reproduced in the home theater without correction, the high-frequency range is too
strong. The AVR-485 features a Cinema Equalizer to correct these high-frequency compo­nents so that the sound is clearer and easier to listen to. (For Dolby Digital, Dolby Pro Logic
IIx, and DTS surround modes)

■

Personal Memory Plus, for Easy Operation

The AVR-485 includes the Personal Memory Plus function that automatically remembers the
surround mode you last used for each program source, so that you do not need to select the mode
again for that program.

■

Acclaimed Customization Feature

As with all of DENON’s high-grade A/V receivers, the AVR-485 lets you adjust speaker configuration
delay times and other parameters so that you can customize the performance of the AVR-485 to
suit your own home theater and enhance operating ease. The adjustments are easy to make via a
dialog format on the fluorescent display on the front panel. These customized features are then
stored, for each source input and surround mode, in Personal Memory Plus so constant readjustments
are not required.

■

Multi-Function Preset Memory Remote Controller with Glo-keys

The supplied system remote controller features a large selection of remote control codes to
operate other components in your home theater system, including codes for selected DENON
models, along with remote control codes from other manufacturers*. The most frequently used
buttons are laid out separately for TV, VCR and DVD, for maximum ease-of-use.

* Some remote control codes may not be available for some products of other manufacturers and some DENON products.

■ DENON's Latest Surround Technology Faithfully Recreates the

Surround Sound Produced at the Dubbing Stage.

• DTS 96/24 Decoding for DVD-Video

• DTS-ES Discrete 6.1 and Matrix 6.1

• DTS NEO:6

• Dolby Digital EX

• Dolby Pro Logic IIx

■ 6 Channel Stereo Mode

DENON's popular 6 Channel Stereo mode transforms your favorite 2-channel sources such
as CD, tape, stereo radio and stereo video sources into exciting surround sound, free of delay
effects and unnatural artifacts, from all 6 speakers. This 6 Channel Stereo mode was originally
developed by DENON to enhance music lovers' enjoyment with home theater ambience, but it
now can be enjoyed with any source material.

■

Virtual Surround Mode

Surround yourself with sensational 3D soundfield envelopment using just
one pair of speakers. The AVR-485's Virtual Surround mode provides a dramatic psychoa­coustic surround sound effect, using 2 speakers with Dolby Digital 5.1 encoded sources.

■

DENON DSP Surround Modes Add Listening Excitement

Put yourself in the middle of your favorite concert hall and music environments with DENON's
DSP acoustic environment simulation modes. These DSP modes add spacious surround sound
enhancements to your favorite music and video sources, and include these distinctly different
sounding effects:

1. 6 Channel Stereo 5. Video Game

2. Virtual Surround 6. Matrix

3. Rock Arena 7. Mono Movie

4. Jazz Club

■

Adjustable Cross-Over Switching

The AVR-485 supports subwoofer cross-over switching with a choice of 8 cross-over frequencies:
40/60/80/100/120/150/200/250Hz. This lets you more accurately match the performance charac­teristics of the subwoofer to the main speaker system.

NEW MODEL IN FO RM AT IO N

■ Front Panel Inputs

■ Front A/B Speaker Terminals

■ High-grade Speaker Terminals (All ch)

■ Frequency Synthesis Tuning

• 56-Station AM/FM Random Preset Memory Tuning

• Auto Preset Memory

DVD Video Player: DVD-555

■ 24-bit, 192-kHz High Resolution Audio D/A Converters

■ Progressive Scan

■ Highest resolution 10-bit, 54-MHz Video D/A Conversion System

■ 2 MB Buffer Memory

■ Picture Zooming (x2 or x4)

■ Color Component Video Output

■ Aspect Ratio Function for Correct Image Displays

■ Wide Selection of Playback Options

1) Program Play, 2) Repeat Play, 3) Random Play

■ Picture Adjustment Function

■ Brilliant Black

■ CD-R/RW (audio/MP3/WMA/JPEG/Kodak Picuture CD) Playback (*1)

■ 24/96 PCM Digital Output Capability

■ PCM, Dolby Digital and DTS Digital Output

■ Auto Power OFF

Active Subwoofer: DSW-65

• 25 cm Woofer x1

• Amplifier Output: 100W

• LF Direct Mode

DHT-485DV

■ Power Amplifier Section

Rated output *THD figures are power amp stage values.

Front .................................................. 75 W + 75 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)

Center................................................ 75 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)

Surround ........................................... 75 W + 75 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)

Surround Back ................................. 75 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)

■ Preamplifier Section

Input sensitivity/Impedance

CD, DVD/VDP, TV/DBS, VCR, CDR/TAPE, AUX,

V.AUX(FRONT)........................ 200 mV/47 kohms

Output level/Load impedance

SUBWOOFER.......................... 1.2 V/10 kohms

CDR/TAPE, VCR ..................... 200 mV/47 kohms

Frequency response...................... 10 Hz - 100 kHz (+1, -3 dB) (Tone Defeat On)

Signal-to-noise ratio....................... 98 dB (IHF-A weighted) (Tone Defeat On)

Tone control................................... Treble: ±10 dB at 10 kHz

■ FM Section

Tuning frequency range................. 87.5 - 107.9 MHz

Usable sensitivity........................... 1.0 µV (11.2 dBf)

■ AM Section

Tuning frequency range................. 520 - 1710 kHz

Usable sensitivity........................... 18 µV

■ General

Power supply ................................. AC 120 V, 60 Hz

Power consumption ....................... 3.9 A

Dimensions.................................... 17-3/32” (W) x 5-25/32” (H) x 1-23/64” (D)

Weight ........................................... 23 lbs 13 oz, 10.8 kg

110 W + 110 W (6 ohms, 1 kHz, 0.7 % THD)

110 W (6 ohms, 1 kHz, 0.7 % THD)

110 W + 110 W (6 ohms, 1 kHz, 0.7 % THD)

110 W (6 ohms, 1 kHz, 0.7 % THD)

Bass: ±10 dB at 100 Hz

434 (W) x 147 (H) x 417 (D) mm

Specifications
DVD Video Player: DVD-555

■ Video Section

Signal system............................... NTSC

Disc played ................................. DVD Video, Music CD,

Video outputs ............................... 1 Set of Composite Video Output:

■ Audio Section

Audio outputs ............................... 1 Set Analog Output (L/R)

CD audio

Frequency response .................... 4 Hz - 20 kHz

Signal-to-noise ratio .................... 115 dB

Dynamic range ............................ 98 dB

Total harmonic distortion.............. 0.004%

■ General

Power supply ............................... AC 120 V, 60 Hz

Dimensions .................................. 17-3/32” (W) x 2-61/64” (H) x 8-21/32” (D)

Weight.......................................... 4 lbs 3 oz, 1.9 kg

■ Input/Output Terminals For Every A/V System

• Audio Inputs

8 Analog Inputs .................... CD, (TUNER), DVD/VDP, TV/DBS,

6 Analog EXT. Input .............. FRONT L/R, CENTER,

2 Digital Inputs ..................... OPTICAL X 1

• Audio Outputs

1 Analog PRE OUT Terminals SUBWOOFER
2 Analog REC OUT Terminals VCR, CDR/TAPE

• Video Inputs

3 Component Video Inputs ..... DVD/VDP, TV/DBS, VCR

4 Composite Inputs ............... DVD/VDP, TV/DBS, VCR, V.AUX(FRONT)

3 S-Video Inputs....................... DVD/VDP, TV/DBS, VCR

• Video Outputs

1 Component Video Output .. MONITOR

2 Composite Outputs ............ VCR, MONITOR

2 S-Video Outputs................. VCR, MONITOR

CD-R/RW(audio/MP3/WMA/JPEG/Kodak Picture CD)
DVD-R/RW

1.0 Vp-p (with 75 ohms load)

1 Set of S-Video Output:

Y; 1.0 Vp-p (with 75 ohms load),
C; 0.286 Vp-p

1 Set of Component Video Output:

Y, Pb/Cb, Pr/Cr:
Y; 1.0 Vp-p (with 75 ohms load),
Pb/Cb; 0.7 Vp-p (with 75 ohms load),
Pr/Cr; 0.7 Vp-p (with 75 ohms load)

1 Set Optical Digital Output
1 Set Coaxial Digital Output

435 (W) x 75 (H) x 220 (D) mm

AUX, VCR, CDR/TAPE, V.AUX(FRONT)

SURROUND L/R, SUBWOOFER

COAXIAL X 1

■ Speaker section
SC-A65 (Satellite speaker system)

Type ............................................... 2-way 2 speakers

Magnetic shielding.......................... Yes

Imepedance................................... 6 ohms

Dimensions.................................... 5-3/32” (W) x 7-3/32” (H) x 6-22/32” (D)

Weight ........................................... 2 lbs 12 oz, 1.2 kg

SC-C65 (Center speaker system)

Type ............................................... 2-way 3 speakers

Magnetic shielding.......................... Yes

Imepedance................................... 6 ohms

Dimensions.................................... 11-13/32” (W) x 5-3/32” (H) x 7-19/32” (D)

Weight ........................................... 3 lbs 15 oz, 1.8 kg

DSW-65 (Subwoofer system with built-in Amplifier)

Imepedance................................... 4 ohms

Power supply ................................. AC 120 V, 60 Hz

Dimensions.................................... 12-6/32” (W) x 13-25/32” (H) x 17-6/32” (D)

Weight ........................................... 26 lbs 7 oz, 12.0 kg

SYS-65HT 6.1ch Speaker System (SC-A65/ SC-C65/ DSW-65)

*The speaker system shown is not available in some markets.

* Design and specifications are subject to change without notice.
* ”Dolby”, “Dolby Digital”, “Pro Logic II”, “Dolby Digital EX” and the double-D device are registered trademarks of

Dolby Laboratories Licensing Corporation.

* DTS is registered trademarks of DTS Technology.

130 (W) x 180 (H) x 171 (D) mm

290 (W) x 130 (H) x 192 (D) mm

310 (W) x 351 (H) x 436 (D) mm (with feet)

DENON ELECTRONICS (USA) LLC.

19C CHAPIN ROAD, SUITE 205, PINE BROOK, N.J. 07058-9385 USA
TEL: [phone] www.usa.denon.com

DENON CANADA INC.

505 APPLE CREEK BLVD, UNIT 5, MARKHAM, ONTARIO, CANADA L3R 5B1
TEL: [phone] www.denon.ca

DENON, LTD.

3-16-11, YUSHIMA, BUNKYO-KU, TOKYO 113-0034, JAPAN

00000904 A
