DHT-483XP Home Theater Package with 6 Speakers

■

Fully Discrete, Equal Power Five Amplifier Channels, 100 Watts Each

Front 100 W + 100 W (6 ohms, 1 kHz, 0.7 % THD)
Center 100 W (6 ohms, 1 kHz, 0.7 % THD)
Surround 100 W + 100 W (6 ohms, 1 kHz, 0.7 % THD)

For optimum Dolby Digital and DTS reproduction, the AVR-483 features
high quality, wideband audio amplification, providing 100 watts power
output for each of the five main channels. A large capacity power supply
includes a high current power transformer along with discrete power
output devices on all five amplifier channels for highest dynamic range
and superb reproduction clarity.

■

Dolby Pro Logic II Decoder

Enjoy 2-channel stereo recordings in stunning 5.1-channel surround playback.
The Dolby Pro Logic II decoder reproduces dynamic 5.1-channel surround
sound not only from normal 5.1-channel DVD but from 2-channel sources
such as videos and CDs, too. Dolby Pro Logic II uses matrix decoding
technology that has been dramatically improved over Pro Logic.

■

Dolby Digital and DTS Decoders

Equipped with both Dolby Digital and DTS 5.1 channel decoding, the
AVR-483 provides thrilling surround sound with the thousands of Dolby
Digital and DTS encoded DVDs, as well as the growing library of DTS

5.1 channel music recordings available on CD.

■

Cinema Equalizer

The sound from movie sources recorded in Dolby Digital, DTS or other
formats emphasizes high-frequency range due to a theater’s front speakers
being placed behind the movie screen. If this sound is reproduced in the
home theater without correction, the high-frequency range is too strong.
The AVR-483 features a Cinema Equalizer to correct these high-frequency
components so that the sound is clearer and easier to listen to.
(For Dolby Digital, Dolby Pro Logic II, and DTS surround modes)

■

5 Channel Stereo Mode

DENON's popular 5 Channel Stereo mode transforms your favorite 2­channel sources such as CD, tape, stereo radio and stereo video
sources into exciting surround sound, free of delay effects and unnat­ural artifacts, from all five speakers. This 5 Channel Stereo mode was
originally developed by DENON to enhance music lovers' enjoyment
of home theater ambience.

■

Virtual Surround Mode

Surround yourself with sensational 3D soundfield envelopment using
just one pair of speakers. The AVR-483's Virtual Surround mode
provides a dramatic psychoacoustic surround sound effect, using two
speakers with Dolby Digital 5.1 encoded sources.

■

DENON DSP Surround Modes Add Listening Excitement

Put yourself in the middle of your favorite concert hall and music
environments with DENON's DSP acoustic environment simulation
modes. These DSP modes add spacious surround sound enhancements
to your favorite music and video sources, and include these distinctly
different sounding effects:

1. 5 Channel Stereo 5. Video Game

2. Virtual Surround 6. Matrix

3. Rock Arena 7. Mono Movie

4. Jazz Club

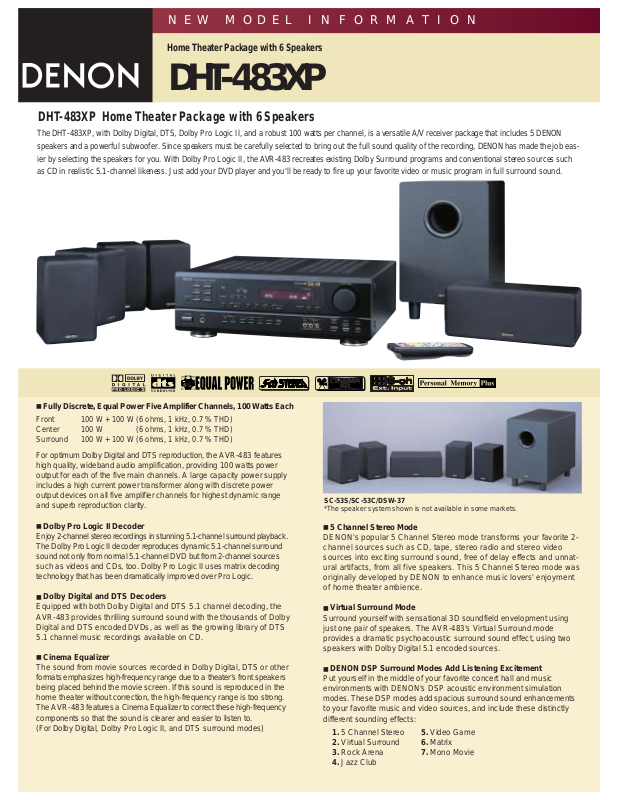

DHT-483XP

Home Theater Package with 6 Speakers

NEW MODEL INFORMATION

SC-53S/SC-53C/DSW-37

*The speaker system shown is not available in some markets.

The DHT-483XP, with Dolby Digital, DTS, Dolby Pro Logic II, and a robust 100 watts per channel, is a versatile A/V receiver package that includes 5 DENON
speakers and a powerful subwoofer. Since speakers must be carefully selected to bring out the full sound quality of the recording, DENON has made the job eas­ier by selecting the speakers for you. With Dolby Pro Logic II, the AVR-483 recreates existing Dolby Surround programs and conventional stereo sources such
as CD in realistic 5.1-channel likeness. Just add your DVD player and you'll be ready to fire up your favorite video or music program in full surround sound.

■

Versatile Input & Output Terminals

• Front Panel Inputs

The AVR-483's front panel includes 1 set of video audio and digital
optical input terminals where you can easily connect your video cam­era, game machine or other video or pure audio device.

■

Front A/B Speaker Terminals

Two sets of speaker terminals are provided for the main (left and right)
speakers. This allows the use of a second pair of stereo speakers in
another room in the home.

■

High-grade Speaker Terminals (for speakers A):

Large binding post speaker terminals has been provided for all 3 channels
(FR, FL, C) to accommodate thick, high-grade speaker cables and
banana plugs.

■

Personal Memory Plus, for Easy Operation

The AVR-483 includes the Personal Memory Plus function that auto­matically remembers the surround mode you last used for each program
source, so that you do not need to select the mode again for that program.

■

Multi-Function Preset Memory Remote Controller

The supplied system remote controller features a large selection of remote
control codes to operate other components in your home theater system,
including codes for selected DENON models, along with remote control
codes from other manufacturers. The most frequently used buttons are
laid out separately for TV, VCR and DVD, for maximum ease-of-use.
* Remote control codes cannot be used with the products of other
manufacturers and some DENON products.

■

Acclaimed Customization Feature

As with all of DENON’s high-grade A/V receiver, the AVR-483 lets you
adjust delay times and other parameters so that you can customize the
performance of the AVR-483 to suit your own home theater and
enhance operating ease. The adjustments are easy to make via a dialog
format on the fluorescent display on the front panel. These customized
features are then stored, for each source input and surround mode, in
Personal Memory Plus so constant readjustments are not required.

■

Frequency Synthesis Tuning

• 40-Station AM/FM Random Preset Memory Tuning

• Auto Preset Memory

Specifications

■

Input/Output Terminals For Every A/V System

•

Audio Inputs

7 Analog Inputs............................ CD, TUNER, DVD/VDP, TV/DBS,

VCR, CDR/TAPE, V.AUX(FRONT)

6 Analog EXT. Input..................... FRONT L/R, CENTER,

SURROUND L/R, SUBWOOFER

1 Digital (Optical) Input ................ OPTICAL X 1

1 Digital (Coaxial) Input................ COAXIAL X 1

•

Audio Outputs

1 Analog PRE OUT Terminals..... SUBWOOFER

2 Analog REC OUT Terminals

...... VCR, CDR/TAPE

•

Video Inputs

4 Composite Inputs...................... DVD/VDP, TV/DBS, VCR, V.AUX(FRONT)

•

Video Outputs

2 Composite Outputs................... VCR, MONITOR

■

Power Amplifier Section

Rated output *THD figures are power amp stage values.

Front...................................... 70 W + 70 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)

............................................... 100 W +100 W(6 ohms, 1 kHz, 0.7 % THD)

Center.................................... 70 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)

............................................... 100 W (6 ohms, 1 kHz, 0.7 % THD)

Surround ............................... 70 W + 70 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)

...............................................

100 W + 100 W

(6 ohms, 1 kHz, 0.7 % THD)

■

Preamplifier Section

Input sensitivity/Impedance

CD, DVD/VDP, TV/DBS, VCR, CDR/TAPE,

V.AUX(FRONT).............. 200 mV/47 kohms

Output level/Load impedance

SUBWOOFER................ 1.2 V/10 kohms

CDR/TAPE, VCR............ 200 mV/47 kohms

Frequency response........... 10 Hz - 100 kHz (+1, -3 dB) (Tone Defeat On)

Signal-to noise ratio............ 98 dB (A-weighting) (Tone Defeat On)

Tone control........................ Treble: ±10 dB at 10 kHz

Bass: ±10 dB at 100 Hz

■

FM Section

Tuning frequency range...... 87.5 - 107.9 MHz

Usable sensitivity................ 1.0 µV (11.2 dBf)

■

AM Section

Tuning frequency range...... 520 - 1710 kHz

Usable sensitivity................ 18 µV

■

General

Power supply...................... AC 120 V, 60 Hz

Power consumption............ 3.7 A

Dimensions......................... 434 (W) x 147 (H) x 417 (D) mm

17.1” (W) x 5.8” (H) x 16.4” (D)

Weight ................................9.8 kg, 21.6 lbs

■

Speaker section

SC-53S (Satellite speaker system)

Type ...................................2-way Acoustic Suspension

Magnetic shielding............... Yes

Imepedance........................ 6 ohms

Dimensions......................... 110 (W) x 175 (H) x 130 (D) mm (+9 mm grill)

4.3” (W) x 6.9” (H) x 5.1” (D)

Weight ................................1.7 kg, 3.74 lbs

SC-53C (Center speaker system)

Type ...................................2-way Acoustic Suspension

Magnetic shielding............... Yes

Imepedance........................ 6 ohms

Dimensions......................... 275 (W) x 110 (H) x 130 (D) mm (+9 mm grill)

10.8” (W) x 4.3” (H) x 5.1” (D)

Weight ................................2.8 kg, 6.16 lbs

DSW-37 (Subwoofer system with built-in Amplifier)

Imepedance........................ 4 ohms

Power supply...................... AC 120 V, 60 Hz, 60 W

Dimensions......................... 216 (W) x 300 (H) x 400 (D) mm

8.5” (W) x 11.8” (H) x 15.7” (D)

Weight ................................5.5 kg, 12.1 lbs

DENON ELECTRONICS (USA) INC. DENON, LTD.

19 CHAPIN ROAD, P.O. BOX 867, PINE BROOK, NJ 07058-9777 USA 3-16-11, YUSHIMA, BUNKYO-KU, TOKYO 113-0034, JAPAN
TEL: [phone] www.usa.denon.com

DENON CANADA INC.

505 APPLE CREEK BLVD. UNIT 5 MARKHAM, ONTARIO L3R 5B1 CANADA
TEL: [phone] www.denon.ca

12600501 A

NEW MODEL INFORMATION

DHT-483XP

*Design and specifications are subject to change without notice.
*”Dolby”, “Dolby Digital”, “Pro Logic II”, and the double-D device are registered trademarks of Dolby Laboratories Licensing Corporation.
*DTS is registered trademarks of DTS Technology.

Front panel with terminal cover.
