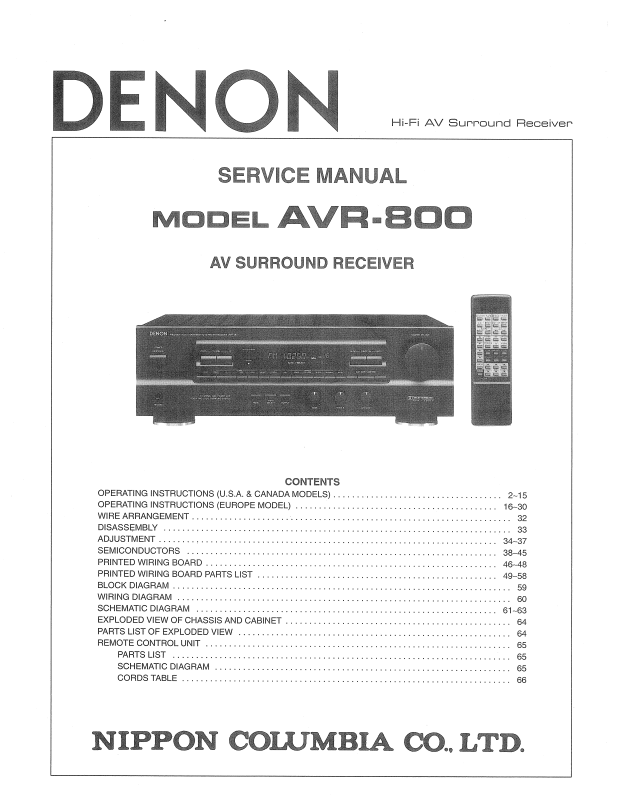

Denon AVR-800 Service Manual
Specifications and Main Features
- Audio Section for North America model
- Front (Main stereo): Rated Output is 60Watts at 8 Ohms operating between 20Hz - 20kHz with THD not exceeding 0.08%.
- Center (single unit): Rated Output is 60Watts at 8 Ohms operating between 20Hz - 20kHz at 0.08% THD.
- Rear: Opening Rear (2 Channels) Rated Output is 15W + 15W at 8 Ohms, operating frequency is 1 kHz with THD of 0.3%.
- Output terminal: Front 6 – 16 Ohms, Center 8–16 Ohms, Rear 8 – 16 Ohms
- Line Input: Each line input: 150 mV/47 k ohms, PHONO: 2.5 mV/47 k ohms
- Frequency response +3 dB, 10 Hz to 50 KHz
- Tone Control Range BASS +10 dB 100Hz: TREBLE +10 dB 10 KHz
- Signal to Noise Ratio: 92 decibels (BYPASS)
- Equally, (PHONO input --- REC OUT): RIAA deviation: 20 Hz to 20 kHz + 1 dB 74 dB A weighting with 5 mV input rated output is 150mV 8 V maximum 8V distortion factor 0 03% (1 kHz 1 V)
- Tuner Section
- FM Receiving Range: From 87.5 MHz to 108.0 MHz (applies to North America model)
-Human Usable Sensitivity: 1.0 pV (11.2 ‘dBf’)
50 dB Quieting Sensitivity: MONO 1.6 pV (15.3 dBf), STEREO 23 pV (38.5 dBf)
Signal to Noise Ratio IHF-A: MONO 80 dB, STEREO 75 dB
Utter Quality: Total Harmonic at 1 kHz mono 0.15 %, Stereo 0.3 %
Relative Field Strength: (AM Receiving range)520 kHz ~ 1710 kHz north America (Model) Usable Sensitivity: 18 & Portuguese Signate to Noise Ratio=' 50 dB
-Video Section
Main and secondary video ports Input/output rate and impedance 1 Vp-p/75 ohm.
Frequency range includes 2 hz to 8 mhz increased and decreased by 3m
General Section
Input Power Type Ac a hundred twenty volts, 60 Hz for Washington d.c model, Ac a hundred and ten to 220, 50 to 60hz for multi-voltage.
Power use-4.0A for north American model maximum voltage external dimensions are434 x 142 x 325.
For weight 9.1kg 20 lbs 1 ounce with or without substance.
Remote control unit includes
System remote control Total buttons36 Batteries R6P A Type two batteries External dimensions 55 W 18 H 180 in D Weight 110 g Approx 4 oz inclusive of batteries Out of perspective and packed well together include specifications and design are subject to change at will without prior notice Out of perspective well packed include video unit specifications and design are subject to change freely without prior notice.
Frequently Asked Questions
- Is there a rated output of the front amplifier? If so, What is it?
- Yes, the output is rated at 60 W + 60 W for an 8 Ohm Load across the frequency range of 20 Hz to 20 kHz with a Total Harmonic Distortion of 0.08%.
- What is the range of frequencies for which the tuner can be used?
- The range of frequencies for which the tuner can be used for FM is between 87.5 MHz to 108.0 MHz for models built for the North American region.
- Does the phono input have any type of sensitivity and if so what type?
- Yes, it has a sensitivity of 2.5 mV/47 k ohms.
- What is the energy consumption models for the North American Market?
- It is rated under class A with an energy consumption of 4.0 A.
- What is the maximum dimension and length of the device?
- Maximum dimension that the device can reach is 434 in width,142 in height and 325 in depth all in mm.
- What type of batteries would be needed for the remote control unit?
- R6P/AA type batteries of 2 units would be needed.
- Does the device have any weight classification and if so what is it?
- Yes, it weighs approximately around 9.1 kg or 20 lbs 1 oz.
