Denon AVR-1802 User Manual

In addition to Dolby Digital, DTS, Dolby Pro Logic II and powerful output of 80 watts per channel, the versatile AVR-1802 A/V
receiver gives you 1 set of video, audio, and digital optical input terminals on the front panel where you can conveniently
connect your home video camera. Dolby Pro Logic II lets you enjoy existing Dolby Surround programs and conventional stereo
sources such as CD or your home video sound track in the exciting ambience of 5.1 channels. The AVR-1802 also
provides a Virtual Surround mode that recreates the sensation of surround sound if your system has only two front speakers.

With Dolby Pro Logic II for a New Way To Enjoy Home Theater

■

Fully Discrete, Equal Power Five Amplifier Channels, 80 Watts Each

Front 80 W + 80 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
Center 80 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
Surround 80 W + 80 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)

For optimum Dolby Digital and DTS reproduction, the AVR-1802 features
high quality, wideband audio amplification, providing 80 watts power out­put for each of the five main channels. A large capacity power supply
includes a high current power transformer along with discrete power out­put devices on all five amplifier channels for highest dynamic range and
superb reproduction clarity.

■

Dolby Pro Logic II Decoder

Enjoy 2-channel stereo recordings in stunning 5.1-channel surround
playback.
The Dolby Pro Logic II decoder reproduces dynamic 5.1-channel surround
sound not only from normal 5.1-channel DVD but from 2-channel
sources such as videos and CDs, too. Dolby Pro Logic II uses matrix
decoding technology that has been dramatically improved over Pro
Logic. With Pro Logic II, for instance, the Surround (Rear) channels are
in stereo (only mono with Pro Logic) and playback covers the full frequency
range (only up to 7 kHz with Pro Logic). These improvements let you
enjoy a wide variety of 2-channel sources with the exciting effects of 5.1­channel surround sound.

■

Dolby Digital and DTS Decoders

Equipped with both Dolby Digital and DTS 5.1 channel decoding, the
AVR-1802 provides thrilling surround sound with the thousands of
Dolby Digital and DTS encoded DVDs, as well as the growing library of
DTS 5.1 channel music recordings available on CD.

■

Cinema Equalizer

The sound from movie sources recorded in Dolby Digital, DTS or other
formats emphasizes correction of components that deteriorate in the
high-frequency range due to a theater’s front speakers being placed
behind the movie screen. If this sound is reproduced in the home theater
without correction, the high-frequency range is too strong. The AVR-1602
features a Cinema Equalizer to correct these high-frequency components
so that the sound is clearer and easier to listen to. (For Dolby Digital,
Dolby Pro Logic II, and DTS surround modes)

■

5 Channel Stereo Mode

DENON's exclusive 5 Channel Stereo mode provides superb surround
sound with conventional two channel music and video sources. Hear
exciting surround sound, without delay effects and unnatural artifacts,
from all five speakers with your favorite two channel music sources
such as CD, tape, stereo radio and stereo video sources.

■

Virtual Surround Mode

Surround yourself with sensational 3D soundfield envelopment using
just one pair of speakers. The AVR-1802's Virtual Surround mode
provides a dramatic psychoacoustic surround sound effect, using two
speakers with Dolby Digital 5.1 encoded sources.

■

DENON DSP Surround Modes Add Listening Excitement

Put yourself in the middle of your favorite concert hall and music
environments with DENON's DSP acoustic environment simulation
modes. These DSP modes add spacious surround sound enhancements
to your favorite music and video sources, and include these distinctly
different sounding effects:

1. 5 Channel Stereo 5. Video Game

2. Virtual Surround 6. Matrix

3. Rock Arena 7. Mono Movie

4. Jazz Club

AVR-1802

Dolby Digital and DTS A/V Receiver

NEW MODEL INFORMATION

■

Versatile Input & Output Terminals

• Digital Optical Output

The AVR-1802 provides 1 digital optical output terminal where you can
connect a CD recorder or other digital recording device to make high­quality digital recordings directly from digital sources such as CD.

• Front Panel Inputs

The AVR-1802's front panel includes 1 set of video, audio and digital
(audio) input terminals where you can easily connect your video camera,
game machine or other video or pure audio device.

•

Audio Inputs

9 Analog Inputs............................ PHONO(MM), CD, TUNER, DVD/VDP,

TV/DBS, VCR-1, VCR-2, CD-R/TAPE,
V.AUX(FRONT)

6 Analog EXT. Input..................... FRONT L/R, CENTER,

SURROUND L/R, SUBWOOFER

3 Digital (Optical) Input ................ OPTICAL X 2, FRONT x 1

1 Digital (Coaxial) Input................ COAXIAL X 1

•

Audio Outputs

4 Analog PRE OUT Terminals..... FRONT L/R, CENTER, SUBWOOFER

3 Analog REC OUT Terminals

...... VCR-1, VCR-2, V.AUX, CD-R/TAPE

1 Digital (Optical) Output.............. OPTICAL X 1

•

Video Inputs

5 Composite Inputs...................... DVD/VDP, TV/DBS, VCR-1, VCR-2,

V.AUX(FRONT)

4 S-Video Inputs .......................... DVD/VDP, TV/DBS, VCR-1, VCR-2

•

Video Outputs

3 Composite Outputs................... VCR-1, VCR-2, MONITOR

3 S-Video Outputs........................ VCR-1, VCR-2, MONITOR

■

Front A/B Speaker Terminals

Two sets of speaker terminals are provided for the main (left and right)
speakers. This allows the use of a second pair of stereo speakers in
another room in the home.

■

High-grade Speaker Terminals

Large binding post speaker terminals has been provided for all channels
(Speaker A: Front L/R, Center, Surround L/R, Speaker B: Front L/R) to
accommodate thick, high-grade speaker cables and banana plugs.

■

Personal Memory Plus, for Easy Operation

The AVR-1802 includes the Personal Memory Plus function that auto­matically remembers the surround mode you last used for each program
source, so that you do not need to select the mode again for that program.

■

Multi-Function Preset Memory Remote Controller

The supplied system remote controller features a large selection of remote
control codes to operate other components in your home theater system,
including codes for selected DENON models, along with remote control
codes from other manufacturers. The most frequently used buttons are
laid out separately for TV, VCR and DVD, for maximum ease-of-use.

■

Acclaimed Customization Feature

As with all of DENON’s high-grade A/V amplifiers, the AVR-1602 lets
you adjust delay times and other parameters so that you can customize
the performance of the AVR-1602 to suit your own home theater and
enhance operating ease. The adjustments are easy to make via a dialog
format on the fluorescent display on the front panel. These customized
features are then stored, for each source input and surround mode, in
Personal Memory Plus so constant readjustments not required.

■

Frequency Synthesis Tuning

• 40-Station AM/FM Random Preset Memory Tuning

• Auto Preset Memory

Specifications

■

Power Amplifier Section

Rated output *THD figures are power amp stage values.

Front...................................... 80 W + 80 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)

115W + 115W (6 ohms, 1 kHz, 0.7 % THD)

Center.................................... 80 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)

115 W (6 ohms, 1 kHz, 0.7 % THD)

Surround ............................... 80 W + 80 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)

115W + 115W (6 ohms, 1 kHz, 0.7 % THD)

■

Preamplifier Section

Input sensitivity/Impedance

PHONO(MM).................... 2.5 mV/47 kohms

CD, DVD/VDP, TV/DBS, VCR, CD-R/TAPE,

V.AUX(FRONT).............. 200 mV/47 kohms

Output level/Load impedance

FRONT L/R, CENTER,

SUBWOOFER................... 1.2 V/10 kohms

VCR-1, VCR-2,

CD-R/TAPE .................... 200 mV/47 kohms

Frequency response........... 10 Hz - 100 kHz (+1, -3 dB) (Tone Defeat On)

Signal-to noise ratio............ 100 dB (A-weighting) (Tone Defeat On)

Tone control........................ Treble: ±12 dB at 10 kHz

Bass: ±12 dB at 100 Hz

■

FM Section

Tuning frequency range...... 87.5 - 107.9 MHz

Usable sensitivity................ 1.0 µV (11.2 dBf)

■

AM Section

Tuning frequency range...... 520 - 1710 kHz

Usable sensitivity................ 18 µV

■

General

Power supply...................... AC 120 V, 60 Hz

Power consumption............ 4.5 A

Dimensions......................... 434 (W) x 171 (H) x 417 (D) mm

17.1” (W) x 6.7” (H) x 16.4” (D)

Weight ................................ 10.9 kg, 24 lbs

DENON ELECTRONICS. NIPPON COLUMBIA CO., LTD.
DIVISION OF DENON CORPORATION (USA) 14-14, AKASAKA 4-CHOME, MINATO-KU, TOKYO 107-8011, JAPAN

19 CHAPIN ROAD, P.O. BOX 867, PINE BROOK, NJ 07058-9777 USA
TEL: [phone] www.denon.com

DENON CANADA INC.

17 DENISON STREET, MARKHAM ONTARIO, CANADA L3R 1B5
TEL: [phone] www.denon.ca

12590501 A Printed in Japan

NEW MODEL INFORMATION

AVR-1802

*Design and specifications are subject to change without notice.
*”Dolby”, “Dolby Digital”, “Pro Logic II”, and the double-D device are registered trademarks of Dolby Laboratories Licensing Corporation.
*DTS is registered trademarks of DTS Technology.

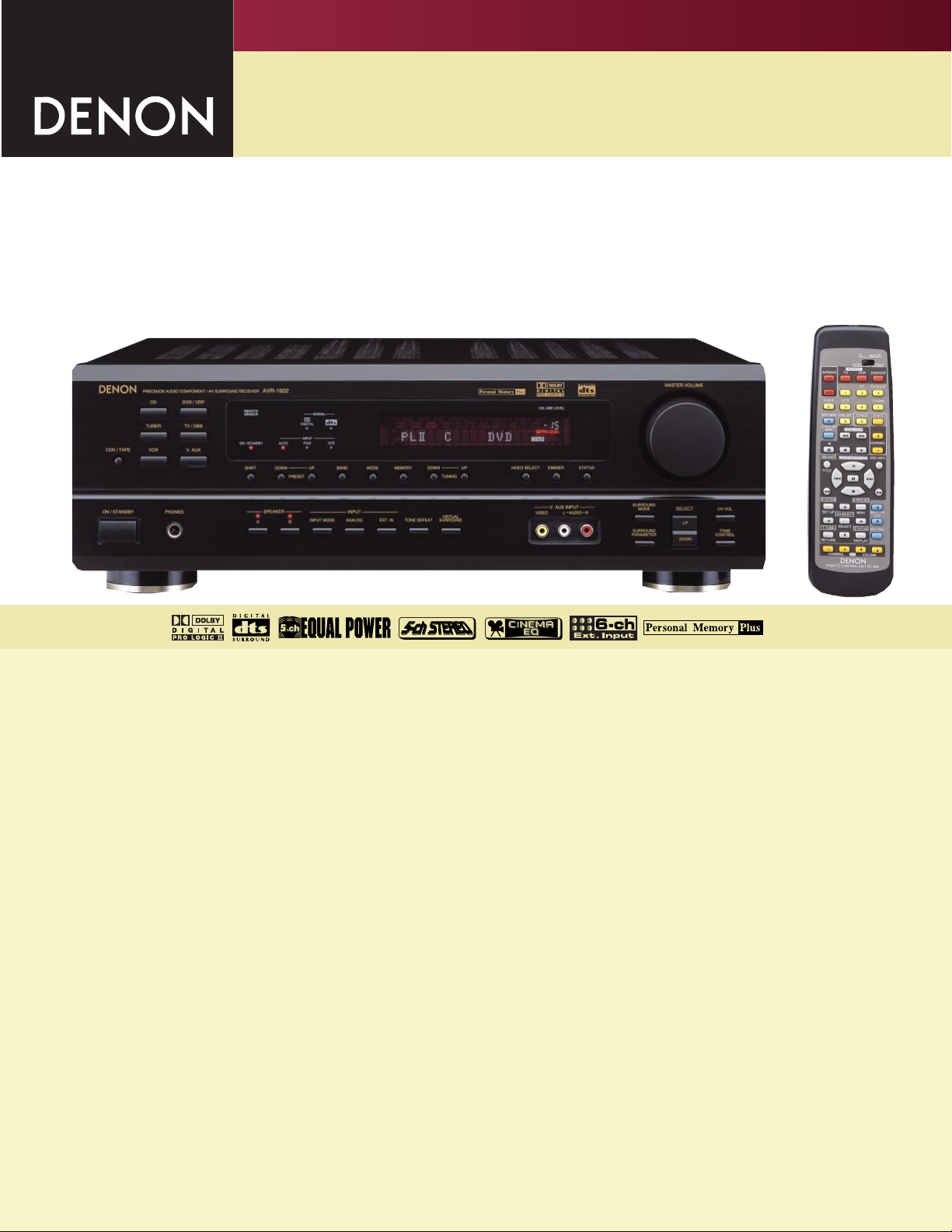

Front panel with terminal cover.
