Denon AVR-1708, AVR-1508, AVR-688, AVR-588, AVR-488 Service manual

Ver. 5

Please refer to the
MODIFICATION NOTICE.

SERVICE MANUAL

MODEL JP E3 E2 EK E2A E1C EUT

AVR-1708
AVR-1508
AVR-688
AVR-588
AVR-488
AVC-1508

33
33 3
3
3
3

3

AV SURROUND RECEIVER

AV SURROUND AMPLIFIER

注 意

サービスをおこなう前に、このサービスマニュアルを
必ずお読みください。本機は、火災、感電、けがなど
に対する安全性を確保するために、さまざまな配慮を
おこなっており、また法的には「電気用品安全法」に
もとづき、所定の許可を得て製造されております。
従ってサービスをおこなう際は、これらの安全性が維
持されるよう、このサービスマニュアルに記載されて
いる注意事項を必ずお守りください。

●

For purposes of improvement, specifications and
design are subject to change without notice.

●

Please use this service manual with referring to the
operating instructions without fail.

●

Some illustrations using in this service manual are
slightly different from the actual set.

Denon Brand Company, D&M Holdings lnc.

●

本機の仕様は性能改良のため、予告なく変更すること
があります。

●

補修用性能部品の保有期間は、製造打切後 8 年です。

●

修理の際は、必ず取扱説明書を参照の上、作業を行っ
てください。

●

本文中に使用しているイラストは、説明の都合上現物
と多少異なる場合があります。

X0349 V.05 DE/CDM 0804

SAFETY PRECAUTIONS

The following check should be performed for the continued protection of the customer and service technician.

LEAKAGE CURRENT CHECK

Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis
resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the
power cord is less than 460 kohms, the unit is defective.

CAUTION

Pleaseheedthepointslistedbelowduringservicingandinspection.

◎Heedthecautions!

Spots requiring particular attention when servicing, such
as the cabinet, parts, chassis, etc., have cautions indicated
on labels or seals. Be sure to heed these cautions and the
cautions indicated in the handling instructions.

◎Cautionconcerningelectricshock!

(1) An AC voltage is impressed on this set, so touching in-

ternal metal parts when the set is energized could
cause electric shock. Take care to avoid electric shock,
by for example using an isolating transformer and
gloves when servicing while the set is energized, un­plugging the power cord when replacing parts, etc.

(2)There are high voltage parts inside. Handle with extra

care when the set is energized.

◎ Caution concerning disassembly and

assembly!

Though great care is taken when manufacturing parts from
sheet metal, there may in some rare cases be burrs on the
edges of parts which could cause injury if fingers are
moved across them. Use gloves to protect your hands.

◎Inspectforsafetyafterservicing!

Check that all screws, parts and wires removed or discon­nected for servicing have been put back in their original po­sitions, inspect that no parts around the area that has been
serviced have been negatively affected, conduct an insu­lation check on the external metal connectors and between
the blades of the power plug, and otherwise check that
safety is ensured.

(Insulation check procedure)
Unplug the power cord from the power outlet, disconnect
the antenna, plugs, etc., and turn the power switch on. Us­ing a 500V insulation resistance tester, check that the in­sulation resistance between the terminals of the power
plug and the externally exposed metal parts (antenna ter­minal, headphones terminal, microphone terminal, input
terminal, etc.) is 1MΩ or greater. If it is less, the set must
be inspected and repaired.

CAUTION

Concerningimportantsafety

parts

◎Onlyusedesignatedparts!

The set's parts have specific safety properties (fire resis­tance, voltage resistance, etc.). For replacement parts, be
sure to use parts which have the same properties. In par­ticular, for the important safety parts that are marked z on
wiring diagrams and parts lists, be sure to use the desig­nated parts.

◎Besuretomountpartsandarrangethe

wiresastheywereoriginally!

For safety reasons, some parts use tape, tubes or other in­sulating materials, and some parts are mounted away from
the surface of printed circuit boards. Care is also taken with
the positions of the wires inside and clamps are used to
keep wires away from heating and high voltage parts, so
be sure to set everything back as it was originally.

Many of the electric and structural parts used in the set
have special safety properties. In most cases these prop­erties are difficult to distinguish by sight, and using re­placement parts with higher ratings (rated power and
withstand voltage) does not necessarily guarantee that
safety performance will be preserved. Parts with safety
properties are indicated as shown below on the wiring dia­grams and parts lists is this service manual. Be sure to re­place them with parts with the designated part number.

(1) Schematic diagrams ... Indicated by the z mark.
(2) Parts lists ... Indicated by the z mark.

Using parts other than the designated
parts could result in electric shock, fires or
other dangerous situations.

2

AVR-1708/1508/688/588/488 AVC-1508

注 意

サービス、点検時にはつぎのことにご注意願います。

◎注意事項をお守りください！

サービスのとき特に注意を必要とする個所については
キャビネット、部品、シャーシなどにラベルや捺印で注意
事項を表示しています。これらの注意書きおよび取扱説明
書などの注意事項を必ずお守りください。

◎感電に注意！

(1) このセットは、交流電圧が印加されていますので通電

時に内部金属部に触れると感電することがあります。
従って通電サービス時には、絶縁トランスの使用や手
袋の着用、部品交換には、電源プラグを抜くなどして
感電にご注意ください。

(2) 内部には高電圧の部分がありますので、通電時の取扱

には十分ご注意ください。

◎分解、組み立て作業時のご注意！

板金部品の端面の『バリ』は、部品製造時に充分管理をし
ておりますが、板金端面は鋭利となっている箇所が有りま
すので、部品端面に触れたまま指を動かすとまれに怪我を
する場合がありますので十分注意して作業して下さい。手
の保護のために手袋を着用してください。

◎指定部品の使用！

セットの部品は難燃性や耐電圧など安全上の特性を持っ
たものとなっています。従って交換部品は、使用されてい
たものと同じ特性の部品を使用してください。特に配線
図、部品表に z 印で指定されている安全上重要な部品は
必ず指定のものをご使用ください。

◎部品の取付けや配線の引きまわしは、

元どおりに！

安全上、テープやチューブなどの絶縁材料を使用したり、
プリント基板から浮かして取付けた部品があります。また
内部配線は引きまわしやクランパーによって発熱部品や
高圧部品に接近しないように配慮されていますので、これ
らは必ず元どおりにしてください。

◎サービス後は安全点検を！

サービスのために取り外したねじ、部品、配線などが元ど
おりになっているか、またサービスした個所の周辺を劣化
させてしまったところがないかなどを点検し、外部金属端
子部と、電源プラグの刃の間の絶縁チェックをおこなうな
ど、安全性が確保されていることを確認してください。

（絶縁チェックの方法）

電源コンセントから電源プラグを抜き、アンテナやプラグ
などを外し、電源スイッチを入れます。500V 絶縁抵抗計
を用いて、電源プラグのそれぞれの端子と外部露出金属部

［アンテナ端子、ヘッドホン端子、マイク端子、入力端子

など］との間で、絶縁抵抗値が１ MΩ 以上であることを
確認してください。この値以下のときはセットの点検修理
が必要です。

注 意

本機に使用している多くの電気部品、および機構部品は安
全上、特別な特性を持っています。この特性はほとんどの
場合、外観では判別つきにくく、またもとの部品より高い
定格（定格電力、耐圧）を持ったものを使用しても安全性
が維持されるとは、限りません。安全上の特性を持った部
品は、このサービスマニュアルの配線図、部品表につぎの
ように表示していますので必ず指定されている部品番号
のものを使用願います。

(1) 配線図… z マークで表示しています。

(2) 部品表… z マークで表示しています。

安全上重要な部品について

指定された部品と異なるものを使用した場
合には、感電、火災などの危険を生じる恐
れがあります。

3

AVR-1708/1508/688/588/488 AVC-1508

DIMENSION

AVR-1708 model

214.5

21.2

335.2

382.9

344.0

434.0

155.0

16.0

54.7

26.5

171.0

4

AVR-1708/1508/688/588/488 AVC-1508

AVR-1508 / AVC-1508 model

21.2

335.2

382.9

344.0

434.0

26.5 54.7 214.5

171.0

16.0 155.0

5

AVR-1708/1508/688/588/488 AVC-1508

AVR-688 model

21.2

335.2

377.1

344.0

434.0

20.7 54.7 214.5

171.0

16.0 155.0

6

AVR-1708/1508/688/588/488 AVC-1508

AVR-588 model

214.5

21.2

377.1

335.2

344.0

434.0

155.0

171.0

16.0

54.7

20.7

7

AVR-1708/1508/688/588/488 AVC-1508

AVR-488 model

214.5

21.2

335.2

377.1

344.0

434.0

20.7 54.7

171.0

16.0 155.0

8

AVR-1708/1508/688/588/488 AVC-1508

CAUTION IN SERVICING

サービス時の注意事項

Initializing AV SURROUND RECEIVER/AM­PLIFIER

AV SURROUND RECEIVER/AMPLIFIER initialization should
be performed when the µcom, peripheral parts of µcom, and
Digital P.W.B. are replaced.

1. Switch off the unit.

2. Hold the following SPEAKERS-A button and SPEAKERS­B button, and switch on the unit.

3. Check that the entire display is flashing with an interval of
about 1 second, and release your fingers from the 2 but­tons and the microprocessor will be initialized.

Note:・If step 3 does not work, start over from step 1.

・ All user settings will be lost and this factory setting

will be recovered when this initialization mode.
So make sure to memorize your setting for restor­ing after the initialization.

AVサラウンドレシーバー / アンプの初期化
について

マイコンやマイコン周辺部品、Digital 基板等を交換した場
合は、AV サラウンドレシーバー / アンプの初期化を行って
下さい。

1. on/off ボタンを OFF にします。

2. SPEAKERS-A ボタンと SPEAKERS-B ボタンを同時に押し
ながら、on/off ボタンを押して ON にします。

3. ディスプレイ表示が約 1秒間隔で点滅するのを確認後、
2つのボタンから指を離します。

＊マイコンが初期化されます。

注意 :・上記 3 の状態にならない場合は、もう一度操作

1 からやり直してください。

・初期化を行うとお客様が設定した内容が工場出

荷状態に戻りますので、あらかじめ設定内容を
控えておき初期化後再設定してください。

1,2

JIG to use for servicing

When you repair the printing board, you can use the following
JIG (Extension cable kit). Please order to Denon Official Ser­vice Distributor in your region if necessary.

00D SPK- 561 EXTENSION UNIT KIT : 1 Set
00D SPK- 562 9120 CONN. JOINT KIT : 1 Set

ss

When you update the firmware, you can use the following
JIG (RS232C to internal connector conversion adapter with
8P cable kit ). Please order to Denon Official Service Distrib­utor in your region if necessary.

00DSPK-581 WRITING UNIT : 1 Set

2,3

サービス時に使用する治具について

基板を修理する際、使用する治具 ( 延長ケーブルキット）
は 下記のとおりです。
必要に応じて販社サービスへ注文下さい。

00DSPK-561EXTENSIONUNITKIT :1 式
00DSPK-5629120CONN.JOINTKIT :1 式

ファームウェアをアップデートする際、使用する治具

（RS232C->製品内部コネクタ変換基板 +8Pケーブルキット

) は下記のとおりです。
必要に応じて販社サービスへ注文ください。

00DSPK-581WRITINGUNIT :1 式

The illustration is AVR-1708.

9

AVR-1708/1508/688/588/488 AVC-1508

DISASSEMBLY

• Disassemble in order of the arrow of the figure of following flow.

下記フロー図の矢印の順番にはずしてください。

• In the case of the re-assembling, assemble it in order of the reverse of the following flow.

再組み立ての場合は、下記のフローの逆の順番に組立ててください

• In the case of the re-assembling, observe "attention of assembling" it.

再組み立ての場合は、「組立のご注意」を遵守してください。

CABINET TOP

PANEL FRONT ASSY CHASSIS BACK ASSY TRANS

Refer to "DISASSEMBLY 1.PANEL FRONT ASSY" Refer to "DISASSEMBLY 2.CHASSIS BACK ASSY" Refer to "DISASSEMBLY 6.TRANS"

and "EXPLODED VIEW" and "EXPLODED VIEW" and "EXPLODED VIEW"

9 : POWER SW ASSY 55 : SPEAKER ASSY

10 : FUNCTION ASSY 71 : TUNER PACK

11 : FRONT ASSY

14 : HEAD PHONE ASSY

21 : V. AUX ASSY Refer to "DISASSEMBLY 3.HDMI PWB ASSY"

22 : MIC ASSY and "DISASSEMBLY 4.CPU ASSY"

51 : CPU PWB ASSY

52 : INPUT PWB ASSY

53 : VIDEO PWB ASSY

54 : HDMI PWB ASSY

CPU ASSY

and "EXPLODED VIEW"

CHASSIS MAIN ASSY

Refer to "DISASSEMBLY 5.CHASSIS MAIN ASSY"

and "EXPLODED VIEW"

33 : 2CH PWB ASSY

50 : MAIN PWB ASSY

56 : POWER SUPPLY PWB ASSY

57 : POWER PWB ASSY

10

AVR-1708/1508/688/588/488 AVC-1508

The viewpoint of each photograph
(photography direction)

各図の視点（撮影方向）

[ Top view ]

Picture C

Picture B

Picture G

( Bottom view )

Picture H

Picture J

Picture I

[ Top view ]

Picture F

Picture E

Picture D

Picture A

Cord holder

Wire clamp band

11

AVR-1708/1508/688/588/488 AVC-1508

1. PANEL FRONT ASSY

Picture I

Cord holder

CP302

CP105

Proceeding (手順) : CABINET TOP → PANEL FRONT ASSY

(1) Remove the screws. ( ねじをはずす。）

Picture A

[ Top view ]

Picture G

[ Bottom view ]

(2) Disconnect the connector wires and remove the screws . ( コネクターワイヤーとねじをはずす。）

Picture D

Cord holder

Picture C

FFC cable

Picture E

CP541

Wire clamp band : CUT

Wire clamp band : CUTCP503

12

AVR-1708/1508/688/588/488 AVC-1508

Cord holder

Picture F

Cord holder

Please refer to

Panelfrontassy の各基板のはずしかたは "EXPLODEDVIEW" を参照してください。

"EXPLODED VIEW"

for the disassembly method of each P.W.B included in panel front assy.

CP306

2.CHASSIS BACK ASSY

Proceeding (手順) : CABINET TOP → CHASSIS BACK ASSY

(1) Disconnect the connector wires and unscrew a screw. ( コネクタワイヤーとねじをはずす。)

Picture E

Wire clamp band : CUT

CP101

CP103

FFC cable

Cord holder

Picture B

Please refer to

Chassisbackassy の各基板のはずしかたは "EXPLODEDVIEW" を参照してください。

"EXPLODED VIEW"

for the disassembly method of each P.W.B included in Chassis back assy.

CP102

Cord bush

CP103

AC cord

13

AVR-1708/1508/688/588/488 AVC-1508

3.CPU ASSY

Proceeding (手順) : CABINET TOP → CHASSIS BACK ASSY → CPU ASSY

(1) Disconnect the connector wires and screw. ( コネクタワイヤーとねじをはずす。)

Picture H

Connector wire

CP904

FFC cable Wire clamp band : CUT

CP404

CP406

CP405

Picture E

Please refer to

CPUassy の各基板のはずしかたは "EXPLODEDVIEW" を参照してください。

"EXPLODED VIEW"

for the disassembly method of each P.W.B included in CPU assy.

CP704CP514

CP705

4. CHASSIS MAIN ASSY

Proceeding (手順) : CABINET TOP → CHASSIS BACK ASSY → CPU ASSY

→

Please refer to

Chassismainassy の各基板のはずしかたは "EXPLODEDVIEW" を参照してください。

"EXPLODED VIEW"

for the disassembly method of each P.W.B included in chassis main assy.

CHASSIS MAIN ASSY

14

AVR-1708/1508/688/588/488 AVC-1508

5. TRANS

Proceeding (手順) : CABINET TOP → TRANS

(1) Disconnect the connector wires and remove the screws.（コネクタコードとねじをはずす。）

Picture E

CP402

Please refer to

Trans のはずしかたは "EXPLODEDVIEW" を参照してください。

"EXPLODED VIEW"

for the disassembly method of Trans.

CP104

Cord holder

Wire clamp band : CUT

CP402

CP302

CP105

15

AVR-1708/1508/688/588/488 AVC-1508

Check mode for µcom/DSP version s

on/off button

RT

PTY

E2 model

µcom/DSP Version Display Mode

1. Operation Spec

µcom/DSP version display mode:

At its starting state, version information is displayed.

Starting method:

E3,EUT,JP model

While pressing 2 buttons, "STATUS " and "DIMMER ", turn on/off button on.

Then, press "STATUS" button to display the following information on the FL Display.

E2 model

While pressing 2 buttons, "RT " and "PTY ", turn on/off button on.

Then, press "RT" button to display the following information on the FL Display.

E3,EUT,JP model

on/off button

DIMMER

STATUS

2. Display Order

Destination information →Main-µcom version information → DSP version information

16

AVR-1708/1508/688/588/488 AVC-1508

マイコン・DSP バージョンのチェック方法s

on/off button

RT

PTY

E2 model

マイコン・DSP バージョン表示モード

1. 動作仕様

マイコン、DSP バージョン表示モード :

起動状態にて、バージョン情報を表示します。

起動方法 :

● E3,EUT,JP モデル

"STATUS","DIMMER" の 2 つのボタンを押した状態で、on/off ボタンを押して電源を入れます。
その後、"STATUS" ボタンを押すと下表の内容が FLDisplay に表示されます。

● E2 モデル

"RT","PTY" の 2 つのボタンを押した状態で、on/off ボタンを押して電源を入れます。
その後、"RT" ボタンを押すと下表の内容が FLDisplay に表示されます。

E3,EUT,JP model

on/off button

DIMMER

STATUS

2. 表示順序

仕向地表示→メインマイコンバージョン情報→DSP バージョン情報

17

AVR-1708/1508/688/588/488 AVC-1508

ADJUSTMENT

調整

Audio Section

Idling Current

Required measurement equipment: DC Voltmeter

1. Preparation

(1) Avoid direct blow from an air conditioner or an electric

fan, and adjust the unit at normal room temperature 15
°C ~ 30 °C (59 °F ~ 86 °F).

(2) Presetting

• POWER (Power source switch) OFF

• SPEAKER (Speaker terminal) No load
(Do not connect speaker, dummy resistor, etc.)

2. Adjustment

(1) Remove top cover and set VR101 FL, FR, C, SL, SR,

on Main Amp. Unit, VR401, VR402 on 2ch- Amp. Unit
at fully counterclockwise ( ) position.

(2) Connect DC Voltmeter to test points (FRONT-Lch:

TP101, FRONT-Rch: TP105, CENTER ch: TP103,
SURROUND-Lch: TP102, SURROUND-Rch: TP104,
SURROUND-BACK Lch: TP401, SURROUND-BACK
Rch: TP402).

(3) Connect power cord to AC Line, and turn power switch

"ON".

(4) Presetting.

MASTER VOLUME : "---" counterclockwise ( min.)
SPEAKER (Speaker terminal) : No load
(Do not connect speaker, dummy resistor, etc.)
MODE : 7CH STEREO
FUNCTION : CD

(5) Within 2 minutes after the power on, turn VR101 clock-

wise ( ) to adjust the TEST POINT voltage to

1.5 mV ± 0.5 mV DC.

(6) After 10 minutes from the preset above, turn VR101 to

se t th e vol tage to

2.0 mV ± 0.5 mV DC.

(7) Adjust the Variable Resistors of other channels in the

same way.

オーディオセクション

アイドリング電流の調整

調整に必要な測定器 : DCVoltmeter

1. 準備

(1) セットをクーラ、扇風機のそばなど風通しの良い場

所を避け、通常の使用状態に置きます。セットの周
囲温度は 15〜30 ℃、湿度は常湿とします。

(2) プリセット

・電源スイッチ OFF
・スピーカ端子 無負荷

( スピーカ・ダミー抵抗器などを接続しない。)

2. 調整

(1) 上カバーをはずし、メインアンプ基板の VR101FL,

FR,C,SL,SR 及び 2ch- アンプ基板の VR401,VR402 を
反時計方向 ( )に回し切った状態にセットします。

(2) テストポイント (FRONT-Lch:TP101,FRONT-Rch:

TP105,CENTERch:TP103,SURROUND-Lch:TP102,
SURROUND-Rch:TP104,SURROUND-BACKLch:
TP401,SURROUND-BACKRch:TP402) に DC
Voltmeterを接続します。

(3) 電源コードを AC100V（95〜105Vの範囲でも可）

に接続し、電源スイッチを "ON"にします。

(4) ON後、次のようにセットします。

・MASTERVOLUME（音量調節つまみ）→反時計方向

( )に回す、最小の状態にする。

・SPEAKER（スピーカ端子）→無負荷（スピーカ、

ダミー抵抗器などを接続しない。）

MODE:7CHSTEREO 
FUNCTION:CD

(5) 2分以内に VR101を時計方向 ( ) に回しテストポ

イントの電圧を次のように調整します。

1.5mV ±0.5mVDC

(6) 予備調整から 10分後 VR101を回し、次のように電

圧を設定します。

2.0mV± 0.5mVDC

(7) 同じ方法で各チャネルの可変抵抗を調整します。



DC Voltmeter

F Lch

VR101FL

VR401

S Back Lch

TP101

TP401

S Lch

VR101SL

TP102

VR402

TP402

S Back Rch

C ch

VR101C

TP103

S Rch

VR101SR

TP104

F Rch

VR101FR

TP105

18

AVR-1708/1508/688/588/488 AVC-1508

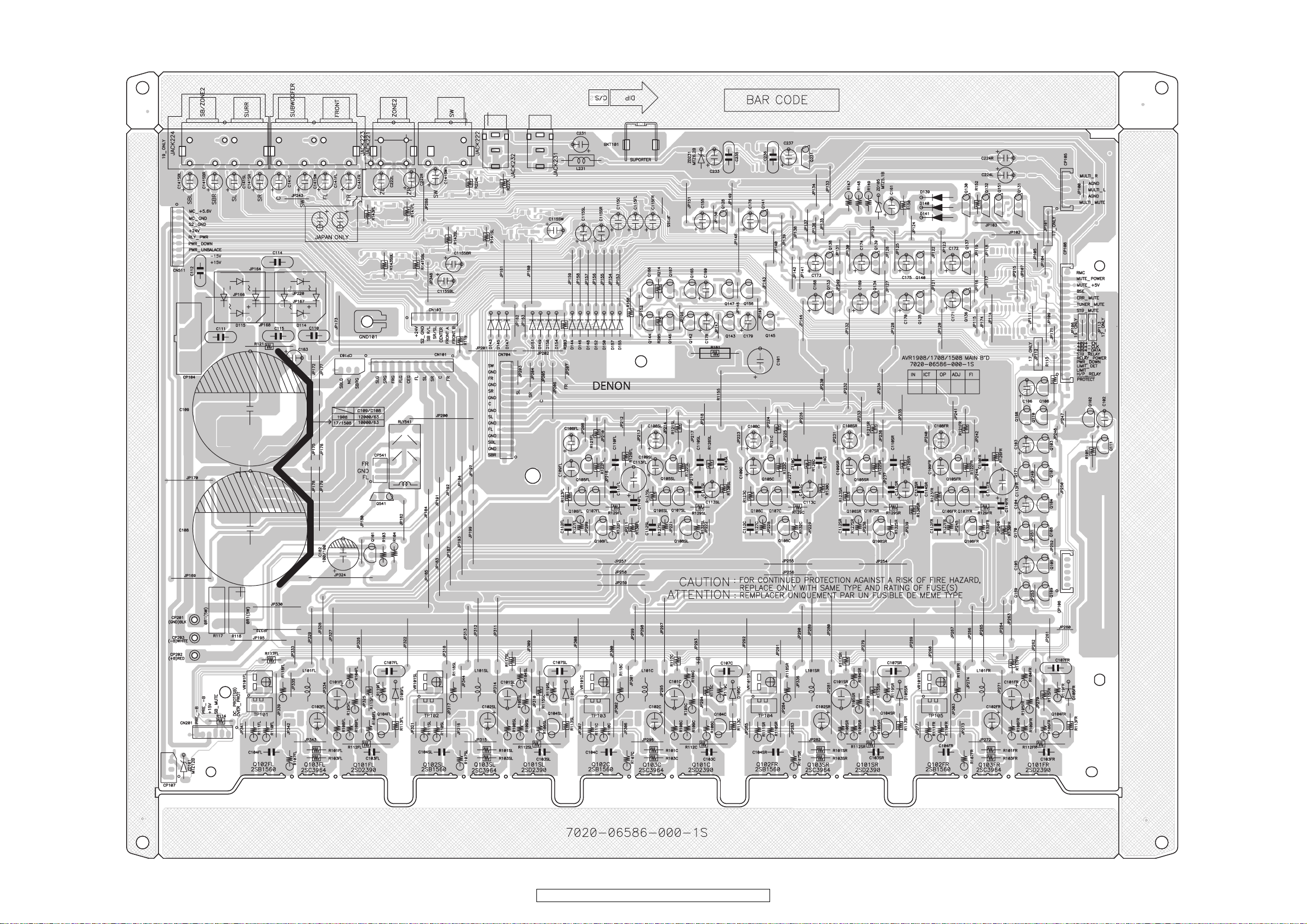

MAIN AMP. UNIT

2CH AMP. UNIT

TROUBLE SHOOTING

トラブルシューティング

1. POWER

1.1. Power not turn on

Power not turn on

Is the ON/STANDBY indicator

on the front panel flashing red?

NO

Is the fuse blown?

YES

Does the power turn on when
the POWER switch is turned off
then back on?

YES YES YES

Check the primary circuitry
parts including the POWER
switch (for poor contacts, etc.),
and replace any defective
parts.

Are there any incomplete con­nections in the connectors con-

YES

necting between the various
circuit boards?

Connect the connectors prop­erly.

NO

Refer to Fuse is blown

Is a DC 6V voltage being sup­plied from the POWER B’d

NO

(CN505 pins 3 and 4) to the
microprocessor?

Check the microprocessor
periphery circuitry and replace
any defective parts.

Is there a short circuit between

NO

the speaker terminals and the
ground?

YES NO

Check for damage in the power
amplifier circuitry parts and
replace any defective parts.

Is a DC 6V voltage output when
the cord supplying the power

NO

from the SUPPLY B’d to the
microprocessor (CN511) is
unplugged?

Check the circuitry and parts
from CN511 on the SUPPLY
B’d to the microprocessor for
damage and short-circuits, and
replace any defective parts.

Correct the short circuit

YES

between the speaker and the
ground.

Check the parts from IC807 to

NO

the primary circuitry and
replace any defective parts.

1. 電源

1.1. 電源が入らない

電源が入らない

フロントパネルの
ＯＮ/ＳＴＡＮＤＢＹ インジ
ケータが赤色点滅しています
か？

NO

ヒューズは断線していません
か？

YES

POWERSW を OFF にして、再
度 POWERSW を ON にすると
電源が入りますか？

YES YES YES

POWERSW等を含む 1 次回路部
品 ( 接触不良等 ) を確認し、不
良部品を交換してください。

各基板間を接続しているコネ

YES

クターに不完全な接続部分は
ありますか？

コネクターを正しく接続して
ください。

NO

ヒューズが断線しているを参
照してください。

POWER 基板（CN505 の 3、4番

NO

ピン）からマイコンに DC6V が
供給されていますか？

マイコン周辺回路を確認し、不
良部品を交換してください。

NO

SP 端子と GND 間が短絡してい
ますか？

YES NO

POWERAMP 回路の部品の破損
を確認し、不良部品を交換して
ください。

SUPPLY 基板からマイコンヘ電

NO

源を供給しているコード

（CN511）を抜いて DC6V が出

力されていますか？

SUPPLY 基板の CN511 以降か
らマイコン電源までの回路お
よび部品の破損や短絡を確認
し、不良部品を交換してくだ
さい

YES

SP 端子と GND 間の短絡を取り
除いてください。

IC807 〜 1 次回路までの部品を

NO

確認し、不良部品を交換してく
ださい。

1.2. Fuse is blown

Check for leaks or short circuits
in the primary side parts, and
replace any defective parts.

Fuse is blown

Check for short circuits in the
rectifier diodes and circuitry of
the secondary side rectifying
circuits, and replace any defec­tive parts.

After repairing, also replace the fuse.

Check for short circuits in the
power stabilizer unit's regula­tor output terminal and the
ground, and replace any defec­tive parts.

1.2. ヒューズが断線している

1 次側の部品にリークまたは短
絡を確認し、不良部品を交換し
てください。

ヒューズが断線している

2 次側のそれぞれの整流回路
で、整流ﾀﾞｲｵｰﾄﾞおよび回路の
短絡を確認し、不良部品を交換
してください。

修理後、FUSE も交換してください。

電源安定化部のレギュレータ
の出力端子と GND の短絡を確
認し、短絡している場合は、不
良部品を交換してくだい。

19

AVR-1708/1508/688/588/488 AVC-1508

2. Analog video

2.1. MONITOR OUT (CVBS) output NG

2. アナログビデオ

2.1. MONITOROUT(CVBS)出力NG

Video convert ON

Input

CVBS

Input

S

AB

MONITOR OUT (CVBS) output NG

Checking the video convert ON/OFF settings

I n p u t

COMPONENT

Progressive

no output

Input

CVBS

A No output No output

※ When checking operation, select

DVD for the function.
(COMPONENT1 input)

Video convert OFF

Input

S

COMPONENT

Input

ﾋﾞﾃﾞｵｺﾝﾊﾞｰﾄON ﾋﾞﾃﾞｵｺﾝﾊﾞｰﾄOFF

入力

CVBS

Aへ Bへ

入力

S

MONITOROUT(CVBS)出力NG ※ 動作を確認する時はファンクショ

ﾋﾞﾃﾞｵｺﾝﾊﾞｰﾄON/OFFの設定確認

入力

COMPONENT

ﾌﾟﾛｸﾞﾚｯｼﾌﾞ

出力されません

ンを DVD に選択してください。
(COMPONENT1入力 )

入力

CVBS

Aへ 出力されません 出力されません

入力

S

入力

COMPONENT

20

AVR-1708/1508/688/588/488 AVC-1508

A

Input

CVBS

A

入力

CVBS

Check ± 5V.

+5V : CP514-2pin

-5V : CP514-3pin

OK

Check input/output of analog SW.

Input : IC1001-12in

Output : IC1001-1pin

OK

Check input/output of AMP.

Input : IC1157-3pin

Output : IC1157-1pin

OK

Check input/output of analog SW.

Input : IC1002-2pin

Output : IC1002-3pin

OK

Check input/output of AMP.

Input : IC1151-3pin

Output : IC1151-1pin

To troubleshooting 1.1 Power not turn

NG

on.

NG

NG

NG

NG

Check analog SW settings.

IC1001-15pin : H

IC1001-11pin : L

OK

Check soldering of IC1001.

Check soldering of IC1157 and
surrounding parts.

Check analog SW settings.

IC1002-10pin : L

IC1002-9pin : L

OK

Check soldering of IC1002.

Check soldering of IC1151.

NG

NG

Check soldering of IC1003.

Check soldering of IC1003.

±5Vの確認

+5V:CP514-2pin

-5V:CP514-3pin

OK

ｱﾅﾛｸﾞ SW の入出力確認

入力 :IC1001-12pin

出力:IC1001-1pin

OK

AMP の入出力確認

入力:IC1157-3pin
出力:IC1157-1pin

OK

ｱﾅﾛｸﾞ SW の入出力確認

入力:IC1002-2pin
出力:IC1002-3pin

OK

AMP の入出力確認

入力:IC1151-3pin
出力:IC1151-1pin

NG

1.1 電源が入らないのﾄﾗﾌﾞﾙｼｭｰﾃｨﾝｸﾞへ

NG

NG

NG

NG

ｱﾅﾛｸﾞ SW の設定確認

IC1001-15pin:H

IC1001-11pi:Ｌ

OK

IC1001 のﾊﾝﾀﾞ付け確認

IC1157 及び周辺部品の

ﾊﾝﾀﾞ付け確認

ｱﾅﾛｸﾞ SW の設定確認

IC1002-10pin:L

IC1002-9pin:L

OK

IC1002 のﾊﾝﾀﾞ付け確認

IC1151 のﾊﾝﾀﾞ付け確認

NG

NG

IC1003 のﾊﾝﾀﾞ付け確認

IC1003 のﾊﾝﾀﾞ付け確認

OK

Check between main unit and monitor.

※ Unless specified, VIDEO UNIT part.

OK

本体 -MONITOR 間の確認

※ 特に記載がない場合は VIDEO 基板の部品です。

21

AVR-1708/1508/688/588/488 AVC-1508

B

Input

S

B

入力

S

Check ± 5V.

+5V : CP514-2pin

-5V : CP514-3pin

OK

Check input/output of analog SW.

Input Y : IC1005-12pin

Input C : IC1006-12pin
Output Y : IC1005-1pin
Output C : IC1005-1pin

OK

Check input/output of AMP.

Input Y : IC1160-5pin
Input C : IC1160-3pin

Output Y : IC1160-7pin
Output C : IC1160-1pin

OK

Check input of video driver

Input Y : IC1016-8pin

Input C : IC1016-2pin

OK

Check output of video driver.

Output : IC1016-27,32pin

To troubleshooting 1.1 Power not turn

NG

on.

Check analog SW settings.

NG

Check soldering of IC1005 and IC1006.

Check soldering of IC1160 and sur-

NG

rounding parts.

NG

NG

IC1005-15pin : H

IC1005-11pin : L

IC1006-15pin : H

IC1006-11pin : L

OK

Check soldering of IC1016.

Check soldering of IC1016.

NG

Check soldering of IC1003.

±5Vの確認

+5V:CP514-2pin

-5V:CP514-3pin

OK

ｱﾅﾛｸﾞ SW の入出力確認

入力 Y:IC1005-12pin
入力 C:IC1006-12pin

出力 Y:IC1005-1pin
出力 C:IC1006-1pin

OK

AMP の入出力確認
入力 Y:IC1160-5pin
入力 C:IC1160-3pin
出力 Y:IC1160-7pin
出力 C:IC1160-1pin

OK

ﾋﾞﾃﾞｵﾄﾞﾗｲﾊﾞの入力確認

入力 Y:IC1016-8pin
入力 C:IC1016-2pin

OK

ﾋﾞﾃﾞｵﾄﾞﾗｲﾊﾞの出力確認

出力:IC1016-27,32pin

NG

1.1 電源が入らないのﾄﾗﾌﾞﾙｼｭｰﾃｨﾝｸﾞへ

ｱﾅﾛｸﾞ SW の設定確認

NG

NG

NG

NG

IC1005-15pin:H

IC1005-11pin:Ｌ

IC1006-15pin:H

IC1006-11pin:Ｌ

OK

IC1005,IC1006 のﾊﾝﾀﾞ付け確認

IC1160 及び周辺部品の

ﾊﾝﾀﾞ付け確認

IC1016 のﾊﾝﾀﾞ付け確認

IC1016 のﾊﾝﾀﾞ付け確認

NG

IC1003 のﾊﾝﾀﾞ付け確認

OK

Check input/output of analog SW.

Input : IC1002-4pin

Output : IC1002-3pin

OK

Check input/output of AMP.

Input : IC1151-3pin

Output : IC1151-1pin

OK

Check between main unit and monitor.

※ Unless specified, VIDEO UNIT part.

NG

NG

Check analog SW settings.

IC1002-10pin : H

IC1002-9pin : H

OK

Check soldering of IC1002.

Check soldering of IC1151.

NG

Check soldering of IC1003.

OK

ｱﾅﾛｸﾞ SW の入出力確認

入力:IC1002-4pin
出力:IC1002-3pin

OK

AMP の入出力確認

入力:IC1151-3pin
出力:IC1151-1pin

OK

本体 -MONITOR 間の確認

NG

NG

IC1002 のﾊﾝﾀﾞ付け確認

IC1151 のﾊﾝﾀﾞ付け確認

※ 特に記載がない場合は VIDEO基板の部品です。

ｱﾅﾛｸﾞ SW の設定確認

IC1002-10pin:H

IC1002-9pin:H

OK

NG

IC1003 のﾊﾝﾀﾞ付け確認

22

AVR-1708/1508/688/588/488 AVC-1508

2.2. VCR MONITOR OUT(CVBS) Output NG

2.2. VCRMONITOROUT(CVBS) 出力 NG

VCR/DVR MONITOR OUT(CVBS) Output NG.

Input

CVBS

Input

S

Input

COMPONENT

VCR : C No output No output

※ When checking operation, select

DVD for the function.

VCR/DVRMONITOROUT(CVBS) 出力 NG ※ 動作を確認する時はファンクショ

ンを DVD に選択してください。

入力

CVBS

VCR:C 出力されません 出力されません

入力

S

入力

COMPONENT

23

AVR-1708/1508/688/588/488 AVC-1508

C

Input

CVBS

C

入力

CVBS

Check ± 5V.

+5V : CP514-2pin

-5V : CP514-3pin

OK

Check input/output of analog SW.

Input : IC1001-12pin

Output : IC1001-1pin

OK

Check between main unit and monitor.

※ Unless specified, VIDEO UNIT part.

To troubleshooting 1.1 Power not turn

NG

on.

NG

Check analog SW settings.

IC1001-9pin : H
IC1001-8pin : L

OK

Check soldering of IC1001.

NG

Check soldering of IC1003.

±5Vの確認

+5V:CP514-2pin

-5V:CP514-3pin

OK

ｱﾅﾛｸﾞ SW の入出力確認

入力:IC1001-12pin

出力:IC1001-1pin

OK

本体 -MONITOR 間の確認

NG

1.1 電源が入らないのﾄﾗﾌﾞﾙｼｭｰﾃｨﾝｸﾞへ

NG

IC1001 のﾊﾝﾀﾞ付け確認

※ 特に記載がない場合は VIDEO基板の部品です。

ｱﾅﾛｸﾞ SW の設定確認

IC1001-9pin:H

IC1001-8pin:L

OK

NG

IC1003 のﾊﾝﾀﾞ付け確認

24

AVR-1708/1508/688/588/488 AVC-1508

2.3. MONITOR OUT (S) Output NG

2.3. MONITOROUT(S)出力 NG

Input

CVBS

MONITOR OUT (S) Output NG

Checking the video convert ON/OFF settings

Video convert ON Video convert OFF

Input

S

Progressive

No output

I n p u t

CVBS

※ When checking operation, select

DVD for the function.
(COMPONENT1 Input)

Input

S

Input

COMPONENT

D E No output E No output

MONITOROUT(S)出力 NG ※ 動作を確認する時はファンクショ

ンを DVD に選択してください。
(COMPONENT1入力 )

ﾋﾞﾃﾞｵｺﾝﾊﾞｰﾄON/OFFの設定確認

ﾋﾞﾃﾞｵｺﾝﾊﾞｰﾄON ﾋﾞﾃﾞｵｺﾝﾊﾞｰﾄOFF

入力

CVBS

Dへ Eへ 出力されません Eへ 出力されません

入力

S

ﾌﾟﾛｸﾞﾚｯｼﾌﾞ

出力されません

入力

CVBS

入力

S

入力

COMPONENT

25

AVR-1708/1508/688/588/488 AVC-1508

D

Input

CVBS

D

入力

CVBS

Check ± 5V.

+5V : CP514-2pin

-5V : CP514-3pin

OK

Check input/output of analog SW.

Input : IC1001-12pin

Output : IC1001-1pin

OK

Check input/output of AMP.

Input : IC1157-3pin

Output : IC1157-1pin

OK

Check input of video driver.

Input Y : IC1016-8pin
Input C : IC1016-2pin

OK

Check output of video driver.

Output Y : IC1016-27pin
Output C : IC1016-32pin

OK

Check input/output of analog SW.

Input Y : IC1007-5pin

Input C : IC1007-14pin

Output Y : IC1007-3pin

Output C : IC1007-13pin

OK

To troubleshooting 1.1 Power not turn

NG

on.

NG

NG

NG

NG

NG

Check analog SW settings.

IC1001-15pin : H
IC1001-11pin : L

OK

Check soldering of IC1001.

Check soldering of IC1157 and
surrounding parts.

Check soldering of IC1018.

Check soldering of IC1016.

Check analog SW settings.

IC1007-10pin : H

IC1007-9pin : L

OK

Check soldering of IC1007.

NG

NG

Check soldering of IC1003.

Check soldering of IC1003.

± 5Vの確認

+5V:CP514-2pin

-5V:CP514-3pin

OK

ｱﾅﾛｸﾞ SW の入出力確認

入力 Y:IC1001-12pin

出力:IC1001-1pin

OK

AMP の入出力確認

入力:IC1157-3pin
出力:IC1157-1pin

OK

ﾋﾞﾃﾞｵﾄﾞﾗｲﾊﾞの入力確認

入力 Y:IC1016-8pin
入力 C:IC1016-2pin

OK

ﾋﾞﾃﾞｵﾄﾞﾗｲﾊﾞの出力確認

出力 Y:IC1016-27pin
出力 C:IC1016-32pin

OK

ｱﾅﾛｸﾞ SW の入出力確認

入力 Y:IC1007-5pin

入力 C:IC1007-14pin

出力 Y:IC1007-3pin

出力 C:IC1007-13pin

OK

NG

1.1 電源が入らないのﾄﾗﾌﾞﾙｼｭｰﾃｨﾝｸﾞへ

NG

NG

NG

NG

NG

ｱﾅﾛｸﾞ SW の設定確認

IC1001-15pin:H

IC1001-11pin:L

OK

IC1001 のﾊﾝﾀﾞ付け確認

IC1157 及び周辺部品の

ﾊﾝﾀﾞ付け確認

IC1018 のﾊﾝﾀﾞ付け確認

IC1016 のﾊﾝﾀﾞ付け確認

ｱﾅﾛｸﾞ SW の設定確認

IC1007-10pin:H

IC1007-9pin:L

OK

IC1007 のﾊﾝﾀﾞ付け確認

NG

NG

IC1003 のﾊﾝﾀﾞ付け確認

IC1003 のﾊﾝﾀﾞ付け確認

Check input/output of AMP.

Input Y: IC1163-3pin

Input C: IC1163-5pin

Output Y : IC1163-1pin

Output C : IC1163-7pin

OK

Check between main unit and monitor.

※ Unless specified, VIDEO UNIT part.

NG

Check soldering of IC1163.

AMP の入出力確認
入力 Y:IC1163-3pin
入力 C:IC1163-5pin
出力 Y:IC1163-1pin
出力 C:IC1163-7pin

本体 -MONITOR 間の確認

※ 特に記載がない場合は VIDEO基板の部品です。

26

AVR-1708/1508/688/588/488 AVC-1508

OK

NG

IC1163 のﾊﾝﾀﾞ付け確認

E

Input

S

E

入力

S

Check ± 5V.

+5V : CP514-2pin

-5V : CP514-3pin

OK

Check input/output of analog SW.

Input Y : IC1005-12pin

Input C : IC1006-12pin
Output Y : IC1005-1pin
Output C : IC1005-1pin

OK

Check input/output of AMP.

Input Y : IC1160-5pin
Input C : IC1160-3pin

Output Y : IC1160-7pin
Output C : IC1160-1pin

OK

Check input/output of AMP.

Input Y : IC1163-3pin
Input C : IC1163-5pin

Output Y : IC1163-1pin
Output C : IC1163-7pin

OK

Check between main unit and monitor.

To troubleshooting 1.1 Power not turn

NG

on.

Check analog SW settings.

NG

Check soldering of IC1005 and IC1007.

Check soldering of IC1160 and sur-

NG

rounding parts.

NG

IC1005-15pin : H

IC1005-11pin : L

IC1006-15pin : H

IC1006-16pin : L

OK

Check soldering of IC1163.

NG

Check soldering of IC1003.

±5Vの確認

+5V:CP514-2pin

-5V:CP514-3pin

OK

ｱﾅﾛｸﾞ SW の入出力確認

入力 Y:IC1005-12pin
入力 C:IC1006-12pin

出力 Y:IC1005-1pin
出力 C:IC1006-1pin

OK

AMP の入出力確認
入力 Y:IC1160-5pin
入力 C:IC1160-3pin
出力 Y:IC1160-7pin
出力 C:IC1160-1pin

OK

AMP の入出力確認
入力 Y:IC1163-3pin
入力 C:IC1163-5pin
出力 Y:IC1163-1pin
出力 C:IC1163-7pin

OK

本体 -MONITOR 間の確認

NG

1.1 電源が入らないのﾄﾗﾌﾞﾙｼｭｰﾃｨﾝｸﾞへ

ｱﾅﾛｸﾞ SW の設定確認

NG

NG

NG

IC1005-15pin:H

IC1005-11pin:L

IC1006-15pin:H

IC1006-16pin:L

OK

IC1005,IC1007 のﾊﾝﾀﾞ付け確認

IC1160 及び周辺部品の

ﾊﾝﾀﾞ付け確認

IC1163 のﾊﾝﾀﾞ付け確認

NG

IC1003 のﾊﾝﾀﾞ付け確認

もしくは DIGITALUNIT の不具合

※ Unless specified, VIDEO UNIT part.

※ 特に記載がない場合は VIDEO基板の部品です。

27

AVR-1708/1508/688/588/488 AVC-1508

2.4. VCR MONITOR OUT(S) Output NG

2.4. VCRMONITOROUT(S) 出力 NG

VCR/DVR MONITOR OUT(S) Output NG.

Input

CVBS

Input

S

Input

COMPONENT

No output VCR : F No output

※ When checking operation, select

DVD for the function.

VCR/DVRMONITOROUT(S) 出力 NG ※ 動作を確認する時はファンクショ

入力

CVBS

出力されません VCR:F 出力されません

入力

S

入力

COMPONENT

ンを DVD に選択してください。

28

AVR-1708/1508/688/588/488 AVC-1508

F

Input

S

F

入力

S

Check ± 5V.

+5V : CP514-2pin

-5V : CP514-3pin

OK

Check input/output of analog SW.

Input Y : IC1005-12pin

Input C : IC1006-12pin
Output Y : IC1005-14pin
Output C : IC1006-14pin

OK

Check between main unit and monitor.

※ Unless specified, VIDEO UNIT part.

To troubleshooting 1.1 Power not turn

NG

on.

Check analog SW settings.

NG

Check soldering of IC1005 and IC1006.

IC1005-9pin : H
IC1005-8pin : L
IC1006-9pin : H
IC1006-8pin : L

OK

Check IC1003 soldering, or DIGITAL

NG

UNIT flaw.

± 5Vの確認

+5V:CP514-2pin

-5V:CP514-3pin

OK

ｱﾅﾛｸﾞ SW の入出力確認

入力 Y:IC1005-12pin
入力 C:IC1006-12pin
出力 Y:IC1005-14pin
出力 C:IC1006-14pin

OK

本体 -MONITOR 間の確認

NG

1.1 電源が入らないのﾄﾗﾌﾞﾙｼｭｰﾃｨﾝｸﾞへ

NG

IC1005,IC1006 のﾊﾝﾀﾞ付け確認

※ 特に記載がない場合は VIDEO基板の部品です。

ｱﾅﾛｸﾞ SW の設定確認

IC1005-9pin:H

IC1005-8pin:L

IC1006-9pin:H

IC1006-8pin:L

OK

NG

IC1003 のﾊﾝﾀﾞ付け確認

もしくは DIGITALUNIT の不具合

29

AVR-1708/1508/688/588/488 AVC-1508

2.5. COMPONENTOUT1,2OutputNG

2.5. COMPONENTOUT1,2出力 NG

Input

CVBS

COMPONENT OUT 1,2 Output NG.

Checking the video convert ON/OFF settings.

Video convert ON Video convert OFF

Input

S

I n p u t

COMPONENT

I n p u t

CVBS

※ When checking operation, select

DVD for the function.
(COMPONENT1 Input)

Input

S

COMPONENT

G H I No output No output I

Input

COMPONENTOUT1,2出力 NG ※ 動作を確認する時はファンクショ

ﾋﾞﾃﾞｵｺﾝﾊﾞｰﾄON/OFFの設定確認

ﾋﾞﾃﾞｵｺﾝﾊﾞｰﾄON ﾋﾞﾃﾞｵｺﾝﾊﾞｰﾄOFF

入力

CVBS

G へ H へ I へ 出力されません 出力されません I へ

入力

S

入力

COMPONENT

入力

CVBS

ンを DVD に選択してください。
(COMPONENT1入力 )

入力

S

入力

COMPONENT

30

AVR-1708/1508/688/588/488 AVC-1508

G

Input

CVBS

G

入力

CVBS

Check ± 5V and +9V.

+5V : CP514-2pin

-5V : CP514-3pin

+9V : CP514-1pin

OK

Check input/output of analog SW.

Input : IC1001-12pin

Output C : IC1001-1pin

OK

Check input/output of AMP.

Input : IC1157-3pin

Output : IC1157-1pin

OK

Check input of video driver

Input Y : IC1016-11in

Input Cb : IC1016-13pin

Input Cr : IC1016-15pin

OK

Check output of video driver.

Output Y : IC1016-24pin

Output Cb : IC1016-21pin
Output Cr : IC1016-18pin

OK

Check input/output of relay.

Input Y : IC1008-36pin
Input Cb : IC1008-38pin

Input Cr : IC1008-40pin

Output Y : IC1008-27pin

Output Cb : IC1008-24pin
Output Cr : IC1008-21pin

OK

Check input/output of AMP.

Input Y : IC1164-1pin

Input Cb : IC1164-3pin

Input Cr : IC1164-5pin

Output Y : IC1164-13pin

Output Cb : IC1164-11pin

Output Cr : IC1164-9pin

OK

Check between main unit and monitor.

To troubleshooting 1.1 Power not turn

NG

on.

NG

NG

NG

NG

NG

NG

Check analog SW settings.

IC1001-15pin : H

IC1001-11pin : L

OK

Check soldering of IC1001.

Check soldering of IC1157 and
surrounding parts.

Check soldering of IC1019.

Check soldering of IC1016.

Check soldering of IC1008.

Check soldering of IC1164.

NG

Check soldering of IC1003.

± 5V,+9Vの確認

+5V:CP514-2pin

-5V:CP514-3pin

+9V:CP514-1pin

OK

ｱﾅﾛｸﾞ SW の入出力確認

入力:IC1001-12pin

出力 C:IC1001-1pin

OK

AMP の入出力確認

入力:IC1157-3pin
出力:IC1157-1pin

OK

ﾋﾞﾃﾞｵﾄﾞﾗｲﾊﾞの入力確認

入力 Y:IC1016-11in

入力 Cb:IC1016-13pin

入力 Cr:IC1016-15pin

OK

ﾋﾞﾃﾞｵﾄﾞﾗｲﾊﾞの出力確認

出力 Y:IC1016-24pin

出力 Cb:IC1016-21pin

出力 Cr:IC1016-18pin

OK

ﾘﾚｰ入出力の確認

入力 Y:IC1008-36pin

入力 Cb:IC1008-38pin

入力 Cr:IC1008-40pin

出力 Y:IC1008-27pin

出力 Cb:IC1008-24pin

出力 Cr:IC1008-21pin

OK

AMP の入出力確認

入力 Y:IC1164-1pin
入力 Cb:IC1164-3pin
入力 Cr:IC1164-5pin
出力 Y:IC1164-13pin

出力 Cb:IC1164-11pin

出力 Cr:IC1164-9pin

OK

本体 -MONITOR 間の確認

NG

1.1 電源が入らないのﾄﾗﾌﾞﾙｼｭｰﾃｨﾝｸﾞへ

NG

NG

NG

NG

NG

NG

ｱﾅﾛｸﾞ SW の設定確認

IC1001-15pin:H

IC1001-11pin:L

OK

IC1001 ﾊﾝﾀﾞ付け確認

IC1157 及び周辺部品の

ﾊﾝﾀﾞ付け確認

IC1019 のﾊﾝﾀﾞ付け確認

IC1016 のﾊﾝﾀﾞ付け確認

IC1008 のﾊﾝﾀﾞ付け確認

IC1164 のﾊﾝﾀﾞ付け確認

NG

IC1003 のﾊﾝﾀﾞ付け確認

※ Unless specified, VIDEO UNIT part.

※ 特に記載がない場合は VIDEO基板の部品です。

31

AVR-1708/1508/688/588/488 AVC-1508

H

Input

S

H

入力

S

Check ± 5V and +9V.

+5V : CP514-2pin

-5V : CP514-3pin

+9V : CP514-1pin

OK

Check input/output of analog SW.

Input Y : IC1005-12pin

Input C : IC1006-12pin
Output Y : IC1005-1pin
Output C : IC1006-1pin

OK

Check input/output of AMP.

Input Y : IC1160-5pin
Input C : IC1160-3pin

Output Y : IC1160-7pin
Output C : IC1160-1pin

OK

Check input of video driver

Input Y : IC1016-11in

Input Cb : IC1016-13pin

Input Cr : IC1016-15pin

OK

Check output of video driver.

Output Y : IC1016-24pin
Output Cb : IC1016-21pin
Output Cr : IC1016-18pin

To troubleshooting 1.1 Power not turn

NG

on.

Check analog SW settings.

NG

Check soldering of IC1005 and IC1006.

Check soldering of IC1160 and sur-

NG

rounding parts.

NG

NG

IC1005-15pin : H

IC1005-11pin : L

IC1006-15pin : H

IC1006-11pin : L

OK

Check soldering of IC1019.

Check soldering of IC1016.

NG

Check soldering of IC1003.

± 5V，+9Vの確認

+5V:CP514-2pin

-5V:CP514-3pin

+9V:CP514-1pin

OK

ｱﾅﾛｸﾞ SW の入出力確認

入力 Y:IC1005-12pin
入力 C:IC1006-12pin

出力 Y:IC1005-1pin
出力 C:IC1006-1pin

OK

AMP の入出力確認
入力 Y:IC1160-5pin
入力 C:IC1160-3pin
出力 Y:IC1160-7pin
出力 C:IC1160-1pin

OK

ﾋﾞﾃﾞｵﾄﾞﾗｲﾊﾞの入力確認

入力 Y:IC1016-11in

入力 Cb:IC1016-13pin

入力 Cr:IC1016-15pin

OK

ﾋﾞﾃﾞｵﾄﾞﾗｲﾊﾞの出力確認

出力 Y:IC1016-24pin

出力 Cb:IC1016-21pin

出力 Cr:IC1016-18pin

NG

1.1 電源が入らないのﾄﾗﾌﾞﾙｼｭｰﾃｨﾝｸﾞへ

ｱﾅﾛｸﾞ SW の設定確認

NG

NG

NG

NG

IC1005-15pin:H

IC1005-11pin:L

IC1006-15pin:H

IC1006-11pin:L

OK

IC1005,IC1006 のﾊﾝﾀﾞ付け確認

IC1160 及び周辺部品の

ﾊﾝﾀﾞ付け確認

IC1019 のﾊﾝﾀﾞ付け確認

IC1016 のﾊﾝﾀﾞ付け確認

NG

IC1003 のﾊﾝﾀﾞ付け確認

OK

Check input/output of relay.

Input Y : IC1008-36pin

Input Cb : IC1008-38pin

Input Cr : IC1008-40pin

Output Y : IC1008-27pin
Output Cb : IC1008-24pin
Output Cr : IC1008-21pin

OK

Check input/output of AMP.

Input Y : IC1164-1pin

Input Cb : IC1164-3pin

Input Cr : IC1164-5pin

Output Y : IC1164-13pin
Output Cb : IC1164-11pin

Output Cr : IC1164-9pin

OK

Check between main unit and monitor.

※ Unless specified, VIDEO UNIT part.

NG

NG

Check soldering of IC1008.

Check soldering of IC1164.

OK

ﾘﾚｰ入出力の確認

入力 Y:IC1008-36pin

入力 Cb:IC1008-38pin

入力 Cr:IC1008-40pin

出力 Y:IC1008-27pin

出力 Cb:IC1008-24pin

出力 Cr:IC1008-21pin

OK

AMP の入出力確認

入力 Y:IC1164-1pin
入力 Cb:IC1164-3pin
入力 Cr:IC1164-5pin
出力 Y:IC1164-13pin

出力 Cb:IC1164-11pin

出力 Cr:IC1164-9pin

OK

本体 -MONITOR 間の確認

NG

NG

IC1008 のﾊﾝﾀﾞ付け確認

IC1164 のﾊﾝﾀﾞ付け確認

※ 特に記載がない場合は VIDEO基板の部品です。

32

AVR-1708/1508/688/588/488 AVC-1508

I

Input

COMPONENT

I

入力

COMPONENT

Check ± 5V and +9V.

+5V : CP514-2pin

-5V : CP514-3pin

+9V : CP514-1pin

OK

Check input/output of COMPONENT.

selector

Input Y : IC1008-42pin

Input Cb : IC1008-44pin

Input Cr : IC1008-46pin

Output Y : IC1008-27pin
Output Cb : IC1008-24pin
Output Cr : IC1008-21pin

OK

Check input/output of AMP.

Input Y : IC1164-1pin

Input Cb : IC1164-3pin

Input Cr : IC1164-5pin

Output Y : IC1164-13pin
Output Cb : IC1164-11pin

Output Cr : IC1164-9pin

OK

Check between main unit and monitor.

※ Unless specified, VIDEO UNIT part.

To troubleshooting 1.1 Power not turn

NG

on.

Check IC1008 soldering, or DIGITAL

NG

UNIT flaw.

NG

Check soldering of IC1164.

± 5V，+9Vの確認

+5V:CP514-2pin

-5V:CP514-3pin

+9V:CP514-1pin

OK

COMPONENT ｾﾚｸﾀの入出力確認

入力 Y:IC1008-42pin

入力 Cb:IC1008-44pin

入力 Cr:IC1008-46pin

出力 Y:IC1008-27pin

出力 Cb:IC1008-24pin

出力 Cr:IC1008-21pin

OK

AMP の入出力確認

入力 Y:IC1164-1pin
入力 Cb:IC1164-3pin
入力 Cr:IC1164-5pin
出力 Y:IC1164-13pin

出力 Cb:IC1164-11pin

出力 Cr:IC1164-9pin

OK

本体 -MONITOR 間の確認

NG

1.1 電源が入らないのﾄﾗﾌﾞﾙｼｭｰﾃｨﾝｸﾞへ

NG

NG

IC1008 のﾊﾝﾀﾞ付け確認

もしくは、DIGITALUNIT の不具合

IC1164 のﾊﾝﾀﾞ付け確認

※ 特に記載がない場合は VIDEO 基板の部品です。

33

AVR-1708/1508/688/588/488 AVC-1508

2.6. HDMI OUT 1,2 Output NG

2.6. HDMIOUT1,2出力 NG

Input

CVBS

HDMI OUT 1,2 Output NG. ※ When checking operation, select

DVD for the function.
(COMPONENT1 Input)

Input

S

Input

COMPONENT

入 力 

HDMI

No output

To troubleshooting 3.HDMI/DVI.

入 力 

CVBS

出力されません

HDMIOUT1,2出力 NG ※ 動作を確認する時はファンクショ

ンを DVD に選択してください。
(COMPONENT1入力 )

入 力 

S

入力

COMPONENT

入 力 

HDMI

3.HDMI/DVI のﾄﾗﾌﾞﾙｼｭｰﾃｨﾝｸﾞへ

34

AVR-1708/1508/688/588/488 AVC-1508

3. HDMI/DVI

3.1. No picture or sound is output

3. HDMI/DVI

3.1. 映像と音声が出力されない

No picture or sound is output

YES

Check the HDMI/DVI cable connection

YES

Is the HDMI/DVI cable properly
connected?

YES

Are you using an HDMI/DVI selector,
repeater or a device for improving picture
quality?

NO

Are you using a certified HDMI cable (one
with the HDMI stamp)?

YES

Are you using an HDMI/DVI cable less
than 5 meters in length?

YES

Are the picture and sound output when
another HDMI/DVI cable is used?

NO

Checking the DVD player

YES

Is the DVD player's HDMI output setting
correct?

YES

When using a DENON DVD player, is the fluorescent display tube's
"HDMI" indicator lit?
If using a non-DENON DVD player, proceed to "YES".

YES

NO

Is sound output from the set's speaker terminals when the TV's power is
turned off or the connection cable between the TV and the set is
disconnected?

Are the picture and sound output when
the DVD player's resolution is changed?

NO

There may be a problem with the HDMI/

NO

DVI cable. Check the connection.

Disconnect everything and connect only

YES

the HDMI/DVI cable to check.

Use a certified HDMI cable (one with the

NO

HDMI stamp).

Replace the HDMI/DVI cable with one

NO

that is less than 5 meters in length (2
meters recommended) to check.

YES

The HDMI/DVI cable is defective.

Check the HDMI output setting, referring

YES

to the DVD player's operating
instructions.

Set the DVD player's output resolution

YES

to a resolution with which the TV is
compatible.

The DVD player may not be compatible

YES

with HDCP repeaters. Ask the DVD
player's manufacturer.

映像と音声が出力されない

YES

HDMI/DVIケーブルの接続を確認する

YES

HDMI/DVI ケーブルは正しく接続され
ていますか？

YES

HDMI/DVI セレクター、リピーターや
画質改善装置を使用していますか？

NO

HDMI 認証品（HDMI 刻印がある）の
HDMI ケーブルを使用していますか？

YES

HDMI/DVI ケーブルは 5m 以下のもの
を使用していますか？

YES

別のHDMI/DVI ケーブルに交換すると
画像と音声が出力されますか？

NO

DVD プレーヤーを確認する

YES

DVD プレーヤーの HDMI 出力設定は
正しいですか？

YES

DENON の DVDプレーヤーを使用している場合、FL 管の "HDMI" インジ
ケータが点灯していますか？
他社の DVDプレーヤーを使用している場合は "YES" に進んでください。

YES

NO

TV の電源を切った時や TV と本機間の接続ケーブルをはずした時に、本機
のスピーカー端子から音声を出力しますか？

DVDプレーヤーの解像度を変えて画
像と音声が出力されますか？

NO

HDMI/DVI ケーブルは勘合がよくない

NO

ことがあります。接続を確認してくだ
さい。

YES

すべて取り外して HDMI/DVI ケーブル
のみを接続して確認してください。

NO

HDMI ケーブルは HDMI 認証品（HDMI
刻印がある）を使用してください。

HDMI/DVI ケーブルを 5m 以下 ( 推奨

NO

は２ ｍ) に交換して確認してくださ
い。

YES

HDMI/DVI ケーブルが不良です。

DVD プレーヤーの取扱説明書を見て

NO

HDMI 出力を正しく設定してくださ
い。

DVDプレーヤーの出力解像度を、TV

YES

の対応可能な解像度に設定してくだ
さい。

DVDプレーヤーが HDCP リピーター

YES

に対応していない可能性があります。
DVDプレーヤーのメーカーに確認し
てください。

NO

Are the picture and sound output when a
different DVD player is used?

NO

YES

The DVD player is defective.

35

AVR-1708/1508/688/588/488 AVC-1508

NO

別の DVDプレーヤーに交換すると画
像と音声が出力されますか？

NO

YES

DVDプレーヤーが不良です。

Check the TV

TV を確認する

Is the TV HDCP-compatible?

YES

Is the TV compatible with resolutions of 1080P?

YES

Is the TV's input set to HDMI?

YES

Are the picture and sound output when a different TV is used?

YES

Check the set (AVR-4308CI)

Is the set's input set to HDMI?

YES YES

Is the TV information
properly displayed on
the "Monitor info."
display menu?

YES YES

Does the set's wallpaper image appear on the TV when the HDMI/DVI
cable between the DVD player and the set is disconnected?

YES YES

The set does not recognize the TV.

NO

Is IC01 pin 76 "H" (3V-5V)? With the TV
connected, check the voltage of the IC on
the side on which the TV is connected.

Use an HDCP-compatible TV. PC TVs

NO

cannot be used.

If the TV is not compatible with
resolutions of 1080P, no picture will be

NO

output, even if the DVD player's
resolution is set to 1080P.

Check the TV's input setting, referring to

NO

the TV's operating instructions.

NO

The TV is defective.

Check the set's input setting, referring to

NO

the set's operating instructions.

The pattern and circuit from the HDMI

NO

connector (JACK03) to the IC (IC01)
is defective.

Are the picture and sound output from

NO

other Monitor Out terminals (VIDEO out,
S-VIDEO out or Component out)?

NO

The HDMI output
circuitry is defective.

YES

(IC01 and surrounding
circuitry)

TV は HDCP に対応していますか？

YES

TV は 1080P に対応していますか？

YES

TV の入力設定が HDMI 入力になっていますか？

YES

別の TV に交換すると画像と音声が出力されますか？

YES

本機を確認する

本機の入力設定が HDMI 入力になっていますか？

YES

本機が TV を認識していません

Monitorinfo. 表示メニュー
で TV の情報が正しく表示さ
れていますか？

YES YES

DVD プレーヤーと本機間の HDMI/DVI ケーブルを取り外した時、TV に本
機の壁紙の画像が表示されますか？

YES

IC01 の 76pin が "H"(3V-5V) となって

NO

いますか？
TV を接続している状態で、TV を接続
している側の IC の電圧を確認してく
ださい。

HDCP に対応している TV を使用して

NO

ください。PC 用の TV は使用できませ
ん。

TV が 1080P に対応していない場合、

NO

DVD プレーヤーを 1080P に設定して
も、画像は出力されません。

NO

TV の取扱説明書を見て入力設定を確
認してください。

NO

TV が不良です。

NO

本機の取扱説明書を見て入力設定を
確認してください。

HDMI コネクター (JACK03) から

NO

IC(IC01)までのパターンおよび回路が
不良です。

他の MonitorOut(VIDEOout/S-VIDEO

NO

out/Componentout) からは出力され
ますか？

NO

HDMI出力系の回路が

YES

不良です。
(IC01 周辺回路 )

When using a
DENON DVD player,
is the fluorescent
display tube's "HDMI"
indicator lit?
If using a non­DENON DVD player,
proceed to "NO".

YES YES

The HDMI output circuitry is defective.
(IC01 and surrounding circuitry)

The DVD player does not recognize the
connection with the set.

Is the HDMI connector (JACK01/JACK02/

NO

JACK03) pin 19 "H" (5V)? With the DVD
player connected, check the voltage of
the HDMI connector for the input on the
side on which the DVD player is
connected.

The pattern and circuit from the HDMI

NO

connector (JACK01/JACK02/
JACK03) to the IC12 is defective.

DENON の DVD プレーヤー
を使用している場合、FL 管
の"HDMI"インジケータが点
灯していますか？
他社の DVD プレーヤーを使
用している場合は "NO" に進
んでください。

YES YES

HDMI 入力系の回路が不良です。
(IC01 周辺回路 )

36

AVR-1708/1508/688/588/488 AVC-1508

DVD プレーヤーが本機との接続を認
識していません

HDMIコネクター (JACK01/JACK02/
JACK03) の 19pin が "H"(5V) となって

NO

いますか？
DVD プレーヤーを接続している状態
で、DVD プレーヤーを接続している
入力の HDMIコネクターの電圧を確
認してください。

HDMI コネクター (JACK01/JACK02/

NO

JACK03) から IC12 までのパターンお
よび回路が不良です。

BLOCK DIAGRAM

AUDIO BLOCK DIAGRAM

37

AVR-1708/1508/688/588/488 AVC-1508

AVR-1708/688 VIDEO BLOCK DIAGRAM

38

AVR-1708/1508/688/588/488 AVC-1508

AVR-1508/588/488,AVC-1508 VIDEO BLOCK DIAGRAM

39

AVR-1708/1508/688/588/488 AVC-1508

GND DIAGRAM

PRE OUT

REMOTE

ZONE2

8CH.EXT

TUNER INPUTANALOG INPUT

VIDEO INPUT

(S/C/COMPO VIDEO)

OPTICAL
COAXIAL

IPOD

CP803

CN803

HDMI INPUT

XM INPUT

POWER B`D

SUPPLY B`D

CN505

CN506

CP505

CP506

SPEAKER OUT B`D

CPU GND

SPEAKER RELAY GND

PRE_RETURN_GND

CP514 CN511

CP511

BU4094 BU4094

CPU GND

VGND

CP541

SP RELAY GND

SBR GND

SBL GND

SR GND

SL GND

TUNER PACKTUNER PACK

FRONT L GND

CGND

FRONT R GND

R2A15215FP

AGND

MUTE G ND

CURRENT LIMIT

HP RELAY GND

CN514

PRE_RETURN_GND

VGND

CPU GND

TUNER_A GND

XM_A GND
V.AUX_A GND
ZONE_A GND

PRE FL GND

CN702

CP105

S1 COMON

CN201

INPUT B`D

CN706

PRE FR GND

CPU GND

VGND

PRE_AMP

CP704

CN704

PRE SR GND

CP514

VIDEO B`D

PRE C GND

PRE SL GND

CN701

CN703

CN1002

(INPUT)

(MAIN)

(INPUT)

(INPUT)

(VIDEO)

CPU B`D

CPU GND

8CH-LPF

CP701

A/D IN

PRE_RETURN_GND

CP703

CP1002

CPU GND

VGND

MIC_A GND

CP702

CN105

CP301A

CP802

CP805 CP01

CP804

CN01

CN802

CN805

CN804

HDMI B`D

DIR

DSP

CODEC

CPU

RDS

CPU GND

VGND

V.AUX_A GND

MIC_A GND

HDMI SWITCHER

BUFF AMP

DGND

CP904

SIL9185

CP405

XM_DAC

XM_TRANCEIVER

XM_GND

HDMI_GND

CP404

POWER S/W B`D

FUNCTION B'D

MAIN B` D

HP GND

H/P B`D

CPU GND

CPU GND

KEY

CP305 CP304 CN541

2CH AMP B`D

CN305 CN304

FRONT B'D

FR GND

PRE SBR GND

SBR GND

SR GND

CGND

CP201

SBR GND

CPU GND

SL GND

PRE SBL GND

MIC B`D

V.AUX B`D

FL GND

VGND

CN404

CN904

DSP

CPU GND

MIC_A GND

V.AUX_A GND

VGND

VGNDAGND

CN405

XM RADIO

XM RADIO

HDMI

CP301B

CPU GND

MIC_A GND

V.AUX_A GND

40

AVR-1708/1508/688/588/488 AVC-1508

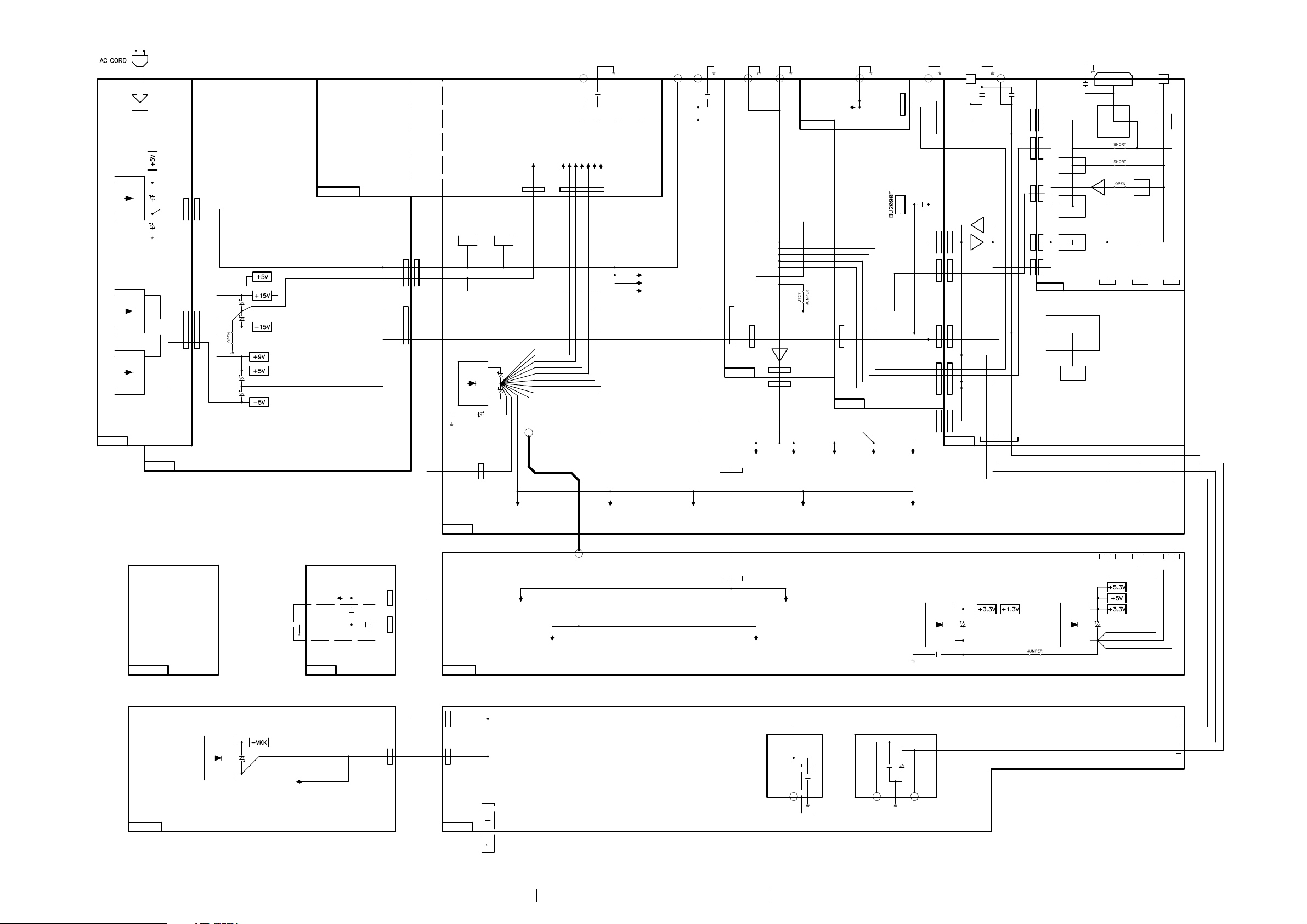

VCC DIAGRAM

S1(AMP +B)

S2 TOTAL : 358mA

S2(+15V,-15V)

E3 only

S3(DSP.XM.HDMI)

AC OUTLET

AC CORD

MAIN TRANS

S4(VIDEO)

E3 only

1908/788 only

S3 TOTAL : 1149mA

S4 TOTAL : 658mA

S5(FL -VKK)

S6(FILAMENT)

SUB TRANS

Except 1508/488/588

41

AVR-1708/1508/688/588/488 AVC-1508

--MEMO--

42

AVR-1708/1508/688/588/488 AVC-1508

LEVEL DIAGRAMS (1/2)

7CH LEVEL DIAGRAM

43

AVR-1708/1508/688/588/488 AVC-1508

LEVEL DIAGRAMS (2/2)

SUB WOOFER LEVEL DIAGRAM

44

AVR-1708/1508/688/588/488 AVC-1508

SEMICONDUCTORS

Only major semiconductors are shown, general semiconductors etc. are omitted to list.

主な半導体を記載しています。汎用の半導体は記載を省略しています。

1. IC’s

M30626FHPFP (IC804)

P0_7/AN0_7/D7
P0_6/AN0_6/D6
P0_5/AN0_5/D5
P0_4/AN0_4/D4
P0_3/AN0_3/D3
P0_2/AN0_2/D2
P0_1/AN0_1/D1
P0_0/AN0_0/D0

P10_7/AN7/KI3
P10_6/AN6/KI2
P10_5/AN5/KI1
P10_4/AN4/KI0

P10_3/AN3
P10_2/AN2
P10_1/AN1

AVSS

P10_0/AN0

VREF

P9_7/ADTRG/SIN4

AVCC

NOTES:

1. P7_0 and P7_1 are N channel open-drain output pins.

P2_7/AN2_7/A7(/D7/D6)

P2_0/AN2_0/A0(/D0/-)

P1_7/D15/INT5

P1_0/D8

P1_1/D9

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

00

1

1 2 3 4 5 6 7 8 9 101112131415161718192021222324252627282930

P1_2/D10

P1_3/D11

P1_4/D12

P1_5/D13/INT3

P2_1/AN2_1/A1(/D1/D0)

P1_6/D14/INT4

BYTE

CNVSS

P8_7/XCIN

P9_4/DA1/TB4IN

P9_3/DA0/TB3IN

P9_1/TB1IN/SIN3

P9_5/ANEX0/CLK4

P9_6/ANEX1/SOUT4

P9_0/TB0IN/CLK3

P9_2/TB2IN/SOUT3

P2_5/AN2_5/A5(/D5/D4)

P2_6/AN2_6/A6(/D6/D5)

P2_4/AN2_4/A4(/D4/D3)

P2_2/AN2_2/A2(/D2/D1)

P2_3/AN2_3/A3(/D3/D2)

VCC2

P3_0/A8(/-/D7)

VSS

M30626FHPFP

XIN

VSS

VCC1

XOUT

RESET

P8_6/XCOUT

P8_5/NMI

P8_3/INT1

P8_4/INT2/ZP

P3_1/A9

P3_2/A10

P8_2/INT0

P8_1/TA4IN/U

P3_6/A14

P3_3/A11

P8_0/TA4OUT/U

P3_7/A15

P3_4/A12

P3_5/A13

P7_7/TA3IN

P7_6/TA3OUT

P7_5/TA2IN/W

P7_4/TA2OUT/W

P4_0/A16

P4_1/A17

P4_2/A18

P4_3/A19

515253545556575859606162636465666768697071727374757677787980

50

P4_4/CS0

49

P4_5/CS1

48

P4_6/CS2

47

P4_7/CS3

46

P5_0/WRL/WR

45

P5_1/WRH/BHE

44

P5_2/RD

43

P5_3/BCLK

42

P5_4/HLDA

41

P5_5/HOLD

40

P5_6/ALE

39

P5_7/RDY/CLKOUT

38

P6_0/CTS0/RTS0

37

P6_1/CLK0

36

P6_2/RXD0/SCL0

35

P6_3/TXD0/SDA0

34

P6_4/CTS1/RTS1/CTS0/CLKS1

33

P6_5/CLK1

32

P6_6/RXD1/SCL1

31

P6_7/TXD1/SDA1

(1)

(1)

P7_2/CLK2/TA1OUT/V

P7_3/CTS2/RTS2/TA1IN/V

P7_0/TXD2/SDA2/TA0OUT

P7_1/RXD2/SCL2/TA0IN/TB5IN

M30626FHPFP Terminal Function

PIN NO. PIN NAME I/O FUNCTION

1 P96/SOUT4 SW_SUM O Bass Management Control

2 P95/CLK4 iPod DET I iPod Dock Det

3 P94/TB4 2090_CLK/SEL2 O AVR-1708 : EXPANDER Control Pin / AVR-1508 : VIDEO Control Pin

4 P93/TB3 2090_DATA/SEL1 O AVR-1708 : EXPANDER Control Pin / AVR-1508 : VIDEO Control Pin

5 P92/SOUT3 SHARC_SDOUT O DSP(IC801 : ADSP-21367)Control Pin

6 P91/SIN3 SHARC_SDIN I DSP(IC801 : ADSP-21367)Control Pin

7 P90/CLK3 SHARC _SCLK O DSP(IC801 : ADSP-21367)Control Pin

8 BYTE BYTE - GND

9 CNVCS CNVSS I UPGRADE PIN

10 P87 1328 CE O CODEC(IC808 : ADAU1328) Control Pin

11 P86 XM DACMS O XM DAC(IC06 : AK4385)Control Pin

12 RESET RESET I RESET (Det = "L")

13 XOUT X2 O Clock(12MHz )

45

AVR-1708/1508/688/588/488 AVC-1508

PIN NO. PIN NAME I/O FUNCTION

14 VSS VSS - GND

15 XIN X1 I Clock(12MHz)

16 VCC VCC - +5V

17 P85/NMI NMI I -

18 P84/INT2 FLAG0 I DSP(IC801 : ADSP-21367) Control Pin

19 P83/INT1 POWER DOWN I Power Down Detection Pin (Det = "L")

20 P82/INT0 PROTECTION I Protect Detection (Det = "L")

21 P81 XM DAC_CLK(MC) O XM DAC(IC06 : AK4385)Control Pin

22 P80 XM DAC_DATA(MDI) O XM DAC(IC06 : AK4385)Control Pin

23 P77 FLD_RESET O FL DRIVER Control Pin

24 P76 FLD_CE O FL DRIVER Control Pin

25 P75 FLD_CLK O FL DRIVER Control Pin

26 P74 FLD_DATA O FL DRIVER Control Pin

27 P73/CTS2 2090-C_CLK O IC301 : BU2090(EXPANDER)Control Pin

28 P72/CLK2 2090-C_DATA O IC301 : BU2090(EXPANDER)Control Pin

29 P71/RXD2 RXD MIXMO I XM Radio Control Pin

30 P70/TXD2 TXD MOXMI O XM Radio Control Pin

31 P67/TXD1 TXD MO232I O Flash Starter/DENON Writer Control Pin

32 P66/RXD1 RXD MI232O I Flash Starter/DENON Writer Control Pin

33 P65/CLK1 LIMIT DET I Current Limit Detection

34 P64/CTS1 LIMIT O Current Limit Control Pin

35 P63/TXD0 TXD_iPod O iPod Dock Control Pin

36 P62/RXD0 RXD_iPod I iPod Dock Control Pin

37 P61/CLK0 XM ANT REV I XM Radio Control Pin

38 P60/CTS0 XM LINK ACTIVE I XM Radio Control Pin

39 P57 TUNED I FM/AM TUNED Detection(Det = "L")

40 P56 STEREO I FM STEREO Detection(Det = "L")

41 P55/EPM FLASH EPM I UPGRADE PIN

42 P54 VOL UP I MASTER VOLUME KNOB(Rotary Encoder) Rotational Detection

43 P53 VOL DOWN I MASTER VOLUME KNOB(Rotary Encoder) Rotational Detection

44 P52 SEL UP I SELECTOR KNOB(Rotary Encoder) Rotational Detection

45 P51 SEL DOWN I SELECTOR KNOB(Rotary Encoder) Rotational Detection

46 P50/CE FLASH CE I UPGRADE PIN

47 P47 PLL/RDS DIN O TUNER PLL(LC72131)/RDS(LC72720)Control Pin

48 P46 PLL/RDS CLK O TUNER PLL(LC72131)/RDS(LC72720) Control Pin

49 P45 PLL STB O TUNER PLL(LC72131)Control Pin

50 P44 PLL_DOUT I TUNER PLL(LC72131)Control Pin

51 P43 RDS RESET O RDS(IC805 : LC72720)Control Pin

52 P42 RDS CE O RDS(IC805 : LC72720)Control Pin

53 P41 RDS DOUT I RDS(IC805 : LC72720)Control Pin

54 P40 89057 INT I DIR(IC807 : LC89057) Control Pin

55 P37 89057 RESET O DIR(IC807 : LC89057) Control Pin

56 P36 89057 CE O DIR(IC807 : LC89057) Control Pin

57 P35 89057 SDIN I DIR(IC807 : LC89057) Control Pin

58 P34 89057 EMPHA I DIR(IC807 : LC89057) Control Pin

59 P33

60 P32 SHARC_CE O DSP(IC801 : ADSP-21367) Control Pin

61 P31 V-CODEC_SDA O VIDEO CODEC (IC1019 : ADV7172&IC1018 : ADV7180) Control Pin

62 VCC VCC - +5V

63 P30 V-CODEC_SCL O VIDEO CODEC (IC1019 : ADV7172&IC1018 : ADV7180) Control Pin

64 VSS VSS - GND

65 P27 SHARC_RESET O DSP(IC801 : ADSP-21367) Control Pin

66 P26 EEPROM RESET O Flash Memory(IC803 : MBM29LV160BE90TN) Control Pin

67 P25 DSP POWER O DSP POWER ON/OFF

68 P24 HPD0 O HDMI_IN1 HPD Control Pin

V-CODEC RESET/
V-M UTE

O VIDEO CODEC (IC1019 : ADV7172&IC1018 : ADV7180) Control Pin

46

AVR-1708/1508/688/588/488 AVC-1508

PIN NO. PIN NAME I/O FUNCTION

69 P23 HPD1 O HDMI_IN2 HPD Control Pin

70 P22 H/P DET I HP Jack Insert Detection(Det ="H")

71 P21 FUNCTION UP I FUNCTION SELECTOR KNOB(Rotary Encoder)Rotational Detection

72 P20 FUNCTION DOWN I FUNCTION SELECTOR KNOB(Rotary Encoder)Rotational Detection

73 P17/INT5 RMC I Remote Control Unit Signal Reception

74 P16/INT4 MIC IN I MIC Insert Detection(Det ="H")

75 P15/INT3 POWER Key I POWER KEY Detection

76 P14/D12 POWER RELAY O MAIN TRANS RELAY Control Pin

77 P13/D11 RED LED O POWER/STANDBY LED Control Pin

78 P12/D10 VOL DATA O FUNCTION/VOLUME(IC700 : R2A15215) Control Pin

79 P11/D9 VOL CLK O FUNCTION/VOLUME(IC700 : R2A15215) Control Pin

80 P10/D8

81 P07/D7 4094(MUTE)_STB O IC111 : BU4094(EXPANDER) Control Pin

82 P06/D6 4094(RLY)_STB O IC110 : BU4094(EXPANDER) Control Pin

83 P05/D5 4094(XM)_STB O IC12 : BU4094(EXPANDER) Control Pin

84 P04/D4 89057/1328 SCLK O DIR(IC807 : LC89057)&CODEC(IC808 : ADAU1328) Control Pin

85 P03/D3 89057/1328 SDOUT O DIR(IC807 : LC89057)&CODEC(IC808 : ADAU1328) Control Pin

86 P02/D2 COMP DET I COMPONENTSignal Detection (AVR-1708/688 Only)

87 P01/D1 CVBS DET I CONPOSIT Signal Detection (AVR-1708/688 Only)

88 P00/D0 S-VIDEO DET I S VIDEO Signal Detection (AVR-1708/688 Only)

89 P107/AN7 4094_OE O IC12&110&111 : BU4094(EXPANDER) Control Pin

90 P106/AN6 KEY1 I Key-1 Detection(A/D)

91 P105/AN5 KEY2 I Key-2 Detection(A/D)

92 P104/AN4 KEY3 I Key-3 Detection(A/D)

93 P103/AN3 1328 RESET O CODEC(IC808 : ADAU1328) Control Pin

94 P102/AN2 SET OPTION I Area Setup

95 P101 4094_CLK O IC12&110&111 : BU4094(EXPANDER) Control Pin

96 AVSS AVSS - GND

97 P100 4094_DATA O IC12&110&111 : BU4094(EXPANDER) Control Pin

98 VREF VREF - AD Reference Level(+5V)

99 AVCC AVCC - AD +5V

100 P97/SIN4 INH O Identifying Signal Control (AVC-1508 Only)

1328 SDIN/
MIC OVERLOAD

I CODEC(IC808 : ADAU1328) Control Pin

47

AVR-1708/1508/688/588/488 AVC-1508

R2A15215FP (IC700)

80

51

81

100

MUTE

AVEE

N.C.

ADCL

ADCR

AGND

N.C.

INR1

INL1

INR2

INL2

INR3

INL3

INR4

INL4

INR5

INL5

INR6

INL6

INR7

INL7

INR8

INL8

N.C.

INRA/RECR1

INLA/RECL1

N.C.

INR9

INL9

N.C.

50

31

1

SUBR

DGND

DATA

CLOCK

50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31

51

52

53

54

55

MCU

I/F

AVEE

0/-6/-12/-18dB

ATT

56

MAI N

57

58

SUB

MAI N

59

60

61

SUB

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

REC

77

78

79

80

SUBL

MAI N

SUB

SBLCIN

SBRCIN

FRIN2

0~-95dB,

(0.5dBstep)

0~-95dB,

(0.5dBstep)

30

FLIN2

-

-

SRIN2

Bass/ Treb

-14~+14dB
(2dB step)

Bass/ Treble

-14~+14dB

(2dB step)

SLIN2

Tone

Tone

SWIN2

le

CIN2

Tone+MIX

Tone+MIX

Bypass

SBLIN2

SBRIN2

Bypass

Tone

Tone

+42~-95dB,

- (0.5dBstep)

+42~-95dB,

- (0.5dBstep)
+42~-95dB,

- (0.5dBstep)

+42~-95dB,

- (0.5dBstep)

+42~-95dB,

- (0.5dBstep)

+42~-95dB,

- (0.5dBstep)

N.C.

TRER

BASSR2

+42~0dB

(0.5dBstep)

+42~0dB

(0.5dBstep)

CMIX

SWMIX

BASSR1

AVCC

N.C.

30

AVCC

N.C.

29

28

TREL

27

BASSL2

BASSL1

26

N.C.

25

FRC

24

FROUT

23

22

AGND

FLOUT

21

20

FLC

AGND

19

CC

18

COUT

17

AGND

16

SWOUT

15

SWC

14

13

N.C.

SRC

12

SROUT

11

AGND

10

SLOUT

9

SLC

8

AGND

7

SBRC

6

SBR OUT

5

AGND

4

SBL OUT

3

SBLC

2

N.C.

1

81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99

RECL3

N.C.

FLIN1

CIN1

FRIN1

SWIN1

SLIN1

SRIN1

INRB/RECR2

INLB/RECL2

INR10/RECR4

INL10/RECL4

INR11/RECR5

N.C.

INL11/RECL5

N.C.

N.C.

RECR3

48

AVR-1708/1508/688/588/488 AVC-1508

100

SBLIN1

SBRIN1

R2A15215FP Terminal Function

PIN No.

23,21,
17,15,
11,9,
5,3

24,20,
18,14,
12,8,
6,2

4,7,10,16,
19,22,56

28,34

26,27,
32,33

30

43,42,
41,40,
39,38,
37,36
93,94,
95,96,
97,98,
99,100

Name

FROUT,FLO UT,
COUT,SWOUT,
SROUT, SLO UT,
SBROUT,S BL OUT

FRC,FLC,
CC,SWC,
SRC,SLC,
SBRC,SBL C

AGN D

TREL, TRE R

BA SSL1,BA SSL2
BA SSR1,BASSR2

AVCC

FRIN2, FLIN2,
SRN2,SLIN2,
SWIN2,CIN2 ,
SBRIN2,S BLIN2
FLIN1, F RIN1,
CIN1,SWIN1 ,
SLIN1,S RIN1,
SBLIN1,S BRI N1

Function

Output pin of FL/ FR/C/SW/SL/ SR/SBL/ SB R channel

Connects capacitor fo r r educing click no ise of

L/R /C/SW/SL/SR/SBL/ SBR channel vol ume

Analog groun d of intern al circuit

Frequency characteristic setting pin of L/R chann el tone control (Treble)

Frequency characteristic setting pin of L/R chann el tone control (Bass)

Positive powe r supply to int ernal cir cuit

Input pin of L/R /C/SW/ SL/ SR/SBL /SBR channel (Multi IN 1/2)

48 DGN D

49 DATA

Digital ground of intern al circuit

Input pin of c ontrol data

50 CLOCK Input pin of c ontrol clock

52

59,61,63,
65,67,69,
71,73,79

58,60,62,
64,66,68,
70,72,78

51

AVEE

INL1, INL2, I N L3,
INL4, INL5, INL6,
INL7, INL8, INL9

INR1,INR2, I N R3,
INR4,INR5,I NR6,
INR7,INR8,I NR9

MUTE

44,45 SBRCIN,SBL CIN

46,47 SUBL,SU BR

54,55 ADCL, ADCR

90,91

75,76,
81,82,
83,84,
85,86

1,13,25,29,31,
35,53,
57,74,77,80,
87,88,89,92

RECR3,RECL3

INRA/RECR1,INLA/RECL1,
INRB/REC R2,INLB/ RECL2,
INR10/RECR4,I NL10/RECL4,
INR11/RECR5,I NL11/RECL5

N.C.

Negative pow er supply to internal cir cuit

Input pin of L/R channel ( I nput Selector)

Outside Mute Con trol PIN

Input pin for S BL/ SBR channel Volum e

Output pin for L/R chann el SUB Outpu t

Output pin for L/R chann el ADC

Output pin for L/R chann el REC Output

Input pin of L/R channel ( I nput Selector)/
Output pin for L/R chann el REC Output

No Connected PIN

49

AVR-1708/1508/688/588/488 AVC-1508

ADSP21367 (IC801)

208 157

1

PIN 1 INDICATOR

TOP VIEW

(PINS DOW N)

156

52

105

10453

ADSP21367 Terminal Function

Pin No. Signal Pin No. Signal Pin No. Signal Pin No. Signal

1 VDD 53 VDD 105 VDD 157 VDD

2 DATA28 54 GND 106 GND 158 VDD

3 DATA27 55 IOVDD 107 IOVDD 159 GND

4 GND 56 ADDR0 108 SDCAS

5 IOVDD 57 ADDR2 109 SDRAS

6 DATA26 58 ADDR1 110 SDCKE 162 VDD

7 DATA25 59 ADDR4 111 SDWE

8 DATA24 60 ADDR3 112 WR

9 DATA23 61 ADDR5 113 SDA10 165 TCK

10 GND 62 GND 114 GND 166 GND

11 VDD 63 VDD 115 IOVDD 167 VDD

12 DATA22 64 GND 116 SDCLK0 168 TMS

13 DATA21 65 IOVDD 117 GND 169 CLK_CFG0

14 DATA20 66 ADDR6 118 VDD 170 BOOTCFG0

15 IOVD D 67 ADDR7 119 RD

16 GND 68 ADDR8 120 ACK 172 EMU

17 DATA19 69 ADDR9 121 FLAG3 173 BOOTCFG1

18 DATA18 70 ADDR10 122 FLAG2 174 TDO

19 VDD 71 GND 123 FLAG1 175 DAI4

20 GND 72 VDD 124 FLAG0 176 DAI2

21 DATA17 73 GND 125 DAI20 177 DAI3

22 VDD 74 IOVDD 126 GND 178 DAI1

23 GND 75 ADDR11 127 VDD 179 IOVDD

24 VDD 76 ADDR12 128 GND 180 GND

25 GND 77 ADDR13 129 IOVDD 181 VDD

26 DATA16 78 GND 130 DAI19 182 GND

27 DATA15 79 VDD 131 DAI18 183 DPI14

28 DATA14 80 AVSS 132 DAI17 184 DPI13

29 DATA13 81 AVDD 133 DAI16 185 DPI12

30 DATA12 82 GND 134 DAI15 186 DPI11

31 IOVDD 83 CLKIN 135 DAI14 187 DPI10

32 GND 84 XTAL2 136 DAI13 188 DPI9

33 VDD 85 IOVDD 137 DAI12 189 DPI8

34 GND 86 GND 138 VDD 190 DPI7

35 DATA11 87 VDD 139 IOVDD 191 IOVDD

36 DATA10 88 ADDR14 140 GND 192 GND

37 DATA9 89 GND 141 V DD 193 VDD

38 DATA8 90 IOVDD 142 GND 194 GND

39 DATA7 91 ADDR15 143 DAI11 195 DPI6

40 DATA6 92 ADDR16 144 DAI10 196 DPI5

41 IO VD D 93 ADDR17 145 DAI8 197 DPI4

42 GND 94 ADDR18 146 DAI9 198 DPI3

43 VDD 95 GND 147 DAI6 199 DPI1

44 DATA4 96 IOVDD 148 DAI7 200 DPI2

45 DATA5 97 ADDR19 149 DAI5 201 CLKOUT

46 DATA2 98 ADDR20 150 IOVDD 202 RESET

47 DATA3 99 ADDR21 151 GND 203 IOVDD

48 DATA0 100 ADDR23 152 VDD 204 GND

49 DATA1 101 ADDR22 153 GND 205 DATA30

50 IOVDD 102 MS1

51 GND 103 MS0

52 VDD 104 VDD 156 VDD 208 VDD

154 VDD 206 DATA31

155 GND 207 DATA29

160 VDD

161 VDD

163 TDI

164 TRST

171 CLK_CFG1

50

AVR-1708/1508/688/588/488 AVC-1508

LC89057W (IC807)

RXOUT

RX0
RX1
RX2
RX3
RX4

RX5/VI

RX6/UI

LPF

TMCK/PIO0

TBCK/PIO1

TLRCK/PIO2

TDATA/PIO3

TXO/PIOEN

10

13

44
45
46
47

48

1

2
3
4
5
8
9

EMPHA/UO33AUDIO/VO35INT40CL39CE38DI

32

Microcontroller

Clock

Selector

27

XMCK34CKST

Input

Selector

Modulation

or

Parallel Port

29

XIN

C bit, U bit

Demodulation

&

Lock Detect

PLL

28

XOUT

I/F

Data

Selector

I/N

XMODE
41

37

36

21

24

16
17

20
22
23

DO

RERR

RD ATA

SDIN

RMCK
RBCK
RLRCK
SBCK
SLRCK

LC89057W Terminal Function

Pin
No.

1 RXOUT O Input bi-phase select data output terminal

2 RX0 I TTL compatible digital data input terminal

3 RX1 I Coaxial compatible amp built-in digital data input terminal

4 RX2 I TTL compatible digital data input terminal

5 RX3 I TTL compatible digital data input terminal

6 DGND — Digital GND

7 DVDD — Digital power

8 RX4 I TTL compatible digital data input terminal

9 RX5/VI I TTL compatible digital data/Validity flag input terminal for modulation

10 RX6/UI I TTL compatible digital data/User data input terminal for modulation

11 DVDD — Digital power for PLL

12 DGND — Digital GND for PLL

13 LPF O PLL loop filter connecting terminal

14 AVDD — Analog power for PLL

15 AGND — Analog GND for PLL

16 RMCK O RMCK clock output terminal (256fs, 512fs, XIN, VCO)

17 RBCK O/I RBCK clock in/output terminal (64fs)

18 DGND — Digital GND

19 DVDD — Digital power

20 RLRCK O/I RLRCK clock in/output terminal (fs)

21 RDATA O Serial audio data output terminal

22 SBCK O SBCK clock output terminal (32fs, 64fs, 128fs)

23 SLRCK O SLRCK clock output terminal (fs/2, fs, 2fs)

24 SDIN I Serial audio data input terminal

25 DGND — Digital GND

26 DVDD — Digital power

27 XMCK O Osc. amp output terminal

Pin Name

I/O

Function

36 RERR1RXOUT

35 INT2RX0

34 CKST3RX1

TOP VIEW

33 AUDIO/VO4RX2

32 EMPHA/UO5RX3

31 DGND6DGND

30 DVDD7DVDD

29 XIN8RX4

28 XOUT9RX5/VI

27 XMCK10RX6/UI

26 DVDD11DVDD

25 DGND12DGND

24 SDIN37DO
23 SLRCK38DI
22 SBCK39CE
21 RDATA40CL
20 RLRCK41XMODE
19 DVDD42DGND
18 DGND43DVDD
17 RBCK44TMCK/PIO0
16 RMCK45TBCK/PIO1
15 AGND46TLRCK/PIO2
14 AVDD47TDATA/PIO3
13 LPF48TXO/PIOEN

51

AVR-1708/1508/688/588/488 AVC-1508

Pin
No.

Pin Name I/O

Function

28 XOUT O X’tal osc. connecting output terminal

29 XIN I X’tal osc. connection, external clock input terminal (24.576MHz or 12.288MHz)

30 DVDD — Digital power

31 DGND — Digital GND

32 EMPHA/UO I/O Emphasis information/U-data output/Chip address setting terminal

33 AUDIO/VO I/O Non-PCM detect/V-flag output/ Chip address setting terminal

34 CKST I/O Clock switch transition period output/Demodulation master or slave function switching terminal

35 INT I/O Interrupt output for µcom (Interrupt factor selectable)/Modulation or general I/O switching terminal

36 RERR O PLL lock error, data error flag output

37 DO O µcom I/F, read out data output terminal (3-state)

38 DI I µcom I/F, write data input terminal

39 CE I µcom I/F, chip enable input terminal

40 CL I µcom I/F, clock input terminal

41 XMODE I System reset input terminal

42 DGND — Digital GND

43 DVDD — Digital power

44 TMCK/PIO0 I/O 256fs system clock input for modulation/General I/O in/output terminal

45 TBCK/PIO1 I/O 64fs bit clock input for modulation/General I/O in/output terminal

46 TLRCK/PIO2 I/O fs clock input for modulation/General I/O in/output terminal

47 TDATA/PIO3 I/O Serial audio data input for modulation/General I/O in/output terminal

48 TXO/PIOEN O/I Modulation data output/ General I/O enable input terminal

* For latch-up countermeasure, perform each power supply ON/OFF in the same timing.

BU2090F (IC302,1005,1008)

1

VSS

DATA

CLOCK

LCK

Q0

Q1

Q2

2

3

4

5

6

7

CONTROL CIRCUIT

12-bit SHI FT REGISTER

12- bit STRAGE REGISTER

OUTPUT BUF FER ( OPEN DRAI N)

8

9

Q4

MM74LCX244 (IC809-811)

TOP VIEW

1

OE

2

I0

3

O4

4

I1

5

O5

6

I2

7

O6

8

I3

912

O7 O3

10 11

GND

20

VCC

19

OE2

18

O0

17

I4

16

O1

15

I5

14

O2

13

I6

I7

17

14

13

18

16

15

12

11Q3

10

VDD

OE

Q11

Q10

Q9

Q8

Q7

Q6

Q5

52

AVR-1708/1508/688/588/488 AVC-1508

LC87F6D16A (IC302)

4160

61

80

40

21

1

20

53

AVR-1708/1508/688/588/488 AVC-1508

ADAU1328 (IC808)

54

AVR-1708/1508/688/588/488 AVC-1508

BA7626 (IC1001,1005,1006 : for AVR1707/687 model)

2

SERIAL

IN

STROBE

Q

1

Q2

Q3

Q4

CLOCK

3

4

5

6

7

8

15

14

13

12

11

10

9

V

SS

1

OUTPUT
ENABLE

V

DD

Q6

Q7

Q8

Q'S

Q5

QS

16

(IC652,653 : for AVR1507/487 model)

BA7625 (IC651 : for AVR1507/487 model)

Monitor OUT

ABE

MONITOR OUT

LL* IN 1 LL *

H L * IN 2 H L * IN 2 H L *

GND

IN5

GND

IN4

CTL E

IN3

CTL D

1

2

3

6dB

LOGIC

4

5

6

7

6dB

LOGIC

8

16

15

14

13

12

11

10

9

IN1

CTL A

V OUT1

Vcc

IN2

CTL B

V OUT2

CTL C

C D E V OUT 1 C D E V OUT 2

⎯

LL* IN 1

⎯

L H * IN 3 L H * IN 3 L H * IN 3

H H L IN 4 H H L IN 4 H H L IN 4

HHH IN 5 HHH IN 5 HHH IN 5

Note 1: * mark means that feasible for either H or L.
Note 2: Each input terminal is provided with sink chip clamp (BA7625).

Each input terminal takes 20kohm at the end (BA7626).

74LVX157MTC (IC816) BA4510F (IC824,827) BU4094BCF (IC12,110,111)

SE

LECT

1A

1B

1Y

2A

2B

2Y

GND

1

2

SEL

3

4

5

5

6

7

8

16

15

14

13

12

11

10

9

Vcc

ST

4A

4B

4Y

3A

3B

3Y

OUT1

Ð IN1

+ IN1

V

1

2

1ch

+

Ð

3

EE

4

MM74HCT244 (IC812) FAN1117-1.2 (IC824)
RC1117-33 (IC823)

OUT

FRONT VIEW

2

55

20 1

V

1G

0

1A

0

2Y

1

1A

1

2Y

2

1A

2

2Y

3

1A

3

2Y

GND

CC

19 2

2G

0

18 3

1Y

0

17 4

2A

1

16 5

1Y

1

15 6

2A

2

14 7

1Y

2

13 8

2A

3

12 9

1Y

3

11 10

2A

V

AVR-1708/1508/688/588/488 AVC-1508

+

2ch

3

2

1

Ð

VCC

8

OUT2

7

Ð IN2

6

+ IN2

5

IN

OUT

ADJ/GND

MBM29LV160BE90TN (IC803)

SN74LV573APWR (IC818)

1

OE

2

D0

3

D1

4

D2

D3

5
6

D4

7

D5

8

D6

9

D7

GND

10

Vcc

20

Q0

19

Q1

18

Q2

17

Q3

16

Q4

15

Q5

14

13

Q6

12

Q7

11

LE

OE

11

E

1

D1 D2

D0

234

D

D

D

Q

L

Q0 Q1

L

Q

Q

L

L

1819

17

Q2

D3 D4 D5 D6

567

D

D

Q

Q

L

L

16

Q3

89

D

Q

L

Q4 Q5 Q6 Q7

D7

D

D

Q

Q

L

L

12131415

MM74HCT00MTCX (IC814,815)

1

1A

1B

1Y

2A

2B

2Y

GND

2

3

4

5

6

7

Vcc

14

4B

13

4A

12

4Y

11

3B

10

9

3A

3Y

8

SN74LV14APWR (IC817)

1

GND

1A

2

1Y

2A

3

4

2Y

5

3A

3Y

6

7

14

13

12

11

10

9

8

Vcc

6A

6Y

5A

5Y

4A

4Y

56

AVR-1708/1508/688/588/488 AVC-1508

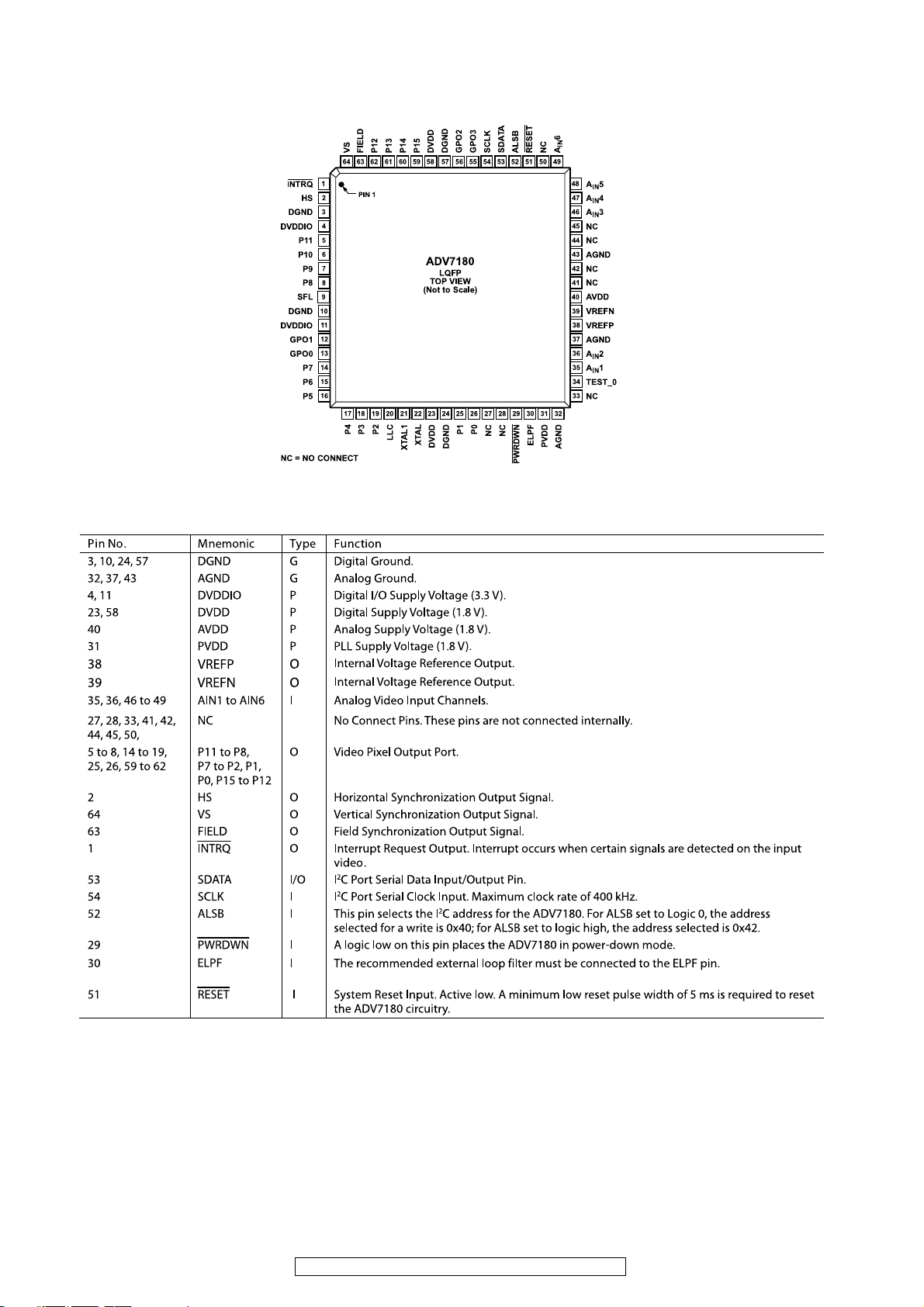

ADV7180BSTZ (IC1018 : for AVR1708/688 model)

57

AVR-1708/1508/688/588/488 AVC-1508

58

AVR-1708/1508/688/588/488 AVC-1508

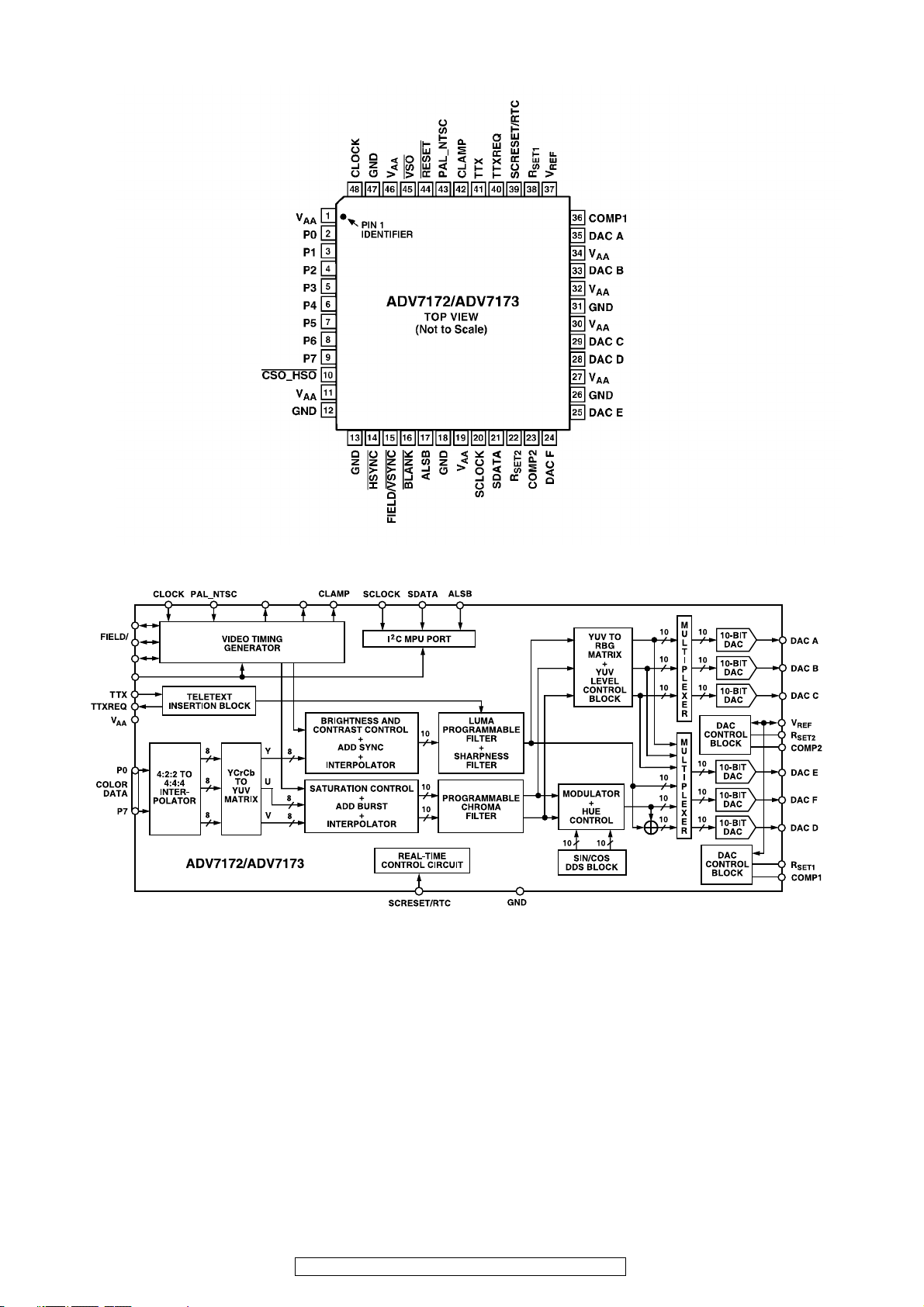

ADV7172KSTZ (IC1019 : for AVR1708/688 model)

59

AVR-1708/1508/688/588/488 AVC-1508

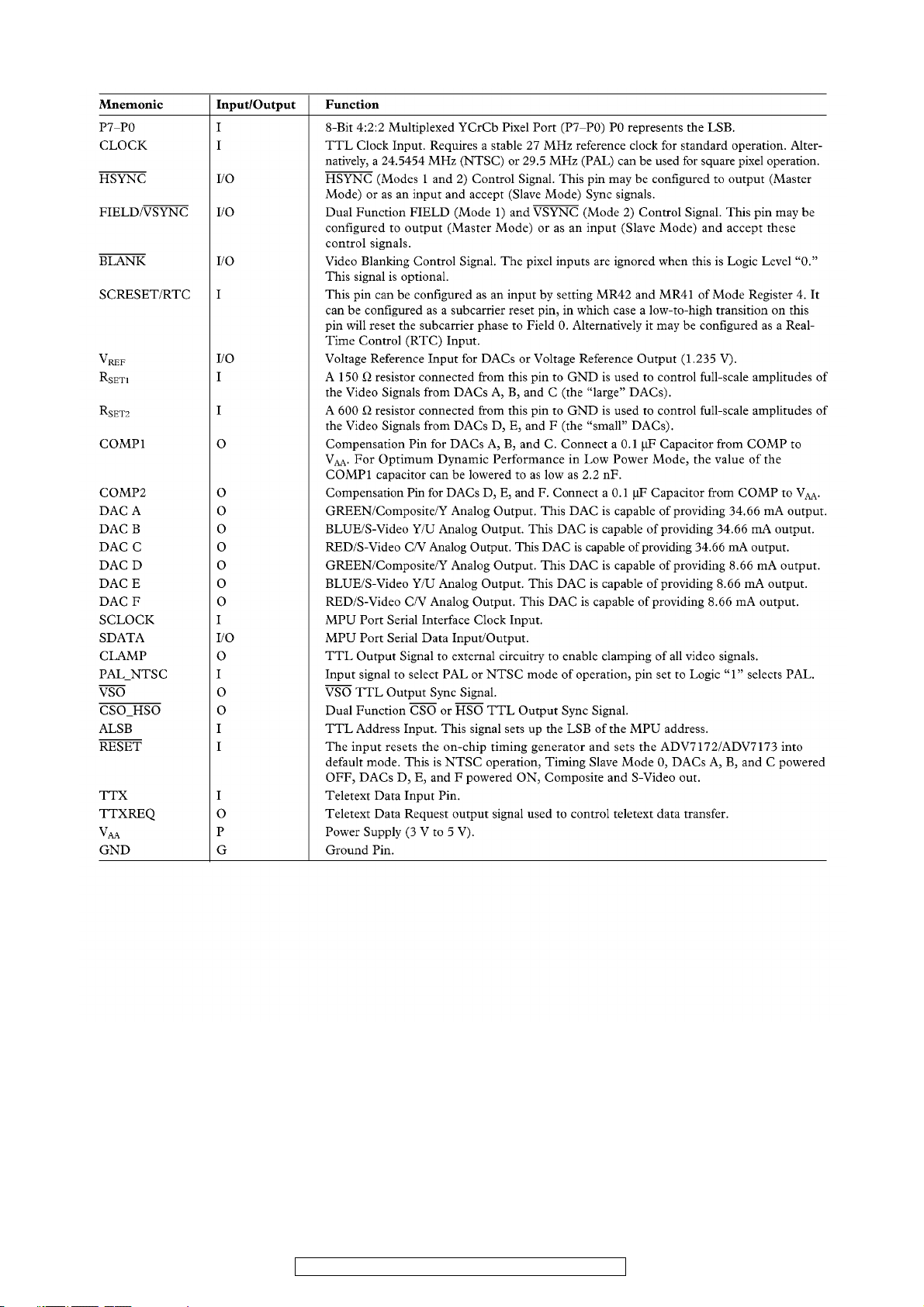

PIN FUNCTION DESCRIPTION

60

AVR-1708/1508/688/588/488 AVC-1508

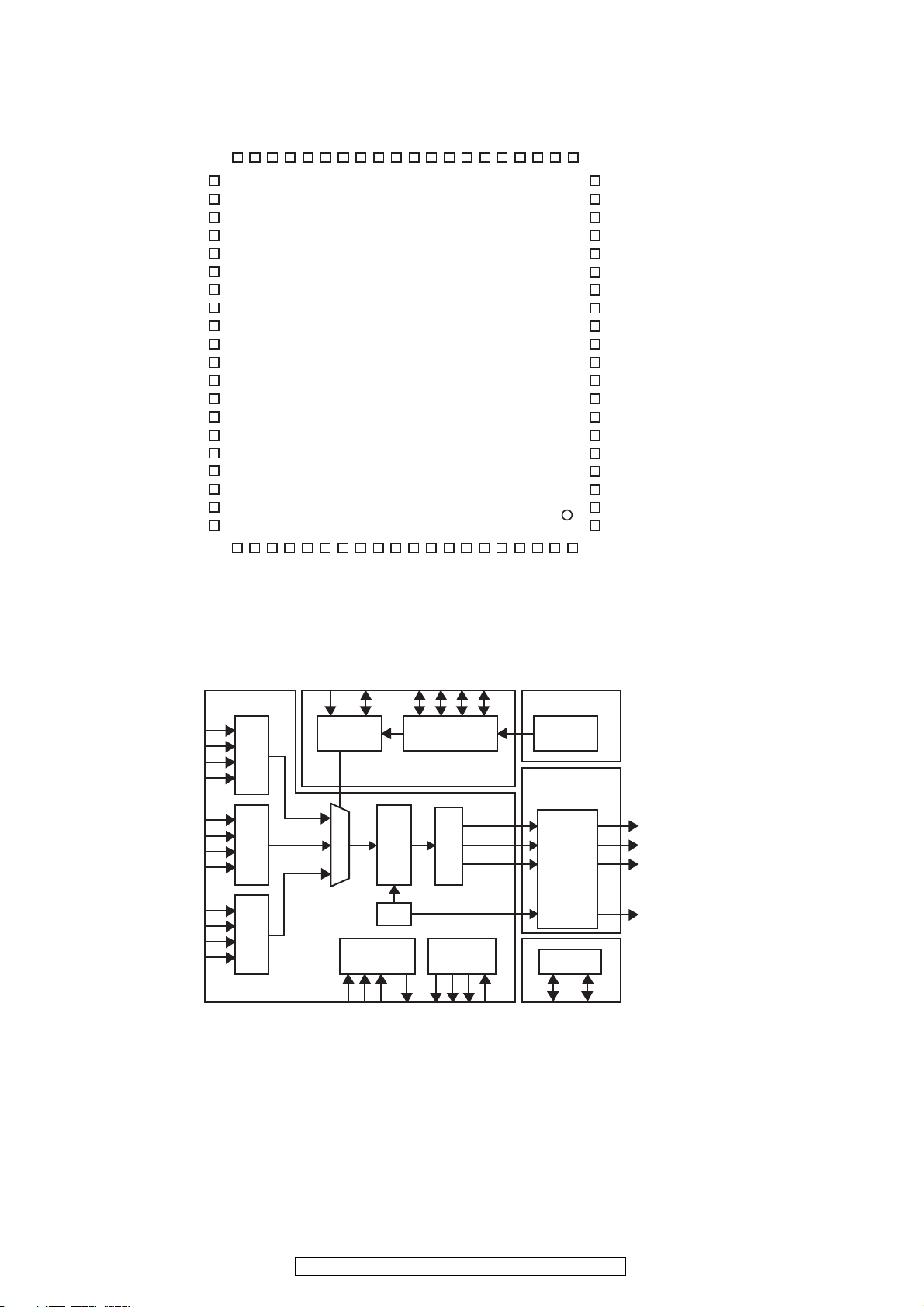

Sil9185 (IC01)

AGND

R1XC+

R1XC-

AVCC18

HPD1

I2CSEL/

INT

DGND

DVCC18

RPWR0

DSCL0

DSDA0

AVCC18

R0X2+

R0X2-

AGND

R0X1+

R0X1-

AVCC33

R0X0+

R0X0-

R1X0-

R1X0+

AVCC33

R1X1-

R1X1+

AGND

R1X2-

R1X2+

AVCC18

DSDA1

DSCL1

RPWR1

CEC_D

CEC_A

AVCC33

HPD2

AVCC18

R2XC-

R2XC+

AGND

393837363534333231302928272625

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

R2X0-

64656667686970717273747576

63

62

R2X1-

R2X0+

AVCC33

R2X1+

AGND

R2X2-

Sil 9185

80-Pin TQFP

(Top View)

R2X2+

AVCC18

DSDA2

DSCL2

RPWR2

DVCC18

DGND

RSVDL

HPDIN

242322

78

77

TSCL

TSDA

TPWR/

21

79

80

AGND

I2CADDR

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

AGND

R0XC+

R0XC-

AVCC18

HPD0

LSCL/
EPSEL[1]
LSDA/
EPSEL[0]

RESET#

EXTSWING

TxC-

TxC+

AGND

Tx0-

Tx0+

AVCC18

Tx1-

Tx1+

AGND

Tx2-

Tx2+

R0X0+/­R0X1+/­R0X2+/-

R0XC+/-

R1X0+/­R1X1+/­R1X2+/-

R1XC+/-

R2X0+/­R2X1+/­R2X2+/-

R2XC+/-

Equalizer

Termination/

Equalizer

Termination/

Equalizer

Termination/

Receiver Block

EPSEL1/

EPSEL0/

LSDA

LSCL

Config

Logic

Configuration Block

PLL

5V Switch

RPWR0

RPWR1

RPWR2

Port0_DDC

Port1_DDC

2

I C Switch

DPLL

Oversample

HPD

Switch

HPD0

TPWR

I2CADDR/

Port2_DDC

TX_DDC

HPD1

HPD2

HPDIN

EDID Block

EDID

RAM

Transmitter

Block

Transmit

Drivers

CEC I/F

CEC

CEC_A

TX0+/-

TX1+/-

TX2+/-

TXC+/-

CEC_D

61

AVR-1708/1508/688/588/488 AVC-1508

2. FL DISPLAY

HNA-16SM13T (FL301)

59

1

TUNED

STEREO

RDS

CH

G16

TUNED

RDS

CH

G15 G13

STEREO

AUTO

Pin Assignment

PIN NO.
CONNECTION

PIN NO.
CONNECTION

PIN NO.
CONNECTION

S18

S38

AUTO

REC

ZONE2

PHONO

VCR

CD

-

1

TUNER

-2-

AUX

3 V.AUX

DVD /
CDR

/

VDP TV

TAPE

-1-

/

2

DBS

DIGITAL

PRO LOGIC
DIGITAL

ANALOG

S9

II

S38

S13

S14

S12

S15

S11

S10

G2~G16

S2

S3

S1

S8

S7

S6

S12

S13

G12

G10

G9

CD

1

-

TUNER

-2-

G14

REC

ZONE2

PHONO

VCR

G11

12345
F1 F1 S1 S2 S3
21 22

NP

23 24 25

26

G1

PRO LOGICII
DIGITAL

ANALOG

3

G7

AUX

V.AUX

G6

DVD /

CDR

G5

/

G4

VDP

TAPE

G3

TV

-1-

G2

DBS

/

2

DIGITAL

G8

78910111213141516171819

6

S5 S6 S7 S8 S9 S10 S11 S12 S13 S14 S15

S4

27 28 29 30 31 32 33 34

35 36 37 38 39 40

S11

S16

S21

S26

S31

S17

S22

S27

S32

S18

S23

S28

S33

S19 S20 S21 S22 S23 S24 S25 S26 S27 S28 S29 S30 S31 S32 S33 S34 S35 S36 S37

41 42 43 44 45

47 48 49 50 51 52 53 54 55 56 57

46

58 59

G16 G15 G14 G13 G12 G11 G10 G9 G8 G7 G6 G5 G4 G3 G2 G1 F2 F2

F1, F2 : Filament
G1~G16: Grid
S1~S38 : Anode

G1

S1

S6

S7

S5

S4

S4

S5

S9

S10

S14

S15

S19

S20

S24

S25

S29

S30

S34

S35

S16 S17

S2

S3

20

Anode & Grid Assignment

G1

G2~G16

S1
S2

S3
S4
S5
S6
S7
S8
S9

TV

/

2

VDP

-

1

TAPE

S36
S37
S38

S1
S2
S3
S4
S5
S6
S7

S1
S2
S3
S4
S5
S6

S7
S8
S9

S9

G1 G2 G3 G4 G5 G6 G7 G8 G9 G10 G11 G12 G13 G14 G15

-

S38

DBS

S10
S11

S12
S13
S14

S15

S16
S17
S18

/(DVD)
/(CDR)

G1
S10
S11

S12
S13
S14
S15

DIGITAL

PRO LOGIC

CDR

V.AUX

G2~G16

II

AUXDVD

S10
S11
S12
S13
S14
S15
S16
S17
S18

S19

S20

S21
S22
S23
S24
S25
S26
S27

TUNER

-

2

-

3

CD

-

G1

G2~G16

S19
S20
S21
S22
S23
S24

S25
S26

S28
S29
S30
S31
S32
S33
S34
S35

G1

G2~G16

S28
S29
S30
S31

S32
S33

S34
S35

S27

G16

PHONO

1

VCR

REC

ZONE2

STEREO

AUTO

TUNED

RDS

CH

62

AVR-1708/1508/688/588/488 AVC-1508

PRINTED WIRING BOARDS d

MAIN P.W.B. UNIT (1/2)

63

AVR-1708/1508/688/588/488 AVC-1508

COMPONENT SIDE

MAIN P.W.B. UNIT (2/2)

64

AVR-1708/1508/688/588/488 AVC-1508

FOIL SIDE

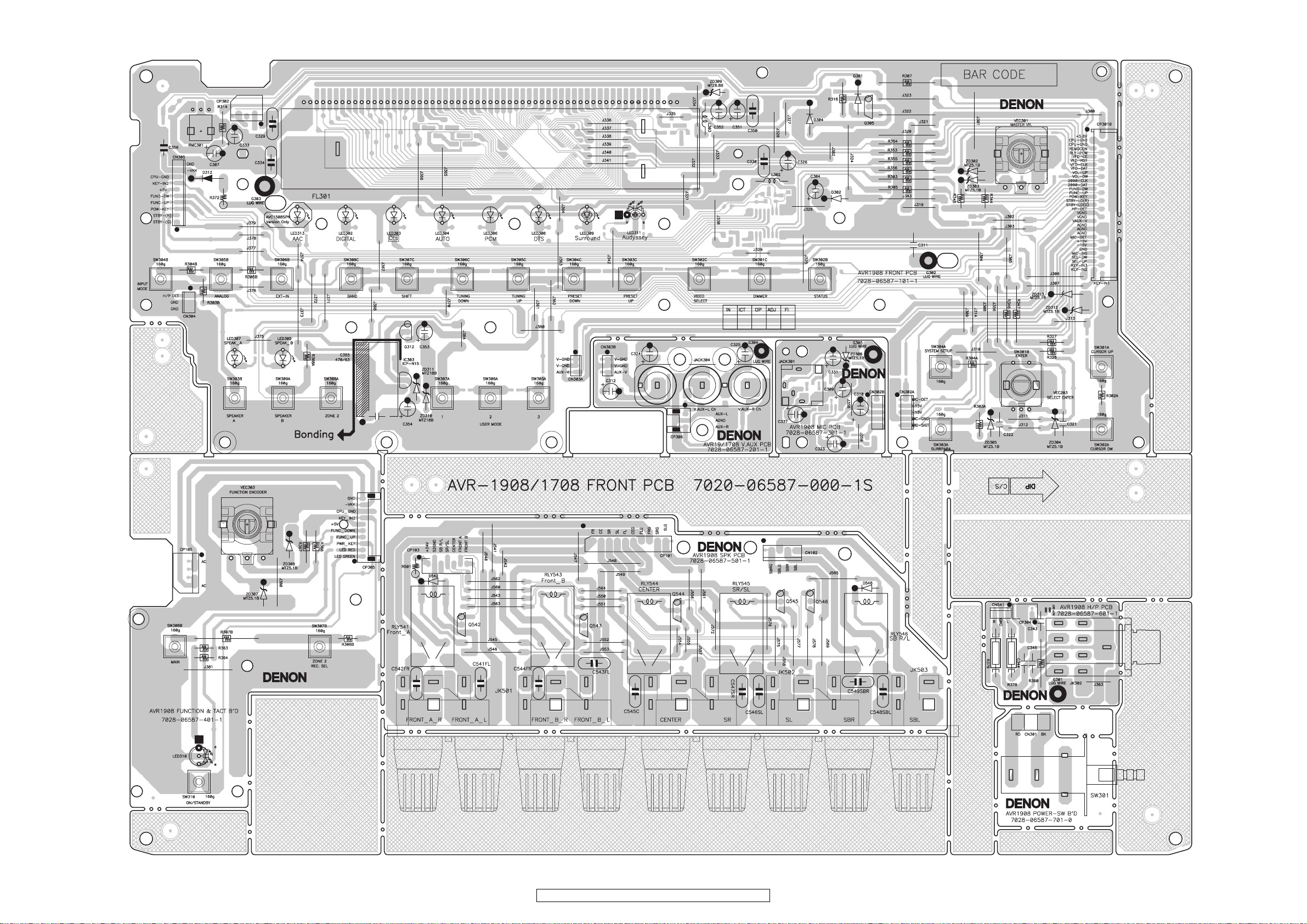

FRONT P.W.B. UNIT (1/2)

65

AVR-1708/1508/688/588/488 AVC-1508

COMPONENT SIDE

FRONT P.W.B. UNIT (2/2)

66

AVR-1708/1508/688/588/488 AVC-1508

FOIL SIDE

INPUT P.W.B. UNIT

COMPONENT SIDE

AVR-1708/1508/688/588/488 AVC-1508

FOIL SIDE

67

POWER P.W.B. UNIT (1/2)

68

AVR-1708/1508/688/588/488 AVC-1508

COMPONENT SIDE

POWER P.W.B. UNIT (2/2)

69

AVR-1708/1508/688/588/488 AVC-1508

FOIL SIDE

2CH AMP P.W.B. UNIT( (for AVR-1708/1508/688/588,AVC-1508 model)

COMPONENT SIDE

70

AVR-1708/1508/688/588/488 AVC-1508

FOIL SIDE

POWER P.W.B. UNIT (for AVR-488 E3 model)

COMPONENT SIDE

71

AVR-1708/1508/688/588/488 AVC-1508

FOIL SIDE

CPU P.W.B. UNIT

COMPONENT SIDE

AVR-1708/1508/688/588/488 AVC-1508

FOIL SIDE

72

HDMI P.W.B. UNIT

COMPONENT SIDE

COMPONENT SIDE

FOIL SIDE

73

AVR-1708/1508/688/588/488 AVC-1508

VIDEO P.W.B. UNIT (1/2) (for AVR-1708/688 model)

74

AVR-1708/1508/688/588/488 AVC-1508

COMPONENT SIDE

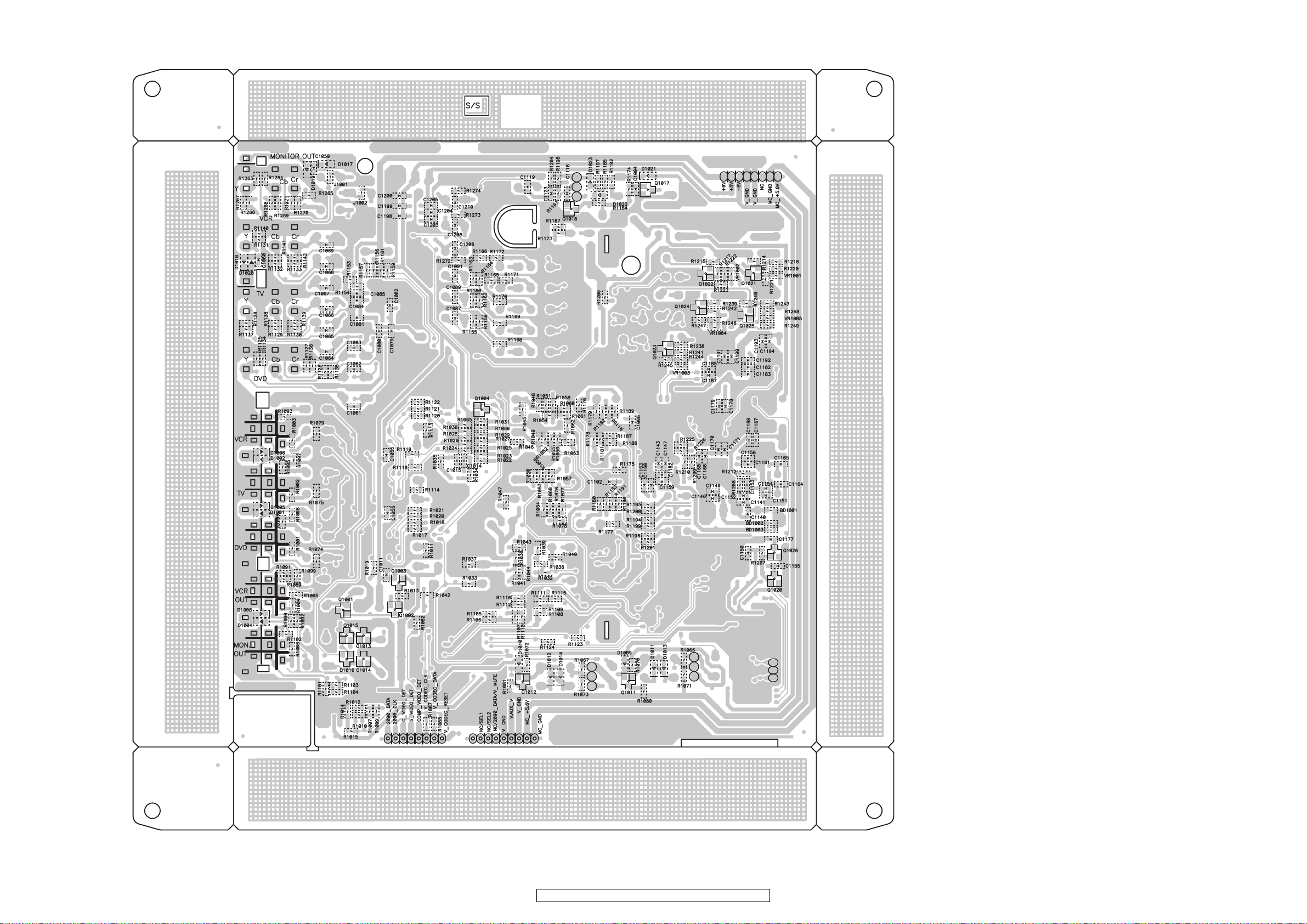

VIDEO P.W.B. UNIT (2/2) (for AVR-1708/688 model)

75

AVR-1708/1508/688/588/488 AVC-1508

FOIL SIDE

VIDEO P.W.B. UNIT (1/2) (for AVR-1508/588/488 model)

76

AVR-1708/1508/688/588/488 AVC-1508

COMPONENT SIDE

VIDEO P.W.B. UNIT (2/2) (for AVR-1508/588/488 model)

77

AVR-1708/1508/688/588/488 AVC-1508

FOIL SIDE

D-VIDEO P.W.B. UNIT (1/2) (for AVC-1508 model)

78

AVR-1708/1508/688/588/488 AVC-1508

COMPONENT SIDE

D-VIDEO P.W.B. UNIT (2/2) (for AVC-1508 model)

79

AVR-1708/1508/688/588/488 AVC-1508

FOIL SIDE

HDMI POWER P.W.B. UNIT

COMPONENT SIDE

FOIL SIDE

80

AVR-1708/1508/688/588/488 AVC-1508

NOTE FOR PARTS LIST

• Parts for which "nsp" is indicated on this table cannot be supplied.

• When ordering of part, clearly indicate "1" and "I" (i) to avoid mis-

supplying.

• Ordering part without stating its part number can not be supplied.

• Pa rt i ndi cat ed w ith the mar k " ★ " is not illustrated in the exploded view.

• Not including General-purpose Carbon Film Resistor in the P.W.Board

parts list. (Refer to the Schematic Diagram for those parts.)

• Not including General-purpose Carbon Chip Resistor in the P.W.Board

parts list. (Refer to the Schematic Diagram for those parts.)

WARNING:

Parts marked with this symbol have critical characteristics.
Use ONLY replacement parts recommended by the manufacturer.

ll

Resistors

l

ll

Ex.: RN 14K 2E 182 G FR

Type Shape Power Resist- Allowable Others

and per- ance error
formance

部品表について

１．部品表に "nsp" と記載されている部品は供給できません。
２．部品を発注する際は特に数字の " １ " と英字の "Ｉ" との区別をはっ

きり記入してください。

３．部品番号を表示していない部品は供給できません。
４． 印の部品は安全上重要な部品です。交換するときは、安全およ

び性能維持のため必ず指定の部品をご使用ください。
５．★印のついている部品は分解図中には記載していません。
６．汎用カーボン抵抗器は記載していません。定数は回路図を参照願い

ます。
７．汎用カーボンチップ抵抗器は記載していません。定数は回路図を参

照願います。
８．部品表の抵抗器、コンデンサの品名記号の読み方は表を参照してく

ださい。

RN 14K 2E 182 G FR

RD : Carbon 2B : 1/8W F : ±1% P : Pulse-resistant type
RC : Composition 2E : 1/4W G : ±2% NL : Low noise type
RS : Metal oxide film 2H : 1/2W J : ±5% NB : Non-burning type
RW : Winding 3A : 1W K : ±10% FR : Fuse-resistor
RN : Metal film 3D : 2W M : ±20% F : Lead wire forming
RK : Metal mixture 3F : 3W

] Resistance

1 8 2 ⇒ 1800 ohm = 1.8 kohm

s

s

• Units: ohm

1 R 2 ⇒ 1.2 ohm

s

s

• Units: ohm

ll

l Capacitors

ll

Ex.: CE 04W 1H 2R2 M BP

Type Shape Dielectric Capacity Allowable Others

3H : 5W

Indicates number of zeros after effective number.
2-digit effective number.

1-digit effective number.
2-digit effective number, decimal point indicated by R.

and per- strength error
formance

CE : Aluminum foil 0J : 6.3V F : ±1% HS : High stability type

electrolytic

CA : Aluminum solid 1A : 10V G : ±2% BP : Non-polar type

electrolytic
CS : Tantalum electrolytic 1C : 16V J : ±5% HR : Ripple-resistant type
CQ : Film 1E : 25V K : ±10% DL : For change and discharge
CK : Ceramic 1V : 35V M : ±20% HF : For assuring high

CC : Ceramic 1H : 50V Z : +80% U : UL part
CP : Oil 2A : 100V –20% C : CSA part
CM : Mica 2B : 125V P : +100% W : UL-CSA type
CF : Metallized 2C : 160V –0% F : Lead wire forming
CH : Metallized 2D : 200V C : ±0.25pF

2E : 250V D : ±0.5pF
2H : 500V = : Others
2J : 630V

requency

RD : 2B : 1/8 W F : ±1% P :
RC : 2E : 1/4 W G : ±2% NL :
RS : 2H : 1/2 W J : ±5% NB :
RW : 3A : 1 W K : ±10% FR :
RN : 3D : 2 W M : ±20% F :
RK : 3F : 3 W

∗

CE 04W 1H 2R2 M BP

CE : 0J : 6.3 V F : ±1% HS :

CA : 1A : 10 V G : ±2% BP :
CS : 1C : 16 V J : ±5% HR :
CQ : 1E : 25 V K : ±10% DL :
CK : 1V : 35 V M : ±20% HF :
CC : 1H : 50 V Z : +80% U : UL
CP : 2A : 100 V −20% C : CSA
CM : 2B : 125 V P : +100% W : UL-CSA
CF : 2C : 160 V − 0% F :
CH : 2D : 200 V C : ±0.25pF

3H : 5 W

18 2

1R 2

Ö

2

Ö

1

2 R

2E : 250 V D : ±0.5pF
2H : 500 V = :

2J : 630 V

1800

1.2

=1.8k

0

] Capacity (electrolyte only)

2 2 2 ⇒ 2200µF

s

s

• Units: µF.

2 R 2 ⇒ 2.2µF

s

s

• Units: µF.

] Capacity (except electrolyte)

2 2 2 ⇒ 2200pF=0.0022µF

s

s

• Units: pF.

2 2 1 ⇒ 220pF

s

s

• Units: pF.

• When the dielectric strength is indicated in AC, "AC" is included after the dieelectric

strength value.

Indicates number of zeros after effective number.
2-digit effective number.

1-digit effective number.
2-digit effective number, decimal point indicated by R.

(More than 2) Indicates number of zeros after effective number.

(0 or 1) Indicates number of zeros after effective number.

2-digit effective number.

2-digit effective number.

AVR-1708/1508/688/588/488 AVC-1508

81

∗

22 2

22 2

Ö

2

µ

F

Ö

(0 2 )

2

p

F

2200µF

0

2200pF=0.0022µF

0

2R 2

22 1

Ö

1

2 R

µ

F

Ö

(0 0 1 )

2

p

F

AC

2.2µF

220pF

0

PARTS LIST OF P.W.B. UNIT d

AVR-1708 E3 MODEL

＊本表に"nsp" と記載されている部品は供給できません。
＊ Partsforwhich"nsp"isindicatedonthistablecannotbesupplied.
＊本表に記載されている部品は、補修用部品のため製品に使用している部品とは一部、形状、寸法などが異なる場合があります。
＊ The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.

MAIN P.W.B. UNIT ASS'Y

Ref. No. Part No. Part Name Remarks Q'ty New

SEMICONDUCTORS GROUP

IC110,111 00D 963 0218 807 IC BU4094BCF-E2 J040140940030S

IC231 00D 960 0174 104 IC CXA1511M-T4 J030151100010S

Q101 00D 960 0196 302 TR KTA1268BL J5001268B0050S

Q102-104 00D 960 0196 700 TR KTC3200BL J5023200B0050S

Q104C 00D 960 0196 506 TR KSC1845F J5021845F0000S

Q104FL 00D 960 0196 506 TR KSC1845F J5021845F0000S

Q104FR 00D 960 0196 506 TR KSC1845F J5021845F0000S

Q104SL 00D 960 0196 506 TR KSC1845F J5021845F0000S

Q104SR 00D 960 0196 506 TR KSC1845F J5021845F0000S

Q105 00D 960 0196 700 TR KTC3200BL J5023200B0050S

Q105C 00D 960 0196 603 TR KTC2874B J502287400010S

Q105FL 00D 960 0196 603 TR KTC2874B J502287400010S

Q105FR 00D 960 0196 603 TR KTC2874B J502287400010S

Q105SL 00D 960 0196 603 TR KTC2874B J502287400010S

Q105SR 00D 960 0196 603 TR KTC2874B J502287400010S

Q106 00D 960 0196 700 TR KTC3200BL J5023200B0050S

Q106C 00D 960 0196 205 TR KSA992F J5000992F0050S

Q106FL 00D 960 0196 205 TR KSA992F J5000992F0050S

Q106FR 00D 960 0196 205 TR KSA992F J5000992F0050S

Q106SL 00D 960 0196 205 TR KSA992F J5000992F0050S

Q106SR 00D 960 0196 205 TR KSA992F J5000992F0050S

Q107 00D 960 0196 700 TR KTC3200BL J5023200B0050S

Q107C 00D 960 0196 205 TR KSA992F J5000992F0050S

Q107FL 00D 960 0196 205 TR KSA992F J5000992F0050S

Q107FR 00D 960 0196 205 TR KSA992F J5000992F0050S

Q107SL 00D 960 0196 205 TR KSA992F J5000992F0050S

Q107SR 00D 960 0196 205 TR KSA992F J5000992F0050S

Q108 00D 960 0196 700 TR KTC3200BL J5023200B0050S

Q108C 00D 960 0196 506 TR KSC1845F J5021845F0000S

Q108FL 00D 960 0196 506 TR KSC1845F J5021845F0000S

Q108FR 00D 960 0196 506 TR KSC1845F J5021845F0000S

Q108SL 00D 960 0196 506 TR KSC1845F J5021845F0000S

Q108SR 00D 960 0196 506 TR KSC1845F J5021845F0000S

Q109,110 00D 960 0196 700 TR KTC3200BL J5023200B0050S

Q111 00D 960 0196 302 TR KTA1268BL J5001268B0050S

Q128 00D 960 0097 207 TR KRA102M J6002202M0010S

Q130 00D 960 0196 302 TR KTA1268BL J5001268B0050S

Q131,132 00D 963 0219 602 TR KRC106M J6020106M0010S

Q133-137 00D 960 0097 207 TR KRA102M J6002202M0010S

Q141SW 00D 963 0044 301 TR KTC2875B(MB) J5222875B0010S

Q142 00D 960 0196 700 TR KTC3200BL J5023200B0050S

Q142SW 00D 963 0044 301 TR KTC2875B(MB) J5222875B0010S

Q143,144 00D 960 0196 302 TR KTA1268BL J5001268B0050S

Q145 00D 960 0196 700 TR KTC3200BL J5023200B0050S

Q146,147 00D 960 0196 302 TR KTA1268BL J5001268B0050S

Q151 00D 960 0196 302 TR KTA1268BL J5001268B0050S

Q156 00D 960 0097 304 TR KRC102M J6020102M0010S

82

AVR-1708/1508/688/588/488 AVC-1508

AVR-1708 E3 model

Ref. No. Part No. Part Name Remarks Q'ty New

Q165 00D 960 0196 700 TR KTC3200BL J5023200B0050S

Q166-171 00D 960 0196 302 TR KTA1268BL J5001268B0050S

Q221L 00D 963 0044 301 TR KTC2875B(MB) J5222875B0010S

Q221R 00D 963 0044 301 TR KTC2875B(MB) J5222875B0010S

Q227L 00D 963 0044 301 TR KTC2875B(MB) J5222875B0010S

Q227R 00D 963 0044 301 TR KTC2875B(MB) J5222875B0010S

Q231 00D 960 0097 003 TR KRA104M J6000104M0010S

Q541 00D 963 0121 208 TR KRC107M J6020107M0010S

D101C 00D 963 0355 401 D,SWITCHING KDS4148U K005041480030S

D101FL 00D 963 0355 401 D,SWITCHING KDS4148U K005041480030S

D101FR 00D 963 0355 401 D,SWITCHING KDS4148U K005041480030S

D101SL 00D 963 0355 401 D,SWITCHING KDS4148U K005041480030S

D101SR 00D 963 0355 401 D,SWITCHING KDS4148U K005041480030S

D102C 00D 963 0355 401 D,SWITCHING KDS4148U K005041480030S

D102FL 00D 963 0355 401 D,SWITCHING KDS4148U K005041480030S

D102FR 00D 963 0355 401 D,SWITCHING KDS4148U K005041480030S

D102SL 00D 963 0355 401 D,SWITCHING KDS4148U K005041480030S

D102SR 00D 963 0355 401 D,SWITCHING KDS4148U K005041480030S

D105C 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S

D105FL 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S

D105FR 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S

D105SL 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S

D105SR 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S

D106,107 00D 963 0355 401 D,SWITCHING KDS4148U K005041480030S

D114,115 00D 960 0197 107 D,RECTIFIER BRIDGE KBPC604 K047604000020S

D139 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S

D140,141 00D 963 0328 409 D,SWITCHING 1N4007 K000400700010S

D142 00D 963 0355 401 D,SWITCHING KDS4148U K005041480030S

D143-152 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S

D153 00D 963 0355 401 D,SWITCHING KDS4148U K005041480030S

D154-157 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S

D231 00D 963 0355 401 D,SWITCHING KDS4148U K005041480030S

D541 00D 963 0355 401 D,SWITCHING KDS4148U K005041480030S

ZD101 00D 963 0058 601 D,ZENER MTZJ12B K06012R044520S

ZD101C 00D 963 0367 008 D,ZENER 0.2W 3.3V UDZ K06603R34P400S *

ZD101FL 00D 963 0367 008 D,ZENER 0.2W 3.3V UDZ K06603R34P400S *

ZD101FR 00D 963 0367 008 D,ZENER 0.2W 3.3V UDZ K06603R34P400S *

ZD101SL 00D 963 0367 008 D,ZENER 0.2W 3.3V UDZ K06603R34P400S *

ZD101SR 00D 963 0367 008 D,ZENER 0.2W 3.3V UDZ K06603R34P400S *

ZD102C 00D 963 0367 008 D,ZENER 0.2W 3.3V UDZ K06603R04P400S *

ZD102FL 00D 963 0367 008 D,ZENER 0.2W 3.3V UDZ K06603R04P400S *

ZD102FR 00D 963 0367 008 D,ZENER 0.2W 3.3V UDZ K06603R04P400S *

ZD102SL 00D 963 0367 008 D,ZENER 0.2W 3.3V UDZ K06603R04P400S *

ZD102SR 00D 963 0367 008 D,ZENER 0.2W 3.3V UDZ K06603R04P400S *

ZD105 00D 960 0095 500 D,ZENER MTZJ5.1B K06005R144520S

ZD231 00D 960 0095 704 D,ZENER MTZJ6.2B K06006R244520S

RESISTORS GROUP

R101 00D 963 0337 801 R,METAL FILM 100-J,2W C060010166520S

R103 00D 963 9005 639 R,METAL FILM 100-J,1W C060010165060S

R104 00D 963 0215 907 R,METAL FILM 4.7-J,1W C0604R7065050S

R104C 00D 963 9006 285 R,FIXED 1WJ-5.6K N113135656220S

R104FL 00D 963 9006 285 R,FIXED 1WJ-5.6K N113135656220S

83

AVR-1708/1508/688/588/488 AVC-1508

AVR-1708 E3 model

Ref. No. Part No. Part Name Remarks Q'ty New

R104FR 00D 963 9006 285 R,FIXED 1WJ-5.6K N113135656220S

R104SL 00D 963 9006 285 R,FIXED 1WJ-5.6K N113135656220S

R104SR 00D 963 9006 285 R,FIXED 1WJ-5.6K N113135656220S

R105 00D 963 0232 906 R,METAL FILM 47K-F,1/4W C060047343530S

R105C 00D 963 9006 285 R,FIXED 1WJ-5.6K N113135656220S

R105FL 00D 963 9006 285 R,FIXED 1WJ-5.6K N113135656220S

R105FR 00D 963 9006 285 R,FIXED 1WJ-5.6K N113135656220S

R105SL 00D 963 9006 285 R,FIXED 1WJ-5.6K N113135656220S

R105SR 00D 963 9006 285 R,FIXED 1WJ-5.6K N113135656220S

R106C 00D 963 0215 907 R,METAL FILM 4.7-J,1W C0604R7065050S

R106FL 00D 963 0215 907 R,METAL FILM 4.7-J,1W C0604R7065050S

R106FR 00D 963 0215 907 R,METAL FILM 4.7-J,1W C0604R7065050S

R106SL 00D 963 0215 907 R,METAL FILM 4.7-J,1W C0604R7065050S

R106SR 00D 963 0215 907 R,METAL FILM 4.7-J,1W C0604R7065050S

R107C 00D 963 0215 907 R,METAL FILM 4.7-J,1W C0604R7065050S

R107FL 00D 963 0215 907 R,METAL FILM 4.7-J,1W C0604R7065050S

R107FR 00D 963 0215 907 R,METAL FILM 4.7-J,1W C0604R7065050S

R107SL 00D 963 0215 907 R,METAL FILM 4.7-J,1W C0604R7065050S

R107SR 00D 963 0215 907 R,METAL FILM 4.7-J,1W C0604R7065050S

R108C 00D 963 0345 903 R,FIXED 2WJ-0.47 N113136647820S

R108FL 00D 963 0345 903 R,FIXED 2WJ-0.47 N113136647820S

R108FR 00D 963 0345 903 R,FIXED 2WJ-0.47 N113136647820S

R108SL 00D 963 0345 903 R,FIXED 2WJ-0.47 N113136647820S

R108SR 00D 963 0345 903 R,FIXED 2WJ-0.47 N113136647820S

R109C 00D 963 0345 903 R,FIXED 2WJ-0.47 N113136647820S

R109FL 00D 963 0345 903 R,FIXED 2WJ-0.47 N113136647820S

R109FR 00D 963 0345 903 R,FIXED 2WJ-0.47 N113136647820S

R109SL 00D 963 0345 903 R,FIXED 2WJ-0.47 N113136647820S

R109SR 00D 963 0345 903 R,FIXED 2WJ-0.47 N113136647820S

R110C 00D 963 0345 903 R,FIXED 2WJ-0.47 N113136647820S

R110FL 00D 963 0345 903 R,FIXED 2WJ-0.47 N113136647820S

R110FR 00D 963 0345 903 R,FIXED 2WJ-0.47 N113136647820S

R110SL 00D 963 0345 903 R,FIXED 2WJ-0.47 N113136647820S

R110SR 00D 963 0345 903 R,FIXED 2WJ-0.47 N113136647820S

R111C 00D 963 0345 903 R,FIXED 2WJ-0.47 N113136647820S

R111FL 00D 963 0345 903 R,FIXED 2WJ-0.47 N113136647820S

R111FR 00D 963 0345 903 R,FIXED 2WJ-0.47 N113136647820S

R111SL 00D 963 0345 903 R,FIXED 2WJ-0.47 N113136647820S

R111SR 00D 963 0345 903 R,FIXED 2WJ-0.47 N113136647820S

R117,118 00D 963 0144 502 R,CEMENT 0.1-J 5W C141R10069000S

R118C 00D 963 9006 256 R,FIXED 1WJ-10 N113135610020S

R118FL 00D 963 9006 256 R,FIXED 1WJ-10 N113135610020S

R118FR 00D 963 9006 256 R,FIXED 1WJ-10 N113135610020S

R118SL 00D 963 9006 256 R,FIXED 1WJ-10 N113135610020S

R118SR 00D 963 9006 256 R,FIXED 1WJ-10 N113135610020S

R119C 00D 963 9006 256 R,FIXED 1WJ-10 N113135610020S

R119FL 00D 963 9006 256 R,FIXED 1WJ-10 N113135610020S

R119FR 00D 963 9006 256 R,FIXED 1WJ-10 N113135610020S

R119SL 00D 963 9006 256 R,FIXED 1WJ-10 N113135610020S

R119SR 00D 963 9006 256 R,FIXED 1WJ-10 N113135610020S

R127C 00D 963 9005 642 R,METAL FILM 1.2K-J,1W C060012265050S

R127FL 00D 963 9005 642 R,METAL FILM 1.2K-J,1W C060012265050S

R127FR 00D 963 9005 642 R,METAL FILM 1.2K-J,1W C060012265050S

R127SL 00D 963 9005 642 R,METAL FILM 1.2K-J,1W C060012265050S

R127SR 00D 963 9005 642 R,METAL FILM 1.2K-J,1W C060012265050S

R132C 00D 960 9010 719 R,METAL FILM 47-J,1W C060047065060S

84

AVR-1708/1508/688/588/488 AVC-1508

AVR-1708 E3 model

Ref. No. Part No. Part Name Remarks Q'ty New

R132FL 00D 960 9010 719 R,METAL FILM 47-J,1W C060047065060S

R132FR 00D 960 9010 719 R,METAL FILM 47-J,1W C060047065060S

R132SL 00D 960 9010 719 R,METAL FILM 47-J,1W C060047065060S

R132SR 00D 960 9010 719 R,METAL FILM 47-J,1W C060047065060S

R147-149 00D 963 9005 642 R,METAL FILM 1.2K-J,1W C060012265050S

VR101C 00D 960 0221 109 VR,SEMI CARBON EVN-DJAA03B C541102115000S

VR101FL 00D 960 0221 109 VR,SEMI CARBON EVN-DJAA03B C541102115000S

VR101FR 00D 960 0221 109 VR,SEMI CARBON EVN-DJAA03B C541102115000S

VR101SL 00D 960 0221 109 VR,SEMI CARBON EVN-DJAA03B C541102115000S

VR101SR 00D 960 0221 109 VR,SEMI CARBON EVN-DJAA03B C541102115000S

CAPACITORS GROUP

C101 00D 963 9005 804 C,ELECT 100UF-M/25V D040101084060S

C101C 00D 963 0234 506 C,ELECT 47UF-M/50V (Pb Free) D040470087070S

C101FL 00D 963 0234 506 C,ELECT 47UF-M/50V (Pb Free) D040470087070S

C101FR 00D 963 0234 506 C,ELECT 47UF-M/50V (Pb Free) D040470087070S

C101SL 00D 963 0234 506 C,ELECT 47UF-M/50V (Pb Free) D040470087070S

C101SR 00D 963 0234 506 C,ELECT 47UF-M/50V (Pb Free) D040470087070S

C102 00D 963 0224 503 C,ELECT 22UF-M/50V D040220087060S

C102C 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C102FL 00D 960 9010 133 C,ELECT 220UF-M/35V D040221085060S

C102FR 00D 960 9010 133 C,ELECT 220UF-M/35V D040221085060S

C102SL 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C102SR 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C103 00D 963 9006 557 C,ELECT 220UF-M/6.3V D040221081060S

C103C 00D 963 9003 084 C,CERAMIC 100PF-K/500V D00410106D050S

C103FL 00D 963 9003 084 C,CERAMIC 100PF-K/500V D00410106D050S

C103FR 00D 963 9003 084 C,CERAMIC 100PF-K/500V D00410106D050S

C103SL 00D 963 9003 084 C,CERAMIC 100PF-K/500V D00410106D050S

C103SR 00D 963 9003 084 C,CERAMIC 100PF-K/500V D00410106D050S

C104 00D 963 9006 557 C,ELECT 220UF-M/6.3V D040221081060S

C104C 00D 963 9003 084 C,CERAMIC 100PF-K/500V D00410106D050S

C104FL 00D 963 9003 084 C,CERAMIC 100PF-K/500V D00410106D050S

C104FR 00D 963 9003 084 C,CERAMIC 100PF-K/500V D00410106D050S

C104SL 00D 963 9003 084 C,CERAMIC 100PF-K/500V D00410106D050S

C104SR 00D 963 9003 084 C,CERAMIC 100PF-K/500V D00410106D050S

C105 00D 963 9006 557 C,ELECT 220UF-M/6.3V D040221081060S

C105C nsp C,CERAMIC 0.022UF-Z/50V D011223597160S

C105FL nsp C,CERAMIC 0.022UF-Z/50V D011223597160S

C105FR nsp C,CERAMIC 0.022UF-Z/50V D011223597160S

C105SL nsp C,CERAMIC 0.022UF-Z/50V D011223597160S

C105SR nsp C,CERAMIC 0.022UF-Z/50V D011223597160S

C106 00D 963 0293 709 C,ELECT 100UF-M/10V D040101082070S

C107 nsp C,CERAMIC 0.01UF-K/50V D011103777160S

C107C 00D 963 9003 097 C,FILM 0.1UF-K/250V D02010407H080S

C107FL 00D 963 9003 097 C,FILM 0.1UF-K/250V D02010407H080S

C107FR 00D 963 9003 097 C,FILM 0.1UF-K/250V D02010407H080S

C107SL 00D 963 9003 097 C,FILM 0.1UF-K/250V D02010407H080S

C107SR 00D 963 9003 097 C,FILM 0.1UF-K/250V D02010407H080S

C108 00D 963 0149 400 CAP.E.GENERIC 10000UF/63V(M) N211210388110S

C108C 00D 963 9006 544 C,ELECT 22UF-M/25V D040220084050S

C108FL 00D 963 9006 544 C,ELECT 22UF-M/25V D040220084050S

C108FR 00D 963 9006 544 C,ELECT 22UF-M/25V D040220084050S

C108SL 00D 963 9006 544 C,ELECT 22UF-M/25V D040220084050S

85

AVR-1708/1508/688/588/488 AVC-1508

AVR-1708 E3 model

Ref. No. Part No. Part Name Remarks Q'ty New

C108SR 00D 963 9006 544 C,ELECT 22UF-M/25V D040220084050S

C109 00D 963 0149 400 CAP.E.GENERIC 10000UF/63V(M) N211210388110S

C109C 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C109FL 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C109FR 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C109SL 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C109SR 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C110 00D 963 9003 097 C,FILM 0.1UF-K/250V D02010407H080S

C110C 00D 963 0338 208 C,CERAMIC 470PF-K/500V D00447127D050S

C110FL 00D 963 0338 208 C,CERAMIC 470PF-K/500V D00447127D050S

C110FR 00D 963 0338 208 C,CERAMIC 470PF-K/500V D00447127D050S

C110SL 00D 963 0338 208 C,CERAMIC 470PF-K/500V D00447127D050S

C110SR 00D 963 0338 208 C,CERAMIC 470PF-K/500V D00447127D050S

C111 00D 963 9003 097 C,FILM 0.1UF-K/250V D02010407H080S

C111C 00D 963 0367 101 C,CERAMIC 220PF-J/500V D00422106D05CS *

C111FL 00D 963 0367 101 C,CERAMIC 220PF-J/500V D00422106D05CS *

C111FR 00D 963 0367 101 C,CERAMIC 220PF-J/500V D00422106D05CS *

C111SL 00D 963 0367 101 C,CERAMIC 220PF-J/500V D00422106D05CS *

C111SR 00D 963 0367 101 C,CERAMIC 220PF-J/500V D00422106D05CS *

C112 00D 963 9003 097 C,FILM 0.1UF-K/250V D02010407H080S

C112C 00D 963 9003 194 C,FILM 0.0022UF-J/100V D02022206C060S

C112FL 00D 963 9003 194 C,FILM 0.0022UF-J/100V D02022206C060S

C112FR 00D 963 9003 194 C,FILM 0.0022UF-J/100V D02022206C060S

C112SL 00D 963 9003 194 C,FILM 0.0022UF-J/100V D02022206C060S

C112SR 00D 963 9003 194 C,FILM 0.0022UF-J/100V D02022206C060S

C113C 00D 963 0293 709 C,ELECT 100UF-M/10V D040101082070S

C113FL 00D 960 9010 133 C,ELECT 220UF-M/35V D040221085060S

C113FR 00D 960 9010 133 C,ELECT 220UF-M/35V D040221085060S

C113SL 00D 963 0293 709 C,ELECT 100UF-M/10V D040101082070S

C113SR 00D 963 0293 709 C,ELECT 100UF-M/10V D040101082070S

C114 00D 963 9003 097 C,FILM 0.1UF-K/250V D02010407H080S

C114C 00D 963 0216 100 C,CERAMIC 33PF-J/500V D00033006D050S

C114FL 00D 963 0216 100 C,CERAMIC 33PF-J/500V D00033006D050S

C114FR 00D 963 0216 100 C,CERAMIC 33PF-J/500V D00033006D050S

C114SL 00D 963 0216 100 C,CERAMIC 33PF-J/500V D00033006D050S

C114SR 00D 963 0216 100 C,CERAMIC 33PF-J/500V D00033006D050S

C115 00D 963 9003 097 C,FILM 0.1UF-K/250V D02010407H080S

C115SW 00D 963 9006 544 C,ELECT 22UF-M/25V D040220084050S

C117-120 nsp C,CERAMIC 0.1UF-K/50V D011104577160S

C141SW1 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C142SW1 nsp C,CERAMIC 100PF-J/50V D010101167160S

C155 00D 963 0244 606 C,ELECT 0.1UF-M/50V (Pb Free) D040R10087080S

C161 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C162,163 nsp C,CERAMIC 0.01UF-K/50V D011103777160S

C164-167 nsp C,CERAMIC 100PF-J/50V D010101167160S

C168-172 00D 963 0244 606 C,ELECT 0.1UF-M/50V (Pb Free) D040R10087080S

C177 nsp C,CERAMIC 0.01UF-K/50V D011103777160S

C178,179 00D 960 9010 010 C,ELECT 4.7UF-M/50V D0404R7087250S

C180,181 nsp C,CERAMIC 0.01UF-K/50V D011103777160S

C182 00D 963 0324 005 C,ELECT 100UF-M/100V D04010108C240S

C183 00D 963 0293 602 C,ELECT 1UF-M/50V (Pb Free) D040010087150S

C190 00D 960 9010 010 C,ELECT 4.7UF-M/50V D0404R7087250S

C221L nsp C,CERAMIC 100PF-J/50V D010101167160S

C221R nsp C,CERAMIC 100PF-J/50V D010101167160S

C222L 00D 960 9010 010 C,ELECT 4.7UF-M/50V D0404R7087250S

C222R 00D 960 9010 010 C,ELECT 4.7UF-M/50V D0404R7087250S

86

AVR-1708/1508/688/588/488 AVC-1508

AVR-1708 E3 model

Ref. No. Part No. Part Name Remarks Q'ty New

C224L 00D 960 9010 010 C,ELECT 4.7UF-M/50V D0404R7087250S

C224R 00D 960 9010 010 C,ELECT 4.7UF-M/50V D0404R7087250S

C231 00D 963 0244 606 C,ELECT 0.1UF-M/50V (Pb Free) D040R10087080S

C232 nsp C,CERAMIC 0.01UF-K/50V D011103777160S

C233 00D 963 0293 602 C,ELECT 1UF-M/50V (Pb Free) D040010087150S

C234 nsp C,CERAMIC 100PF-J/50V D010101167160S

C235,236 00D 960 9008 653 C,FILM 0.012UF-J/100V D02012306C060S

C237 00D 963 9005 862 C,ELECT 47UF-M/16V D040470083080S

OTHERS PARTS GROUP

BKT101 nsp SHIELD PLATE GND 3070045526010S *

CN101 nsp CN,WIRE 14P L000111140010S *

CN103 nsp CN,WIRE 7P L000141070020S *

CN201 nsp CN,WIRE 4P L000700100020S *

CN511 nsp CN,WIRE 9P L000600090020S

CN704 nsp CN,WIRE 15P L000600150030S *

CP103 nsp CN.WAFER 3P L102526700300S

CP104 nsp CN.WAFER 3CKT L108353280360S

CP105,106 nsp CN.WAFER 5P L101100040510S

CP107 nsp CN.WAFER 3P L102526700300S

CP108 nsp CN.WAFER 17P L101100041710S

CP541 nsp CN.WAFER 3P L101220030000S

GND101 nsp TERMINAL EARTH 3790040886000S

JACK221 90M -YT 0046 40R TER,RCA 2PIN G601207AE020YS *

JACK222 00D 963 0146 005 TER,RCA 1PIN G600107A0000YS

JACK231,232

L101C 00D 963 0049 005 COIL INDUCTOR 0.5UH D330R50000000S

L101FL 00D 963 0049 005 COIL INDUCTOR 0.5UH D330R50000000S

L101FR 00D 963 0049 005 COIL INDUCTOR 0.5UH D330R50000000S

L101SL 00D 963 0049 005 COIL INDUCTOR 0.5UH D330R50000000S

L101SR 00D 963 0049 005 COIL INDUCTOR 0.5UH D330R50000000S

L231 nsp BEAD,COIL 3580 7610010030000S

RLY541 00D 963 0218 506 RELAY BC3-24 24V 2A G680240202040S

TP101-105 nsp CN.WAFER 3P L101530140310S

JP108 00D 963 0223 009 R,THICK 0-J,1/16W C20000006M160S

JP347 nsp C,CERAMIC 0.1UF-K/50V D011104577160S

JP352 00D 963 0223 009 R,THICK 0-J,1/16W C20000006M160S

00D 963 0244 703 JACK,D3.5 EARPHONE G40130802000YS

87

AVR-1708/1508/688/588/488 AVC-1508

AVR-1708 E3 model

FRONT P.W.B. UNIT ASS'Y

Ref. No. Part No. Part Name Remarks Q'ty New

SEMICONDUCTORS GROUP

IC301 00D 963 0074 504 IC BU2090F-E2 J044209000010S

IC302 00D 262 3758 009 LC87F6D64A-QFP-E J127876160010S *

z IC303 00D 960 0195 808 IC ICP-N15 J120001500030S

IC305 00D 963 0024 004 IC NJM2068M J121206800020S

Q301-303 00D 963 0120 704 TR KRA102S J520010200210S

Q304 00D 963 0121 606 TR KRC107S J522107S00210S

Q305 00D 963 0102 803 TR 2SA933S J5000933S0050S

Q306 00D 963 0120 801 TR KRC102S J522010200210S

Q307-309 00D 963 0120 704 TR KRA102S J520010200210S

Q310,311 00D 963 0120 801 TR KRC102S J522010200210S

Q312 00D 960 0133 103 TR KSA916Y J5000916Y0050S

Q542-546 00D 963 0121 208 TR KRC107M J6020107M0010S

D301,302 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S

D303 00D 963 0355 401 D,SWITCHING KDS4148U K005041480030S

D304 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S

D305-311 00D 963 0355 401 D,SWITCHING KDS4148U K005041480030S

D312 00D 963 0328 409 D,SWITCHING 1N4007 K000400700010S

D315,316 00D 963 0355 401 D,SWITCHING KDS4148U K005041480030S

D542 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S

D543-545 00D 963 0355 401 D,SWITCHING KDS4148U K005041480030S

D546 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S

ZD302-308 00D 960 0095 500 D,ZENER MTZJ5.1B K06005R144520S

ZD309 00D 960 0095 801 D,ZENER MTZJ6.8B K06006R844520S

ZD310,311 00D 963 0046 202 D,ZENER MTZJ18B K06018R044520S

ZD312,313 00D 960 0095 500 D,ZENER MTZJ5.1B K06005R144520S

LED302-309 00D 960 0197 204 LED PI5-RD/HL50RDRF4T K500052015010S *

LED310 00D 963 0366 108 LED BL-BEG204-L 5PI K500052004010S

LED311 00D 963 0148 605 LED SML1216W 5PI K500052600030S

FL301 00D 963 0257 305 DISPLAY,FLT HNA-16SM13T K530161300020S

RESISTORS GROUP

R372 00D 963 0215 907 R,METAL FILM 4.7-J,1W C0604R7065050S

R378,379 00D 960 9009 270 R,METAL FILM 470-J,2W C060047166520S

R501 00D 960 9003 700 R,METAL FILM 10-J,1/4W C060010063050S

RP1-38 00D 963 0353 005 R,CHIP THICK 56K-J,1/16W C20005636M160S

RG1-16 00D 963 0353 005 R,CHIP THICK 56K-J,1/16W C20005636M160S

CAPACITORS GROUP

C301,302 nsp C,CERAMIC 100PF-J/50V D010101167160S

C303 nsp C,CERAMIC 0.022UF-K/25V D011223777160S

C304 00D 963 9005 862 C,ELECT 47UF-M/16V D040470083080S

C305 nsp C,CERAMIC 100PF-J/50V D010101167160S

C306 nsp C,CERAMIC 0.047UF-Z/50V D011473597160S

C307 00D 963 9005 862 C,ELECT 47UF-M/16V D040470083080S

C308 nsp C,CERAMIC 0.01UF-K/50V D011103777160S

88

AVR-1708/1508/688/588/488 AVC-1508

AVR-1708 E3 model

Ref. No. Part No. Part Name Remarks Q'ty New

C309,310 00D 963 0293 602 C,ELECT 1UF-M/50V (Pb Free) D040010087150S

C311 00D 963 0233 303 C,CERAMIC 0.01UF-M/16V D005103773530S

C312 00D 963 9005 862 C,ELECT 47UF-M/16V D040470083080S

C315 nsp C,CERAMIC 150PF-J/50V D010151167160S

C316,317 nsp C,CERAMIC 330PF-J/50V D010331167160S

C318 nsp C,CERAMIC 100PF-J/50V D010101167160S

C319,320 nsp C,CERAMIC 0.01UF-K/50V D011103777160S

C321,322 00D 963 0233 303 C,CERAMIC 0.01UF-M/16V D005103773530S

C323-325 00D 963 0293 602 C,ELECT 1UF-M/50V (Pb Free) D040010087150S

C326 00D 963 9005 862 C,ELECT 47UF-M/16V D040470083080S

C327,328 nsp C,CERAMIC 0.1UF-K/50V D011104577160S

C329 nsp C,FILM 0.1UF-J/100V D02010406C060S

C330 00D 963 0021 900 C,FILM 0.047UF-J/100V D02047306C060S

C331 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C332 nsp C,CERAMIC 150PF-J/50V D010151167160S

C333 00D 963 0293 602 C,ELECT 1UF-M/50V (Pb Free) D040010087150S

C334 00D 963 0021 900 C,FILM 0.047UF-J/100V D02047306C060S

C335 nsp C,CERAMIC 0.1UF-K/50V D011104577160S

C336 nsp C,CERAMIC 100PF-J/50V D010101167160S

C337 00D 963 0293 602 C,ELECT 1UF-M/50V (Pb Free) D040010087150S

C338 nsp C,CERAMIC 0.01UF-K/50V D011103777160S

C339 nsp C,CERAMIC 100PF-J/50V D010101167160S

C340 nsp C,CERAMIC 1000PF-K/50V D011102777160S

C341,342 nsp C,CERAMIC 100PF-J/50V D010101167160S

C343 00D 963 0020 202 C,CERAMIC 0.1UF-Z/50V D005104597530S

C344,345 00D 963 0233 206 C,CERAMIC 0.001UF-K/50V D005102177530S

C346-349 nsp C,CERAMIC 0.01UF-K/50V D011103777160S

C350 00D 963 0021 900 C,FILM 0.047UF-J/100V D02047306C060S

C351 00D 963 0293 602 C,ELECT 1UF-M/50V (Pb Free) D040010087150S

C352 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C353,354 00D 963 0293 602 C,ELECT 1UF-M/50V (Pb Free) D040010087150S

C355 nsp C,ELECT 470UF-M/63V D040471088010S *

C356 00D 963 9003 097 C,FILM 0.1UF-K/250V D02010407H080S

C357,358 nsp C,CERAMIC 0.047UF-Z/50V D011473597160S

C541 nsp C,CERAMIC 2200PF-K/50V D011222777160S

C541FL 00D 963 0024 703 C,FILM 0.01UF-J/100V D02010306C060S

C542 nsp C,CERAMIC 2200PF-K/50V D011222777160S

C542FR 00D 963 0024 703 C,FILM 0.01UF-J/100V D02010306C060S

C543 nsp C,CERAMIC 2200PF-K/50V D011222777160S

C543FL 00D 963 0024 703 C,FILM 0.01UF-J/100V D02010306C060S

C544 nsp C,CERAMIC 2200PF-K/50V D011222777160S

C544FR 00D 963 0024 703 C,FILM 0.01UF-J/100V D02010306C060S

C545 nsp C,CERAMIC 2200PF-K/50V D011222777160S

C545C 00D 963 0024 703 C,FILM 0.01UF-J/100V D02010306C060S

C546 nsp C,CERAMIC 2200PF-K/50V D011222777160S

C546SL 00D 963 0024 703 C,FILM 0.01UF-J/100V D02010306C060S

C547 nsp C,CERAMIC 2200PF-K/50V D011222777160S

C547SR 00D 963 0024 703 C,FILM 0.01UF-J/100V D02010306C060S

C548 nsp C,CERAMIC 2200PF-K/50V D011222777160S

C548SBL 00D 963 0024 703 C,FILM 0.01UF-J/100V D02010306C060S

C549 nsp C,CERAMIC 2200PF-K/50V D011222777160S

C549SBR 00D 963 0024 703 C,FILM 0.01UF-J/100V D02010306C060S

OTHERS PARTS GROUP

BD301-307 nsp COIL,BEAD MB-160808 D340160800060S

89

AVR-1708/1508/688/588/488 AVC-1508

AVR-1708 E3 model

Ref. No. Part No. Part Name Remarks Q'ty New

CN102 nsp CN,WIRE 4P L000271040040S

CN301 nsp CN,WIRE 2P L000401020050S *

CN302A nsp CN,WIRE 5P L000450050010S *

CN303A nsp CN,WIRE 8P L000450080010S *

CN304 nsp CN,WIRE 3P L000500030050S *

CN305 nsp CN,WIRE 10P L000700100030S *

CN541 CN,WIRE 3P L000251030080S

CP101 nsp CN.WAFER 10P L102526701000S *

CP103 nsp CN.WAFER 07P L101220070010S

CP105 nsp CN.WAFER 4P ANGLE L102526800400S *

CP301B 00D 963 0368 506 CN.FPC 35P L131103500010S *

CP302 nsp CN.WAFER 3P ANGLE L102526803010S

CP304 nsp CN.WAFER 3P L101220030000S

CP305 nsp CN.WAFER 10P L101220100010S

CP306 nsp CN.WAFER 03P L101220030010S

G301 nsp RING,TER WIRE 120MM/1P 8410121010060S

G302 nsp RING,TER WIRE 120MM/1P 8410121010110S

G304 nsp RING,TER WIRE 80MM/2P 8410800020040S

JACK301 00D 963 0367 802 JACK,D3.5 EARPHONE G401PJ354H40YS *

JACK304 00D 963 0146 403 TER,RCA 3PIN

JACK501,502

JACK503 00D 963 0158 608 TER,BOARD SCREW 2P G611201A0200YS

JK302 00D 963 0294 708 JACK,D6.5 PHONE

L302 nsp COIL INDUCTOR 10UH D330100700520S

L303 nsp COIL INDUCTOR 100UH D330101001020S

RLY541 00D 963 0366 201 RELAY G5PA-28-MC 24V 5A G680240502030S *

RLY543-546 00D 963 0366 201 RELAY G5PA-28-MC 24V 5A G680240502030S *

RMC301 00D 963 0217 808 MODULE,REMOCON NJL34H380A E940343800010S

z SW301 00D 963 0145 802 SW,PUSH SDDL-005-S(C-UL) G000122006060S

SW301A 00D 963 0095 305 SW,TACT SKHV10910D01 G180040500010S

SW301C 00D 963 0095 305 SW,TACT SKHV10910D01 G180040500010S

SW302A 00D 963 0095 305 SW,TACT SKHV10910D01 G180040500010S

SW302B 00D 963 0095 305 SW,TACT SKHV10910D01 G180040500010S

SW302C 00D 963 0095 305 SW,TACT SKHV10910D01 G180040500010S

SW303A 00D 963 0095 305 SW,TACT SKHV10910D01 G180040500010S

SW303B 00D 963 0095 305 SW,TACT SKHV10910D01 G180040500010S

SW303C 00D 963 0095 305 SW,TACT SKHV10910D01 G180040500010S

SW304A 00D 963 0095 305 SW,TACT SKHV10910D01 G180040500010S

SW304B 00D 963 0095 305 SW,TACT SKHV10910D01 G180040500010S

SW304C 00D 963 0095 305 SW,TACT SKHV10910D01 G180040500010S

SW305A 00D 963 0095 305 SW,TACT SKHV10910D01 G180040500010S

SW305B 00D 963 0095 305 SW,TACT SKHV10910D01 G180040500010S

SW305C 00D 963 0095 305 SW,TACT SKHV10910D01 G180040500010S

SW306A 00D 963 0095 305 SW,TACT SKHV10910D01 G180040500010S

SW306B 00D 963 0095 305 SW,TACT SKHV10910D01 G180040500010S

SW306C 00D 963 0095 305 SW,TACT SKHV10910D01 G180040500010S

SW307A 00D 963 0095 305 SW,TACT SKHV10910D01 G180040500010S

00D 963 0146 607 TER,BOARD SCREW 8P G614801A0200YS

G606308HG110YS

G402PJ612AG0YS

90

AVR-1708/1508/688/588/488 AVC-1508

AVR-1708 E3 model

Ref. No. Part No. Part Name Remarks Q'ty New

SW307B 00D 963 0095 305 SW,TACT SKHV10910D01 G180040500010S

SW307C 00D 963 0095 305 SW,TACT SKHV10910D01 G180040500010S

SW308A 00D 963 0095 305 SW,TACT SKHV10910D01 G180040500010S

SW308B 00D 963 0095 305 SW,TACT SKHV10910D01 G180040500010S

SW308C 00D 963 0095 305 SW,TACT SKHV10910D01 G180040500010S

SW309A 00D 963 0095 305 SW,TACT SKHV10910D01 G180040500010S

SW310 00D 963 0095 305 SW,TACT SKHV10910D01 G180040500010S

VEC203 00D 963 0300 401 SW,ENCODER EC11B20C2 G121112020000S

VEC301 00D 963 0095 208 SW,ENCODER EC16B24SA G121162400040S

VEC303 00D 963 0095 208 SW,ENCODER EC16B24SA G121162400040S

nsp HOLDER FLT 4320200026000S

91

AVR-1708/1508/688/588/488 AVC-1508

AVR-1708 E3 model

INPUT P.W.B. UNIT ASS'Y

Ref. No. Part No. Part Name Remarks Q'ty New

SEMICONDUCTORS GROUP

IC700 00D 963 0366 304 IC R2A15215FP J084152150010S *

IC702 00D 963 0024 004 IC NJM2068M J121206800020S

IC705-718 00D9630024004 IC NJM2068M J121206800020S

Q700,701 00D 960 0196 807 TR 2SK117Y J5441170Y0050S

Q702 00D 963 0120 704 TR KRA102S J520010200210S

Q703 00D 960 0285 006 TR KRC104S J522104S00210S

D700,701 00D 963 0355 401 D,SWITCHING KDS4148U K005041480030S

ZD700,701 00D 960 0222 603 D,ZENER MTZJ7.5A K06007R544530S

RESISTORS GROUP

R706-709 00D 963 9005 639 R,METAL FILM 100-J,1W C060010165060S

R791VC nsp R,METAL FILM 120-J,1W C060012165060S *

R791VE nsp R,METAL FILM 120-J,1W C060012165060S *

CAPACITORS GROUP

C700 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C702SW 00D 960 9010 010 C,ELECT 4.7UF-M/50V D0404R7087250S

C703C nsp C,CERAMIC 0.047UF-Z/50V D011473597160S

C703SW nsp C,CERAMIC 0.047UF-Z/50V D011473597160S

C704,705 00D 963 9005 875 C,ELECT 47UF-M/25V D040470084070S

C706FL 00D 963 9005 875 C,ELECT 47UF-M/25V D040470084070S

C706FR 00D 963 9005 875 C,ELECT 47UF-M/25V D040470084070S

C707FL 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C707FR 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C707SW 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C708FL nsp C,CERAMIC 33PF-J/50V D010330167160S

C708FR nsp C,CERAMIC 33PF-J/50V D010330167160S

C708SW nsp C,CERAMIC 47PF-J/50V D010470167160S

C709FL nsp C,CERAMIC 0.047UF-Z/50V D011473597160S

C709FR nsp C,CERAMIC 0.047UF-Z/50V D011473597160S

C709SW nsp C,CERAMIC 0.047UF-Z/50V D011473597160S

C710 00D 963 0223 009 R,THICK 0-J,1/16W C20000006M160S

C710FL nsp C,CERAMIC 100PF-J/50V D010101167160S

C710FR nsp C,CERAMIC 100PF-J/50V D010101167160S

C710SW nsp C,CERAMIC 100PF-J/50V D010101167160S

C711 00D 963 0223 009 R,THICK 0-J,1/16W C20000006M160S

C711FL nsp C,CERAMIC 0.047UF-Z/50V D011473597160S

C711FR nsp C,CERAMIC 0.047UF-Z/50V D011473597160S

C711SW nsp C,CERAMIC 0.047UF-Z/50V D011473597160S

C712 00D 963 0293 602 C,ELECT 1UF-M/50V (Pb Free) D040010087150S

C713-715 00D 963 0223 009 R,THICK 0-J,1/16W C20000006M160S

C716-727 00D 960 9009 814 C,CERAMIC 330PF-J/50V D010331167160S

C728-731 nsp C,CERAMIC 20PF-J/50V D010200167160S

C732-739 00D 960 9009 814 C,CERAMIC 330PF-J/50V D010331167160S

C740-751 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C751A 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C751B 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C751C 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C751D 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

92

AVR-1708/1508/688/588/488 AVC-1508

AVR-1708 E3 model

Ref. No. Part No. Part Name Remarks Q'ty New

C751E 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C751F 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C751G 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C751H 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C751J 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C751K 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C751L 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C751M 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C751N 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C751P 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C751Q 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C751R 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C751S 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C751T 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C751U 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C751V 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C752 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C752A nsp C,CERAMIC 0.047UF-Z/50V D011473597160S

C752B nsp C,CERAMIC 0.047UF-Z/50V D011473597160S

C752C nsp C,CERAMIC 0.047UF-Z/50V D011473597160S

C752D nsp C,CERAMIC 0.047UF-Z/50V D011473597160S

C752E nsp C,CERAMIC 0.047UF-Z/50V D011473597160S

C752F nsp C,CERAMIC 0.047UF-Z/50V D011473597160S

C752G nsp C,CERAMIC 0.047UF-Z/50V D011473597160S

C752H nsp C,CERAMIC 0.047UF-Z/50V D011473597160S

C752J nsp C,CERAMIC 0.047UF-Z/50V D011473597160S

C752K nsp C,CERAMIC 0.047UF-Z/50V D011473597160S

C752L nsp C,CERAMIC 0.047UF-Z/50V D011473597160S

C752M nsp C,CERAMIC 0.047UF-Z/50V D011473597160S

C752N nsp C,CERAMIC 0.047UF-Z/50V D011473597160S

C752P nsp C,CERAMIC 0.047UF-Z/50V D011473597160S

C752Q nsp C,CERAMIC 0.047UF-Z/50V D011473597160S

C752R nsp C,CERAMIC 0.047UF-Z/50V D011473597160S

C752S nsp C,CERAMIC 0.047UF-Z/50V D011473597160S

C752T nsp C,CERAMIC 0.047UF-Z/50V D011473597160S

C752U nsp C,CERAMIC 0.047UF-Z/50V D011473597160S

C752V nsp C,CERAMIC 0.047UF-Z/50V D011473597160S

C752W nsp C,CERAMIC 0.1UF-Z/50V D011104597160S

C752X nsp C,CERAMIC 0.1UF-Z/50V D011104597160S

C753-771 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C772,773 00D 963 0293 806 C,ELECT 100UF-M/10V (Pb Free) D040101082090S

C774 nsp C,FILM 0.15UF-K/63V D020154078060S *

C775 00D 963 0021 900 C,FILM 0.047UF-J/100V D02047306C060S

C776 00D 960 9008 640 C,FILM 0.022UF-J/100V D02022306C060S

C777 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C778,779 nsp C,CERAMIC 100PF-J/50V D010101167160S

C780 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C781 00D 960 9008 640 C,FILM 0.022UF-J/100V D02022306C060S

C782 00D 963 0021 900 C,FILM 0.047UF-J/100V D02047306C060S

C783 nsp C,FILM 0.15UF-K/63V D020154078060S *

C784-790 00D 963 0293 806 C,ELECT 100UF-M/10V (Pb Free) D040101082090S

C791-793 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C794 00D 963 0293 806 C,ELECT 100UF-M/10V (Pb Free) D040101082090S

C795-799 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C800,801 00D 960 9010 832 C,ELECT 10UF-M/16V D040100083050S

93

AVR-1708/1508/688/588/488 AVC-1508

AVR-1708 E3 model

Ref. No. Part No. Part Name Remarks Q'ty New

OTHERS PARTS GROUP

CLAMP501 nsp CLAMP WIRE(SOLDER) 4330000120000S

CN514 nsp CN,WIRE 13P L000181130010S *

CN702 nsp CN.HOUSING 15P L120912150010S *

CN703 nsp CN.WAFER 8P L101100030810S

CN704 nsp CN.WAFER 19P L101100031910S

CN706 nsp CN,WIRE 8P L000121080010S *

CP704 nsp CN.WAFER 15P L101220150000S

CP705 nsp CN.WAFER 3P L101220030000S

JACK701 00D 963 0132 103 TER,RCA 4PIN G602405B0400YS

JACK702 00D 963 0387 505 TER,RCA 4PIN G602405B5500YS

JACK703 00D 963 0132 103 TER,RCA 4PIN G602405B0400YS

JACK704,705

00D 963 0132 307 TER,RCA 6PIN G603603B05000S

94

AVR-1708/1508/688/588/488 AVC-1508

AVR-1708 E3 model

POWER P.W.B. UNIT ASS'Y

Ref. No. Part No. Part Name Remarks Q'ty New

SEMICONDUCTORS GROUP

IC501 00D 963 0057 806 IC KIA78R05PI J126780500370S

z IC502 00D 960 0195 808 IC ICP-N15 J120001500030S

IC511 00D 963 0147 606 IC KIA78R09API J126780900120S

IC512 00D 960 0159 501 IC KIA7805API J126780500110S

IC513 00D 963 0327 507 IC KIA7905PI J126790500070S

IC515 00D 960 0174 900 IC KIA7815API J126781500000S

IC516 00D 963 0021 502 IC KIA7915PI J126791500030S

Q501 00D 960 0196 409 TR 2SC1740SR J5021740S0010S

Q502 00D 963 0121 208 TR KRC107M J6020107M0010S

Q503 00D 960 0196 409 TR 2SC1740SR J5021740S0010S

D501-503 00D 276 0401 905 D,SWITCHING 1SS133T K000013300520S

D504-507 00D 963 0328 409 D,SWITCHING 1N4007 K000400700010S

D508,509 00D 276 0401 905 D,SWITCHING 1SS133T K000013300520S

D511,512 00D 276 0401 905 D,SWITCHING 1SS133T K000013300520S

D513-520 00D 963 0328 409 D,SWITCHING 1N4007 K000400700010S

D521,522 00D 276 0401 905 D,SWITCHING 1SS133T K000013300520S

D523-526 00D 963 0328 409 D,SWITCHING 1N4007 K000400700010S

ZD501 00D 960 0095 500 D,ZENER MTZJ5.1B K06005R144520S

ZD502 00D 963 0219 903 D,ZENER MTZJ16B K06016R044520S

RESISTORS GROUP

R506 00D 963 0244 305 R,METAL FILM 2.2M 0.5W C060022564520S

R507 00D 241 2376 964 R,METAL FILM 47-J,1/4W C060047063050S

R508,509 00D 963 0216 003 R,METAL FILM 0.22-J,1W C060R22065050S

R516-519 00D 963 0216 003 R,METAL FILM 0.22-J,1W C060R22065050S

CAPACITORS GROUP

C501 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C502 00D 963 0217 002 C,ELECT 3300UF-M/16V D040332083010S

C503 00D 963 0293 602 C,ELECT 1UF-M/50V (Pb Free) D040010087150S

C504 00D 963 0323 802

C506 00D 963 0293 602 C,ELECT 1UF-M/50V (Pb Free) D040010087150S

C514-516 00D 963 0293 602 C,ELECT 1UF-M/50V (Pb Free) D040010087150S

C517 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C518 00D 963 0217 002 C,ELECT 3300UF-M/16V D040332083010S

C519 00D 963 0324 704 C,ELECT 4700UF-M/16V D040472083200S

C520 00D 963 0021 104 C,ELECT 6800UF-M/16V D040682083000S

C521-523 00D 963 0021 900 C,FILM 0.047UF-J/100V D02047306C060S

C526,527 00D 960 0186 202 C,ELECT 220UF-M/35V D040221085050S

C528 00D 963 0324 908 C,ELECT 4700UF-M/35V D040472085020S

C529 00D 963 0224 707 C,ELECT 2200UF-M/35V D040222085020S

C530-532 00D 963 0021 900 C,FILM 0.047UF-J/100V D02047306C060S

OTHERS PARTS GROUP

BKT501 nsp SHIELD PLATE GND 3070045526010S

C,CERAMIC AC(SAFETY) 0.0047UF 250VAC

D00847208H010S

CLAMP102,103

nsp CLAMP WIRE(SOLDER) 4330000120000S

95

AVR-1708/1508/688/588/488 AVC-1508

AVR-1708 E3 model

Ref. No. Part No. Part Name Remarks Q'ty New

CN505 nsp CN.WAFER 7P L101100030710S

CN506 nsp CN.WAFER 12P L101100031210S

CP501 nsp CN.WAFER 2CKT,YEL L108353280290S

CP503 nsp CN.WAFER 2CKT,RED L108353280280S

CP504 nsp CN.WAFER ST2P L108202000220S

CP505 nsp CN.WAFER 7P L101100040710S

CP506 nsp CN.WAFER 12P L101100041210S

CP511 nsp CN.WAFER 9P-S2T2-EF L101220090000S

CP512 nsp CN.WAFER 4P ANGLE L102526800400S *

CP513 nsp CN.WAFER 3P ANGLE L102526803010S

CP514 CN.WAFER 13P L101220130000S

z F501 00D 963 0236 106 FUSE T8A /250V N751228001110S

F501A nsp HOLDER,FUSE CLIP G645000050010S

F501B nsp HOLDER,FUSE CLIP G645000050010S

z F503 00D 963 0236 106 FUSE T8A /250V N751228001110S

F503A nsp HOLDER,FUSE CLIP G645000050010S

F503B nsp HOLDER,FUSE CLIP G645000050010S

GND501 nsp TERMINAL EARTH 3790040886000S

RLY501 00D 963 0218 205 RELAY HL3-1A-9SH DC9V 1A G680090102020S

z SUB501 00D 963 0382 704 SUB TRANS 8200280150400S

nsp HEAT SINK 2120043538050S

nsp

00D 963 0328 409 D,SWITCHING 1N4007 K000400700010S

z 00D 203 3976 002 SOCKET,POWER RECEPTA G435204004010S

SCREW,TAP TITE +2S 3*8 B-TYPE ZNW/BH

B020030081B10S

96

AVR-1708/1508/688/588/488 AVC-1508

AVR-1708 E3 model

2CH-AMP P.W.B. UNIT ASS'Y

Ref. No. Part No. Part Name Remarks Q'ty New

SEMICONDUCTORS GROUP

IC401D 00D 960 0159 501 IC KIA7805API J126780500110S

IC401H 00D 963 0388 805 CN,WIRE 110MM/3P L000111030040S

IC402D 00D 963 0226 608 IC KIA78R33PI J12678R330010S

IC402X 00D 963 0366 603 IC KIA1117PI50 J126111750050S *

IC403 00D 963 0334 503 IC PQ20RX11 J126201100010S

IC403D 00D 963 0366 706 IC KIA1117PI00 J126111700050S *

Q401SBL 00D 963 0044 204 TR 2SD2390-Y J5032390Y0000S

Q401SBR 00D 963 0044 204 TR 2SD2390-Y J5032390Y0000S

Q401X 00D 963 0120 801 TR KRC102S J522010200210S

Q402D 00D 960 0097 304 TR KRC102M J6020102M0010S

Q402SBL 00D 963 0044 107 TR 2SB1560-Y J5011560Y0000S

Q402SBR 00D 963 0044 107 TR 2SB1560-Y J5011560Y0000S

Q402X 00D 963 0120 801 TR KRC102S J522010200210S

Q403SBL 00D 963 0280 107 TR 2SC3964 J502396400000S

Q403SBR 00D 963 0280 107 TR 2SC3964 J502396400000S

Q404SBL 00D 960 0196 506 TR KSC1845F J5021845F0000S

Q404SBR 00D 960 0196 506 TR KSC1845F J5021845F0000S

Q405SBL 00D 273 0459 903 TR KTC2874B J502287400010S

Q405SBR 00D 273 0459 903 TR KTC2874B J502287400010S

Q406SBL 00D 960 0196 205 TR KSA992F J5000992F0050S

Q406SBR 00D 960 0196 205 TR KSA992F J5000992F0050S

Q407SBL 00D 960 0196 205 TR KSA992F J5000992F0050S

Q407SBR 00D 960 0196 205 TR KSA992F J5000992F0050S

Q408SBL 00D 960 0196 506 TR KSC1845F J5021845F0000S

Q408SBR 00D 960 0196 506 TR KSC1845F J5021845F0000S

Q409D 00D 960 0097 304 TR KRC102M J6020102M0010S

D401H 00D 963 0328 409 D,SWITCHING 1N4007 K000400700010S

D401SBL 00D 963 0341 004 D,SWITCHING KDS4148U K005041480030S

D401SBR 00D 963 0341 004 D,SWITCHING KDS4148U K005041480030S

D401X 00D 963 0328 409 D,SWITCHING 1N4007 K000400700010S

D402 00D 276 0401 905 D,SWITCHING 1SS133T K000013300520S

D402H 00D 963 0328 409 D,SWITCHING 1N4007 K000400700010S

D402SBL 00D 963 0341 004 D,SWITCHING KDS4148U K005041480030S

D402SBR 00D 963 0341 004 D,SWITCHING KDS4148U K005041480030S

D402X 00D 963 0328 409 D,SWITCHING 1N4007 K000400700010S

D403 00D 276 0401 905 D,SWITCHING 1SS133T K000013300520S

ZD401D 00D 960 0095 607 D,ZENER MTZJ5.6B K06005R644520S

ZD401SBL 00D 963 0367 008 D,ZENER 0.2W 3.3V UDZ K06603R34P400S

ZD401SBR 00D 963 0367 008 D,ZENER 0.2W 3.3V UDZ K06603R34P400S

ZD402SBL 00D 963 0367 008 D,ZENER 0.2W 3.3V UDZ K06603R04P400S

ZD402SBR 00D 963 0367 008 D,ZENER 0.2W 3.3V UDZ K06603R04P400S

RESISTORS GROUP

R401D 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820S

R401H 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820S

R401X 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820S

R402D 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820S

R402H 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820S

R402X 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820S

R410SBL 00D 963 9005 642 R,METAL FILM 1.2K-J,1W C060012265050S

97

AVR-1708/1508/688/588/488 AVC-1508

AVR-1708 E3 model

Ref. No. Part No. Part Name Remarks Q'ty New

R410SBR 00D 963 9005 642 R,METAL FILM 1.2K-J,1W C060012265050S

R411SBL 00D 960 9010 719 R,METAL FILM 47-J,1W C060047065060S

R411SBR 00D 960 9010 719 R,METAL FILM 47-J,1W C060047065060S

R414SBL 00D 963 9006 285 R,FIXED 1WJ-5.6K N113135656220S

R414SBR 00D 963 9006 285 R,FIXED 1WJ-5.6K N113135656220S

R415SBL 00D 963 9006 285 R,FIXED 1WJ-5.6K N113135656220S

R415SBR 00D 963 9006 285 R,FIXED 1WJ-5.6K N113135656220S

R419SBL 00D 963 0215 907 R,METAL FILM 4.7-J,1W C0604R7065050S

R419SBR 00D 963 0215 907 R,METAL FILM 4.7-J,1W C0604R7065050S

R420SBL 00D 963 0215 907 R,METAL FILM 4.7-J,1W C0604R7065050S

R420SBR 00D 963 0215 907 R,METAL FILM 4.7-J,1W C0604R7065050S

R421SBL 00D 963 0345 903 R,FIXED 2WJ-0.47 N113136647820S

R421SBR 00D 963 0345 903 R,FIXED 2WJ-0.47 N113136647820S

R422SBL 00D 963 0345 903 R,FIXED 2WJ-0.47 N113136647820S

R422SBR 00D 963 0345 903 R,FIXED 2WJ-0.47 N113136647820S

R423SBL 00D 963 0345 903 R,FIXED 2WJ-0.47 N113136647820S

R423SBR 00D 963 0345 903 R,FIXED 2WJ-0.47 N113136647820S

R424SBL 00D 963 0345 903 R,FIXED 2WJ-0.47 N113136647820S

R424SBR 00D 963 0345 903 R,FIXED 2WJ-0.47 N113136647820S

R429SBL 00D 963 9006 256 R,FIXED 1WJ-10 N113135610020S

R429SBR 00D 963 9006 256 R,FIXED 1WJ-10 N113135610020S

R430SBL 00D 963 9006 256 R,FIXED 1WJ-10 N113135610020S

R430SBR 00D 963 9006 256 R,FIXED 1WJ-10 N113135610020S

VR401,402 00D 963 0366 407 VR,SEMI CARBON EVN-DCAA03B 1KB C541102315000S *

CAPACITORS GROUP

C401D 00D 963 0021 900 C,FILM 0.047UF-J/100V D02047306C060S

C401H 00D 963 0021 900 C,FILM 0.047UF-J/100V D02047306C060S

C401SBL 00D 963 9006 544 C,ELECT 22UF-M/25V D040220084050S

C401SBR 00D 963 9006 544 C,ELECT 22UF-M/25V D040220084050S

C401X nsp C,CERAMIC 0.1UF-K/50V D011104577160S

C402D 00D 963 0021 900 C,FILM 0.047UF-J/100V D02047306C060S

C402H 00D 963 0021 900 C,FILM 0.047UF-J/100V D02047306C060S

C402SBL 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C402SBR 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C402X 00D 963 9003 097 C,FILM 0.1UF-K/250V D02010407H080S

C403D 00D 963 0021 900 C,FILM 0.047UF-J/100V D02047306C060S

C403H 00D 963 0021 900 C,FILM 0.047UF-J/100V D02047306C060S

C403SBL 00D 963 0367 101 C,CERAMIC 220PF-J/500V D00422106D05CS *

C403SBR 00D 963 0367 101 C,CERAMIC 220PF-J/500V D00422106D05CS *

C403X 00D 960 0133 404 C,ELECT 10000UF 16V D040103083020S

C404D 00D 960 0133 404 C,ELECT 10000UF 16V D040103083020S

C404H 00D 963 0217 002 C,ELECT 3300UF-M/16V D040332083010S

C404SBL 00D 963 0338 208 C,CERAMIC 470PF-K/500V D00447127D050S

C404SBR 00D 963 0338 208 C,CERAMIC 470PF-K/500V D00447127D050S

C404X 00D 963 0276 409 C,ELECT 100UF-M/16V D040101083090S

C405D 00D 963 0338 402 C,ELECT 330UF-M/6.3V D040331081050S

C405SBL 00D 963 0216 100 C,CERAMIC 33PF-J/500V D00033006D050S

C405SBR 00D 963 0216 100 C,CERAMIC 33PF-J/500V D00033006D050S

C406D nsp C,CERAMIC 0.1UF-K/50V D011104577160S

C406SBL 00D 963 0293 709 C,ELECT 100UF-M/10V D040101082070S

C406SBR 00D 963 0293 709 C,ELECT 100UF-M/10V D040101082070S

C406X nsp C,CERAMIC 1000PF-K/50V D011102777160S

C407D nsp C,CERAMIC 1000PF-K/50V D011102777160S

98

AVR-1708/1508/688/588/488 AVC-1508

AVR-1708 E3 model

Ref. No. Part No. Part Name Remarks Q'ty New

C407SBL 00D 963 9003 194 C,FILM 0.0022UF-J/100V D02022206C060S

C407SBR 00D 963 9003 194 C,FILM 0.0022UF-J/100V D02022206C060S

C407X 00D 963 0293 709 C,ELECT 100UF-M/10V D040101082070S

C408D 00D 963 0338 402 C,ELECT 330UF-M/6.3V D040331081050S

C408SBL 00D 963 0234 506 C,ELECT 47UF-M/50V (Pb Free) D040470087070S

C408SBR 00D 963 0234 506 C,ELECT 47UF-M/50V (Pb Free) D040470087070S

C408X 00D 963 0293 709 C,ELECT 100UF-M/10V D040101082070S

C409D nsp C,CERAMIC 0.1UF-K/50V D011104577160S

C409SBL 00D 963 9003 084 C,CERAMIC 100PF-K/500V D00410106D050S

C409SBR 00D 963 9003 084 C,CERAMIC 100PF-K/500V D00410106D050S

C410D 00D 963 0338 402 C,ELECT 330UF-M/6.3V D040331081050S

C410SBL 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C410SBR 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C411D nsp C,CERAMIC 0.1UF-K/50V D011104577160S

C411SBL 00D 963 9003 084 C,CERAMIC 100PF-K/500V D00410106D050S

C411SBR 00D 963 9003 084 C,CERAMIC 100PF-K/500V D00410106D050S

C412D nsp C,CERAMIC 0.1UF-K/50V D011104577160S

C412SBL nsp C,CERAMIC 0.022UF-K/25V D011223777160S

C412SBR nsp C,CERAMIC 0.022UF-K/25V D011223777160S

C413D 00D 963 0024 907 C,ELECT 1000UF-M/6.3V D040102081060S

C413SBL 00D 963 9003 097 C,FILM 0.1UF-K/250V D02010407H080S

C413SBR 00D 963 9003 097 C,FILM 0.1UF-K/250V D02010407H080S

C443 nsp C,CERAMIC 1000PF-K/50V D011102777160S

OTHERS PARTS GROUP

CLAMP401 nsp CLAMP WIRE(SOLDER) 4330000120000S

CN203 nsp CN,WIRE 3P L000181030010S *

CN401A nsp CN,WIRE 5P L000191050030S *

CN405 nsp CN,WIRE 5P L000321050020S *

CN705 nsp CN,WIRE 3P L000151030010S

CN904 nsp CN,WIRE 6P L000141060030S *

CP102 nsp CN.WAFER 3P L102526700300S

CP201 nsp CN.WAFER 6P L101220060000S

CP402 nsp CN.WAFER 3P L102526700300S

L401SBL nsp COIL INDUCTOR 0.5UH D330R50000000S

L401SBR nsp COIL INDUCTOR 0.5UH D330R50000000S

TP401,402 nsp CN.WAFER 3P ANGLE L101530150310S

00D 963 0328 409 D,SWITCHING 1N4007 K000400700010S

99

AVR-1708/1508/688/588/488 AVC-1508

AVR-1708 E3 model

CPU P.W.B. UNIT ASS'Y

Ref. No. Part No. Part Name Remarks Q'ty New

SEMICONDUCTORS GROUP

IC712-715 00D 963 0024 004 IC NJM2068M J121206800020S

IC804 963243000020D IC,CPU MICRO PROCESS

IC806 00D 960 0100 301 IC KIA7812API J126781200040S

IC813 00D 963 0367 204 IC SN74HC151PWR J040741510070S *

IC817 00D 963 0244 907 IC SN74LV14APWR J040741400180S

IC818 00D 963 0367 307 IC SN74AHCU04PWR J040740400290S *

IC824 00D 963 0043 807 IC BA4510F-E2/SOP8 J121451000010S

IC827 00D 963 0043 807 IC BA4510F-E2/SOP8 J121451000010S

IC830 00D 262 2813 903 SN74AHCT08PW-EL2 +C J040740800190S

Q704C 00D 963 0044 301 TR KTC2875B(MB) J5222875B0010S

Q704FL 00D 963 0044 301 TR KTC2875B(MB) J5222875B0010S

Q704FR 00D 963 0044 301 TR KTC2875B(MB) J5222875B0010S

Q704SBL 00D 963 0044 301 TR KTC2875B(MB) J5222875B0010S

Q704SBR 00D 963 0044 301 TR KTC2875B(MB) J5222875B0010S

Q704SL 00D 963 0044 301 TR KTC2875B(MB) J5222875B0010S

Q704SR 00D 963 0044 301 TR KTC2875B(MB) J5222875B0010S

Q704SW 00D 963 0044 301 TR KTC2875B(MB) J5222875B0010S

Q801 00D 963 0120 704 TR KRA102S J520010200210S

Q802-805 00D 963 0044 301 TR KTC2875B(MB) J5222875B0010S

Q806 00D 963 0121 509 TR KTC3875S J522038750210S

Q807 00D 960 0285 006 TR KRC104S J522104S00210S

Q810D 00D 963 0245 100 D,SWITCHING KDS226ST1(C3) K005022600020S

Q811D 00D 963 0245 100 D,SWITCHING KDS226ST1(C3) K005022600020S

Q812D 00D 963 0120 801 TR KRC102S J522010200210S

Q813D 00D 963 0120 704 TR KRA102S J520010200210S

D801-804 00D 963 0355 401 D,SWITCHING KDS4148U K005041480030S

D805 00D 963 0328 409 D,SWITCHING 1N4007 K000400700010S

D807 00D 963 0355 401 D,SWITCHING KDS4148U K005041480030S

D807D 00D 963 0355 401 D,SWITCHING KDS4148U K005041480030S

D808D 00D 963 0341 305 D,ESD IMSA-6802-01A K067680200010S

D809D 00D 963 0355 401 D,SWITCHING KDS4148U K005041480030S

D810D 00D 963 0341 305 D,ESD IMSA-6802-01A K067680200010S

D811D 00D 963 0341 305 D,ESD IMSA-6802-01A K067680200010S

ZD801 00D 963 0047 502 D,ZENER MTZJ3.3B K06003R344520S

RESISTORS GROUP

R857 00D 960 9003 807 R,METAL FILM 100-J,1/4W C060010163050S

CAPACITORS GROUP

C751C 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C751FL 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C751FR 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C751SBL 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C751SBR 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C751SL 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C751SR 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C751SW 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070S

C752C 00D 963 0350 503 C,CERAMIC 390PF-J/50V D010391167160S

C752FL 00D 963 0223 708 C,CERAMIC 270PF-J/50V D010271167160S

ファームウエアをアップデート
するときは、SDI で最終バージョ
ンを確認して下さい。
サービス基板はアップデートし
て使用下さい。
WhenupdateFirmware,please
confirmalastversioninSDI.
Usetheserviceboardafter
updatingit.

M30626FHPFP

8952150800015

100

AVR-1708/1508/688/588/488 AVC-1508

AVR-1708 E3 model
