Delta 36-426 User Manual

INSTRUCTION MANUAL

To learn more about DELTA MACHINERY visit our website at: www.deltamachinery.com.

For Parts, Service, Warranty or other Assistance, please call

1-800-223-7278 (In Canada call 1-800-463-3582).

Limited Edition

10″″Contractor’s Saw

with 30″″Unifence

(Model 36-426)

with 30″″Biesemeyer

(Model 36-431)

PART NO. 422-19-651-0050 - 05-28-02

GENERAL SAFETY RULES

Woodworking can be dangerous if safe and proper operating procedures are not followed. As with all machinery, there are certain hazards involved with the operation of the product. Using the machine with respect and caution will considerably lessen the possibility of personal injury. However, if normal safety precautions are overlooked or ignored, personal injury to the operator may result. Safety equipment such as guards, push sticks, hold-downs, featherboards, goggles, dust masks and hearing protection can reduce your potential for injury. But even the best guard won’t make up for poor judgment, carelessness or inattention. Always use common sense and exercise caution in the workshop. If a procedure feels dangerous, don’t try it. Figure out an alternative procedure that feels safer. REMEMBER: Your personal safety is your responsibility.

This machine was designed for certain applications only. Delta Machinery strongly recommends that this machine not be modified and/or used for any application other than that for which it was designed. If you have any questions relative to a particular application, DO NOT use the machine until you have first contacted Delta to determine if it can or should be performed on the product.

Technical Service Manager Delta Machinery 4825 Highway 45 North Jackson, TN 38305

(IN CANADA: 505 SOUTHGATE DRIVE, GUELPH, ONTARIO N1H 6M7)

WARNING: FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS PERSONAL INJURY

1. FOR YOUR OWN SAFETY, READ INSTRUCTION

MANUAL BEFORE OPERATING THE MACHINE. Learn

the machine’s application and limitations as well as the specific hazards peculiar to it.

2. KEEP GUARDS IN PLACE and in working order.

3. ALWAYS WEAR EYE PROTECTION.

Wear safety glasses. Everyday eyeglasses only have impact resistant lenses; they are not safety glasses. Also use face or dust mask if cutting operation is dusty. These safety glasses must conform to ANSI Z87.1 requirements. NOTE: Approved glasses have Z87 printed or stamped on them.

4. REMOVE ADJUSTING KEYS AND WRENCHES. Form

habit of checking to see that keys and adjusting wrenches are removed from machine before turning it “on”.

5. KEEP WORK AREA CLEAN. Cluttered areas and

benches invite accidents.

6. DON’T USE IN DANGEROUS ENVIRONMENT. Don’t

use power tools in damp or wet locations, or expose them to rain. Keep work area well-lighted.

7. KEEP CHILDREN AND VISITORS AWAY. All children

and visitors should be kept a safe distance from work area.

8. MAKE WORKSHOP CHILDPROOF – with padlocks,

master switches, or by removing starter keys.

9. DON’T FORCE MACHINE. It will do the job better and

be safer at the rate for which it was designed.

10. USE RIGHT MACHINE. Don’t force machine or attachment to do a job for which it was not designed.

11. WEAR PROPER APPAREL. No loose clothing, gloves, neckties, rings, bracelets, or other jewelry to get caught in moving parts. Nonslip footwear is recommended. Wear protective hair covering to contain long hair.

12. SECURE WORK. Use clamps or a vise to hold work when practical. It’s safer than using your hand and frees both hands to operate machine.

13. DON’T OVERREACH. Keep proper footing and balance at all times.

14. MAINTAIN TOOLS IN TOP CONDITION. Keep tools sharp and clean for best and safest performance. Follow instructions for lubricating and changing accessories.

15. DISCONNECT TOOLS before servicing and when changing accessories such as blades, bits, cutters, etc.

16. USE RECOMMENDED ACCESSORIES. The use of accessories and attachments not recommended by Delta may cause hazards or risk of injury to persons.

17. REDUCE THE RISK OF UNINTENTIONAL STARTING. Make sure switch is in “OFF” position before plugging in power cord.

In the event of a power failure, move switch

to the “OFF” position.

18. NEVER STAND ON MACHINE. Serious injury could occur if the machine is tipped or if the cutting machine is accidentally contacted.

19. CHECK DAMAGED PARTS. Before further use of the machine, a guard or other part that is damaged should be carefully checked to ensure that it will operate properly and perform its intended function – check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other conditions that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced.

20. DIRECTION OF FEED. Feed work into a blade or cutter against the direction of rotation of the blade or cutter only.

21. NEVER LEAVE MACHINE RUNNING UNATTENDED. TURN POWER OFF. Don’t leave machine until it comes to a complete stop.

22.

STAY ALERT, WATCH WHAT YOU ARE DOING, AND USE COMMON SENSE WHEN OPERATING A POWER MACHINE. DO NOT USE MACHINE WHILE TIRED OR UNDER THE INFLUENCE OF DRUGS, ALCOHOL, OR MEDICATION. A moment of inattention while operating

power tools may result in serious personal injury.

23. MAKE SURE MACHINE IS DISCONNECTED FROM POWER SUPPLY while motor is being mounted, connected or reconnected.

24. THE DUST GENERATED by certain woods and wood products can be injurious to your health. Always operate machinery in well ventilated areas and provide for proper dust removal. Use wood dust collection systems whenever possible.

25.

WARNING: SOME DUST CREATED BY POWER SANDING, SAWING, GRINDING, DRILLING, AND OTHER CONSTRUCTION ACTIVITIES contains

chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

· lead from lead-based paints,

· crystalline silica from bricks and cement and other

masonry products, and

· arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

SAVE THESE INSTRUCTIONS.

Refer to them often and use them to instruct others.

ADDITIONAL SAFETY RULES FOR

TABLE SAWS

1. DO NOT OPERATE THIS MACHINE until it is assembled and installed according to the

instructions.

2. OBTAIN ADVICE FROM YOUR SUPERVISOR, instructor, or another qualified person if you are not familiar with the operation of this machine.

3. FOLLOW ALL WIRING CODES and recommended electrical connections.

4. USE THE GUARDS WHENEVER POSSIBLE. Check to see that they are in place, secured, and working correctly.

5. AVOID KICKBACK by: A. keeping blade sharp and free of rust and pitch. B. keeping rip fence parallel to the saw blade. C. using saw blade guard and spreader for every

possible operation, including all through sawing.

D. pushing the workpiece past the saw blade prior to

release.

E. never ripping a workpiece that is twisted or

warped, or does not have a straight edge to guide along the fence.

F. using featherboards when the anti-kickback device

cannot be used.

G. never sawing a large workpiece that cannot be

controlled.

H. never using the fence as a guide when

crosscutting.

I. never sawing a workpiece with loose knots or other

flaws.

6. ALWAYS USE GUARDS, SPLITTER, AND ANTI- KICKBACK FINGERS except when otherwise directed in the manual.

7. REMOVE CUT-OFF PIECES AND SCRAPS from the table before starting the saw. The vibration of the machine may cause them to move into the saw blade and be thrown out. After cutting, turn the machine off. When the blade has come to a complete stop,

remove all debris.

8. NEVER START THE MACHINE with the workpiece against the blade.

9. HOLD THE WORKPIECE FIRMLY against the miter

gauge or fence.

10. NEVER run the workpiece between the fence and a

moulding cutterhead.

11. NEVER perform “free-hand” operations. Use either the

fence or miter gauge to position and guide the workpiece.

12. USE PUSH STICK(S) for ripping a narrow workpiece.

13. AVOID AWKWARD OPERATIONS AND HAND POSITIONS where a sudden slip could cause a hand to move into the blade.

14. KEEP ARMS, HANDS, AND FINGERS away from the blade.

15. NEVER have any part of your body in line with the path of the saw blade.

16. NEVER REACH AROUND or over the saw blade.

17. NEVER attempt to free a stalled saw blade without first turning the machine “OFF”.

18. PROPERLY SUPPORT LONG OR WIDE workpieces.

19. NEVER PERFORM LAYOUT, assembly or set-up work on the table/work area when the machine is running.

20. TURN THE MACHINE “OFF” AND DISCONNECT THE MACHINE from the power source before installing or removing accessories, before adjusting or changing set-ups, or when making repairs.

21. TURN THE MACHINE “OFF”, disconnect the machine from the power source, and clean the table/work area before leaving the machine. LOCK THE SWITCH IN THE “OFF” POSITION to prevent unauthorized use.

22. ADDITIONAL INFORMATION regarding the safe and proper operation of this machine is available from the Power Machine Institute, 1300 Summer Avenue, Cleveland, OH 44115-2851. Information is also available from the National Safety Council, 1121 Spring Lake Drive, Itasca, IL 60143-3201. Please refer to the American National Standards Institute ANSI 01.1 Safety Requirements for Woodworking Machines and the U.S. Department of Labor OSHA 1910.213 Regulations.

WARNING: FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS PERSONAL INJURY.

SAVE THESE INSTRUCTIONS.

Refer to them often

and use them to instruct others.

POWER CONNECTIONS

A separate electrical circuit should be used for your tools. This circuit should not be less than #12 wire and should be protected with a time lag fuse. If an extension cord is used, use only 3-wire extension cords which have 3-prong grounding type plugs and matching receptacle which will accept the machine’s plug. Before connecting the motor to the power line, make sure the switch is in the “OFF” position and be sure that the electric current is of the same characteristics as indicated on the machine. All line connections should make good contact. Running on low voltage will damage the motor.

WARNING: DO NOT EXPOSE THE MACHINE TO RAIN OR OPERATE THE MACHINE IN DAMP LOCATIONS.

GROUNDING INSTRUCTIONS

WARNING: THIS MACHINE MUST BE GROUNDED WHILE IN USE TO PROTECT THE OPERATOR FROM ELECTRIC SHOCK.

Fig. A Fig. B

GROUNDED OUTLET BOX

CURRENT

CARRYING

PRONGS

GROUNDING BLADE IS LONGEST OF THE 3 BLADES

GROUNDED OUTLET BOX

GROUNDING

MEANS

ADAPTER

A temporary adapter, which looks like the adapter illustrated in Fig. B, may be used to connect this plug to a matching 2-conductor receptacle as shown in Fig. B if a properly grounded outlet is not available. The temporary adapter should be used only until a properly grounded outlet can be installed by a qualified electrician. The green-colored rigid ear, lug, and the like, extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box. Whenever the adapter is used, it must be held in place with a metal screw.

NOTE: In Canada, the use of a temporary adapter is not permitted by the Canadian Electric Code.

3. Grounded, cord-connected tools intended for use on a supply circuit having a nominal rating between 150 250 volts, inclusive:

If the tool is intended for use on a circuit that has an outlet that looks like the one illustrated in Fig. C. The tool will have a grounding plug that looks like the plug illustrated in Fig. C. Make sure the tool is connected to an outlet having the same configuration as the plug. No adapter is available or should be used with this tool. If the tool must be reconnected for use on a different type of electric circuit, the reconnection should be made by qualified service personnel; and after reconnection, the tool should comply with all local codes and ordinances.

WARNING: IN ALL CASES, MAKE CERTAIN THE

RECEPTACLE IN QUESTION IS PROPERLY GROUNDED. IF YOU ARE NOT SURE HAVE A QUALIFIED ELECTRICIAN CHECK THE RECEPTACLE.

1. All grounded, cord-connected tools: In the event of a malfunction or breakdown, grounding

provides a path of least resistance for electric current to reduce the risk of electric shock. This tool is equipped with an electric cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into a matching outlet that is properly installed and grounded in accordance with all local codes and ordinances.

Do not modify the plug provided - if it will not fit the outlet, have the proper outlet installed by a qualified electrician.

Improper connection of the equipment-grounding conductor can result in risk of electric shock. The conductor with insulation having an outer surface that is green with or without yellow stripes is the equipmentgrounding conductor. If repair or replacement of the electric cord or plug is necessary, do not connect the equipment-grounding conductor to a live terminal.

Check with a qualified electrician or service personnel if the grounding instructions are not completely understood, or if in doubt as to whether the tool is properly grounded.

Use only 3-wire extension cords that have 3-prong grounding type plugs and matching 3-conductor receptacles that accept the tool’s plug, as shown in Fig. A.

Repair or replace damaged or worn cord immediately.

2. Grounded, cord-connected tools intended for use on a supply circuit having a nominal rating less than 150 volts:

If the tool is intended for use on a circuit that has an outlet that looks like the one illustrated in Fig. A. The tool will have a grounding plug that looks like the plug illustrated in Fig. A.

Use proper extension cords. Make sure your extension cord is in good condition and is a 3-wire extension cord which has a 3-prong grounding type plug and matching receptacle which will accept the machine’s plug. When using an extension cord, be sure to use one heavy enough to carry the current of the machine. An undersized cord will cause a drop in line voltage, resulting in loss of power and overheating. Fig. D, shows the correct gauge to use depending on the cord length. If in doubt, use the next heavier gauge. The smaller the gauge number, the heavier the cord.

EXTENSION CORDS

OPERATING INSTRUCTIONS

FOREWORD

Delta 10″ Contractor’s Saws are designed to give high quality performance with maximum depth of cut capacity up to 3-1/8″ at 90° and 2-1/8″ at 45°. Delta Model 36-426 includes a 30″ Unifence Fence System with T-Slot rail and Model 36-431 includes a 30″ Biesemeyer T-Square Home Shop Fence System. These Delta Models come equipped with basic machine, sturdy steel stand, integral dust chute, patented Auto-Set T-Slot miter gage, heavy duty motor, large on/off paddle switch, extension wing, cast table, convenient up-front blade raising and tilting controls, and 10″ carbide blade.

NOTICE: THE MANUAL COVER PHOTO ILLUSTRATES THE CURRENT

PRODUCTION MODEL. ALL OTHER ILLUSTRATIONS ARE REPRESENTATIVE

ONLY AND MAY NOT DEPICT THE ACTUAL COLOR, LABELING OR

ACCESSORIES AND MAY BE INTENDED TO ILLUSTRATE TECHNIQUE ONLY.

Fig. D

MINIMUM GAUGE EXTENSION CORD

RECOMMENDED SIZES FOR USE WITH STATIONARY ELECTRIC TOOLS

Ampere Total Length Gauge of

Rating Volts of Cord in Feet Extension Cord

0-6 120

up to

25 18 AWG 0-6 120 25-50 16 AWG 0-6 120 50-100 16 AWG 0-6 120 100-150 14 AWG

6-10 120

up to

25 18 AWG 6-10 120 25-50 16 AWG 6-10 120 50-100 14 AWG 6-10 120 100-150 12 AWG

10-12 120

up to

25 16 AWG 10-12 120 25-50 16 AWG 10-12 120 50-100 14 AWG 10-12 120 100-150 12 AWG

12-16 120

up to

25 14 AWG 12-16 120 25-50 12 AWG 12-16 120

GREATER THAN 50 FEET NOT RECOMMENDED

MINIMUM GAUGE EXTENSION CORD

RECOMMENDED SIZES FOR USE WITH STATIONARY ELECTRIC TOOLS

Ampere Total Length Gauge of

Rating Volts of Cord in Feet Extension Cord

0-6 240

up to

50 18 AWG 0-6 240 50-100 16 AWG 0-6 240 100-200 16 AWG 0-6 240 200-300 14 AWG

6-10 240

up to

50 18 AWG 6-10 240 50-100 16 AWG 6-10 240 100-200 14 AWG 6-10 240 200-300 12 AWG

10-12 240

up to

50 16 AWG 10-12 240 50-100 16 AWG 10-12 240 100-200 14 AWG 10-12 240 200-300 12 AWG

12-16 240

up to

50 14 AWG 12-16 240 50-100 12 AWG 12-16 240

GREATER THAN 100 FEET NOT RECOMMENDED

GROUNDED OUTLET BOX

CURRENT CARRYING PRONGS

GROUNDING BLADE IS LONGEST OF THE 3 BLADES

Fig. C

UNPACKING AND CLEANING

Carefully unpack the table saw and all loose items from the shipping containers. Remove the protective coating from the machined surfaces of the saw. This coating may be removed with a soft cloth moistened with kerosene (do not use acetone, gasoline or lacquer thinner for this purpose). After cleaning, cover the unpainted surfaces with a good quality household floor paste wax. Fig. 2, illustrates the components of the table saw. Fig. 3, illustrates the components of the saw stand. Fig. 4, illustrates the components of the Unifence®.Figs. 5, 6 and 7 illustrates the components of the Biesemeyer Fence.

1. Contractor’s Saw

2. Blade Tilting Handwheel

3. Handwheel Lock Knob

4. Blade Guard and Splitter Assembly

5. Table Insert

6. Miter Gage

7. Miter Gage Handle

8. Miter Gage Handle Cap

9. Splitter Mounting Bracket

10. 1/4-20 x 3/4″ Hex Head Screws (2)

11. 1/4″ Flat Washers (2)

12. 5/16-18 x 5/8″ Carriage Head Screw

13. 5/16″ Flat Washer

14. 5/16-18 Hex Nut

15. Arbor Wrenches (2)

16. Extension Table

17. 7/16-20 x 1-3/4″ Hex Head Screws for assembling extension table (3)

18. Flat Washers for assembling extension wing (3)

19. 1/4-20 x 3/4″ Flat head Screw

20. Flat Washer

21. Hex Nut

Fig. 2

1. Combination Dust Chute/ Support Panel

2. Motor Pulley

3. Motor

4. Pulley Guard

5. Drive Belt

6. Spring

7. Pins (2) for Mounting Motor

8. Motor Mounting Plate

9. Lockwashers (4)

10. Flat Washers (4)

11. 5/16-18 x 3/4

″ Carriage

Head Screws (4)

12. 5/16

″ Hex Nuts (4)

13. 5/16

″ Hex Nuts (8)

14. 5/16

″ Lockwashers (8)

15. 5/16

″ Flat Washers

16. 5/16-18 x 5/8

″ Hex Head

Screws (8)

17. Rubber Feet (4)

18. #10-32 x 12 Screws (8)

19. #10 Keps Nuts (8)

20. #10-1/2

″ Sheet Metal

Screws (3)

21. Grommet

22. Front Leg Panel

23. Rear Leg Panel

1. Unifence Body

2. Fence

3. Shelf Support Bracket

4. Front Table Support

5. Table Board

6. Table Legs (2)

7. Front T-Slot Guide Rail

8. Leg Adapter Insert (2)

9. 3/8-16 Nut (2)

10. Leveling Screws (2)

12. 7/16-20 x 3/4

″ Hex Head

Screws, Lockwashers,(3 ea.)

13. U-Bolts (2)

14. Angle Brackets (5)

15. 1/4-20 x 3/4

″ Carriage Head

Screws, Flat Washers, and 1/4-20 Hex Nuts (5 ea.)

16. Flat Washers and 1/4-20 Hex Nuts for U-Bolts (4 ea.)

17. #8 x 3/4

″ Hex Washer

Head Screws (14)

18. 3/8-16 x 1

″ Hex Head Bolts

Flat Washers, and Hex Nuts

(5 ea.)

19. 1/4-20 Hex Head Bolt, Flat Washer and Hex Nut (1 ea.)

20. Guide Rail End Caps (2 ea.)

with Rail

21. Unifence Flip Stop Parts

22. Rear Guide Rail (1)

23. Table Adapter Plate (1)

24. Cursor (not shown)

25. 3/8-16 x 1-1/4

″ Hex Head

Bolt, Flat Washer and Nut (1)

(not shown)

Fig. 3

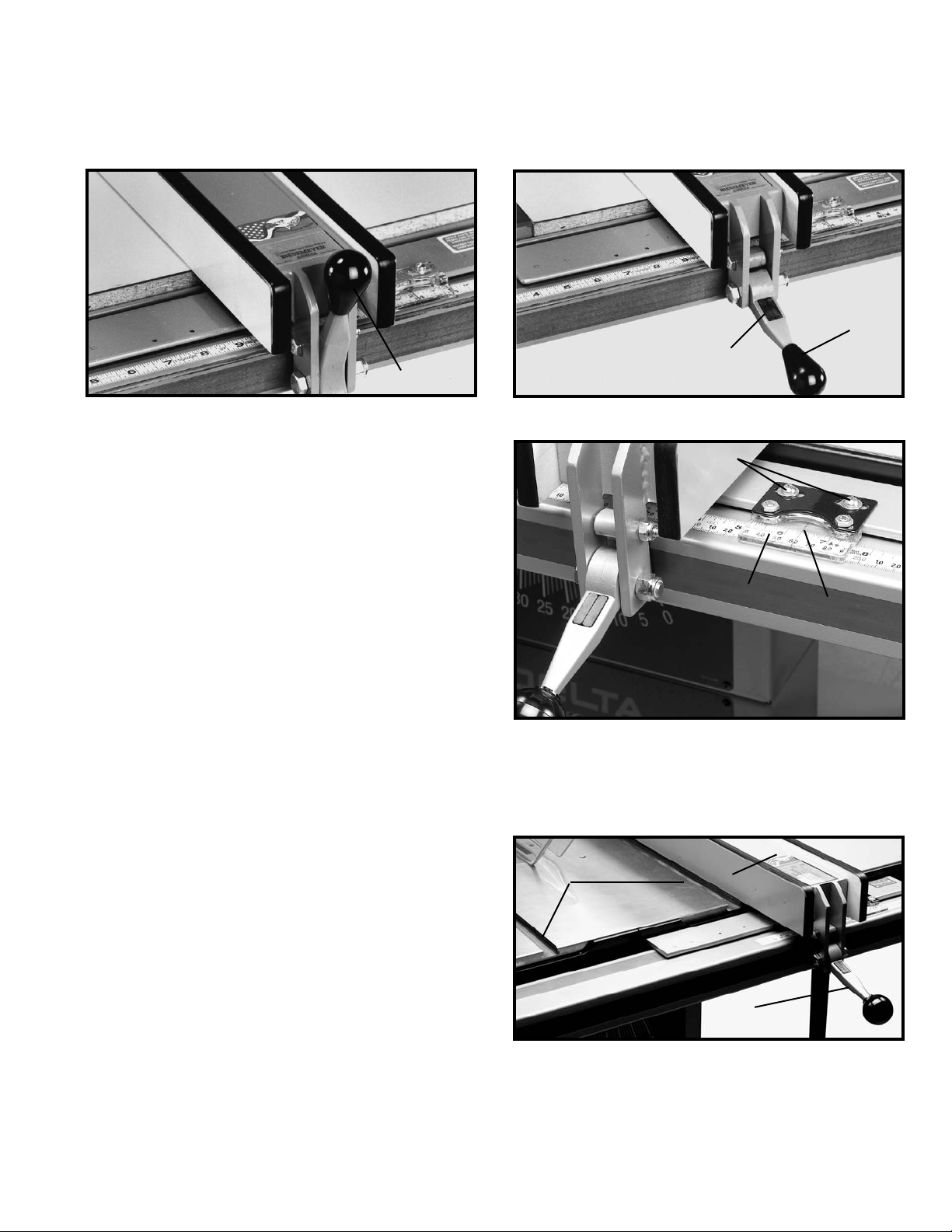

UNIFENCE T-SLOT RAIL FENCE SYSTEM

Fig. 4

BIESEMEYER T-SQUARE FENCE SYSTEM

The T-Square®Commercial Fence System includes the fence assembly, front rail, rear rail, front guide tube and right extension table Model 78-943 for 30″ capacity. IMPORTANT: The T-Square®Fence System is designed to be used ONLY with a supporting extension table.

UNPACKING

Carefully unpack the T-Square®fence system from the shipping carton(s). Figure(s) 5, 6 & 7 illustrates all the items supplied with the 78-914 fence system.

1 - Rear Rail

2 - Front Rail

3 - Guide Tube

4 - T-Square

Fence Assembly

5 - Template for aligning front rail to saw table

for fastening guide tube to front rail

6 - 1/4-20 x 1/2″ long hex head screws (7)

7 - Lock washers (7)

for fastening rear rail to saw table and sheet metal extension wing if applicable

8 - 3/8-24 x 1-1/4″ long hex head cap screws (2)

9 - 7/8″ O.D. flat washers (2)

10 - Lock washers (2)

11 - 3/8-24 hex nuts (2)

for fastening front rail to saw table

12 - 3/8-16 x 1-1/4″ long flat head screws (2)

13 - 7/8″ O.D. flat washers (2)

14 - Lock washers (2)

15 - 3/8-16 hex nuts (2)

for fastening front and rear rails to right extension table

16 - 1/4-20 x 1-1/2″ long flat head Phillips screws (8)

17 - 1-1/4″ O.D. Flat Washers (6)

18 - 1/4-20 hex nuts (8)

19 - Extension Table

for fastening extension table legs

20 - Legs (2)

21 - #8 x 5/8″ long wood screws (8)

22 - 1/4-20 x 1-1/2″ flat head

Phillips screws (4)

23 - 1/4″ flat washers (4)

24 - 1/4-20 hex nuts (4)

NOTE: A common hardware package is used for several different models, therefore you may have leftover hardware.

Fig. 5

Fig. 6

Fig. 7

ASSEMBLY INSTRUCTIONS

WARNING: MAKE SURE THE SAW IS SECURELY ATTACHED TO THE STAND BEFORE PERFORMING ANY CUTTING OPERATIONS. DO NOT OPERATE THIS MACHINE UNTIL YOU READ AND UNDERSTAND THE ENTIRE INSTRUCTION MANUAL.

Fig. 8

Fig. 9

Fig. 10

ASSEMBLING SAW STAND

1. Assemble the dust chute and support panel (A) Fig. 8, to the inside of the front stand panel (B) with three #10 x 1/2″ sheet metal screws (C).

2. Insert four #10-32 x 1/2″ screws (D) Fig. 9 through support panel and dust chute. Install four #10-32 hex nuts (E) Fig. 9. NOTE: The front stand panel will have the saw identity labels facing you. Do not completely tighten the stand hardware at this time. Also, make certain the dust chute/support panel (A) Fig. 9, is located under the lip of front stand panel (B).

3. Assemble the other end of dust chute and support panel (A) Fig. 10, to rear stand panel (F) as shown with four #10-32 x 1/2″ screws and #10-32 hex nuts, which are shown at (C). NOTE: Do not completely tighten stand hardware at this time.

Fig. 11

ASSEMBLING SAW TO STAND

1. Turn saw table face down on a piece of cardboard to protect the table surface. Place stand (B) Fig. 11, onto saw (A). Align eight holes in the stand (B) with mounting holes in the saw (A) and fasten with eight 5/16"-18 screws, flat washers, lockwashers, and hex nuts one of which is shown at (C) Fig. 11. Assemble flat washers onto screws, place screws through holes, assemble lockwashers then hex nuts finger tight. Do not completely tighten hardware at this time.

2. Install four rubber feet (D) Fig. 11, on the end of each stand leg (B).

3. Turn saw table face up.

MOTOR

The motor shipped with your saw is a 1-1/2 H.P. at 115 volts or 2 H.P. at 230 volts, Ball Bearing, Capacitor Start/Capacitor Run motor.

This motor has been especially selected to best supply power to your machine, and the relative safety of the machine is enhanced by its use. Use only this motor, as the use of other motors may be detrimental to the performance and safety of the saw.

Fig. 15

ASSEMBLING MOTOR TO MOTOR MOUNTING PLATE

WARNING: WHEN ASSEMBLING THE MOTOR TO THE MOTOR MOUNTING PLATE, MAKE CERTAIN THE MACHINE IS DISCONNECTED FROM THE POWER SOURCE.

1. Assemble the motor (A) to the motor mounting plate (B) as shown in Fig. 15, using four 5/16-18 carriage bolts, flat washers, star washers, and hex nuts (C). Assemble star washers on bolts, place bolts through holes, then assemble lockwashers and hex nuts.

NOTE: Do not completely tighten the hex nuts at this time.

Fig. 13

Fig. 14

ASSEMBLING BLADE TILTING HANDWHEEL

1. Attach blade tilting handwheel (A) Fig. 13 to shaft (B). Make certain slot (C) in handwheel is engaged with roll pin (D) on the shaft.

2. Thread locking lever (E) Fig. 14, on shaft.

3. Fig. 14 illustrates the blade tilting handwheel (A) and locking lever (E) assembled to the saw.

Fig. 18

Fig. 17

ASSEMBLING MOTOR AND MOTOR MOUNTING PLATE TO SAW

WARNING: WHEN ASSEMBLING THE MOTOR AND MOTOR MOUNTING PLATE TO THE SAW, MAKE CERTAIN THE MACHINE IS DISCONNECTED FROM THE POWER SOURCE.

1. Depress two pins (X) Fig. 16 and insert into holes (D) in each side of bracket (B). Pins are spring (Y) loaded from factory.

2. Position motor and motor mounting plate (A) Fig. 17 below bracket (B) to allow bracket arm to slide through large opening in motor mounting plate (A).

3. Depress pins (C) Fig. 17, on both sides of bracket (B) and rotate motor mounting plate (A) until pins (C) are engaged in holes (D) Fig. 16, of motor mounting plate (A).

4. Fig. 18 illustrates the motor and motor mounting plate assembled to the rear of the saw.

Fig. 16

Fig. 19

Fig. 20

Fig. 21

Fig. 22

ASSEMBLING MOTOR PULLEY, BELT AND PULLEY GUARD, AND DRIVE BELT

WARNING: WHEN ASSEMBLING MOTOR PULLEY, BELT AND PULLEY GUARD, AND DRIVE BELT, MAKE CERTAIN THE MOTOR IS DISCONNECTED FROM THE POWER SOURCE.

1. Remove the motor shaft key that is taped to the motor.

2. Insert the key (A) Fig. 19 in the keyway on the motor shaft. Assemble the motor pulley (B) on the motor shaft with the hub of the pulley facing out. Tighten set screw (C).

3. Remove wing nut and external tooth lockwasher (D) Fig. 20, and outer cover (E) from belt and pulley guard (G).

4. Slide the belt and pulley guard bracket (G) Fig. 21 between the motor plate (M) and motor mounting plate (L), as shown.

5. Position belt and pulley guard bracket (G) Fig. 22, so that the motor pulley (B) is centered and through the hole in the belt and pulley guard bracket.

6. Use a straight edge to align the motor pulley with the arbor pulley. If necessary, adjust the motor pulley (B) Fig. 22 in or out on the motor shaft. Tighten the four hex nuts [refer back to (C) Fig. 15] that fasten the motor to the motor mounting plate.

Fig. 23

Fig. 24

Fig. 25

Fig. 26

7. Lift the motor and assemble the drive belt (H) Fig. 23 to the arbor pulley and motor pulley (B). The weight of the motor will provide the correct belt tension.

8. WARNING: IMMEDIATELY AFTER ASSEMBLING

THE BELT, RAISE THE SAW BLADE TO ITS MAXIMUM HEIGHT AND TILT THE SAW BLADE TO 45 DEGREES. CHECK TO SEE IF THE MOTOR (J) FIG. 24 IS BELOW THE TOP OF THE TABLE SURFACE (K). IF THE MOTOR (J) IS ABOVE THE TOP OF THE TABLE SURFACE, MOVE THE MOTOR TO THE LEFT UNTIL THE END BELL (J) OF THE MOTOR IS BELOW THE TOP OF THE TABLE SURFACE. THEN RE-ALIGN THE MOTOR PULLEY TO THE ARBOR PULLEY.

9. Assemble the outer cover (E) Fig. 25, of the belt and pulley guard assembly, which was removed in STEP 3, and fasten with external tooth lockwasher and wing nut (D). IMPORTANT: Make certain the outer cover does not interfere with the drive belt and the motor pulley.

CONNECTING MOTOR CORD TO SWITCH ASSEMBLY

WARNING: BEFORE CONNECTING MOTOR CORD TO THE SWITCH ASSEMBLY, MAKE CERTAIN THE MACHINE IS DISCONNECTED FROM THE POWER SOURCE.

1. Insert the pronged motor plug (A) Fig. 26, into the female receptacle (B) of switch-to-motor cord (C).

Fig. 27

Fig. 28

Fig. 29

Fig. 30

2. Fig. 27, illustrates the motor cord connected to the switch assembly.

ASSEMBLING BLADE GUARD AND SPLITTER ASSEMBLY

WARNING: DISCONNECT MACHINE FROM

POWER SOURCE.

1. Fasten the rear splitter mounting bracket (A) Fig. 28, to the rear trunnion using the two 1/4-20 x 3/4″ hex head screws (B) and flat washers. Do not completely tighten the two screws (B) at this time.

2. Raise saw arbor to its highest position. With wrenches supplied, remove the saw blade from the saw. Refer to section “CHANGING THE SAW BLADE” of this manual.

3. Remove screw and large washer (C) Fig. 29, from the inside splitter mounting bracket.

4. Use a straight edge to check to see if the top and bottom of the inside splitter bracket (D) Fig. 30 is aligned with the inner arbor flange (E).

+ 36 hidden pages

Delta 36-426 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
