DeLonghi BAR M29 Service Manual
0132106012

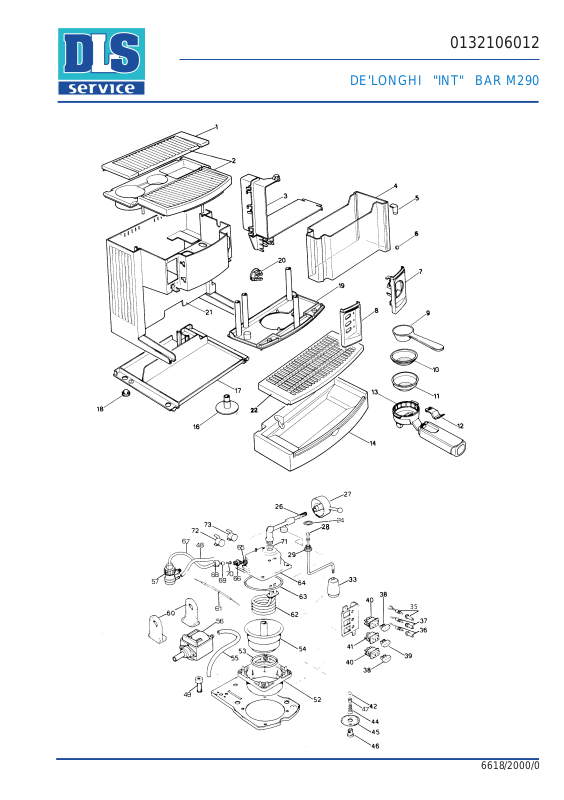

DE'LONGHI "INT" BAR M290
35
6618/2000/0
DLS
DE’LONGHI ’INT’ BAR M290 Cod.0132106012
SERVICE
Pos Codice Italiano English Francais Deutsch Espanol
01 534716 SPORTELLO DOOR PORTE KLAPPE PUERTA
02 534497 COPERCHIO COVER COUVERCLE DECKEL TAPA
03 534609 SUPPORTO SUPPORT SUPPORT HALTER SOPORTE
04 5532105000SERBATOIO TANK RESERVOIR TANK DEPOSITO
05 534629 TAPPO STOPPER BOUCHON STOEPSEL TAPON
06 534628 SFERA BALL BILLE KUGEL ESFERA
07 534718 CRUSCOTTO CONTROL PANEL Tableau de Commande BEDIENUNGSBLENDE Marco Panel Mandos
08 5932102900CRUSCOTTO CONTROL PANEL Tableau de Commande BEDIENUNGSBLENDE Marco Panel Mandos
09 534482 MISURINO MEASURING SPOON CUILLIERE MESSBECHER DE DOSAGE MEDIDOR
10 606534 FILTRO FILTER FILTRE FILTER FILTRO
11 606535 FILTRO FILTER FILTRE FILTER FILTRO
12 534714 LEVA LEVER LEVIER HEBEL PALANCA
13 7332109900COPPETTA SUMP COUPELLE SCHALE COPITA
14 534622 VASCA PAN CUVE BEHAELTER CUBA
16 534801 PESTELLO PRESSING DEVICE PRESSOIR STOPFER PISON
17 5332111700FONDO BOTTOM FOND BODEN FONDO
18 534213 PIEDINO FOOT PIED FUSS PIE
19 536343 FONDO BOTTOM FOND BODEN FONDO
20 533544 FERMACAVO WIRE CLAMP SERRE CABLE KABELBEFESTIGUNGSHUELSE SUJETACABLE
21 7132101200SCOCCA BODY CARROSSERIE KASTEN CARCASA
22 709090 POGGIATAZZE DRIP TRAY APPUIE TASSES TASSENAUFLAGE APOYA TAZAS
24 533213 O-RING O-RING JOINT OR O-RING O-RING
26 552413 RUBINETTO TAP ROBINET HAHN GRIFO
27 5532104800MANOPOLA KNOB BOUTON KNOPF MANDO
28 709076 TUBO TUBE TUBE ROHR TUBO
29 621969 DADO NUT ECROU MUTTER DADO
33 535789 CAPPUCCINATORE FROTHER BUSE POUR CAFE CREME CAPPUCINODUESE NO
35 512302 SPIA WARNING LIGHT TEMOIN LUMINEUX KONTROLLEUCHTE PILOTO
36 512353 SPIA WARNING LIGHT TEMOIN LUMINEUX KONTROLLEUCHTE PILOTO
37 512354 SPIA WARNING LIGHT TEMOIN LUMINEUX KONTROLLEUCHTE PILOTO
38 532723 TASTO GRIGIO Push Button Grey POUSSOIR GRIS TASTE GRAU TECLA GRIS
39 591708 TASTO PUSH BUTTON POUSSOIR TASTE TECLA
40 512309 INTERRUTTORE SWITCH INTERRUPTEUR SCHALTER INTERRUPTOR
41 512308 INTERRUTTORE SWITCH INTERRUPTEUR SCHALTER INTERRUPTOR
42 535129 VALVOLA VALVE SOUPAPE VENTIL VALVULA
44 611917 MOLLA SPRING RESSORT FEDER MUELLE
45 611761 DIFFUSORE DIFFUSER DIFFUSEUR DIFFUSOR DIFUSOR
46 621964 GRANO DOWEL VIS STIFTSCHRAUBE CLAVIJA
47 621986 ANELLO RING ANNEAU RING ANILLO
48 536288 TUBO TUBE TUBE ROHR TUBO
49 534632 FILTRO FILTER FILTRE FILTER FILTRO
52 707116 SUPPORTO SUPPORT SUPPORT HALTER SOPORTE
53 533218 GUARNIZIONE GASKET JOINT DICHTUNG GUARNICION
54 685202 CALDAIA INF. BOILER LOWER CHAUDIERE INF. HEIZKESSEL UNTEN CALDERA INF.
55 536288 TUBO TUBE TUBE ROHR TUBO
56 512502 POMPA PUMP POMPE PUMPE BOMBA
57 736620 VALVOLA VALVE SOUPAPE VENTIL VALVULA
60 534848 SUPPORTO SUPPORT SUPPORT HALTER SOPORTE
61 511816 TERMOFUSIBILE FUSE FUSIBLE SCHMELZSICHERUNG FUSIBLE
62 512159 RESISTENZA HEATING Element ELEMENT Chauffant HEIZELEMENT RESISTENCIA
63 533216 GUARNIZIONE GASKET JOINT DICHTUNG GUARNICION
64 690050 CALDAIA SUP. BOILER UPPER CHAUDIERE SUP. HEIZKESSEL OBEN CALDERA SUP.
65 621963 GUARNIZIONE GASKET JOINT DICHTUNG GUARNICION
66 621962 RACCORDO CONNECTION RACCORD ANSCHLUSS JUNTURA
67 536322 TUBO TUBE TUBE ROHR TUBO
68 621968 DADO NUT ECROU MUTTER DADO
69 621967 OGIVA NOSE OGIVE HAUBE OJIVA
70 621970 ANELLO RING ANNEAU RING ANILLO
71 534710 GUARNIZIONE GASKET JOINT DICHTUNG GUARNICION
72 512708 TERMOSTATO 125 THERMOSTAT 125 THERMOSTAT 125 THERMOSTAT 125 TERMOSTATO 125
73 5232100600TERMOSTATO 105 THERMOSTAT 105 THERMOSTAT 105 THERMOSTAT 105 TERMOSTATO 105
DE’LONGHI ’INT’ BAR M290 Cod.0132106012 6618/2000/0
- Pag. 1/1 -
