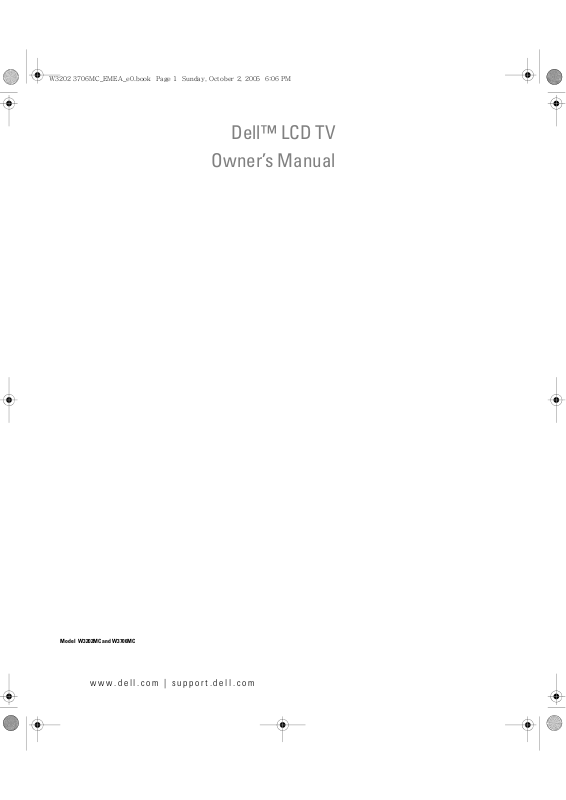

Dell W3706C User Manual

Dell™ LCD TV

Owner’s Manual

Model W3202MC and W3706MC

www.dell.com | support.dell.com

Notes, Notices, and Cautions

NOTE: A NOTE indicates important information that helps you make better use of your TV.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the

problem.

CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.

____________________

Information in this document is subject to change without notice.
© 2005 Dell Inc. All rights reserved.

Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell, the DELL logo, Dimension, OptiPlex, Inspiron, Latitude, Dell Precision, DellNet, TrueMobile, PowerApp,

PowerEdge, PowerConnect, and PowerVault are trademarks of Dell, Inc.; TruSurround XT, SRS, and symbol are trademarks

of SRS Labs, Inc. EMC is a registered trademark of EMC Corporation.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products.
Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.

August 2005 Rev. A00

Contents

1 About Your TV

Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Left View

Bottom View

Package Contents

Caring for Your TV

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2 Setting Up Your TV

Proper Location for Your TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Connecting Your TV

Connecting Your Speakers

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

3 Using Your Remote Control

Installing Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Using Your Remote Control

Using Your TV With a Universal or Learning Remote Control

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

. . . . . . . . . . . . . 26

4 Using the TV Menu

Using Your Remote Control With the TV Menu . . . . . . . . . . . . . . . . . . . . . . 27

Selecting Your TV Menu Language

Input Select

Picture Settings

Audio Settings

PIP/POP/PBP

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Contents 3

Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Parental Control

Setup

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

5 Troubleshooting Your TV

Troubleshooting Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

General Problems

TV Menu Messages

Remote Control Problems

Using the Self-Test Feature when Connected to a Computer

Problems When Using the TV as a Monitor

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

. . . . . . . . . . . . . 41

. . . . . . . . . . . . . . . . . . . . . . . . 41

6 Specifications for Your TV

Contacting Dell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

4 Contents

About Your TV

Front View

1

6

12

1 Input Source button Push to display the Input Select menu

2

3

4 Menu/OK button Push to display the TV Menu or to confirm your selection

5

6

Channel up/down button

Volume up/down button

Power button and light
(LED)

IR receiver Senses the signal from the remote control

Push to select the previous/next channel or navigate through
the TV Menu

Push to increase/decrease the volume or to select an TV Menu
option

Push to turn the TV on and off The power light is blue when
the TV is on and amber when it is in power saving mode

3

45

About Your TV 5

www.dell.com | support.dell.com

Left View

1

2

3

4

1 S-Video connector Connect devices such as a video game system, a digital camera,

2 Composite video connector Connect devices such as a VCR or DVD player
3 Audio connector (Left) Use this connector if you have connected a device to the

4 Audio connector (Right) Use this connector if you have connected a device to the

6 About Your TV

or a DVD player

composite video connector or the S-Video connector

composite video connector or the S-Video connector

Bottom View

810

11 13 173

1 25467912

1 TV Speaker out connectors Connect speakers
2 RS232 connector For factory use only
3 CI Card slot Insert CI module for conditional access
4 TV IN connector

(Digital/Analog)

5 Coaxial digital audio out

connector

6 HDMI IN connector Connect devices such as a DVD player or set-top box
7 PC Audio connector for VGA or

DVI

8 VGA connector Connect to the VGA cable from your computer to the TV
9 DVI connector Connect your computer or video devices such as a DVD player
10 Audio-out connectors (L/R) Connect devices such as a stereo speaker or Hi-Fi equipment if you

11 Subwoofer audio out connector

(SUB)

12 Component audio and video

connectors (AV3 IN)

Connect an antenna or a cable TV box using the coaxial cable

Connect an optional audio decoder or audio/video receiver when
using Digital TV

Connect the audio cable from your computer, DVD player or Set-top
box to the TV

have connected an antenna or cable TV through the TV IN
connector

Connect an optional powered subwoofer to the TV

Connect devices such as a DVD player, set-top box, or cable TV
box

14 15

16

About Your TV 7

www.dell.com | support.dell.com

13 Composite video and audio

connectors (AV1 IN)

14 S-Video and audio connectors

(AV2 IN)

15 SCART 1 connector Connect devices such as a DVD player or VCR.

16 SCART 2 connector Connect devices such as a DVD player or VCR.

17 Power connector Connect your power cord

Connect devices such as a VCR or DVD player

Connect devices such as a video game system or a DVD player

The SCART connector supports RGB in, composite video in,
composite video out, stereo audio in and stereo audio out.

The SCART connector supports Y/C in, composite video in,
composite video out, stereo audio in and stereo audio out.

Package Contents

NOTE: If you need additional cables, contact Dell.

Remote control

AAA batteries (3)

8 About Your TV

Antenna (coaxial) cable

SCART cable

Speakers

Documentation

*

To connect speakers to your TV, see "

on page 19

.

Connecting Your Speakers"

About Your TV 9

www.dell.com | support.dell.com

Caring for Your TV

CAUTION: Only a licensed technician should service the TV. Do not disassemble the TV.

CAUTION: Before cleaning the TV, unplug it from the electrical outlet.

• To clean the surface of the panel, lightly dampen a soft, clean, lint-free cloth with water.

• To clean the TV cabinet, use a cloth lightly dampened with a mild detergent.

• Do not use chemicals such as benzene, thinner, ammonia, or any type of abrasive cleaner.

• Do not use compressed air to clean the TV.

10 About Your TV

Setting Up Your TV

CAUTION: Before you begin any of the setup procedures described in this section, follow the basic

safety instructions located in the

Proper Location for Your TV

Consider the following environmental factors when you are deciding where to put your TV:

• Ensure you allow adequate ventilation.

• Do not store or use the TV in locations that are exposed to high heat, high humidity, dusty
environment, direct sunlight, or extreme cold.

• Avoid moving the TV between locations with extreme temperature differences. For more
information, see

• Do not subject the TV to severe vibration or high impact conditions. Do not place the TV
inside a car trunk.

• Do not place the TV in a location where water or other liquids could spill on or into the TV.

Specifications

Product Information Guide

on page 43.

.

2

Setting Up Your TV 11

www.dell.com | support.dell.com

Connecting Your TV

The tables below provide a description of the connectors on your TV to help you decide which
connectors to use for your various video devices.

NOTE: Before you connect your TV , ensure you have all the proper cables. Some cables may come with

the device you are connecting. For a list of cables that came with your TV, see Package Contents on
page 8. To order additional cables, contact Dell.

Connecting Your Cable TV Box or Antenna

Quality Cable and Connector When to Use

Good Coaxial cable / TV IN Coaxial (RF) cable carries the analog/digital

video and audio signal from the antenna or
cable connector to your TV. The coaxial
connector is labeled TV IN (Digital/Analog).
To locate the TV IN connector, see "Bottom
View" on page 7.

Connecting Your Video Devices

Quality Cable and Connector When to Use

Good Composite cable / AV1 IN (Bottom)

Video, Left, Right (Left)

The composite connector carries the video
signal through a single pin. If you are using a
composite video connector, you also need to
connect composite audio cables. To locate the
composite connectors, see "Left View" on
page 6 and "Bottom View" on page 7.

12 Setting Up Your TV

Quality Cable and Connector When to Use

Better S-Video cable / AV2 IN (Bottom)

S-Video, Left, Right (Left)

Best Component (YPbPr) cable / AV3 IN The component connectors split the video

The S-Video connector splits the video signal
into two signals, black-and-white and color. If
you are using the S-Video connector, you also
need to connect the audio cables. To locate the
S-Video connectors, see "Left View" on page 6
and "Bottom View" on page 7.

signal into three signals, two color and one
black-and-white. If you are using the
component connectors, you also need to
connect the audio cables. To locate the
component connectors, see "Bottom View" on
page 7.

Excellent HDMI cable / HDMI IN HDMI (High Definition Multimedia Interface)

assures that the best video signal is always sent
from source (HDTV signal, DVD player) to the
TV. This is achieved by allowing uncompressed
video and multi-channel audio data to be sent
to the display device through a single cable. To
locate the connector, see "Bottom View" on
page 7.

Setting Up Your TV 13

www.dell.com | support.dell.com

Using the TV IN Connector (Coaxial)

1

Turn off the TV and unplug the power cord.

2

Connect the coaxial cable to the TV IN connector on the TV.

3

Plug in the power cord for the TV and turn on the TV.

4

Enter the TV Menu and select

TV

or

Digital TV

information.

Using the Composite Connector

. See "

Input Select

" on page 28 for more

1

Turn off the TV and unplug the power cord.

NOTE: If you are connecting a device that you want to be able to remove, such as a video game system

or a camcorder, use the composite connector on the left side of the TV (see "Left View" on page 6).

Connect your device to the TV using the audio and video cable.

2

3

Plug in the power cords for the TV and devices and turn them on.

4

Enter the TV Menu and select
on page 28 for more information.

14 Setting Up Your TV

AV1 (Composite 1)

or

AV4 (Composite 2)

. See "

Input Select

"

Using the S-Video Connector

1

Turn off the TV and unplug the power cord.

NOTE: If you are connecting a device that you want to be able to remove, such as a video game system,

or a camera, use the S-Video connector on the left side of the TV (see "Left View" on page 6).

Connect your device using the S-Video and audio cables.

2

3

Plug in the power cords for the TV and devices and turn them on.

4

Enter the TV Menu and select

AV2 (S-Video 1)

or

AV5 (S-Video 2)

. See "

Input Select

page 28 for more information.

Using the Component Connectors

" on

1

Turn off the TV and unplug the power cord.

2

Connect your device using the component video and audio cables.

3

Plug in the power cords for the TV and devices and turn them on.

4

Enter the TV Menu and select the

AV3 (Component)

. See "

more information.

Input Select

" on page 28 for

Setting Up Your TV 15

www.dell.com | support.dell.com

Using the HDMI Connector

1

Turn off the TV and unplug the power cord.

2

Connect your device using the HDMI connector.

3

Plug in the power cords for the TV and devices and turn them on.

4

Enter the TV Menu and select the

HDMI

. See "

Input Select

information.

Using the DVI Connector

NOTE: Only one connector can be used for a computer, either VGA or DVI.

Connecting a Computer

" on page 28 for more

1

Turn off the TV and unplug the power cord.

2

Connect the white DVI cable and the audio cables to the device or computer and to the TV.

16 Setting Up Your TV

NOTE: Some cable TV boxes may have DVI connectors, but do not support using a DVI connection. For

more information, contact your cable TV company.

Plug in the power cords for the TV and devices and turn them on.

3

4

Enter the TV Menu and select

DVI

. See "

Input Select

" on page 28 for more information.

Using the VGA Connector

NOTE: Only one connector can be used for a computer, either VGA or DVI.

1

Turn off the TV and unplug the power cord.

2

Connect the blue VGA cable to your TV and to your computer.

3

Connect the green audio cable to the connector on the TV and to your computer.

4

Plug in the power cords for the TV and devices and turn them on.

5

Enter the TV Menu and select the

VGA

.

See "

Input Select

" on page 28 for more information.

Setting Up Your TV 17

www.dell.com | support.dell.com

Using the SCART Connector

1

Turn off the TV and unplug the power cord.

2

Connect your device using the SCART cable.

3

Plug in the power cords for the TV and devices and turn them on.

4

Enter the TV Menu and select the

information.

SCART1 or SCART2

.

See "

Input Select

" on page 28 for more

Using the CI Card Slot

Insert CI module into the CI card slot for watching TV programmes from Service Provider.

18 Setting Up Your TV

Connecting Your Speakers

CAUTION: Before you set up and operate your Dell™ device, read and follow the safety instructions in

the

Product Information Guide

List of standard accessories

•speaker (2)

•stand (2)

•bracket (4)

•screw (2)

•speaker cable (2)

.

Setting Up Your TV 19

www.dell.com | support.dell.com

Installing your speakers to the stand

1

Insert the stand into the bottom hole of the speaker.

2

Tighten the screw on the speaker.

W3202MC

Installing your speakers to the TV

1

Loosely attach the brackets to the speakers.

2

Attach the brackets to the TV and tighten the screws.

3

Tighten the screws on the speaker.

NOTE: You may use a screwdriver to ensure all screws are completely tightened..

W3706MC

20 Setting Up Your TV

Connecting the speaker cables to the speaker and the TV

1

Connect one end of the speaker cables to the matching connectors on the back of the speaker.

2

Connect the other end of the speaker cables to the matching connectors on the back of the
TV.

W3202MC

W3706MC

W3202MC

W3706MC

Setting Up Your TV 21

www.dell.com | support.dell.com

22 Setting Up Your TV

Using Your Remote Control

Installing Batteries

Before you can use your remote control, install three-AAA batteries.

1

Slide open the battery cover.

2

Install the batteries. Make sure that you match the + and - on the batteries with the + and ­symbols in the battery compartment.

3

Replace the battery cover.

3

Using Your Remote Control 23

Using Your Remote Control

1

www.dell.com | support.dell.com

2

3
4

5
6

7

8

9

10

11
12

13

14
15

16

17
18

19
20

21
22

23

24
25

26
27

28
29

24 Using Your Remote Control

1 Power Turns the TV on and off
2 MENU Enters and exits the TV main menu
3 OK Press to confirm your selection
4 GUIDE Displays an electronic program guide when using Digital TV

(Digital/Analog connector)

NOTE: Content may vary depending on the broadcaster.

5 PICT Cycles through the preset options for the Picture Settings

menu

6 SLEEP Turns on the sleep timer
7 PREV CH Returns you to the previously viewed channel
8 Vol - Decreases the volume
9 CH down Push to view the previous channel
10 Number buttons Press to select a channel
11 - (dash) Press to select the sub-title of the Digital TV
12 POP/PBP Enters and exits POP or PBP mode
13 PIP SEL Toggles between windows when you use Picture-in-Picture

(PIP), Picture-Outside-Picture (POP), or Picture-By-Picture
(PBP)

14 Teletext buttons The four standard teletext buttons (Red,Green,Yellow,Blue)

NOTE: Press Green key to display the Sound Track when
using Digital TV.

15 HOLD A multi-page set automatically flips to the next page after a

specified time. This button toggles between:

• Freeze the page

• Return to automatic flipping mode

16 INPUT Enters the Input Select menu
17 Arrow buttons In the TV Menu, use to navigate through the menus
18 INFO Displays information about your TV and channel you are

watching

19 AUDIO Cycles through the preset Audio options
20 WIDE Cycles through the size (aspect ratio) options from the Picture

Settings menu

21 MUTE Press to turn the sound on and off
22 CH up Push to view the next channel

Using Your Remote Control 25

www.dell.com | support.dell.com

23 Vol + Increases the volume
24 ENTER Press to confirm the channel frequency entry
25 POS Press to change the position of the PIP, POP, or PBP window
26 SWAP Swaps images when using PIP, or PBP
27 PIP Enters and exits PIP mode
28 EXPAND Cycles through three enlargement modes:

• Top half of page in larger letters.

• Bottom half of page larger letters.

• Regular viewing

29 TEXT Cycles through three Teletext modes:

• On

• Mix (Teletext and program simultaneously)

• Off

Using Your TV With a Universal or Learning Remote Control

Preprogrammed universal remote controls can be programmed to control the following
functions on your Dell TV:

•Power

• Channel Up (+)

• Channel Down (-)

• Volume Up (+)

•Volume Down (-)

•Mute

• Input Select

NOTE: Future preprogrammed universal remote controls may be able to control more functions.

You can program universal remote controls to work with your Dell TV in the following ways:

• If the remote control manual lists codes by manufacturer, use the Philips codes.

• If the remote control has a search function, this function may be used to find the
correct code.

• If the remote control has a learning function, you can program specific buttons on it from
the Dell remote control, in addition to those buttons listed above.

NOTE: For additional information, see the documentation that came with your universal or learning

remote control.

26 Using Your Remote Control

Using the TV Menu

Your TV has the TV Menu that allows you to select the proper input source, make adjustments to
the image and audio settings, select to view Picture-In-Picture, Picture-Outside-Picture, and
Picture-By-Picture, and set parental controls.

Using Your Remote Control With the TV Menu

NOTE: You can access and make selections to the TV Menu using the volume and channel buttons on

the front panel of the TV or you can use the remote control. Except where noted, this section describes
how to use the TV Menu with the remote control.

To enter the TV Menu, press the

1

Eight icons appear along the bottom of the screen.

NOTE: Parental Control icon is displayed only when the Input Source is Digital TV.

Menu

button.

4

Use the left and right buttons to move between the icons. The icon appears highlighted as

2

you move through the menu.

3

To select an option, push the

4

A new menu appears for that selected option. Use the up and down buttons to move through
the various settings.

NOTE: A red arrow appears next to the setting as you navigate through the options. A check mark

appears next to the option that you have selected.

5

Use the left and right buttons and the OK button to adjust or select settings.

NOTE: You can select Exit or press the Menu button at any time to return to the main menu.

6

After you have made your selections, push the

7

To exit the TV Menu, select the

FILE LOCATION: C:\Documents and Settings\parksh2\¼ŸÝ¡ »¦³È\×¢¡æ\Dell\W3202_3706MC_EMEA_OM\MC_EMEA_proof

OK

button when the icon is highlighted.

Menu

button to return to the main menu.

Exit

icon and press OK button.

(050624)\W3202 3706MC_EMEA_e40.fm

Using the TV Menu 27

FILE LOCATION: C:\Documents and Settings\parksh2\¼ŸÝ¡ »¦³È\×¢¡æ\Dell\W3202_3706MC_EMEA_OM\MC_EMEA_proof

Selecting Your TV Menu Language

1

Press

Menu

to enter the TV Menu.

2

Select

Setup

.

3

In the

Setup

menu, select

Menu to appear in.

Language

and scroll to select the language that you want the TV

Input Select

The

www.dell.com | support.dell.com

Input Select

video equipment connected. Press
You can also press

menu allows you to select the proper source based on how you have your TV and

Input

Menu

and select

on the remote to go directly to the

Input Select

from the main menu.

Input Select

menu.

If you are using the

Main Menu

"

Bottom View

DIGITAL TV —

"

Bottom View

SCART 1 and SCART 2 —

to the SCART connectors on the bottom of the TV. See "
of the SCART connectors.

TV or Digital TV

, select

Setup

, select

" on page 7 for the location of the TV IN connector.

Select when you have your antenna connected to the TV IN connector. See

" on page 7 for the location of the TV IN connector.

Select when you have a video device, such as a DVD player, connected

input source, you can preset the viewable channels. Go to the

Channel Setup

, and then select

VGA —

computer connected to the VGA connector.
See "
location of the VGA connector.

DVI

as a computer monitor and you have
connected the computer or when you have
connected a device, such as a DVD player
using the DVI cable. See "
page 7 for the location of the DVI
connector.

HDMI

a device, such as a DVD player using the
HDMI connector. See "
page 7 for the location of the HDMI
connector.

TV

connected to the TV IN connector. See

Auto Search or Manual Search

Select when you have your

Bottom View

— Select when your TV is being used

— Select when you have connected

— Select when you have your antenna

Bottom View

" on page 7 for the

Bottom View

Bottom View

" on page 7 for the location

" on

.

" on

DELL CONFIDENTIAL – PRELIMINARY 10/2/05 – FOR PROOF ONLY

28 Using the TV Menu

FILE LOCATION: C:\Documents and Settings\parksh2\¼ŸÝ¡ »¦³È\×¢¡æ\Dell\W3202_3706MC_EMEA_OM\MC_EMEA_proof

AV1 (COMPOSITE 1) —

connected to the composite video and audio connectors on the bottom of the TV. See "

View

" on page 7 for the location of the composite video and audio connectors (

AV2 (S-VIDEO 1) —

Video and audio connectors on the bottom of the TV. See "
of the S-Video and audio connectors (

AV3 (COMPONENT) —

Select when you have a video device, such as a video game system,

Bottom

AV1 IN

).

Select when you have a video device, such as a VCR, connected to the S-

AV2 IN

Bottom View

).

" on page 7 for the location

Select when you have a video device, such as a DVD player, set-top box,
or cable TV box connected to the component audio and video connectors on the bottom of the TV.
See "

Bottom View

IN

).

AV4 (COMPOSITE 2) —

connected to the composite video and audio connectors on the side of the TV. See "
page 6 for the location of the composite video and audio connectors (

AV5 (S-VIDEO 2) —

Video and audio connectors on the side of the TV. See "
S-Video and audio connectors (

SHOW INPUTS —

" on page 7 for the location of the component audio and video connectors (

Select when you have a video device, such as a video game system,

Left View

Video, Left, Right

).

Select when you have a video device, such as a VCR, connected to the S-

S-Video, Left, Right

Show Inputs

).

allows you to select

Left View

Active

" on page 6 for the location of the

and

All. Active

searches for which

AV3

" on

connectors are being used. The available input sources appear in white and input sources that are
not available appear in grey.

All

shows all the input sources and allows you to select all the input

sources even if you do not have a device connected.

NOTE: In TV Menu Settings, located in the Setup menu, you can set the Input Select to display the

device that you have attached. For example, AV3 (COMPONENT) would say DVD when you view the Input
Select menu.

DELL CONFIDENTIAL – PRELIMINARY 10/2/05 – FOR PROOF ONLY

Using the TV Menu 29

FILE LOCATION: C:\Documents and Settings\parksh2\¼ŸÝ¡ »¦³È\×¢¡æ\Dell\W3202_3706MC_EMEA_OM\MC_EMEA_proof

Picture Settings

The

www.dell.com | support.dell.com

Picture Settings

brightness.

Use

Horizontal Shift

allow you to adjust the appearance of the image including color and

If you select one of the following preset
image settings the individual settings are
automatically updated.

•Movies

•Sports

•Weak Signal

•Multimedia

If you select
individual settings, such as

Color

The

Color Temperature

•

Natural

•

Normal

•

Blue

•

Red

to adjust the horizontal placement of the image.

Personal

.

: the native panel temperature
: 6500K

: 9300K

: 5700K

, you can adjust the

Brightness

presets are:

and

Audio Settings

The

Audio Settings

DELL CONFIDENTIAL – PRELIMINARY 10/2/05 – FOR PROOF ONLY

30 Using the TV Menu

allow you to set the audio to best fit the type of show you are watching.

SRS TruSurround XT —

virtual surround sound over two speakers
from any source, which creates a wider
sound with deep rich bass.

Midnight Mode — Evens out the large

volume variations between voice and action
scenes.

If you select one of the following preset

Equalizer Mode

audio levels are automatically updated:

•Music

• Theater

•Voice

settings, the individual

Delivers

FILE LOCATION: C:\Documents and Settings\parksh2\¼ŸÝ¡ »¦³È\×¢¡æ\Dell\W3202_3706MC_EMEA_OM\MC_EMEA_proof

If you select

TV Out Volume

control on an attached audio receiver. Select
TV remote or front panel buttons. Using
attached audio receiver.

Use

Sound Mode

Nicam-D2

Use

Mute

speaker.

Personal

.

to turn the TV sound on or off and use

, you can adjust the individual audio levels, such as

— Select

to select

Fixed

if you want to adjust the volume using the remote or volume

Va r i a bl e

Va r i a bl e

Mono, Stereo, Dual1, Dual2, Nicam, Nicam-ST, Nicam-D1

Tr eb le, Bass

if you want to adjust the volume using the

adjusts the TV volume out not the volume on an

Speaker Out

to turn on or off the sound from the

and

and

Balance

PIP/POP/PBP

You can view two active sources simultaneously using Picture-In-Picture (PIP), Picture-Outside­Picture (POP), or Picture-By-Picture (PBP).

The remote control offers the following

moves the window left and + moves the window to the right. When you are adjusting the vertical
orientation, 0 is at the top of the screen and 100 is at the bottom of the screen.

For

POP

, you can select from three different POP options:

POP1

•

•

•

POP Scan Mode

channels that appear in the windows.
preselected channels. The rotation runs through all the available channels before it starts again at
the lowest channel.

— One large POP window to the left and a smaller, centered window on the right.

POP3

— One large POP window to the left and three smaller, vertically-aligned windows on

the right.

POP12

— One large, centered POP window surrounded by twelve smaller windows.

allows you to select

DELL CONFIDENTIAL – PRELIMINARY 10/2/05 – FOR PROOF ONLY

PIP/POP/PBP

Sequential

Sequential

options:

•Use the
button on the remote control to turn on and
off PIP, POP, and PBP.

• If you are in PIP, or PBP mode, use the

SWAP

switch between the two windows.

•Use the
change which corner of the screen the PIP
window appears.

In the TV Menu, you can adjust the

Transparency
V

(vertical) position of the

you are selecting the horizontal orientation, -

or

Float. Float

rotates through each window and plays all of the

PIP

button or the

button on the remote control to

POS

button on the remote to

, the

Size

, and H (horizontal) and

mode plays the source for selected

POP/ PBP

PIP

windows. When

Using the TV Menu 31

.

FILE LOCATION: C:\Documents and Settings\parksh2\¼ŸÝ¡ »¦³È\×¢¡æ\Dell\W3202_3706MC_EMEA_OM\MC_EMEA_proof

PIP/POP/PBP Compatibility

When using PIP/POP/PBP you can select any of the input sources that appear in the PIP/POP/PBP
windows. The only input sources that cannot work together are

DVI

, and

HDMI

with

DVI

.

HDMI

with

HDMI, DVI

with

www.dell.com | support.dell.com

NOTE:

When using POP the sub screen can select only the TV, AV1, AV2, AV4 and AV5 input sources.

Size

Size

allows you to adjust the appearance of the image.

Use the following settings to adjust the aspect ratio:

Standard

Zoom

4:3

Wide

Full Screen

— Best selection for viewing digital TV, 16:9 or 22:9 DVD movies.

— Best selection for viewing TV, VCR or 4:3 DVD movie.

Aspect Ratio — Best selection for viewing TV, VCR or 4:3 DVD movie.

— Best selection for viewing digital TV, 16:9 and 22:9 DVD movies.

— Best selection for viewing digital TV or 16:9 DVD movies.

NOTE:

Most DVDs have information about the supported aspect ratio on the case.

DELL CONFIDENTIAL – PRELIMINARY 10/2/05 – FOR PROOF ONLY

32 Using the TV Menu

FILE LOCATION: C:\Documents and Settings\parksh2\¼ŸÝ¡ »¦³È\×¢¡æ\Dell\W3202_3706MC_EMEA_OM\MC_EMEA_proof

Parental Control

NOTE: Parental Control menu is displayed only when the Input Source is Digital TV.

Parental Control

programs that are not age appropriate.

allows you to block certain channels or programs so children cannot view

To enter the
code

3355

You can set the following options to block content in the

•

Block All

•

7, 12, 15, and 18

•

Show All

Parental Control

. "

Setting an

— Blocks your all channels

— Shows your all channels

Access Code" on

—

Blocks movies based on their age rating

menu, you need an access code. The first time you enter, use access

page 33 for information on creating a new access code.

DTV Rating

menu :

Setting an Access Code

After you enter the
code. If for any reason you lose or forget your access code, you can use the default code.

1

In the

2

Using the number pad on the remote control, enter a new access code.

3

Select

Parental Contro

Parental Control

Exit

.

l menu for the first time, you can set your own four-digit access

menu, select

Change Code

.

DELL CONFIDENTIAL – PRELIMINARY 10/2/05 – FOR PROOF ONLY

Using the TV Menu 33

FILE LOCATION: C:\Documents and Settings\parksh2\¼ŸÝ¡ »¦³È\×¢¡æ\Dell\W3202_3706MC_EMEA_OM\MC_EMEA_proof

Setup

Setup

allows you to adjust the appearance of the TV Menu, change the language of the TV Menu

(see "

www.dell.com | support.dell.com

Selecting Your TV Menu Language

the channels, press the

Program Table

If you are using the TV IN connector, you need to preset the viewable channels for both the

TV

and the

Sleep Timer

You can select from 10 minutes to 3 hours.

Common Interface

information about each

to edit the channels.

TV

allows you to select an increment of time after which the TV turns off automatically.

Menu

or OK button on the remote control to stop the searching. Select

input source.

allows you to view the current status of your CI module. The displayed

Common Interface

" on page 28), and to restore factory settings.

In the

TV Menu Settings

Time

to increase or decrease the amount of time
the TV Menu appears.The maximum amount of
time is 60 seconds.

You can select
on the bottom panel. When this option is
enabled, only the power button functions. Hold
the volume up and the channel up buttons
together for 10 seconds to unlock the buttons.

Channel Setup

for individual channels and preset the viewable
channels. Select
to search the viewable channels. While searching

may differ depending on the Common Interface type.

TV Button lock

allows you to adjust the settings

Auto Search

menu, use

OSD Hold

to lock the buttons

or

Manual Search

Digital

DELL CONFIDENTIAL – PRELIMINARY 10/2/05 – FOR PROOF ONLY

34 Using the TV Menu

Troubleshooting Your TV

CAUTION: If at any time you see smoke or sparks coming from your TV, contact Dell. Do not try to

perform any troubleshooting steps.

Troubleshooting Tips

NOTE: Some problems may be related to your device. See the documentation for any devices connected

to your TV.

Most problems with your TV may be caused by not having the correct input selection. Each
connector on the TV (left and bottom) is associated with an input selection, which are labeled
through

•

•

•

•

•

You can also select the following input:

•

•

•

•

•

•

•

AV5

in the

Input Select

AV1 (Composite 1)

AV2 (S-Video 1)

AV3 (Component)

AV4 (Composite 2)

AV5 (S-Video 2)

TV

— TV IN connector on the bottom of the TV

DIGITAL TV

VGA

— VGA connector on the bottom of the TV

DVI

— DVI connector on the bottom of the TV

HDMI

SCART1

SCART2

— HDMI connectors on the bottom of the TV

— SCART connector on the bottom of the TV

— SCART connector on the bottom of the TV

— S-Video connector on the bottom of the TV

— S-Video connector on the left of the TV

— TV IN connector on the bottom of the TV

menu.

— Composite connector on the bottom of the TV

— Component connector on the bottom of the TV

— Composite connector on the left of the TV

AV1

5

Troubleshooting Your TV 35

www.dell.com | support.dell.com

General Problems

Problem Possible Solution

Poor picture quality while watching TV
and using a device such as a DVD
player or a VCR

1

Check the aspect ratio settings in the TV Menu. Press the
button on the remote control and select
information on using the TV Menu, see "Using the TV Menu"
on page 27.

2

Reconnect the device using the same type of connector. For
example, if you are using the composite connector on the
bottom, try connecting the device to the composite connector
on the left of the TV. See "About Your TV" on page 5 for the
location of the connectors.

After you connect the device, change the input source in the TV
Menu. See "Input Select" on page 28 for more information.

3

Connect the device using a different connector. For example, if
you are experiencing the problem using a composite connector,
try using the component connector.

NOTE: To connect to a different connector, you need the

appropriate cables for that connector. See your device
documentation for a list of supported connections.

After you connect the device, change the input source in the TV

Menu. See "Input Select" on page 28 for more information.

4

Reset the original factory defaults. Press
remote control, select

5

Adjust the color temperature. Press
control, select

Te mp e r at u re

NOTE: Some set top boxes offer aspect ratio. See your device

documentation for more information.

Setup

Picture Settings

.

Size

Menu

, and then select

Menu

button on the remote

, and then select

. For more

button on the

Factory Reset

Color

Menu

.

36 Troubleshooting Your TV

Problem Possible Solution

Poor picture quality when using a
device connected to the TV IN(coaxial)
connector

1

Ensure TV is selected as the input source in the
menu. See "Input Select" on page 28 for more information.

2

Press

Menu

button on the remote control, select

then select

3

Check the aspect ratio settings in the TV Menu. Press the

Channel Setup

button on the remote control and select
information on using the TV Menu, see "Using the TV Menu"
on page 27.

4

Reset the original factory defaults. Press
remote control, select

5

Adjust the color temperature. Press
control, select

Te mp e r at u re

6

The problem may be with your device, contact your service
provider.

Nothing appears on my TV 1

Ensure the TV is turned on.

2

Verify that all the cables are properly connected to the TV,
including the power cable.

3

Check to see if there is a blue or amber light on the lower,
right-hand corner of the TV. A blue light indicates the TV is on.
An amber light, means the TV is in power save mode.

4

Ensure the proper source is selected in the
See "Input Select" on page 28 for more information.

5

Reconnect any devices that are currently connected to the TV. If
you are using multiple devices, connect and test one device at a
time.

6

Connect another device that you know is working properly.

7

Reset the original factory defaults. Press
remote control, select

Setup

Picture Settings

.

Setup

Input Select

Setup

, and

. This resets the channels on your TV.

Menu

Size

. For more

Menu

button on the

, and then select

Menu

, and then select

, and then select

Factory Reset

button on the remote

Color

Input Select

Menu

button on the

menu.

Factory Reset

.

.

Troubleshooting Your TV 37

www.dell.com | support.dell.com

Problem Possible Solution

No sound 1

Ensure mute is not turned on. Pressing the

Mute

button on

the remote control turns the mute function on and off.

2

If only certain TV channels do not have sound, then you need to
correct the

Input Select

menu in the TV Menu (see "Input

Select" on page 28).

3

Verify that the audio cables are firmly connected to both the
audio input connectors on your TV and audio output
connectors on your devices. Ensure that the cable colors match
the connectors colors.

4

Also, ensure that the audio cables are connected to the same
row as the video cables. See "About Your TV" on page 5 for the
location of the connectors.

5

Reconnect the device using the same type of connector. For
example, if you are using the composite connector on the
bottom, try connecting the device to the composite connector
on the left of the TV. See "About Your TV" on page 5 for the
location of the connectors.

After you connect the device, change the input source in the TV
Menu. See "Input Select" on page 28 for more information.

6

Connect the device using a different connector. For example,
if you are experiencing the problem using a composite
connector, try using the component connector.

NOTE: To connect to a different connector, you need the

appropriate cables for that connector. See your device
documentation for a list of supported connections.

After you connect the device, change the input source in the TV
Menu. See "Input Select" on page 28 for more information.

7

Test the device on a different TV.

8

If you are using PIP/POP/PBP, ensure the proper
selected. Press

Menu

on your remote control, and select

PIP/POP/PBP.

Double image or no image with DVD Turn off the progressive scan on the DVD player. Your Dell™ TV

offers built-in deinterlacer that is equal to or better quality than
the deinterlacer on your DVD player. For more information
about progressive scan on your DVD player, see the
documentation for your DVD player

Picture is too dim or too bright

The screen is not centered correctly 1

Update the color settings in the TV Menu. Press
the remote control and select

Picture Settings

Update the size settings in the TV Menu. Press
the remote control and select

2

Reset the original factory defaults. Press
remote control, select

Size

Setup

, and then select

.

Menu

.

Menu

Menu

button on the

Factory Reset

Audio Source

button on

button on

.

is

38 Troubleshooting Your TV

Problem Possible Solution

Screen has one or more lines 1

Check the aspect ratio settings in the TV Menu. Press the
button on the remote control and select

Size

. For more

Menu

information on using the TV Menu, see "Using the TV Menu"
on page 27.

2

Ensure the proper source is selected in the

Input Select

menu.

See "Input Select" on page 28 for more information.

3

Try connecting a different device. Ensure that you properly
connect the cables and update the input source in the TV
Menu.

4

Update the size settings in the TV Menu. Press
the remote control and select

5

Reset the original factory defaults. Press
remote control, select

Size

Setup

, and then select

.

Menu

Menu

button on the

Factory Reset

button on

.

The front panel buttons do not work Check the TV Menu to see if the buttons have been locked. Press

Menu

button

on your remote control, select Setup.

Use the front panel buttons to unlock the TV Menu and front
panel buttons:

1

Press the

Menu

button.

A message appears stating that the TV Menu and buttons are
locked.

2

While the message is on the screen, press the volume up and
channel up buttons on the

front

panel simultaneously for 3

seconds.
A message appears stating that the TV Menu and buttons are

unlocked.

The picture is too small 1

Adjust the size settings. Press
control, and select

2

This may be a problem with your device. See the

Size

Menu

button on the remote

.

documentation for the device.

Troubleshooting Your TV 39

www.dell.com | support.dell.com

TV Menu Messages

While using your TV, the following messages may appear.

Message Possible Solution

Auto Adjust No action required, the TV is performing an auto adjustment.

Out of Range Check the optimal resolution settings.

You may need to download a new video driver. For more
information, go to support.dell.com.

No Video Input 1

TV Button Locked To unlock, press Menu

Self Test Appears for computer source when there is nothing plugged in.

Check all cables are properly connected.

2

Ensure the proper source is selected in the
See "Input Select" on page 28 for more information.

button

on your remote control, select

Setup.

Use the front panel buttons to unlock the TV Menu and front
panel buttons:

1

Press the
A message appears stating that the TV Menu and buttons are

locked.

2

While the message is on the screen, press the volume up and
channel up buttons on the front panel simultaneously for 10
seconds.

A message appears stating that the TV Menu and buttons are
unlocked.

Select VGA or DVI from Input Select menu and nothing is
plugged in. Plug a computer in to the VGA or DVI.

Menu

button.

Input Select

menu.

Remote Control Problems

Problem Possible Solution

The TV does not respond when using
the remote control

40 Troubleshooting Your TV

1

Point the remote control directly at the lower right corner of the
TV. Be sure that nothing is blocking the front of the TV. For the
location of the IR, see "Front View" on page 5.

2

Verify that the batteries are properly installed.

3

If the batteries are old, install new batteries.

NOTE: Bright lights or other infrared devices may interfere with

your remote control and IR on the TV.

Using the Self-Test Feature when Connected to a Computer

When your computer is connected to the TV through DVI or VGA connector you can use the self­test feature to check whether your TV is functioning properly. If your TV and computer are
properly connected but the TV screen remains dark, run the TV self-test by performing the
following steps:

1

Turn off both your computer and the TV.

2

Unplug the video cable from the back of the computer.

3

Turn on the TV.

If the TV cannot sense a video signal and is working correctly, the floating "

Feature Check

" dialog box appears on the screen (against a black background).

Dell - Self-Test

While in self-test mode, the power light remains blue and the self-test pattern scrolls through
the screen continually. This box also appears during normal system operation if the video
cable becomes disconnected or damaged.

4

Turn off your TV and reconnect the video cable; then turn on both your computer and the
TV. If your TV screen remains blank, the problem may be with your computer or graphic card.

See your computer documentation for more information.

Problems When Using the TV as a Monitor

NOTE: You can only connect your computer to the TV using a VGA connector.

Problem Possible Solution

The picture is off-centered or too small

1

Use

Auto Adjust

button to enter the TV Menu, select
select

Auto Adjust

2

Check the optimal resolution settings.
You may need to download a new video driver. For more

information, go to

to check the

.

support.dell.com

NOTE: Some older video cards may not support the resolution

settings for the TV.

Image Settings

Image Settings

.

Troubleshooting Your TV 41

. Press

Menu

, and then

www.dell.com | support.dell.com

Problem Possible Solution

No audio 1

Ensure the green audio cable is connected to audio connector
on the TV and on the computer. For the location of the
connector on the TV, see "Using the VGA Connector" on
page 17. See your computer documentation for the location of
connectors on your computer.

2

Ensure the volume on the computer is not muted.

3

Verify that sound on your computer is working by checking the
speakers. See your computer documentation for information on
troubleshooting your computer.

4

Disconnect the TV from the computer and test to see if the TV
volume works.

PIP/POP/PBP not working 1

Ensure the settings in the TV Menu are properly set. Press

Menu

button to enter the TV Menu, and select

2

Swap the video and audio source.

PIP/POP/PBP

No video NOTE: If you see a self-test, it means there is a problem with

your video card or you are using the wrong input source.

1

Ensure the TV is turned on.

2

Verify that all the cables are properly connected to the TV,
including the power cable.

3

Check to see if there is a blue or amber light on the lower,
right-hand corner of the TV. A blue light indicates the TV is on.
An amber light, means the TV is in power save mode.

4

Ensure

VGA

is selected in the

Input Select

menu. See "Input

Select" on page 28 for more information.

5

Reconnect the computer.

6

Connect another device that you know is working properly.

7

Reset the original factory defaults. Press
remote control, select

Setup

, and then select

Menu

button on the

Factory Reset

.

.

42 Troubleshooting Your TV

Specifications for Your TV

General

Model number W3202MC LCD TV

W3706MC LCD TV

Display type TFT COLOR Normally Black Premium LCD

Screen size 32inch panel (W3202MC)

37inch panel (W3706MC)

Viewable area 697.7

Image aspect ratio Wide screen

Brightness (typical) 450 nits (W3202MC)

Contrast Ratio 1000:1 (typical)(W3202MC)

Video Display Capabilities 480i

Additional Features:

Teletex capable

Parental control capable

x 392.3 mm (W3202MC)

x 460.8 mm (W3706MC)

819.6

16:9 resolution

16:9 aspect ratio

500 nits (W3706MC)

800:1 (typical) (W3706MC)

480p

576i

576p

720p

1080i

Ye s

Yes (Digital TV only)

6

Specifications for Your TV 43

www.dell.com | support.dell.com

Physical Dimension

Display (with stand) 790 x 568 x 208.7mm (W3202MC)

910.3 x 637.5 x 252.75mm (W3706MC)

Display (no stand) 790 x 485.4 x 114.5mm(W3202MC)

910.3 x 552.5 x 114.5mm (W3706MC)

With Speakers 933.8 x 568 x 208.7mm (W3202MC)

1074.3 x 637.5 x 252.75mm (W3706MC)

Weight (with stand) 21kg (W3202MC)

28kg (W3706MC)

Native Resolution 1366x 768 (WXGA)

Picture-In-Picture

Picture-In-Picture (PIP) Yes

Picture-Outside-Picture (POP) Yes

Picture-By-Picture (PBP) Yes

Number of Tuners 2 (Digital and Analog)

Viewing Angle

Horizontal +/- 85 degrees (W3202MC)

+/- 89 degrees (W3706MC)

Vertical +/- 85 degrees (W3202MC)

+/- 89 degrees (W3706MC)

Inputs

Video

Composite (CVBS)

S-Video

Component

TV IN (coaxial)

Audio (L+R)

HDMI(for use with a video device)

44 Specifications for Your TV

two in total (side and bottom)

two in total (side and bottom)

one (bottom)

one (bottom)

four pairs in total (side and bottom)

Audio L/R pair on the side is shared by

Composite and S-Video.

one (bottom)

Inputs

DVI (for use with a video device)

SCART

Computer

VGA (for use as computer monitor)

DVI (for use as computer monitor)

Audio (PC)

Others

RS232

Outputs

Coaxial digital audio out one (bottom)

Subwoofer audio out

Audio out (L+R) one pair (bottom)

SCART two (bottom)

Audio

Effects SRS TruSurround XT

Speakers (separate) 15 watts/channel

one (bottom)

two (bottom)

one (bottom)

one (bottom)

one (bottom)

one (bottom)

one (bottom)

Midnight Mode

30 watts total

Specifications for Your TV 45

www.dell.com | support.dell.com

46 Specifications for Your TV

Contacting Dell

To contact Dell electronically, you can access the following websites:

• www.dell.com

•

support.dell.com

•

premiersupport.dell.com

medium/large business customers, including Premier, Platinum, and Gold customers)

For specific web addresses for your country, find the appropriate country section in the table below.

NOTE: Toll-free numbers are for use within the country for which they are listed.

NOTE: In certain countries, technical support specific to Dell Inspiron™ XPS computers is available at a

separate telephone number listed for participating countries. If you do not see a telephone number listed
that is specific for Inspiron XPS computers, you may contact Dell through the technical support number
listed and your call will be routed appropriately.

When you need to contact Dell, use the electronic addresses, telephone numbers, and codes
provided in the following table. If you need assistance in determining which codes to use, contact a
local or an international operator.

(technical support)

(technical support for educational, government, healthcare, and

Country (City)
International Access Code
Country Code
City Code

Anguilla General Support

Antigua and Barbuda General Support

Argentina (Buenos Aires)

International Access Code: 00

Country Code: 54

City Code: 11

Aruba General Support

Department Name or Service Area,

Website and E-Mail Address

Web si te : www.dell.com.ar

E-mail: [e-mail]

E-mail for desktop and portable computers:
[e-mail]

E-mail for servers and EMC
[e-mail]

Customer Care

Tech Support

Tech Support Services

Sales

®

storage products:

Area Codes,

Local Numbers, and

Toll-Free Numbers

toll-free: 800-335-0031

1-800-805-5924

toll-free: 0-800-444-0730

toll-free: 0-800-444-0733

toll-free: 0-800-444-0724

0-810-444-3355

toll-free: 800-1578

Contacting Dell 47

www.dell.com | support.dell.com

Country (City)
International Access Code

Department Name or Service Area,

Website and E-Mail Address
Country Code
City Code

Australia (Sydney)

International Access Code:

0011

Country Code: 61

City Code: 2

E-mail (Australia): [e-mail]

E-mail (New Zealand):
[e-mail]

Home and Small Business

Government and Business

Preferred Accounts Division (PAD)

Customer Care

Technical Support (portables and desktops)

Technical Support (servers and workstations)

Corporate Sales

Tra n sa c ti on S a le s

Fax

Austria (Vienna)

International Access Code: 900

Country Code: 43

City Code: 1

We bs it e : support.euro.dell.com

E-mail:
[e-mail]

Home/Small Business Sales

Home/Small Business Fax

Home/Small Business Customer Care

Preferred Accounts/Corporate Customer Care

Home/Small Business Technical Support

Preferred Accounts/Corporate Technical
Support

Switchboard

Bahamas General Support

Barbados General Support

Area Codes,

Local Numbers, and

Toll-Free Numbers

1-300-655-533

toll-free: 1-800-633-559

toll-free: 1-800-060-889

toll-free: 1-800-819-339

toll-free: 1-300-655-533

toll-free: 1-800-733-314

toll-free: 1-800-808-385

toll-free: 1-800-808-312

toll-free: 1-800-818-341

0820 240 530 00

0820 240 530 49

0820 240 530 14

0820 240 530 16

0820 240 530 14

0660 8779

0820 240 530 00

toll-free: 1-866-278-6818

1-800-534-3066

48 Contacting Dell

Country (City)
International Access Code
Country Code
City Code

Belgium (Brussels)

International Access Code: 00

Country Code: 32

City Code: 2

Bermuda General Support

Bolivia General Support

Brazil

International Access Code: 00

Country Code: 55

City Code: 51

British Virgin Islands General Support

Brunei

Country Code: 673

Department Name or Service Area,

Website and E-Mail Address

Web si te : support.euro.dell.com

E-mail for French-speaking Customers:

support.euro.dell.com/be/fr/emaildell/

Technical Support for Inspiron XPS computers
only

Technical Support for all other Dell computers

Technical Support Fax

Customer Care

Corporate Sales

Fax

Switchboard

Web si te : www.dell.com/br

Customer Support, Technical Support

Technical Support Fax

Customer Care Fax

Sales

Customer Technical Support (Penang,
Malaysia)

Customer Service (Penang, Malaysia)

Transaction Sales (Penang, Malaysia)

Area Codes,

Local Numbers, and

Toll-Free Numbers

02 481 92 96

02 481 92 88

02 481 92 95

02 713 15 .65

02 481 91 00

02 481 92 99

02 481 91 00

1-800-342-0671

toll-free: 800-10-0238

0800 90 3355

51 481 5470

51 481 5480

0800 90 3390

toll-free: 1-866-278-6820

604 633 4966

604 633 4949

604 633 4955

Contacting Dell 49

www.dell.com | support.dell.com

Country (City)
International Access Code

Department Name or Service Area,

Website and E-Mail Address
Country Code
City Code

Canada (North York, Ontario)

International Access Code: 011

Online Order Status: www.dell.ca/ostatus

AutoTech (automated technical support)

Customer Care (Home Sales/Small Business)

Customer Care (med./large business,
government)

Technical Support (Home Sales/Small
Business)

Technical Support (med./large bus.,
government)

Technical Support (printers, projectors,
televisions, handhelds, digital jukebox, and
wireless)

Sales (Home Sales/Small Business)

Sales (med./large bus., government)

Spare Parts Sales & Extended Service Sales

Cayman Islands General Support

Chile (Santiago)

Country Code: 56

Sales, Customer Support, and Technical
Support

City Code: 2

Area Codes,

Local Numbers, and

Toll-Free Numbers

toll-free: 1-800-247-9362

toll-free: 1-800-847-4096

toll-free: 1-800-326-9463

toll-free: 1-800-847-4096

toll-free: 1-800-387-5757

1-877-335-5767

toll-free: 1-800-387-5752

toll-free: 1-800-387-5755

1 866 440 3355

1-800-805-7541

toll-free: 1230-020-4823

50 Contacting Dell

Country (City)
International Access Code
Country Code
City Code

China (Xiamen)

Country Code: 86

City Code: 592

Department Name or Service Area,

Website and E-Mail Address

Technical Support website:

support.dell.com.cn

Technical Support E-mail:
[e-mail]

Customer Care E-mail:
[e-mail]

Technical Support Fax

Technical Support (Dell™ Dimension™ and
Inspiron)

Technical Support (OptiPlex™, Latitude™, and
Dell Precision™)

Technical Support (servers and storage)

Technical Support (projectors, PDAs, switches,
routers, and so on)

Area Codes,

Local Numbers, and

Toll-Free Numbers

592 818 1350

toll-free: 800 858 2969

toll-free: 800 858 0950

toll-free: 800 858 0960

toll-free: 800 858 2920

Technical Support (printers)

Customer Care

Customer Care Fax

Home and Small Business

Preferred Accounts Division

Large Corporate Accounts GCP

Large Corporate Accounts Key Accounts

Large Corporate Accounts North

Large Corporate Accounts North Government
and Education

Large Corporate Accounts East

Large Corporate Accounts East Government
and Education

Large Corporate Accounts Queue Team

Large Corporate Accounts South

Large Corporate Accounts West

Large Corporate Accounts Spare Parts

Colombia General Support

Costa Rica General Support

toll-free: 800 858 2311

toll-free: 800 858 2060

592 818 1308

toll-free: 800 858 2222

toll-free: 800 858 2557

toll-free: 800 858 2055

toll-free: 800 858 2628

toll-free: 800 858 2999

toll-free: 800 858 2955

toll-free: 800 858 2020

toll-free: 800 858 2669

toll-free: 800 858 2572

toll-free: 800 858 2355

toll-free: 800 858 2811

toll-free: 800 858 2621

980-9-15-3978

0800-012-0435

Contacting Dell 51

www.dell.com | support.dell.com

Country (City)
International Access Code

Department Name or Service Area,

Website and E-Mail Address
Country Code
City Code

Czech Republic (Prague)

International Access Code: 00

Country Code: 420

We bs it e : support.euro.dell.com

E-mail: [e-mail]

Technical Support

Customer Care

Fax

Tech Fax

Switchboard

Denmark (Copenhagen)

International Access Code: 00

Country Code: 45

We bs it e : support.euro.dell.com

E-mail: support.euro.dell.com/dk/da/emaildell/

Technical Support for Inspiron XPS computers
only

Technical Support for all other Dell computers

Customer Care (Relational)

Home/Small Business Customer Care

Switchboard (Relational)

Switchboard Fax (Relational)

Switchboard (Home/Small Business)

Switchboard Fax (Home/Small Business)

Dominica General Support

Dominican Republic General Support

Ecuador General Support

El Salvador General Support

Finland (Helsinki)

International Access Code: 990

Country Code: 358

City Code: 9

We bs it e : support.euro.dell.com

E-mail: support.euro.dell.com/fi/fi/emaildell/

Technical Support

Customer Care

Fax

Switchboard

Area Codes,

Local Numbers, and

Toll-Free Numbers

22537 2727

22537 2707

22537 2714

22537 2728

22537 2711

7010 0074

7023 0182

7023 0184

3287 5505

3287 1200

3287 1201

3287 5000

3287 5001

toll-free: 1-866-278-6821

1-800-148-0530

toll-free: 999-119

01-899-753-0777

09 253 313 60

09 253 313 38

09 253 313 99

09 253 313 00

52 Contacting Dell

Country (City)
International Access Code
Country Code
City Code

France (Paris) (Montpellier)

International Access Code: 00

Country Code: 33

City Codes: (1) (4)

Germany (Langen)

International Access Code: 00

Country Code: 49

City Code: 6103

Department Name or Service Area,

Website and E-Mail Address

Web si te : support.euro.dell.com

E-mail: support.euro.dell.com/fr/fr/emaildell/

Home and Small Business

Technical Support for Inspiron XPS computers
only

Technical Support for all other Dell computers

Customer Care

Switchboard

Switchboard (calls from outside of France)

Sales

Fax

Fax (calls from outside of France)

Corporate

Technical Support

Customer Care

Switchboard

Sales

Fax

Web si te : support.euro.dell.com

E-mail:
[e-mail]

Technical Support for Inspiron XPS computers
only

Technical Support for all other Dell computers

Home/Small Business Customer Care

Global Segment Customer Care

Preferred Accounts Customer Care

Large Accounts Customer Care

Public Accounts Customer Care

Switchboard

Area Codes,

Local Numbers, and

Toll-Free Numbers

0825 387 129

0825 387 270

0825 823 833

0825 004 700

04 99 75 40 00

0825 004 700

0825 004 701

04 99 75 40 01

0825 004 719

0825 338 339

01 55 94 71 00

01 55 94 71 00

01 55 94 71 01

06103 766-7222

06103 766-7200

0180-5-224400

06103 766-9570

06103 766-9420

06103 766-9560

06103 766-9555

06103 766-7000

Contacting Dell 53

www.dell.com | support.dell.com

Country (City)
International Access Code

Department Name or Service Area,

Website and E-Mail Address
Country Code
City Code

Greece

International Access Code: 00

Country Code: 30

We bs it e : support.euro.dell.com

E-mail: support.euro.dell.com/gr/en/emaildell/

Technical Support

Gold Service Technical Support

Switchboard

Gold Service Switchboard

Sales

Fax

Grenada General Support

Guatemala General Support

Guyana General Support

Hong Kong

International Access Code: 001

Country Code: 852

We bs it e : support.ap.dell.com

Technical Support E-mail:
[e-mail]

Technical Support (Dimension and Inspiron)

Technical Support (OptiPlex, Latitude, and
Dell Precision)

Technical Support (PowerApp™, PowerEdge™,
PowerConnect™, and PowerVault™)

Customer Care

Large Corporate Accounts

Global Customer Programs

Medium Business Division

Home and Small Business Division

India Technical Support

Sales (Large Corporate Accounts)

Sales (Home and Small Business)

Area Codes,

Local Numbers, and

Toll-Free Numbers

00800-44 14 95 18

00800-44 14 00 83

2108129810

2108129811

2108129800

2108129812

toll-free: 1-866-540-3355

1-800-999-0136

toll-free: 1-877-270-4609

2969 3188

2969 3191

2969 3196

3416 0910

3416 0907

3416 0908

3416 0912

2969 3105

1600 33 8045

1600 33 8044

1600 33 8046

54 Contacting Dell

Country (City)
International Access Code
Country Code
City Code

Ireland (Cherrywood)

International Access Code: 16

Country Code: 353

City Code: 1

Italy (Milan)

International Access Code: 00

Country Code: 39

City Code: 02

Jamaica General Support (dial from within Jamaica

Department Name or Service Area,

Website and E-Mail Address

Web si te : support.euro.dell.com

E-mail: [e-mail]

Technical Support for Inspiron XPS computers
only

Technical Support for all other Dell computers

U.K. Technical Support (dial within U.K. only)

Home User Customer Care

Small Business Customer Care

U.K. Customer Care (dial within U.K. only)

Corporate Customer Care

Corporate Customer Care (dial within U.K.
only)

Ireland Sales

U.K. Sales (dial within U.K. only)

Fax/Sales Fax

Switchboard

Web si te : support.euro.dell.com

E-mail: support.euro.dell.com/it/it/emaildell/

Home and Small Business

Technical Support

Customer Care

Fax

Switchboard

Corporate

Technical Support

Customer Care

Fax

Switchboard

only)

Area Codes,

Local Numbers, and

Toll-Free Numbers

1850 200 722

1850 543 543

0870 908 0800

01 204 4014

01 204 4014

0870 906 0010

1850 200 982

0870 907 4499

01 204 4444

0870 907 4000

01 204 0103

01 204 4444

02 577 826 90

02 696 821 14

02 696 821 13

02 696 821 12

02 577 826 90

02 577 825 55

02 575 035 30

02 577 821

1-800-682-3639

Contacting Dell 55

www.dell.com | support.dell.com

Country (City)
International Access Code
Country Code
City Code

Japan (Kawasaki)

International Access Code: 001

Country Code: 81

City Code: 44

Korea (Seoul)

International Access Code: 001

Country Code: 82

City Code: 2

Department Name or Service Area,

Website and E-Mail Address

We bs it e : support.jp.dell.com

Technical Support (servers)

Technical Support outside of Japan (servers)

Technical Support (Dimension and Inspiron)

Technical Support outside of Japan
(Dimension and Inspiron)

Technical Support (Dell Precision, OptiPlex,
and Latitude)

Technical Support outside of Japan (Dell
Precision, OptiPlex, and Latitude)

Technical Support (PDAs, projectors, printers,
routers)

Technical Support outside of Japan (PDAs,
projectors, printers, routers)

Faxbox Service

24-Hour Automated Order Service

Customer Care

Business Sales Division (up to 400 employees)

Preferred Accounts Division Sales (over 400
employees)

Large Corporate Accounts Sales (over 3500
employees)

Public Sales (government agencies, educational
institutions, and medical institutions)

Global Segment Japan

Individual User

Switchboard

Technical Support

Sales

Customer Service (Penang, Malaysia)

Fax

Switchboard

Technical Support (Electronics and
Accessories)

Area Codes,

Local Numbers, and

Toll-Free Numbers

toll-free: 0120-198-498

81-44-556-4162

toll-free: 0120-198-226

81-44-520-1435

toll-free:0120-198-433

81-44-556-3894

toll-free: 0120-981-690

81-44-556-3468

044-556-3490

044-556-3801

044-556-4240

044-556-1465

044-556-3433

044-556-3430

044-556-1469

044-556-3469

044-556-1760

044-556-4300

toll-free: 080-200-3800

toll-free: 080-200-3600

604 633 4949

2194-6202

2194-6000

toll-free: 080-200-3801

56 Contacting Dell

Country (City)
International Access Code
Country Code
City Code

Latin America Customer Technical Support (Austin, Texas,

Luxembourg

International Access Code: 00

Country Code: 352

Macao

Country Code: 853

Malaysia (Penang)

International Access Code: 00

Country Code: 60

City Code: 4

Department Name or Service Area,

Website and E-Mail Address

U.S.A.)

Customer Service (Austin, Texas, U.S.A.)

Fax (Technical Support and Customer Service)
(Austin, Texas, U.S.A.)

Sales (Austin, Texas, U.S.A.)

SalesFax (Austin, Texas, U.S.A.)

Web si te : support.euro.dell.com

E-mail: [e-mail]

Technical Support (Brussels, Belgium)

Home/Small Business Sales (Brussels, Belgium)

Corporate Sales (Brussels, Belgium)

Customer Care (Brussels, Belgium)

Fax (Brussels, Belgium)

Switchboard (Brussels, Belgium)

Technical Support

Customer Service (Xiamen, China)

Transaction Sales (Xiamen, China)

Web si te : support.ap.dell.com

Technical Support (Dell Precision, OptiPlex,
and Latitude)

Technical Support (Dimension, Inspiron, and
Electronics and Accessories)

Technical Support (PowerApp, PowerEdge,
PowerConnect, and PowerVault)

Customer Service (Penang, Malaysia)

Tra n s ac t ion Sal e s

Corporate Sales

Area Codes,

Local Numbers, and

Toll-Free Numbers

512 728-4093

512 728-3619

512 728-3883

512 728-4397

512 728-4600

or 512 728-3772

3420808075

toll-free: 080016884

02 481 91 00

02 481 91 19

02 481 92 99

02 481 91 00

toll-free: 0800 105

34 160 910

29 693 115

toll-free: 1 800 88 0193

toll-free: 1 800 88 1306

toll-free: 1800 88 1386

04 633 4949

toll-free: 1 800 888 202

toll-free: 1 800 888 213

Contacting Dell 57

www.dell.com | support.dell.com

Country (City)
International Access Code

Department Name or Service Area,

Website and E-Mail Address
Country Code
City Code

Mexico

Customer Technical Support

International Access Code: 00

Country Code: 52

Sales

Customer Service

Main

Montserrat General Support

Netherlands Antilles General Support

Netherlands (Amsterdam)

International Access Code: 00

Country Code: 31

City Code: 20

We bs it e : support.euro.dell.com

Technical Support for Inspiron XPS computers
only

Technical Support for all other Dell computers

Technical Support Fax

Home/Small Business Customer Care

Relational Customer Care

Home/Small Business Sales

Relational Sales

Home/Small Business Sales Fax

Relational Sales Fax

Switchboard

Switchboard Fax

Area Codes,

Local Numbers, and

Toll-Free Numbers

001-877-384-8979

or 001-877-269-3383

50-81-8800

or 01-800-888-3355

001-877-384-8979

or 001-877-269-3383

50-81-8800

or 01-800-888-3355

toll-free: 1-866-278-6822

001-800-882-1519

020 674 45 94

020 674 45 00

020 674 47 66

020 674 42 00

020 674 4325

020 674 55 00

020 674 50 00

020 674 47 75

020 674 47 50

020 674 50 00

020 674 47 50

58 Contacting Dell

Country (City)
International Access Code
Country Code
City Code

New Zealand

International Access Code: 00

Country Code: 64

Nicaragua General Support

Norway (Lysaker)

International Access Code: 00

Country Code: 47

Pan ama General Support

Peru General Support

Poland (Warsaw)

International Access Code: 011

Country Code: 48

City Code: 22

Department Name or Service Area,

Website and E-Mail Address

E-mail (New Zealand):
[e-mail]

E-mail (Australia): [e-mail]

Technical Support (for desktop and portable
computers)

Technical Support (for servers and
workstations)

Home and Small Business

Government and Business

Sales

Fax

Web si te : support.euro.dell.com

E-mail:

support.euro.dell.com/no/no/emaildell/

Technical Support

Relational Customer Care

Home/Small Business Customer Care

Switchboard

Fax Switchboard

Web si te : support.euro.dell.com

E-mail: [e-mail]

Customer Service Phone

Customer Care

Sales

Customer Service Fax

Reception Desk Fax

Switchboard

Area Codes,

Local Numbers, and

Toll-Free Numbers

toll-free:

toll-free: 0800 443 563

0800 446 255

0800 446 255

0800 444 617

0800 441 567

0800 441 566

001-800-220-1006

671 16882

671 17575

23162298

671 16800

671 16865

001-800-507-0962

0800-50-669

57 95 700

57 95 999

57 95 999

57 95 806

57 95 998

57 95 999

Contacting Dell 59

www.dell.com | support.dell.com

Country (City)
International Access Code

Department Name or Service Area,

Website and E-Mail Address
Country Code
City Code

Portug al

International Access Code: 00

Country Code: 351

We bs it e : support.euro.dell.com

E-mail: support.euro.dell.com/pt/en/emaildell/

Technical Support

Customer Care

Sales

Fax

Puerto Rico General Support

St. Kitts and Nevis General Support

St. Lucia General Support

St. Vincent and the

General Support

Grenadines

Singapore (Singapore)

International Access Code: 005

Country Code: 65

We bs it e : support.ap.dell.com

Technical Support (Dimension, Inspiron, and
Electronics and Accessories)

Technical Support (OptiPlex, Latitude, and
Dell Precision)

Technical Support (PowerApp, PowerEdge,
PowerConnect, and PowerVault)

Customer Service (Penang, Malaysia)

Tra n sa c ti on S a le s

Corporate Sales

Slovakia (Prague)

International Access Code: 00

Country Code: 421

We bs it e : support.euro.dell.com

E-mail: [e-mail]

Technical Support

Customer Care

Fax

Tech Fax

Switchboard (Sales)

Area Codes,

Local Numbers, and

Toll-Free Numbers

707200149

800 300 413

800 300 410 or
800 300 411 or
800 300 412 or

21 422 07 10

21 424 01 12

1-800-805-7545

toll-free: 1-877-441-4731

1-800-882-1521

toll-free: 1-877-270-4609

toll-free: 1800 394 7430

toll-free: 1800 394 7488

toll-free: 1800 394 7478

604 633 4949

toll-free: 1 800 394 7412

toll-free: 1 800 394 7419

02 5441 5727

420 22537 2707

02 5441 8328

02 5441 8328

02 5441 7585

60 Contacting Dell

Country (City)
International Access Code
Country Code
City Code

South Africa (Johannesburg)

International Access Code:

09/091

Country Code: 27

City Code: 11

Southeast Asian and Pacific
Countries

Spain (Madrid)

International Access Code: 00

Country Code: 34

City Code: 91

Sweden (Upplands Vasby)

International Access Code: 00

Country Code: 46

City Code: 8

Department Name or Service Area,

Website and E-Mail Address

Web si te : support.euro.dell.com

E-mail: [e-mail]

Gold Queue

Technical Support

Customer Care

Sales

Fax

Switchboard

Customer Technical Support, Customer
Service, and Sales (Penang, Malaysia)

Web si te : support.euro.dell.com

E-mail: support.euro.dell.com/es/es/emaildell/

Home and Small Business

Technical Support

Customer Care

Sales

Switchboard

Fax

Corporate

Technical Support

Customer Care

Switchboard

Fax

Web si te : support.euro.dell.com

E-mail: support.euro.dell.com/se/sv/emaildell/

Technical Support

Relational Customer Care

Home/Small Business Customer Care

Employee Purchase Program (EPP) Support

Technical Support Fax

Sales

Area Codes,

Local Numbers, and

Toll-Free Numbers

011 709 7713

011 709 7710

011 709 7707

011 709 7700

011 706 0495

011 709 7700

604 633 4810

902 100 130

902 118 540

902 118 541

902 118 541

902 118 539

902 100 130

902 115 236

91 722 92 00

91 722 95 83

08 590 05 199

08 590 05 642

08 587 70 527

20 140 14 44

08 590 05 594

08 590 05 185

Contacting Dell 61

www.dell.com | support.dell.com

Country (City)
International Access Code

Department Name or Service Area,

Website and E-Mail Address
Country Code
City Code

Switzerland (Geneva)

International Access Code: 00

Country Code: 41

City Code: 22

We bs it e : support.euro.dell.com

E-mail:
[e-mail]

E-mail for French-speaking HSB and Corporate
Customers:

support.euro.dell.com/ch/fr/emaildell/

Technical Support (Home and Small Business)

Technical Support (Corporate)

Customer Care (Home and Small Business)

Customer Care (Corporate)

Fax

Switchboard

Ta i wa n

International Access Code: 002

Country Code: 886

We bs it e : support.ap.dell.com

E-mail: [e-mail]

Technical Support (OptiPlex, Latitude,
Inspiron, Dimension, and Electronics and
Accessories)

Technical Support (PowerApp, PowerEdge,
PowerConnect, and PowerVault)

Tra n sa c ti on S a le s

Corporate Sales

Thailand

International Access Code: 001

Country Code: 66

We bs it e : support.ap.dell.com

Technical Support (OptiPlex, Latitude, and
Dell Precision)

Technical Support (PowerApp, PowerEdge,
PowerConnect, and PowerVault)

Customer Service (Penang, Malaysia)

Corporate Sales

Tra n sa c ti on S a le s

Trinidad/Tobago General Support

Turks and Caicos Islands General Support

Area Codes,

Local Numbers, and

Toll-Free Numbers

0844 811 411

0844 822 844

0848 802 202

0848 821 721

022 799 01 90

022 799 01 01

toll-free: 00801 86 1011

toll-free: 00801 60 1256

toll-free: 00801 65 1228

toll-free: 00801 651 227

toll-free: 1800 0060 07

toll-free: 1800 0600 09

604 633 4949

toll-free: 1800 006 009

toll-free: 1800 006 006

1-800-805-8035

toll-free: 1-866-540-3355

62 Contacting Dell

Country (City)
International Access Code
Country Code
City Code

U.K. (Bracknell)

International Access Code: 00

Country Code: 44

City Code: 1344

Uruguay General Support

Department Name or Service Area,

Website and E-Mail Address

Web si te : support.euro.dell.com

Customer Care website:

support.euro.dell.com/uk/en/ECare/Form/Home.asp

E-mail: [e-mail]

Technical Support (Corporate/Preferred
Accounts/PAD [1000+ employees])

Technical Support (direct and general)

Global Accounts Customer Care

Home and Small Business Customer Care

Corporate Customer Care

Preferred Accounts (500–5000 employees)
Customer Care

Central Government Customer Care

Local Government & Education Customer
Care

Health Customer Care

Home and Small Business Sales

Corporate/Public Sector Sales

Home and Small Business Fax

Area Codes,

Local Numbers, and

Toll-Free Numbers

0870 908 0500

0870 908 0800

01344 373 186

0870 906 0010

01344 373 185

0870 906 0010

01344 373 193

01344 373 199

01344 373 194

0870 907 4000

01344 860 456

0870 907 4006

toll-free: 000-413-598-

2521

Contacting Dell 63

www.dell.com | support.dell.com

Country (City)
International Access Code

Department Name or Service Area,

Website and E-Mail Address
Country Code
City Code

U.S.A. (Austin, Texas)

International Access Code: 011

Country Code: 1

Automated Order-Status Service

AutoTech (portable and desktop computers)

Consumer (Home and Home Office)

Technical Support

Customer Service

DellNet™ Service and Support

Employee Purchase Program (EPP) Customers

Financial Services website:
www.dellfinancialservices.com

Financial Services (lease/loans)

Financial Services (Dell Preferred Accounts
[DPA])

Business

Customer Service and Technical Support

Employee Purchase Program (EPP) Customers

Printers and Projectors Technical Support

Public (government, education, and healthcare)

Customer Service and Technical Support

Employee Purchase Program (EPP) Customers

Dell Sales

Dell Outlet Store (Dell refurbished computers)

Software and Peripherals Sales

Spare Parts Sales

Extended Service and Warranty Sales

Fax

Dell Services for the Deaf, Hard-of-Hearing, or
Speech-Impaired

U.S. Virgin Islands General Support

Ve ne zu e la General Support

Area Codes,

Local Numbers, and

Toll-Free Numbers

toll-free: 1-800-433-9014

toll-free: 1-800-247-9362

toll-free: 1-800-624-9896

toll-free: 1-800-624-9897

toll-free: 1-877-Dellnet

(1-877-335-5638)

toll-free: 1-800-695-8133

toll-free: 1-877-577-3355

toll-free: 1-800-283-2210

toll-free: 1-800-822-8965

toll-free: 1-800-695-8133

toll-free: 1-877-459-7298

toll-free: 1-800-456-3355

toll-free: 1-800-234-1490

toll-free: 1-800-289-3355

or toll-free: 1-800-879-

3355

toll-free: 1-888-798-7561

toll-free: 1-800-671-3355

toll-free: 1-800-357-3355

toll-free: 1-800-247-4618

toll-free: 1-800-727-8320

toll-free: 1-877-DELLTTY

(1-877-335-5889)

1-877-673-3355

8001-3605

64 Contacting Dell

Index

A

About

side connectors, 5
side panel buttons, 5
TV, 5

Access Code

creating, 33

Adjust, 30

brightness, 30

color, 30
aspect ratio, 32
Audio, 30

B

Button

lock, 34

unlock, 34
Buttons

channel up and down, 5

channels, 23

Enter, 23

Input Source, 5

PIP, 23

power, 5

remote control, 23

Side panel, 6

TV Menu, 5

volume, 23

C

Cables, 8
Channel, 34

blocking, 33

CI Card slot, 18
coaxial

cable, usage, 12
connecting, 14

location, 7
Common Interface, 34
component AV3 connector

cable, usage, 13

connecting, 15

location, 7
composite AV1/AV4

connectors

cable, usage, 12

connecting, 14

location, 6-7
Connectors

coaxial, 7

component (AV3), 7

composite(AV1/AV4), 6-7

DVI, 7

location of, 7

power, 7

quality, 12

side panel, 6

S-Video(AV2/AV5), 6-7

VGA, 7

D

Dell

Contacting, 47
DVI, 16

F

Factory settings

restore, 34

I

Input Select

Input sources, 28
Input Source, 23
IR receiver, 5

M

Midnight Mode, 30
Monitor, 17

O

On-Screen Display, 27
OSD

access code, 33

appearance of, 34

Audio, 30

Input Select, 28

language, 28

Main Menu, 27

messages, 40

Parental Control, 33

PBP, 31

Picture, 30

PIP, 31

POP, 31

remote control, 27

setup, 34

sleep Timer, 34

using, 27

Index 65

P

Package contents, 8
Parental Control

access code, 33
Picture-By-Picture, 31
Picture-In-Picture, 31
Picture-Outside-

Picture, 31

Power indicator

amber light, 5

blue light, 5
Power light

amber, 5

blue, 5
Problems

remote control, 40

TV, 35

R

Remote control, 23, 27

batteries, 23

buttons, 23

Learning remote, 26

problems with, 40

using, 23

SRS, 30
S-Video AV2/AV5

connectors

cable, usage, 13
connecting, 15
location, 6-7

T

Troubleshooting

computer, 41
general problems, 36
monitor, 41
OSD, 40
remote control, 40
self test, 41

TV

about, 5
caring for, 10
connecting, 12
front view, 5
location, 12
proper location, 11
setting up, 11
side view, 6
troubleshooting, 35

S

SCART

cable, 9

connector, 18
Self Test, 41
Settings, 30
setup, 34
Size, 32
sleep timer, 34
Speakers, 9

connecting, 19
Specifications, 43

66 Index

U

Universal remote, 26

V

VGA, 17
