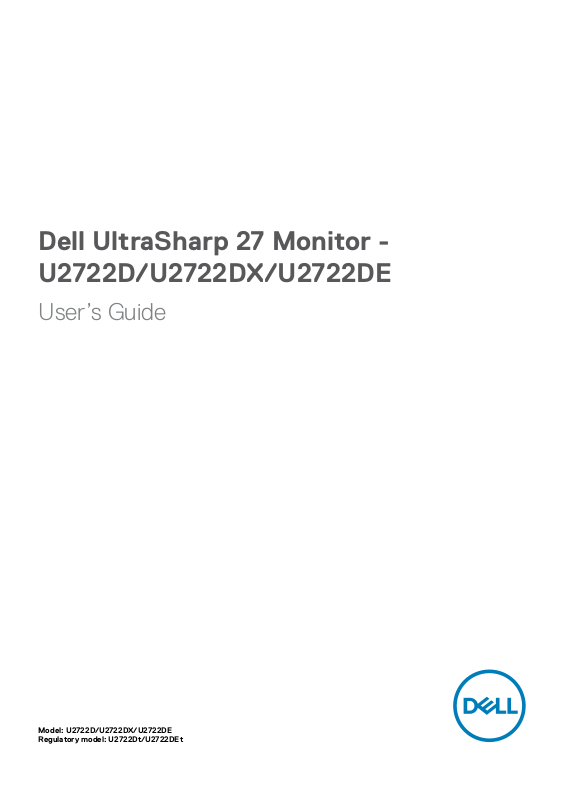

Dell U2722D, U2722DX, U2722DE User Manual

Dell UltraSharp 27 Monitor U2722D/U2722DX/U2722DE

User’s Guide

Model: U2722D/U2722DX/U2722DE Regulatory model: U2722Dt/U2722DEt

NOTE: A NOTE indicates important information that helps you make better use of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.

2021 – 02

Rev. A00

Contents

Safety Instructions..............................6

About Your Monitor .............................7

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . 7

Product Features . . . . . . . . . . . . . . . . . . . . . . . . . 8

Identifying Parts and Controls . . . . . . . . . . . . . . . . . 10

Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Back View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Bottom View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Monitor Specifications . . . . . . . . . . . . . . . . . . . . . 15

Resolution Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Preset Display Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

DP Multi-Stream Transport (MST) Modes . . . . . . . . . . . . . . . . . 18

USB-C Multi-Stream Transport (MST) Modes (U2722DE Only) . . . . . . 18

Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Physical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Environmental Characteristics. . . . . . . . . . . . . . . . . . . . . . . .21

Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Plug-and-Play . . . . . . . . . . . . . . . . . . . . . . . . . . 30

LCD Monitor Quality and Pixel Policy . . . . . . . . . . . . . . 30

Ergonomics . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Handling and Moving Your Display . . . . . . . . . . . . . . . 32

Maintenance Guidelines . . . . . . . . . . . . . . . . . . . . . 33

Cleaning Your Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Setting Up the Monitor .........................34

Connecting the Stand . . . . . . . . . . . . . . . . . . . . . . 34

Using the Tilt, Swivel, and Vertical Extension . . . . . . . . . 37

Contents | 3

Tilt, Swivel and Vertical Extension. . . . . . . . . . . . . . . . . . . . . .37

Rotating the Display . . . . . . . . . . . . . . . . . . . . . . . 37

Configuring the Display Settings on Your Computer after

Rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Organizing Your Cables . . . . . . . . . . . . . . . . . . . . . 39

Connecting Your Monitor . . . . . . . . . . . . . . . . . . . . 40

U2722D/U2722DX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

U2722DE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

Dell Power Button Sync (DPBS) (U2722DE Only) . . . . . . . 46

Connecting the Monitor for DPBS for the First Time . . . . . . . . . . . .48

Using DPBS Function . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

Connecting the Monitor for USB-C Multi-Stream Transport (MST)

function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Connecting the Monitor for USB-C . . . . . . . . . . . . . . . . . . . . .52

Securing Your Monitor Using Kensington Lock (Optional) . . . 54

Removing the Monitor Stand . . . . . . . . . . . . . . . . . . 55

Wall Mounting (Optional) . . . . . . . . . . . . . . . . . . . . 56

Operating the Monitor ..........................57

Power On the Monitor . . . . . . . . . . . . . . . . . . . . . . 57

Using the Joystick Control . . . . . . . . . . . . . . . . . . . 57

Using the Menu Launcher . . . . . . . . . . . . . . . . . . . . 58

Front-Panel Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

Using the Main Menu . . . . . . . . . . . . . . . . . . . . . . 61

Using the OSD Lock Function . . . . . . . . . . . . . . . . . . . . . . . .76

Initial Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79

OSD Warning Messages . . . . . . . . . . . . . . . . . . . . . . . . . . .80

Setting the Maximum Resolution . . . . . . . . . . . . . . . . . . . . . .83

Multi-Monitor Sync (MMS) . . . . . . . . . . . . . . . . . . . . . . . . .84

Setting Multi-Monitor Sync (MMS) . . . . . . . . . . . . . . . . . . . . .85

Setting the KVM USB Switch (U2722DE Only) . . . . . . . . . . . . . . .86

Setting the Auto KVM (U2722DE Only) . . . . . . . . . . . . . . . . . . .89

4 | Contents

Troubleshooting ...............................91

Self-Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Built-in Diagnostics . . . . . . . . . . . . . . . . . . . . . . . 92

Common Problems. . . . . . . . . . . . . . . . . . . . . . . . 93

Product Specific Problems . . . . . . . . . . . . . . . . . . . 95

Universal Serial Bus (USB) Specific Problems . . . . . . . . . 98

Appendix.....................................99

FCC Notices (U.S. Only) and Other Regulatory Information. . 99

Contacting Dell . . . . . . . . . . . . . . . . . . . . . . . . . 99

EU Product Database for Energy Label and Product

Information Sheet . . . . . . . . . . . . . . . . . . . . . . . . 99

Contents | 5

Safety Instructions

WARNING: Use of controls, adjustments, or procedures other than those

specified in this documentation may result in exposure to shock, electrical hazards, and/or mechanical hazards.

• Place the monitor on a solid surface and handle it carefully. The screen is fragile and can be damaged if dropped or hit sharply.

• Always be sure that your monitor is electrically rated to operate with the AC power available in your location.

• Keep the monitor in room temperature. Excessive cold or hot conditions can have an adverse effect on the liquid crystal of the display.

• Do not subject the monitor to severe vibration or high impact conditions. For example, do not place the monitor inside a car trunk.

• Unplug the monitor when it is going to be left unused for an extended period of time.

• To avoid electric shock, do not attempt to remove any cover or touch the inside of the monitor.

For information on safety instructions, see the Safety, Environmental, and Regulatory Information (SERI).

6 | Safety Instructions

About Your Monitor

Package Contents

Your monitor ships with the components shown in the table below. If any component is missing, contact Dell. For more information, see Contact Dell.

NOTE: Some components may be optional and may not ship with your

monitor. Somefeatures may not be available in certain countries.

Display

Stand riser

Stand base

Power cable (varies by country)

DisplayPort 1.8 M cable (DisplayPort to DisplayPort) (U2722D/U2722DE only)

USB-C 1.0 M cable (A to C)

About Your Monitor | 7

USB-C 1.0 M cable (C to C) (U2722DE only)

HDMI 1.8 M cable (U2722DX only)

• Quick Setup Guide

• Safety, Environmental, and Regulatory Information

• Factory Calibration Report

Product Features

The Dell UltraSharp U2722D/U2722DX/U2722DE monitor has an active matrix, Thin-Film Transistor (TFT), Liquid Crystal Display (LCD), and LED backlight. The monitor features include:

• 68.47 cm (27.0 in.) active area display (Measured diagonally) 2560 x 1440 (16:9) resolution, plus full-screen support for lower resolutions.

• Wide viewing angles with 100% sRGB and 100% Rec. 709 color with an average Delta E<2.

• Tilt, swivel, pivot and vertical extension adjustment capabilities.

• Removable pedestal stand and Video Electronics Standards Association (VESA™) 100 mm mounting holes for flexible mounting solutions.

• Ultra-thin bezel minimizes the bezel gap during multi-monitor usage, enabling easier set up with an elegant viewing experience.

• Extensive digital connectivity with DP helps future-proof your monitor.

• Single USB-C to supply power to compatible notebook while receiving video signal (U2722DE only).

• USB-C and RJ45 ports enable a single-cable, network-connected experience (U2722DE only).

• Plug and play capability if supported by your computer.

• On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.

• Power and OSD buttons lock.

• Security lock slot.

• ≤ 0.3 W in Off Mode.

• Supports Picture by Picture (PBP) Select mode.

8 | About Your Monitor

• Allow user to switch USB KVM function in PBP mode (U2722DE only).

• The Monitor is designed with Dell Power Button Sync (DPBS) feature to control PC system power state from monitor power button (U2722DE only). *

• The Monitor allows multiple monitors that are daisy chained via DisplayPort to synchronize a pre-defined group of OSD settings in the background by MultiMonitor Sync (MMS).

• Premium Panel Exchange for peace of mind.

• Optimize eye comfort with a flicker-free screen minimizes hazard blue light emission.

• The Monitor use Low Blue Light panel and compliance with TUV Rheinland (Hardware Solution) at factory reset/default setting model.

• Decreases the level of hazard blue light emitted from the screen to make viewing more comfortable for your eyes.

• The Monitor adopts Flicker-Free technology, which clears the eye visible flicker, brings comfort viewing experience and preventing users suffer from eye strain and fatigue.

* PC system that supports DPBS is the Dell OptiPlex 7090/3090 Ultra platform.

WARNING: The possible long-term effects of blue light emission from the

monitor may cause damage to the eyes, including eye fatigue or digital eye strain.

About Your Monitor | 9

Identifying Parts and Controls

Front View

Label Description Use 1 Power LED indicator Solid white light indicates the monitor is turned on and

functioning normally. Blinking white light indicates the monitor is in Standby Mode.

10 | About Your Monitor

Back View

1 2

654

Label Description Use

1 VESA mounting holes

(100 mm x 100 mm-behind

Wall mount monitor using VESA-compatible wall mount kit (100 mm x 100 mm).

attached VESA cover)

2 Regulatory label Lists the regulatory approvals.

3 Stand release button Releases stand from the monitor.

4 Power On/Off button To turn the monitor on or off.

5 Joystick Use it to control the OSD menu.

For more information, see Operating the

Monitor.

6 Mac address, Barcode, serial

number, and Service Tag label

Refer to this label if you need to contact Dell for technical support. The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information.

7 Cable-management slot Use to organize cables by inserting them

through the slot.

About Your Monitor | 11

Bottom View

1 3 4 52 116 7 8 9 10

U2722D/U2722DX

Label Description Use

1 Security lock slot Secures monitor with security cable lock (sold separately).

Power connector

HDMI port

DisplayPort in

DP port (out)

USB-C upstream Port

7,9,1 0

Super speed USB 10Gbps (USB 3.2 Gen2) (3)

Connect the power cable.

Connect your computer with the HDMI cable.

Connect your computer with the DisplayPort cable.

DP output for MST (Multi-Stream Transport) capable monitor. To enable MST, refer to instruction on section “Connecting the Monitor for DP MST Function”. NOTE: Remove the rubber plug when using DP out connector.

Connect to your computer using the USB cable (A to C or C to C). Once the USB cable is connected, you can use the USB downstream connectors on the monitor.

Connect your USB device. You can use these ports only after you have connected the USB cable (A to C or C to C)

from the computer to the monitor. Port with battery icon supports Battery Charging Rev.

1.2.

12 | About Your Monitor

Audio line-out port

USB-C downstream port

12 Stand lock Lock the stand to the monitor using a M3 x 8 mm screw

U2722DE

Connect speakers to playback audio through HDMI or DisplayPort audio channels. Only two-channel audio is supported. NOTE: The audio line-out port does not support headphones.

Port with icon supports 5 V/ 3 A. Connect your USB device. You can use this port only after you have connected the USB cable (A to C or C to C) from the computer to the monitor.

(screw not included).

1 4 5 6 7 832 14910 1211 13

Label Description Use

1 Security lock slot Secures monitor with security cable lock (sold separately).

Power connector

HDMI port

DisplayPort in

Connect the power cable.

Connect your computer with the HDMI cable.

Connect your computer with the DisplayPort cable.

About Your Monitor | 13

USB-C port (Video + Data)

DP port (out)

USB-C upstream port

8,1 0,

11,13

15 Stand lock Lock the stand to the monitor using a M3 x 8 mm screw

Super speed USB 10Gbps (USB 3.2 Gen2) (4)

Audio line-out port

RJ-45 connector

USB-C downstream port

Connect to your computer using the USB-C cable. The USB-C port offer the fastest transfer rate and the alternate mode with DP 1.4 support the maximum resolution of 2560 x 1440 at 60 Hz PD 20 V/4.5 A, 15 V/3 A, 9 V/3 A, 5 V/3 A. NOTE: USB-C is not supported on Windows versions that are prior to Windows 10.

Connect to your computer using the USB cable (A to C or C to C). Once the USB cable is connected, you can use the USB downstream connectors on the monitor. NOTE: Remove the rubber plug when using USB-C connector.

Connect your USB device. You can use these ports only after you have connected the USB cable (A to C or C to C)

from the computer to the monitor. Port with battery icon supports Battery Charging Rev.

1.2.

Connect speakers to playback audio through HDMI or DisplayPort audio channels. Only two-channel audio is supported. NOTE: The audio line-out port does not support headphones.

Connect Internet. You can surf Internet via RJ45 only after you have connected the USB cable (A to C or C to C) from the computer to the monitor.

Port with icon supports 5 V/ 3 A. Connect your USB device. You can use this port only after you have connected the USB cable (A to C or C to C) from the computer to the monitor.

(screw not included).

14 | About Your Monitor

Monitor Specifications

Model U2722D/U2722DX U2722DE

Screen type Active matrix - TFT LCD

Panel Type In-plane switching Technology

Aspect ratio 16:9

Viewable image dimensions

Diagonal 68.47 cm (27 in.)

Active Area

Horizontal 596.74 mm (23.49 in.)

Vertical 335.66 mm (13.22 in.)

Area 200301.74 mm2 (310.47 in.2)

Pixel pitch 0.2331 mm x 0.2331 mm

Pixel per inch (PPI) 108.78

Viewing angle

Horizontal 178° (typical) Vertical 178° (typical)

Brightness 350 cd/m² (typical)

Contrast ratio 1000 to 1 (typical)

Display screen coating Anti-glare treatment of the front polarizer (3H) hard coating

Backlight LED

Response Time (Gray to Gray)

Color depth 1.07 billion colors

Color gamut* 100% sRGB

Calibration accuracy Delta E < 2 (average) (sRGB, Rec. 709)

5 ms (Fast mode) 8 ms (Normal mode)

100% Rec. 709 95% DCI-P3

About Your Monitor | 15

Connectivity • 1 x DP 1.4 (HDCP 1.4)

• 1 x HDMI 1 .4

• 1 x USB-C (USB 3.2 Gen2, 10Gbps) upstream (Data only)

• 1 x DP (Out)

• 1 x Analog 2.0 audio line out (3.5 mm jack)

• 2 x USB-A (USB 3.2 Gen2, 10Gbps) downstream

Quick Access:

• 1 x USB-A (USB 3.2 Gen2, 10Gbps) downstream with BC 1.2

• 1 x USB-C (USB 3.2 Gen2, 10Gbps, 15 W) downstream

Border width (edge of monitor to active area)

To p

Left/Right

Bottom

Adjustability

Height adjustable stand

Tilt -5° to 21°

Swivel -45° to 45°

Pivot -90° to 90°

Cable management Yes

Dell Display Manager (DDM)Compatibility

Security Security lock slot (cable lock sold separately)

7.30 mm

9.05 mm

150 mm

Easy Arrange and other key features

• 1 x DP 1.4 (HDCP 1.4)

• 1 x HDMI 1 .4

• 1 x USB-C (DP 1.4, PD: 90W, 2/4 lanes switch USB 3.2 Gen2, 10Gbps) - upstream

• 1 x USB-C (USB 3.2 Gen2, 10Gbps) upstream

• 1 x DP (Out)

• 1 x Analog 2.0 audio line out (3.5 mm jack)

• 3 x USB-A (USB 3.2 Gen2, 10Gbps) downstream

• 1 x RJ45

Quick Access:

• 1 x USB-A (USB 3.2 Gen2, 10Gbps) downstream with BC 1.2

• 1 x USB-C (USB 3.2 Gen2, 10Gbps, 15 W) downstream

* At panel native only, under Custom Mode preset.

16 | About Your Monitor

Resolution Specifications

(kHz)

(Hz)

(MHz)

Vertical)

Horizontal scan range 30 kHz to 90 kHz

Vertical scan range 49 Hz to 76 Hz

Maximum preset resolution 2560 x 1440 at 60 Hz

Video display capabilities (HDMI) 480i, 480p, 576i, 560p, 720p, 1080i, 1080p

Video display capabilities (DP &

480p, 560p, 720p, 1080p

USB-C alternate mode)

Preset Display Modes

Display mode Horizontal

frequency

IBM, 720 x 400

VESA, 640 x 480 31.47 59.94 25.18 -/-

VESA, 640 x 480 37.5 0 75.00 31.50 -/-

VESA, 800 x 600 37.88 60.32 40.00 +/+

VESA, 800 x 600 46.88 75.00 49.50 +/+

VESA, 1024 x 768 48.36 60.00 65.00 -/-

VESA, 1024 x 768 60.02 75.03 78.75 +/+

VESA, 1152 x 864 67.5 0 75.00 108.00 +/+

VESA, 1280 x 1024 63.98 60.02 108.00 + /+

VESA, 1280 x 1024 79.98 75.02 135.00 + /+

VESA, 1600 x 1200 75.00 60.00 162.00 +/+

CTA, 1920 x 1080 67.50 60.00 148.50 +/+

VESA, 1920 x 1200 74.04 59.95 154.00 + /-

VESA, 2048 x 1080 66.66 59.98 147.18 +/-

VESA, 2048 x 1080 26.37 24.00 58.23 + /-

CVR, 2560 x 1440 88.79 59.95 241.50 +/-

31.47 70.08 28.32 -/+

Vertical frequency

Pixel clock

Sync polarity (Horizontal/

About Your Monitor | 17

DP Multi-Stream Transport (MST) Modes

MST Source Monitor Maximum number of external monitors that can be

supported 2560 x 1440/60 Hz

2560 x 1440/60 Hz 2

NOTE: Maximum external monitor resolution supported is 2560 x 1440/60 Hz only.

USB-C Multi-Stream Transport (MST) Modes (U2722DE Only)

OSD Display Info: Link rate(current)

Maximum number of external monitors that can be supported

2560 x 1440/60 Hz

HBR3 2

HBR2 1

Electrical Specifications

Model U2722D U2722DX U2722DE

Video input signals

Input voltage/ frequency/ current

Inrush current

Power Consumption

As dened in EU 2019/2021 and EU 2019/2013 (U2722D/U2722DE only).

• Digital video signal for each dierential line Per dierential line at 100 ohm impedance

• DP/HDMI/USB-C (U2722DE only) signal input support

100-240 VAC / 50 or 60 Hz ± 3 Hz / 1.6 A (maximum)

100-240 VAC / 50 or 60 Hz ± 3 Hz / 2.4 A (maximum)

120 V: 30 A (Max.) 240 V: 60 A (Max.) Inrush current is measured at an ambient temperature of 0°C.

120 V: 42 A (Max.) 240 V: 80 A (Max.) Inrush current is measured at an ambient temperature of 0°C.

0.3 W (Off Mode)

0.3 W (Standby Mode)

20 W (On Mode)

74 W (Max)

16.11 W (Pon)

51.39 kWh (TEC)

74 W (Max)

16.11 W (Pon)

51.39 kWh (TEC)

0.3 W (Off Mode)

0.3 W (Standby Mode)

20.4 W (On Mode)

197 W (Max)

20.32 W (Pon)

66.74 kWh (TEC)

18 | About Your Monitor

Max brightness and contrast setting with maximum power loading on all USB ports.

Pon: Power consumption of On Mode as dened in Energy Star 8.0 version.

TEC: Total energy consumption in kWh as dened in Energy star 8.0 version.

This document is informational only and reects laboratory performance. Your product may perform dierently, depending on the software, components and peripherals you ordered and shall have no obligation to update such information.

Accordingly, the customer should not rely upon this information in making decisions about electrical tolerances or otherwise. No warranty as to accuracy or completeness is expressed or implied.

NOTE: This monitor is ENERGY STAR certied.

This product qualies for ENERGY STAR in the factory default settings which can be restored by “Factory Reset” function in the OSD menu. Changing the factory default settings or enabling other features may increase power consumption that could exceed

the ENERGY STAR specied limit.

Physical Characteristics

Model U2722D/U2722DX U2722DE

Connector type • DP connector (include DP

in and DP out)

• HDMI connector

• Audio line-out

• USB-C (USB 3.2 Gen2, 10Gbps) upstream connector

• USB-A (USB 3.2 Gen2, 10Gbps) downstream connector x 3

(Port with battery icon supports BC 1.2.)

• USB-C (USB 3.2 Gen2, 10Gbps, 15W) downstream connector

• DP connector (include DP in and DP out)

• HDMI connector

• USB-C connector

• Audio line-out

• USB-C (USB 3.2 Gen2, 10Gbps) upstream connector

• USB-A (USB 3.2 Gen 2, 10 Gbps) downstream connector x 4

(Port with battery icon supports BC 1.2.)

• RJ45 connector

• USB-C (USB 3.2 Gen2, 10Gbps, 15W) downstream connector

About Your Monitor | 19

Signal cable type DP to DP 1.8 M cable (U2722D/U2722DE only)

HDMI 1.8 M cable (U2722DX only) USB 3.2 Gen2 C to C 1.0 M cable (U2722DE only) USB 3.2 Gen2 A to C 1.0 M cable

Dimensions (with stand)

Height (extended)

Height (compressed)

Width

Depth

Dimensions (without stand)

Height

Width

Depth

Stand dimensions

Height (extended)

Height (compressed)

Width

Depth

Weight

Weight with packaging 9.62 kg (21.21 lb) 10.01 kg (22.06 lb)

Weight with stand assembly and cables

Weight without stand assembly (For wall mount or VESA mount considerations - no cables)

Weight of stand assembly 1.81 kg (3.99 lb)

535.13 mm (21.07 in.)

385.13 mm (15.16 in.)

611.34 mm (24.07 in.)

185.00 mm (7.28 in.)

352.01 mm (13.86 in.)

611.34 mm (24.07 in.)

49.50 mm (1.95 in.)

428.30 mm (16.86 in.)

381.50 mm (15.02 in.)

268.00 mm (10.55 in.)

185.00 mm (7.28 in.)

6.61kg (14.57lb) 7.02 kg (15.47 lb)

4.38 kg (9.66 lb) 4.78 kg (10.54 lb)

20 | About Your Monitor

Environmental Characteristics

Compliant Standards

• ENERGY STAR certified Monitor.

• EPEAT registered where applicable. EPEAT registration varies by country. See https://www.epeat.net for registration status by country.

• TCO and TCO Edge Certified Display.

• RoHS Compliant.

• BFR/PVC Free monitor (excluding external cables).

• Meets NFPA 99 leakage current requirements.

• Arsenic-Free glass and Mercury-Free for the panel only.

Temperature

Operating 0°C to 40°C (32°F to 104°F) Non-operating –20°C to 60°C (–4°F to 140°F)

Humidity

Operating 10% to 80% (non-condensing) Non-operating 5% to 90% (non-condensing)

Altitude

Operating 5,000 m (16,404 ft) (maximum) Non-operating 12,192 m (40,000 ft) (maximum)

Thermal dissipation

U2722D/U2722DX 252.50 BTU/hour (maximum)

68.24 BTU/hour (on mode)

U2722DE 672.19 BTU/hour (maximum)

68.24 BTU/hour (on mode)

About Your Monitor | 21

Pin Assignments

DP Port (in)

Pin number 20-pin side of theconnected signal cable

1 ML3(n)

2 GND

3 ML3(p)

4 ML2(n)

5 GND

6 ML2(p)

7 ML1(n)

8 GND

9 ML1(p)

10 ML0(n)

11 GND

12 ML0(p)

13 CONFIG1

14 CONFIG2

15 AUX CH (p)

16 GND

17 AUX CH (n)

18 Hot Plug Detect

19 Return

20 DP_PWR

22 | About Your Monitor

DP Port (out)

Pin number 20-pin side of theconnected signal cable

1 ML0(p)

2 GND

3 ML0(n)

4 ML1(p)

5 GND

6 ML1(n)

7 ML2(p)

8 GND

9 ML2(n)

10 ML3(p)

11 GND

12 ML3(n)

13 CONFIG1

14 CONFIG2

15 AUX CH(p)

16 GND

17 AUX CH(n)

18 Hot Plug Detect

19 Return

20 DP_PWR

About Your Monitor | 23

HDMI Port

Pin number 19-pin side of theconnected signal cable

1 TMDS DATA 2+

2 TMDS DATA 2 SHIELD

3 TMDS DATA 2-

4 TMDS DATA 1+

5 TMDS DATA 1 SHIELD

6 TMDS DATA 1-

7 TMDS DATA 0+

8 TMDS DATA 0 SHIELD

9 TMDS DATA 0-

10 TMDS CLOCK+

11 TMDS CLOCK SHIELD

12 TMDS CLOCK-

13 CEC

14 Reserved (N.C. on device)

15 DDC CLOCK (SCL)

16 DDC DATA (SDA)

17 DDC/CEC Ground

18 +5 V POWER

19 HOT PLUG DETECT

24 | About Your Monitor

USB-C Port

Pin Signal Pin Signal

A1 GND B12 GND

A2 SSTXp1 B11 SSRXp1

A3 SSTXn1 B10 SSRXn1

A4 VBUS B9 VBUS

A5 CC1 B8 SBU2

A6 Dp1 B7 Dn1

A7 Dn1 B6 Dp1

A8 SBU1 B5 CC2

A9 VBUS B4 VBUS

A10 SSRXn2 B3 SSTXn2

A11 SSRXp2 B2 SSTXp2

A12 GND B1 GND

About Your Monitor | 25

Universal Serial Bus (USB) (U2722D/U2722DX)

This section gives you information about the USB ports available on your monitor.

NOTE: Up to 2 A on USB downstream port (port with battery

icon) with BC 1.2 compliance devices; up to 0.9 A on the other 2 USB downstream ports; Up to 3 A on USB-C downstream port (port with icon) with 5 V/3 A compliance devices.

Your monitor has the following USB ports:

• 1 upstream - at rear.

• 4 downstream - 2 at bottom, 2 at rear. Power Charging Port - the ports with battery icon supports fast current charging capability if the device is BC 1.2 compatible. The USB-C downstream port with icon supports fast current charging capability if the device is 5V/3A compatible.

NOTE: The monitor’s USB ports work only when the monitor is on or in

Standby Mode. On in Standby Mode, if the USB cable (A to C or C to C) is plugged in, the USB ports can work normally. Otherwise, follow the OSD setting of USB Charging, if the setting is “On in Standby Mode” then USB work normally, otherwise USB is disabled. If you turn off the monitor and then turn it on, the attached peripherals may take a few seconds to resume normal functionality.

Super speed USB 10 Gbps (USB 3.2 Gen2) Device

Transfer speed Data rate Maximum power consumption (each port)

Super speed+ 10 Gbps 4.5 W Super speed 5 Gbps 4.5 W

USB 2.0 Device

Transfer speed Data rate Maximum power consumption (each port)

Hi-Speed 480 Mbps 2.5 W Full speed 12 Mbps 2.5 W Low speed 1.5 Mbps 2.5 W

26 | About Your Monitor

Universal Serial Bus (USB) (U2722DE)

This section gives you information about the USB ports available on your monitor.

NOTE: Up to 2 A on USB downstream port (port with battery

icon) with BC 1.2 compliance devices; up to 0.9 A on the other 3 USB downstream ports; Up to 3 A on USB-C downstream port (port with icon) with 5 V/3 A compliance devices.

Your monitor has the following USB ports:

• 2 upstream - at rear.

• 5 downstream - 2 at bottom, 3 at rear. Power Charging Port - the ports with battery icon supports fast current charging capability if the device is BC 1.2 compatible. The USB-C downstream port with icon supports fast current charging capability if the device is 5V/3A compatible.

NOTE: The monitor’s USB ports work only when the monitor is on or in

Standby Mode. On in Standby Mode, if the USB cable (A to C or C to C) is plugged in, the USB ports can work normally. Otherwise, follow the OSD setting of Other USB Charging, if the setting is “On in Standby Mode” then USB work normally, otherwise USB is disabled. If you turn off the monitor and then turn it on, the attached peripherals may take a few seconds to resume normal functionality.

Super speed USB 10 Gbps (USB 3.2 Gen2) Device

Transfer speed Data rate Maximum power consumption (each port)

Super speed+ 10 Gbps 4.5 W Super speed 5 Gbps 4.5 W Hi-Speed * 480 Mbps 2.5 W Full speed * 12 Mbps 2.5 W

NOTE: Device speed when High Resolution is selected.

USB 2.0 Device

Transfer speed Data rate Maximum power consumption (each port)

Hi-Speed 480 Mbps 2.5 W Full speed 12 Mbps 2.5 W Low speed 1.5 Mbps 2.5 W

About Your Monitor | 27

USB 3.2 Gen2 (10Gbps)

PHY SIDE

CABLE SIDE

RJ45

GREEN

ORANGE

SHIELD

GROUND

2kV, 1000pF

downstream port (Bottom)

USB 3.2 Gen2 (10Gbps) downstreamport (Rear)

Pin number Signal name Pin number Signal name

1 VBUS 1 VBUS

2 D- 2 D-

3 D+ 3 D+

4 GND 4 GND

5 StdA_SSRX- 5 StdA_SSRX-

6 StdA_SSRX+ 6 StdA_SSRX+

7 GND_DRAIN 7 GND_DRAIN

8 StdA_SSTX- 8 StdA_SSTX-

9 StdA_SSTX+ 9 StdA_SSTX+

Shell Shield Shell Shield

RJ45 Port (Connector Side) (U2722DE Only)

28 | About Your Monitor

Pin Signal Pin Signal

1 TD1 + 8 TD3 -

2 TD1 - 9 TD4 +

3 TD2 + 10 TD4 -

4 TD2 - 11 GREEN_ORANGE

5 CT 12 GREEN_ORANGE

6 CT 13 GREEN

7 TD3 + 14 GREEN

Driver installation

Install the Realtek USB GBE Ethernet Controller Driver available for your system. This is available for download at https://www.dell.com/support under the “Driver and download” section.

Network (RJ45) data rate via USB-C max speed is 1000 Mbps.

NOTE: This LAN port is 1000Base-T IEEE 802.3az compliant, supporting

Mac Address (Printed on model label) Pass-thru, Wake-on-LAN (WOL) from standby mode (S3 only) and PXE Boot function, these 3 features depend on BIOS setting and OS version.

RJ45 Connector LED Status (U2722DE Only):

Right LED Left LED

LED Color Description

Right LED Amber or Green Speed indicator:

• Amber On - 100 0 Mbps

• Green On - 100 Mbps

• Off - 10 Mbps

Left LED Green Link / Activity indicator:

• Blinking - Activity on the port.

• Green On - Link is being established.

• Off - Link is not established.

NOTE: RJ45 cable is non in-box standard accessory.

About Your Monitor | 29

Plug-and-Play

You can install the monitor in any Plug-and-Play-compatible system. The monitor automatically provides the computer system with its extended display identification data (EDID) using display data channel (DDC) protocols so the computer can configure itself and optimize the monitor settings. Most monitor installations are automatic; you can select different settings if desired. For more information about changing the monitor settings, see Operating the Monitor.

LCD Monitor Quality and Pixel Policy

During the LCD monitor manufacturing process, it is not uncommon for one or more pixels to become fixed in an unchanging state which are hard to see and do not affect the display quality or usability. For more information on LCD Monitor Pixel Policy, see Dell support site at: https://www.dell.com/pixelguidelines.

Ergonomics

CAUTION: Improper or prolonged usage of keyboard may result in injury.

CAUTION: Viewing the monitor screen for extended periods of time may

result in eye strain.

For comfort and efficiency, observe the following guidelines when setting up and using your computer workstation:

• Position your computer so that the monitor and keyboard are directly in front of you as you work. Special shelves are commercially available to help you correctly position your keyboard.

• To reduce the risk of eye strain and neck/arm/back/shoulder pain from using the monitor for long periods of time, we suggest you to:

1. Set the distance of the screen between 20 to 28 in. (50 - 70 cm) from your

eyes.

2. Blink frequently to moisten your eyes or wet your eyes with water after

prolonged usage of the monitor.

3. Take regular and frequent breaks for 20 minutes every two hours.

4. Look away from your monitor and gaze at a distant object at 20 feet away for

at least 20 seconds during the breaks.

5. Perform stretches to relieve tension in the neck, arm, back, and shoulders

during the breaks.

• Make sure that the monitor screen is at eye level or slightly lower when you are sitting in front of the monitor.

• Adjust the tilt of the monitor, its contrast, and brightness settings.

30 | About Your Monitor

+ 69 hidden pages
