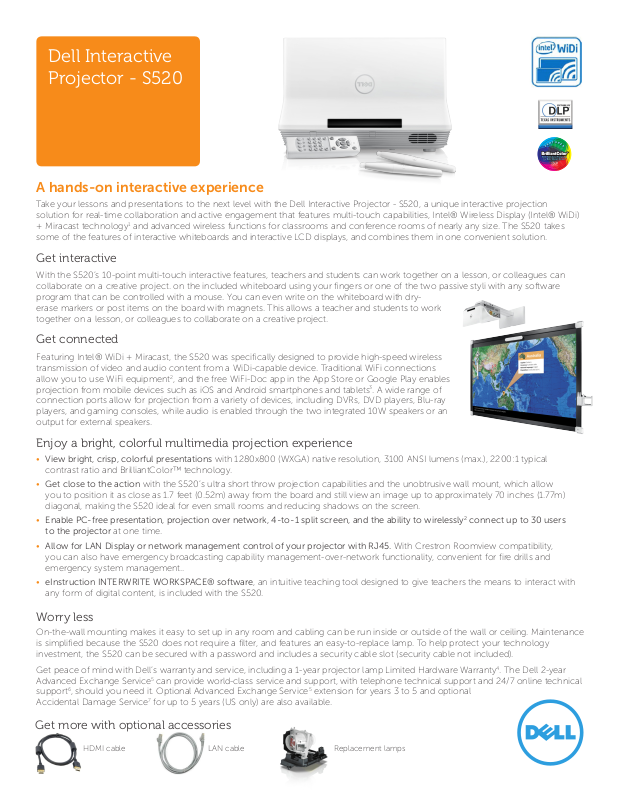

Dell S520 Product Sheet

Dell Interactive
Projector - S520

A hands-on interactive experience

Take your lessons and presentations to the next level with the Dell Interactive Projector - S520, a unique interactive projection
solution for real-time collaboration and active engagement that features multi-touch capabilities, Intel® Wireless Display (Intel® WiDi)
+ Miracast technology1 and advanced wireless functions for classrooms and conference rooms of nearly any size. The S520 takes
some of the features of interactive whiteboards and interactive LCD displays, and combines them in one convenient solution.

Get interactive

With the S520’s 10-point multi-touch interactive features, teachers and students can work together on a lesson, or colleagues can
collaborate on a creative project. on the included whiteboard using your fingers or one of the two passive styli with any software
program that can be controlled with a mouse. You can even write on the whiteboard with dry­erase markers or post items on the board with magnets. This allows a teacher and students to work
together on a lesson, or colleagues to collaborate on a creative project.

Get connected

Featuring Intel® WiDi + Miracast, the S520 was specifically designed to provide high-speed wireless
transmission of video and audio content from a WiDi-capable device. Traditional WiFi connections
allow you to use WiFi equipment2, and the free WiFi-Doc app in the App Store or Google Play enables
projection from mobile devices such as iOS and Android smartphones and tablets3. A wide range of
connection ports allow for projection from a variety of devices, including DVRs, DVD players, Blu-ray
players, and gaming consoles, while audio is enabled through the two integrated 10W speakers or an
output for external speakers.

Enjoy a bright, colorful multimedia projection experience

• View bright, crisp, colorful presentations with 1280x800 (WXGA) native resolution, 3100 ANSI lumens (max.), 2200:1 typical

contrast ratio and BrilliantColor™ technology.

• Get close to the action with the S520’s ultra short throw projection capabilities and the unobtrusive wall mount, which allow

you to position it as close as 1.7 feet (0.52m) away from the board and still view an image up to approximately 70 inches (1.77m)
diagonal, making the S520 ideal for even small rooms and reducing shadows on the screen.

• Enable PC-free presentation, projection over network, 4-to-1 split screen, and the ability to wirelessly2 connect up to 30 users

to the projector at one time.

• Allow for LAN Display or network management control of your projector with RJ45. With Crestron Roomview compatibility,

you can also have emergency broadcasting capability management-over-network functionality, convenient for fire drills and
emergency system management..

• eInstruction INTERWRITE WORKSPACE® software, an intuitive teaching tool designed to give teachers the means to interact with

any form of digital content, is included with the S520.

Worry less

On-the-wall mounting makes it easy to set up in any room and cabling can be run inside or outside of the wall or ceiling. Maintenance
is simplified because the S520 does not require a filter, and features an easy-to-replace lamp. To help protect your technology
investment, the S520 can be secured with a password and includes a security cable slot (security cable not included).

Get peace of mind with Dell’s warranty and service, including a 1-year projector lamp Limited Hardware Warranty4. The Dell 2-year
Advanced Exchange Service5 can provide world-class service and support, with telephone technical support and 24/7 online technical
support6, should you need it. Optional Advanced Exchange Service5 extension for years 3 to 5 and optional
Accidental Damage Service7 for up to 5 years (US only) are also available.

Get more with optional accessories

HDMI cable LAN cable Replacement lamps

DISPLAY

RESOLUTION

POWER
CONSUMPTION

SOUND

SIZE AND
WEIGHT

COMPLIANCE

INPUTS/
OUTPUT
CONNECTORS

WIRELESS

OTHER
FEATURES

PACKAGE
CONTENTS

Dell Interactive Projector - S520

DISPLAY (DMD) Single chip DLP 0.65” / WXGA-800 / S450 DMD / DarkChip™ 3

BRIGHTNESS 3100 ANSI Lumens (Max.)

PROJECTION LENS F-Stop: F/2.6. Eective focal length = 654mm ± 10mm @ 87.2 screen size

LENS OFFSET RATIO 125% ± 5%

THROW RATIO 0.35 (wide and tele)

PROJECTION SCREEN SIZE 1.77m ~ 2.54m (70” ~ 100“) (diagonal)

PROJECTION DISTANCE 0.517m ~ 0.759m ± 0.01m (1.7 ft ~ 2.49 ft)

ASPECT RATIO 16:10

LIGHT SOURCE 280W user-replaceable side-load lamp

LAMP LIFE Up to 3,000 hours8 in Normal Mode / up to 4,000 hours8 in Eco-Mode / up to 4,500 hours8 in Dynamic Eco-Cycle Mode

NUMBER OF PIXELS
(NATIVE RESOLUTION)

CONTRAST RATIO Native: 2,200:1 Typical / High Contrast Ratio Mode: 8,000:1 Typical

DISPLAYABLE COLORS Up to 1.07 billion colors

VIDEO COMPATIBILITY HDMI input: 480i/p, 576i/p, 720p, 1080p

POWER SUPPLY Universal AC 100-240V 50-60Hz with PFC input

NORMAL MODE:

ECO-MODE MODE:

STANDBY MODE:

AUDIO / NOISE OUTPUT 2x 10W speaker RMS / 36 dB(A) Normal Mode, 32 dB(A) Eco-Mode

DIMENSIONS (W x H x D) Projector: 14.1” x 9.1” x 14.4” (357mm x 231mm x 367mm)

WEIGHT Projector: 18.74 lbs (8.5 kg)

UNIFORMITY 85% Typical (Japan Standard - JBMA)

ENVIRONMENTAL EU RoHS Compliant9:Yes

POWER:

HDMI INPUT:

VGA INPUT:

VGA OUTPUT:

SVIDEO INPUT:

COMPOSITE VIDEO INPUT:

ANALOG AUDIO INPUT:

VARIABLE AUDIO OUTPUT:

RS232 INPUT:

USBA PORT:
USBB PORT:

MINI USBB PORT:

RJ45 PORT:

MICROPHONE:

DC JACK 12V OUTPUT:

WIRELESS STANDARD:

OS ENVIRONMENT:

OTHER FEATURES 2BG internal Flash memory10, Embedded WiFi, Intel® WiDi + Miracast, Closed captioning, 3D-capable, Password protection

CONTENTS S520 projector, power cable, 2 passive pens, whiteboard, 3x pieces of alignment bar, Laser curtain and screw, wall mount kit,

1280 x 800 (WXGA)

Composite Video / S-Video input: NTSC: M (3.58 MHz), 4.43 MHz / PAL: B, D, G, H, I, M, N, 60 / SECAM: B, D, G, K, K1, L
Component Video input via VGA: 480i/p, 576i/p, 720p, 1080i

345W ± 10% @ 110Vac (network on)
285W ± 10% @ 110Vac (network on)
≤0.5W

Board: 80.5” x 2.3” x 55.5” (2.04m x 0.58m x 1.41m)

Board: 62.0 lbs (28.7 kg)

Operating Temperature: 41°F ~ 104°F (5°C ~ 40°C) Operating Humidity: 80% Maximum
Storage Temperature: 32°F ~ 140°F (0°C ~ 60°C) Storage Humidity: 90% Maximum
Shipping Temperature: -4°F ~ 140°F (-20°C ~ 60°C) Shipping Humidity: 90% Maximum

AC Power socket (3-pin - C14 inlet)
1x HDMI 1.4a (HDCP compliant)
2x 15-pin D-sub connectors (Blue), VGA-A and VGA-B, for analog RGB/Component input signals
1x 15-pin D-sub connector (Black) for VGA-A loop through
1x standard 4-pin mini-DIN S-Video connector for Y/C signal
1x yellow RCA jack for CVBS signal
2x 3.5mm stereo mini phone jack (blue), 2x pairs RCA connectors (red/white)
1x 3.5mm stereo mini phone jack (green)
1x 9-pin D-Sub for RS232 communication
1x for PC-Free Presentation from USB flash drive, USB memory storage access (USB flash drive/ projector’s internal memory)
1x for USB Display
1x mini USB-B slave for remote support, firmware upgrade, and laser curtain touch HID
1x for management-over-network and LAN display
1x 3.5mm stereo mini phone jack (Pink)
1x 12V DC/200 mA max. output for driving laser curtain

WiFi Standard IEEE802.11a/b/g/n (2T2R)
Windows 8 / 7 / Vista / XP / 2000, Mac OS X

(when enabled), Kensington lock slot (security cable sold separately), Quick shutdown, Crestron Roomview compatible, Wall­mountable, Customizable startup display and front/rear projection.

VGA cable, Mini USB-B cable, DC to DC cable, remote control with batteries, InterWrite Workspace CD, CD User’s Guide and
Documentation
