Dell Precision FX100 Specifications

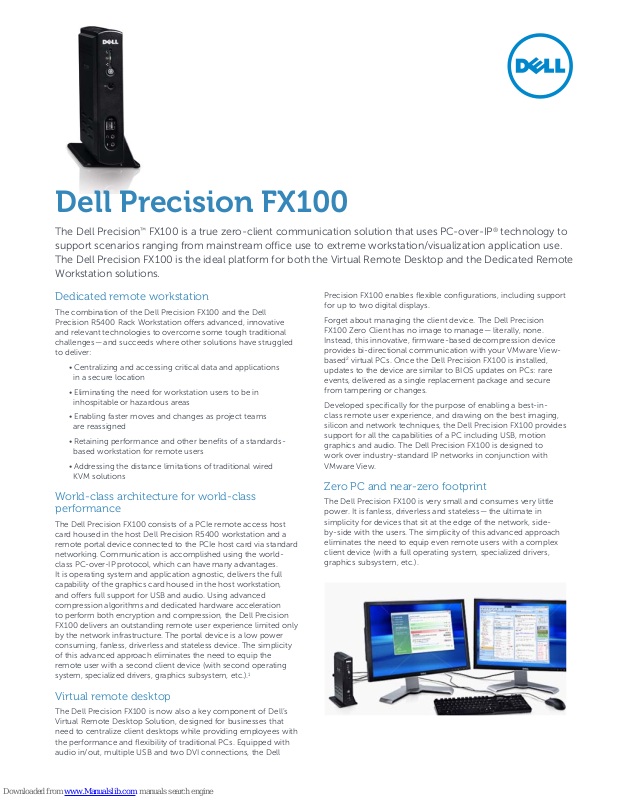

Dell Precision FX100
The Dell Precision™ FX100 is a true zero-client communication solution that uses PC-over-IP® technology to
support scenarios ranging from mainstream oce use to extreme workstation/visualization application use.
The Dell Precision FX100 is the ideal platform for both the Virtual Remote Desktop and the Dedicated Remote
Workstation solutions.
Dedicated remote workstation
The combination of the Dell Precision FX100 and the Dell
Precision R5400 Rack Workstation oers advanced, innovative
and relevant technologies to overcome some tough traditional
challenges—and succeeds where other solutions have struggled
to deliver:
• Centralizing and accessing critical data and applications
in a secure location
• Eliminating the need for workstation users to be in
inhospitable or hazardous areas
• Enabling faster moves and changes as project teams
are reassigned
• Retaining performance and other benefits of a standardsbased workstation for remote users
• Addressing the distance limitations of traditional wired
KVM solutions
World-class architecture for world-class
performance
The Dell Precision FX100 consists of a PCIe remote access host
card housed in the host Dell Precision R5400 workstation and a
remote portal device connected to the PCIe host card via standard
networking. Communication is accomplished using the worldclass PC-over-IP protocol, which can have many advantages.
It is operating system and application agnostic, delivers the full
capability of the graphics card housed in the host workstation,
and oers full support for USB and audio. Using advanced
compression algorithms and dedicated hardware acceleration
to perform both encryption and compression, the Dell Precision
FX100 delivers an outstanding remote user experience limited only
by the network infrastructure. The portal device is a low power
consuming, fanless, driverless and stateless device. The simplicity
of this advanced approach eliminates the need to equip the
remote user with a second client device (with second operating
system, specialized drivers, graphics subsystem, etc.).
1
Precision FX100 enables flexible configurations, including support
for up to two digital displays.
Forget about managing the client device. The Dell Precision
FX100 Zero Client has no image to manage—literally, none.
Instead, this innovative, firmware-based decompression device
provides bi-directional communication with your VMware Viewbased2 virtual PCs. Once the Dell Precision FX100 is installed,
updates to the device are similar to BIOS updates on PCs: rare
events, delivered as a single replacement package and secure
from tampering or changes.
Developed specifically for the purpose of enabling a best-inclass remote user experience, and drawing on the best imaging,
silicon and network techniques, the Dell Precision FX100 provides
support for all the capabilities of a PC including USB, motion
graphics and audio. The Dell Precision FX100 is designed to
work over industry-standard IP networks in conjunction with
VMware View.
Zero PC and near-zero footprint
The Dell Precision FX100 is very small and consumes very little
power. It is fanless, driverless and stateless— the ultimate in
simplicity for devices that sit at the edge of the network, sideby-side with the users. The simplicity of this advanced approach
eliminates the need to equip even remote users with a complex
client device (with a full operating system, specialized drivers,
graphics subsystem, etc.).
Virtual remote desktop
The Dell Precision FX100 is now also a key component of Dell’s
Virtual Remote Desktop Solution, designed for businesses that
need to centralize client desktops while providing employees with
the performance and flexibility of traditional PCs. Equipped with
audio in/out, multiple USB and two DVI connections, the Dell
Feature Dell Precision FX100 Technical Specifications
Remote Access
Host Card
Portal Device
Video
Video Resolution
I/O Ports
Portal Dimensions
Environmental
Power
Consumption
Environmental
& Regulatory
PCIe x1 card for host workstation
2 DVI-I ports
1 RJ45 jack for 10/100/1000 Mbps Ethernet
• Remote power button (controls workstation host)
• Disconnect button (disconnects portal and host card)
• Built to run on standard 10/100/1000 BaseT Ethernet networks
• Allows true, transparent USB bridging over IP networks
• Same plug-and-play experience as local workstation
• Provides flexible user authorization by allowing USB port disabling or filtering by device type or user profile
• On-board audio controller connects to standard audio codecs
• Requires supplied codec for Windows® XP
• Operates in conjunction with any operating system and application
• No modification or additional host drivers required
• Management and media communication protected by secureSSL and IPSec
Two DVI-I ports with one DVI-I to VGA (DB-15) adapter supplied Video Control Display Data Control (DDC) for automatic
setting of resolution and refresh rate
Single DVI at 1920x1200
Dual DVI at 1600x1200
4 USB 1.1 connectors — 2 front, 2 rear
1 audio mic-in jack — front
1 audio headphone out jack — front
1 audio line-out jack — rear
1 RJ45 jack for 10/100/1000 Mbps Ethernet
Height 9.13" (232mm)
Width 3.7" (94mm)
Length 6.85" (174mm)
Kensington® Lock port
Environmental with humidity and temperature range:
Operating: 0 to 35 (degrees C) 5% – 85%RH
Storage: -40 to 60 (degrees C) 5% – 95%RH
Air Flow: Natural convection — top down with side vents
BTU/hr: At nominal 15W AC power operation ~52 BTU
At full 25W AC power operation ~85 BTU
Sound Level (db): 0 db — fanless with no moving parts
12v DC
30 watts or less
Current at 115V: 150mA (nominal)
10W (0.8A) DC nominal — using a 36W AC/DC adapter
Current at 200V: 75mA (nominal)
2.5mm inside diameter and 6.5mm outside diameter
1 DC — in jack
External power adapter with worldwide autosensing
100–240v VAC, 50/60 Hz support
You can find additional safety3 best practices information on the Regulatory Compliance Homepage on www.dell.com at the following
location: www.dell.com/regulatory_compliance
Base 3-Year Limited Warranty with 3 years standard Next Business Day (NBD) On-Site Service
Recommended Dell ProSupport is designed to rapidly respond to your business’ needs, protect your investment and sensitive data,
and provide enhanced proactive support services to help reduce risk and complexity within your IT environment
4
Learn more at dell.com/Precision
Dell’s Terms and Conditions of Sales and Service apply and are available upon request. Dell cannot be held responsible for errors in typography or photography.
1
Microsoft may require a Remote Desktop license for the FX100 under certain serial usage models. Please consult with Microsoft for details.
2
VMware View™ 4 PCoIP® Hardware zero client support on the Dell FX100 requires PCoIP® firmware release 3.X
3
For a complete copy of our guarantees and limited warranties, please write Dell U.S.A. L.P., Attention: Warranties, One Dell Way, Round Rock, TX 78682.
For more information visit www.dell.com/warranty
4
May be provided by third-party. Technician dispatched, if necessary, following phone-based troubleshooting. Availability varies. See dell.com/servicecontracts for details.
Teradici® and PC-over-IP® are registered trademarks or trademarks of Teradici Corporation in the United States and/or other countries. Dell is a trademark of Dell Inc.
©2010 Dell Inc. All rights reserved.
