Dell Precision 3430 Setup And Specifications

Dell Precision 3430 Small Form Factor

Setup and specications guide

Regulatory Model: D11S
Regulatory Type: D11S004

Notes, cautions, and warnings

NOTE: A NOTE indicates important information that helps you make better use of your product.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

© 2018 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks

may be trademarks of their respective owners.

2018 - 07

Rev. A00

Contents

1 Set up your computer.....................................................................................................................................5

2 Chassis overview........................................................................................................................................... 8

Front view........................................................................................................................................................................... 8

Back view............................................................................................................................................................................9

Service tag label................................................................................................................................................................10

3 System specications................................................................................................................................... 11

Processor............................................................................................................................................................................11

Memory..............................................................................................................................................................................12

Storage...............................................................................................................................................................................12

Audio...................................................................................................................................................................................13

Video card..........................................................................................................................................................................13

Communication................................................................................................................................................................. 14

Wireless..............................................................................................................................................................................14

Ports and connectors.......................................................................................................................................................14

Power supply.....................................................................................................................................................................15

Physical system dimensions............................................................................................................................................ 15

Environmental................................................................................................................................................................... 15

4 System setup................................................................................................................................................17

BIOS overview...................................................................................................................................................................17

Boot menu......................................................................................................................................................................... 17

Navigation keys.................................................................................................................................................................18

Boot Sequence..................................................................................................................................................................18

System setup options.......................................................................................................................................................18

General options...........................................................................................................................................................19

System information.................................................................................................................................................... 19

Video screen options..................................................................................................................................................21

Security........................................................................................................................................................................21

Secure boot options...................................................................................................................................................23

Intel Software Guard Extensions options................................................................................................................23

Performance...............................................................................................................................................................24

Power management...................................................................................................................................................24

Post behavior..............................................................................................................................................................25

Manageability..............................................................................................................................................................26

Virtualization support................................................................................................................................................ 26

Wireless options..........................................................................................................................................................27

Maintenance............................................................................................................................................................... 27

System logs.................................................................................................................................................................28

Advanced conguration............................................................................................................................................ 28

Updating the BIOS in Windows .....................................................................................................................................28

Updating BIOS on systems with BitLocker enabled..............................................................................................29

Contents

3

Updating your system BIOS using a USB ash drive............................................................................................ 29

Updating the Dell BIOS in Linux and Ubuntu environments................................................................................. 29

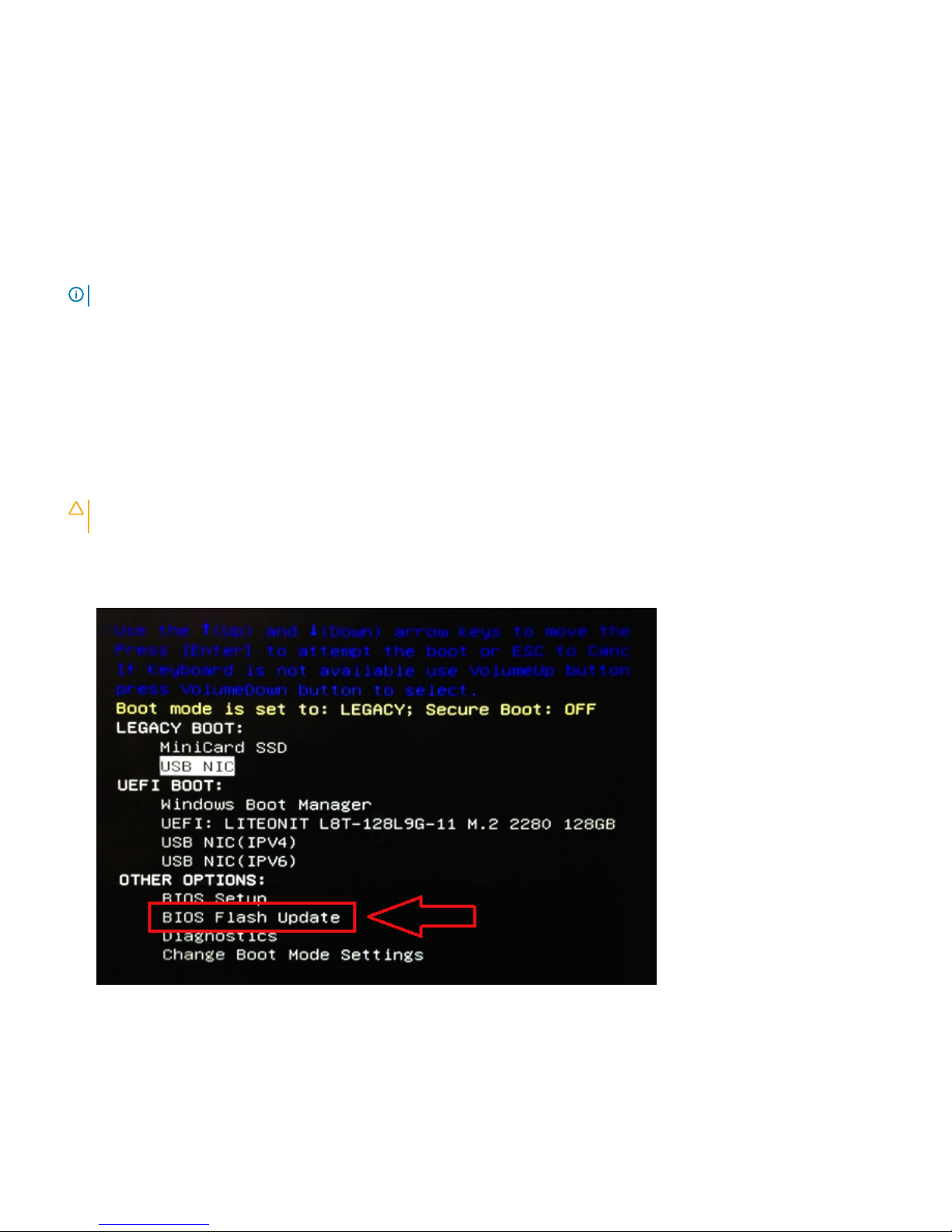

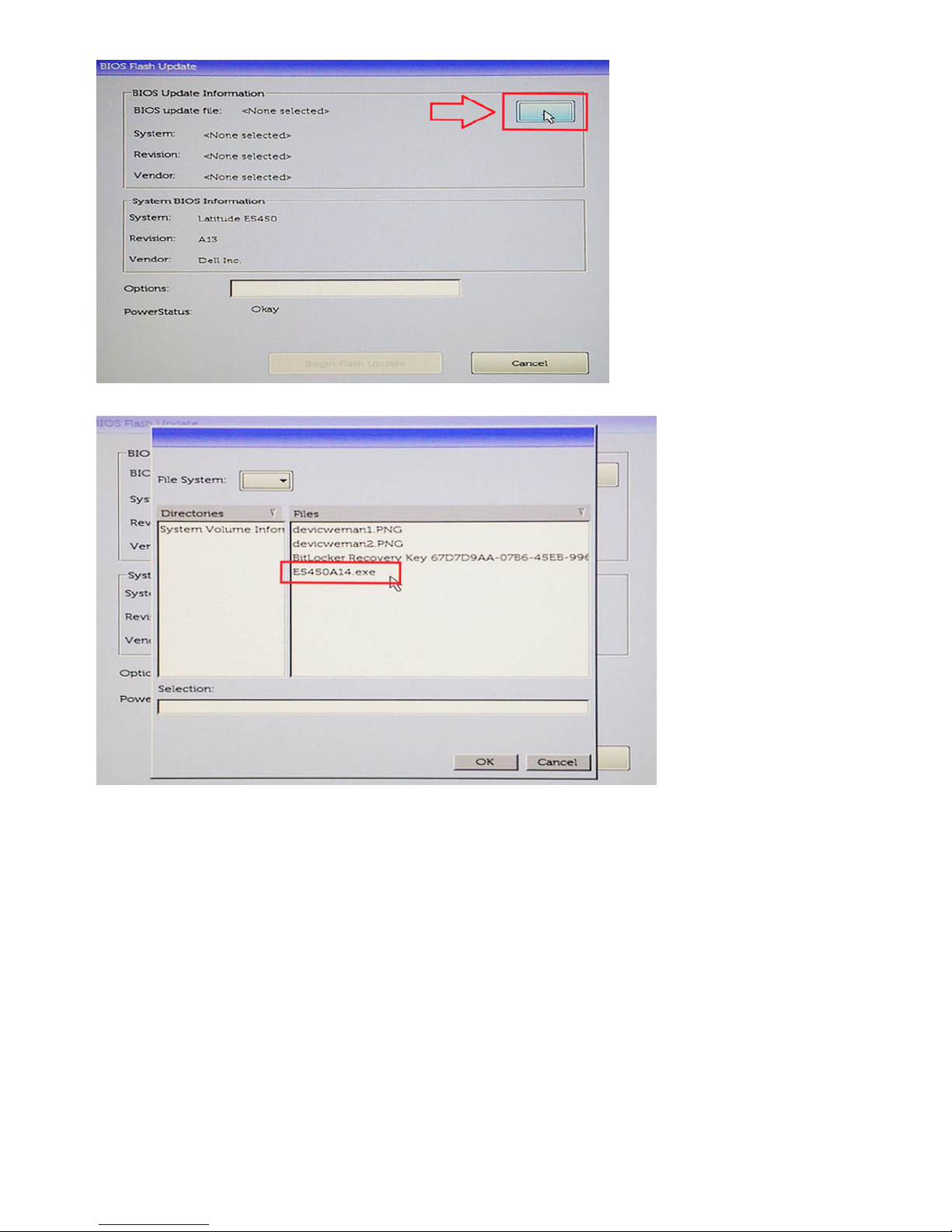

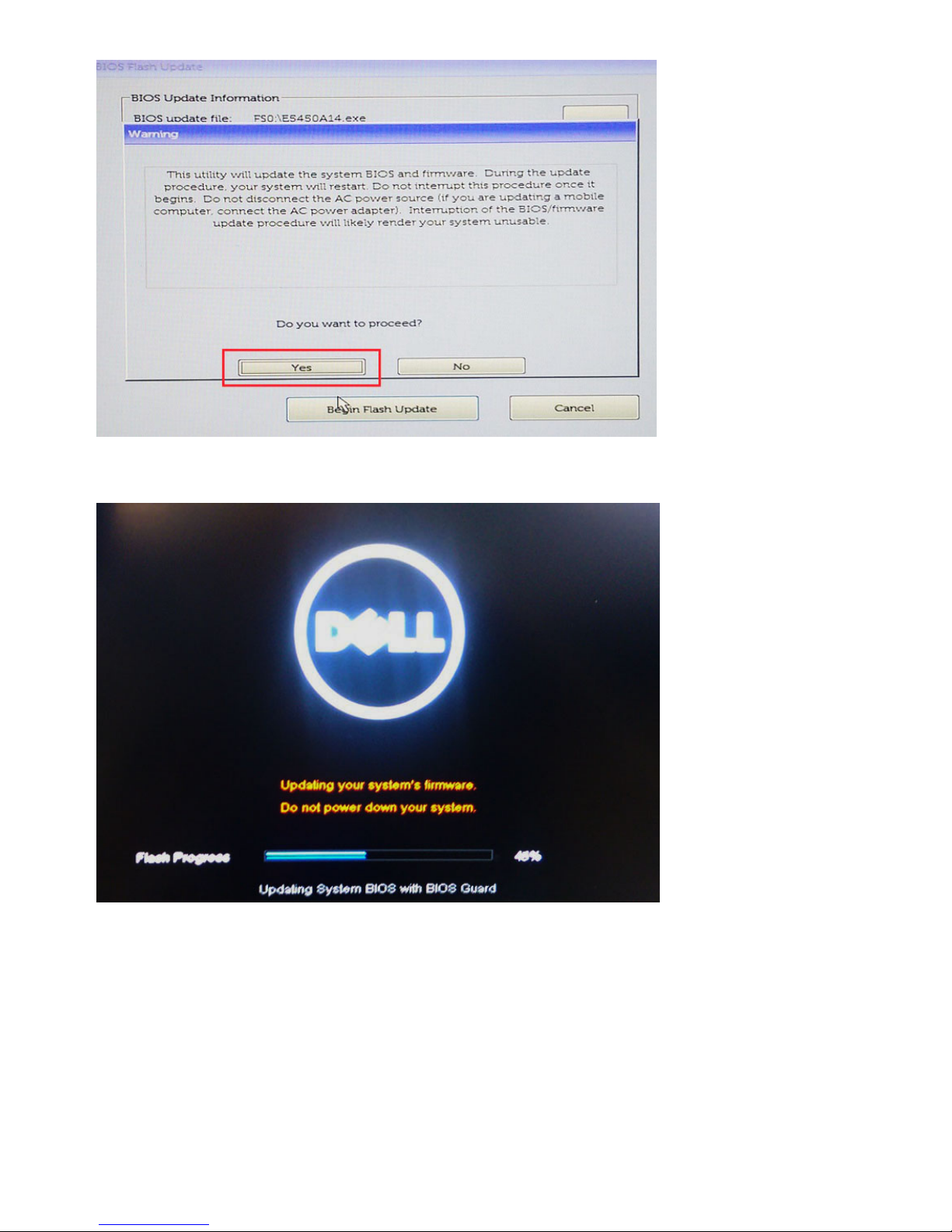

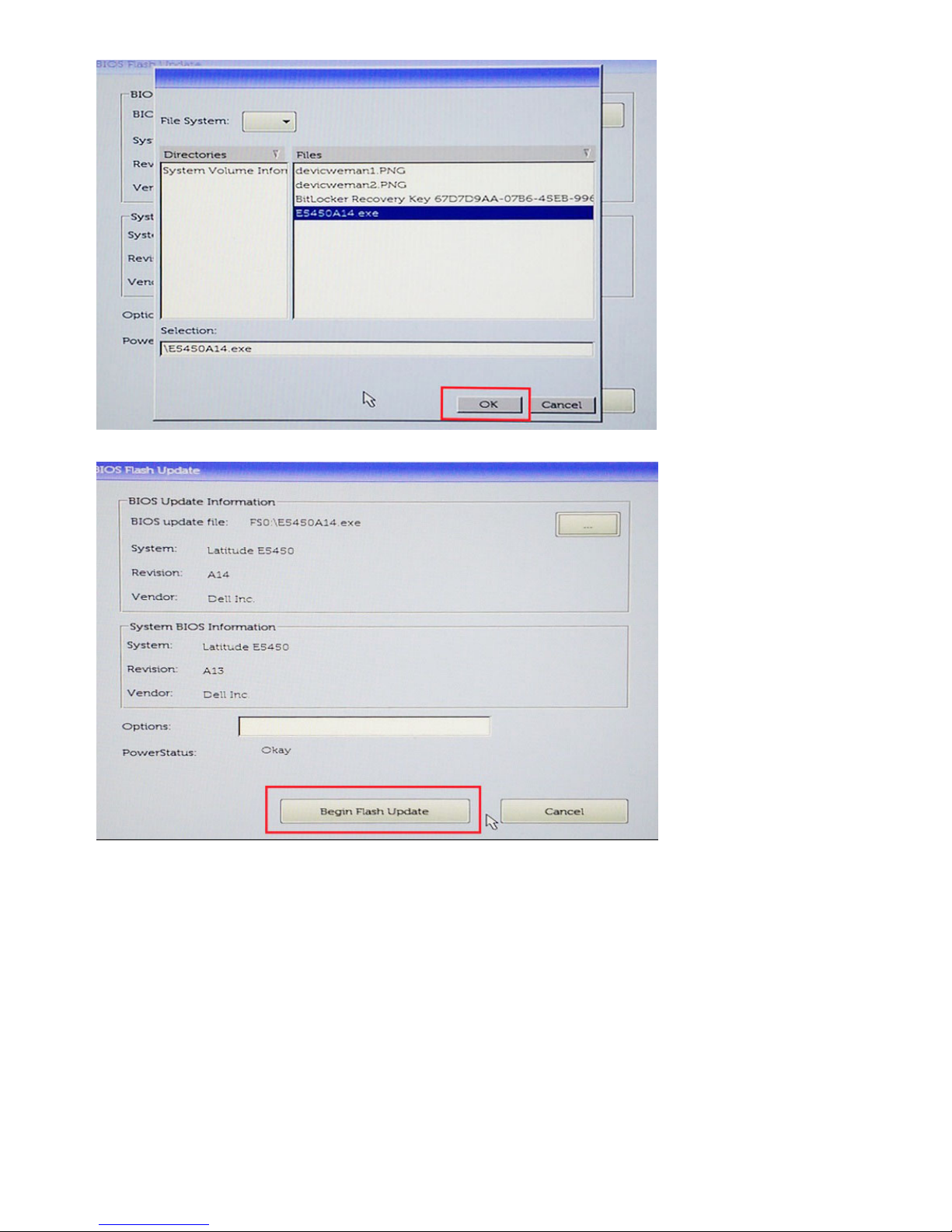

Flashing the BIOS from the F12 One-Time boot menu......................................................................................... 30

System and setup password...........................................................................................................................................33

Assigning a system password and setup password............................................................................................... 34

Deleting or changing an existing system setup password.................................................................................... 34

5 Software......................................................................................................................................................35

Operating system.............................................................................................................................................................35

Downloading drivers........................................................................................................................................................ 35

6 Getting help.................................................................................................................................................36

Contacting Dell.................................................................................................................................................................36

4 Contents

Set up your computer

1 Connect the keyboard and mouse.

2 Connect to your network using a cable, or connect to a wireless network.

3 Connect the display.

NOTE

: If you ordered your computer with a discrete graphics card, the HDMI and the display ports on the back panel of

your computer are covered. Connect the display to the discrete graphics card.

4 Connect the power cable.

1

Set up your computer 5

5 Press the power button.

6 Follow the instructions on the screen to nish Windows setup:

a Connect to a network.

b Sign-in to your Microsoft account or create a new account.

6

Set up your computer

7 Locate Dell apps.

Table 1. Locate Dell apps

Register your computer

Dell Help & Support

SupportAssist — Check and update your computer

Set up your computer

7

Chassis overview

Topics:

• Front view

• Back view

• Service tag label

Front view

1 Optical drive 2 Power button

3 Drive activity light 4 SD card slot

5 Headset port 6 USB 2.0 port with PowerShare

7 USB 2.0 port 8 USB 3.1 Gen 2 Type-C port with PowerShare

9 USB 3.1 Gen 1 port

2

8 Chassis overview

Back view

1 Line-out port 2 PS/2 keyboard port

3 Serial port 4 PS/2 mouse port

5 DisplayPort/HDMI 2.0/VGA/USB Type-C Alt-Mode (optional) 6 DisplayPort * 2

7 Service tag label 8 USB 3.1 Gen 1 ports

9 USB 2.0 ports(supports SmartPower On) 10 RJ45 network port

11 Expansion card slots 12 Power cable connector

13 Power activity light 14 Release latch

15 Antennas 16 Kensington security cable slot

17 Padlock ring

Chassis overview 9

Service tag label

10 Chassis overview

System specications

NOTE: Oerings may vary by region. The following specications are only those required by law to ship with your computer. For

more information about the conguration of your computer, go to Help and Support in your Windows operating system and
select the option to view information about your computer.

Topics:

• Processor

• Memory

• Storage

• Audio

• Video card

• Communication

• Wireless

• Ports and connectors

• Power supply

• Physical system dimensions

• Environmental

Processor

NOTE

: Processor numbers are not a measure of performance. Processor availability is subject to change and may vary by region/

country.

Table 2. Processor specications

Type UMA Graphics

Intel Xeon E Processor E-2174G (4 Core HT, 8MB Cache, 3.8Ghz,

4.7GHz)

Intel UHD Graphics 630

Intel Xeon E Processor E-2146G (6 Core HT, 12MB Cache, 3.5GHz,

4.5Ghz)

Intel UHD Graphics 630

Intel Xeon E Processor E-2136 (6 Core HT, 12MB Cache, 3.3Ghz,

4.5Ghz )

N/A

Intel Xeon E Processor E-2124G (4 Core, 8MB Cache, 3.4GHz,

4.5Ghz )

Intel UHD Graphics 630

Intel Xeon E Processor E-2124 (4 Core, 8MB Cache, 3.4GHz,

4.5Ghz )

N/A

Intel Core Processor i7-8700 (6 Core, 12MB Cache, 3.20GHz,

4.6Ghz )

Intel UHD Graphics 630

Intel Core Processor i5-8600 (6 Core,9MB Cache, 3.1GHz, 4.3Ghz)

Intel UHD Graphics 630

Intel Core Processor i5-8500 (6 Core,9MB Cache, 3.0GHz, 4.1Ghz)

Intel UHD Graphics 630

3

System specications 11
