Dell PowerEdge C6320 User Manual [in]

Dell PowerEdge C6320 Getting Started Guide

使用入门指南

Panduan Pengaktifan

はじめに

시작 안내서

Scan to see how-to videos, documentation, andtroubleshooting information

Dell PowerEdge C6320 Getting Started Guide

NOTE: A NOTE indicates important information that helps you make better use

of your computer.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Dell End User License Agreement

Before using your system, read the Dell Software License Agreement that shipped with your system. If you do not accept the terms of agreement, see Dell.com/contactdell.

Save all software media that shipped with your system. These media are backup copies of the software installed on your system.

Copyright © 2016 Dell Inc. All rights reserved. This product is protected by U.S. and international copyright and intellectual property laws. Dell™ and the Dell logo are trademarks of Dell Inc. in the United States and/or other jurisdictions. All other marks and names mentioned herein may be trademarks of their respective companies.

2016 – 01

P/N 3RKD9 Rev. A01

CAUTION: Restricted Access Location

This server is intended for installation only in restricted access locations as defined in Cl. 1.2.7.3 of IEC 60950-1: 2001 where both these conditions apply:

• Access can only be gained by service persons or by users who have been instructed about the reasons for the restrictions applied to the location and about any precautions that shall be taken.

• Access is through the use of a tool or lock and key, or other means of security, and is controlled by the authority responsible for the location.

Installation and configuration

WARNING: Before performing the following procedure, read and follow the safety instructions that came with the system.

Installing the tool-less rail solution

WARNING: Whenever you need to lift the system, get others to assist you. To avoid injury, do not attempt to lift the system by yourself.

WARNING: To avoid a potential electrical shock hazard, a third wire safety grounding conductor is necessary for the rack installation. The rack equipment must provide sufficient airflow to the system to maintain proper cooling.

CAUTION: When installing rails in a square-hole rack it is important to ensure that the square pegs slide through the square holes.

NOTE: The rails can be used in both square-hole racks (item 1 in the following

figure) and round-hole racks (item 2 in the following figure).

Installation and configuration │ 5

1. To open the rail latches, push the latch release buttons on the midpoints of the

end pieces of the rails. See

2. Align the end pieces of the rails on the vertical rack flanges to seat the pegs in

the bottom and top holes of the desired U spaces. See

in figure 1.

Figure 1: Pushing the latch release buttons

Back View

Front View

Latch Release Button

3. To lock the latches in place, engage the end of the rails until they seat on the

vertical rack flanges, and release the latch release buttons. See

in Figure 2.

Figure 2: Releasing the latch release buttons

Back View

Front View

6 │ Installation and configuration

4. Slide the system into the rack. See 4 in Figure 3.

5. Tighten the thumbscrews to secure the rack ears to the rack flanges.

See

in Figure 3.

Figure 3: Installing the chassis onto the rack

Back View

Front View

NOTE: To remove the rails, push the latch release button on the midpoints of the end piece and unseat each rail.

Installation and configuration │ 7

Installing the optional chassis stabilizer

shipping brackets

1. At the back of each vertical rack flange, put two screw bases into the two

square holes above the rail. See

2. Install the optional chassis stabilizer shipping brackets on the rack flanges.

See

in Figure 4.

3. Install and tighten the screws. See NOTE: To transport systems already installed in the rack, ensure that the two

chassis stabilizer shipping brackets are in place.

Figure 4: Installing the chassis stabilizer shipping brackets

in Figure 4.

Back View

8 │ Installation and configuration

Optional — Connecting the keyboard, mouse, and monitor

Connect the keyboard, mouse, and monitor (optional). The connectors on the back of your system have icons indicating which cable to

plug into each connector. Be sure to tighten the screws (if any) on the monitor’s cable connector.

NOTE: Note that the system supports only one USB port and a micro USB port. If you require more than one USB outlet at a time, use USB Hub or Adapter Cable.

Installation and configuration │ 9

Connecting the power cable(s)

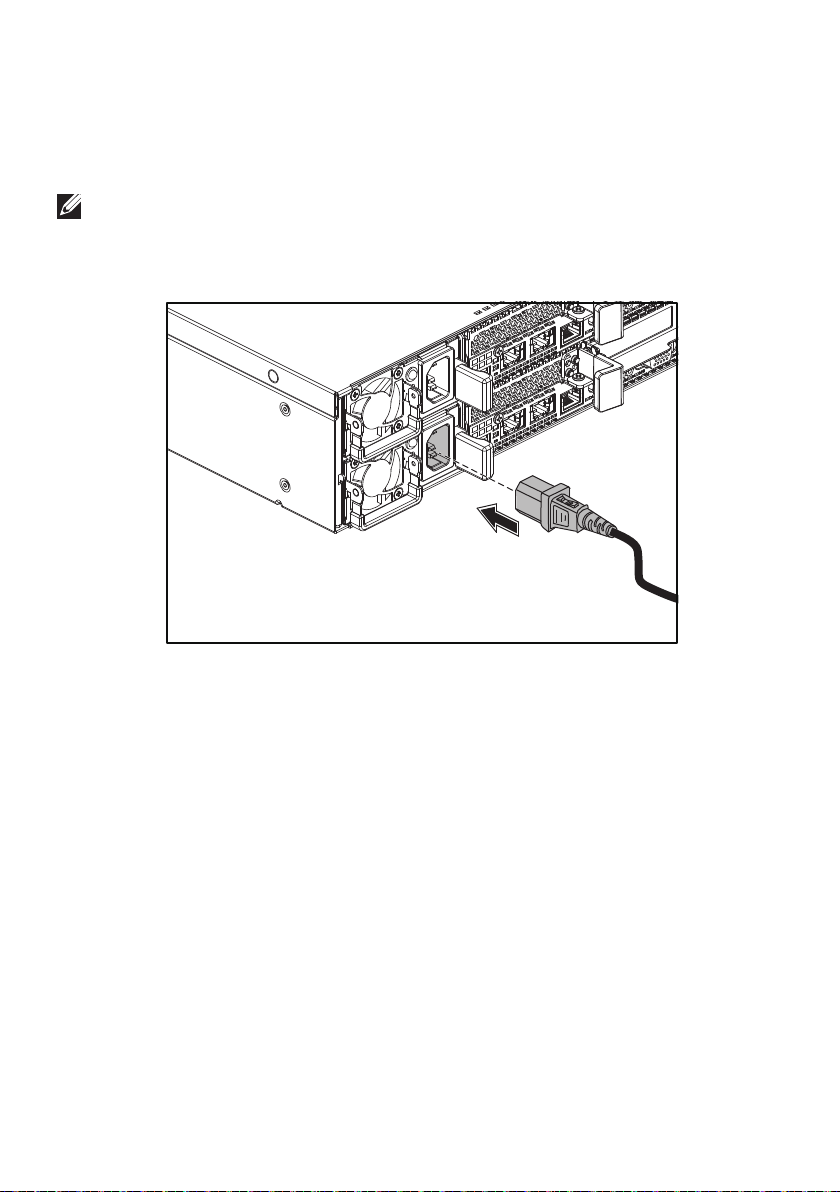

Connect the system’s power cable(s) to the system, and if a monitor is used, connect the monitor’s power cable to the monitor. Plug the other end of the power cables into a grounded electrical outlet or a separate power source such as an uninterrupted power supply or a power distribution unit.

NOTE: The system supports both AC and HVDC power inputs and up to two1400 W power supply units (200-240 VAC nominal input voltage) or up to two 1600 W power supply units (200-240 VAC nominal input voltage). 1400 W power supply unit is supported only for China.

10 │ Installation and configuration

Turning on the system

Press the power button(s) either on the front or at the back of the system. The power indicators turn green.

Getting help

WARNING: See the safety and regulatory information that shipped with your system. Warranty information may be included within this document or as aseparate document.

The Hardware Owner’s Manual provides information about system features and describes how to troubleshoot the system and install or replace system components. This document is available at Dell.com/support.

Dell systems management application documentation provides information about installing and using the systems management software. This document is available online at Dell.com/support.

Getting help │ 11

For an immediate access to your system information:

1. Go to Dell.com/support.

2. Enter your system service tag in the Enter your Service Tag or Express Service

Code field.

3. Click Submit.

4. The support page that lists the system manuals is displayed.

For more information about your system:

1. Go to Dell.com/support.

2. Select your country from the drop-down menu on the bottom right corner

ofthe page.

a. Select your product category.

b. Select your product segment.

c. Select your product.

The support page that lists the various support categories is displayed.

NOTE: Always check for updates on Dell.com/support and read the updates first because they often supersede information in other documents.

NOM information (Mexico only)

The following information is provided on the device described in this document in compliance with the requirements of the official Mexican standards (NOM):

Importer Dell Inc. de México, S.A. de C.V.

Paseo de la Reforma 2620-11° Piso Col. Lomas Atlas

11950 México, D.F. Model number B08S Supply voltage 200-240 V AC with 1400 W (for China

only) or 1600 W power supply unit

100-120 V AC with two 1600 W power

supply units

Note: Two power supply units must be

installed for 100-120 V AC Frequency 50/60 Hz Current consumption 9 Amps with 1400 W power supply unit

10 Amps with 1600 W power supply unit

12 Amps with two 1600 W power supply

units at 100-120 V AC

12 │ NOM information (Mexico only)

Technical specifications

Power

NOTE: The system does not support mixed installation of 1400 W and 1600 W

power supply units. NOTE: The 1400 W and 1600 W power supply units are hot swappable, and

support hot swap in any condition if the system has the power throttling feature. AC power supply (per power supply)

Wattage 1400 W (for China only) Voltage 200-240 VAC, 50/60 Hz, maximum

input current: 9 Amps Heat dissipation 6024.376 BTU/hr maximum Maximum inrush current Initial inrush current cannot exceed

55Amps (peak). Secondary inrush

current cannot exceed 25 Amps (peak). Wattage 1600 W Voltage 200-240 VAC, 50/60 Hz, maximum

input current: 10 Amps

100-120 VAC / 200-240 VAC, 50/60 Hz,

maximum input current: 12 Amps/10 Amps Heat dissipation 6033.979 BTU/hr maximum Maximum inrush current Initial inrush current and secondary

inrush current cannot exceed

50 Amps (peak). HVDC power supply (per power supply) Wattage 1400 W (for China only) Voltage 240 VDC, 50/60 Hz, maximum input

current: 9 Amps Heat dissipation 5440.614 BTU/hr maximum Maximum inrush current Initial inrush current cannot exceed

55Amps (peak). Secondary inrush

current cannot exceed 25 Amps (peak).

Technical specifications │ 13

Battery (per system board)

System battery 3 V CR2032 lithium coin cell

Environmental

NOTE: For additional information about environmental measurements for specific

system configurations, see Dell.com/environmental_datasheets. Temperature 10° to 35°C (50° to 95°F) with a

maximum temperature gradation of 10°C per hour

Operating NOTE: For altitudes above 2950 feet,

the maximum operating temperature isderated 1°F/550 ft.

CAUTION: The maximum number of memory modules and hard drives supported on 1U node configuration with 135W and 145W processors depends on the power supply installed.

Storage –40° to 65°C (–40° to 149°F) with

amaximum temperature gradation of 20°C per hour

14 │ Technical specifications

Dell PowerEdge C6320

使用入门指南

扫描以查看使用指导视频、说明文件和故障排除信息

注：“注”表示可以帮助您更好地使用计算机的重要信息。小心：“小心”表示可能会损坏硬件或导致数据丢失，并告诉您如何避免此类问题。警告：“警告”表示可能会导致财产损失、人身伤害甚至死亡。

Dell 最终用户许可协议

使用系统前，请阅读系统随附的《Dell 软件许可协议》。如果您不接受协议条款，请访问 Dell.com/contactdell。

保存系统随附的所有软件介质。这些介质是系统中已安装软件的备份副本。

2016 – 01

P/N 3RKD9 Rev. A01

小心：受限访问位置

此服务器仅用于安装在由IEC 60950-1:2001 的 CI.1.2.7.3 中定义的满足下列两个条件的受限访问位置中：

• 仅维修人员或对该位置施加限制的理由以及应当采取的防备措施已完全领会的用户，方可对此服务器进行访问。

• 访问是通过使用工具或锁和钥匙，或其他安全手段来实现，并且由负责该位置的管理机构来控制。

安装和配置

警告：执行下列步骤之前，请先阅读并遵循系统随附的安全说明。

安装免工具拆装滑轨解决方案

警告：需要提起系统时，请让其他人进行协助。为避免受伤，请勿尝试独自提起系统。警告：为避免可能的电击伤害，安装机架时需要第三根导线的安全接地线。机架设

备必须为系统提供足够的通风以维持适当的冷却效果。小心：在方孔机架中安装滑轨时，务必确保方形插销穿过方孔。注：滑轨在方孔机架（下图中的项目 1）和圆孔机架（下图中的项目 2）中均可使用。

安装和配置 │ 17

1. 要打开滑轨闩锁，请按压滑轨尾段正中央的闩锁释放按钮。请参见图 1 中的 1。

2. 在机架垂直凸缘上对齐滑轨的尾段，将插销分别插入所需 U 形空间的底孔和顶孔中。

请参见图 1 中的

。

图 1：按压闩锁释放按钮

后视图

正面视图

栓锁释放按钮

3. 要将闩锁锁定到位，请啮合滑轨的尾端，直到它们插入垂直机架凸缘，然后释放闩

锁释放按钮。请参见图 2 中的

。

图 2：松开闩锁释放按钮

后视图

正面视图

18 │ 安装和配置

4. 将系统滑入到机架中。请参见图 3 中的 4。

5. 拧紧指旋螺钉，将机架安装耳固定到机架凸缘上。请参见图 3 中的

图 3：将机箱安装到机架上

后视图

正面视图

注：要卸下滑轨，请按压尾段正中央的闩锁释放按钮并取下每根滑轨。

。

安装和配置 │ 19

安装运输时稳固机箱的可选支架

1. 在每个垂直机架凸缘的背面，将两颗螺钉座放入机架正上方的两个方孔内。请参见

图 4 中的

2. 将运输时稳固机箱的可选支架安装在机架凸缘上。请参见图 4 中的

3. 装回并拧紧螺钉。请参见图 4 中的

注：要运输已经安装在机架上的系统，请确保两个运输时稳固机箱的支架到位。

图 4：安装运输时稳固机箱的支架

。

后视图

20 │ 安装和配置
