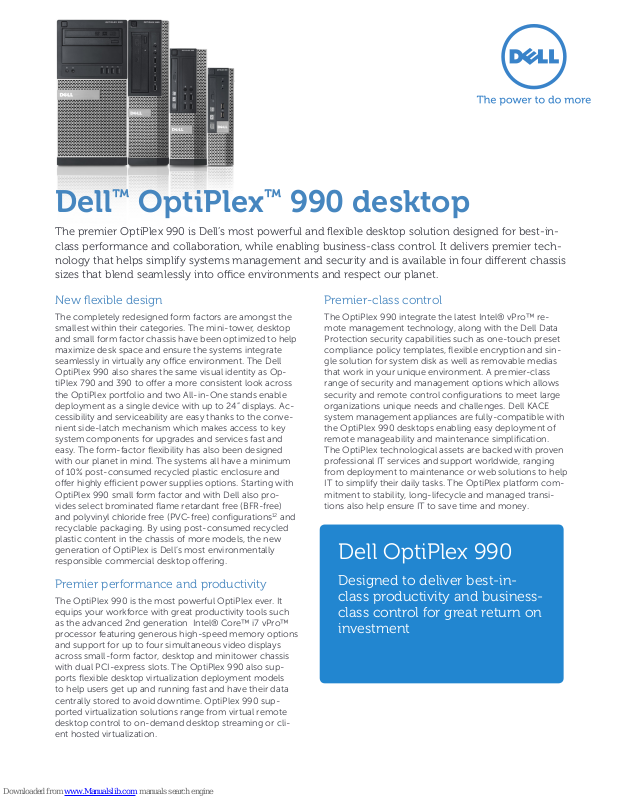

Dell™ OptiPlex™ 990 desktop
The premier OptiPlex 990 is Dell’s most powerful and exible desktop solution designed for best-inclass performance and collaboration, while enabling business-class control. It delivers premier technology that helps simplify systems management and security and is available in four dierent chassis
sizes that blend seamlessly into oce environments and respect our planet.
New exible design
The completely redesigned form factors are amongst the
smallest within their categories. The mini-tower, desktop
and small form factor chassis have been optimized to help
maximize desk space and ensure the systems integrate
seamlessly in virtually any oce environment. The Dell
OptiPlex 990 also shares the same visual identity as Op-
tiPlex 790 and 390 to oer a more consistent look across
the OptiPlex portfolio and two All-in-One stands enable
deployment as a single device with up to 24” displays. Accessibility and serviceability are easy thanks to the convenient side-latch mechanism which makes access to key
system components for upgrades and services fast and
easy. The form-factor exibility has also been designed
with our planet in mind. The systems all have a minimum
of 10% post-consumed recycled plastic enclosure and
oer highly ecient power supplies options. Starting with
OptiPlex 990 small form factor and with Dell also provides select brominated ame retardant free (BFR-free)
and polyvinyl chloride free (PVC-free) congurations12 and
recyclable packaging. By using post-consumed recycled
plastic content in the chassis of more models, the new
generation of OptiPlex is Dell’s most environmentally
responsible commercial desktop oering.
Premier performance and productivity
The OptiPlex 990 is the most powerful OptiPlex ever. It
equips your workforce with great productivity tools such
as the advanced 2nd generation Intel® Core™ i7 vPro™
processor featuring generous high-speed memory options
and support for up to four simultaneous video displays
across small-form factor, desktop and minitower chassis
with dual PCI-express slots. The OptiPlex 990 also supports exible desktop virtualization deployment models
to help users get up and running fast and have their data
centrally stored to avoid downtime. OptiPlex 990 supported virtualization solutions range from virtual remote
desktop control to on-demand desktop streaming or client hosted virtualization.
Premier-class control
The OptiPlex 990 integrate the latest Intel® vPro™ remote management technology, along with the Dell Data
Protection security capabilities such as one-touch preset
compliance policy templates, exible encryption and single solution for system disk as well as removable medias
that work in your unique environment. A premier-class
range of security and management options which allows
security and remote control congurations to meet large
organizations unique needs and challenges. Dell KACE
system management appliances are fully-compatible with
the OptiPlex 990 desktops enabling easy deployment of
remote manageability and maintenance simplication.
The OptiPlex technological assets are backed with proven
professional IT services and support worldwide, ranging
from deployment to maintenance or web solutions to help
IT to simplify their daily tasks. The OptiPlex platform commitment to stability, long-lifecycle and managed transitions also help ensure IT to save time and money.
Dell OptiPlex 990
Designed to deliver best-inclass productivity and businessclass control for great return on
investment
OptiPlex 990 Technical Specications
Processors
1
Chipset
Operating System Options
2
Video
Memory
3
Networking
I/O Ports
Removable Media Options
Hard Drives4 Options
Intel® 2nd Generation Core™ i7, i5, i3 Processors. Intel vPro™ Technology available on select processors
Intel® Q67 Express Chipset
Microsoft® Windows 7® Home Basic (32/ 64 bit),Microsoft® Windows 7® Home Premium (32/64 bit), Microsoft® Windows 7®
Professional (32/64 bit), Microsoft® Windows 7® Ultimate (32/64 bit)
Windows Vista® Home Basic SP2 (32/64 bit), Windows Vista® Business SP2 (32/64 bit), Windows Vista® Ultimate SP2 (32 bit)
Ubuntu® Linux (select countries); FreeDOS for N-series
Integrated Intel® HD Graphics 2000 [with iCore Dual/Quad core class CPU-GPU combo]; optional 1GB AMD RADEON HD
6670 (MT only); optional 1GB AMD RADEON HD 6450; optional 512MB AMD RADEON HD 6350
Up to four DIMM slots; Non-ECC dual-channel 1333MHz DDR3 SDRAM, up to 16GB
Integrated Intel® 82579LM Ethernet LAN 10/100/1000; optional Broadcom® NetXtreme® 10/100/1000 PCIe card; optional Dell
Wireless 1520 PCIe (MT, DT, SFF); optional half-mini PCIe (USFF) WLAN card (802.11n)
10 External USB 2.0 ports and 1 Internal USB 2.0 (MT & DT only);1 Serial; 1 RJ-45; 1 VGA; 1 DisplayPort; 2 PS/2; 2 Line-in
(stereo/microphone), 2 Line-out (headphone/speaker), optional Parallel/2nd Serial PCIe card (MT), optional 2nd Serial PCIe card
(DT & SFF), optional 1394a PCI card (MT & DT); optional USB 3.0 PCIe card
Blu-ray Writer Drive; DVD+/-RW; DVD-ROM; Dell 19 in 1 Media Card Reader (MT & DT only)
3.5” Hard Drives: up to 1TB 7200 RPM SATA 3.0Gb/s;
2.5” Hard Drives: up to 500GB 7200 RPM SATA 3.0GB/s; 500GB Hybrid; 320GB 7200 RPM Opal SED, 128GB Solid State Drive
RAID 0 & 1 support on select congurations;
Supports Dell’s Flexible Computing Solution diskless option
Chassis
Peripherals Options
Security
Systems Management
8
Options
Environmental, Ergonomic,
& Regulatory Standards
Warranty
Minitower (MT) Desktop (DT) Small Form Factor (SFF) Ultra Small
Dimensions
(H x W x D)
Inches/(cm)
Min. Weight (lbs/
kg)
Number of Bays 2 internal 3.5”
Expansion Slots 1 full height PCIe x16
Power Supply5
Unit (PSU)
Monitors:
Dell Entry Standard and Widescreen Flat Panel Analog:
Dell E170S, E190S, E1709W, E1910, E1911, E2011H, E2210H, E2211H, E2311H
Dell Professional Digital Standard and Widescreen Flat Panel:
Dell P170S, P190S, P1911, P2011H, P2210, P2211H, P2311H, P2411H
Dell UltraSharp Digital Standard and Widescreen Flat Panel, Adjustable Stand:
Dell 2007FP, U2211H, U2311H, U2410, U2711, U3011
14.2 x 6.9 x 16.4 /
(36.0 x 17.5 x 41.7)
14.2 x 4.0 x 16.1 /
(36.0 x 10.2 x 41.0)
19.55 / 8.87 16.67 / 7.56 12.57 /5.70 7.20 / 3.27
2 external 5.25”
1 full height PCIe x16
(wired x 4)
1 full height PCIe x1
1 full height PCI
Standard 265W PSU
or optional 265W
up to 90% Ecient
PSU; Energy Star 5.0
compliant, Active PFC
1 internal 3.5”
1 external 5.25”
1 half height PCIe x16
1 half height PCIe x16
(wired x 4)
1 half height PCIe x1
1 half height PCI
Standard 250W PSU
or optional 250W
up to 90% Ecient
PSU; Energy Star 5.0
compliant, Active PFC
11.4 x 3.7 x 12.3 /
(29.0 x 9.3 x 31.2)
1 internal 3.5”
1 external 5.25” (slimline)
1 half height PCIe x16
1 half height PCIe x16
(wired x 4)
Standard 240W PSU
or optional 240W
up to 90% Ecient
PSU; Energy Star 5.0
compliant, Active PFC
Form Factor (USFF)
9.3 x 2.6 x 9.4 /
(23.7 x 6.5 x 24.0)
1 internal 2.5”
1 external 5.25” (slimline)
1 miniPCIe connector
200W up to 90%
Ecient PSU, ENERGY
STAR® 5.0 compliant,
Active PFC
Keyboards: Dell USB Entry Keyboard, Dell Multimedia Pro Keyboard, Dell Smartcard Keyboard
Mouse: Dell USB Optical Mouse, Dell Laser Mouse
Audio Speakers: Internal Dell Business audio speaker, Dell AX210 2.0 and AY410 2.1 Desktop Speakers; Dell AX510 and AX510PA
Sound Bar Speakers
Trusted Platform Module6 (TPM) 1.2, Dell Data Protection / Access, Chassis lock slot support, optional Chassis Intrusion Switch,
Setup/BIOS Password, I/O Interface Security, optional Smart Card keyboards, Intel® Trusted Execution Technology, BIOS
support for optional Computrace
7
Intel® vPro Technology (iAMT 7.x); Intel® Standard Manageability; No Out of Band Systems Management
Environmental Standards (eco-labels): Energy Star 5.0, EPEAT Registered (see epeat.net for registration status by country),,
CECP, TCO, WEEE, Japan Energy Law, Japan Green PC, South Korea Eco-label, EU RoHS, China RoHS, Blue Angel
Other Environmental Options: Dell Energy Smart settings; Carbon O-set Program; System Recycle (Asset Recovery Service)
Limited Hardware Warranty9; Standard 3-year Next Business Day On Site Service after Remote Diagnosis10 (3-3-3); Optional
3-year Dell ProSupport™ for IT; 4 year and 5 year service and support options
11
Your premier-class desktops at dell.com/optiplex
*Important Information: Remote Diagnosis is determination by online/phone technician of cause of issue; may involve customer access to inside of system and multiple or extended sessions. If issue is covered by Limited Hardware Warranty and not resolved remotely,
technician and/or part will be dispatched, usually within 1 business day following completion of Remote Diagnosis. Availability varies.Other conditions apply. For copy of Ltd Hardware Warranty, write Dell USA LP, Attn: Warranties, One Dell Way, Round Rock, TX 78682
or see www.dell.com/warranty.
Oering may vary by region.1.
System Memory and Graphics: Signicant system memory may be used to support graphics, depending on system memory size and other factors.2.
4GB or Greater System Memory Capability: A 64-bit operating system is required to support 4GB or more of system memory.3.
Hard Drive: GB means 1 billion bytes and TB equals 1 trillion bytes; actual capacity varies with preloaded material and operating environment and will be less.4.
PSU: This form factor utilizes a more ecient Active Power Factor Correction (APFC) power supply. Dell recommends only Universal Power Supplies (UPS) based on Sine Wave output for APFC PSUs, not an 5.
approximation of a Sine Wave, Square Wave, or quasi-Square Wave (see UPS technical specications). If you have questions please contact the manufacturer to conrm the output type.
TPM: TPM is not available in all regions.6.
Computrace: Not a Dell oer. Certain conditions apply. For full details, see terms and conditions at www.lojackforlaptops.com.7.
Systems Management Options:8.
Intel® vPro Technology - Fully vPro-capable at point of purchase; the vPro systems management option requires vPro processors. Includes support for Intel •
Advanced Management Technology (AMT) 7.1.x.
Intel® Standard Manageability - Fully enabled at point of purchase, the Intel Standard Management option is a subset of the AMT features. ISM is not •
upgradeable to vPro technology post-purchase.
No Out-of-Band Systems Management - This option entirely removes Intel out of band systems (OOB) management features. The system can still support in •
band management. OOB management support through AMT cannot be upgraded post-purchase.
Limited Hardware Warranty: For copy of Ltd Hardware Warranty, write Dell USA LP, Attn: Warranties, One Dell Way, Round Rock, TX 78682 or see www.dell.com/warranty.9.
Next Business Day Onsite Service after Remote Diagnosis: Remote Diagnosis is determination by online/phone technician of cause of issue; may involve customer access to inside of system and multiple or 10.
extended sessions. If issue is covered by Limited Hardware Warranty (www.dell.com/warranty) and not resolved remotely, technician and/or part will be dispatched, usually within 1 business day following completion of
Remote Diagnosis. Availability varies. Other conditions apply.
Dell Services: Availability and terms of Dell Services vary by region. For more information, visit www.dell.com/servicedescriptions.11.
OptiPlex 990 small form factor (coming in May in US, UK and Japan) is brominated ame retardant free (BFR-free) and polyvinyl chloride free (PVC-free); meeting the denition of BFR-/PVC-free as set forth in the iNEMI 12.
Position Statement on the ‘Denition of Low-Halogen Electronics (BFR-/CFR-/PVC-free)’. Plastic parts contain less than 1,000 ppm (0.1%) of bromine (if the Br source is from BFRs) and less than 1,000 ppm (0.1%) of
chlorine (if the Cl source is from CFRs or PVC or PVC copolymers). All printed circuit board (PCB) and substrate laminates contain bromine/chlorine total less than 1,500 ppm (0.15%) with a maximum chlorine of
900 ppm (0.09%) and maximum bromine being 900 ppm (0.09%).
OptiPlex 990
