WARNING: A WARNING indicates potential damage to hardware or loss of data

if instructions are not followed.

Dell™ OptiPlex™ 960
Setup and Features Information

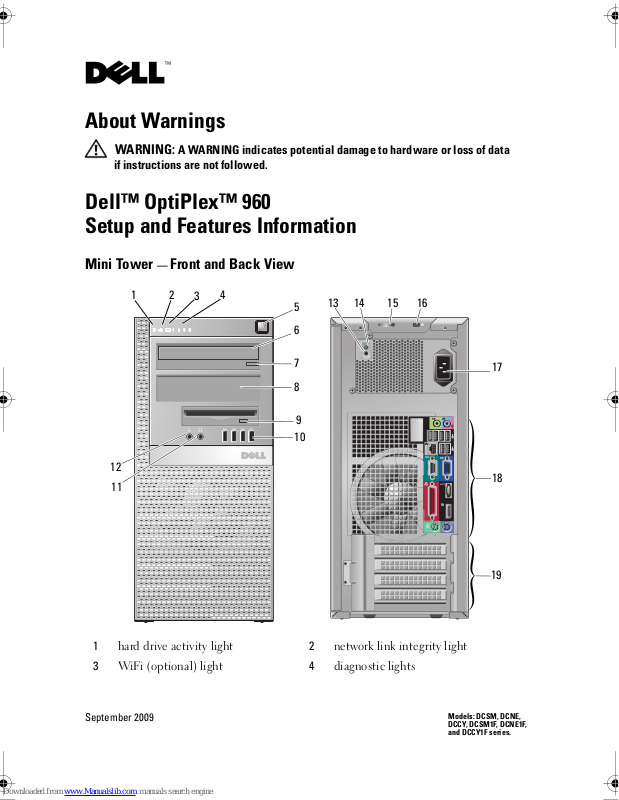

Mini Tower — Front and Back View

September 2009

1 hard drive activity light 2 network link integrity light

3 WiFi (optional) light 4 diagnostic lights

Models: DCSM, DCNE,
DCCY, DCSM1F, DCNE1F,
and DCCY1F series.

5 power button, power light 6 CD/DVD drive

12

58

76

3 4

9

10

11

12

18

14 15

16

17

19

13

7 CD/DVD drive eject button 8 CD/DVD filler panel

9 flex bay (for optional floppy drive or

10 USB 2.0 connectors (4)

memory card reader)

11 headphone connector 12 microphone connector

13 power supply check button 14 power supply check light

15 cover release latch and padlock ring 16 security cable slot

17 power connector 18 back panel connectors

19 expansion-card slots (4)

Desktop — Front and Back View

1 power button, power light 2 CD/DVD drive

3 CD/DVD drive tray eject

button

4 Dell badge

5 USB 2.0 connectors (2) 6 microphone connector

12 4

876 5

3

12

11

10

9

15

13

18

19

14

17

16

7 headphone connector 8 flex bay (for optional floppy drive, memory

card reader, or second 3.5-inch hard disk drive)

9 hard drive activity light 10 link integrity light

11 WiFi (optional) light 12 diagnostic lights

13 expansion card slots (4) 14 power supply check button

15 power supply check light 16 cover release latch and padlock ring

17 security cable slot 18 power connector

19 back panel connectors

Small Form Factor— Front and Back View
