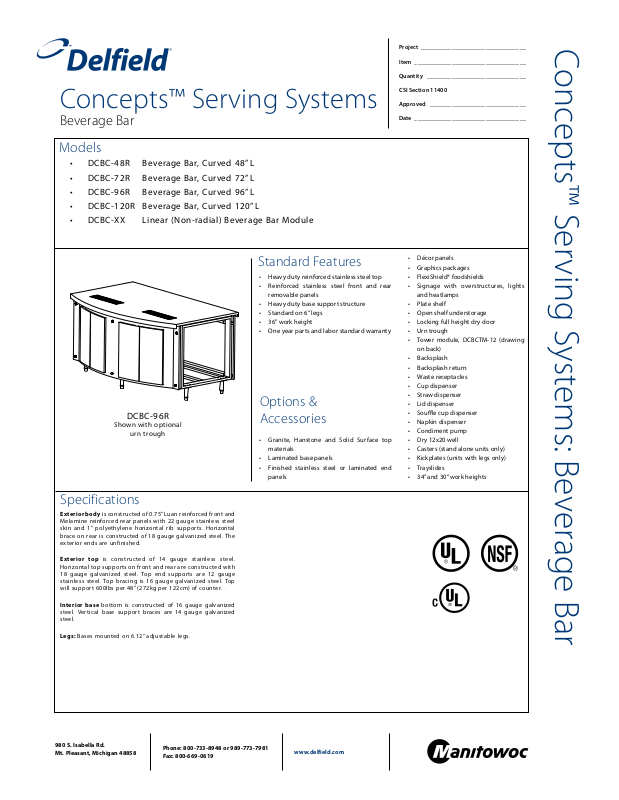

Delfield DCBC-48R User Manual
Concepts™ Serving Systems
Beverage Bar
Models
DCBC -48R Beverage B ar, Cur ved 48” L
•
•
DCBC -72R Beverage B ar, Cur ved 72” L
•
DCBC -96R Beverage B ar, Cur ved 96” L
•
DCBC -120R Beverage B ar, Cur ved 120” L
•
DCBC -XX Line ar (Non-radial) Beverage Ba r Module
Standard Features
Heavy duty reinforced stainle ss steel top
•
Reinforced stainle ss st eel f ront and rear
•
removable p anels
Heavy duty base support structure
•
Standard on 6” legs
•
36” work height
•
One year parts and labor standard warrant y
•
Options &
DCBC -96R
Shown with o ptional
urn trough
Accessories
Granite, H anstone and Sol id Sur face to p
•
materials
Laminated base panels
•
Finished stainless steel or laminated end
•
panels
Project ___ ____________________ ___________
Item _________________ ___________________
Quantity _________________ _______________
CSI Sec tion 11400
Approved ____________ ___________________
Date ____ _____________________ ___________
Décor panels
•
Graphics packages
•
FlexiShield® foodshields
•
Signag e with overst ructures, li ghts
•
and heatlamps
Plate shelf
•
Open shel f understorage
•
Locking full height dry door
•
Urn trough
•
Tower module, DCBC TM-12 (drawing
•
on back)
Backsplash
•
Backsplash return
•
Waste receptacles
•
Cup dispenser
•
Straw dispenser
•
Lid dispe nser
•
Souffle cup dispe nser
•
Napkin dispenser
•
Condiment pump
•
Dry 12x20 well
•
Casters (stand alon e units only)
•
Kickplates (units with legs only)
•
Trayslides
•
34” and 30” work heights
•
Concepts™ Serving Systems: Beverage Bar
Specifications
Ex terio r bo dy is c onst ruct ed of 0.75” Lu an re infor ced f ront a nd
Mel amin e r einfo rced rea r p anels wi th 22 g auge st ainle ss stee l
sk in an d 1” po lyeth ylen e hor izon tal r ib su ppor ts. H oriz onta l
bra ce o n r ear is c onst ruct ed o f 1 8 ga uge galv aniz ed s teel. The
ext erio r en ds are unfin ishe d.
Ex teri or to p is co nst ruct ed of 14 ga uge sta inl ess st eel .
Hor izon tal t op s uppor ts o n fr ont a nd re ar a re co nstr ucte d wit h
18 ga uge gal vani zed s teel . Top end sup port s ar e 12 gau ge
sta inle ss ste el. Top bra cing i s 16 gau ge gal vani zed ste el. Top
wil l su ppor t 6 00lb s pe r 48 ” ( 272kg pe r 12 2cm) of coun ter.
Int erio r base bott om is co nstr ucte d of 16 ga uge g alvan ized
ste el. Ve rti cal b ase sup port bra ces ar e 14 g auge gal vani zed
ste el.
Leg s: B ases mou nted on 6.12 ” adj usta ble legs.
980 S. I sabella Rd.
Mt. Pleasa nt, Michigan 4885 8
Phone: 800 -733-8948 or 989 -773-7981
Fax: 800-669-0 619
www.delfield.co m
DCBC-48R Plan View
36.00"
[91cm]
28.50"
[72cm]
14.00"
[36cm]
6.12"
[16cm]
36.00"
[91cm]
72.00"
[183cm]
36.00"
[91cm]
48.00"
[122cm]
36.00"
[91cm]
8.00"
[20cm]
8.00"
[20cm]
44.00"
[112cm]
44.00"
[112cm]
96.00"
[244cm]
36.00"
[91cm]
8.00"
[20cm]
44.00"
[112cm]
120.00"
[305cm]
36.00"
[91cm]
8.00"
[20cm]
44.00"
[112cm]
R229.00"
[R582cm]
R148.00"
[R376cm]
R85.00"
[R216cm]
R40.00"
[R102cm]
DCBC-72R Plan View
DCBC-48R Elevation View
Beverage B ar
DCBC-96R Plan View
DCBC-96R Elevation View
Shown with optional urn trough.
DCBC-72R Elevation View
DCBC-120R Plan View
DCBC-120R Elevation View
All Models Side View
Plan View
DCBCTM-12
Tower Accessory
Specifications
Model Length Depth Height Ship Weight
Elevation View
DCBCTM-12
Concepts™ Serving Systems
Tower Accessory
Deleld reserves the right to make changes to the design or specications without prior notice.
980 S. I sabella Rd.
Mt. Pleasa nt, Michigan 4885 8
Side View
DCBCTM-12
Tower Accessory
Phone: 800 -733-8948 or 989 -773-7981
Fax: 800-669-0 619
www.delfield.co m
DCBC-48R 48” 44” 36” 397lbs/180kg
DCBC-72R 72” 44” 36” 460lbs/209kg
DCBC-96R 96” 44” 36” 523lbs/237kg
DCBC-120R 120” 44” 36” 640lbs/290kg
Printed in the U.S.A.
DSDCBC
01/11
