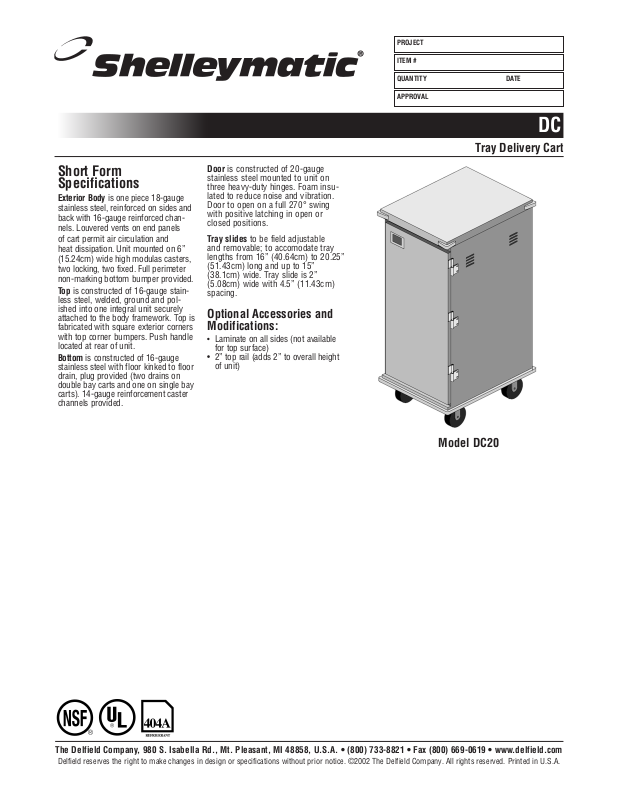

Tray Delivery Cart
DC
Short Form
Specifications
Exterior Body is one piece 18-gauge
stainless steel, reinforced on sides and
back with 16-gauge reinforced channels. Louvered vents on end panels
of cart permit air circulation and
heat dissipation. Unit mounted on 6”
(15.24cm) wide high modulas casters,
two locking, two fixed. Full perimeter
non-marking bottom bumper provided.
Top is constructed of 16-gauge stainless steel, welded, ground and polished into one integral unit securely
attached to the body framework. Top is
fabricated with square exterior corners
with top corner bumpers. Push handle
located at rear of unit.
Bottom is constructed of 16-gauge
stainless steel with floor kinked to floor
drain, plug provided (two drains on
double bay carts and one on single bay
carts). 14-gauge reinforcement caster
channels provided.
Door is constructed of 20-gauge
stainless steel mounted to unit on
three heavy-duty hinges. Foam insulated to reduce noise and vibration.
Door to open on a full 270° swing
with positive latching in open or
closed positions.
Tray slides to be field adjustable
and removable; to accomodate tray
lengths from 16” (40.64cm) to 20.25”
(51.43cm) long and up to 15”
(38.1cm) wide. Tray slide is 2”
(5.08cm) wide with 4.5” (11.43cm)
spacing.
Optional Accessories and
Modifications:
• Laminate on all sides (not available
for top surface)
• 2” top rail (adds 2” to overall height
of unit)
Model DC20
The Delfield Company, 980 S. Isabella Rd., Mt. Pleasant, MI 48858, U.S.A. • (800) 733-8821 • Fax (800) 669-0619 • www.delfield.com
Delfield reserves the right to make changes in design or specifications without prior notice. ©2002 The Delfield Company. All rights reserved. Printed in U.S.A.
MODEL DC16
DC
Tray Delivery Cart
MODEL DC20
MODEL DC24
MODEL DC28
PLAN VIEW
PLAN VIEW
PLAN VIEW
FRONT ELEVATION
FRONT
ELEVATION
FRONT ELEVATION
END ELEVATION
END ELEVATION
REAR ELEVATION
REAR ELEVATION
END ELEVATION
PLAN VIEW
FRONT ELEVATION
MODEL DC36
PLAN VIEW
FRONT ELEVATION
END ELEVATION
END ELEVATION
Mechanical Data — Standard Unit
NUMBER OF DOORS CAPACITY LBS./KG.
DC20 1 20 275/125
DC28 2 28 350/159
DC36 2 36 398/181
The Delfield Company, 980 S. Isabella Rd., Mt. Pleasant, MI 48858, U.S.A. • (800) 733-8821 • Fax (800) 669-0619 • www.delfield.com
MODEL NUMBER TRAY SHIP WEIGHT
DC16 1 16 249/113
DC24 2 24 326/148
Delfield reserves the right to make changes in design or specifications without prior notice. ©2002 The Delfield Company. All rights reserved. Printed in U.S.A.
MSDC 03/02
