1/ NOTICES TO THE USER

Important:

Important safety instructions - Read care­fully and retain for future use. If the appliance
is ever sold or given to another person, ensure
that the new owner receives the accompa­nying guide. Please read these guidelines
before installing and using your appliance.
They were written for your safety and the saf­ety of others.

•SAFETY GUIDELINES

This appliance is not intended for use by indivi­duals (including children) with impaired physi­cal, sensorial or mental abilities, or persons lac­king in knowledge or experience, unless they
receive prior supervision or instructions on
using the appliance from a person responsible
for their safety.
Children should be supervised to ensure they
do not play with the appliance.
This appliance is designed to cook with the
door closed.
WARNING: It is dangerous for anyone other
than a qualified person to perform maintenance
or repair that requires the removal of the cover
providing protection against exposure to micro­wave power.
WARNING: Liquids and other foods must not be
heated in sealed containers, as they may explo­de.
Only use utensils suitable for usage in microwa­ve ovens.
When heating food items in plastic or paper
containers, monitor the microwave’s contents
due to the risk of combustion.
If smoke appears, stop or unplug the oven and
leave the door closed to stifle any flames pre­sent.
Heating beverages in the microwave oven can
cause the sudden and/or delayed splattering of
boiling liquid, so care must be taken when hand­ling their containers.

The contents of baby bottles and baby food
jars must be stirred or rearranged and the
temperature must be checked before con­sumption, so as to prevent burns.

It is not recomended to heat eggs in their
shells or whole hardboiled eggs in a micro­wave oven, as they may explode, even after
cooking has ended.
WARNING: Only allow children to use the
oven without supervision if adequate
instructions have been given so that the
child is able to use the oven safely and
understands the dangers of incorrect use.
Your appliance is solely intended for domes­tic use for cooking, reheating and defrosting
food. The manufacturer does not accept any
liability in the event of inappropriate use.

To avoid damaging your appliance, never
operate it while empty or without the turn­table.
Do not interfere with the openings on the lock
on the front of the appliance; this could
cause damage to your appliance that would
require a service callout.
The seal and frame of the door must be
regularly examined to ensure that they
have not become damaged.
In microwave mode, it is not recommended
to use metallic cookware, forks, spoons,
knives or metal staples or fasteners for
defrosting bags.
Never heat a baby bottle with the teat on, as
it may explode.
Always use oven gloves to remove dishes
from the oven. Some dishes absorb the
heat from food and are therefore very hot.
When heating small quantities (a sausage, a
croissant, etc.) place a glass of water next
to the food.
Excessive cooking times may dry out food
and burn it. To prevent this occurring,
never use the same times recommended
for cooking in a conventional oven.

4

5

The microwaves used for cooking are elec­tromagnetic waves. They are commonly
found in our environment in the form of radio
waves, light and infrared rays.
Their frequency is in the 2450 MHz range.

Their behaviour:

• They are reflected by metals.

• They travel through all other materials.

• They are absorbed by water, fat and

sugar molecules.

When food is exposed to microwaves its
molecules begin moving rapidly, causing it to
heat up.

The penetration depth of waves into the food
is approximately 2.5 cm; if the food is thicker,
the centre of the food will be cooked by
conduction, as in conventional cooking.
Note that microwaves cause a simple ther­mal phenomenon within food and are not
harmful to health.

•HOW YOUR OVEN WORKS

•PROTECTING THE ENVIRONMENT

This appliance’s packaging materials are recy­clable. Please recycle them and help protect
the environment by depositing them in muni­cipal containers provided for this purpose.

Your appliance also contains
various recyclable materials. It is
therefore marked with this logo to
indicate that used appliances
must not be mixed with other
waste. The appliance recycling

organised by your manufacturer
will therefore be conducted in optimum
conditions, in accordance with European
directive 2002/96/EC on electrical and elec­tronic equipment waste. Consult your local
authority or your retailer to locate your nea­rest used appliance drop-off points. Thank
you for your help in protecting the environ­ment.

EN

1/ NOTICES TO THE USER

6

EN

2/ INSTALLING YOUR APPLIANCE

Warning:

Ensure that your appliance has not suf­fered any damage during transport (bent
door or seal, etc.). If you notice any kind of
damage, contact your retailer before using
the appliance.

In order to easily locate the make, model
number, etc. of your appliance, we recom­mend that you note this information on the
“After-Sales Service Department and
Customer Support” page.

Ensure that:

- The electrical installation has sufficient voltage.

- The electrical wires are in good condition.

- The diameter of the wires complies with the
installation requirements.

- Your electrical installation is equipped with

16-ampere thermal-sensitive protection.

If in doubt, consult your electrician.

Electrical connections should be completed
before the appliance is placed in the wall unit.

The appliance must be recess-fitted correctly
to ensure electrical safety. During recess fit­ting and maintenance operations, the
appliance must be unplugged from the soc­ket; fuses must be cut off or removed.

The plug must remain accessible after the
appliance is installed.

Your electrical installation should include an
accessible feature that allows users to dis­connect the power supply.

If the power cable is damaged, it should be
replaced by the manufacturer, its after-sales
service or a similarly qualified person so as to
prevent a hazard.

Important:

We cannot accept liability for any acci­dent or incident resulting from non-existant,
defective or incorrect grounding.

If the oven malfunctions in any way, unplug
the appliance or remove the fuse for the
oven’s connection line.

•BEFORE CONNECTION

• ELECTRICAL CONNECTION

7

•

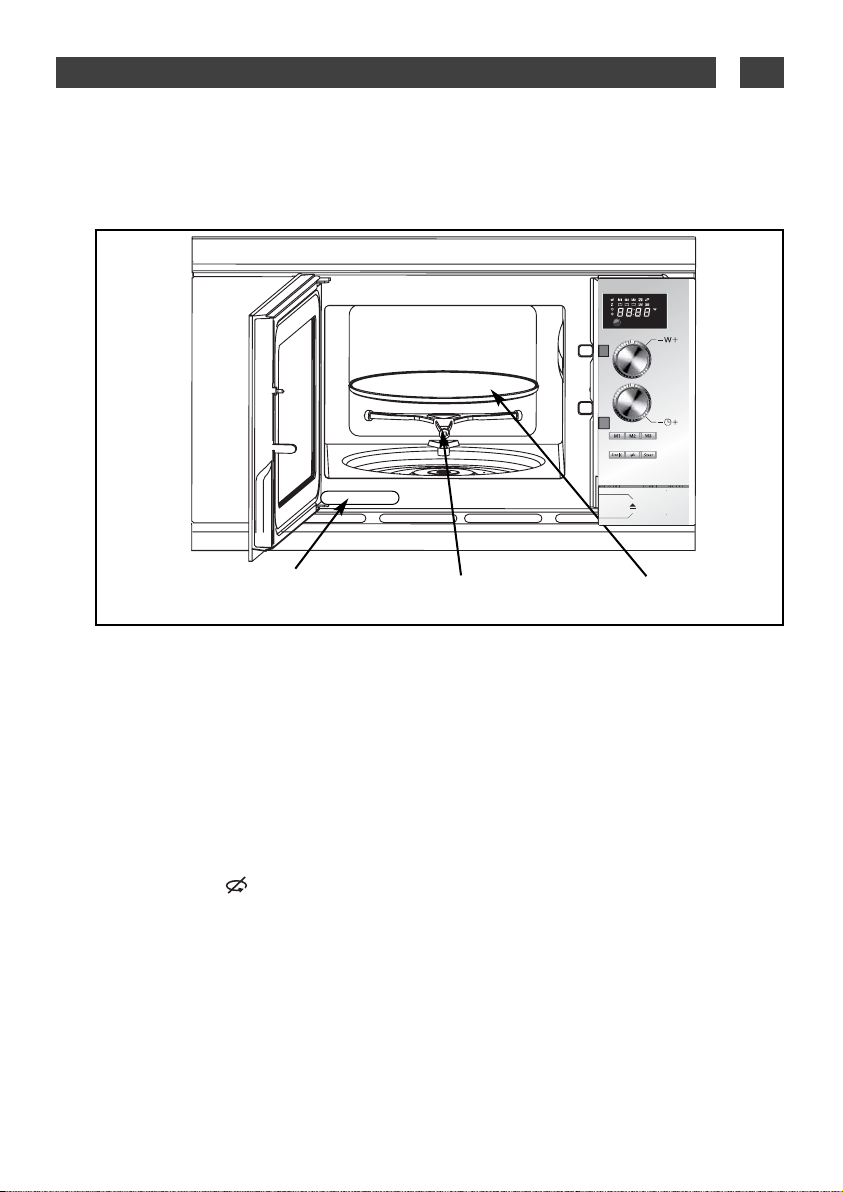

TTHHEE TTUURRNNTTAABBLLEE

:

ensures equal cooking of food throughout with no need to intervene.

- It may be used as a cooking dish.

- Rotation is controlled by the drive shaft and the wheel support.

- The turntable rotates in both directions.

- If it does not turn, verify that all components are properly positioned.

•

TTUURRNNTTAABBLLEE OOFFFF

:

stops the turntable from revolving in order to use platters which require the entire oven

space. When stopped, remember to stir the contents or turn the dish midway through the

programme.

•

TTHHEE WWHHEEEELL SSUUPPPPOORRTT

:

Do not try to rotate the roller ring manually, as you could damage the drive system. If it

does not turn smoothly, make sure that there is nothing in the well beneath the turntable.

TurntableWheel support

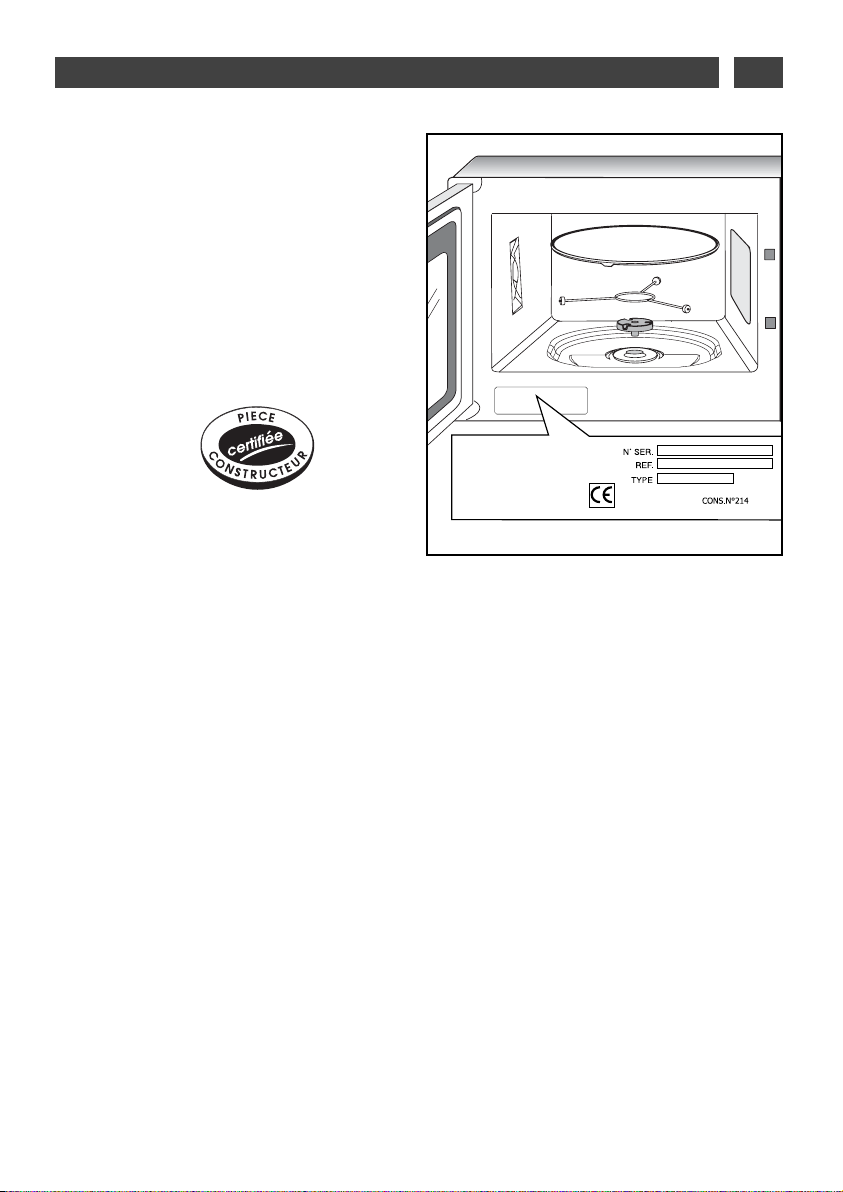

Identification

label

THE APPLIANCE

••

3 / DESCRIPTION OF THE OVEN

EN

8

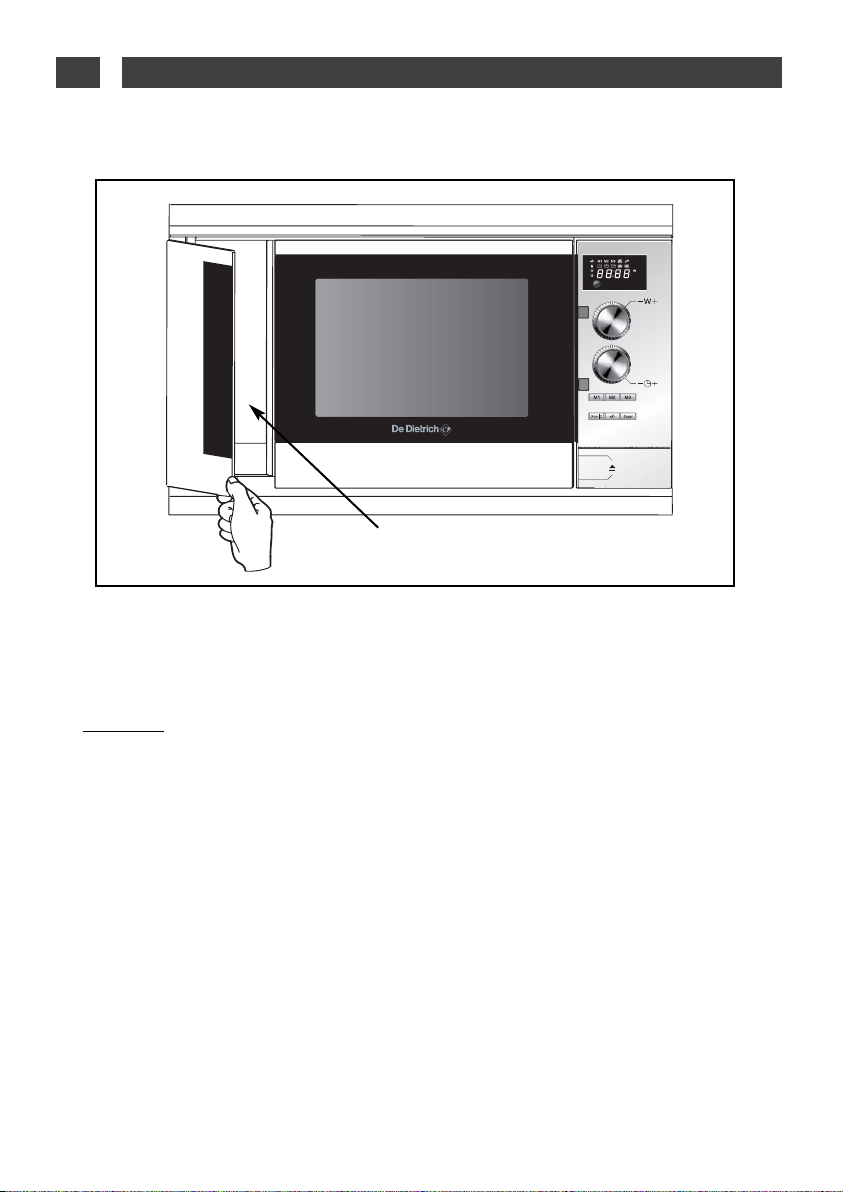

• The compartment for accessories :
to store various accessories which can be used with the appliance.
(eg: any plate, plate cover, manual...).

WWAARRNNIINNGG

: Do not store any food nor any cleaning materials within the recess.

Pull the small door to open as shown above.

LLOOCCAATTIIOONN

• The appliance should be installed at a distance of 85 cm above the floor.

• Place the oven on a flat and horizontal surface, away from any source of heat or steam.

•Make sure that air may circulate freely around the oven.

• Check all the characteristics and building-in conditions in the user’s manual supplied with the

appliance.

• Make sure that nothing obstructs the ventilation louvers at the back of the appliance.

• Make sure the electrical plug will be accessible after installation.

•

Do not use your appliance immediately (wait approx. 1-2 hours) after transfer from a cold
place to a warm place as condensation may cause a malfunction.

Compartment

for accessories

3 / DESCRIPTION OF THE OVEN

EN

GENERAL DECSCRIPTION

••

9

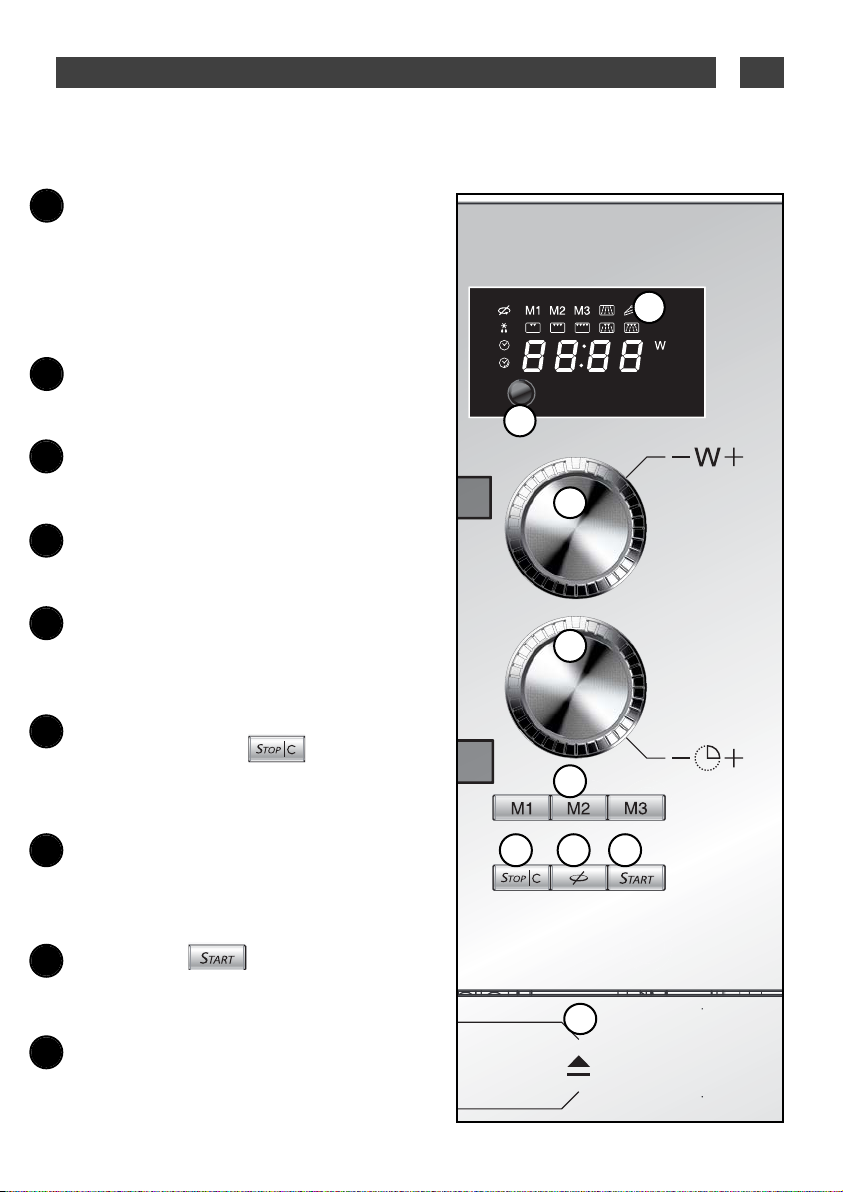

DDiissppllaayy wwiinnddooww

:

to simplify programming, the display indi­cates : the time of day, the
programme length, and the functions
programmed.

TThhee cclloocckk sseettttiinngg kkeeyy

..

to set the clock.

MMiiccrroowwaavvee ppoowweerr sseelleeccttoorr kknnoobb WW

:

to set the microwave power level.

TTiimmee sseelleeccttoorr kknnoobb

:

to set the clock, the programme length.

MMEEMMOORRYY kkeeyyss MM11//MM22//MM33

:

for rapid access to 3 preprogrammed
operations.

CCLLEEAARR//SSTTOOPP kkeeyy

:

to interrupt (press once) or to cancel
a programme (press twice).

SSTTOOPP--TTUURRNNTTAABBLLEE kkeeyy

:

to stop the turntable from revolving.

SSTTAARRTT kkeeyy

:

to start all programmes.

DDoooorr ooppeenn bbuuttttoonn

:

to open the door or stop the oven.

A

B

C

D

E

G

F H

I

3 / DESCRIPTION OF THE OVEN

EN

THE CONTROL PANEL

••

A

B

C

D

E

F

G

H

I

10

To cook fish and poultry. To finish programmes
begun with the HIGH COOK power setting such
as beans, lentils or milk-based dishes.

POWER SETTING APPLICATION

DEFROST 150

VERY LOW

COOK 2 5 0

To top off cooking of delicate dishes or to

cook very slowly.

SIMMER 500

REHEAT 7 0 0

To reheat all fresh or frozen pre-cooked dishes
and frozen vegetables.

LOW COOK 350

To finish programmes begun with the HIGH
COOK power setting

which might otherwise over-

cook on the outside, for instance veal or pork roast.

To defrost meat, fish, fruit, bread or delicate

dishes.

HIGH COOK 75 0

To cook fresh vegetables and soup.
To heat up all liquids.

MICROWAVE OUTPUT POWER : 750 W

After the plugging in of the appliance or a power cut, the flashing

00:00invites you to set the clock.

To set the clock :

- Push the clock setting key.

- Set the clock with the time selector knob (ex. 12:00).

- Validate with a single push on the clock setting key

.

The clock is set.

0 0 : 0 0

1 2 : 0 0

0 0 : 0 0

SETTING THE CLOCK

••

4 / USING THE OVENEN

MICROWAVE POWER SETTINGS

••

11

Your microwave oven is now plugged in and the clock is set.

Open the door, set the dish inside, close the door.

If the door is not properly shut, the appliance will not

operate.

If the dish is too large to turn freely inside the oven, press the STOP TURNTABLE key befo­re or during the programme.

6 microwave power levels are available :
(150 - 250 - 350 - 500 - 700 - 750 W).

Example : Set a microwave programme at the HIGH COOK
power level (750 W).

¬¬

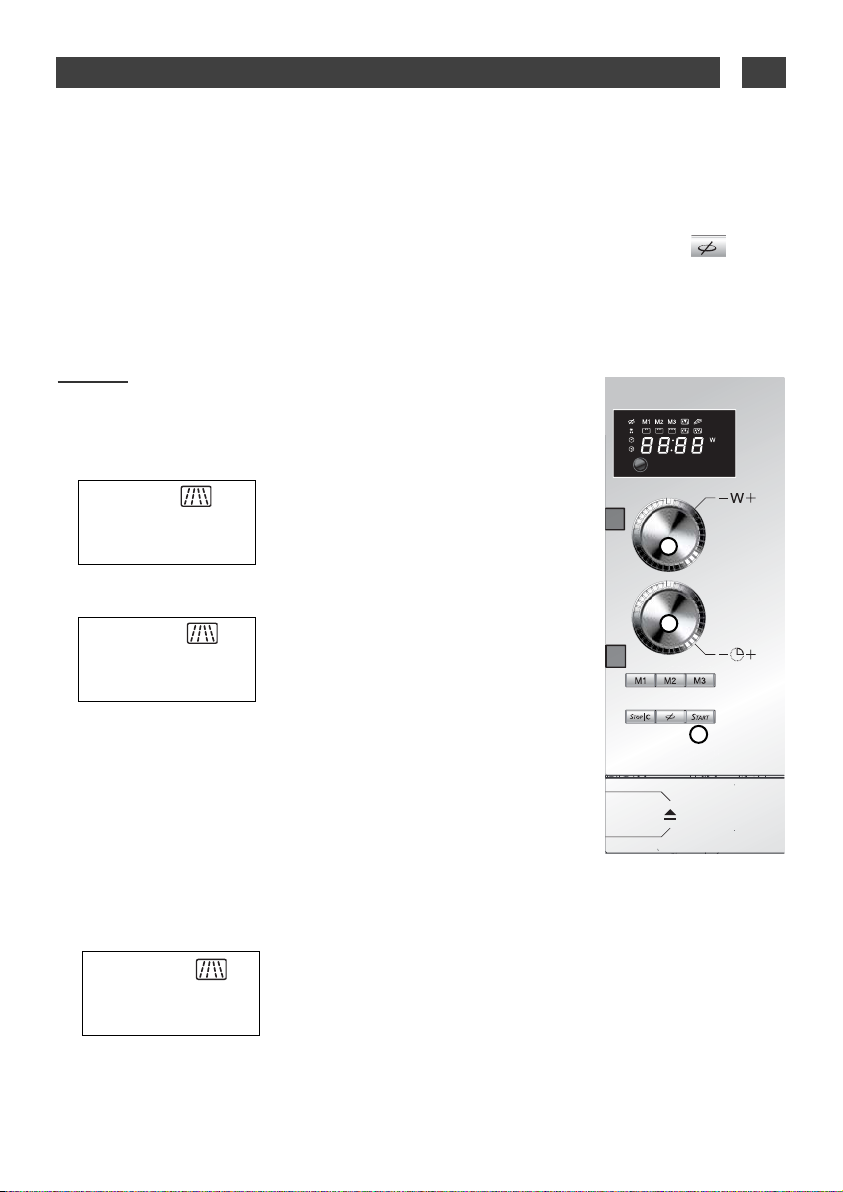

Turn the microwave power selector knob

to 750 W

is displayed.

--

Set the programme time with the time selector knob, ex. 5 minutes :

is displayed.

®®

Press START.

The programme begins : the turntable revolves, the oven light comes on.
3 beeps announce the end of a programme. The beeps are repeated

every minute for 10 minutes until you open the door.

If there is an error in the programming, press the CLEAR/STOP key twice.

¬¬

Set the programme time with the selector knob, ex. three minutes :

is displayed.

--

Press START.

The HIGH COOK programme begins automatically : the turntable revolves,
the oven light comes on.

00 33 :: 00 00

77 55 00

WW

00 55 :: 00 00

3

2

1

4 / USING THE OVEN EN

SETTING A MICROWAVE PROGRAMME

••

EXPRESS PROGRAMME

••

12

The Memory keys allow you to store 3 frequently used programmes which you can
then access simply by pressing M1 / M2 / M3. You may memorize any programme

you wish.

Ex

ample : Use the Memory key to preprogramme the heating up of a plate of food.

Proceed as if setting the programme for immediate use :

¬¬

Turn the microwave power selector knob to HIGH COOK (750 W) :

is displayed.

--

Set the programme time with the time selector knob, ex. 2 min :

is displayed.

®®

Instead of pressing

START, press the MEMORY key M1; after

several seconds you will hear a tone confirming that the persona-

lized programme has been memorized.

is displayed.

You may memorize two more programmes by pressing Memory keys M2 / M3.

To call up a programme, press the corresponding Memory key; the preprogrammed infor-

mation is displayed.

Press START, the memorized programme begins.

77 55 00

WW

00 22 :: 00 00

00 22 :: 00 00

3

2

1

4 / USING THE OVENEN

MEMORY KEYS M1/M2/M3

••

13

WHILE THE OVEN IS OPERATING :

• You may stop or start the turntable revolving during a programme by pressing the TURN-

TABLE

SSTTOOPP

kkeeyy

.

• To change a programme, press the

CC//SSTTOOPP

key twice and programme again.

• If you open the door before the end of the programme, shut the door and press the

SSTTAARRTT

key to continue the programme.

• When using the defrost function

(150W), turn the food midway through the programme to

obtain the best results. Close the door and press the

START key to continue the second

half of the programme.

• If you remove a dish before the end of the programme, press the

CC//SSTTOOPP

key twice to

erase the programme.

4 / USING THE OVEN EN

5/ MAINTAINING AND CLEANING YOUR APPLIANCE

We recommend that you clean the oven regularly and remove any deposits of food inside
and outside of the appliance. Use a damp sponge and a little soap. If the appliance is not
cleaned regularly, its surface could become damaged, permanently affecting the
appliance’s lifespan and possibly causing a safety hazard. If the door or door seal are
damaged, the oven should not be used until it has been repaired by a qualified person.

Do not clean the appliance with a steam cleaner.

The use of abrasive products, alcohol or thinners is not recommended as they are likely to
damage the appliance.

Do not use abrasive maintenance products or hard metal scrapers to clean the oven door
as they may scratch the surface or break the glass.

If the oven smells bad or is dirty, boil a cup of water with lemon juice for 2 minutes and
clean the walls with a small amount of washing up liquid.

The turntable can be removed for easy cleaning. To remove it, pick it up using the access
zones provided for this purpose. If you take out the support with the drive spindle, make
sure you do not let water get into the motor spindle orifice.
Remember to put back the support, the support wheels and the turntable.

Problem

t The time counts down, but the appliance

does not function the turntable does not
rotate, the light does not come on and
the food is not heated)

t The microwave oven is noisy when

operating

t Condensation forms on the door glass

t The turntable does not revolve correctly

t The microwave programmes do not pro-

duce the desired results

t The appliance produces sparks

Suggestion

s Press the

TURNTABLE OFF

key for five

seconds.

s Adjust the front left foot.

Clean the wheels and the well area
beneath the turntable.

s Wipe the water off with the help of a

cloth in order to avoid.

s Clean the wheels and the well beneath

the turntable.

s Clean the vents under the appliance.

Make sure that you use only containers

which are suitable for microwave cooking.

s Check whether the wheel support is cor-

rectly positioned.
Thoroughly clean the appliance :
remove any greasy deposits, cooking resi­due, etc...
Move any metal objects away from the
oven walls.

6/ TROUBLESHOOTING

TROUBLESHOOTING GUIDE

••

EN

14

15

Any repairs that are made to your appliance
must be performed by a qualified professio­nal certified as a brand agent. When you call,
please mention your appliance’s “Service”
reference, as well as the “Nr” serial number.
This information appears on the manufactu­rer’s nameplate (see

Fig.1

).

ORIGINAL PARTS

When servicing is performed, ask the engi­neer to only use

cceerrttiiffiieedd

original spare

parts.

•SERVICE CALLS

7/ AFTER-SALES SERVICE

BRANDT APPLIANCES SAS
7 rue Henri Becquerel
92500 RUEIL MALMAISON

230V ~ 50 Hz

Fig.1

EN

CZ5700946-00 09/11
