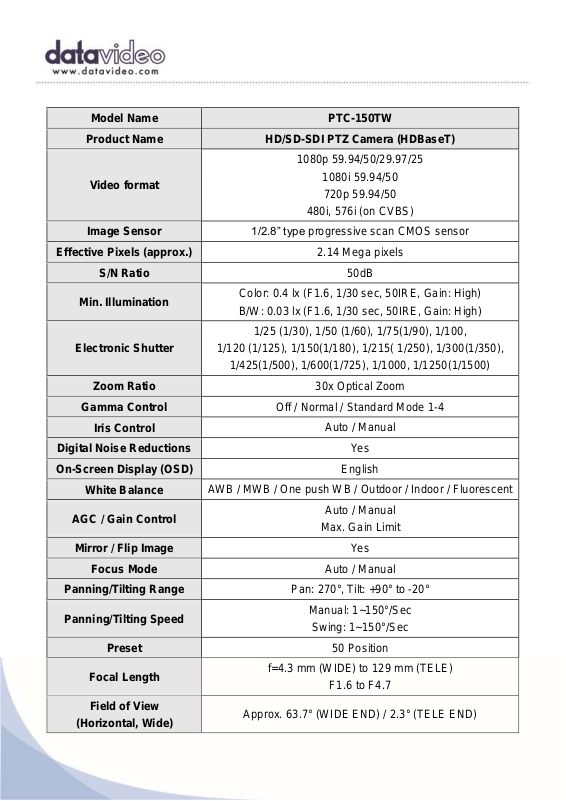

Datavideo PTC-150TW Specifications

Model Name

PTC-150TW

Product Name

HD/SD-SDI PTZ Camera (HDBaseT)

Video format

1080p 59.94/50/29.97/25

1080i 59.94/50

720p 59.94/50

480i, 576i (on CVBS)

Image Sensor

1/2.8” type progressive scan CMOS sensor

Effective Pixels (approx.)

2.14 Mega pixels

S/N Ratio

50dB

Min. Illumination

Color: 0.4 lx (F1.6, 1/30 sec, 50IRE, Gain: High)
B/W: 0.03 lx (F1.6, 1/30 sec, 50IRE, Gain: High)

Electronic Shutter

1/25 (1/30), 1/50 (1/60), 1/75(1/90), 1/100,

1/120 (1/125), 1/150(1/180), 1/215( 1/250), 1/300(1/350),

1/425(1/500), 1/600(1/725), 1/1000, 1/1250(1/1500)

Zoom Ratio

30x Optical Zoom

Gamma Control

Off / Normal / Standard Mode 1-4

Iris Control

Auto / Manual

Digital Noise Reductions

Yes

On-Screen Display (OSD)

English

White Balance

AWB / MWB / One push WB / Outdoor / Indoor / Fluorescent

AGC / Gain Control

Auto / Manual

Max. Gain Limit

Mirror / Flip Image

Yes

Focus Mode

Auto / Manual

Panning/Tilting Range

Pan: 270°, Tilt: +90° to -20°

Panning/Tilting Speed

Manual: 1~150°/Sec

Swing: 1~150°/Sec

Preset

50 Position

Focal Length

f=4.3 mm (WIDE) to 129 mm (TELE)

F1.6 to F4.7

Field of View

(Horizontal, Wide)

Approx. 63.7° (WIDE END) / 2.3° (TELE END)

Image Compensation

Day & Night function

Video Output

HDMI (V1.3) x 1

3G-SDI x 1

CVBS x 1

HDBaseT x 1 to PTC-150T Receiver Box

Tally LED

Dual color (Red, Green)

Filter

Yes

Protocol

VISCA, DVIP

Remote Control Interface

and Transmit Distance

RS-422: Transmit up to 1000m

HDBaseT (RJ-45) / DVIP on Receiver Box:

Transmit up to 100m

F/W Update

USB

IR Control

Yes

Camera Control Unit

RMC-180

Accessories

----

Color

white
