IP VIDEO DECODER
NVD-35
Instruction Manual
Network Video Decoder |
|
|
NVD-35 |
Contents |
|
FCC COMPLIANCE STATEMENT..................................................................... |
4 |
WARNINGS AND PRECAUTIONS................................................................... |
4 |
WARRANTY ................................................................................................. |
5 |
STANDARD WARRANTY ..................................................................................... |
5 |
THREE YEAR WARRANTY ................................................................................... |
6 |
DISPOSAL .................................................................................................... |
6 |
PRODUCT OVERVIEW .................................................................................. |
7 |
FEATURES ...................................................................................................... |
7 |
FRONT PANEL .............................................................................................. |
8 |
REAR PANEL................................................................................................. |
9 |

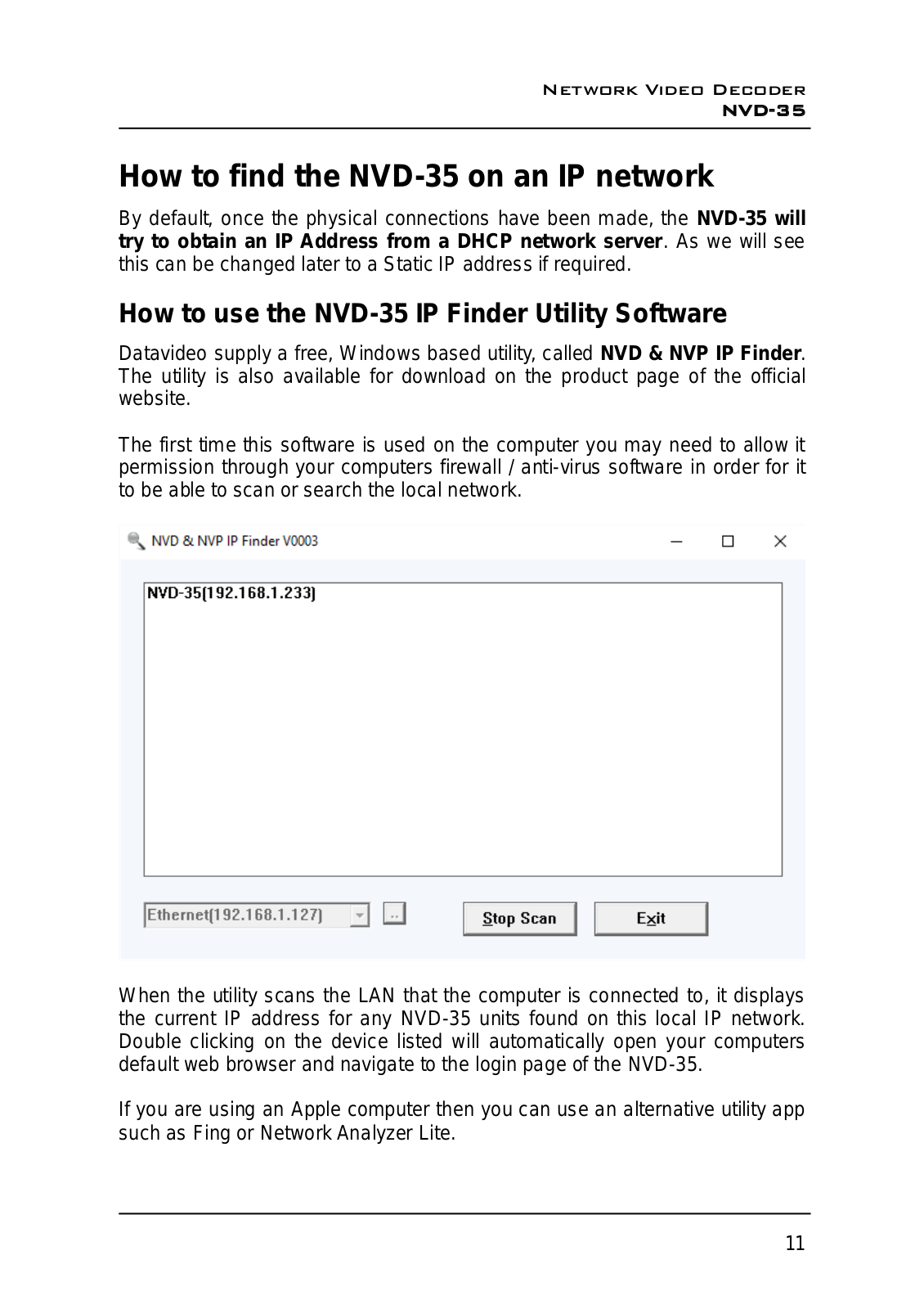

HOW TO FIND THE NVD-35 ON AN IP NETWORK ....................................... |
11 |
HOW TO USE THE NVD-35 IP FINDER UTILITY SOFTWARE ....................................... |
11 |

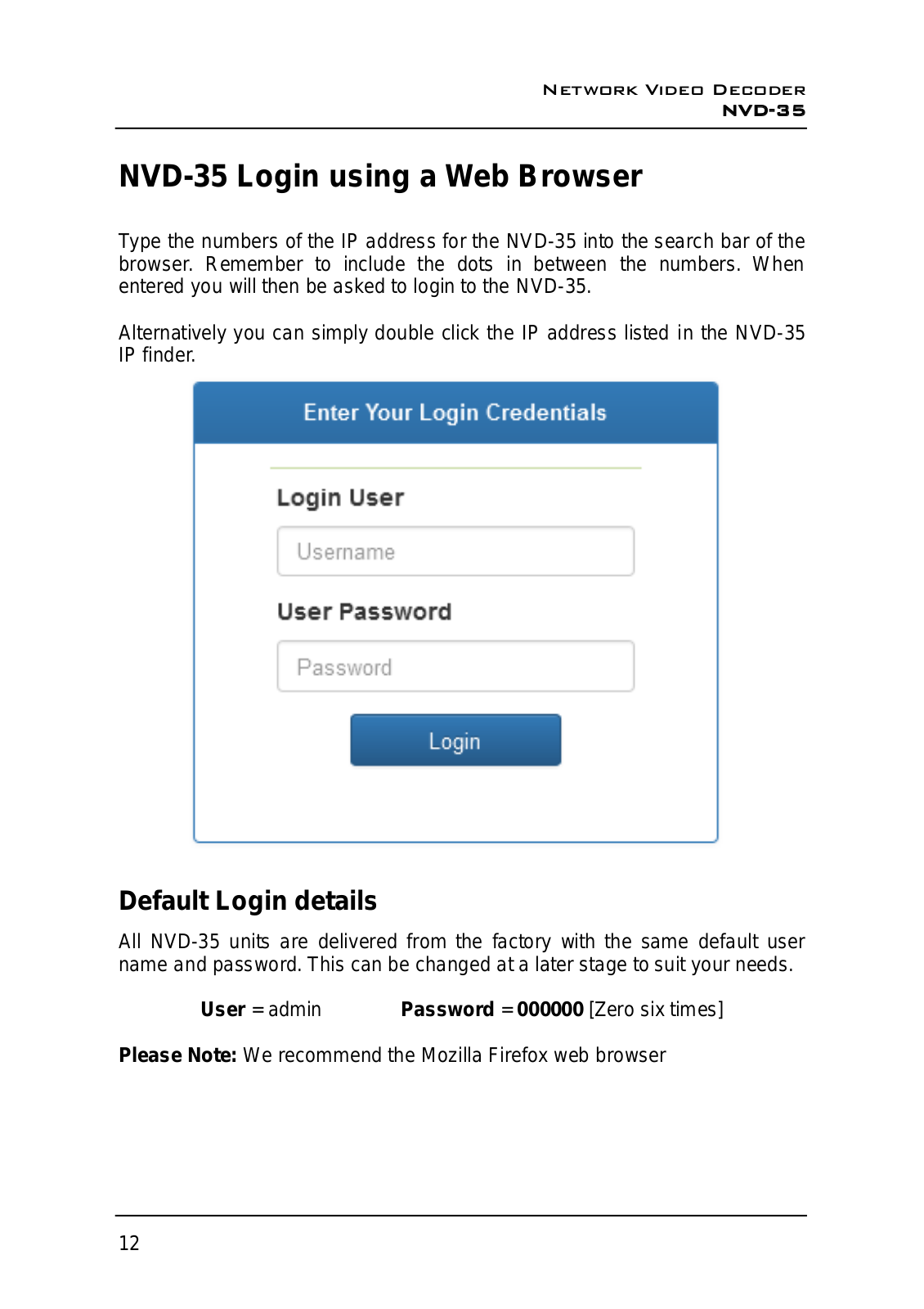

NVD-35 LOGIN USING A WEB BROWSER.................................................... |
12 |
DEFAULT LOGIN DETAILS .................................................................................. |
12 |

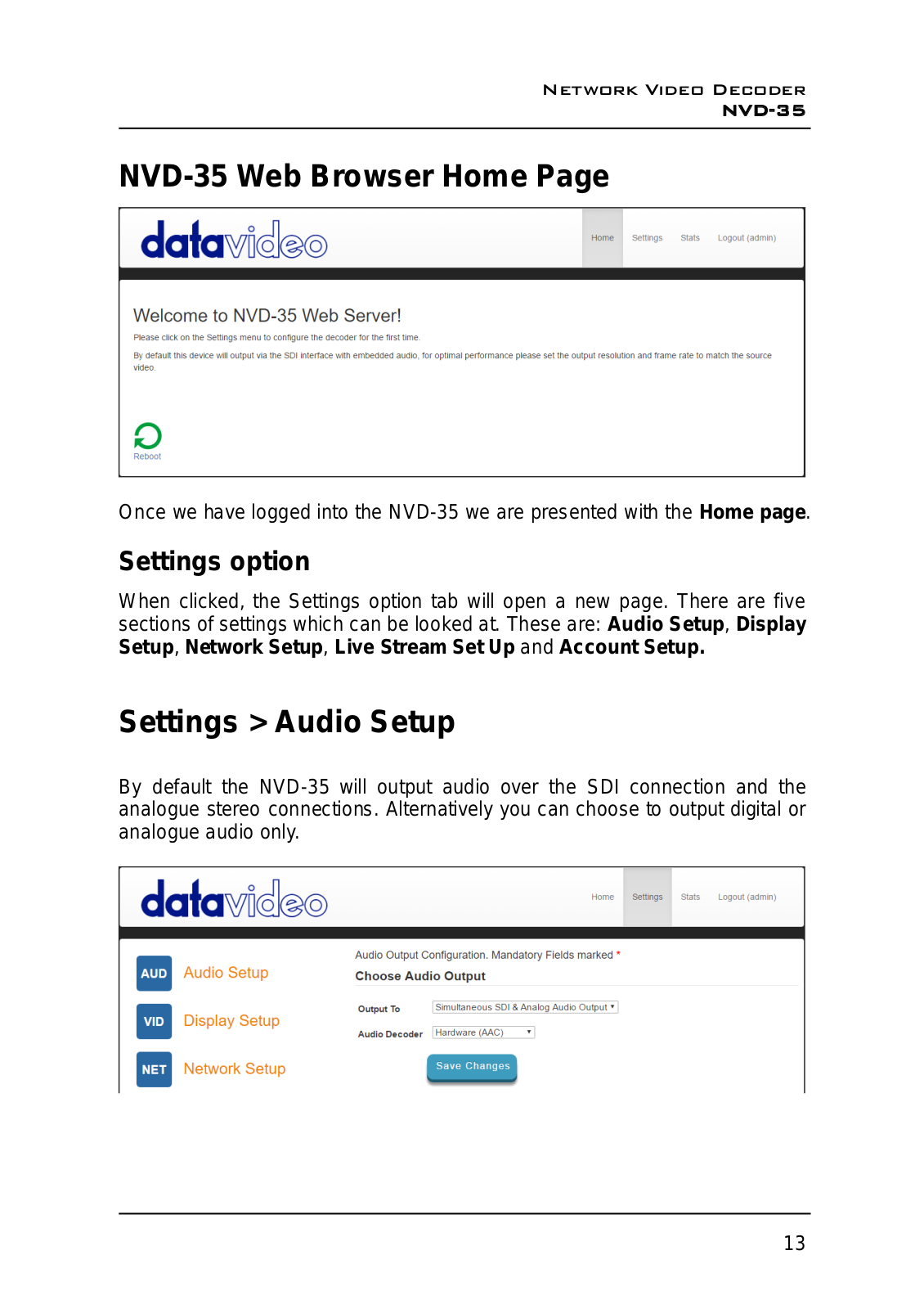

NVD-35 WEB BROWSER HOME PAGE ........................................................ |
13 |
SETTINGS OPTION .......................................................................................... |
13 |
SETTINGS > AUDIO SETUP ......................................................................... |
13 |

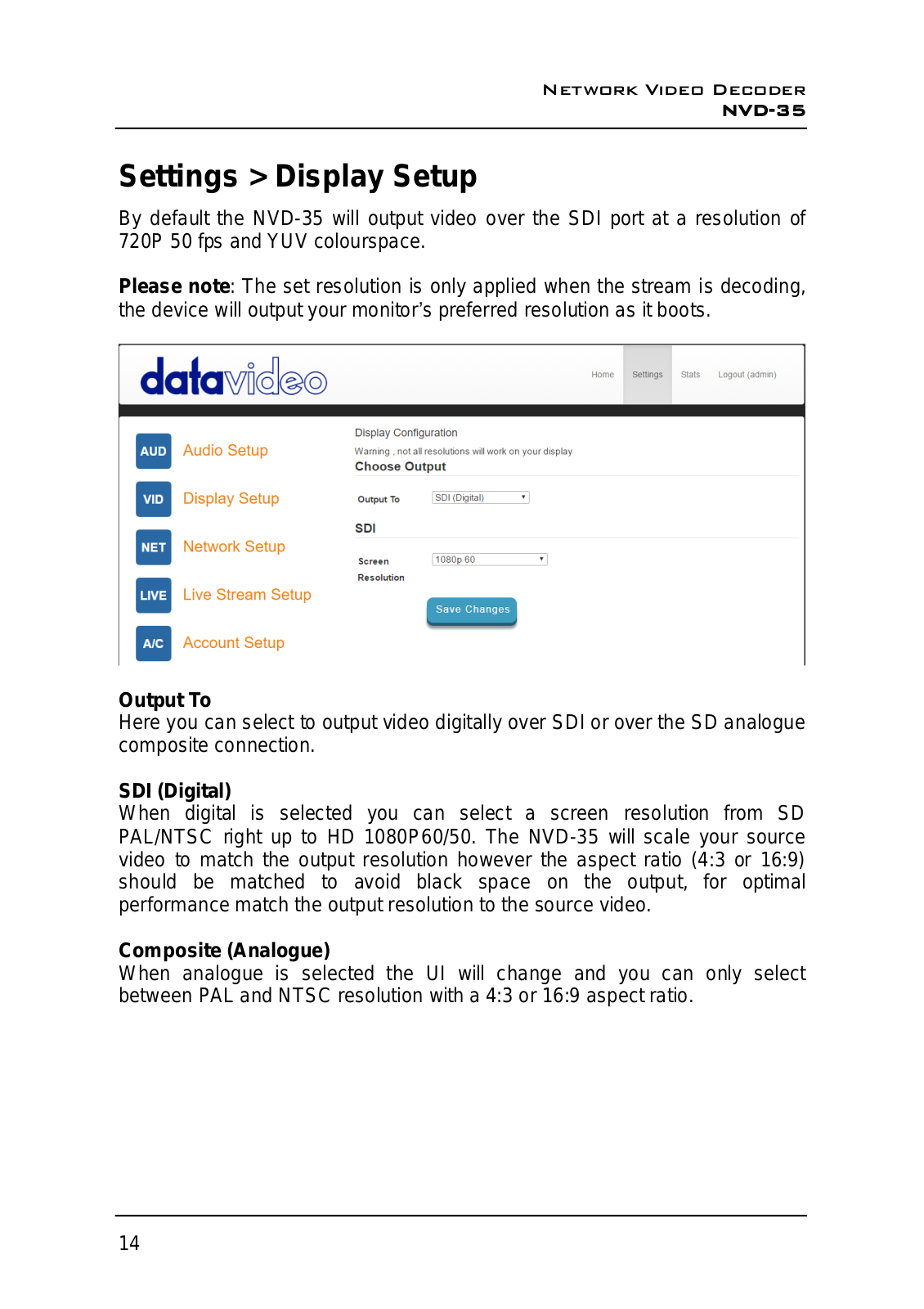

SETTINGS > DISPLAY SETUP ....................................................................... |
14 |

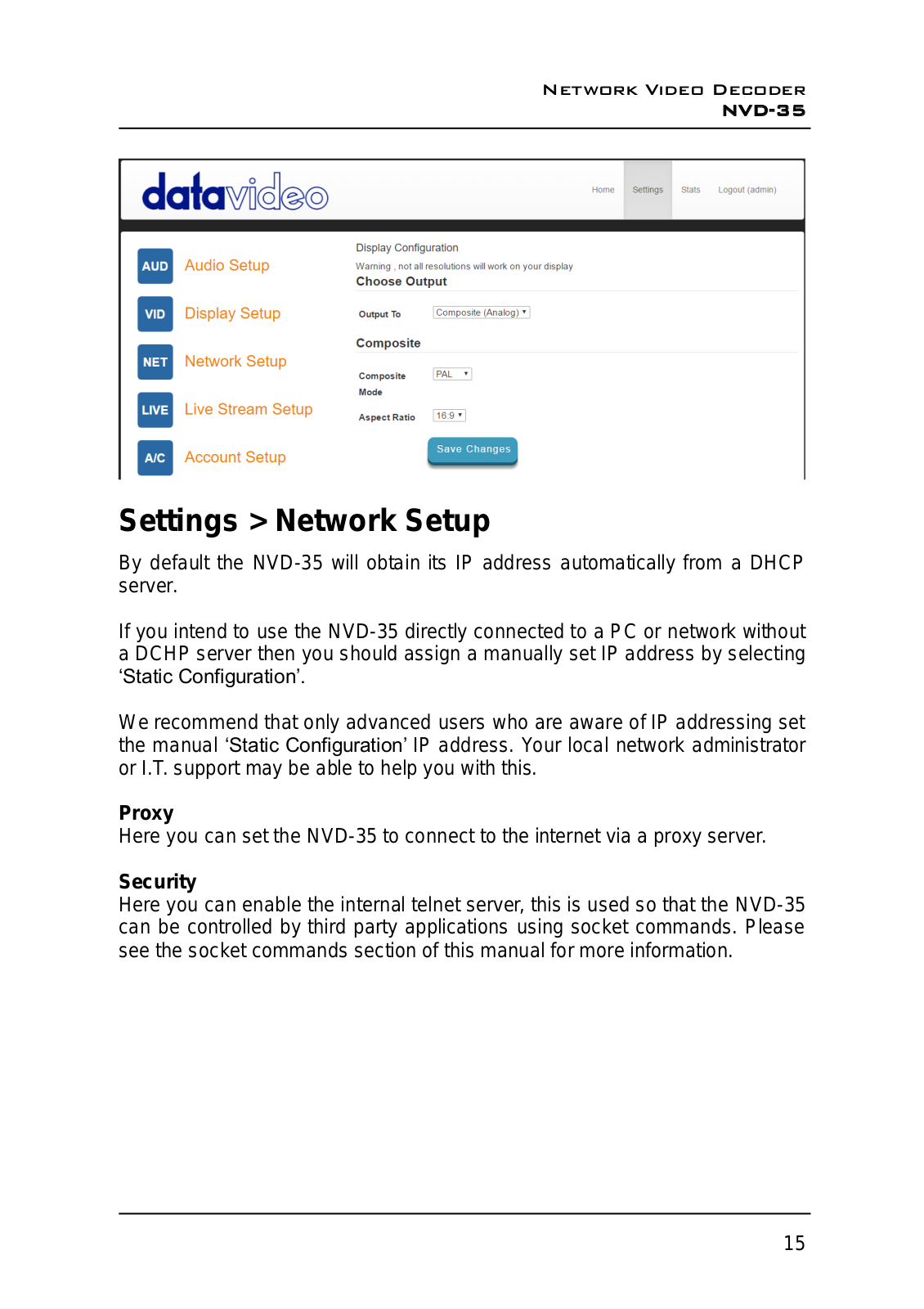

SETTINGS > NETWORK SETUP.................................................................... |
15 |

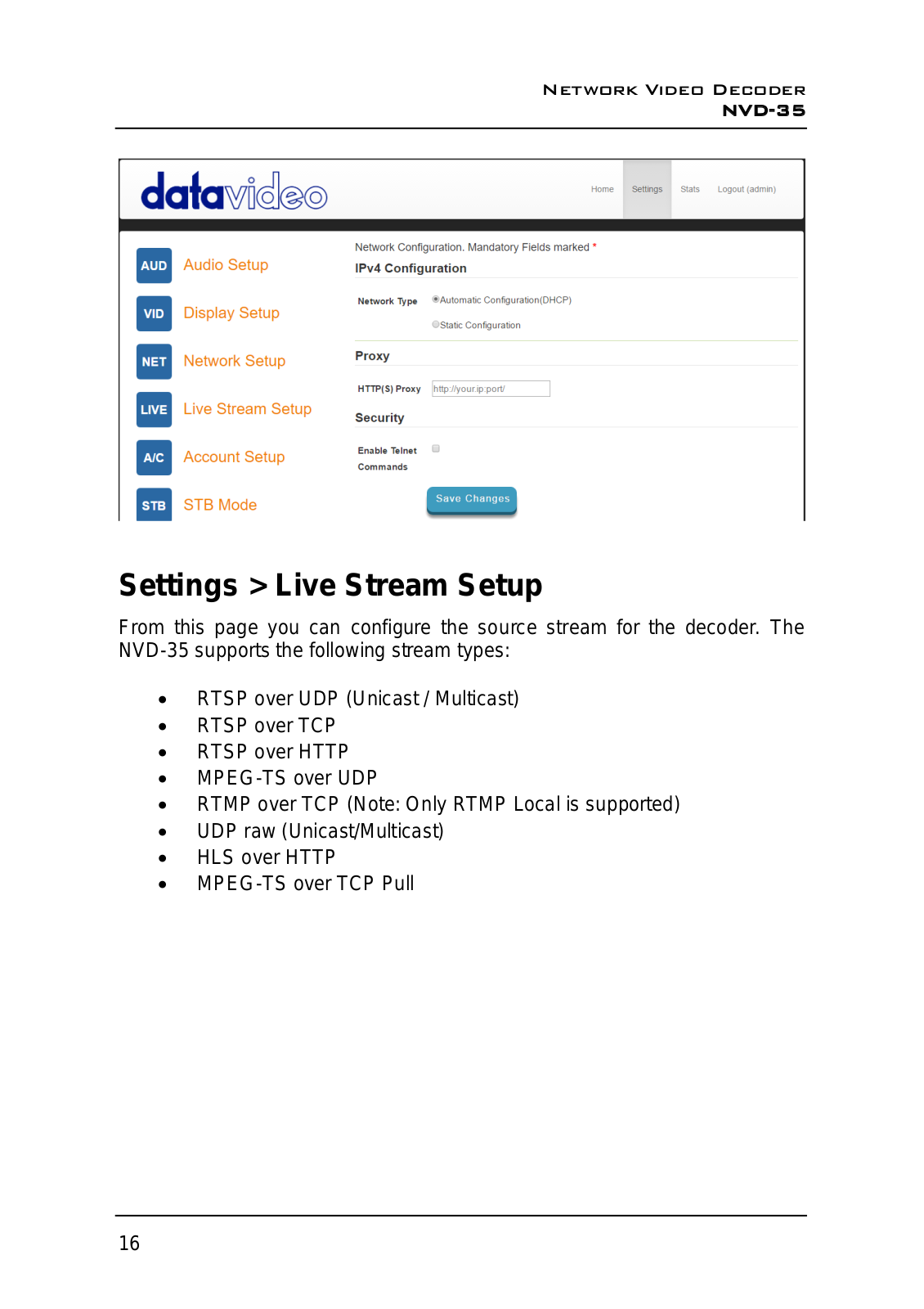

SETTINGS > LIVE STREAM SETUP ............................................................... |
16 |

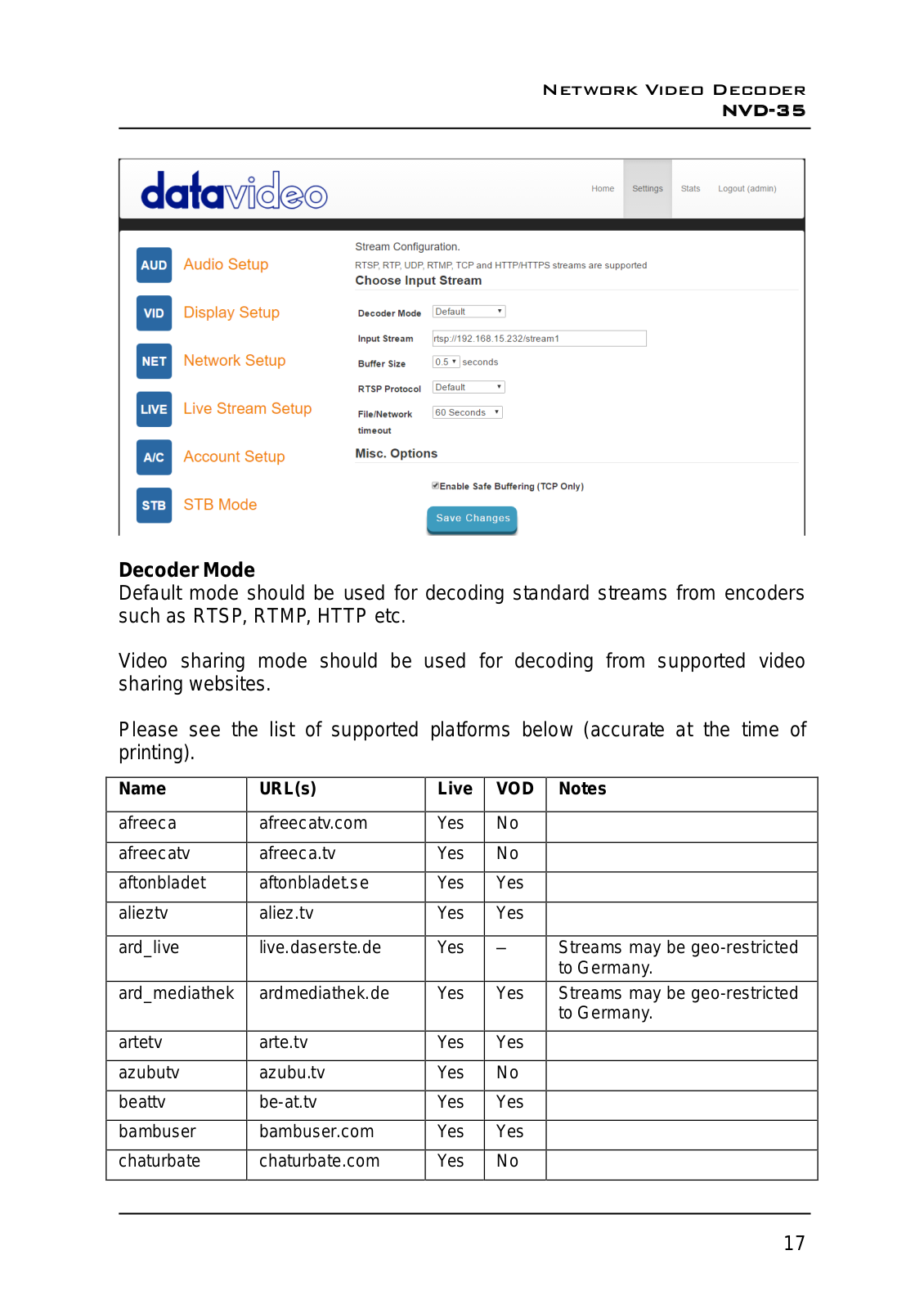

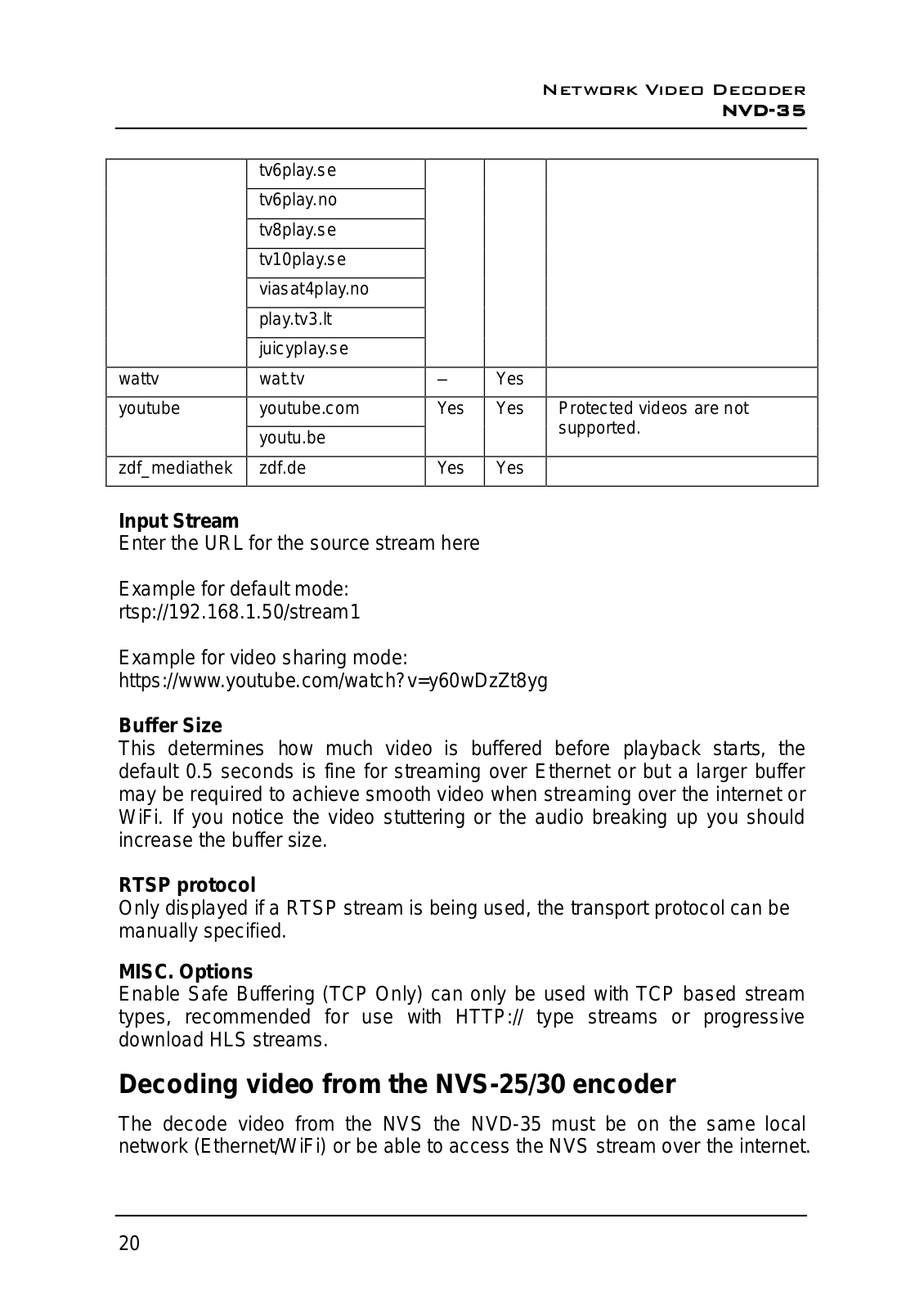

DECODING VIDEO FROM THE NVS-25/30 ENCODER............................................... |
20 |

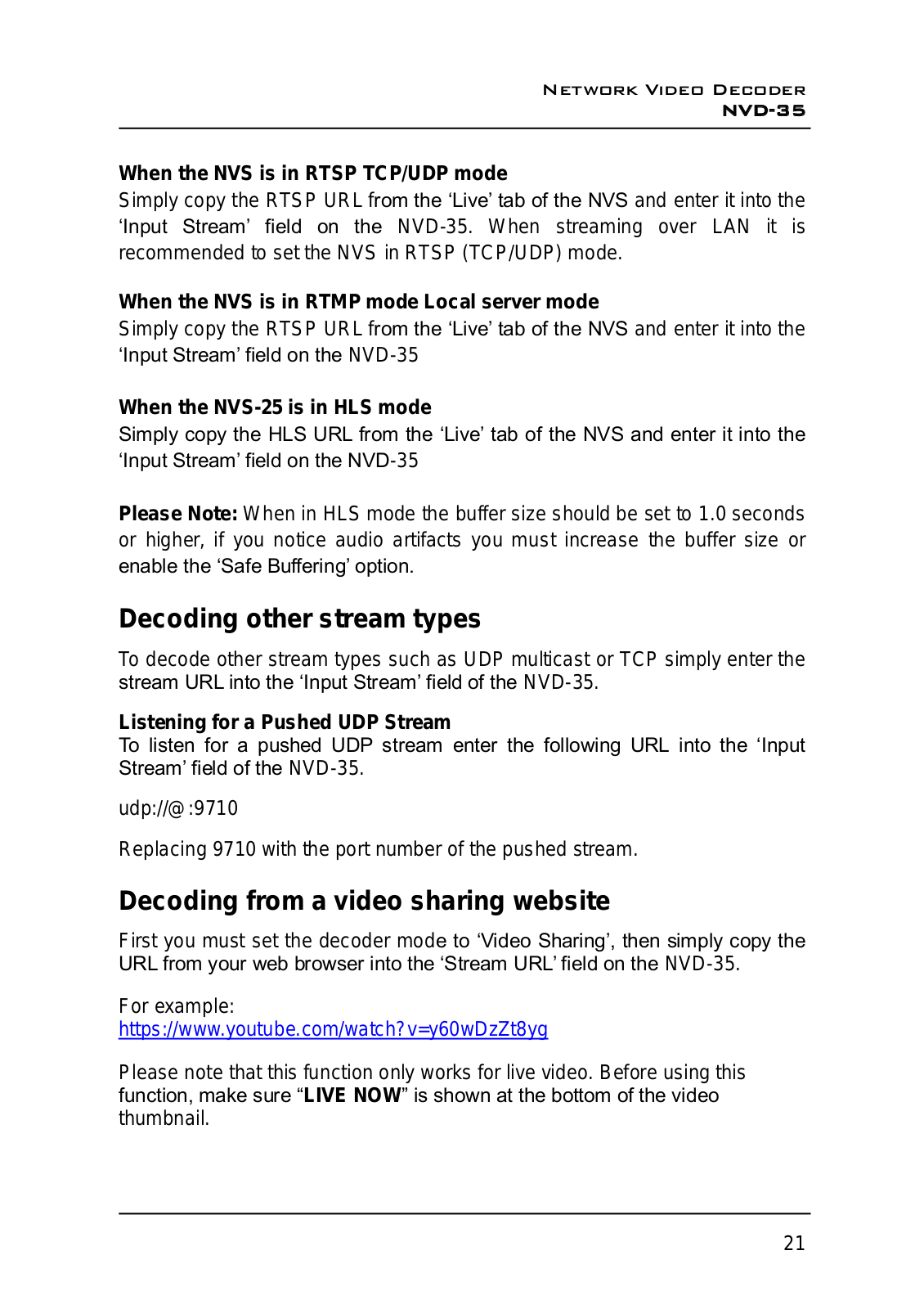

DECODING OTHER STREAM TYPES....................................................................... |
21 |
DECODING FROM A VIDEO SHARING WEBSITE ........................................................ |
21 |

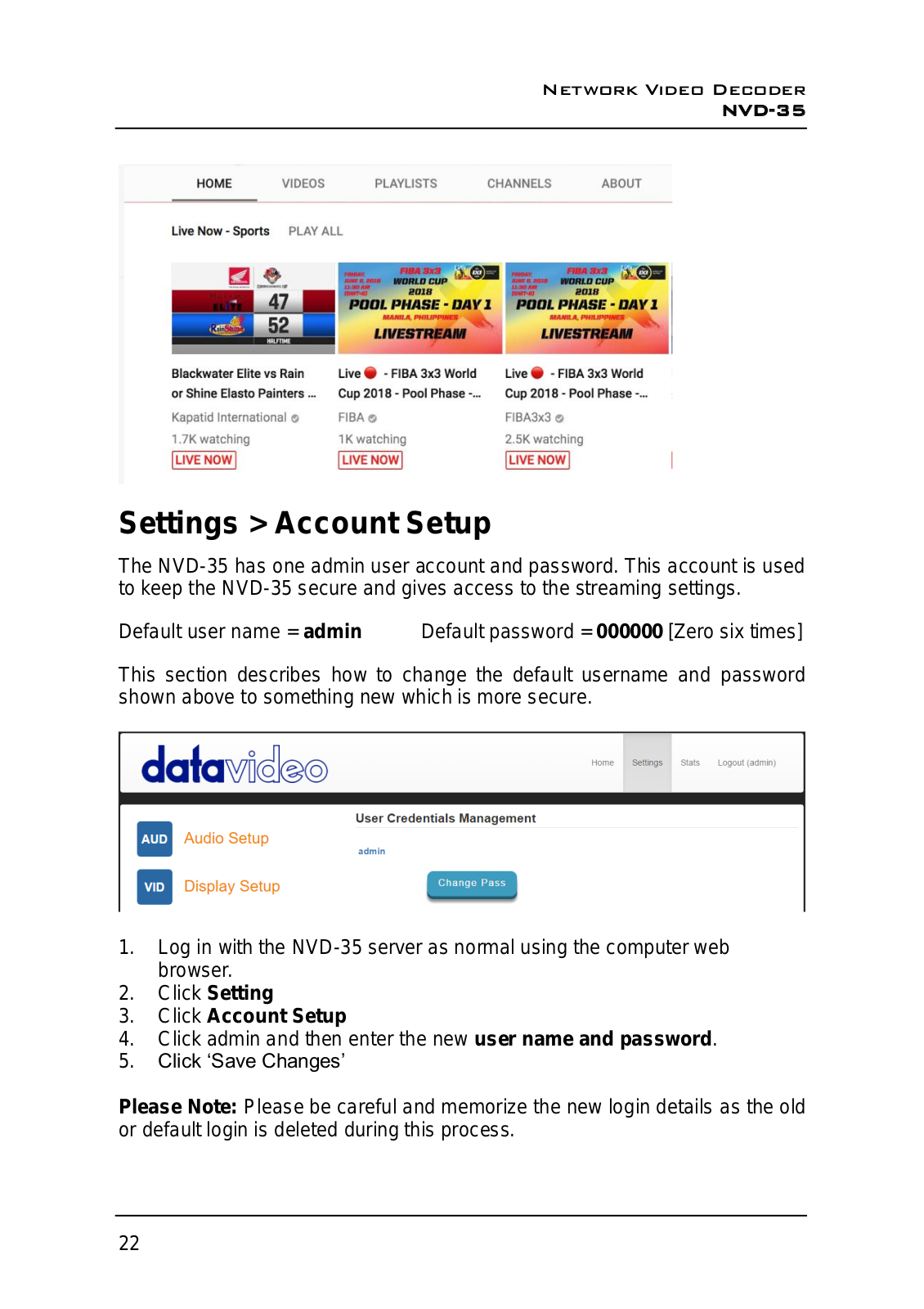

SETTINGS > ACCOUNT SETUP .................................................................... |
22 |

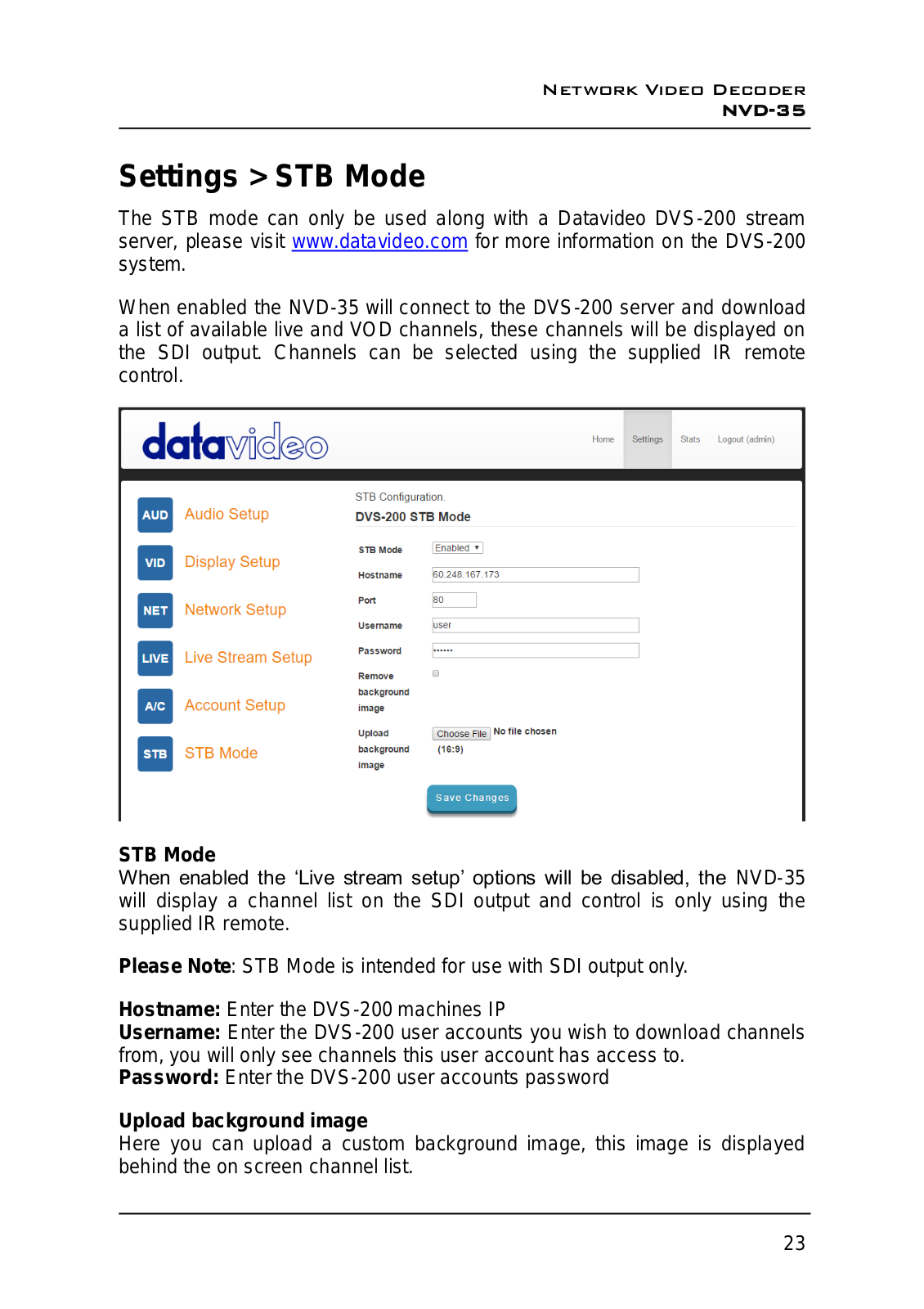

SETTINGS > STB MODE .............................................................................. |
23 |
2
Network Video Decoder |
|
|
NVD-35 |

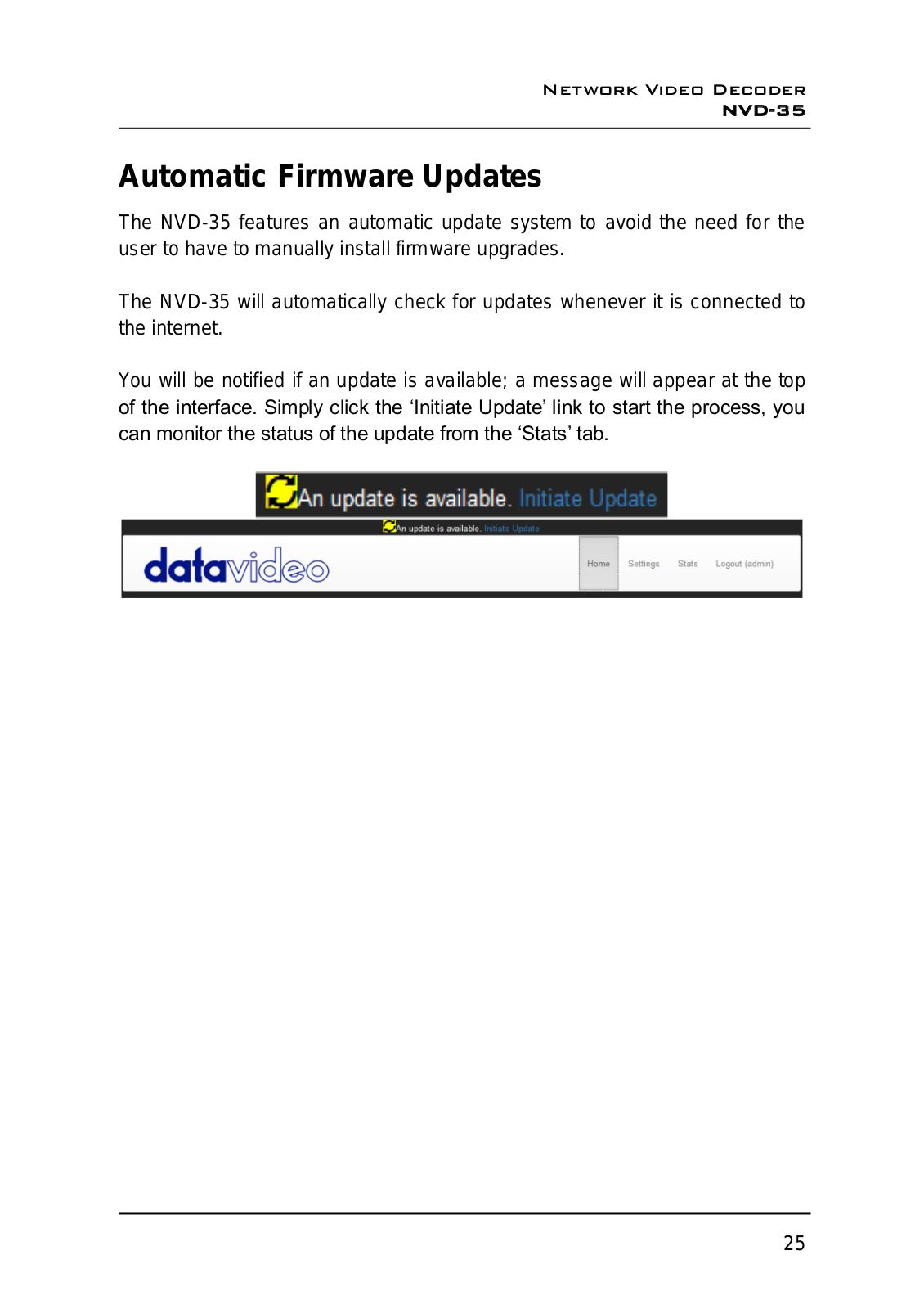

AUTOMATIC FIRMWARE UPDATES ............................................................ |
25 |

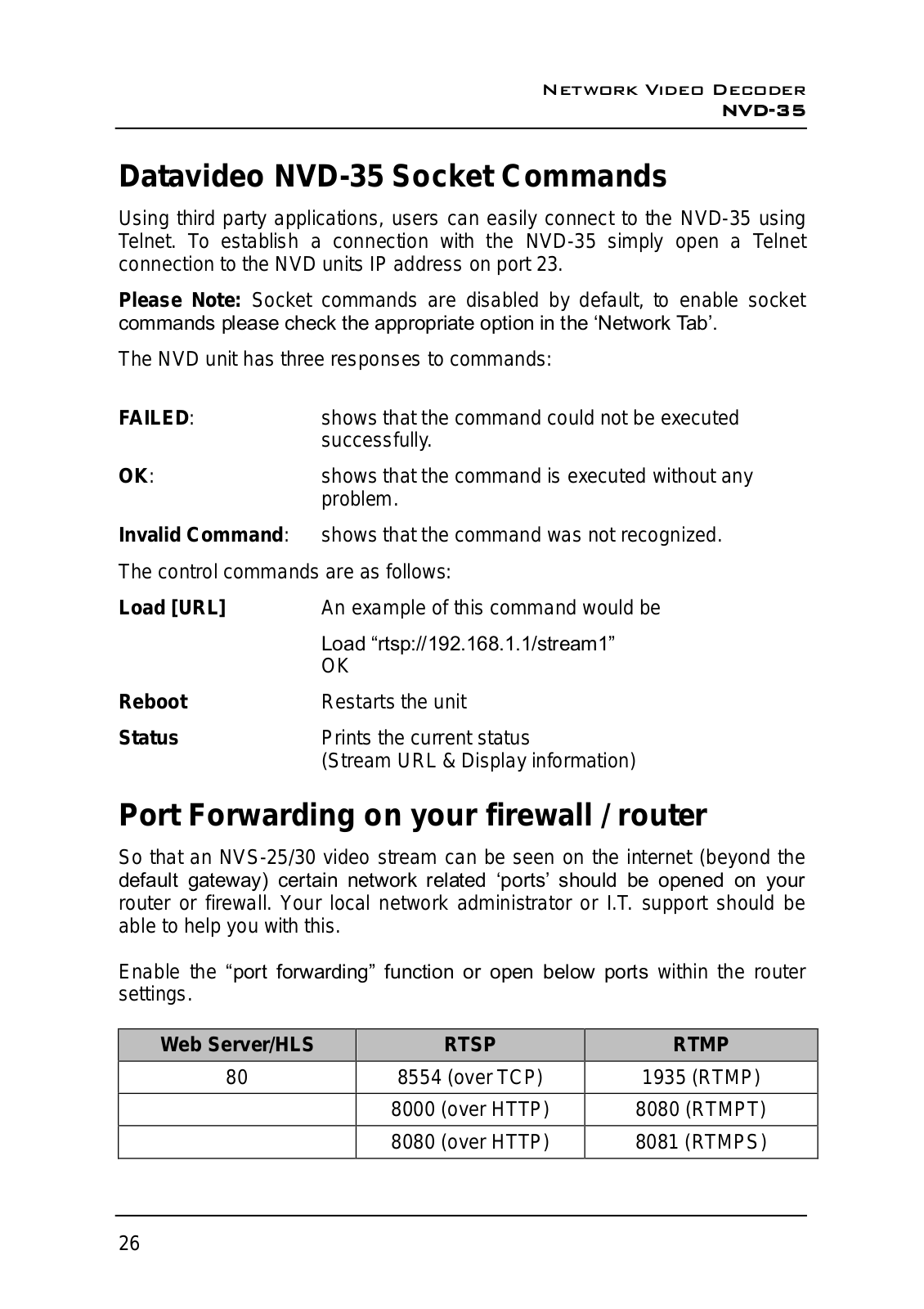

DATAVIDEO NVD-35 SOCKET COMMANDS ................................................ |
26 |
PORT FORWARDING ON YOUR FIREWALL / ROUTER................................. |
26 |

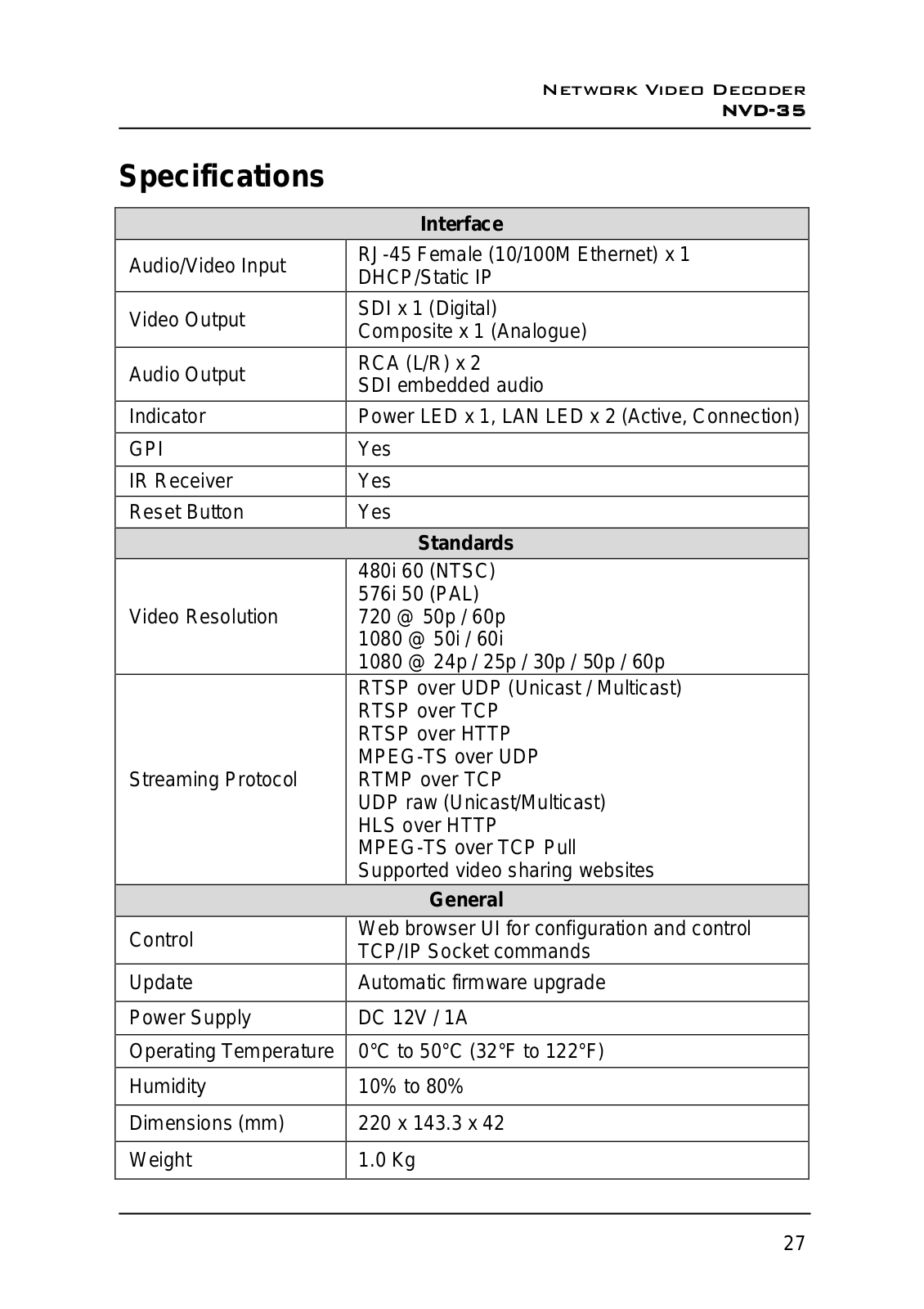

SPECIFICATIONS ........................................................................................ |
27 |

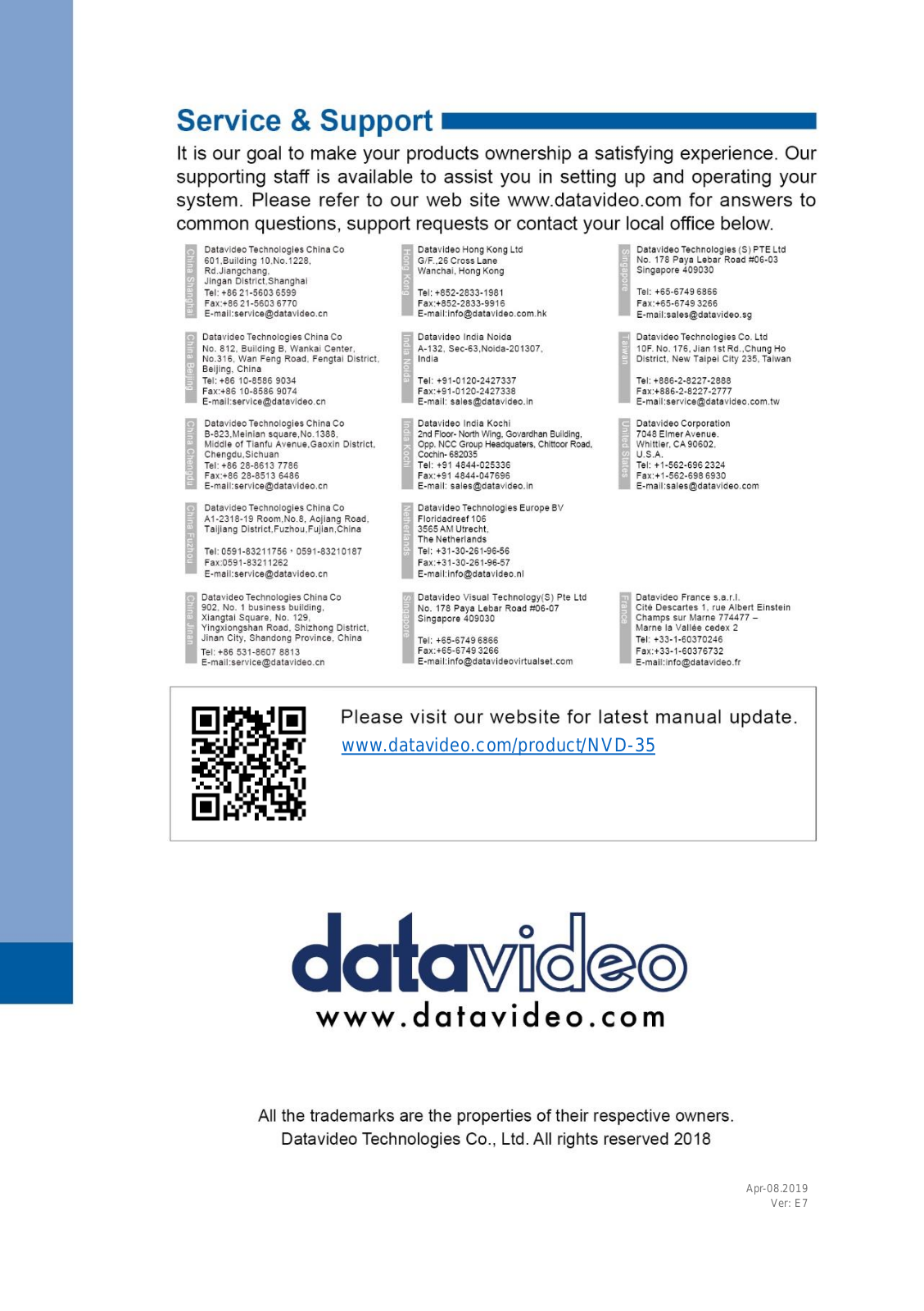

SERVICE & SUPPORT ................................................................................. |
28 |
Disclaimer of Product & Services
The information offered in this instruction manual is intended as a guide only. At all times, Datavideo Technologies will try to give correct, complete and suitable information. However, Datavideo Technologies cannot exclude that some information in this manual, from time to time, may not be correct or may be incomplete. This manual may contain typing errors, omissions or incorrect information. Datavideo Technologies always recommend that you double check the information in this document for accuracy before making any purchase decision or using the product. Datavideo Technologies is not responsible for any omissions or errors, or for any subsequent loss or damage caused by using the information contained within this manual. Further advice on the content of this manual or on the product can be obtained by contacting your local Datavideo Office or dealer.
3
Network Video Decoder
NVD-35
FCC Compliance Statement
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
(1)This device may not cause harmful interference, and
(2)This device must accept any interference received, including interference that may cause undesired operation.
Warnings and Precautions
1.Read all of these warnings and save them for later reference.
2.Follow all warnings and instructions marked on this unit.
3.Unplug this unit from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.
4.Do not use this unit in or near water.
5.Do not place this unit on an unstable cart, stand, or table. The unit may fall, causing serious damage.
6.Slots and openings on the cabinet top, back, and bottom are provided for ventilation. To ensure safe and reliable operation of this unit, and to protect it from overheating, do not block or cover these openings. Do not place this unit on a bed, sofa, rug, or similar surface, as the ventilation openings on the bottom of the cabinet will be blocked. This unit should never be placed near or over a heat register or radiator. This unit should not be placed in a built-in installation unless proper ventilation is provided.
7.This product should only be operated from the type of power source indicated on the marking label of the AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company.
8.Do not allow anything to rest on the power cord. Do not locate this unit where the power cord will be walked on, rolled over, or otherwise stressed.
9.If an extension cord must be used with this unit, make sure that the total of the ampere ratings on the products plugged into the extension cord do not exceed the extension cord’s rating.
10.Make sure that the total amperes of all the units that are plugged into a single wall outlet do not exceed 15 amperes.
11.Never push objects of any kind into this unit through the cabinet ventilation slots, as they may touch dangerous voltage points or short out parts that could result in risk of fire or electric shock. Never spill liquid of any kind onto or into this unit.
12.Except as specifically explained elsewhere in this manual, do not attempt to service this product yourself. Opening or removing covers that are marked “Do Not Remove” may expose you to dangerous voltage points or other risks, and will void your warranty. Refer all service issues to qualified service personnel.
4
Network Video Decoder
NVD-35
13.Unplug this product from the wall outlet and refer to qualified service personnel under the following conditions:
a.When the power cord is damaged or frayed;
b.When liquid has spilled into the unit;
c.When the product has been exposed to rain or water;
d.When the product does not operate normally under normal operating conditions. Adjust only those controls that are covered by the operating instructions in this manual; improper adjustment of other controls may result in damage to the unit and may often require extensive work by a qualified technician to restore the unit to normal operation;
e.When the product has been dropped or the cabinet has been damaged;
f.When the product exhibits a distinct change in performance, indicating a need for service.
Warranty
Standard Warranty
Datavideo equipment are guaranteed against any manufacturing defects for one year from the date of purchase.
The original purchase invoice or other documentary evidence should be supplied at the time of any request for repair under warranty.
The product warranty period beings on the purchase date. If the purchase date is unknown, the product warranty period begins on the thirtieth day after shipment from a Datavideo office.
All non-Datavideo manufactured products (product without Datavideo logo) have only one year warranty from the date of purchase.
Damage caused by accident, misuse, unauthorized repairs, sand, grit or water is not covered under warranty.
Viruses and malware infections on the computer systems are not covered under warranty.
Any errors that are caused by unauthorized third-party software installations, which are not required by our computer systems, are not covered under warranty.
All mail or transportation costs including insurance are at the expense of the owner.
All other claims of any nature are not covered.
All accessories including headphones, cables, and batteries are not covered under warranty.
Warranty only valid in the country or region of purchase.
Your statutory rights are not affected.
5
Network Video Decoder
NVD-35
Three Year Warranty
All Datavideo products purchased after July 1st, 2017 are qualified for a free two years extension to the standard warranty, providing the product is registered with Datavideo within 30 days of purchase.
Certain parts with limited lifetime expectancy such as LCD panels, DVD drives, Hard Drive, Solid State Drive, SD Card, USB Thumb Drive, Lighting, Camera module, PCIe Card are covered for 1 year.
The three-year warranty must be registered on Datavideo's official website or with your local Datavideo office or one of its authorized distributors within 30 days of purchase.
Disposal
For EU Customers only - WEEE Marking
This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects
human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
CE Marking is the symbol as shown on the left of this page. The letters "CE" are the abbreviation of French phrase "Conformité Européene" which literally means "European Conformity". The term initially used was "EC Mark" and it was officially replaced by "CE Marking" in the Directive 93/68/EEC in 1993. "CE Marking" is now
used in all EU official documents.
6
Network Video Decoder
NVD-35
Product Overview
The Datavideo NVD-35 is a wired IP video decoder with SDI, Composite and analogue audio outputs.
The NVD-35 decodes all common protocols including RTP/RTSP, RTMP, UDP, TCP, HTTP, HLS and MPEG-TS and can output SD/HD video at resolutions up to 1080p60.
Decodes directly from YouTube Live, UStream and most major CDNs without any 3rd party advertising
The NVD-35 is the perfect partner to the Datavideo NVS-25/30 IP encoders allowing full HD point to point video links over Ethernet, WiFi or the Internet.
When connected to a Datavideo DVS-200 Cloud Streaming Server, the NVD35 can function as a IPTV set top box downloading a channel list of both live and pre-recorded streams automatically.
Features
Operates on standard 10/100Mb Ethernet networks
Excellent image quality with very low delay
Unicast and multicast support
Supports RTP/RTSP (Unicast/Multicast), RTMP, UDP (Unicast/Multicast), TCP, HTTP, HLS and MPEG-TS
Direct decoding from most major CDNs without any 3rd party advertising
Channel list download from DVS-200 Cloud Streaming Server
Feature-rich WebUI for configuration and control
Built in video scaler
Supports Full HD video and audio
Supports simultaneous digital embedded and analogue audio output
Small form factor, rack mountable using RMK-1
Supports remote control by socket commands
Supports SDI and Composite video output
7
Network Video Decoder
NVD-35
Front Panel
Power On/Off Switch
Switches the power On / Off
Status LED
Power LED: The red power LED indicates that the NVD-35 has an active power supply.
ACT LED: The flashing yellow ACT LED indicates LAN activity (data upload and download).
LINK LED: The green LINK LED indicates active LAN link.
USB
Functions currently under development.
8
Network Video Decoder
NVD-35
Rear Panel
AUDIO OUT (RCA)
RCA stereo for a line level analogue audio.
SDI OUT
SDI output connector.
CVBS OUT (BNC)
Composite video output
Ethernet Port (RJ-45)
10/100M base Ethernet Network interface
