INTEGRATED CIRCUITS

DATA SH EET

UDA1380

Stereo audio coder-decoder for MD, CD and MP3

Product speciﬁcation 2002 Sep 16

Page 2

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder for MD, CD and MP3

CONTENTS

1 FEATURES

1.1 General

1.2 Multiple format data input interface

1.3 Multiple format data output interface

1.4 ADC front-end features

1.5 DAC features 2 APPLICATIONS 3 GENERAL DESCRIPTION 4 QUICK REFERENCE DATA 5 ORDERING INFORMATION 6 BLOCK DIAGRAM 7 PINNING 8 FUNCTIONAL DESCRIPTION

8.1 Clock modes

8.2 ADC analog front-end

8.3 Decimation filter (ADC)

8.4 Interpolation filter (DAC)

8.5 Noise shaper

8.6 FSDAC

8.7 Headphone driver

8.8 Digital and analog mixers (DAC)

8.9 Application modes

8.10 Power-on reset

8.11 Power-down requirements

8.12 Plop prevention

8.13 Digital audio data input and output 9 L3-BUS INTERFACE DESCRIPTION

9.1 Introduction

9.2 Device addressing

9.3 Slave address

9.4 Register addressing

9.5 Data write mode

9.6 Data read mode 10 I2C-BUS INTERFACE DESCRIPTION

10.1 Addressing

10.2 WRITE cycle

10.3 READ cycle 11 REGISTER MAPPING

11.1 Evaluation modes and clock settings

11.2 I2S-bus input and output settings

11.3 Power control settings

11.4 Analog mixer settings

11.5 Reserved

11.6 Master volume control

11.7 Mixer volume control

11.8 Mode, bass boost and treble

UDA1380

11.9 Master mute, channel de-emphasis and mute

11.10 Mixer, silence detector and oversampling settings

11.11 Decimator volume control

11.12 PGA settings and mute

11.13 ADC settings

11.14 AGC settings

11.15 Restore L3 default values (software reset)

11.16 Headphone driver and interpolation filter (read-out)

11.17 Decimator read-out

12 LIMITING VALUES 13 HANDLING 14 THERMAL CHARACTERISTICS 15 QUALITY SPECIFICATION 16 DC CHARACTERISTICS 17 AC CHARACTERISTICS 18 TIMING 19 APPLICATION INFORMATION 20 PACKAGE OUTLINES 21 SOLDERING

21.1 Introduction to soldering surface mount packages

21.2 Reflow soldering

21.3 Wave soldering

21.4 Manual soldering

21.5 Suitability of surface mount IC packages for wave and reflow soldering methods

22 DATA SHEET STATUS 23 DEFINITIONS 24 DISCLAIMERS 25 PURCHASE OF PHILIPS I2C COMPONENTS

2002 Sep 16 2

Page 3

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder for MD, CD and MP3

1 FEATURES

1.1 General

• 2.4 to 3.6 V power supply

• 5 V tolerant digital inputs (at 2.4 to 3.6 V power supply)

• 24-bit data path for Analog-to-Digital Converter (ADC)

and Digital-to-Analog Converter (DAC)

• Selectable control via L3-bus microcontroller interface or I2C-bus interface; choice of 2 device addresses in L3-bus and I2C-bus mode

Remark: This device does not have a static mode

• Supports sample frequencies from 8 to 55 kHz for the ADC part, and 8 to 100 kHz forthe DAC part. The ADC cannot support DVD audio (96 kHz audio), only Mini-Disc (MD), Compact-Disc (CD) and Moving Picture Experts Group Layer-3 Audio (MP3). For playback 8 to 100 kHz is specified. DVD playback is supported

• Power management unit: – Separate power control for ADC, Automatic Volume

Control (AVC), DAC, Phase Locked Loop (PLL) and headphone driver

– Analog blocks like ADC and Programmable Gain

Amplifier (PGA) have a block to power-down the bias circuits

– When ADC and/or DAC are powered-down, also the

clocks to these blocks are stopped to save power

Remark: By default, when the IC is powered-up, the complete chip will be in the Power-down mode.

• ADC part and DAC part can run at different frequencies, either system clock or Word Select PLL (WSPLL)

• ADC and PGA plus integrated high-pass filter to cancel DC offset

• Thedecimationfilter is equipped with a digital Automatic Gain Control (AGC)

• Mono microphone input with Low Noise Amplifier (LNA) of 29 dB fixed gain and Variable Gain Control (VGA) from 0 to 30 dB in steps of 2 dB

• Integrated digital filter plus DAC

• Separate single-ended line output and one stereo

headphone output, capable of driving a 16 Ω load. The headphone driver has a built-in short-circuit protection with status bits which can be read out from the L3-bus or I2C-bus interface

• Digital silence detection in the interpolator (playback) with read-out status via L3-bus or I2C-bus interface

• Easy application.

UDA1380

1.2 Multiple format data input interface

• Slave BCK and WS signals

• I2S-bus format

• MSB-justified format compatible

• LSB-justified format compatible.

1.3 Multiple format data output interface

• Select option for digital output interface: either the decimatoroutput(ADC signal)ortheoutputsignalofthe digital mixer which is in the interpolator DSP

• Selectable master or slave BCK and WS signals for digital ADC output

Remark:SYSCLKmustbeappliedinWSPLLmodeand master mode

• I2S-bus format

• MSB-justified format compatible

• LSB-justified format compatible.

1.4 ADC front-end features

• ADC plus decimator can run at either WSPLL, regenerating the clock from WSI signal, or on SYSCLK

• Stereo line input with PGA: gain range from 0 to 24 dB in steps of 3 dB

• LNA with 29 dB fixed gain for mono microphone input, including VGA with gain from 0 to 30 dB in steps of 2 dB

• Digital left and right independent volume control and mute from +24 to −63.5 dB in steps of 0.5 dB.

2002 Sep 16 3

Page 4

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder for MD, CD and MP3

1.5 DAC features

• DAC plus interpolator can run at either WSPLL (regenerating the clock from WSI) or at SYSCLK

• Separate digital logarithmic volume control for left and right channels via L3-bus or I2C-bus from 0 to −78 dB in steps of 0.25 dB

• Digital tone control, bass boost and treble via L3-bus or I2C-bus interface

• Digital de-emphasis for sample frequencies of: 32, 44.1, 48 and 96 kHz via L3-bus or I2C-bus interface

• Cosine roll-off soft mute function

• Output signal polarity control via L3-bus or I2C-bus

interface

• Digital mixer for mixing ADC output signal and digital serial input signal, if they run at the same sampling frequency.

2 APPLICATIONS

This audio coder-decoder is suitable for home and portable applications like MD, CD and MP3 players.

3 GENERAL DESCRIPTION

The UDA1380 is a stereo audio coder-decoder, available in TSSOP32 (UDA1380TT) and HVQFN32 (UDA1380HN) packages. All functions and features are identical for both package versions. The term ‘UDA1380’ in this document refers to both UDA1380TT and UDA1380HN, unless particularly specified.

UDA1380

The DAC part is equipped with a stereo line output and a headphonedriveroutput.Theheadphonedriveriscapable of driving a 16 Ω load. The headphone driver is also capable of driving a headphone without the need for external DC decoupling capacitors, since the headphone can be connected to a pin V

In addition, there is a built-in short-circuit protection for the headphone driver output which, in case of short-circuit, limits the current through the operational amplifiers and signals the event via its L3-bus or I2C-bus register.

The UDA1380 also supports an application mode in which the coder-decoder itself is not running, but an analog signal, for instance coming from an FM tuner, can be controlled in gain, and applied to the output via the headphone driver and line outputs.

The UDA1380 supports the I2S-bus data format with word lengths of up to 24 bits, the MSB-justified data format with word lengths of up to 24 bits and the LSB-justified serial data format with word lengths of 16, 18, 20 or 24 bits (LSB-justified 24 bits is only supported for the output interface).

The UDA1380 has sound processing features in playback mode, de-emphasis, volume, mute, bass boost and treble which can be controlled by the L3-bus or I2C-bus interface.

REF(HP)

on the chip.

The front-end of the UDA1380 is equipped with a stereo line input, which has a PGA control, and a mono microphone input with an LNA and a VGA. The digital decimation filter is equipped with an AGC which can be used in case of voice-recording.

2002 Sep 16 4

Page 5

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder

UDA1380

for MD, CD and MP3

4 QUICK REFERENCE DATA

DDD=VDDA(AD)=VDDA(DA)=VDDA(HP)

unless otherwise speciﬁed.

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Supplies

DDA(AD)

DDA(DA)

DDA(HP)

ADC analog supply voltage 2.4 3.0 3.6 V DAC analog supply voltage 2.4 3.0 3.6 V headphone analog supply

voltage

DDD

DDA(AD)

DDA(DA)

DDA(HP)

digital supply voltage 2.4 3.0 3.6 V ADC analog supply current one ADC and microphone ampliﬁer

DAC analog supply current operating mode; fs= 48 kHz − 3.4 − mA

headphone analog supply current

DDD

DD(tot)

amb

digital supply current operating mode; fs= 48 kHz − 10.0 − mA

total supply current playback mode (without headphone);

ambient temperature −40 − +85 °C

= 3.0 V; T

enabled; fs= 48 kHz two ADCs and PGA enabled;

f all ADCs and PGAs power-down, but

AVC activated; f all ADCs, PGAs and LNA

power-down; f

Power-down mode; f no signal applied (quiescent current) − 0.9 − mA Power-down mode − 0.1 −µA

playback mode; f record mode; f Power-down mode; f

fs=48kHz playbackmode (with headphone); no

signal; f record mode (audio); f record mode (speech); f record mode (audio and speech);

f fully operating; f signal mix-in operating, using

FSDAC, AVC(with headphone); no signal; f

Power-down mode; f

=25°C; RL=5kΩ; all voltages measured with respect to ground;

amb

2.4 3.0 3.6 V

− 4.5 − mA

− 7.0 − mA

=48kHz

− 3.3 − mA

=48kHz

− 1.0 −µA

=48kHz

= 48 kHz − 0.1 −µA

= 48 kHz − 5.0 − mA

= 48 kHz − 6.0 − mA

= 48 kHz − 1.0 −µA

− 9.0 − mA

− 8.8 − mA

=48kHz

= 48 kHz − 13.0 − mA

=48kHz − 10.0 − mA

− 13.0 − mA

=48kHz

=48kHz − 23.0 − mA

− 12.0 − mA

=48kHz

= 48 kHz − 2.0 −µA

2002 Sep 16 5

Page 6

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder

UDA1380

for MD, CD and MP3

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Analog-to-digital converter (supply voltage 3.0 V)

(THD+N)/S

digital output level at 0 dB setting; V total harmonic distortion-

plus-noise to signal ratio at

at −1 dBFS −−85 − dB at −60 dBFS; A-weighted −−37 − dB

fs=48kHz

S/N

signal-to-noise ratio at

Vi= 0 V; A-weighted − 97 − dB

fs=48kHz

channel separation − 100 − dB LNA input plus analog-to-digital converter (supply voltage 3.0 V) V

i(rms)

input voltage (RMS value) at 0 dBFS digital output; 2.2 kΩ

source impedance

(THD+N)/S

total harmonic

distortion-plus-noise to

at 0 dB −−74 − dB at −60 dB; A-weighted −−25 − dB

signal ratio at fs= 48 kHz S/N

signal-to-noise ratio at

Vi= 0 V; A-weighted − 85 − dB

fs=48kHz

channel separation − 70 − dB Digital-to-analog converter (supply voltage 3.0 V) V

o(rms)

(THD+N)/S

output voltage (RMS value) at 0 dBFS digital input; note 1 − 0.9 − V

total harmonic

distortion-plus-noise to

at 0 dB −−88 − dB at −60 dB; A-weighted −−40 − dB

signal ratio at fs= 48 kHz (THD+N)/S

total harmonic

distortion-plus-noise to

at 0 dB −−80 − dB at −60 dB; A-weighted −−37 − dB

signal ratio at fs= 96 kHz S/N

signal-to-noise ratio at

code = 0; A-weighted − 100 − dB

fs=48kHz S/N

signal-to-noise ratio at

code = 0; A-weighted − 97 − dB

fs=96kHz

channel separation − 90 − dB AVC (line input via ADC input; output on line output and headphone driver; supply voltage 3.0 V) V

i(rms)

(THD+N)/S

input voltage (RMS value) − 150 − mV

total harmonic

distortion-plus-noise to

at 0 dB −−80 − dB at −60 dB; A-weighted −−28 − dB

signal ratio at fs= 48 kHz S/N

signal-to-noise ratio at

Vi= 0 V; A-weighted − 87 − dB

fs=48kHz

= 1.0 V −−1−dBFS

i(rms)

−−35 mV

2002 Sep 16 6

Page 7

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder

UDA1380

for MD, CD and MP3

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Headphone driver (supply voltage 3.0 V)

o(rms)

(THD+N)/S

S/N

Power consumption (supply voltage 3.0 V; fs= 48 kHz)

output power (RMS value) at 0 dBFS digital input; RL=16Ω− 35 − mW

total harmonic

distortion-plus-noise to

signal ratio at fs= 48 kHz

signal-to-noise ratio at

at 0 dB; RL=16Ω−−60 − dB at 0 dB; R

=5kΩ−−82 − dB

at −60 dB; A-weighted −−24 − dB code = 0; A-weighted − 90 − dB

fs=48kHz

channel separation RL=16Ω using pin V

REF(HP)

; no DC

− 60 − dB

decoupling capacitors; note 2 R

=16Ω single-ended application

− 68 − dB with DC decoupling capacitors (100 µF typical)

=32Ω single-ended application

− 74 − dB with DC decoupling capacitors (100 µF typical)

tot

total power dissipation playback mode (without headphone) − 27 − mW

playback mode (with headphone) − 27 − mW record mode (audio) − 39 − mW record mode (speech) − 31 − mW record mode (audio and speech) − 40 − mW full operation − 69 − mW Power-down mode − 6 −µW

Notes

1. The output voltage of the DAC is proportional to the DAC power supply voltage.

2. Channel separation performance is measured at the IC pin.

5 ORDERING INFORMATION

TYPE

NUMBER

NAME DESCRIPTION VERSION

PACKAGE

UDA1380TT TSSOP32 plastic thin shrink small outline package; 32 leads;

body width 6.1 mm; lead pitch 0.65 mm

UDA1380HN HVQFN32 plastic, heatsink very thin quad ﬂat package; no leads;

32 terminals; body 5 × 5 × 0.85 mm

SOT487-1

SOT617-1

2002 Sep 16 7

Page 8

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder for MD, CD and MP3

6 BLOCK DIAGRAM

handbook, full pagewidth

VINL

VINM

RESET

SYSCLK

31 (27)

3 (31)

5 (1)

13 (9)

DDA(AD)

32 (28)

+29 dB

SSA(AD)

AGC

30 (26)

SDCPGA PGA

SDCMIC AMP

ADC

DECIMATION FILTER

DC-CANCELLATION FILTER

ADCP

4 (32)

ADCN

2 (30)

ADC

SDC

n.c.

REF

29 (25)

DDD

6 (2)

UDA1380TT

(UDA1380HN)

DDA(DA)

26 (22)

1 (29)

UDA1380

VINR

DATAO

BCKO

WSO

BCKI

WSI

DATAI

VOUTL

Pin numbers for UDA1380HN in parentheses.

9 (5) 7 (3) 8 (4)

10 (6) 11 (7) 12 (8)

WSPLL

27 (23)

DATA OUTPUT

INTERFACE

DATA INPUT

INTERFACE

ANA VC

HEADPHONE

DRIVER

DSP FEATURES

INTERPOLATION FILTER

NOISE SHAPER

FSDAC

DDA(HP)

FSDAC

22 (18)24 (20)23 (19) 28 (24)

REF(HP)

HEADPHONE

DRIVER

20 (16) 21 (17)

VOUTRHPVOUTLHP

SSA(HP)

L3 or I2C-BUS

INTERFACE

ANA VC

SSA(DA)

17 (13) 16 (12) 18 (14)

19 (15)

15 (11)

25 (21)

14 (10)

SSD

L3CLOCK/SCL L3MODE

L3DATA/SDA

SEL_L3_IIC

RTCB

VOUTR

MGU526

Fig.1 Block diagram.

2002 Sep 16 8

Page 9

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder

UDA1380

for MD, CD and MP3

7 PINNING

SYMBOL

UDA1380TT UDA1380HN

VINR 1 29 analog pad ADC input right, also connected

ADCN

VINM 3 31 analog pad microphone input V

ADCP

RESET 5 1 5 V tolerant digital input pad;

DDD

BCKO 7 3 5 V tolerant digital bidirectional WSO 8 4 word select output

DATAO 9 5 output pad; push-pull; 5 ns

BCKI 10 6 5 V tolerant digital input pad; WSI 11 7 word select input DATAI 12 8 data input SYSCLK 13 9 system clock 256f

SSD

RTCB 15 11 5 V tolerant digital input pad;

L3MODE 16 12 5 V tolerant digital bidirectional

L3CLOCK/SCL 17 13 5 V tolerant digital input pad;

L3DATA/SDA 18 14 I

SEL_L3_IIC 19 15 5 V tolerant digital input pad;

SSA(HP)

VOUTRHP 21 17 analog pad headphone output right V

REF(HP)

VOUTLHP 23 19 analog pad headphone output left V

DDA(HP)

VOUTR 25 21 analog pad DAC output right V

DDA(DA)

VOUTL 27 23 analog pad DAC output left

TYPE DESCRIPTION

to the mixer input of the FSDAC

2 30 analog pad ADC reference voltage

4 32 analog pad ADC reference voltage

pin RESET with pull-down, for

push-pull; TTL with hysteresis;

making Power-On Reset (POR)

pull-down

6 2 digital supply pad digital supply voltage

bit clock output pad; push-pull input; 3-state output; 5 ns slew-rate control; TTL with hysteresis

data output slew-rate control; CMOS

bit clock input push-pull; TTL with hysteresis

, 384fs,

512fsor 768fs input

14 10 digital ground pad digital ground

test control input, to be connected push-pull; TTL with hysteresis;

to digital ground in the application pull-down

L3-bus mode input or pin A1 for pad; push-pull input; 3-state

I2C-bus slave address setting output; 5 ns slew-rate control; TTL with hysteresis

L3-bus or I

C-bus clock input

push-pull; TTL with hysteresis

C-bus pad; 400 kHz I2C-bus

speciﬁcation

L3-bus or I2C-bus data input and

output

input channel select push-pull; TTL with hysteresis

20 16 analog ground pad headphone ground

22 18 analog pad headphone reference voltage

24 20 analog supply pad headphone supply voltage

26 22 analog supply pad DAC analog supply voltage

2002 Sep 16 9

Page 10

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder

UDA1380

for MD, CD and MP3

SYMBOL

UDA1380TT UDA1380HN

SSA(DA)

REF

SSA(AD)

VINL 31 27 analog pad ADC input left, also connected to

DDA(AD)

handbook, halfpage

RESET

DATAO

SYSCLK

L3MODE

VINR

ADCN

VINM

ADCP

DDD

BCKO

WSO

BCKI

WSI

DATAI

SSD

RTCB

1 2 3 4 5 6 7 8

UDA1380TT

9 10 11 12 13 14 15 16

TYPE DESCRIPTION

28 24 analog ground pad DAC analog ground 29 25 analog pad ADC and DAC reference voltage 30 26 analog ground pad ADC analog ground

the mixer input of the FSDAC

32 28 analog supply pad ADC analog supply voltage

DDA(AD)

VINL

handbook, halfpage

DATAI

WSI

BCKI

DATAO

WSO

BCKO V

DDD

RESET

8 7 6 5 4 3 2 1

SSD

SYSCLK

VINM

ADCP

RTCB

L3MODE

L3CLOCK/SCL

UDA1380HN

282627

VINR

ADCN

DDA(AD)

SSA(HP)

L3DATA/SDA

SEL_L3_IIC

V 16

141215

17 18 19 20 21 22 23 24

REF

VINL

SSA(AD)

VOUTRHP V

REF(HP) VOUTLHP V

DDA(HP) VOUTR V

DDA(DA) VOUTL V

SSA(DA)

MGW778

MGU525

SSA(AD)

REF

SSA(DA)

VOUTL V

DDA(DA)

VOUTR V

DDA(HP)

VOUTLHP V

REF(HP)

VOUTRHP V

SSA(HP)

SEL_L3_IIC

L3DATA/SDA

L3CLOCK/SCL

Fig.2 Pin configuration UDA1380TT.

2002 Sep 16 10

Fig.3 Pin configuration UDA1380HN.

Page 11

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder for MD, CD and MP3

8 FUNCTIONAL DESCRIPTION

8.1 Clock modes

There are two clock systems:

• A SYSCLK signal, coming from the system or the SSA1 chip

• A WSPLL which generates the internal clocks from the incoming WSI signal.

The system frequency applied to pin SYSCLK is selectable. The options are 256fs, 384fs, 512fsand 768fs. Thesystemclockmustbelockedinfrequencytothedigital interface signals.

Remark: Since there is neither a fixed reference clock available in the IC itself, nor a fixed clock available in the systemtheICis in, there is no auto sample rate conversion detection circuitry.

The system can run in several modes, using the two clock systems:

• Both the DAC and the ADC part can run at the applied SYSCLK input. In this case the WSPLL is powered-down

• The ADC can run at the SYSCLK input, and at the same time the DAC part can run (at a different frequency) at the clock re-generated from the WSI signal

• The ADC and the DAC can both run at the clock regenerated from the WSI signal.

UDA1380

8.1.1 WSPLL REQUIREMENTS TheWSPLLismeant to lock onto the WSI input signal, and

regenerates a 256fsand 128fs signal for the FSDAC and the interpolator core (and for the decimator if needed). Since the operating range of the WSPLL is from 75 to 150 MHz, the complete range of 8 to 100 kHz sampling frequency must be divided into smaller parts, as given in Table 1, using Fig.4 as a reference. This means that the user must set the input range of the WSI input signal.

In case the SYSCLK is used for clocking the complete system(decimatorincludinginterpolator)theWSPLLmust be powered-down with bit ADC_CLK via the L3-bus or I2C-bus.

The SEL_LOOP_DIV[1:0] can be controlled by the PLL1 and PLL0 bits in the L3-bus or I2C-bus register.

handbook, halfpage

DIV1

128f

(digital parts)

256f

(ADC and FSDAC)

VCOWSI

PRE1

MGU527

Fig.4 WSPLL set-up.

Table 1 WSPLL divider settings

WORD SELECT

FREQUENCY (kHz)

SEL_LOOP_DIV[1:0] PRE1 DIV1

6.25 to 12.5 00 8 1536

12.5 to 25 01 4 1536 25 to 50 10 2 1536 50 to 100 11 2 768

2002 Sep 16 11

VCO FREQUENCY

(MHz)

76 to 153

Page 12

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder

UDA1380

for MD, CD and MP3

8.1.2 CLOCK DISTRIBUTION

Figure 5 shows the main clock distribution for the SYSCLK domain and the WSPLL clock domain. For power saving reasons each clock signal inside the system must be controlled and enabled via a separate bit in the

L3-bus and I2C-bus registers (ADC_CLK). The DAC part of the UDA1380 can operate from 8 to 100 kHz sampling frequency (fs). This applies to the DAC part only;

the ADC part can run from 8 to 55 kHz.

handbook, full pagewidth

SYSCLK

CLK_DIV

256/384/512/768f

128f

enable clock

ADC_CLK

128f

enable

clock

ADC

DECIMATOR

L3 or I2C-BUS

DECIMATOR

I2S-BUS

OUTPUT BLOCK

INPUT BLOCK

L3 or I2C-BUS

INTERPOLATOR

FSDAC

MGU528

WSI

WSPLL

256f

enable

clock

128f

DAC_CLK

enable clock

Fig.5 Clock routing for the main blocks inside the coder-decoder.

S-BUS

2002 Sep 16 12

Page 13

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder for MD, CD and MP3

8.2 ADC analog front-end

The analog front-end of the UDA1380 consists of one stereo ADC with a selector in front of it (see Fig.6). Using this selector one can either select the microphone input with the microphone amplifier (LNA) with a fixed 29 dB gain and VGA (no PGA, since a real microphone amplifier ismuchbetterwith respect to noise), or the line input which has a PGA for having 0 or 6 dB gain (for supporting 1 and 2 V (RMS)input).The PGA also provides gain control from 0 to 24 dB in steps of 3 dB.

Remarks:

• TheinputimpedanceofthePGA(lineinput)is12 kΩ,for the LNA this is 5 kΩ

• TheLNAis standard equipped with a microphone power supply. Since this normally requires two extra pins, this feature will not be used inside the UDA1380. Instead, the microphone supply block is replaced by the VGA block.

UDA1380

8.2.1 APPLICATIONS AND POWER-DOWN MODES The following Power-down modes and functional modes

are supported:

• Power-down mode in which the power consumption is very low (only leakage currents)

In this mode there is no reference voltage at the line input

• Line input mode, in which the PGA can be used

• Microphone mode, in which the rest of the non-used

PGAs and ADCs are powered-down

• Mixed PGA and LNA mode: one line input and one microphone input.

More information on the analog frond-end is given in Section 8.11.1.

handbook, full pagewidth

VINL

(29)

(27)

(31)

PGA ADC

PGA

LNA SDC

SDC

VINR

VINM

Pin numbers for UDA1380HN in parentheses.

Fig.6 Analog front-end.

8.2.2 LNA WITH VGA The LNA is equipped with a VGA. The function of the VGA

is to have additional variable analog gain from 0 to 30 dB in steps of 2 dB. This provides more flexibility in the choice of the microphone.

SEL_MIC

bitstream right

ADC

bitstream left

MGU530

8.2.3 APPLICATIONS WITH 2V(RMS) INPUT

For the line input it is preferable to have 0 dB and 6 dB gain settings in order to be able to apply both 1 and 2 V (RMS) input signals, using a series resistance. For this purpose a PGA is used which has0 to 24 dB gain, in steps of 3 dB.

2002 Sep 16 13

Page 14

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder for MD, CD and MP3

In applications in which a 2 V (RMS) input signal is used, a12kΩresistor must be used in series with the input of the ADC(see Fig.7). This forms a voltage divider together with the internal ADC resistor and ensures that the voltage, applied to the input of the IC, never exceeds 1 V (RMS). Using this application for a 2 V (RMS) input signal, the switchmust be set to 0 dB.When a 1 V (RMS) input signal is applied to the ADC in the same application, the gain switch must be set to 6 dB.

An overview of the maximum input voltages allowed againstthepresenceofanexternalresistor and the setting of the gain switch is given in Table 2; the power supply voltage is assumed to be 3 V.

handbook, halfpage

input signal

2 V (RMS)

Pin numbers for UDA1380HN in parentheses.

Fig.7 ADC front-end with PGA (line input).

external resistor

12 kΩ

VINL,

VINR

31, 1

(27,

29)

12 kΩ

REF

PGA

DDA

= 3 V

MGU529

UDA1380

Table 3 Decimation ﬁlter characteristics

ITEM CONDITION VALUE (dB)

Pass-band ripple 0 to 0.45f Stop band >0.55f Dynamic range 0 to 0.45f Digital output

level

8.3.1 O

VERLOAD DETECTION

at 0 dB input

analog

TheUDA1380is equipped with an overload detector which can be read out from the L3-bus or I2C-bus interface.

In practice the output is used to indicate whenever the output data, in either the output of the left or right channel, exceeds −1 dB (the actual figure is −1.16 dB) of the maximum possible digital swing. When this condition is detected the output bit OVERFLOW in the L3-bus register is forced to logic 1 for at least 512fs cycles (11.6 ms at fs= 44.1 kHz). This time-out is reset for each infringement.

8.3.2 VOLUME CONTROL

The decimator is equipped with a digital volume control. This volume control is separate for left and right and can be set with bits ML_DEC [7:0] and bits MR_DEC [7:0] via the L3-bus or I2C-bus interface. The range is from +24 dB to −63.5 dB and mutes in steps of 0.5 dB.

0.01

−70

>135

−1.5

Table 2 Application modes using input gain stage

RESISTOR

(12 kΩ)

INPUT GAIN

SWITCH

MAXIMUM

INPUT

VOLTAGE

Present 0 dB 2 V (RMS)

6 dB 1 V (RMS)

Absent 0 dB 1 V (RMS)

6 dB 0.5 V (RMS)

8.3 Decimation ﬁlter (ADC)

Thedecimation from 128fsisperformed in two stages. The

first stage realizes a characteristic with a decimation

----------x

xsin

factor of 16. The second stage consists of 3 half-band filters, each decimating by a factor 2. The filter characteristics are shown in Table 3.

8.3.3 MUTE The decimator is equipped with a dB-linear mute which

mutes the signal in 256 steps of 0.5 dB.

8.3.4 AGC FUNCTION The decimation filter is equipped with an AGC block. This

function is intended, when enabled, to keep the output signal at a constant level. The AGC can be used for microphone applications in which the distance to the microphone is not always the same.

The AGC can be enabled via an L3-bus or I2C-bus bit by setting the bit to logic 1. In that case it bypasses the digital volume control.

Via the L3-bus or I2C-bus interface also some other settings of the AGC, like the attack and decaysettings and the target level settings, can be made.

Remark: The DC filter before the decimation filter must be enabled by setting the L3-bus or I2C-bus bit SKIP_DCFIL to logic 0 when AGC is in operation; otherwise the output will be disturbed by the DC offset added in the ADC.

2002 Sep 16 14

Page 15

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder for MD, CD and MP3

8.4 Interpolation ﬁlter (DAC)

The interpolation digital filter interpolates from 1 to 64fsor to 128fs, by cascading FIR filters, see Table 4. The interpolator is equipped with several sound features like volume control, mute, de-emphasis and tone control.

Table 4 Interpolation ﬁlter characteristics

ITEM CONDITION VALUE (dB)

Pass-band ripple 0 to 0.45f Stop band >0.55f Dynamic range 0 to 0.45f

8.4.1

DIGITAL MUTE

Muting the DAC will result in a cosine roll-off soft mute, using 4 × 32 = 128 samples in normal mode (or 3 ms at

44.1 kHz sampling frequency). The cosine roll-off curve is illustrated in Fig.8. These cosine roll-off functions are implementedfor both the digital mixer and themastermute inside the DAC data path, see Section 8.8.

handbook, halfpage

mute

factor

0.8

0.6

0.4

0.2

01051525

±0.025

−60

>135

MGU119

t (ms)

UDA1380

8.4.2 S In addition, there are basic sound features:

• dB-linear volume control using 14-bit coefficients in steps of 0.25 dB: range 0 to −78 dB maximum suppression and −∞ dB: applies to both master volume and mixing volume control

• De-emphasis for 32, 44.1, 48 and 96 kHz for both channel 1 and 2 (selectable independently)

• Treble, which is selectable gain for high frequencies (positive gain only), the edge frequency of the treble is fixed (depends on the sampling frequency). Can be set for left and right independently:

– Two settings: fc= 1.5 kHz and fc= 3 kHz, assuming

– Both settings have 0 to 6 dB gain range in steps

• Bass boost, which is selectable gain for low frequencies (positive gain only). The edge frequency of the bass boost is fixed and depends on the sampling frequency. Can be set for left and right independently:

– Two settings: fc= 250 Hz and fc= 300 Hz, assuming

– First setting: 0 to 18 dB gain range in steps of 2 dB – Second setting: 0 to 24 dB gain range in

8.5 Noise shaper

The noise shaper consists of two mono 3rd-order noise shapers and one time-multiplexed stereo 5th-order noise shaper.

The order of the noise shaper can be chosen between 3rd-order (which runs at 128fs) and 5th-order (which runs at 64fs) via bit SEL_NS in the L3-bus or I2C-bus register. The preferable choice for the noise shaper order is:

• 3rd-order noise shaper is preferred at low sampling frequencies, for instance between 8 and 32 kHz. This is for preventing out-of-band noise from the noise shaper to move into the audio band

• 5th-order noise shaper is normally used at higher sampling frequencies, normally from 32 to 100 kHz.

OUND FEATURES

sampling frequency is 44.1 kHz

of 2 dB

sampling frequency is 44.1 kHz

steps of 2 dB.

Fig.8 Mute as a function of raised cosine roll-off,

displayed assuming 44.1 kHz.

2002 Sep 16 15

The noise shaper shifts in-band quantization noise to frequencieswellabovetheaudioband.Thisnoiseshaping technique enables high signal-to-noise ratios to be achieved. The noise shaper output is converted into an analog signal using an FSDAC.

Page 16

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder for MD, CD and MP3

8.6 FSDAC

8.6.1 GENERAL INFORMATION The Filter-Stream Digital-to-Analog Converter (FSDAC) is

a semi-digital reconstruction filter that converts the 1-bit data stream (running at either 64fs for the 5th-order noiseshaperor128fsforthe3rd-ordernoiseshaper)ofthe noise shaper into an analog output voltage. The filter coefficients are implemented as current sources, and are summed at virtual ground of the output operational amplifier. In this way very high signal-to-noise performance and low clock jitter sensitivity are achieved. A post-filteris not needed due to theinherent filter function of the DAC. On-board amplifiers convert the FSDAC output current to an output voltage signal, capable of driving a line output. The output voltage of the FSDAC scales proportionally with the power supply voltage.

Remark: When the FSDAC is powered-down, the output of the FSDAC becomes high impedance.

8.6.2 ANALOG MIXER INPUT

UDA1380

8.7 Headphone driver

The UDA1380 is equipped with a headphone driver which can deliver 36 mW (at 3.0 V power supply) into a 16 Ω load.

The headphone driver does not need external DC decoupling capacitors because it can be DC coupled with respect to a special headphone output reference voltage. This saves two external capacitors (which is quite useful in a portable device).

The headphone driver is equipped with short-circuit protection on all three operationalamplifiers (left, right and the virtual ground). Each of the operational amplifiers has a signalling bit which becomes logic 1 in case the limiter is activated, for instance in case of a short-circuit. This means the microcontroller in the system can poll the L3-bus or I2C-bus register of the headphone driver and as soon as, and for as long as, the short-circuit detection bits are activated, the microcontroller can signal the user that something is wrong or power-down the headphone driver (for instance, for energy-saving purposes).

The FSDAC has a mixer input, which makes it possible to mix an analog signal to the output signal of the FSDAC itself. In schematic form this is given in Fig.9.

This mixer input can be used for instance for mixing-in a GSM signal or an FM signal directly to the line output. In the UDA1380, the mixer input is connected from the ADC line input via an AVC unit.

Remark: Before the AVC unit can be used stand-alone, meaning without the digital part running, first the DAC part must be initialised in order to have the DAC output generating zero current. Otherwise the signal will be clipped.

handbook, halfpage

bitstream

to analog mixer input

FSDAC

MGU531

Fig.9 Mixing signals to the FSDAC output

(analog domain).

Remark: To improve headphone channel separation performance,thedistancebetweenV

REF(HP)

andthemicro

speaker port must be minimized.

8.8 Digital and analog mixers (DAC)

8.8.1 DIGITAL MIXER

The ADC output signal and digital input signal can be mixedwithoutexternalDSP as shown in Fig.10. This mixer can be controlled via the microcontroller interface, and must only be enabled when the ADC and the DAC are running at the same frequency. In addition, the mixer output signal can also be applied to the I2S-bus output interface.

2002 Sep 16 16

Page 17

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder for MD, CD and MP3

data from

handbook, full pagewidth

decimation

filter

(channel 2)

from

digital

data input

(channel 1)

DE-EMPHASIS

VOLUME

AND

MUTE

VOLUME

AND

MUTE

mixing before sound features

BASS-BOOST

AND

TREBLE

SEL_SOURCE

I2S-BUS OUTPUT BLOCK

Fig.10 Digital mixer (DAC).

mixing after sound features

INTERPOLATION

FILTER

UDA1380

master

VOLUME

AND

MUTE

to interpolation filter

MGU532

8.8.2 ANALOG MIXER The analog mixer, which uses the mixer input of the FSDAC, can mix a signal into the FSDAC output signal via an AVC

unit (see Fig.11). The mixer can be used to mix a signal into the FSDAC output signal and play it via the headphone driver without the complete coder-decoder running. The analog control range is 0 to −64.5 dB and mutes in steps of 1.5 dB, with a gain of 16.5 dB (so actually the range is from +16.5 dB to −48 dB plus mute).

handbook, full pagewidth

from analog

front-end

AVC[5:0] L3 or I

PON_AVC

RESISTOR NETWORK

C-bus control bits

enable mixer

(EN_AVC)

to FSDAC mixer input

MGU533

Fig.11 Analog mixer configuration.

2002 Sep 16 17

Page 18

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder for MD, CD and MP3

8.9 Application modes

The operation mode can be set with pin SEL_L3_IIC, either to L3-bus mode (LOW) or to the I2C-bus mode (HIGH) as given in Table 5.

For all features in microcontroller mode see Chapter 9.

Table 5 Pin function in the selected mode

L3CLOCK/SCL L3CLOCK SCL L3MODE L3MODE A1 L3DATA/SDA L3DATA SDA

Remark: In the I the LSB bit of the address of the UDA1380. In L3-bus mode this bit is not available, meaning the device has only one L3-bus device address.

L3-BUS MODE

SEL_L3_IIC = L

C-bus mode there is a bit A1 which sets

I2C-BUS MODE

SEL_L3_IIC = H

UDA1380

8.11 Power-down requirements

The following blocks have power-down control via the L3-bus or I

• Microphone amplifier (LNA) including its Single-Ended to Differential Converter (SDC) and VGA

• ADC plus SDC and the PGA, for left and right separate

• Bias generation circuit for the front-end and the FSDAC

• Headphone driver

• WSPLL

• FSDAC.

Clocksofthe decimator, interpolator and the analog blocks have separate enable and disable controls.

C-bus interface:

8.10 Power-on reset

The UDA1380 has a dedicated pin RESET, which has a pull-down resistor. This way a Power-on reset circuit can be made with a capacitor and a resistor at the pin. The internal pull-down resistor cannot be used because of the 5 V tolerant nature of the pad. The pull-down resistor is shielded from the outside world by a transmission gate in order to support 5 V tolerance.

The reset timing is determined by the external capacitor and resistor which are connected to the pin RESET, and the internal pull-down resistor. By the Power-on reset, all the digital sound processing features and the system controlling features are set to the default setting of the L3-bus and I2C-bus control modes.

Remark: The reset time should be at least 1 µs, and during the reset time the system clock should be running. Incase the WSPLL is selected as theclock source, a clock must be connected to the SYSCLK input in order to have proper reset of the L3-bus or I2C-bus registers. This is because by default the clock source is set to SYSCLK.

2002 Sep 16 18

Page 19

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder

UDA1380

for MD, CD and MP3

8.11.1 ANALOG FRONT-END Figure 12 shows the power control inside the analog front-end. The control of all power-on pins of the ADC front-end is

done via separate L3-bus or I2C-bus bits.

handbook, full pagewidth

PGA_GAINCTRLL

VINL

(29)

(27)

(31)

VINR

VINM

PGA_GAINCTRLR

PGA

LNA SDC

SDC

ADC

bitstream right

bitstream left

PON_BIAS

PON_PGAR PON_ADCRPON_LNA

PON_PGAL PON_ADCL

Pin numbers for UDA1380HN in parentheses.

Fig.12 Analog front-end power-down.

8.11.2 FSDAC POWER CONTROL The FSDAC block has power-on pins: one of which shuts

down the DAC itself, but leaves the output still at V

REF

voltage (which is half the power supply). This function is set by the bit PON_DAC in the L3-bus or I2C-bus register.

A second L3-bus or I2C-bus bit shuts down the complete bias circuit of the FSDAC, via bit PON_BIAS in the L3-bus or I2C-bus register. This bit PON_BIAS acts the same as given in Fig.12 for the analog front-end.

8.12 Plop prevention

Plops are ticks and other strange sounds, that can occur when a part of a device is powered-up or powered-down, or when switching between modes is done.

Some ways to prevent plops from occurring are:

• When the FSDAC or headphone driver must be powered-down, first a digital mute is applied. After that

REF

BIAS

MGU534

the FSDAC or headphone driver can be powered-down. In case the FSDAC or headphone driver must be powered-up,first the analog part is switched on,thenthe digital part is demuted

• When the ADC must be powered-down, a digital mute sequence must be applied. When the digital output signal is completely muted, the ADC can be powered-down. In case the ADC must be powered-up, firsttheanalogpartmustbepowered-up,then the digital part must be demuted

• When there is a change of for example clock divider settings or clock source (selecting between SYSCLK and WSPLL clock), then also digital mute for that block (either decimator or interpolator) should be used.

Remark: All items mentioned in Section 8.12 are not ‘hard-wired’ implemented, but to be followed by the users as a guideline for plop prevention.

2002 Sep 16 19

Page 20

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder for MD, CD and MP3

8.13 Digital audio data input and output

The supported audio formats for the control modes are:

• I2S-bus

• MSB-justified

• LSB-justified, 16 bits

• LSB-justified, 18 bits

• LSB-justified, 20 bits

• LSB-justified, 24 bits (only for the output interface).

The bit clock BCK can be up to 128fs, or in other words the BCK frequency is 128 times the WS frequency or less: f

≤ 128f

BCK

Remark: The WS edge must coincide with the negative edge of the BCK at all times, for proper operation of the digital I/O data interface. Figure 13 shows the interface signals.

8.13.1 DIGITAL AUDIO INPUT INTERFACE The digital audio input interface is slave only, meaning the

system must provide the WSI and BCKI signals (next to the DATAI signal).

Either the WSPLL locks onto the WSI signal and provides the internal clocks for the interpolator and the FSDAC, or a system clock must be applied which must be in frequency lock to the digital data input interface signals.

8.13.2 DIGITAL AUDIO OUTPUT INTERFACE The digital audio output interface can be either master or

slave. The data source for the data output can be selected from either the decimator (ADC front-end) or the digital mixer output.

Remark: The digital mixer output is only valid if both the decimator and the interpolator run at the same clock:

• In slave mode the signals on pins BCKO, WSO and SYSCLK must be applied from the application (signals mustbein frequency lock) and the UDA1380 returns the DATAO signal from the decimator. The applied signal from pin BCKO can be for instance: 32fs, 48fs, 64fs, 96fsor 128f

• In master mode the SYSCLK signal must be applied from the system, but the UDA1380 returns with the BCKO, WSO and the DATAO signals. For the BCKO clock, there are 2 general rules:

– Whenthe SYSCLK is either 256fsor512fs,the BCKO

– Whenthe SYSCLK is either 384fsor 768fs,the BCKO

frequency is supposed to be 64f

signal should be 48fs.

UDA1380

The slave and master modes can be selected by the bit Serial Interface Mode (SIM) in the L3-bus or I2C-bus interface.

9 L3-BUS INTERFACE DESCRIPTION

The UDA1380 has an L3-bus microcontroller interface mode. Controllable system and digital sound processing features are:

• Software reset

• System clock frequency (selection between 256fs,

384fs, 512fsand 768fs clock divider settings)

• Clock mode setting, for instance, which block runs at which clock, and clock enabling

• Power control for the WSPLL

• Data input and data output format control, for input and

output independently including data source selection for the digital output interface

• ADC features: – Digital mute – AGC enable and settings – Polarity control – Input line amplifier control (0 to 24 dB in steps of

3 dB) – DC filtering control – Digital gain control (+24 to −63 dB gain in steps of

0.5 dB) for left and right – Power control – VGA of the microphone input – Selection of line or microphone input

• DAC and headphone driver features: – Power control FSDAC and headphone driver – Polarity control – Mixing control (only available when both decimator

and interpolator run at the same speed). This includes the mixer volumes, mute and mixer position

switch – De-emphasis control – Master volume and balance control – Flat/minimum/maximum settings for the bass boost

and treble – Tone control: bass boost and treble – Master mute control – Headphone driver short-circuit protection status bits.

2002 Sep 16 20

Page 21

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder for MD, CD and MP3

RIGHT

UDA1380

MBL121

B15 LSB

15 2 1

MSB B2

RIGHT

B17 LSB

16 1518 17 2 1

MSB B2 B3 B4

RIGHT

B19 LSB

1518 1720 19 2 1

MSB B2 B3 B4 B5 B6

RIGHT

B23 LSB

1518 1720 1922 212324 21

B5 B6 B7 B8 B9 B10

B3 B4

> = 8

dbook, full pagewidth

RIGHT

21> = 812 3

LEFT

MSB MSBB2

S-BUS FORMAT

MSB B2

RIGHT

LEFT

MSB

LSB

B15

LSB-JUSTIFIED FORMAT 16 BITS

321321

15 2 1

MSB

LSB

B17

LSB-JUSTIFIED FORMAT 18 BITS

1518 17 2 1

LSB

B19

LSB-JUSTIFIED FORMAT 20 BITS

1518 1720 19 2 1

LSB

B23

LSB-JUSTIFIED FORMAT 24 BITS

1518 1720 1922 212324 2 1

Fig.13 Serial interface input and output formats.

> = 8 > = 8

MSB-JUSTIFIED FORMAT

LEFT

MSB B2 MSBLSB LSB MSB B2B2

LEFT

MSB B2 B3 B4

LEFT

MSB B2 B3 B4 B5 B6

LEFT

B5 B6 B7 B8 B9 B10

B3 B4

MSB

This text is here in white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here in

_white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here inThis text is here in

white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader. white to force landscape pages to be ...

2002 Sep 16 21

BCK

DATA

BCK

DATA

BCK

DATA

BCK

DATA

BCK

DATA

BCK

DATA

Page 22

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder for MD, CD and MP3

9.1 Introduction

Theexchange of data and control information betweenthe microcontroller and the UDA1380, is accomplished through a serial hardware interface comprising the following pins:

L3DATA/SDA: microcontroller interface data line L3MODE: microcontroller interface mode line L3CLOCK/SCL: microcontroller interface clock line.

Information transfer via the microcontroller bus is organized LSB first, and in accordance with the so called ‘L3’ format, in which two different modes of operation can be distinguished: address mode and data transfer mode.

Inside the microcontroller there is a hand-shake mechanism which takes care of proper data transfer from themicrocontrollerclock,tothe destination clock domains. This means that when data is sent to the microcontroller interface, the system clock must be running.

9.2 Device addressing

The device addressing mode is used to select a device for subsequent data transfer. The address mode is characterized by the signal on pin L3MODE being LOW and a burst of 8 pulses on pin L3CLOCK/SCL, accompanied by 8 bits. The fundamental timing is shown in Figs 14 and 15.

Basically, two types of transfer can be defined: data transfer to the device, and data transfer from the device, as given in Table 6.

Table 6 Selection of data transfer

DOM

BIT 1

Table 6 shows that there are two types of data transfers: DATA and STATUS which can be read and written. Table 6 also shows that the DATA and STATUS read and write actions are combined.

DOM

BIT 0

0 0 not used 0 1 not used 1 0 DATA and STATUS write or pre-read 1 1 DATA and STATUS read

TRANSFER

UDA1380

The device address consists of one byte, which is split-up in two parts:

• Bits 7 to 2 represent a 6-bit device address. In the UDA1380 this is 000001

• Bits 1 to 0 called Data Operation Mode, or DOM bits, represent the type of data transfer according to Table 6.

9.3 Slave address

The UDA1380 acts as a slave receiver or a slave transmitter.Therefore the signals L3CLOCK and L3MODE are only input signals. The data signal L3DATA is a bidirectional line. The UDA1380 slave address is shown in Table 7.

Table 7 L3 slave address

(MSB) BIT (LSB)

000001

9.4 Register addressing

After sending the device address, including the flags (the DOM bits) whether information is read or written, one byte is sent with the destination register address using 7 bits, and one bit which signals whether information will be read or written. The fundamental timing for L3 is given in Fig.19.

Basically there are three forms for register addressing:

• Register addressing for L3 write: the first bit is a logic 0 indicating a write action to the destination register, followed by seven register address bits

• Prepare read addressing: the first bit of the byte is logic 1; signalling data will be read from the register indicated

• The read action itself: in this case the device returns a register address prior to sending data from that register. When the first bit of the byte is logic 0, the register address was valid, in case the first bit is a logic 1 the register address was invalid.

Remarks:

• Each time a new destination address needs to be written, the device address must be sent again

• When addressing the device for the first time after power-upof the device, at least oneL3 clock-cycle must be given to enable the L3 interface.

2002 Sep 16 22

Page 23

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder

UDA1380

for MD, CD and MP3

9.5 Data write mode

For writing data to a device, four bytes must be sent. Figure 14 explains the data write mode in a signal diagram:

• One byte with the device address, being ‘00000110’, which is including the LSB code 01 for signalling write to the device

• One byte starting with a logic 0 for signalling write, followed by 7 bits indicating the destination address

• Two data bytes.

The SYSCLK signal must be applied in data write mode.

Table 8 L3 write data

L3 MODE DATA TYPE

Addressing mode device address 0 1 1 0 0 0 0 0 Data transfer 1 register address 0 A6 A5 A4 A3 A2 A1 A0 Data transfer 2 MS data byte D15 D14 D13 D12 D11 D10 D9 D8 Data transfer 3 LS data byte D7 D6 D5 D4 D3 D2 D1 D0

Notes

1. First bit in time.

2. Last bit in time.

(1)

1234567

BIT

(2)

9.6 Data read mode

For reading from the device, first a prepare-read must be done. After this, the device address is sent again. The device then returns with the register address, indicating whether the address was valid or not, and the data of the register. The following five steps explain this procedure, and an example of transmission is given in Fig.15.

• One byte with the device address, being ‘00000110’, whichis including the LSB code 01 for signallingwrite to the address

• One byte is sent with the register address from which it needs to be read. This byte starts with a logic 1, which indicates that there will be a read action fromthe register

• One byte with the device address including ‘11’ is sent to the device, being 00000111. The ‘11’ indicates that the device must write data to the microcontroller, then the microcontroller frees the L3DATA-bus so the UDA1380 can send the register address byte and its two-byte contents

• The device now writes the requested register address on the bus, indicating whether the requested register was valid or not (logic 0 means valid, logic 1 means invalid)

• The device writes the data from the requested register on the bus, being two bytes.

The SYSCLK signal must be applied in data read mode.

2002 Sep 16 23

Page 24

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder

UDA1380

for MD, CD and MP3

Table 9 L3 prepare read data

L3 MODE DATA TYPE

Addressing mode device address 01100000 Data transfer 1 register address 1 A6 A5 A4 A3 A2 A1 A0

Notes

1. First bit in time.

2. Last bit in time.

Table 10 L3 read data

L3 MODE DATA TYPE

Addressing mode device address 1 1 1 0 0 0 0 0 Data transfer 1;

note 3 Data transfer 2;

note 3 Data transfer 3;

note 3

MS data byte D15 D14 D13 D12 D11 D10 D9 D8

LS data byte D7 D6 D5 D4 D3 D2 D1 D0

(1)

1: invalid

1234567

A6 A5 A4 A3 A2 A1 A0

BIT

(2)

BIT

(2)

Notes

1. First bit in time.

2. Last bit in time.

3. Data transfer from the UDA1380 to the microcontroller.

2002 Sep 16 24

Page 25

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder for MD, CD and MP3

MGU535

data byte 1 data byte 2

UDA1380

MGU536

data byte 1 data byte 2

L3CLOCK

device address

L3MODE

write

Fig.14 Data write mode for L3 version 2.

10 0

DOM bits

L3DATA

0/1

valid/non-valid

Fig.15 Data read mode for L3 version 2.

read

prepare read send by the device

device address

111 0

DOM bits

This text is here in white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here in

_white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here inThis text is here in

white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader. white to force landscape pages to be ...

2002 Sep 16 25

L3CLOCK

L3MODE

L3DATA

Page 26

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder for MD, CD and MP3

10 I2C-BUS INTERFACE DESCRIPTION

The UDA1380 supports I2C-bus microcontroller interface mode as well as the L3-bus mode; all features can be controlled by the microcontroller with the same register addresses as in the L3-bus mode.

Theexchange of data and control information betweenthe microcontroller and the UDA1380 in I2C-bus mode is accomplished through a serial hardware interface comprising the following pins:

L3CLOCK/SCL: microcontroller interface clock line, SCL

L3MODE: sets the bit A1of the I2C-bus device address L3DATA/SDA: microcontroller interface data line, SDA.

Figure 20 shows the clock and data timing of the I2C-bus transfer.

10.1 Addressing

Before any data is transmitted on the I2C-bus, the device whichshouldrespondisaddressedfirst.Theaddressingis always done with the first byte transmitted after the start procedure. The UDA1380 device address is [A6 to A0] 00110(A1)0, with bit A1 as the address selection bit (two addresses possible).

UDA1380

10.1.1 D

The UDA1380 acts as either a slave receiver or a slave transmitter.Therefore the clock signal SCL is only an input signal.Thedatasignal SDA is a bidirectional line. Table 11 shows the device address of the UDA1380.

The device can be set to one of the two addresses by using bit A1 (which is pin L3MODE) to select.

Table 11 I

(MSB) BIT (LSB)

10.1.2 R

Table 12 shows the register address format of the UDA1380. The register mapping in I2C-bus mode is the same as for the L3-bus interface.

Table 12 I

(MSB) BIT (LSB)

EVICE ADDRESS (PIN A1)

C-bus device address

00110A10R/

EGISTER ADDRESS

C-bus register address

0 A6A5A4A3A2A1 A0

2002 Sep 16 26

Page 27

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder for MD, CD and MP3

UDA1380

STOP

C-bus configuration for a WRITE cycle. The WRITE cycle is used to write the data to the internal registers. The device and register

LS data

byte

auto increment if repeated n groups of 2 bytes are transmitted

C-bus mode

MS data

byte

ADDRESS

C-bus and the microcontroller can generate a stop condition (P).

R/W

DEVICE

INITIAL BYTE ACKNOWLEDGE FROM UDA1380

ADDRESS

This text is here in white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here in

_white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here inThis text is here in

white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader. white to force landscape pages to be ...

10.2 WRITE cycle

Table 13 shows the I

2002 Sep 16 27

by the microcontroller.

addresses are one byte each, the setting data is always a pair of two bytes.

The format of the WRITE cycle is as follows:

1. The microcontroller starts with a start condition (S).

2. The first byte (8 bits) contains the device address ‘00110A10’ and a logic 0 (WRITE) for the bit R/W.

3. This is followed by an acknowledge (A) by the UDA1380.

4. After this the microcontroller writes the register address (ADDR) (8 bits) where the writing of the register content of the UDA1380 must start.

5. The UDA1380 acknowledges this register address (A).

6. The UDA1380 sends the two-bytes data with the Most Significant (MS) byte first, and then the Least Significant (LS) byte, each time acknowledged

7. The UDA1380 stops this cycle by generating an acknowledge (A).

8. Finally, the UDA1380 frees the I

Table 13 Master transmitter writes to UDA1380 registers in the I

S 00110A10 0 A ADDR A MS1 A LS1 A ... A ... A MSn A LSn A P

START

Page 28

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder for MD, CD and MP3

UDA1380

LS data

byte

auto increment if repeated n groups of 2 bytes are transmitted

MSdata

byte

C-bus mode

R/W

ADDRESS

C-bus and the microcontroller can generate a stop condition (P).

C-bus configuration for a READ cycle. The READ cycle is used to read the data values from the internal registers.

R/W

This text is here in white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here in

_white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here inThis text is here in

white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader. white to force landscape pages to be ...

10.3 READ cycle

Table 14 shows the I

2002 Sep 16 28

acknowledged by the microcontroller.

3. This is followed by an acknowledge (A) by the UDA1380.

4. After this the microcontroller writes the register address (ADDR) where the reading of the register content of the UDA1380 must start.

5. The UDA1380 acknowledges this register address.

6. Then the microcontroller generates a repeated start (Sr).

The format of the READ cycle is as follows:

1. The microcontroller starts with a start condition (S).

2. The first byte (8 bits) contains the device address ‘00110A10’ and a logic 0 (WRITE) for the bit R/W.

7. Then the microcontroller generates the device address ‘00110A10’ again, but this time followed by a logic 1 (READ) of the bit R/W.

8. The UDA1380 sends the two-bytes register contents with the Most Significant (MS) byte first, and then the Least Significant (LS) byte, each time

9. The microcontroller stops this cycle by generating a negative acknowledge (NA).

Table 14 Master transmitter reads from the UDA1380 registers in the I

10. Finally, the UDA1380 frees the I

DEVICE

INITIAL BYTE ACKNOWLEDGE FROM UDA1380 ACKNOWLEDGE FROM MICROCONTROLLER

ADDRESS

S 00110A10 0 A ADDR A Sr 00110A10 1 A MS1 A LS1 A ... A ... A MSn A LSn NA P

Page 29

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder for MD, CD and MP3

11 REGISTER MAPPING Table 15 Register map of control settings (write)

ADDRESS

System settings (running at the L3-bus or I

00H evaluation modes, WSPLL settings, clock divider and clock selectors

01H I 02H power control settings 03H analog mixer settings 04H reserved

Interpolation ﬁlter (running at 128f

10H master volume control 11H mixer volume control 12H mode selection, left and right bass boost, and treble settings 13H master mute, channel 1 and channel 2 de-emphasis and channel mute 14H mixer, silence detector and interpolation ﬁlter oversampling settings

Decimator (running at 128f

20H decimator volume control 21H PGA settings and mute 22H ADC settings 23H AGC settings

Software reset

7FH restore L3-default values

S-bus I/O settings

decimator clock)

interpolator clock)

C-bus clock itself)

FUNCTION

UDA1380

Table 16 Register map of status bits (read-out)

ADDRESS

Headphone driver and interpolation ﬁlter

18H interpolation ﬁlter status

Decimator

28H decimator status

2002 Sep 16 29

FUNCTION

Page 30

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder

UDA1380

for MD, CD and MP3

11.1 Evaluation modes and clock settings Table 17 Register address 00H

BIT 15 14 13 12 11 10 9 8

Symbol EV2 EV1 EV0 − EN_ADC EN_DEC EN_DAC EN_INT Default 0 0 0 0 0 1 0 1

BIT 7 6 5 4 3 2 1 0

Symbol −−ADC_CLK DAC_CLK sys_div1 sys_div0 PLL1 PLL0 Default 0 0 0 0 0 0 1 0

Table 18 Description of register bits

BIT SYMBOL DESCRIPTION

15 to 13 EV[2:0] Evaluation bits. Bits EV2, EV1 and EV0 are special control bits for

manufacturer’s evaluation and must always be kept at their default values for

normal operation of UDA1380; default value 000, see Table 17. 12 − default value 0 11 EN_ADC ADC clock enable. A 1-bit value to enable the system clock (from SYSCLK

input) to the analog part of the ADC. See Fig.5 for more detailed information.

When this bit is logic 0: clock to ADC disabled and when this bit is logic 1: clock

to ADC running. Default value 0. 10 EN_DEC Decimator clock enable. A 1-bit value to enable the 128f

decimator, the 128fs part of the I2S-bus output block and the clock to the ADC

L3-bus or I2C-bus registers. See Fig.5 for more detailed information. When this

bit is logic 0: clock to the decimator disabled. When this bit is logic 1: clock to

the decimator running. Default value 1.

9 EN_DAC FSDACclock enable.A 1-bit value to enable the 256f

of the FSDAC.See Fig.5 for more detailed information. When this bit is logic 0:

clock to FSDAC disabled. When this bit is logic 1: clock to the FSDACrunning.

Default value 0.

8 EN_INT Interpolator clock enable. A 1-bit value to enable the 128f

interpolator, the 128fs part of the I2S-bus input block and the interpolator

registers of the L3-bus or I2C-bus interface. See Fig.5 for more detailed

information. When this bit is logic 0: clock to the interpolator disabled. When

this bit is logic 1: clock to the interpolator running. Default value 1.

7 and 6 − default value 00

5 ADC_CLK ADC clock select. A 1-bit value to select the 128f

analog partforthe decimator and the ADC. This can either be the clock derived

from the SYSCLK input or from the WSPLL. When this bit is logic 0: SYSCLK

is used. When this bit is logic 1: WSPLL is used. Default value 0.

clock and the clock of the

clock to the

clock to the analog part

clock to the

2002 Sep 16 30

Page 31

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder for MD, CD and MP3

BIT SYMBOL DESCRIPTION

4 DAC_CLK DAC clock select. A 1-bit signal to select the clocks for the DAC

(interpolator and FSDAC analog block). In both cases the clocks must be

128fsand 256fs (for the analog part), but in one case the clock is derived from

the WSI clock, and in the other case the clock is derived from the SYSCLK.

When this bit is logic 0: SYSCLK is used. When this bit is logic 1: WSPLL is

used. Default value 0.

3 and 2 sys_div[1:0] Dividers for system clock input. A 2-bit value to select the proper division

factor for the SYSCLK input in such a way that a128f

from the SYSCLK clock signal. The 128fs clock is needed for clocking the

decimator and interpolator. Default value 00, see Table 19.

1 and 0 PLL[1:0] WSPLL setting. A 2-bit value to select the WSPLL input frequency range.

These set the proper divider setting for the WSPLL. The input is the

WSI signal, the output inside the IC is a 128f

value 10, see Table 20.

Table 19 Dividers for system clock input

sys_div1 sys_div0 INPUT CLOCK ON PIN SYSCLK

0 0 256f 0 1 384f 1 0 512f 1 1 768f

(default)

and a 256fs clock. Default

s s s

clock will be generated

UDA1380

Table 20 WSPLL settings

PLL1 PLL0 INPUT FREQUENCY RANGE (kHz) ON PIN WSI

0 0 6.25 to 12.5 0 1 12.5 to 25 1 0 25 to 50 (default) 1 1 50 to 100

2002 Sep 16 31

Page 32

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder

UDA1380

for MD, CD and MP3

11.2 I2S-bus input and output settings Table 21 Register address 01H

BIT 15 14 13 12 11 10 9 8

Symbol −−−−−SFORI2 SFORI1 SFORI0 Default 00000000

BIT76543210

Symbol − SEL_

SOURCE

Default 00000000

Table 22 Description of register bits

BIT SYMBOL DESCRIPTION

15 to 11 − default value 00000

10 to 8 SFORI[2:0] Digital data input formats. A 3-bit value to select the digital input data

7 − default value 0 6 SEL_SOURCE Digital output interface mode settings. A 1-bit value SEL_SOURCE to set

5 − default value 0 4 SIM Digital output interface mode settings. A 1-bit value SIM sets the mode of

3 − default value 0

2 to 0 SFORO[2:0] Digital data output formats. A 3-bit value to set the digital data output format

− SIM − SFORO2 SFORO1 SFORO0

format (DATAI input). Default value 000, see Table 23.

the mode of the digital output interface source to either the decimator output or

the digital mixer output. When this bit is logic 0: source digital output interface

mode, set to decimator. When this bit is logic 1: source digital output interface

mode, set to digital mixer output. Default value 0.

the digital output interface. The speed of the BCKO pad, being 64f

selected by the bits sys_div[1:0]. In case the 384fsor 768fs mode is selected

the output clock is 48fs, in case 256fsor 512fs is selected, the BCKO is 64fs.

When this bit is logic 0: mode of digital output interface is set to slave. When

this bit is logic 1: mode of digital output interface is set to master. Default

value 0.

(on pin DATAO). Default value 000, see Table 24.

or 48fs, is

Table 23 Digital data input formats

SFORI2 SFORI1 SFORI0 SERIAL_FORMAT_DAI

000 I 0 0 1 LSB-justiﬁed, 16 bits 0 1 0 LSB-justiﬁed, 18 bits 0 1 1 LSB-justiﬁed, 20 bits 1 0 1 MSB-justiﬁed 1 0 0 not used: mapped to I 110 111

2002 Sep 16 32

S-bus (default)

S-bus

Page 33

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder

UDA1380

for MD, CD and MP3

Table 24 Digital data output formats

SFORO2 SFORO1 SFORO0 SERIAL_FORMAT_DAO

000 I 0 0 1 LSB-justiﬁed, 16 bits 0 1 0 LSB-justiﬁed, 18 bits 0 1 1 LSB-justiﬁed, 20 bits 1 0 0 LSB-justiﬁed, 24 bits 1 0 1 MSB-justiﬁed 1 1 0 not used: mapped to I 111

11.3 Power control settings

11.3.1 POWER CONTROL SETTING BIAS CIRCUITS Using a 1-bit value, the power control settings of the bias circuits of the ADC, AVC and FSDAC can be set. When this bit

is set to logic 0, the complete bias circuits of the analog front-end and the FSDAC are shut down. In this case, the reference voltage disappears from the input of the ADCs and LNA and the output of the FSDAC, this can cause plops, but saves power.

S-bus (default)

S-bus

Table 25 Register address 02H

BIT 15 14 13 12 11 10 9 8

Symbol PON_PLL − PON_HP −−PON_DAC − PON_

BIAS

Default 00000000

BIT76543210

Symbol EN_AVC PON_AVC − PON_LNA PON_

PGAL

Default 00000000

Table 26 Description of register bits

BIT SYMBOL DESCRIPTION

15 PON_PLL Power-on WSPLL. When this bit is logic 0: power-off; when this bit is logic 1:

power-on. Default value 0. 14 − default value 0 13 PON_HP Power-onheadphone driver.A 1-bit valueto switch the headphone driver into

power-on or Power-down mode. When this bit is logic 0: headphone driver is

powered-off; when this bit is logic 1: headphone driver is powered-on. Default

value 0.

12 and 11 − default value 00

10 PON_DAC Power-on DAC. A 1-bit value to switch the DAC into power-on or

Power-down mode. In this Power-down mode the V

voltage) will remain on the FSDAC output. When this bit is logic 0: DAC is

powered-off; when this bit is logic 1: DAC is powered-on. Default value 0.

9 − default value 0

PON_ ADCL

PON_ PGAR

(half the power supply

REF

PON_ ADCR

2002 Sep 16 33

Page 34

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder

UDA1380

for MD, CD and MP3

BIT SYMBOL DESCRIPTION

8 PON_BIAS Power-on BIAS. A 1-bit value to set the power control setting of the ADC, AVC

and FSDAC. When this bit is logic 0: ADC, AVC and FSDAC bias circuits are

powered-off; when this bit is logic 1: Power-onbias for ADC, AVCand FSDAC.

Default value 0.

7 EN_AVC Enablecontrol AVC. A 1-bit value to enable or disable the analog mixer. When

this bit is logic 0: analog mixer is disabled; when this bit is logic 1: analog mixer

is enabled. Default value 0.

6 PON_AVC Power-on AVC. A 1-bit value to have power-on control for the analog mixer.

When this bit is logic 0: analog mixer powered-off; when this bit is logic 1:

analog mixer powered-on. Default value 0.

5 − default value 0 4 PON_LNA Power-on LNA. A 1-bit value to power-on the LNA and SDC. When this bit is

logic 0: LNA and SDC are powered-off; when this bit is logic 1: LNA and SDC

are powered-on. Default value 0.

3 PON_PGAL Power-on PGAL. A 1-bit value to have power-on control for the PGA left.

When this bit is logic 0: left PGA is powered-off; when this bit is logic 1: left

PGA is powered-on. Default value 0.

2 PON_ADCL Power-on ADCL. A 1-bit value to have power-on control for the ADC left.

When this bit is logic 0: left ADC is powered-off; when this bit is logic 1: left

ADC is powered-on. Default value 0.

1 PON_PGAR Power-on PGAR. A 1-bit value to have power-on control for the PGA right.

When this bit is logic 0: right PGA is powered-off; when this bit is logic 1: right

PGA is powered-on. Default value 0.

0 PON_ADCR Power-on ADCR. A 1-bit value to have power-on control for the ADC right.

When this bit is logic 0: right ADC is powered-off; when this bit is logic 1: right

ADC is powered-on. Default value 0.

2002 Sep 16 34

Page 35

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder

UDA1380

for MD, CD and MP3

11.4 Analog mixer settings Table 27 Register address 03H

BIT 15 14 13 12 11 10 9 8

Symbol −−AVCL5 AVCL4 AVCL3 AVCL2 AVCL1 AVCL0 Default 0 0 1 1 1 1 1 1

BIT76543210

Symbol −−AVCR5 AVCR4 AVCR3 AVCR2 AVCR1 AVCR0 Default 0 0 1 1 1 1 1 1

Table 28 Description of register bits

BIT SYMBOL DESCRIPTION

15 and 14 − default value 00

13 to 8 AVCL[5:0] Analog volume control. A 6-bit value to program the left master volume

attenuation. The range is from +16.5 to −48 and −∞ dB in steps of 1.5 dB. The

16.5 dB gain is there to boost the 150 mV (RMS) which comes from for instance an FM tuner IC to 1 V (RMS) needed to drive the headphone driver full-swing. Default value 111111, see Table 29.

7 and 6 − default value 00

5 to 0 AVCR[5:0] Analog volume control. A 6-bit value to program the right master volume

attenuation. The range is from +16.5 to −48 and −∞ dB in steps of 1.5 dB. The

16.5 dB gain is there to boost the 150 mV (RMS) which comes from for instance an FM tuner IC to 1 V (RMS) needed to drive the headphone driver full-swing. Default value 111111, see Table 29.

2002 Sep 16 35

Page 36

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder

UDA1380

for MD, CD and MP3

Table 29 Analog volume control

AVCL5 AVCR5

000000 16.5 000001 15 000010 13.5 000011 12 000100 10.5

:::::: : 101011 −48 101100 −∞

:::::: : 111111 −∞ (default)

11.5 Reserved

Bits RSV12,RSV11,RSV10,RSV02,RSV01,and RSV00are special control bits for manufacturer’s evaluation and must always be kept at their default values for normal operation of UDA1380.

AVCL4

AVCR4

AVCL3

AVCR3

AVCL2

AVCR2

AVCL1

AVCR1

AVCL0 AVCR0

VOLUME (dB)

Table 30 Register address 04H

BIT 15 14 13 12 11 10 9 8

Symbol −−−−−RSV12 RSV11 RSV10 Default −−−−−010

BIT76543210

Symbol −−−−−RSV02 RSV01 RSV00 Default −−−−−010

Table 31 Description of the register bits

BIT SYMBOL DESCRIPTION

15 to 11 − not used

10 RSV12 Reserved bit. Default value 0

9 RSV11 Reserved bit. Default value 1 8 RSV10 Reserved bit. Default value 0

7to3 − not used

2 RSV02 Reserved bit. Default value 0 1 RSV01 Reserved bit. Default value 1 0 RSV00 Reserved bit. Default value 0

2002 Sep 16 36

Page 37

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder

UDA1380

for MD, CD and MP3

11.6 Master volume control Table 32 Register address 10H

BIT 15 14 13 12 11 10 9 8

Symbol MVCR_7 MVCR_6 MVCR_5 MVCR_4 MVCR_3 MVCR_2 MVCR_1 MVCR_0 Default 00000000

BIT76543210

Symbol MVCL_7 MVCL_6 MVCL_5 MVCL_4 MVCL_3 MVCL_2 MVCL_1 MVCL_0 Default 00000000

Table 33 Description of the register bits

BIT SYMBOL DESCRIPTION

15 to 8 MVCR_[7:0] Master volume control right. An 8-bit value to program the right channel volume

attenuation. The range is from 0 to −78 dB and −∞ dB in steps of 0.25 dB. Default value 00000000, see Table 34.

7 to 0 MVCL_[7:0] Master volume control left. An 8-bit value to program the left channel volume

attenuation. The range is from 0 to −78 dB and −∞ dB in steps of 0.25 dB. Default value 00000000, see Table 34.

Table 34 Master volume control bits

MVCR_7 MVCL_7

00000000 0(default) 00000001 −0.25 00000010 −0.50 00000011 −0.75 00000100 −1

:::::::: : 11001000 −50 11001100 −51 11001101 −51.25 11001110 −51.50 11001111 −51.75 11010000 −52 11010100 −54 11011000 −56

:::::::: : 11101100 −66 11110000 −69 11110100 −72 11111000 −78 11111100 −∞

MVCR_6

MVCL_6

MVCR_5 MVCL_5

MVCR_4 MVCL_4

MVCR_3

MVCL_3

MVCR_2 MVCL_2

MVCR_1

MVCL_1

MVCR_0 MVCL_0

VOLUME (dB)

2002 Sep 16 37

Page 38

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder

UDA1380

for MD, CD and MP3

11.7 Mixer volume control Table 35 Register address 11H

BIT 15 14 13 12 11 10 9 8

Symbol VC2_7 VC2_6 VC2_5 VC2_4 VC2_3 VC2_2 VC2_1 VC2_0 Default 1 1 1 1 1 1 1 1

BIT 7 6 5 4 3 2 1 0

Symbol VC1_7 VC1_6 VC1_5 VC1_4 VC1_3 VC1_2 VC1_1 VC1_0 Default 0 0 0 0 0 0 0 0

Table 36 Description of the register bits

BIT SYMBOL DESCRIPTION

15 to 8 VC2_[7:0] Digital mixer volume control. An 8-bit value to program the channel 2 volume

attenuation. The range is 0 to −72 dB and −∞ dB in steps of 0.25 dB. Default value for channel 2 is 00000000, see Table 37.

7 to 0 VC1_[7:0] Digital mixer volume control. An 8-bit value to program the channel 1 volume

attenuation. The range is 0 to −72 dB and −∞ dB in steps of 0.25 dB. Default value for channel 1 is 11111111, see Table 37.

Table 37 Digital mixer volume control

VC2_7 VC1_7

000000000 00000001−0.25 00000010−0.50 00000011−0.75 00000100−1

::::::::: 10110100−45 10110101−45.25 10110110−45.50 10110111−45.75 10111000−46 10111100−48 11000000−50

::::::::: 11010100−60 11011000−63 11011100−66 11100000−72

VC2_6 VC1_6

VC2_5 VC1_5

VC2_4 VC1_4

VC2_3 VC1_3

VC2_2 VC1_2

VC2_1 VC1_1

VC2_0 VC1_0

VOLUME

(dB)

2002 Sep 16 38

Page 39

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder

UDA1380

for MD, CD and MP3

VC2_7 VC1_7

11100100−∞

::::::::: 11111100−∞

11.8 Mode, bass boost and treble Table 38 Register address 12H

BIT 15 14 13 12 11 10 9 8

Symbol M1 M0 TRL1 TRL0 BBL3 BBL2 BBL1 BBL0 Default 0 0 0 0 0 0 0 0

BIT76543210

Symbol −−TRR1 TRR0 BBR3 BBR2 BBR1 BBR0 Default 0 0 0 0 0 0 0 0

Table 39 Description of register bits

VC2_6 VC1_6

VC2_5 VC1_5

VC2_4 VC1_4

VC2_3 VC1_3

VC2_2 VC1_2

VC2_1 VC1_1

VC2_0 VC1_0

VOLUME

(dB)

BIT SYMBOL DESCRIPTION

15 and 14 M[1:0] Flat/minimum/maximum setting. A 2-bit value to program the mode of the sound

processing ﬁlters of bass boost and treble. Default value 00, see Table 40.

13 and 12 TRL[1:0] Treble setting left. A 2-bit value to program the mode of the sound processing ﬁlter of

treble. The used setting depends on the bits M1 and M0. Default value 00, see Table 41.

11 to 8 BBL[3:0] Bass boost setting left. A 4-bit value to program the bass boost setting, which can be set

for left and right independently. The used set depends on the bits M1 and M0. Default

value 0000, see Table 42. 7 and 6 − default value 00 5 and 4 TRR[1:0] Treble setting right. A 2-bit value to program the mode of the sound processing ﬁlter of

treble. Default value 00, see Table 41.

3 to 0 BBR[3:0] Bass boost setting right. A 4-bit value to program the bass boost setting, which can be

set for left and right independently. The used set depends on the mode bits. Default

value 0000, see Table 42.

Table 40 Flat/minimum/maximum setting bits

M1 M0 MODE

0 0 ﬂat (default) 0 1 minimum 1 0 minimum 1 1 maximum

2002 Sep 16 39

Page 40

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder for MD, CD and MP3

Table 41 Treble setting bits

TRL1

TRR1

0 0 0 (default) 0 (default) 0 (default) 01022 10044 11066

Table 42 Bass boost setting bits

BBL3

BBR3

00000(default) 0 (default) 0 (default) 00010 2 2 00100 4 4 00110 6 6 01000 8 8 01010 10 10 01100 12 12 01110 14 14 10000 16 16 10010 18 18 10100 18 20 10110 18 22 11000 18 24 11010 18 24 11100 18 24 11110 18 24

BBL2

BBR2

BBL1

BBR1

TRL0 TRR0

BBL0 BBR0

FLAT SET

(dB)

FLAT SET

(dB)

MINIMUM SET

(dB)

MINIMUM SET

(dB)

UDA1380

MAXIMUM SET

(dB)

MAXIMUM SET

(dB)

2002 Sep 16 40

Page 41

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder

UDA1380

for MD, CD and MP3

11.9 Master mute, channel de-emphasis and mute Table 43 Register address 13H

BIT 15 14 13 12 11 10 9 8

Symbol − MTM −−MT2 DE2_2 DE2_1 DE2_0 Default 0 1 0 0 1 0 0 0

BIT 7 6 5 4 3 2 1 0

Symbol −−−−MT1 DE1_2 DE1_1 DE1_0 Default 0 0 0 0 0 0 0 0

Table 44 Description of register bits

BIT SYMBOL DESCRIPTION

15 − default value 0 14 MTM Master mute. A 1-bit value to enable the digital mute for the master. When this

bit is logic 0: no soft mute of master. When this bit is logic 1: soft mute of master. Default value 1.

13 and 12 − default value 00

11 MT2 Channel 2 mute. A 1-bit value to enable the digital mute for channel 2. After

enabling the mixer, bit MT2 must be set to logic 0. When this bit is logic 0: no soft mute of channel 2. When this bit is logic 1: soft mute of channel 2 (default value 1, meaning that channel 2 is always muted, even when the mixer is enabled).

10 to 8 DE2_[2:0] De-emphasis. A 3-bit value to enable the digital de-emphasis ﬁlter for

channel 1 and 2. Default value 000, see Table 45.

7to4 − default value 0000

3 MT1 Channel 1 mute. A 1-bit value to enable the digital mute for channel 1. When

this bit is logic 0: no soft mute of channel 1. When this bit is logic 1: soft mute of channel 1. Default value 0.

2 to 0 DE1_[2:0] De-emphasis. A 3-bit value to enable the digital de-emphasis ﬁlter for

channel 1 and 2. Default value 000, see Table 45.

Table 45 De-emphasis selection bits

DE2_2 DE1_2

0 0 0 off (default) 0 0 1 32 kHz 0 1 0 44.1 kHz 0 1 1 48 kHz 1 0 0 96 kHz

2002 Sep 16 41

DE2_1 DE1_1

DE2_0 DE1_0

FUNCTION

Page 42

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder

UDA1380

for MD, CD and MP3

11.10 Mixer, silence detector and oversampling settings Table 46 Register address 14H

BIT 15 14 13 12 11 10 9 8

Symbol DA_POL_INV SEL_NS MIX_POS MIX −−−− Default 0 0 0 0 0 0 0 0

BIT 7 6 5 4 3 2 1 0

Symbol SILENCE SDET_ON SD_VALUE1 SD_VALUE0 −−OS1 OS0 Default 0 0 0 0 0 0 0 0

Table 47 Description of register bits

BIT SYMBOL DESCRIPTION

15 DA_POL_INV DAC polarity control. A 1-bit value to control the signal polarity of the

DAC output signal. When this bit is logic0: DAC output not inverted. When this bit is logic 1: DAC output inverted. Default value 0.

14 SEL_NS Noise shaper order select. A 1-bit value to select between the

3rd-order and the 5th-order noise shaper. When this bit is logic 0: select 3rd-order noise shaper. When this bit is logic 1: select 5th-order noise

shaper. Default value 0. 13 MIX_POS Mixer signal control. A 2-bit value to select the digital mixer settings 12 MIX

11 to 8 − default value 0000

7 SILENCE Silence detector. A 1-bit value to force the DAC output to silence.

6 SDET_ON Silence detector enable. A 1-bit value to enable the digital silence

5 and 4 SD_VALUE[1:0] Silence detector settings. A 2-bit value to program the silence

3 and 2 − default value 00 1 and 0 OS[1:0] Oversampling input settings. A 2-bit value to select the oversampling

inside the interpolation ﬁlter. Default value 0. Default the mixer is off,

see Table 48.

When this bit is logic 0: no overruling. The setting of the FSDAC silence

switch depends on the status of the digital silence detector circuit and

the master_mute status. When this bit is logic 1: overruling. The FSDAC

silence switch is activated, independent of the status of the digital

silence detector circuit or the master_mute status. Default value 0.

detector. When this bit is logic 0: silence detection circuit disabled.

When this bit is logic 1: silence detection circuit enabled. Default

value 0.

detector, the number of ‘ZERO’ samples counted before the silence

detector signals whether there has been digital silence. Default

value 00, see Table 49.

input mode. Default value00, see Table 50.

2002 Sep 16 42

Page 43

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder for MD, CD and MP3

Table 48 Mixer signal control setting bits

MIX_POS MIX FUNCTION

0 0 no mixing; default 1 0 volume of channel 1 is forced to 0 dB and volume of channel 2 is forced to −∞ dB 0 1 mixing is done before the sound processing: input signals are automatically scaled by

6 dB in order to prevent clipping during adding; after the addition, the 6 dB scaling is compensated

1 1 mixing is done after the sound processing: input signals are automatically scaled in

order to prevent clipping during adding

Table 49 Silence detector setting bits

SD_VALUE1 SD_VALUE0 FUNCTION

0 0 3200 samples; default 0 1 4800 samples 1 0 9600 samples 1 1 19200 samples

UDA1380

Table 50 Oversampling input setting bits

OS1 OS0 FUNCTION

0 0 single-speed input is normal input; mixing possible; default 0 1 double-speed input is after ﬁrst half-band; no mixing possible 1 0 quad-speed input is in front of noise shaper; no mixing possible 1 1 reserved

11.11 Decimator volume control Table 51 Register address 20H

BIT 15 14 13 12 11 10 9 8

Symbol ML_DEC7 ML_DEC6 ML_DEC5 ML_DEC4 ML_DEC3 ML_DEC2 ML_DEC1 ML_DEC0 Default 00000000

BIT76543210

Symbol MR_DEC7 MR_DEC6 MR_DEC5 MR_DEC4 MR_DEC3 MR_DEC2 MR_DEC1 MR_DEC0 Default 00000000

Table 52 Description of register bits

BIT SYMBOL DESCRIPTION

15 to 8 ML_DEC[7:0] ADC volume control left. An 8-bit value to program the gain of the decimator for left

and right independently. The ranges are +24 to −63.5 dB and −∞ dB in steps of

0.5 dB. The default setting is 0 dB (value 00000000), see Table 53.

7 to 0 MR_DEC[7:0] ADC volume control right. An 8-bit value to program the gain of the decimator for

left and right independently. The ranges are +24 to −63.5 dB and −∞ dB in steps of

0.5 dB. The default setting is 0 dB (value 00000000), see Table 53.

2002 Sep 16 43

Page 44

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder

UDA1380

for MD, CD and MP3

Table 53 ADC volume control setting bits

ML_DEC7 MR_DEC7

00110000 24

0010111123.5 00101110 23

:::::::: :

00000010 1

000000010.5 000000000 (default) 11111111−0.5

:::::::: : 10000100−62 10000011−62.5 10000010−63 10000001−63.5 10000000−∞

ML_DEC6 MR_DEC6

ML_DEC5 MR_DEC5

ML_DEC4

MR_DEC4

ML_DEC3

MR_DEC3

ML_DEC2 MR_DEC2

ML_DEC1

MR_DEC1

ML_DEC0 MR_DEC0

GAIN (dB)

11.12 PGA settings and mute Table 54 Register address 21H

BIT 15 14 13 12 11 10 9 8

Symbol MT_ADC −−−PGA_GAIN

CTRLR3

Default 1 0 0 0 0000

BIT76543210

Symbol − −−−PGA_GAIN

CTRLL3

Default 0 0 0 0 0000

Table 55 Description of register bits

BIT SYMBOL DESCRIPTION

15 MT_ADC Decimator mute. A 1-bit value to enable the digital linear mute. When this bit is logic 0:

no muting. When this bit is logic 1: muting. Default value 1.

14 to 12 − default value 000

PGA_GAIN

CTRLR2

PGA_GAIN

CTRLL2

PGA_GAIN

CTRLR1

PGA_GAIN

CTRLL1

PGA_GAIN

CTRLR0

PGA_GAIN

CTRLL0

2002 Sep 16 44

Page 45

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder for MD, CD and MP3

BIT SYMBOL DESCRIPTION

11 to 8 PGA_GAIN

CTRLR[3:0]

7to4 − default value0 3 to 0 PGA_GAIN

CTRLL[3:0]

Table 56 ADC input ampliﬁer PGA gain setting bits

PGA_GAINCTRLR3 PGA_GAINCTRLL3

00000 (default) 00013 00106 00119 010012 010115 011018 011121 1XXX24

ADC input ampliﬁer right gain settings. A 4-bit value to program the gain of the input ampliﬁer. There are nine settings, for a gain range from 0 to 24 dB in steps of 3 dB. The gain control of the PGA is independent for left and right. Default value0000, see Table 56.

ADC input ampliﬁer left gain settings. A 4-bit value to program the gain of the input ampliﬁer. There are nine settings, for a gain range from 0 to 24 dB in steps of 3 dB. The gain control of the PGA is independent for left and right. Default value0000, see Table 56.

PGA_GAINCTRLR2

PGA_GAINCTRLL2

PGA_GAINCTRLR1 PGA_GAINCTRLL1

PGA_GAINCTRLR0

PGA_GAINCTRLL0

UDA1380

PGA_GAIN (dB)

11.13 ADC settings Table 57 Register address 22H

BIT 15 14 13 12 11 10 9 8

Symbol −−−ADCPOL_ INV VGA_CTRL3 VGA_CTRL2 VGA_CTRL1 VGA_CTRL0 Default 0 0 0 0 0 0 0 0

BIT 7 6 5 4 3 2 1 0

Symbol −−− − SEL_LNA SEL_MIC SKIP_DCFIL EN_DCFIL Default 0 0 0 0 0 0 1 0

Table 58 Description of register bits

BIT SYMBOL DESCRIPTION

15 to 13 − default value 000

12 ADCPOL_INV ADC polarity control. A 1-bit value to select ADC polarity. When this bit is logic 0:

polarity of ADC non-inverting. When this bit is logic 1: polarity of ADC inverting. Default value 0.

11 to 8 VGA_CTRL[3:0] Microphone input VGA gain settings. A 4-bit value to program the gain of the LNA

in the microphone input channel. The range is 0 to 30 dB in steps of 2 dB. Default value 0000, see Table 59.

2002 Sep 16 45

Page 46

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder

UDA1380

for MD, CD and MP3

BIT SYMBOL DESCRIPTION

7to4 − default value 0000

3 SEL_LNA Line input select. A 1-bit value to set the multiplexer in the analog front-end to select

between the LNA or the enable-in input for the left ADC. When this bit is logic 0: select line input. When this bit is logic 1: select LNA for the left ADC. Default value 0.

2 SEL_MIC Microphone input select. A 1-bit value to set the multiplexerat the ADC right channel

output (on bit-stream level) which selects either the right channel data or the left channel data, in case only the microphone input is used. In that case the microphone signal can be applied to the decimator for both left and right. When this bit is logic 0: select right channel ADC. When this bit is logic 1: select left channel ADC (for instance for microphone input). Default value 0.

1 SKIP_DCFIL DC ﬁlter bypass. A 1-bit value set to skip the DC ﬁlter which is just before the

decimator.This DC ﬁlter is there to compensate for the DC offset added in the ADC (to remove idle tones from the audio band). This DC signal added (the DC dither) must not be ampliﬁed in order to prevent clipping. Therefore this DC offset is removed ﬁrst. When this bit is logic 0: DC ﬁlter enabled. When this bit is logic 1: DC ﬁlter bypassed. Default value 1.

0 EN_DCFIL DC ﬁlter enable. A 1-bit value set to enable the DC ﬁlter which is at the output of the

decimator (running at 1f logic 1: DC ﬁlter enabled. Default value 0.

). When this bit is logic 0: DC ﬁlter disabled. When this bit is

Table 59 Microphone input VGA gain setting bits

VGA_CTRL3 VGA_CTRL2 VGA_CTRL1 VGA_CTRL0 LNA GAIN (dB)

00000(default) 00012 00104 00116 01008 010110 011012 011114 100016 100118 101020 101122 110024 110126 111028 111130

2002 Sep 16 46

Page 47

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder

UDA1380

for MD, CD and MP3

11.14 AGC settings Table 60 Register address 23H

BIT 15 14 13 12 11 10 9 8

Symbol −−−− − AGC_TIME2 AGC_TIME1 AGC_TIME0 Default 0 0 0 0 0000

BIT76543210

Symbol −−−−AGC_LEVEL1 AGC_LEVEL0 − AGC_EN Default 0 0 0 0 0000

Table 61 Description of register bits

BIT SYMBOL DESCRIPTION

15 to 11 − Default value 00000.

10 to 8 AGC_TIME[2:0] AGC time constant settings. A 3-bit value to set the AGC time constants, being the

attack and decay time constants. The given constants are for 44.1 and 8 kHz sampling frequencies, and must be scaled either down or up according to the sampling frequency used. Default value 000, see Table 62.

7to4 − default value 0000

3 and 2 AGC_LEVEL[1:0] AGC target level settings. A 2-bit value to set the AGC target level.Default value 00,

see Table 63. 1 − default value 0 0 AGC_EN AGC enable control. A 1-bit value to enable or disable the AGC. When the AGC is

enabled, the bit SKIP_DCFIL must be set to logic 0 to avoid disturbance on the output

signal due to the DC offset added in the ADC. When this bit is logic 0: AGC off,

manual gain control via the left and right decimator volume control. When this bit is

logic 1: AGC enabled, with manual microphone gain setting via VGA. Default value 0.

Table 62 AGC time constant setting bits

AGC_TIME2 AGC_TIME1 AGC_TIME0

0 0 0 11 100 61 551 (default) 0 0 1 16 100 88.2 551 0 1 0 11 200 61 1102 0 1 1 16 200 88.2 1102 1 0 0 21 200 116 1102 1 0 1 11 400 61 2205 1 1 0 16 400 88.2 2205 1 1 1 21 400 116 2205

2002 Sep 16 47

44.1 kHz SAMPLING 8 kHz SAMPLING

ATTACK TIME

(ms)

AGC SETTING

DECAY TIME

(ms)

ATTACK TIME

(ms)

DECAY TIME

(ms)

Page 48

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder

UDA1380

for MD, CD and MP3

Table 63 AGC target level setting bits

AGC_LEVEL1 AGC_LEVEL0 AGC TARGET LEVEL VALUE (dBFS)

00 −5.5 (default) 01 −8 10 −11.5 11 −14

11.15 Restore L3 default values (software reset) Table 64 Register address 7FH

BIT 15 14 13 12 11 10 9 8

Default value −−−−− − − −

BIT 76543 2 1 0

Default value −−−−− − − −

11.16 Headphone driver and interpolation ﬁlter (read-out) Table 65 Register address 18H

BIT 15 14 13 12 11 10 9 8

Symbol −−−−−HP_STCTV HP_STCTL HP_STCTR

BIT 76543 2 1 0

Symbol − SDETR2 SDETL2 SDETR1 SDETL1 MUTE_

STATE_M

Table 66 Description of the register bits

BIT SYMBOL DESCRIPTION

15 to 11 − not used

10 HP_STCTV Headphone driver short-circuit detection. When this bit is logic 0:

headphone driver is not short-circuit protected. When this bit is logic 1: headphone driver short-circuit protection is activated.

9 HP_STCTL Left headphone driver short-circuit detection. When this bit is logic 0: left

channel headphone driver is not short-circuit protected. When this bit is logic 1: left channel headphone driver short-circuit protection is activated.

8 HP_STCTR Right headphone driver short-circuit detection. When this bit is logic 0:

right channel headphone driver not short-circuit protected. When this bit is

logic 1: right channel headphone driver short-circuit protection activated. 7 − not used 6 SDETR2 Interpolator silence detect channel 2 right. When this bit is logic 0:

interpolator on channel 2 right input has detected no silence. When this bit is

logic 1: interpolator on channel 2 right input has detected silence. 5 SDETL2 Interpolator silence detect channel 2 left. When this bit is logic 0:

interpolator on channel 2 left input has detected no silence. When this bit is

logic 1: interpolator on channel 2 left input has detected silence.

MUTE_

STATE_CH2

MUTE_

STATE_CH1

2002 Sep 16 48

Page 49

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder

UDA1380

for MD, CD and MP3

BIT SYMBOL DESCRIPTION

4 SDETR1 Interpolator silence detect channel 1 right. When this bit is logic 0:

interpolator on channel 1 right input has detected no silence. When this bit is

logic 1: interpolator on channel 1 right input has detected silence. 3 SDETL1 Interpolator silence detect channel 1 left. When this bit is logic 0:

interpolator on channel 1 left input has detected no silence. When this bit is

logic 1: interpolator on channel 1 left input has detected silence. 2 MUTE_STATE_M Interpolator muting. A 1-bit value which signals whether the interpolator has

reached mute or not. When this bit is logic 0: interpolator is not muted. When

this bit is logic 1: interpolator is muted. 1 MUTE_STATE_CH2 Interpolatormuting channel 2. When this bit is logic 0: interpolator channel 2

is not muted. When this bit is logic 1: interpolator channel 2 is muted. 0 MUTE_STATE_CH1 Interpolatormuting channel 1. When this bit is logic 0: interpolator channel 1

is not muted. When this bit is logic 1: interpolator channel 1 is muted.

11.17 Decimator read-out Table 67 Register address 28H

BIT 15 14 13 12 11 10 9 8

Symbol −−−−−−−−

BIT 7 6 5 4 3 2 1 0

Symbol −−−AGC_STAT − MT_ADC_STAT − OVERFLOW

Table 68 Description of the register bits

BIT SYMBOL DESCRIPTION

15 to 5 − not used

4 AGC_STAT AGC gain status. A 1-bit value which signals whether the AGC gain exceeds

8 dB or not. Only valid when the AGC is switched on. When this bit is logic 0:

AGC gain <8 dB. When this bit is logic 1: AGC gain ≥8dB. 3 − not used 2 MT_ADC_STAT Decimator mute. A 1-bit value which signals whether the decimator has

reached mute or not. When this bit is logic 0: decimator has not muted. When

this bit is logic 1: decimator has muted. 1 − not used 0 OVERFLOW Digital output overﬂow detection. A 1-bit value which signals whether the

digital output amplitude exceeds −1.16 dB or not. When this bit is logic 0: no

overﬂow detected (read-out). When this bit is logic 1: overﬂow detected

(read-out).

2002 Sep 16 49

Page 50

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder

UDA1380

for MD, CD and MP3

12 LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC 60134).

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

xtal(max)

stg

amb

lu(prot)

sc(DAC)

Notes

1. All supply connections must be made to the same power supply.

2. Equivalent to discharging a 100 pF capacitor via a 1.5 kΩ series resistor.

3. Equivalent to discharging a 200 pF capacitor via a 0.75 µH series inductor.

4. DAC operation after short-circuiting cannot be warranted.

supply voltage note 1 − 4V maximum crystal temperature − 150 °C storage temperature −65 +125 °C ambient temperature −40 +85 °C electrostatic handling voltage note 2 −1100 +1100 V

note 3 −250 +250 V latch-up protection current T short-circuit current of DAC T

= 125 °C; VDD= 3.6 V − 200 mA

amb

=0°C; VDD= 3 V; note 4

amb

output short-circuited to V output short-circuited to V

SSA(DA) DDA(DA)

− 450 mA

− 325 mA

13 HANDLING

Inputs and outputs are protected against electrostatic discharge in normal handling. However, to be totally safe, it is advised to take normal precautions appropriate to handling MOS devices.

14 THERMAL CHARACTERISTICS

SYMBOL PARAMETER CONDITIONS VALUE UNIT

th(j-a)

thermal resistance from junction to ambient in free air 85 K/W

15 QUALITY SPECIFICATION

In accordance with

“SNW-FQ-611D”

2002 Sep 16 50

Page 51

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder

UDA1380

for MD, CD and MP3

16 DC CHARACTERISTICS

DDD=VDDA(AD)=VDDA(DA)=VDDA(HP)

unless otherwise speciﬁed.

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT Supplies; note 1

DDA(AD)

DDA(DA)

DDA(HP)

ADC analog supply voltage 2.4 3.0 3.6 V DAC analog supply voltage 2.4 3.0 3.6 V headphone analog supply

voltage

DDD

DDA(AD)

DDA(DA)

DDA(HP)

digital supply voltage 2.4 3.0 3.6 V ADC analog supply current one ADC and microphone

DAC analog supply current operating mode; fs= 48 kHz − 3.4 − mA

headphone analog supply current

DDD

DD(tot)

digital supply current operating mode; fs= 48 kHz − 10.0 − mA

total supply current playback mode

= 3.0 V; T

=25°C; RL=5kΩ; all voltages measured with respect to ground;

amb

2.4 3.0 3.6 V

− 4.5 − mA

ampliﬁer enabled; fs= 48 kHz two ADCs and PGA enabled;

= 48 kHz

all ADCs and PGAs power-down, but AVC activated; f

= 48 kHz

all ADCs, PGAs and LNA power-down; f

Power-down mode; f

=48kHz

= 48 kHz − 0.1 −µA

no signal applied (quiescent

− 7.0 − mA

− 3.3 − mA

− 1.0 −µA

− 0.9 − mA

current) Power-down mode − 0.1 −µA

playback mode; f record mode; f Power-down mode; f

=48kHz − 5.0 − mA

= 48 kHz − 6.0 − mA

= 48 kHz − 1.0 −µA

− 9.0 − mA

(without headphone); fs=48kHz playbackmode (with headphone);

no signal; f record mode (audio); f

= 48 kHz

= 48 kHz − 13.0 − mA

record mode (speech);

= 48 kHz

record mode (audio and speech); f

= 48 kHz

fully operating; f

= 48 kHz − 23.0 − mA

signal mix-in operating, using

− 8.8 − mA

− 10.0 − mA

− 13.0 − mA

− 12.0 − mA

FSDAC, AVC(with headphone); no signal; f

Power-down mode; f

= 48 kHz

= 48 kHz − 2.0 −µA

2002 Sep 16 51

Page 52

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder

UDA1380

for MD, CD and MP3

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT Digital input pins (5 V tolerant TTL compatible)

I

 input leakage current −−1µA

Digital output pins

Reference voltage

REF

o(VREF)

Analog-to-digital converter

ADCP

ADCN

Digital-to-analog converter

Power consumption (supply voltage 3.0 V; fs= 48 kHz)

HIGH-level input voltage 2.0 − 5.5 V LOW-level input voltage −0.5 − +0.8 V

input capacitance −−10 pF

HIGH-level output voltage IOH= −2 mA 0.85V

−−V

DDD

LOW-level output voltage IOL=2mA −−0.4 V

reference voltage with respect to V output resistance on

pin V

REF

positive reference voltage

; note 2 0.45V

SSA(AD)

DDA

0.5V

DDA

0.55V

DDA

− 12.5 − kΩ

− V

DDA(AD)

− V

of the ADC negative reference voltage

− 0 − V

of the ADC input resistance − 12 − kΩ input capacitance − 24 − pF

load resistance 3 −−kΩ load capacitance note 3 −−50 pF

tot

total power dissipation playback mode

− 27 − mW

(without headphone) playback mode (with headphone) − 27 − mW record mode (audio) − 39 − mW record mode (speech) − 31 − mW record mode (audio and speech) − 40 − mW full operation − 69 − mW Power-down mode − 6 −µW

Notes

1. All supply connections must be made to the same power supply unit.

2. V

DDA=VDDA(DA)=VDDA(AD)

3. When higher capacitive loads must be driven, a 100 Ω resistor must be connected in series with the DAC output in order to prevent oscillations in the output operational amplifier.

2002 Sep 16 52

Page 53

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder

UDA1380

for MD, CD and MP3

17 AC CHARACTERISTICS

DDD=VDDA(AD)=VDDA(DA)=VDDA(HP)

respect to ground; unless otherwise speciﬁed.

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Analog-to-digital converter

∆V

(THD + N)/S

digital output level 0 dB setting; V

unbalance between channels − <0.1 − dB total harmonic

distortion-plus-noise to signal at fs= 48 kHz

S/N

signal-to-noise ratio at fs= 48 kHz

channel separation − 100 − dB

PSRR power supply rejection ratio f

= 3.0 V;fi= 1 kHz at −1 dB; T

3 dB setting; V 6 dB setting; V 9 dB setting; V 12 dB setting; V 15 dB setting; V 18 dB setting; V 21 dB setting; V 24 dB setting; V

at −1 dBFS

0 dB setting −−85 − dB 3 dB setting −−85 − dB 6 dB setting −−85 − dB 9 dB setting −−85 − dB 12 dB setting −−84 − dB 15 dB setting −−83 − dB 18 dB setting −−82 − dB 21 dB setting −−80 − dB 24 dB setting −−78 − dB

at −60 dBFS; A-weighted

0 dB setting −−37 − dB 3 dB setting −−36 − dB 6 dB setting −−36 − dB 9 dB setting −−36 − dB 12 dB setting −−35 − dB 15 dB setting −−34 − dB 18 dB setting −−33 − dB 21 dB setting −−32 − dB 24 dB setting −−30 − dB

Vi= 0 V; A-weighted − 97 − dB

= 1 kHz;

ripple

= 30 mV (p-p)

ripple

=25°C; RL=5kΩ; all voltages measured with

amb

= 1.0 V −−1−dBFS

i(rms)

= 708 mV −−1−dBFS

i(rms)

= 501 mV −−1−dBFS

i(rms)

= 354 mV −−1−dBFS

i(rms)

= 252 mV −−1−dBFS

i(rms)

= 178 mV −−1−dBFS

i(rms)

= 125 mV −−1−dBFS

i(rms)

=89mV −−1−dBFS

i(rms)

=63mV −−1−dBFS

i(rms)

− 80 − dB

2002 Sep 16 53

Page 54

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder

UDA1380

for MD, CD and MP3

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

LNA input plus analog-to-digital converter

i(rms)

(THD+N)/S

input voltage (RMS value) at 0 dBFS digital output; 2.2 kΩ

total harmonic

distortion-plus-noise to signal ratio at fs= 48 kHz

S/N

signal-to-noise ratio at fs= 48 kHz

channel separation − 70 − dB

Digital-to-analog converter

o(rms)

∆V

(THD+N)/S

output voltage (RMS value) at 0 dBFS digital input; note 1 − 0.9 − V unbalance between channels − <0.1 − dB total harmonic

distortion-plus-noise to signal ratio at fs= 48 kHz

(THD+N)/S

total harmonic

distortion-plus-noise to signal ratio at fs= 96 kHz

S/N

signal-to-noise ratio at fs= 48 kHz

S/N

signal-to-noise ratio at fs= 96 kHz

channel separation − 90 − dB

PSRR power supply rejection ratio f

Headphone driver

o(rms)

(THD+N)/S

output power (RMS value) at 0 dBFS digital input,

total harmonic

distortion-plus-noise to signal ratio at fs= 48 kHz

S/N

channel separation RL=16Ω using pin V

signal-to-noise ratio at fs= 48 kHz

source impedance at 0 dB −−74 − dB at −60 dB; A-weighted −−25 − dB

Vi= 0 V; A-weighted − 85 − dB

at 0 dB −−88 − dB at −60 dB; A-weighted −−40 − dB

at 0 dB −−80 − dB at −60 dB; A-weighted −−37 − dB

code = 0; A-weighted − 100 − dB

code = 0; A-weighted − 97 − dB

= 1 kHz;

ripple

= 30 mV (p-p)

ripple

assuming RL=16Ω at 0 dB; RL=16Ω−−60 − dB at 0 dB; R

=5kΩ−−82 − dB

at −60 dB; A-weighted −−24 − dB

REF(HP)

no DC decoupling capacitors; note 2

=16Ω single-ended

application with DC decoupling capacitors (100 µF typical)

=32Ω single-ended

application with DC decoupling capacitors (100 µF typical)

code = 0; A-weighted − 90 − dB

−−35 mV

− 60 − dB

− 35 − mW

;

− 60 − dB

− 68 − dB

− 74 − dB

2002 Sep 16 54

Page 55

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder

UDA1380

for MD, CD and MP3

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

AVC (line input via ADC input, output on line output and headphone driver)

i(rms)

(THD+N)/S

S/N

Notes

1. The output voltage of the DAC is proportional to the DAC power supply voltage.

2. Channel separation performance is measured at the IC pin.

input voltage (RMS value) − 150 − mV total harmonic

distortion-plus-noise to signal ratio at fs= 48 kHz

signal-to-noise ratio at fs= 48 kHz

channel separation − 82 − dB

at 0 dB −−80 − dB at −60 dB; A-weighted −−28 − dB

Vi= 0 V; A-weighted − 87 − dB

2002 Sep 16 55

Page 56

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder

UDA1380

for MD, CD and MP3

18 TIMING

DDD=VDDA(AD)=VDDA(DA)=VDDA(HP)

otherwise speciﬁed.

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

System clock timing; note 1

sys

CWL

CWH

system clock cycle time f

system clock LOW time f

system clock HIGH time f

Serial interface input/output data timing (see Fig.17) f

BCK

cy(BCK)

BCKH

BCKL

su(WS)

h(WS)

su(DATAI)

h(DATAI)

h(DATAO)

d(DATAO-BCK)

d(DATAO-WS)

bit clock frequency −−128f bit clock cycle time −− bit clock HIGH time 30 −− ns bit clock LOW time 30 −− ns rise time −−20 ns fall time −−20 ns word select set-up time 10 −− ns word select hold time 10 −− ns data input set-up time 10 −− ns data input hold time 10 −− ns data output hold time 0 −− ns data output to bit clock delay −−30 ns

data output to word select delay −−30 ns L3-bus interface timing (see Figures 18 and 19) t

cy(CLK)L3

CLK(L3)H

CLK(L3)L

su(L3)A

rise time note 3 −−10 ns/V

fall time note 3 −−10 ns/V

L3CLOCK cycle time note 4 500 −− ns

L3CLOCK HIGH time note 4 250 −− ns

L3CLOCK LOW time note 4 250 −− ns

L3MODE set-up time in address

mode t

h(L3)A

L3MODE hold time in address

mode t

su(L3)D

L3MODE set-up time in data

transfer mode t

h(L3)D

L3MODE hold time in data transfer

mode

= 2.7 to 3.6 V; T

= −20 to +85 °C; all voltages referenced to ground; unless

amb

= 256f

sys

sys sys

sys

= 384f

= 512f

= 768f

< 19.2 MHz 0.3T ≥ 19.2 MHz 0.4T < 19.2 MHz 0.3T ≥ 19.2 MHz 0.4T

35 81 250 ns 23 54 170 ns 17 41 130 ns 17 27 90 ns

sys sys sys sys

− 0.7T

− 0.6T

− 0.7T

− 0.6T

⁄

128Tcy(s)

sys sys sys sys

190 −− ns

(2)

ns ns ns ns

Hz s

2002 Sep 16 56

Page 57

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder

UDA1380

for MD, CD and MP3

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

stp(L3)

L3MODE stop time in data transfer

mode t

su(L3)DA

L3DATA set-up time in address and

data transfer mode t

h(L3)DA

L3DATA hold time in address and

data transfer mode t

su(L3)R

h(L3)R

en(L3)R

dis(L3)R

C-bus interface timing; see Fig.20

SCL

LOW

HIGH

HD;STA

SU;STA

SU;STO

BUF

L3DATA set-up time for read data 50 −− ns

L3DATA hold time for read data 360 −− ns

L3DATA enable time for read data 380 −− ns

L3DATA disable time for read data 50 −− ns

SCL clock frequency 0 − 400 kHz

SCL LOW time 1.3 −− µs

SCL HIGH time 0.6 −− µs

rise time SDA and SCL note 5 20 + 0.1Cb− 300 ns

fall time SDA and SCL note 5 20 + 0.1Cb− 300 ns

hold time START condition note 6 0.6 −− µs

set-up time repeated START 0.6 −− µs

set-up time STOP condition 0.6 −− µs

bus free time between a STOP and

START condition t

SU;DAT

HD;DAT

data set-up time 100 −− ns

data hold time 0 −− µs

pulse width of spikes note 7 0 − 50 ns

capacitive load for each bus line −−400 pF

Notes

1. The typical value of the timing is specified at 48 kHz sampling frequency (see Fig.16).

2. T

is the cycle time of the sample frequency.

cy(s)

3. In order to prevent digital noise interfering with the L3-bus communication, it is best to have the rise and fall times as short as possible.

4. When the sampling frequency is below 32 kHz, the L3CLOCK cycle must be limited to1⁄

5. Cb is the total capacitance of one bus line in pF. The maximum capacitive load for each bus line is 400 pF.

6. After this period, the first clock pulse is generated.

7. To be suppressed by the input filter.

190 −− ns

30 −− ns

1.3 −− µs

cycle.

64fs

2002 Sep 16 57

Page 58

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder for MD, CD and MP3

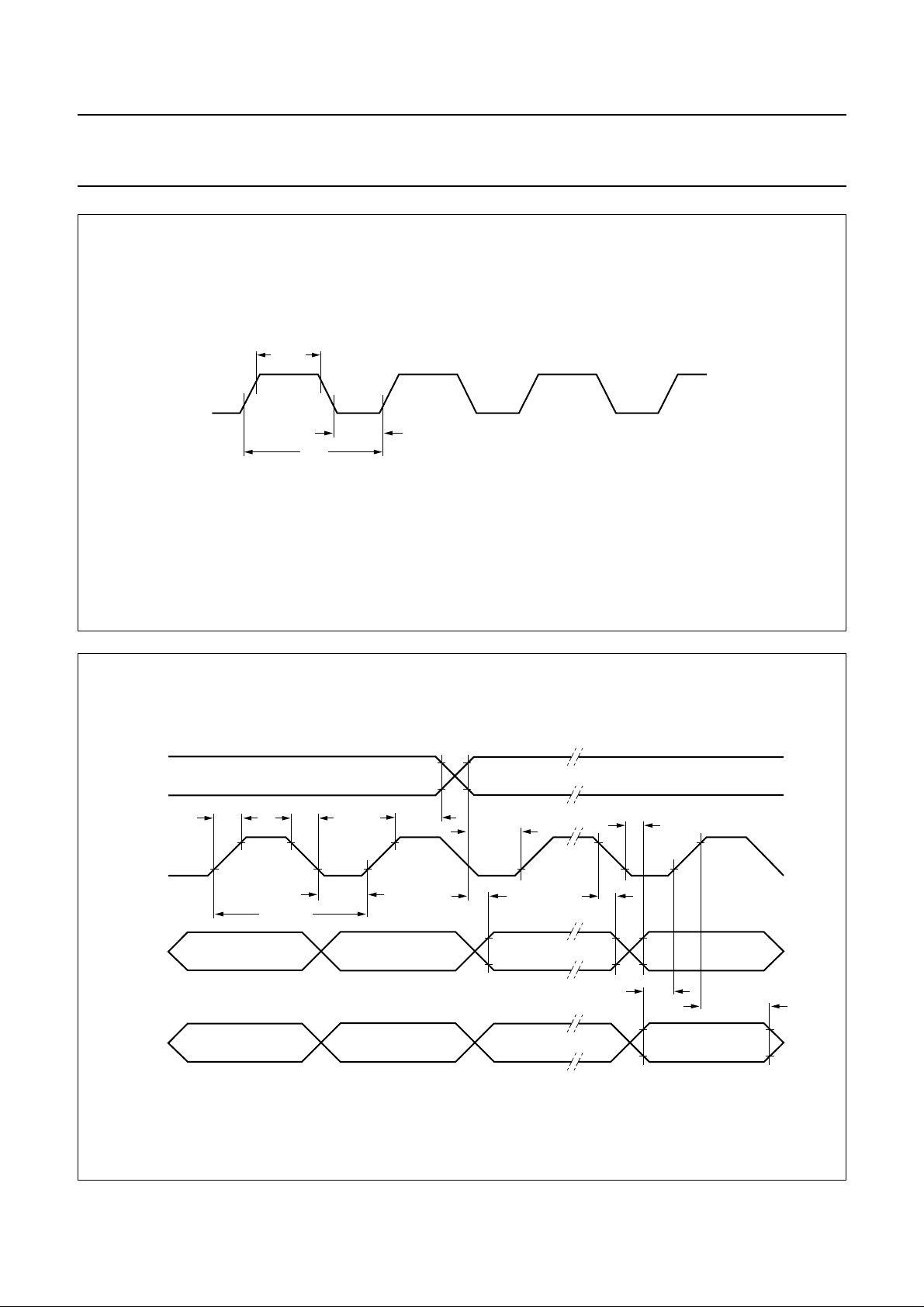

handbook, full pagewidth

CWH

sys

CWL

UDA1380

MGR984

handbook, full pagewidth

BCK

DATAO

DATAI

Fig.16 Timing of system clock.

BCKH

cy(BCK)

BCKL

h(WS)

d(DATAO-WS)

su(WS)

h(DATAO)

su(DATAI)

d(DATAO-BCK)

h(DATAI)

Fig.17 Serial interface input data timing.

2002 Sep 16 58

MGS756

Page 59

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder for MD, CD and MP3

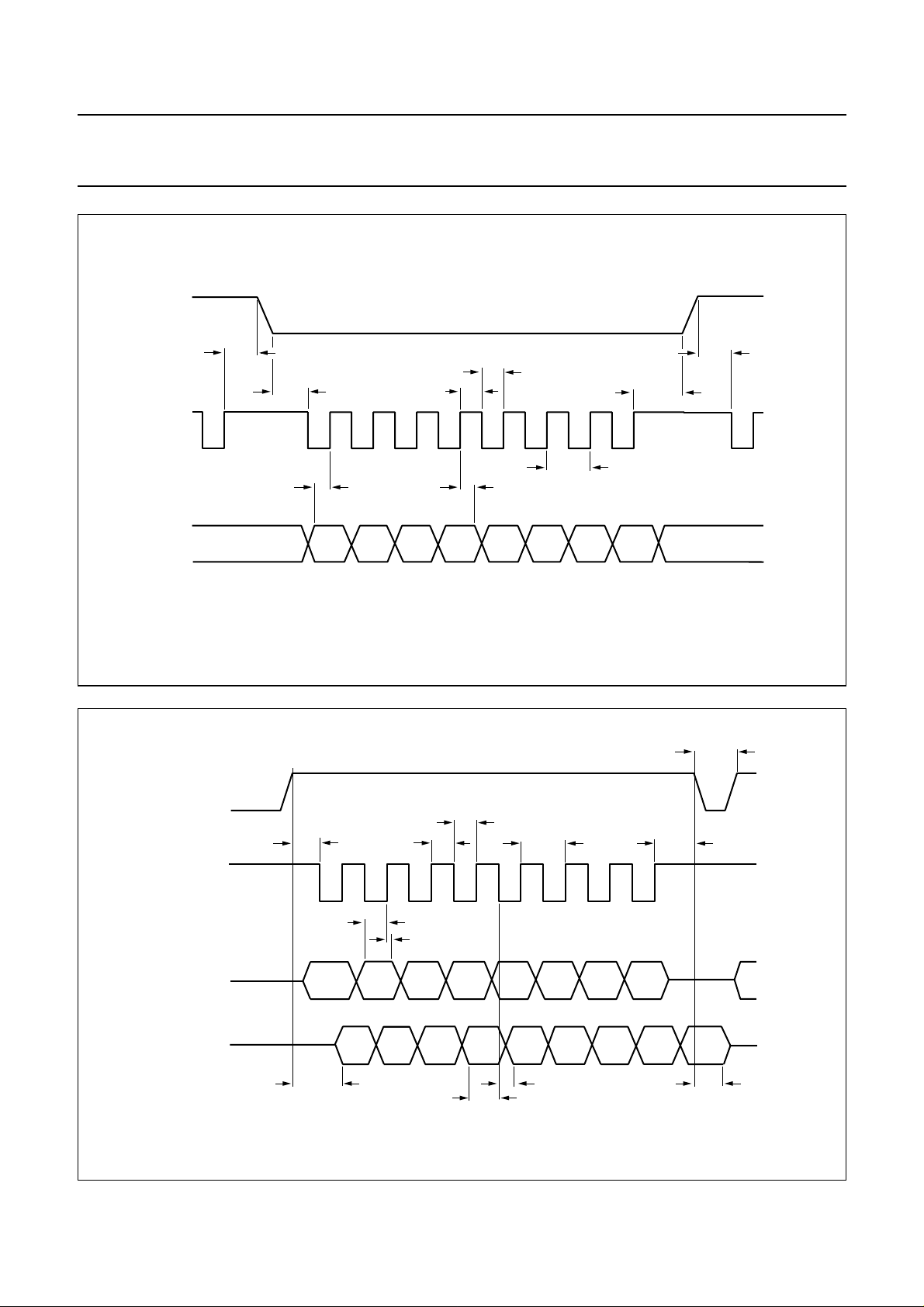

handbook, full pagewidth

L3MODE

L3CLOCK

L3DATA

h(L3)A

BIT 0

su(L3)A

su(L3)DA

CLK(L3)L

CLK(L3)H

h(L3)DA

su(L3)A

h(L3)A

cy(CLK)(L3)

BIT 7

UDA1380

MGL723

handbook, full pagewidth

L3CLOCK

L3MODE

L3DATA

write

L3DATA

read

su(L3)D

en(L3)R

su(L3)DA

BIT 0

Fig.18 Timing of address mode.

CLK(L3)L

CLK(L3)H

h(L3)DA

h(L3)R

cy(CLK)L3

su(L3)R

h(L3)D

BIT 7

dis(L3)R

stp(L3)

MGU015

Fig.19 Timing of data transfer mode for write and read.

2002 Sep 16 59

Page 60

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder for MD, CD and MP3

HD;STA

MBC611

SU;STO

UDA1380

LOW

BUF

SU;STA

SU;DAT

HIGH

HD;DAT

HD;STA

C-bus transfer.

handbook, full pagewidth

Fig.20 Timing of the I

This text is here in white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here in

_white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here inThis text is here in

white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader. white to force landscape pages to be ...

2002 Sep 16 60

SDA

SCL

Page 61

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder for MD, CD and MP3

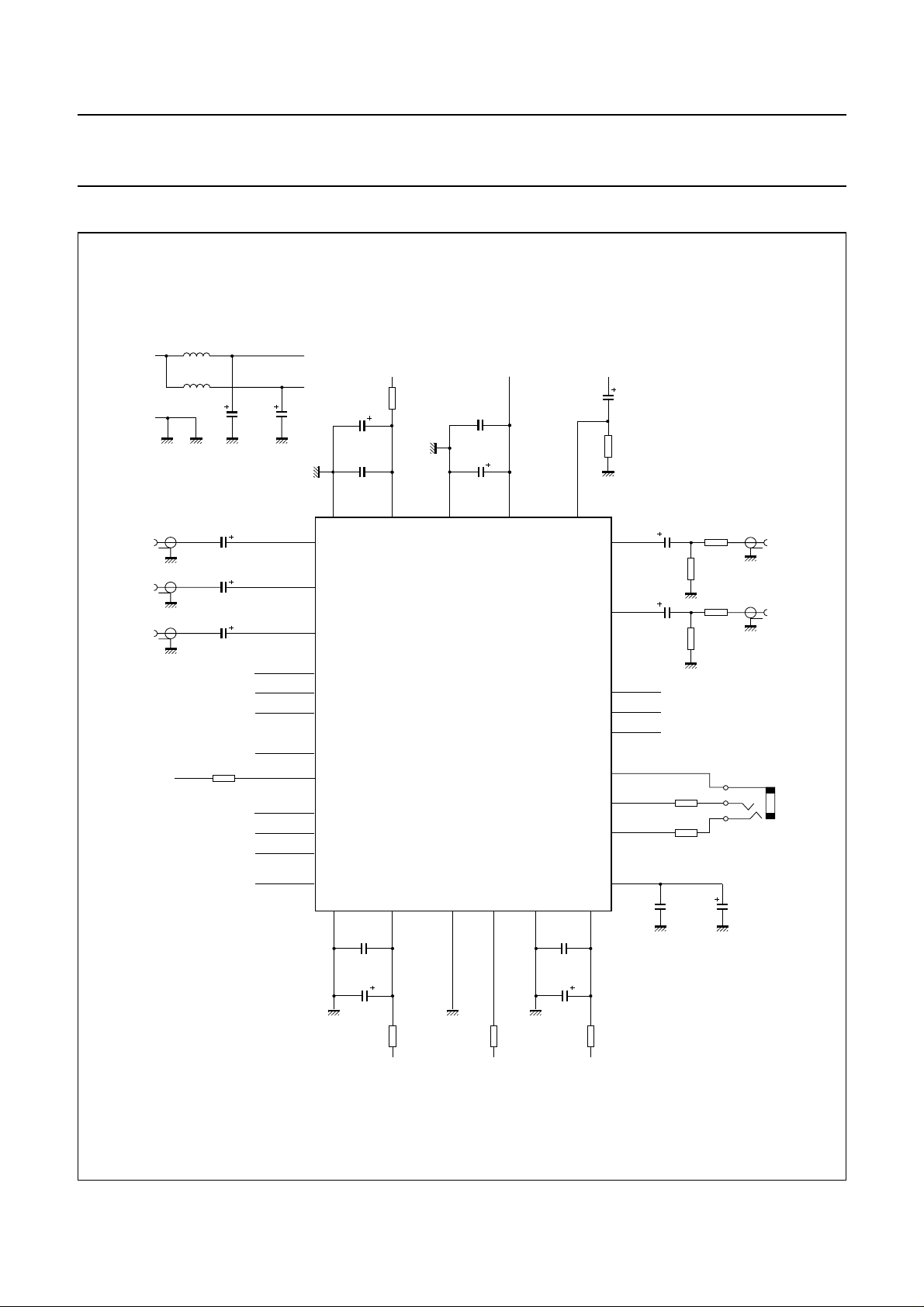

19 APPLICATION INFORMATION

handbook, full pagewidth

ground

microphone

+3 V

input

right

input

left

system

clock

BLM31A601S

47 µF

(16 V)

47 µF

(16 V)

47 µF

(16 V)

47 Ω

100 µF

(16 V)

L3DATA/SDA

L3CLOCK/SCL

L3MODE

SEL_L3_IIC

SYSCLK

100 µF

(16 V)

VINL

VINR

VINM

DATAI

WSI

BCKI

RTCB

DDA

DDD

31 (27)

1 (29)

3 (31)

18 (14) 17 (13)

16 (12)

19 (15)

13 (9)

12 (8) 11 (7)

10 (6)

15 (11) 30 (26)

2 (30)

DDA

100 Ω

100 µF

(16 V)

100 nF

(63 V)

ADCN

ADCP

4 (32) 20 (16) 24 (20)

(UDA1380HN)

32 (28) 14 (10) 6 (2)

(63 V)

DDA(AD)

SSA(AD)

100 nF

(63 V)

100 µF

(16 V)

SSA(HP)

UDA1380TT

SSD

DDA

DDD

DDA(HP)

28 (24)

SSA(DA)

100 nF

(63 V)

5 (1)

26 (22)

RESET

(23) 27

(21) 25

(5) 9 (4) 8 (3) 7

(18) 22

(19) 23

(17) 21

(25) 29

DDD

4.7 µF (16 V)

47 kΩ

VOUTL

VOUTR

DATAO WSO BCKO

REF(HP)

VOUTLHP

VOUTRHP

REF

DDA(DA)

47 µF (16 V)

0 Ω

100 nF (63 V)

UDA1380

100 Ω

10 kΩ

100 Ω

10 kΩ

10 µF (16 V)

MGU537

left output

right output

headphone

100 µF

(16 V)

1 Ω

DDA

Pin numbers for UDA1380HN in parentheses.

Fig.21 Application diagram.

2002 Sep 16 61

DDD

10 Ω

100 µF

(16 V)

1 Ω

DDA

Page 62

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder for MD, CD and MP3

20 PACKAGE OUTLINES

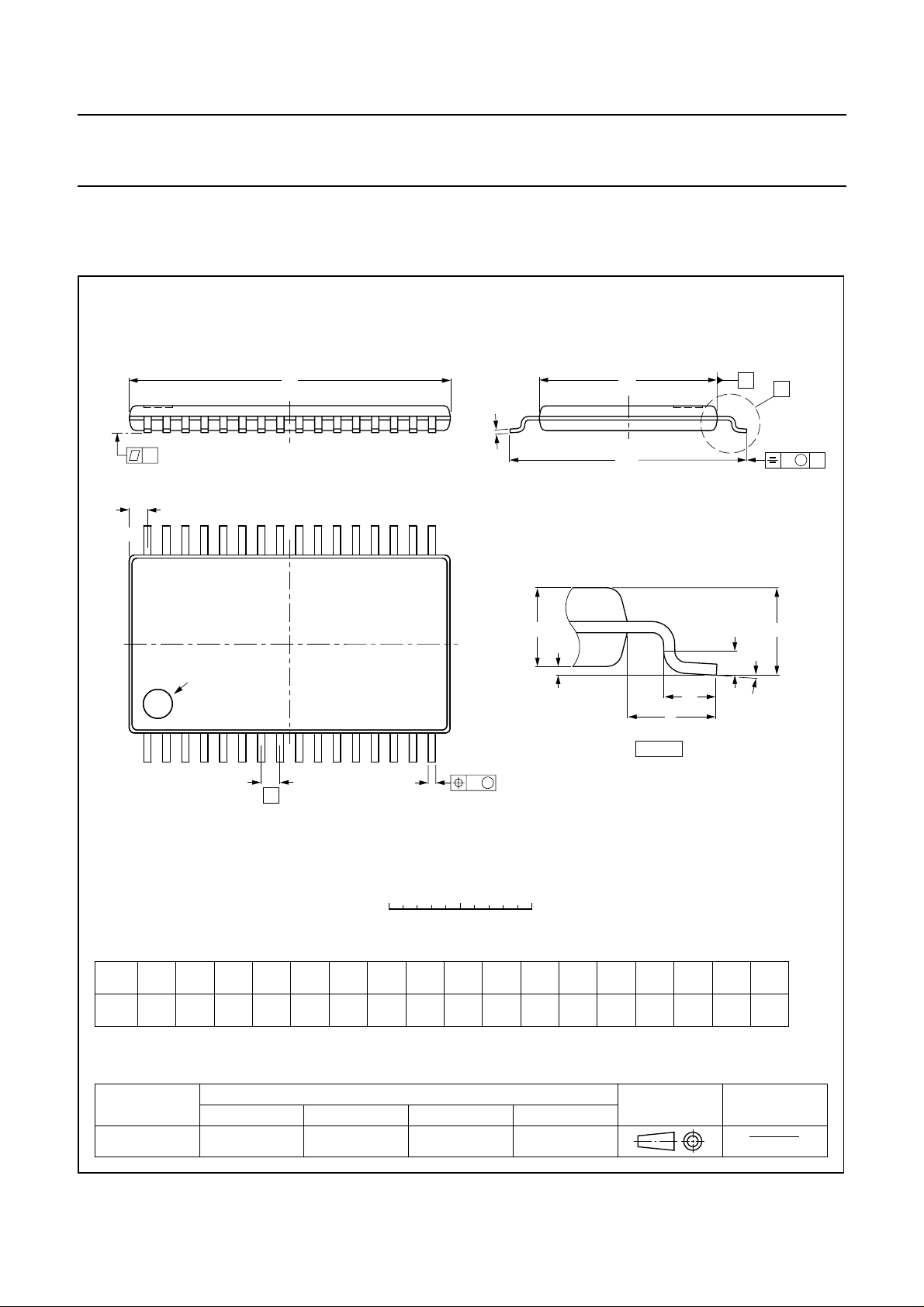

TSSOP32: plastic thin shrink small outline package; 32 leads; body width 6.1 mm; lead pitch 0.65 mm

UDA1380

SOT487-1

v M

pin 1 index

116

w M

DIMENSIONS (mm are the original dimensions)

UNIT A1A2A

Notes

1. Plastic or metal protrusions of 0.15 mm maximum per side are not included.

2. Plastic interlead protrusions of 0.25 mm maximum per side are not included.

max.

0.15

1.10

OUTLINE VERSION

SOT487-1 MO-153

0.05

0.95

0.85

3bp

0.30

0.19

0.20

0.09

0.25

IEC JEDEC EIAJ

11.10

10.90

REFERENCES

0 2.5 5 mm

scale

(1)E(2)

6.20

6.00

8.30

0.65

7.90

0.75

0.50

detail X

0.10 0.100.201.00

EUROPEAN

PROJECTION

(A )

0.78

0.48

Zywv θ

ISSUE DATE

97-06-11 99-12-27

2002 Sep 16 62

Page 63

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder for MD, CD and MP3

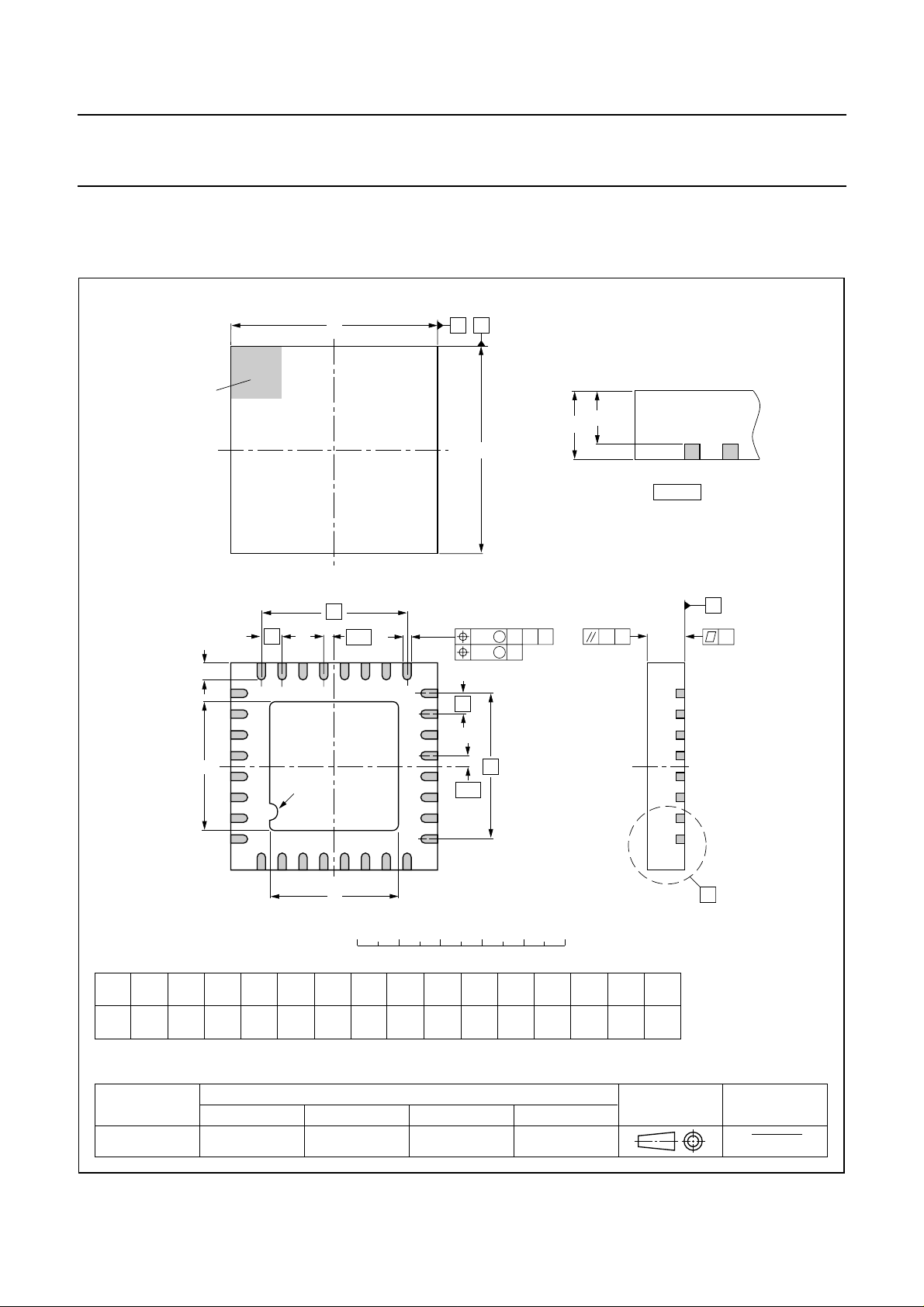

HVQFN32: plastic, heatsink very thin quad flat package; no leads; 32 terminals; body 5 x 5 x 0.85 mm

terminal 1 index area

UDA1380

SOT617-1

detail X

916

pin 1 index

DIMENSIONS (mm are the original dimensions)

UNIT

max.

Note

1. Plastic or metal protrusions of 0.076 mm maximum per side are not included.

max.

0.80

0.35

0.18

(1)

5.05

4.95

3.25

2.95

1/2 e

5.05

4.95

(1)

0 2.5 5 mm

scale

3.25

2.95

3.5

0.51.00

∅ v

∅ w

3.5

0.05 0.1

ACCB

0.50

0.2v0.1

0.30

OUTLINE

VERSION

SOT617-1 MO-220

IEC JEDEC EIAJ

REFERENCES

2002 Sep 16 63

EUROPEAN

PROJECTION

ISSUE DATE

01-06-07

01-08-08

Page 64

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder for MD, CD and MP3

21 SOLDERING

21.1 Introduction to soldering surface mount packages

Thistextgivesaverybriefinsighttoacomplex technology. A more in-depth account of soldering ICs can be found in our

“Data Handbook IC26; Integrated Circuit Packages”

(document order number 9398 652 90011). There is no soldering method that is ideal for all surface

mount IC packages. Wave soldering can still be used for certainsurfacemountICs, but it is not suitable for fine pitch SMDs. In these situations reflow soldering is recommended.

21.2 Reﬂow soldering

Reflow soldering requires solder paste (a suspension of fine solder particles, flux and binding agent) to be applied totheprinted-circuit board by screen printing, stencilling or pressure-syringe dispensing before package placement.

Several methods exist for reflowing; for example, convection or convection/infrared heating in a conveyor type oven. Throughput times (preheating, soldering and cooling) vary between 100 and 200 seconds depending on heating method.

Typical reflow peak temperatures range from 215 to 250 °C. The top-surface temperature of the packages should preferable be kept below 220 °C for thick/large packages, and below 235 °C for small/thin packages.

21.3 Wave soldering

Conventional single wave soldering is not recommended forsurfacemountdevices (SMDs) or printed-circuit boards with a high component density, as solder bridging and non-wetting can present major problems.

To overcome these problems the double-wave soldering method was specifically developed.

UDA1380

If wave soldering is used the following conditions must be observed for optimal results:

• Use a double-wave soldering method comprising a turbulent wave with high upward pressure followed by a smooth laminar wave.

• For packages with leads on two sides and a pitch (e): – larger than or equal to 1.27 mm, the footprint

longitudinal axis is preferred to be parallel to the transport direction of the printed-circuit board;

– smaller than 1.27 mm, the footprint longitudinal axis

must be parallel to the transport direction of the printed-circuit board.

The footprint must incorporate solder thieves at the downstream end.

• Forpackageswithleads on four sides, the footprint must be placed at a 45° angle to the transport direction of the printed-circuit board. The footprint must incorporate solder thieves downstream and at the side corners.

During placement and before soldering, the package must be fixed with a droplet of adhesive. The adhesive can be applied by screen printing, pin transfer or syringe dispensing. The package can be soldered after the adhesive is cured.

Typical dwell time is 4 seconds at 250 °C. A mildly-activated flux will eliminate the need for removal of corrosive residues in most applications.

21.4 Manual soldering

Fix the component by first soldering two diagonally-opposite end leads. Use a low voltage (24 V or less) soldering iron applied to the flat part of the lead. Contact time must be limited to 10 seconds at up to 300 °C.

When using a dedicated tool, all other leads can be soldered in one operation within 2 to 5 seconds between 270 and 320 °C.

2002 Sep 16 64

Page 65

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder

UDA1380

for MD, CD and MP3

21.5 Suitability of surface mount IC packages for wave and reﬂow soldering methods

PACKAGE

BGA, LBGA, LFBGA, SQFP, TFBGA, VFBGA not suitable suitable HBCC, HBGA, HLQFP, HSQFP, HSOP, HTQFP, HTSSOP, HVQFN,

HVSON, SMS

(4)

PLCC LQFP, QFP, TQFP not recommended SSOP, TSSOP, VSO not recommended

Notes

1. Formoredetailedinformation on the BGA packages refer to the

2. All surface mount (SMD) packages are moisture sensitive. Depending upon the moisture content, the maximum

3. These packages are not suitable for wave soldering. On versions with the heatsink on the bottom side, the solder

4. If wave soldering is considered, then the package must be placed at a 45° angle to the solder wave direction.

5. Wave soldering is suitable for LQFP, TQFP and QFP packages with a pitch (e) larger than 0.8 mm; it is definitely not

6. Wave soldering is suitable for SSOP and TSSOP packages with a pitch (e) equal to or larger than 0.65 mm; it is

, SO, SOJ suitable suitable

from your Philips Semiconductors sales office.

temperature (with respect to time) and body size of the package, there is a risk that internal or external package cracks may occur due to vaporization of the moisture in them (the so called popcorn effect). For details, refer to the Drypack information in the

cannot penetrate between the printed-circuit board and the heatsink. On versions with the heatsink on the top side, the solder might be deposited on the heatsink surface.

The package footprint must incorporate solder thieves downstream and at the side corners.

suitable for packages with a pitch (e) equal to or smaller than 0.65 mm.

definitely not suitable for packages with a pitch (e) equal to or smaller than 0.5 mm.

“Data Handbook IC26; Integrated Circuit Packages; Section: Packing Methods”

(1)

not suitable

“(LF)BGAApplicationNote

SOLDERING METHOD

WAVE REFLOW

(3)

suitable

(4)(5)

suitable

(6)

suitable

”(AN01026);ordera copy

(2)

2002 Sep 16 65

Page 66

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder

UDA1380

for MD, CD and MP3

22 DATA SHEET STATUS

PRODUCT

DATA SHEET STATUS

Objective data Development This data sheet contains data from the objective specification for product

Preliminary data Qualiﬁcation This data sheet contains data from the preliminary specification.

Product data Production This data sheet contains data from the product specification. Philips

Notes

1. Please consult the most recently issued data sheet before initiating or completing a design.

2. The product status of the device(s) described in this data sheet may have changed since this data sheet was published. The latest information is available on the Internet at URL http://www.semiconductors.philips.com.

(1)

STATUS

(2)

development. Philips Semiconductors reserves the right to change the speciﬁcation in any manner without notice.

Supplementary data will be published at a later date. Philips Semiconductors reserves the right to change the speciﬁcation without notice, in order to improve the design and supply the best possible product.

Semiconductors reserves the right to make changes at any time in order to improve the design, manufacturing and supply. Changes will be communicated according to the Customer Product/Process Change Notiﬁcation (CPCN) procedure SNW-SQ-650A.

DEFINITIONS

23 DEFINITIONS Short-form specification  The data in a short-form

specification is extracted from a full data sheet with the same type number and title. For detailed information see the relevant data sheet or data handbook.

Limiting values definition  Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 60134). Stress above one or more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation of the device attheseoratanyotherconditionsabovethosegiveninthe Characteristics sections of the specification is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information  Applications that are described herein for any of these products are for illustrative purposes only. Philips Semiconductors make norepresentation or warranty that such applications will be suitable for the specified use without further testing or modification.

24 DISCLAIMERS Life support applications  These products are not

designed for use in life support appliances, devices, or systems where malfunction of these products can reasonably be expected to resultin personal injury. Philips Semiconductorscustomers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Philips Semiconductors for any damages resulting from such application.

Right to make changes  Philips Semiconductors reserves the right to make changes, without notice, in the products, including circuits, standard cells, and/or software, described or contained herein in order to improve design and/or performance. Philips Semiconductors assumes no responsibility or liability for theuseofany of these products, conveys no licence or title under any patent, copyright, or mask work right to these products,andmakesnorepresentations or warranties that these products are free from patent, copyright, or mask work right infringement, unless otherwise specified.

2002 Sep 16 66

Page 67

Philips Semiconductors Product speciﬁcation

Stereo audio coder-decoder for MD, CD and MP3

25 PURCHASE OF PHILIPS I2C COMPONENTS

Purchase of Philips I components in the I2C system provided the system conforms to the I2C specification defined by Philips. This specification can be ordered using the code 9398 393 40011.

C components conveys a license under the Philips’ I2C patent to use the

UDA1380

2002 Sep 16 67

Page 68

Philips Semiconductors – a w orldwide compan y

Contact information

For additional information please visit http://www.semiconductors.philips.com. Fax: +31 40 27 24825 For sales ofﬁces addresses send e-mail to: sales.addresses@www.semiconductors.philips.com.

The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license under patent- or other industrial or intellectual property rights.

Printed in The Netherlands 753503/02/pp68 Date of release: 2002 Sep 16 Document order number: 9397 750 09937

SCA74

Datasheet UDA1380 Datasheet (Philips)

Specifications and Main Features

Frequently Asked Questions

User Manual
