Datasheet UDA1331H Datasheet (Philips)

INTEGRATED CIRCUITS

DATA SH EET

UDA1331H

Universal Serial Bus (USB) Audio
Playback Peripheral (APP)

Preliminary specification
Supersedes data of 1998 Apr 16
File under Integrated Circuits, IC01

1998 Oct 06

Philips Semiconductors Preliminary specification

Universal Serial Bus (USB) Audio
Playback Peripheral (APP)

FEATURES
General

• Universal Serial Bus (USB) stereo Audio Playback
Peripheral (APP) system with adaptive (5 to 55 kHz)
20-bits digital-to-analog conversion and filtering

• USB-compliant audio and Human Interface Device
(HID)

• Supports 12 Mbits/s full-speed serial data transmission

• Supports multiple audio data formats (8, 16 and 24 bits)

• Supports headphone and line output

• Fully automatic ‘Plug-and-Play’ operation

• High linearity

• Wide dynamic range

• Superior signal-to-noise ratio (typical 95 dB)

• Low total harmonic distortion (typical 90 dB)

• 3.3 V power supply

• Efficient power management

• Low power consumption

• On-chip master clock oscillator, only an external crystal

is required

• Partly programmable USB descriptors and configuration

2

C-bus.

via I

Sound processing

• Separate digital volume control for left and right channel

• Soft mute

• Digital bass and treble tone control

• External Digital Sound Processor (DSP) option possible

via standard I

• Selectable clipping prevention

• Selectable Dynamic Bass Boost (DBB)

• On-chip digital de-emphasis.

2

S-bus or Japanese digital I/O format

UDA1331H

Document references

•

“USB Specification”

•

“USB Common Class Specification”

•

“USB Device Class Definition for Audio Devices”

•

“Device Class Definition for Human Interface Devices
(HID)”

•

“USB HID Usage Table”

APPLICATIONS

• USB monitors

• USB speakers

• USB headsets

• USB telephone/answering machines

• USB links in consumer audio devices.

GENERAL DESCRIPTION

The UDA1331H is a stereo CMOS digital-to-analog
bitstream converter designed for USB-compliant audio
playback devices and multimedia audio applications.
The UDA1331H is an adaptive asynchronous sink USB
audio device with a continuous sampling frequency (f
range from 5 to 55 kHz. It contains a USB interface, an
embedded microcontroller and an Asynchronous
Digital-to-Analog Converter (ADAC).

The USB interface is the interface between the USB, the
ADAC and the microcontroller. The USB interface consists
of an analog front-end and a USB processor. The analog
front-end transforms the differential USB data to a digital
data stream. The USB processor buffers the input and
output data from the analog front-end and handles all
low-level USB protocols. The USB processor selects the
relevant data from the universal serial bus, performs an
extensive error detection and separates control
information (input and output) and audio information (input
only).

.

)

s

1998 Oct 06 2

Philips Semiconductors Preliminary specification

Universal Serial Bus (USB) Audio

UDA1331H

Playback Peripheral (APP)

The control information becomes accessible at the
microcontroller. The audio information becomes available
at the digital I/O output or is fed directly to the ADAC.

The microcontroller handles the high-level USB protocols,
translates the incoming control requests and manages the
user interface via General Purpose (GP) pins and an
I2C-bus. The firmware for the microcontroller must be
located in an external (E)PROM.

The ADAC enables the wide and continuous range of input
sampling frequencies. By means of a Sample Frequency
Generator (SFG), the ADAC is able to reconstruct the
average sample frequency from the incoming audio
samples. The ADAC also performs the sound processing.
The ADAC consists of FIFO registers, a unique audio

QUICK REFERENCE DATA

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Supplies

V

DD

I

DD(tot)

I

DD(ps)

supply voltage note 1 3.0 3.3 3.6 V
total supply current − 50 − mA
supply current in power-save

mode

Dynamic performance DAC

THD N+

---------------------- ­S

total harmonic
distortion-plus-noise to signal

fs= 44.1 kHz; RL=5kΩ

at input signal of 1 kHz (0 dB) −−90

ratio

at input signal of 1 kHz (−60 dB) −−30

S/N

bz

signal-to-noise ratio at bipolar

A-weighted at code 0000H 90 95 − dBA

zero

V

o(FS)(rms)

full-scale output voltage

VDD= 3.3 V − 0.66 − V

(RMS value)

General characteristics

f

i(sample)

T

amb

audio sample input frequency 5 − 55 kHz
operating ambient temperature 0 25 70 °C

feature processing DSP, the SFG, digital up-sampling
filters, a variable hold register, a Noise Shaper (NS) and a
Filter Stream DAC (FSDAC) with integrated filter and line
output drivers. The audio information is applied to the
ADAC via the USB processor or via the digital I/O input.

An external DSP can be used for adding extra sound
processing features via the digital I/O-bus.

The UDA1331H supports the standard I2S-bus data input
format and the LSB-justified serial data input format with
word lengths of 16, 18 and 20 bits.

The wide dynamic range of the bitstream conversion
technique used in the UDA1331H guarantees a high audio
sound quality.

− 18 − mA

(2)

−80 dB

− 0.0032 0.01 %

(2)

−20 dB

− 3.2 10 %

Notes

1. V

is the supply voltage on pins V

DD

DDA

, V

DDE

, V

DDI

and V

. VSS is the ground on pins V

DDX

SSA

, V

SSE

, V

SSI

and V

All VDD and VSS pins must be connected to the same supply or ground respectively.

2. The audio information from the USB interface is fed directly to the ADAC.

ORDERING INFORMATION

TYPE

NUMBER

NAME DESCRIPTION VERSION

PACKAGE

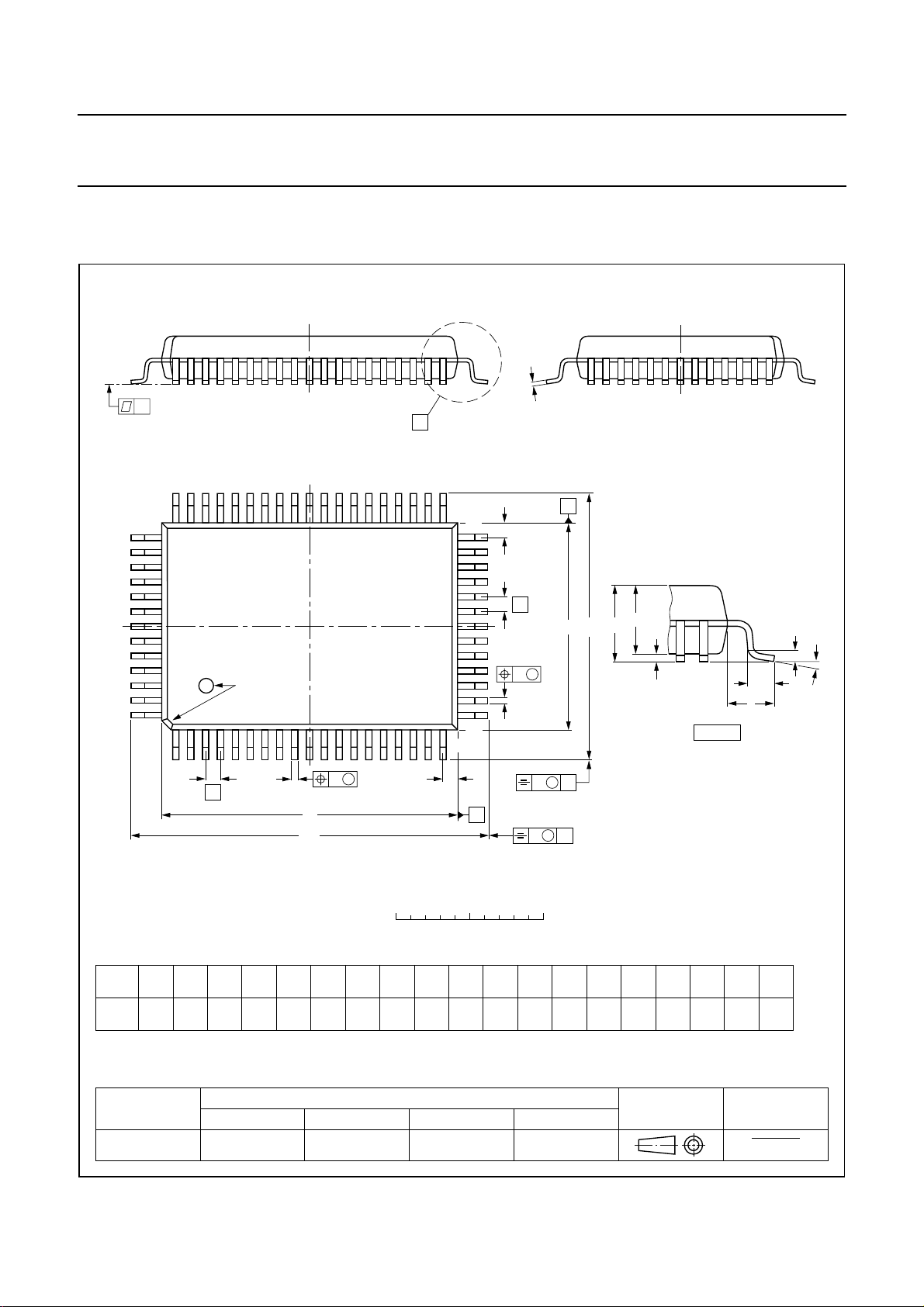

UDA1331H QFP64 plastic quad flat package; 64 leads (lead length 1.95 mm); body 14 × 20 × 2.8 mm SOT319-2

1998 Oct 06 3

SSX

.

Philips Semiconductors Preliminary specification

Universal Serial Bus (USB) Audio
Playback Peripheral (APP)

BLOCK DIAGRAM

handbook, full pagewidth

55

TC

RTCB

SHTCB

GP4/BCKO

GP3/WSO

GP2/DO

GP1/DI

GP0/BCKI

GP5/WSI

61
15

14
13

10
7

64
2

TEST

CONTROL

BLOCK

SAMPLE
FREQUENCY
GENERATOR

D+

D−

20 17

ANALOG FRONT-END

USB-PROCESSOR

DIGITAL I/O

FIFO REGISTERS

f

s

AUDIO FEATURE

PROCESSING DSP

f

s

UP-SAMPLE FILTERS

MICRO-

CONTROLLER

UDA1331H

SCL

3
4

SDA
EA

6
8

PSEN
ALE

9

11

P2.0
P2.1

12
18

P2.2
P2.3

19
21

P2.4
P2.5

22
23

P2.6
P2.7

24
56

P0.0
P0.1

57
58

P0.2

59

P0.3
P0.4

60
62

P0.5
P0.6

63

5

P0.7

64f

s

V

36

SSX
XTAL1
XTAL2

V

DDX

VOUTL

37

TIMING

OSC

38
39

53

VARIABLE HOLD REGISTER

128f

s

3rd-ORDER

NOISE SHAPER

LEFT

DAC

REFERENCE

VOLTAGE

42
V

Fig.1 Block diagram.

1998 Oct 06 4

ref

RIGHT

DAC

UDA1331H

32
30
29
25
51
49
45
44

46

MBK529

V

DDE

V

SSE

V

SSI

V

DDI

V

DDO

V

SSO

V

DDA

V

SSA

VOUTR

Philips Semiconductors Preliminary specification

Universal Serial Bus (USB) Audio

UDA1331H

Playback Peripheral (APP)

PINNING

SYMBOL PIN I/O DESCRIPTION

n.c. 1 − not connected
GP5/WSI 2 I/O general purpose pin 5 or word select input
SCL 3 I/O serial clock input (I
SDA 4 I/O serial data input/output (I
P0.7 5 I/O Port 0.7 of the microcontroller
EA 6 I/O external access (active LOW)
GP1/DI 7 I/O general purpose pin 1 or data input
PSEN 8 I/O program store enable (active LOW)
ALE 9 I/O address latch enable (active HIGH)
GP2/DO 10 I/O general purpose pin 2 or data output for extra DSP chip
P2.0 11 I/O Port 2.0 of the microcontroller
P2.1 12 I/O Port 2.1 of the microcontroller
GP3/WSO 13 I/O general purpose pin 3 or master word select output for extra DSP chip
GP4/BCKO 14 I/O general purpose pin 4 or master bit clock output for extra DSP chip
SHTCB 15 I shift clock TCB input (active HIGH)
n.c. 16 − not connected
D− 17 I/O negative data line of the differential data bus conform to the USB-standard
P2.2 18 I/O Port 2.2 of the microcontroller
P2.3 19 I/O Port 2.3 of the microcontroller
D+ 20 I/O positive data line of the differential data bus conform to the USB-standard
P2.4 21 I/O Port 2.4 of the microcontroller
P2.5 22 I/O Port 2.5 of the microcontroller
P2.6 23 I/O Port 2.6 of the microcontroller
P2.7 24 I/O Port 2.7 of the microcontroller
V

DDI

25 − digital supply voltage core
n.c. 26 − not connected
n.c. 27 − not connected
n.c. 28 − not connected
V
V

SSI
SSE

29 − digital ground core

30 − digital ground I/O pins
n.c. 31 − not connected
V

DDE

32 − digital supply voltage I/O pins
n.c. 33 − not connected
n.c. 34 − not connected
n.c. 35 − not connected
V

SSX

36 − crystal oscillator ground
XTAL1 37 I crystal oscillator input 1
XTAL2 38 O crystal oscillator output 2
V

DDX

39 − crystal oscillator supply voltage
n.c. 40 − not connected

2

C-bus)

2

C-bus)

1998 Oct 06 5

Philips Semiconductors Preliminary specification

Universal Serial Bus (USB) Audio
Playback Peripheral (APP)

SYMBOL PIN I/O DESCRIPTION

n.c. 41 − not connected
V

ref

n.c. 43 − not connected
V

SSA

V

DDA

VOUTR 46 O right channel output voltage
n.c. 47 − not connected
n.c. 48 − not connected
V

SSO

n.c. 50 − not connected
V

DDO

n.c. 52 − not connected
VOUTL 53 O left channel output voltage
n.c. 54 − not connected
TC 55 I test control input (active HIGH)
P0.0 56 I/O Port 0.0 of the microcontroller
P0.1 57 I/O Port 0.1 of the microcontroller
P0.2 58 I/O Port 0.2 of the microcontroller
P0.3 59 I/O Port 0.3 of the microcontroller
P0.4 60 I/O Port 0.4 of the microcontroller
RTCB 61 I asynchronous reset input for test control box (active HIGH)
P0.5 62 I/O Port 0.5 of the microcontroller
P0.6 63 I/O Port 0.6 of the microcontroller
GP0/BCKI 64 I/O general purpose pin 0 or master bit clock input

42 O reference output voltage

44 − analog ground

45 − analog supply voltage

49 − operational amplifier ground

51 − operational amplifier supply voltage

UDA1331H

1998 Oct 06 6

Philips Semiconductors Preliminary specification

Universal Serial Bus (USB) Audio
Playback Peripheral (APP)

handbook, full pagewidth

P0.6

P0.5

63

62

n.c.

GP5/WSI

SCL
SDA
P0.7

EA

GP1/DI

PSEN

ALE

GP2/DO

P2.0
P2.1

GP3/WSO

GP4/BCKO

SHTCB

n.c.

D−
P2.2
P2.3

GP0/BCKI

64
1
2
3
4
5
6
7
8
9

10
11
12
13
14
15
16
17
18
19

RTCB
61

P0.4

P0.3

60

59

UDA1331H

P0.2
58

P0.1
57

P0.0
56

TC
55

n.c.

54

n.c.

VOUTL
53

UDA1331H

52

V

51

DDO

n.c.

50

V

49

SSO

n.c.

48

n.c.

47

VOUTR

46

V

45

DDA

V

44

SSA

n.c.

43

V

42

REF

n.c.

41

n.c.

40

V

39

DDX

XTAL2

38

XTAL1

37

V

36

SSX

n.c.

35

n.c.

34

n.c.

33

20

21

22

23

24

25

D+

P2.4

P2.5

P2.6

P2.7

V

DDI

Fig.2 Pin configuration.

1998 Oct 06 7

26

n.c.

27

n.c.

28
n.c.

V

29

SSI

30

SSE

V

31

n.c.

32

DDE

V

MBK528

Philips Semiconductors Preliminary specification

Universal Serial Bus (USB) Audio
Playback Peripheral (APP)

FUNCTIONAL DESCRIPTION
All bold-faced parameters given in this data sheet

such as ‘bAlternateSetting’ are part of the USB
specification as described in

Definition for Audio Devices”

The Universal Serial Bus (USB)

Data and power are transferred via the USB by a 4-wire
cable. The signalling occurs via two wires and
point-to-point segments. The signals on each segment are
differentially driven into a cable of 90 Ω intrinsic
impedance. The differential receiver features input
sensitivity of at least 200 mV and sufficient common mode
rejection.

The analog front-end

The analog front-end is an on-chip generic USB
transceiver. It is designed to allow voltage levels up to V
from standard or programmable logic to interface with the
physical layer of the USB. It is capable of receiving and
transmitting serial data at full speed (12 Mbits/s).

The USB processor

The USB processor forms the interface between the
analog front-end, the ADAC and the microcontroller.
The USB processor consists of:

• The Philips Serial Interface Engine (PSIE)

• The Memory Management Unit (MMU)

• The Audio Sample Redistribution (ASR) module.

“USB Device Class

.

DD

UDA1331H

The PSIE is the digital front-end of the USB processor.
This module recovers the 12 MHz USB clock, detects the
USB sync word and handles all low-level USB protocols
and error checking.

The MMU is the digital back-end of the USB processor.
It handles the temporary data storage of all USB packets
that are received or sent over the bus. Three types of
packets are defined on the USB. These are:

• Token packets

• Data packets

• Handshake packets.

The token packet contains information about the
destination of the data packet. The audio data is
transferred via an isochronous data sink endpoint and
consequently no handshaking mechanism is used.
The MMU also generates a 1 kHz clock that is locked to
the USB Start-Of-Frame (SOF) token.

T

HE AUDIO SAMPLE REDISTRIBUTION (ASR) MODULE

The ASR module reads the audio samples from the MMU
and distributes these samples equidistant over a 1 ms
frame period. The distributed audio samples are translated
by the digital I/O module to standard I2S-bus format or
Japanese digital I/O format. The ASR module generates
the bit clock and the word select signal of the digital I/O.
The digital I/O formats the received audio samples to one
of the four specified serial digital audio formats
(standard I2S-bus, 16, 18 or 20 bits LSB-justified).

The microcontroller

T

HE PHILIPS SERIAL INTERFACE ENGINE AND MEMORY

MANAGEMENT UNIT (PSIE AND MMU)
The PSIE and MMU translate the electrical USB signals

into bytes and signals. Depending upon the USB device
address and the USB endpoint address, the USB data is
directed to the correct endpoint buffer on the PSIE and
MMU interface. The data transfer could be of the bulk,
isochronous, control or interrupt type. The USB device
address is configured during the enumeration process.
The UDA1331H has three endpoints. These are:

• Control endpoint 0

• Status interrupt endpoint

• Isochronous data sink endpoint.

The amount of bytes per packet on the control endpoint is
limited by the PSIE and MMU hardware to 8 bytes per
packet.

1998 Oct 06 8

The microcontroller receives the control information
selected from the USB by the USB processor. It handles
the high-level USB protocols and the user interfaces.

The major task of the software process, that is mapped
upon the microcontroller, is to control the different modules
of the UDA1331H in such a way that it behaves as a USB
device. Therefore the microcontroller:

• Interprets the USB requests and maps them upon the
UDA1331H application

• Controls the internal operation of the UDA1331H and
the digital I/O pins

• Communicates with the external world (EEPROM) using

2

the I

C-bus facility and the general purpose I/O pins.

The firmware must be located in an external (E)PROM.
The UDA1331H will be delivered with standard USB
compliant firmware.

Philips Semiconductors Preliminary specification

Universal Serial Bus (USB) Audio
Playback Peripheral (APP)

The Asynchronous Digital-to-Analog Converter (ADAC)

The ADAC receives USB audio information from the USB
processor or from the digital I/O-bus. The ADAC is able to
reconstruct the sample clock from the rate at which the
audio samples arrive and handles the audio sound
processing. After processing, the audio signal is
up-sampled, noise-shaped and converted to analog output
voltages capable of driving a line output. The ADAC
consists of:

• A Sample Frequency Generator (SFG)

• First-In First-Out (FIFO) registers

• An audio feature processing DSP

• Two digital up-sample filters

• A variable hold register

• A digital Noise Shaper (NS)

• A Filter Stream DAC (FSDAC) with integrated filter and

line output drivers.

THE SAMPLE FREQUENCY GENERATOR (SFG)
The SFG controls the timing signals for the asynchronous

digital-to-analog conversion. By means of a digital PLL,
the SFG automatically recovers the applied sampling
frequency and generates the accurate timing signals for
the audio feature processing DSP and the up-sample
filters.

IRST-IN FIRST-OUT (FIFO) REGISTERS

F
The FIFO registers are used to store the audio samples

temporarily coming from the USB processor or from the
digital I/O input. The use of a FIFO register (in conjunction
with the SFG) is necessary to remove all jitter present on
the incoming audio signal.

T

HE AUDIO FEATURE PROCESSING DSP

A DSP processes the sound features. The control and
mapping of the sound features is explained in Section
“Controlling the USB Audio Playback Peripheral (APP)”.
Depending on the sampling rate (fs) the DSP has four
frequency domains in which the treble and bass are
regulated (see Table 1). The domain is chosen
automatically.

T

HE UP-SAMPLE FILTERS AND VARIABLE HOLD REGISTER

After the audio feature processing DSP two up-sample
filters and a variable hold register increase the
oversampling rate to 128fs.

UDA1331H

Table 1 Frequency domains for audio processing

DOMAIN SAMPLE FREQUENCY (kHz)

1 5 to 12
212to25
325to40
440to55

HE NOISE SHAPER

T
A 3rd-order noise shaper converts the oversampled data

to a noise-shaped bitstream for the FSDAC. The in-band
quantization noise is shifted to frequencies well above the
audio band.

T

HE FILTER STREAM DAC (FSDAC)

The FSDAC is a semi-digital reconstruction filter that
converts the 1-bit data stream of the noise shaper to an
analog output voltage. The filter coefficients are
implemented as current sources and are summed at
virtual ground of the output operational amplifier. In this
way very high signal-to-noise performance and low clock
jitter sensitivity is achieved. A post filter is not needed
because of the inherent filter function of the DAC.
On-board amplifiers convert the FSDAC output current to
an output voltage signal capable of driving a line output.

USB Audio Playback Peripheral (APP) descriptors

In a typical USB environment the USB host has to know
which kind of devices are connected. For this purpose
each device contains a number of USB descriptors. These
descriptors describe, from different points of view (USB
configuration, USB interface and USB endpoint), the
capabilities of a device. Each of them can be requested by
the host. The collection of descriptors is denoted as a
descriptor map. This descriptor map will be reported to the
USB host during enumeration and on request.

The full descriptor map is implemented in the firmware
exploiting the full functionality of the UDA1331H. The USB
descriptors and their most important fields, in relationship
to the characteristics of the UDA1331H are briefly
explained below.

G

ENERAL DESCRIPTORS

The UDA1331H supports one configuration containing a
control interface, an audio interface and a HID interface.
The descriptor map that describes this configuration is
partly fixed and partly programmable.

1998 Oct 06 9

Philips Semiconductors Preliminary specification

Universal Serial Bus (USB) Audio
Playback Peripheral (APP)

handbook, full pagewidth

INPUT TERMINAL

IT

Fig.3 Audio function topology.

The programmable part can be retrieved from one of four
configuration maps located in the (E)PROM or from an
I2C-bus EEPROM. At start-up one of four configuration
maps can be selected depending on the logical
combination of GP3 and GP0. It is possible to overwrite
this configuration map with a configuration map loaded
from an I2C-bus EEPROM.

A

UDIO DEVICE CLASS SPECIFIC DESCRIPTORS

The audio device class is partly specified with standard
descriptors and partly with specific audio device class
descriptors. The standard descriptors specify the number
and the type of the interface or endpoint. The UDA1331H
supports 7 different audio modes:

• 8-bit Pulse Code Modulation (PCM) mono or stereo
audio data

• 16-bit PCM mono or stereo audio data

• 24-bit PCM mono or stereo audio data

• Zero bandwidth mode.

Each mode is defined as an alternate setting of the audio
interface, selectable with the standard audio streaming
interface descriptor bAlternateSetting field.

The seven alternate settings are described in more detail
by the specific audio device class descriptors.

The UDA1331H supports the Input Terminal (IT), Output
Terminal (OT) and the Feature Unit (FU) descriptors.

The input and output terminals are not controllable via the
USB. The feature unit provides the basic manipulation of
the incoming logical channels.

The supported sound features are:

• Volume control

• Mute control

• Treble control

• Bass control

• Bass boost control.

FEATURE UNIT

FU

UDA1331H

OUTPUT TERMINAL

OT

MBK530

Table 2 Audio bandwidth at each audio mode

AUDIO MODE wMaxPacketSize

8-bit PCM; mono 56 (
8-bit PCM; stereo 112 (
16-bit PCM; mono 112 (
16-bit PCM; stereo 224 (
24-bit PCM; mono 168 (
24-bit PCM; stereo 336 (

The maximum number of audio data samples within a USB
packet arriving on the isochronous sink endpoint is
restricted by the buffer capacity of this isochronous
endpoint. The maximum buffer capacity is 336 bytes/ms.

For each alternate setting with audio, a maximum
bandwidth is claimed as indicated in the standard
isochronous audio data endpoint descriptor
wMaxPacketSize field. To allow a small overshoot in the
number of audio samples per packet, the top sample
frequency of 55 kHz is taken in the calculation of the
bandwidth for each alternate setting. For each alternate
setting, with its own isochronous audio data endpoint
descriptor, wMaxPacketSize field is then defined as
described in Table 2.

Although in a specific UDA1331H application no endpoint
control properties can be used upon the isochronous
adaptive sink endpoint, the descriptors are still necessary
to inform the host about the definition of this endpoint:
isochronous, adaptive, sink, continuous sampling
frequency (at input side of this endpoint) with lower bound
of 5 kHz and upper bound of 55 kHz.

The audio class specific descriptors can be requested with
the ‘Get descriptor: configuration request’, which returns
all the descriptors, except the device descriptor.

8

⁄8× 1 × 56)

8

⁄8× 2 × 56)

16

⁄8× 1 × 56)

16

⁄8× 2 × 56)

24

⁄8× 1 × 56)

24

⁄8× 2 × 56)

1998 Oct 06 10

Philips Semiconductors Preliminary specification

Universal Serial Bus (USB) Audio
Playback Peripheral (APP)

HUMAN INTERFACE DEVICE SPECIFIC DESCRIPTORS
The inputs defined on the UDA1331H are transmitted via

the USB to the host according to the HID class. The host
responds with the appropriate settings via the audio device
class for the audio related parts or via the HID class for the
HID related inputs and outputs of the UDA1331H.

A HID descriptor is necessary to inform the host about the
conception of the user interface. The host communicates
via the HID device driver using either the control pipe or
the interrupt pipe. The UDA1331H uses USB endpoint 0
(control pipe) to respond to the HID specific ‘Get/set report
request’ to receive or transmit data from or to the
UDA1331H. The UDA1331H uses the status interrupt
endpoint as interrupt pipe for polling asynchronous data.

The UDA1331H is a high-speed device. The maximum
transaction size is 64 bytes per USB frame and the polling
rate is defined at a maximum of every 1 ms.

The host requests the configuration descriptor which
includes the standard interface descriptor, the HID
endpoint descriptor and the HID descriptor. The HID
device driver of the host then requests the report
descriptor.

Report descriptors are composed of pieces of information
about the device. Each piece of information is called an
item. All items have a 1-byte prefix that contains the item
tag, type and size. In the UDA1331H only the short item
basic type is used.

The hosts HID device driver will parse the report descriptor
and the defined items. By examining all of these items, the
HID class driver is able to determine the size and
composition of data reports from the device.

The main items of the UDA1331H are input and output
reports. Input reports are sent via the interrupt pipe
(UDA1331H USB address 3). Input and output reports can
be requested by the host via the control endpoint (USB
address 0).

The UDA1331H supports a maximum of three
pushbuttons, which represents a certain feature of the
UDA1331H. If pressed by the user the pushbutton will go
to its ‘ON’ state, if not pressed the pushbutton will go back
to its ‘OFF’ state. The UDA1331H supports a maximum of
two outputs for e.g. user LEDs.

UDA1331H

Controlling the USB Audio Playback Peripheral (APP)

This section describes the functionality of the feature unit
of the UDA1331H. The mapping of this functionality onto
USB descriptors is as implemented in the firmware.

The sound features as defined in the

Definition for Audio Devices”

UDA1331H specific feature registers by the
microcontroller. These specific sound features are:

• Volume control (separate for left and right stereo
channels, no master channel)

• Mute control (only master channel)

• Treble control (only master channel)

• Bass control (only master channel)

• Dynamic bass boost control (only master channel).

These specific features can be activated via the host
(audio device class requests) or via the GP pins (HID plus
audio device class requests). Via the I2C-bus the user is
able to download the necessary configuration data for
different applications (definition of the function of the GP
pins, with or without digital I/O functionality, etc.).
The mapping and control of the standard USB audio
features and UDA1331H specific features is described
below.

V

OLUME CONTROL

Volume control is possible via the host or via predefined
GP pins. The setting of 0 dB is always referenced to the
maximum available volume setting. Table 3 gives the
mapping of wVolume value (as defined in the

are mapped on the

Device Class Definition for Audio Devices”

actual volume setting of the USB APP. When using the
UDA1331H, the range is 0 down to −60 dB (in steps of
1 dB) and −∞ dB. Independant control of ‘left’/’right’
volume is possible. It should be noted that wVolume
bits B7 to B0 are not used. Values above 0 dB are
returned as 0 dB. The volume value at start-up of the
device is defined in the selected configuration map.

Balance control is possible via the separate volume control
option of both channels. Therefore the characteristics of
the balance control are equal to the volume control
characteristics.

“USB Device Class

“USB

) upon the

For more information about the input and output functions
of the UDA1331H see the application documentation of
the device.

1998 Oct 06 11

Philips Semiconductors Preliminary specification

Universal Serial Bus (USB) Audio

UDA1331H

Playback Peripheral (APP)

Table 3 Volume control characteristics

wVOLUME

B15 B14 B13 B12 B11 B10 B9 B8

00000000 0 0
11111111 −1 −1
11111110 −2 −2
11111101 −3 −3
11111100 −4 −4
11111011 −5 −5
11111010 −6 −6
11111001 −7 −7
11111000 −8 −8
11110111 −9 −9
11110110 −10 −10

... ... ... ... ... ... ... ... ... ...

11000101 −59 −59
11000100 −60 −60
11000011 −61 −∞
11000010 −62 −∞

... ... ... ... ... ... ... ... ... ...

10000000 −∞ −∞

VOLUME USB SIDE

(dB)

VOLUME USB APP

(dB)

MUTE CONTROL
Mute is one of the sound features as defined in the

Device Class Definition for Audio Devices”

control request data bMute controls the position of the
mute switch. The position can be either on or off. When
bMute is true the feature unit is muted. When bMute is
false the feature unit is not muted.

When the mute is active for the master channel, the value
of the sample is decreased smoothly to zero following a
raised cosine curve. There are 32 coefficients used to step
down the value of the data, each one being used 32 times
before stepping to the next.

. The mute

“USB

This amounts to a mute transition of 23 ms at

= 44.1 kHz. When the mute is released, the samples are

f

s

returned to the full level again following a raised cosine
curve with the same coefficients being used in reversed
order. The mute, on the master channel is synchronized to
the sample clock, so that operation always takes place on
complete samples.

A mute can be given via the host or by pressing a
predefined GP pin.

1998 Oct 06 12

Philips Semiconductors Preliminary specification

Universal Serial Bus (USB) Audio

UDA1331H

Playback Peripheral (APP)

TREBLE CONTROL
The treble control is available for the master channel of the UDA1331H. Treble can be regulated in three modes:

minimum, flat and maximum mode. The preferred mode is selected at start-up of the device (configuration map).
The corner frequency is 3000 Hz for the minimum mode and 1500 Hz for the maximum mode. The treble range is from
0 to 6 dB in steps of 2 dB. It should be noted that the negative treble values as defined in the

Definition for Audio Devices”

mapping of the bTreble value upon the actual treble setting of the USB APP.

Table 4 Treble control characteristics

B7 B6 B5 B4 B3 B2 B1 B0 minimum flat maximum

0 0 0 0 0 0 0 0 0.00 0 0 0
0 0 0 0 0 0 0 1 0.25
0 0 0 0 0 0 1 0 0.50
0 0 0 0 0 0 1 1 0.75
0 0 0 0 0 1 0 0 1.00
0 0 0 0 0 1 0 1 1.25 2 0 2
0 0 0 0 0 1 1 0 1.50
0 0 0 0 0 1 1 1 1.75
0 0 0 0 1 0 0 0 2.00
0 0 0 0 1 0 0 1 2.25
0 0 0 0 1 0 1 0 2.50
0 0 0 0 1 0 1 1 2.75
0 0 0 0 1 1 0 0 3.00
0 0 0 0 1 1 0 1 3.25 4 0 4

0 0 0 1 0 1 0 1 5.25 6 0 6

0 0 0 1 1 1 0 1 7.25 6 0 6

0 0 1 0 0 1 0 1 9.25 6 0 6

0 1 1 1 1 1 1 1 31.75 6 0 6

are not supported by the UDA1331H; the 0 dB value is returned as 0 dB. Table 4 gives the

bTREBLE

TREBLE USB

SIDE (dB)

...

...

...

...

“USB Device Class

TREBLE USB APP (dB)

1998 Oct 06 13

Philips Semiconductors Preliminary specification

Universal Serial Bus (USB) Audio

UDA1331H

Playback Peripheral (APP)

BASS CONTROL
The bass control is available for the master channel of the UDA1331H. Bass can be regulated in three modes: minimum,

flat and maximum mode. The preferred mode is selected at start-up of the device (configuration map). The Bass range
is from 0 to about 14 dB (minimum mode) or about 24 dB (maximum mode) in steps of 2 dB. It should be noted that the
negative bass values as defined in the
UDA1331H; the 0 dB value is returned as 0 dB. The maximum Bass value which will be reported to the host is always
24 dB independent of the mode. The maximum mode is the most accurate mode when the Bass values are reported to
the host. The corner frequency is 100 Hz for the minimum mode and 75 Hz for the maximum mode. Table 5 gives the
mapping of the bBass value upon the actual bass setting of the USB APP.

Table 5 Bass control characteristics

bBASS

B7 B6 B5 B4 B3 B2 B1 B0 minimum flat maximum

0 0 0 0 0 0 0 0 0.00 0 0 0
0 0 0 0 0 0 0 1 0.25
0 0 0 0 0 0 1 0 0.50
0 0 0 0 0 0 1 1 0.75
0 0 0 0 0 1 0 0 1.00
0 0 0 0 0 1 0 1 1.25 1.1 0 1.7
0 0 0 0 0 1 1 0 1.50
0 0 0 0 0 1 1 1 1.75
0 0 0 0 1 0 0 0 2.00
0 0 0 0 1 0 0 1 2.25
0 0 0 0 1 0 1 0 2.50
0 0 0 0 1 0 1 1 2.75
0 0 0 0 1 1 0 0 3.00
0 0 0 0 1 1 0 1 3.25 2.4 0 3.6

0 0 0 1 0 1 0 1 5.25 3.7 0 5.4

0 0 0 1 1 1 0 1 7.25 5.2 0 7.4

0 0 1 0 0 1 0 1 9.25 6.8 0 9.4

0 0 1 0 1 1 0 1 11.25 8.4 0 11.3

0 0 1 1 0 1 0 1 13.25 10.2 0 13.3

0 0 1 1 1 1 0 1 15.25 11.9 0 15.2

0 1 0 0 0 1 0 1 17.25 13.7 0 17.3

“USB Device Class Definition for Audio Devices”

BASS USB

SIDE (dB)

...

...

...

...

...

...

...

...

are not supported by the

BASS USB APP (dB)

1998 Oct 06 14

Philips Semiconductors Preliminary specification

Universal Serial Bus (USB) Audio

UDA1331H

Playback Peripheral (APP)

bBASS

B7 B6 B5 B4 B3 B2 B1 B0 minimum flat maximum

0 1 0 0 1 1 0 1 19.25 13.7 0 19.2

0 0 1 1 1 0 1 1 21.25 13.7 0 21.2

0 1 0 1 0 1 0 1 23.25 13.7 0 23.2

0 1 1 0 0 1 0 1 25.25 13.7 0 23.2

0 1 1 0 1 1 0 1 27.25 13.7 0 23.2

0 1 1 1 0 1 0 1 29.25 13.7 0 23.2

0 1 1 1 1 1 0 1 31.25 13.7 0 23.2

0 1 1 1 1 1 1 1 31.75 13.7 0 23.2

BASS USB

SIDE (dB)

...

...

...

...

...

...

...

BASS USB APP (dB)

DYNAMIC BASS BOOST CONTROL
Bass boost is one of the sound features as defined in the

“USB Device Class Definition for Audio Devices”

The bass boost control request databBassBoost controls
the position of the bass boost switch. The position can be
either on or off. When bBassBoost is true the bass boost
is activated. When bBassBoost is false the bass boost is
off.

When clipping prevention is active, the bass is reduced to
avoid clipping with high volume settings. Bass boost is
selectable via the configuration map (see Table 6).
If byte 19H is loaded with 00H, bass boost is not reported
to the USB host by the device.

.

Clipping prevention

If the maximum of the bass plus volume gives clipping, the
Bass is reduced. Clipping prevention is selectable via the
configuration map.

De-emphasis

De-emphasis is one of the properties which is not
supported by the USB. De-emphasis for 44.1 kHz can be
predefined in the configuration map selected at start-up of
the UDA1331H.

1998 Oct 06 15

Philips Semiconductors Preliminary specification

Universal Serial Bus (USB) Audio
Playback Peripheral (APP)

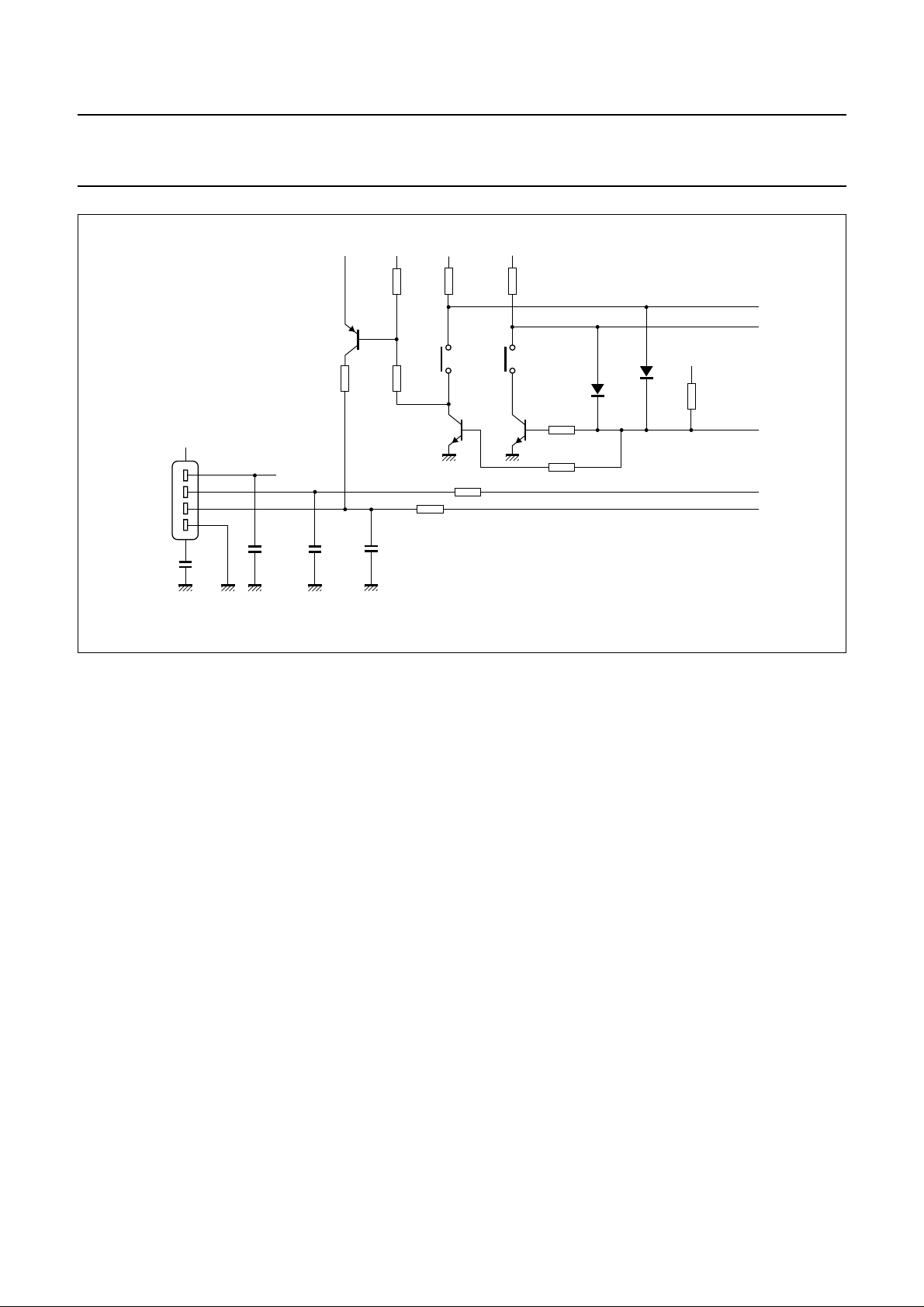

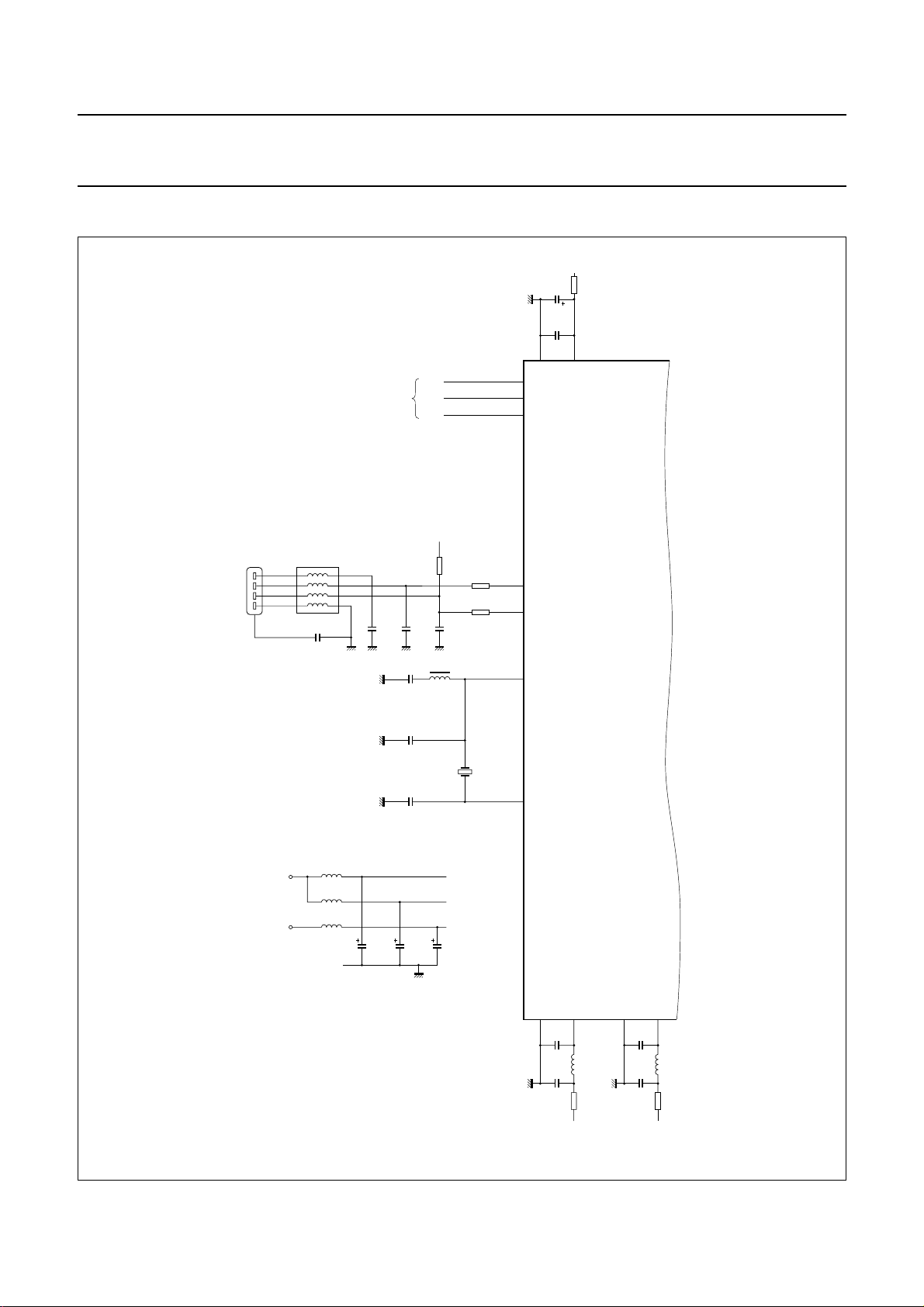

handbook, full pagewidth

USB-B

connector

5

6

10 nF

1
2
3
4

V

10 nF

bus

3.3 V 3.3 V 3.3 V 3.3 V

TR3

1.5 kΩ

22 pF 22 pF

22 kΩ

22 kΩ

TR1 TR2

22 Ω

22 kΩ 22 kΩ

KEY 1

SW1

22 Ω

KEY 2

SW2

22 kΩ

22 kΩ

UDA1331H

GP0
GP3

1

V

bus

1

D2

2

D1

2

22 kΩ

GP5

D−
D+

MGM109

Fig.4 Diode matrix selection.

Start-up and configuration of the UDA1331H

TART-UP OF THE UDA1331H

S
After power-on, an internal power-on reset signal becomes

HIGH after a certain RC-time (R = 5 kΩ and C = C

ref

).
During 10 ms after power-on reset the UDA1331H has to
initiate the internal settings. After the power-on reset the
UDA1331H becomes master of the I2C-bus.
The UDA1331H tries to read the eventually connected
EEPROM and if an EEPROM is detected, the internal
descriptors are overwritten and the selected port
configuration is applied. If no EEPROM is detected, the
UDA1331H tries to read the logical levels of GP3 and GP0.
A choice can be made from four configuration maps via
these two pins.

C

ONFIGURATION SELECTION OF THE UDA1331H VIA A DIODE

MATRIX

The UDA1331H uses a configuration map to hold a
number of specific configurable data on hardware,
product, component and USB configuration level.
At start-up without EEPROM, the UDA1331H will scan the
logical levels of GP3 and GP0. With these two pins it is
possible to select one of the four possible (vendor specific)
configuration maps which are held in the external
(E)PROM. This selection can be achieved via a diode
matrix (see Fig.4).

After selecting a configuration map the user cannot
change the chosen settings for the GP pins, internal
configuration, descriptors, etc.

For more information about the four (vendor specific)
configuration maps located in the (E)PROM and the diode
matrix see the application documentation.

C

ONFIGURATION OPTIONS OF THE UDA1331H VIA AN

I2C-BUS EEPROM
If an EEPROM is detected (reading byte 0 as AAH and

byte 1 as 55H), the UDA1331H will use the configuration
map in the EEPROM instead of one of four configuration
maps. The layout of the configuration map is fixed, the
values (except bytes 0 and 1) are user definable
(see Table 6). If the user wants to change these values
(the manufacturers name for instance), this can be
achieved via the EEPROM code.

The communication between the UDA1331H and the
external I2C-bus device is based on the standard I2C-bus
protocol given in the Philips specification

how to use it (including specifications)”

“The I2C-bus and

, which can be
ordered using the code 9398 393 40011. The I2C-bus has
two lines: a clock line SCL and a serial data line SDA
(see Fig.5).

1998 Oct 06 16

This text is here in white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here in

_white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here inThis text is here in

white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader. white to force landscape pages to be ...

1998 Oct 06 17

SDA

Philips Semiconductors Preliminary specification

Universal Serial Bus (USB) Audio

Playback Peripheral (APP)

SCL

t

BUF

P

S

t

LOW

t

HD;STA

t

r

t

HD;DAT

t

HIGH

t

f

t

SU;DAT

t

SU;STA

Sr

t

HD;STA

t

SP

t

SU;STO

MBC611

P

UDA1331H

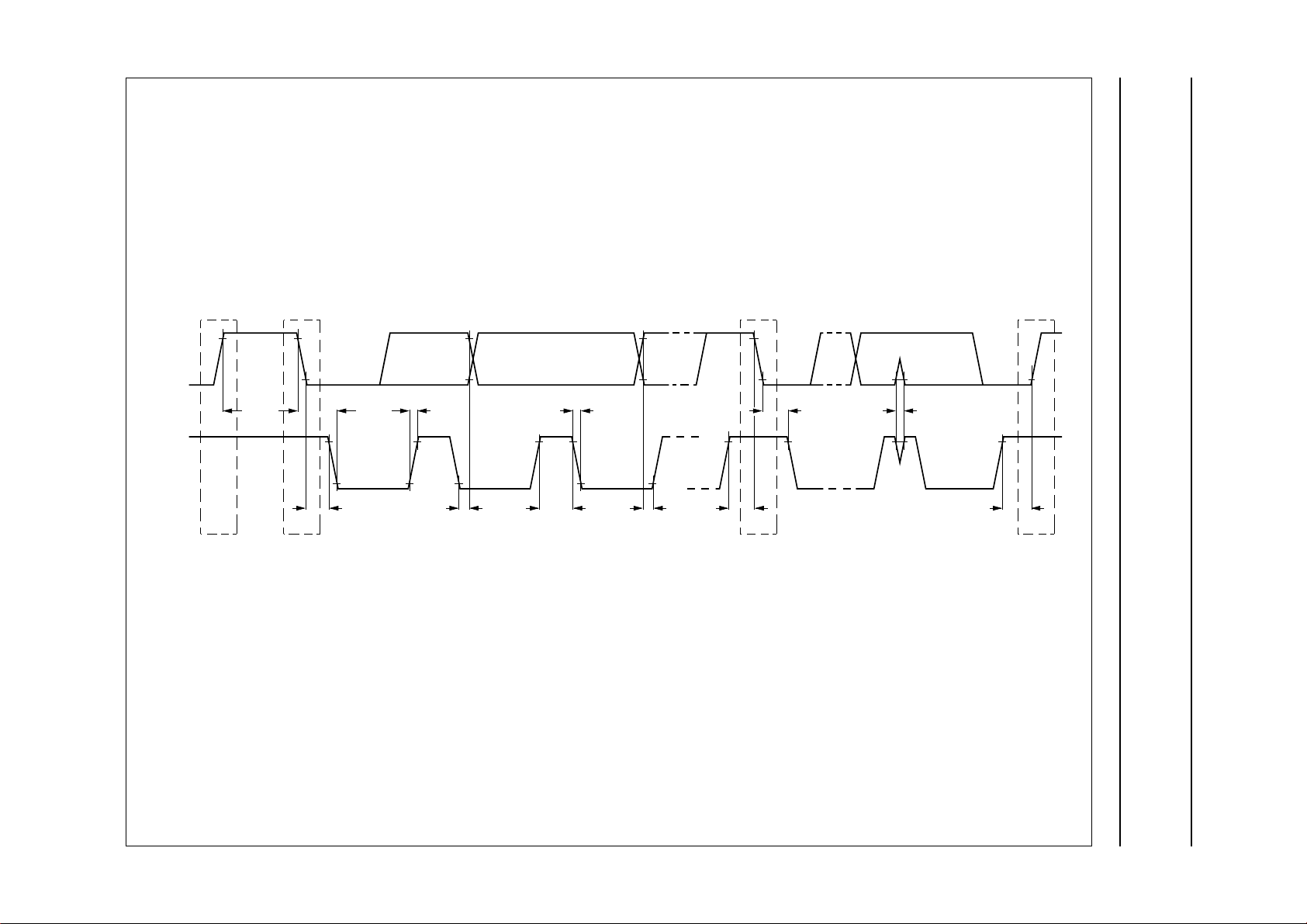

Fig.5 Definition of timing of the I2C-bus.

handbook, full pagewidth

Philips Semiconductors Preliminary specification

Universal Serial Bus (USB) Audio
Playback Peripheral (APP)

Table 6 Control options for the UDA1331H via the EEPROM configuration map; note 1

BYTE
(HEX)

0 − recognition pattern; do not change it AAH
1 − recognition pattern; do not change it 55H
2 ASR control register robust word clock 7 0 = off

3 ADAC mode register 0 selection ADAC mode register 7 0

REGISTER

NAME

COMMENTS BIT VALUE

2

serial I

phase inversion 4 0 = mono phase inversion off

bits per sample modi 3 and 2 00 = reserved

audio mode 1 0 = mono

ASR register start-up mode 0 0 = stop

audio feature mode 6 and 5 00 = flat

de-emphasis 4 0 = de-emphasis off

channel manipulation 3 0 = L ⇒ L, R ⇒ R

synchronous/asynchronous control 2 0 = asynchronous

mute control 1 0 = no mute

reset ADAC 0 0 = no reset ADAC

S-bus output format 6 and 5 00 = I2S-bus

UDA1331H

1=on

01 = 16-bit LSB
10 = 18-bit LSB
11 = 20-bit LSB

1 = mono phase inversion on

01 = 8-bit audio
10 = 16-bit audio
11 = 24-bit audio

1 = stereo

1=go

01 = minimum
10 = minimum
11 = maximum

1 = de-emphasis on

1=L⇒R, R ⇒ L

1 = synchronous

1 = mute active

1 = reset ADAC

1998 Oct 06 18

Philips Semiconductors Preliminary specification

Universal Serial Bus (USB) Audio

UDA1331H

Playback Peripheral (APP)

BYTE
(HEX)

4 ADAC mode register 1 selection ADAC mode register 7 1

5 I/O selection register clipping 7 0 = clipping prevention off

6 GP0 Usage Page if HID selected
7 GP0 Usage if HID selected
8 reserved

9 reserved
A GP3 Usage Page if HID selected
B GP3 Usage if HID selected
C reserved
D reserved
E GP4 Usage Page if HID selected

F GP4 Usage if HID selected

10 reserved

REGISTER

NAME

COMMENTS BIT VALUE

digital PLL lock speed 6 and 5 00 = lock after 512 samples

01 = lock after 2048 samples
10 = lock after 4096 samples
11 = lock after 16384 samples

digital PLL lock mode 4 0 = adaptive

1 = fixed

digital PLL mode 3 and 2 00 = adaptive

01 = fixed state 1
10 = fixed state 2
11 = fixed state 3

2

serial I

I

4/6 pins I
general purpose pins (GP0 to GP5)”)

GP4 4 0 = function 1
GP3 3
GP2 2
GP1 1
GP0 0

S-bus input format 1 and 0 00 = I2S-bus

01 = 16-bit LSB
10 = 18-bit LSB
11 = 20-bit LSB

1 = clipping prevention on

2

S-bus usage 6 0 = no I2S-bus used

1=I2S-bus used

2

S-bus (see Section “The

5 only if I2S-bus is used;

0 = 4 pins I2S-bus
1 = 6 pins I2S-bus

1 = function 2
(see Tables 7, 8 and 9)

1998 Oct 06 19

Philips Semiconductors Preliminary specification

Universal Serial Bus (USB) Audio

UDA1331H

Playback Peripheral (APP)

BYTE
(HEX)

11 GP1 and GP2 outputs

12 GP1 Usage Page if HID selected
13 GP1 Usage if HID selected
14 GP2 Usage Page if HID selected
15 GP2 Usage if HID selected
16 time between releasing standby and

17 time between ‘no isochronous data

18 time between activating the mute

19 default bass boost value on top of

1A default volume value of USB APP volume = −register value
1B idVendor high byte
1C idVendor low byte
1D idProduct high byte
1E idProduct low byte

1F bmAttributes
20 maximum power steps of 2 mA with

REGISTER

NAME

definition register

COMMENTS BIT VALUE

reserved 7
reserved 6
application GP2 function 2 5 0 = HID output 2

1 = LED output 2 (activated
when DBB is active)

application GP1 function 2 4 0 = HID output 1

1 = LED output 1 (activated

when mute is active)
polarity GP2 function 1 3 normal or inversed output
polarity GP1 function 1 2
polarity GP2 function 2 1
polarity GP1 function 2 0

enabling the audio output; steps of
20 ms

present’ and activating the mute
output; steps of 1 s; (only applicable
for function 1; no digital I/O
communication)

output and activating the standby
output; steps of 5 s; (only applicable
for function 1; no digital I/O
communication). When filled with zero
standby will not be activated.

Bass USB APP for Dynamic Bass
Boost (DBB); see Table 5

maximum 500 mA

functionality:

0 = according Table 7

1 = inversed

bass boost = register value; if

bass boost + Bass USB APP

is larger then the maximum

value of T able 5, the maximum

value is used (no bass boost

in flat mode)

1998 Oct 06 20

Philips Semiconductors Preliminary specification

Universal Serial Bus (USB) Audio

UDA1331H

Playback Peripheral (APP)

BYTE
(HEX)

21 wTerminalType high byte
22 wTerminalType low byte
23
24
25 pointer language string 32
26 pointer manufacturer string 36
27 pointer product string 46
28 pointer serial number 54

32 ⇒ language string
36 ⇒− manufacturer string
46 ⇒− product string
54 ⇒− serial number; note 2

Notes

1. An extensive description of the USB control options is available in the

Devices”

2. The serial number is only supported in the external configuration map and not in the four internal configuration maps.

REGISTER

NAME

.

COMMENTS BIT VALUE

“USB Device Class Definition for Audio

The general purpose pins (GP0 to GP5)

The UDA1331H has 6 General Purpose (GP) pins; these are pins GP0 to GP5. These can be used either for digital I/O
functions or for general purposes. The configurations presented are as implemented in the standard firmware.

There are basically three port configurations:

• No digital I/O communication

• 4-pins digital I/O communication

• 6-pins digital I/O communication.

These port configurations can be selected via the configuration map at start-up of the UDA1331H.
The user can make a selection between two functions for each of the pins GP0 to GP4 (see byte 5 in Table 6), except if

digital I/O communication is selected (see Tables 7, 8 and 9).

1998 Oct 06 21

Philips Semiconductors Preliminary specification

Universal Serial Bus (USB) Audio

UDA1331H

Playback Peripheral (APP)

Table 7 No digital I/O communication

PIN INPUT/OUTPUT FUNCTION 1 FUNCTION 2

GP5 output; not programmable; note 2 connect/disconnect connect/disconnect
GP4 inputs; programmable; note 1 alarm mute; note 3 HID input 3
GP3 HID input 2 HID input 2
GP0 HID input 1 HID input 1
GP2 outputs; programmable standby; note 4 HID/LED output 2; note 6
GP1 mute; note 5 HID/LED output 1; note 6

Notes

1. The input pins must have a pull-up resistor.

2. Connect/disconnect: holds the USB ‘disconnected’ as long as the initialization is not finished.

3. Alarm mute: input to switch the sound off; specially used if the USB host program does not respond to the control.
This pin acts directly on the sound and passes the mute to the USB host.

4. Standby is switched on (output becomes LOW) after a programmable time if the mute is active (see Byte 18 in
Table 6).

5. Mute is switched on (output becomes LOW) after a programmable time if the isochronous data flow is interrupted
(see Byte 17 in Table 6).

6. For selection between HID/LED application see configuration map byte 11 (output is active HIGH).

Table 8 4-pins digital I/O communication

PIN INPUT/OUTPUT FUNCTION 1 FUNCTION 2

GP5 output; not programmable; note 1 connect/disconnect connect/disconnect
GP4 digital I/O-bus BCKO BCKO
GP3 WSO WSO
GP2 DO DO
GP1 DI DI
GP0 input; programmable HID input 1 alarm mute; note 2

Notes

1. Connect/disconnect: holds the USB ‘disconnected’ as long as the initialization is not finished.

2. Alarm mute: input to switch the sound off; specially used if the USB host program does not respond to the control.
This pin acts directly on the sound and passes the mute to the USB host.

1998 Oct 06 22

Philips Semiconductors Preliminary specification

Universal Serial Bus (USB) Audio

UDA1331H

Playback Peripheral (APP)

Table 9 6-pins digital I/O communication

PIN INPUT/OUTPUT FUNCTION

GP5 digital I/O-bus WSI
GP4 BCKO
GP3 WSO
GP2 DO
GP1 DI
GP0 BCKI

Filter characteristics

The overall filter characteristic of the UDA1331H in flat mode is given in Fig.6. The overall filter characteristic of the
UDA1331H includes the filter characteristics of the DSP in flat mode plus the filter characteristic of the FSDAC

= 44.1 kHz).

(f

s

DSP extension port

An external DSP can be used for adding extra sound processing features via the digital I/O-bus. The UDA1331H
supports the standard I
of 16, 18 and 20 bits. Using the 4-pins digital I/O-bus the UDA1331H device acts as a master, controlling the BCK and
WS signals. The period of the WS signal is determined by the number of samples in the 1 ms frame of the USB. This
implies that the WS signal does not have a constant period time, but is jittery. Using the 6-pins digital I/O-bus GP2, GP3
and GP4 are the output pins (master) and GP0, GP1 and GP5 are the input pins (slave).

2

S-bus data protocol and the LSB-justified serial data input format with word lengths

For characteristic timing of the I2S-bus input interface see Figs 7 and 8.

1998 Oct 06 23

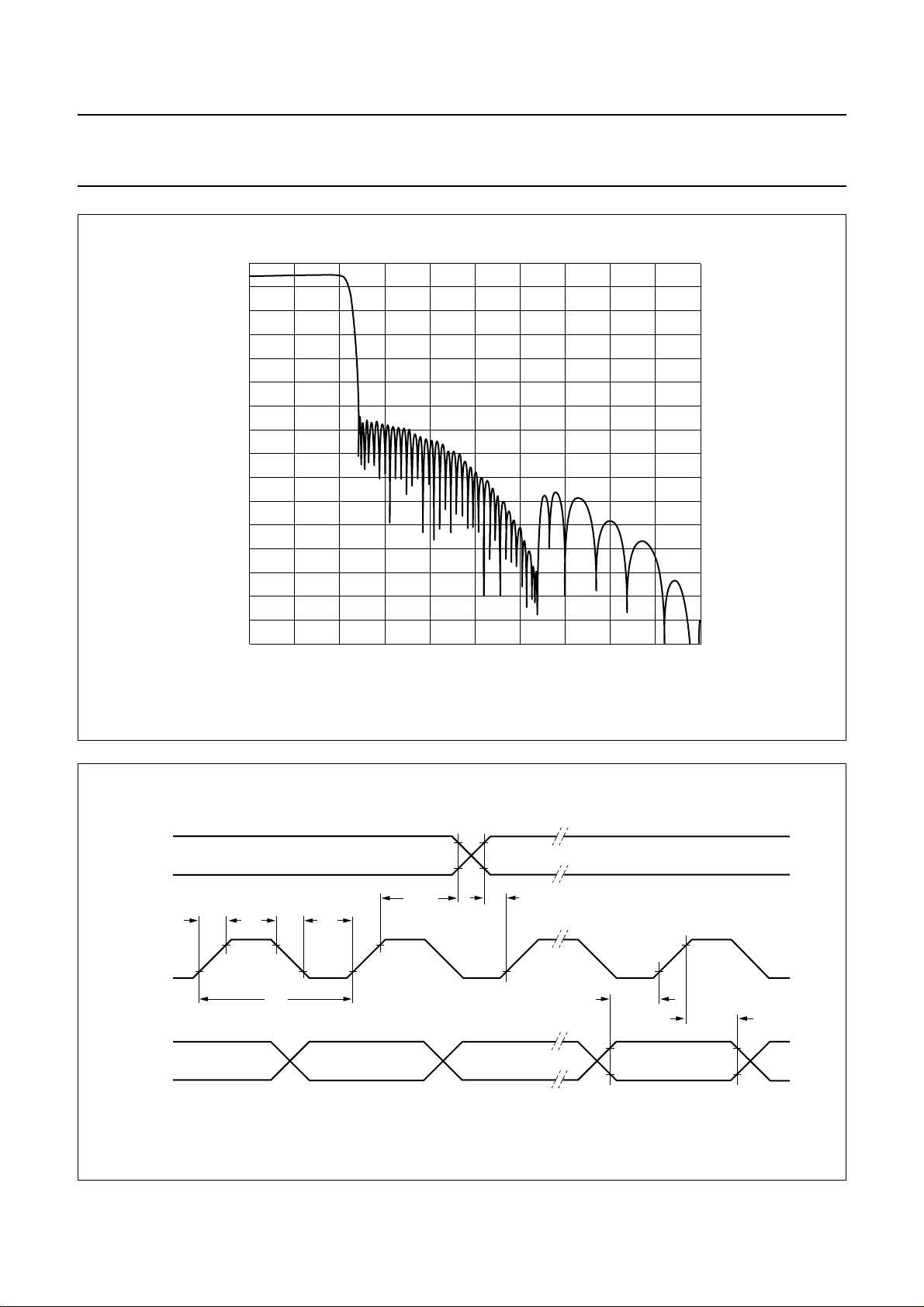

Philips Semiconductors Preliminary specification

Universal Serial Bus (USB) Audio
Playback Peripheral (APP)

handbook, full pagewidth

−0

−20

volume

(dB)

−40

−60

−80

−100

−120

UDA1331H

MGM110

handbook, full pagewidth

WS

BCK

t

r

−140

−160

t

BCK(H)

10 20 30 40 50 60 70 80 90 1000

Fig.6 Overall filter characteristics of the UDA1331H.

RIGHT

t

t

t

BCK(L)

t

f

T

cy

h;WS

s;WS

f (kHz)

t

s;DAT

LEFT

t

h;DAT

DATA

LSB MSB

Fig.7 Timing of digital I/O input signals.

1998 Oct 06 24

MGK003

This text is here in white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here in

_white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here inThis text is here in

white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader. white to force landscape pages to be ...

1998 Oct 06 25

handbook, full pagewidth

Philips Semiconductors Preliminary specification

Universal Serial Bus (USB) Audio

Playback Peripheral (APP)

WS

BCK

DATA

WS

BCK

DATA

WS

BCK

DATA

WS

BCK

LEFT

>=8 >=8

MSB B2 MSBLSB LSB MSBB2

LEFT

MSB LSBB2

LEFT

MSB B2 B3 B4

LEFT

RIGHT

1516 1

321321

LSB

2

S-BUS

INPUT FORMAT I

2

B15

LSB-JUSTIFIED FORMAT 16 BITS

215161718 1

B17

LSB-JUSTIFIED FORMAT 18 BITS

2151617181920 1

RIGHT

MSB LSBB2 B15

RIGHT

MSB B2 B3 B4

RIGHT

B17

21516 1

215161718 1

LSB

2151617181920 1

DATA

MSB B2 B3 B4 B5 B6

LSB

B19

LSB-JUSTIFIED FORMAT 20 BITS

Fig.8 Input formats.

MSB B2 B3 B4 B5 B6

B19

LSB

MGK002

UDA1331H

Philips Semiconductors Preliminary specification

Universal Serial Bus (USB) Audio

UDA1331H

Playback Peripheral (APP)

LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC 134).

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

All digital I/Os

V

I/O

I

O

DC input/output voltage range −0.5 − V

DD

output current −−4mA

Temperature

T

j

T

stg

T

amb

junction temperature 0 − 125 °C
storage temperature −55 − +150 °C
operating ambient temperature 0 25 70 °C

Electrostatic handling

V

es

electrostatic handling note 1 −3000 − +3000 V

note 2 −300 − +300 V

Notes

1. Equivalent to discharging a 100 pF capacitor through a 1.5 kΩ series resistor.

2. Equivalent to discharging a 200 pF capacitor through a 2.5 µH series inductor and a 25 Ω resistor.

V

THERMAL CHARACTERISTICS

SYMBOL PARAMETER CONDITIONS VALUE UNIT

R

th(j-a)

thermal resistance from junction to ambient in free air 48 K/W

RECOMMENDED OPERATING CONDITIONS

SYMBOL PARAMETER MIN. TYP. MAX. UNIT

V

DD

V

I

V

I/O

supply voltage 3.0 3.3 3.6 V
DC input voltage for D+ and D− 0.0 − V
DC input voltage for the digital I/Os 0.0 − V

DD
DD

V
V

1998 Oct 06 26

Philips Semiconductors Preliminary specification

Universal Serial Bus (USB) Audio

UDA1331H

Playback Peripheral (APP)

DC CHARACTERISTICS

= 3.3 V; VSS=0V; T

V

DD

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Supplies

V

DDE

V

DDI

V

DDA

V

DDO

V

DDX

I

DDE

I

DDI

I

DDA

I

DDO

I

DDX

P

tot

P

tot(ps)

digital supply voltage I/O pins 3.0 3.3 3.6 V
digital supply voltage core 3.0 3.3 3.6 V
analog supply voltage 3.0 3.3 3.6 V
operational amplifier supply voltage 3.0 3.3 3.6 V
crystal oscillator supply voltage 3.0 3.3 3.6 V
digital supply current I/O pins note 1 − 3 − mA
digital supply current core − 36 − mA
analog supply current − 4.2 − mA
operational amplifier supply current − 4.0 − mA
crystal oscillator supply current − 2.1 15.0
total power dissipation − 165 − mW
total power dissipation in

power-save mode

Inputs/outputs D+ and D−

V

I

V

OH

V

OL

static DC input voltage −0.5 − V
static DC output voltage HIGH RL=15kΩ to ground 2.8 − V
static DC output voltage LOW RL= 1.5 kΩ to 3.6 V −−0.3 V

ILO high impedance state data line

output leakage current

∆V

I(dif)

V

CM(dif)

V

SE(RX)th

differential input sensitivity 0.2 −− V
differential common mode voltage 0.8 − 2.5 V
single-ended receiver threshold

voltage

C

I(TRX)

transceiver input capacitance pin to ground −−20 pF

Digital inputs/outputs

V

IL

V

IH

V

OL

V

OH

I

 input leakage current −−1µA

LI

C

i

LOW-level input voltage −−0.3V
HIGH-level input voltage 0.7V
LOW-level output voltage −−0.4 V
HIGH-level output voltage V

input capacitance pin to ground −−5pF

=25°C; f

amb

= 48 MHz; fs= 44.1 kHz; unless otherwise specified.

osc

− 60 − mW

−−10 µA

0.8 − 2.0 V

DDI

− 0.4 −− V

DDI

− V

DDI
DDI

DDI

(2)

DDI

mA

V
V

V
V

1998 Oct 06 27

Philips Semiconductors Preliminary specification

Universal Serial Bus (USB) Audio

UDA1331H

Playback Peripheral (APP)

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Filter stream DAC

V

ref

V

o(cm)

R

o

R

o(L)

C

o(L)

Notes

1. This value depends strongly on the application. The specified value is the typical value obtained using the application
as given in Fig.10.

2. At start-up of the oscillator.

reference voltage − 0.5V
common mode output voltage − 0.5V
output resistance at pins VOUTL

− 11 −Ω

− V

DDA

− V

DDA

and VOUTR
output load resistance 2.0 −− kΩ
output load capacitance −−50 pF

1998 Oct 06 28

Philips Semiconductors Preliminary specification

Universal Serial Bus (USB) Audio

UDA1331H

Playback Peripheral (APP)

AC CHARACTERISTICS

= 3.3 V; VSS=0V; T

V

DD

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Driver characteristics D+ and D− (full-speed mode)

t

r

t

f

t

rf(m)

V

cr

R

(o)driver

rise time CL=50pF 4 − 20 ns
fall time CL=50pF 4 − 20 ns
matching rise/fall time (tr/tf)90−110 %
output signal crossover voltage 1.3 − 2.0 V
driver output resistance steady-state drive 28 − 43 Ω

Data source timings D+ and D− (full-speed mode)

f

i(sample)

f

fs(D)

t

fr

t

J1(dif)

audio sample input frequency 5 − 55 kHz
full-speed data rate 11.97 12.00 12.03 Mbits/s
frame interval 0.9995 1.0000 1.0005 ms
source differential jitter to next

transition

t

J2(dif)

source differential jitter for paired
transitions

t

W(EOP)

t

EOP(dif)

t

JR1

source End Of Packet (EOP) width 160 − 175 ns
differential to EOP transition skew −2.0 − +5.0 ns
receiver data jitter tolerance to next

transition

t

JR2

receiver data jitter tolerance for
paired transitions

t

EOPR1

EOP width at receiver must reject as
EOP

t

EOPR2

EOP width at receiver must accept
as EOP

=25°C; f

amb

= 48 MHz; fs= 44.1 kHz; unless otherwise specified.

osc

−3.5 0.0 +3.5 ns

−4.0 0.0 +4.0 ns

−18.5 0.0 +18.5 ns

−9.0 0.0 +9.0 ns

40 −− ns

82 −− ns

Serial input/output data timing; see Fig.7
f

clk(sys)

f

i(WS)

t

r

t

f

t

BCK(H)

t

BCK(L)

t

s;DAT

t

h;DAT

t

s;WS

t

h;WS

system clock frequency − 12 − MHz
word select input frequency 5 − 55 kHz
rise time −−20 ns
fall time −−20 ns
bit clock HIGH time 55 −− ns
bit clock LOW time 55 −− ns
data set-up time 10 −− ns
data hold time 20 −− ns
word select set-up time 20 −− ns
word select hold time 10 −− ns

1998 Oct 06 29

Philips Semiconductors Preliminary specification

Universal Serial Bus (USB) Audio

UDA1331H

Playback Peripheral (APP)

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

SDA and SCL lines (standard I2C-bus); see Fig.5

f

SCL

t

BUF

t

HD;STA

t

LOW

t

HIGH

t

SU;STA

t

SU;STO

t

HD;DAT

t

SU;DAT

t

r

t

f

C

L(bus)

Oscillator; note 1
f

osc

δ duty factor − 50 − %
g

m

R

o

C

i(XTAL1)

C

i(XTAL2)

I

start

Power-on reset

t

su(POR)

Filter Stream DAC (FSDAC)

RES resolution 16 −− bits
V

o(FS)(rms)

SVRR supply voltage ripple rejection of

∆V

 channel unbalance maximum volume − 0.03 − dB

o

α

ct

SCL clock frequency 0 − 100 kHz
bus free time between a STOP

4.7 −− µs

and START condition
hold time (repeated) START

4.0 −− µs

condition
SCL LOW time 4.7 −− µs
SCL HIGH time 4.0 −− µs
set-up time for a repeated START

4.7 −− µs

condition
set-up time for a STOP condition 4.0 −− µs
data hold time 5.0 − 0.9 µs
data set-up time 250 −− ns
rise time of both SDA and SCL

−−1000 ns

signals
fall time of both SDA and SCL

−−300 ns

signals
load capacitance for each bus line −−400 pF

oscillator frequency − 48 − MHz

transconductance 13.5 23.0 30.5 mS
output resistance 450 700 1450 Ω
parasitic input capacitance at XT AL1 10 1 1 12 pF
parasitic input capacitance at XT AL2 4.5 5.0 5.5 pF
start current 4.3 8.8 15.0 mA

power-on reset set-up time notes 2 and 3 5C

full-scale output voltage

VDD= 3.3 V − 0.66 − V

ref

−− ms

(RMS value)

f

V

DDA

and V

DDO

ripple

V

ripple(p-p)

= 1 kHz;

= 0.1 V

− 60 − dB

crosstalk between channels RL=5kΩ−95 − dB

1998 Oct 06 30

Philips Semiconductors Preliminary specification

Universal Serial Bus (USB) Audio

UDA1331H

Playback Peripheral (APP)

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

(THD + N)/S total harmonic distortion-plus-noise

to signal ratio

S/N

bz

signal-to-noise ratio at bipolar zero A-weighted at

Notes

1. A 3rd overtone crystal of 48 MHz must be used in combination with a filter connected to the oscillator output (XTAL2),
(L = 1.5 µH ±10%; C = 10 nF ±10%). The series resistance of the crystal must be below 60 Ω. C
C

=12pF±10%).

xtal2

2. Strongly depends on the external decoupling capacitor connected to V

3. Use for calculation of the power-on reset set-up time the C

4. The audio information from the USB interface is fed directly to the ADAC.

fs= 44.1 kHz;
RL=5kΩ

at input signal of
1 kHz (0 dB)

at input signal of
1 kHz (−60 dB)

code 0000H

value in µF.

ref

−−90

(4)

−80 dB

− 0.0032 0.01 %

−−30

(4)

−20 dB

− 3.2 10 %

90 95 − dBA

= 4.7 pF ±10%;

xtal1

.

ref

APPLICATION INFORMATION

The UDA1331H can only be used in combination with an external (E)PROM. This (E)PROM can be connected to the
port pins (P0 and P2) of the UDA1331H and must contain the firmware for the microcontroller. The UDA1331H will be
delivered with standard USB compliant firmware.

2

C-bus EEPROM is optional and can be used to configure client specific configurations and descriptors.

The I
More information about the firmware, descriptors and configurations can be obtained from several application notes.

1998 Oct 06 31

Philips Semiconductors Preliminary specification

Universal Serial Bus (USB) Audio
Playback Peripheral (APP)

APPLICATION DIAGRAM

handbook, full pagewidth

P5

1
2
3
4

L9

1
2
3
45

C27

10 nF

(50 V)

8
7
6

C26
10 nF
(50 V)

digital

input

C7

10 nF

(63 V)

C4
22 pF
(63 V)

BCKI

WSI

DI

+V

L10

1.5 µH

C

R9

1.5 kΩ

C5
22 pF
(63 V)

R14

22 Ω

R13

22 Ω

GP0/BCKI

GP5/WSI

GP1/DI

XTAL2

UDA1331H

+V

A

R15
1 Ω

C8

47 µF

(16 V)

C14

100 nF

(63 V)

V

DDA

4544

UDA1331H

V

SSA

64
2
7

D−

17

D+

20

38

(1) BLM32A07.
(2) V

can be connected to 5 V (max) (5 V tolerant I/O).

D(ext)

V

V

A(ext)

D(ext)

C6

12 pF

(63 V)

4.7 pF
(50 V)

(1)

(1)

L15

BLM32A07

L14

BLM32A07

L16

BLM32A07

GND

C1
100 µF
(16 V)

C13

C2
100 µF
(16 V)

X1 48 MHz

+V

A

+V

C

+V

D

C3
100 µF
(16 V)

MBK531

XTAL1

37

29

V

100 nF

(63 V)

100 nF

(63 V)

Fig.9 Application diagram (continued in Fig.10).

25

SSI

C16

C15

V

DDI

L11
BLM32A07

1 Ω
R16

+V

C

30

V

SSE

C18

100 nF

(63 V)

C17

100 nF

(63 V)

32

V

DDE

L12
BLM32A07

1 Ω
R17

+V

D

1998 Oct 06 32

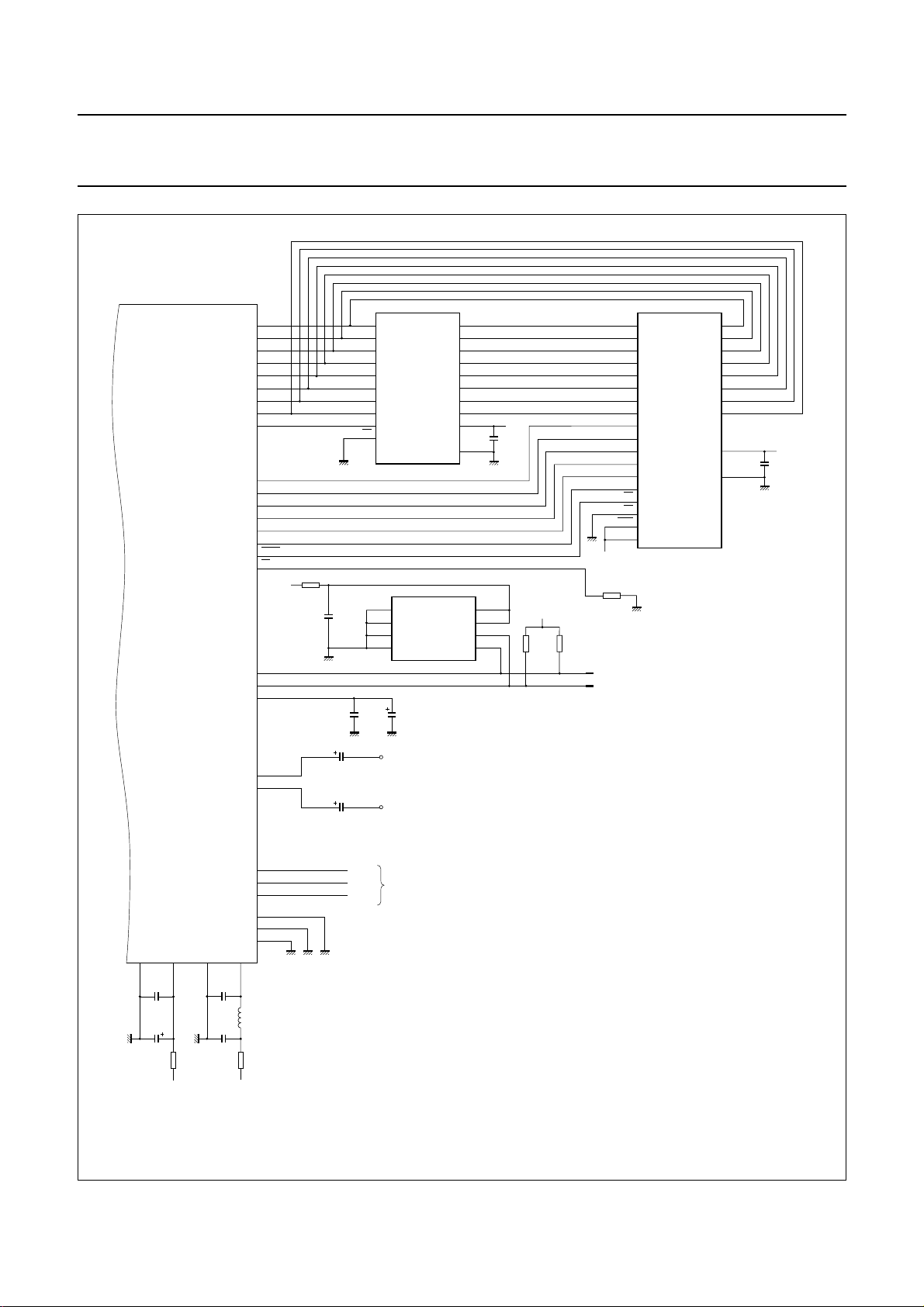

Philips Semiconductors Preliminary specification

Universal Serial Bus (USB) Audio
Playback Peripheral (APP)

handbook, full pagewidth

C23
100 nF
(63 V)

C10

47 µF

(16 V)

C11

47 µF

(16 V)

D

7

D

6

D

5

D

4

D

3

D

2

D

1

D

0

LE

OE

C22
100 nF
(63 V)

A0
A1
A2

V

SS

audio
output

18
17
14
13
8
7
4
3
11
1

UDA1331H

P0.0

56

P0.1

57

P0.2

58

P0.3

59

P0.4

60

P0.5

62

P0.6

63

P0.7

5

ALE

9

P2.0

11

P2.1

12

P2.2

18

P2.3

19

P2.4

21

P2.5

22

PSEN

8

EA

6

4
3

42

46
53

SDA
SCL

V

ref

VOUTR
VOUTL

R20

+V

D

1 Ω

D3

74HCT373D

1
2

D4

3

PCX8582X-2

4

C12
47 µF
(16 V)

UDA1331H

Q

7

19

Q

6

16

Q

5

15

Q

4

12

Q

3

9

Q

2

6

Q

1

5

Q

0

2

V

CC

GND

+V

D

100 nF

C24

(50 V)

V

DD

8

PTC

7

SCL

6

SDA

5

+VD

R6
10 kΩR710 kΩ

20

10

A0

10

A1

9

A2

8

A3

7

A4

6

A5

5

A6

4

A7

3

A8

A9
A10
A11
A12
A13

OE
CE

PGM

V

PP

+V

D

R8

4.7 kΩ

P8

1

SDA

2

(I

C-bus)

2

SCL

D2

25

EEPM27128

24
21
23
2
26
22
20
27
1

(external ROM)

O0

11

O1

12

O2

13

O3

15

O4

16

O5

17

O6

18

O7

19

V

CC

28

GND

14

C25

+V

100 nF
(50 V)

D

GP4/BCKO

14

GP3/WSO

13

GP2/DO

10

RTCB

61

TC

55

SHTCB

15

49

V

SSO

C19

100 nF

(63 V)

C9

47 µF
(16 V)

51

V

DDO

1 Ω
R18

+V

A

36

V

SSX

100 nF

(63 V)

100 nF

(63 V)

C21

C28

39

V

L13
BLM32A07

1 Ω
R19

+V

C

DDX

MBK532

BCKO
WSO

DO

digital

output

(1) BLM32A07.

Fig.10 Application diagram (continued from Fig.9).

1998 Oct 06 33

Philips Semiconductors Preliminary specification

Universal Serial Bus (USB) Audio
Playback Peripheral (APP)

PACKAGE OUTLINE

QFP64: plastic quad flat package; 64 leads (lead length 1.95 mm); body 14 x 20 x 2.8 mm

c

y

X

51 33

52

32

Z

A

E

UDA1331H

SOT319-2

pin 1 index

64

1

w M

b

e

DIMENSIONS (mm are the original dimensions)

mm

A

max.

3.20

0.25

0.05

2.90

2.65

0.25

UNIT A1A2A3b

Note

1. Plastic or metal protrusions of 0.25 mm maximum per side are not included.

p

D

H

D

cE

0.25

0.14

D

20.1

19.9

p

0.50

0.35

0 5 10 mm

(1)

(1) (1)(1)

14.1

13.9

19

Z

D

scale

eH

H

24.2

1

23.6

20

D

B

e

w M

b

p

E

18.2

17.6

H

E

v M

A

v M

B

LL

p

1.0

0.6

A

2

A

E

A

1

detail X

Zywv θ

Z

E

D

1.2

0.2 0.10.21.95

0.8

1.2

0.8

(A )

3

θ

L

p

L

o

7

o

0

OUTLINE
VERSION

SOT319-2

IEC JEDEC EIAJ

REFERENCES

1998 Oct 06 34

EUROPEAN

PROJECTION

ISSUE DATE

95-02-04
97-08-01

Philips Semiconductors Preliminary specification

Universal Serial Bus (USB) Audio
Playback Peripheral (APP)

SOLDERING
Introduction

There is no soldering method that is ideal for all IC
packages. Wave soldering is often preferred when
through-hole and surface mounted components are mixed
on one printed-circuit board. However, wave soldering is
not always suitable for surface mounted ICs, or for
printed-circuits with high population densities. In these
situations reflow soldering is often used.

This text gives a very brief insight to a complex technology.
A more in-depth account of soldering ICs can be found in

“IC Package Databook”

our

Reflow soldering

Reflow soldering techniques are suitable for all QFP
packages.

The choice of heating method may be influenced by larger
plastic QFP packages (44 leads, or more). If infrared or
vapour phase heating is used and the large packages are
not absolutely dry (less than 0.1% moisture content by
weight), vaporization of the small amount of moisture in
them can cause cracking of the plastic body. For more
information, refer to the Drypack chapter in our

Reference Handbook”

Reflow soldering requires solder paste (a suspension of
fine solder particles, flux and binding agent) to be applied
to the printed-circuit board by screen printing, stencilling or
pressure-syringe dispensing before package placement.

Several methods exist for reflowing; for example,
infrared/convection heating in a conveyor type oven.
Throughput times (preheating, soldering and cooling) vary
between 50 and 300 seconds depending on heating
method. Typical reflow peak temperatures range from
215 to 250 °C.

(order code 9398 652 90011).

“Quality

(order code 9397 750 00192).

UDA1331H

If wave soldering cannot be avoided, for QFP
packages with a pitch (e) larger than 0.5 mm, the
following conditions must be observed:

• A double-wave (a turbulent wave with high upward

pressure followed by a smooth laminar wave)
soldering technique should be used

• The footprint must be at an angle of 45° to the board

direction and must incorporate solder thieves
downstream and at the side corners.

During placement and before soldering, the package must
be fixed with a droplet of adhesive. The adhesive can be
applied by screen printing, pin transfer or syringe
dispensing. The package can be soldered after the
adhesive is cured.

Maximum permissible solder temperature is 260 °C, and
maximum duration of package immersion in solder is
10 seconds, if cooled to less than 150 °C within
6 seconds. Typical dwell time is 4 seconds at 250 °C.

A mildly-activated flux will eliminate the need for removal
of corrosive residues in most applications.

Repairing soldered joints

Fix the component by first soldering two diagonally­opposite end leads. Use only a low voltage soldering iron
(less than 24 V) applied to the flat part of the lead. Contact
time must be limited to 10 seconds at up to 300 °C. When
using a dedicated tool, all other leads can be soldered in
one operation within 2 to 5 seconds between
270 and 320 °C.

Wave soldering

Wave soldering is not recommended for QFP packages.
This is because of the likelihood of solder bridging due to
closely-spaced leads and the possibility of incomplete
solder penetration in multi-lead devices.

CAUTION

Wave soldering is NOT applicable for all QFP
packages with a pitch (e) equal or less than 0.5 mm.

1998 Oct 06 35

Philips Semiconductors Preliminary specification

Universal Serial Bus (USB) Audio

UDA1331H

Playback Peripheral (APP)

DEFINITIONS

Data sheet status

Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.

Limiting values

Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the specification.

LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.

PURCHASE OF PHILIPS I

Purchase of Philips I
components in the I2C system provided the system conforms to the I2C specification defined by
Philips. This specification can be ordered using the code 9398 393 40011.

2

C COMPONENTS

2

C components conveys a license under the Philips’ I2C patent to use the

1998 Oct 06 36

Philips Semiconductors Preliminary specification

Universal Serial Bus (USB) Audio
Playback Peripheral (APP)

UDA1331H

NOTES

1998 Oct 06 37

Philips Semiconductors Preliminary specification

Universal Serial Bus (USB) Audio
Playback Peripheral (APP)

UDA1331H

NOTES

1998 Oct 06 38

Philips Semiconductors Preliminary specification

Universal Serial Bus (USB) Audio
Playback Peripheral (APP)

UDA1331H

NOTES

1998 Oct 06 39

Philips Semiconductors – a worldwide company

Argentina: see South America
Australia: 34 Waterloo Road, NORTH RYDE, NSW 2113,

Tel. [phone], Fax. [phone]
Austria: Computerstr. 6, A-1101 WIEN, P.O. Box 213, Tel. [phone],

Fax. [phone]
Belarus: Hotel Minsk Business Center, Bld. 3, r. 1211, Volodarski Str. 6,

220050 MINSK, Tel. [phone], Fax. [phone]

Belgium: see The Netherlands
Brazil: seeSouth America
Bulgaria: Philips Bulgaria Ltd., Energoproject, 15thfloor,

51 James Bourchier Blvd., 1407 SOFIA,
Tel. [phone], Fax. [phone]

Canada: PHILIPS SEMICONDUCTORS/COMPONENTS,
Tel. [phone]

China/Hong Kong: 501 Hong Kong Industrial Technology Centre,
72 Tat Chee Avenue, Kowloon Tong, HONG KONG,
Tel. [phone], Fax. [phone]

Colombia: see South America
Czech Republic: see Austria
Denmark: Prags Boulevard 80, PB 1919, DK-2300 COPENHAGEN S,

Tel. [phone], Fax. [phone]
Finland: Sinikalliontie 3, FIN-02630 ESPOO,

Tel. [phone], Fax. [phone]
France: 51 Rue Carnot, BP317, 92156 SURESNES Cedex,

Tel. [phone], Fax. [phone]
Germany: Hammerbrookstraße 69, D-20097 HAMBURG,

Tel. [phone], Fax. [phone]
Greece: No. 15, 25th March Street, GR 17778 TAVROS/ATHENS,

Tel. [phone], Fax. [phone]

Hungary: seeAustria
India: Philips INDIA Ltd, Band Box Building, 2nd floor,

254-D, Dr. Annie Besant Road, Worli, MUMBAI 400 025,
Tel. [phone], Fax. [phone]

Indonesia: PT Philips Development Corporation, Semiconductors Division,
Gedung Philips, Jl. Buncit Raya Kav.99-100, JAKARTA 12510,
Tel. [phone] ext. 2501, Fax. [phone]

Ireland: Newstead, Clonskeagh, DUBLIN 14,
Tel. [phone], Fax. [phone]

Israel: RAPAC Electronics, 7 Kehilat Saloniki St, PO Box 18053,
TEL AVIV 61180, Tel. [phone], Fax. [phone]

Italy: PHILIPS SEMICONDUCTORS, Piazza IV Novembre 3,
20124 MILANO, Tel. [phone], Fax. [phone]

Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku,
TOKYO 108-8507, Tel. [phone], Fax. [phone]

Korea: Philips House, 260-199 Itaewon-dong, Yongsan-ku, SEOUL,
Tel. [phone], Fax. [phone]

Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA, SELANGOR,
Tel. [phone], Fax. [phone]

Mexico: 5900 Gateway East, Suite 200, EL PASO, TEXAS 79905,
Tel. [phone]

Middle East: see Italy
Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB,

Tel. [phone], Fax. [phone]
New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,

Tel. [phone], Fax. [phone]
Norway: Box 1, Manglerud 0612, OSLO,

Tel. [phone], Fax. [phone]

Pakistan: see Singapore
Philippines: Philips Semiconductors Philippines Inc.,

106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,
Metro MANILA, Tel. [phone], Fax. [phone]

Poland: Ul. Lukiska 10, PL 04-123 WARSZAWA,
Tel. [phone], Fax. [phone]

Portugal: see Spain
Romania: see Italy
Russia: Philips Russia, Ul. Usatcheva 35A, 119048 MOSCOW,

Tel. [phone], Fax. [phone]
Singapore: Lorong 1, Toa Payoh, SINGAPORE 319762,

Tel. [phone], Fax. [phone]

Slovakia: see Austria
Slovenia: see Italy
South Africa: S.A. PHILIPS Pty Ltd., 195-215 Main Road Martindale,

2092 JOHANNESBURG, P.O. Box 7430 Johannesburg 2000,
Tel. [phone], Fax. [phone]

South America: Al. Vicente Pinzon, 173, 6th floor,
04547-130 SÃO PAULO, SP, Brazil,
Tel. [phone], Fax. [phone]

Spain: Balmes 22, 08007 BARCELONA,
Tel. [phone], Fax. [phone]

Sweden: Kottbygatan 7, Akalla, S-16485 STOCKHOLM,
Tel. [phone], Fax. [phone]

Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,
Tel. [phone] Fax. [phone]

Taiwan: Philips Semiconductors, 6F, No. 96, Chien Kuo N. Rd., Sec. 1,
TAIPEI, Taiwan Tel. [phone], Fax. [phone]

Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,
209/2 Sanpavuth-Bangna Road Prakanong, BANGKOK 10260,
Tel. [phone], Fax. [phone]

Turkey: Talatpasa Cad. No. 5, 80640 GÜLTEPE/ISTANBUL,
Tel. [phone], Fax. [phone]

Ukraine: PHILIPS UKRAINE, 4 Patrice Lumumba str., Building B, Floor 7,
252042 KIEV, Tel. [phone], Fax. [phone]

United Kingdom: Philips Semiconductors Ltd., 276 Bath Road, Hayes,
MIDDLESEX UB3 5BX, Tel. [phone], Fax. [phone]

United States: 811 East Arques Avenue, SUNNYVALE, CA 94088-3409,
Tel. [phone]

Uruguay: see South America
Vietnam: see Singapore
Yugoslavia: PHILIPS, Trg N. Pasica 5/v, 11000 BEOGRAD,

Tel. [phone], Fax.[phone]

For all other countries apply to: Philips Semiconductors,
International Marketing & Sales Communications, Building BE-p, P.O. Box 218,
5600 MD EINDHOVEN, The Netherlands, Fax. [phone]

© Philips Electronics N.V. 1998 SCA60
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed
without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license
under patent- or other industrial or intellectual property rights.

Internet: http://www.semiconductors.philips.com

Printed in The Netherlands 545102/750/03/pp40 Date of release: 1998 Oct 06 Document order number: 9397 750 04263
