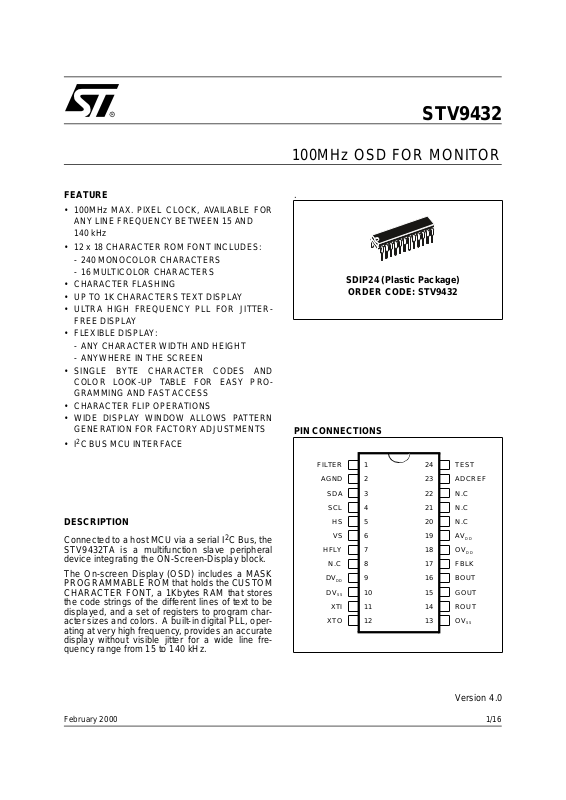

STV9432

100MHz OSD FOR MONITOR

FEATURE

• 100MHz MAX. PIXEL CLOCK, AVAILABLE FOR
ANY LINE FREQUENCY BETWEEN 15 AND

140 kHz

• 12 x 18 CHARACTER ROM FONT INCLUDES:

- 240 MONOCOLOR CHARA CTE RS

- 16 MULTICOLOR CHARACTERS

• CHARACTER FLASHING

• UP TO 1K CHARACTERS TEXT DISPLAY

• ULTRA HIGH FREQUENCY PLL FOR JITTER­FREE DISPLAY

• FLEXIBLE DISPLAY:

- ANY CHARACTER WIDTH AND HEIGHT

- ANYWHERE IN THE SCREEN

• SINGLE BYTE CHARACTER CODES AND
COLOR LOOK-UP TABLE FOR EASY PRO­GRAMMING AND FAST ACCESS

• CHARACTER FLIP OPERATIONS

• WIDE DISPLAY WINDOW ALLOWS PATTERN
GENERATION FOR FACTORY ADJUSTMENTS

2

•I

C BUS MCU INTERFACE

DESCRIPTION

2

Connected to a host MCU via a serial I

C Bus, the
STV9432TA is a multifunction slave peripheral
device integrating the ON-Screen-Display block.

The On-screen Display (OSD) includes a MASK
PROGRAMMABLE ROM that holds the CUSTOM
CHARACTER FONT, a 1Kbytes RAM that stores
the code strings of the different lines of t ext to be
displayed, and a set of registers to program char­acter sizes and colors. A built-in digital PLL, oper­ating at very high frequency, provides an accurate
display without visible jitter for a wide line fre­quency range from 15 to 140 kHz.

.

SDIP24 (Plastic Package)

ORDER CODE: STV9432

PIN CONNECTIONS

1
2

SDA

SCL

HS
VS

HFLY

N.C
DV
DV

XTI

XTO OV

3
4
5
6
7
8
9

DD

10

SS

11
12

24
23
22
21
20
19
18
17
16
15
14
13

TESTFILTER
ADCREFAGND
N.C
N.C
N.C
AV

DD

OV

DD

FBLK
BOUT
GOUT
ROUT

SS

Version 4.0

February 2000 1/16

This is preliminary information on a new product in development or undergoing evaluation. Details are subject to change without notice.

1

STV9432

1 - PIN DESCRIPTION

Pin Number Symbol Type Description

1 FILTER I/O PLL Filter
2 AGND Power Analog Ground
3 SDA I/O I
4 SCL I
5 HS Horizontal Sync Input
6 VS Vertical Sync Input
7 HFLY Horizontal Flyback Input
8 N.C. Not Connected
9 DV

10 DV

DD
SS

Power Digital +5V Power Supply

Power Digital Ground
11 XTI Crystal Oscillator Input
12 XTO O Crystal Oscillator Output
13 OV

SS

Power Ground for the RGB Outputs
14 ROUT O Red Output
15 GOUT O Green Output
16 BOUT O Blue Output
17 FBLK O Fast Blanking Output
18 OV
19 AV

DD
DD

Power +5V Supply for the RGB Outputs

Power Analog +5V Power Supply
20 N.C. Not Connected
21 N.C. Not Connected
22 N.C. Not Connected
23 ADCREF I/O ADC Reference Voltage Pin
24 TEST I/O Pin must be connected to ground

2

C Bus Serial Data

2

C Bus Serial Clock

2/18

2 - BLOCK DIAGRAM

24

TEST

HFLY

VS

HS

N.C

N.C
N.C
N.C

AV

DV

1

7
6

5
8

22
21
20

23

19

DD

9

DD

FILTER

ADCREF

OSCILLATOR

PLL

3.3V

VOLTAGE REGULATOR

POWER-ON RESET

CONTROLLER

1k BYTES R A M

DISPLAY

CHARACTER

FONT ROM

2

C BUS

I

INTERFACE

STV9432

STV9432

11

XTI

12

XTO

18

OV

DD

13

OV

SS

14

ROUT

15

GOUT

16

BOUT

17

FBLK

3

SDA

4

SCL

10

DV

SS

2

AGND

3 - ABSOLUTE MAXIMUM RATINGS

Symbol Parameter Value Unit

AV

, DVDD, OV

DD

V

IN

T

oper

T

stg

Supply Voltage -0.3, +6.0 V

DD

Input Voltage VSS - 0.3, VDD + 0.3 V
Operating Temperatu re 0, +70
Storage Temperature -40, +125

o

C

o

C

3/18

STV9432

4 - ELECTRIC AL CHARACTERISTICS

(V

= 5V, VSS = 0V, GND = 0V, TA = 0 to 70o, unless otherwise specified)

DD

Symbol Parameter Min. Typ. Max. Unit

SUPPLY
AV

, DVDD, OV

DD

+ DIDD + OI

AI

DD

INPUTS (SCL, SDA)
V

IL

V

IH

I

IL

INPUTS (HS, VS, HFLY)
V

IL

V

IH

V

HYST

I

PU

HSIN Horizontal Synchro Input Range 15 140 kHz
OUTPUTS (SDA open drain)
V

OL

OUTPUTS (R, G, B, FBLK)
V

OL

V

OH

OSCILLATOR (XTI, XTO)
I

IL

I

IH

V

IL

V

IH

V

OL

V

OH

ADCREF
V

REF

POWER-ON RESE T
DV

DDTH

Supply Voltage 4.75 5 5.25 V

DD

Analog and Digital Supply Current - - 150 mA

DD

Input Low Voltage 0.8 V
Input High Voltage 2.4 V
Input Leakage Current -1 +1 µA

Input Low Voltage 0.8 V
Input High Voltage HS, VS

HFLY

2.4

3.6

V

Schmidt Trigger Hysteresis 0.4 V
Pull-up Source Current (V

= 0V) 100 µA

IN

Output Low Voltage (IOL = 3mA) 0 0.4 V

Output Low Voltage (IOL = 3mA) 0 0.4 V
Output High Voltage (IOH = 3mA) 0.8V

DD

VDDV

XTI Input Source Current (VIN = 0V) 3 15 µA
XTI Input Sink Current (VIN = VDD)3 15µA
XTI Input Low Voltage 1.4 V
XTI Input High Voltage 0.7V

DD

V
XTI Output Low Voltage (IOL = 3mA) 0 0.4 V
XTI Output High Voltage (IOH = 3mA) 0.8V

DD

VDDV

Output Voltage Reference 3.3 V

Supply Threshold Level 3.6 V

4/18

STV9432

5 - TIMINGS

Symbol Parameter Min. Typ. Max. Unit

OSCILLATOR
f

OSC

f

PXL

R, G, B, FBLK (C
t

R

t

F

t

SKEW
2

C INTERFACE: SDA AND SCL (see Figure 1)

I
f

SCL

t

BUF

t

HDS

t

SUP

t

LOW

t

HIGH

t

HDAT

t

SUDAT

t

F

t

R

Note : These parameters are not tested on each unit. They are measured during our internal qualification procedure which

includes characterization on batches comming from corners of our processes and also temperature characteriza­tion

Clock Frequency 8 MHz
Pixel Frequency 100 MHz

= 30pF)

LOAD

Rise Time (see Note 1) 5 ns
Fall Time (see Note 1) 5 ns
Skew between R, G, B, FBLK 5 ns

SCL Clock Frequency 0 400 kHz
Time the bus must be free between 2 access 500 ns
Hold Time for Start Condition 500 ns
Set up Time for Stop Condition 500 ns
The Low Period of Clock 400 ns
The High Period of Clock 400 ns
Hold Time Data 0 ns
Set up Time Data 500 ns
Fall Time of SDA 20 ns

Rise Time of both SCL and SDA

Depend on the pull-up resistor and the load

capacitance

Figure 1.

STOP START DATA

t

BUF

SDA

t

HDS

SCL

t

HIGH

t

SUDAT

t

HDAT

t

LOW

t

SUP

STOP

5/18

STV9432

6 - SERIAL INTERFACE

The 2-wires serial interface is an I2C interface. To be
connected to the I
address; the slave address of the STV9432 is BA (in
hexadecimal).

A6 A5 A4 A3 A2 A1 A0 RW

1011101

2

C bus, a devic e mu st o wn its slave

- The two bytes of the internal address where the
MCU wants to write data(s),

- The successive bytes of data(s).

All bytes are sent MSB bit first and the write data
transfer is ended with a stop.

6.2 - DATA TRANSFER IN READ MODE

6.1 - DATA TRANSFER IN WRITE MODE

The host M CU c an write data in to the STV 943 2 regis­ters or RAM.

To write data into the STVA9432TA after a start, the
MCU must send (Figure 2):

- First, the I

2

C address slave byte with a low level for

the R/W bit,

Figure 2. I2C Write Operation

SCL

SDA

SCL

D7 D6 D5 D4 D3 D2 D1 D0 D7 D6 D5 D4 D3 D2 D1 D0 D7 D6 D5 D4 D3 D2 D1 D0

SDA

Figure 3. I

SCL

SDA

Start

I2C Slave Address

2

C Read Operation

I2C Slave Address

R/W

A7 A6 A5 A4 A3 A2 A1 A0 - - A13 A12 A11 A10 A9 A8

ACK LSB Address ACK MSB Address ACKStart

ACK ACKData Byte 1 Data Byte 2 ACK Data Byte n Stop

R/W

A7 A6 A5 A4 A3 A2 A1

ACK

The host MCU can read data from the STV9432 reg­isters, RAM or ROM.

To read data from the STV9432 (Figure 3), the MCU
must send 2 different I
includes the I

2

C slave address byte with R/W bit at

2

C sequences. The first one

low level and the 2 internal addr es s byte s.
The second one includes the I

2

C slave address byte
with R/W bit at high level and all the successive data
bytes read at successive addresses starting from the
initial address given by the first sequence.

A0

--

A13 A12

A10

A10A9A8

LSB Address ACK

MSB Address

ACK

Stop

6/18

SCL

SDA

Start

I2C Slave Address

D7 D6 D5 D4 D3 D2 D1 D0

R/W

*

ACK

Data Byte 1

D7 D6 D5 D4 D3 D2 D1 D0

ACK

Data Byte n

ACK

Stop

6.3 - ADDRESSING SPACE

6.3.1 - General Mapping

STV9432 registers, RAM and ROM are mapped in a 32K address space.
The mapping is:

STV9432

0000
03FF

0400
07FF

0800
3FFF

4000
403F

4040
7FFF

Important Notice:

1024 bytes RAM Descriptors and character codes

Empty Space

Character Generator ROM

Internal Registers

Empty Space

All 16 bits datas are mapped LSB byte at lower address and MSB byte at higher address.

– Example: H1 12 bits register: @4000: 8 LSB bits - @4001: 4 MSB bits.
– Descriptors must also be written to RAM LSB byte first.

6.3.2 - I

2

C Registers Mapping

4000 H1 LSB 4022 Color 2
4001 H1 MSB 4023 Color 3
4002 H2 LSB 4024 Color 4
4003 H2 MSB 4025 Color 5
4004 H3 LSB 4026 Color 6
4005 H3 MSB 4027 Color 7
4006 H4 LSB 4028 Color 8
4007 H4 MSB 4029 Color 9
4008 H5 LSB 402A Color 10
4009 H5 MSB 402B Color 11
400A H6 LSB 402C Color 12
400B H6 MSB 402D Color 13
400C V1 LSB 402E Color 14
400D V1 MSB 402F Color 15
400E V2 LSB 4030 Line Duration
400F V2 MSB 4031 Top Margin
4010 V3 LSB 4032 Horizontal Delay

4011 V3 MSB 4033 Character Height
4012 4034 Display Control
4013 4035 Locking Time Constant
4014 4036 Capture Time Constant
4015 SBN 4037 Initial Pixel Period
4016 TIMG 4038-403E Reserved

4017-401F Reserved 403F RST

4020 Color 0 4040-7FFF Reser ved
4021 Color 1

7/18

STV9432

7 - SOFTWARE RESET REG IS TER

403F - - - - - - - RST

To perform a software I2C reset of the device, set the RST bit to ONE.
This bit will be au t omatically rese t by t he dev ic e .
Software Reset will put all Write registers at their default power-on value, and reset all internal logic

blocks except the I

2

C bus interface itself. It will not change the RAM contents.

SELXTAL This bit must b e set to ONE in order to operate the oscillator in the external crystal

mode.
In its ZERO default state, this bit enables the internal RC mode oscillator.

8 - ON-SCREEN DISPLAY

The STV9432 on-scree n displ ay is able to display
any line of characters (character strip) anywh ere
in the screen.

Character strings are programm ed by the MCU i n
RAM via I

2

C bus. Character shapes are coded in
the internal ROM font. Character strips may be
adjacent or separated by vertical spaces (Spacing
strips).

Consequently, one display page is made of a list
of Character strips and Spacing strips.

A Top Margin and a Left Margin are programmable
in dedicated registers.

Each Strip is associated with a 2 bytes Strip
Descriptor.

There are two Strip Descriptors:

- The Character Strip Descriptors containing the
Text string Ram address of the Character Strip,

- The Spacing Strip Descriptors which specify the
vertical space height.

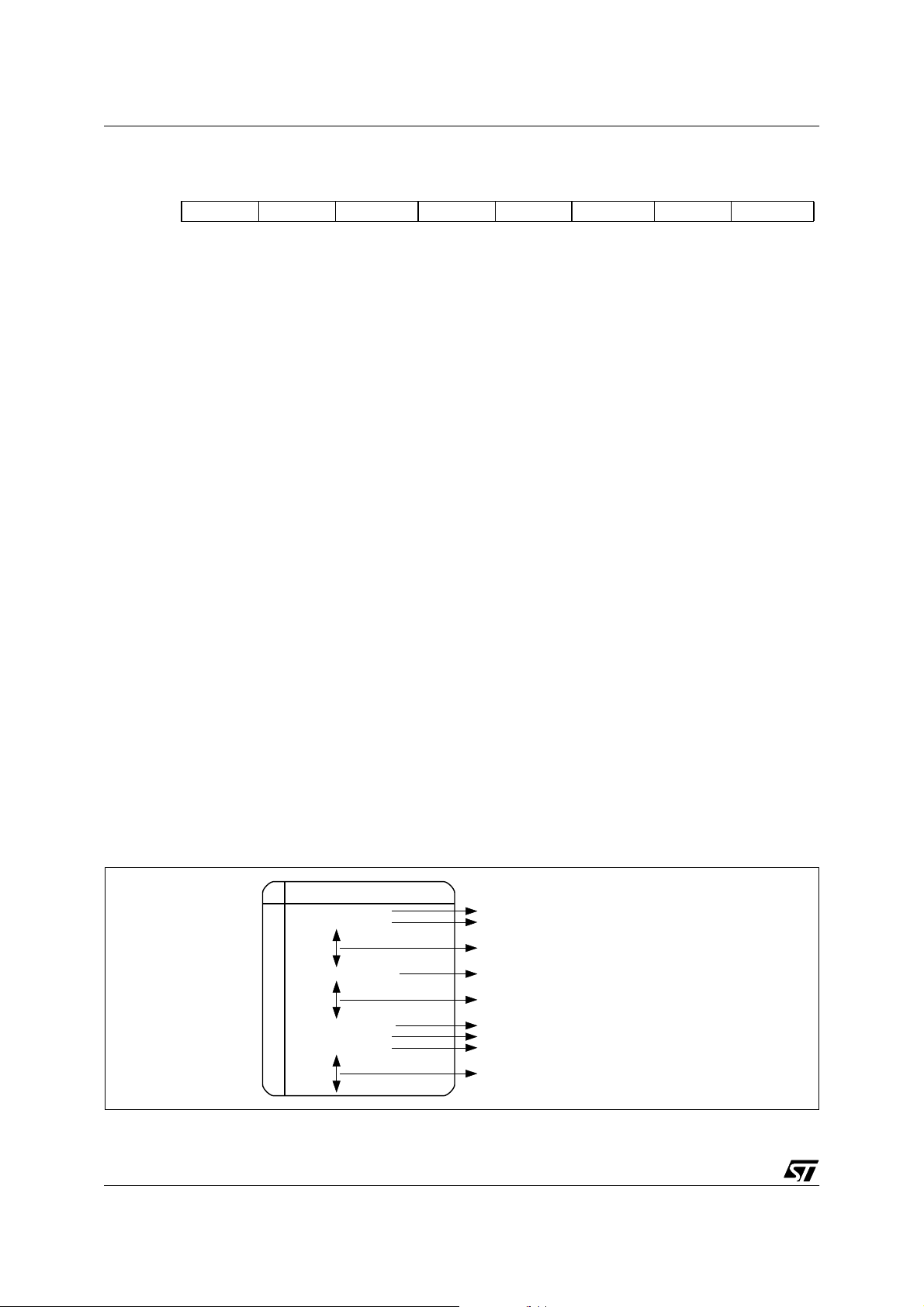

In the example shown in Fi gure 4 on page 8, the
OSD screen, is made of 9 strips.

In RAM, there is:

- one list of 9 Strip descriptors
(size = 9 x 2 bytes = 18 bytes),

- 6 Text strings, each of them made of the character

8.1 - RAM PROGRAMMING

8.1.1 - Two kinds of Data:

Strip Descriptors and Character Codes
An OSD screen is made of a number of Character

and Spacing strips.
Two groups of Data make one OSD screen:

- a Strip Descr iptors list,

- Text strings - one per Character strip.

codes from the line of text.

Text strings can be programmed anywhere in
RAM. The Descriptor list can be located at 16 dif­ferent addresses in RAM. The address is defined
in the Display Control Register. It is consequently
possible to store up to 16 different pages in RAM.

The current Displayed page is specified in the Dis­play Control Register. It refers to a given Page
Descriptor list.

Figure 4. Display Page: List of Character and Spacing strips

TOP MARGIN

Text line number one
Text line number two

Text line number three

Text line number four

LEFT MARGIN

Text line number five
Text line number six

Strip 1 : Character Strip
Strip 2 : Character Strip

Strip 3 : Spacing Strip

Strip 4 : Character Strip

Strip 5 : Spacing Strip

Strip 6 : Character Strip
Strip 7 : Character Strip
Strip 8 : Character Strip

Strip 9 : Spacing Strip (Bottom Margin)

8/18

8.1.2 - Descriptors

Spacing

MSB 0

LSB SL7 SL6 SL5 SL4 SL3 SL2 SL1 SL0

L/ : LINE or CHARACTER spacing:

C

C

L/

------

= 0, spacing descriptor defined as character height (SL[7:0] = 1 to 255 character).
= 1, spacing descriptor defined as scan line height (SL[7:0] = 1 to 255 scan lines).

STV9432

SL[7:0] : Number of selected height (character or scan lines according L/ ).

C

Character

MSB 1 DE CLU3 CLU2 CLU1 CLU0 C9 C8

LSB C7 C6 C5 C4 C3 C2 C1 C0

DE : Display enab le:

= 0, R = G = B = 0 and FBLK = FBK bit of display control register on the whole strip,

= 1, display of the characters.
CLU[3:0] : Active color selection at the begining of the strip.
C[9:1] : Address of the first character code of the strip.
C0 : Address 0 must be 0.

8.1.3 - Code Format

There are basically 3 kinds of code:

- the control codes from 0 to 15 (00H to 0FH),

- the ROM monochrome character codes from 16 to 255 (10H to FFH),

- the two bytes multicolor character codes from 08F0 to 08FF (Hex).

For code definitions see Table 1.

Table 1 Character and Command Codes

0 123456789ABCDEF
0 col 0
1 col 1
2 col 2
3 col 3
4 col 4
5 col 5
6 col 6
7 col 7

8 multicol
9nop

A vflip
B hflip
C dflip
D call
E rtn
F eof

Single byte codes 00 to 0f are command codes. Single byte codes 10 to ff are monochrome character codes.
Double byte codes 08F0 to 08FF are multicolor character codes.

240 Monochrome Characters

9/18

STV9432

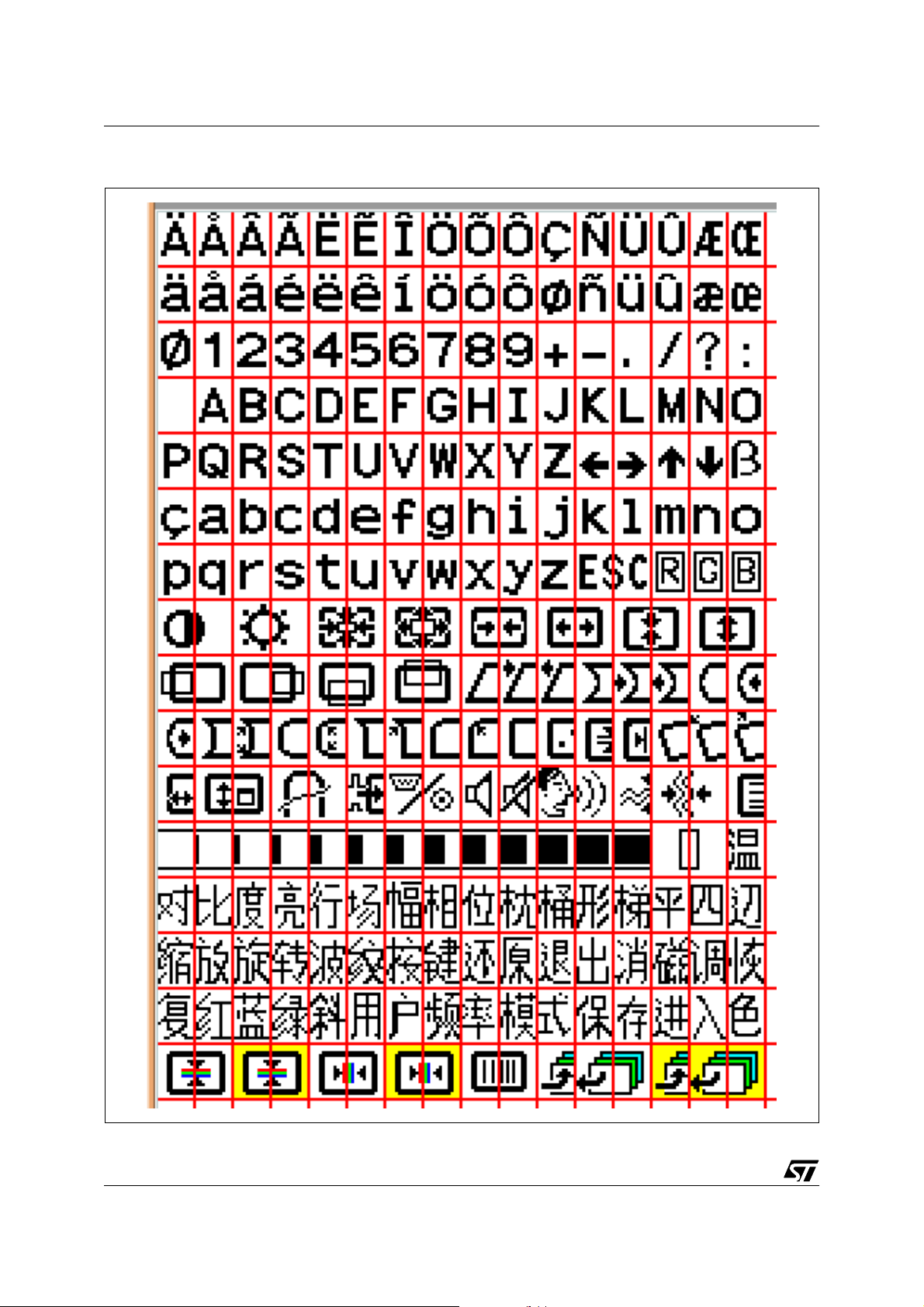

Figure 5. Character Font of the STV9432

10/18

STV9432

Control Codes

Control codes must be followed by a displayable
code, except for RTN & EOL. They must not be
used twice consecutively without a displayable
code between them.

The control code CALL is preceded by an address
byte. The control codes are not displayed except if
mentioned.

Codes 0 to 7 (0h to 7h):
COL0 to COL7 codes select 1 byte among 8

within the CLUT in RAM. The block selection is
fi xe d by CLU 3 b i t of t he a ct i v e ch ar ac t er d es cr i p to r
(see Table 1 and Tabl e 2).

Code 8 (08h):
Multicolor character precode, must be followed by

a multicolor character number from F0h to FFh.
Code 9 (09h):
NOP: no operation is performed, can be used to

spare a location in RAM for an active control code.
Codes 10 to 12 (0Ah to 0Ch):
FLIPS:

HFLIP(0Bh)

Horizontal Flip code flips horizontaly

the following displayable code.

VFLIP(0Ah)

Vertical Flip code flips verticaly the

following displayable code.

DFLIP(0Ch)

Horizontal & Vertical Flip code flips
horizontaly and verticaly the following displayabl e
code.

Code 13 (0Dh):
CALL, this control code switches the display of t he

next character to the code address given by the
next byte as follows:

CALL CODE

@) MSB

(odd
ADDRESS BYTE

(even

@) LSB

00001101

A8 A7 A6 A5 A4 A3 A2 A1

A[9:1] : Address of the next code to

be used (A0 = 0 only even
addresses), in low h alf part of
RAM.

Notes:

CALL and RTN code must be used simultan e­ously.
CALL and RTN codes are displayed as a
SPACE character.
CALL and RTN codes must be plac ed at odd
addresses. They ma y be p receded by a NO P
to place them at the right position.

Code 14 (0Eh):
RTN: return to the CALL + 1 code l ocation (see

Note).
Code 15 (0Fh):
EOL, end of line terminates the display of the cur-

rent row.

ROM Character Codes
Codes 16 to 255 (10h to FFh):

ROM monochrome character codes. The c harac­ter shapes are 12x18 pixel matrix described in Fig -

ure 5 .

Codes 256 to 272 (F0h to FFh):
ROM multicolor character codes. They must be

preceded by the multicolor pre-code 08h. The
character shapes are 12x18 pixel matrix
described in F igure 5.

8.2 - OSD LOOK-UP TABLE

Color look-up table [CLUT] is read/write RAM
table. Mapping address is described in 6.3.2 I2C
Registers Mapping.

The CLUT is splitted into 2 blocks of 8 byt es. Each
byte contains foreground and background infor­mations as described below:

TRA BR BG BB FL FR FG FB

TRA
FL
BR, BG, BB
FR, FG, FB

:

Transparent background

:

Flashing foreground

:

Background color

:

Foreground color

Each block may store a different set of colors. One
block of colors may be used f or the normal items
of the menu while the second block, with brighter
colors, may be used for selected items of the
menu.

The block selection is done by programming bit
CLU3 of CLU[3:0] of the character descriptor (see

Table 2). It remains selected for the whole row.

Bit CLU2, CLU1 and CLU0 of CLU[3:0] of the
character descriptor select the active color at the
beginning of the row.

The active color can be modified along the row,
using 8 control codes COL0 to COL7.

Each control code (COL0 to COL7) activates a
dedicated color byte in the CLUT as described in
Table 2.

11/18

STV9432

Table 2 CLUT Block Selection

CLU3 CLU[2:0] Code Name Command

0 Col 0 00 @4020 07
1 Col 1 01 @4021 16

0 2 Col 2 02 @4022 25

3 Col 3 03 @4023 34
4 Col 4 04 @4024 43
5 Col 5 05 @4025 52
6 Col 6 06 @4026 61
7 Col 7 07 @4027 70
0 Col 0 00 @4028 70
1 Col 1 01 @4029 61
2 Col 2 02 @402A 52

1 3 Col 3 03 @402B 43

4 Col 4 04 @402C 34
5 Col 5 05 @402D 25
6 Col 6 06 @402E 16
7 Col 7 07 @402F 07

8.3 - OSD CONTROL REGISTERS

Code (hex)

Ram @(hex) Reset Value

(hex)

Line Duration (reset value: 20H)

4030 VSP HSP LD6 LD5 LD4 LD3 LD2 LD1

VSP : V-SYNC active edge selection

= 0, falling egde,
= 1, rising edge.

HSP : HFLY active edge selection

= 0, rising egde,
= 1, falling edge.

LD[6:1] : LINE DURATION

LD0 = 0
LD1 = 2 periods of character
One character period is 12 pixels long.

Top Margin (reset value: 30H)

4031 M9 M8 M7 M6 M5 M4 M3 M2

M[9:2] : TOP MARGIN height from the VSYNC reference edge.

M0 = 0, M1 = 0
M2 = 4 scan lines

Note : The top margin is displayed before the first strip of descriptor list. It can be black if FBK of DISPLAY

CONTROL register is set or transparent if FBK is clear.

12/18

Horizontal Delay (reset value: 20H)

4032 DD7 DD6 DD5 DD 4 DD3 DD2 DD 1 DD0

STV9432

DD[7:0] :

HORIZONTAL DISPLAY DELAY from the HSYNC reference edge to the 1
ter strips.
Unit = 6 pixel periods. Minimum value is 08H. First pixel position = [DD[7:0] - 6] x 6 + 54 with
DD[7:0] = 0,2,4,6 delay is 54 pixel and with DD[7:0] = 1,3,5 delay is 60 pixel

st

pixel position of the charac-

Characters Height (reset value: 24H)

4033 - - CH5 CH4 CH3 CH2 CH1 CH0

CH[5:0] : HEIGHT of the character strips in scan lines. For each scan line, the number of the slice which is dis-

played is given by:
SLICE-NUMBER =

(

round

SCAN-LINE-NUMBER = Number of the current scan line of the strip.

SCAN-LINE-NUMBER x 18

CH[5:0]

)

Display Control (reset Value: 00H)

4034 OSD FBK FL1 FL0 P9 P8 P7 P6

OSD : ON/OFF (if 0, R, G, B and FBLK outputs are 0).
FBK : Fast blanking control:

= 1, forces FBLK pin at "1" outside and inside the OSD area.
This leads to blank video RGB and to only display OSD RGB.
= 0, FBLK pin is driven according character code for normal display of OSD data.

FL[1:0] : Flashing mode :

- 00: No flashing. The character attribute is ignored,
(50% duty cycle),

F

F
F

st

descriptor of the current displayed pages.

P[9:6] :

- 01: Flashing at f

- 10: Flashing at 2 f

- 11: Flashing at 4 f

Note: fF is 128 time vertical frequency.
Address of the 1

P[13:10] and P[5:0] = 0; up to 16 different pages can be stored in the RAM.

Locking Condition Time Constant (reset value: 01H)

4035 FR AS2 AS1 AS0 LUK BS2 BS1 BS0

FR : Free Running; if = 1 PLL is disabled and the pixel frequency keeps its last value.
AS[2:0] : Phase constant during locking conditions.
BS[2:0] : Frequency constant during locking conditions.
LUK : Lock unlock status bit

0 = unlocked PLL
1 = Locked PLL

13/18

STV9432

C

C

Capture Process Time Constant (reset value: 24H)

4036 LEN AF2 AF1 AF0 - BF2 BF1 BF0

LEN : Lock enable

0 = R,G,B, FBLK are always enabled,

1 = R,G,B,, FBLK are enabled only when PLL is locked.
AF[2:0] : Phase constant during the capture process.
BF[2:0] : Frequency constant during the capture process.

Initial Pixel Period (reset value: 06H)

4037 PP7 PP6 PP5 PP4 PP3 PP2 PP1 PP0

PP[7:0] : Value to initialize the pixel period of the PLL.

8.4 - OSD TIMINGS

The number of pixel periods is given by the LINE
DURATION register and is equal to:

[LD[6:1] x 2 + 1 ] x 12.
(LD[6:1]: value of the LINE DURATION register).

This value is used to define the horizontal size of
the characters.

The horizontal left margin is given by the HORI­ZONTAL DELAY register and is equal to:

(DD[7:0] -6) x 6 + 54
(DD[7:0]: value of the DISPLAY DELAY register).
This value is used to define the horizontal position

of the characters on the screen. Due to internal
logic, minimum horizontal delay is fixed at 4.5
characters (54 pixel) when DD is even and inferior
or equal to 6, and it is f ixed at 5 characters (60
pixel) when DD is odd and inferior or equal to 7.

8.5 - PLL

The PLL function of the STV9432 provides the
internal pixel clock locked on the horizontal syn­chro signal and used by the d isplay processor to
generate the R, G, B and fast blanking signals. It
is made of 2 PLLs. The first PLL which is analog
(see Figure 6) provides a high frequency that is 40
times the internal oscillator frequency, or 320MHz.
This high frequency clock is used by the Display
controller.

The 320MHz frequency is then divided by three.
The resulting 106.7MHz clock is used by the
Video timings analysis block.

The second PLL, fully digital (see Figure 7 ), pro­vides a pixel frequency locked on the horizontal
synchro signal. The ratio between the frequencies
of these 2 signals is:

M = 12 x (LD[6:1] x 2 + 1) where LD[ 6:1] is the
value of the LINE DURATION register.

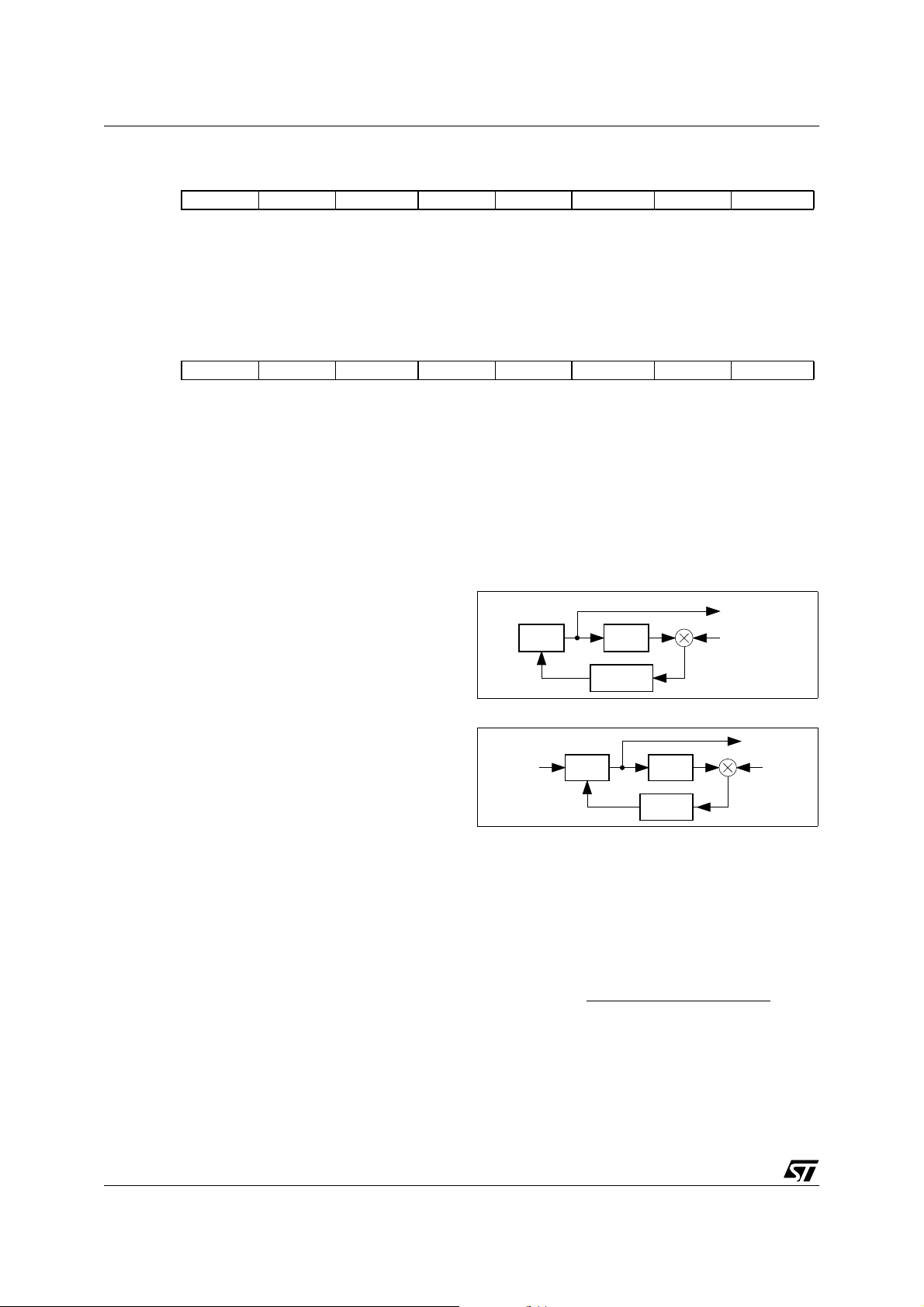

Figure 6. An alo g P LL

N • f

OS

VCO 40

FILTER

f

OSC

Figure 7. Digital PLL

M • f

H-SYNC

40 • f

OSC

%D %M

ALGO

f

H-SYN

err(n)D(n)

8.5.1 - Programming of the PLL Registers
Initial Pixe l Pe riod (@4037)

This register allows to increase the speed of the
PLL convergence when the horizontal frequency
changes (new graphic standard).

The relationship between PP[7:0], LD[6:1], f
and f

PP[7:] = round

OSC

is:

(

40 . f

OSC

6. (2 . LD + 1) . f

HSYNC

HSYNC

)

14/18

STV9432

f
f

t

f
f

t

f
f

f
f

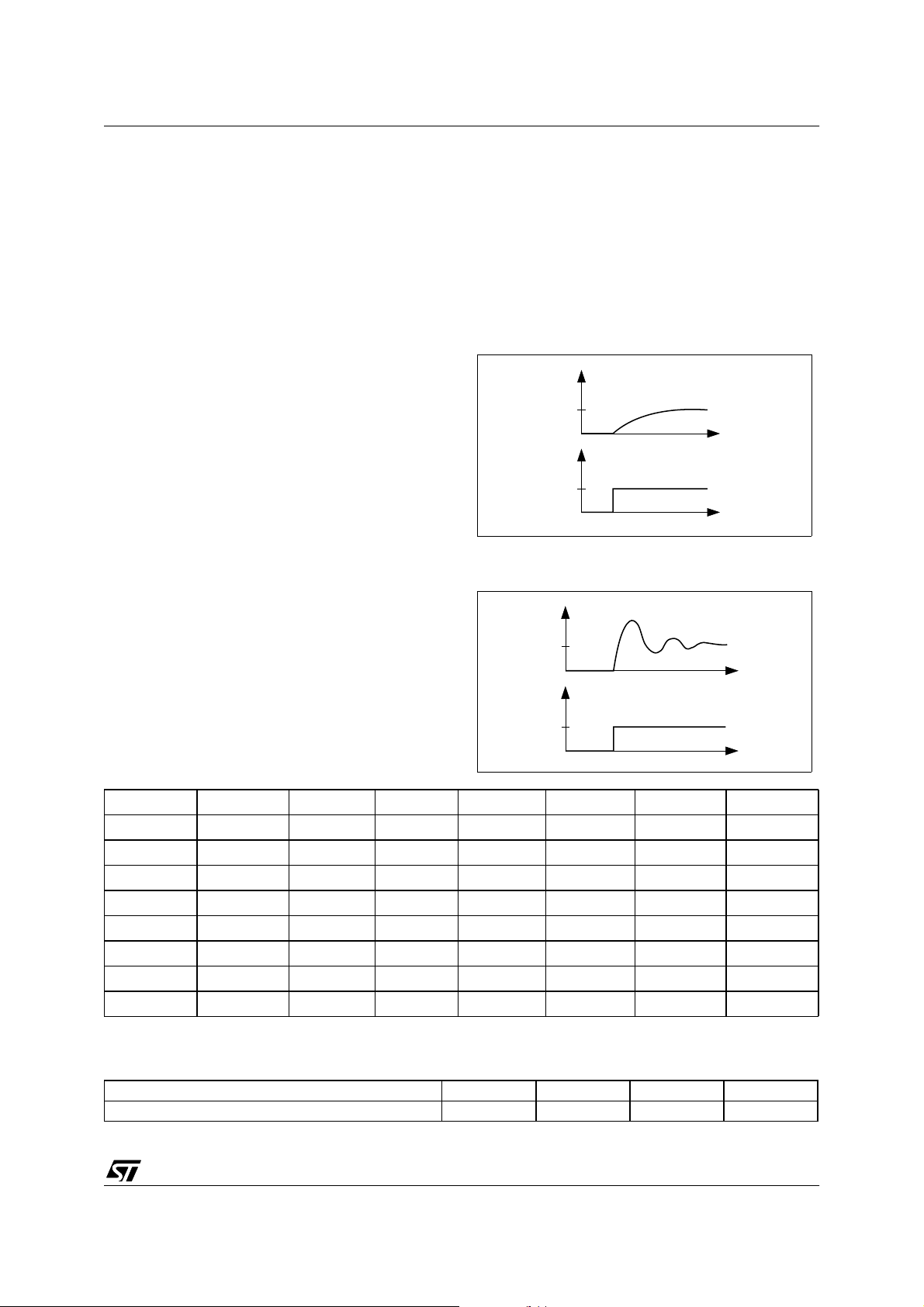

Locking Condition Time Constant

(@ 4035)

This register provides the AS[2:0] and BS[2:0]
constants used by the algo part of the PLL (see

Figure 6). These two constants as well as the

phase error (err(n)) give the new value (Dn) of the
high frequency signal division. Consequently,
AS[2:0] and BS[2:0] fix the pixel cloc k frequency.
These two constants are used only in locking con­dition, if the phase error is inferior to a fixed value
during at least 4 scan lines. If the phase error
becomes superior to the fixed value, the PLL is
not in locking condition but in capture process. In
this case, the algo part of the PLL uses the other
constants AF[2:0] and BF[2:0] from the next regis­ter.

Capture Process Time Constant

(@ 4036)

The choice between these two time constants
(locking condition or capture process) allows to
decrease the capture process time by changing
the time response of the PLL.

8.5.2 - How to choose the time constant value

The time response of the PLL i s given by its char­acteristic equation which is:

2

(x - 1)

+ ( ) . (x - 1) + = 0

αβ+ β

Where:

. 2A -11

α 3LD⋅= β

[6:1]

and = 3 . LD[6:1] . 2

B - 19

(LD[6:1] = value of the LINE DURATION register,
A = value of the 1st time constant, AF or AS and

B = value of the 2

d

time constant, BF or BS).

As can be seen, the solution depends only on the
LINE DURATION and the TIME CONSTANTS
given by the I

2

C registers.

If ( )
ble and its response is as shown in Figure 15.

If ( )
shown in Figure 9. In this case the P LL is stable if

τ

> 0.7 damping coefficient.

Table 3 gives some good values for A and B con-

stants for different values of the LINE DURATION.

Figure 8. Time Response of the PLL/
Characteristic equation solutions (with real
solutions)

Figure 9. Time Response of the PLL/
Characteristic equation solutions (with
complex solutions)

2

αβ+ β0≥αβ
αβ+ β0≤

- 4 and 2 < 4, the PLL is sta-

2

- 4 , the response of the PLL is as

PLL Frequency

1

0

Input Frequency

1

0

PLL Frequency

1

0

Input Frequency

1

0

–

Table 3 Valid Time Constants Examples

B \ A 0 1 2 3 4 5 6

0 YYYY YYYY YYYY YYYN YNNN NNNN NNNN
1 YYYY YYYY YYYY YYYN YNNN NNNN NNNN
2 NYYY YYYY YYYY YYYN YNNN NNNN NNNN
3 NNNY YYYY YYYY YYYN YNNN NNNN NNNN
4 NNNN NYYY
5 NNNN NNNY YYYY YYYN YNNN NNNN NNNN
6 NNNN NNNN NYYY YYYN YNNN NNNN NNNN
7 NNNN NNNN NNNY YYYN YNNN NNNN NNNN

(1)

YYYY YYYN YNNN NNNN NNNN

t

t

Notes: - Table meaning: N = No possible capture - No stability, Y = PLL can lock.

- Case of A[2:0] = 1 (001) and B[2:0] = 4 (100):

LD[6:1] 8 16 24 32
Valid Time Constants NYYY

15/18

STV9432

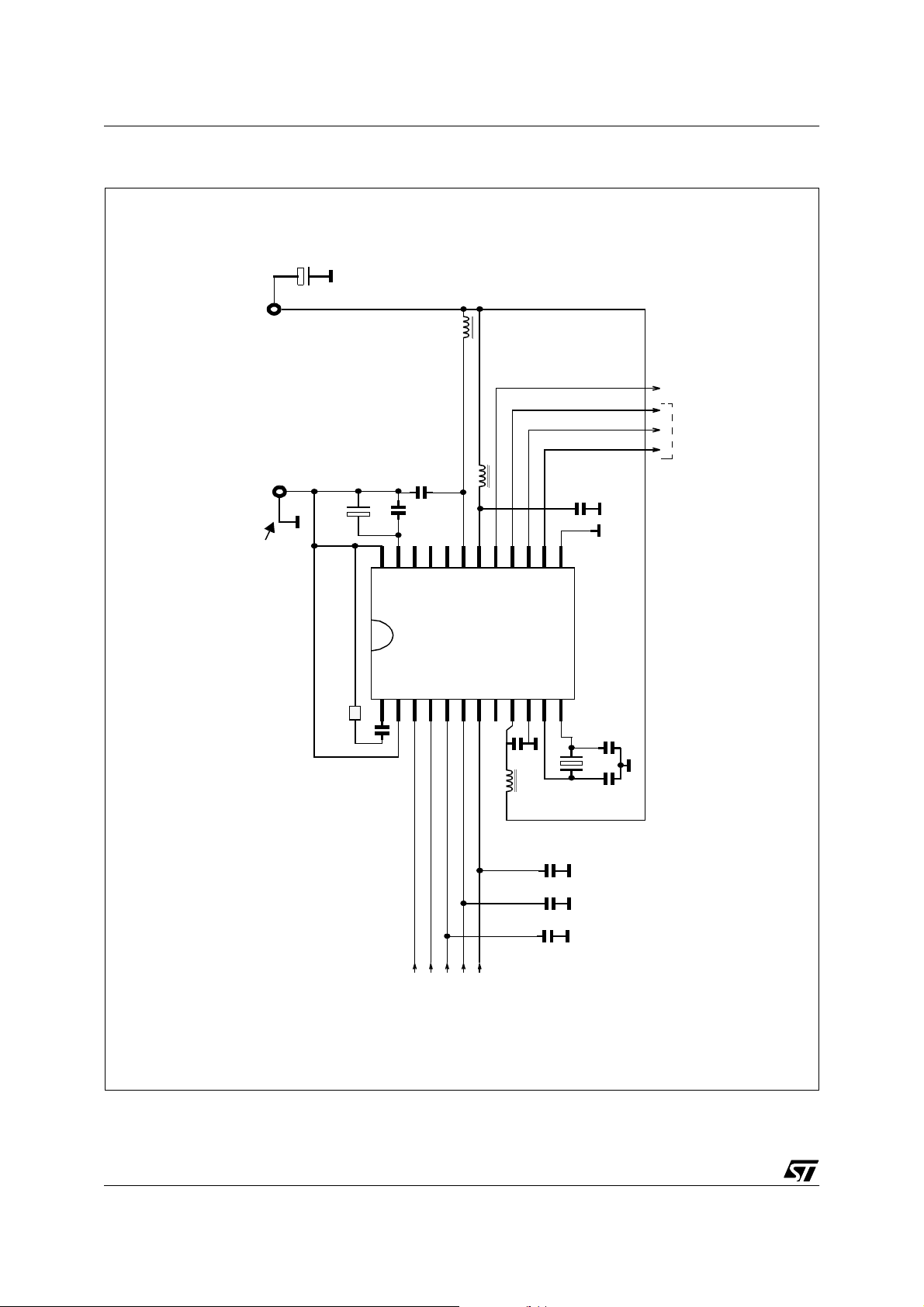

Figure 10. APPLICATION DIAGRAM

47µF

C16

VDD +5VGND

H

m

100

L3

Fast blanking ouput

H

m

C15

100nF

22µF

Separate path for digitlal GND

100nF

C11

R1

C10

N.C 21

N.C 22

TEST 24

ADCREF 23

3 SDA

1 FILTER

4 SCL

2 AGND

L2

100

C9

RGB outputs

100nF

N.C 20

AVdd 19

OVdd 18

BOUT 16

FBLK 17

N.C.

7 HFLY

5 HS

8

6 VS

9 DVdd

OVss 13

ROUT 14

GOUT 15

11 XTi

12 XTO

10 DVss

1nF

2.2kΩ

C8

100nF

C7

H

m

100

L1

Xtal

22pF

C6

C5

22pF

8 Mhz

C3

100pF

C2

100pF

C1

100pF

I2C bus

Vertival sync

Fly back pulse

Horizontal sync

16/18

PACKAGE MECHANICAL DATA

24 PINS - PLASTIC DIP (SHRINK)

B eB1

STV9432

E

E1

A2

A1

LA

Stand-off

c

D

e1
e2

E

24

1

13

F

12

SDIP24

e3
e2

.015
0,38

Gage Plane

Dimensions Millimeters Inches

Min. Typ. Max. Min. Typ. Max.

A 5.08 0.20
A1 0.51 0.020
A2 3.05 3.30 4.57 0.120 0.130 0.180

B 0.36 0.46 0.56 0.0142 0.0181 0.0220
B1 0.76 1.02 1.14 0.030 0.040 0.045

C 0.23 0.25 0.38 0.0090 0.0098 0.0150

D 22.61 22.86 23.11 0.890 0.90 0.910

E 7.62 8.64 0.30 0.340
E1 6.10 6.40 6.86 0.240 0.252 0270

e 1.778 0.070

e1 7.62 0.30
e2 10.92 0.430
e3 1.52 0.060

L 2.54 3.30 3.81 0.10 0.130 0.150

17/18

2

STV9432

Information furnished is believed to be accurate and reliable. However, STMicroelectronics assumes no
responsibility for the consequenc es of use of such information nor f or any infringemen t of patents or oth er
rights of third parties which may result from its use. No license is granted by implication or otherwise under any
patent or patent rights of STMicroelectronics. Specifications mentioned in this publication are subject to change
without notice. This publication supersedes and replaces all information previously supplied.
STMicroelectronics products are not authorized for use as critical components in life support devices or
systems without express written approval of STMicroelectronics.

The ST logo is a trademark of STMicroelectronics.

© 2000 STMicroelectronics - All Rights Reserved

2

Purchase of I

Rights to use these components in a I

Australia - Brazil - China - Finland - France - Germany - Hong Kong - India - Italy - Japan - Korea - Malaysia - Malta -

Mexico - Morocco - The Netherlands - Singapore - Spain - Sweden - Switzerland - Taiwan - Thailand -

18/18

C Components of STMicroelectronics, conveys a license under the Philips I2C Patent.

Standard Specifications as defined by Philips.

STMicroelectronics GROUP OF COMPANIES

2

C system, is granted provided that the system conforms to the I2C

United Kingdom - U.S.A.

http://www.st.com

3
