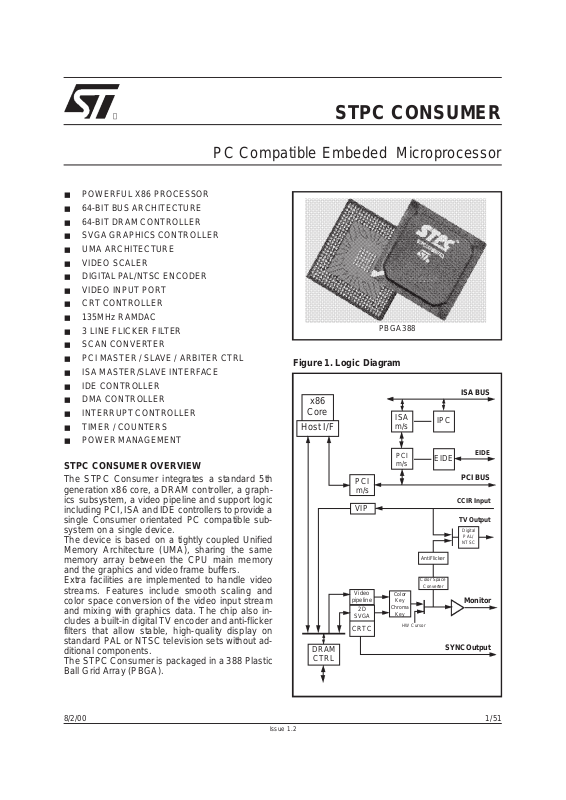

Datasheet STPCC01 Datasheet (SGS Thomson Microelectronics)



PC Compatible Embeded Microprocessor

■ POWERFUL X86 PROCESSOR

■ 64-BIT BUS ARCHITECTURE

■ 64-BIT DRAM CONTROLLER

■ SVGA GRAPHICSCONTROLLER

■ UMA ARCHITECTURE

■ VIDEO SCALER

■ DIGITAL PAL/NTSC ENCODER

■ VIDEO INPUT PORT

■ CRTCONTROLLER

■ 135MHz RAMDAC

■ 3 LINE FLICKER FILTER

■ SCAN CONVERTER

■ PCI MASTER / SLAVE / ARBITER CTRL

■ ISA MASTER/SLAVE INTERFACE

■ IDE CONTROLLER

■ DMA CONTROLLER

■ INTERRUPT CONTROLLER

■ TIMER / COUNTERS

■ POWER MANAGEMENT

STPC CONSUMER OVERVIEW

The STPC Consumer integrates a standard 5th
generation x86 core, a DRAM controller, a graph­ics subsystem, a video pipeline and support logic
including PCI,ISAandIDEcontrollers toprovide a
single Consumer orientated PC compatible sub­system on a single device.
The device is based on a tightly coupled Unified
Memory Architecture (UMA), sharing the same
memory array between the CPU main memory
and the graphics and video frame buffers.
Extra facilities are implemented to handle video
streams. Features include smooth scaling and
color space conversion of the video input stream
and mixing with graphics data. The chip also in­cludes abuilt-in digital TV encoder and anti-flicker
filters that allow stable, high-quality display on
standard PAL or NTSC television sets without ad­ditional components.
The STPC Consumer is packaged in a 388 Plastic
Ball Grid Array (PBGA).

STPC CONSUMER

PBGA388

Figure 1. Logic Diagram

x86

Core

Host I/F

PCI

m/s

VIP

Video

DRAM

CTRL

pipeline

2D

SVGA

CRTC

Chroma

ISA
m/s

PCI
m/s

Color

Key

Key

HW Cursor

IPC

EIDE

AntiFlicker

Color Space

Converter

ISABUS

EIDE

PCIBUS

CCIRInput

TVOutput

Digital

PAL/

NTSC

Monitor

SYNCOutput

Issue 1.2

1/518/2/00

STPC CONSUMER

■ X86 Processor core

■ Fully static 32-bit 5-stage pipeline, x86

processor fully PC compatible.

■ Can access up to 4GBytes of external

memory.

■ 8KByte unified instruction and data cache

with write back and write through capability.

■ Parallelprocessingintegral floating pointunit,

with automatic power down.

■ Clock core speeds up to of 100 MHz.

■ Fully static design for dynamic clock control.

■ Low power and system management modes.

■ Optimized design for3.3V operation.

■ DRAM Controller

■ Integrated systemmemory andgraphic frame

memory.

■ Supports up to 128 MBytes system memory

in 4 banks and down to as little as 2Mbytes.

■ Supports 4MB, 8MB, 16MB, 32MB single-

sided and double-sided DRAM SIMMs.

■ Four quad-word write buffers for CPU to

DRAM and PCI to DRAM cycles.

■ Four 4-word read buffers for PCI masters.

■ Supports Fast Page Mode & EDO DRAM.

■ Programmable timing for DRAM parameters

including CAS pulse width, CAS pre-charge
time and RAS to CAS delay.

■ 60, 70, 80 & 100ns DRAM speeds.

■ Memory hole between 1 MByte & 8 MByte

supported for PCI/ISA busses.

■ Hidden refresh.

To check if your memory device is supported by
the STPC, please refer to Table 9-3 in the
Programming Manual.

■ Graphics Engine

■ 64-bit windows accelerator.

■ Backward compatibility to SVGA standards.

■ Hardware acceleration for text, bitblts,

transparent bltsand fills.

■ Up to 64 x 64 bit graphics hardware cursor.

■ Up to 4MB long linear frame buffer.

■ 8-, 16-, and 24-bit pixels.

■ Drivers for Windows and other operating

systems.

■ VGA Controller

■ Integrated 135MHz triple RAMDACallowing

for 1280 x 1024 x 75Hz display.

■ Requires external frequency synthesizer and

reference sources.

■ 8-, 16-, 24-bit pixels.

■ Interlaced or non-interlaced output.

■ Video Input port

■ Accepts video inputs in CCIR 601/656 or

ITU-R 601/656, and stream decoding.

■ Optional 2:1 decimator

■ Stores captured video in off setting area of

the onboard frame buffer.

■ Video pass through to the onboard PAL/

NTSC encoder forfull screen video images.

■ HSYNC and B/T generation or lock onto

external video timing source.

■ Video Pipeline

■ Two-tapinterpolative horizontal filter.

■ Two-tapinterpolative vertical filter.

■ Color space conversion (RGB to YUV and

YUV to RGB).

■ Programmable window size.

■ Chroma and color keying for integrated video

overlay.

■ Programmable two tap filter with gamma

correction or three tap flicker filter.

■ Progressiveto interlaced scan converter.

■ Digital NTSC/PAL encoder

■ NTSC-M, PAL-M,PAL-B,D,G,H,I,PAL-N easy

programmable video outputs.

■ CCIR601 encoding with programmable color

subcarrier frequencies.

■ Line skip/insert capability

■ Interlaced or non-interlaced operation mode.

■ 625 lines/50Hz or 525 lines/60Hz 8 bit

multiplexedCB-Y-CR digital input.

■ CVBS and R,G,B simultaneous analog

outputs through 10-bit DACs.

■ Cross colorreduction by specific trap filtering

on luma within CVBS flow.

■ Power down mode available on each DAC.

2/51

Issue 1.2

STPC CONSUMER

■ PCI Controller

■ Fully compliant with PCI 2.1 specification.

■ Integrated PCI arbitration interface. Up to 3

masters can connect directly. External PAL
allows for greater than 3 masters.

■ Translation of PCI cycles to ISA bus.

■ Translation of ISA master initiated cycle to

PCI.

■ Support forburst read/write from PCI master.

■

0.33X and 0.5X CPU clock PCI clock.

■ ISA master/slave Interface

■ Generates the ISA clock from either

14.318MHz oscillator clock or PCI clock

■ Supports programmable extra wait state for

ISA cycles

■ Supports I/O recovery time for back to back

I/O cycles.

■ Fast Gate A20 and Fast reset.

■

Supports the single ROM that C, D, or E.
blocks shares withF block BIOS ROM.

■ Supports flash ROM.

■ Supports ISA hidden refresh.

■ Buffered DMA &ISA master cycles to reduce

bandwidth utilizationof the PCI andHost bus.
NSP compliant.

■ IDE Interface

■ Supports PIO

■

Supports up to Mode 5 Timings

■ TransferRates to 22 MBytes/sec

■ Supports up to 4 IDE devices

■ Concurrent channel operation(PIO modes) -

4 x 32-Bit Buffer FIFOs per channel

■ Support for PIO mode 3 & 4.

■ Support for 11.1/16.6 MB/s, I/O Channel

Ready PIO data transfers.

■ Individual drive timing for all four IDE devices

■ Supports both legacy & native IDE modes

■ Supports hard drives larger than 528MB

■ Support for CD-ROM and tape peripherals

■ Backward compatibility with IDE (ATA-1).

■ Drivers for Windows and other Operating

Systems

■ Integrated peripheral controller

■ 2X8237/AT compatible 7-channel DMA

controller.

■ 2X8259/AT compatible interrupt Controller.

16 interrupt inputs - ISA and PCI.

■ Three 8254 compatible Timer/Counters.

■ Co-processor error support logic.

■ Power Management

■ Four power saving modes: On, Doze,

Standby, Suspend.

■ Programmable system activity detector

■ Supports SMM and APM.

■ Supports STOPCLK.

■ Supports IO trap & restart.

■ Independent peripheral time-out timer to

monitor hard disk, serial & parallel ports.

■ Supports RTC,interrupts and DMAs wake-up

Issue 1.2

3/51

STPC CONSUMER

4/51

Issue 1.2

UPDATE HISTORY FOR OVERVIEW.

0.1 UPDATE HISTORY FOR OVERVIEW.

The following changes have been made to the Electrical Specification Chapter on the 02/02/2000.

Section Change Text

Added

To check if your memory device is supported by the STPC, please refer to
Table 9-3 Host Address to MA Bus Mappingin the Programming Manual.

Issue 1.2

5/51

GENERAL DESCRIPTION

1. GENERAL DESCRIPTION

At the heart of the STPC Consumer is an ad­vanced processor block, dubbed the 5ST86. The
5ST86 includes a powerful x86 processor core
along with a 64-bit DRAM controller, advanced
64bit accelerated graphics and video controller, a
high speed PCI local-bus controller and Industry
standard PC chip set functions (Interrupt control­ler, DMA Controller, Interval timer and ISA bus)
and EIDE controller.

The STPC Consumer has in addition to the
5ST86, a Video subsystem and high quality digital
Television output.

The STMicroelectronics x86 processorcore is em­bedded with standard and application specific pe­ripheral modules on the same silicon die. The core
has all the functionality of the STMicroelectronics
standard x86 processor products, including the
low power System Management Mode (SMM).

System Management Mode (SMM) provides an
additional interrupt and address space that can be
used for system power management or software
transparent emulation of peripherals. While run­ning in isolated SMM address space, the SMM in­terrupt routine can execute without interfering with
the operating system or application programs.

Further power management facilities include a
suspend mode that can be initiated from either
hardware or software.Because of the static nature
of the core, no internal data is lost.

The STPC Consumer makes use of a tightly cou­pled Unified Memory Architecture (UMA), where
the same memory array is used for CPU main
memory and graphics frame-buffer. This signifi­cantly reduces total system memory with system
performances equal to that of a comparable solu­tion with separate frame buffer and system mem­ory. In addition, memory bandwidth is improved by
attaching the graphics engine directly to the 64-bit
processor host interface running at the speed of
the processor bus rather than the traditional PCI
bus.

The 64-bit wide memory array provides the sys­tem with 320MB/s peak bandwidth, double that of
an equivalent system using 32 bits. This allows for
higher screen resolutions and greater color depth.
The processor bus runs at the speed of the proc­essor (DX devices) or half the speed (DX2 devic­es).

The ‘standard’ PC chipset functions (DMA, inter­rupt controller, timers, power management logic)
are integrated with the x86 processor core.

The PCI bus is the main data communication link
to the STPC Consumer chip. The STPC Consum­er translates appropriate host bus I/O and Memory
cycles onto the PCI bus. It also supports the gen­eration of Configuration cycles on the PCI bus.
The STPC Consumer, as a PCI bus agent (host
bridge class), fully complies with PCI specification

2.1. The chip-set also implements the PCI manda­tory header registers in Type 0 PCI configuration
space for easy porting of PCI aware system BI­OS. The device contains a PCI arbitration function
for three external PCI devices.

The STPC Consumer integrates an ISA bus con­troller. Peripheral modules such as parallel and
serial communications ports, keyboard controllers
and additional ISA devices can be accessed by
the STPC Consumer chip set through this bus.

An industry standard EIDE (ATA 2) controller is
built in to the STPC Consumer and connected in­ternally via the PCI bus.

Graphics functions are controlled by the on-chip
SVGA controller and the monitor display is man­aged by the 2D graphics display engine.

This Graphics Engine is tuned to work with the
host CPU to provide a balanced graphics system
with a low silicon area cost. It performs limited
graphics drawing operations, which include hard­ware acceleration of text, bitblts, transparent blts
and fills. These operations can act on off-screen
or on-screen areas. The frame buffer size ranges
up to 4 Mbytes anywhere in the physical main
memory.

The graphics resolution supported is a maximum
of 1280x1024 in 65536 colours at 75Hz refresh
rate and is VGA and SVGA compatible. Horizontal
timing fields are VGA compatible while the vertical
fields are extendedby one bit to accommodate the
above display resolution.

STPC Consumer providesseveral additional func­tions to handle MPEG or similar video streams.
The Video Input Port accepts an encoded digital
video stream in one of a number of industry stand­ard formats, decodes it, optionally decimates it by
a factor of 2:1, and deposits it into an off screen
area of the frame buffer. An interrupt request can
be generated when an entire field or frame has
been captured.

6/51

Issue 1.2

GENERAL DESCRIPTION

The video output pipeline incorporates a video­scaler andcolor spaceconverter function and pro­visions in the CRT controller to display a video
window. Whilerepainting the screen the CRT con­troller fetchesboth the video as well as the normal
non-video frame buffer in two separate internal
FIFOs (256-Bytes each). The video stream can be
color-space converted (optionally) and smooth
scaled. Smooth interpolative scaling in both hori­zontal and vertical directions are implemented.
Color and Chroma key functions are also imple­mented to allow mixing video stream with non-vid­eo frame buffer.

The video output passes directly to the RAMDAC
for monitor output or through another optional
color spaceconverter (RGB to 4:2:2 YCrCb) to the
programmable anti-flicker filter. The flicker filter is
configured as either a two line filter with gamma
correction (primarily designed for DOS type text)
or a 3 line flicker filter (primarily designed for Win­dows type displays). The flicker filter is optional
and can be softwaredisabled foruse with video on
large screen areas.

The Video output pipeline of the STPC Consumer
interfaces directly to the internal digital TV encod­er. It takes a 24 bit RGB non-interlaced pixel
stream and converts to a multiplexed 4:2:2 YCrCb
8 bit output stream, the logic includes a progres­sive to interlaced scan converter and logic to in­sert appropriate CCIR656 timing reference codes
into the output stream. It facilitates the high quality
display of VGA or full screen video streams re­ceived via the Video input port to standard NTSC
or PAL televisions.

The STPC Consumer core is compliant with the
Advanced Power Management (APM) specifica­tion to provide a standard method by which the
BIOS can control the power used by personal
computers. The Power Management Unit module
(PMU) controls the power consumption by provid­ing a comprehensive set of features that control
the power usage and supports compliance with
the United States EnvironmentalProtection Agen­cy’s Energy Star Computer Program. The PMU
provides following hardware structures to assist
the software in managing the power consumption
by the system.

- System Activity Detection.

- 3 power-down timers detecting system inactivity:

- Doze timer (short durations).

- Stand-by timer (medium durations).

- Suspend timer (long durations).

- House-keeping timer to cope with short bursts of
house-keeping activity while dozing or in stand-by
state.

- Peripheral activity detection.

- Peripheral timer detecting peripheral inactivity

- SUSP# modulationto adjust the system perform­ance in various power down states of the system
including full power on state.

- Power control outputs to disable power from dif­ferent planes of the board.

Lack of system activity for progressively longer
period of times is detected by the three power
down timers. These timers can generate SMI in­terrupts to CPU so that the SMM software can put
the system in decreasing states of power con­sumption. Alternatively, system activity in a power
down statecan generate SMI interrupt to allow the
software to bring the system back up to full power
on state. The chip-set supports up to three power
down states: Doze state, Stand-by state and Sus­pend mode. These correspond to decreasing lev­els of power savings.

Power down puts the STPC Consumer into sus­pend mode. The processor completes execution
of thecurrent instruction, any pending decoded in­structions and associated bus cycles. During the
suspend mode, internal clocks are stopped. Re­moving power down, the processor resumes in­struction fetching and begins execution in the in­struction stream at the point it had stopped.

A reference design for the STPC Consumer is
available including the schematics and layout
files, the design is a PC ATX motherboard design.
The design is available as a demonstration board
for application and systemdevelopment.

The STPC Consumer is supported by several
BIOS vendors, including the super I/O device
used in the reference design. Drivers for 2D accel­erator, video features and EIDE are availaible on
various operating systems.

The STPC Consumer has been designed using
modern reusable modular design techniques, it is
possible to add orremove the standard features of
the STPC Consumer or other variants of the
5ST86 family. Contact your local STMicroelecton­ics sales office for further information.

- House-keeping activity detection.

7/51

Issue 1.2

GENERAL DESCRIPTION

Figure 1-1 Functionnal description

x86

Core

Host I/F

ISA BUS

PCI m/s

VIP

ISA

PCI m/s

IPC

EIDE

Anti-Flicker

EIDE

PCI BUS

CCIR Input

TV Output

Digital

PAL/

8/51

DRAM

Video

pipeline

2D

SVGA
CRTC

Color

Key

Chroma

Issue 1.2

Color Space

Monitor

HW Cursor

SYNC Output

Figure 1-2 Typical Application

Super I/O

GENERAL DESCRIPTION

Keyboard / Mouse
Serial Ports
Parallel Port

ISA

MUX

MUX

DMUX

RTC

Flash

IRQ

DMA.REQ

STPC Consumer

DMA.ACK

Floppy

2x EIDE

DMUX

Monitor

SVGA

TV

S-VHS
RGB
PAL
NTSC

PCI

Video

CCIR601
CCIR656

4x 16-bit EDO DRAMs

9/51

Issue 1.2

PIN DESCRIPTION

2. PIN DESCRIPTION

2.1 INTRODUCTION

The STPC Consumer integrates most of the func­tionalities of the PC architecture. As a result, many
of the traditional interconnections between the
host PC microprocessor and the peripheral devic­es aretotally internal to the STPC Consumer.This
offers improved performance due to the tight cou­pling of the processor core and these peripherals.
As a result many of the external pin connections
are made directly to the on-chip peripheral func­tions.

Figure 2-1 shows the STPC Consumer’s external
interfaces. It defines the main busses and their
function. Table 2-1 describes the physical imple­mentation listing signal types and their functional­ities. Table 2-2 provides a full pin listing and de­scription. Table 2-3 provides a full listing of the
STPC Consumer pin locations of package by
physical connection. Please refer to the pin alloca­tion drawing for reference.

Figure 2-1. STPC Consumer External Interfaces

Table 2-1. Signal Description

Group name Qty

Basic Clocks reset & Xtal(SYS) 12
DRAM Controller 89
PCI interface (PCI) 58
ISA / IDE / IPC combined interface 88
Video Input (VIP) 9
TV Output 10
VGA Monitor interface 10
Grounds 69
V

DD

Analog specific V
Reserved 5
Total Pin Count 388

CC/VDD

26
12

Note: Several interface pins are multiplexed with
other functions, refer to the Pin Description sec­tion for further details

x86

STPC Consumer

SOUTHNORTH PCI

DRAM VGA VIP TV SYS ISA/IDE IPC

89 10 9 10 58

10/51

Issue 1.2

13

77 11

PIN DESCRIPTION

Table 2-2. Definition of Signal Pins

Signal Name Dir Description Qty

BASIC CLOCKS AND RESETS

SYSRSTI# I System Reset / Power good 1
XTALI I 14.3MHz Crystal Input 1
XTALO I/O 14.3MHz Crystal Output - External Oscillator Input 1
HCLK O Host Clock (Test) 1
DEV_CLK O 24MHz Peripheral Clock (floppy drive) 1
GCLK2X I/O 80MHz Graphics Clock 1
DCLK I/O 135MHz Dot Clock 1
PCI_CLKI I 33MHz PCI Input Clock 1
PCI_CLKO O 33MHz PCI Output Clock (from internal PLL) 1
SYSRSTO# O Reset Output to System 1
ISA_CLK O ISA Clock Output - Multiplexer Select Line For IPC 1
ISA_CLK2X O ISA Clock x 2 Output - Multiplexer Select Line For IPC 1

MEMORY INTERFACE

MA[11:0] I/O Memory Address 12
RAS#[3:0] O Row Address Strobe 4
CAS#[7:0] O Column Address Strobe 8
MWE# O Write Enable 1
MD[63:0] I/O Memory Data 64

PCI INTERFACE

AD[31:0] I/O PCI Address / Data 32
CBE[3:0] I/O Bus Commands / Byte Enables 4
FRAME# I/O Cycle Frame 1
TRDY# I/O Target Ready 1
IRDY# I/O Initiator Ready 1
STOP# I/O Stop Transaction 1
DEVSEL# I/O Device Select 1
PAR I/O Parity Signal Transactions 1
SERR# O System Error 1
LOCK# I PCI Lock 1
PCIREQ#[2:0] I PCI Request 3
PCIGNT#[2:0] O PCI Grant 3
PCI_INT[3:0] I PCI Interrupt Request 4
VDD5 I 5V Power Supply for PCI ESD protection 4

ISA AND IDE COMBINED ADDRESS/DATA

LA[23:22] / SCS3#,SCS1# I/O Unlatched Address (ISA) / Secondary Chip Select (IDE) 2
LA[21:20] / PCS3#,PCS1# I/O Unlatched Address (ISA) / Primary Chip Select (IDE) 2
LA[19:17] / DA[2:0] O Unlatched Address (ISA) / Address (IDE) 3
RMRTCCS# / DD[15] I/O ROM/RTC Chip Select / Data Bus bit 15 (IDE) 1
KBCS# / DD[14] I/O Keyboard Chip Select / Data Bus bit 14 (IDE) 1
RTCRW# / DD[13] I/O RTC Read/Write / Data Bus bit 13 (IDE) 1
RTCDS# / DD[12] I/O RTC Data Strobe / Data Bus bit 12 (IDE) 1
SA[19:8] / DD[11:0] I/O Latched Address (ISA) / Data Bus (IDE) 16
SA[7:0] I/O Latched Address (IDE) 4
SD[15:0] I/O Data Bus (ISA) 16

Issue 1.2

11/51

PIN DESCRIPTION

Table 2-2. Definition of Signal Pi ns

Signa l Name Dir Description Qty

ISA/IDE COMBINED CONTROL

IOCHRDY / DIORDY I/O I/O Channel Ready (ISA) - Busy/Ready (IDE) 1

ISA CONTROL

OSC14M O ISA bus synchronisation clock 1
ALE O Address Latch Enable 1
BHE# I/O System Bus High Enable 1
MEMR#, MEMW# I/O Memory Read and Memory Write 2
SMEMR#, SMEMW# O System Memory Read and Memory Write 2
IOR#, IOW# I/O I/O Read and Write 2
MASTER# I Add On Card Owns Bus 1
MCS16#, IOCS16# I Memory/IO Chip Select16 2
REF# O Refresh Cycle. 1
AEN O Address Enable 1
ZWS# I Zero Wait State 1
IOCHCK# I I/O Channel Check. 1
ISAOE# O Bidirectional OE Control 1
RTCAS# O Real Time Clock Address Strobe 1
GPIOCS# I/O General Purpose Chip Select 1

IDE CONTROL

PIRQ I Primary Interrupt Request 1
SIRQ I Secondary Interrupt Request 1
PDRQ I Primary DMA Request 1
SDRQ I Secondary DMA Request 1
PDACK# O Primary DMA Acknowledge 1
SDACK# O Secondary DMA Acknowledge 1
PIOR# I/O Primary I/O Read 1
PIOW# O Primary I/O Write 1
SIOR# I/O Secondary I/O Read 1
SIOW# O Secondary I/O Write 1

IPC

IRQ_MUX[3:0] I Multiplexed Interrupt Request 4
DREQ_MUX[1:0] I Multiplexed DMA Request 2
DACK_ENC[2:0] O DMA Acknowledge 3
TC O ISA Terminal Count 1

MONITOR INTERFACE

RED, GREEN, BLUE O Red, Green, Blue 3
VSYNC O Vertical Sync 1
HSYNC O Horizontal Sync 1
VREF_DAC I DAC Voltage reference 1
RSET I Resistor Set 1
COMP I Compensation 1
DDC[1:0] I/O Display Data Channel Serial Link 2
SCL / DDC[1] I/O I C Inte rface - Clock / Can be used for VGA DDC[1] signal 1

12/51

Issue 1.2

PIN DESCRIPTION

Table 2-2. Definition of Signal Pi ns

Signa l Name Dir Description Qty

SDA / D DC[0] I/O I C Inte rface - Data / Can be used for VGA D DC[0] signal 1
COL_CMP O Color Compare Output.

VIDEO INPUT

VCLK I Pixel Clock 1
VIN I YUV Video D ata I nput CCIR 601 or 656 8

DIGITAL TV O UTPUT

RED_TV, GR EEN_TV, BLUE_TV O Analog video outputs s ynchronized with CVBS 3
VCS O Composite Synch or Ho rizontal line SYN C output 1
ODD_EVEN O Frame Synchronisation 1
CVBS O Analog video com posite output (luminance / chrom inance) 1
IREF1_ TV I Reference cu rrent of 9bit DA C for CVBS 1
VREF1_TV I Reference vo ltage of 9b it DA C for CV BS 1
IREF2_ TV I Reference cu rrent of 8bit DA C for R,G,B 1
VREF2_TV I Reference vo ltage of 8b it DA C for R,G ,B 1
VSSA_T V I Analog Vss f or DAC 1
VDDA_TV I Analog Vdd for DAC 1

MISCEL LANE OUS

SPKRD O Speaker Dev ice O utput 1
SCAN_ENAB LE I Reserved (Test pin) 1

Issue 1.2

13/51

PIN DESCRIPTION

2.2 SIGNAL DESCRIPTIONS

2.2.1 BASIC CLOCKS AND RESETS
SYSRSTI

System Reset/Power good.

This input is
low when the reset switch is depressed. Other­wise, it reflects the power supply’s power good
signal. SYSRSTI is asynchronous to all clocks,
and acts as a negative active reset. The reset cir­cuit initiates a hard reset on the rising edge of
SYSRSTI.

SYSRSTO#

Reset Output to System.

This is the
system resetsignal and is used to reset the rest of
the components (not on Host bus) in the system.
The ISA bus reset is an externally inverted buff­ered versionof this output and the PCI bus reset is
an externally buffered version of this output.

XTALI
XTALO

14.3MHz Crystal Input

14.3MHz Crystal Output.

These pins are
the 14.318MHz crystalinput; This clock isused as
the reference clock for the internal frequency syn­thesizer to generate the HCLK, CLK24M,
GCLK2X and DCLK clocks.
A 14.318 MHz Series Cut Quartz Crystal should
be connected between these two pins. Balance
capacitors of 15 pF should also be added. In the
event of an external oscillatorproviding the master
clock signal to the STPC Consumer device, the
TTL signal should be provided on XTALO.

HCLK

Host Clock.

This is the host 1X clock. Its
frequency can vary from 25 to 75 MHz. All host
transactions and PCI transactions are synchro­nized to this clock. The DRAM controller to exe­cute the host transactions is also driven by this
clock. In normal mode, this output clock is gener­ated by the internal pll.

GCLK2X

80MHz Graphics Clock.

This is the
Graphics 2X clock, which drives the graphics en­gine and the DRAM controller to execute the
graphics and display cycles.
Normally GCLK2Xis generated by the internal fre­quency synthesizer, and this pin is an output. By
setting a bit in Strap Register 2, this pin can be
made an input so that an external clock can re­place the internal frequency synthesizer.

DCLK

135MHz Dot Clock.

This is the dot clock,
which drivesgraphics display cycles.Its frequency
can go from 8MHz (using internal PLL) up to 135
MHz, and it is required to have a worst case duty
cycle of 60-40.
This signal iseither driven by the internal pll (VGA)
or an external 27MHz oscillator (when the com­posite video output is enabled). The direction can
be controlled by a strap option or an internal regis­ter bit.

ISA_CLK

lect Line For IPC).

ISA Clock Output (also Multiplexer Se-

This pin produces the Clock
signal for the ISA bus. It is also used with
ISA_CLK2X as the multiplexorcontrol lines for the
Interrupt Controller Interrupt input lines. This is a
divided down version of either the PCICLK or
OSC14M.

ISA_CLKX2

Select Line For IPC).

ISA Clock Output (also Multiplexer

This pin produces a signal
that is twice the frequency of the ISA bus Clock
signal. It is also used with ISA_CLK as the multi­plexor control lines for the Interrupt Controller in­put lines.

DEV_CLK

24MHz Peripheral Clock Output.

This
24MHZ signal is provided as a convenience for
the system integration of a Floppy Disk driver
function in an external chip.

OSC14M

ISA bus synchronisation clock Output.

This is the buffered 14.318 Mhz clock to the ISA
bus.

2.2.2 MEMORY INTERFACE
MA[11:0]

Memory Address Output.

These 12 mul­tiplexed memory address pins support external
DRAM with up to 4K refresh. These include all
16M x N and some 4M x N DRAM modules. The
address signals must be externally buffered to
support more than 16 DRAM chips. The timing of
these signals can be adjusted by software to
match the timings of most DRAM modules.

PCI_CLKI

33MHz PCI Input Clock

This signal is the PCI bus clock input and should
be driven from the PCI_CLKO pin.

PCI_CLKO

33MHz PCI Output Clock.

This is the

master PCI bus clock output.

14/51

Issue 1.2

PIN DESCRIPTION

MD[63:0]

Memory Data I/O.

This is the 64-bit
memory data bus. If only half of a bank is populat­ed, MD63-32 is pulled high, data is on MD31-0.
MD[40-0] are read by the device strap option reg­isters during rising edge of SYSRSTI.

RAS#[3:0]

Row Address Strobe Output.

There
are 4 active low row address strobe outputs, one
for each bank of the memory. Each bank contains
4 or 8-Bytes of data. The memory controllerallows
half of a bank (4-bytes) to be populated to enable
memory upgrade at finer granularity.
The RAS# signals drive the SIMMs directly with­out any external buffering. These pins are always
outputs, but they can also simultaneously be in­puts, toallow the memory controller to monitor the
value of the RAS# signals at the pins.

CAS#[7:0]

Column Address Strobe Output.

There
are 8 active low column address strobe outputs,
one each for each byte of the memory.
The CAS# signals drive the SIMMs either directly
or through external buffers.
These pins are always outputs, but they can also
simultaneously be inputs, to allow the memory
controller to monitor the value of the CAS# signals
at the pins.

MWE#

Write Enable Output.

Write enable speci­fies whether the memory access is a read (MWE#
= H) or a write (MWE# = L). This single write ena­ble controls all the DRAM. It can be externally
buffered to boost the maximum number of loads
(DRAM chips) supported.
The MWE# signals drive the SIMMs directly with­out any external buffering.

simple analog low pass filter is recommended. In
S-VHS mode, this is the Chrominance Output.

GREEN_TV / Y_TV

chronized with CVBS.

Analog video outputs syn-

This output is current-driv­en and must be connected to analog ground over
a load resistor (R

). Following the load resis-

LOAD

tor, a simple analog low pass filter is recommend­ed. In S-VHS mode, this is the Luminance Output.

BLUE_TV / CVBS

nized withCVBS.

Analog video outputs synchro-

This outputis current-driven and
must be connected to analog ground over a load
resistor (R
simple analog low pass filter is recommended. In

). Following the load resistor, a

LOAD

S-VHS mode, this is a second composite output.

VCS

Line synchronisation Output.

This pin is an
input in ODDEV+HSYNC or VSYNC + HSYNC or
VSYNC slave modes and an output in all other
modes (master/slave)
The signal is synchronous to rising edge of CK­REF. The default polarity uses a negative pulse

ODD_EVEN

Frame Synchronisation Ourput.

This
pin supports the Frame synchronisation signal. It
is an input in slave modes, except when sync is
extracted from YCrCb data, and an output in mas­ter mode and when sync is extracted from YCrCb
data
The signal is synchronous to rising edge of DCLK.
The default polarity for this pin is:

- odd (not-top) field : LOW level

- even (bottom) field : HIGH level

IREF1_TV

Ref. current

for CVBS 10-bit DAC.

2.2.3 VIDEO INTERFACE
VCLK

VIN[7:0]

Pixel Clock Input.

YUV Video Data Input CCIR 601 or 656.

Time multiplexed 4:2:2 luminance and chromi­nance data as defined in ITU-R Rec601-2 and
Rec656 (except for TTL input levels). This bus in­terfaces with an MPEG video decoder output port
and typically carries a stream of Cb,Y,Cr,Y digital
video at VCLK frequency, clocked on the rising
edge (by default) of VCLK. A 54-Mbit/s ‘double’
Cb, Y, Cr, Y inputmultiplex is supported for double
encoding application (rising and falling edge of
CKREF are operating).

2.2.4 TV OUTPUT
RED_TV / C_TV

nized with CVBS.

Analog video outputs synchro-

This outputis current-driven and
must be connected to analog ground over a load
resistor (R

). Following the load resistor, a

LOAD

VREF1_TV
IREF2_TV
VREF2_TV
VSSA_TV
VDDA_TV
CVBS

chrominance).

Ref. voltage

Reference current

Reference voltage

for CVBS 10-bit DAC.

for RGB 9-bit DAC.

forRGB 9-bit DAC.

Analog VSSfor DAC

Analog VDDfor DAC

Analog video composite output (luminance/

CVBS is current-driven and must
be connected to analog ground over a load resis­tor (R

). Following the load resistor, a simple

LOAD

analog low pass filter is recommended.

2.2.5 PCI INTERFACE
AD[31:0]

PCI Address/Data.

This is the 32-bit
multiplexed address and data bus of the PCI. This
bus is driven by the master during the address
phase and data phase of write transactions. It is

Issue 1.2

15/51

PIN DESCRIPTION

driven by the target during data phase of read
transactions.

CBE#[3:0]

Bus Commands/Byte Enables.

These
are the multiplexed command and byte enable
signals of the PCI bus. During the address phase
they define the command and during the data
phase they carry the byte enable information.
These pins are inputs when a PCI master other
than the STPC Consumer owns the bus and out­puts when the STPC Consumer owns the bus.

FRAME#

Cycle Frame.

This is the frame signal of
the PCIbus. Itis an input when a PCI master owns
the bus and is an output when STPC Consumer
owns the PCI bus.

TRDY#

Target Ready.

This is the target ready sig­nal of the PCI bus. It is driven as an output when
the STPC Consumer is the target of the current
bus transaction. It is used as an input when STPC
Consumer initiates a cycle on the PCI bus.

IRDY#

Initiator Ready.

This is the initiator ready
signal of the PCI bus. It is used as an output when
the STPC Consumer initiates a bus cycle on the
PCI bus. It is used as an input during the PCI cy­cles targeted to the STPC Consumer to determine
when the current PCI master is ready to complete
the current transaction.

STOP#

Stop Transaction.

Stop is used to imple­ment the disconnect, retry and abort protocol of
the PCI bus. It is used as an input for the bus cy­cles initiated by the STPC Consumer and is used
as an output when a PCI master cycle is targeted
to the STPC Consumer.

DEVSEL#

I/O Device Select.

This signal is used
as an input when the STPC Consumer initiates a
bus cycle on the PCI bus to determine if a PCI
slave device has decoded itself to be the target of
the current transaction. It is asserted as an output
either when the STPC Consumer is the target of
the current PCI transaction or when no other de­vice asserts DEVSEL# prior to the subtractive de­code phase of the current PCI transaction.

SERR#

System Error.

This is the system error sig­nal of the PCI bus. It may, if enabled, be asserted
for one PCI clock cycle if target aborts a STPC
Consumer initiated PCI transaction. Its assertion
by either the STPC Consumer or by another PCI
bus agent will trigger the assertion of NMI to the
host CPU. This is an open drain output.

LOCK#

PCI Lock.

This is the lock signal of the PCI
bus and is used to implement the exclusive bus
operations when acting as a PCI target agent.

PCIREQ#[2:0]

PCI Request.

This pin are the
three external PCI master request pins. They indi­cates to the PCI arbiter that the external agents
desire use of the bus.

PCIGNT#[2:0]

PCI Grant.

These pins indicate that
the PCI bus has been granted to the master re­questing it on its PCIREQ#.

2.2.6 ISA/IDE COMBINED ADDRESS/DATA
LA[23]/SCS3#

ary Chip Select (IDE).

Unlatched Address (ISA)/Second-

This pin has two functions,
depending on whether the ISA bus is active or the
IDE bus is active.
When the ISA bus is active, this pins is ISA Bus
unlatched address bit 23 for 16-bit devices. When
ISA bus is accessed by any cycle initiated from
PCI bus, this pin is in output mode. When an ISA
bus master owns the bus, this pins is in input
mode.
When the IDE bus is active, this signals is used as
the active high secondary slave IDE chip select
signal. This signal is to be externally NANDed with
the ISAOE# signal before driving the IDE devices
to guarantee it is active only when ISA bus is idle.

PAR

Parity Signal Transactions.

This is the parity
signal of the PCI bus. This signal is used to guar­antee even parity across AD[31:0], CBE#[3:0],
and PAR. This signal is driven by the master dur­ing the address phase and data phase of write
transactions. It is driven by the target during data
phase of read transactions. (Its assertion is identi­cal to that of theAD bus delayed by one PCIclock
cycle)

16/51

Issue 1.2

PIN DESCRIPTION

LA[22]/SCS1#

Unlatched Address (ISA)/Second-

ary Chip Select (IDE)

This pin has two functions, depending on whether
the ISA bus is active or the IDE bus is active.
When the ISA bus is active, this pins is ISA Bus
unlatched address bit 22 for 16-bit devices. When
ISA bus is accessed by any cycle initiated from
PCI bus, this pin is in output mode. When an ISA
bus master owns the bus, this pins is in input
mode.
When the IDE bus is active, this signals is used as
the active high secondary slave IDE chip select
signal. This signal is to be externally ANDed with
the ISAOE# signal before driving the IDE devices
to guarantee it is active only when ISA bus is idle.

LA[21]/PCS3#

Chip Select (IDE).

Unlatched Address (ISA)/Primary

This pin has two functions, de­pending on whether the ISA bus is active or the
IDE bus is active.
When the ISA bus is active, this pins is ISA Bus
unlatched address bit 21 for 16-bit devices. When
ISA bus is accessed by any cycle initiated from
PCI bus, this pin is in output mode. When an ISA­bus master owns the bus, this pins is in input
mode.
When the IDE bus is active, this signals is used as
the active high primary slave IDE chip select sig­nal. This signal is to be externally NANDed with
the ISAOE# signal before driving the IDE devices
to guarantee it is active only when ISA bus is idle.

LA[20]/PCS1#

Chip Select (IDE).

Unlatched Address (ISA)/Primary

This pin has two functions, de­pending on whether the ISA bus is active or the
IDE bus is active.
When the ISA bus is active, this pins is ISA Bus
unlatched address bit 20 for 16-bit devices. When
ISA bus is accessed by any cycle initiated from
PCI bus, this pin is in output mode. When an ISA
bus master owns the bus, this pins is in input
mode.
When the IDE bus is active, this signals is used as
the active high primary slave IDE chip select sig­nal. This signal is to be externally NANDed with
the ISAOE# signal before driving the IDE devices
to guarantee it is active only when ISA bus is idle.

LA[19:17]/DA[2:0]

dress (IDE).

Unlatched Address (ISA)/Ad-

These pins are multi-function pins.
They are used as the ISA bus unlatched address
bits [19:17] for ISA bus or the three address bits
for the IDE bus devices.
When used by the ISA bus, these pins are ISA
Bus unlatched address bits 19-17 on 16-bit devic­es. When ISA bus is accessed by any cycle initiat­ed from the PCI bus, these pins are in output
mode. When an ISA bus master owns the bus,
these pins are tristated.

For IDE devices, these signals are used as the
DA[2:0] and are connected to DA[2:0] of IDE de­vices directly or through a buffer. If the toggling of
signals are to be masked during ISA bus cycles,
they can be externally ORed before being con­nected to the IDE devices.

SA[19:8]/DD[11:0]

Bus (IDE).

These are multifunction pins. When the

Unlatched Address (ISA)/Data

ISA bus is active, they are used as the ISA bus
system addressbits 19-8. When the IDE bus isac­tive, they serve as IDE signals DD[11:0].
These pins are used as an input when an ISA bus
master owns the bus and are outputs at all other
times.
IDE devices are connected to SA[19:8] directlyand
ISA bus is connected to these pins through two
LS245 transceivers. The OE of the transceivers
are connected to ISAOE# and DIR is connected to
MASTER#. A bus signals of the transceivers are
connected to CPC and IDE DDbus and B bus sig­nals are connected to ISA SA bus.

DD[15:12]

Databus (IDE).

The high 4 bits of the
IDE databus are combined with several of the X­bus lines. Refer to the following section for X-bus
pins for further information.

SA[7:0]

ISA Bus address bits [7:0].

These arethe
8 low bits of the system address bus of ISA on 8­bit slot. These pins are used as an input when an
ISA bus master owns the bus and are outputs at
all other times.

SD[15:0]

I/O Data Bus (ISA).

These pins are the

external databus to the ISA bus.

Issue 1.2

17/51

PIN DESCRIPTION

2.2.7 ISA/IDE COMBINED CONTROL
IOCHRDY/DIORDY

Ready (IDE).

the ISA bus is active, this pin is IOCHRDY. When
the IDEbus is active, this serves as IDE signal DI­ORDY.
IOCHRDY is the IO channel ready signal of the
ISA bus and is driven as an output in response to
an ISA mastercycle targeted to the host bus or an
internal register of the STPC Consumer. The
STPC Consumer monitors this signal as an input
when performing an ISA cycle on behalf of the
host CPU, DMA master or refresh.
ISA masters which do not monitor IOCHRDY are
not guaranteed to work with the STPC Consumer
since the access to the system memory can be
considerably delayed due to CRT refresh or a
write back cycle.

2.2.8 ISA CONTROL
ALE

Address Latch Enable.

latch enable output of the ISA bus and is asserted
by the STPC Consumer to indicate that LA23-17,
SA19-0, AEN and SBHE# signals are valid. The
ALE is driven high during refresh, DMA master or
an ISA master cycles by the STPC Consumer.
ALE is driven low after reset.

BHE#

System Bus High Enable.

asserted, indicatesthat a data byte is being trans­ferred on SD15-8 lines. It is used as an input when
an ISA master owns the bus and is an output at all
other times.

MEMR#

command signal of the ISA bus. It is used as an in­put when an ISA master owns the bus and is an
output at all other times.
The MEMR# signal is active during refresh.

Memory Read.

Channel Ready (ISA)/Busy/

This is a multi-function pin. When

This is the address

This signal, when

This is the memory read

IOR#

I/O Read.

nal of the ISA bus. It is an input when an ISA mas­ter owns the bus and is an output at all other
times.

IOW#

I/O Write.

nal of the ISA bus. It is an input when an ISA mas­ter owns the bus and is an output at all other
times.

MASTER#

active when an ISA device has been granted bus
ownership.

MCS16#

code of LA23-17 address pins of the ISA address
bus without any qualification of the command sig­nal lines. MCS16# is always an input. The STPC
Consumer ignores this signal during IO and re­fresh cycles.

IOCS16#

code of SA15-0 address pins of the ISA address
bus without any qualification of the command sig­nals. The STPC Consumer does not drive
IOCS16# (similar to PC-AT design). An ISA mas­ter accessto aninternal register of the STPC Con­sumer is executed as an extended 8-bit IO cycle.

REF#

Refresh Cycle.

signal of the ISA bus. It is driven as an output
when the STPC Consumer performs a refresh cy­cle on the ISA bus. It is used as an input when an
ISA master owns the bus and is used to trigger a
refresh cycle.
The STPC Consumer performs a pseudo hidden
refresh. It requests the host bus for two host
clocks to drive the refresh address and capture it
in external buffers. The host bus is then relin­quished while the refresh cycle continues on the
ISA bus.

This is the IO read command sig-

This is the IO write commandsig-

Add On Card Owns Bus.

Memory Chip Select16.

IO Chip Select16.

This is the refreshcommand

This is the de-

This signal is the de-

This signal is

MEMW#

command signal of the ISA bus. It is used as an in­put when an ISA master owns the bus and is an
output at all other times.

SMEMR#

sumer generates SMEMR# signal of the ISA bus
only when the address is below one megabyte or
the cycle is a refresh cycle.

SMEMW#

sumer generates SMEMW# signal of the ISA bus
only when the address is below one megabyte.
This signal is multiplexed with COL_CMP on the
VGA Interface. The signal is selected by setting
Strap Option MD[0] as described in Section3.

18/51

Memory Write.

This is the memory write

System MemoryRead.

System Memory Write.

The STPC Con-

The STPC Con-

Issue 1.2

AEN

Address Enable.

when the DMA controller is the bus owner to indi­cate that a DMA transfer will occur. The enabling
of the signal indicates to IO devices to ignore the
IOR#/IOW# signal during DMA transfers.

ZWS#

ed by addressed device, indicates that current cy­cle can be shortened.

IOCHCK#

is enabled by any ISA device to signal an error
condition that can not be corrected. NMI signal be­comes active upon seeing IOCHCK# active if the
corresponding bit in Port B is enabled.

Zero Wait State.

IO Channel Check.

Address Enable is enabled

This signal, when assert-

IO Channel Check

PIN DESCRIPTION

ISAOE#

trols the OE signal of the external transceiver that
connects the IDE DD bus and ISA SA bus.

GPIOCS#

This output signal is used by the external latch on
ISA bus to latch the data on the SD[7:0] bus. The
latch can be use by PMU unit to control the exter­nal peripheral devices to powerdown or any other
desired function.
This pin is also serves as a strap input during re­set.

2.2.9 IDE CONTROL
PIRQ

from primary IDE channel.

SIRQ

quest from secondary IDE channel.

PDRQ

primary IDE channel.

SDRQ

from secondary IDE channel.

PDACK#

noledge to primary IDE channel.

SDACK#

acknoledge to secondary IDE channel.

PIOR#

Active low output.

PIOW#

Active low output.

SIOR#

read. Active low output.

SIOW#

write. Active low output.

2.2.10 IPC
IRQ_MUX[3:0]

These are the ISA bus interrupt signals. They are
to be encoded before connection to the STPC
Consumer using ISACLK and ISACLKX2 as the
input selection strobes.
Note that IRQ8B, which by convention is connect­ed to the RTC, is inverted before being sent to the
interrupt controller, so that it may be connected di­rectly to the IRQ pin of the RTC.

PCI_INT[3:0]

the PCI bus interrupt signals. They are to be en-

Bidirectional OE Control.

This signal con-

I/O General Purpose Chip Select 1.

Primary Interrupt Request.

Secondary Interrupt Request.

Primary DMA Request.

Secondary DMA Request.

Interrupt request

Interrupt re-

DMA request from

DMA request

Primary DMA Acknowledge.

Secondary DMA Acknowledge.

Primary I/O Read.

Primary I/O Write

Secondary I/O Read

Secondary I/O Write

Primary channel read.

. Primary channel write.

Secondary channel

Secondary channel

Multiplexed Interrupt Request.

PCI Interrupt Request.

DMA ack-

DMA

These are

coded before connection to the STPC Consumer
using ISACLK and ISACLKX2 as the input selec­tion strobes.

DREQ_MUX[1:0]

quest.

nals. They are to be encoded before connection to
the STPC Consumer using ISACLK and
ISACLKX2 as the input selection strobes.

DACK_ENC[2:0]

the ISA bus DMA acknowledge signals. They are
encoded by the STPC Consumer before output
and should be decoded externally using ISACLK
and ISACLKX2 as the control strobes.

TC

output of the DMA controller and is connected to
the TCline of the ISA bus. It is asserted during the
last DMA transfer, when the byte count expires.

SPKRD

speaker and is AND of the counter 2 output with
bit 1 of Port 61, and drives an external speaker
driver. This output should be connected to 7407
type high voltage driver.

2.2.11 X-Bus Interface pins / IDE Data
RMRTCCS# / DD[15]

select.

ISAOE# is active, this signal is used as RM­RTCCS#. This signal is asserted if a ROM access
is decoded during a memory cycle. It should be
combined with MEMR# or MEMW# signals to
properly access the ROM. During a IO cycle, this
signal is asserted if access to the Real Time Clock
(RTC) is decoded. It should be combined with IOR
or IOW# signals to properly access the real time
clock.
When ISAOE# is inactive, this signal is used as
IDE DD[15] signal.
This signal must be ORed externally with ISAOE#
and is then connected to ROM and RTC. An
LS244 or equivalentfunction can be used if OE# is
connected to ISAOE# and the output is provided
with a weak pull-up resistor.

KBCS# / DD[14]

is a multi-function pin. When ISAOE# is active,
this signal isused as KBCS#. This signal is assert­ed if a keyboard access is decoded during a I/O
cycle.
When ISAOE# is inactive, this signal is used as
IDE DD[14] signal.
This signal must be ORed externally with ISAOE#
and is then connected to keyboard. An LS244 or
equivalent function can be used if OE# is connect-

These are the ISA bus DMA request sig-

ISA Terminal Count.

Speaker Drive.

This pin is a multi-function pin. When

ISA Bus Multiplexed DMA Re-

DMA Acknowledge.

This is the terminal count

This the output to the

These are

ROM/Real Time clock chip

Keyboard Chip Select.

This pin

Issue 1.2

19/51

PIN DESCRIPTION

ed to ISAOE# and the output is provided with a
weak pull-upresistor.

RTCRW# / DD[13]

Real Time Clock RW.

This pin
is a multi-function pin. When ISAOE# is active,
this signal is used as RTCRW#. This signal is as­serted for any I/O write to port 71H.
When ISAOE# is inactive, this signal is used as
IDE DD[13] signal.
This signal must be ORed externally with ISAOE#
and then connected to the RTC. An LS244 or
equivalent function can be used if OE is connect­ed to ISAOE# and the output is provided with a
weak pull-upresistor.

RTCDS# / DD[12]

Real Time Clock DS

. This pin is
a multi-function pin. When ISAOE# is active, this
signal is used as RTCDS. This signal is asserted
for any I/O read to port 71H.
When ISAOE# is inactive, this signal is used as
IDE DD[12] signal.
This signal must be ORed externally with ISAOE#
and is then connected to RTC. An LS244 or equiv­alent function can be used if OE# is connected to
ISAOE# and the output is provided with a weak
pull-up resistor.

RTCAS#

Real time clock addressstrobe.

This sig-

nal is asserted for any I/O write to port 70H.

2.2.12 Monitor Interface
RED, GREEN, BLUE

RGB Video Outputs.

These

are the3 analog color outputs from the RAMDACs

HSYNC

Horizontal Synchronisation Pulse.

This is
the horizontal synchronization signal from the
VGA controller.

VREF_DAC

DAC Voltage reference.

An external
voltage reference is connected to this pin to bias
the DAC.

RSET

Resistor Current Set.

This is reference cur­rent input to the RAMDAC is used to set the full­scale output of the RAMDAC.

COMP

Compensation.

This is the RAMDAC com­pensation pin. Normally, an external capacitor
(typically 10nF) is connected between this pin and
VDDto damp oscillations.

DDC[1:0]

Direct Data Channel Serial Link.

These
bidirectional pins are connected to CRTC register
3Fh to implementDDC capabilities. They conform
to I2C electrical specifications, they have open­collector output drivers which are internally con­nected to VDDthrough pull-up resistors.

They can instead be used for accessing I C devic­es on board. DDC1 and DDC0 correspond toSCL
and SDA respectively.

COL_CMP

Color Compare Output

. Allows access
to the video signal which flags when there is a
color compare hit. This sig nal is multiplexed with
SMEMEW# on the ISA Bus. The signal is selected
by setting Strap Option MD[0] as described in Sec­tion3.

VSYNC

Vertical Synchronisation Pulse.

This is
the vertical synchronization signal from the VGA
controller.

20/51

Issue 1.2

2.2.13 MISCELLANEOUS
SCAN_ENABLE

Reserved

. The pins are re-

served for Test and Miscellaneous functions)

PIN DESCRIPTION

Table 2-3. Pinout.

Pin # Pin name

AF3 SYSRSTI
A3 XTALI
C4 XTALO
G23 HCLK
F25 DEV_CLK
AF15 GCLK2X
AF9 DCLK

AD15 MA[0]
AF16 MA[1]
AC15 MA[2]
AE17 MA[3]
AD16 MA[4]
AF17 MA[5]
AC17 MA[6]
AE18 MA[7]
AD17 MA[8]
AF18 MA[9]
AE19 MA[10]
AF19 MA[11]
AD18 RAS#[0]
AE20 RAS#[1]
AC19 RAS#[2]
AF20 RAS#[3]
AE21 CAS#[0]
AC20 CAS#[1]
AF21 CAS#[2]
AD20 CAS#[3]
AE22 CAS#[4]
AF22 CAS#[5]
AD21 CAS#[6]
AE23 CAS#[7]
AC22 MWE#
AF23 MD[0]
AE24 MD[1]
AF24 MD[2]
AD25 MD[3]
AC25 MD[4]
AC26 MD[5]
AB24 MD[6]
AA25 MD[7]
AA24 MD[8]
Y25 MD[9]
Y24 MD[10]
V23 MD[11]
W24 MD[12]
V26 MD[13]
V24 MD[14]
U23 MD[15]

Pin # Pin name

U24 MD[16]
R26 MD[17]
P25 MD[18]
P26 MD[19]
N25 MD[20]
N26 MD[21]
M25 MD[22]
M26 MD[23]
M24 MD[24]
M23 MD[25]
L24 MD[26]
J25 MD[27]
J26 MD[28]
H26 MD[29]
G25 MD[30]
G26 MD[31]
AD22 MD[32]
AD23 MD[33]
AE26 MD[34]
AD26 MD[35]
AC24 MD[36]
AB25 MD[37]
AB26 MD[38]
Y23 MD[39]
AA26 MD[40]
Y26 MD[41]
W25 MD[42]
W26 MD[43]
V25 MD[44]
U25 MD[45]
U26 MD[46]
T25 MD[47]
R25 MD[48]
T24 MD[49]
R23 MD[50]
R24 MD[51]
N23 MD[52]
P24 MD[53]
N24 MD[54]
L25 MD[55]
L26 MD[56]
K25 MD[57]
K26 MD[58]
K24 MD[59]
H25 MD[60]
J24 MD[61]
H23 MD[62]
H24 MD[63]
F24 PCI_CLKI

Pin # Pin name

D25 PCI_CLKO
A20 AD[0]
C20 AD[1]
B19 AD[2]
A19 AD[3]
C19 AD[4]
B18 AD[5]
A18 AD[6]
B17 AD[7]
C18 AD[8]
A17 AD[9]
D17 AD[10]
B16 AD[11]
C17 AD[12]
B15 AD[13]
A15 AD[14]
C16 AD[15]
D15 AD[16]
A14 AD[17]
C15 AD[18]
B13 AD[19]
D13 AD[20]
A13 AD[21]
C14 AD[22]
C13 AD[23]
A12 AD[24]
B11 AD[25]
C12 AD[26]
A11 AD[27]
D12 AD[28]

B10 AD[29]
C11 AD[30]
A10 AD[31]
D10 CBE[0]
C10 CBE[1]
A9 CBE[2]
B8 CBE[3]
A8 FRAME#
B7 TRDY#
D8 IRDY#
A7 STOP#
C8 DEVSEL#
B6 PAR
D7 SERR#
A6 LOCK#
C21 PCI_REQ#[0]
A21 PCI_REQ#[1]
B20 PCI_REQ#[2]
C22 PCI_GNT#[0]

Issue 1.2

21/51

PIN DESCRIPTION

Pin # Pin name

B21 PCI_GNT#[1]
D20 PCI_GNT#[2]
A5 PCI_INT[0]
C6 PCI_INT[1]
B4 PCI_INT[2]
D5 PCI_INT[3]

F2 LA[17]/DA[0]
G4 LA[18]/DA[1]
F3 LA[19]/DA[2]
F1 LA[20]/PCS1#
G2 LA[21]/PCS3#
G3 LA[22]/SCS1#
H2 LA[23]/SCS3#
J4 SA[0]
H1 SA[1]
H3 SA[2]
J2 SA[3]
J1 SA[4]
K2 SA[5]
J3 SA[6]
K1 SA[7]
K4 SA[8]/DD[0]
L2 SA[9]/DD[1]
K3 SA[10]/DD[2]
L1 SA[11]/DD[3]
M2 SA[12] / DD[4]
M1 SA[13] / DD[5]
L3 SA[14] / DD[6]
N2 SA[15] / DD[7]
M4 SA[16] / DD[8]
N1 SA[17] / DD[9]
M3 SA[18] / DD[10]
P4 SA[19] / DD[11]
P3 RTCDS / DD[12]
R2 RTCRW# / DD[13]
N3 KBCS# / DD[14]
P1 RMRTCCS# / DD[15]
R1 SD[0]
T2 SD[1]
R3 SD[2]
T1 SD[3]
R4 SD[4]
U2 SD[5]
T3 SD[6]
U1 SD[7]
U4 SD[8]
V2 SD[9]
U3 SD[10]

Pin # Pin name

V1 SD[11]
W2 SD[12]
W1 SD[13]
V3 SD[14]
Y2 SD[15]

Y1 IOCHRDY

AE4 SYSRSTO#
AD4 ISA_CLK
AE5 ISA_CLK2X
AF8 OSC14M
W3 ALE
AC9 ZWS#
AA2 BHE#
Y4 MEMR#
AA1 MEMW#
Y3 SMEMR#
AB2 SMEMW#/COL_CMP
AA3 IOR#
AC2 IOW#
AB4 MASTER#
AC1 MCS16#
AB3 IOCS16#
AD2 REF#
AC3 AEN
AD1 IOCHCK#
AF2 ISAOE#
A4 RTCAS#
AE3 GPIOCS#

B1 PIRQ
C2 SIRQ
C1 PDRQ
D2 SDRQ
D3 PDACK#
D1 SDACK#
E2 PIOR#
E4 PIOW#
E3 SIOR#
E1 SIOW#

E23 IRQ_MUX[0]
D26 IRQ_MUX[1]
E24 IRQ_MUX[2]
C25 IRQ_MUX[3]
A24 DREQ_MUX[0]
B23 DREQ_MUX[1]
C23 DACK_ENC[0]

Pin # Pin name

A23 DACK_ENC[1]
B22 DACK_ENC[2]
D22 TC
C5 SPKRD

AE6 RED
AD6 GREEN
AF6 BLUE
AD5 VSYNC
AC5 HSYNC
AD7 VREF_DAC
AE8 RSET
AF5 COMP
C7 SDA / DDC[0]
B5 SCL / DDC[1]

AC12 VCLK
AE13 VIN[0]
AD14 VIN[1]
AD12 VIN[2]
AE14 VIN[3]
AC14 VIN[4]
AF14 VIN[5]
AD13 VIN[6]
AE15 VIN[7]

AF10 RED_TV
AC10 GREEN_TV
AF11 BLUE_TV
AE10 VCS
AD9 ODD_EVEN
AD11 CVBS
AD8 IREF1_TV
AE9 VREF1_TV
AE11 IREF2_TV
AD10 VREF2_TV

B3 SCAN_ENABLE

AF12 VDDA_TV
AC7 VDD_DAC1
AF4 VDD_DAC2
AD19 VDD_GCLK_PLL
AF13 VDD_DCLK_PLL
F26 VDD_HCLK_PLL
G24 VDD_DEVCLK_PLL
A16 VDD5
B12 VDD5
B9 VDD5

22/51

Issue 1.2

PIN DESCRIPTION

Pin # Pin name

D18 VDD5
A22 VDD
B14 VDD
C9 VDD
D6 VDD
D11 VDD
D16 VDD
D21 VDD
F4 VDD
F23 VDD
G1 VDD
K23 VDD
L4 VDD
L23 VDD
P2 VDD
T4 VDD
T23 VDD
T26 VDD
W4 VDD
AA4 VDD
AA23 VDD
AB1 VDD
AB23 VDD
AC6 VDD
AC11 VDD
AC16 VDD
AC21 VDD

Pin # Pin name

N11:16 VSS
P11:16 VSS
P23 VSS
R11:16 VSS
T11:16 VSS
V4 VSS
W23 VSS
AC4 VSS
AC8 VSS
AC13 VSS
AC18 VSS
AC23 VSS
AD3 VSS
AD24 VSS
AE1:2 VSS
AE16 VSS
AE25 VSS
AF1 VSS
AF25 VSS
AF26 VSS

C26 RESERVED
D24 RESERVED
B24 RESERVED
A25 RESERVED

AE12 VSSA_TV
AE7 VSS_DAC1
AF7 VSS_DAC2
E25 VSS_DLL
E26 VSS_DLL
A1:2 VSS
A26 VSS
B2 VSS
B25:26 VSS
C3 VSS
C24 VSS
D4 VSS
D9 VSS
D14 VSS
D19 VSS
D23 VSS
H4 VSS
J23 VSS
L11:16 VSS
M11:16 VSS
N4 VSS

23/51

Issue 1.2

PIN DESCRIPTION

24/51

Issue 1.2

Update History for Pin Description chapter

2.4 Update History for Pin Description chapter

The following changes have been made to the Pin Description Chapter on 08/02/2000

Section Change Text

2.2 Added Color Compare Signal

The following changes have been made to the Pin Description Chapter on 13/01/2000

Section Change Text

2.2

Added “to a minimum of 8MHz”

Issue 1.2

25/51

Update History for Pin Description chapter

26/51

Issue 1.2

3. STRAP OPTION

This chapter defines the STPC Consumer Strap
Options and their location

STRAP OPTION

Memory

Data

Lines

MD0 1 Index 4A, Bit 0 User defined
MD1 - Reserved - - - ­MD2 2 DRAM Bank 1 Speed Index 4A, bit 2 User defined 70 ns 60 ns
MD3 2 Speed Index 4A, bit 3 Pull up
MD4 2 Type Index 4A,bit 4 User defined EDO FPM
MD5 2 DRAM Bank 0 Speed Index 4A,bit 5 User defined 70 ns 60 ns
MD6 2 Speed Index 4A,bit 6 Pull up - -
MD7 2 Type Index 4A, bit 7 User defined EDO FPM
MD8 2 - Reserved Index4B,bit0 Pull up - -

MD9 2 - Reserved Index4B,bit1 - - ­MD10 2 DRAM Bank 3 Speed Index 4B,bit 2 User defined 70 ns 60 ns
MD11 2 Speed Index 4B,bit 3 Pull up - ­MD12 2 Type Index 4B,bit 4 User defined EDO FPM
MD13 2 DRAM Bank 2 Speed Index 4B,bit 5 User defined 70 ns 60 ns
MD14 2 Speed Index 4B, bit 6 Pull up - ­MD15 2 Type Index 4B,bit 7 User defined EDO FPM
MD16 - Reserved Index 4C,bit 0 Pull up - ­MD17 PCI Clock PCI_CLKO Divisor Index 4C,bit 1 User defined HCLK / 2 HCLK / 3
MD18 - Reserved Index 4C,bit 2 Pull up - ­MD19 - Reserved Index 4C,bit 3 Pull up - ­MD20 - Reserved Index 4C, bit4 Pull up - ­MD21 - Reserved Index 5F, bit 0 Pull up - ­MD22 - Reserved Index 5F, bit 1 Pull up - ­MD23 - Reserved Index 5F,bit 2 Pullup - ­MD24 HCLK HCLK PLL Speed Index 5F,bit 3 User defined 000 25 MHz
MD25 Index 5F,bit 4 User defined 001 33 MHz
MD26 Index 5F,bit 5 User defined 010 40 MHz

MD27 - Reserved - Pull down - ­MD28 - Reserved - Pull down - ­MD29 - Reserved - Pull down - ­MD30 - Reserved - Pull down - ­MD31 - Reserved - Pull down - ­MD32 - Reserved - Pull down - ­MD33 - Reserved - Pull down - ­MD34 - Reserved - Pull down - ­MD35 - Reserved - Pull down - ­MD36 - Reserved - Pull up - ­MD37 - Reserved - Pull up - -

Note Refer to Designation Location

Actual
Settings

User defined 011 50 MHz
User defined 100 60 MHz
User defined 101 66 MHz
User defined 110 75 MHz
User defined 111 80 MHz

Set to ’0’ Set to ’1’

COLOR_KEY SMEMW#

Issue 1.2

27/51

STRAP OPTION

Memory

Data
Lines

MD38 - Reserved - Pull up - ­MD39 - Reserved - Pull up - ­MD40 CPU CPU Mode User defined DX1 DX2
MD41 - Reserved - Pull down - ­MD42 - Reserved - Pull up - ­MD43 - Reserved - Pull down - -

Note;

Note Refer to Designation Location

3.1.2 STRAP REGISTER 1 INDEX 4BH

Actual
Settings

Set to ’0’ Set to ’1’

(STRAP1)

1) This Strap Option selects between two different
functional blocks, the first is the ISA (SMEMW#)
and the other is the VGA block (Color_Key).

2) Setting of Strap Options MD [2:15] have no ef­fect on the DRAM Controllerbut are purely meant

Bits 7-0 of this register reflect the status of pins
MD[15:8] respectively. They are expected to be
connected on the system board to the SIMM con­figuration pins as follows:

for software issues. i.e. Readable in a register.

3.1 STRAP REGISTER DESCRIPTION

3.1.1 STRAP REGISTER 0 INDEX 4AH
(STRAP0)

Bits 7-0 of this register reflect the status of pins
MD[7:0] respectively. They are expected to be
connected on the system board to the SIMM con­figuration pins as follows:

Bit Sampled Description

Bit 7 SIMM 2 dram type

Bits 6-5 SIMM 2 speed

Bit 4 SIMM 3 dram type

Bits 3-2 SIMM 3 speed

Note that the SIMM speed and type information
read here is meant only for thesoftware and is not
used by the hardware. The software must pro­gram the Host and graphics dram controller con­figuration registers appropriately based on these

Bit Sampled Description

Bit 7 SIMM 0 dram type

Bits 6-5 SIMM 0 speed

Bit 4 SIMM 1 dram type
Bits 3-2 SIMM 1 speed
Bits 1-0 Reserved

bits.
This register defaults to the values sampled on

MD[15:8] pins after reset.

3.1.3 STRAP REGISTER 2 INDEX 4CH
(STRAP2)

Note that the SIMM speed and type information
read here ismeant only for thesoftware and is not
used by the hardware. The software must pro­gram the Host and graphics dram controller con­figuration registers appropriately based on these
bits.

This register defaults to the values sampled on
MD[7:0] pins after reset.

28/51

Issue 1.2

Bits 4-0 of this register reflect the status of pins
MD[20:16] respectively. Bit 5 of this register reflect
the status of pin MD[23]. Bit 4 is writeable, writes
to other bits in this register have no effect.

They are use by the chip as follows:
Bit 4-2; Reserved

STRAP OPTION

Bit 1 This bit reflects the value sampled on
MD[17] pin and controls the PCI clock output as

follows:

0: PCI clock output = HCLK / 2

1: PCI clock output = HCLK / 3
Bit 0; Reserved
This register defaults to the values sampled on

MD[23] & MD[20:16] pins after reset.

3.1.4 HCLK PLL STRAP REGISTER 0 INDEX
5FH (HCLK_STRAP0)

Bits 5-0 of this register reflect the status of pins
MD[26:21] respectively. They are use by the chip
as follows:

Bits 5-3; These pins reflect the value sampled on
MD[26:24] pins respectively and control the Host
clock frequency synthesizer.

Bit 2-0; Reserved
This register defaults to the values sampled on

above pins after reset.
Strap Options [39:27] are reserved.

3.1.5 486 CLOCK PROGRAMMING (486_CLK)

The bit MD[40] is used to set the clock multiplica­tion factor of the 486 core. With the MD[40] pin
pulled low the 486 will run in DX (x1) mode, while
with the MD[40] pin pulled high the 486 will run in
DX2 (x2) mode. The default value of the resistor
on this strap input should be a resister to ground
(DX mode).

Strap options MD[43:41] are reserved.

Issue 1.2

29/51

ELECTRICAL SPECIFICATIONS

4. ELECTRICAL SPECIFICATIONS

4.1 Introduction

The electrical specifications in this chapter are val­id for the STPC Consumer.

4.2 Electrical Connections

4.2.1 Power/Ground Connections/Decoupling

Due to the high frequency of operation of the
STPC Consumer,it is necessary to install and test
this device using standard high frequency tech­niques. The high clock frequencies used in the
STPC Consumer and its output buffer circuits can
cause transient powersurges when several output
buffers switch outputlevels simultaneously. These
effects can be minimized by filtering the DC power
leads with low-inductance decoupling capacitors,
using low impedance wiring, and by utilizing all of
the VSS and VDD pins.

4.2.2 Unused Input Pins

All inputs not used by the designer and not listed
in the table of pin connections in Chapter 3 should
be connected either to VDD or to VSS. Connect
active-high inputs to VDD through a20 kΩ (±10%)
pull-down resistor and active-low inputs to VSS
and connect active-low inputs to VCC through a

20 kΩ (±10%) pull-up resistor to prevent spurious
operation.

4.2.3 Reserved Designated Pins

Pins designated reserved should be left discon­nected. Connecting a reserved pin to a pull-up re­sistor, pull-down resistor, or an active signal could
cause unexpected results and possible circuit
malfunctions.

4.3 Absolute Maximum Ratings

The following table lists the absolute maximum
ratings for the STPC Consumer device. Stresses
beyond those listed under Table 4-1 limits may
cause permanent damage to the device. These
are stress ratings only and do not imply that oper­ation under any conditions other thanthose spec­ified in section ”Operating Conditions”.

Exposure to conditions beyond Table 4-1 may (1)
reduce device reliability and (2) result in prema­ture failure even when there is no immediately ap­parent sign of failure. Prolonged exposure to con­ditions at or near the absolute maximum ratings
(Table 4-1) may also result in reduced useful life
and reliability.

Table 4-1. Absolute Maximum Ratings

Symbol Parameter Value Units

30/51

V

V

T

T

OPER

P

DDx

I,VO

STG

TOT

DC Supply Voltage -0.3, 4.0 V
Digital Input and Output Voltage -0.3, VDD + 0.3 V
Storage Temperature -40, +150 °C
Operating Temperature 0, +70 °C
Total Power Dissipation 4.8 W

Issue 1.2

ELECTRICAL SPECIFICATIONS

4.4 DC Characteristics

Table 4-2. DC Characteristics

Recommended Operating conditions : VDD = 3.3V ±0.3V, Tcase = 0 to 100°C unless otherwise specified

Symbol Parameter Test conditions Min Typ Max Unit

Operating Voltage 3.0 3.3 3.6 V

V

DD

P

H

V

REF_D

V

V

V

V

I

C

C

C

Supply Power VDD= 3.3V, H

DD

Internal Clock (Note 1) 75 Mhz

CLK

DAC Voltage Reference 1.215 1.235 1.255 V

AC

Output Low Voltage I

OL

Output High Voltage I

OH

Input Low Voltage Except XTALI -0.3 0.8 V

IL

Input High Voltage Except XTALI 2.1 VDD+0.3 V

IH

Input Leakage Current Input, I/O -5 5 µA

LK

Input Capacitance (Note 2) pF

IN

Output Capacitance (Note 2) pF

OUT

Clock Capacitance (Note 2) pF

CLK

=1.5 to 8mA depending of the pin 0.5 V

Load

=-0.5 to -8mAdepending of the pin 2.4 V

Load

XTALI -0.3 0.9 V

XTALI 2.35 V

= 66Mhz 3.2 3.9 W

CLK

DD

+0.3 V

Notes:

rising clock edge reference level VREF , and other
reference levels are shown in Table 4-3 below for

1. MHz ratings refer to CPU clock frequency.

the STPC Consumer.Input or output signals must
cross these levels during testing.

2. Not 100% tested.

Figure 4-1 shows output delay(A and B) and input

4.5 AC Characteristics

setup and hold times (C and D). Input setup and
hold times (C and D) are specified minimums, de-

Table 4-4 through Table 4-9 list the AC character­istics including output delays, input setup require­ments, input hold requirements and output float

fining the smallest acceptable sampling window a
synchronous input signal must be stable for cor­rect operation.

delays. These measurements are based on the
measurement points identified in Figure 4-1 . The

Table 4-3. Drive Level and Measurement Points for Switching Characteristics

Symbol Value Units

V

V

V

REF

IHD

ILD

1.5 V

3.0 V

0.0 V

Note: Refer to Figure 4-1.

Issue 1.2

31/51

ELECTRICAL SPECIFICATIONS

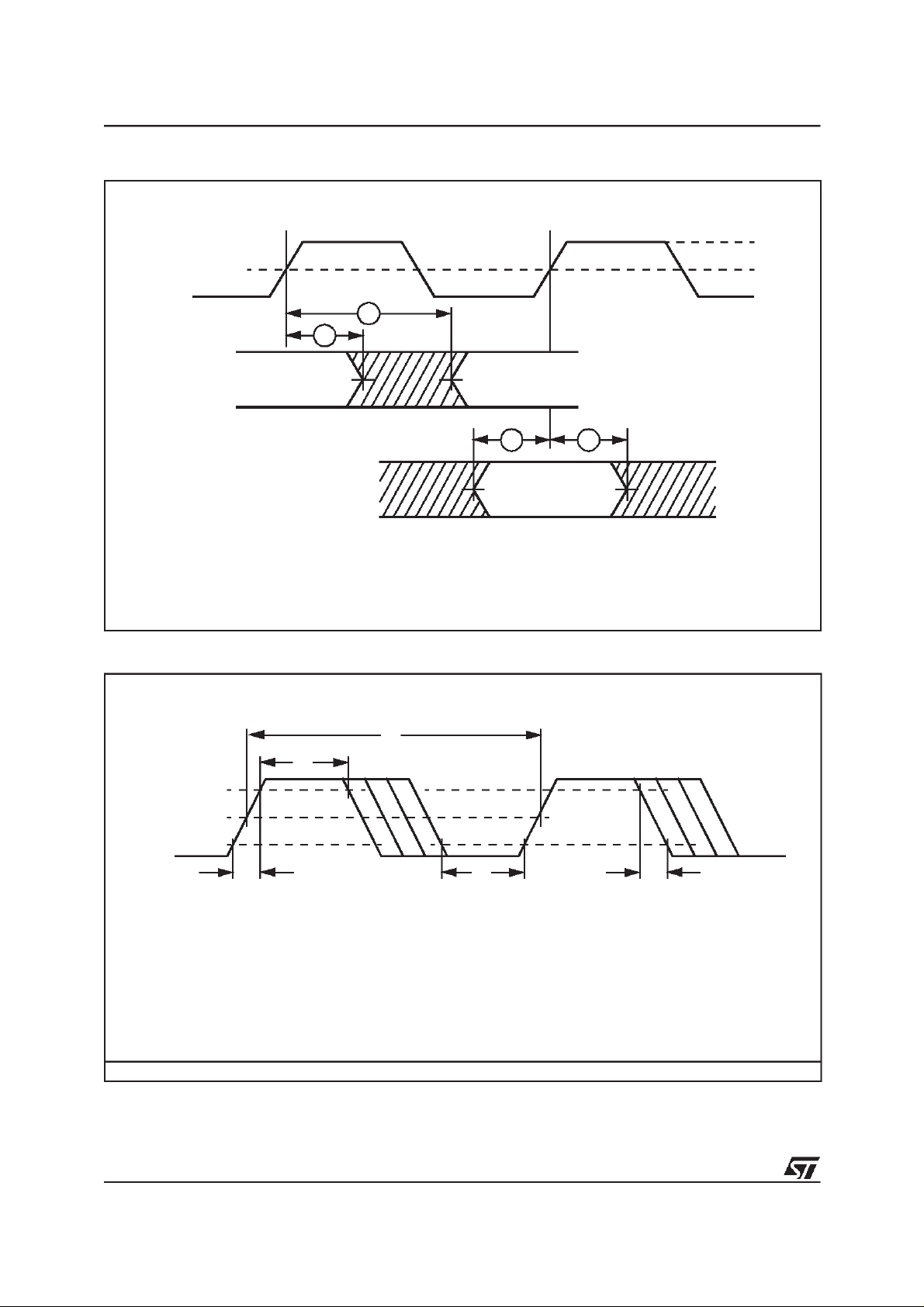

Figure 4-1 DriveLevel and Measurement Points for Switching Characteristics

Tx

CLK:

A

B

MIN

MAX

V

IHD

V

Ref

V

ILD

OUTPUTS:

Valid
Output n

INPUTS:

LEGEND: A - Maximum Output Delay Specification

B - Minimum Output Delay Specification
C - Minimum Input Setup Specification
D - Minimum Input Hold Specification

Figure 4-2 CLK Timing Measurement Points

T1

T2

V

IH (MIN)

V

Ref

V

CLK

IL (MAX)

T5 T4T3

Ref

Valid
Output n+1

V

CD

Va lid

Input

V

IHD

V

Ref

V

ILD

LEGEND:

T1 - One Clock Cycle
T2 - Minimum Time at V

T3 - Minimum Time at V

IH
IL

T4 - Clock Fall Time
T5 - Clock Rise Time

NOTE; All sIgnals are sampled on the rising edge of the CLK.

Note; The above timings are generic timings and are not specific to the interfaces defined below

32/51

Issue 1.2

ELECTRICAL SPECIFICATIONS

4.5.1 AC Timing parameters

Table 4-4. PCI Bus AC Timing

Name Parameter Min Max Unit

t1 PCI_CLKI to AD[31:0] valid 2 11 ns
t2 PCI_CLKI to FRAME# valid 2 11 ns
t3 PCI_CLKI to CBE#[3:0] valid 2 11 ns
t4 PCI_CLKI to PAR valid 2 11 ns

t5 PCI_CLKI to TRDY# valid 2 11 ns
T6 PCI_CLKI to IRDY# valid 2 11 ns
T7 PCI_CLKI to STOP# valid 2 11 ns
T8 PCI_CLKI to DEVSEL# valid 2 11 ns
T9 PCI_CLKI to PCI_GNT# valid 2 12 ns

t10 AD[31:0] bus setup to PCI_CLKI 7 ns
t11 AD[31:0] bus hold from PCI_CLKI 0 ns
t12 PCI_REQ#[2:0] setup to PCI_CLKI 7 ns
t13 PCI_REQ#[2:0] hold from PCI_CLKI 4 ns
t14 CBE#[3:0] setup to PCI_CLKI 7 ns
t15 CBE#[3:0] hold to PCI_CLKI 0 ns
t16 IRDY# setup to PCI_CLKI 7 ns
t17 IRDY# hold to PCI_CLKI 0 ns
t18 FRAME# setup to PCI_CLKI 7 ns
t19 FRAME# hold from PCI_CLKI 0 ns

Table 4-5. DRAM Bus AC Timing

Name Parameter Min Max Unit

t22 HCLK to RAS#[3:0] valid 19 ns
t23 HCLK to CAS#[7:0] bus valid 19 ns
t24 HCLK to MA[11:0] bus valid 19 ns
t25 HCLK to MWE# valid 17 ns
t26 HCLK to MD[63:0] bus valid 20 ns
t27 MD[63:0] Generic setup 13 ns
t28 GCLK2X to RAS#[3:0] valid 19 ns
t29 GCLK2X to CAS#[7:0] valid 19 ns
t30 GCLK2X to MA[11:0] bus valid 19 ns
t31 GCLK2X to MWE# valid 17 ns
t32 GCLK2X to MD[63:0] bus valid 20 ns
t33 MD[63:0] Generic hold 0 ns

Table 4-6. IDE Bus AC Timing

Name Parameter Min Max Unit

t20 DD[15:0] setup to PIOR#/SIOR#falling 15 ns
t21 DD[15:0} hold to PIOR#/SIOR# falling 0 ns

Issue 1.2

33/51

ELECTRICAL SPECIFICATIONS

Table 4-7. Video Input AC Timing

Name Parameter Min Max Unit

t35 VIN[7:0] setup to VCLK 5 ns
t36 VIN[7:0] hold from VCLK 4 ns
t37 VCLK to ODD_EVEN valid 15 ns
t38 VCLK to VCS valid 15 ns
t39 ODD_EVEN setup to VCLK 10 ns
t40 ODD_EVEN hold from VCLK 5 ns
t41 VCS setup to VCLK 10 ns
t42 VCS hold from VCLK 5 ns

Table 4-8. Graphics Adapter (VGA) AC Timing

Name Parameter Min Max Unit

t43 DCLK to VSYNC valid 30 ns
t44 DCLK to HSYNC valid 30 ns

Table 4-9. ISA Bus AC Timing

Name Parameter Min Max Unit

t45 XTALO to LA[23:17] bus active 60 ns
t46 XTALO to SA[19:0] bus active 60 ns
t47 XTALO to BHE# valid 62 ns
t48 XTALO to SD[15:0] bus active 35 ns
t49 PCI_CLKI to ISAOE# valid 28 ns
t50 XTALO to GPIOCS# valid 60 ns
t51 XTALO to ALE valid 62 ns
t52 XTALO to MEMW# valid 50 ns
t53 XTALO to MEMR# valid 50 ns
t54 XTALO to SMEMW# valid 50 ns
t55 XTALO to SMEMR# valid 50 ns
t56 XTALO to IOR# valid 50 ns
t57 XTALO to IOW# valid 50 ns

34/51

Issue 1.2

Update History for Electrical Specification chapter

4.10 Update History for Electrical Specification chapter

The following changes have been made to the Electrical Specification Chapter on the 07/02/2000.

Section Change Text

4.5 Revued

The following changes have been made to the Electrical Specification Chapter on the 20/10/99.

Section Change Text

4.5 Revued

The following changes have been made to the Electrical Specification Chapter on the 16/08/99.

Section Change Text

18 Removed

Timings t35 - t42

Timings T1-10, T12, T14, T16, T18, T26, T32, T35, T39-42 &T54

Figure 4-2 CLK Timing Measurement Points.

Issue 1.2

35/51

Update History for Electrical Specification chapter

36/51

5. MECHANICAL DATA

MECHANICAL DATA

5.1 388-Pin Package Dimension

The pin numbering for the STPC 388-pin Plastic
BGA package is shown in Figure 5-1.

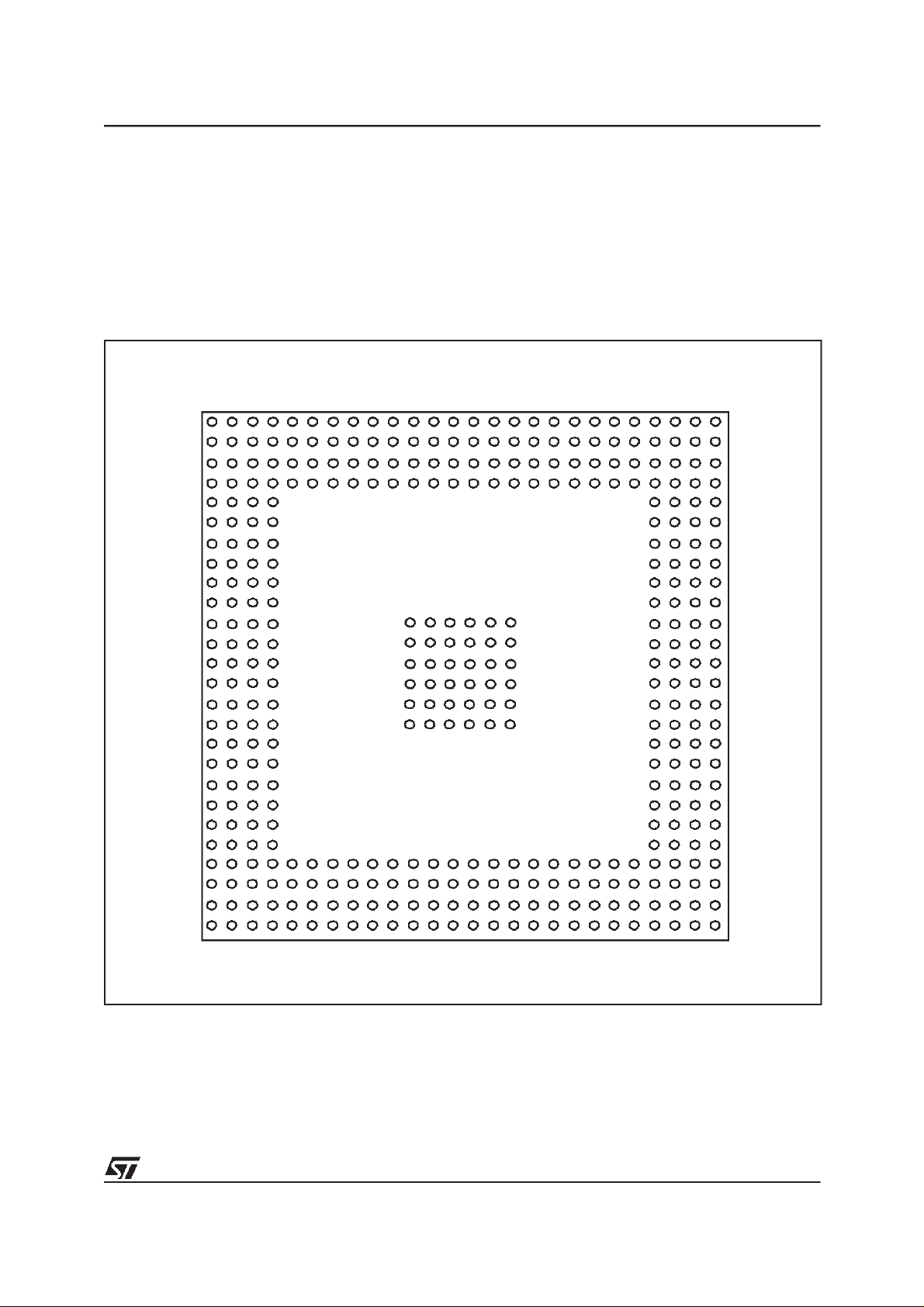

Figure 5-1. 388-Pin PBGA Package - Top View

1 3 5 7 9 11 13 15 17 19 21 23 25

2468101214161820222426

A
B
C
D
E
F
G
H
J
K
L
M
N
P
R
T
U
V
W
Y
AA
AB
AC
AD
AE
AF

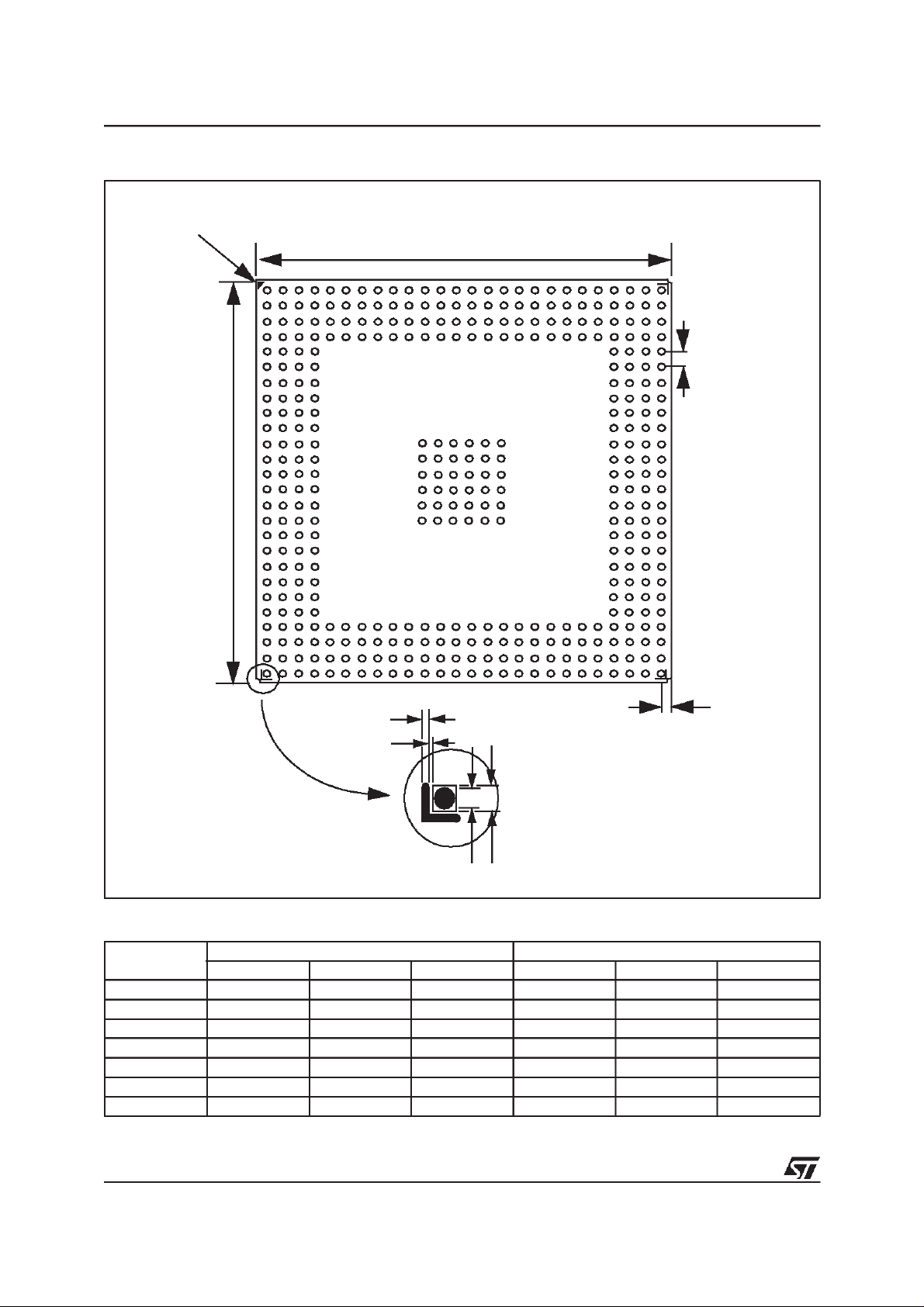

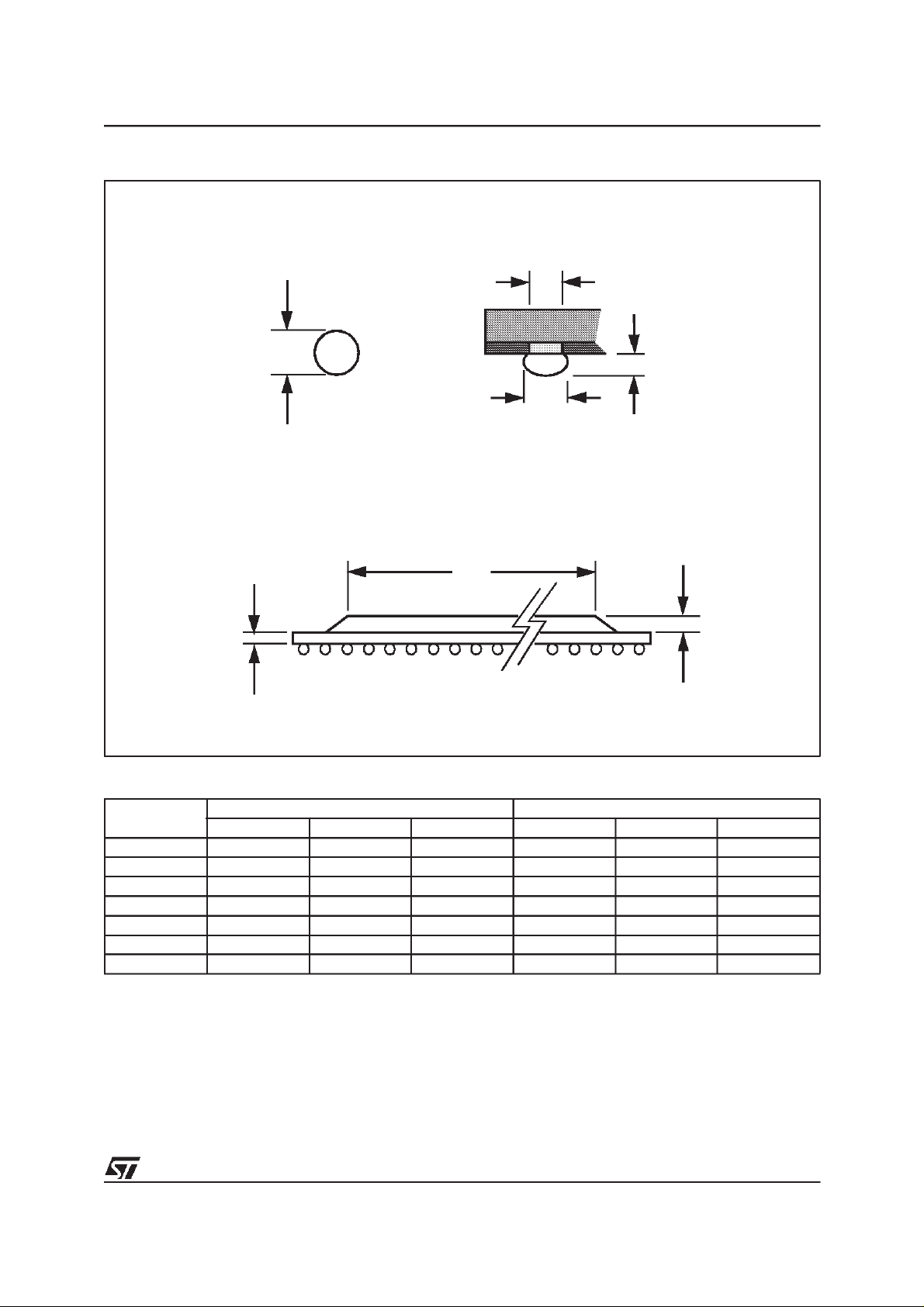

Dimensions are shown in Figure 5-2, Table 5-1
and Figure 5-3, Table 5-2.

A
B
C
D
E
F
G
H
J
K
L
M
N
P
R
T
U
V
W
Y
AA
AB
AC
AD
AE
AF

1 3 5 7 91113151719212325

2468101214161820222426

Issue 1.2

37/51

MECHANICAL DATA

Figure 5-2. 388-pin PBGA Package - PCB Dimensions

A1 Ball Pad Corner

A

A

B

E
F

Detail

G

C

Table 5-1. 388-pin PBGA Package - PCB Dimensions

Symbols

A 34.95 35.00 35.05 1.375 1.378 1.380
B 1.22 1.27 1.32 0.048 0.050 0.052
C 0.58 0.63 0.68 0.023 0.025 0.027
D 1.57 1.62 1.67 0.062 0.064 0.066
E 0.15 0.20 0.25 0.006 0.008 0.001
F 0.05 0.10 0.15 0.002 0.004 0.006

G 0.75 0.80 0.85 0.030 0.032 0.034

Min Typ Max Min Typ Max

mm inches

D

38/51

Issue 1.2

Figure 5-3. 388-pin PBGA Package - Dimensions

MECHANICAL DATA

A

C

Solderball

F

D

E

Solderball after collapse

B

G

Table 5-2. 388-pin PBGA Package - Dimensions

Symbols

A 0.50 0.56 0.62 0.020 0.022 0.024
B 1.12 1.17 1.22 0.044 0.046 0.048
C 0.60 0.76 0.92 0.024 0.030 0.036
D 0.52 0.53 0.54 0.020 0.021 0.022
E 0.63 0.78 0.93 0.025 0.031 0.037
F 0.60 0.63 0.66 0.024 0.025 0.026

G 30.0 11.8

Min Typ Max Min Typ Max

mm inches

Issue 1.2

39/51

MECHANICAL DATA

5.2 388-Pin Package thermal data

388-pin PBGA package has a Power Dissipation
Capability of 4.5W which increases to 6W when
used with a Heatsink.

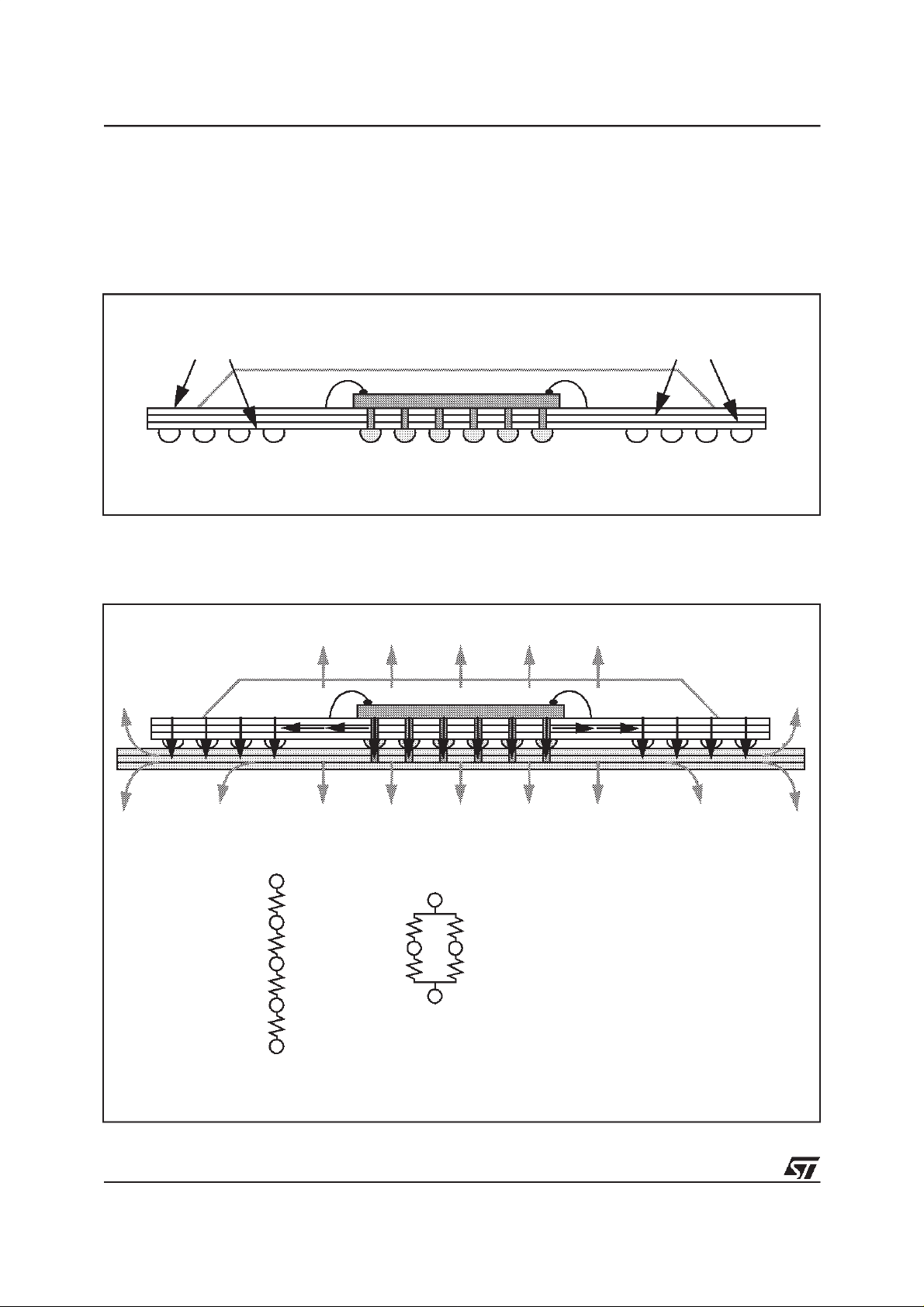

Figure 5-4. 388-Pin PBGA structure

Thermal balls

Figure 5-5. Thermal dissipation without heatsink

Structure in shown in Figure 5-4.
Thermal dissipation options are illustrated in Fig-

ure 5-5 and Figure 5-6.

Power & Ground layersSignal layers

40/51

Board

Ambient

Case

Junction

Board

Ambient

Rca

Rjc

Rjb

Rba

Junction

66

Board

Ambient

Rja = 13 °C/W

Issue 1.2

Case

1258.5

Board dimensions:

- 10.2 cm x 12.7 cm

- 4 layers (2 for signals, 1 GND, 1VCC)
The PBGA is centered on board

There are no other devices
1 via pad per ground ball (8-mil wire)
40% copper on signal layers

Copper thickness:

-17

µ

m for internal layers

µ

m for external layers

-34
Airflow = 0

Board temperature taken at the center balls

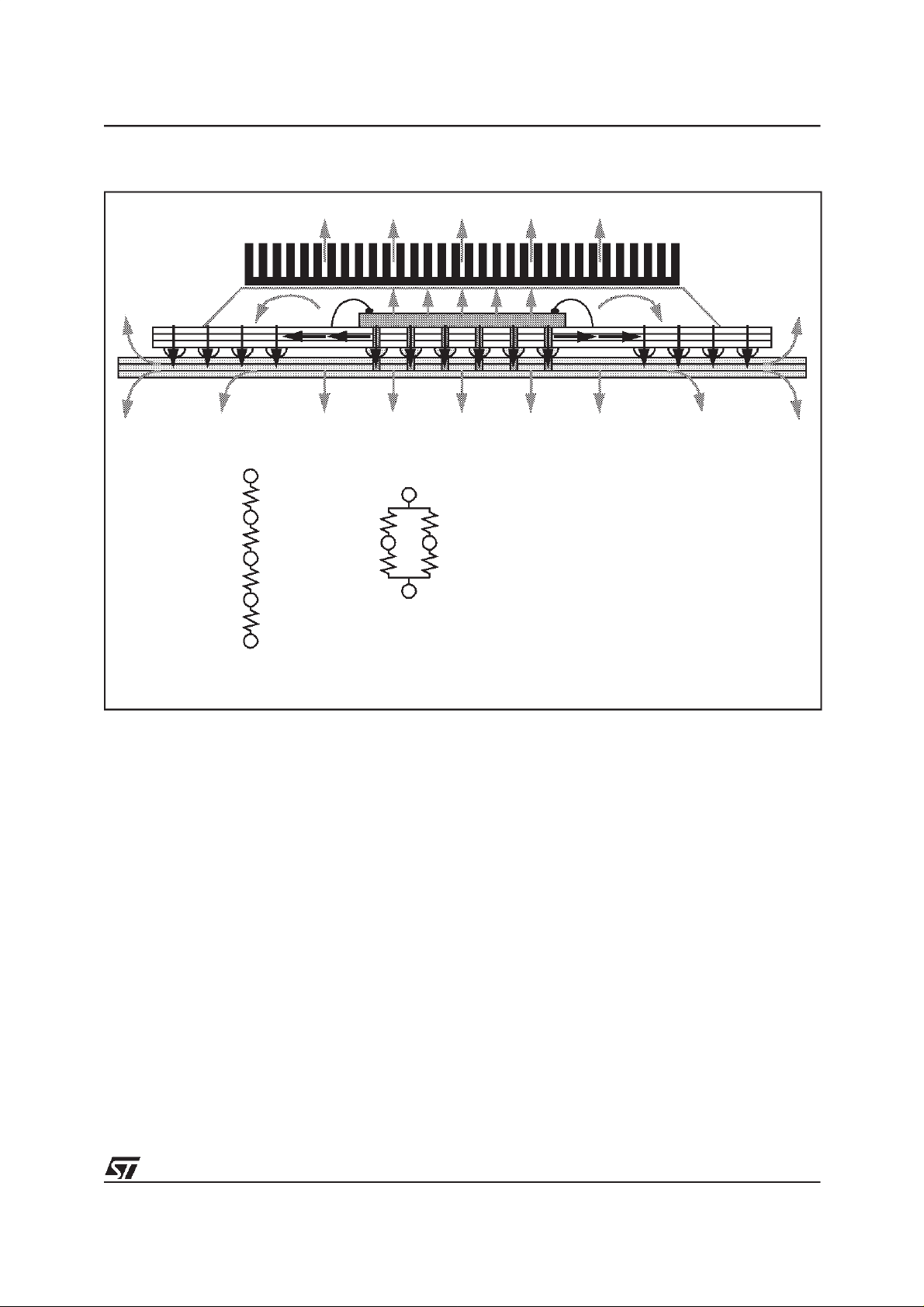

Figure 5-6. Thermal dissipation with heatsink

Board

MECHANICAL DATA

Ambient

Case

Junction

Board

Ambient

Rca

Rjc

Rjb

Rba

Junction

36

Board

Ambient

Rja = 9.5 °C/W

Case

508.5

Board dimensions:

- 10.2 cm x 12.7 cm

- 4 layers (2 for signals, 1 GND, 1VCC)
The PBGA is centered on board

There are no other devices
1 via pad per ground ball (8-mil wire)
40% copper on signal layers

Copper thickness:

-17

µ

m for internal layers

-34

µ

m for external layers

Airflow = 0
Board temperature taken at the center balls

°

Heat sink is 11.1

C/W

Issue 1.2

41/51

MECHANICAL DATA

42/51

Issue 1.2

6. BOARD LAYOUT

6.1 THERMAL DISSIPATION

BOARD LAYOUT

Thermal dissipation of the STPC depends mainly
on supply voltage. As a result, when the system
does notneed to workat 3.3V, it may be to reduce
the voltage to 3.15V for example. This may save
few 100’s of mW.

The second area that can be concidered is un­used interfaces and functions. Depending on the
application, some input signals can be grounded,
and some blocks not powered or shutdown. Clock
speed dynamic adjustment is also a solution that
can be usedalong with the integrated power man­agement unit.

The standard way to route thermal balls to internal
ground layerimplements onlyone via pad for each
ball pad, connected using a 8-mil wire.

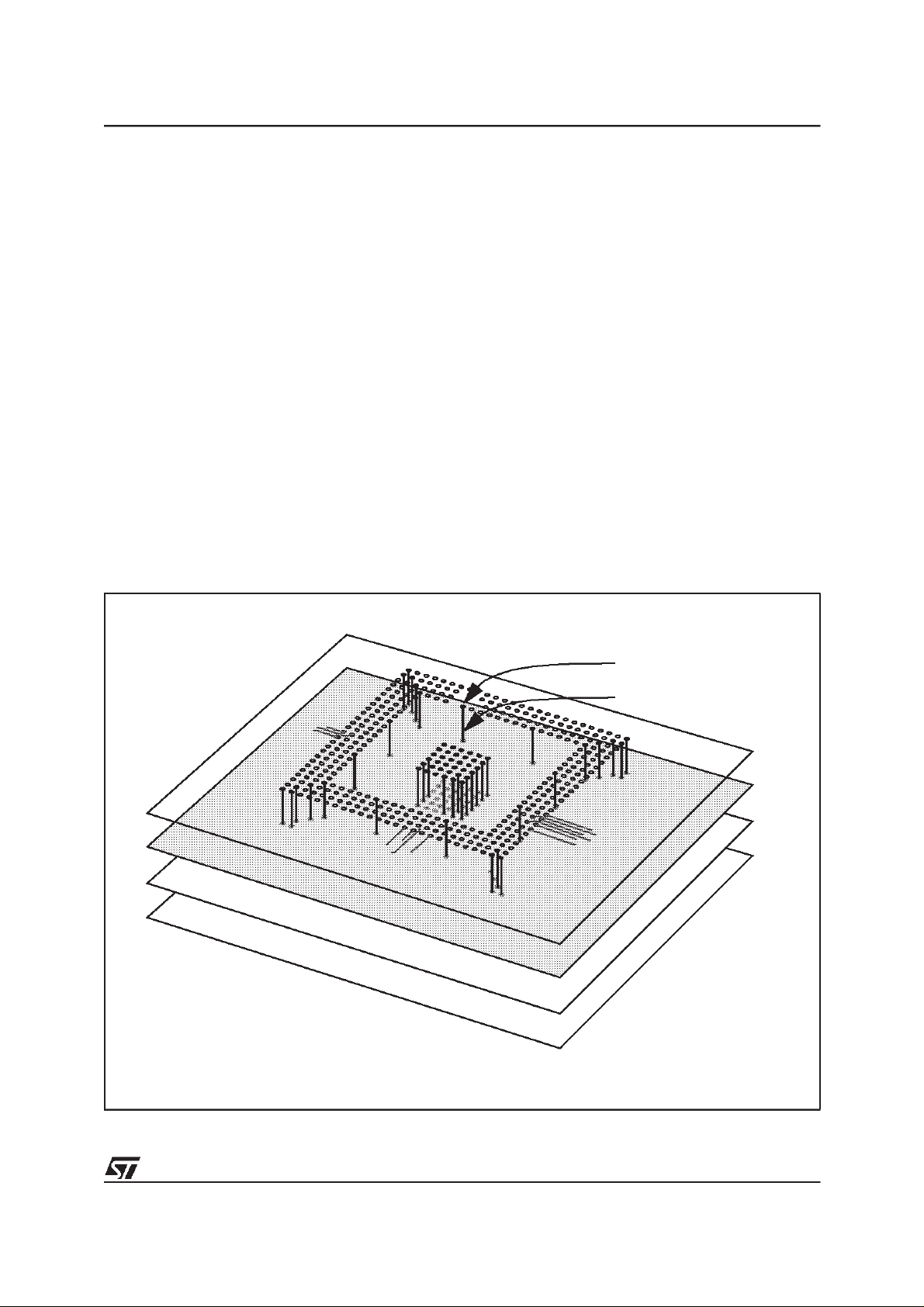

Figure 6-1. Ground routing

With such configuration thePlastic BGA 388 pack­agedissipates 90%of the heat through theground
balls, and especially the central thermal balls
which are directly connected to the die, the re­maining 10% is dissipated through the case. Add­ing a heat sink reduces this value to 85%.

As a result, some basic rules have to be applied
when routing the STPC in order to avoid thermal
problems.

First of all, the whole ground layer acts as a heat
sink and ground balls must be directly connected
to it as illustrated in Figure 6-1.

If one ground layer is not enough, a second
ground plane may be added on the solder side.

Pad for ground ball

T

o

pL

a

y

e

r

:

S

i

g

G

r

o

u

n

dl

w
t

a

e

r

l

a

t

o

m

L

P

o

B

o

Note: For better visibility, ground balls are not all routed.

n

a

l

s

y

e

r

y

e

r

a

y

e

r

:

s

i

g

n

a

l

s

+

l

o

c

a

l

g

r

o

u

n

d

l

a

y

e

r

(

i

f

n

e

e

d

e

d

Thru hole to ground layer

)

Issue 1.2

43/51

BOARD LAYOUT

When considering thermal dissipation, the most
important - and not the more obvious - part of the
layout is the connection between the ground balls
and the ground layer.

A 1-wire connection is shown in Figure 6-2. The
use of a 8-mil wire results in a thermal resistance
of 105°C/W assuming copper is used (418 W/
m.°K). This high value is due to the thickness (34
µm) of the copper on the external side of the PCB.

Considering only the central matrix of 36 thermal
balls and one via for each ball, the global thermal
resistance is 2.9°C/W. This can be easily im­proved by using four 10 mil wires to connect to the
four vias around the ground pad link as in Figure
6-3. This gives a total of 49 vias and a global resis­tance for the 36 thermal balls of 0.6°C/W.

The use of a ground plane like in Figure 6-4 is
even better.

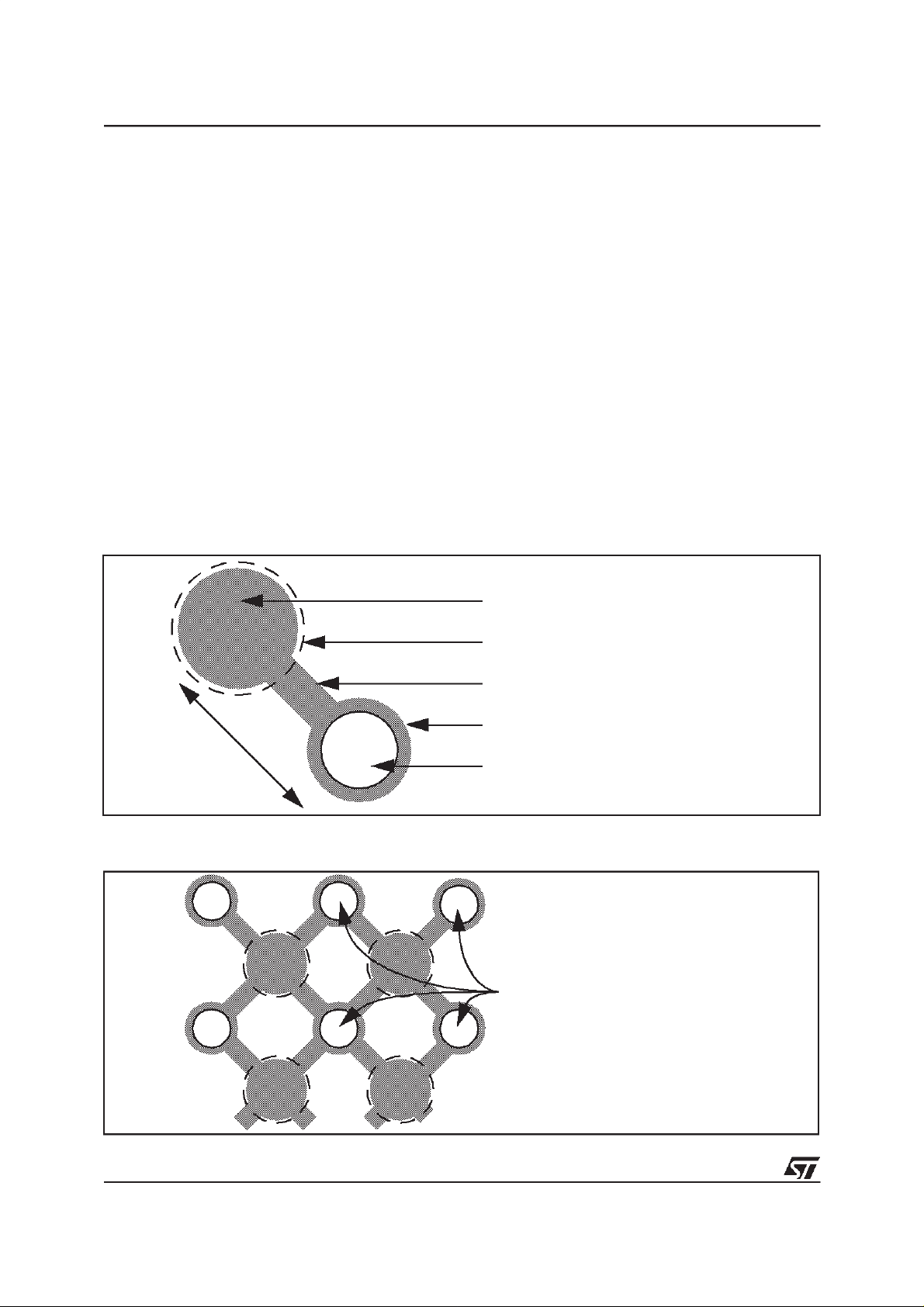

Figure 6-2. Recommended 1-wire ground pad layout

To avoidsolder wickingover to the via padsduring
soldering, it is important to have a solder mask of
4 mil around the pad (NSMD pad), this gives a di­ameter of 33 mil for a 25 mil ground pad.

To obtain the optimum ground layout, place the
vias directly under the ball pads. In this case no lo­cal boar d distortion is tolerated.

The thickness of the copper on PCB layers is typ­ically 34 µm for external layers and17 µm for inter­nal layers. This means thermal dissipation is not
good and temperature of the board is concentrat­ed around the devices and falls quickly with in­creased distance.

When it is possible to place a metal layer inside
the PCB, this improves dramatically the heat
spreading and hence thermal dissipation of the
board.

Pad for ground ball (diameter = 25 mil)

34.5 mil

Figure 6-3. Recommended 4-wire ground pad layout

Solder Mask (4 mil)

Connection Wire (width = 10 mil)

Via (diameter = 24 mil)

Hole to ground layer (diameter = 12 mil)

1 mil = 0.0254 mm

4 via pads for each ground ball

44/51

Issue 1.2

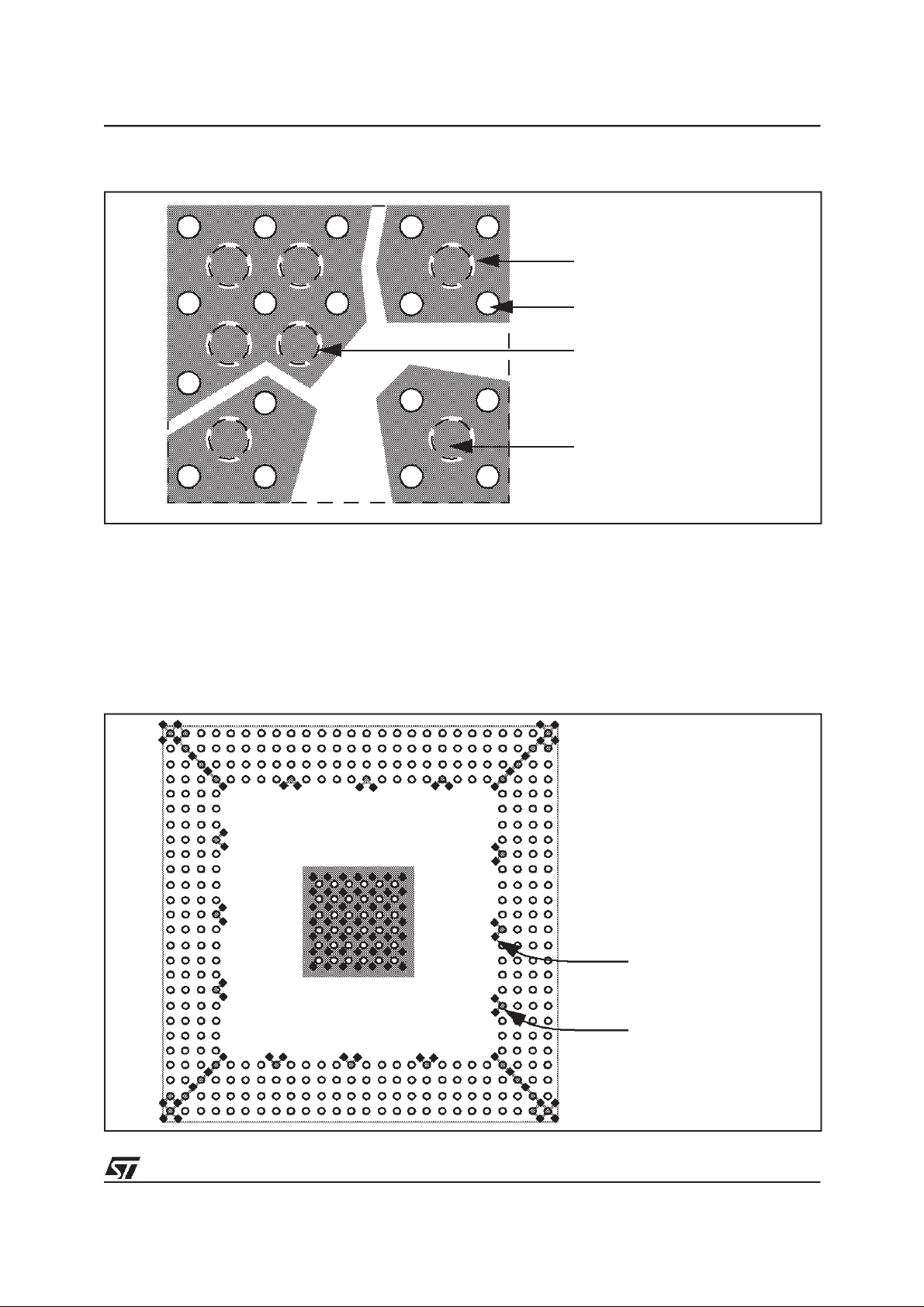

Figure 6-4. Optimum layout for central ground ball

BOARD LAYOUT

Clearance = 6mil
External diameter = 37 mil

Via to Ground layer
hole diameter = 14 mil

Solder mask
diameter = 33 mil

Pad for ground ball
diameter = 25 mil
connections = 10 mil

The PBGA Package also dissipates heat through
peripheral ground balls. When a heat sink is
placed on the device, heat is more uniformely

The more via pads are connected to each ground
ball, the more heat is dissipated . The only limita-

tion is the risk of lossing routing channels.
spread throughout the moulding increasing heat
dissipation through the peripheral ground balls.

Figure 6-5 shows a routing with a good trade off

between thermal dissipation and number of rout-

ing channels.

Figure 6-5. Global ground layout for good thermal dissipation

Via to ground layer

Issue 1.2

Ground pad

45/51

BOARD LAYOUT

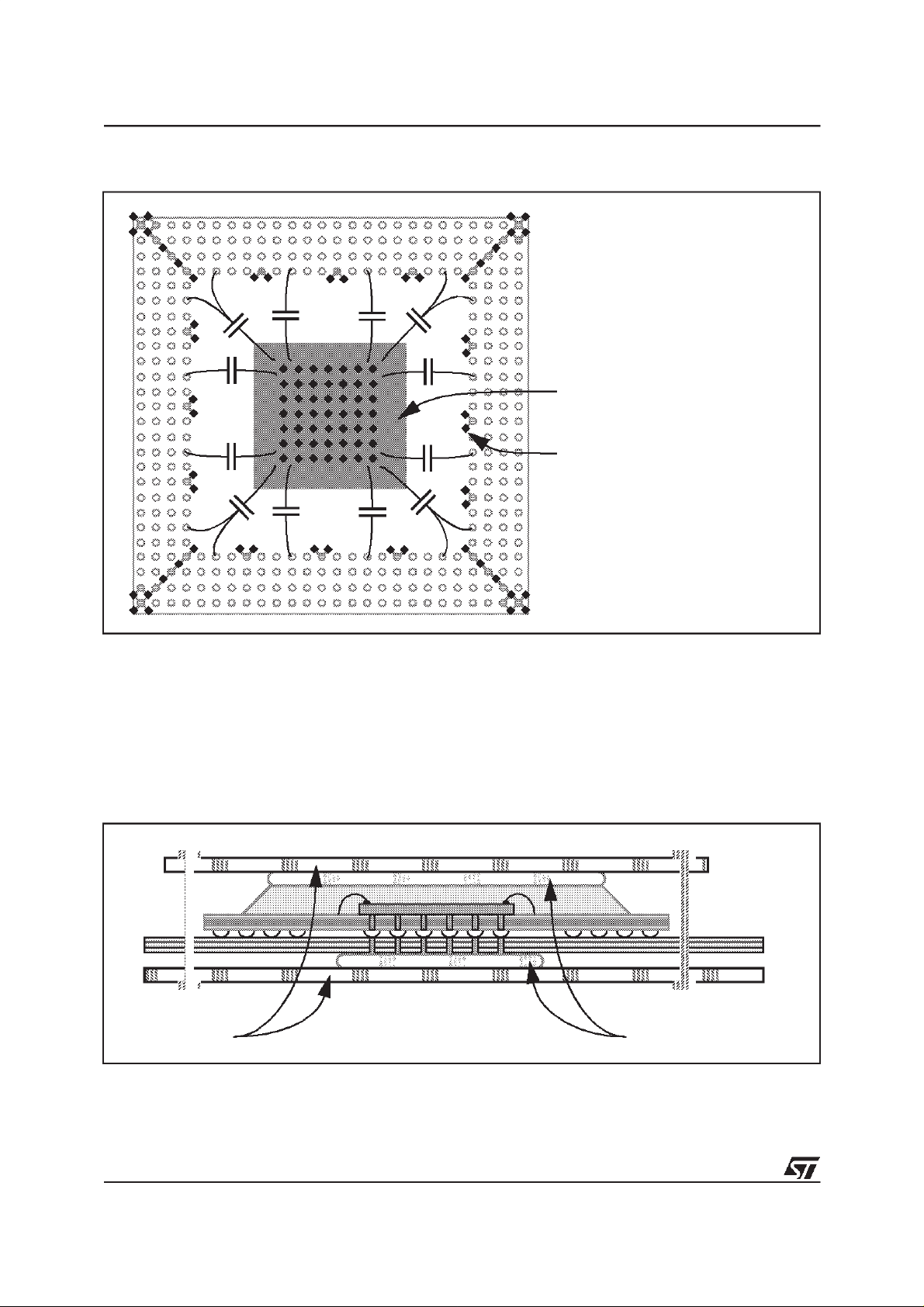

Figure 6-6. Bottom side layout and decoupling

Ground plane for thermal dissipation

Via to ground layer

A local ground plane on opposite side of the board
as shown in Figure 6-6 improves thermal dissipa­tion. It is used to connect decoupling capacitances
but can also be usedfor connection to a heat sink
or to the system’s metal box for better dissipation.

This possibility of using the whole system’s box for

thermal dissipation is very usefull in case of high

temperature inside the system and low tempera-

ture outside. In that case, both sides of the PBGA

should be thermally connected to the metal chas-

sis in order to propagate the heat through the met-

al. Figure 6-7 illustrates such an implementation.

Figure 6-7. Use of metal plate for thermal dissipation

Die

Metal planes Thermal conductor

Board

46/51

Issue 1.2

6.2 HIGH SPEED SIGNALS

BOARD LAYOUT

Some Interfaces of the STPC run at high speed
and have to be carefully routed or even shielded.

Here is the list of these interfaces, in decreasing
speed order:

- Memory Interface.

- Graphics and video interfaces

- PCI bus

- 14MHz oscillator stage

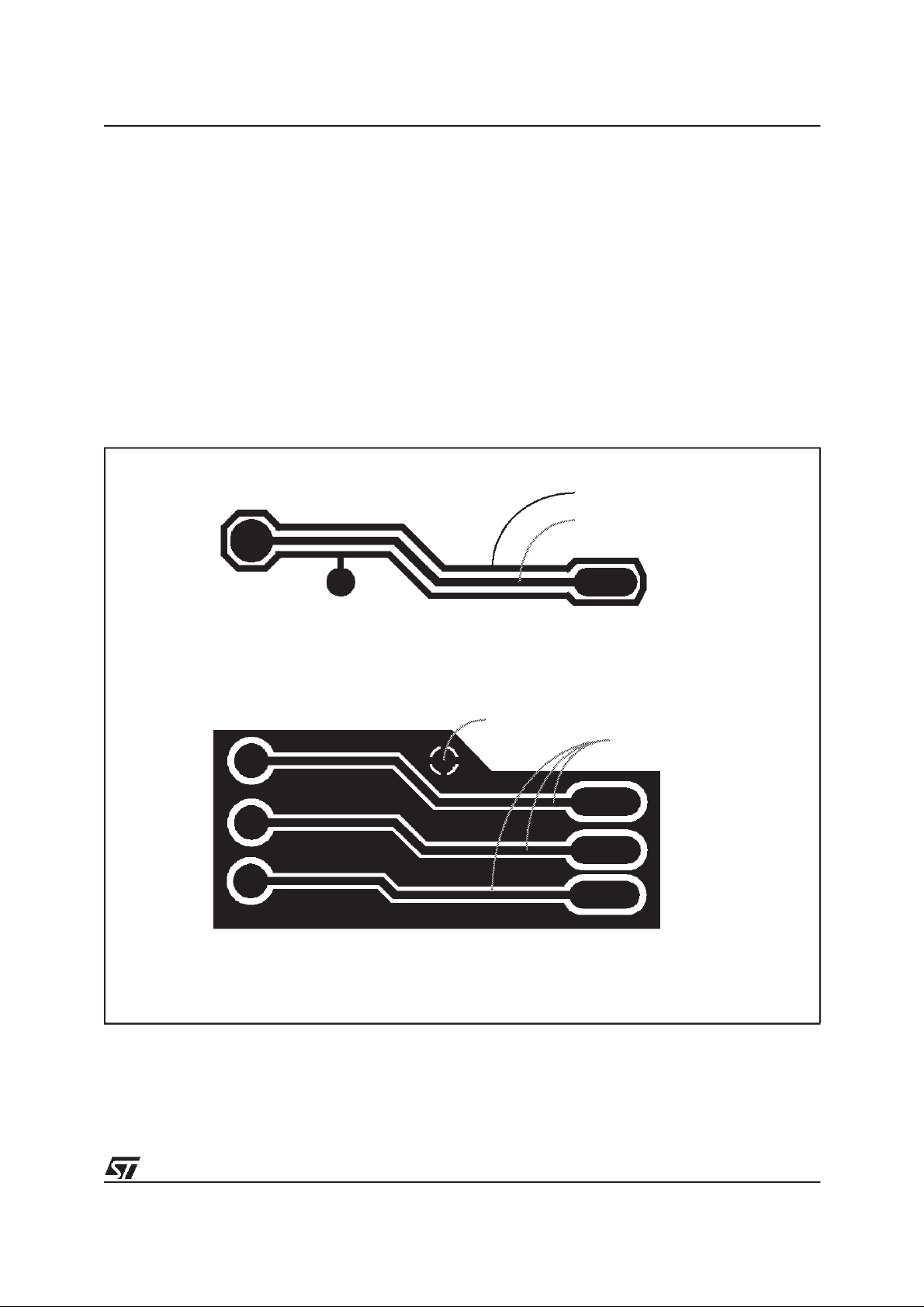

Figure 6-8. Shielding signals

ground pad

All the clocks have to be routed first and shielded

for speeds of 27MHz or more. The high speed sig-

nals have the same contrainsts as some of the

memory interface control signals.

The next interfaces to be routed are Memory, Vid-

eo/graphics, and PCI.

All the analog noise sensitive signals have to be

routed in a separate area and hence can be rout-

ed indepedently.

ground ring

shielded signal line

ground pad

shielded signal lines

Issue 1.2

47/51

ORDERING DATA

7. ORDERING DATA

7.1 Ordering Codes

STMicroelectronics

Prefix

Product Family

PC: PC Compatible

Product ID

C01: Consumer

Core Speed

66: 66MHz
75: 75MHz
80: 80MHz
10: 100MHz

Package

BT: 388 Overmoulded BGA

ST PC C01 66 BT C 3

Temperature Range

C: Commercial

0to+70°C
Tcase = 0 to +100°C

I: Industrial

-40 to +85°C
Tcase = -40 to +100°C

Operating Voltage

3 : 3.3V ± 0.3V

48/51

Issue 1.2

7.2 Available Part Numbers

ORDERING DATA

Part Number

STPCC0166BTC3 66 DX
STPCC0180BTC3 80 DX
STPCC0110BTC3 100 DX2
STPCC0166BTI3 66 DX
STPCC0180BTI3 80 DX

Core Frequency

(MHz)

CPU Mode

Tcase Range

(C)

0°C to +100°C

-40°C to +100°C

Operating Voltage

(V)

3.3V ± 0.3V

Issue 1.2

49/51

ORDERING DATA

50/51

Issue 1.2

Information furnished is believed to be accurate and reliable. However, STMicroelectronics assumes no responsibility for the consequences
of useof such information norfor any infringement of patents or other rights of third parties which may result from its use. No license isgranted
by implicationor otherwise under any patent or patent rights of STMicroelectronics. Specifications mentioned in this publication are subject
to change without notice. This publication supersedes and replaces all information previously supplied. STMicroelectronics products are not
authorized for use as critical components in life support devices or systems without express written approval of STMicroelectronics.

 2000 STMicroelectronics - All Rights Reserved

The ST logo is a registered trademark of STMicroelectronics.

All other names are the property of their respective owners.

STMicroelectronics GROUP OF COMPANIES

Australia - Brazil - China - France - Germany - Italy - Japan - Korea - Malaysia - Malta - Mexico - Morocco - The Netherlands - Singapore -

Spain - Sweden - Switzerland - Taiwan - Thailand - United Kingdom - U.S.A.

51

Issue 1.2
