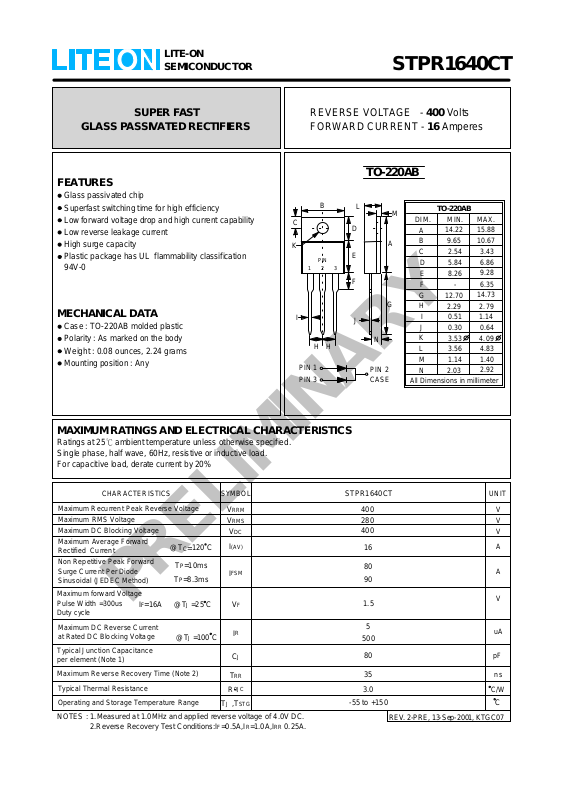

Page 1
LITE-ON
SEMICONDUCTOR
STPR1640CT
SUPER FAST
GLASS PASSIVATED RECTIFIERS
FEATURES
Glass passivated chip
Superfast switching time for high efficiency
Low forward voltage drop and high current capability
Low reverse leakage current
High surge capacity
Plastic package has UL flammability classification
94V-0
MECHANICAL DATA
Case : TO-220AB molded plastic
Polarity : As marked on the body
Weight : 0.08 ounces, 2.24 grams
Mounting position : Any
REVERSE VO LTAGE FORWARD CURRENT -
TO-220AB
C
K
I
PIN 1
PIN 3
132
H
B
PIN
H
L
D
E
F
J
M
A
G
N
R
PIN 2
CASE
DIM.
A
B
C
D
E
F
G
H
Y
K
L
M
N
All Dimensions in millimeter
400
16
TO-220AB
I
J
Volts
Amperes
MIN.
14.22 15.88
2.54 3.43
8.26
-
12.70
2.29
0.51
3.53 4.09
3.56 4.83
1.14 1.40
2.03
MAX.
10.67 9.65
6.86 5.84
9.28
6.35
14.73
2.79
1.14
0.64 0.30
2.92
NA
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25℃ ambient temperature unless otherwise specified.
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%
I
M
I
CHARACTERISTICS
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward
Rectified Current
Non Repetitive Peak Forward
Surge Current Per Diode
Sinusoidal (JEDEC Method)
Maximum forward Voltage
Pulse Width =300us
Duty cycle
Maximum DC Reverse Cu rrent
at Rated DC Blocking Voltage
Typical Junction Capacitance
per element (Note 1)
Maximum Reverse Recovery Time (Note 2)
Typical Thermal Resistance
Operating and Storage Temperature Range
NOTES : 1.Measured at 1.0MHz and applied reverse voltage of 4.0V DC.
2.Reverse Recovery Test Conditions:I
R
P
I
16A
F
=
E
@T
C
=
T
10ms
P
=
T
8.3ms
P
=
J
@T
J
@T
120 C
=25 C
=100 C
SYMBOL
RRM
V
L
RMS
V
DC
V
(AV)
I
FSM
I
F
V
R
I
J
C
RR
T
0JC
R
STG
,T
J
T
F
=0.5A,IR=1.0A,IRR0.25A.
STPR1640CT
400
280
400
16
80
90
1.5
5
500
80
35
3.0
-55 to +150
UNIT
V
V
V
A
A
V
uA
pF
ns
C/W
C
REV. 2-PRE, 13-Sep-200 1, KT G C 07
Page 2
RATING AND CHARA CTERISTIC CURVES
STPR1640CT
FIG.1 - FORWARD CURRENT DERATING CURVE
16
12
8
4
RESISTIVE OR INDUCTIVE LOAD
AVERAGE FORWARD CURRENT
AMPERES
0
0
25
1000
100
10
50
FIG.3 - TYPICAL REVERSE CHARACTERISTICS
75 100 125 150
CASE TEMPERATURE , C
TJ= 125 C
TJ= 100 C
175
FIG.2 - MAXIMUM NON-REPETITIVE SURGE CURRENT
120
100
80
60
40
20
Single Half-Sine-Wave
(JEDEC METHOD)
0
PEAK FORWARD SURGE CURRENT,
AMPERES
1 5 10 50 1002
FIG.4 - TYPICAL FORWARD CHARACTERISTICS
100
100
TP=8.3ms
TP=10ms
20
NUMBE R OF CY CLES AT 60Hz
Y
TJ= 125 C
10
10
TJ= 25 C
REVERSE CURRENT ,(uA)
1.0
1.0
1.0
0.1
INSTANTANEOUS
.01
20
0
PERCENT OF RATED PEAK REVERSE VOLTAGE, (%)
TJ= 25 C
60 100
L
FIG.5 - TYPICAL JUNCTION CAPACITANCE
1000
140
M
I
NA R
I
INSTANTANEOUS FORWARD CURRENT ,(A)
INSTANTANEOUS FORWARD CURRENT ,(A)
0.1
0.1
0.2 0.4
0
INSTANTANEOUS FORWARD VOLTAGE , VOLTS
INSTANTANEOUS FORWARD VOLTAGE , VOLTS
0.6 0.8 1.0
PULSE WIDTH 300ua
PULSE WIDTH 300us
2% Duty cycle
1.4
1.2
1.6
1.8
RE
P
100
CAPACITANCE , (pF)
TJ= 25 C, f= 1MHz
10
0.1
1
REVERS E VOLTAGE , VO LTS
4
10
100
REV. 2-PRE, 13-Sep-2001, KTGC07
