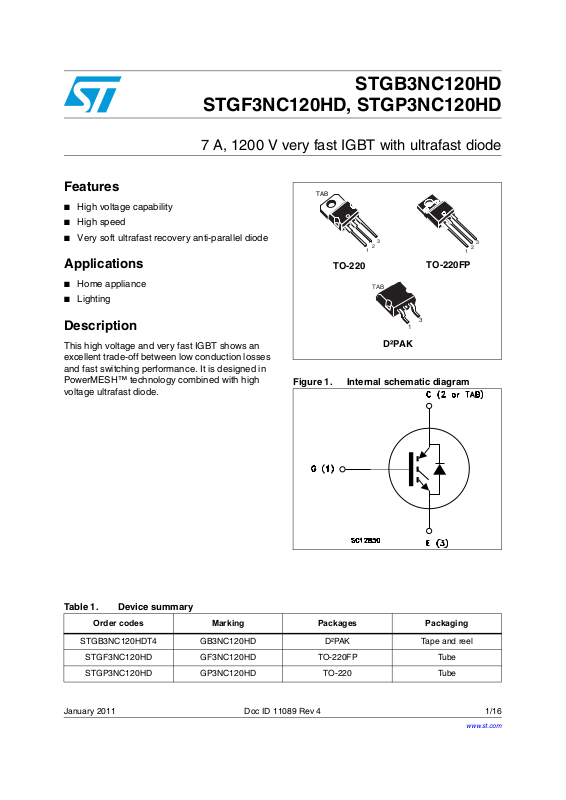

Datasheet STGP3NC120HD Specification

STGB3NC120HD

STGF3NC120HD, STGP3NC120HD

7 A, 1200 V very fast IGBT with ultrafast diode

Features

■ High voltage capability

■ High speed

■ Very soft ultrafast recovery anti-parallel diode

Applications

■ Home appliance

■ Lighting

Description

This high voltage and very fast IGBT shows an
excellent trade-off between low conduction losses
and fast switching performance. It is designed in
PowerMESH™ technology combined with high
voltage ultrafast diode.

TAB

3

2

1

TO-220

TAB

TO-220FP

3

1

D²PAK

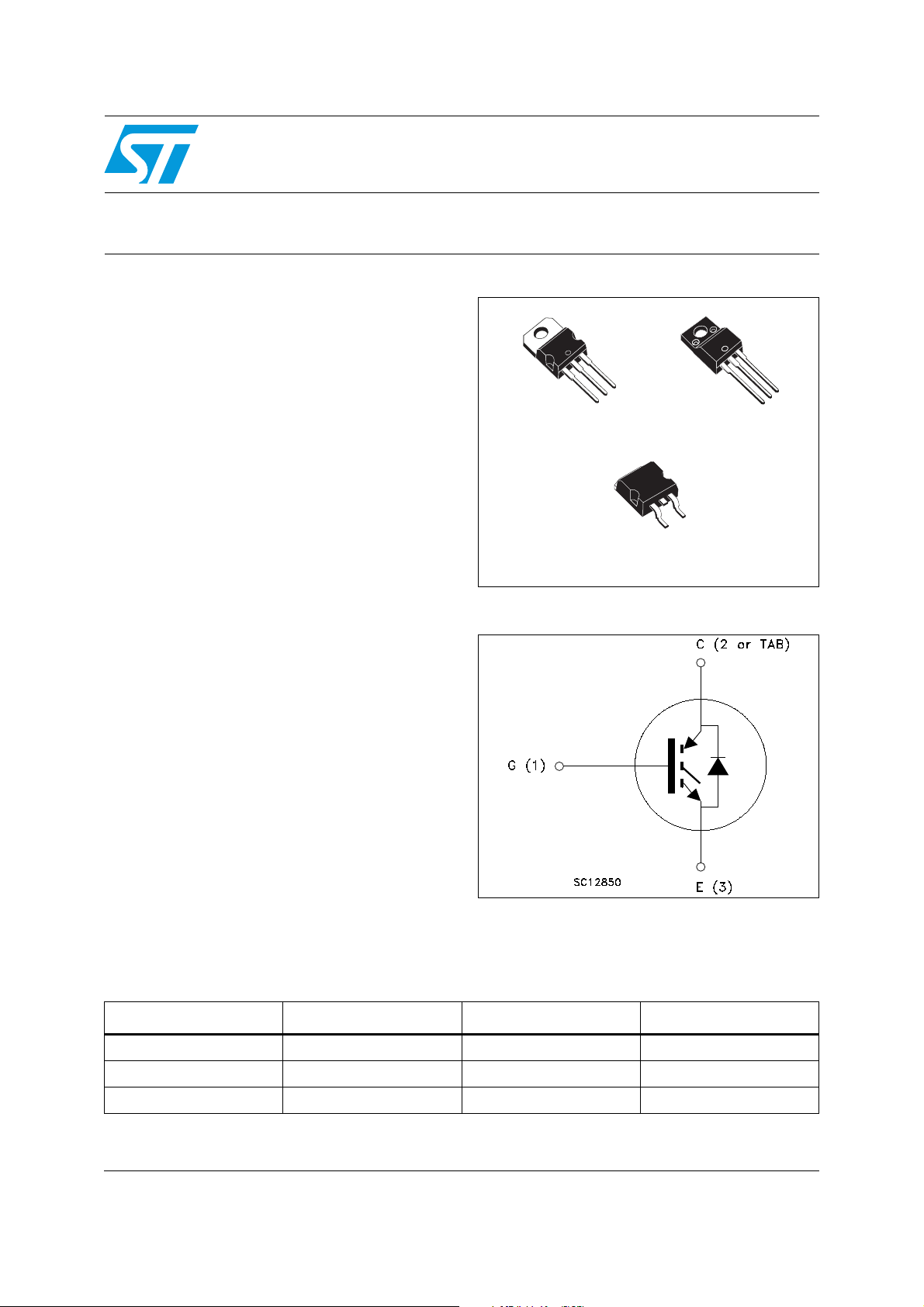

Figure 1. Internal schematic diagram

3

2

1

Table 1. Device summary

Order codes Marking Packages Packaging

STGB3NC120HDT4 GB3NC120HD D²PAK Tape and reel

STGF3NC120HD GF3NC120HD TO-220FP Tube

STGP3NC120HD GP3NC120HD TO-220 Tube

January 2011 Doc ID 11089 Rev 4 1/16

www.st.com

16

Contents STGB3NC120HD, STGF3NC120HD, STGP3NC120HD

Contents

1 Electrical ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2 Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2.1 Electrical characteristics (curves) . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

3 Test circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

4 Package mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

5 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

2/16 Doc ID 11089 Rev 4

STGB3NC120HD, STGF3NC120HD, STGP3NC120HD Electrical ratings

1 Electrical ratings

Table 2. Absolute maximum ratings

Val ue

Symbol Parameter

TO-220FP TO-220/D²PAK

Unit

V

CES

I

C

I

C

I

CL

I

CP

V

I

I

FSM

P

TOT

V

ISO

T

1. Calculated according to the iterative formula:

Collector-emitter voltage (VGE = 0) 1200 V

(1)

Continuous collector current at TC = 25 °C 6 14 A

(1)

Continuous collector current at TC = 100 °C 3 7 A

(2)

Turn-off latching current 14 A

(3)

Pulsed collector current 20 A

Gate-emitter voltage ± 20 V

GE

Diode RMS forward current at TC = 25 °C 3 A

F

Surge non repetitive forward current

=10 ms sinusoidal

t

p

Total dissipation at TC = 25 °C 25 75 W

Insulation withstand voltage (RMS) from all
three leads to external heat sink

Operating junction temperature -55 to 150 °C

J

ICTC()

-------------------------------------------------------------------------------------------------------=

R

thj c–

2500 V

T

V

CE sat()max()Tjmax()ICTC

–

jmax()TC

12 A

(),()×

2. V

3. Pulse width limited by maximum junction temperature and turn-off within RBSOA

clamp

= 80 % V

, Tj = 150 °C, RG = 10 Ω, VGE = 15 V

CES

Table 3. Thermal data

Val ue

Symbol Parameter

TO-220FP TO-220/D²PAK

R

R

thJC

thJA

Thermal resistance junction-case IGBT 5 1.65 °C/W

Thermal resistance junction-case (diode) 3.5 °C/W

Thermal resistance junction-ambient 62.5 °C/W

Doc ID 11089 Rev 4 3/16

Unit

Electrical characteristics STGB3NC120HD, STGF3NC120HD, STGP3NC120HD

2 Electrical characteristics

TJ = 25 °C unless otherwise specified.

Table 4. Static electrical characteristics

Symbol Parameter Test conditions Min. Typ. Max. Unit

Collector-emitter

V

(BR)CES

breakdown voltage
(VGE = 0)

IC = 1 mA 1200 V

V

CE(sat)

V

GE(th)

I

CES

I

GES

g

fs

1. Pulse duration: 300 µs, duty cycle 1.5%

Collector-emitter saturation
voltage

Gate threshold voltage VCE= VGE, IC= 250µA 2 5 V

Collector cut-off current
(VGE = 0)

Gate-emitter leakage
current (V

(1)

Forward transconductance VCE = 25 V, IC= 3 A 4 S

CE

= 0)

= 15 V, IC= 3 A

V

GE

VGE= 15 V, IC= 3 A, TJ=125 °C

= 1200 V

V

CE

= 1200 V, TJ=125 °C

V

CE

VGE =± 20 V ± 100 nA

2.3

2.2

2.8 V

501µA

Table 5. Dynamic

Symbol Parameter Test conditions Min. Typ. Max. Unit

C

C

C

Q
Q
Q

Input capacitance

ies

Output capacitance

oes

Reverse transfer

res

capacitance

Total gate charge

g

Gate-emitter charge

ge

Gate-collector charge

gc

= 25 V, f = 1 MHz, VGE=0 -

V

CE

VCE = 960 V,

= 3 A,VGE=15 V

I

C

470

45

-

6

24

-

3

-

10

V

mA

pF
pF
pF

nC
nC
nC

4/16 Doc ID 11089 Rev 4

STGB3NC120HD, STGF3NC120HD, STGP3NC120HD Electrical characteristics

Table 6. Switching on/off (inductive load)

Symbol Parameter Test conditions Min. Typ. Max. Unit

t

d(on)

(di/dt)

t

d(on)

(di/dt)

t

r(Voff

t

d(off

t

r(Voff

t

d(off

Turn-on delay time

t

Current rise time

r

Turn-on current slope

on

Turn-on delay time

t

Current rise time

r

Turn-on current slope

on

)

Off voltage rise time

)

Turn-off delay time

t

Current fall time

f

)

Off voltage rise time

)

Turn-off delay time

t

Current fall time

f

= 800 V, IC = 3 A

V

CC

RG= 10 Ω, VGE= 15 V,

(see Figure 20)

VCC = 800 V, IC = 3 A
RG= 10 Ω, VGE= 15 V,

= 125 °C (see Figure 20)

T

J

= 800 V, IC = 3 A

V

CC

= 10 Ω, VGE= 15 V,

R

G

(see Figure 20)

VCC = 800 V, IC = 3 A

= 10 Ω, VGE= 15 V,

R

G

TJ= 125 °C (see Figure 20)

15

-

3.5

880

­A/µs

14.5

-

4

770

­A/µs

72

-

118

-

250

132

-

210

-

470

Table 7. Switching energy (inductive load)

Symbol Parameter Test conditions Min. Typ. Max. Unit

(1)

Eon

E

off

E

Eon

E

off

E

1. Eon is the turn-on losses when a typical diode is used in the test circuit in figure 2. If the IGBT is offered in
a package with a co-pack diode, the co-pack diode is used as external diode. IGBTs & Diode are at the
same temperature (25 °C and 125 °C)

2. Turn-off losses include also the tail of the collector current

Turn-on switching losses

(2)

Turn-off switching losses
Total switching losses

ts

(1)

Turn-on switching losses

(2)

Turn-off switching losses
Total switching losses

ts

VCC = 800 V, IC = 3 A
RG= 10 Ω, VGE= 15 V,

(see Figure 20)

= 800 V, IC = 3 A

V

CC

= 10 Ω, VGE= 15 V,

R

G

= 125 °C (see Figure 20)

T

J

236

-

290

-

526

360

-

620

-

980

ns
ns

ns
ns

ns
ns
ns

ns
ns
ns

µJ
µJ
µJ

µJ
µJ
µJ

Table 8. Collector-emitter diode

Symbol Parameter Test conditions Min. Typ. Max. Unit

1.6

V

t

Q

I

rrm

t

Q

I

rrm

Forward on-voltage

F

Reverse recovery time

rr

Reverse recovery charge

rr

Reverse recovery current

Reverse recovery time

rr

Reverse recovery charge

rr

Reverse recovery current

IF = 1.5 A

= 1.5 A, TJ = 125 °C

I

F

IF = 3 A, VR = 40 V,
di/dt = 100 A/µs

(see Figure 23)

= 3 A, VR = 40 V,

I

F

TJ = 125 °C,
di/dt = 100 A/µs

(see Figure 23)

-

-

-

Doc ID 11089 Rev 4 5/16

2.0 V

1.3

51
85

3.3

64

133

4.2

V

ns

nC

A

ns

nC

A

Electrical characteristics STGB3NC120HD, STGF3NC120HD, STGP3NC120HD

2.1 Electrical characteristics (curves)

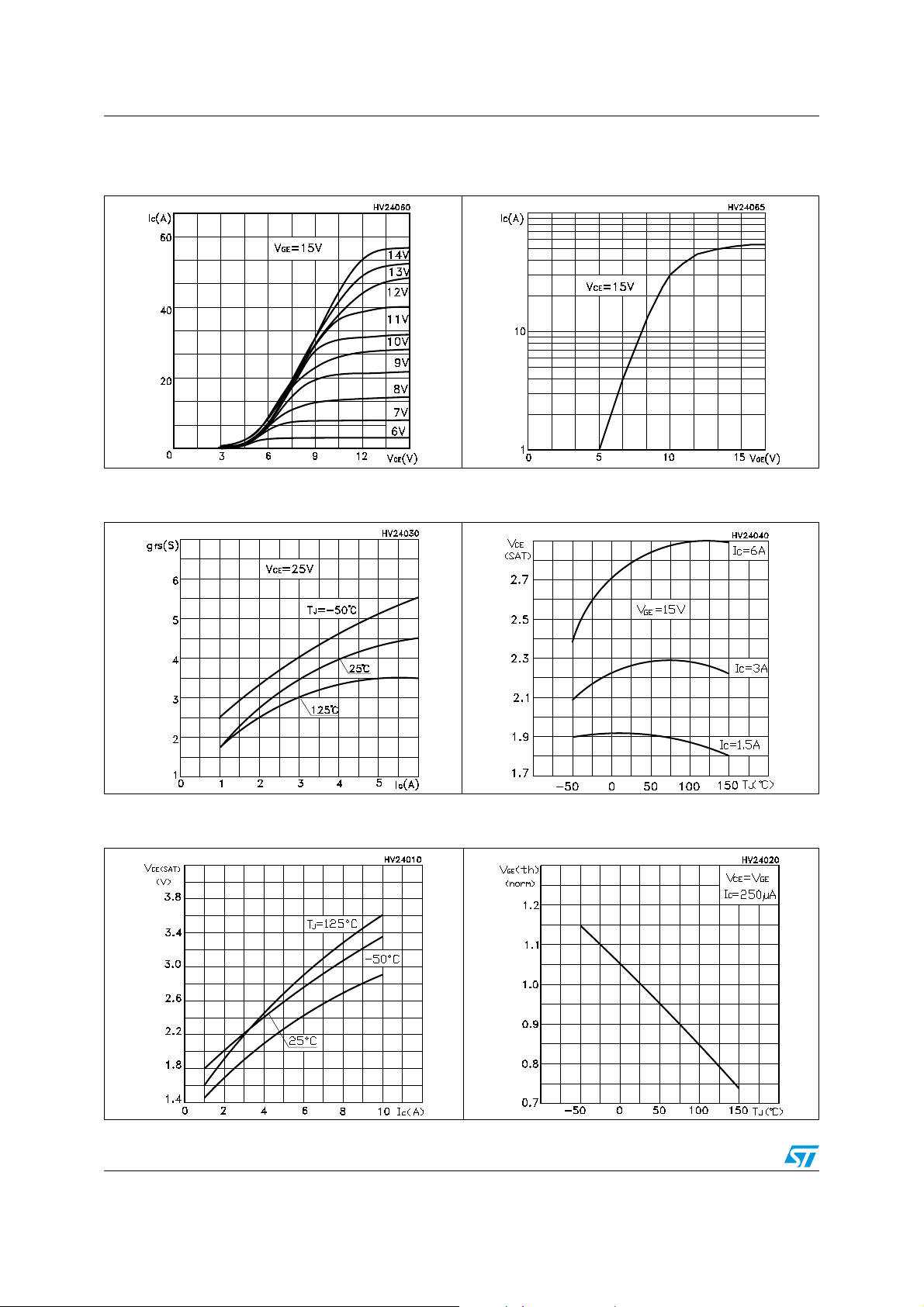

Figure 2. Output characteristics Figure 3. Transfer characteristics

Figure 4. Transconductance Figure 5. Collector-emitter on voltage vs.

temperature

Figure 6. Collector-emitter on voltage vs.

collector current

Figure 7. Normalized gate threshold voltage

6/16 Doc ID 11089 Rev 4

vs. temperature

STGB3NC120HD, STGF3NC120HD, STGP3NC120HD Electrical characteristics

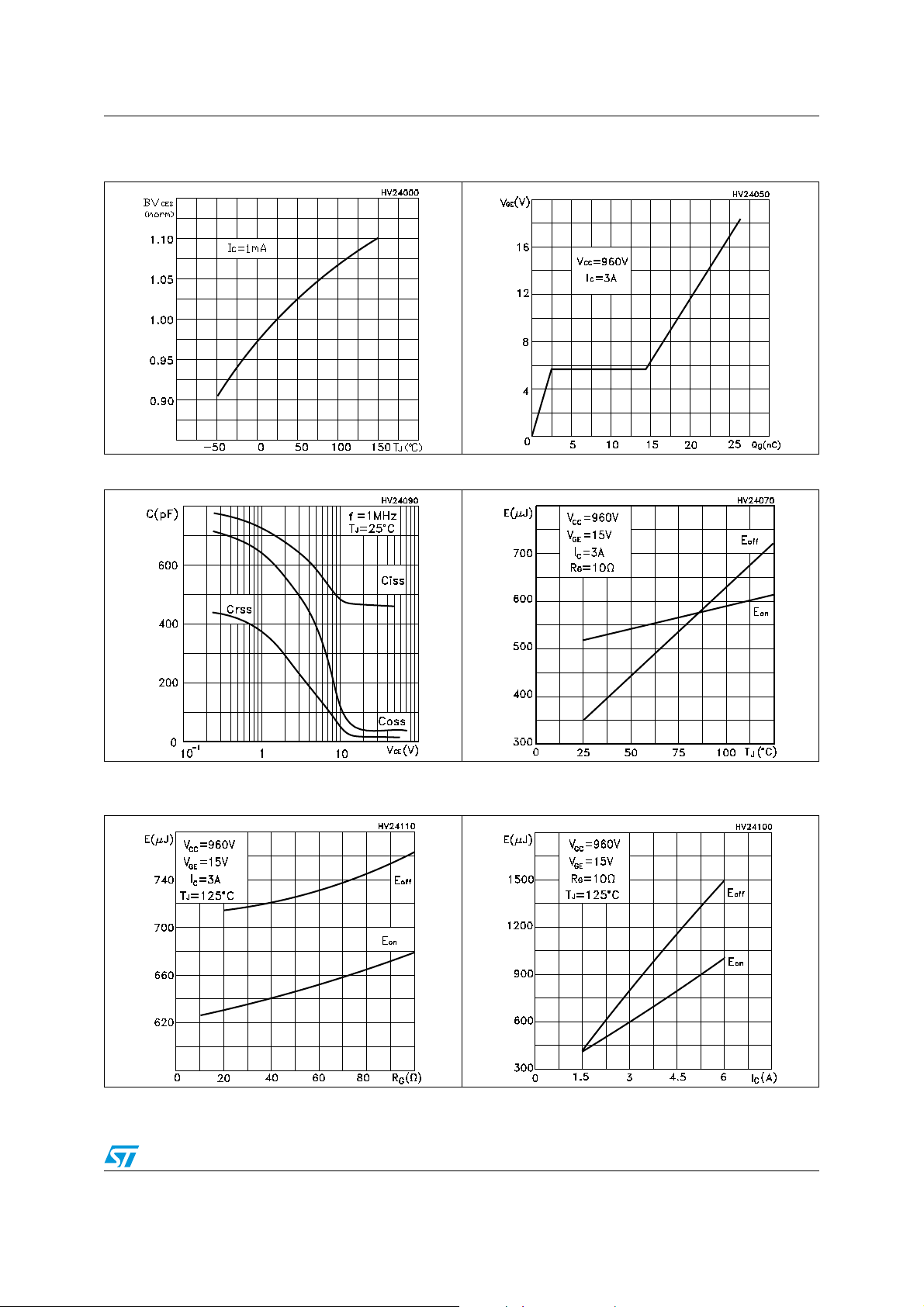

Figure 8. Normalized breakdown voltage vs.

Figure 10. Capacitance variations Figure 11. Switching losses vs. temperature

temperature

Figure 9. Gate charge vs. gate-source

voltage

Figure 12. Switching losses vs. gate

resistance

Doc ID 11089 Rev 4 7/16

Figure 13. Switching losses vs. collector

current

Electrical characteristics STGB3NC120HD, STGF3NC120HD, STGP3NC120HD

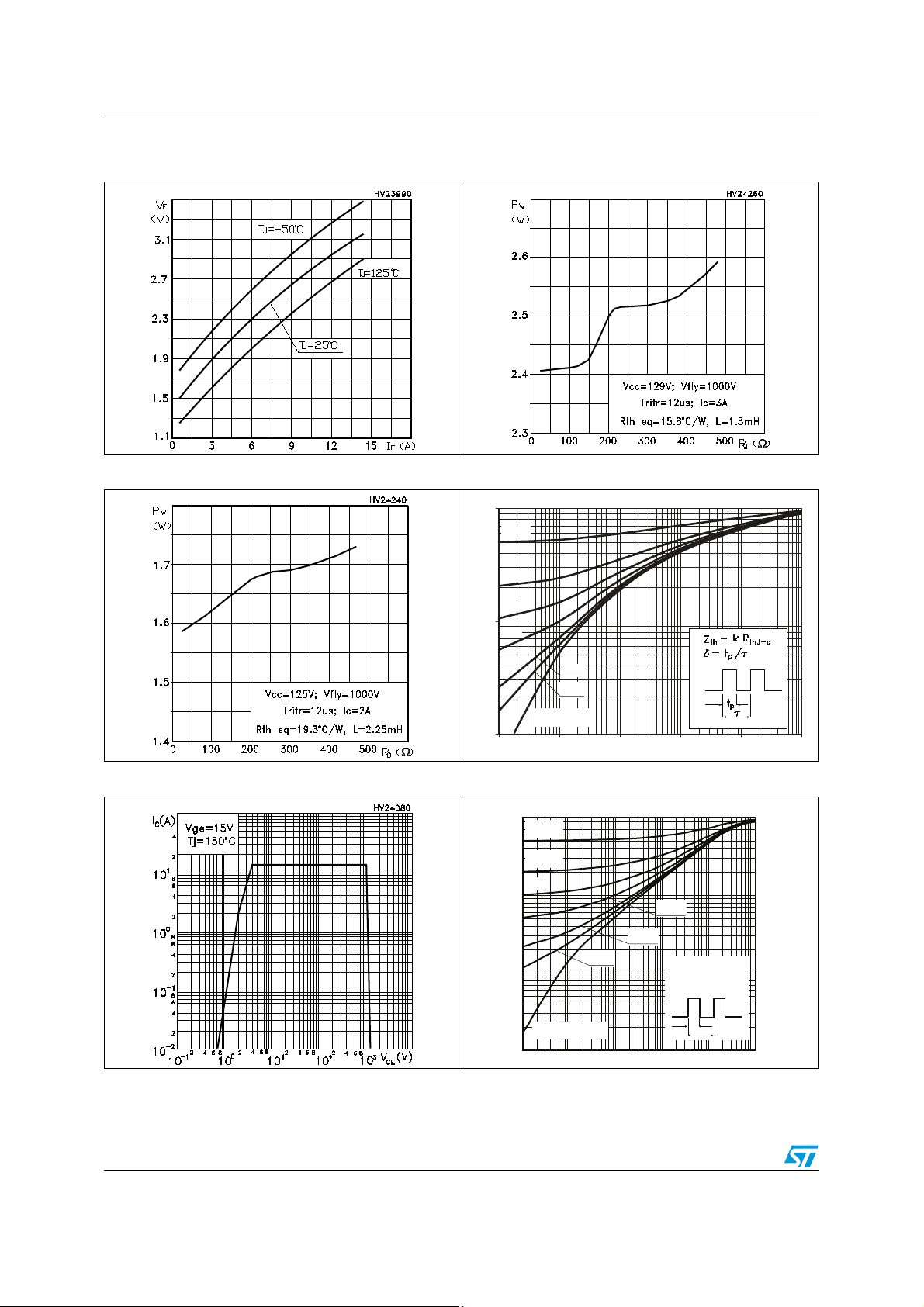

Figure 14. Collector-emitter diode

Figure 16. Power losses @ IC = 2 A Figure 17. Thermal impedance for TO-220

characteristics

Figure 15. Power losses @ IC = 3 A

K

δ=0.5

0.2

ZTH_TO-220

0.1

-1

10

0.05

0.02

0.01

single pulse

-2

10

-5

10

Figure 18. Turn-off SOA Figure 19. Thermal impedance for TO-220FP

K

δ=0.5

-4

10

-3

10

-2

10

Zth_TO-220FP

-1

10

tp(s)

0.2

0.1

-1

10

0.05

0.02

10

10

10

-2

-3

-5

0.01

Single pulse

-4

10

10

-3

Zth=k*Rthj-c

δ=tp/τ

tp

-2

10

τ

-1

(s)

t

p

10

8/16 Doc ID 11089 Rev 4

STGB3NC120HD, STGF3NC120HD, STGP3NC120HD Test circuit

3 Test circuit

Figure 20. Test circuit for inductive load

switching

Figure 21. Gate charge test circuit

AM01504v1 AM01505v1

Figure 22. Switching waveform Figure 23. Diode recovery time waveform

Qrr

IRRM

VCE

90%

G

V

10%

90%

Tcross

Tr(Voff)

10%

90%

IC

Td(on)

Tr(Ion)

Ton

Td(off)

10%

Tf

Toff

di/dt

IF

t

rr

ta

tb

IRRM

t

V

F

dv/dt

AM01506v1

AM01507v1

Doc ID 11089 Rev 4 9/16

Package mechanical data STGB3NC120HD, STGF3NC120HD, STGP3NC120HD

4 Package mechanical data

In order to meet environmental requirements, ST offers these devices in different grades of
ECOPACK

®

packages, depending on their level of environmental compliance. ECOPACK®
specifications, grade definitions and product status are available at: www.st.com. ECOPACK
is an ST trademark.

Table 9. D²PAK (TO-263) mechanical data

mm

Dim.

Min. Typ. Max.

A 4.40 4.60

A1 0.03 0.23

b 0.70 0.93

b2 1.14 1.70

c 0.45 0.60

c2 1.23 1.36

D 8.95 9.35

D1 7.50

E 10 10.40

E1 8.50

e2.54

e1 4.88 5.28

H 15 15.85

J1 2.49 2.69

L 2.29 2.79

L1 1.27 1.40

L2 1.30 1.75

R0.4

V2 0° 8°

10/16 Doc ID 11089 Rev 4

STGB3NC120HD, STGF3NC120HD, STGP3NC120HD Package mechanical data

D²PAK (TO-263) drawing

0079457_R

Doc ID 11089 Rev 4 11/16

Package mechanical data STGB3NC120HD, STGF3NC120HD, STGP3NC120HD

Table 10. TO-220FP mechanical data

mm

Dim.

Min. Typ. Max.

A4.4 4.6

B2.5 2.7

D 2.5 2.75

E0.45 0.7

F0.75 1

F1 1.15 1.70

F2 1.15 1.70

G4.95 5.2

G1 2.4 2.7

H 10 10.4

L2 16

L3 28.6 30.6

L4 9.8 10.6

L5 2.9 3.6

L6 15.9 16.4

L7 9 9.3

Dia 3 3.2

Figure 24. TO-220FP drawing

L7

A

B

Dia

L6

H

D

L5

F2

F1

E

F

G

G1

L2

L3

12/16 Doc ID 11089 Rev 4

L4

7012510_Rev_K

STGB3NC120HD, STGF3NC120HD, STGP3NC120HD Package mechanical data

Table 11. TO-220 type A mechanical data

mm

Dim.

Min. Typ. Max.

A 4.40 4.60

b 0.61 0.88

b1 1.14 1.70

c 0.48 0.70

D 15.25 15.75

D1 1.27

E10 10.40

e 2.40 2.70

e1 4.95 5.15

F 1.23 1.32

H1 6.20 6.60

J1 2.40 2.72

L13 14

L1 3.50 3.93

L20 16.40

L30 28.90

∅P 3.75 3.85

Q 2.65 2.95

Doc ID 11089 Rev 4 13/16

Package mechanical data STGB3NC120HD, STGF3NC120HD, STGP3NC120HD

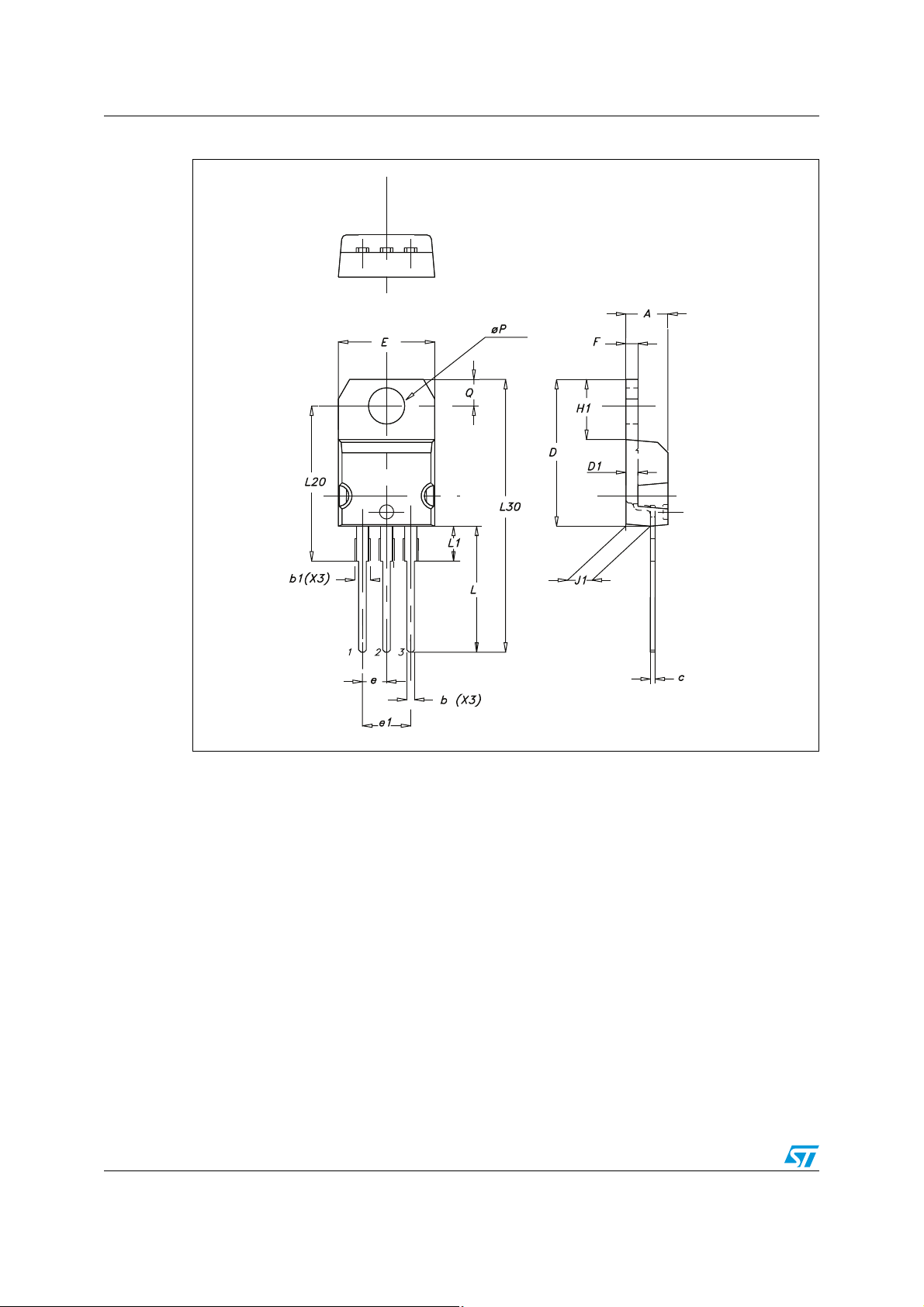

TO-220 type A drawing

14/16 Doc ID 11089 Rev 4

0015988_typeA_Rev_S

STGB3NC120HD, STGF3NC120HD, STGP3NC120HD Revision history

5 Revision history

Table 12. Document revision history

Date Revision Changes

13-Dec-2004 1 First release.

21-Jan-2005 2 Modified Figure 18: Turn-off SOA.

03-May-2010 3 Added new package, mechanical data: TO-220.

25-Jan-2011 4 Added new package, mechanical data: D²PAK.

Doc ID 11089 Rev 4 15/16

STGB3NC120HD, STGF3NC120HD, STGP3NC120HD

Please Read Carefully:

Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the
right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any
time, without notice.

All ST products are sold pursuant to ST’s terms and conditions of sale.

Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no
liability whatsoever relating to the choice, selection or use of the ST products and services described herein.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this
document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products
or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such
third party products or services or any intellectual property contained therein.

UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED
WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS
OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.

UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZED ST REPRESENTATIVE, ST PRODUCTS ARE NOT
RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING
APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY,
DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE
GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.

Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void
any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any
liability of ST.

ST and the ST logo are trademarks or registered trademarks of ST in various countries.

Information in this document supersedes and replaces all information previously supplied.

The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.

© 2011 STMicroelectronics - All rights reserved

STMicroelectronics group of companies

Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -

Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America

www.st.com

16/16 Doc ID 11089 Rev 4
