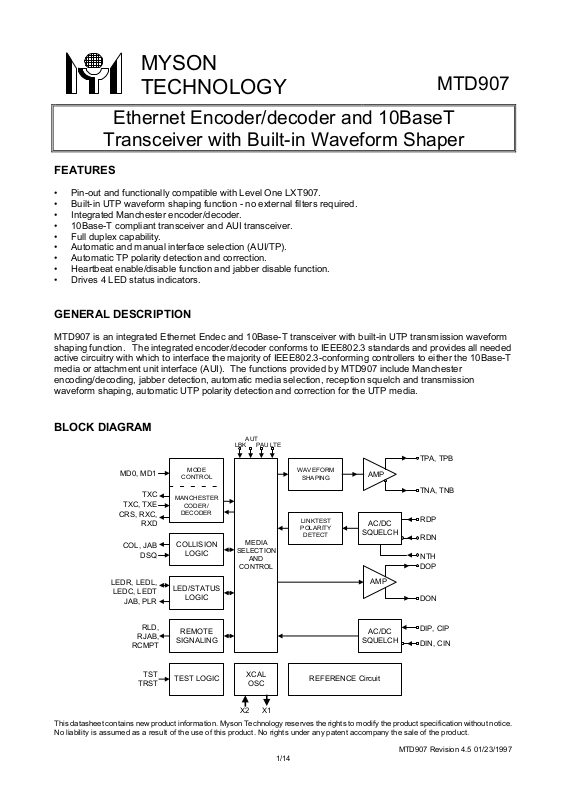

Page 1
MYSON
This datasheet contains new product information. Myson Technology reserves the rights to modify the product specification without notice.
shaping function. The integrated encoder/decoder conforms to IEEE802.3 standards and provides all needed
TECHNOLOGY
MTD907
Ethernet Encoder/decoder and 10BaseT
Transceiver with Built-in Waveform Shaper
FEATURES
• Pin-out and functionally compatible with Level One LXT907.
• Built-in UTP waveform shaping function - no external filters required.
• Integrated Manchester encoder/decoder.
• 10Base-T compliant transceiver and AUI transceiver.
• Full duplex capability.
• Automatic and manual interface selection (AUI/TP).
• Automatic TP polarity detection and correction.
• Heartbeat enable/disable function and jabber disable function.
• Drives 4 LED status indicators.
GENERAL DESCRIPTION
MTD907 is an integrated Ethernet Endec and 10Base-T transceiver with built-in UTP transmission waveform
active circuitry with which to interface the majority of IEEE802.3-conforming controllers to either the 10Base-T
media or attachment unit interface (AUI). The functions provided by MTD907 include Manchester
encoding/decoding, jabber detection, automatic media selection, reception squelch and transmission
waveform shaping, automatic UTP polarity detection and correction for the UTP media.
BLOCK DIAGRAM
MD0, MD1
TXC
TXC, TXE
CRS, RXC,
RXD
COL, JAB
DSQ
LEDR, LEDL,
LEDC, LEDT
JAB, PLR
RLD,
RJAB,
RCMPT
TST
TRST
MODE
CONTROL
MANCHESTER
CODER/
DECODER
COLLISION
LOGIC
LED/STATUS
LOGIC
REMOTE
SIGNALING
TEST LOGIC
AUT
LBK
PAULTE
MEDIA
SELECTION
AND
CONTROL
XCAL
OSC
WAVEFORM
SHAPING
LINKTEST
POLARITY
DETECT
REFERENCE Circuit
AMP
AC/DC
SQUELCH
AMP
AC/DC
SQUELCH
TPA, TPB
TNA, TNB
RDP
RDN
NTH
DOP
DON
DIP, CIP
DIN, CIN
X2 X1
No liability is assumed as a result of the use of this product. No rights under any patent accompany the sale of the product.
1/14
MTD907 Revision 4.5 01/23/1997
Page 2
MYSON
Transmit Clock
TECHNOLOGY
1.0 PIN CONNECTION
44-pin PLCC
RLD
LTE
JAB
TST
TXC
TXD
TXE
X1
X2
COL
AUT
MD1
MD0
NTH
CIN
CIP
VDD1
DON
DOP
6 5 4 3 2 1 44 43 42 41 40
7
8
9
10
11
12
13
14
15
16
17
18 19 20 21 22 23 24 25 26 27 28
MTD907
44-pin PLCC
LEDL
LEDT
LEDR
LEDC
LBK
VSS1
TRST
RXD
RCMPT
DIN
DIP
39
38
37
36
35
34
33
32
31
30
29
CRS
MTD907
PAU
RDN
RDP
DSQ
TNB
TNA
VDD2
VSS2
TP A
TP B
PLR
RJAB
RXC
1.0 PIN DESCRIPTIONS
No Symbol I/O Name Description
134VDD1
VDD2
23CIP
CIN
4 NTH I Normal
56MD0
MD1
7 RLD O Remote Link
8 LTE I Link Test
9 JAB O Jabber
10 TST I Test Active high input internally pulled low. This pin is used in
11 TXC O
12 TXD I Transmit Data Input signal, NRZ data from the controller.
13 TXE I Transmission
1415X1
X2
16 COL O Collision
- Positive Power
Supply
IICollision Input
Pair
Threshold
IIMode
Selection
Down
Enabler
Indicator
Enabler
OICrystal
Oscillator
Detection
+5 Volt power supplies.
AUI transceiver CI circuit differential input pair.
Active high input, selects normal TP input threshold;
when NTH=0, the TP input threshold is reduced 4.5dB.
Mode selection pins. Determines controller compatibility
mode: mode 00 is for AMD, 01 for Intel, 10 for Fujitsu, 11
for NSC.
Active high output. Signifies when the remote port is in
link down condition.
Active high input. Enables the link test when high; when
low, disables the TP link test.
Active high output. High output indicates jabber
condition.
test mode only.
10 MHz clock output. Should be directly connected to
the controller to synchronize transmission operation.
Active high input. Enables data transmission and begins
jabber timer; should be synchronized with TXC by the
controller.
Built-in crystal oscillator. A 20 MHz crystal must be
connected across these 2 pins or an external clock must
be applied to X2 with X1 left open.
Output signal; drives controller collision detection input.
MTD907 Revision 4.5 01/23/1997
2/14
Page 3
MYSON
shorted together with a 24.9W 1% to match the 100
TECHNOLOGY
17 AUT I Automatic Port
Selection
18 LEDR/
JABDIS
19 LEDT/
PWDN
20 LEDL/
LPSS
21 LEDC/
FDX
22 LBK I Loopback Active high input; enables internal loopback mode.
2333VSS1
VSS2
24 TRST I Test Mode
25 RCMPT O Remote
26 RXD O Received Data Output signal; recovers received data. Should be
27 CRS O Carrier Sense Output signal; detects incoming network traffic. Should
28 RXC O Received
29 RJAB O Remote
30 PLR O Polarity
31
TPB
32
TPA
35
TNA
36
TNB
37 DSQ I Disable SQE Active high input. When driven high, selects MTD907 for
3839RDP
RDN
40 PAU I Select
4142DIP
DIN
4344DOP
DON
OIReceive LED,
Disable Jabber
OITransmit LED,
Power Down
OILink LED,
Link Pass
OICollision LED,
Full Duplex
- Negative
Power Supply
Reset
Compatible
Clock
Jabber
Reversal
O
Twisted-pair
O
Transmission
O
Pairs A & B
O
IIReceive Data
Input Pair (TP)
Port/AUI
IIAUI Reception
Pair
OOAUI
Transmission
Pair
Active high input. When active, MTD907 defaults to the
AUI port if the TP link test fails. If driven low, the port
selection is determined by the PAU pin.
Active low output driver for receiving the LED indicator.
The LED 'on’ time is extended by at least 80 ms.
When externally tied or driven low, disables the internal
jabber timer.
Active low output driver for LED transmission indicator.
The LED 'on’ time is extended by at least 80ms.
When externally tied or driven low, forces MTD907 into
power-down state.
Active low output driver for link integrity LED indicator.
When externally tied or driven low, forces MTD907 into
'link pass' state.
Active low output driver for collision indicator LED. The
LED on time is extended by at least 80 ms.
When externally tied low, enables MTD907 for full duplex
operation by disabling internal TP loopback and TP
collision detection functions.
Power supply ground.
Active high test mode reset signal. Only recognized in
test mode (TST pin high) and internally pulled low.
Active high output; indicating TP transceiver at the
remote end is compatible with remote signaling.
connected directly to controller.
be connected directly to controller.
Output signal; recovers received clock. Should be
connected directly to controller.
Active high output signal; indicates when the remote end
is in jabber state.
Active high output signal; indicates when the TP polarity
is reversed.
Two differential driver pairs (A and B) for the TP cable.
The outputs are pre-equalized, thus no external filters
are required. The TPX pins and TNX pins must be
impedance.
hub/switch/repeater operation by disabling signal quality
test (heartbeat).
Differential input pair for TP cable. The reception filter is
integrated on-chip. No external filter is required.
Recognized only if the AUT pin is low. PAU=1 selects
AUI port, PAU=0 selects TP port. It is recommended
that you tie this pin to ground if driving AUT pin high.
Differential input pair from the AUI transceiver DI circuit.
Differential output pair to the AUI transceiver DO circuit.
MTD907
W TP
3/14
MTD907 Revision 4.5 01/23/1997
Page 4
MYSON
Output Rise Time (TXC, RXC)
X2 Duty Cycle (external clock)
TECHNOLOGY
MTD907
2.0 CONTROLLER COMPATIBILITY MODE DESCRIPTIONS
Mode Controllers: MD0 MD1
1 Advanced Micro Devices AM7990 or compatible controllers. 0 0
2 Intel 82586 or 82596, or compatible controllers. 0 1
3 Fujitsu MB86950 or MB86960, Seeq 8005 or compatible continuous
clock-type controllers.
4 National Semiconductor 8390, TI TMS380C26 or compatible controllers. 1 1
1 0
3.0 ABSOLUTE MAXIMUM RATINGS
DC Supply Voltage (Vcc) -0.5V to +7V
DC Input Voltage (Vin) -0.5V to Vcc+0.5V
Storage Temperature -65oC to 150oC
Operating Temperature 0oC to 70oC
4.0 OPERATING CONDITIONS
Parameter Symbol Min Typ Max Unit Test Conditions
Power Supply Voltage Vcc 4.75 5 5.25 V
Operating Temperature Top 0 - 70
Icc - 35 55 mA Idle
Supply Current
Icc - 60 80 mA Transmitting on TP
Icc - 50 70 mA Transmitting on AUI
Icc - 3 6 mA Power-down mode
o
C
5.0 ELECTRICAL CHARACTERISTICS (under operating conditions)
Parameter Symbol Min Typ Max Unit Test Conditions
Input Low Voltage V
Input High Voltage V
Output Low Voltage V
Output High Voltage V
Output Low Voltage (LED) V
Output Fall Time (TXC, RXC)
X2 Rise Time (external clock) - - - 10 ns
IL
IH
OL
OH
OL
T
R
T
R
T
F
T
F
- - 50/50 40/60 %
- - 0.8 V
2.0 - - V
- - 0.4 V Iol=1.6mA
2.4 - - V Iol=40uA
- - 0.7 V Iol=10mA
- 3 12 ns Cload=20pF
- 2 8 ns TTL load
- 3 12 ns Cload=20pF
- 2 8 ns TTL load
6.0 AUI ELECTRICAL CHARACTERISTICS (under operating conditions)
Parameter Symbol Min Typ Max Unit Test Conditions
Input Low Current I
Input High Current I
Differential Output Voltage V
Differential Squelch Threshold V
L
H
OD
DS
- - -700 uA
- - 500 uA
550 - 1200 mV
150 220 350 mV 5 MHz square wave
MTD907 Revision 4.5 01/23/1997
4/14
Page 5
MYSON
Transmit Output Impedance
TECHNOLOGY
MTD907
7.0 TP ELECTRICAL CHARACTERISTICS (under operating conditions)
Parameter Symbol Min Typ Max Unit Test Conditions
Zout - 5 -
Peak Differential Output
Voltage
Transmit Timing Jitter
Addition
Transmit Timing Jitter
Added by MAU and PLS
Sections
Receive Input Impedance Zin - 20 -
Differential Squelch
Threshold
Vod 3.3 3.5 3.7 V
- - 6.4 10 +/-
- - 3.5 5.5 +/-nsAfter IEEE 802.3-
Vds 300 420 585 mV 5MHz square wave
Vds 180 250 345 mV 5MHz square wave
W
Load=100 W
Internal MAU
ns
specified TP line model
Between input pairs
kW
input, NTH=1
input, NTH=0
8.0 SWITCHING CHARACTERISTICS (under operating conditions)
Jabber Timing:
Parameter Symbol Min Typ Max Unit
Maximum Transmission Time before Jabber - 20 - 150 ms
Unjab Time - 250 - 750 ms
Link Integrity Pulse Timing:
Parameter Symbol Min Typ Max Unit
Link Loss Time - 63 - 64 ms
Transmit Link Integrity Timing - 8 - 24 ms
Receive Link Integrity Pulse Timing - 3.1 - 63 ms
Start-of-Frame Timing, AUI
Parameter Symbol Min Typ Max Unit
Decoder Acquisition Time t
CD Turn-on Delay t
Start-of-Frame Timing, TP
Parameter Symbol Min Typ Max Unit
Decoder Acquisition Time t
CD Turn-on Delay t
RXC Timing
Parameter Symbol Typ
Receive Data Setup from RXC t
Receive Data Hold from RXC t
RXC Shut-off Delay from CRS
Assertion
RXC Hold after CRS Turn-off t
RXD Data through Delay t
CRS Turn-off Delay t
RXC Switching Delay after CD Off t
CRSOFF
RDS
RDH
t
SWS
RCH
RD
SWE
Min. 43 30 30 30 ns
Min. 10 30 30 30 ns
Typ. - - +/-100 - ns
- 8 1 - 8 bt
Max. 400 375 375 375 ns
Max. 500 475 475 475 ns
Typ. - - 120 - ns
DATA
CD
DATA
CD
Mode1Mode2Mode3 Mode
- 700 1100 ns
- 50 200 ns
- 1000 1700 ns
- 400 550 ns
4
Unit
MTD907 Revision 4.5 01/23/1997
5/14
Page 6
MYSON
TECHNOLOGY
Transmission Timing
Parameter Symbol Min Typ Max Unit
TXE Setup from TXC t
TXD Setup from TXC t
TXE Hold from TXC t
TXD Hold from TXC t
Transmission Start-up Delay, AUI t
Transmission Start-up Delay, TP t
Transmission through Delay, AUI t
Transmission through Delay, TP t
COL and Loopback Timing
Parameter Symbol Min Typ Max Unit
COL Turn-on Delay t
COL Turn-off Delay t
COL (SQE) Delay after TXE Off t
COL (SQE) Pulse Duration t
LBK Setup from TXE t
LBK Hold after TXE t
EHCH
DACH
CHEL
CHDU
STUD
STUD
TPD
TPD
COLD
COLOFF
SQED
SQEP
KHEH
KHEL
MTD907
22 - - ns
22 - - ns
5 - - ns
5 - - ns
- 200 450 ns
- 350 450 ns
- - 300 ns
- - 350 ns
- - 500 ns
- - 500 ns
0.65 - 1.6 us
500 - 1500 ns
10 25 - ns
10 0 - ns
9.0 TIMING DIAGRAM
Mode 1, RXC - Start of Frame Timing
1 0 1 0 1 0 1 0 1 1 1 0 1 0 0 0 1 0 1 0
TPIP/TPIN
or DIP/DIN
CRS
RXC
RXD
Mode 1, RXC - End of Frame Timing
TPIP/TPIN
or DIP/DIN
CRS
RXC
RXD
t
CRS
t
DATA
1 0 1 0 1 0 1 0 0
t
RD
t
CDOFF
t
RDS
t
RDH
1 0 1 0 1 0 1 1 1 0 11 0
t
RCH
1 0 1 0 1 0 1 0 0
6/14
MTD907 Revision 4.5 01/23/1997
Page 7
MYSON
TECHNOLOGY
Mode 1, Transmission Timing
TXE
TXC
TXD
TPO
Mode 1, Collision Detection Timing
CI
t
COL
COLD
Mode 1, HBT/CI Output Timing
t
EHCH
t
STUD
t
DSCH
t
CHDU
MTD907
t
CHEL
t
TPD
t
COLOFF
TXE
COL
Mode 1, Loopback Timing
LBK
TXE
CRS
t
KHEH
t
CAEA
Mode 2, RXC - Start of Frame Timing
1 0 1 0 1 0 1 0 1 1 1 0 1 0 0 0 1 0 1 0
TPIP/TPIN
or DIP/DIN
CRS
RXC
RXD
t
CRS
t
DATA
t
SQED
t
SQEP
t
KHEL
t
RDS
t
RDH
7/14
1 0 1 0 1 0 1 1 1 0 11 0
MTD907 Revision 4.5 01/23/1997
Page 8
MYSON
TECHNOLOGY
Mode 2, RXC - End of Frame Timing
1 0 1 0 1 0 1 0 0
TPIP/TPIN
or DIP/DIN
CRS
t
RD
RXC
RXD
1 0 1 0 1 0 1 0 0
Mode 2, Transmission Timing
TXE
t
TXC
TXD
TPO
EHCH
t
STUD
t
DSCH
t
CHDU
t
CDOFF
MTD907
t
RCH
t
CHEL
t
TPD
Mode 2, Collision Detection Timing
CI
t
COL
COLD
Mode 2, HBT/CI Output Timing
TXE
COL
Mode 2, Loopback Timing
LBK
TXE
CRS
t
KHEH
t
CAEA
t
COLOFF
t
SQED
t
SQEP
t
KHEL
8/14
MTD907 Revision 4.5 01/23/1997
Page 9
MYSON
TECHNOLOGY
Mode 3, RXC - Start of Frame Timing
1 0 1 0 1 0 1 0 1 1 1 0 1 0 0 0 1 0 1 0
TPIP/TPIN
or DIP/DIN
CRS
RXC
Generated form TCLK
RXD
Mode 3, RXC - End of Frame Timing
TPIP/TPIN
or DIP/DIN
CRS
RXC
t
CRS
1 0 1 0 1 0 1 0 0
t
SWS
t
RD
t
DATA
Recovered form Input Data Stream
Recovered Clock
t
RDS
t
CDOFF
MTD907
t
RDH
1 0 1 0 1 0 1 1 1 0 11 0
t
SWE
Generated from TXC
RXD
1 0 1 0 1 0 1 0 0
Mode 3, Transmission Timing
TXE
TXC
TXD
TPO
t
EHCH
t
Mode 3, Collision Detection Timing
CI
t
COL
COLD
STUD
t
DSCH
t
CHDU
t
CHEL
t
TPD
t
COLOFF
9/14
MTD907 Revision 4.5 01/23/1997
Page 10
MYSON
TECHNOLOGY
Mode 3, HBT/CI Output Timing
TXC
COL
Mode 3, Loopback Timing
LBK
TXE
CRS
Mode 4, RXC - Start of Frame Timing
TPIP/TPIN
or DIP/DIN
t
KHEH
t
CAEA
1 0 1 0 1 0 1 0 1 1 1 0 1 0 0 0 1 0 1 0
MTD907
t
SQED
t
SQEP
t
KHEL
CRS
RXC
RXD
t
CRS
t
DATA
Mode 4, RXC - End of Frame Timing
1 0 1 0 1 0 1 0 0
TPIP/TPIN
or DIP/DIN
CRS
t
RD
RXC
RXD
1 0 1 0 1 0 1 0 0
t
RDS
t
CDOFF
t
RDH
1 0 1 0 1 0 1 1 1 0 11 0
t
RCH
10/14
MTD907 Revision 4.5 01/23/1997
Page 11
MYSON
selection pins, MD0 and MD1, provide the mode configuration capability as tabulated in Section 2.0. The timing
specification of different controller modes is specified in Section 8.0
TECHNOLOGY
Mode 4, Transmission Timing
TXE
TXC
TXD
TPO
Mode 4, Collision Detection Timing
CI
t
COL
COLD
Mode 4, HBT/CI Output Timing
t
EHCH
t
STUD
t
DSCH
t
CHDU
MTD907
t
CHEL
t
TPD
t
COLOFF
TXE
t
SQED
COL
t
SQEP
Mode 4, Loopback Timing
LBK
TXE
CRS
t
KHEH
t
CAEA
t
KHEL
10.0 FUNCTIONAL DESCRIPTION
MTD907 is an Ethernet Endec and 10BaseT transceiver with a built-in waveform shaper that performs the
Media Attachment Unit (MAU) and Physical Layer Signaling (PLS) functions as defined in the IEEE802.3
specification.
MTD907 can function as either a PLS-only device interfacing a supported controller to an AUI cable or as an
integrated PLS/MAU interfacing a supported controller to the TP cable. In the following functional descriptions,
aII functions are defined as seen from the controller side of the interface.
Controller Compatibility
MTD907 is configurable for interfacing with common industrial standard Ethernet controllers. The mode
for each of the supported controller modes are included in Section 9.0.
11/14
’s RXC timing. Applicable timing diagrams
MTD907 Revision 4.5 01/23/1997
Page 12
MYSON
MTD907 supports the signal quality error (SQE) function, which can be disabled through DSQ input. If the SQE
stream from either the AUI or TP port. The recovered clock and data are sent to the controller through the RXC
reception circuits. MTD907 reports this to the controller via the assertion of the COL output. If MTD907 is used
TECHNOLOGY
Transmission Function
MTD907 samples TXD data from the controller at the rising edge of the TXC signal and then performs the
Manchester encoding on the input data stream. The encoded data is then transmitted through either the AUI
port or the TP cable network . The built-in waveform-shaping circuits produce pre-distorted TP output
waveform comforming to the jitter template specified in IEEE802.3. No external filter is required in MTD907
applications. If LTE is enabled and the TP port is selected as the network media, MTD907 transmits link
integrity test pulses at regular intervals during idle periods. Due to its voltage drive and TP output drivers' low
output impedence, the driving end source resistance is decided by external resistors.
Jabber Control Function
The jabber control function of MTD907 closely follows the IEEE 802.3 specification. The MTD907 built-in
watchdog timer prevents the DTE from continuous transmission. When the TXE input is asserted for longer
than the time limit, both transmission and loopback functions are disabled, and the JAB output pin will be
asserted. Once MTD907 enters the jabber state, it will exit it only if the TXE signal remains idle for a period of
250-750ms.
The jabber function of MTD907 can be disabled by externally pulling the LEDR pin low.
SQE Function
function is enabled (DSQ=0), MTD907 will transmit the SQE signal after every successful 10BaseT
transmission. This SQE signal will be a 10 +/- 5 bit time assertion of the COL output pin. If the AUI port is
selected as the transmission media, the SQE is determined by the external MAU.
MTD907
When using MTD907 in hub or switch applications, the SQE function must be disabled (DSQ=1).
Reception Function
MTD907’s reception function recovers both the clock and data from the incoming Manchester-encoded data
and RXD pins, respectively.
Internal filter and squelch functions are integrated in MTD907 in order to discriminate noise from valid TP
signals. No external reception filter is needed. If the incoming signal from either the AUI or TP input exceeds
the squelch requirements, the CRS pin will be asserted and internal timing recovery circuits will be activated. A
fast lock-on PLL will typically lock on to the input signal in 5-bit time. If the input signal drops below the squelch
threshold or signal transitions are absent for 8-bit time (typical), the internal circuit will return to its idle state.
TP Interface Polarity Correction Function
The MTD907 TP interface polarity correction function detects and corrects TP polarity error using both TP link
pulses and end-of-frame data. The TP polarity is internally decided as being reversed only if 8 consecutive link
pulses or end-of-frame data are received with a polarity opposite to the expected polarity. Upon detecting TP
polarity reversal, MTD907 will automatically exchange the received TP data polarity. This correction function is
always active.
Collision Detection Function
The collision detection function is applicable only if MTD907 is used as PLS/MAU in a standard 10BaseT
network. A collision is detected if valid data is present simultaneously on both TP transmission and TP
as PLS only, i.e. external MAU, then the collision detection is based on valid signals from the AUI port.
If MTD907 is configured to function as a full-duplex TP transceiver by externally pulling the LEDC pin low, the
collision detection function for TP will be disabled internally. Also, if the MTD907 LBK pin is driven high, all
collision function is disabled.
Loopback Function
MTD907 Revision 4.5 01/23/1997
12/14
Page 13
MYSON
MTD907 has 4 different loopback modes. If the TP port and half-duplex mode are selected, MTD907 provides
selected, the internal loopback is disabled, allowing external loopback through TP ports. If the AUI interface is
received in absence of a valid TP data packet. If both link integrity pulses and TP data packets are not detected
integrity pulses are received. Link integrity pulses received within an interval of 4ms will be ignored by MTD907.
The main difference between MTD907 and Level One LXT901/LXT907 is the waveform synthesis method used.
Eight end-of-frame RXC pulses are provided for better controller interfacing for Mode1 and Mode 4 style timing.
These 2 devices share the same functionality except for Pin 37. LXT901 uses this pin as a UTP/STP selection
UTP applications, this pin is tied high in order to select UTP interface. For these applications, MTD907 should
TECHNOLOGY
the normal loopback function as defined in 10BaseT standards. If the TP port and full-duplex mode are
selected and LBK=0, the external AUI loopback mode is in effect. If LBK is driven high, the internal collision
detection function is disabled, and the transmission data is forced to loop back through internal Manchester
ENDEC with disregard as to which interface port is selected.
Link Integrity Test
The MTD907 link integrity test is implemented as specified in IEEE802.3 10BaseT standards. This function is
enabled when input pin 8 (LTE) is driven high. While LTE=1, MTD907 will recognize link integrity pulses
within 65-66ms, MTD907 will enter a link-fail state and will disable the transmission and normal loopback
functions. After it enters such a state, MTD907 will exit the link-fail state if one valid TP packet or 2 or more link
The link integrity pulses transmitted by MTD907 include encoded local status information by varying the link
pulse intervals. This feature is implemented in such a way that MTD907 is compatible with any chip that uses
the same signaling scheme, such as many of the Level One products.
Three different pieces of status information are encoded and are described as follows. Local link-down is
encoded as link pulse interval sequences of 10ms-15ms-20ms. Local jabber is encoded as link pulse interval
sequences of 10ms-20ms-15ms. Remote-signaling capability is encoded as a link pulse interval sequence of
10ms-20ms. MTD907 will detect and decode link pulses, thus encoding and reporting them through the RLD,
RJAB and RCMPT output pins, respectively.
Remote Signaling
MTD907
11.0 Comparison of MTD907 and Level One LXT901/LXT907
Waveform Synthesis Method
Level One products use a table-look-up method with a 5-bit DAC operating at 70MHz. MTD907 uses a delay
cell based 16-tab FIR filter operating at 160MHz to synthesize the pre-distorted transmission waveforms
required by 10BaseT standards with much refined waveform.
Mode1 and Mode4 End-of-Frame RXC Timing
input while MTD907 uses this pin as DSQ to disable or enable the built-in SQE function. For typical LXT901
be a drop-in replacement for LXT901 if the attached controller does not check the SQE signal.
The only noticeable difference between these 2 devices is that when LXT907 enters the power-down mode, it
will drive the LEDL low periodically, while MTD907 disables all output pins once forced into the power-down
mode.
MTD907 vs LXT901
MTD907 vs LXT907
13/14
MTD907 Revision 4.5 01/23/1997
Page 14
MYSON
TECHNOLOGY
12.0 APPLICATIONS
Please see the attached application schematics.
13.0 PACKAGE DIMENSION
44 PIN PLCC
Unit: Inch
0
0.045*45
PIN #1 HOLE
0.690 +/-0.005
0.653 +/-0.003
0.180 MAX.
MTD907
0.020 MIN.
0.013~0.021 TYP.
0.610 +/-0.02
0.500
0.050 TYP.
0.653 +/-0.003
0.6902 +/-0.005
0.026~0.032 TYP.
70TYP.
0.010
0.070 0.070
14/14
MTD907 Revision 4.5 01/23/1997
Loading...
