ISO-CMOS ST-BUS FAMILY

MT8940

T1/CEPT Digital Trunk PLL

Features

• Provides T1 clock at 1.544 MHz locked to input
frame pulse

• Sources CEPT (30+2) Digital Trunk/ST-BUS
clock and timing signals locked to internal or
external 8 kHz signal

• TTL compatible logic inputs and outputs

• Uncommitted 2-input NAND gate

• Single 5 volt power supply

• Low power ISO-CMOS technology

Applications

• Synchronization and timing control for T1
and CEPT digital trunk transmission links

• ST- BUS clock and frame pulse source

ISSUE 8 March 1997

Ordering Information

MT8940AE 24 Pin Plastic DIP (600 mil)

-40°C to +85°C

Description

The MT8940 is a dual digital phase-locked loop
providing the timing and synchronization signals for
the T1 or CEPT transmission links and the ST-BUS.
The first PLL provides the T1 clock (1.544 MHz)
synchronized to the input frame pulse at 8 kHz. The
timing signals for the CEPT transmission link and the
ST-BUS are provided by the second PLL locked to an
internal or an external 8 kHz frame pulse signal.

The MT8940 is fabricated in MITEL’s ISO-CMOS
technology.

F0i

C12i

MS0
MS1
MS2
MS3

C8Kb

C16i

DPLL #1

2:1 MUX

Mode

Selection

Logic

DPLL #2

Ai
Bi

Yo V

DD

Input

Selector

Clock

Generator

V

SS

Variable

Clock

Control

Frame Pulse

Control

4.096 MHz
Clock

Control

2.048 MHz
Clock

Control

RST

CVb
CV
ENCV

F0b

C4b
C4o
ENC4o

C2o
C2o
ENC2o

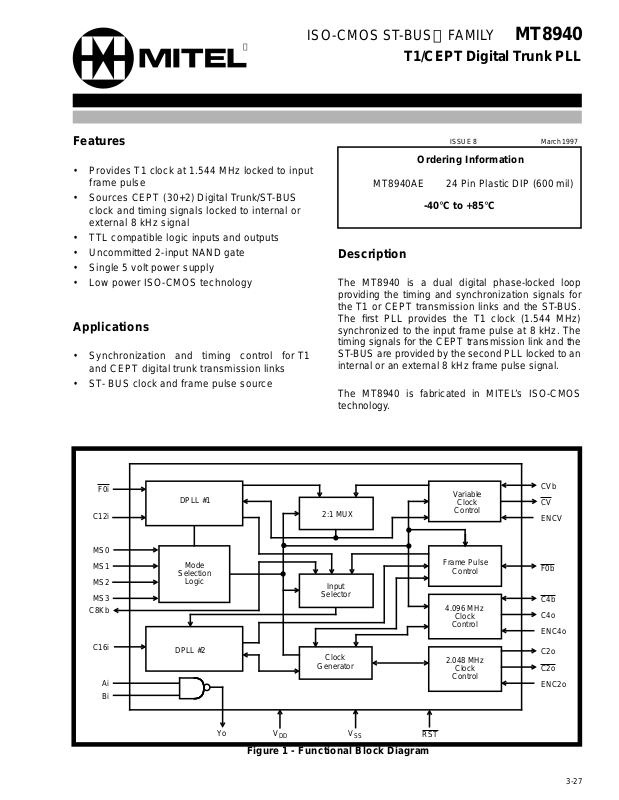

Figure 1 - Functional Block Diagram

3-27

27

MT8940 ISO-CMOS

ENVC

MS0
C12i
MS1

F0i

F0b
MS2
C16i

ENC4o

C8Kb

C4o

VSS

1
2

3
4
5

6
7
8

9
10
11
12

24
23
22
21
20
19
18
17
16
15
14
13

VDD
RST
CV
CVb
Yo
Bi
Ai
MS3
ENC2o
C2o
C2o
C4b

Figure 2 - Pin Connections

Pin Description

Pin # Name Description

1ENCVVariab le cloc k enable (TTL compatible input) - This input (pulled internally to VDD) directly

controls the three states of CV (pin 22) under all modes of operation. When HIGH, enables
CV and when LOW, puts it in high impedance condition. It also controls the three states of
CVb signal (pin 21) if MS1 is LOW. When ENCV is HIGH, the pin CVb is an output and when
LOW, it is in high impedance state. However, if MS1 is HIGH, CVb is always an input.

2 MS0 Mode select ‘0’ input (TTL compatible) - This input (pulled internally to VSS) in conjunction

with MS1 (pin 4) selects the major mode of operation for both DPLLs. (Ref er to Tables 1 and

2).

3 C12i Clock 12.355 MHz input (TTL compatible) - Master clock input at 12.355 MHz±100ppm f or

DPLL #1.

4 MS1 Mode select-1 input (TTL compatible) - This input (pulled internally to VSS) in conjunction

with MS0 (pin 2) selects the major mode of operation for both DPLLs. (Ref er to Tables 1 and

2)

5 F0i Frame pulse input (TTL compatible) - This is the frame pulse input (pulled internally to

VDD) at 8 kHz. The DPLL #1 locks to the falling edge of this input to generate T1 (1.544
MHz) clock.

6 F0b Frame pulse Bidirectional (TTL compatible input and Totem-pole output) - Depending

on the minor mode selected for the DPLL #2, it provides the 8 kHz frame pulse output or acts
as an input (pulled internally to VDD) to an external frame pulse.

7 MS2 Mode select-2 input (TTL compatible) - This input (pulled internally to VDD) in conjunction

with MS3 (pin 17) selects the minor mode of operation for the DPLL #2. (Refer to Table 3.)

8 C16i Clock 16.388 MHz input (TTL compatible) - Master clock input at 16.388 MHz±32 ppm for

DPLL #2.

9EN

Enable 4.096 MHz clock (TTL compatible input) - This active high input (pulled internally

C4o

to VDD) enables C4o (pin 11) output. When LOW, the output C4o is in high impedance
condition.

3-28

ISO-CMOS MT8940

Pin Description (continued)

Pin # Name Description

10 C8Kb Clock 8 kHz- Bidirectional (TTL compatible input and open drain output with 100K

internal resistor to VDD) - This is the 8 kHz input signal on the rising edge of which DPLL #2

locks during its NORMAL mode. When DPLL #2 is in SINGLE CLOCK mode, this pin outputs
an 8 kHz signal provided by DPLL #1, which is also connected internally to DPLL #2.

11 C4o Clock 4.096 MHz (Three state output) - This is the inverse of the signal appearing on pin

13 (C4b) at 4.096 MHz and has a rising edge in the frame pulse (F0b) window. The high
impedance state of this output is controlled by EN

12 V

SS

Ground (0 Volt)

13 C4b Clock 4.096 MHz- Bidirectional (TTL compatible input and Totem-pole output) - When

the mode select bit MS3 (pin 17) is HIGH, it provides the 4.096 MHz clock output with the
falling edge in the frame pulse (F0b) window. When pin 17 is LOW, C4b is an input (pulled
internally to VDD) to an external clock at 4.096 MHz.

14 C2o Clock 2.048 MHz (Three state output) - This is the divide by two output of C4b (pin 13) and

has a falling edge in the frame pulse (F0b) window. The high impedance state of this output
is controlled by EN

C2o

(pin 16).

15 C2o Clock 2.048 MHz (Three state output) - This is the divide by two output of C4b (pin 13) and

has a rising edge in the frame pulse (F0b) window . The high impedance state of this output is

16 EN

controlled by EN
Enable 2.048 MHz clock (TTL compatible input) - This active high input (pulled internally

C2o

C2o

(pin 16).

to VDD) enables both C2o and C2o outputs (pins 14 and 15). When LOW, these outputs are
in high impedance condition.

C4o

(pin 9).

17 MS3 Mode select 3 input (TTL compatible) - This input (pulled internally to VDD) in conjunction

with MS2 (pin 7) selects the minor mode of operation for DPLL #2. (Refer to Table 3.)

18,19 Ai, Bi Inputs A and B (TTL compatible) -These are the two inputs (pulled internally to VSS) of the

uncommitted NAND gate.

20 Y

Output Y (Totem pole output) - Output of the uncommitted NAND gate.

o

21 CVb Variable clock Bidirectional (TTL compatible input and Totem-pole output) - When

acting as an output (MS1-LOW) during the NORMAL mode of DPLL #1, this pin provides the

1.544 MHz clock locked to the input frame pulse F0i (pin 5). When MS1 is HIGH, it is an
input (pulled internally to VDD) to an external clock at 1.544 MHz or 2.048 MHz to provide the
internal signal at 8 kHz to DPLL #2.

22 CV Variable clock (Three state output) - This is the inverse output of the signal appearing on

pin 21, the high impedance state of which is controlled ENCV(pin 1).

23 RST Reset (Schmitt trigger input) -This input (active LOW) evokes reset condition for the

device.

24 V

DD

VDD (+5V) Power supply.

3-29

MT8940 ISO-CMOS

Functional Description

The MT8940 is a dual digital phase-locked loop
providing the timing and synchronization signals to
the interface circuits for T1 and CEPT (30+2)
Primary Multiplex Digital Transmission links. As
shown in Figure 1, it has two digital phase-locked
loops (DPLLs), associated output controls and the
mode selection logic circuits. The two DPLLs,
although similar in principle, operate independently
to provide T1 (1.544 MHz) and CEPT (2.048 MHz)
transmission clocks, and ST-BUS timing signals.

The principle of operation behind the two DPLLs is
shown in Figure 3. A master clock is divided down to
8 kHz where it is compared with the 8 kHz input, and
depending on the output of the phase comparison,
the master clock frequency is corrected. The
MT8940 achieves the frequency correction in both
directions by using the master clock at a slightly
higher frequency and dividing it unaltered or
stretching its period (at two discrete instants in a
frame) before the division depending on the phase
comparison output. When the input frequency is

Master Clock

(12.355 MHz/

16.388 MHz)

Frequency
Correction

÷8

Output

(1.544 MHz /

2.048 MHz)

The phase sampling is done once in a frame (8 kHz)
and the divisions are set at 8 and 193 for DPLL #1,
which locks on to the falling edge of the input at 8
kHz to generate T1 (1.544 MHz) clock. Although the
phase sampling duration is the same for DPLL #2,
the divisions are set at 8 and 256 to provide the
CEPT/ST-BUS clock at 2.048 MHz synchronized to
the rising edge of the input signal (8 kHz). The
master clock source is specified to be at 12.355 MHz
±100 ppm for DPLL #1 and 16.388 MHz ±32 ppm for
DPLL #2 over the entire temperature range of
operation.

The inputs MS0 to MS3 are used to select the
operating mode of the MT8940, see Tables 1 to 4. All
the outputs are individually controlled to the high
impedance condition by their respective enable
controls. The uncommitted NAND gate is available
for use in applications involving MITEL’s
MT8976/MH89760 (T1 interfaces) and
MT8979/MH89790 (CEPT interfaces).

Modes of Operation

The operation of the MT8940 is categorized into
major and minor modes. The major modes are
defined for both DPLLs by the mode select pins MS0
and MS1. The minor modes are selected by MS2
and MS3, and are applicable only to DPLL #2. There
are no minor modes for DPLL #1.

Major modes of the DPLL #1

Input (8 kHz)

Phase

Comparison

÷193 /
÷256

Figure 3 - DPLL Principle

higher, the unchanged master clock is divided, thus
effectively speeding-up the locally generated clock
and eventually pulling it in synchronization with the
input. If the input frequency is lower than the divided
master clock, the period of the master clock is
stretched by half a cycle, at two discrete instants in a
phase sampling period. This introduces a total delay
of one master clock period over the sampling
duration, which is then divided to generate the local
signal synchronous with the input. Once the output is
phase-locked to the active edge of the input, the
circuit will maintain the locked condition as long as
the input frequency is within the lock-in range (±1.04
Hz) of the DPLLs. The lock-in range is wide enough
to meet the CCITT line rate specification (1.544
MHz±130ppm and 2.048 MHz ±50ppm) for the High
Capacity Terrestr ial Digital Ser vice.

DPLL #1 can be operated in three major modes as
selected by MS0 and MS1 (Table 1). When MS1 is
LOW, it is in NORMAL mode, which provides a T1
(1.544 MHz) clock signal locked to the falling edge of
the input frame pulse F0i (8 kHz). DPLL#1 requires a
master clock input of 12.355 MHz±100 ppm (C12i).
In the second and third major modes (MS1 is HIGH),
DPLL #1 is set to DIVIDE an external 1.544 MHz or

2.048 MHz signal applied at CVb (pin 21). The
division can be set by MS0 to be either 193 (LOW) or
256 (HIGH). In these modes, the 8 kHz output is
connected internally to DPLL #2, which operates in
SINGLE CLOCK mode.

Major modes of the DPLL #2

There are four major modes for DPLL #2 selectable
by MS0 and MS1, as shown in Table 2. In all these
modes DPLL #2 provides the CEPT PCM 30 timing,
and the ST-BUS clock and framing signals.

In NORMAL mode, DPLL #2 provides the CEPT and
ST-BUS compatible timing signals locked to the
rising edge of the 8 kHz input signal (C8Kb). These

3-30

signals are the 4.096 MHz (C4o and C4b) and the

2.048 MHz (C2o and C2o) clocks, and the 8 kHz

MS0 MS1

X 0 NORMAL Provides the T1 (1.544

0 1 DIVIDE-1 DPLL #1 divides the CVb

1 1 DIVIDE-2 DPLL #1 divides the CVb

Note: X: indicates don’t care

Mode of

operation

Function

MHz) clock synchronized
to the falling edge of the
input frame pulse (

input by 193. The divided
output is connected to
DPLL #2.

input by 256. The divided
output is connected to
DPLL #2.

F0i).

Table 1. Major Modes of the DPLL #1

frame pulse (F0b), which are derived from the 16.388
MHz master clock. This mode can also provide the
ST-BUS timing and framing signals with the input
(C8Kb) tied HIGH and the master clock set at 16.384
MHz. The DPLL makes no correction in this
configuration and provides the timing signals
compatible to the ST-BUS format without any jitter.

In FREE-RUN mode, DPLL #2 generates CEPT and
ST-BUS timing and framing signals with no external
inputs except the master clock set at 16.388 MHz.
Since the master clock source is set at a higher
frequency than the nominal value, the DPLL makes
the necessary corrections to deliver the averaged
timing signals compatible to the ST-BUS format.

The operation of DPLL #2 in SINGLE CLOCK-1
mode is identical to SINGLE CLOCK-2 mode,
providing the CEPT and ST-BUS compatible timing
signals synchronized to the internal 8 kHz signal
obtained from DPLL#1 in DIVIDE mode. When
SINGLE CLOCK-1 mode is selected for DPLL #2, it
automatically selects the DIVIDE-1 mode for DPLL
#1, and thus, an external 1.544 MHz clock signal
applied at CVb (pin 21) is divided by DPLL #1 to
generate the internal signal at 8 kHz onto which
DPLL #2 locks. Similarly when SINGLE CLOCK-2
mode is selected, DPLL #1 is in DIVIDE-2 mode,
with an external signal of 2.048 MHz providing the
internal 8 kHz signal to DPLL #2. In both these
modes, this internal signal is available on C8Kb (pin

10) and DPLL #2 locks to its falling edge to provide
the CEPT and ST-BUS compatible timing signals.
This is in contrast to the Normal mode where these
timing signals are synchronized with the rising edge
of the 8 kHz signal on C8Kb.

Minor modes of the DPLL #2

ISO-CMOS MT8940

MS0 MS1

0 0 NORMAL Provides ST-BUS/CEPT

1 0 FREE-RUN Provides ST-BUS timing

0 1 SINGLE

1 1 SINGLE

Table 2. Major Modes of the DPLL #2

When MS3 is HIGH, DPLL #2 operates in any of the
major modes as selected by MS0 and MS1.

When MS3 is LOW, it overrides the major mode
selected and DPLL #2 accepts an external clock of

4.096 MHz on C4b (pin 13) to provide the 2.048 MHz
clocks (C2o and C2o) and the 8 kHz frame pulse
(F0b) compatible with the ST-BUS format.

The mode select bit MS2, controls the signal
direction of F0b (pin 6). When MS2 is LOW, F0b is an
input for an external frame pulse at 8 kHz. This

MS2 MS3 Functional Description

1 1 Provides ST-BUS 4.096 MHz and 2.048

0 1 Provides ST-BUS 4.096 MHz & 2.048 MHz

0 0 Overrides the major mode selected and

1 0 Overrides the major mode selected and

Table 3. Minor Modes of the DPLL #2

Mode of

operation

timing signals locked to the
rising edge of the 8kHz
input signal at C8Kb.

and framing signals with no
external inputs, except the
master clock.

Provides the CEPT/ST-

CLOCK-1

CLOCK-2

MHz clocks and 8kHz frame pulse
depending on the major mode selected.

clocks depending on the major mode
selected while
Howev er , the input on
the operation of DPLL #2 unless it is in
FREE-RUN mode.

accepts properly phase related external

4.096 MHz clock and 8 kHz frame pulse to
provide the ST-BUS compatible clock at

2.048MHz.

accepts a 4.096 MHz external clock to
provide the ST-BUS clock and frame pulse
at 2.048 MHz and 8 kHz, respectively.

BUS compatible timing
signals locked to the falling
edge of the 8kHz internal
signal provided by DPLL
#1.

Provides CEPT/ST-BUS
timing signals locked to the
falling edge of the 8kHz
internal signal provided by
DPLL #1.

F0b acts as an input.

Function

F0b has no effect on

The minor modes for DPLL #2 depends upon the
status of the mode select bits MS2 and MS3 (pins 7
and 17).

input is effective only if MS3 is also LOW and C4b is
accepting a 4.096 MHz external clock, which has a
proper phase relationship with the external input on

3-31

MT8940 ISO-CMOS

F0b (refer to Figure 15). Otherwise, the input on pin
F0b will have no bearing on the operation of DPLL
#2, unless it is in FREE-RUN mode as selected by
MS0 and MS1. In FREE-RUN mode, the input on
F0b is treated the same way as the C8Kb input in
NORMAL mode. The frequency of the input signal on
F0b should be 16 kHz for DPLL #2 to provide the ST­BUS compatible clocks at 4.096 MHz and 2.048
MHz.

M
O

MS0MS1MS2MS

D

E
#

0 0000

1 0001

2 0010

3 0011

4 0100

5 0101

6 0110

7 0111

8 1000

3

NORMAL MODE

NORMAL MODE

NORMAL MODE

NORMAL MODE:
Provides the T1 (1.544 MHz) clock
synchronized to the falling edge of the
input frame pulse (

DIVIDE-1 MODE Same as mode ‘0’.

DIVIDE-1 MODE

DIVIDE-1 MODE Same as mode 2.
DIVIDE-1 MODE:

Divides the CVb input by 193. The divided
output is connected to DPLL #2.

NORMAL MODE Same as mode ‘0’.
NORMAL MODE F0b is an input and DPLL #2 locks on to

DPLL #1 DPLL #2

F0i).

9 1001

10 1010

11 1011

12 1100

NORMAL MODE Same as mode 2.
NORMAL MODE

Provides the T1 (1.544 MHz) clock
synchronized to the falling edge of input frame
pulse (

F0i).

DIVIDE-2 MODE Same as mode ‘0’.
DIVIDE-2 MODE SINGLE CLOCK-2 MODE:

13 1101

14 1110

15 1111

DIVIDE-2 MODE Same as mode 2.
DIVIDE-2 MODE:

Divides the CVb input by 256. The divided
output is connected to DPLL#2.

Table 4. Summary of Modes of Operation - DPLL #1 and #2

When MS2 is HIGH, the F0b pin provides the ST­BUS frame pulse output locked to the 8kHz internal
or external signal as determined by the other mode
select pins MS0, MS1 and MS3.

Table 4 summarizes the modes of the two DPLLs. It
should be noted that each of the major modes
selected for DPLL #2 can have any of the minor
modes, although some of the combinations are
functionally similar. The required operation of both
DPLL#1 and DPLL#2 must be considered when
determining MS0-MS3.

Operating Modes

Properly phase related External 4.096 MHz
clock and 8 kHz frame pulse provide the ST­BUS clock at 2.048 MHz.

NORMAL MODE
F0b is an input but has no function in this mode.

External 4.096 MHz provides the ST-BUS clock
and Frame Pulse at 2.048 MHz and 8 kHz,
respectively.

NORMAL MODE:
Provides the CEPT/ST-BUS compatible timing
signals locked to the 8 kHz input signal (C8Kb).

SINGLE CLOCK-1 MODE
F0b is an input, but has no function in this
mode.

SINGLE CLOCK-1 MODE:
Provides the CEPT/ST-BUS compatible timing
signals locked to the 8 kHz internal signal
provided by DPLL #1.

it only if it is at 16 kHz to provide the ST-BUS
control signals.

FREE-RUN MODE:
Provides the ST-BUS timing signals with no
external inputs except the master clock.

F0b is an input, but has no function in this
mode.

SINGLE CLOCK-2 MODE:
Provides the CEPT/ST-BUS compatible timing
signals locked to the 8 kHz internal signal
provided by DPLL #1.

3-32

ISO-CMOS MT8940

Applications

The following figures illustrate how the MT8940 can
be used in a minimum component count approach to
providing the timing and synchronization signals for
the Mitel T1 and CEPT interfaces, and the ST-BUS.
The hardware selectable modes and the
independent control over each PLL adds flexibility to
the interface circuits. It can be easily reconfigured to
provide the timing and control signals for both at the
master and slave ends of the link.

Synchronization and Timing Signals for the T1
Transmission Link

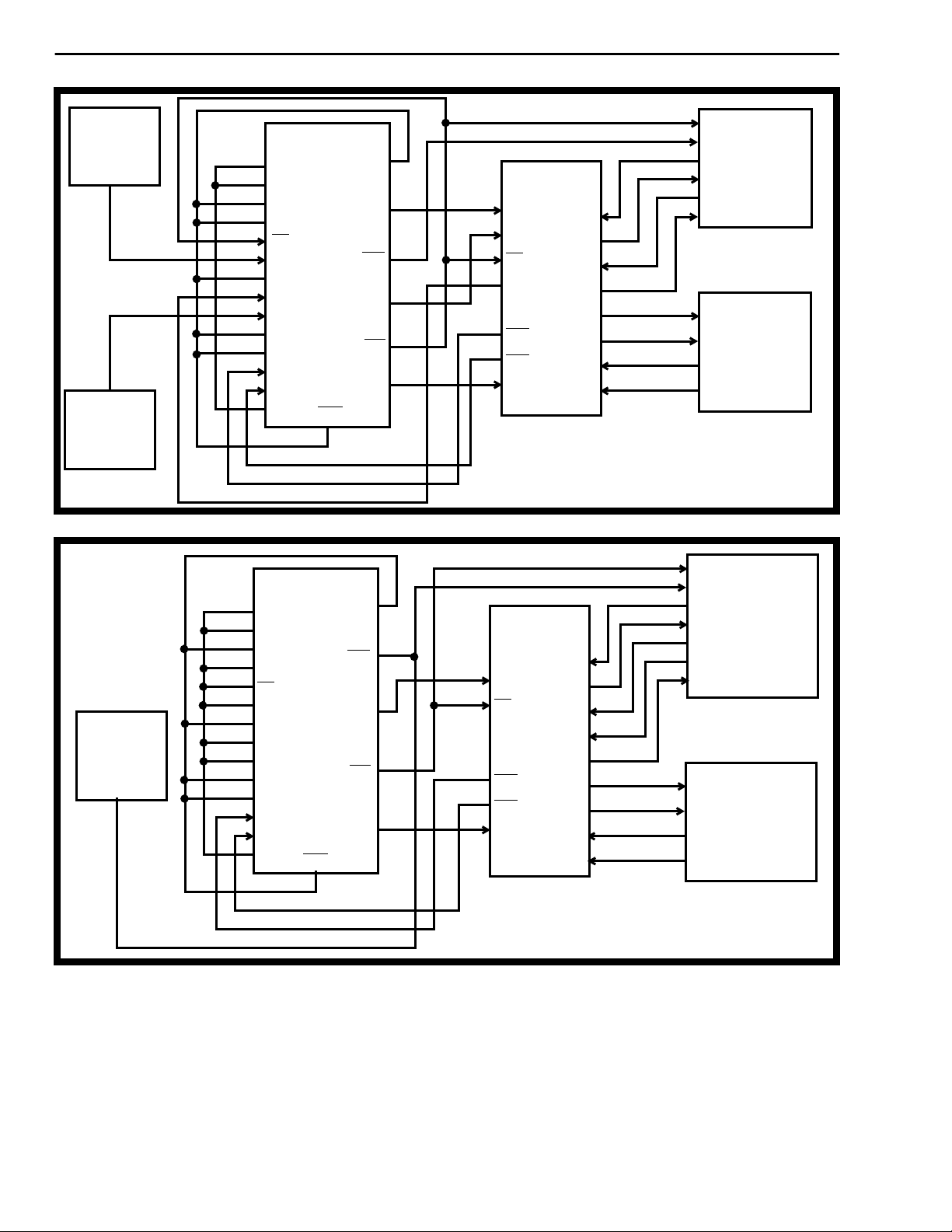

Figures 4 and 5 show examples of how to generate
the timing signals for the master and slave ends of a
T1 link.

At the master end of the link (Figure 4), DPLL #2 is
the source of the ST-BUS signals derived from the

4.096 MHz system clock. The frame pulse output is
looped back to DPLL #1 (in NORMAL mode), which
locks to it to generate the T1 line clock. The timing
relationship between the 1.544 MHz T1 clock and the

2.048 MHz ST-BUS clock meets the requirements of
the MH89760/760B. The crystal clock at 12.355 MHz
is used by DPLL #1 to generate the 1.544 MHz clock,
while DPLL #2 uses the 4.096 MHz system clock to
provide the ST-BUS timing signals. The ST-BUS
signals can also be obtained from DPLL #2 in FREE­RUN mode, using a crystal clock at 16.388 MHz
instead of 4.096 MHz system clock. The

uncommitted NAND gate converts the received
signals, RxA and RxB of the MH89760 to a single
Return to Zero (RZ) input for the clock extraction
circuits of the MH89760. This is not required for the
MH89760B. The generated ST-BUS signals can be
used to synchronize the system and the switching
equipment at the master end.

At the slave end of the link (Figure 5) both the DPLLs
are in NORMAL mode with DPLL #2 providing the
ST-BUS timing signals locked to the 8 kHz frame
pulse (E8Ko) extracted from the received signal on
the T1 line. The regenerated frame pulse is looped
back to DPLL #1 to provide the T1 line clock as at
the master end. The 12.355 MHz and 16.388 MHz
crystal clock sources are necessary for DPLL #1 and
#2.

Synchronization and Timing Signals for the
CEPT Transmission Link

The MT8940 can be used to provide the timing and
synchronization signals for the MH89790/790B,
MITEL’s CEPT(30+2) digital trunk interface hybrid.
Since the operational frequencies of the ST-BUS and
the CEPT primary multiplex digital trunk are same,
only DPLL #2 is required to achieve synchronization
between the two.

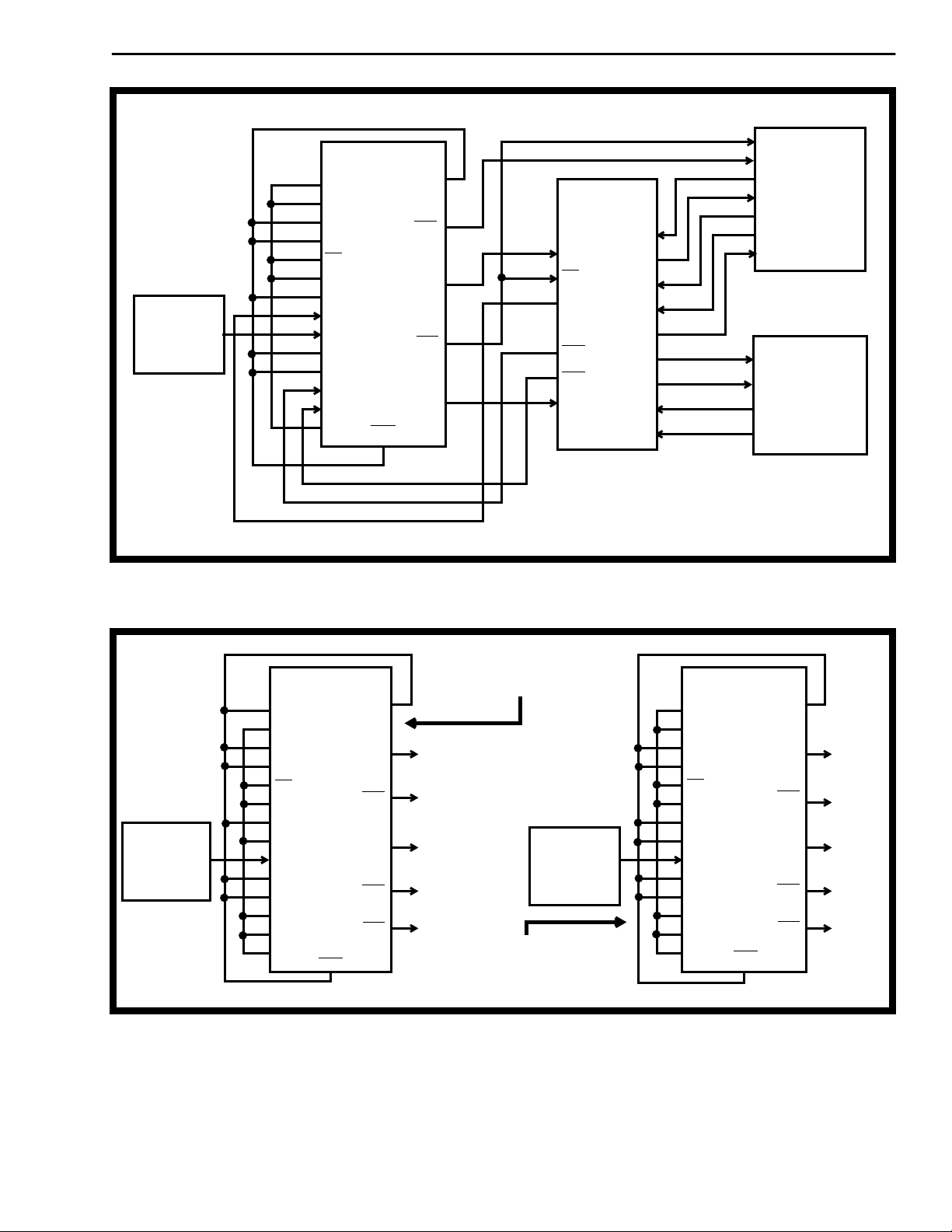

Figures 6 and 7 show how the MT8940 can be used
to synchronize the ST-BUS and the CEPT
transmission link at the master and slave ends,
respectively.

Crystal Clock

(12.355 MHz
±100 ppm)

4.096 MHz
System Clock

(ST-BUS
compatible)

MT8980/81

ST-BUS

SWITCH

T1

LINK

(1.544 Mbps)

MS0
MS1
MS2
MS3
F0i

C12i
EN

CV

C8Kb
C16i
EN

C4o

EN

C2o

Ai
Bi

V

SS

MT8940

RST

V

DD

CV

C4b

C2o

F0b

Y

MH89760

C1.5i
C2i
F0i

RxA
RxB

o

RxD

DPLL #1 - NORMAL (MS0 = X; MS1 = 0)
DPLL #2 - OVERRIDE THE MAJOR MODES (MS2 = 1; MS3 = 0)

DSTi

DSTo

CSTi

CSTo

TxT

TRANSMIT

TxR
RxT

RxR

MODE OF OPERATION FOR THE MT8940

RECEIVE

Figure 4 - Synchronization at the Master End of the T1 Transmission Link

3-33

MT8940 ISO-CMOS

Crystal Clock

(12.355 MHz

± 100 ppm)

Crystal Clock

(16.388 MHz

± 32 ppm)

4.096 MHz
System Clock

(ST-BUS
Compatible)

MT8980/81

ST-BUS

SWITCH

(1.544 Mbps)

MS0
MS1
MS2
MS3
F0i

C12i
EN

CV

C8Kb
C16i
EN

C4o

EN

C2o

Ai
Bi

V

SS

MT8940

RST

V

DD

CV

C4b

C2o

F0b

Y

MH89760

C1.5i
C2i
F0i

RxA
RxB

o

RxD

DPLL #1 - NORMAL (MS1=0)
DPLL #2 - NORMAL (MS0=0; MS1=0; MS2=1; MS3=1)

DSTi

DSTo

CSTi

CSTo

TxT
TxR
RxT

RxR

Mode of Operation for the MT8940

TRANSMIT

RECEIVE

Figure 5 - Synchronization at the Slave End of the T1 Transmission Link

MT8980/81

MT8940

V

MS0
MS1
MS2
MS3
F0i

C12i
EN

CV

C8Kb
C16i
EN

C4o

EN

C2o

Ai
Bi
V

SS

RST

DD

C4b

C2o

F0b

Y

MH89790

DSTi

C2i
F0i

RxA
RxB

o

RxD

DSTo

CSTi0
CSTi1

CSTo
OUTA
OUTB

RxT
RxR

TRANSMIT

RECEIVE

ST-BUS

SWITCH

PRIMARY

MULTIPLEX

DIGITAL

T1

LINK

CEPT

LINK

Figure 6 - Synchronization at the Master End of the CEPT Digital Transmission Link

Generation of ST-BUS Timing Signals

The MT8940 can source the properly formatted ST­BUS timing and control signals with no external
inputs except the crystal clock. This can be used as
the standard timing source for ST-BUS systems or
any other system with similar clock requirements.
Figure 8 shows two such applications using only
DPLL #2. In one case, the MT8940 is in FREE-RUN

3-34

DPLL #1 - NOT USED

Mode of Operation for the MT8940

DPLL #2 - OVERRIDE MAJOR MODES (MS0=X; MS1=X
MS2=1; MS3=0)

mode with an oscillator input of 16.388 MHz. This
forces the DPLL to correct at a rate of 4 kHz to
maintain the ST-BUS clocks, which therefore, will be
jittered. In the other case, the oscillator input is

16.384 MHz (exactly eight times the output
frequency) and DPLL #2 operates in NORMAL mode
with C8Kb input tied HIGH. Since no corrections are
necessary, the output is free from jitter. DPLL #1 is
completely free in both cases and available for any
other purpose.

ISO-CMOS MT8940

Crystal Clock

(16.388 MHz

± 32 ppm)

Figure 7 - Synchronization at the Slave End of the CEPT Digital Transmission Link

MS0
MS1
MS2
MS3
F0i

C12i
EN

CV

C8Kb
C16i
EN

C4o

EN

C2o

Ai
Bi

V

SS

MT8940

RST

V

C4b

C2o

F0b

DD

Y

MT8980/81

MH89790

ST-BUS

SWITCH

C2i
F0i

DSTi

DSTo

CSTi0
CSTi1

CSTo

RxA
RxB

o

RxD

OUTA
OUTB

RxT

RxR

TRANSMIT

RECEIVE

CEPT

PRIMARY

MULTIPLEX

DIGITAL

LINK

Mode of Operation for the MT8940

DPLL #1 - NOT USED
DPLL #2 - NORMAL (MS0=0; MS1=0; MS2=1; MS3=1)

Crystal Clock

(16.388 MHz
± 32 ppm)

DPLL #1 - NOT USED
DPLL #2 - NORMAL MODE
(MS0=0; MS1=0; MS2=1;
MS3=1)

MS0

MT8940

V

DD

MS1
MS2
MS3
F0i

C12i
EN

CV

C8Kb
C16i
EN

C4o

EN

C2o

C4o

C4b

C2o

C2o

ST-BUS

TIMING

SIGNALS

Crystal Clock

(16.388 MHz

± 32 ppm)

Ai

RST

F0b

DPLL #1 - NOT USED
DPLL #2 - NORMAL MODE
(MS0=0; MS1=0;

Bi
V

SS

MS2=1; MS3=1)

Figure 8 - Generation of the ST-BUS Timing Signals

MS0
MS1
MS2
MS3
F0i

C12i
EN

CV

C8Kb
C16i
EN

C4o

EN

C2o

Ai
Bi

V

SS

MT8940

RST

V

DD

C4o

C4b

C2o

C2o

F0b

ST-BUS

TIMING

SIGNALS

3-35

MT8940 ISO-CMOS

Absolute Maximum Ratings*- Voltages are with respect to ground (V

) unless otherwise stated.

SS

Parameter Symbol Min Max Units

1 Supply Voltage V
2 Voltage on any pin V
3 Input/Output Diode Current I
4 Output Source or Sink Current I
5 DC Supply or Ground Current IDD/I
6 Storage Temperature T
7 Package Power Dissipation LCC P

* Exceeding these values may cause permanent damage. Functional operation under these conditions is not implied.

DD

I

IK/OK

O

SS

ST

D

Recommended Operating Conditions - Voltages are with respect to ground (V

Characteristics Sym Min Typ

1 Supply Voltage V
2 Input HIGH Voltage V
3 Input LOW Voltage V
4 Operating Temperature T

‡ Typical figures are at 25°C and are for design aid only: not guaranteed and not subject to production testing.

DD

IH

IL

A

4.75 5.0 5.25 V

2.4 V

V

SS

-40 25 85

‡

Max Units Test Conditions

DD

0.4 V For 400 mV noise margin

-0.3 7.0 V

VSS-0.5 VDD+0.5 V

-65 150

) unless otherwise stated.

SS

V For 400 mV noise margin

o

C

±10 mA
±25 mA
±50 mA

o

C

600 mW

DC Electrical Characteristics - Voltages are with respect to ground (V

VDD=5.0 V±5%; VSS=0V; TA=-40 to 85°C.

Characteristics Sym Min Typ‡Max Units Test Conditions

S
U

1

Supply Current

P

2

Input HIGH voltage (For all the
inputs except pin 23)

3 Positive-going threshold

voltage (For pin 23)

I

N

4 Input LOW voltage (For all the

inputs except pin 23)

5 Negative-going threshold

voltage (For pin 23)

6

7 Output current LOW (For all the

Output current HIGH (For all
the outputs except pin 10)

O
U
T

outputs except pin 10)
8 Output current LOW (pin 10) I
9 Leakage current on bidirect-

ional pins and all inputs except

C12i, C16i, RST

I

DD

I

DDS

V

V

V

V

I

OH

I

OL

OL

I

IZ/OZ

815

2.0 V

IH

2.8 V

+

IL

-

-9.5 mA VOH=2.4 V

4.5 mA VOL=0.4 V

2.0 mA VOL=0.4 V

) unless otherwise stated.

SS

mA

100

Under clocked condition, with the
inputs tied to the same supply rail
as the corresponding pull-up /
down resistors.

0.8 V

1.5 V

±150 µAV

I/O

=

VSSor V

DD

10 Leakage current on all outputs

I

IZ/OZ

±1 ±10 µAV

and C12i, C16i, RST inputs

‡ Typical figures are at 25°C and are for design aid only: not guaranteed and not subject to production testing.

3-36

I/O=VSS

or V

DD

ISO-CMOS MT8940

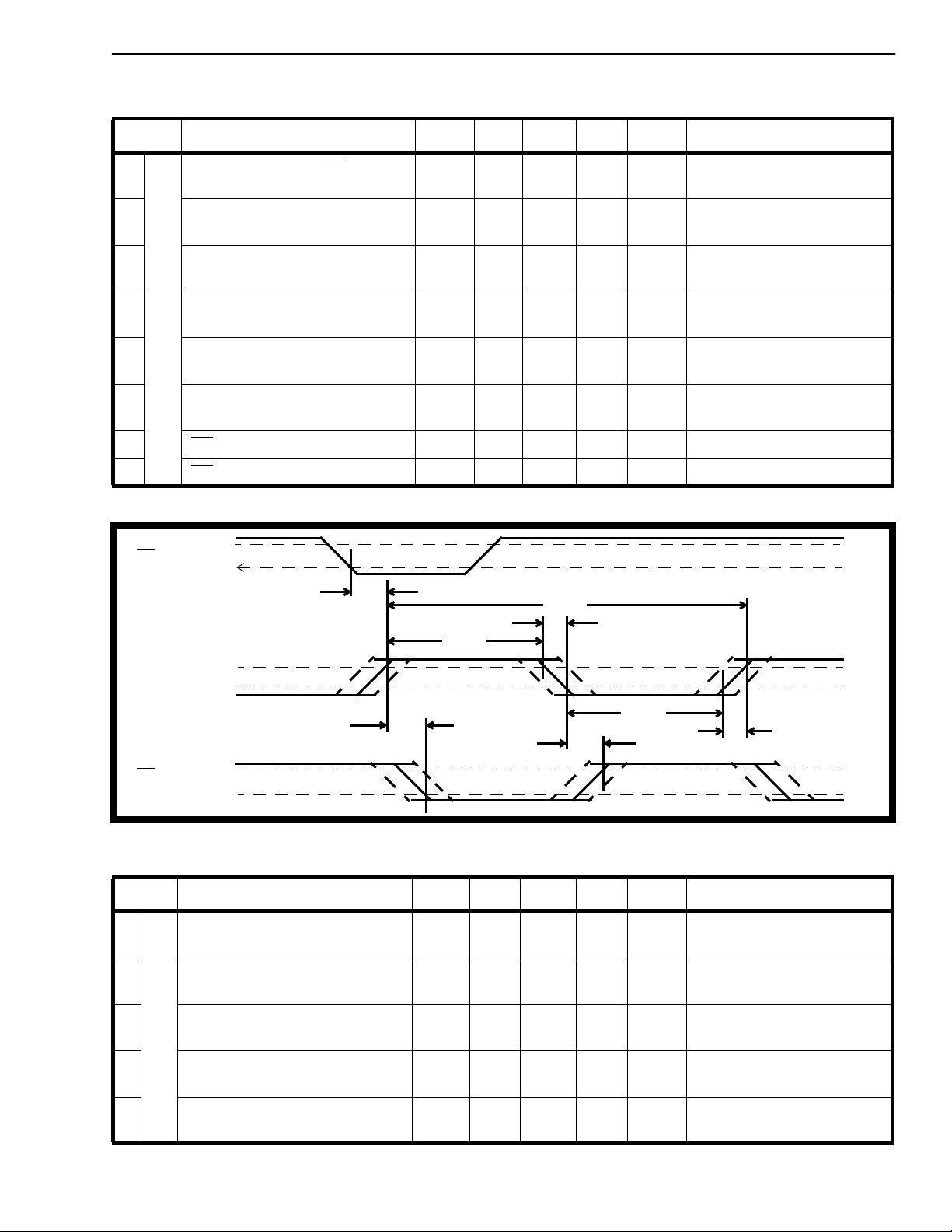

AC Electrical Characteristics†- Voltages are with respect to ground (V

) unless otherwise stated. (Ref. Figure 9)

SS

Characteristics Sym Min Typ‡Max Units Test Conditions

1

2 CVb output (1.544 MHz) rise

3 CVb output (1.544 MHz) fall

Frame pulse input (F0i) to CVb
output (1.544 MHz) delay

time

D

time

t

F15H

t

r1.5

t

f1.5

-40 75 ns

10 15 ns Test load circuit 1 (Fig. 17).

12 15 ns Test load circuit 1 (Fig. 17).

P

4 CVb output (1.544 MHz) clock

L

period

L

5 CVb output (1.544 MHz) clock

#1

width (HIGH)

6 CVb output (1.544 MHz) clock

width (LOW)
7 CV delay (HIGH to LOW) t
8 CV delay (LOW to HIGH) t

† Timing is over recommended temperature & power supply voltages.
‡ Typical figures are at 25°C and are for design aid only: not guaranteed and not subject to production testing.

V

F0i

CVb

CV

IH

V

IL

t

F15H

V

OH

V

OL

t

15HL

V

OH

V

OL

t

P15

t

W15H

t

W15L

15HL
15LH

648 690 ns

320 386 ns

314 327 ns

530ns

-12 10 ns

t

P15

t

W15H

t

15LH

t

f1.5

t

W15L

t

r1.5

Figure 9 - Timing Information for DPLL #1 in NORMAL Mode

AC Electrical Characteristics†- Voltages are with respect to ground (V

) unless otherwise stated. (Ref. Figure 10)

SS

Characteristics Sym Min Typ‡Max Units Test Conditions

1

2 C8Kb output (8 kHz) delay

3 C8Kb output duty cycle 66

4 Inverted clock output delay

5 Inverted clock output delay

† Timing is over recommended temperature & power supply voltages.
‡ Typical figures are at 25°C and are for design aid only: not guaranteed and not subject to production testing.

C8Kb output (8kHz) delay
(HIGH to HIGH)

D

(LOW to LOW)

P
L
L

#1

(HIGH to LOW)

(LOW to HIGH)

t

C8HH

t

C8LL

t

ICHL

t

ICLH

130 ns Test load circuit 2 (Fig. 17).

50 130 ns Test load circuit 2 (Fig. 17).

%

In Divide -1 Mode

50

%

In Divide - 2 Mode

40 75 ns

35 60 ns

3-37

MT8940 ISO-CMOS

V

CVb

IH

V

IL

CV

C8Kb

F0b

t

ICHL

V

OH

V

OL

t

C8HH

V

OH

V

OL

t

ICLH

t

C8LL

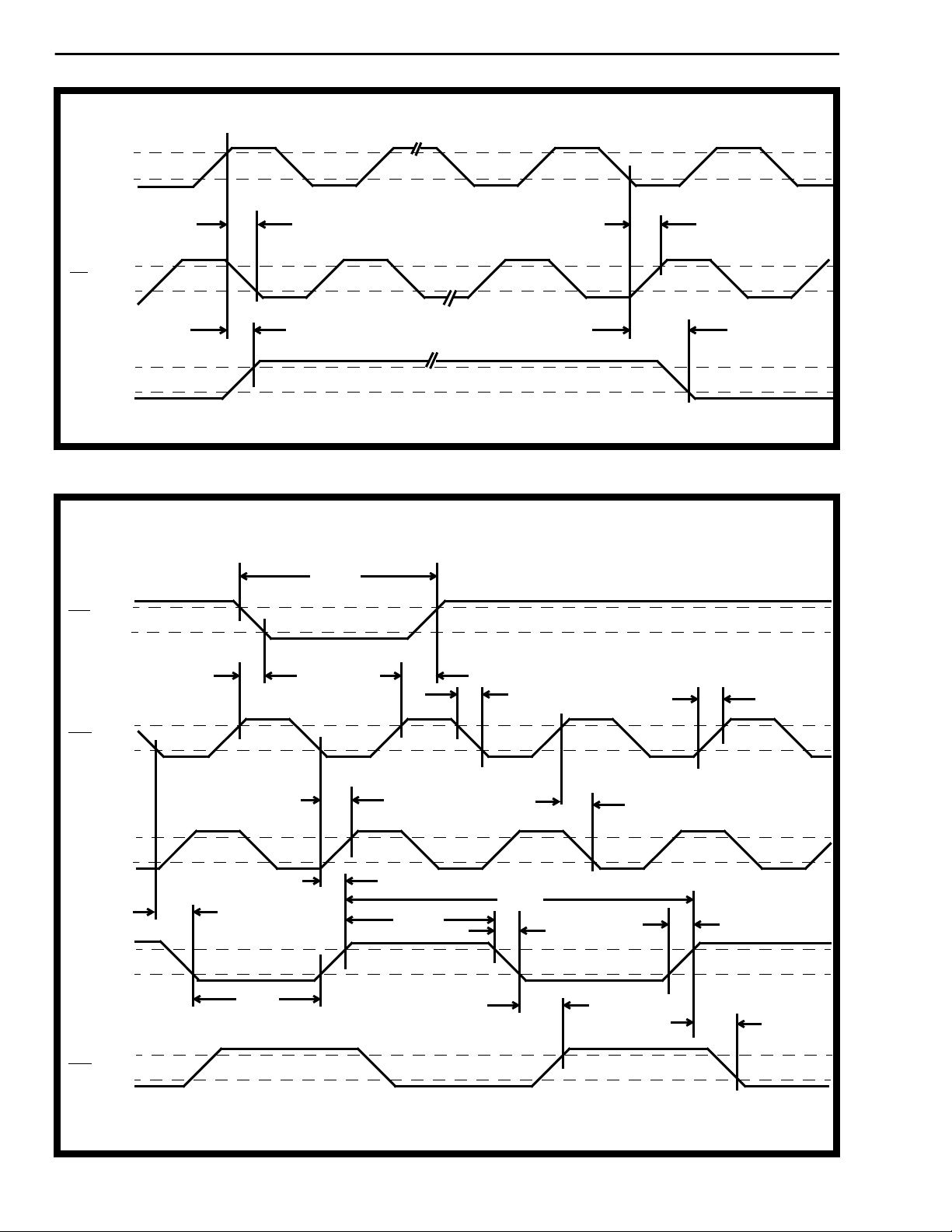

Figure 10 - DPLL #1 in DIVIDE Mode

t

WFP

V

OH

V

OL

C4b

C4o

C2o

C2o

t

FPL

V

OH

V

OL

V

OH

V

OL

t

V

OH

V

OL

V

OH

V

OL

42HL

t

W2oL

t

42LH

t

FPH

t

4oLH

t

W2oH

t

2oLH

t

4oHL

t

P2o

t

fC4

t

rC4

t

t

fC2

rC2

t

2oHL

3-38

Figure 11 - Timing Information on DPLL #2 Outputs

ISO-CMOS MT8940

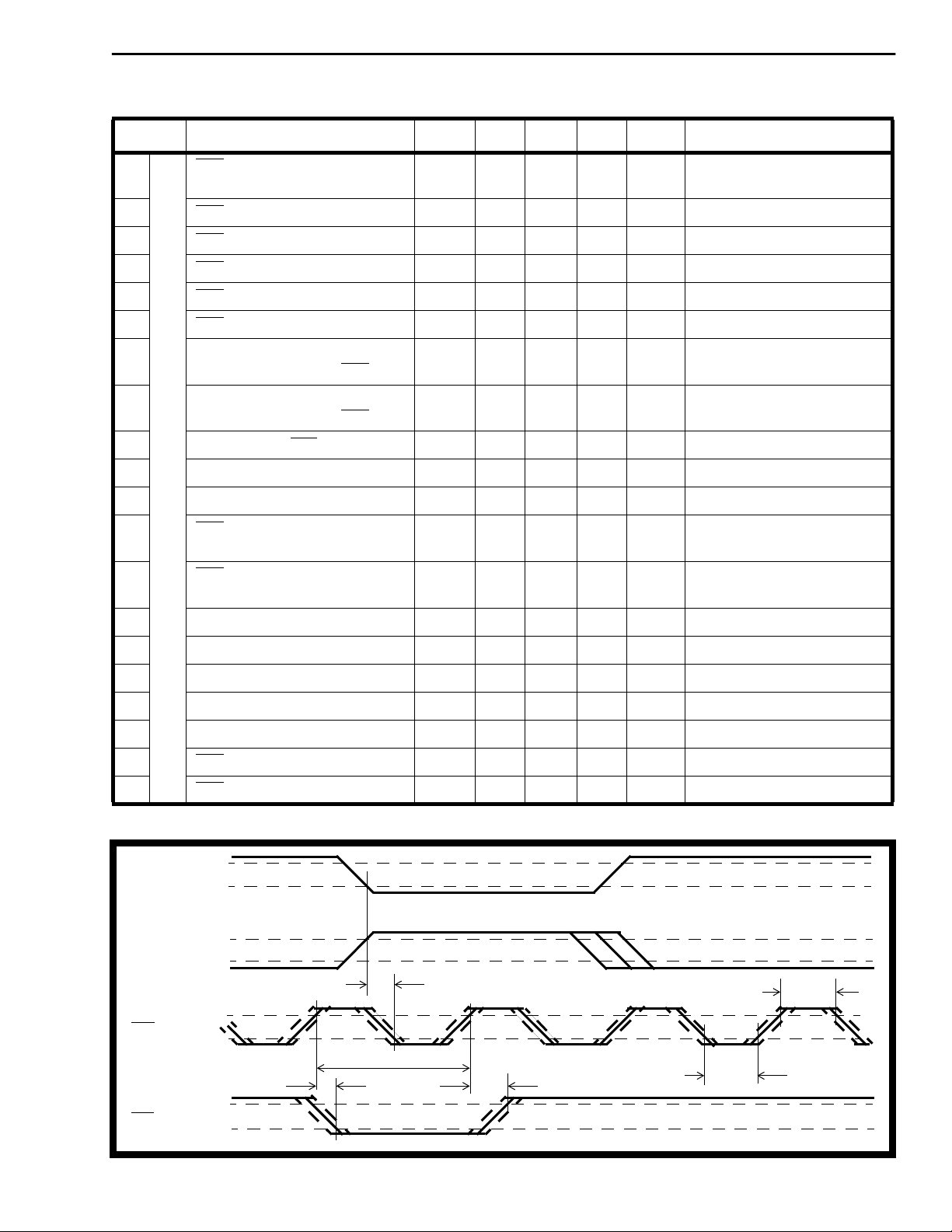

AC Electrical Characteristics

†

-Voltages are with respect to ground (VSS) unless otherwise stated.(Ref. Figures 11&12)

Characteristics Sym Min Typ‡Max Units Test Conditions

1

C4b output delay (HIGH to

LOW) from C8Kb input/output
2 C4b output clock period t
3 C4b output clock width (HIGH) t
4 C4b output clock width (LOW) t
5 C4b output clock rise time t
6 C4b clock output fall time t
7 Frame pulse output delay

(HIGH to LOW) from C4b
8 Frame pulse output delay

(LOW to HIGH) from C4b

D

9 Frame pulse (F0b) width t

P
L

10 C4o delay - LOW to HIGH t

L

11 C4o delay - HIGH to LOW t

#2

12 C4b to C2o delay (LOW to

HIGH)

t

84H

P4o

W4oH

W4oL

rC4

fC4

t

FPL

t

FPH

WFP
4oLH
4oHL

t

42LH

-25 75 ns

Test load circuit 2 (Fig. 17)

on C8Kb.
240 282 ns Test load circuit 1 (Fig. 17).
123 165 ns
110 123 ns

10 ns Test load circuit 1 (Fig. 17).
10 ns Test load circuit 1 (Fig. 17).

50 ns

40 ns

Test load circuit 1 (Fig. 17).

Test load circuit 1 (Fig. 17).

200 245 ns

45 ns
45 ns

-10 +10 ns

13 C4b to C2o delay (HIGH to

LOW)
14 C2o clock period t
15 C2o clock width (HIGH) t
16 C2o clock width (LOW) t
17 C2o clock rise time t
18 C2o clock fall time t
19 C2o delay - LOW to HIGH t
20 C2o delay - HIGH to LOW t

† Timing is over recommended temperature & power supply voltages.
‡ Typical figures are at 25°C and are for design aid only: not guaranteed and not subject to production testing.

C8Kb

as

Output

C8Kb

as

Input

C4b

F0b

V

OH

V

OL

V

IH

V

IL

V

OH

V

OL

t

V

OH

V

OL

FPL

t

P4o

t

42HL

P2o

W2oH

W2oL

rC2

fC2
2oLH
2oHL

t

84H

20 ns

486 523 ns Test load circuit 1 (Fig. 10).
244 291 ns
233 244 ns

10 ns Test load circuit 1 (Fig. 10).
10 ns Test load circuit 1 (Fig. 10).
20 ns

-5 30 ns

t

t

FPH

W4oL

t

W4oH

Figure 12 - ST-BUS Timings from DPLL #2 and C8Kb Input/Output

3-39

MT8940 ISO-CMOS

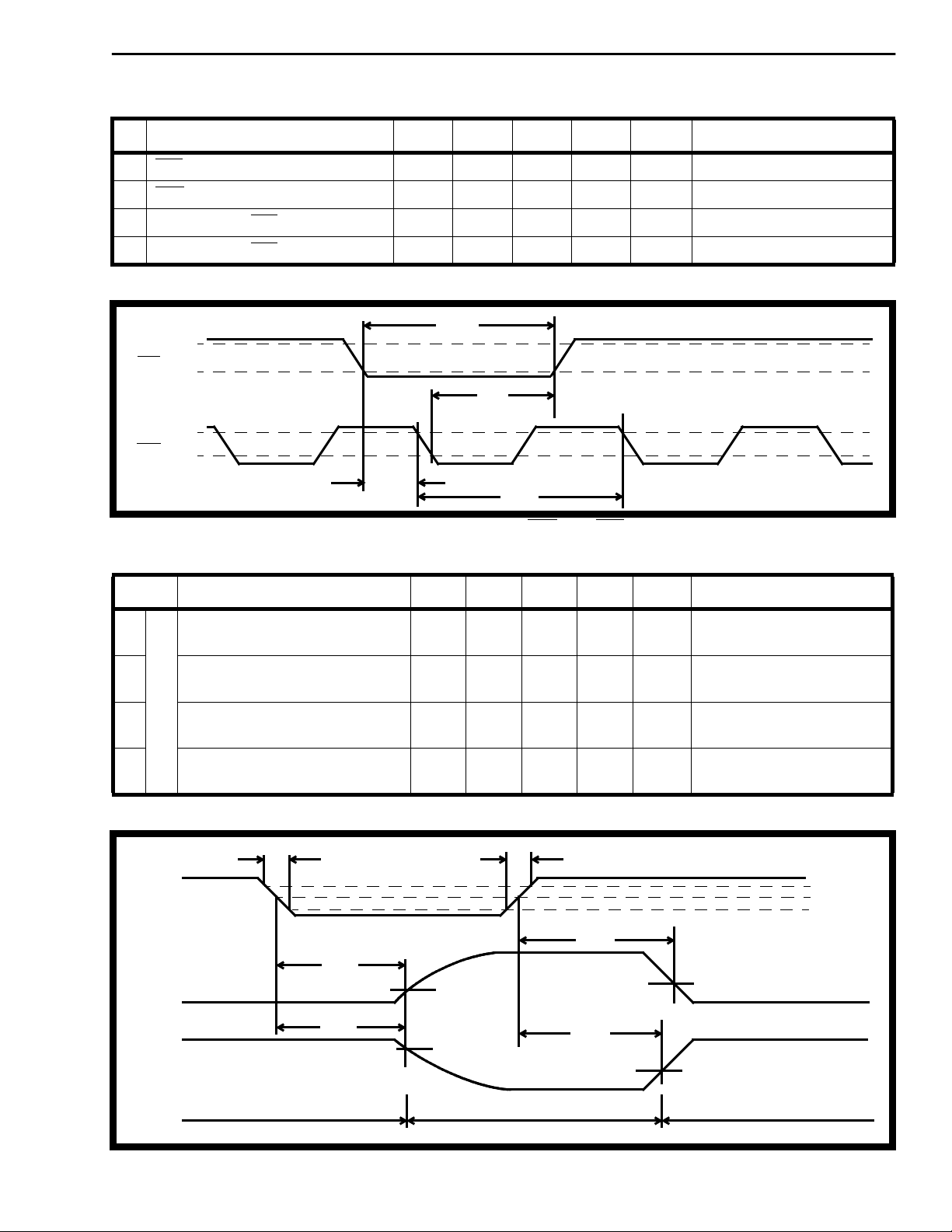

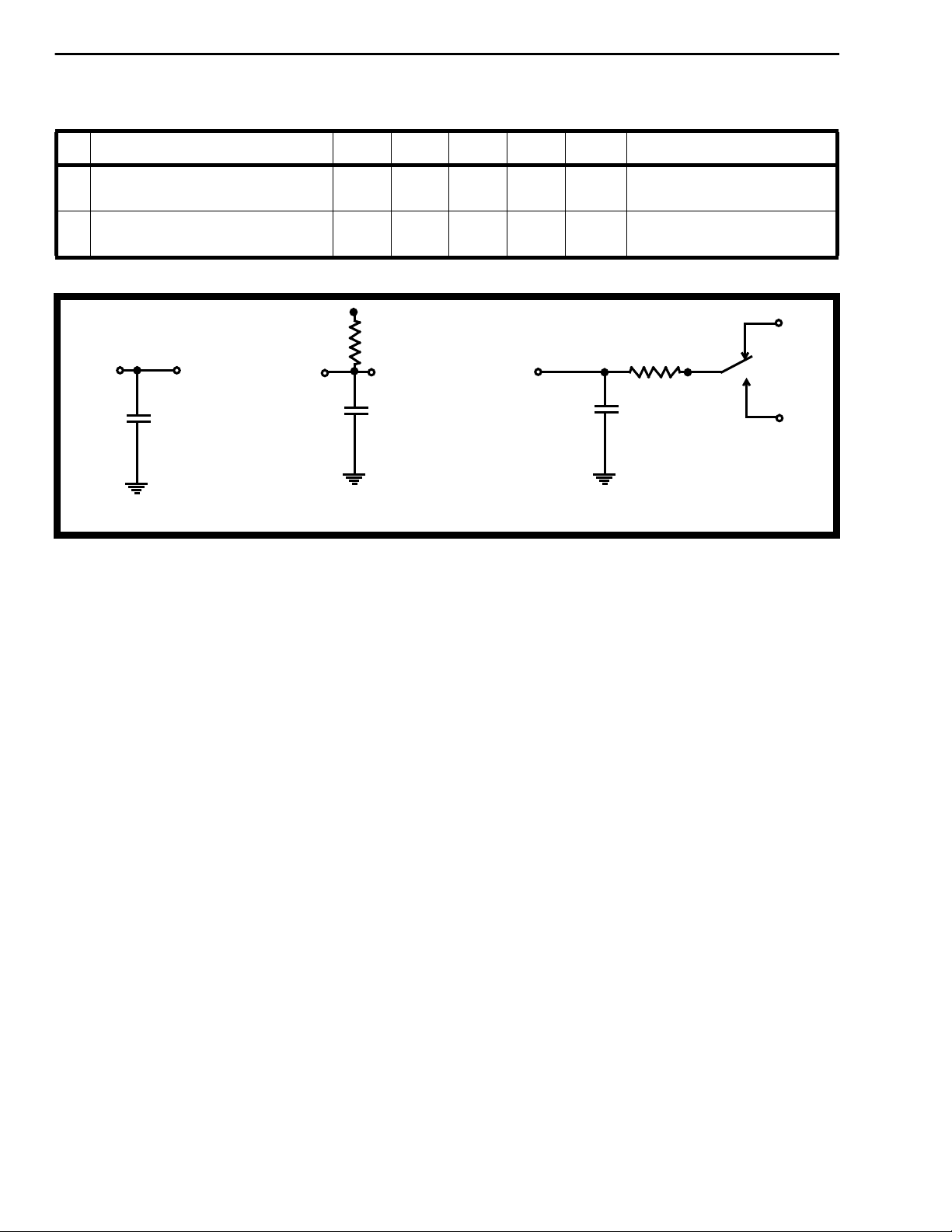

AC Electrical Characteristics

Characteristics Sym Min Typ

1 CV/CVb (1.544 MHz) Setup time t
2 CV/CVb (1.544 MHz) Hold time t

† Timing is over recommended temperature & power supply voltages.
‡ Typical figures are at 25°C and are for design aid only: not guaranteed and not subject to production testing.

V

OH

F0b

V

OL

V

OH

C2o

V

OL

V

OH

CV

V

OL

V

OH

CVb

V

OL

†

- Voltages are with respect to ground (VSS) unless otherwise stated. (Ref. Figure 13)
‡

Max Units Test Conditions

S15

H15

20 CYCLES

25 ns

110 ns

t

Boundary between ST-BUS channel 2 bit 4 and

S15

t

S15

channel 2 bit 3

t

t

H15

H15

Figure 13 - F0b fro m DPLL #2 is Looped Back as Input to DPLL #1 (T1 Line synchronized to ST-BUS)

AC Electrical Characteristics

Characteristics Sym Min Typ

1

Master clocks input rise time t

2 Master clocks input fall time t

C

3 Master clock period

L

(12.355MHz)

O

4

Master clock period

C

(16.388MHz)

K

†

- Voltages are with respect to ground (VSS) unless otherwise stated. (Ref. Figure 14)
‡

Max Units Test Conditions

10 ns
10 ns

For DPLL #1, while operating to
provide the T1 clock signal.

For DPLL #2, while operating to
provide the CEPT and ST-BUS
timing signals.

t

P12

t

P16

r
f

80.930 80.938 80.946 ns

61.018 61.020 61.022 ns

S

5 Duty Cycle of master clocks 45 50 55 %
6 Lock-in Range (For each PLL)

† Timing is over recommended temperature & power supply voltages
‡ Typical figures are at 25°C and are for design aid only: not guaranteed and not subject to production testing.

t

r

Master clock
inputs

2.4 V

1.5 V

0.4 V

-1.5 +1.04 Hz

t

or t

P12

P16

With the Master clocks as shown
above.

t

f

3-40

Figure 14 - Master Clock Inputs

ISO-CMOS MT8940

AC Electrical Characteristics

Characteristics Sym Min Typ

1 F0b input pulse width (LOW) t
2 C4b input clock period t
3 Frame pulse (F0b) setup time t
4 Frame pulse (F0b) hold time t

† Timing is over recommended temperature & power supply voltages
‡ Typical figures are at 25°C and are for design aid only: not guaranteed and not subject to production testing.

V

IH

F0b

V

IL

V

IH

C4b

V

IL

t

FS

†

- Voltages are with respect to ground (VSS) unless otherwise stated. (Ref. Figure 15)
‡

Max Units Test Conditions

WFP

P4o

FS
FH

40 ns

.080 50 µs

25 ns

5ns

t

WFP

t

FH

t

P4o

Figure 15 - External Inputs on C4b and F0b for the DPLL #2

AC Electrical Characteristics

†

- Voltages are with respect to ground (VSS) unless otherwise stated. (Ref. Figure 16)

Characteristics Sym Min Typ‡Max Units Test Conditions

1

Delay from Enable to Output
(HIGH to THREE STATE)

t

PHZ

15 65 ns Test load circuit 3 (Fig.17)

O

2 Delay from Enable to Output

U

(LOW to THREE STATE)

T
P

3 Delay from Enable to Output

U

(THREE STATE to HIGH)

t

PLZ

t

PZH

10 55 ns Test load circuit 3 (Fig.17)

40 ns Test load circuit 3 (Fig.17)

T

4 Delay from Enable to Output

(THREE STATE to LOW)

† Timing is over recommended temperature & power supply voltages
‡ Typical figures are at 25°C and are for design aid only: not guaranteed and not subject to production testing.

Enable
Input

Output
LOW to
OFF

Output
HIGH
to OFF

t

f

Outputs

Enabled

6 ns t

t

PLZ

t

PHZ

t

PZL

10%

90%

50 ns Test load circuit 3 (Fig.17)

r

Outputs

Disabled

6 ns

t

t

PZL

PZH

1.3 V

1.3 V
Outputs

Enabled

3.0 V

2.7 V

1.3 V

0.3 V

Figure 16 - Three State Outputs and Enable Timings

3-41

MT8940 ISO-CMOS

AC Electrical Characteristics† - Uncommitted NAND Gate

Voltages are with respect to ground (VSS) unless otherwise stated.

Characteristics Sym Min Typ

‡

Max Units Test Conditions

1 Propagation delay (LOW to

HIGH), input Ai or Bi to output

2 Propagation delay (HIGH to

LOW), input Ai or Bi to output

† Timing is over recommended temperature & power supply voltages.
‡ Typical figures are at 25°C and are for design aid only: not guaranteed and not subject to production testing.

From
output
under test

=50pF

C

L

Test load circuit- 1

Test
point

From
output
under test

CL=50pF

t

PLH

t

PHL

V

DD

RL=1kΩ

Test
point

Test load circuit- 2 Test load circuit- 3

25 40 ns Test load circuit 1 (Fig. 17)

20 40 ns Test load circuit 1 (Fig. 17)

Test

RL=1kΩ

From
output
under test

point

C

L

=50pF

Figure 17 - Test Load Circuits

V

DD

A

B

S

1

V

SS

Note: S1is in position A
when measuring t

and tPZ and in position B
when measuring t
t

PZH

PLZ

PHZ

and

3-42

Package Outlines

E

1

D

32

n-2 n-1 n

1

E

L

Notes:

1) Not to scale

2) Dimensions in inches

3) (Dimensions in millimeters)

A

b

D

1

e

2

b

A

2

Plastic Dual-In-Line Packages (PDIP) - E Suffix

8-Pin 16-Pin 18-Pin 20-Pin

DIM

Plastic Plastic Plastic Plastic

Min Max Min Max Min Max Min Max

A

A

2

b

b

2

C
D

D

1

E

E

1

e

e

A

L

e

B

e

C

NOTE: Controlling dimensions in parenthesis ( ) are in millimeters.

0.115 (2.92) 0.195 (4.95) 0.115 (2.92) 0.195 (4.95) 0.115 (2.92) 0.195 (4.95) 0.115 (2.92) 0.195 (4.95)

0.014 (0.356) 0.022 (0.558) 0.014 (0.356) 0.022 (0.558) 0.014 (0.356) 0.022 (0.558) 0.014 (0.356) 0.022 (0.558)

0.045 (1.14) 0.070 (1.77) 0.045 (1.14) 0.070 (1.77) 0.045 (1.14) 0.070 (1.77) 0.045 (1.14) 0.070 (1.77)

0.008

(0.203)

0.355 (9.02) 0.400 (10.16) 0.780 (19.81) 0.800 (20.32) 0.880 (22.35) 0.920 (23.37) 0.980 (24.89) 1.060 (26.9)

0.005 (0.13) 0.005 (0.13) 0.005 (0.13) 0.005 (0.13)

0.300 (7.62) 0.325 (8.26) 0.300 (7.62) 0.325 (8.26) 0.300 (7.62) 0.325 (8.26) 0.300 (7.62) 0.325 (8.26)

0.240 (6.10) 0.280 (7.11) 0.240 (6.10) 0.280 (7.11) 0.240 (6.10) 0.280 (7.11) 0.240 (6.10) 0.280 (7.11)

0.100 BSC (2.54) 0.100 BSC (2.54) 0.100 BSC (2.54) 0.100 BSC (2.54)

0.300 BSC (7.62) 0.300 BSC (7.62) 0.300 BSC (7.62) 0.300 BSC (7.62)

0.115 (2.92) 0.150 (3.81) 0.115 (2.92) 0.150 (3.81) 0.115 (2.92) 0.150 (3.81) 0.115 (2.92) 0.150 (3.81)

0 0.060 (1.52) 0 0.060 (1.52) 0 0.060 (1.52) 0 0.060 (1.52)

0.210 (5.33) 0.210 (5.33) 0.210 (5.33) 0.210 (5.33)

0.014 (0.356) 0.008 (0.203) 0.014(0.356) 0.008 (0.203) 0.014 (0.356) 0.008 (0.203) 0.014 (0.356)

0.430 (10.92) 0.430 (10.92) 0.430 (10.92) 0.430 (10.92)

C

e

A

e

B

e

C

General-8

E

1

L

Notes:

1) Not to scale

2) Dimensions in inches

3) (Dimensions in millimeters)

Package Outlines

32

1

E

n-2 n-1 n

D

A

b

D

1

e

2

b

A

2

C

e

A

e

B

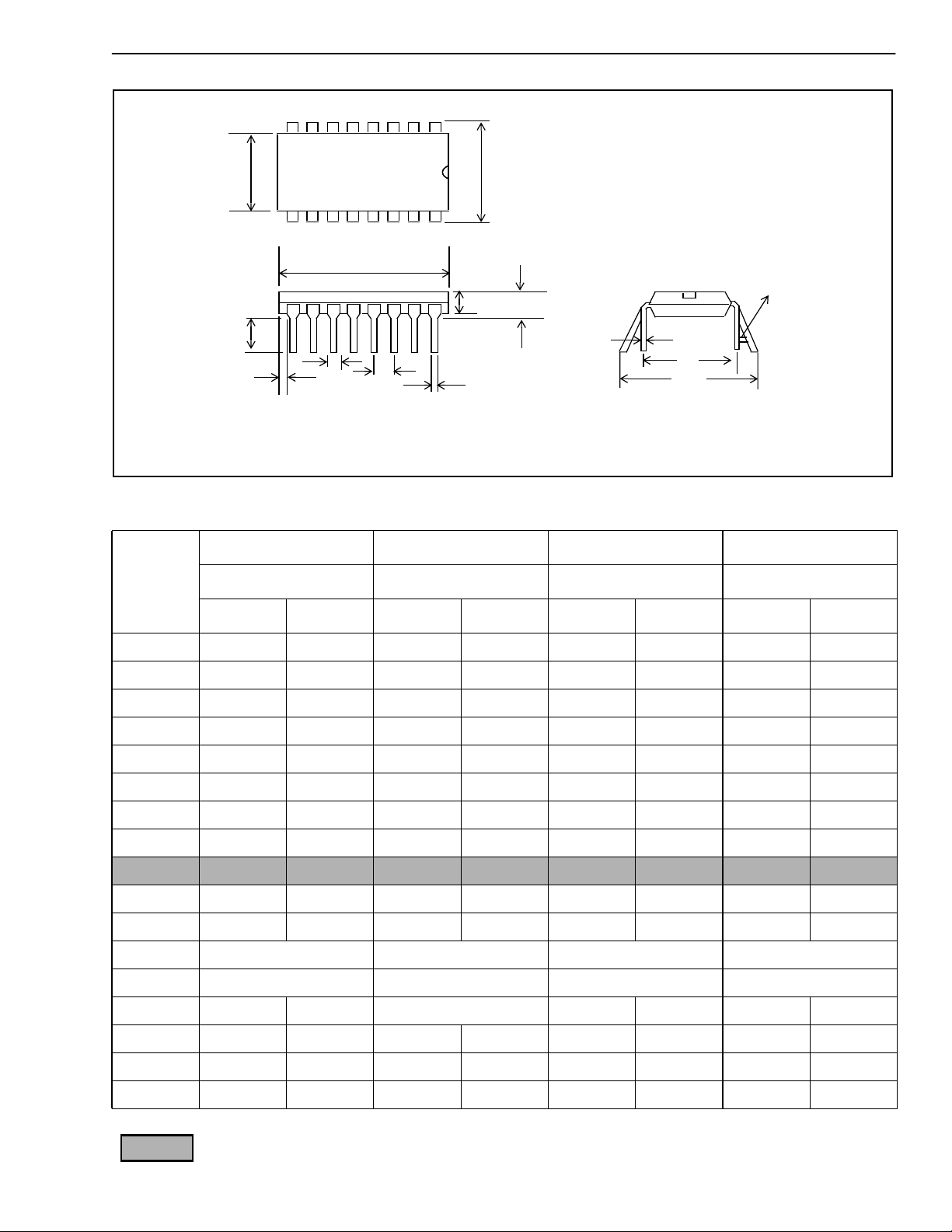

Plastic Dual-In-Line Packages (PDIP) - E Suffix

α

DIM

A

A

2

b

b

2

C
D

D

1

E
E

E

1

E

1

e

e

A

e

A

e

B

L

α

22-Pin 24-Pin 28-Pin 40-Pin

Plastic Plastic Plastic Plastic

Min Max Min Max Min Max Min Max

0.210 (5.33) 0.250 (6.35) 0.250 (6.35) 0.250 (6.35)

0.125 (3.18) 0.195 (4.95) 0.125 (3.18) 0.195 (4.95) 0.125 (3.18) 0.195 (4.95) 0.125 (3.18) 0.195 (4.95)

0.014 (0.356) 0.022 (0.558) 0.014 (0.356) 0.022 (0.558) 0.014 (0.356) 0.022 (0.558) 0.014 (0.356) 0.022 (0.558)

0.045 (1.15) 0.070 (1.77) 0.030 (0.77) 0.070 (1.77) 0.030 (0.77) 0.070 (1.77) 0.030 (0.77) 0.070 (1.77)

0.008 (0.204) 0.015 (0.381) 0.008 (0.204) 0.015 (0.381) 0.008 (0.204) 0.015 (0.381) 0.008 (0.204) 0.015 (0.381)

1.050 (26.67) 1.120 (28.44) 1.150 (29.3) 1.290 (32.7) 1.380 (35.1) 1.565 (39.7) 1.980 (50.3) 2.095 (53.2)

0.005 (0.13) 0.005 (0.13) 0.005 (0.13) 0.005 (0.13)

0.390 (9.91) 0.430 (10.92) 0.600 (15.24) 0.670 (17.02) 0.600 (15.24) 0.670 (17.02) 0.600 (15.24) 0.670 (17.02)

0.290 (7.37) .330 (8.38)

0.330 (8.39) 0.380 (9.65) 0.485 (12.32) 0.580 (14.73) 0.485 (12.32) 0.580 (14.73) 0.485 (12.32) 0.580 (14.73)

0.246 (6.25) 0.254 (6.45)

0.100 BSC (2.54) 0.100 BSC (2.54) 0.100 BSC (2.54) 0.100 BSC (2.54)

0.400 BSC (10.16) 0.600 BSC (15.24) 0.600 BSC (15.24) 0.600 BSC (15.24)

0.300 BSC (7.62)

0.430 (10.92)

0.115 (2.93) 0.160 (4.06) 0.115 (2.93) 0.200 (5.08) 0.115 (2.93) 0.200 (5.08) 0.115 (2.93) 0.200 (5.08)
15° 15° 15° 15°

Shaded areas for 300 Mil Body Width 24 PDIP only

http://www.mitelsemi.com

World Headquarters - Canada

Tel: [phone]

Fax: [phone]

North America Asia/Pacific Europe, Middle East,

Tel: [phone] Tel: [phone] and Africa (EMEA)

Fax: [phone] Fax: [phone] Tel: [phone]

Fax: [phone]

Information relating to products and services furnished herein by Mitel Corporation or its subsidiaries (collectively “Mitel”) is believed to be reliable. However, Mitel assumes no
liability for errors that may appear in this publication, or for liability otherwise arising from the application or use of any such information, product or service or for any infringement of
patents or other intellectual property rights owned by third parties which may result from such application or use. Neither the supply of such information or purchase of product or
service conveys any license, either express or implied, under patents or other intellectual property rights owned by Mitel or licensed from third parties by Mitel, whatsoever.
Purchasers of products are also hereby notified that the use of product in certain ways or in combination with Mitel, or non-Mitel furnished goods or services may infringe patents or
other intellectual property rights owned by Mitel.

This publication is issued to provide information only and (unless agreed by Mitel in writing) may not be used, applied or reproduced for any purpose nor form part of any order or
contract nor to be regarded as a representation relating to the products or services concerned. The products, their specifications, services and other information appearing in this
publication are subject to change by Mitel without notice. No warranty or guarantee express or implied is made regarding the capability, performance or suitability of any product or
service. Information concerning possible methods of use is provided as a guide only and does not constitute any guarantee that such methods of use will be satisfactory in a specific
piece of equipment. It is the user’s responsibility to fully determine the performance and suitability of any equipment using such information and to ensure that any publication or
data used is up to date and has not been superseded. Manufacturing does not necessarily include testing of all functions or parameters. These products are not suitable for use in
any medical products whose failure to perform may result in significant injury or death to the user. All products and materials are sold and services provided subject to Mitel’s
conditions of sale which are available on request.

M Mitel (design) and ST-BUS are registered trademarks of MITEL Corporation
Mitel Semiconductor is an ISO 9001 Registered Company
Copyright 1999 MITEL Corporation
All Rights Reserved
Printed in CANADA

TECHNICAL DOCUMENTATION - NOT FOR RESALE
