GeneScan
TM
II
GL646USB
Three-in-one Scanner Controller
for USB and 1394
SPECIAFICATION 1.3
Genesys Logic, Inc.
10F, No.11, Ln.3, Tsao Ti Wei, Shenkeng, Taipei, Taiwan
Tel: +886-2-2664-6655 Fax: +886-2-2664-5757
http://www.genesyslogic.com/
Page 2
Index
1. GENERAL DESCRIPTION ........................................................................2
2. FEATURES....................................................................................................2
3. SYSTEM BLOCK DIAGRAM....................................................................4
3.1 USB 1.1 System Block Diagram ................................................................................................... 4
3.2 USB 2.0 System Block Diagram ................................................................................................... 4
3.3 IEEE 1394 System Block Diagram................................................................................................4
4. FUNCTION BLOCK DIAGRAM...............................................................5
5. HARDWARE DESCRIPTION....................................................................6
GL646USB
5.1 Pins Assignment & Mode Definition:............................................................................................ 6
5.2 Pin Descriptions :........................................................................................................................... 8
5.3 Electrical Characteristics:............................................................................................................ 11
6. Application Description..............................................................................12
7. COMMAND SET DESCRIPTION...........................................................21
Revision 1.3 Mar.22 2001
-1-
Page 3
GL646USB
1. GENERAL DESCRIPTION
Genesys Logic's single-chip GeneScanTMII, GL646USB, is a high speed, high performance, low cost and rich scalability
controller for scanner. It successfully integrates AFE (16 bits Analog Front End), featured scanner function ASIC and
USB 1.1 interface controller into one single-chip. With it’s high performance design architecture, GeneScan
TM
II is not
only ready for supporting CIS or CCD image sensors (600dpi or 1200dpi resolution) which is used in flatbed or
transparency scanners, but also can co-work with uni-polar or bi-polar stepping motors. Advanced features of
GeneScan
TM
II includes loseless image data compression, dual motor acceleration/ deceleration curve table for high speed
motor moving, industrial standard auto suspend mode and bus-power supporting.
Except the build-in USB 1.1 interface, the capability of cooperating with USB 2.0 and IEEE 1394 interface controller
also expand the scalability of GeneScan
TM
II to fit customer's further requirement of supporting high speed interface
standards.
2. FEATURES
Design for sheetfed, flatbed and transparency scanner.
Programmable 600,1200 or 2400 DPI color CCD or CIS timing
Support fast scan for low DPI such as pre-view
Support three scanning type :pixel by pixel(pixel rate), line by line(line rate) and RGB line by turns(line rate)
Programmable dummy lines to resolve start/stop (discontinuous) problem.
48-Bits true color ( 16-Bits gray level ) scan
Support color , fine Gray , fast gray and fast B/W scan for CCD
Support color , gray , true gray and B/W scan for CIS
Built-in 16 bits Front End
16 Bits white shading , dark shading and 12/1 4 Bits GAMMA correction
Programming threshold level for B/W
Exposure time is adjustable (max.524ms , 1 pixel time increment step)
Scan width(scan area) control for horizontal line( 1 pixel increment step)
Built-in USB(1.1) , external USB(2.0) and external IEEE1394 interface
Support 4M bits x 1 or x2 (256K x 16) EDO DRAM
Support digital average for DPI (non-deletion type)
Support hardware deletion type for DPI (2400 to 1 DPI ,1 DPI decrement)
Acceleration/ Deceleration double table for high speed motor moving
Stepping motor phase control ports for bi-polar or uni-polar motor
Full, half and quarter steps for motor control
Build-in Uni-polar phase PWM control
Watch-Dog protection circuit for motor, lamp and ASIC system
2 Output ports for lamp (include flatbed and transparency with PWM) control
Input port for home sensor
9 GPIO ports
Lamp timeout (sleeping) control
Revision 1.3 Mar.22 2001
-2-
Page 4
Support 8/16 bits image data type.
Build-in lossless 8 bits image data compression.
Output motor trigger signal unde r scanning for ADF
Power on check status
DMA image read.
DMA DRAM data read/write
GL646USB
Revision 1.3 Mar.22 2001
-3-
Page 5

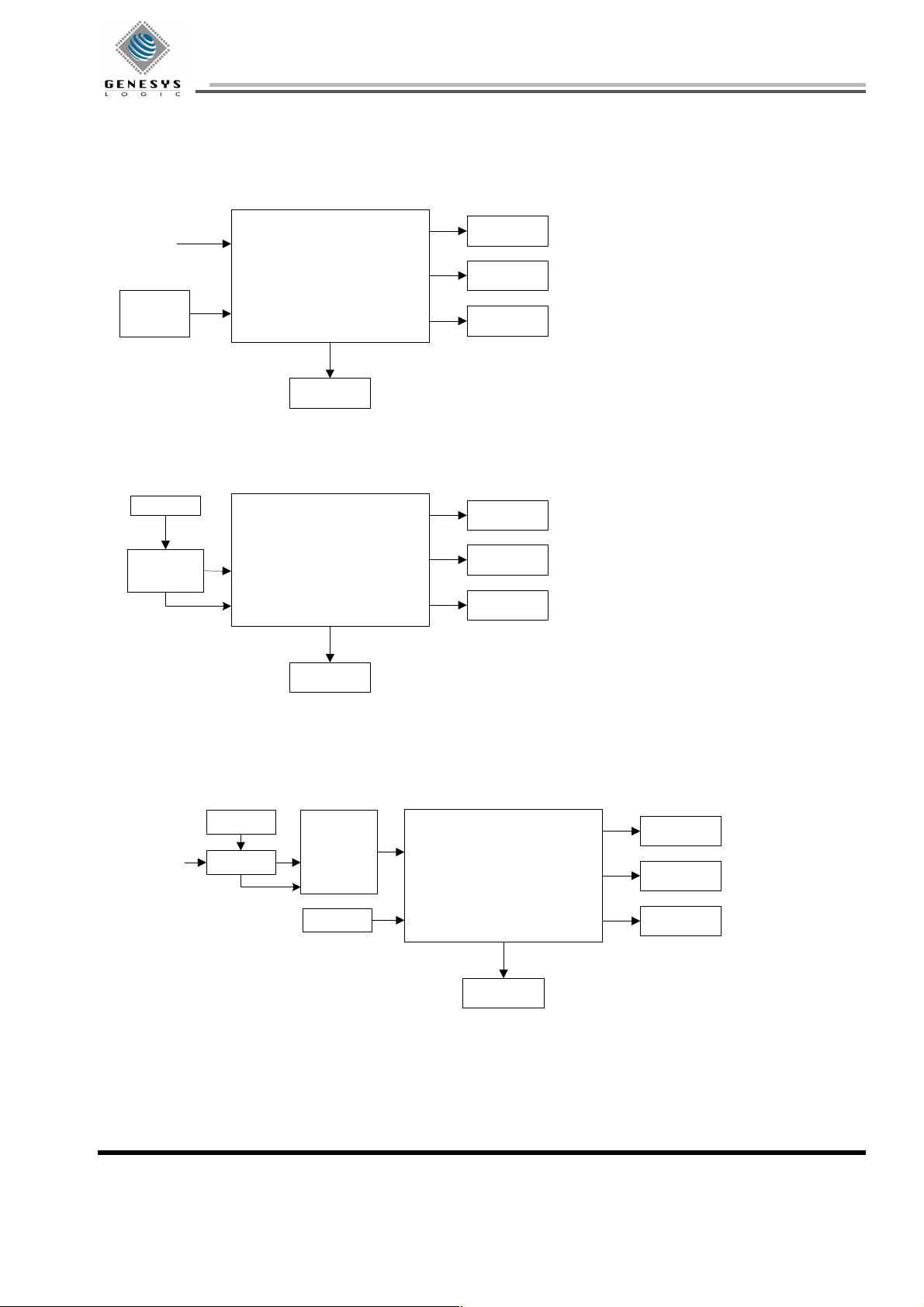

3. SYSTEM BLOCK DIAGRAM
3.1 USB 1.1 System Block Diagram
GL646USB
HOST
12MHz
Three-in-One
Scanner
Controller
(GL646USB)
DRAM
3.2 USB 2.0 System Block Diagram
12MHz
Three-in-One
USB 2.0
Controller
24~48MHz
Scanner
Controller
(GL646USB)
DRAM
3.3 IEEE 1394 System Block Diagram
CCD/CIS
Motor Driver
IO Device
CCD/CIS
Motor Driver
IO Device
25MHz
PHYHOST
IEEE 1394
Controller
12MHz
Three-in-One
Scanner
Controller
(GL646USB)
DRAM
CCD/CIS
Motor Driver
IO Device
Note: 1.The pins assignment and package of GL646 USB is the same as GL643USB.
2.The connection of GL646USB is the same as GL643USB.
3.GL643USB is 14 bits solution; GL646USB is 16 bits solution.
Revision 1.3 Mar.22 2001
-4-
Page 6
GL646USB
HOST
HOST
HOST
IEEE 1394
Controller
MPU
USB 2.0
Controller
I/O
DMA
Interface
MPU
Interface
USB 1.1
Controller
GPIO
Controller
Register
& Status
Read
Data
Interface
EPP
Circuit
Packing
Fast Scan /
Normal Scan
Control
Data
Data
Compressi
on
Average
Black &
White
Gamma
Correction
DPI
Control
Motor
Control
CCD/CIS
Control
Front-End
(16 bits)
A/D Data
Latch
Motor
CCD/CIS
-5-
12MHz
PLL
Watch
dog
Clkgen
Motor
Moving
Table
White
Shading
Process
Dark
Shading
Process
Shading
RAM
(256*16)

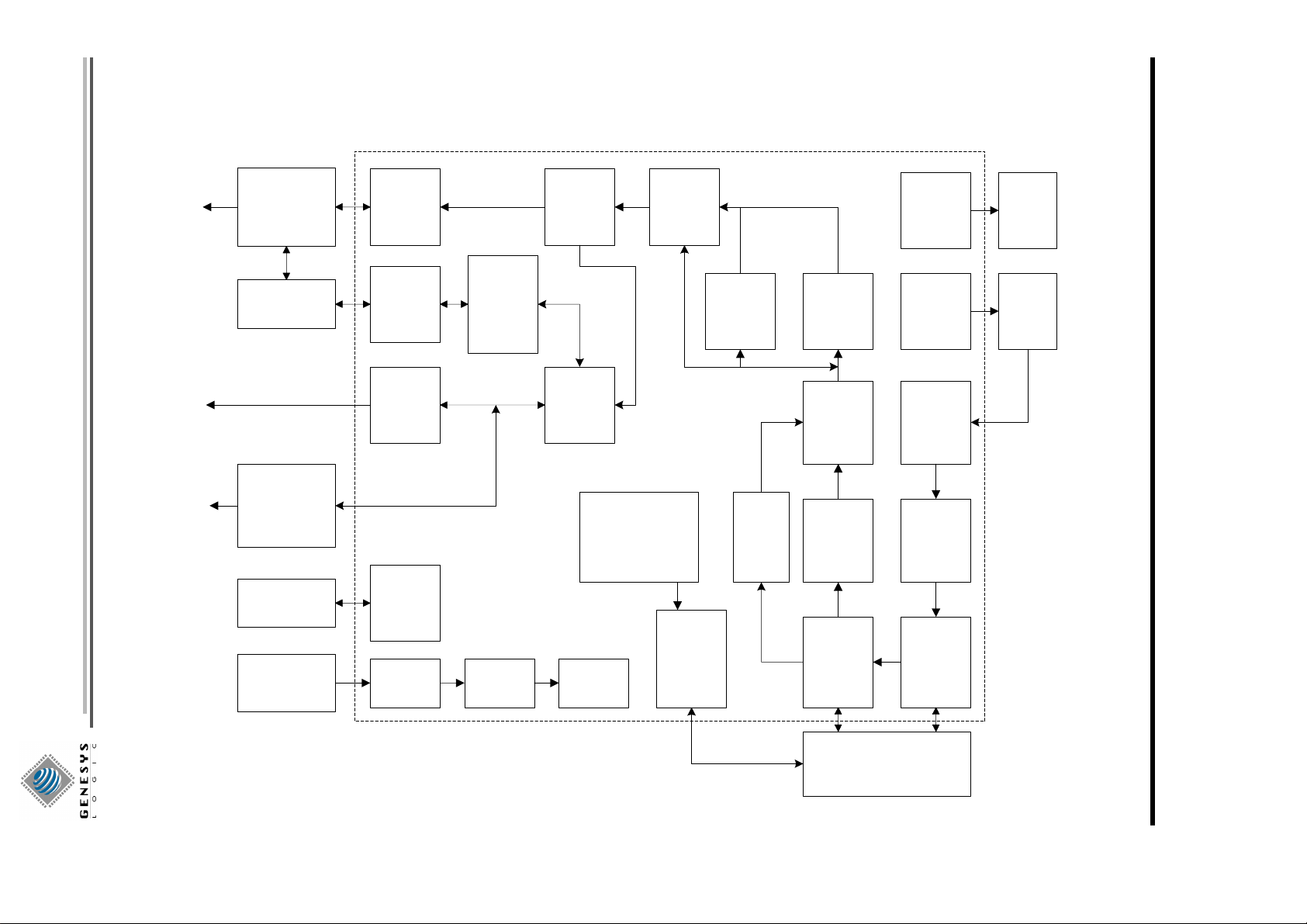

4. FUNCTION BLOCK DIAGRAM
Revision 1.3 Mar.22 2001
Page 7
GL646USB
5. HARDWARE DESCRIPTION
5.1 Pins Assignment & Mode Definition:
Mode 1
SC+
AFE+
USB1.1
TSTMOD=0
No.
TSTSEL0=0
TSTSEL1=0
MPUSEL=0
1 I I HSLCTIN I HSLCTIN I ASTRBO_ O HSLCTIN I ASTRBO_ O I bd4rtu
2 I I HI_INIT I HI_INIT I MIARSTB O HI_INIT I I I bd4rtu
3 I I HAFXTIN I HAFXTIN I DSTRBO_ O HAFXTIN I DSTRBO_ O I bd4rtu
4 I I HSTBIN I HSTBIN I WRO_ O HSTBIN I WRO_ O I bd4rtu
5 I I H_BUSY O H_BUSY O WAITI_ O H_BUSY O WAITI_ I I bd4rtu
6 I I H_ACK O H_ACK O PLLOUT O H_ACK O I I bd4rtu
7 I I H_PE O H_PE O OSCENB O H_PE O OSCENB O I bd4rtu
8 DGND P DGND P DGND P DGND P DGND P DGND P DGND P DGND P
9 DVDD P DVDD P DVDD P DVDD P DVDD P DVDD P DVDD P DVDD P
10 CKSEL I CKSEL I H_ERR I H_ERR O CKSEL I H_ERR I/O CKSEL I I bd4rtu
11 I I HD0 I/O HD0 I/O IODAT0 O HD0 I/O EPPD0 I/O I bd4rt
12 I I HD1 I/O HD1 I/O IODAT1 O HD1 I/O EPPD1 I/O I bd4rt
13 I I HD2 I/O HD2 I/O IODAT2 O HD2 I/O EPPD2 I/O I bd4rt
14 I I HD3 I/O HD3 I/O IODI0 O HD3 I/O EPPD3 I/O I bd4rt
15 I I HD4 I/O HD4 I/O IODI1 O HD4 I/O EPPD4 I/O I bd4rt
16 I I HD5 I/O HD5 I/O IODI2 O HD5 I/O EPPD5 I/O I bd4rt
17 I I HD6 I/O HD6 I/O PWRDN O HD6 I/O EPPD6 I/O I bd4rt
18 I I HD7 I/O HD7 I/O WMSEL O HD7 I/O EPPD7 I/O I bd4rt
19 GPIO5 I/O GPIO5 I/O GPIO5 I/O GPIO5 I/O VPI O
20 GPIO6 I/O GPIO6 I/O GPIO6 I/O GPIO6 I/O VMI O
21 GPIO7 I/O GPIO7 I/O GPIO7 I/O GPIO7 I/O RXD O
22 DGND P DGND P DGND P DGND P DGND P DGND P DGND P DGND P
23 DVDD P DVDD P DVDD P DVDD P DVDD P DVDD P DVDD P DVDD P
24 DGND P DGND P DGND P DGND P DGND P DGND P DGND P DGND P
25 GPIO11 I/O GPIO11 I/O GPIO11 I/O GPIO11 I/O TSE0 O
26 GPIO12 I/O GPIO12 I/O GPIO12 I/O GPIO12 I/O RSE0 O
27 DVDD P DVDD P DVDD P DVDD P DVDD P DVDD P DVDD P DVDD P
28 IX1 I IX1 I IX1 I IX1 I IX1 I IX1 I IX1 I IX1 I Oscen2
29 IOX2 I/O IOX2 I/O IOX2 I/O IOX2 I/O IOX2 I/O IOX2 I/O IOX2 I/O IOX2 I/O Oscen2
30 DGND P DGND P DGND P DGND P DGND P DGND P DGND P DGND P
31 EXTRST_ I EXTRST_ I EXTRST_ I EXTRST_ I EXTRST_ I EXTRST_ I EXTRST_ I EXTRST_ I bd4rtu
32 HOME I HOME I HOME I HOME I HOME I HOME I INTI_ I I bd4rt
33 TSTMOD I TSTMOD I TSTMOD I TSTMOD I TSTMOD I TSTMOD I TSTMOD I TSTMOD I bd4rtd
34 MT_PH0 O MT_PH0 O MT_PH0 O MT_PH0 O MT_PH0 O MT_PH0 O O O bd4rt
35 MT_PH1 O MT_PH1 O MT_PH1 O MT_PH1 O MT_PH1 O MT_PH1 O O O bd4rt
36 MT_PH2 O MT_PH2 O MT_PH2 O MT_PH2 O MT_PH2 O MT_PH2 O O O bd4rt
37 MT_PH3 O MT_PH3 O MT_PH3 O MT_PH3 O MT_PH3 O MT_PH3 O O O bd4rt
38 MT_PH4 O MT_PH4 O MT_PH4 O MT_PH4 O MT_PH4 O MT_PH4 O O O bd4rt
39 MT_PH5 O MT_PH5 O MT_PH5 O MT_PH5 O MT_PH5 O MT_PH5 O O O bd4rt
40 DVDD P DVDD P DVDD P DVDD P DVDD P DVDD P DVDD P DVDD P
41 XPA_SW O XPA_SW O XPA_SW O XPA_SW O XPA_SW O XPA_SW O O O bd4rt
42 LAMP_SW O LAMP_SW O LAMP_SW O LAMP_SW O LAMP_SW O LAMP_SW O O O bd4rt
43 LED_B O LED_B O LED_B O LED_B O LED_B O LED_B O O EB05O O bd4rt
44 AVDD P AVDD P AVDD P AVDD P AVDD P AVDD P AVDD P AVDD P
45 VMO I/O VMO I/O VMO I/O VMO I/O VMO I/O VMO I/O VMO I/O VMO I/O
46 VPO I/O VPO I/O VPO I/O VPO I/O VPO I/O VPO I/O VPO I/O VPO I/O
47 VPP O VPP O VPP O VPP O VPP O VPP O VPP O VPP O
48 AGND P AGND P AGND P AGND P AGND P AGND P AGND P AGND P
49 CCD_CK1X O CCD_CK1X O CCD_CK1X O CCD_CK1X O CCD_CK1X O CCD_CK1X O O O bd4rt
50 CCD_CK2X O CCD_CK2X O CCD_CK2X O CCD_CK2X O CCD_CK2X O CCD_CK2X O O O bd4rt
51 CCD_CPX O CCD_CPX O CCD_CPX O CCD_CPX O CCD_CPX O CCD_CPX O O O bd4rt
52 CCD_RSX O CCD_RSX O CCD_RSX O CCD_RSX O CCD_RSX O CCD_RSX O O O bd4rt
Mode 2
SC+
USB1.1
I
TSTMOD=0
/
TSTSEL0=1
O
TSTSEL1=0
MPUSEL=0
Mode 3
SC+
AFE
(For
1394)
I
TSTMOD=0
/
TSTSEL0=0
O
TSTSEL1=1
MPUSEL=1
Mode 4
SC+
AFE
(For
USB2.0)
I
TSTMOD=0
/
TSTSEL0=0
O
TSTSEL1=1
MPUSEL=0
Mode 5
SC+
AFE+
USB1.1
(TEST PLL
& DEBUG)
I
TSTMOD=0
/
TSTSEL0=1
O
TSTSEL1=1
MPUSEL=0
Mode 6
TEST
SC
I
TSTMOD=1
/
TSTSEL0=0
O
TSTSEL1=0
DMAD0/GPIO5
DMAD1/GPIO6
DMAD2/GPIO7
DMAD6/GPIO11
DMAD7/GPIO12
Mode 7
TEST
USB1.1
I
TSTMOD=1
/
TSTSEL0=1
O
TSTSEL1=0
Mode 8
TEST
AFE
I
TSTMOD=1
/
TSTSEL0=0
O
TSTSEL1=1
ASIC
I/O
Cell
I
/
O
I/O GPIO5 I/O I/O bd4rt
I/O GPIO6 I/O I/O bd4rt
I/O GPIO7 I/O I/O bd4rt
I/O I/O I/O bd4rt
I/O I/O I/O bd4rt
Revision 1.3 Mar.22 2001
-6-
Page 8
GL646USB
53 CCD_TGX O CCD_TGX O CCD_TGX O CCD_TGX O CCD_TGX O CCD_TGX O O O bd4rt
CCD_TGG O CCD_TGG O CCD_TGG O CCD_TGG O CCD_TGG O CCD_TGG O
54
CCD_TGB O CCD_TGB O CCD_TGB O CCD_TGB O CCD_TGB O CCD_TGB O
55
RGBSEL0 O RGBSEL0 O RGBSEL0 O RGBSEL0 O RGBSEL0 O RGBSEL0 O
56
O
O
O
O bd4rt
O bd4rt
O bd4rt
57 DGND P DGND P DGND P DGND P DGND P DGND P DGND P DGND P
58 DVSS P DVSS P DVSS P DVSS P DVSS P DVSS P DVSS P DVSS P
59 DVDD P DVDD P DVDD P DVDD P DVDD P DVDD P DVDD P DVDD P
60 R_IN I R_IN I R_IN I R_IN I R_IN I R_IN I R_IN I R_IN I
61 G_IN I G_IN I G_IN I G_IN I G_IN I G_IN I G_IN I G_IN I
62 B_IN I B_IN I B_IN I B_IN I B_IN I B_IN I B_IN I B_IN I
63 VRLC O VRLC O VRLC O VRLC O VRLC O VRLC O VRLC O VRLC O
64 VMID O VMID OVMID O VMID OVMID OVMID OVMID O VMID O
65 VRT O VRT OVRT O VRT OVRT OVRT OVRT O VRT O
66 VRB O VRB O VRB O VRB O VRB O VRB O VRB O VRB O
67 VRU I VRU I VRU I VRU I VRU I VRU I VRU I VRU I
68 AVSS P AVSS P AVSS P AVSS P AVSS P AVSS P AVSS P AVSS P
69 AVDD P AVDD P AVDD P AVDD P AVDD P AVDD P AVDD P AVDD P
Pesd7042
Pesd7042
Pesd7042
Pesd7042
Pesd7042
Pesd7042
Pesd7042
Pesd7042
70 DBUS0 I/O DBUS0 I/O DBUS0 I/O DBUS0 I/O DBUS0 I/O DBUS0 I/O TSTPC0 I/O I/O bd4rt
71 DBUS1 I/O DBUS1 I/O DBUS1 I/O DBUS1 I/O DBUS1 I/O DBUS1 I/O TSTPC1 I/O I/O bd4rt
72 DBUS2 I/O DBUS2 I/O DBUS2 I/O DBUS2 I/O DBUS2 I/O DBUS2 I/O TSTPC2 I/O I/O bd4rt
73 DBUS3 I/O DBUS3 I/O DBUS3 I/O DBUS3 I/O DBUS3 I/O DBUS3 I/O TSTPC3 I/O I/O bd4rt
74 DBUS4 I/O DBUS4 I/O DBUS4 I/O DBUS4 I/O DBUS4 I/O DBUS4 I/O TSTPC4 I/O I/O bd4rt
75 DBUS5 I/O DBUS5 I/O DBUS5 I/O DBUS5 I/O DBUS5 I/O DBUS5 I/O TSTPC5 I/O I/O bd4rt
76 DBUS6 I/O DBUS6 I/O DBUS6 I/O DBUS6 I/O DBUS6 I/O DBUS6 I/O TSTPC6 I/O I/O bd4rt
77 DBUS7 I/O DBUS7 I/O DBUS7 I/O DBUS7 I/O DBUS7 I/O DBUS7 I/O TSTPC7 I/O I/O bd4rt
78 DGND P DGND P DGND P DGND P DGND P DGND P DGND P DGND P
79 DBUS8 I/O DBUS8 I/O DBUS8 I/O DBUS8 I/O DBUS8 I/O DBUS8 I/O I/O I/O bd4rt
80 DBUS9 I/O DBUS9 I/O DBUS9 I/O DBUS9 I/O DBUS9 I/O DBUS9 I/O I/O I/O bd4rt
81 DBUS10 I/O DBUS10 I/O DBUS10 I/O DBUS10 I/O DBUS10 I/O DBUS10 I/O I/O I/O bd4rt
82 DBUS11 I/O DBUS11 I/O DBUS11 I/O DBUS11 I/O DBUS11 I/O DBUS11 I/O I/O I/O bd4rt
83 DBUS12 I/O DBUS12 I/O DBUS12 I/O DBUS12 I/O DBUS12 I/O DBUS12 I/O I/O I/O bd4rt
84 DBUS13 I/O DBUS13 I/O DBUS13 I/O DBUS13 I/O DBUS13 I/O DBUS13 I/O I/O I/O bd4rt
85 DBUS14 I/O DBUS14 I/O DBUS14 I/O DBUS14 I/O DBUS14 I/O DBUS14 I/O I/O I/O bd4rt
86 DBUS15 I/O DBUS15 I/O DBUS15 I/O DBUS15 I/O DBUS15 I/O DBUS15 I/O I/O I/O bd4rt
87 DVDD P DVDD P DVDD P DVDD P DVDD P DVDD P DVDD P DVDD P
88 RASX O RASX O RASX O RASX O RASX O RASX O O OP0 O bd4rt
89 CASX O CASX O CASX O CASX O CASX O CASX O O OP1 O bd4rt
90 NOEX O NOEX O NOEX O NOEX O NOEX O NOEX O O OP2 O bd4rt
91 NWEX O NWEX O NWEX O NWEX O NWEX O NWEX O O OP3 O bd4rt
92 RASY O RASY O RASY O RASY O RASY O RASY O O OP4 O bd4rt
93 CASY O CASY O CASY O CASY O CASY O CASY O O OP5 O bd4rt
94 NOEY O NOEY O NOEY O NOEY O NOEY O NOEY O O OP6 O bd4rt
95 NWEY O NWEY O NWEY O NWEY O NWEY O NWEY O O OP7 O bd4rt
96 ABUS0 O ABUS0 O ABUS0 O ABUS0 O ABUS0 O ABUS0 O O OP8 O bd4rt
97 ABUS1 O ABUS1 O ABUS1 O ABUS1 O ABUS1 O ABUS1 O O OP9 O bd4rt
98 ABUS2 O ABUS2 O ABUS2 O ABUS2 O ABUS2 O ABUS2 O O OP10 O bd4rt
99 ABUS3 O ABUS3 O ABUS3 O ABUS3 O ABUS3 O ABUS3 O O OP11 O bd4rt
100 ABUS4 O ABUS4 O ABUS4 O ABUS4 O ABUS4 O ABUS4 O O OP12 O bd4rt
101 ABUS5 O ABUS5 O ABUS5 O ABUS5 O ABUS5 O ABUS5 O O OP13 O bd4rt
102 ABUS6 O ABUS6 O ABUS6 O ABUS6 O ABUS6 O ABUS6 O O O bd4rt
103 ABUS7 O ABUS7 O ABUS7 O ABUS7 O ABUS7 O ABUS7 O O O bd4rt
104 ABUS8 O ABUS8 O ABUS8 O ABUS8 O ABUS8 O ABUS8 O O O bd4rt
105 I OP0 I DMAD0 I/O I OP0 O OP0 I TSTPB0 I OEB I bd4rt
106 I OP1 I DMAD1 I/O I OP1 O OP1 I TSTPB1 I CDSCLK2 I bd4rt
107 I OP2 I DMAD2 I/O I OP2 O OP2 I TSTPB2 I ADCCLK I bd4rt
108 I OP3 I DMAD3 I/O I OP3 O OP3 I TSTPB3 I SMPTIMG I bd4rt
109 I OP4 I DMAD4 I/O I OP4 O OP4 I TSTPB4 I RLC I bd4rt
110 I OP5 I DMAD5 I/O I OP5 O OP5 I TSTPB5 I OOP0 Z bd4rt
111 I OP6 I DMAD6 I/O I OP6 O OP6 I TSTPA0 I OOP1 Z bd4rt
112 I OP7 I DMAD7 I/O I OP7 O OP7 I TSTPA3 I I bd4rt
113 VSMP O VSMP O VSMP O VSMP O VSMP O VSMP O TSTPA4 I VSMP I bd4rtu
114 BSMP O BSMP O BSMP O BSMP O BSMP O BSMP O TSTPA5 I CDSCLK1 I bd4rtu
115 I SCLK O I I SCLK O SCLK O I SCK I bd4rtu
116 I SENLOAD O MPUCLK O I SENLOAD O SENLOAD O I SEN I bd4rtu
117 MCLK O MCLK O MCLK O MCLK O MCLK O MCLK O I MCLK I bd4rtu
118 I SDI O MPUCKOE I I SDI O SDI O SDI I bd4rtd
Revision 1.3 Mar.22 2001
-7-
Page 9
119 I SDO I CKSEL I I I SDO I TSTPA7 I I bd4rtd
120 DVDD P DVDD P DVDD P DVDD P DVDD P DVDD P DVDD P DVDD P
121 MTR_SEL I MTR_SEL I MTR_SEL I MTR_SEL I MTRS_EL I MTR_SEL I MTR_SEL I MTR_SEL I bd4rtd
122 MPU_SEL I MPU_SEL I MPU_SEL I MPU_SEL I MPUS_EL I MPUS_EL I MPUS_EL I MPUS_EL I bd4rtd
123 GPIO1 I/O GPIO1 I/O GPIO1 I/O GPIO1 I/O GPIO1 I/O GPIO1 I/O GPIO1 I/O GPIO1 I/O bd4rt
124 GPIO2 I/O GPIO2 I/O GPIO2 I/O GPIO2 I/O GPIO2 I/O GPIO2 I/O GPIO2 I/O GPIO2 I/O bd4rt
125 GPIO3 I/O GPIO3 I/O GPIO3 I/O GPIO3 I/O GPIO3 I/O
126 GPIO4 I/O GPIO4 I/O GPIO4 I/O GPIO4 I/O GPIO4 I/O
127 TSTSEL0 I TSTSEL0 I TSTSEL0 I TSTSEL0 I TSTSEL0 I TSTSEL0 I TSTSEL0 I TSTSEL0 I bd4rtd
128 TSTSEL1 I TSTSEL1 I TSTSEL1 I TSTSEL1 I TSTSEL1 I TSTSEL1 I TSTSEL1 I TSTSEL1 I bd4rtd
WMSEL/GPIO3
RLCSEL/GPIO4
I/O GPIO3 I/O GPIO3 I/O bd4rt
I/O GPIO4 I/O GPIO4 I/O bd4rt
GL646USB
NOTE:
In TCD2950D CCD:
Pin No : Pin Name NORMAL FAST
49 CCD_CK1X Clock 1 Clock
3
50 CCD_CK2X Clock 2 Clock
2
56 RGB_SEL0 Clock 2 Clock
1
In Mode 6 (SC TEST) :
Pin No : MPU_SEL = 0 MPU_SEL = 1
19 GPIO5 DMAD0
20 GPIO6 DMAD1
21 GPIO7 DMAD2
22 GPIO8 DMAD3
23 GPIO9 DMAD4
24 GPIO10 DMAD5
25 GPIO11 DMAD6
26 GPIO12 DMAD7
125 GPIO3 (WMSEL)
126 GPIO4 (RLCSEL)
In Mod 1,2,5,9
If Input clock = 12MHZ
If CKSEL = 0 => Scanner controller run 24MHZ
If CKSEL = 1 => Scanner controller run 32MHZ
In Mode 3:
If MPUCKOE = 1, MPUCLK = (Input clock frequency)/2
If CKSEL = 1 => Scanner controller run (Input clock frequency) /2
If CKSEL = 0 => Scanner controller run (Input clock frequency)
If MPUCKOE = 0, MPUCLK = 0
In Mode 4:
Scanner controller run (Input clock frequency)
5.2 Pin Descriptions :
MPU or DMA/EPP Interface
HSLCTIN(MPU_ALE ) I EPP nAStrb or MPU ALE
HI_INIT(MPU_CS) I EPP nINIT or MPU Chip select
HAFXTIN(MPU_RD) I EPP nDStrb or MPU Read
HSTBIN(MPU_WR) I EPP nWrite or MPU Write
Revision 1.3 Mar.22 2001
-8-
Page 10
H_BUSY(DMA_ACK) O EPP nWait or DMA Acknowledge
H_A CK(IO_RD) O EPP In tr or DMA IO Read
H_PE(IO_WR) O EPP AckDataReq or DMA IO Write
H_ERR(DMA_DRQ) B EPP nDataAvail or DMA Data Request
HD0~HD7 B EPP Data Bus or MPU Data Bus
DMAD0~7 B DMA Data Bus
Support IO Ports
GPIO1~12 B General Purpose Input Output
Bi-polar : MT_PH5=PHASE1
MT_PH4=PHASE2
MT_PH3=I11
MT_PH2=I01
MT_PH0~5 O
Uni-polar : MT_PH3=PHASE A
HOME I Sense carriage home position
VMO B D+
VPO B DVCP P 3.3V
CCD_CK1X O CCD Shi ft register clock1 or CIS clock output
CCD_CK2X O CCD Shi ft register clock2 or CIS clock output
CCD_CPX O CC D Clamp gate clock or CIS clock output
CCD_RSX O CC D Reset gate clock or CIS clock output
CCD_TGX O CCD Transfer gate clock for R channel or CIS Line start pulse
CCD_TGG O CCD Transfer gate clock for G channel
CCD_TGB O CCD Transfer gate clock for B channel
RGBSEL0 O RGB channel selection pin or CCD Shift register clock3
XPA_SW O Transparency lamp power control or CIS Green LED array control
LAMP_SW O Flatbed lamp power control or CIS Red LED array control
LED_B O CIS Blue LED array control
R_IN AI Red channel input signal
G_IN AI Green channel input signal
B_IN AI Blue channel input signal
VRLC AO Selectable analog output voltage for RLC
VMID AO ADC reference voltage. Derived from VRU. Normally is 2.5 V
VRT AO ADC reference voltage. Derived from VRU. Normally is 3.3V
VRB AO ADC reference voltage. Derived from VRU. Normally is 1.7V
VRU AI ADC reference voltage. Normally connected to 5V analog supply
OP0~OP7 O ADC digital data output
VSMP(CDSCLK2) O Wolfson type : Video sample synchronization pulse.
MT_PH1=I12
MT_PH0=I02
MT_PH2=PHASE B
MT_PH1=PHASE /A
MT_PH0=PHASE /B
USB Interface
CCD/CIS Control Signals
FRONT-END
GL646USB
Revision 1.3 Mar.22 2001
-9-
Page 11
This signal is applied synchronously with MCLK to specify the point of time that
the input is sampled.
Analog Device type : CDS image sampling clock
BSMP(CDSCLK1) O Analog Device type : Black level sampling clock
SCLK O Serial interfa ce clock output for Front-end
SENLOAD O Serial interface data latch-in signal for Front-end
Wolfson type : Master clock.
MCLK(ADCCLK) O
SDI O Serial interface data output signal for Front-end
SDO I Serial interface data input signal for Front-end
DBUS0~15 B DRAM data bus
ABUS0~8 O DRAM address bus
RASX O DRAM RAS signal of first memory chip
CASX O DRAM CAS signal of first memory chip
NOEX O DRAM OE(output enable) signal of first memory chip
NWEX O DRAM WE signal of first memory chip
RASY O DRAM RAS signal of second memory chip
CASY O DRAM CAS signal of second memory chip
NOEY O DRAM OE(output enable) signal of second memory chip
NWEY O DRAM WE signal of second memory chip

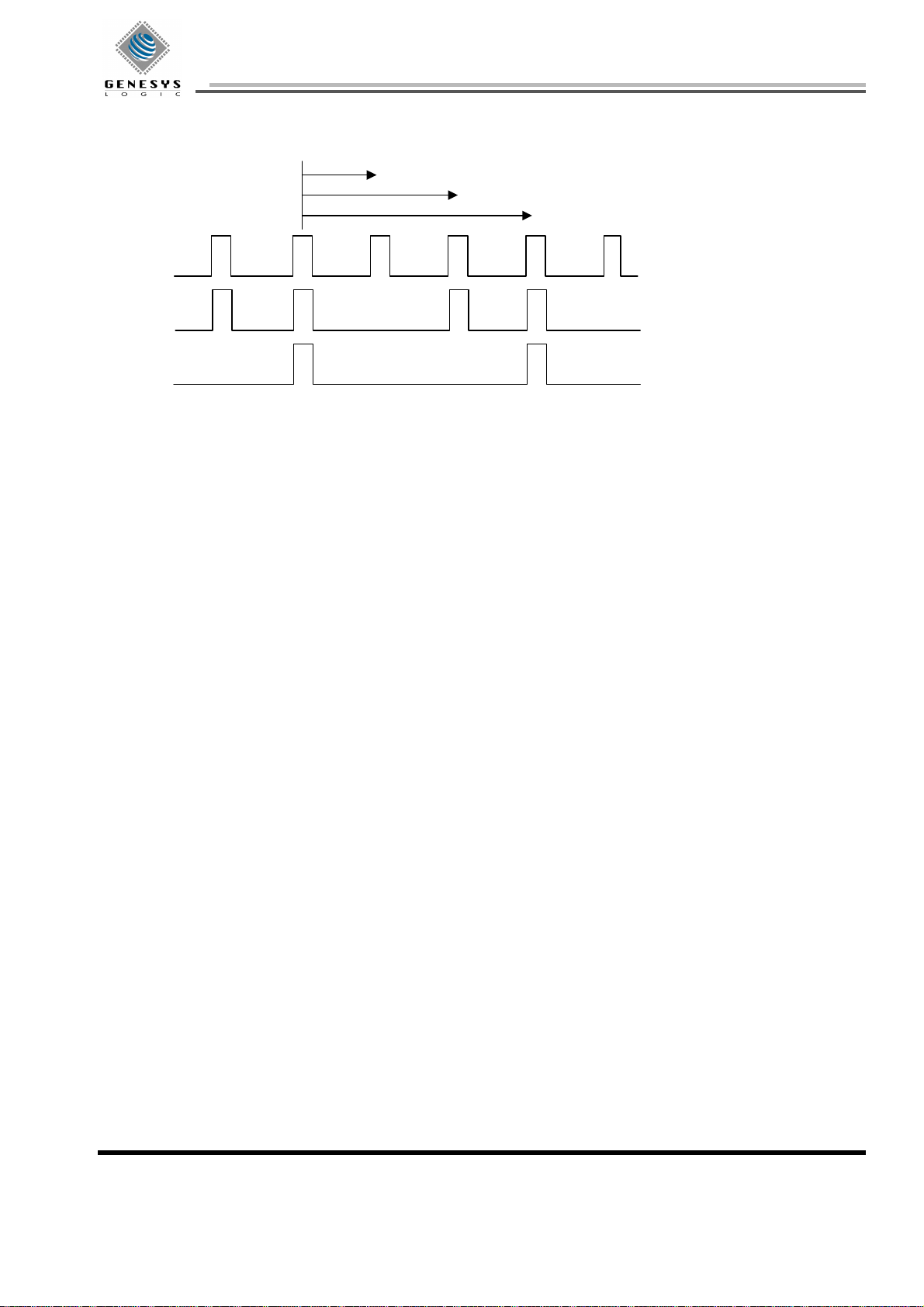

This clock is appli ed at either si x or three times th e input pixel rate d epending on
the operat ional mode.
Analog Device type: ADC Converter sampling clock
DRAM
Miscellaneous
GL646USB
TSTMOD
TSTSEL0
TSTSEL1
MPU_SEL
MTR_SEL I MTR_SEL=1 select Bi_polar MTR_SEL=0 select Uni_polar
IX1 I Clock input for crystal
IOX2 O Clock output for crystal
CKSEL
MPUCLOE
MPUCLK O Clock output
EXTRST_ I Hardware reset input
AVDD P Analog power input
AVSS P Analog ground input
AGND P Analog ground input for USB1.1
DVDD P Digital power input
DGND P Digital ground input
I
I Scanner controller clock selection
Test mode selection pins :
{TSTMOD,TSTSEL0,TSTSEL1,MPU_SEL}=
0000 : mode1 0100 : mode2 0011 : mode3 0010 : mode4 0110 : mode5
100x : mode6 110x : mode7 101x : mode8 1110 : mode9
POWER
Revision 1.3 Mar.22 2001
-10-
Page 12
5.3 Electrical Characteristics:
GL646USB
5.3.1 Absolute Maximum Ratings (Voltages referenced to GND)
SYMBOL Description MIN MAX
DVDD DC supply voltage -0.5V +7V
VI DC input voltage -0.5V VCC+0.5V
V
DC input voltage range for I/O -0.5V VCC+0.5V
I/O
V
DC input voltage for USB D+/D- pins -0.5V VCC+0.5V
AI/O
V
DC voltage applied to outputs in High Z state -0.5V VCC+0.5V
I/OZ
V
static discharge voltage 4000V
ESD
T
Storage temperature range
STQ
I
DC output current, per pin -25mA +25mA
OUT
T
Operating ambient temperature
amb
-60°C +150°C
0°C 70°C
5.3.2 DC Characteristics (Digital Pins)
SYMBOL Description MIN TYP MAX UNIT
DVDD
(or AVDD)
IO DC output sink current 4 mA
VIL LOW level input voltage 0.8 V
VIH HIGH level input voltage 2.4 V
VOL LOW level output voltage when IOL=4mA 0.4 V
VOH HIGH level output voltage when IOH=4mA 2.4 V
I
OLK
IOZ Tri-state output leakage current -50 50
RDN Pad internal pulldown resister 120K 200K 290K Ohms
RUP Pad internal pullup resister 150K 250K 360K Ohms
Power Supply Voltage 4.5 5.0 5.5 V
Leakage current for pads with internal pull up or pull
-50 50
down resistor
µA
µA
5.3.3 DC Characteristics (VCP/D+/D-)
SYMBOL Description MIN TYP MAX UNIT
V
VCP regulator output 3.0 3.3 3.6 V
3.3
I
VCP maximum supply current 27 41 56 mA
3.3
VOL D+/D- static output LOW(RL of 1.5K to 3.6V ) 0.3 V
VOH D+/D- static output HIGH (RL of 15K to GND ) 2.8 3.6 V
VDI Differential input sensitivity 0.2 V
VCM Differential common mode range 0.8 2.5 V
VSE Singl e-ended receiver threshold 0.2 V
CIN Transceiver capacitance 20 pF
ILO Hi-Z state data line leakage -10 +10
Z
Driver output resistance 28 43 Ohms
DRV
µA
Note: bd4rt without pull up or pull down resister.
bd4rtu with 250k pull up resister.
Revision 1.3 Mar.22 2001
-11-
Page 13
6. Application Description
6.1. System Clock
Internal PLL or external clock input.
A. PLL: 12MHz input , 24 or 32 MHz output to internal system and 48MHz output to internal USB controller.
B. USB2.0 supply: External USB2.0 controller support 24,30,48 MHz to three in one ASIC.
C. Crystal supply: depend on crystal input (receptible frequency of ASIC: 12 to 48 MHz)
6.2. Pixel Clock
A. Normal Mode(three line in):
a. 24 system clock/pixel
b. Chunky color scan(three line in) or fine gray scan for CCD.
B. Fast Mode(one line in) : a. 9,12 or 15 system clock/pixel three type.
b. Planar color scan (one line in) or Monochrome scan.
c. Fast gray or black & white scan for CCD.
d. Planar color(one line in) for CCD line by turns or line by line.
e. Planar color(one line in),gray, true gray or black & white scan for CIS.
GL646USB
Note : Chunky Color is R1G1B1,R2G2B2,R3G3B3,………
Planar Color is R1,R2,R3,…..;G1,G2,G3,…….;B1,B2,B3,……..
CCD : Chunky color or planar color.
CIS : Planar color
6.3. Scan Speed
A. System clock = 24 MHz :
a. Normal Mod e: Chunky color or fine gray scan.
24x41.666ns/pixel = 1.0us/pixel
(1). 600dpi : 5.4ms/line
(2). 1200dpi : 10.4ms/line
b. Fast Mode: Planar color, fast gray or black&white scan.
9x41.666ns/pixel = 0.375us/pixel
12x41.666ns/pixel = 0.5us/pixel
15x41.666ns/pixel = 0.625us/pixel
(1). 600dpi : 2.025~3.375ms/line
(2). 1200dpi : 4.05~6.75ms/line
B. System clock = 32MHz :
a. Normal Mode :
24x31.25ns/pixel = 0.75us/pixel
(1). 600dpi : 4.05ms/line
(2). 1200dpi : 8.1ms/line
b. Fast Mode :
9x31.25ns/pixel = 0.281us/pixel
12x31.25ns/pixel = 0.375us/pixel
Revision 1.3 Mar.22 2001
-12-
Page 14
15x31.25ns/pixel = 0.469us/pixel
(1). 600dpi : 1.517~2.533ms/line
(2). 1200dpi : 3.034~5.066ms/line
6.4. Fast scan for low DPI
Multiple CCD clocking rates allows speed up scan speed. You can speed up 2 times, 3 times or 4 times scanning
time for low resolution.
For example,600dpi scanner: if 75dpi speed up 4 times then 5.4ms/4=1.35ms/line. Scan speed is equal to 1.18s/page.
Chunky scan: You can speed up 2 times,3 times or 4 times scanning time.
Planar scan: 9 system clock/pixel: You can not speed up scanning time
12 system clock/pixel : You can speed up 2 times scanning time
15 system clock/pixel : You can speed up 2 times scanning time

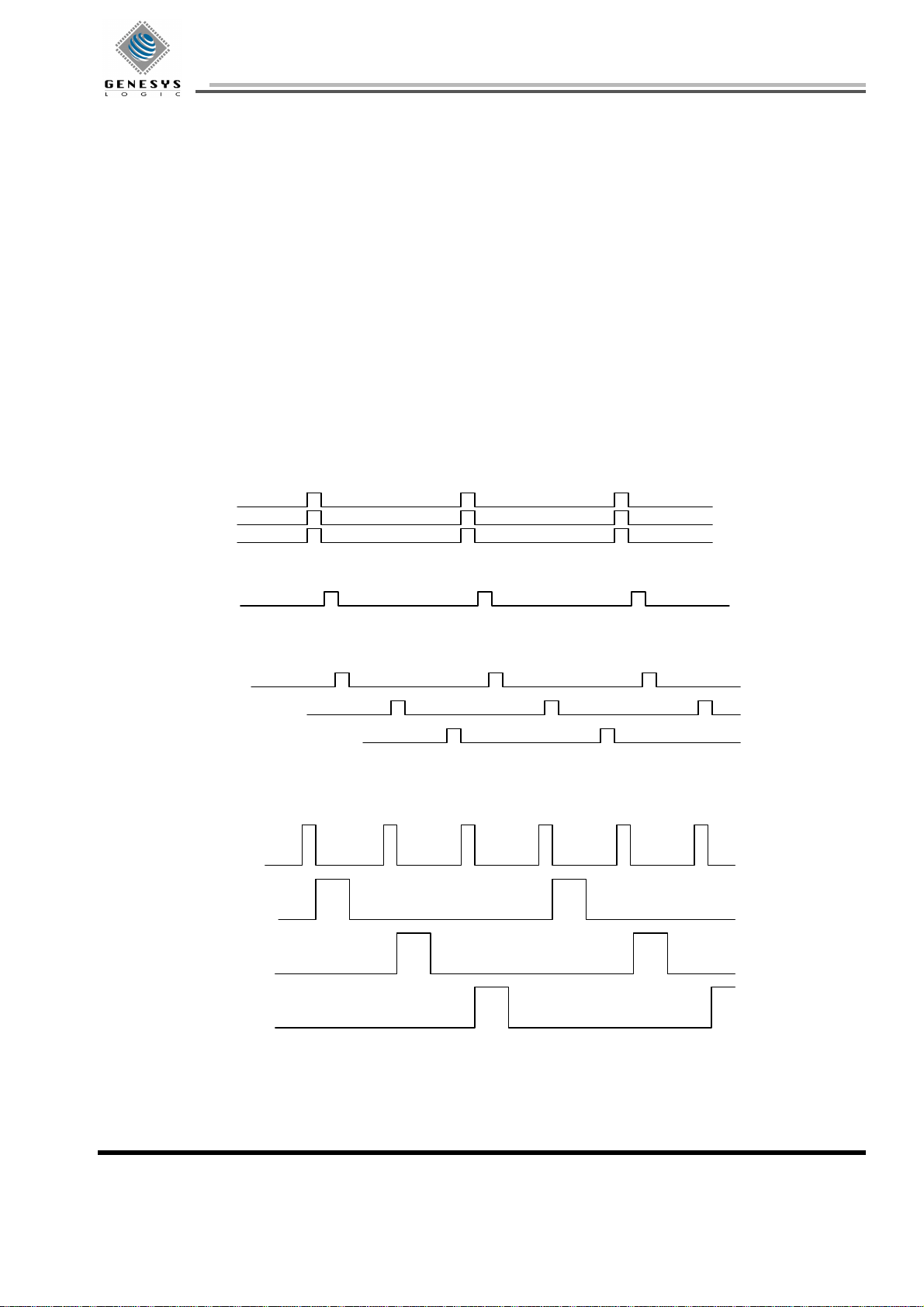

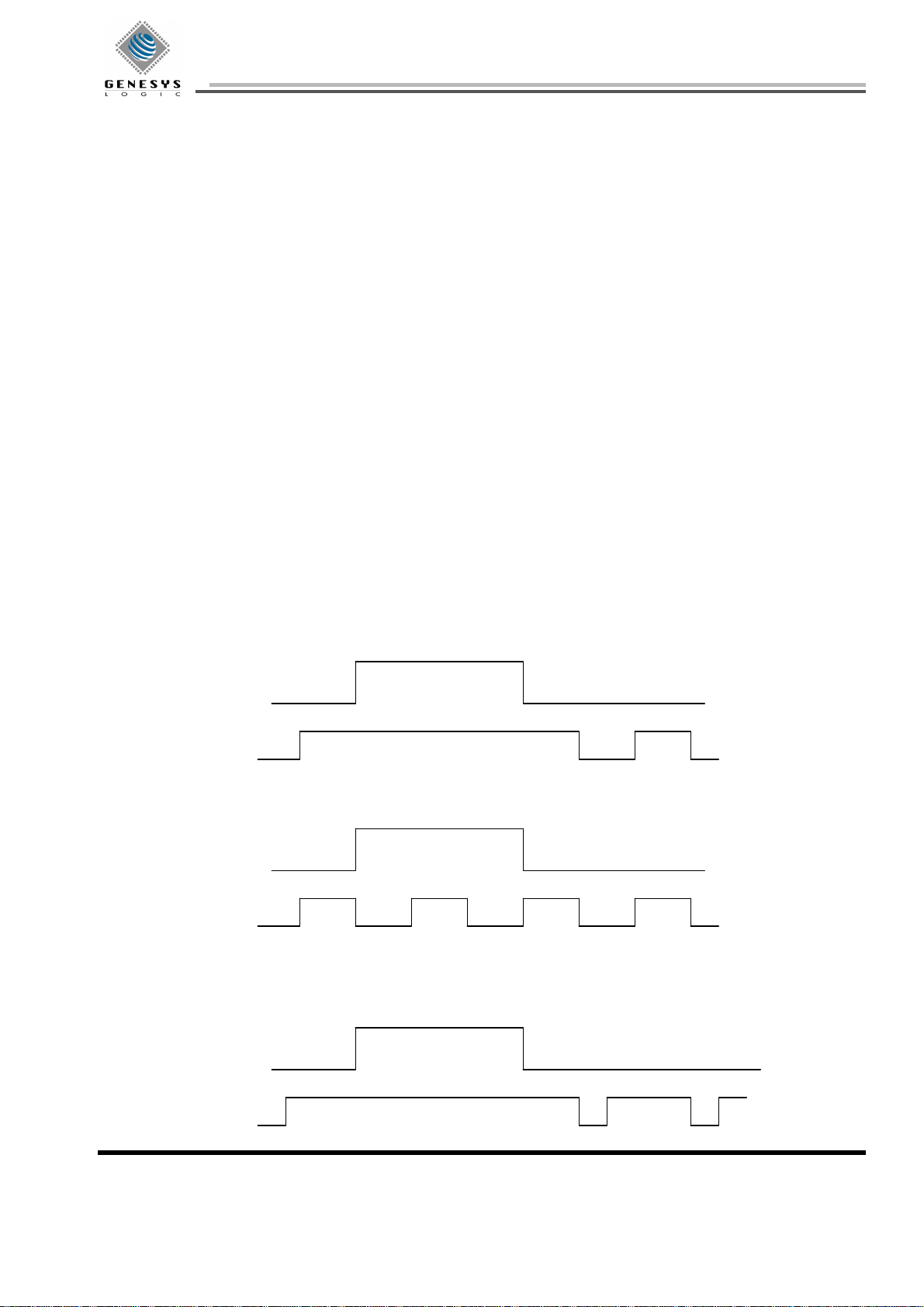

6.5. Scanning Type
Support three line in(parallel ) for CCD, one line in for CCD or CIS, RGB line by turns in for CCD three types.
A. CCD
a. Three line in :
R
G
B
b. Line by line :
RGB
c. Line by turns :
R
G
B

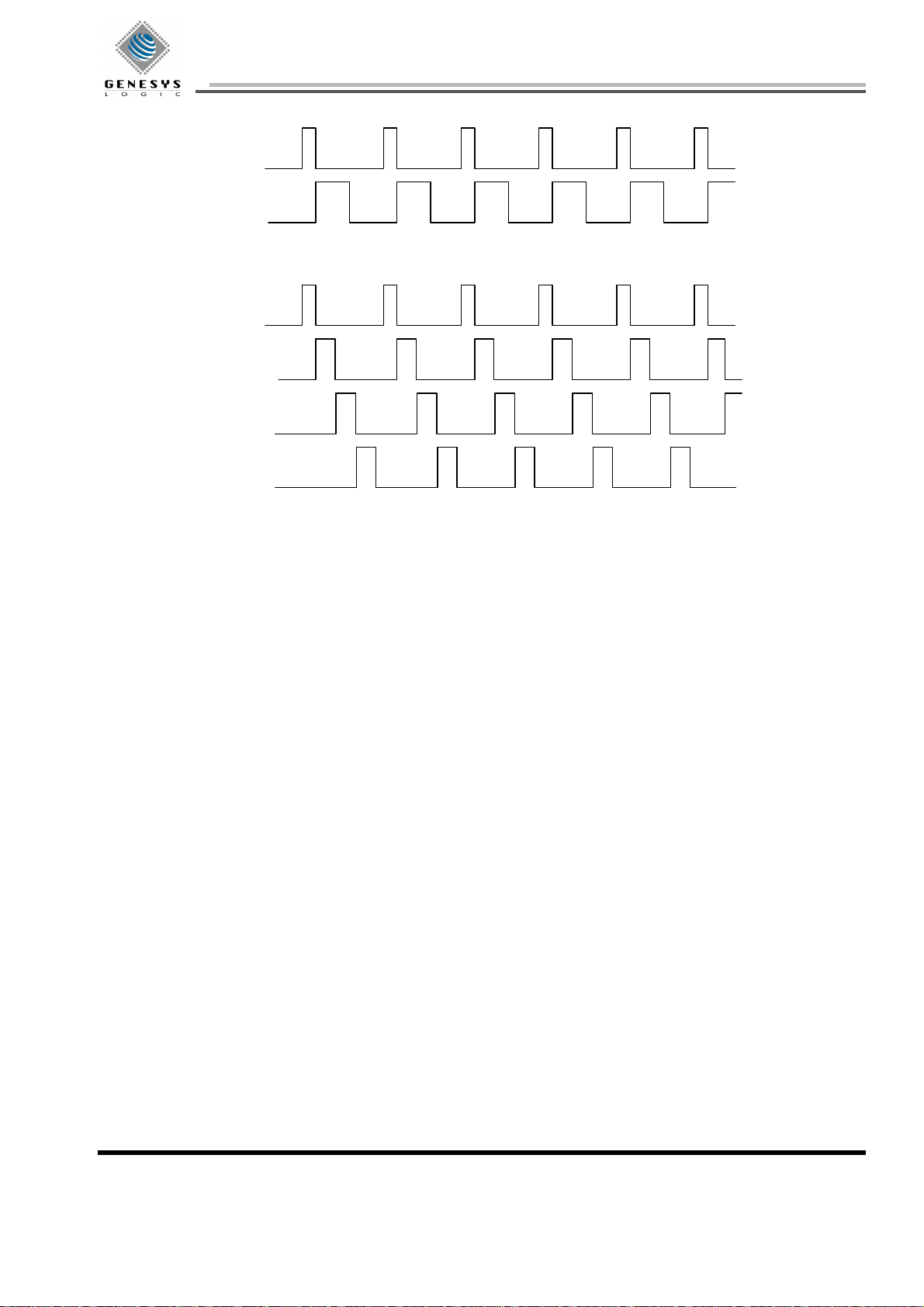

B. CIS
a. color scan :
GL646USB
TG
LED R
LED G
LED B
b. gray scan:
Revision 1.3 Mar.22 2001
-13-
Page 15
TG
GL646USB
LED R/G/B
c. true gray scan:
TG
LED R
LED G
LED B
6.6. Image Sensor Timing
Can be programmed.
A. CCD : support 600,1200 or 2400 dpi CCD.
For example NEC, TOSHIBA, Sony ……etc.
B. CIS : support 600,1200 or 2400 dpi CIS.
For example Canon , Toshiba , Mitsubishi ……etc.
6.7. Dummy Line
Support programmable dummy lines to resolve (overcome) Start/Stop problem.
You can insert dummy lines to reduce scanner stop and wait events (buffer full) or always no-stop.
A. Line base of dummy lines:
The range of dummy lines is 0 line ~ 15 lines.
B. Adjustable dummy line:
The range is CCD or CIS minimum shift out time to 512k pixels time, can be adjusted by 1 pixel time increment.
6.8. Analog Front End Timing :
Internal 16 bits Front-End : Operation is similar to Wolfson or Analog Device.
6.9. Image Type
Support color, fine gray, fast gray and fast Black & White scan.
Support color filters selection for gray and B/W scan. The filters include Red, Green and Blue.
Note: The scan style of fine gray and color is same. So, fine gray scanning speed is slow.
The exposure time of fast gray scan is shorter than fine gray scan. So, fast gray Scanning speed is high.
6.10. Bits Depth
16 x3 Bits true color , 16 bits gray level and one bit Black & White.
Image data type : 16 bits , 8 bits and 1 bit data type.
6.11. Shading & Correction
a. White Shading & Dark Shading:
Revision 1.3 Mar.22 2001
-14-
Page 16
Internal white shading by pixel (16 bits resolution) and dark shading by pixel (16 bits resolution) can be enabled or
disabled By S/W. The white shading curve is calculated by S/W.
Data arrangement: Normal mode: dark R1,white R1,dark G1,white G1,dark B1,white B1,
dark R2,white R2,dark G2,white G2,dark B2,white B2,
dark R3,white R3,dark G3,white G3,dark B3,white B3,……
Fast mode: dark R1,white data R1,dark R2,white R2,dark R3, white R3…
dark G1,white data G1,dark G2,white G2,dark G3,white G3…
dark B1,white data B1,dark B2,white B2,dark B3,white B3…
White shading formula : 2000H x Target / (Wn-Dn) = White Gain data ----- for 8 times system
White shading formula : 4000H x Target / (Wn-Dn) = White Gain data ----- for 4 times system
For example : Target = 3FFFH Wn = 2FFFH Dn = 0040H and 8 times system operation
then White Gain = 2000H x 3FFFH / (2FFFH-0040H) = 2AE4H (1.34033 times)
b. Correction :
GAMMA correction table by S/W calculation. The resolution is 12 or 14 bits gamma table.
Range: 0 to 64k (16 bits) input mapping to 0 to 4k (12 bits) output ;
GL646USB
0 to 64k (16 bits) input mapping to 0 to 16k (14 bits)output;
0 to 64k (16 bits) input mapping to 0 to 255 (8 bits) output ;
0 to 64k (16 bits) input mapping to 0 to 255 (8 bits) output;

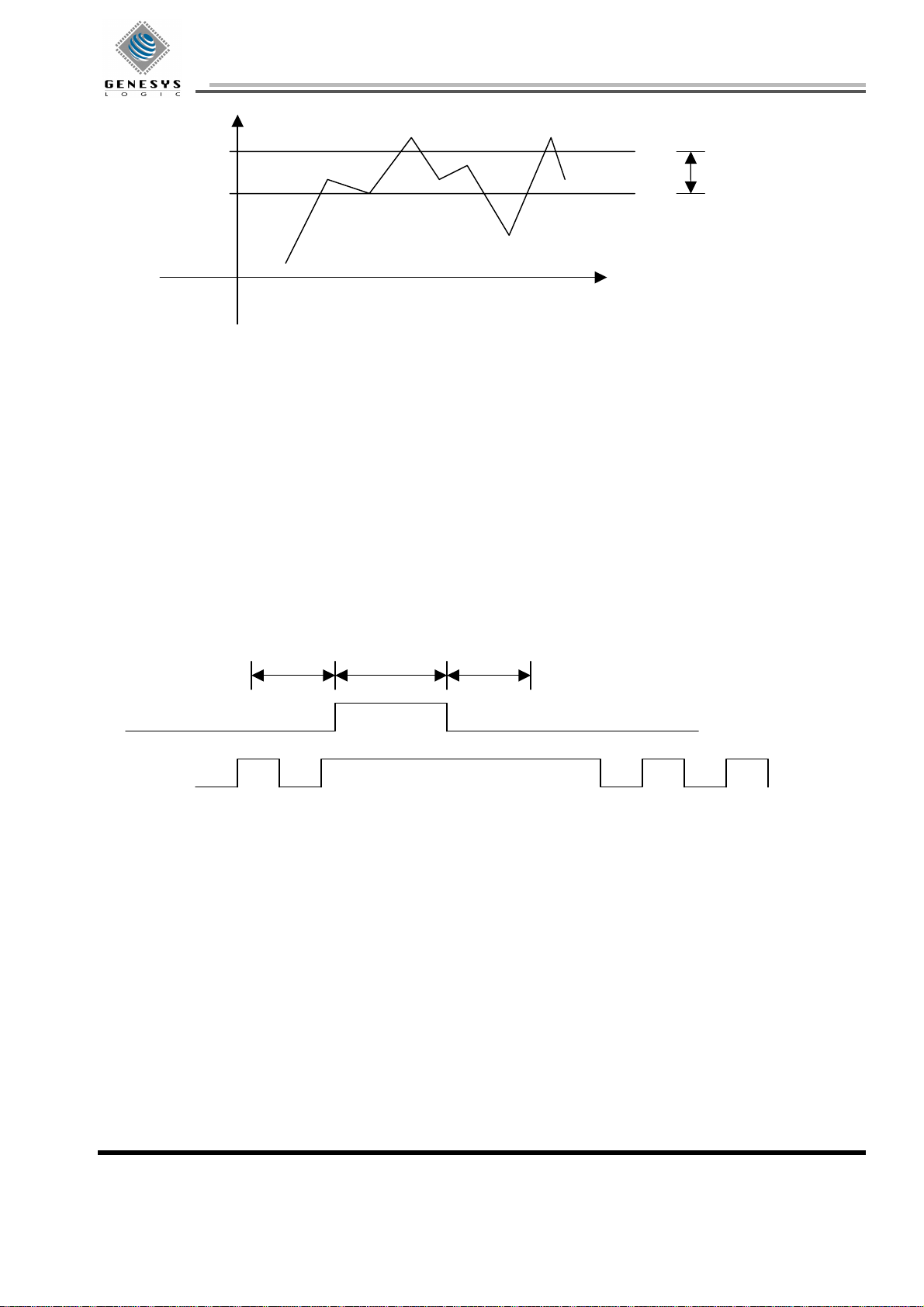

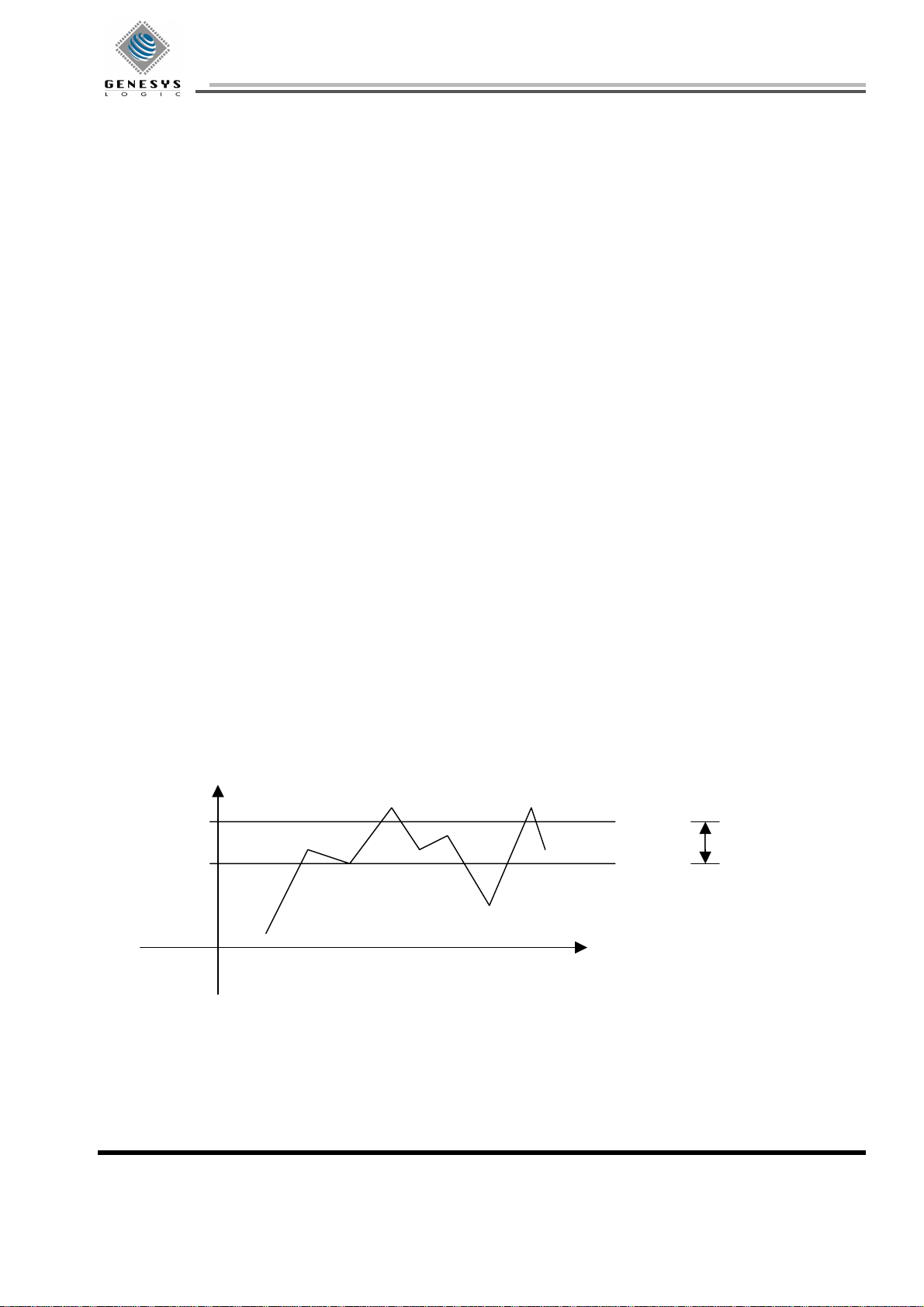

6.12. Threshold Level Setting
Can be programmed by S/W.
Range: 0 to 255 can be adjusted by one increment.
The threshold with bandwidth in order to reduce image noise.
BWHI
b
BWLOW
a
a,b,c,g : are black pixels
d,e,f,h,i : are white pixels
d
f
e
c
h
bandwidth
i
g
6.13. Exposure Time Adjustable
Maximum: 512k pixels time (about 524 ms/line)
Adjustment step: 1 pixel time.
For Transparency scan, the exposure time can up to 524 ms.

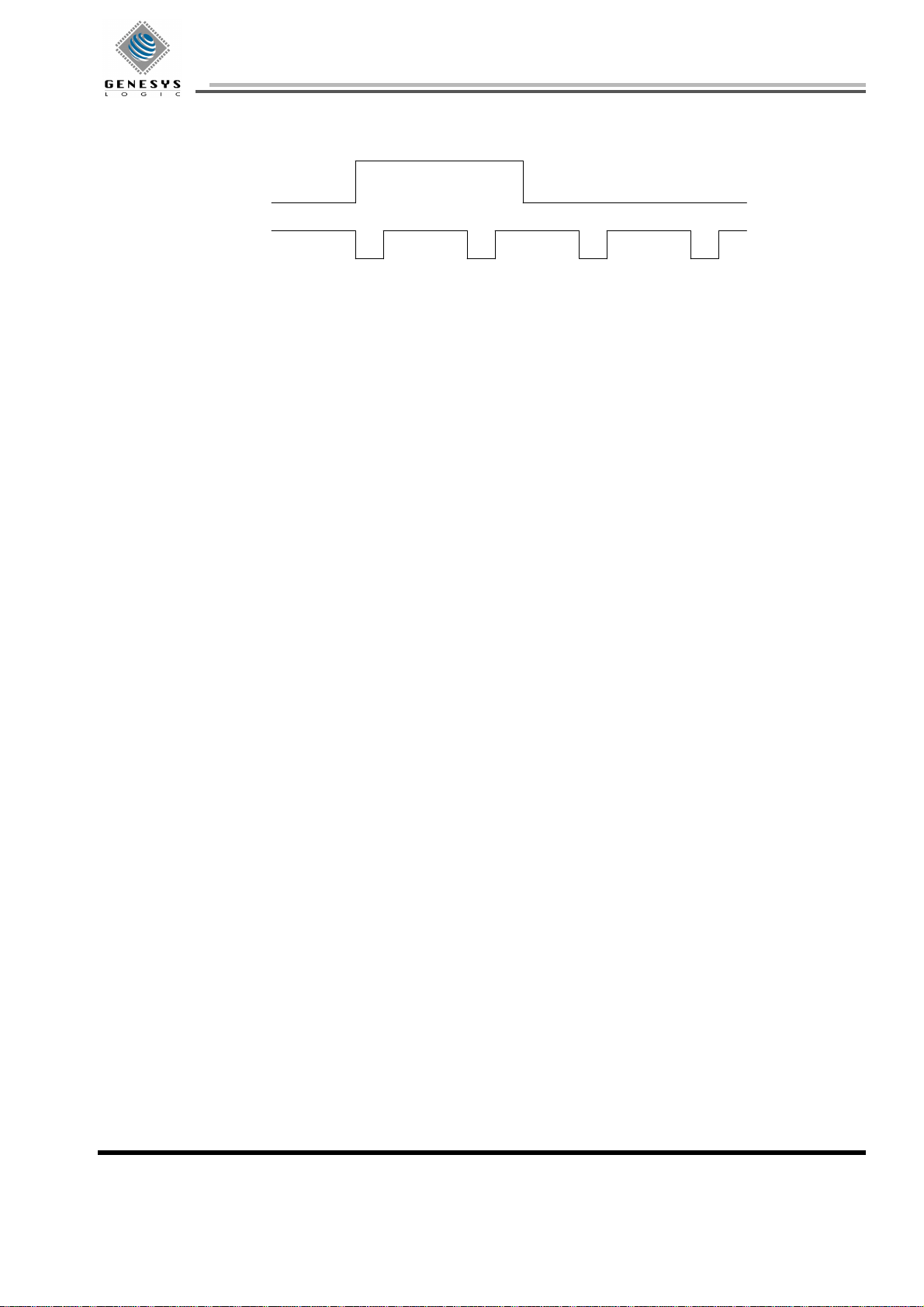

6.14. To Control RGB Exposure Time Separately
Revision 1.3 Mar.22 2001
-15-
Page 17
Scanning type: line by turns
R
G
GL646USB
B
You can control R, G or B exposure time separately.
For example, above case B exposure time is three times of R; G exposure time is two times of R.
6.15. Scan Width control
Scan width control for horizontal line
a. Support start pixel address, end pixel address and dummy pixel number setting
b. Maximum length: 64k pixe ls.
Minimum length: 1 pixel
6.16. Support built-in USB(1.1) , external USB(2.0) and external IEEE1394 Interface
Support 4-type operation.
Three in one: USB1.1 + AFE + scanner controller
Two in one: A. AFE + scanner controller + (external) US B2.0
B. AFE + scanner controller + (external) IEEE 1394
C. USB1.1 + scanner controller + (external) AFE
Note: Instead of our build-in AFE, you can use other external AFE.
6.17. DRAM Timing
Support 4Mx1 or x2 Bits EDO DRAM (16 x 256K) image buffer and calibration buffer timing.
You can select single or double DRAM for scanner. DRAM speed is 35ns and above for 24MHz system clock,28ns
and above for 32MHz system clock.
6.18. Horizontal Resolution Adjustable for DPI Function
A. Digital deletion type :
The resolution from 1 DPI to 1200 DPI , can be adjusted by 1 DPI increment by S/W.
B. Digital average type :
Support 1/2,1/3,1/4,1/5,1/6,1/8,1/10,1/12,1/15 digital average function.
For example, 1200dpi scanner: 600dpi, 400dpi, 300dpi, 240dpi, 200dpi,150dpi, 120dpi, 100dpi, 80dpi
average function.
C. CCD DPI process :
Support 1/2,1/3 and 1/4 resolution.
For example, 1200dpi scanner: output 600dpi, 400dpi and 300dpi process.
6.19. Vertical Resolution Adjustable for DPI Function
Revision 1.3 Mar.22 2001
-16-
Page 18
The resolution of motor speed control is 16 bits, so, we can control vertical resolution
By one dpi increment, the resolution can be from 1 DPI to 4800DPI for 1200DPI scanner
And 1 DPI to 9600 DPI for 2400dpi scanner.
Note: The resolution of quarter step can up to four times resolution.

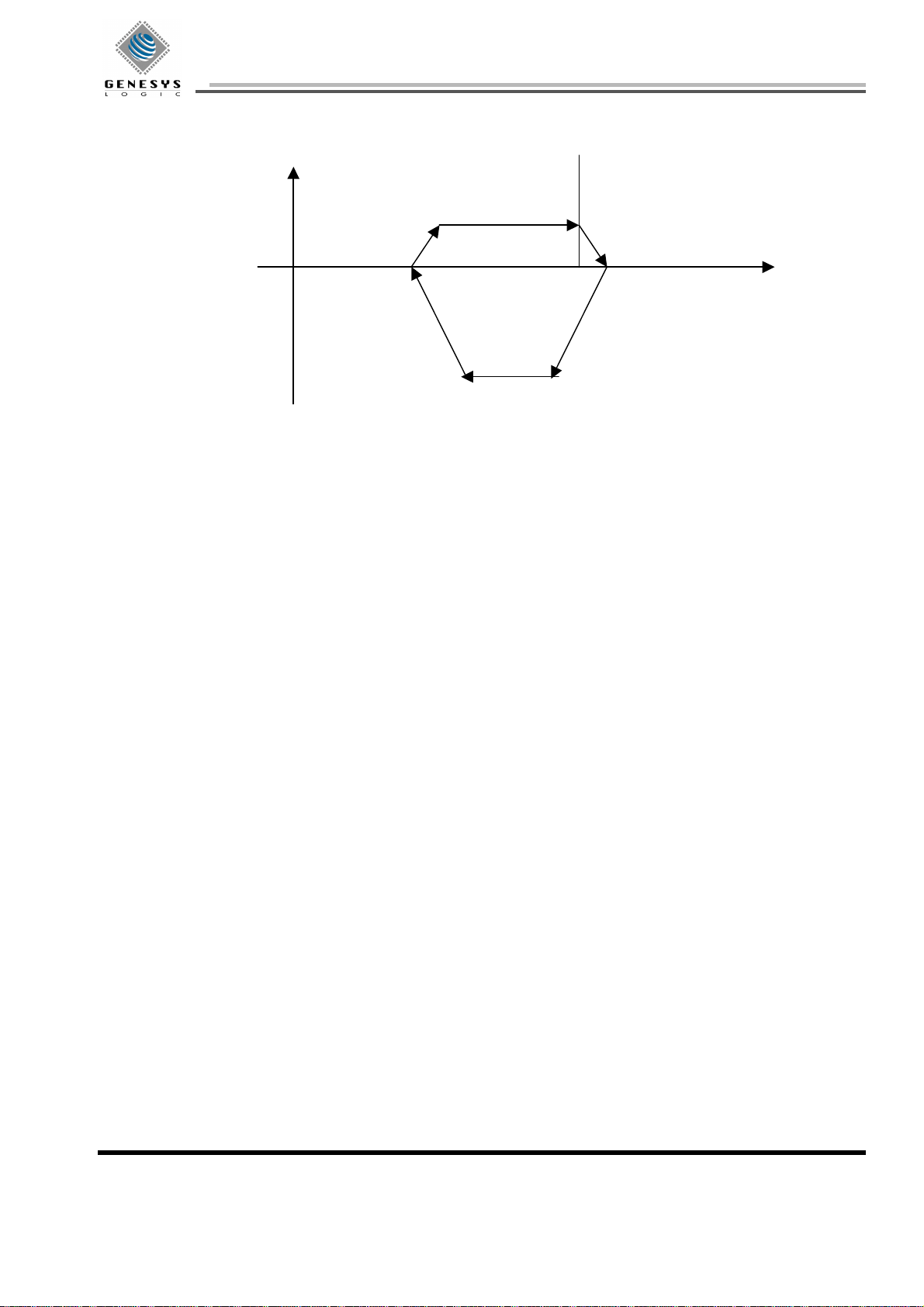

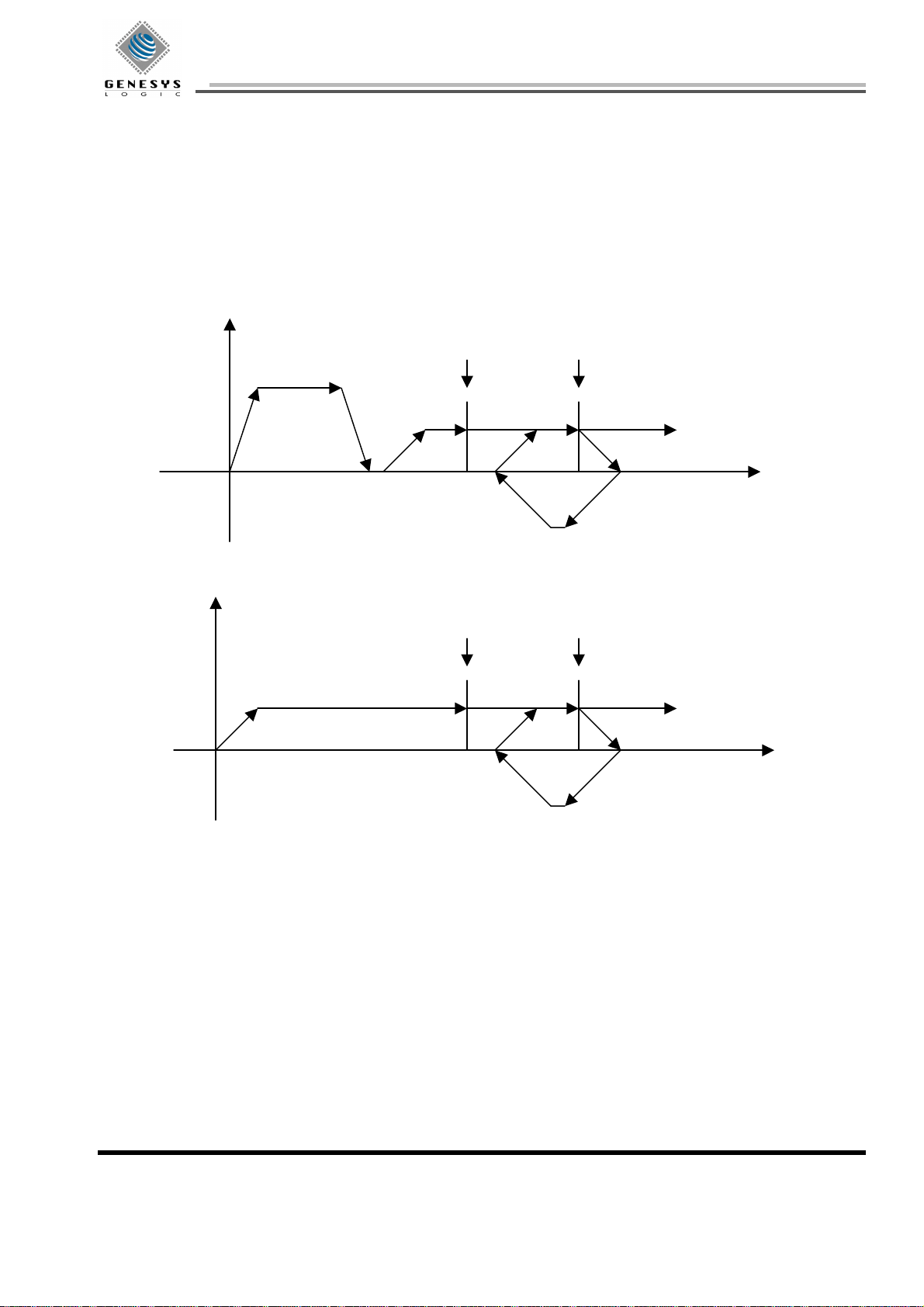

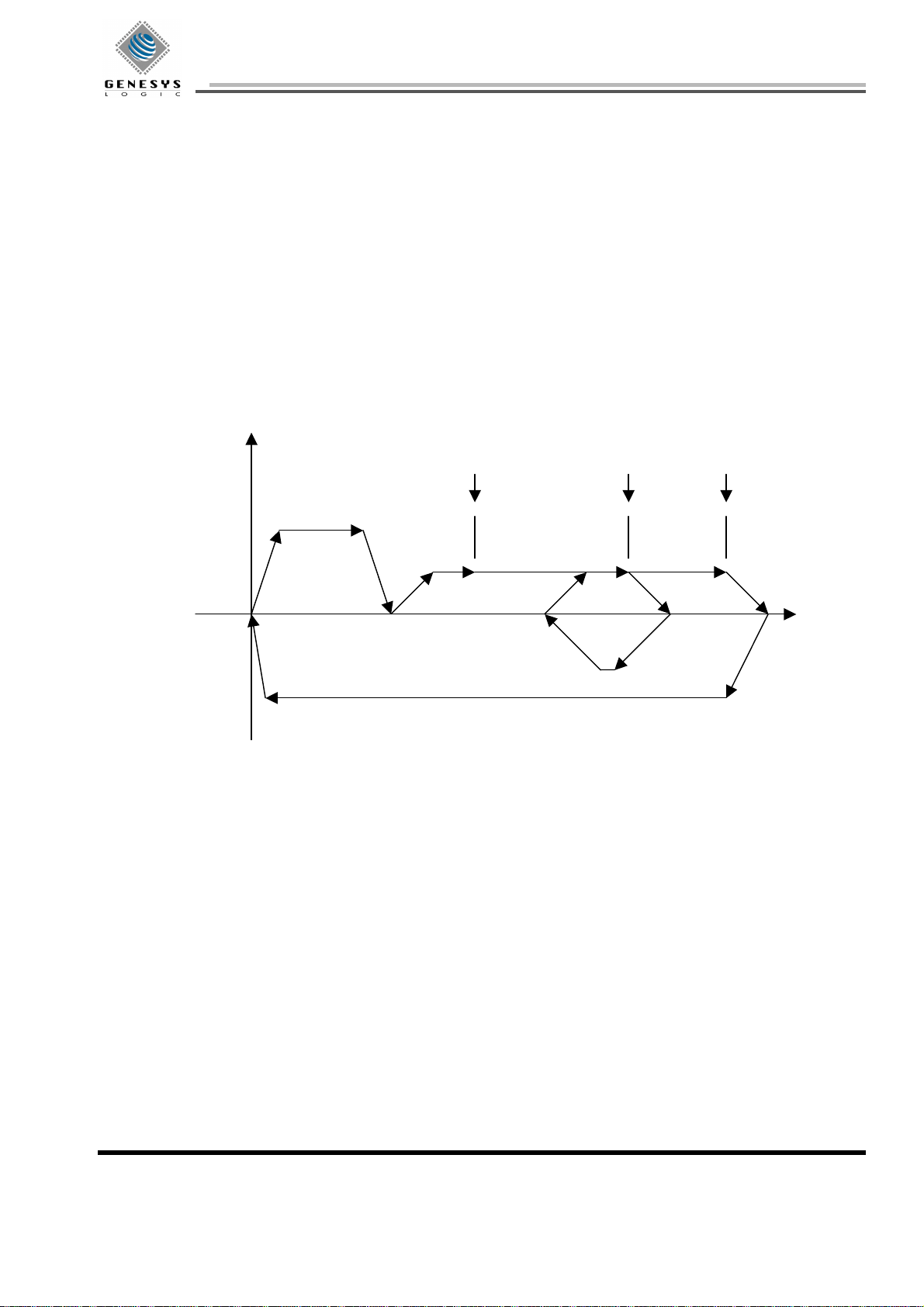

6.20. Acceleration/Deceleration Double Table
The acceleration/deceleration slope tables are store in DRAM, can be download by S/W.
The slope can be programmed by S/W for each table. Resolution is 16 bits pixel-time. The number of slope steps is
1~255 steps. One table is for scanning The other is for fast move.
The forward and backward steps can be programmed by S/W. The resolution is 16 bits pixel-time. The number of
slope steps is 1~255 steps. You can adjust any non-linear curve.
Note: what is fast move? Such as move back to go home or move to window any position to scan.

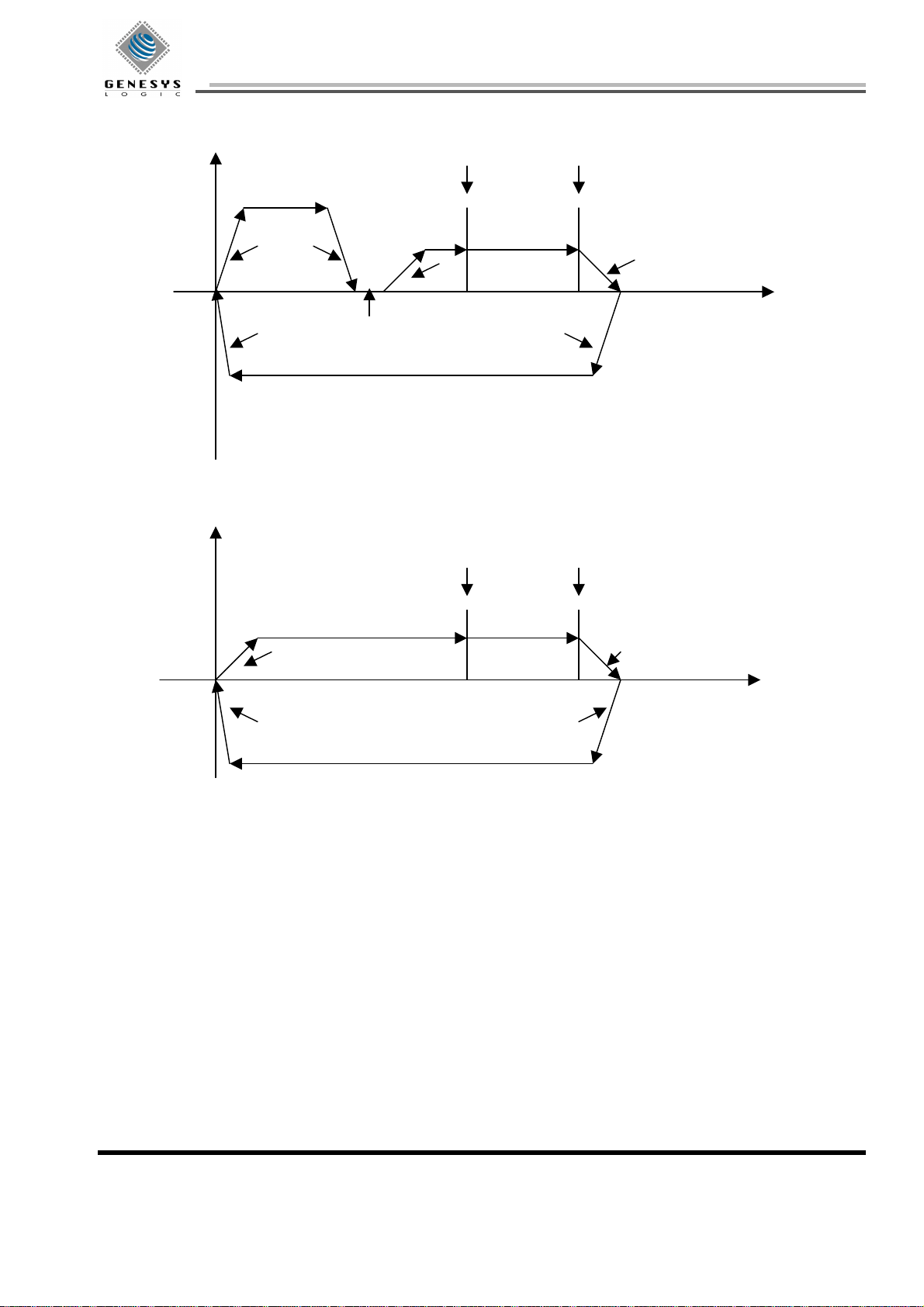

(1). Two table moving :
speed
Go to scan window
forward
B A C D
H I J
G
backward
go home
A,J : table two (slope two) acceleration curve.
B : table two (slope two) deceleration curve.
C,D,I : table one (slope one) acceleration curve.
E,F,H : table one (slope one) deceleration curve.
G : touch home sensor deceleration curve.
E
scan finished buffer full position Scanning position
F
GL646USB
time
Revision 1.3 Mar.22 2001
-17-
Page 19
(2). One table moving :
GL646USB
speed
scan finished buffer full position Scanning position
B A C D
E
go home
H : table two (slope two) acceleration curve.
A,B,G : table one (slope one) acceleration curve.
C,D,F : table one (slope one) deceleration curve.
E : touch home sensor deceleration curve.
F G H
6.21. Stepping Motor Phase Control
There is 6 output control pins to control stepping motor.mtr_ph0~5 for bi-polar and mtr_ph0~3 for Uni-polar.
A. bi-polar :
a. Support 2916 motor driver timing and 2916 compatible driver IC,such as L6219.
b. Include full, half and quarter step control.
B. uni-polar :
time
a. Support 2003 motor driver timing and 2003 compatible driver IC.
b. Include full step two phases on, full step single phase on and half step.
c. PWM control, include frequency and duty control.
PWM
Duty
Frequency
Phase on time
6.22. Watch-Dog Protection
This function can automatically reset the system to initial state, whenever the system is held (no access signal )
beyond the time limit.Be able to enable or disable this function by S/W.
This function can protect motor power, lamp power and ASIC system.
Calculation fo rmula : (line period) x (16k) x (setting no.).
The range of se tting no. is 1~15.
6.23. Lamp Timeout Control
This circuitry can automatically reset the lamp power, whenever the system is setting. Be able to enable or disable
this function by S/W.
Calculation fo rmula: (line period) x (64k) x (setting no.).
Revision 1.3 Mar.22 2001
-18-
Page 20
The range of se tting no. is 1~7.
6.24. Lamp Power Control
These are two power control ports for lamp. One is for Flatbed and the other is for XPA (Transparency or film).
The resolution of it’s PWM type is 9 bits. Duty range is 1/512~512/512.
Note : carrier frequency is (system clock)/512.
6.25. 6.25 Sensor Input
The system support home sensor input port.
6.26. 9 GPIO ports
You can set input or output for each GPIO pin separately.
Such as keypads inputs, document sensor for sheet-fed or motor power control…etc.
Note : there are two pins for special function. One is GPIO12,the other is GPIO11.
GPIO12 : 1. Pull up by resister to indicate that ASIC turn on lamp power whenever power on initial.
2. Pull down by resister to indicate that ASIC turn off lamp power whenever power on initial.
3. This pin can control bi-polar motor driver 2916 or 6219 Vref in order to control max. current.
GPIO11 : This pin can control bi-polar motor driver 2916 or 6219 Vref in order to control max. current.
6.27 Lossless Data Compression
A. Support lossless 8 bits image data compression.
GL646USB
B. The best ratio is 4 times.
C. Real-time decompression type.
D. This function can be enabled or disabled by S/W.
6.28. Motor Trigger signal for ADF
Motor trigger signal for ADF motor moving ,can be controlled under scanning condition.
6.29. Operation Mode
There is 9 mode to operate this chip.
A. Mode1 : SC+ AF E+USB1.1------------------------------------- three in one
B. Mode2 : SC+USB1.1 ------------------------------------------- external AFE
C. Mode3 : SC+AFE(for IEEE1394) ---------------------------- external IEEE1394
D. Mode4 : SC+AFE(for USB2.0) ------------------------------- external USB2.0
E. Mode5 : test PLL & Debug
F. Mode6 : test internal SC
G. Mode7 : test internal USB1.1
H. Mode8 : test internal AFE
I. Mode9 : test internal CPU
Note: SC is scanner controller; AFE is analog front-end.
6.30. Power on Check
The default status of the PWRBIT is reset.You can set the PWRBIT and then read back the status in order to check
the power status. This operation be able to check first time power on or not.
6.31. DMA image read.
Support DMA image read for DMA operation.
6.32. DMA DRAM read/write
Support DMA read/write function for Gamma Table, Shading Data and Acceleration/Deceleration Table down-load
Revision 1.3 Mar.22 2001
-19-
Page 21
or read back
6.33. RAM Test
S/W can test DRAM IC by write and read back data.
GL646USB
Revision 1.3 Mar.22 2001
-20-
Page 22
7. COMMAND SET DESCRIPTION
Reg. Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0
01 CISSET DOGENB DVDSET FASTMOD COMPENB DRAMSEL SHDAREA S CAN
02 NOTHOME ACDCDIS AGOHOME MTRPWR FASTFED MTRREV STEPSEL[1:0]
03 TG3 AVEENB XPASEL LAMPPWR LAMPDOG LAMPTIM[2:0]
04 LINEART BITSET ADTYPE[1:0] FILTER[1:0] FESET[1:0]
05 DPIHW[1:0] GMMTYPE[1:0] GMMENB LEDADD BASESEL[1:0]
06 PWRBIT GAIN4 OPTEST[2:0]
07 DMASEL DMARDWR
08 RSH[4:0]
09 RSL[4:0]
0A CPH[4:0]
0B CPL[4:0]
0E SCANRESET
0F MOVE
10 EXPR[15:8]
11 EXPR[7:0]
12 EXPG[15:0]
13 EXPG[7:0]
14 EXPB[15:8]
15 EXPB[7:0]
16 CTRLHI SELINV TGINV CK1INV CK2INV CTRLINV CKDIS CTRLDIS
17 TGMODE[1:0] TGW[5:0]
18 CNSET DCKSEL[1:0] CKTOGGLE CKDELAY[1:0] CKSEL[1:0]
19 EXPDMY[7:0]
1A CKH[4:0]
1B CKL[4:0]
1C CK3SEL CK3INV TGSEL[5:0]
1D CKMANUAL TCDFAST DMYPIX TGSHLD[4:0]
1E WDTIME[3:0] LINESEL[3:0]
1F SCANFED[7:0]
20 BUFSEL[7:0]
21 STEPNO[7:0]
22 FWDSTEP[7:0]
23 BWDSTEP[7:0]
24 FASTNO[7:0]
25 LINCNT[17:16]
26 LINCNT[15:8]
27 LINCNT[7:0]
28 LAMPPWM[8]
GL646USB
Revision 1.3 Mar.22 2001
-21-
Page 23
Reg. Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0
29 LAMPPWM[7:0]
2A RAMA[14:0]
2B RAMA[7: 0]
2C DPISET[11:8]
2D DPISET[7:0]
2E BWHI[7:0]
2F BWLOW[7:0]
30 STRPIXEL[15:8]
31 STRPIXEL[7:0]
32 ENDPIXEL[15:8]
33 ENDPIXEL[7:0]
34 DUMMY[7:0]
35 MAXWD[18:16]
36 MAXWD[15:8]
37 MAXWD[7:0]
38 LPERIOD[15:8]
39 LPERIOD[7:0]
3A FEWRDATA[9:8]
3B FEWRDATA[7:0]
3C RAMWRDATA[7:0]
3D FEEDL[17:16]
3E FEEDL[15:8]
3F FEEDL[7:0]
41 PWRBIT BUFEMPTY FEEDFSH SCANFSH HOMESNR LAMPSTS FEBUSY MOTMFLG
42 VALIDWORD[18:16]
43 VALIDWORD[15:8]
44 VALIDWORD[7:0]
45 RAMRDDATA[7:0]
46 FERDDATA[9:8]
47 FERDDATA[7:0]
48 FEDCNT[17:16]
49 FEDCNT[15:8]
4A FEDCNT[7:0]
4B SCANCNT[17:16]
4C SCANCNT[15:8]
4D SCANCNT[7:0]
4E LPERIODRD[15:8]
4F LPERIODRD[7:0]
50 FERDA[5:0]
51 FEWRA[5:0]
Reg. Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0
GL646USB
Revision 1.3 Mar.22 2001
-22-
Page 24
52 RHI[4:0]
53 RLOW[4:0]
54 GHI[4:0]
55 GLOW[4:0]
56 BHI[4:0]
57 BLOW[4:0]
58 VSMP[4:0] VSMPW[2:0]
59 BSMP[4:0] BSMPW[2:0]
5A WMSEL RLCSEL CDSREF[1:0] RLC[3:0]
5B CKFH[4:0]
5C CKFL[4:0]
5D CKSH[4:0]
5E CKSL[4:0]
60 Z1MOD[15:8]
61 Z1MOD[7:0]
62 Z2MOD[15:8]
63 Z2MOD[7:0]
64 PHFREQ[7:0]
65 MTRPWM[5:0]
66 GPO12 GPO11 GPO7
67 GPO6 GPO5 GPO4 GPO3 GPO2 GPO1
68 GPOM12 GPOM11 GPOE12 GPOE11 GPOE7
69 GPOE6 GPOE5 GPOE4 GPOE3 GPOE2 GPOE1
6A FSTPSEL[1:0] FASTPWM[5:0]
6B FMOVNO[7:0]
6C TGTIME[1:0] Z2MOD[18:16] Z1MOD[18:16]
6D DECSEL[2:0] STOPTIM[4:0]
70 GPI12 GPI11 GPI7
71 GPI6 GPI5 GPI4 GPI3 GPI2 GPI1
Note: Reg4x , Reg7x are read ports. The other are write ports.
7.1. Reg : 01H (Write)
Default : 00H
B7:CISSET : set: CIS scan type.
: reset: CCD scan type.
B6:DOGENB : set: enable watch dog of ASIC(set time out:Reg1E[7:4]).
: reset: disable.
B5:DVDSET : set : enable shading (include whole line shading and area shading two kinds).
: reset : disable shading.
B4:FASTMOD : set: enable fast mode scanning type (include fast gray and Black & White scan).
: reset: enable normal mode scanning type (include fine gary and color scan).
B3:COMPENB : set: enable data compression.
: reset: disable
B2:DRAMSEL : set : the DRAM size is 4Mx2 (256kx16x2) bits.
: reset : the DRAM size is 4Mx1(256kx16x1) bits.
B1:SHDAREA : set: enable shading area (depend on scan area and scan dpi).
: reset: shading area is whole line.
GL646USB
Revision 1.3 Mar.22 2001
-23-
Page 25
B0:SCAN : set: enable scan process.
: reset: disable scan process.
7.2. Reg : 02H (Write)
Default : 01H
B7:NOTHOME : set: auto-go-home doesn’t go back to home position.
: reset: go back to home position automatically.
B6:ACDCDIS : set: disable forward/backward moving whenever buffer full.
: reset: enable forward/backward moving whenever buffer full.
B5:AGOHOME : set: whenever scan is finished, carriage go home automatically.
: reset: disable auto-go-home function.
B4:MTRPWR : set: turn on MOTOR power and phase.
: reset: turn off MOTOR power and phase.
B3:FASTFED : set: enable two table for motor moving of theacceleration/deceleration.
: reset: disable two table, only use single table.
B2:MTRREV : set: set motor reverse moving.
: reset: set motor forward moving.
B1~0:STEPSEL[1:0] : for table one scanning move step type selection.
(1).bi-polar :
a.00: full step.
b.01: half step.
c.10: quarter step.
d.11: reserved.
(2).uni-polar :
a.00: two-phase-on full step.
b.01: half step.
c.10: reserved.
d.11: single-phase-on full step.
7.3. Reg : 03H (Write)
Default : 0CH
B7:TG3 : set: enable alternated CCD TG function.
: reset: disable.
B6:AVEENB : set: select dpi average function
: reset: select dpi deletion function.
B5:XPASEL : set: select transparency lamp on.
: reset: select flatbed lamp on.
B4:LAMPPWR: set: turn on LAMP power.
: reset: turn off LAMP power.
B3:LAMPDOG : set: to start lamp sleeping mode(default on).
: reset: to disable lamp sleeping mode.
B2~0:LAMPTIM[2:0] : lamp on time setting (default: 4)
FASTMOD=1: LAMPTIM*2*(64k)*Line-Period.
FASTMOD=0: LAMPTIM*(64k)*Line-Period.
7.4. Reg : 04H (Write)
Default : 03H
B7:LINEART : set: Black/White scan.
: reset: Color/Gray scan.
B6:BITSET : set : 16 bits image data type (= word).
: reset : 8 bits image data type (= byte).
B5~4:ADTYPE[1:0] : front end bits type: a.00: reserved.
b.01: 16 bits.
c.10: reserved.
d.11: reserved.
B3~2:FILTER[1:0] : scan color type : a.00: color
b.01: R
GL646USB
Revision 1.3 Mar.22 2001
-24-
Page 26
c.10: G
d.11: B
B1~0:FESET[1:0] : front-end selection. a.00: reserved
b.01: reserved
c.10: Analog Device control style
d.11: Wolfson control style
7.5. Reg : 05H (Write)
Default:00H
B7~6: DPIHW[1:0] : set CCD/CIS resolution 00=600dpi
01=1200dpi
10=2400dpi
11=reserved.
B5~4: GMMTYPE[1:0] : set gamma bits depth. 00: 12 bits gamma table.
01: 14 bits gamma table.
10: reserved.
11: reserved.
B3: GMMENB : set: enable gamma correction.
: reset: bypass gamma correction.
B2:LEDADD : set: enable true gray by controlling CIS RGB LED array.
: reset: normal gray by controlling CIS singl e color LED a rray.
B1~0: BASESEL[1:0] : (1).fast mode : set clocks/pixel of ASIC.
00: 9 clocks/pixel.
01: 12 clocks/pixel.
10: 15 clocks/pixel.
11: reserved.
(2). Normal mode : set clocks/pixel of CCD.
00: 24 clocks/pixel.
01: 12 clocks/pixel.
10: 8 clocks/pixel.
11: 6 clocks/pixel.
7.6. Reg : 06H (Write)
Default:00H
B4: PWRBIT :When power on, set this bit.To indicate power has on.
Default is reset.
B3: GAIN4 : set: digital shading gain=4 times system.
: reset: digital shading gain=8 times system.
Note: If you want to get more precise image quality, you can set GAIN4 bit.
B2~0: OPTEST[2:0 ]: select ASIC operation type.
000: set normal mode to capture AFE image.
001: set DRAM bank, power on carriage initiated and ADF(motortgo) test for ASIC simulation.
010: pixel count pattern for ASIC image test.
011: line count pattern for ASIC image test.
100: counter and adder test for ASIC simulation test.
101:CCD TG test for TGMODE
7.7. Reg : 07H (Write)
Default:00H
B1:DMASEL : set: DMA access DRAM under command mode.
: reset: MPU access DRAM under command mode.
B0:DMARDWR : set: DMA read DRAM under command mode.
: reset: DMA write DRAM under command mode.
Note: DMA operation can be processed under CPU and DMA type.
7.8. Reg : 08H,09H (Write)
Default:12H,14H
GL646USB
Revision 1.3 Mar.22 2001
-25-
Page 27

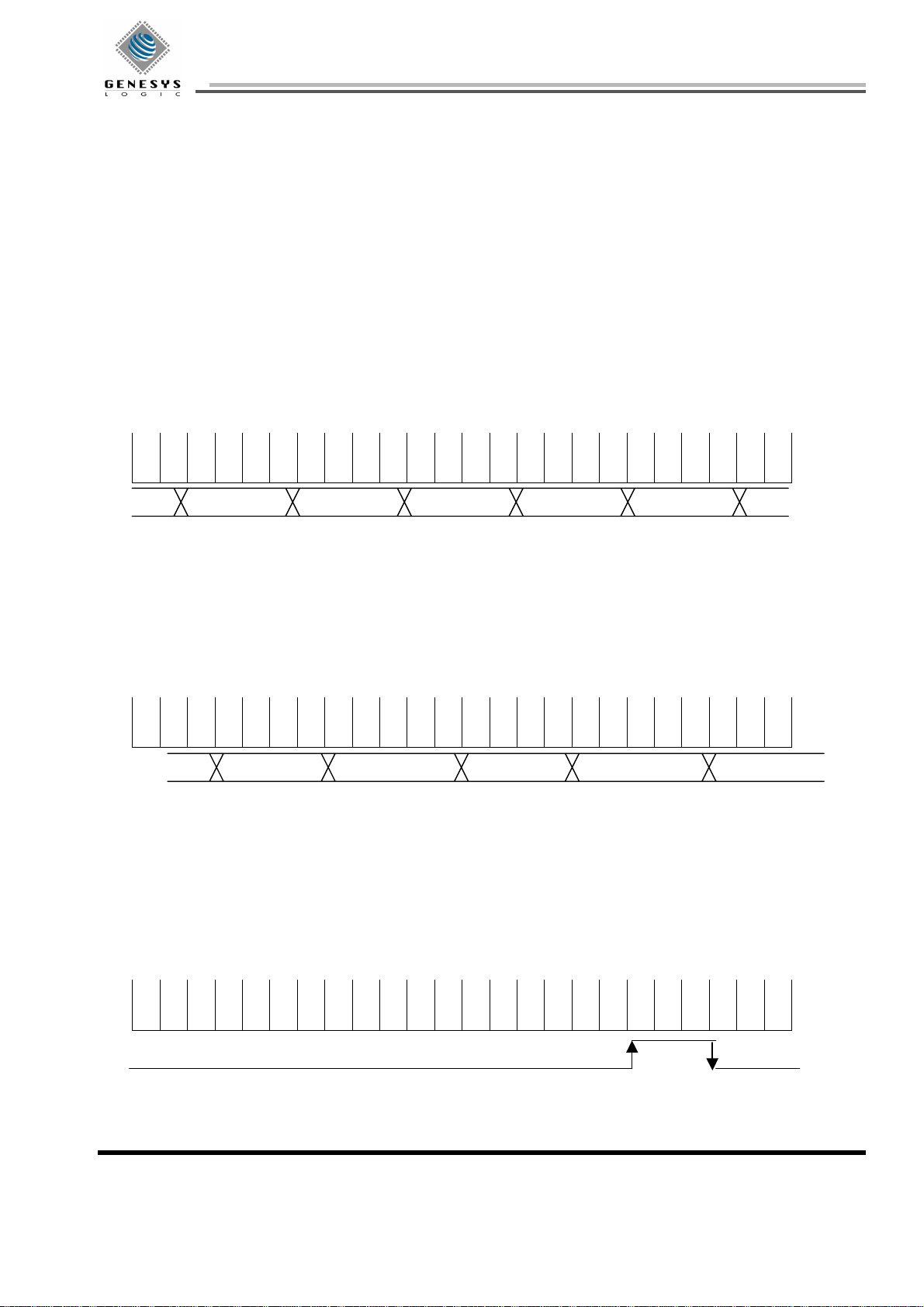

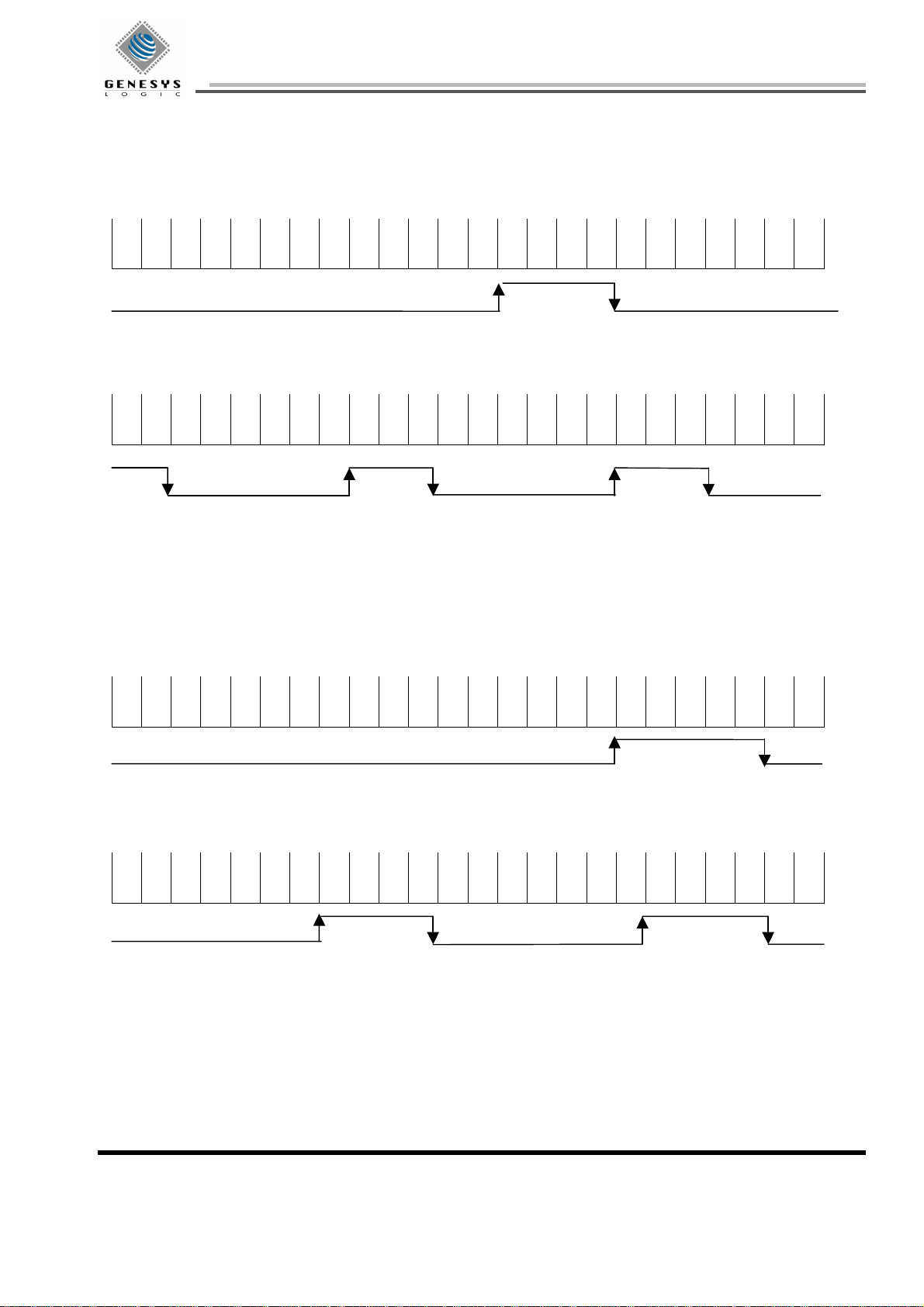

RSH[4:0] : set CCD RS rising edge position.
RSL[4:0] : set CCD RS falling edge position.
(1). Color or fine gray : 24 clocks/pixel
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
CCD RS : RSH=0CH RSL=10 H
(2).Fast gray or B&W : 9 clocks/pixel
0 1 2 3 4 5 6 7 8 0 1 2 3 4 5 6 7 8 0 1 2 3 4 5
CCD RS : RSH=07H RSL=01H
7.9. Reg : 0AH,0BH (Write)
Default:15H,17H

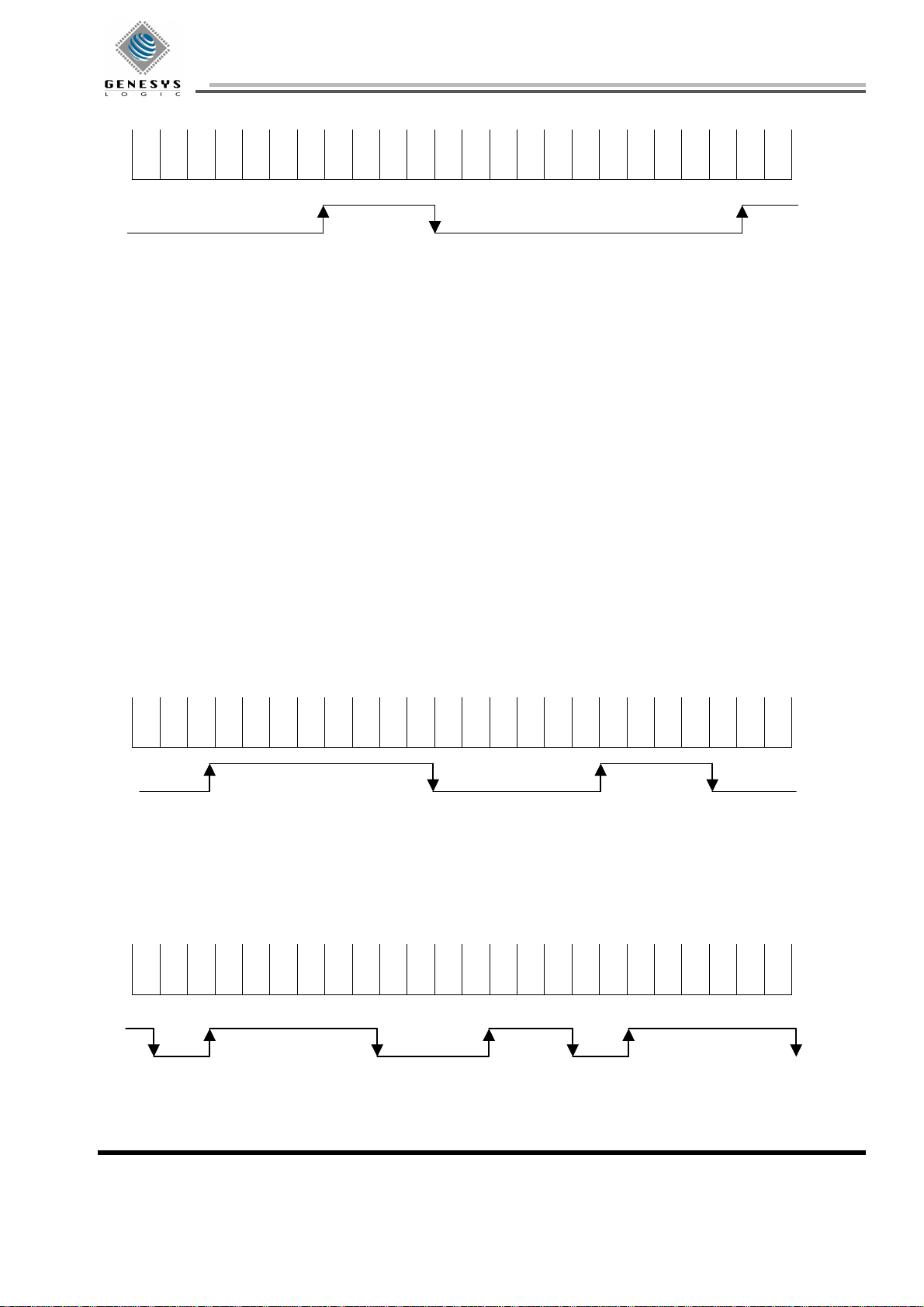

CPH[4:0] : set CCD CP rising edge position.
CPL[4:0] : set CCD CP falling edge position.
(1). Color or fine gray : 24 clocks/pixel
GL646USB
5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 0 1 2 3 4
CCD CP : CPH=15H CP L=02H
(2).Fast gray or B&W : 12 clocks/pixel
0 1 2 3 4 5 6 7 8 9 10 11 0 1 2 3 4 5 6 7 8 9 10 11
CCD CP : CPH=06H CPL= 0AH
7.10. Reg : 0EH (Write)
Command : scanner software reset.
It can initiate AISC system, including lamp motor,
Control registers, internal circuit and status, but doesn’t include tables in
DRAM, like gamma table, shading table and acceleration/deceleration table.
7.11. Reg : 0FH (Write)
Revision 1.3 Mar.22 2001
-26-
Page 28
Command : motor moving.
Start motor farward/backward moving.
7.12. Reg : 10,11H (Write)
Default : 00H,00H
EXPR[15:0]: Red-LED array of CIS or Red channel TG of CCD exposure time setting.
7.13. Reg : 12H,13H (Write)
Default : 00H,00H
EXPG[15:0]: Green-LED array of CIS or Green channel TG of CCD exposure time setting.
7.14. Reg : 14H,15H (Write)
Default : 00H,00H
EXPB[15:0]: Blue-LED array of CIS or Blue channel TG of CCD exposure time.
7.15. Reg : 16H (Write)
Defalut : 32H
B7:CTRLHI : set: CCD CP & RS are high under TG high position.
: reset: CCD CP & RS are low under TG high position.
B6:SELINV : set: inverse CCD RGBSEL selection pins.
: reset: don’t inverse.
B5:TGINV : set: inverse CCD TG.
: reset: don’t inverse.
B4:CK1INV : set: inverse CCD Clock 1.
: reset: don’t inverse.
B3:CK2INV : set: inverse CCD Clock 2.
: reset: don’t inverse.
B2:CTRLINV : set: inverse CCD CP & RS.
: reset: don’t inverse.
B1:CKDIS : set: disable CCD TG position Clock 1/2 signals.
CCD TG
CCD Clock
: reset: enable CCD TG position Clock 1/2 signals.
CCD TG
CCD Clock
B0:CTRLDIS : set: disable CCD TG position CP & RS signals.
CCD TG
CCD CP/RS
GL646USB
Revision 1.3 Mar.22 2001
-27-
Page 29
: reset: enable CCD TG position CP & RS signals.
CCD TG
CCD CP/RS
7.16. Reg : 17H (Write)
Default : 14H
B7~6:TGMODE[1:0] : to set CCD TG mode.
00:without dummy line CCD TG type.
01:with dummy line CCD TG type.
10:reserved.
11:reserved.
B5~0:TGW[5:0] : to set CCD TG width.
7.17. Reg : 18H (Write)
Defalut : 00H
B7 : CNSET : set : TG and clock set to Canon CIS style.
: reset: TG and clock is non-Canon CI S st yle.
B6~5 :DCKSEL: 00 one time CCD Clocks speed for dummy line.
01 two time CCD Clocks speed for dummy line.
10 three time CCD Clocks speed for dummy line.
11 four time CCD Clocks speed for dummy line.
B4 :CKTOGGLE : set : half cycle per pixel for CCD Clock 1/2.
: reset : one cycle per pixel
B3~2 :CKDELAY: 00 no delay
01 delay one system clock for CCD Clock 1/2.
10 delay two system clock for CCD Clock 1/2.
11 delay three system clock for CCD Clock 1/2.
B1~0 :CKSEL : 00 one time CCD Clock speed for capture image.
01 two time CCD Clock speed for capture image.
10 three time CCD Clock speed for capture image.
11 four time CCD Clock speed for capture image.
7.18. Reg : 19H (Write)
Default : 00H
EXPDMY[7:0] : to set dummy line exposure time (unit = 256 pixels time).
7.19. Reg : 1AH,1BH (Write)
Defalut : 00H,00H
CKH[4:0]: set CCD Clock rising edge position.
CKL[4:0]: set CCD Clock falling edge position.
7.20. Reg : 1CH (Write)
Default : 00H
B7: CK3SEL : to enable CCD Clock3
B6:CK3INV : to reverse CCD Clock3
B5~B0: TGSEL[5:0] : to set CCD TG for R,G and B output control
B0~1: control R Channel TG.
B2~3: control G Channel TG.
B4~5: control B Channel TG.
7.21. Reg : 1DH (Write)
Defalut : 04H
B7 : CKMANUAL : to pro gram CCD Clock1/2 by manual.
GL646USB
Revision 1.3 Mar.22 2001
-28-
Page 30
Programming registers are Reg5B/5C/5D/5E.
B6 : TCDFAST :reserved.
B5 : DMYPIX :reserved.
B4~0 :TGSHLD[4:0] : to set CCD TG shoulder width.
7.22. Reg : 1EH (Write)
Defalut : 20H
B7~4:WDTIME[3:0] : to set watch-dog time.
Time : fast mode : WDTIME*2*(16K)*(Line-Priod).
normal mode: WDTIME*(16K)*(Line-Priod).
B3~0:LINESEL[3:0] : to set CIS Vertical DPI or dummy lines.
CIS : LINESEL =0 full dpi.
=1 1/2 dpi
=2 1/3 dpi
=3 1/4 dpi
…..
=15 1/16 dpi
CCD : LINESEL =0 no dummy line.
=1 1 dummy line.
=2 2 dummy lines.
=3 3 dummy lines.
……
=15 15 dummy lines.
Note : CIS can be implemented dummy line by motor move method, not dummy lines.
7.23. Reg : 1FH (Write)
Default : 00H
SCANFED[7:0]: move to scanning position by table one.
7.24. Reg : 20H (Write)
Default : 00H
BUFSEL[7:0] : to set buffer condition (unit = 2k word).
Scanner execute backward/forward moving whenever buffer full.
If MAXWD < buffer condition, then motor move forward to scan.
7.25. Reg : 21H (Write)
Defalut : 00H
STEPNO[7:0]: to set table one steps number for forward slope curve of the acceleration/deceleration.
7.26. Reg : 22H (Write)
Defalut : 00H
FWDSTEP[7:0] : to set steps number of the forward steps.
7.27. Reg : 23H (Write)
Defalut : 00H
BWDSTEP[7:0] : to set steps number of the b a ckward steps.
7.28. Reg : 24H (Write)
Defalut : 00H
FASTNO[7:0]: to set table one steps number for backward slope curve of the acceleration/deceleration under scanning
GL646USB
Revision 1.3 Mar.22 2001
-29-
Page 31
GL646USB
7.29. Reg : 25H,26H,27 H (Write)
Defalut : 00H,00H,00H
LINCNT[17:0]: to set the scan lines number.
7.30. Reg : 28H,29H (Write)
Defalut : 01H,FFH
LAMPPWM[8:0] : to set PWM duty for lamp power control.
1: 2/512 duty.
…..
511:512/512 duty.
7.31. Reg : 2AH,2BH (Write)
Default : 00H.00H
RAMA[14:0] : to set DRAM start address to access data.
note: IRAM_A[18:0]={RAMA[14:0],4’b0000}.
7.32. Reg : 2CH,2DH (Write)
Default : 00H,00H
DPISET[10:0] : set resolution of DPI for average type or deletion type.
7.33. Reg : 2EH (Write)
Default : 00H
BWHI[7:0] : to set Black & White threshold high level.
7.34. Reg : 2FH (Write)
Default : 00H
BWLOW[7:0] : to set Black & White threshold low level.
speed
Reg22
Reg21
Reg23
0: 1/512 duty.
A. average type : digital average function support 1/2,1/3,1/4,1/5,1/6,1/8,1/10,1/12,1/15
2400 dpi scanner : can set 1200,800,600,480,400,300,240,200,160 dpi.
1200 dpi scanner : can set 600,400,300,240,200,150,120,100 and 80 dpi.
600 dpi scanner : can set 300,200,150,120,100,75,60,50 and 40 dpi.
B. deletion type : 2400,1200 or 600dpi to 1 dpi setting decrement by one dpi.
Buffer full position
Reg21
time
Reg24 Reg24
Revision 1.3 Mar.22 2001
-30-
Page 32
d,e,f,h,i : are white pixels
7.35. Reg : 30H,31H (Write)
Defalut : 00H,00H
STRPIXEL[15:0] : to set the begin pixel position (unit : pixel count).
STRPIXEL=(TGW+2*TGSHLD)+Begin pixels number.
7.36. Reg : 32H,33H (Write)
Defalut : 00H,00H
ENDPIXEL[15:0] : to set the end pixel position (unit : pixel count).
ENDPIXEL=(TGW+2*TGSHLD)+End pixels number.
7.37. Reg : 34H (Write)
Default : 00H
DUMMY[7:0] : to set the CCD dummy & optical black pixels position (unit : pixel count).
TGSHLD(Reg1D) RGW(Reg17) TGSHLD(Reg1D)
CCD TG
CCD clock
CCD pixel no: N-1 N 0 1 2 3 4
For example begin pixel is 65 ,end pixel is 100 and CCD dummy pixel is 64,
DUMMY =(TGW+2*TGSHLD)+64.
7.38. Reg : 35H,36H,37H (Write)
Defalut : 00H,00H,00H
MAXWD[18:0] : to set maximum word size per line for ASIC estimation.
If usable buffer size < MAXWD, then buffer is full. The scanner execute forward and Backward moving.
7.39. Reg : 38H,39H (Write)
Defalut : 15H,18H
LPERIOD[15:0] : to set Line period(or exposure time) for CCD.
Unit : pixel count
BWHI
b
BWLOW
a
a,b,c,g : are black pixels
Note : Reg30,31,32,33 and 34 setting rule.
Then STRPIXEL=(TGW+2*TGSHLD)+65.
ENDPIXEL=(TGW+2*TGSHLD)+100.
d
f
e
c
g
h
i
bandwidth
GL646USB
Revision 1.3 Mar.22 2001
-31-
Page 33
7.40. Reg : 3AH,3BH (Write)
Defalut : 00H,00H
FEWRDATA[9:0] : This port is used to write data to control register of front-end.
7.41. Reg : 3CH (Write)
Defalut : 00H
RAMWRDATA[7:0] : This port is used to write data to DRAM.
7.42. Reg : 3DH,3EH,3FH (Write)
Defalut : 00H,00H,00H
FEEDL[17:0] : to set feeding steps number of motor move.
7.43. Reg : 41H (Read)
PWRBIT : To indicate power status.
BUFEMPTY : set: To indicate that the image buffer is empty.
: reset: To indicate that the image buffer is not empty.
FEEDFSH : set: To indicate that motor feeding is finished.
: reset: To indicate that motor feeding is not finished.
SCANFSH : : set: To indicate that scan is finished.
: reset: To indicate that scan is not finished.
HOMESNR : : set: home sensor is off (is home position).
: reset: home sensor is on (is not home position).
LAMPSTS : : set: lamp is on.
: reset: lamp is off.
FEBUSY : set: front end is busy and can not read/write again.
: reset: front end is ready and be able to read/write again.
MOTMFLG : set: motor is moving.
: reset: motor is stop.
7.44. Reg : 42H,43H,44H (Read)
VALIDWORD[18:0] : to indicate available words to read out in the image buffer of DRAM.
7.45. Reg : 45H (Read)
RAMRDDATA[7:0] : this port for read DRAM data.
7.46. Reg : 46H,47H (Read)
FERDDATA[9:0] : this port for read front end control register.
7.47. Reg : 48H,49H,4AH (Read)
FEDCNT[17:0] : to read motor feeding steps number.
For example, if you have set moving steps no. and execute moving command.
You can read out steps no. moved.
7.48. Reg : 4BH,4CH,4DH (Read)
SCANCNT[17:0] : to read scanner finished lines number.
7.49. Reg : 4EH,4FH (Read)
LPERIODRD[15:0] : to read back Reg38,Reg39 value.
7.50. Reg : 50H (Write)
Default : 00H
FERDA[5:0] : this port is read address setting for Front End control register read.
7.51. Reg : 51H (Write)
Default : 00H
FEWRA[5:0] : this port is write address setting for Front End control register write.
GL646USB
Revision 1.3 Mar.22 2001
-32-
Page 34
+
[
[
]
]B[
[
]
[
[
]
]R[
]
7.52. Reg : 52H,53H (Write)
Defalut : 00H,00H
RHI[4:0] : to latch R channel high byte data of AFE.
RLOW[4:0] : to latch R channel low byte data of AFE.
7.53. Reg : 54H,55H (Write)
Defalut : 00H,00H
GHI[4:0] : to latch G channel high byte data of AFE.
GLOW[4:0] : to latch G channel low byte data of AFE.
7.54. Reg : 56H,57H (Write)
Defalut : 00H,00H
BHI[4:0] : to latch B channel high byte data of AFE.
BLOW[4:0] : to latch B channel low byte data of AFE.
(1). Color or fine gray : 24 clocks/pixel
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
GL646USB
RHI = 01H
RLOW = 05H
GHI = 09H
GLOW = 0DH
BHI = 11H
BLOW = 15H
(2).Fast gray or B&W : 9 clocks/pixel
0 1 2 3 4 5 6 7 8 0 1 2 3 4 5 6 7 8 0 1 2 3 4 5
R[15:8] R
RHI = 02H
RLOW = 06H
7.55. Reg : 58H (Write)
Defalut : 00H
B7~3:VSMP[4:0] : to set the rising edge position of image sampling for AFE.
B2~0:VSMPW[2:0] : to set the pulse width of image sampling.
(1). Color or fine gray : 24 clocks/pixel
R[15:8] R
7:0] R
7:0] G
15:8
15:8
R[7:0
G[7:0
15:8] B
15:8
7:0
5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
AFE VSMP
Reg58=B3H : VSMP[4:0]=16H VSMPW=3H
(2).Fast gray or B&W : 15 clocks/pixel
Revision 1.3 Mar.22 2001
-33-
20 21 22 23 0 1 2 3 4
Page 35
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 0 1 2 3 4 5 6 7 8
AFE VSMP
Reg58=34H : VSMP[4:0]=06H VSMPW=4H
7.56. Reg : 59H (Write)
Defalut : 00H
B7~3:BSMP[4:0] : to set the rising edge position of dark voltage sampling for AFE.
B2~0:BSMPW[2:0] : to set the pulse width of image sampling.
7.57. Reg : 5AH (Write)
Defalut : C0H
B7 :WMSEL : set: to select Wolfson working type.
: reset: to select Analog Device working type.
B6 : RLCSEL : set: select reset level clamp on a pixel-by-oixel basis.
: reset: don’t select.
B5~4:CDSREF[1:0] : to set the frontend CDSREF for line rate scanning type.
B3~0:RLC[3:0] : to set the frontend RLC for line rate scanning type.
7.58. Reg : 5BH,5CH,5DH,5EH (Write)
Defalut : 00H,00H,00H,00H
CKFH[4:0] : First point of rising edge.
CKFL[4:0] : First point of falling edge.
CKSH[4:0] : Second point of rising edge.
CKSL[4:0] : Second point of falling edge.
(1). Color or fine gray : 24 clocks/pixel
GL646USB
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
CKFH = 02H
CKFL = 0AH
CKSH = 10H
CKSL = 14H
(2).Fast gray or B&W : 15 clocks/pixel
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 0 1 2 3 4 5 6 7 8
CKFH = 02H
CKFL = 08H
CKSH = 0CH
CKSL = 00H
Revision 1.3 Mar.22 2001
-34-
Page 36
7.59. Reg : 60H,61H (Write)
Defalut : 00H,00H
Z1MOD[15:0]: to set the slope curve of acceleration/deceleration table mode value
Under buffer full movi ng.
7.60. Reg : 62H,63H (Write)
Defalut : 00H,00H
Z2MOD[15:0]: to set the slope curve of acceleration/deceleration mode value
Under first time moving to scanning .
(1). Two table moving :
speed Scanning position buffer full position
b d
a c
time
(2). One table moving :
speed
Scanning position buffer full position
b d
a c
time
(a+b) mode LPERIOD = Z2MOD
(c+d) mode LPERIOD = Z1MOD
7.61. Reg : 64H (Write)
Defalut : 00H
PHFREQ[7:0]: to set PWM frequency for motor phase of uni-polar.
Frequency : (24MHz)/[(PHFREQ+1)*4
7.62. Reg :65H (Write)
Defalut : 3FH
MTRPWM[5:0]: to set PWM duty cycle for table one motor phase of uni-polar.
MTRPWM = 0 1/64 duty
= 1 2/64 duty
= 2 3/64 duty
……
= 63 64/64 duty
GL646USB
Revision 1.3 Mar.22 2001
-35-
Page 37
note: If PHFREQ < 0FH,then PWM setting must < (PHFREQ+1)*4
7.63. Reg :66H,67H (Write)
Defalut : 00H,00H
GPO[12:7] : GPO12~7 outputs ports
GPO[6:1] : GPO6~1 outputs ports
7.64. Reg :68H,69H (Write)
Defalut : 00H,00H
GPOE[12:7] : GPO12~7 ports output enable set.
GPOE[6:1] : GPO6~1 ports output enable set.
Set ‘1’ : output.
Reset ‘0’ : input.
GPOM12~11 : to select GPIO12~11 as Bi-polar motor driver V-ref input voltage in
order to control drive current.
7.65. Reg :6AH (Write)
Defalut : 00H
FSTPSEL[1:0] : for table two fast moving step type selection.
(1).bi-polar :
a.00: full step.
b.01: half step.
c.10: quarter step.
d.11: reserved.
(2).uni-polar :
a.00: two-phase-on full step.
b.01: half step.
c.10: reserved.
d.11: single-phase-on full step.
FASTPWM[5:0] : to set PWM duty cycle for table two motor phase of uni-polar.
FASTPWM =0 1/64 duty
=1 2/64 duty
=2 3/64 duty
……
=63 64/64 duty
note: If PHFREQ < 0FH,then PWM setting must < (PHFREQ+1)*4
7.66. Reg :6BH (Write)
Defalut : 00H
FMOVNO[7:0]: Set fast moving slop steps(table two slope).
GL646USB
Revision 1.3 Mar.22 2001
-36-
Page 38
(1). Two table moving :
speed Scanning position scan finished
Reg3D,3E,3F
Reg6B Reg1F Reg25,26,27
Reg21 Reg21
Reg6D[7:5] Reg6D[4:0] Reg6B time
Go home
(2). One table moving :
speed
Scanning position scan finished
Reg3D,3E,3F Reg25,26,27
Reg21 Reg21
time
Reg6D[7:5] Reg6B
Go home
7.67. Reg :6CH (Write)
Defalut : 00H
B7~6:TGTIME[1:0] : Set period times for LINPRDWR,EXPR,EXPG & EXPB
00:one time period.
01:two times period.
10:four times period.
11:eight times period.
B5~3:Z1MOD[18:16] : Set Z1MOD bit 16,17 & 18.
B2~0:Z2MOD[18:16] : Set Z2MOD bit 16,17 & 18.
7.68. Reg :6DH (Write)
Defalut : 60H
B7~5:DECSEL[2:0] :select deceleration steps whenever go home.
000:1 steps deceleration
001:2 steps deceleration
010:4 steps deceleration
011:8 steps deceleration
100:16 steps deceleration
101:32 steps deceleration
110:64 steps deceleration
GL646USB
Revision 1.3 Mar.22 2001
-37-
Page 39
111:128 steps deceleration
B4~0:STOPTIM[4:0]:select acceleration/deceleration stop time.
The unit is LPERIOD.
7.69. Reg :70H (Write)
GPI[12:7] : GPIO12~7 input ports.
7.70. Reg :71H (Write)
GPI[6:1] :GPIO6~1 input status.
7.71. Shading mapping(Chunky)
Attribute Resolution
Shading Mapping
600dpi
(RGB Chunky)
1200dpi
(RGB Chunky)
GL646USB
A[18:0]
00000H~07FFFH
SIZE : 32k
00000H~0FFFFH
SIZE : 64k
7.72. Shading mapping(Planer)
Attribute Resolution
Shading Mapping
2400dpi
(RGB Chunky)
600dpi
(RGB Planer)
1200dpi
(RGB Planer)
2400dpi
(RGB Planer)
R
LINE
G
LINE
B
LINE
R
LINE
G
LINE
B
LINE
R
LINE
G
LINE
00000H~1F7FFH
SIZE : 126k
A[18:0]
00000H~029FFH
02A00H~053FFH
05400H~07DFFH
00000H~054FFH
05500H~0A9FFH
0AA00H~0FEFFH
00000H~0A7FFH
0A800H~14FFFH
B
LINE
15000H~1F7FFH
7.73. Gamma mapping
Attribute Color
Revision 1.3 Mar.22 2001
RED
-38-
A[18:0]
09000H~09FFFH
SIZE : 4K
Page 40
GL646USB
600DPI
1200DPI
2400DPI
12 BITS
GAMMA
14 BITS
GAMMA
12 BITS
GAMMA
14 BITS
GAMMA
12 BITS
GAMMA
14 BITS
GAMMA
RED 09000H~0CFFFH
GREEN 12000H~12FFFH
GREEN 21000H~21FFFH
7.74. Image Buffer Mapping :
DRAM Resolution
GREEN
BLUE
GREEN 0D000H~10FFFH
BLUE
RED
BLUE
RED
GREEN
BLUE
RED
BLUE
RED
GREEN
BLUE
0A000H~0AFFFH
SIZE : 4K
0B000H~0BFFFH
SIZE : 4K
SIZE : 16K
SIZE : 16K
11000H~14FFFH
SIZE : 16K
11000H~11FFFH
SIZE : 4K
SIZE : 4K
13000H~13FFFH
SIZE : 4K
11000H~14FFFH
SIZE : 16K
15000H~18FFFH
SIZE : 16K
19000H~1CFFFH
SIZE : 16K
20000H~20FFFH
SIZE : 4K
SIZE : 4K
22000H~22FFFH
SIZE : 4K
20000H~23FFFH
SIZE : 16K
24000H~27FFFH
SIZE : 16K
28000H~2BFFFH
SIZE : 16K
A[18:0]
Revision 1.3 Mar.22 2001
-39-
Page 41
GL646USB
4M BITS X 1
4M BITS X 2
600DPI
1200DPI
2400DPI
600DPI
1200DPI
12 BITS
GAMMA
14 BITS
GAMMA
12 BITS
GAMMA
14 BITS
GAMMA
12 BITS
GAMMA
14 BITS
GAMMA
12 BITS
GAMMA
14 BITS
GAMMA
12 BITS
GAMMA
0C000H~3FFFFH
15000H~3FFFFH
14000H~3FFFFH
1D000H~3FFFFH
23000H~3FFFFH
2C000H~3FFFFH
0C000H~7FFFFH
15000H~7FFFFH
14000H~7FFFFH
7.75. Slope Curve Table Mapping :
Attribute Resolution A[18:0]
Slope Curve Table
2400DPI
14 BITS
GAMMA
12 BITS
GAMMA
14 BITS
GAMMA
600DPI table I
(DPIHW=00)
600DPI table II
(DPIHW=00)
1200DPI table I
(DPIHW=01)
1200DPI table II
(DPIDW=01)
2400DPI table I
(DPIHW=10)
1D000H~7FFFFH
23000H~7FFFFH
2C000H~7FFFFH
08000 ~ 080FF
(for scan)
08100 ~ 081FF
(for fast feed)
10000 ~ 100FF
(for scan)
10100 ~ 101FF
(for fast feed)
1F800 ~ 1F8FF
(for scan)
Revision 1.3 Mar.22 2001
-40-
Page 42
GL646USB
2400DPI table II
(DPIDW=10)
1F900 ~ 1F9FF
(for fast feed)
Revision 1.3 Mar.22 2001
-41-
Page 43

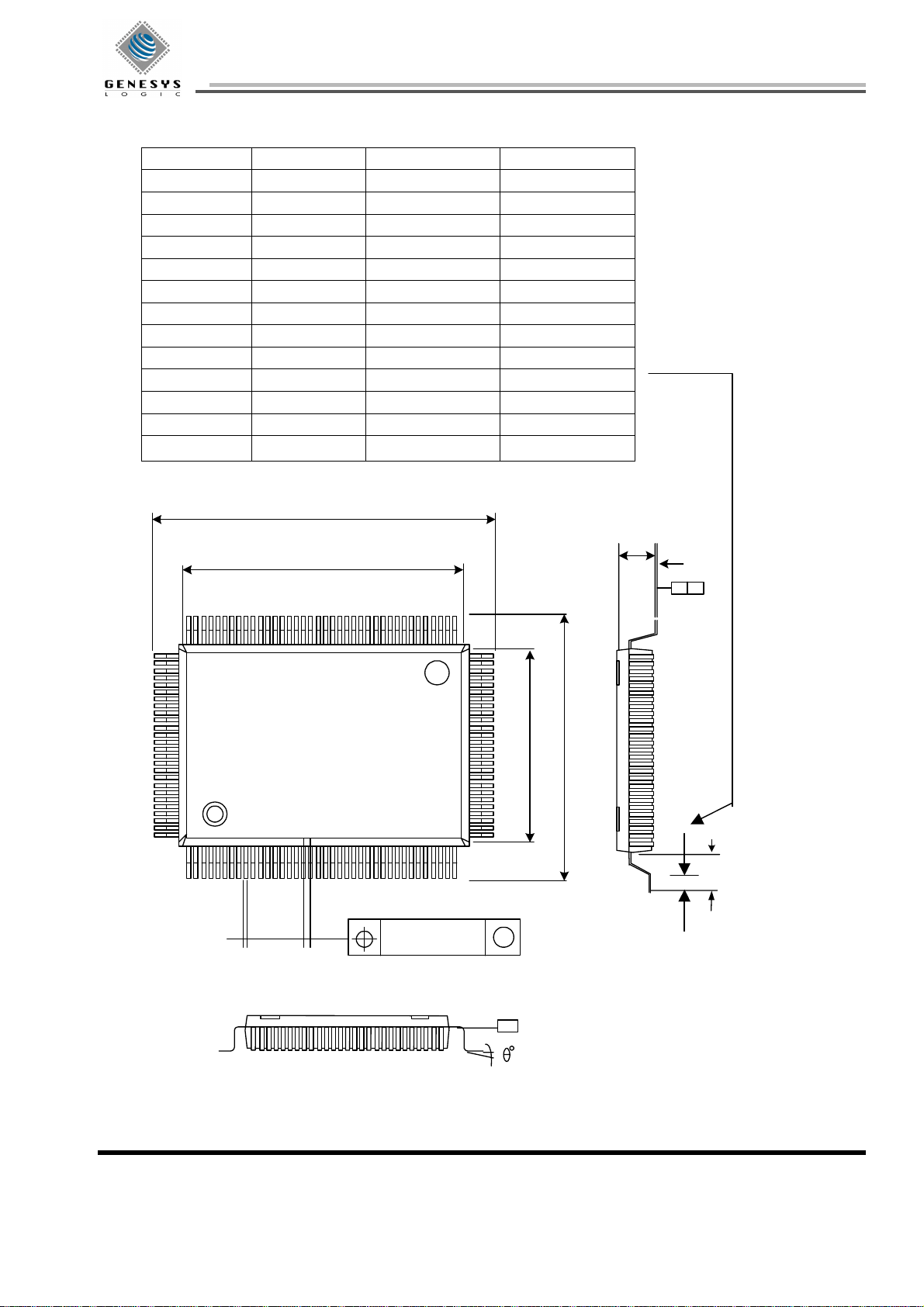

7.76. Package – 128QFP :
SYMBOLS MIN(mm) NOM(mm) MAX(mm)
A1 0.25 0.35 0.45
A2 2.57 2.72 2.87
b 0.10 0.20 0.30
C 0.10 0.15 0.20
D 13.90 14.00 14.10
E 19.90 20.00 20.10
e - 0.50 Hd 17.00 17.20 17.40
He 23.00 23.20 23.40
L 0.65 0.80 0.95
L1 - 1.60 Y - - 0.08
Θ
0 - 12
GL646USB
He
A2
E
D
Hd
b
e
0.08(0.003)
M
A1
Y
D
L1
H
Revision 1.3 Mar.22 2001
-42-
Loading...
