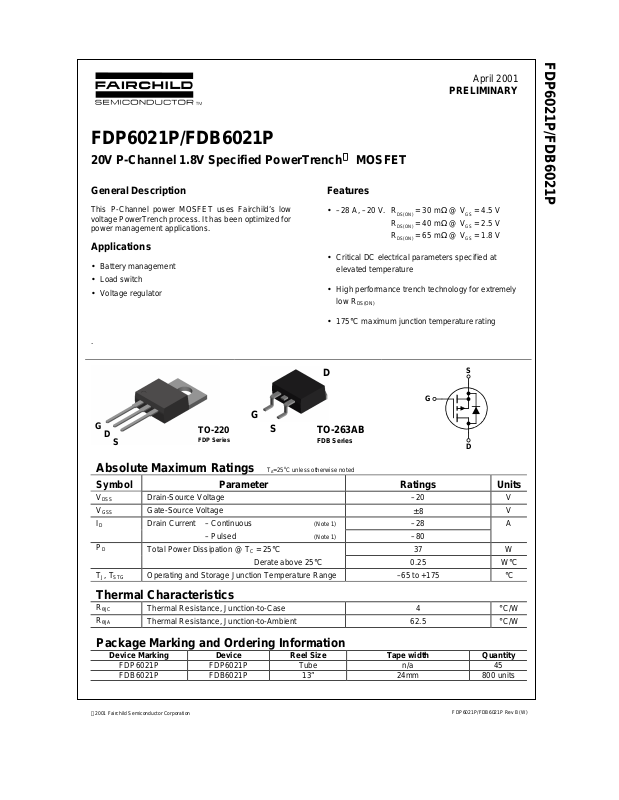

FDP6021P/FDB6021P

20V P-Channel 1.8V Specified PowerTrench



MOSFET

FDP6021P/FDB6021P

April 2001

PRELIMINARY

General Description

This P-Channel power MOSFET uses Fairchild’s low
voltage PowerTrench process. It has been optimized for
power management applications .

Features

• –28 A, –20 V. R
R
R

= 30 mΩ @ VGS = 4.5 V

DS(ON)

= 40 mΩ @ VGS = 2.5 V

DS(ON)

= 65 mΩ @ VGS = 1.8 V

DS(ON)

Applications

• Battery management

• Load switch

• Voltage regulator

.

• Critical DC electric al parameters specified at
elevated temperature

• High performance trench te chnology for extremely
low R

• 175°C maximum junct i on temperature rating

D

DS(ON)

S

G

G

G

D

S

TO-220

FDP Series

Absolute Maximum Ratings T

S

o

=25

C unless otherwise noted

A

TO-263AB

FDB Series

D

Symbol Parameter Ratings Units

V

Drain-Source Voltage –20 V

DSS

V

Gate-Source Voltage

GSS

ID Drain Current – Continuous (Note 1) –28 A
– Pulsed (Note 1) –80

PD

TJ, T

STG

Total Power Dissipation @ T
Derate above 25°C

Operating and Storage Junction Temperature Range –65 to +175

= 25°C

C

± 8

37 W

0.25

V

W°C

°C

Thermal Characteristics

R

θJC

R

θJA

Thermal Resistance, Junction-to-Case
Thermal Resistance, Junction-to-Ambient

4

62.5

°C/W
°C/W

Package Marking and Ordering Information

Device Marking Device Reel Size Tape width Quantity

FDP6021P FDP6021P Tube n/a 45
FDB6021P FDB6021P 13” 24mm 800 units

2001 Fairchild Semiconductor Corporation

FDP6021P/FDB6021P Rev B ( W)

FDP6021P/FDB6021P

Electrical Characteristics T

= 25°C unless otherwise noted

A

Symbol Parameter Test Conditions Min Typ Max Units
Off Characteristics

BV

Drain–Source Breakdown Voltage

DSS

∆BVDSS
∆T

I

Zero Gate Voltage Drain Current VDS = –16 V, VGS = 0 V –1

DSS

I

GSSF

I

GSSR

Breakdown Voltage Temperature
Coefficient

J

Gate–Body Leakage, Forward VGS = 8 V, VDS = 0 V 100 nA

Gate–Body Leakage, Reverse VGS = –8 V VDS = 0 V –100 nA

V

= 0 V, ID = –250 µA

GS

= –250 µA,Referenced to 25°C

I

D

–20 V

–16

mV/°C

µA

On Characteristics (Note 2)

V

Gate Threshold Voltage

GS(th)

∆VGS(th)
∆TJ

R

DS(on)

Gate Threshold Voltage
Temperature Coefficient

Static Drain–Source

On–Resistance

I

On–S t ate Drain Current VGS = –4.5 V, VDS = –5 V –40 A

D(on)

V

= VGS, ID = –250 µA

DS

= –250 µA,Referenced to 25°C

I

D

VGS = –4.5 V, ID = –14 A

= –2.5 V, ID = –12 A

V

GS

V

= –1.8 V, ID = –10 A

GS

= –4.5V, ID = –14 A, TJ=125°C

V

GS

–0.4 –0.7 –1.5 V

3

24
31
50
30

30
40
65
42

mV/°C

mΩ

gFS Forward Transconductance VDS = –5 V, ID = –14 A 33 S

Dynamic Characteristics

C

Input Capacitance 1890 pF

iss

C

Output Capacitance 302 pF

oss

C

Reverse Transfer Capacitance

rss

= –10 V, V

V

DS

f = 1.0 MHz

= 0 V,

GS

124 pF

Switching Characteristics (Note 2)

t

Turn–On Delay Time 13 23 ns

d(on)

tr Turn–On Rise Time 10 20 ns
t

Turn–Off Delay Time 80 128 ns

d(off)

tf Turn–Off Fall Time
Qg Total Gate Charge 20 28 nC
Qgs Gate–Source Charge 4 nC
Qgd Gate–Drain Charge

= –10 V, ID = –1 A,

V

DD

= –4.5 V, R

V

GS

= –10 V, ID = –14 A,

V

DS

V

= –4.5 V

GS

GEN

= 6 Ω

50 80 ns

7 nC

Drain–Source Diode Characteristics and Maximum Ratings

IS Maximum Continuous Drain–Source Diode Forward Current –28 A
VSD Drain–Source Diode Forward

Voltage

Notes:

1. Pulse Test: Pulse Width < 300µs, Duty Cycle < 2.0%

2. TO-220 package is supplied in tube / rail @ 45 pieces per rail.

3. Calculated continuous current based on maximum allowable junction temperature. Actual maximum continuous current limited by package constraints to 75A

VGS = 0 V, IS = –14 A –0.9 –1.3 V

FDP6021P/FDB6021P Rev . B(W)

Typical Characteristics

40

VGS = -4.5V

-3.5V

30

20

, DRAIN CURRENT (A)

D

10

-I

0

012345

-3.0V

-2.5V

-2.0V

, DRAIN-SOURCE VOLTAGE (V)

-V

DS

-1.8V

-1.5V

Figure 1. On-Region Characteristics. Figure 2. On-Resistance Variation with

2.4

2.2

VGS = -1.8V

2

1.8

1.6

, NORMALIZED

1.4

DS(ON)

R

1.2

1

DRAIN-SOURCE ON-RESISTANCE

0.8

0 10203040

-2.0V

-2.5V

-I

-3.0V

, DRAIN CURRENT (A)

D

Drain Current and Gate Voltage.

-3.5V

FDP6021P/FDB6021P

-4.5V

1.5

ID = -14A

1.4

= -4.5V

V

GS

1.3

1.2

1.1

, NORMALIZED

1

DS(ON)

R

0.9

0.8

DRAIN-SOURCE ON-RESISTANCE

0.7

-50 -25 0 25 50 75 100 125 150 175

, JUNCTION TEMPERATURE (oC)

T

J

Figure 3. On-Resistance Variation

withTemperature.

30

VDS = -5V

25

20

15

10

, DRAIN CURRENT (A)

D

-I

5

0

0.511.522.5

-V

, GATE TO SOURCE VOLTAGE (V)

GS

TA = -55oC

25oC

125oC

0.09

ID = -7A

0.07

0.05

, ON-RESISTANCE (OHM)

0.03

DS(ON)

R

0.01
12345

TA = 25oC

-V

, GATE TO SOURCE VOLTAGE (V)

GS

TA = 125oC

Figure 4. On-Resistance Variation with

Gate-to-Source Voltage.

100

VGS = 0V

10

1

0.1

0.01

0.001

, REVERSE DRAIN CURRENT (A)

S

-I

0.0001
0 0.2 0.4 0.6 0.8 1 1.2

TA = 125oC

25oC

-55oC

-V

, BODY DIODE FORWARD VOLTAGE (V)

SD

Figure 5. Transfer Characteristics. Figure 6. Body Diode Forward Voltage Variation

with Source Current and Temperature.

FDP6021P/FDB6021P Rev . B(W)

Typical Characteristics

FDP6021P/FDB6021P

5

ID =-14A

4

3

2

1

, GATE-SOURCE VOLTAGE (V)

GS

-V

0

0 5 10 15 20 25

Q

, GATE CHARGE (nC)

g

VDS = -5V

-15V

-10V

3000

2500

2000

1500

1000

CAPACITANCE (pF)

500

0

C

OSS

C

RSS

0 5 10 15 20

-V

C

ISS

, DRAIN TO SOURCE VOL TAG E (V)

DS

Figure 7. Gate Charge Characteristics. Figure 8. Capacitance Characteristics.

100

R

LIMIT

DS(ON)

10

VGS = -4.5V

, DRAIN CURRENT (A)

D

SINGLE PULSE

-I

R

θ

JC

T

A

1

110100

1s

DC

= 4oC/W
= 25oC

, DRAIN-SOURCE VOLTAGE (V)

-V

DS

100µs

1ms

10ms

100ms

1000

800

600

400

200

P(pk), PEAK TRANSIENT POWER (W)

0

0.0001 0.001 0.01 0.1 1 10 100 1000

, TIME (sec)

t

1

SINGLE PULSE

R

θ

T

= 4°C/W

JC

= 25°C

A

f = 1MHz
V

= 0 V

GS

Figure 9. Maximum Safe Operating Area. Figure 10. Single Pulse Maximum

Power Dissipation.

1

r(t), NORMALIZED EFFECTIVE

TRANSIENT THERMAL RESISTANCE

0.1

0.01

D = 0.5

0.2

0.1

0.05

0.02

0.01

SINGLE PULSE

R

θJA

R

θ

P(pk)

T

- TA = P * R

J

Duty Cycle, D = t

0.0001 0.001 0.01 0.1 1 10 100 1000

Figure 11. Transient Thermal Response Curve.

(t) = r(t) + R

JC

FDP6021P/FDB6021P Rev . B(W)

= 4 °C/W

t

1

t

2

θJA

(t)

θJA

/ t

1

2
