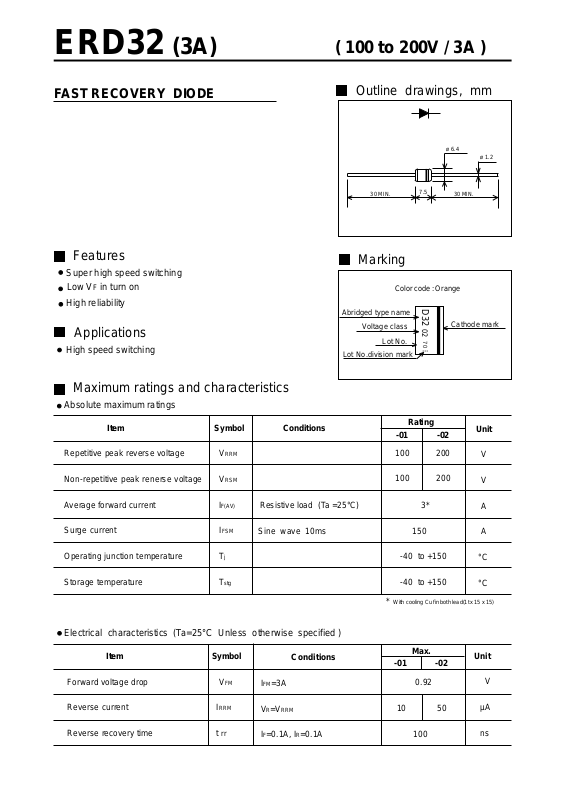

Page 1
ERD32 (3A)
( 100 to 200V / 3A )
FAST RECOVERY DIODE
Features
Super high speed switching
Low VF in turn on
High reliability
Applications
High speed switching
Outline drawings, mm
30 MIN.
ø 6.4
7.5
ø 1.2
30 MIN.
Marking
Color code : Orange
Abridged type name
Voltage class
Lot No.
Lot No.division mark
D32 02
Cathode mark
70
···
Maximum ratings and characteristics
Absolute maximum ratings
Item
Repetitive peak reverse voltage
Non-repetitive peak renerse voltage
Average forward current
Surge current
Operating junction temperature
Storage temperature
Electrical characteristics (Ta=25°C Unless otherwise specified )
Item
Symbol
VRRM
VRSM
IF(AV)
IFSM
Tj
Tstg
Symbol
Conditions
Resistive load (Ta =25°C)
Sine wave 10ms 150
Conditions
Rating
-01 -02
100 200
100 200
3*
-40 to +150
-40 to +150
* With cooling Cu fin both lead(1t x 15 x 15)
Max.
-01 -02
Unit
V
V
A
A
°C
°C
Unit
Forward voltage drop
Reverse current
Reverse recovery time
VFM
IRRM
t rr
IFM=3A
VR=VRRM
IF=0.1A, IR=0.1A
0.92
10 50
100
V
µA
ns
Page 2
(100V to 200V / 3A )
Characteristics
ERD32(3A)
IF
[A]
Forward characteristics
10
5
3
1.0
0.5
0.3
0.1
0.05
0 0.2 0.4 0.6 0.8 1.0 1.2 1.4
VF [V]
Current derating (IF(AV)-Ta)
2.8
IR
[µA]
Reverse characteristics
100
10
1.0
0.1
0 100 200 300
VR [V]
Junction capacitance characteristics
100
IF(AV)
[A]
300
100
IFSM
[A]
50
2.4
2.0
1.6
1.2
0.8
0.4
0
0 20 40 60 80 100 120 140
T
a [°C]
Surge capability
Cj
[pF]
50
30
10
5
10 30 50 100 300
V
R [V]
30
10
1 3 5 10 30
[time] (at 50Hz)
