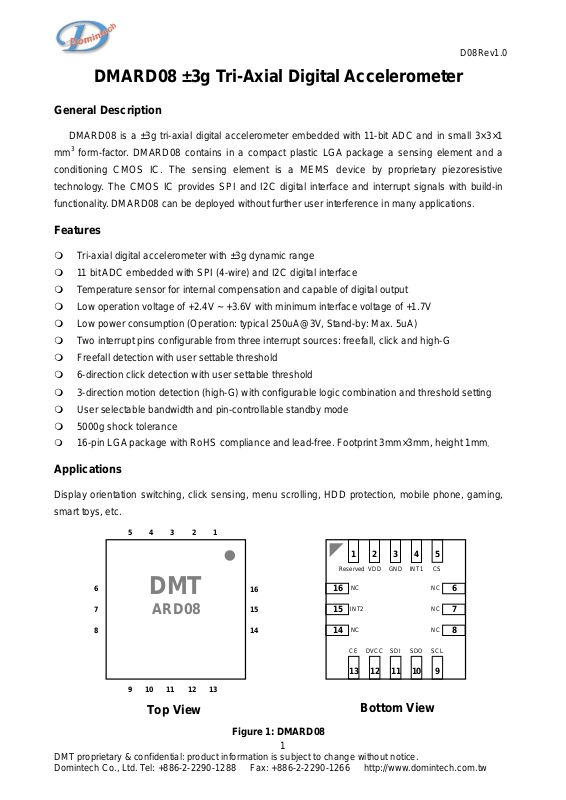

DMARD08 ±3g Tri-Axial Digital Accelerometer

General Description

DMARD08 is a ±3g tri-axial digital accelerometer embedded with 11-bit ADC and in small 3×3×1
mm3 form-factor. DMARD08 contains in a compact plastic LGA package a sensing element and a
conditioning CMOS IC. The sensing element is a MEMS device by proprietary piezoresistive
technology. The CMOS IC provides SPI and I2C digital interface and interrupt signals with build-in
functionality. DMARD08 can be deployed without further user interference in many applications

.

Features

 Tri-axial digital accelerometer with ±3g dynamic range
 11 bit ADC embedded with SPI (4-wire) and I2C digital interface
 Temperature sensor for internal compensation and capable of digital output
 Low operation voltage of +2.4V ~ +3.6V with minimum interface voltage of +1.7V
 Low power consumption (Operation: typical 250uA@3V, Stand-by: Max. 5uA)
 Two interrupt pins configurable from three interrupt sources: freefall, click and high-G
 Freefall detection with user settable threshold
 6-direction click detection with user settable threshold
 3-direction motion detection (high-G) with configurable logic combination and threshold setting
 User selectable bandwidth and pin-controllable standby mode
 5000g shock tolerance



16-pin LGA package with RoHS compliance and lead-free. Footprint 3mm×3mm, height 1mm.

Applications

Display orientation switching, click sensing, menu scrolling, HDD protection, mobile phone, gaming,
smart toys, etc.

5

6

7

8

DMT

ARD08

Top View

1234

VDD

3 4

GND

SDIDVCC

11 10

INT1

SDO

NC

NC

NCNC

5

CS

6

7

8

913 12

1 2

Reserved

NC

16

15

14

1211109

13

16

INT2

15

14

CE SCL

Bottom View

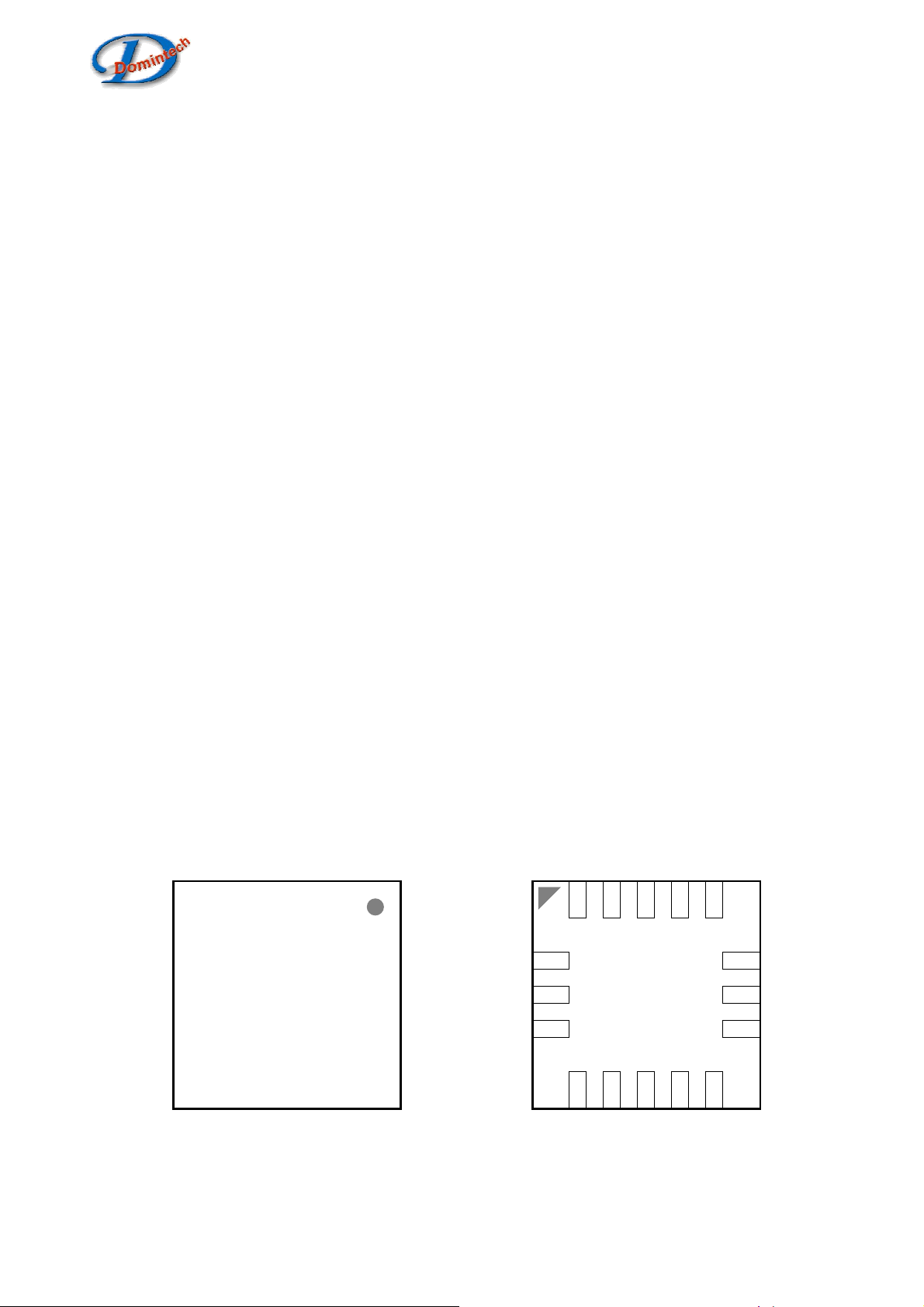

Figure 1: DMARD08

1

DMT proprietary & confidential: product information is subject to change without notice.
Domintech Co., Ltd. Tel: [phone] Fax: [phone] http://www.domintech.com.tw

Specifications

Pin Name Description Pin Name Description

1 Reserved Reserved 9 SCL Serial interface clock

D08Rev1.0

Table 1: Pin Descriptions

2
3
4
5
6
7
8

VDD Analog power 10 SDO Serial data interface
GND Ground 11
INT1 Interrupt signal 1 12 DVCC Digital power

CS Serial interface mode select 13
NC No connection inside 14
NC No connection inside 15 INT2 Interrupt signal 2
NC No connection inside 16

Table 2: General Specification

Parameter Conditions Min. Typ. Max. Unit

Operating Voltage Vop

Ta = -40°C ~ +85°C

(VDD)
Interface Voltage DVCC

Ta = -40°C ~ +85°C

Operating current Iop Vop = 3V, Ta = 25°C

SDI Serial data interface

CE Control of chip enable
NC No connection inside

NC No connection inside

2.4 3.0 3.6 V

1.7 — 3.6 V
— 250 400 uA

Standby current I

Vop = 3V, Ta = 25°C

stby

— 3 5 uA

Dynamic range — ±3 — g
Sensitivity
Zero-g offset
Sensitivity to temp. dependency
Zero-g offset temp. dependency

Vop = 3V, Ta = 25°C
Vop = 3V, Ta = 25°C
Ta = -40°C ~ +85°C
Ta = -40°C ~ +85°C

230 256 280 LSB/g

— ±120 — LSB
— ±0.08

— %/°C

— ±2 — mg/°C

Nonlinearity — ±2 — %FS
Cross axis sensitivity — 2 — %
Turn on time N: average order

Tms × N

ms
mg

Noise BW=100Hz — 11 —

rms

Operation temperature Ta

-40 — +85 °C

Storage temperature range -40 — +125 °C
Internal sampling period Tms

Internal sampling rate 1/Tms

User selectable 1.462, 2.925 ms
User selectable 342, 684 Hz

2

DMT proprietary & confidential: product information is subject to change without notice.
Domintech Co., Ltd. Tel: [phone] Fax: [phone] http://www.domintech.com.tw

Detection response time User selectable

D08Rev1.0

Tms

ms

Bandwidth

Mechanical DC 100 — Hz
Electrical See Bandwidth Table 8 Hz
Default — 523 — mg

Freefall threshold

Settable @ 7.8mg step 7.8 — 996 mg
Default — 2.0 — g

Click threshold

Settable @ 250mg step 0.25 — 3.0 g
Temperature sensor sensitivity
Temperature sensor accuracy

Vop = 3V

Ta = -40°C ~ +85°C

— 16 — LSB/°C

— ±3 — °C
Digital interface I2C and SPI (4-wire)
I2C clock frequency — — 400 kHz
Low level input voltage CS, CE, SCL, SDI, SDO
High level input voltage CS, CE, SCL, SDI, SDO

-0.3 —

0.8×V

if

—
Low level output voltage INT, SDI, SDO — —
High level output voltage INT, SDI, SDO

0.9×V

— — V

if

0.2×Vif
Vif+0.3

0.1×Vif

V
V
V

Maximum Ratings

Table 3: Absolute Maximum Rating

Parameter Rating

Vop-GND -0.3 ~ 4 V
Any other pin voltage GND-0.3 to Vop+0.3 V
Temperature Range (Storage) −40°C to +125°C
ESD 2000V (HBM)
Acceleration (Any Axis, unpowered) 5,000 g
Freefall on concrete surface 1 m

Note: Stress above the absolute maximum rating as listed in Table 3 may cause permanent damage to the
device

3

DMT proprietary & confidential: product information is subject to change without notice.
Domintech Co., Ltd. Tel: [phone] Fax: [phone] http://www.domintech.com.tw

Connection Diagram

AVDD DVCC

D08Rev1.0

X
Y
Z
T

AMP

MUX

Bias & Timing

Generation

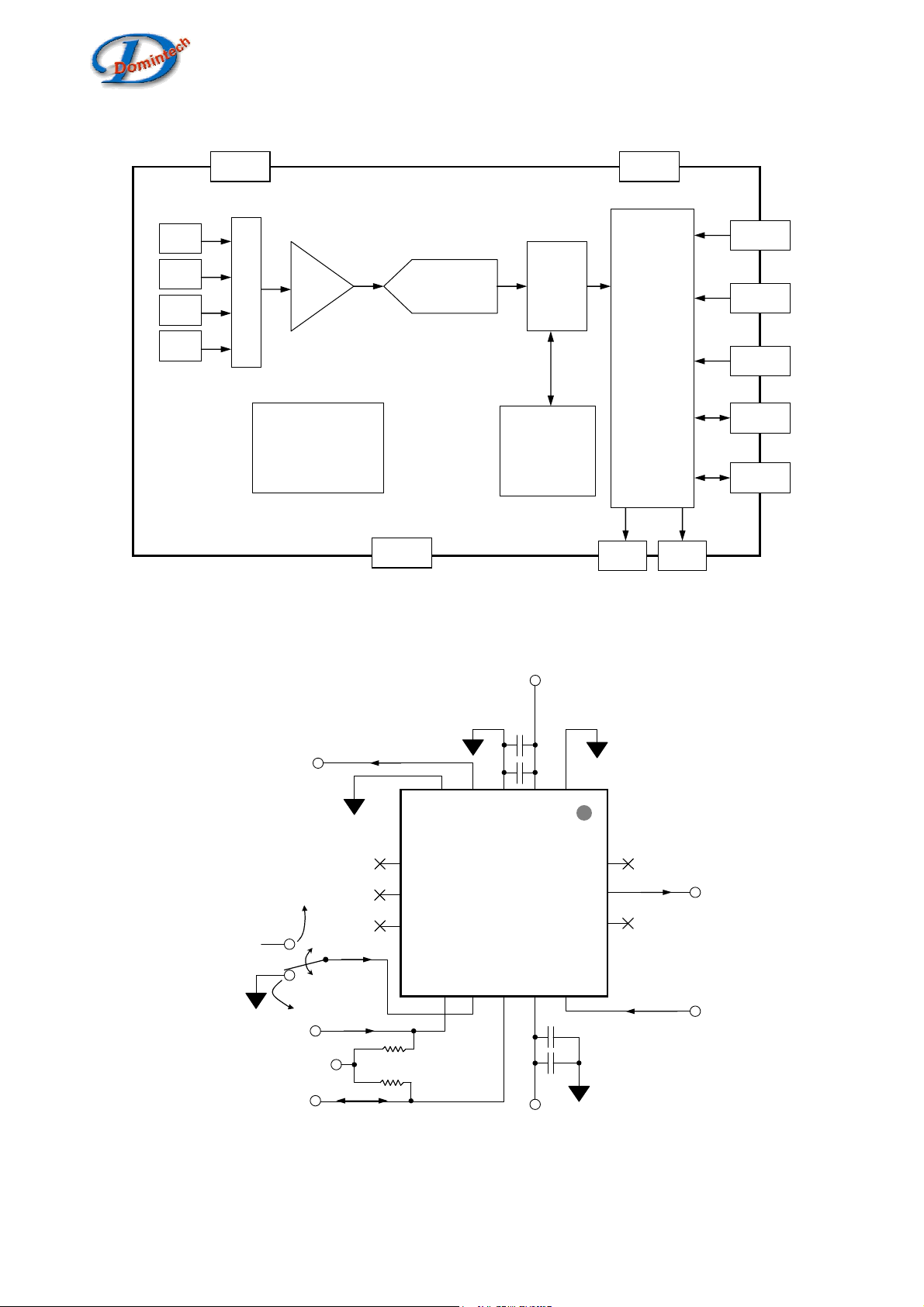

Figure 2: Block Diagram of DMARD08

11bits

SAR ADC

GND

CE

LPF

&

DSP

CS

Digital

Interface

SCL

(SPI/I2C)

SDI

OTP

ROM

SDO

INT1

VDD

INT2

DVCC

INT1

Slave Addr: 3Ah

Slave Addr: 38h

SCL

DVCC

SDA

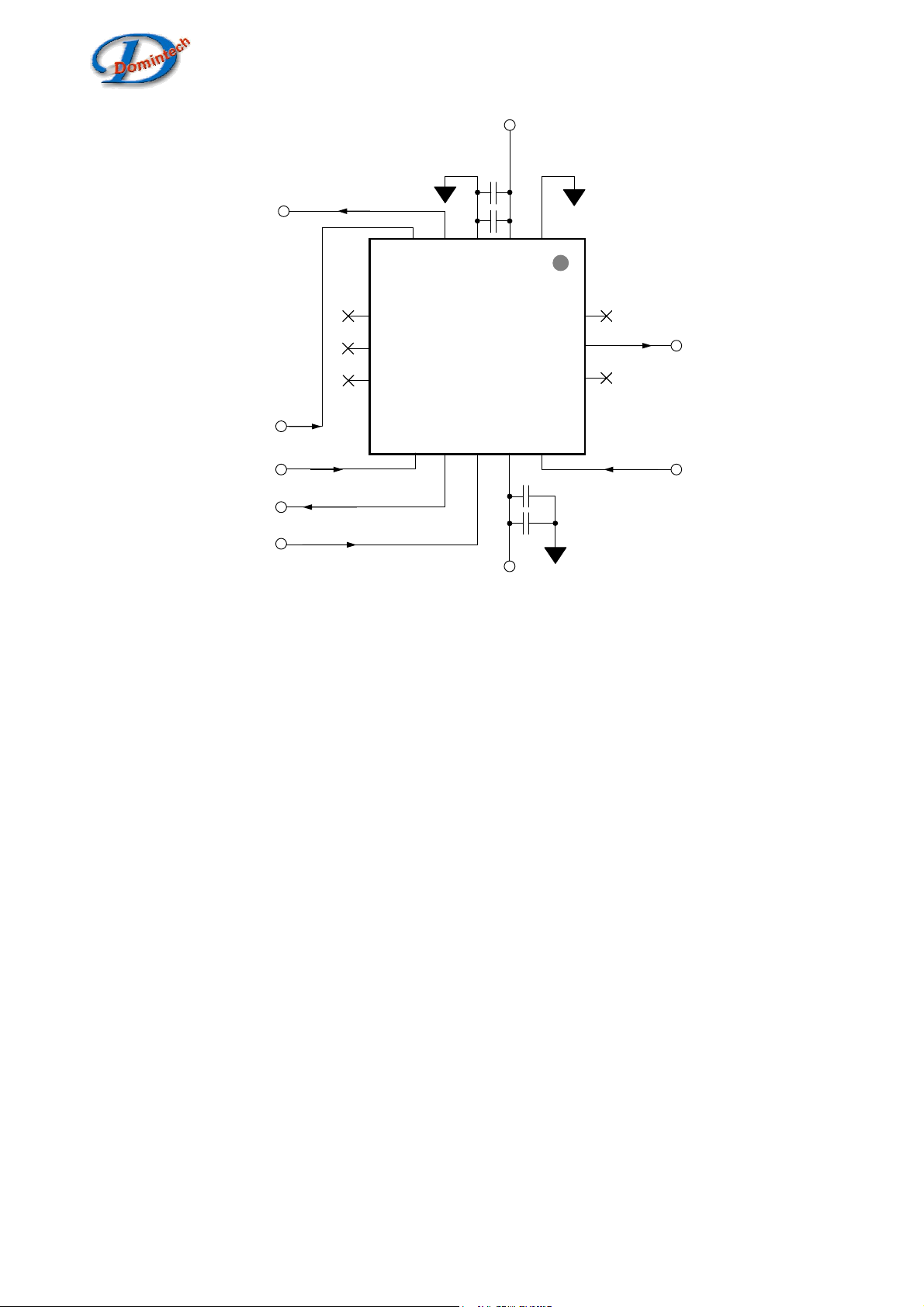

Figure 3: I2C Connection Example

4.7kΩ

4.7kΩ

0.1µF

10µF

12345

6

7

8

DMT

ARD08

DVCC

0.1µF

10µF

16

15

14

131211109

INT2

CE

4

DMT proprietary & confidential: product information is subject to change without notice.
Domintech Co., Ltd. Tel: [phone] Fax: [phone] http://www.domintech.com.tw

0.1µF

D08Rev1.0

VDD

INT1

CS

SCL

SDO

SDI

10µF

12345

6

7

8

DMT

ARD08

16

15

14

131211109

0.1µF

10µF

DVCC

Figure 4: SPI Connection Example

INT2

CE

5

DMT proprietary & confidential: product information is subject to change without notice.
Domintech Co., Ltd. Tel: [phone] Fax: [phone] http://www.domintech.com.tw

Read/Write

Interrupt

Status Registers

D08Rev1.0

User Registers

End users can read sensor outputs, control sensor behaviors and query the interrupt status by
accessing the user registers. DMARD08 provides two digital interfaces, i.e. SPI 4-wire and I2C, for
easy accessing these registers. The registers primarily consist of three categories: data, control and
interrupt status registers. Sensor output values can be read from the data registers. The sensor
behavior can be configured by setting up respective control registers. And lastly when using the
build-in interrupt functions, the interrupt status registers bear state bits detailing interrupt event.

User Register Map

Table 4: User Register Map Table

Register

bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0

Type

Address

Data Registers

00h Tout[10:3] Read NA
01h Not used Tout[2:0] Read NA
02h Xout[10:3] Read NA
03h Not used Xout[2:0] Read NA
04h Yout[10:3] Read NA
05h Not used Yout[2:0] Read NA
06h Zout[10:3] Read NA
07h Not used Zout[2:0] Read NA

Control Registers

08h I2CFG[1:0] I1CFG[1:0] HGL Tms

N[1:0] Read/Write

Not

09h HGAO HGXEn HGYEn HGZEn

CLXEn CLYEn CLZEn Read/Write

used

Default

Value

00h

00h

0Ah HGth[3:0] FFth[3:0]

0Bh Not used Clickth[3:0] Read/Write 08h

0Ch FFInt HGInt XHGP XHGN YHGP YHGN ZHGP ZHGN

0Dh

Note: SPI register address is 13-bit wide while I2C register address is 8-bit wide. For the same register,
taking address 04h as an example, SPI address should be set as 0000000000100b, and I2C address
should be set as 00000100b.

DMT proprietary & confidential: product information is subject to change without notice.
Domintech Co., Ltd. Tel: [phone] Fax: [phone] http://www.domintech.com.tw

Not

used

CLInt XCLP XCLN YCLP YCLN ZCLP ZCLN

6

88h

Read NA

Read NA

D08Rev1.0

Data Registers

Temperature and acceleration output values can be read from the data registers. The sensor
output is converted to an 11-bit value and stored across two register bytes. Data representation is 2's
complement, i.e. MSB 1 means negative values. Data is periodically updated with sampling period
which is user-settable, and data registers will keep their values intact when digital interface (SPI or
I2C) is accessed. In addition the data can be pre-processed by digital moving average filter for
bandwidth control. Please refer to "Control Registers" for more details on the sampling period and
bandwidth control.

A thermometer is embedded in DMARD08. Its temperature sensitivity is 16 LSB/°C and the
central value (0h) stands for 25°C. For example a Tout[10:0] reading of 80h means 25+80h/16=33°C.
The acceleration sensitivity is 256 LSB/g and the central value (0h) stands for 0g. For example a
Xout[10:0] reading of 100h means 100h/256=1g.

Following lists the summary of sensor output and data registers:

1. Tout[10:0]: 11-bit temperature output, register 00h:bit7~0 + 01h:bit2~0

2. Xout[10:0]: 11-bit X-axis output, register 02h:bit7~0 + 03h:bit2~0

3. Yout[10:0]: 11-bit Y-axis output, register 04h:bit7~0 + 05h:bit2~0

4. Zout[10:0]: 11-bit Z-axis output, register 06h:bit7~0 + 07h:bit2~0

Control Registers

INT1 and INT2 Source Configure

I1CFG[1:0] (08h:bit5, 4) and I2CFG[1:0] (08h:bit7, 6) are interrupt pins (INT×, ×=1, 2) source
configuration bits respectively. DMARD08 has two interrupt pins configurable from three interrupt
sources of freefall, click and high-G. Each interrupt INT× has two bits to configure its output from any of
the three interrupt sources, or alternatively turn it off by grounding. The INTx source configuration table
can be found in Table 5.

Table 5: INTx Pin Source Configuration Table

IxCFG[1]
x=1, 08h:bit5
x=2, 08h:bit7

IxCFG[0]
x=1, 08h:bit4
x=2, 08h:bit6

INTx Source

0 0 GND
0 1 Freefall
1 0 Click
1 1 High-G

Note: x=1, 2

Freefall Interrupt Enable

IxCFG[1:0] has a side effect on the freefall interrupt enable control. If either pin of INTx is

configured to source its output from freefall, i.e. IxCFG[1:0] = 01b, the freefall interrupt is automatically

7

DMT proprietary & confidential: product information is subject to change without notice.
Domintech Co., Ltd. Tel: [phone] Fax: [phone] http://www.domintech.com.tw

D08Rev1.0

enabled. When the freefall interrupt is enabled, DMARD08 will watch closely the acceleration values of
all three axes as compared to some threshold. The INTx pin will directly reflect the comparison result,
in other words the result is not latched. The INTx pin will be logic-1 if all three acceleration magnitudes
are below the designated threshold value, which potentially indicates a freefall in process. On the other
hand, the INTx pin will be logic-0 if any of three acceleration magnitudes rises above the threshold.
The freefall interrupt flag (FFInt, 0Ch:bit7) serves the same purpose and manner as the INTx pin. This
flag can be read via the SPI/I2C digital interface, and therefore is an alternative to the INTx pin if end
users have GPIO constraint. See "Interrupt Status Registers" for details. User can set freefall threshold,
see "Freefall Threshold" for details.

High-G Latch Control

HGL (08h:bit3) is the high-G latch control. Under some circumstances the high-G detection event
may need to be latched. Logic-1 HGL will cause the high-G detection results latched. See “High-G
Detection” for details on high-G detection.

Bandwidth

Tms (08h:bit2) is used to setup the internal ADC sampling period, together with N[1:0] (08h:bit1,

0), which is to setup the digital filtering of ADC output data, to obtain the desired bandwidth. Digital
filters can be selectively activated to reduce the bandwidth to as low as 20 Hz. A moving average filter
of various lengths is implemented as the digital filter. Please see Table 6 for the sampling period and
frequency settable by Tms, and Table 7 for the moving average length settable by N[1:0]. Bandwidth
table can be found in Table 8.

Table 6: Sampling Period Table

Tms

(08h: bit2)

0
1

Sampling Period

(ms)

2.925 342

1.462 684

Sampling Frequency

(Hz)

Table 7: Moving Average Length Table

N[1]

N[0]

Average Order

(08h: bit1)

0 0

(08h: bit0)

8

0 1
1 0
1 1

4
2
1

8

DMT proprietary & confidential: product information is subject to change without notice.
Domintech Co., Ltd. Tel: [phone] Fax: [phone] http://www.domintech.com.tw

Table 8: Bandwidth Table

D08Rev1.0

Hz

N[1:0] (08h:bit1, 0)

00 01 10 11

19 38 76

Tms

0

No Filter

(08h: bit2)

38 76 153

1

High-G Detection

HGXEn, HGYEn, HGZEn (09h:bit6, 5, 4) are the X-, Y-, and Z-axis high-G interrupt enable control
bits respectively. If the respective high-G interrupt enable bit is set to 1, high-G monitoring is enabled
for the respective axis. Upon enabled, DMARD08 will check closely if the acceleration magnitude of
the respective axis exceeds some high-G threshold value. Furthermore the HGAO (09h:bit7) serves as
the logical combination control bit for multiple axial detections. Logic-1 HGAO will do “logic-AND” of
enabled multiple axial detections before output to the configured interrupt pin INT×. On the contrary,
logic-0 HGAO will do “logic-OR” of enabled multiple axial detections before output to the configured
interrupt pin INT×. Logic-1 INT× stands for high-G event detection and logic-0 otherwise. The INTx pin
will directly reflect the detection result, in other words the result is not latched. The high-G interrupt flag
(HGInt, 0Ch:bit6) serves the same purpose and manner as the INTx pin. This flag can be read via the
SPI/I2C digital interface, and therefore is an alternative to the INTx pin if end users have GPIO
constraint.

In the case when the enabled multiple axial detections are logic-OR’ed (HGAO is logic-0), we may
want to further identify which axis and direction cause the high-G detection. This can be achieved by
first latching the result and then checking direction flags. Logic-1 HGL(08h:bit3) will cause the high-G
detection results latched. Then high-G direction flags (XHGP, XHGN, YHGP, YHGN, ZHGP, ZHGN,
0Ch:bit5~0) can be checked to detail the high-G axis and direction upon high-G detection. The latch
will be automatically cleared after the high-G flag register (0Ch) is read. Following summarizes the
meaning when respective flag is set.

1. XHGP: high-G detected in the X-axis positive direction

2. XHGN: high-G detected in the X-axis negative direction

3. YHGP: high-G detected in the Y-axis positive direction

4. YHGN: high-G detected in the Y-axis negative direction

5. ZHGP: high-G detected in the Z-axis positive direction

6. ZHGN: high-G detected in the Z-axis negative direction

Please note that when the enabled multiple axial detections are logic-AND’ed (HGAO is logic-1)
the high-G latch (HGL is logic-1) is not supported. The outcome may not be repeatable when HGAO
and HGL are both set.

For INT× configuration, see “INT1 and INT2 Source Configure”. User can set respective high-G
threshold, see "High-G Threshold" for details. For high-G interrupt and direction flags, see "Interrupt
Status Registers" for details. For high-G latch, see “High-G Latch Control” for details.

9

DMT proprietary & confidential: product information is subject to change without notice.
Domintech Co., Ltd. Tel: [phone] Fax: [phone] http://www.domintech.com.tw

D08Rev1.0

Click Interrupt Enable

CLXEn, CLYEn, CLZEn (09h:bit2, 1, 0) are the X-, Y-, and Z-axis click interrupt enable control bits
respectively. If the respective click interrupt enable bit is set to 1, click monitoring is enabled for the
respective axis. DMARD08 will check closely if the respective axis acceleration value double crosses
some click threshold. In such case a click event is detected on the way of second cross. On detection
the configured INT× pin will be latched to logic-1. The click interrupt flag (CLInt, 0Dh:bit6) serves the
same purpose and manner as the INTx pin. This flag can be read via the SPI/I2C digital interface, and
therefore is an alternative to the INTx pin if end users have GPIO constraint. Respective click direction
flags (XCLP, XCLN, YCLP, YCLN, ZCLP, ZCLN, 0Dh:bit5~0) will also be set to 1 depending on
detected axis and direction. The latch will be automatically cleared after the click flag register (0Dh) is
read. See "Interrupt Status Registers" for details. For INT× configuration, see “INT1 and INT2 Source
Configure”. User can set respective click threshold, see "Click Threshold" for details.

High-G Threshold

HGth[3:0] (0Ah:bit7~4) is the 4-bit high-G threshold control register with 250mg per code. The
effective setting range is from 0Ch (3.0g) to 01h (250mg). The default value is 08h (2.0g). See "High-G
Interrupt Enable" for high-G detection enable control.

Freefall Threshold

FFth[3:0] (0Ah:bit3~0) is the 4-bit freefall threshold control register with 62.5mg per code. The
effective setting range is from 0Fh (937.5mg) to 01h (62.5mg). The default value is 08h (500mg). See
"Freefall Interrupt Enable" for freefall detection enable control.

Click Threshold

Clickth[3:0] (0Bh: bit3~0) is the 4-bit click threshold control register with 250mg per code. The
effective setting range is from 0Ch (3.0g) to 01h (250mg). The default value is 08h (2.0g). The
threshold will be checked against double-cross for click event when the click interrupt enable is set,
see "Click Interrupt Enable" for proper register setup. Appropriate flag will be set to 1 upon detecting
click event when the INT pin is latched to logic-1, see "Interrupt Status Registers" for details.

Interrupt Status Registers

0Ch and 0Dh serve as the interrupt status registers. When relevant events trigger interrupts,
configured INT× pin and appropriate interrupt status bits will be set. For a non-latched interrupt, the
interrupt status register can serve as a replica of configured INT×, and accessed from typical digital
interface instead of dedicated GPIO. For a latched interrupt, more detailed information is kept in the
interrupt status registers for users to further distinguish interrupt sources. The latch will be
automatically cleared after appropriate interrupt status register is read.

Freefall Interrupt Flag

FFInt (0Ch:bit7) is the freefall interrupt flag. The freefall interrupt flag serves the same purpose
and manner as the configured INTx pin. This flag can be read via the SPI/I2C digital interface, and
therefore is an alternative to the INTx pin if end users have GPIO constraint. See “INT1 and INT2

10

DMT proprietary & confidential: product information is subject to change without notice.
Domintech Co., Ltd. Tel: [phone] Fax: [phone] http://www.domintech.com.tw

D08Rev1.0

Source Configure”, "Freefall Interrupt Enable" and "Freefall Threshold" for proper register setup.

High-G Interrupt Flag

HGInt (0Ch:bit6) is the high-G interrupt flag. The high-G interrupt flag serves the same purpose
and manner as the configured INTx pin. This flag can be read via the SPI/I2C digital interface, and
therefore is an alternative to the INTx pin if end users have GPIO constraint. See “INT1 and INT2
Source Configure” and “High-G Detection” for proper register setup.

X-axis High-G Flag

XHGP(0Ch:bit5) and XHGN(0Ch:bit4) is the flag for the high-G detection along the X-axis positive
and negative direction respectively. XHGP is set when the X-axis acceleration exceeds the positive
value of the high-G threshold. Likewise XHGN is set when the X-axis acceleration falls beyond the
negative value of the high-G threshold. Please refer to “High-G Detection” for proper register setup.

Y-axis High-G Flag

YHGP(0Ch:bit3) and YHGN(0Ch:bit2) is the flag for the high-G detection along the Y-axis positive
and negative direction respectively. YHGP is set when the Y-axis acceleration exceeds the positive
value of the high-G threshold. Likewise YHGN is set when the Y-axis acceleration falls beyond the
negative value of the high-G threshold. Please refer to “High-G Detection” for proper register setup.

Z-axis High-G Flag

ZHGP(0Ch:bit1) and ZHGN(0Ch:bit0) is the flag for the high-G detection along the Z-axis positive
and negative direction respectively. ZHGP is set when the Z-axis acceleration exceeds the positive
value of the high-G threshold. Likewise ZHGN is set when the Z-axis acceleration falls beyond the
negative value of the high-G threshold. Please refer to “High-G Detection” for proper register setup.

Click Interrupt Flag

CLInt (0Dh:bit6) is the click interrupt flag. The click interrupt flag serves the same purpose and
manner as the configured INTx pin. This flag can be read via the SPI/I2C digital interface, and
therefore is an alternative to the INTx pin if end users have GPIO constraint. See “INT1 and INT2
Source Configure”, "Click Interrupt Enable" and "Click Threshold" for proper register setup.

X-axis Click Flag

XCLP (0Dh:bit5) and XCLN (0Dh:bit4) are X-axis positive and negative direction click flag. The flag
will be latched to 1 upon detecting click event along X-axis when the configured INT× pin is latched to
logic-1. The X-axis click event is to check double-crossing some click threshold. Depending on the
double-crossing direction, positive or negative flag is set respectively. The click event is fired at the
second crossing. For example, when the X-axis click enable is set, i.e. CLXEn (09h:bit2) = 1, with default
threshold value 2.0g, i.e. Clickth[3:0] (0Bh:bit3~0) = 08h, Figure 5 shows a scenario that the X
acceleration first double-cross the positive threshold 2.0g and then secondly double-cross the negative
threshold -2.0g. The first double-cross will trigger positive direction click (flag XCLP set to 1) at the
second cross. The latter double-cross will trigger negative direction click (flag XCLN set to 1) at the
second cross. See “INT1 and INT2 Source Configure”, "Click Interrupt Enable" and "Click Threshold" for

11

DMT proprietary & confidential: product information is subject to change without notice.
Domintech Co., Ltd. Tel: [phone] Fax: [phone] http://www.domintech.com.tw

D08Rev1.0

proper register setup.

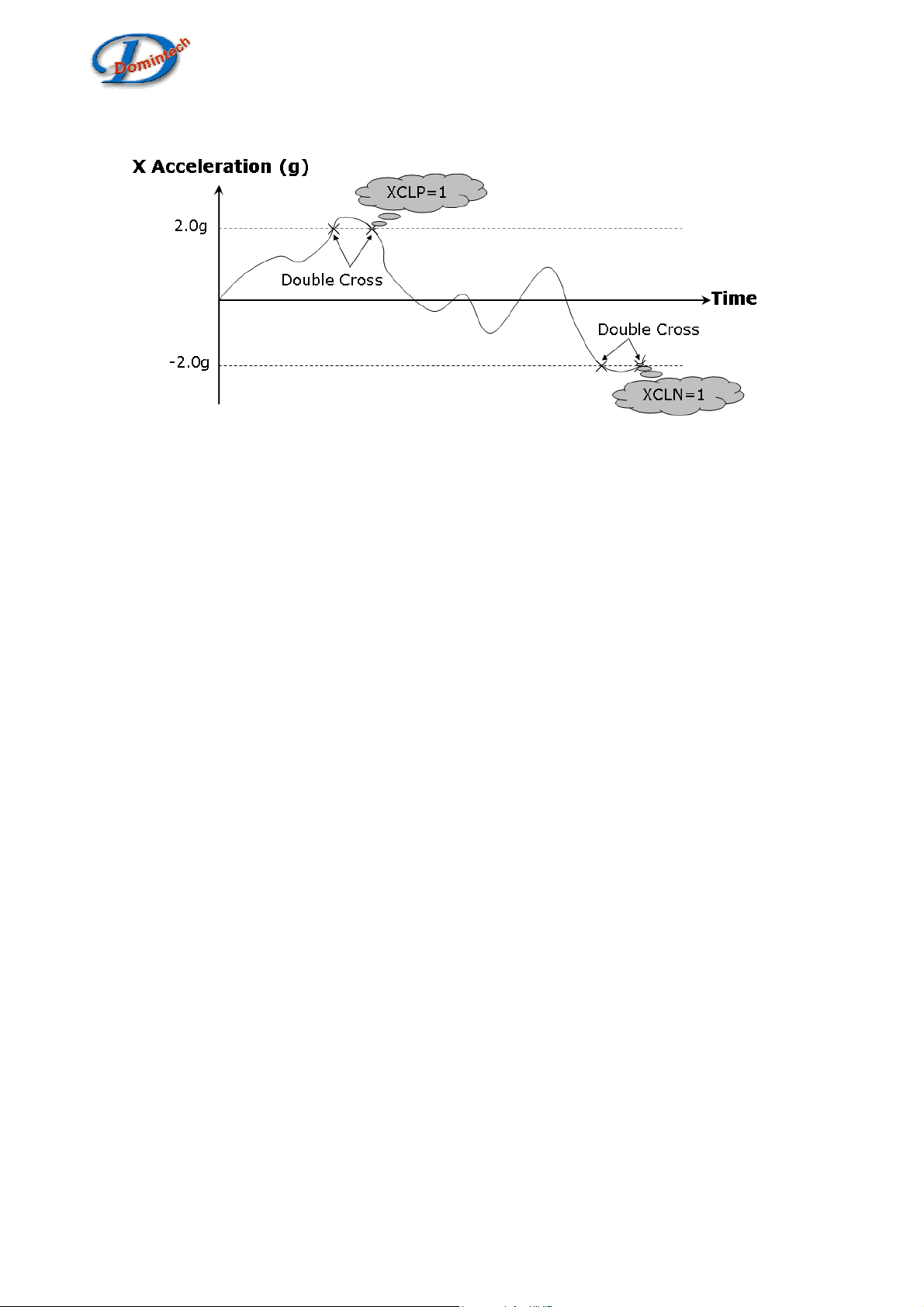

Figure 5: X-axis Click Event Trigger Example

Y-axis Click Flag

YCLP (0Dh:bit3) and YCLN (0Dh:bit2) are Y-axis positive and negative direction click flag. They
work in analog to XCLP and XCLN.

Z -axis Click Flag

ZCLP (0Dh:bit1) and ZCLN (0Dh:bit0) are Z-axis positive and negative direction click flag. They
work in analog to XCLP and XCLN.

12

DMT proprietary & confidential: product information is subject to change without notice.
Domintech Co., Ltd. Tel: [phone] Fax: [phone] http://www.domintech.com.tw

D08Rev1.0

Digital Interface

DMARD08 provides two digital interfaces (SPI 4-wire and I2C) and an interrupt output signal for
easy configuration and data/status query. The digital interface can be used to regularly read the data
registers of acceleration and temperature output. The DMARD08 can also be configured by setting up
proper control registers via the digital interface. For example, the interrupt pin can be configured to
response to freefall or click event. Upon triggered interrupt, user can use the digital interface to check
the interrupt status register for proper interrupt source verification.

I2C Interface

DMARD08 includes a slave I2C interface. CS must be connected to ground when choosing I2C as
digital interface. The I2C bus takes master clock through SCL pin and exchanges serial data via SDI.
SDI is bidirectional (input/output) with open drain. It must be connected externally to VIF via a pull-up
resistor. SDO is used to set I2C slave address SDO-bit. The SDO-bit can be set to 1 by connecting
SDO to VIF, or to 0 by grounding.

I2C Slave Address

DMARD08 has a 7-bit slave address. The six high bits is fixed at value 001110b. The LSB of slave
address (bit1 or SDO-bit) can be set to either 1 or 0 by physical SDO connection. For example if SDO
is connected to high (VIF), the 7-bit slave address is 0011101b, and vice versa. Additional RW bit sets
the chip in read or write mode, RW = 0 for write and 1 for read. Table 8 summaries the I2C slave
address and RW.

Table 9: I2C slave address & RW

Slave Address

bit0

Hex Read/Write

bit7 bit6 bit5 bit4 bit3 bit2

bit1

(RW)

(SDO-bit)

0 0 38h Write
0 1 39h Read

0 0 1 1 1 0

1 0 3Ah Write
1 1 3Bh Read

I2C Access Format

Data transfer begins by bus master indicating a start condition (ST) of a falling edge on SDI when
SCL is high. Stop condition (SP) also indicated by bus master is a rising edge on SDI when SCK is high.

After a start condition, the slave address + RW bit must be sent by master. If the slave address does
not match with DMARD08, there is no acknowledge and the following data transfer will not affect
DMARD08. If the slave address corresponds to DMARD08, it will acknowledge by pulling SDI to low and
the SDI line is let free enabling the data transfer. The master should let the SDI high (no pull down) and
generate a high SCL pulse for DMARD08 acknowledge.

13

DMT proprietary & confidential: product information is subject to change without notice.
Domintech Co., Ltd. Tel: [phone] Fax: [phone] http://www.domintech.com.tw

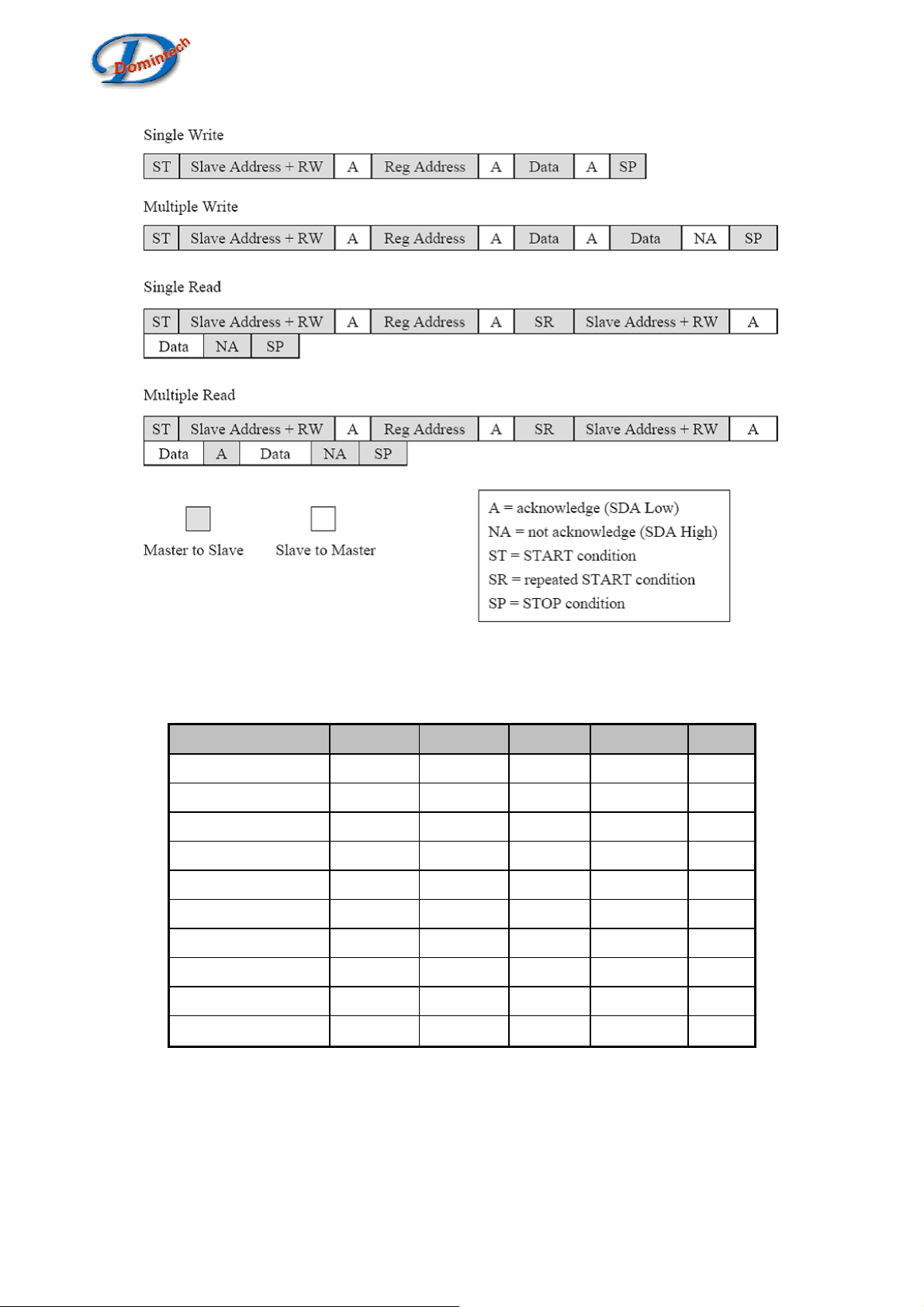

Table 10: I2C access format

D08Rev1.0

I2C Specifications

Parameter Symbol Minimum Typical Maximum Unit

SCL clock frequency
Clock low period t
Clock high period t
Bus free to new start
Start hold time t
Start setup time t
Data-in hold time t
Data-in setup time t
Stop setup time t
Data-out hold time tDH 50 — — ns

Table 11: I2C Timing Specification

SCL — — 400 kHz

1.2 — — µs

LOW

0.6 — — µs

HIGH

t

1.2 — — µs

BUF

0.6 — — µs

HD.STA

0.6 — — µs

SU.STA

0 — — µs

HD.DAT

100 — — ns

SU.DAT

0.6 — — µs

SU.STO

14

DMT proprietary & confidential: product information is subject to change without notice.
Domintech Co., Ltd. Tel: [phone] Fax: [phone] http://www.domintech.com.tw

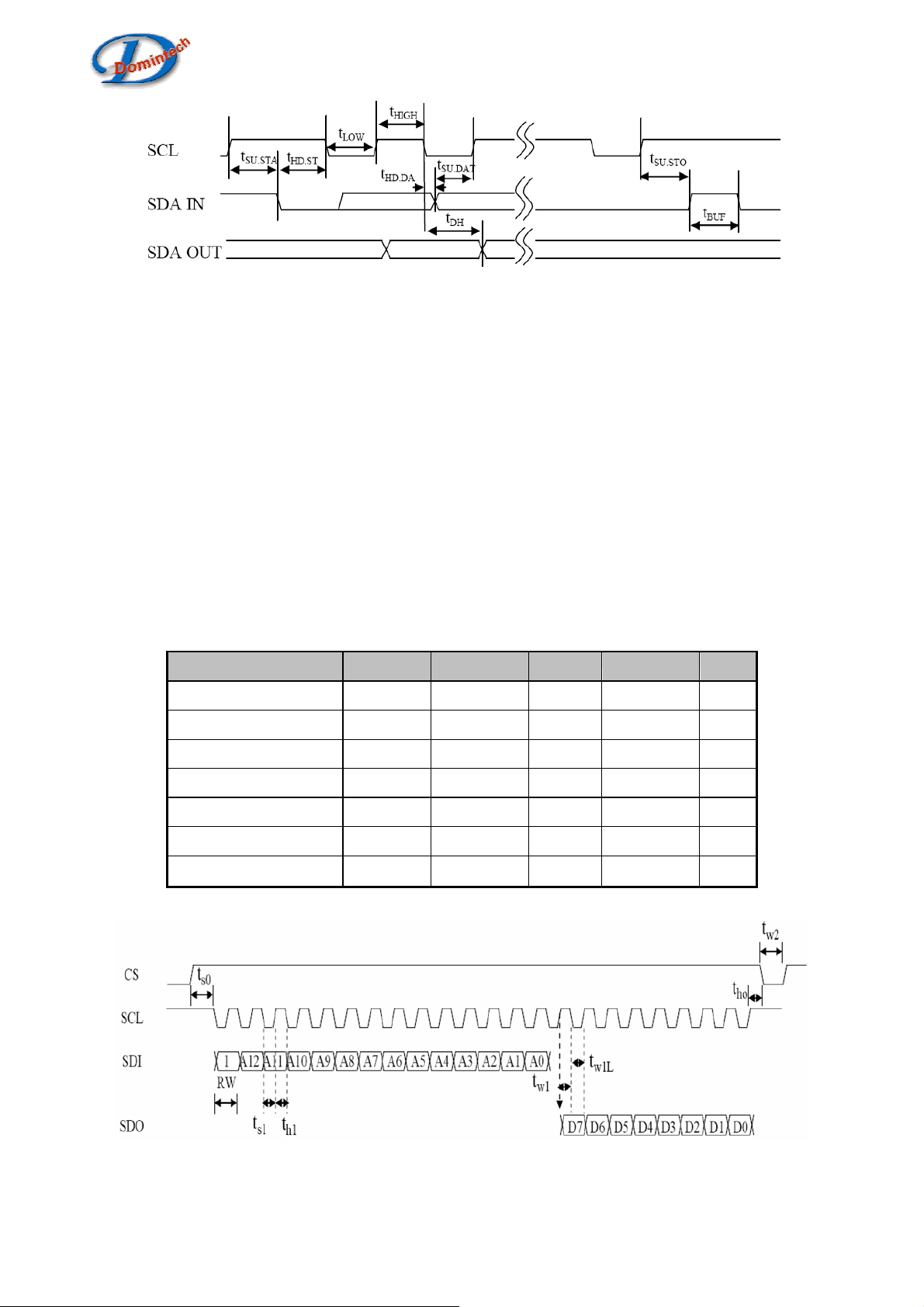

Figure 6: I2C Timing Diagram

SPI Interface

The SPI interfaces using four-wire bus provide 22-bit protocols. Multiple read/write is supported.

The communication starts with a read/write (R/W) control bit with R/W equals 0 for writing or 1 for
reading. Following the R/W control bit comes a 13-bit address and an 8-bit data for single read/write,
as shown in Figure 7 & 8. To read 11-bit acceleration and temperature data, the SPI interface provides
an option to use the multiple read commands to read more than one byte. This is activated when the
serial enable pin CS stays active high after the read out of a data register, as shown in 9 & 10.

D08Rev1.0

CS is active high. Data on SDI is latched by DMARD08 at SCL rising edge and the SDO changes
state at SCL falling edge. Communication starts when CS goes to high and stops when CS goes to low.
During these transitions on CS, SCL must be high.

SPI Specifications

Parameter

CS setup time
Data setup time
CS hold time
Data hold time
SCL pulse low width
SCL pulse high width
CS pulse low width

Symbol

t

s0

t

s1

t

h0

t

h1

t

w1L

t

w1H

t

w2

Minimum Typical Maximum Unit

300
150
150
150
160
160

1

—
—
—
—
—
—
—

—
—
—
—
—
—
—

ns
ns
ns
ns
ns
ns
µs

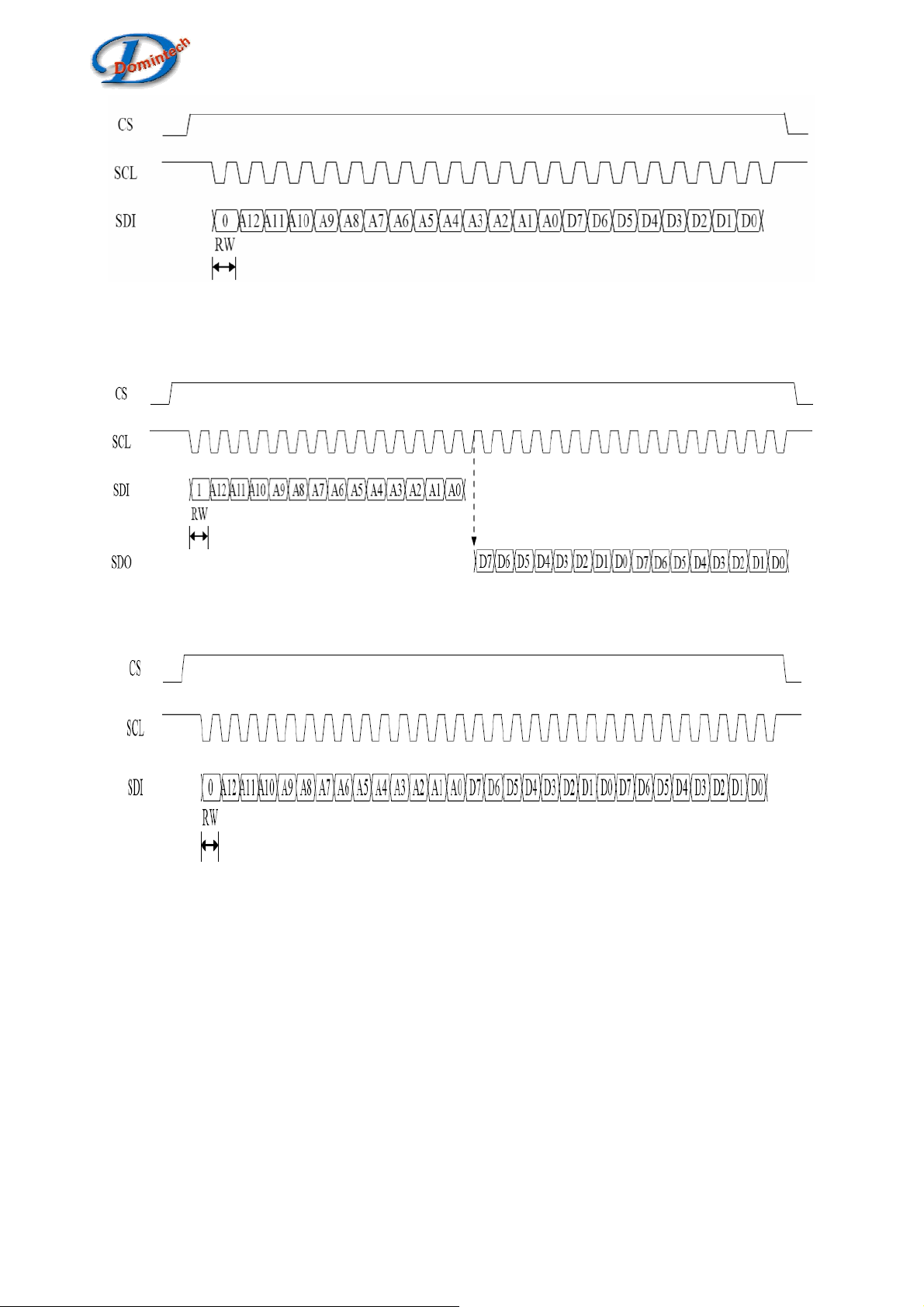

Figure 7: SPI Single Read

15

DMT proprietary & confidential: product information is subject to change without notice.
Domintech Co., Ltd. Tel: [phone] Fax: [phone] http://www.domintech.com.tw

Figure 8: SPI Single Write

D08Rev1.0

Figure 9: SPI Multiple Read

Figure 10: SPI Multiple Write

16

DMT proprietary & confidential: product information is subject to change without notice.
Domintech Co., Ltd. Tel: [phone] Fax: [phone] http://www.domintech.com.tw

Package

Outline Dimension

Unit: mm

D08Rev1.0

3.0

5

6

7

8

DMT

ARD08

1234

16

15

14

1211109

13

0.5

3.0

0.65

Top View

1.0

1.0

0.5

VDD

3 4

GND

SDIDVCC

11 10

1 2

Reserved

NC

16

INT2

15

14

CE SCL

13 12

0.25

Bottom View

3.0

3.0

INT1

SDO

0.25

0.65

5

CS

NC

6

NC

7

NCNC

8

9

0.25

0.25

Side View

Side View

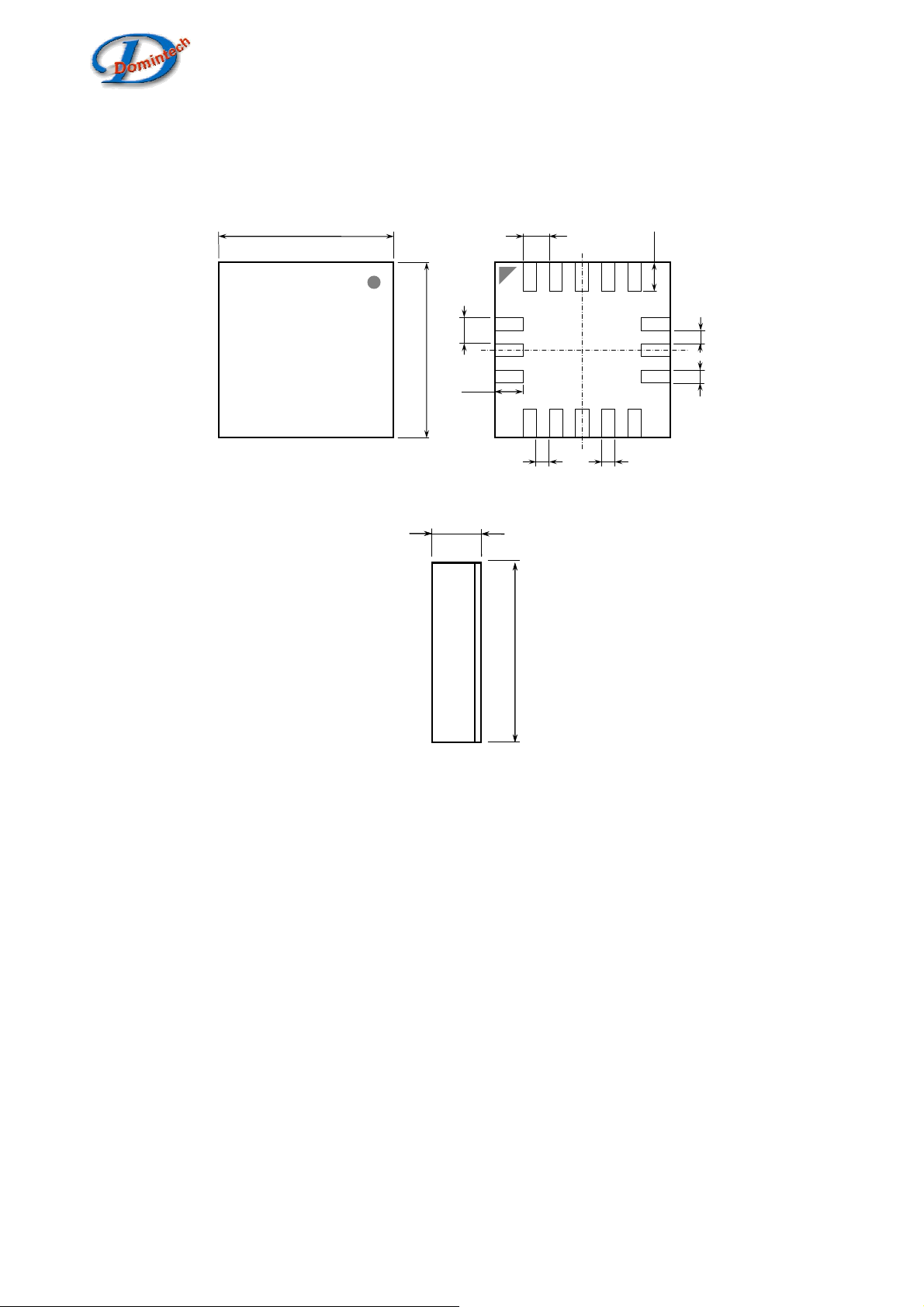

Figure 11: Package Outline Dimension

17

DMT proprietary & confidential: product information is subject to change without notice.
Domintech Co., Ltd. Tel: [phone] Fax: [phone] http://www.domintech.com.tw

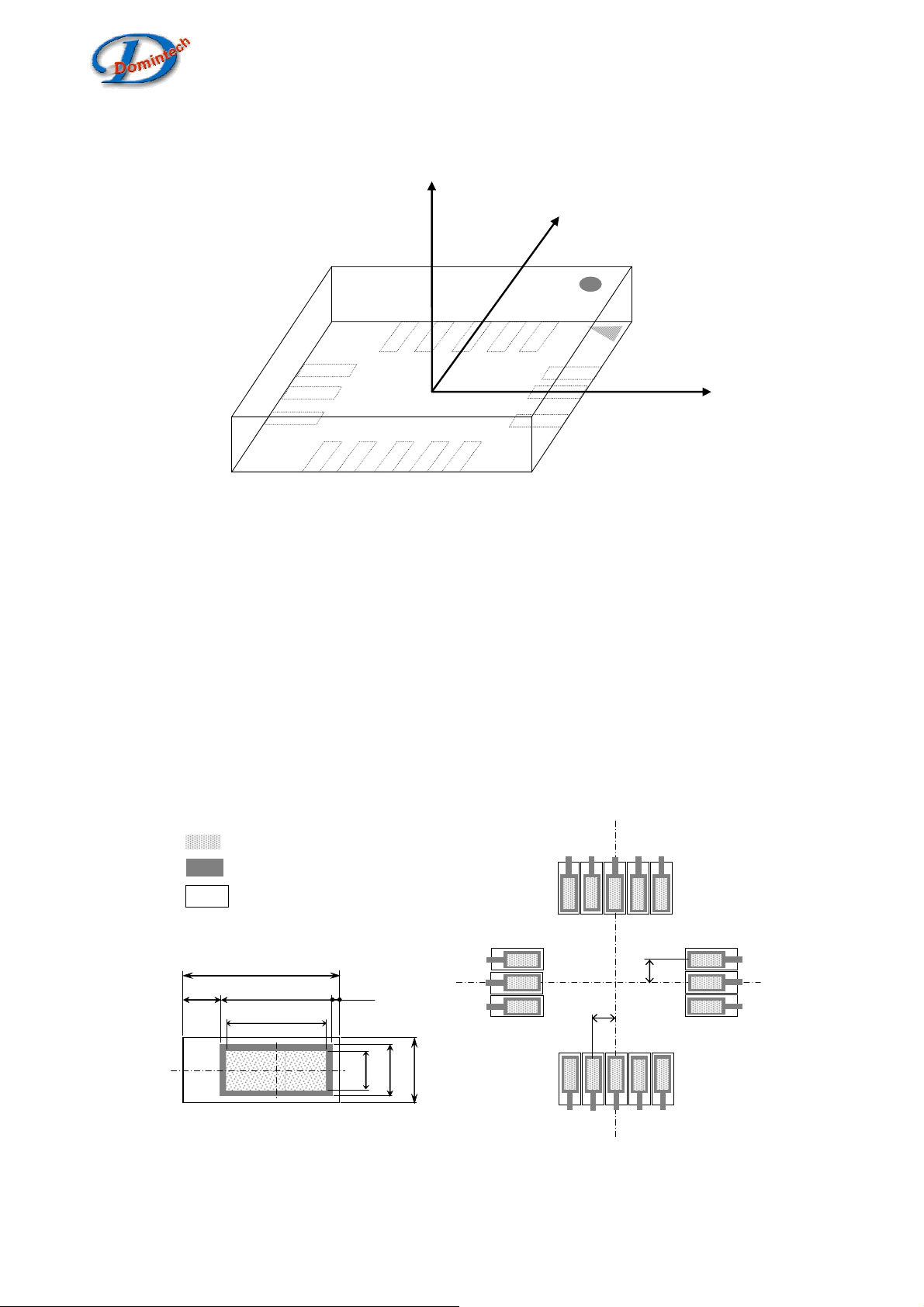

Axes Orientation

D08Rev1.0

+Z

+X

15

6

16

+Y

8

139

Figure 12: Axes Orientation of DMARD08

RoHS Compliance

The 16-pin LGA package conforms to the EU directive on the restriction of the use of certain
hazardous substances in electrical and electronic equipment 2002/95/EC.

Surface Mounting Information

The accelerometer is a delicate device that is sensitive to the mechanical and thermal stress.
Proper PCB board design and well-executed soldering processes are crucial to ensure consistent
performance. A recommended land pad layout can be found in the Figure 13. For more SMT
information, please refer to application note “AN004: SMT Guide for Accelerometer in LGA Package”.

14

LGA Package Lead

LGA Package Lead

PCB Land Pad

PCB Land Pad

SR Open

SR Open

1.05

1.05

0.25

0.25

Detailed Dimension

Detailed Dimension

0.75

0.75

0.65

0.65

0.05

0.05

0.35

0.35

0.25

0.25

Unit: mm

0.45

0.45

0.5

0.5

Figure 13: Layout Recommendation for PCB Land Pad and SR Open

18

DMT proprietary & confidential: product information is subject to change without notice.
Domintech Co., Ltd. Tel: [phone] Fax: [phone] http://www.domintech.com.tw

D08Rev1.0

Document History and Modification

Revision No. Description Date

Rev1.0 First release 2011/8/1

19

DMT proprietary & confidential: product information is subject to change without notice.
Domintech Co., Ltd. Tel: [phone] Fax: [phone] http://www.domintech.com.tw
