9308/DM9308 Dual 4-Bit Latch
June 1989
9308/DM9308 Dual 4-Bit Latch
General Description
The 9308 is a dual 4-bit D-type latch designed for general
purpose storage applications in digital systems. Each latch
contains both an active LOW Master Reset input an active
LOW Enable inputs. The 74116 is a pin for pin equivalent of
the 9308.

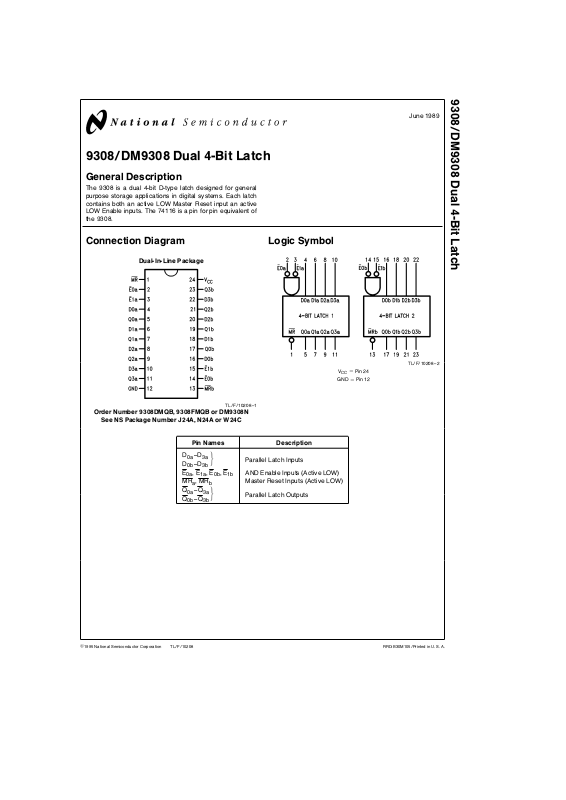

Connection Diagram
Dual-In-Line Package
TL/F/10208– 1
Order Number 9308DMQB, 9308FMQB or DM9308N
See NS Package Number J24A, N24A or W24C
Logic Symbol
TL/F/10208– 2
V
CC
e
Pin 24
GND
e
Pin 12
Pin Names Description
D0a–D
3a
Parallel Latch Inputs
D
0b–D3b
(
E0a,E1a,E0b,E1bAND Enable Inputs (Active LOW)
MR
a
,MR
b
Master Reset Inputs (Active LOW)
Q
0a–Q3a
Parallel Latch Outputs
Q
0b–Q3b
(
C
1995 National Semiconductor Corporation RRD-B30M105/Printed in U. S. A.
Page 2
Absolute Maximum Ratings (Note)
If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales
Office/Distributors for availability and specifications.
Supply Voltage 7V
Input Voltage 5.5V
Operating Free Air Temperature Range
MIL
b
55§Ctoa125§C
COM 0
§
Ctoa70§C
Storage Temperature Range
b
65§Ctoa150§C
Note:
The ‘‘Absolute Maximum Ratings’’ are those values
beyond which the safety of the device cannot be guaranteed. The device should not be operated at these limits. The
parametric values defined in the ‘‘Electrical Characteristics’’
table are not guaranteed at the absolute maximum ratings.
The ‘‘Recommended Operating Conditions’’ table will define
the conditions for actual device operation.
Recommended Operating Conditions
Symbol Parameter
Military Commercial
Units
Min Nom Max Min Nom Max
V
CC
Supply Voltage 4.5 5 5.5 4.75 5 5.25 V
V
IH
High Level Input
22 V
Voltage
V
IL
Low Level Input
0.8 0.8 V
Voltage
I
OH
High Level Output
b
0.8
b
0.8 mA
Current
I
OL
Low Level Output
16 16 mA
Current
T
A
Free Air Operating
b
55 125 0 70
§
C
Temperature
ts(H) Setup Time HIGH, Dnto E
n
610ns
t
h
(H) Hold Time HIGH, Dnto E
n
4
b
2.0 ns
ts(L) Setup Time LOW, Dnto E
n
10 12 ns
th(L) Hold Time LOW, Dnto E
n
48ns
t
w
(L) EnPulse Width LOW 18 18 ns
tw(L) MR Pulse Width LOW 18 18 ns
t
rec
Recovery Time, MR to E
n
10 8 ns
Electrical Characteristics over recommended operating free air temperature (unless otherwise noted)
Symbol Parameter Conditions Min
Typ
Max Units
(Note 1)
V
I
Input Clamp Voltage V
CC
e
Min, I
I
eb
18 mA
b
1.5 V
V
OH
High Level Output V
CC
e
Min, I
OH
e
Max,
2.4 V
Voltage V
IL
e
Max, V
IH
e
Min
V
OL
Low Level Output V
CC
e
Min, I
OL
e
Max
0.4 V
Voltage V
IH
e
Min, V
IL
e
Max
I
I
Input Current@Max V
CC
e
Max, V
I
e
5.5V
1mA
Input Voltage
I
IH
High Level Input V
CC
e
Max, V
I
e
2.4V
40 mA
Current
I
IL
Low Level Input V
CC
e
Max, V
I
e
0.4V
b
1.6 mA
Current
I
OS
Short Circuit V
CC
e
Max MIL
b
20
b
70
mA
Output Current (Note 2)
COM
b
20
b
57
I
CC
Supply Current V
CC
e
Max (Note 3) 100 mA
Note 1: All typicals are at V
CC
e
5V, T
A
e
25§C.
Note 2: Not more than one output should be shorted at a time, and the duration should not exceed one second.
Note 3: I
CC
is measured with all outputs open and all inputs grounded.
2
Page 3
Functional Description
Data can be entered into the latch when both of the enable
inputs are LOW. As long as this logic condition exists, the
output of the latch will follow the input. If either of the enable
inputs goes HIGH, the data present in the latch at that time
is held in the latch and is no longer affected by data input.
The master reset overrides all other input conditions and
forces the outputs of all the latches LOW when a LOW signal is applied to the Master Reset input.
Truth Table
MR E0E1 D Qn Operation
H L L L L Data Entry
H L L H H Data Entry
HLHXQn
b
1 Hold
HHLXQn
b
1 Hold
HHHXQn
b
1 Hold
L X X X L Reset
Q
nb1
e
Previous Output State
Q
n
e
Present Output State
H
e
HIGH Voltage Level
L
e
LOW Voltage Level
X
e
Immaterial
Logic Diagram
TL/F/10208– 3
Switching Characteristics V
CC
ea
5.0V, T
A
ea
25§C (See Section 5 for test waveforms and output load.)
9308
Symbol Parameter
C
L
e
15 pF
Units
R
L
e
400X
Min Max
t
PLH
Propagation Delay 30
ns
t
PHL
EntoQn 22
t
PLH
Propagation Delay 15
ns
t
PHL
Dn to Qn 18
t
PHL
Propagation Delay
22 ns
MR to Qn
3
Page 4
4
Page 5
Physical Dimensions inches (millimeters)

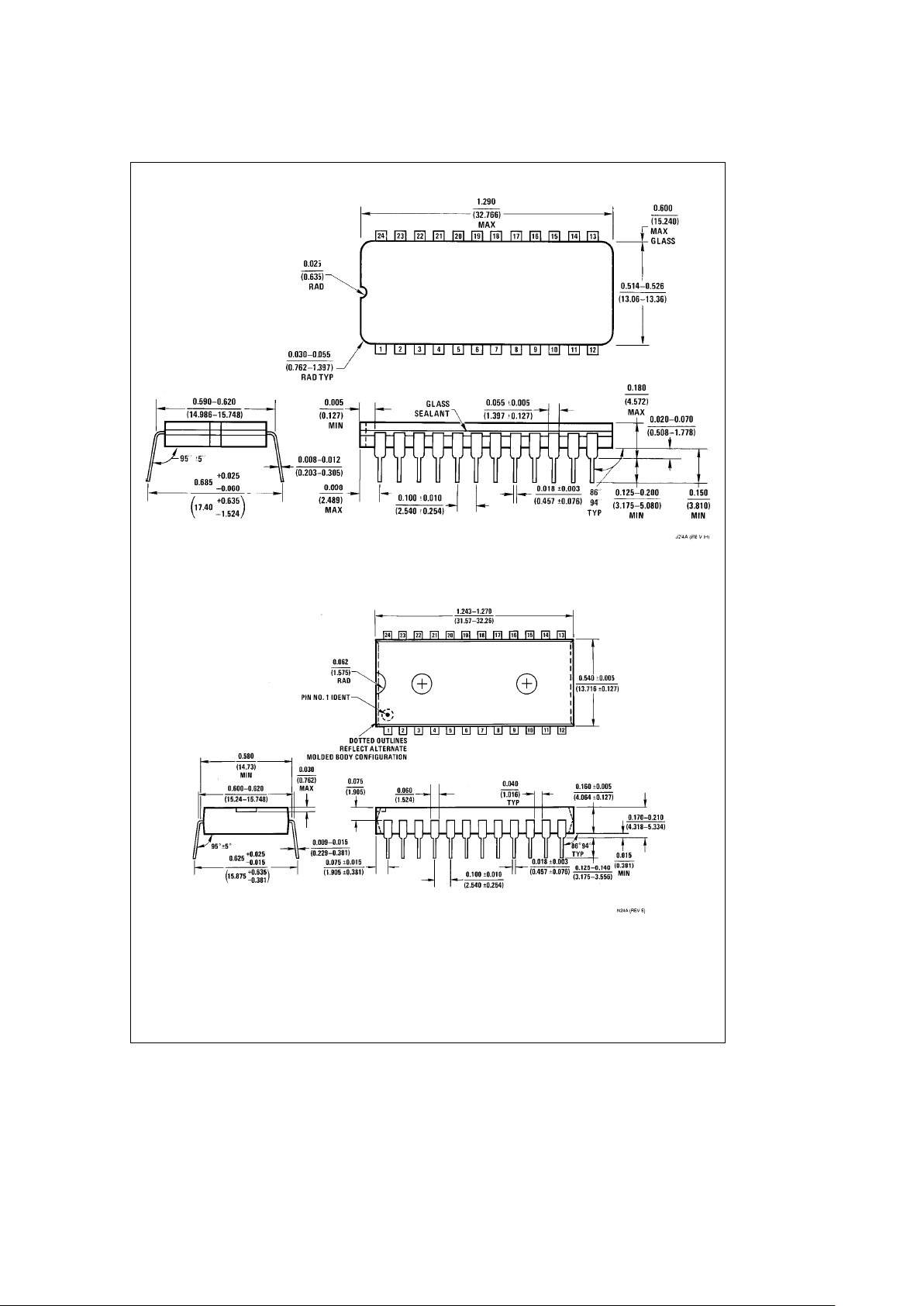

24-Lead Ceramic Dual-In-Line Package (J)
Order Number 9308DMQB
NS Package Number J24A
24-Lead Molded Dual-In-Line Package (N)
Order Number DM9308N
NS Package Number N24A
5
Page 6
9308/DM9308 Dual 4-Bit Latch
Physical Dimensions inches (millimeters) (Continued)

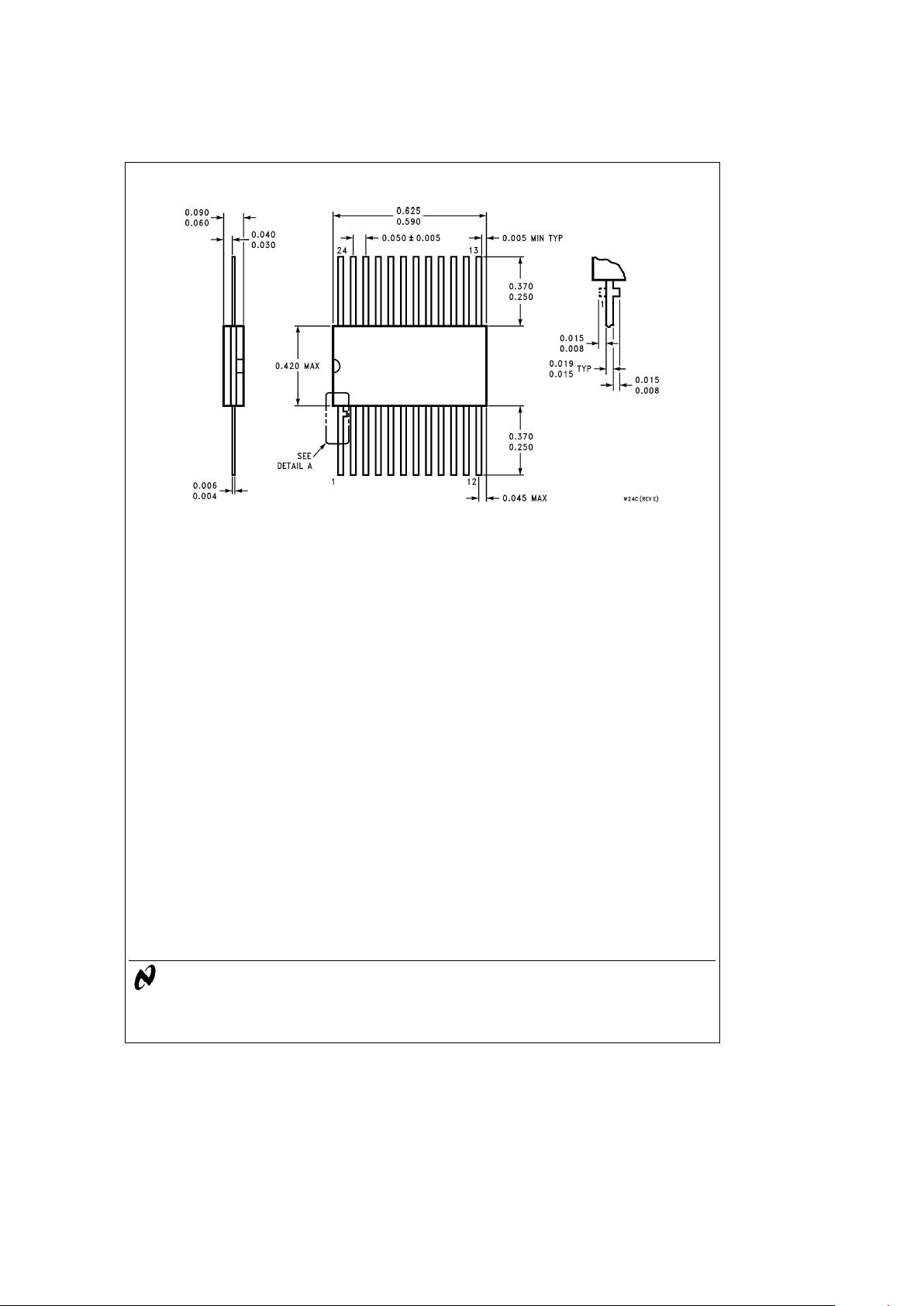

24-Lead Ceramic Flat Package (W)
Order Number 9308FMQB
NS Package Number W24C
