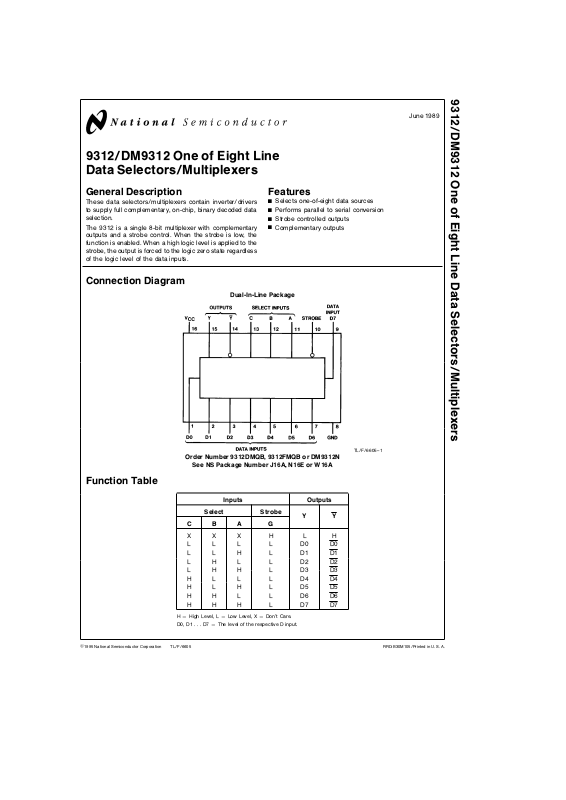

Page 1
TL/F/6605
9312/DM9312 One of Eight Line Data Selectors/Multiplexers
June 1989
9312/DM9312 One of Eight Line
Data Selectors/Multiplexers
General Description
These data selectors/multiplexers contain inverter/drivers
to supply full complementary, on-chip, binary decoded data
selection.
The 9312 is a single 8-bit multiplexer with complementary
outputs and a strobe control. When the strobe is low, the
function is enabled. When a high logic level is applied to the
strobe, the output is forced to the logic zero state regardless
of the logic level of the data inputs.
Features
Y
Selects one-of-eight data sources
Y
Performs parallel to serial conversion
Y
Strobe controlled outputs
Y
Complementary outputs
Connection Diagram
Dual-In-Line Package
TL/F/6605– 1
Order Number 9312DMQB, 9312FMQB or DM9312N
See NS Package Number J16A, N16E or W16A
Function Table
Inputs Outputs
Select Strobe
YY
CBA G
XXX H L H
LLL L D0D0
L L H L D1 D1
LHL L D2D2
L H H L D3 D3
H L L L D4 D4
HLH L D5D5
H H L L D6 D6
HHH L D7 D7
H
e
High Level, LeLow Level, XeDon’t Care.
D0, D1 . . . D7
e
The level of the respective D input.
C
1995 National Semiconductor Corporation RRD-B30M105/Printed in U. S. A.
Page 2
Absolute Maximum Ratings (Note)
If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales
Office/Distributors for availability and specifications.
Supply Voltage 7V
Input Voltage 5.5V
Operating Free Air Temperature Range
Military
b
55§Ctoa125§C
Commercial 0
§
Ctoa70§C
Storage Temperature Range
b
65§Ctoa150§C
Note:
The ‘‘Absolute Maximum Ratings’’ are those values
beyond which the safety of the device cannot be guaranteed. The device should not be operated at these limits. The
parametric values defined in the ‘‘Electrical Characteristics’’
table are not guaranteed at the absolute maximum ratings.
The ‘‘Recommended Operating Conditions’’ table will define
the conditions for actual device operation.
Recommended Operating Conditions
Symbol Parameter
Military Commercial
Units
Min Nom Max Min Nom Max
V
CC
Supply Voltage 4.5 5 5.5 4.75 5 5.25 V
V
IH
High Level Input Voltage 2 2 V
V
IL
Low Level Input Voltage 0.8 0.8 V
I
OH
High Level Output Current
b
0.8
b
0.8 mA
I
OL
Low Level Output Current 16 16 mA
T
A
Free Air Operating Temperature
b
55 125 0 70
§
C
Electrical Characteristics over recommended operating free air temperature range (unless otherwise noted)
Symbol Parameter Conditions Min
Typ
Max Units
(Note 1)
V
I
Input Clamp Voltage V
CC
e
Min, I
I
eb
12 mA
b
1.5 V
V
OH
High Level Output V
CC
e
Min, I
OH
e
Max
2.4 3.4 V
Voltage V
IL
e
Max, V
IH
e
Min
V
OL
Low Level Output V
CC
e
Min, I
OL
e
Max
0.2 0.4 V
Voltage V
IH
e
Min, V
IL
e
Max
I
I
Input Current@Max V
CC
e
Max, V
I
e
5.5V
1mA
Input Voltage
I
IH
High Level Input V
CC
e
Max, V
I
e
2.4V
40 mA
Current
I
IL
Low Level Input V
CC
e
Max, V
I
e
0.4V
b
1.6 mA
Current
I
OS
Short Circuit V
CC
e
Max MIL
b
20
b
70
mA
Output Current (Note 2)
COM
b
30
b
85
I
CC
Supply Current V
CC
e
Max, (Note 3) 27 44 mA
Note 1: All typicals are at V
CC
e
5V, T
A
e
25§C.
Note 2: Not more than one output should be shorted at a time.
Note 3: I
CC
is measured with the STROBE and DATA SELECT inputs 4.5V and all other inputs and outputs open.
2
Page 3
Switching Characteristics at V
CC
e
5V and T
A
e
25§C (See Section 1 for Test Waveforms and Output Load)
From (Input)
Military Commercial
Symbol Parameter
To (Output)
R
L
e
400X,C
L
e
15 pF Units
Min Max Min Max
t
PLH
Propagation Delay Time Selectz
34 33 ns
Low to High Level Output to Y
t
PHL
Propagation Delay Time Select
34 35 ns
High to Low Level Output to Y
t
PLH
Propagation Delay Time Select
24 28 ns
Low to High Level Output to Y
t
PHL
Propagation Delay Time Select
26 25 ns
High to Low Level Output to Y
t
PLH
Propagation Delay Time Data
24 23 ns
Low to High Level Output to Y
t
PHL
Propagation Delay Time Data
24 25 ns
High to Low Level Output to Y
t
PLH
Propagation Delay Time Data
14 13 ns
Low to High Level Output to Y
t
PHL
Propagation Delay Time Data
16 13 ns
High to Low Level Output to Y
t
PLH
Propagation Delay Time Strobe
30 33 ns
Low to High Level Output to Y
t
PHL
Propagation Delay Time Strobe
30 32 ns
High to Low Level Output to Y
t
PLH
Propagation Delay Time Strobe
20 19 ns
Low to High Level Output to Y
t
PHL
Propagation Delay Time Strobe
23 21 ns
High to Low Level Output to Y
3
Page 4

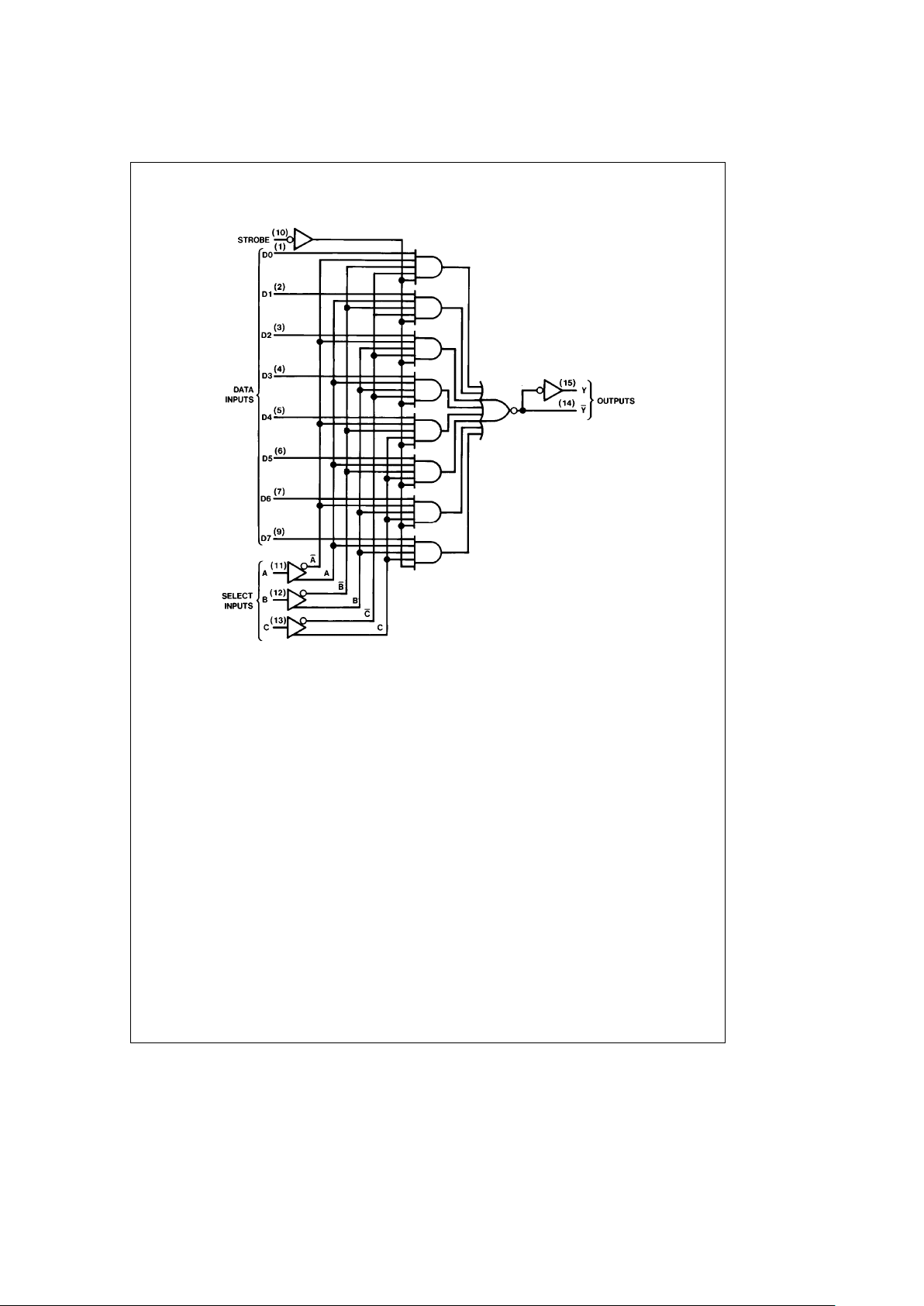

Logic Diagram
9312
TL/F/6605– 2
4
Page 5

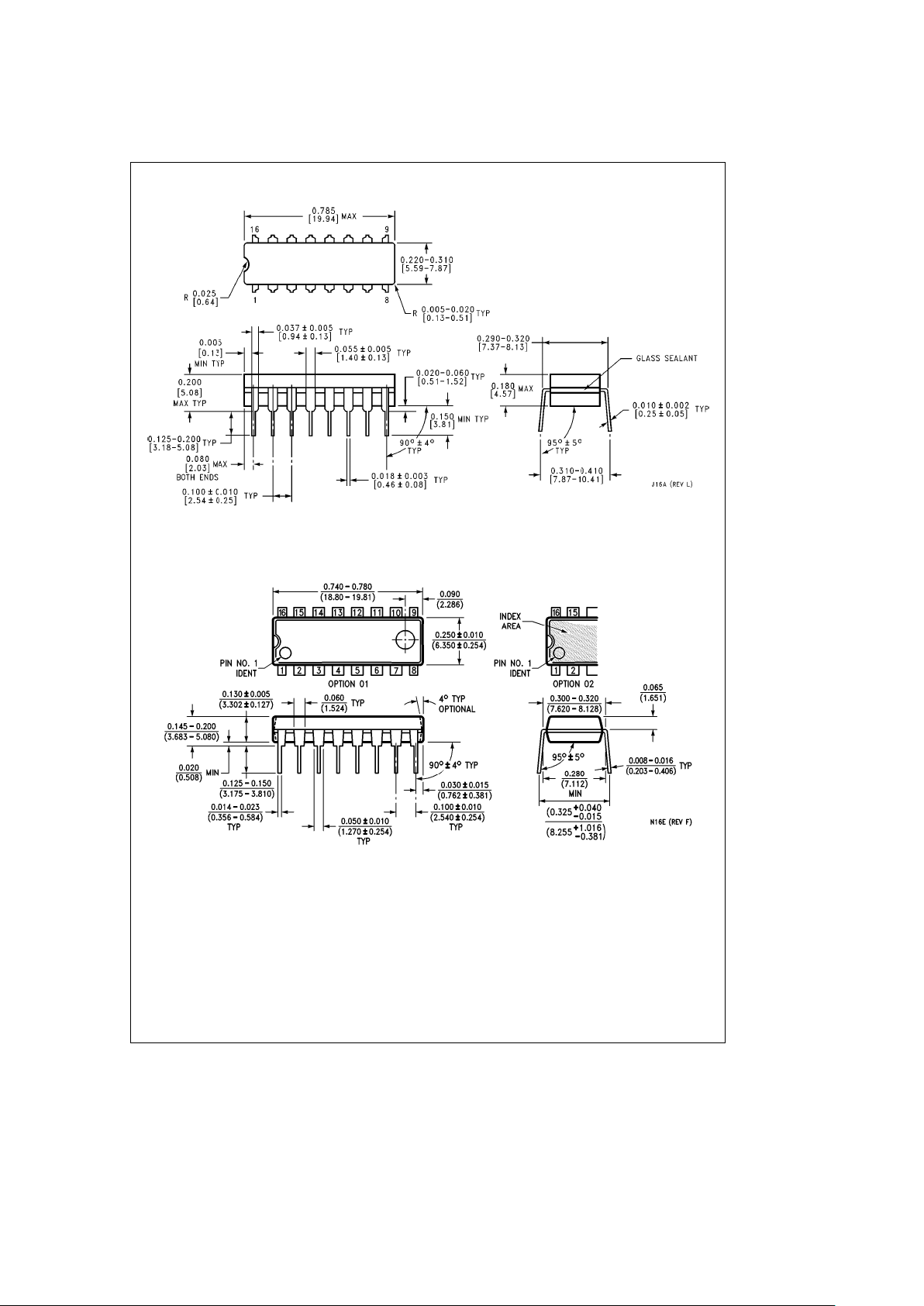

Physical Dimensions inches (millimeters)
16-Lead Ceramic Dual-In-Line Package (J)
Order Number 9312DMBQ
NS Package Number J16A
16-Lead Molded Dual-In-Line Package (N)
Order Number DM9312N
NS Package Number N16E
5
Page 6
9312/DM9312 One of Eight Line Data Selectors/Multiplexers

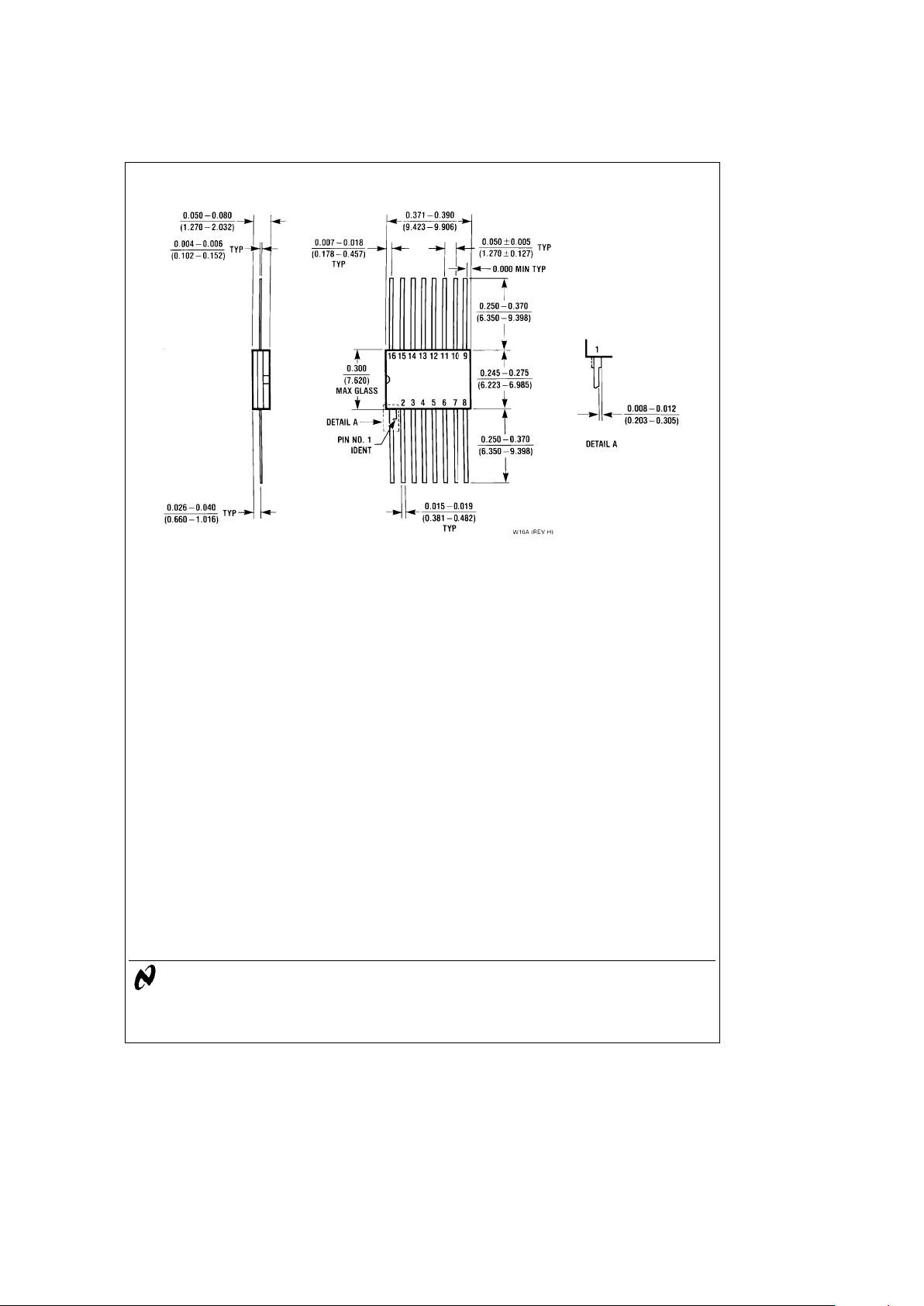

Physical Dimensions inches (millimeters) (Continued)
16-Lead Ceramic Flat Package (W)
Order Number 9312FMQB
NS Package Number W16A
