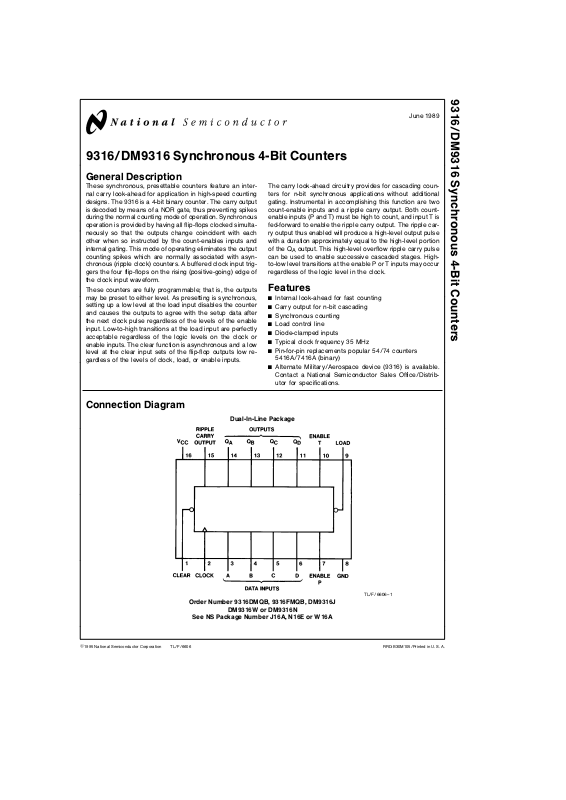

Page 1
TL/F/6606
9316/DM9316 Synchronous 4-Bit Counters
June 1989
9316/DM9316 Synchronous 4-Bit Counters
General Description
These synchronous, presettable counters feature an internal carry look-ahead for application in high-speed counting
designs. The 9316 is a 4-bit binary counter. The carry output
is decoded by means of a NOR gate, thus preventing spikes
during the normal counting mode of operation. Synchronous
operation is provided by having all flip-flops clocked simultaneously so that the outputs change coincident with each
other when so instructed by the count-enables inputs and
internal gating. This mode of operating eliminates the output
counting spikes which are normally associated with asynchronous (ripple clock) counters. A buffered clock input triggers the four flip-flops on the rising (positive-going) edge of
the clock input waveform.
These counters are fully programmable; that is, the outputs
may be preset to either level. As presetting is synchronous,
setting up a low level at the load input disables the counter
and causes the outputs to agree with the setup data after
the next clock pulse regardless of the levels of the enable
input. Low-to-high transitions at the load input are perfectly
acceptable regardless of the logic levels on the clock or
enable inputs. The clear function is asynchronous and a low
level at the clear input sets of the flip-flop outputs low regardless of the levels of clock, load, or enable inputs.
The carry look-ahead circuitry provides for cascading counters for n-bit synchronous applications without additional
gating. Instrumental in accomplishing this function are two
count-enable inputs and a ripple carry output. Both countenable inputs (P and T) must be high to count, and input T is
fed-forward to enable the ripple carry output. The ripple carry output thus enabled will produce a high-level output pulse
with a duration approximately equal to the high-level portion
of the Q
A
output. This high-level overflow ripple carry pulse
can be used to enable successive cascaded stages. Highto-low level transitions at the enable P or T inputs may occur
regardless of the logic level in the clock.
Features
Y
Internal look-ahead for fast counting
Y
Carry output for n-bit cascading
Y
Synchronous counting
Y
Load control line
Y
Diode-clamped inputs
Y
Typical clock frequency 35 MHz
Y
Pin-for-pin replacements popular 54/74 counters
5416A/7416A (binary)
Y
Alternate Military/Aerospace device (9316) is available.
Contact a National Semiconductor Sales Office/Distributor for specifications.
Connection Diagram
Dual-In-Line Package
TL/F/6606– 1
Order Number 9316DMQB, 9316FMQB, DM9316J
DM9316W or DM9316N
See NS Package Number J16A, N16E or W16A
C
1995 National Semiconductor Corporation RRD-B30M105/Printed in U. S. A.
Page 2
Absolute Maximum Ratings (Note)
If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales
Office/Distributors for availability and specifications.
Supply Voltage 7V
Input Voltage 5.5V
Operating Free Air Temperature Range
Military
b
55§Ctoa125§C
Commercial 0
§
Ctoa70§C
Storage Temperature Range
b
65§Ctoa150§C
Note:
The ‘‘Absolute Maximum Ratings’’ are those values
beyond which the safety of the device cannot be guaranteed. The device should not be operated at these limits. The
parametric values defined in the ‘‘Electrical Characteristics’’
table are not guaranteed at the absolute maximum ratings.
The ‘‘Recommended Operating Conditions’’ table will define
the conditions for actual device operation.
Recommended Operating Conditions
Symbol Parameter
Military Commercial
Units
Min Nom Max Min Nom Max
V
CC
Supply Voltage 4.5 5 5.5 4.75 5 5.25 V
V
IH
High Level Input Voltage 2 2 V
V
IL
Low Level Input Voltage 0.8 0.8 V
I
OH
High Level Output Current
b
0.8
b
0.8 mA
I
OL
Low Level Output Current 16 16 mA
f
CLK
Clock Frequency (Note 6) 0 25 0 25 MHz
t
W
Pulse Width Clock 25 25
ns
(Note 6)
Clear 20 20
t
SU
Setup Time Data 20 20
(Note 6)
Enable P 20 20
ns
Load 25 25
Clear 20 20
t
H
Any Hold Time (Notes1&6) 0 0 ns
T
A
Free Air Operating Temperature
b
55 125 0 70
§
C
Electrical Characteristics over recommended operating free air temperature range (unless otherwise noted)
Symbol Parameter Conditions Min
Typ
Max Units
(Note 2)
V
I
Input Clamp Voltage V
CC
e
Min, I
I
eb
12 mA
b
1.5 V
V
OH
High Level Output V
CC
e
Min, I
OH
e
Max
2.4 3.4 V
Voltage V
IL
e
Max, V
IH
e
Min
V
OL
Low Level Output V
CC
e
Min, I
OL
e
Max
0.2 0.4 V
Voltage V
IH
e
Min, V
IL
e
Max
I
I
Input Current@Max V
CC
e
Max, V
I
e
5.5V
1mA
Input Voltage
I
IH
High Level Input V
CC
e
Max Clock 80
Current V
I
e
2.4 V
Enable T 80 mA
Other 40
I
IL
Low Level Input V
CC
e
Max Clock
b
3.2
Current V
I
e
0.4V
Enable T
b
3.2 mA
Other
b
1.6
I
OS
Short Circuit V
CC
e
Max MIL
b
20
b
57
mA
Output Current (Note 3)
COM
b
18
b
57
I
CCH
Supply Current with V
CC
e
Max MIL 59 85
mA
Outputs High (Note 4)
COM 59 94
I
CCL
Supply Current with V
CC
e
Max MIL 63 91
mA
Outputs Low (Note 5)
COM 63 101
Note 1: The minimum HOLD time is as specified or as long as the CLOCK input takes to rise from 0.8V to 2V, whichever is longer.
Note 2: All typicals are at V
CC
e
5V, T
A
e
25§C.
Note 3: Not more than one output should be shorted at a time.
Note 4: I
CCH
is measured with the LOAD input high, then again with the LOAD input low, with all other inputs high and all outputs open.
Note 5: I
CCL
is measured with the CLOCK input high, then again with the CLOCK input low, with all other inputs low and all outputs open.
Note 6: T
A
e
25§C and V
CC
e
5V.
2
Page 3
Switching Characteristics at V
CC
e
5V and T
A
e
25§C (See Section 1 for Test Waveforms and Output Load)
Symbol Parameter
From (Input) R
L
e
400X,C
L
e
15 pF
Units
To (Output)
Min Max
f
MAX
Maximum Clock Frequency 25 MHz
t
PLH
Propagation Delay Time Clock
27 ns
Low to High Level Output to RC
t
PHL
Propagation Delay Time Clock
24 ns
High to Low Level Output to RC
t
PLH
Propagation Delay Time Clock
20 ns
Low to High Level Output to Q
t
PHL
Propagation Delay Time Clock
23 ns
High to Low Level Output to Q
t
PLH
Propagation Delay Time Clock
21 ns
Low to High Level Output to Q
t
PHL
Propagation Delay Time Clock
25 ns
High to Low Level Output to Q
t
PLH
Propagation Delay Time ENT
15 ns
Low to High Level Output to RC
t
PHL
Propagation Delay Time ENT
16 ns
High to Low Level Output to RC
t
PHL
Propagation Delay Time Clear
36 ns
High to Low Level Output to Q
3
Page 4

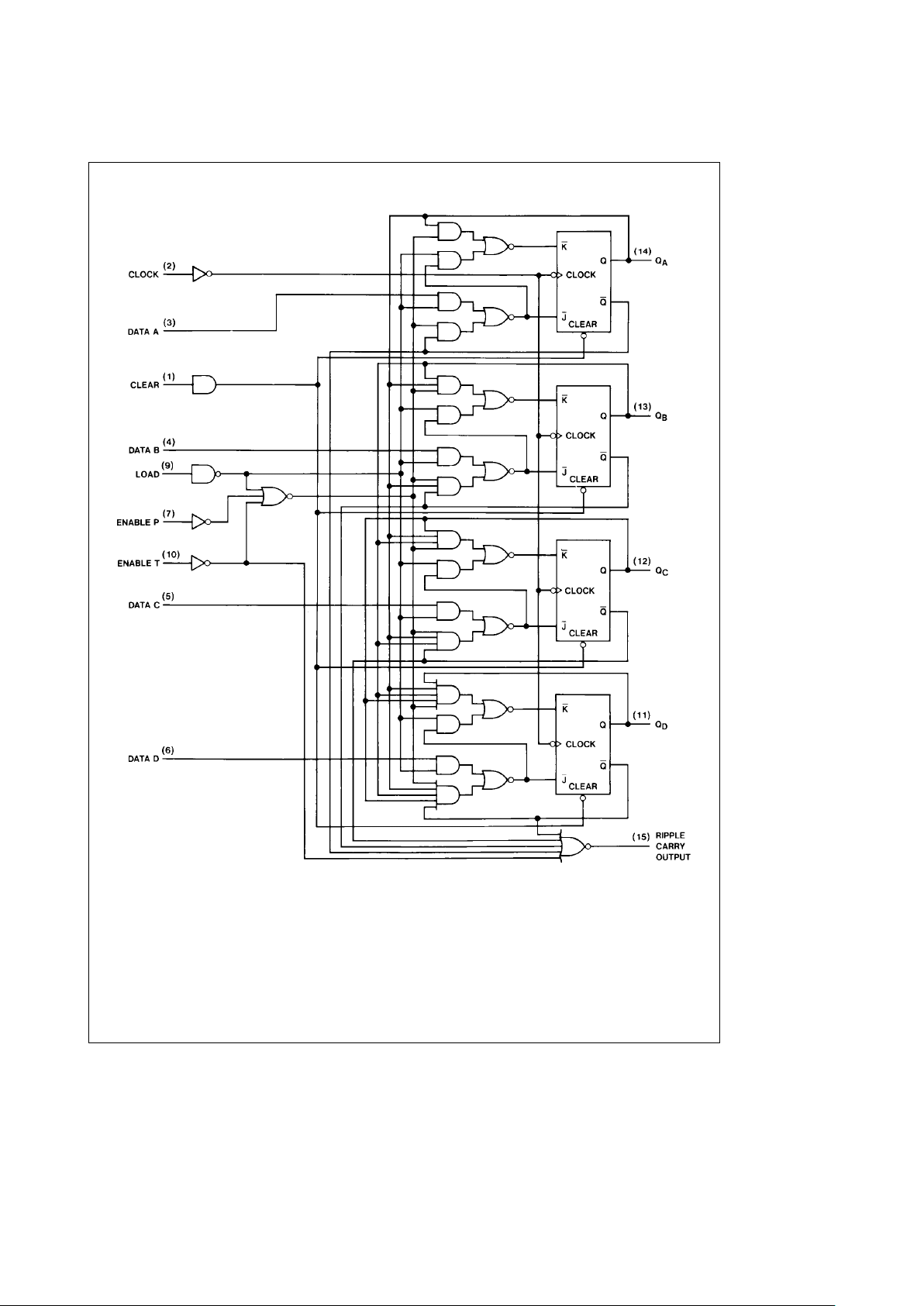

Logic Diagram
9316
TL/F/6606– 2
4
Page 5

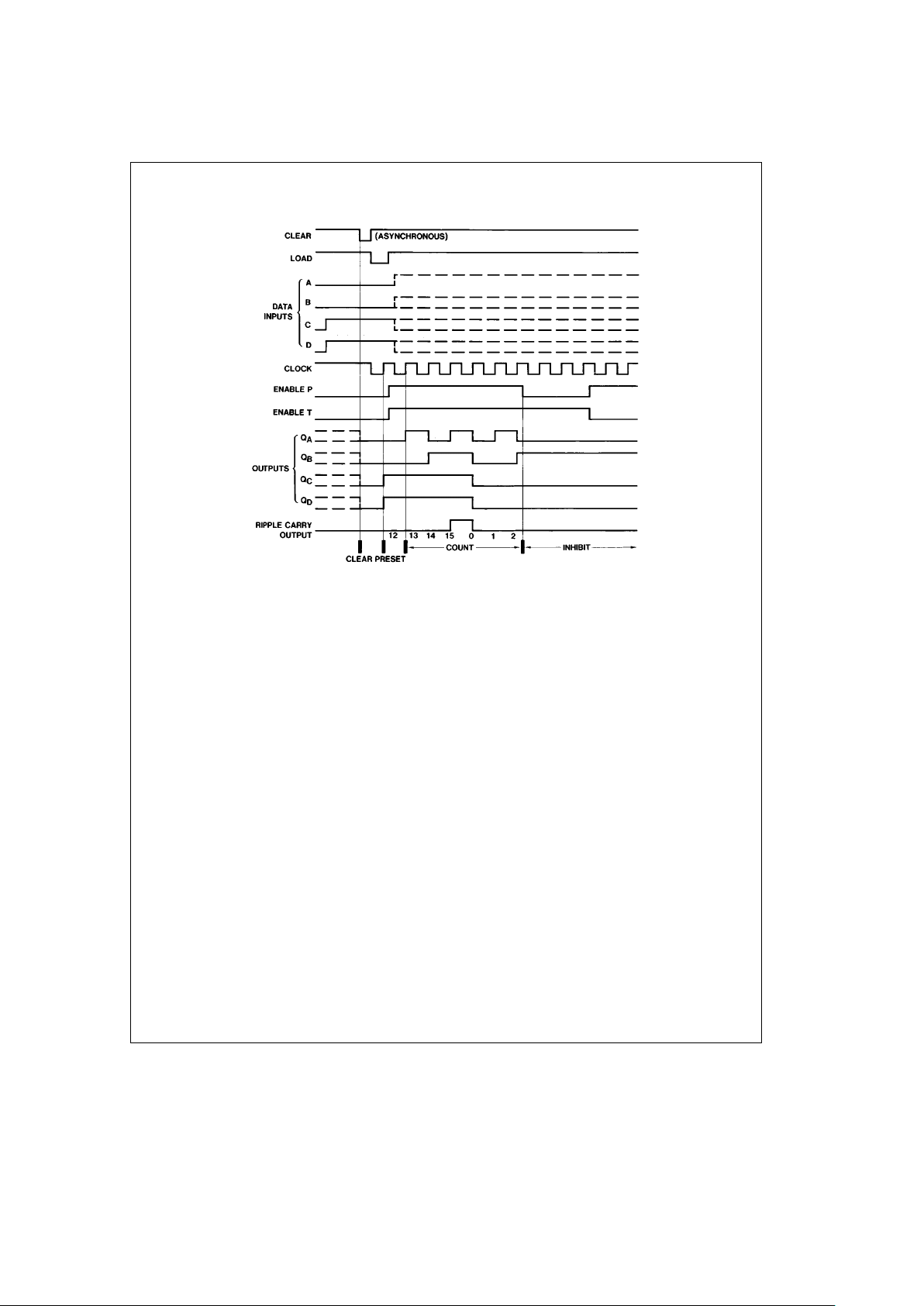

Timing Diagram
9316 Synchronous Binary Counters
Typical Clear, Preset, Count and Inhibit Sequences
TL/F/6606– 3
Sequence:
(1) Clear outputs to zero.
(2) Preset to binary twelve.
(3) Count to thirteen, fourteen, fifteen, zero, one, and two.
(4) Inhibit
5
Page 6

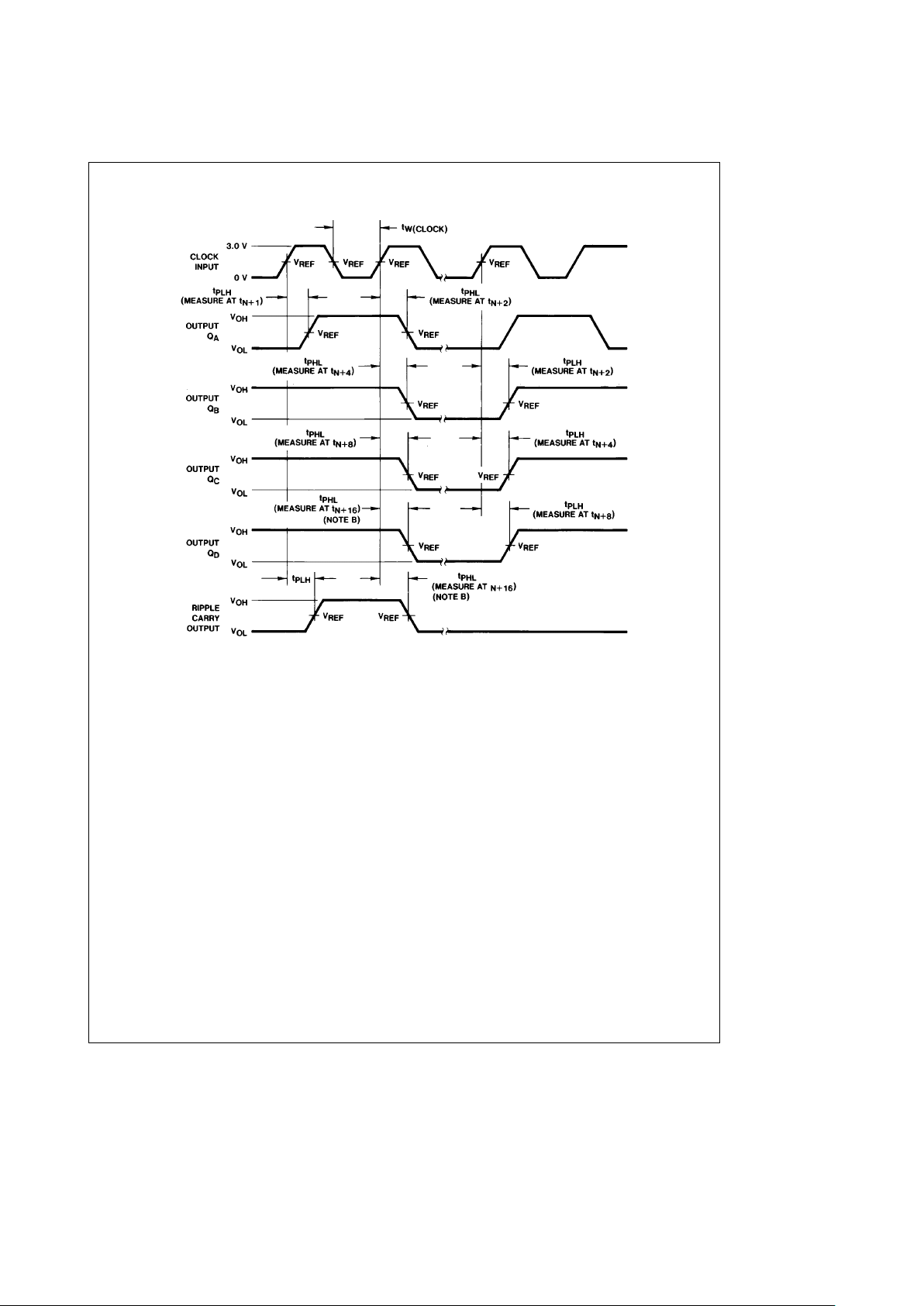

Parameter Measurement Information
Switching Time Waveforms
TL/F/6606– 4
Note A: The input pulses are supplied by a generator having the following characteristics: PRRs1 MHz, duty cycles50%, Z
OUT
&
50X,t
r
s
10 ns, t
f
s
10 ns.
Vary PRR to measure f
MAX
.
Note B: Outputs Q
D
and carry are tested at t
na16
for 9316/8316, where tnis the bit time when all outputs are low.
Note C: V
REF
e
1.5V.
6
Page 7

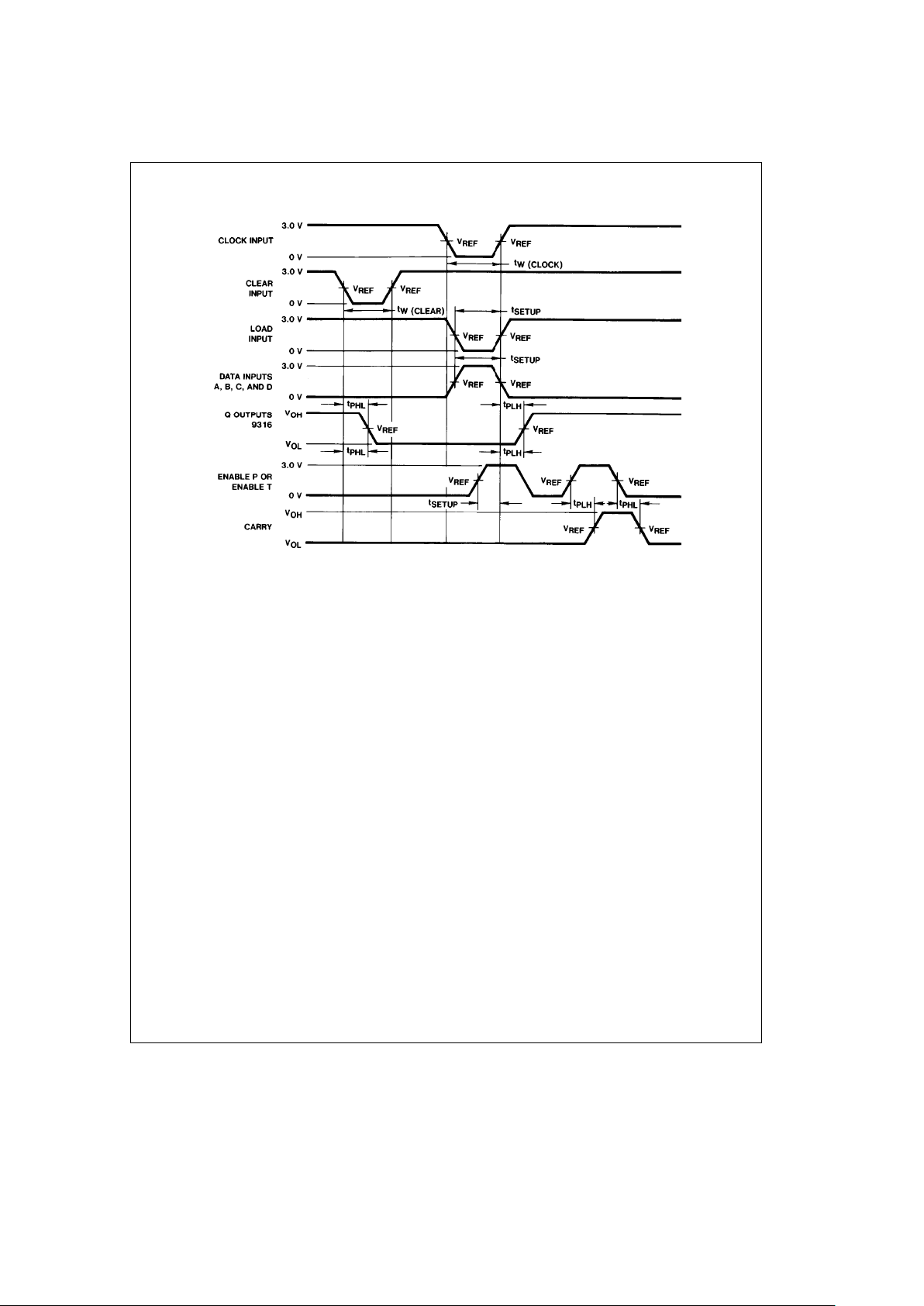

Parameter Measurement Information (Continued)
Switching Time Waveforms
TL/F/6606– 5
Note A: The input pulses are supplied by generators having the following characteristics: PRRs1 MHz, duty cycles50%, Z
OUT
&
50X,t
r
s
10 ns, t
f
s
10 ns.
Note B: Enable P and Enable T setup times are measured at t
na16
for 8316/9316.
Note C: V
REF
e
1.5V.
7
Page 8
8
Page 9

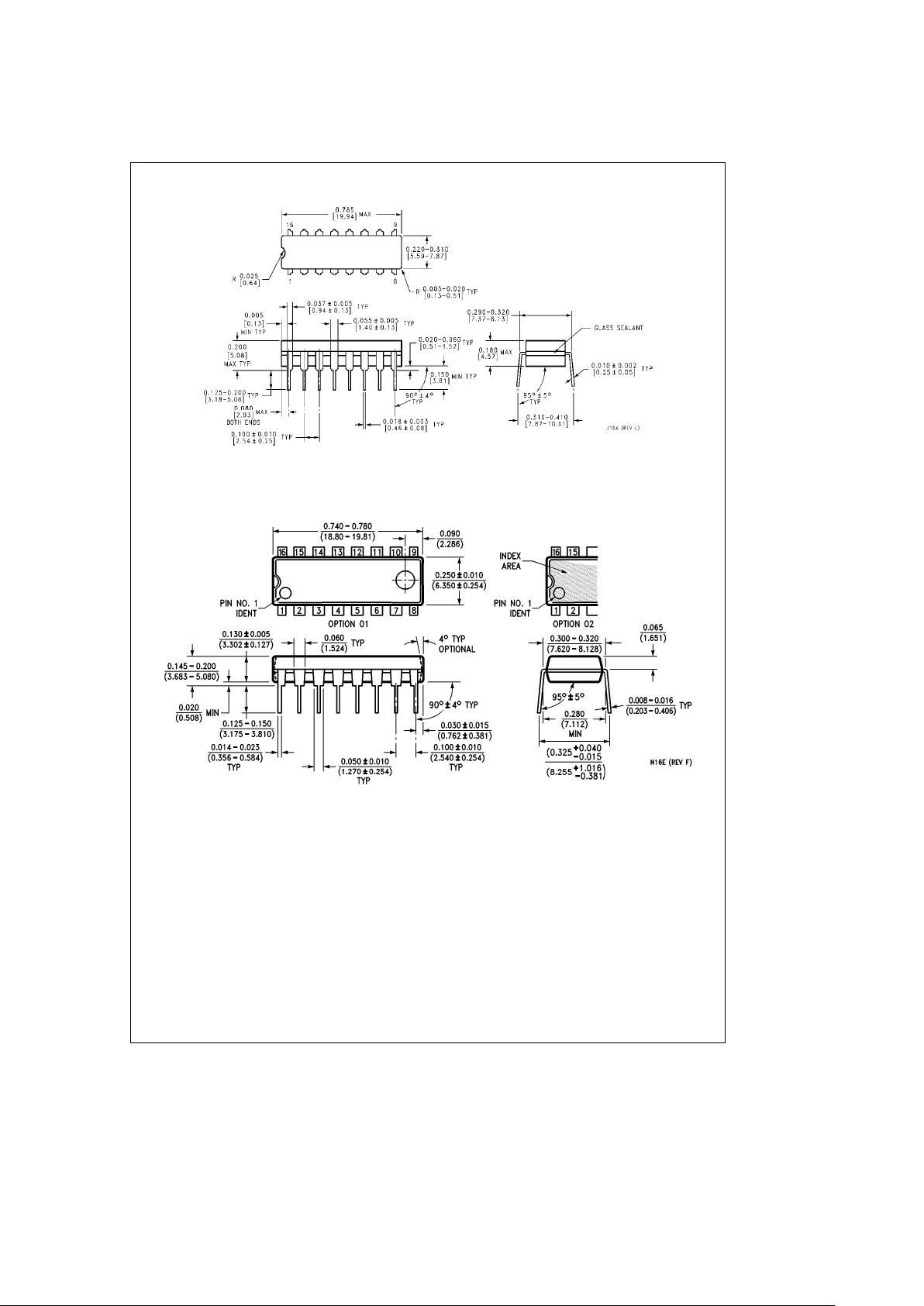

Physical Dimensions inches (millimeters)
16-Lead Ceramic Dual-In-Line Package (J)
Order Number 9316DMQB or DM9316J
NS Package Number J16A
16-Lead Molded Dual-In-Line Package (N)
Order Number DM9316N
NS Package Number N16E
9
Page 10
9316/DM9316 Synchronous 4-Bit Counters

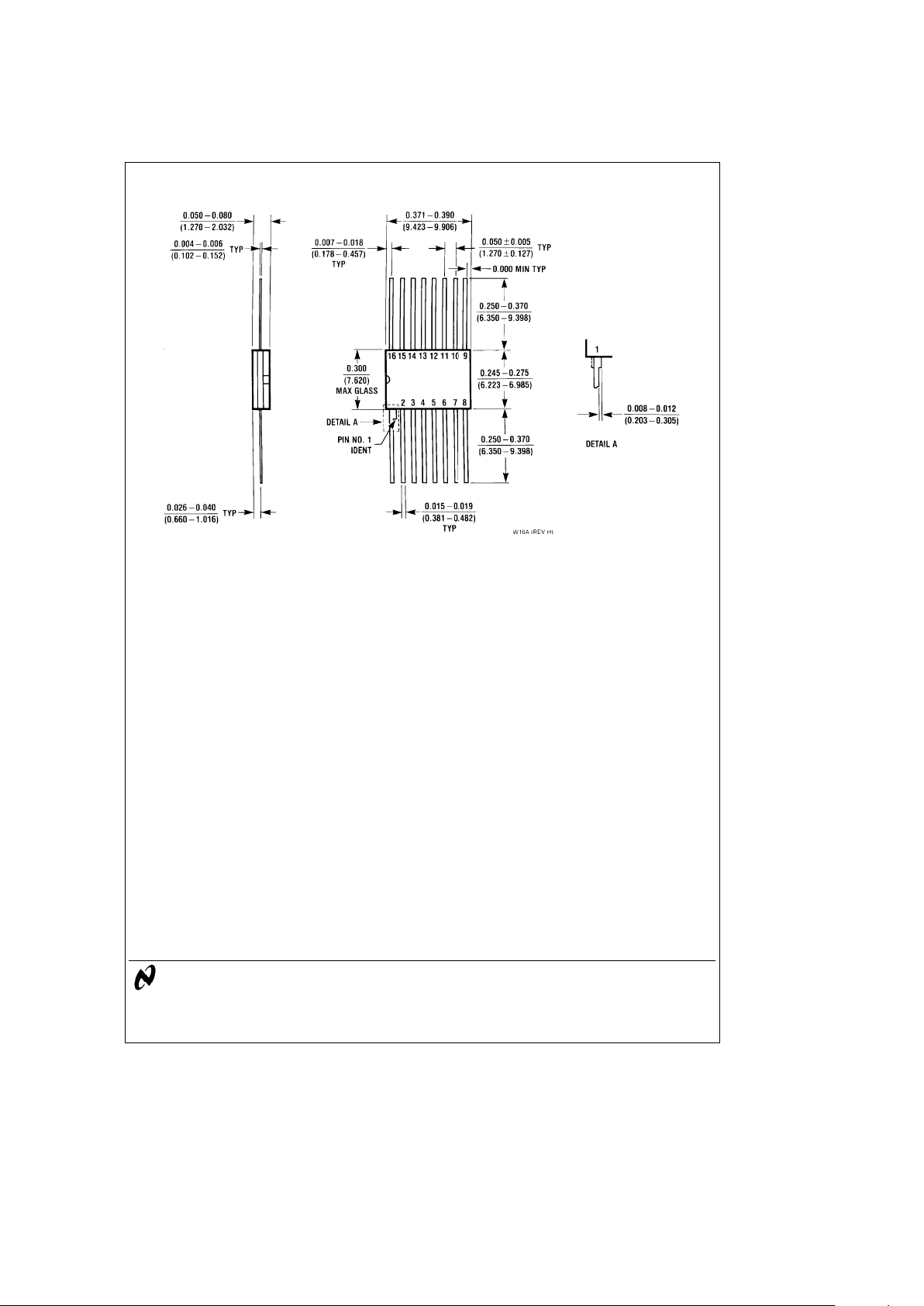

Physical Dimensions inches (millimeters) (Continued)
16-Lead Ceramic Flat Package (W)
Order Number 9316FMQB or DM9316W
NS Package Number W16A
