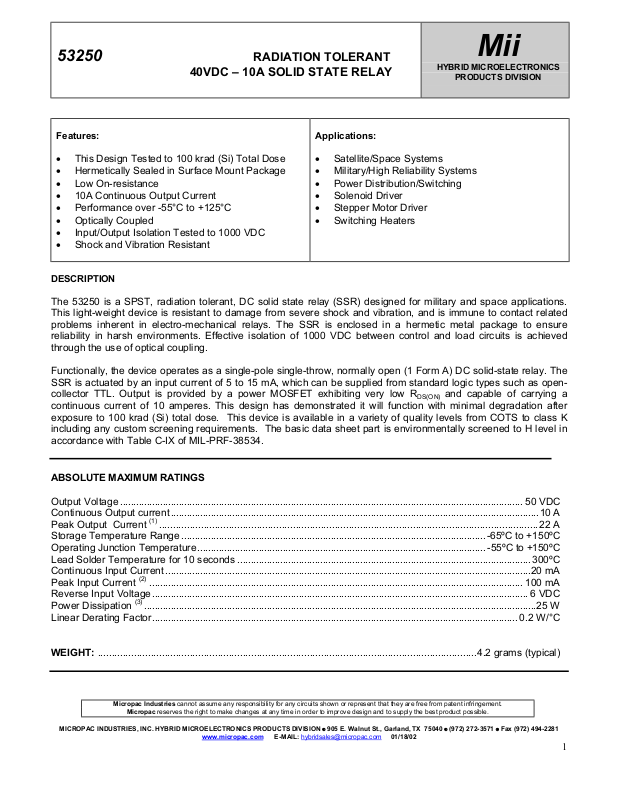

40VDC – 10A SOLID STATE RELAY

RADIATION TOLERANT

Mii

HYBRID MICROELECTRONICS

PRODUCTS DIVISION

Features:

This Design Tested to 100 krad (Si) Total Dose

•

Hermetically Sealed in Surface Mount Package

•

Low On-resistance

•

10A Continuous Output Current

•

Performance over -55°C to +125°C

•

Optically Coupled

•

Input/Output Isolation Tested to 1000 VDC

•

Shock and Vibration Resistant

•

DESCRIPTION

Applications:

Satellite/Space Systems

•

Military/High Reliability Systems

•

Power Distribution/Switching

•

Solenoid Driver

•

Stepper Motor Driver

•

Switching Heaters

•

The 53250 is a SPST, radiation tolerant, DC solid state relay (SSR) designed for military and space applications.
This light-weight device is resistant to damage from severe shock and vibration, and is immune to contact related
problems inherent in electro-mechanical relays. The SSR is enclosed in a hermetic metal package to ensure
reliability in harsh environments. Effective isolation of 1000 VDC between control and load circuits is achieved
through the use of optical coupling.

Functionally, the device operates as a single-pole single-throw, normally open (1 Form A) DC solid-state relay. The
SSR is actuated by an input current of 5 to 15 mA, which can be supplied from standard logic types such as open­collector TTL. Output is provided by a power MOSFET exhibiting very low R

and capable of carrying a

DS(ON)

continuous current of 10 amperes. This design has demonstrated it will function with minimal degradation after
exposure to 100 krad (Si) total dose. This device is available in a variety of quality levels from COTS to class K
including any custom screening requirements. The basic data sheet part is environmentally screened to H level in
accordance with Table C-IX of MIL-PRF-38534.

ABSOLUTE MAXIMUM RATINGS

Output Voltage ....................................................................................................................................................... 50 VDC

Continuous Output current ..........................................................................................................................................10 A

Peak Output Current

(1)

........................................................................................................................................22 A

Storage Temperature Range .................................................................................................................. -65ºC to +150ºC

Operating Junction Temperature ............................................................................................................ -55ºC to +150ºC

Lead Solder Temperature for 10 seconds .............................................................................................................. 300ºC

Continuous Input Current .........................................................................................................................................20 mA

Peak Input Current

Reverse Input Voltage ............................................................................................................................................. 6 VDC

Power Dissipation

(2)

............................................................................................................................................ 100 mA

(3)

...................................................................................................................................................25 W

Linear Derating Factor ......................................................................................................................................... 0.2 W/°C

WEIGHT: ........................................................................................................................................4.2 grams (typical)

Micropac Industries cannot assume any responsibility for any circuits shown or represent that they are free from patent infringement.

Micropac reserves the right to make changes at any time in order to improve design and to supply the best product possible.

MICROPAC INDUSTRIES, INC. HYBRID MICROELECTRONICS PRODUCTS DIVISION • 905 E. Walnut St., Garland, TX 75040 • [phone] • Fax [phone]

www.micropac.com E-MAIL: [e-mail]

01/18/02

1

RECOMMENDED OPERATING CONDITIONS:

Parameter Symbol Min. Max. Units

53250

Radiation Tolerant 40VDC – 10A Solid State Relay

Output Voltage V

Continuous Output Current I

Input Current (on) I

Input Voltage (off) V

Operating Case Temperature T

ELECTRICAL SPECIFICATIONS (Pre-Irradiation)

= -55°C to +125°C unless otherwise specified

T

C

Parameter Sym. Min. Typ.* Max. Units Test Conditions Notes

Output On-Resistance R

Output Leakage Current I

Input Forward Voltage V

Input Reverse Breakdown Voltage V

Input-Output Leakage I

Turn-On Time t

Turn-Off time t

Rise Time t

Fall Time t

(ON)

O (OFF)

F

R

I-O

ON

OFF

R

F

O (OFF)

O (ON)

F (ON)

F (OFF)

C

0.032 0.060



<

1

515 mA

01 VDC

-55 125 °C

250

40 VDC

10 A

= 15 mA

I

Ω

µ

F

I

= 1 A

O

= 1 VDC

V

A

F

V

O

= 50 VDC

3.10 3.75 4.20 VDC IF = 15 mA

640



VDC

= 10 µA

I

R

RH ≤ 45%, t = 5 s







3.3 8.0 ms

0.35 2 ms

1

µ

A

V

= 1000 VDC

I-O

= 25°C

T

C

= 15 mA

I

F

= 10 A

I

O

V load = 40 VDC



2.5 6.0 ms

Pulse width = 10 ms

Duty cycle ≤ 1%



0.19 1.0 ms

4, 5

Figures 3,

4

Figures 3,

5

6,

Figure 3

Thermal Resistance (junction-case)

Output Off-Capacitance C

O (OFF)

Input Capacitance C

Input-Output Capacitance C

θ

JC





IN

I-O





4

1.8

27

2.6









°C/W

nF

pF

pF

V

= 28 VDC

O

f = 1 MHz

V

= 0 V

F

f = 1 MHz

= 0 V

V

I-O

f = 1 MHz

* All typical values are at TC = 25°C

Micropac Industries cannot assume any responsibility for any circuits shown or represent that they are free from patent infringement.

Micropac reserves the right to make changes at any time in order to improve design and to supply the best product possible.

MICROPAC INDUSTRIES, INC. HYBRID MICROELECTRONICS PRODUCTS DIVISION • 905 E. Walnut St., Garland, TX 75040 • [phone] • Fax [phone]

www.micropac.com E-MAIL: [e-mail]

01/18/02

4

2

Notes:

53250

Radiation Tolerant 40VDC - 10A Solid State Relay

1. Non-repetitive, pulse width ≤ 10ms, T

2. Non-repetitive, pulse width

3. Case Temperature T

C

100µs, T

≤

= 25°C (see Figure 7).

= 25°C (see Figure 6).

C

= 25°C.

C

4. Input pins shorted together and output pins shorted together.

5. Input-output potential applied momentarily, not an operating condition.

6. Rise time is measured from 10% to 90% of load current (90% to 10% of V

10% of load current (10% to 90% of V

).

O

). Fall time is measured from 90% to

O

CAUTION:

Care should be taken so as not to exceed the maximum power dissipation and maximum junction temperature
when repetitively switching loads.

INPUT OUTPUT

ON ON

OFF OFF

Figure 1. Truth Table

Figure 1. Terminal Connections

+V

-V

C

R

S

C

4

1

3

2

+DC SUPPLY

R

LOAD

OUTPUT GND

TOP VIEW

Figure 2. Terminal Connections

Micropac Industries cannot assume any responsibility for any circuits shown or represent that they are free from patent infringement.

Micropac reserves the right to make changes at any time in order to improve design and to supply the best product possible.

MICROPAC INDUSTRIES, INC. HYBRID MICROELECTRONICS PRODUCTS DIVISION • 905 E. Walnut St., Garland, TX 75040 • [phone] • Fax [phone]

www.micropac.com E-MAIL: [e-mail]

01/18/02

3

Z = 50

O

t = t = 10ns

R

F

(100mV/mA)

PULSE
GENERATOR

I

F

MONITOR

100

53250

Radiation Tolerant 40VDC - 10A Solid State Relay

V = 40 V

LOAD

R = 4

L

MONITOR

= 25 pF

L

V

O

1

2

4

C

(INCLUDES PROBE AND
FIXTURE CAPACITANCE)

3

50%

I

F

V

O

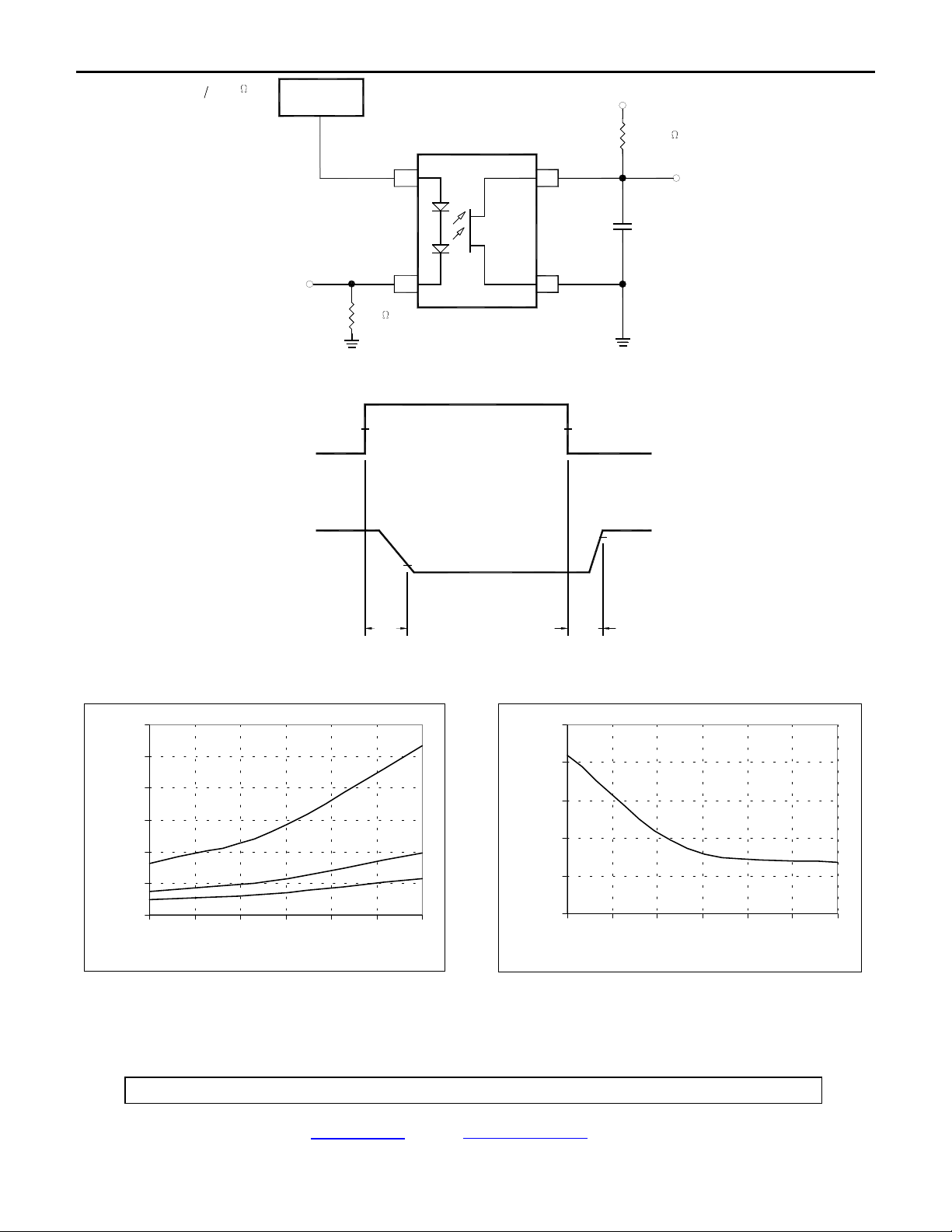

Figure 3. Switching Waveforms and Test Circuits

30

25

20

15

10

5mA

Turn-on Time (m s )

5

10mA

15mA

0

-55 -25 5 35 65 95 125

Temperature (°C)

50%

90%

10%

t

t

ON

OFF

1

0.8

0.6

0.4

Turn-off Time (ms)

0.2

0

-55 -25 5 35 65 95 125

Temperature (°C)

Figure 4. Turn-on Time vs. Case Temperature Figure 5. Turn-off Time vs. Case Temperature
for Different Values of I

Micropac Industries cannot assume any responsibility for any circuits shown or represent that they are free from patent infringement.

Micropac reserves the right to make changes at any time in order to improve design and to supply the best product possible.

MICROPAC INDUSTRIES, INC. HYBRID MICROELECTRONICS PRODUCTS DIVISION • 905 E. Walnut St., Garland, TX 75040 • [phone] • Fax [phone]

(typical data).

F

www.micropac.com E-MAIL: [e-mail]

with IF = 5 to 15 mA (typical data).

01/18/02

4

53250

Radiation Tolerant 40VDC - 10A Solid State Relay

25

20

15

10

Current (A)

5

Maximum Peak Output

0

-55 -25 5 35 65 95 125

Temperature (°C)

Figure 6. Maximum Non-repetitive Output Current Figure 7. Maximum Average Output Power

vs. Case Temperature (pulse width

10 ms). Dissipation vs. Case Temperature.

≤

50

40

30

20

Dissipation (W)

10

Maximum Average Power

0

-55 -25 5 35 65 95 125

Temperature (°C)

TOTAL DOSE TEST RESULTS

Disclaimer: The data of 4 representative units irradiated in Cobalt-60 chamber is only typical of one lot of
solid state relays. Micropac does not guarantee performance of its SSR to these radiation levels. Individual
lots have to be screened to guarantee the performance.

5

4

3

2

Turn-On Time, ms

1

0

050100

Total Dose, krad (Si)

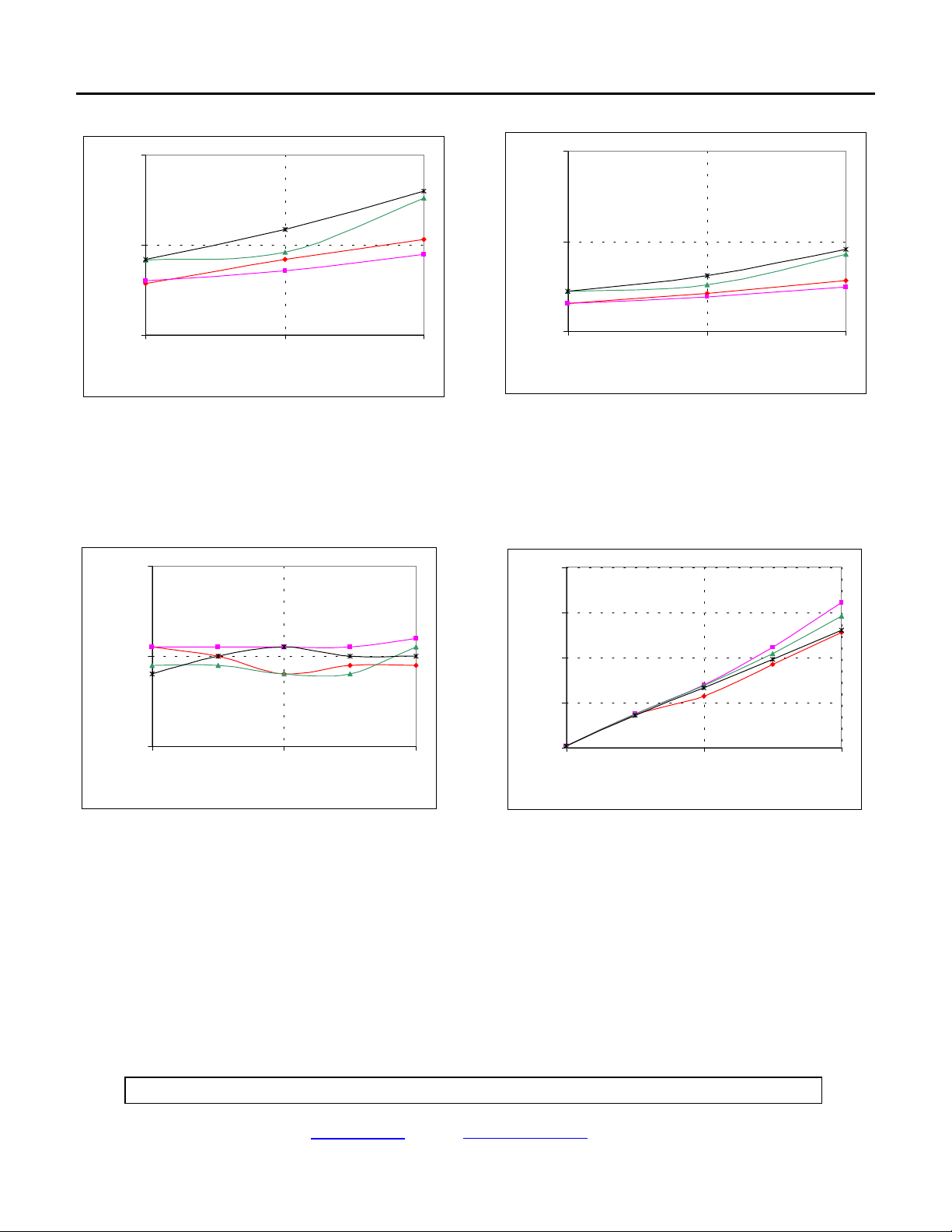

Figure 8. Turn-On Time vs Total Dose Figure 9. Rise Time vs Total Dose
at V
I

MICROPAC INDUSTRIES, INC. HYBRID MICROELECTRONICS PRODUCTS DIVISION • 905 E. Walnut St., Garland, TX 75040 • [phone] • Fax [phone]

= 20 V, R

out

= 15 mA, 10% duty cycle. Iin = 15 mA, 10% duty cycle.

in

Micropac Industries cannot assume any responsibility for any circuits shown or represent that they are free from patent infringement.

Micropac reserves the right to make changes at any time in order to improve design and to supply the best product possible.

= 4 Ω, at V

load

www.micropac.com E-MAIL: [e-mail]

5

4

3

2

Rise Time, ms

1

0

050100

Total Dose, krad (Si)

= 20 V, R

out

01/18/02

load

= 4 Ω,

5

53250

Radiation Tolerant 40VDC - 10A Solid State Relay

1.0

0.5

1.0

0.5

Fall Time, ms

Turn-Off Time, ms

0.0
0 50 100

Total Dose, krad (Si)

Figure 10. Turn-Off Time vs Total Dose Figure 11. Fall Time vs Total Dose
at V
I

= 20 V, R

out

= 15 mA, 10% duty cycle. Iin = 15 mA, 10% duty cycle.

in

= 4 Ω, at V

load

0.04

0.0
0 50 100

Total Dose, krad (Si)

= 20 V, R

out

load

= 4 Ω,

80

60

0.03

On-Resistance, ohm

0.02
050100

Total Dose, krad (Si)

40

20

Output Leakage Current, nA

0

050100

Total Dose, krad (Si)

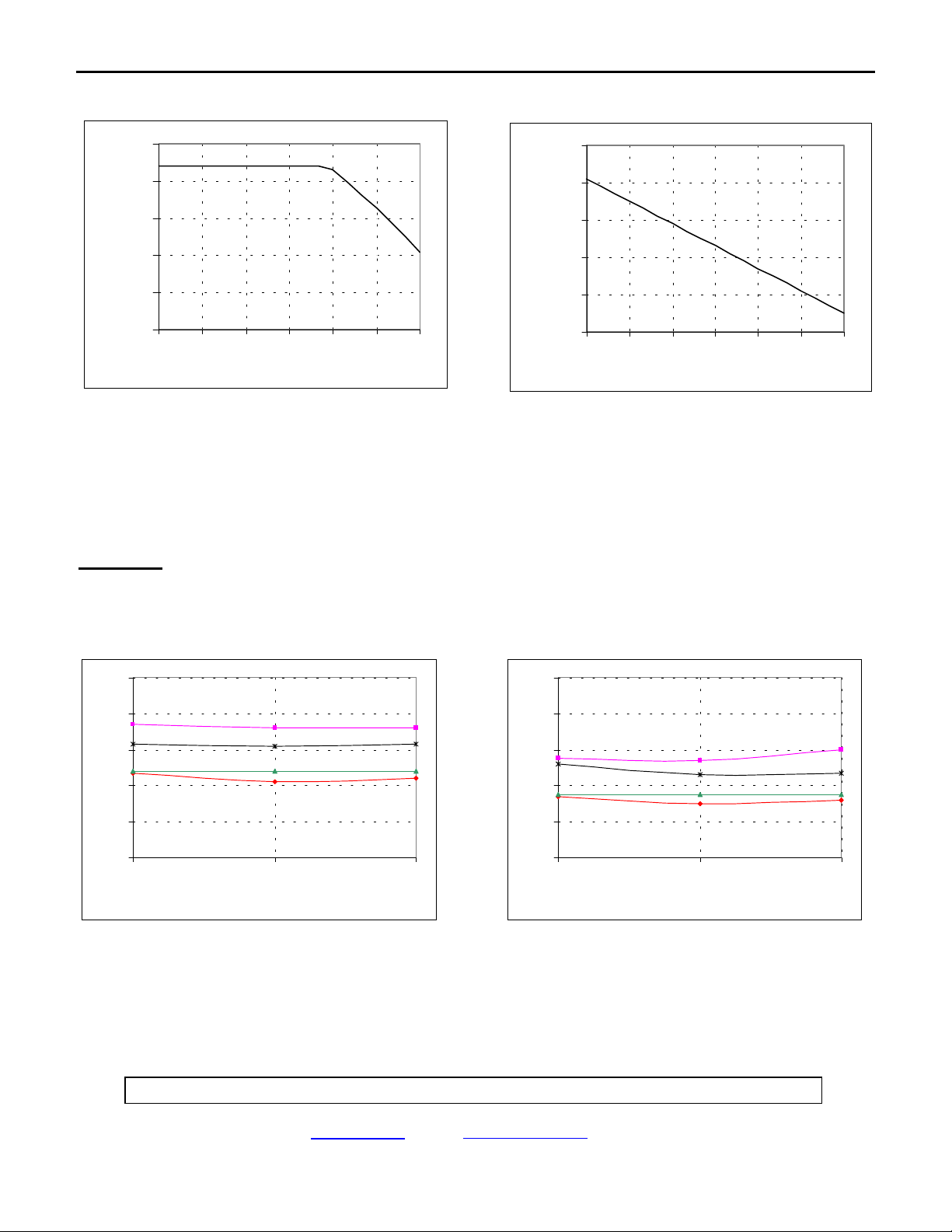

Figure 12. On-Resistance vs Total Dose Figure 13. Output Leakage Current vs Total Dose
at I

= 10 mA, I

F

= 100 mA for 1s. at VF = 1 V, V

out

= 50 V.

out

Micropac Industries cannot assume any responsibility for any circuits shown or represent that they are free from patent infringement.

Micropac reserves the right to make changes at any time in order to improve design and to supply the best product possible.

MICROPAC INDUSTRIES, INC. HYBRID MICROELECTRONICS PRODUCTS DIVISION • 905 E. Walnut St., Garland, TX 75040 • [phone] • Fax [phone]

www.micropac.com E-MAIL: [e-mail]

01/18/02

6

53250

Radiation Tolerant 40VDC - 10A Solid State Relay

4.0

3.9

3.8

3.7

3.6

Input Forward Voltage, VDC

3.5

050100

Total Dose, krad (Si)

80

60

40

Input Reverse Voltage, VDC

20

050100

Total Dose, krad (Si)

Figure 14. Input Forward Voltage vs Total Dose Figure 15. Input Reverse Voltage vs Total Dose
at I

= 15 mA. at IR = 10 µA.

F

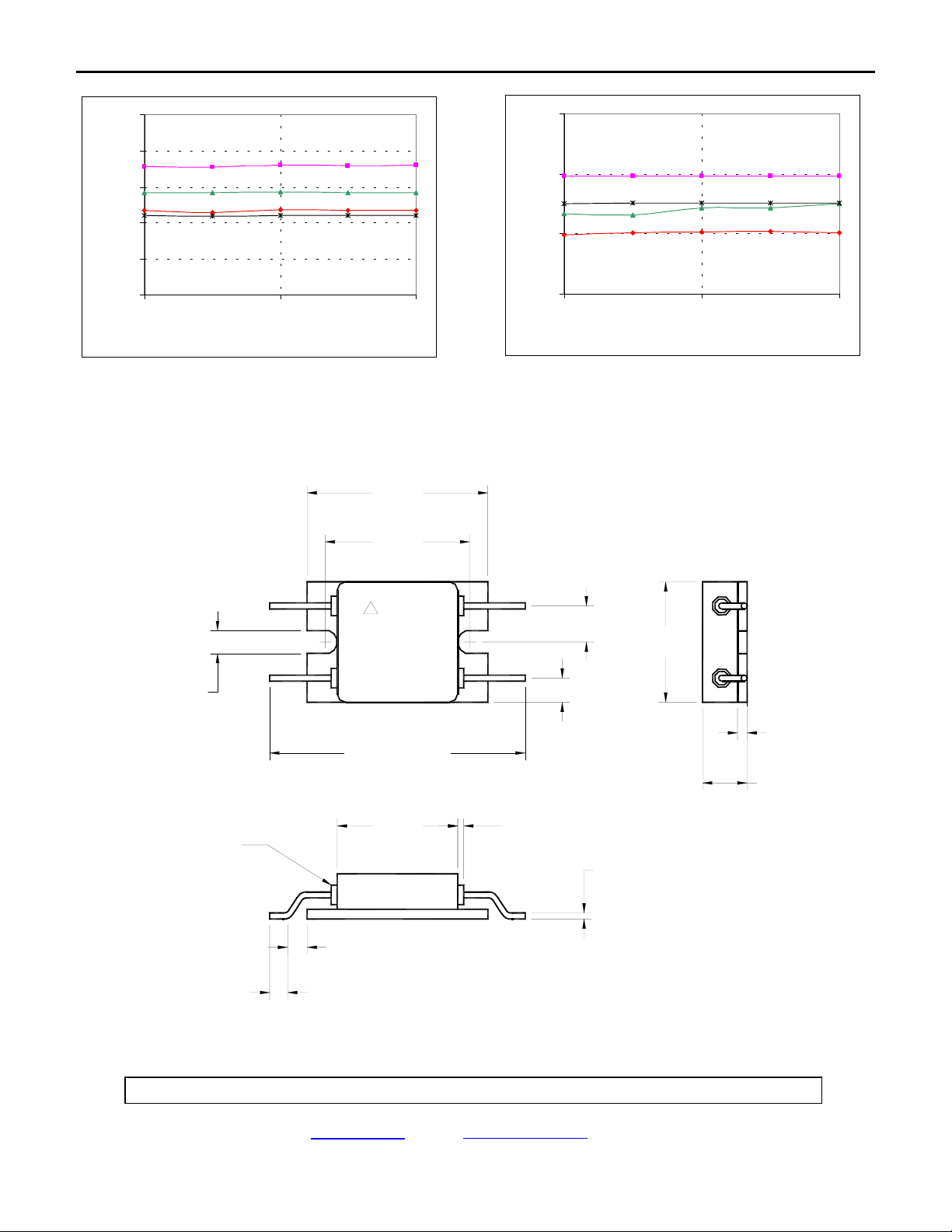

CASE OUTLINE

.750

.600

.094

Ø.081

(4X)

1

2

1.060 ±.030

.500

.095 REF

.060 ±.030

4

.150

.500

3

.100

.040

.185

.025 MAX

.025 ±.002 DIA

(4 PLCS)

Micropac Industries cannot assume any responsibility for any circuits shown or represent that they are free from patent infringement.

Micropac reserves the right to make changes at any time in order to improve design and to supply the best product possible.

MICROPAC INDUSTRIES, INC. HYBRID MICROELECTRONICS PRODUCTS DIVISION • 905 E. Walnut St., Garland, TX 75040 • [phone] • Fax [phone]

www.micropac.com E-MAIL: [e-mail]

01/18/02

7
