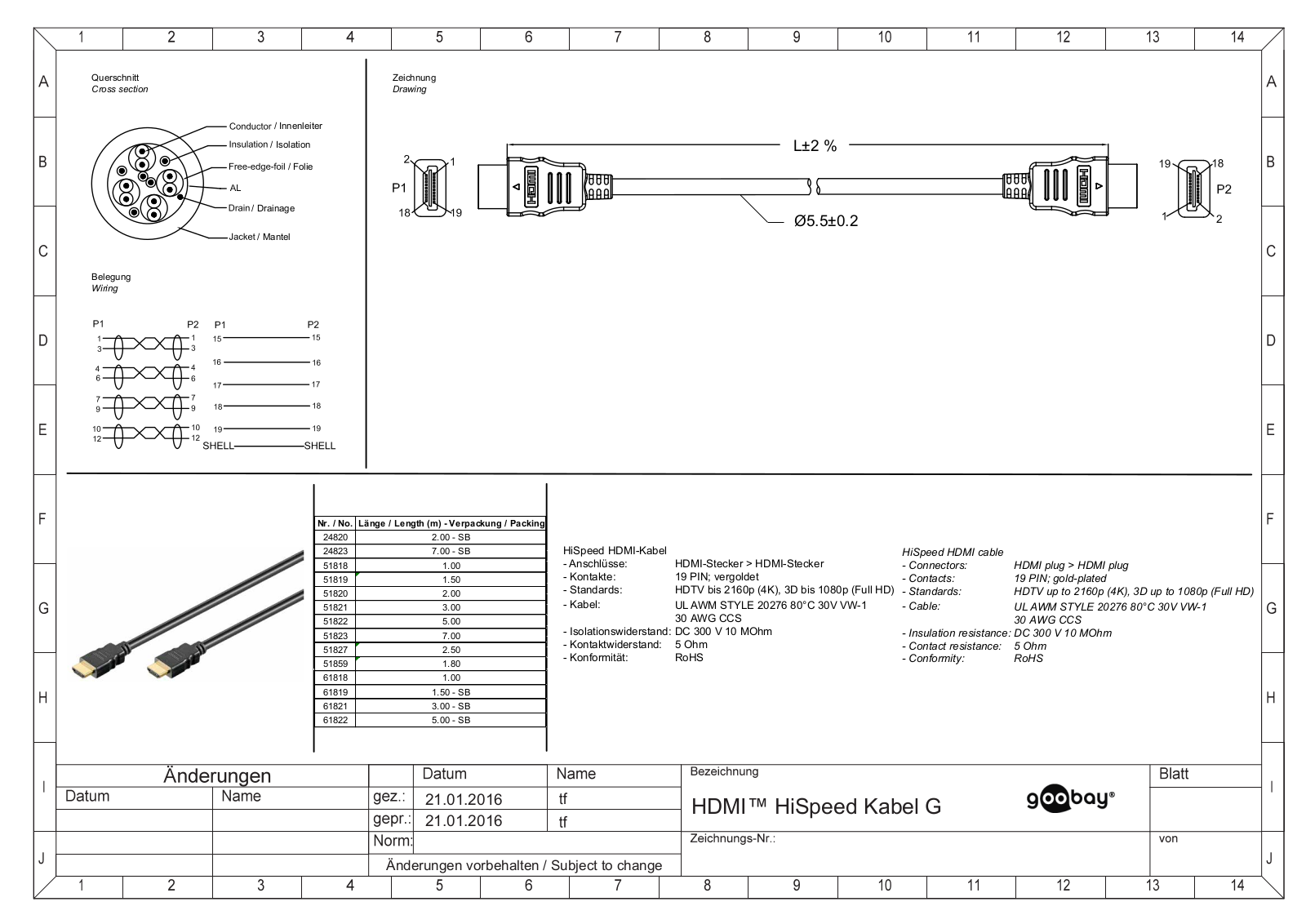

Querschnitt
Cross section
/ Innenleiter
/ Isolation
/ Folie
Zeichnung
Drawing
L±2 %
Belegung
Wiring
/ Drainage
/ Mantel
Nr. / No.
Länge / Le ngth (m) - Ve rpackung / Packing
24820 2.00 - SB
24823 7.00 - SB
51818 1.00
51819 1.50
51820 2.00
51821 3.00
51822 5.00
51823 7.00
51827 2.50
51859 1.80
61818 1.00
61819 1.50 - SB
61821 3.00 - SB
61822 5.00 - SB
Ø5.5±0.2
HiSpeed HDMI-Kabel
- Anschlüsse:  HDMI-Stecker > HDMI-Stecker
- Kontakte:  19 PIN; vergoldet
- Standards:  HDTV bis 2160p (4K), 3D bis 1080p (Full HD)
- Kabel:
    UL AWM STYLE 20276 80°C 30V VW-1
 30 AWG CCS
- Isolationswiderstand: DC 300 V 10 MOhm
- Kontaktwiderstand: 5 Ohm
- Konformität:  RoHS
HiSpeed HDMI cable
- Connectors:  HDMI plug > HDMI plug
- Contacts:  19 PIN; gold-plated
- Standards:  HDTV up to 2160p (4K), 3D up to 1080p (Full HD)
- Cable:
    UL AWM STYLE 20276 80°C 30V VW-1
    30 AWG CCS
- Insulation resistance: DC 300 V 10 MOhm
- Contact resistance: 5 Ohm
- Conformity:  RoHS
21.01.2016
21.01.2016
Änderungen vorbehalten / Subject to change
HDMI™ HiSpeed Kabel G
