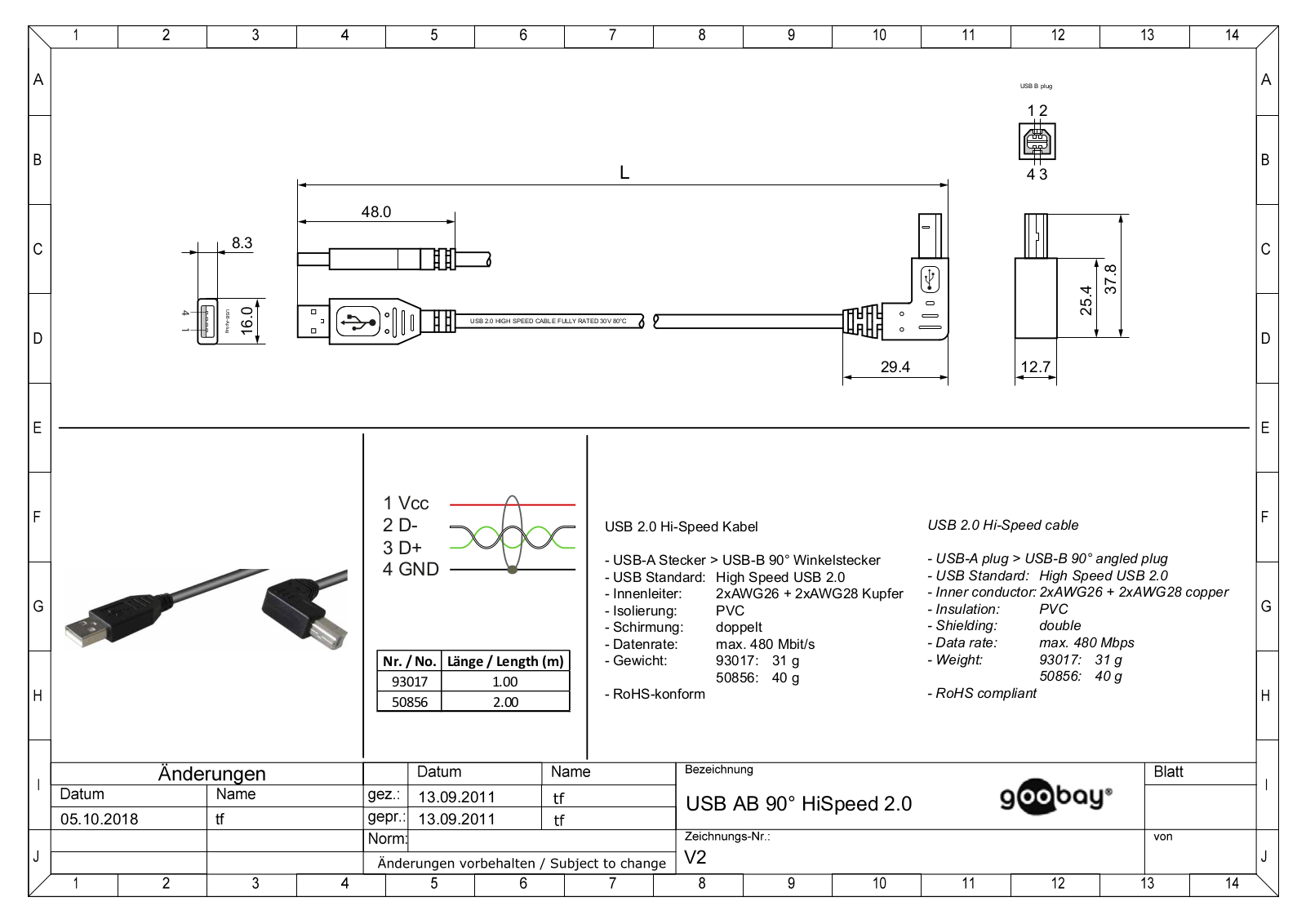

Datasheet 50856 Specification

Nr. / No. Länge / Length (m)

50856 2.00

USB B plug

1 2

L

4 3

48.0

8.3

37.8

USB-A plug

4 1

USB 2.0 HIGH SPEED CABLE FULLY RATED 30V 80°C

25.4

16.0

29.4

12.7

1 Vcc
2 D­3 D+
4 GND

93017 1.00

USB 2.0 Hi-Speed Kabel

- USB-A Stecker > USB-B 90° Winkelstecker

- USB Standard: High Speed USB 2.0

- Innenleiter: 2xAWG26 + 2xAWG28 Kupfer

- Isolierung: PVC

- Schirmung: doppelt

- Datenrate: max. 480 Mbit/s

- Gewicht: 93017: 31 g
50856: 40 g

- RoHS-konform

USB 2.0 Hi-Speed cable

- USB-A plug > USB-B 90° angled plug

- USB Standard: High Speed USB 2.0

- Inner conductor: 2xAWG26 + 2xAWG28 copper

- Insulation: PVC

- Shielding: double

- Data rate: max. 480 Mbps

- Weight: 93017: 31 g
50856: 40 g

- RoHS compliant

13.09.2011

13.09.201105.10.2018 tf

USB AB 90° HiSpeed 2.0

V2
