Datalogic Dragon D131, Dragon M131 Reference Manual
Dragon™ D131/M131
Reference Manual
Datalogic Scanning, Inc.
959 Terry Street
Eugene, Oregon 97402
Telephone: (541) 683-5700
Fax: (541) 345-7140
An Unpublished Work - All rights reserved. No part of the contents of this
documentation or the procedures described therein may be reproduced or
transmitted in any form or by any means without prior written per-mission of Datalogic
Scanning, Inc. or its subsidiaries or affiliates ("Datalogic" or “Datalogic Scanning”).
Owners of Datalogic products are hereby granted a non-exclusive, revocable license
to reproduce and transmit this documentation for the purchaser's own internal
business purposes. Purchaser shall not remove or alter any proprietary notices,
including copyright notices, contained in this documentation and shall ensure that all
notices appear on any reproductions of the documentation.
Should future revisions of this manual be published, you can acquire printed versions
by contacting your Datalogic representative. Electronic versions may either be
downloadable from the Datalogic website (www.scanning.datalogic.com) or provided
on appropriate media. If you visit our website and would like to make comments or
suggestions about this or other Datalogic publications, please let us know via the
"Contact Datalogic" page.
Disclaimer
Datalogic has taken reasonable measures to provide information in this manual that
is complete and accurate, however, Datalogic reserves the right to change any
specification at any time without prior notice. Datalogic is a registered trademark of
Datalogic S.p.A. in many countries and the Datalogic logo is a trademark of Datalogic
S.p.A. all licensed to Datalogic Scanning, Inc. All other trademarks and trade names
referred to herein are property of their respective owners.
CONTENTS
GENERAL VIEW ......................................................................................... ix
1 INTRODUCTION .......................................................................................... 1
2 INSTALLATION............................................................................................ 2
2.1 Dragon™ Dx31 Interface Cable Connections ...............................................2
2.2 OM-30X0 Interface Cable Connections ........................................................4
2.3 RS232 Connection........................................................................................ 5
2.4 USB ..............................................................................................................5
2.5 IBM USB POS...............................................................................................6
2.6 WEDGE Connection ..................................................................................... 7
2.7 PEN Emulation Connection...........................................................................7
2.8 Network Connections.................................................................................... 8
2.8.1 OM3000 Network Connectors....................................................................... 8
2.8.2 Network Cabling............................................................................................ 9
2.8.3 Network Termination................................................................................... 10
2.9 DRAGON™ Mx31 Battery Maintenance..................................................... 11
2.9.1 Battery Charging......................................................................................... 11
2.9.2 Replacing Dragon™ Mx31 Batteries........................................................... 11
2.10 Mounting The OM-30X0 / C-3000 Cradle ................................................... 12
2.10.1 Desktop mounting ....................................................................................... 13
2.10.2 Wall Mounting ............................................................................................. 16
3 DRAGON™ M131 SYSTEM AND NETWORK LAYOUTS .......................... 18
3.1 Stand Alone Layouts................................................................................... 18
3.1.1 Point-to-Point Reader Layout...................................................................... 18
3.1.2 Stand Alone Layout with Multiple Readers.................................................. 18
3.1.3 Multiple Stand Alone Layouts...................................................................... 19
3.1.4 C-BOX Layout............................................................................................. 20
3.2 Multidrop STAR-System™ Network Layouts .............................................. 21
3.2.1 Host Master Layout..................................................................................... 21
3.2.2 OM-3000 Master Layout ............................................................................. 22
3.2.3 Master OM-3000 Network Troubleshooting ................................................ 23
4 CONFIGURATION...................................................................................... 24
4.1 Configuration Methods................................................................................ 24
4.1.1 Reading Configuration Barcodes ................................................................ 24
4.1.2 Using Datalogic Aladdin™ .......................................................................... 24
4.1.3 Copy Command.......................................................................................... 24
4.1.4 Sending Configuration Strings from Host.................................................... 25
4.2 Setup Procedures ....................................................................................... 25
4.3 Dragon™ D131 Setup................................................................................. 26
4.4 Dragon™ M131/OM-30X0 Point-to-Point Setup .........................................26
iii
4.5 Dragon™ M131/OM-30X0 Stand Alone Setup............................................ 27
4.5.1 Using Multiple M-Series Readers With Same Cradle.................................. 29
4.5.2 Dragon™ M131/STAR-Modem™ in Stand Alone Mode ............................. 30
4.6 Dragon™ M/STAR-System™ Setup ........................................................... 31
4.7 OM-3000 STAR-System™ Network Setup ................................................. 33
4.8 Interface Selection ...................................................................................... 35
4.9 USB Reader Configuration..........................................................................39
4.10 Changing Default Settings .......................................................................... 41
RS232 PARAMETERS............................................................................... 42
Baud Rate................................................................................................... 43
Parity........................................................................................................... 43
Data Bits ..................................................................................................... 44
Stop Bits...................................................................................................... 44
Handshaking............................................................................................... 44
Ack/Nack Protocol....................................................................................... 45
FIFO............................................................................................................ 45
Inter-character Delay .................................................................................. 45
Rx Timeout.................................................................................................. 46
Serial Trigger Lock...................................................................................... 46
USB PARAMETERS .................................................................................. 47
Handshaking............................................................................................... 48
Ack/Nack Protocol....................................................................................... 48
FIFO............................................................................................................ 48
Inter-character Delay .................................................................................. 49
Rx Timeout.................................................................................................. 49
Serial Trigger Lock...................................................................................... 49
Keyboard Nationality................................................................................... 50
FIFO............................................................................................................ 51
Inter-character Delay .................................................................................. 52
Inter-code Delay.......................................................................................... 52
USB Keyboard Speed................................................................................. 52
WEDGE PARAMETERS ............................................................................ 53
Keyboard Nationality................................................................................... 54
Caps Lock................................................................................................... 55
Caps Lock Auto-Recognition (IBM AT compatible only) .............................. 56
Num Lock.................................................................................................... 56
Inter-character Delay .................................................................................. 56
Inter-code Delay.......................................................................................... 57
Keyboard Setting ........................................................................................ 57
Control Character Emulation....................................................................... 59
PEN EMULATION ...................................................................................... 60
Operating Mode .......................................................................................... 61
iv
Minimum Output Pulse................................................................................ 62
Conversion to Code 39 (D131 Series Only)................................................ 63
Conversion to Code 39 and Code 128 (M131 Series Only) ........................ 63
Overflow...................................................................................................... 63
Output Level................................................................................................ 64
Idle Level..................................................................................................... 64
Inter-Block Delay......................................................................................... 64
NETWORK PARAMETERS ....................................................................... 65
RS485 Network........................................................................................... 66
Network Baud Rate..................................................................................... 66
Slave Address Range ................................................................................. 67
Network Warning Message......................................................................... 67
Reception Warning Message...................................................................... 67
Master Cradle Header................................................................................. 68
Master Cradle Terminator ........................................................................... 69
DATA FORMAT.......................................................................................... 70
Code Identifier............................................................................................. 72
Custom Code Identifier ............................................................................... 72
Header ........................................................................................................ 73
Terminator................................................................................................... 74
Special Keys ............................................................................................... 75
Field Adjustment ......................................................................................... 76
Field Adjustment Character......................................................................... 77
Code Length Tx .......................................................................................... 77
Character Replacement .............................................................................. 78
Address Stamping (M131 Series Only)....................................................... 80
Address Delimiter (M131 Series Only)........................................................ 80
Time Stamping (M131 Series Only) ............................................................ 81
Time Stamping Delimiter (M131 Series Only)............................................. 81
POWER SAVE............................................................................................ 82
Sleep State ................................................................................................. 83
Enter Sleep Timeout ................................................................................... 83
READING PARAMETERS ......................................................................... 84
Trigger Type................................................................................................ 85
Trigger Signal.............................................................................................. 85
Trigger Click................................................................................................ 85
Trigger-off Timeout ..................................................................................... 86
Flash Mode ................................................................................................. 86
Reads per Cycle ......................................................................................... 86
Safety Time................................................................................................. 87
Beeper Intensity .......................................................................................... 87
Beeper Tone ............................................................................................... 88
v
Beeper Type ............................................................................................... 88
Beeper Length ............................................................................................ 88
Good Read Spot Duration........................................................................... 89
Aiming System............................................................................................ 89
Cradle Beeper Intensity .............................................................................. 89
DECODING PARAMETERS....................................................................... 90
Ink Spread................................................................................................... 91
Overflow Control ......................................................................................... 91
Interdigit Control.......................................................................................... 91
Decoding Safety.......................................................................................... 92
Puzzle Solver™ .......................................................................................... 92
CODE SELECTION.................................................................................... 93
Auto-configuration....................................................................................... 94
EAN/UPC Family ........................................................................................ 96
2/5 Family ................................................................................................. 102
Code 39 Family......................................................................................... 103
Code 128 Family....................................................................................... 104
Code 93 .................................................................................................... 105
Codabar Family......................................................................................... 105
MSI ........................................................................................................... 107
Code 11 .................................................................................................... 108
Code 16K.................................................................................................. 109
Code 49 .................................................................................................... 109
RSS Codes ............................................................................................... 110
ADVANCED FORMATTING..................................................................... 111
Concatenation........................................................................................... 112
Advanced Formatting................................................................................ 115
RADIO PARAMETERS ............................................................................ 130
Radio Protocol Timeout ............................................................................ 131
Power-Off Timeout.................................................................................... 131
Transmission Mode................................................................................... 132
Beeper Control for Radio Response ......................................................... 132
Single Store .............................................................................................. 133
Batch Mode............................................................................................... 134
Find Me..................................................................................................... 134
DISPLAY PARAMETERS ........................................................................ 135
Date and Time .......................................................................................... 136
Contrast .................................................................................................... 136
Font Size................................................................................................... 136
Backlight ...................................................................................................136
Display-Off Timeout .................................................................................. 137
Display Mode ............................................................................................ 137
vi
Keypad...................................................................................................... 138
5 REFERENCES ......................................................................................... 139
5.1 RS232 Parameters ...................................................................................139
5.1.1 Handshaking............................................................................................. 139
5.1.2 ACK/NACK Protocol ................................................................................. 140
5.1.3 FIFO.......................................................................................................... 141
5.1.4 RX Timeout............................................................................................... 142
5.2 Pen Parameters........................................................................................ 142
5.2.1 Minimum Output Pulse.............................................................................. 142
5.2.2 Conversion to Code 39 and Code 128...................................................... 142
5.2.3 Overflow.................................................................................................... 143
5.2.4 Output and Idle Levels .............................................................................. 143
5.2.5 Inter-Block Delay....................................................................................... 144
5.3 Network Parameters ................................................................................. 144
5.3.1 Slave Address Range First/Last................................................................ 144
5.3.2 Network Warning Message....................................................................... 144
5.3.3 Reception Warning Message.................................................................... 145
5.3.4 Master Header/Terminator Selection ........................................................ 145
5.4 Data Format.............................................................................................. 145
5.4.1 Header/Terminator Selection .................................................................... 145
5.4.2 Define Special Key Sequence................................................................... 147
5.4.3 Address Stamping..................................................................................... 154
5.4.4 Address Delimiter...................................................................................... 154
5.4.5 Time Stamping Format ............................................................................. 155
5.4.6 Time Stamping Delimiter........................................................................... 155
5.5 Power Save...............................................................................................155
5.5.1 Sleep State ............................................................................................... 155
5.5.2 Enter Sleep Timeout ................................................................................. 156
5.6 Reading Parameters ................................................................................. 156
5.6.1 Trigger Signal............................................................................................ 156
5.6.2 Trigger Click.............................................................................................. 156
5.6.3 Trigger-Off Timeout................................................................................... 156
5.6.4 Reads per Cycle ....................................................................................... 156
5.6.5 Safety Time............................................................................................... 157
5.7 Decoding Parameters ............................................................................... 157
5.7.1 Ink-Spread ................................................................................................ 157
5.7.2 Overflow Control ....................................................................................... 157
5.7.3 Interdigit Control........................................................................................ 158
5.8 Advanced Formatting................................................................................ 158
5.8.1 Match Conditions ...................................................................................... 158
5.9 Radio Parameters (M131 Series Only) ..................................................... 158
5.9.1 Radio Protocol Timeout ............................................................................ 158
5.9.2 Power-Off Timeout.................................................................................... 159
5.9.3 Transmission Mode................................................................................... 159
5.9.4 Beeper Control for Radio Response ......................................................... 160
vii
5.9.5 Single Store .............................................................................................. 160
5.9.6 Batch Mode............................................................................................... 161
5.9.7 Find Me (Dragon M131 only) .................................................................... 162
5.10 Display Parameters (Some M131 Models Only) ....................................... 162
5.10.1 Display Mode ............................................................................................ 162
5.11 Configuration Editing Commands .............................................................163
5.12 Custom Default Configuration................................................................... 164
5.13 Code Type Recognition ............................................................................164
5.14 Configuration Copying Commands ........................................................... 165
5.14.1 Copy Dragon™ D131 Series ..................................................................... 165
5.14.2 Copy Dragon™ M131 Series..................................................................... 166
5.14.3 Copy OM-30X0 ......................................................................................... 167
5.15 Default Parameters for POS Terminals..................................................... 168
5.16 Firmware Upgrade .................................................................................... 169
6 MESSAGE FORMATTING ....................................................................... 170
6.1 Messages from Host to Gun .....................................................................170
6.1.1 Cursor Control........................................................................................... 171
6.1.2 Font Selection........................................................................................... 172
6.1.3 Clearing Display........................................................................................ 172
6.1.4 LED and Beeper Control........................................................................... 172
6.1.5 Setting RTC .............................................................................................. 173
6.2 Messages From Gun Command Keys ...................................................... 173
7 TECHNICAL FEATURES......................................................................... 175
7.1 Dragon™ D131......................................................................................... 175
7.2 Dragon™ M131......................................................................................... 176
7.3 OM-30X0 / C-3000.................................................................................... 177
7.4 System and Radio Features......................................................................178
7.5 Status Indicators ....................................................................................... 178
7.6 Reading Diagrams .................................................................................... 181
A HOST CONFIGURATION STRINGS........................................................ 182
B CODE IDENTIFIER TABLE...................................................................... 196
C HEX AND NUMERIC TABLE ................................................................... 199
viii
t
y
r
GENERAL VIEW
DRAGON™ D131/M131 READERS
LEDs
Laser Outpu
Window
DRAGON™ D131
Cable Connecto
DRAGON™ M131
Batter
Cover
Trigger
LEDs
Display
Figure A – DRAGON™ D131 and M131 Series Readers
Laser Output Window
Keypad
Figure B – DRAGON™ M131 Series Readers with Display
ix
OM-30X0 / C-3000 CRADLES
LEDs
Figure C – OM-3000
LEDs
x
Figure D – C-3000
INTRODUCTION
1 INTRODUCTION
Datalogic renews its range of industrial laser scanners introducing the Dragon™
family: Dragon™ Desk and Dragon™ Mobile. Robustness and ergonomics remain
unsurpassed: clearly audible beeper and bright "good read" LEDs for areas where
noise levels are normally high; the aim mode, which helps point to the right code, has
now been extended to the whole Dragon™ family. Optical parts are completely
suspended on shock absorbers and a careful choice of the body materials, such as
the co-moulded rubber, protect the Dragon™ from damage due to "falls".
New enhanced architecture, based on an M16 high-speed microprocessor, enables
exceptional performance for promptness and reading speed of standard codes as
well as the ability to read poorly printed and damaged codes. Puzzle Solver
Technology™, a patent from Datalogic, adds further strength to the Dragon™
powerful engine.
In all applications where mobility is a value, the new Dragon™ M represents the key
to increase productivity and flexibility in the working area. Dragon™ M
communicates through a low power, licence free radio in the 433 MHz band
(910 MHz for USA version) and allows bi-directional communication between the
base station and the host. Dragon™ M also includes a display and a 3 push-button
keypad. Thanks to these features, the operator can receive information from the host,
interact with the central system and visualise the code read. The cordless system
offers scalable solutions to solve simple applications and complex projects:
• Point to point: each gun is associated with its own base station;
• Multipoint: up to 32 guns transmit data to one base station;

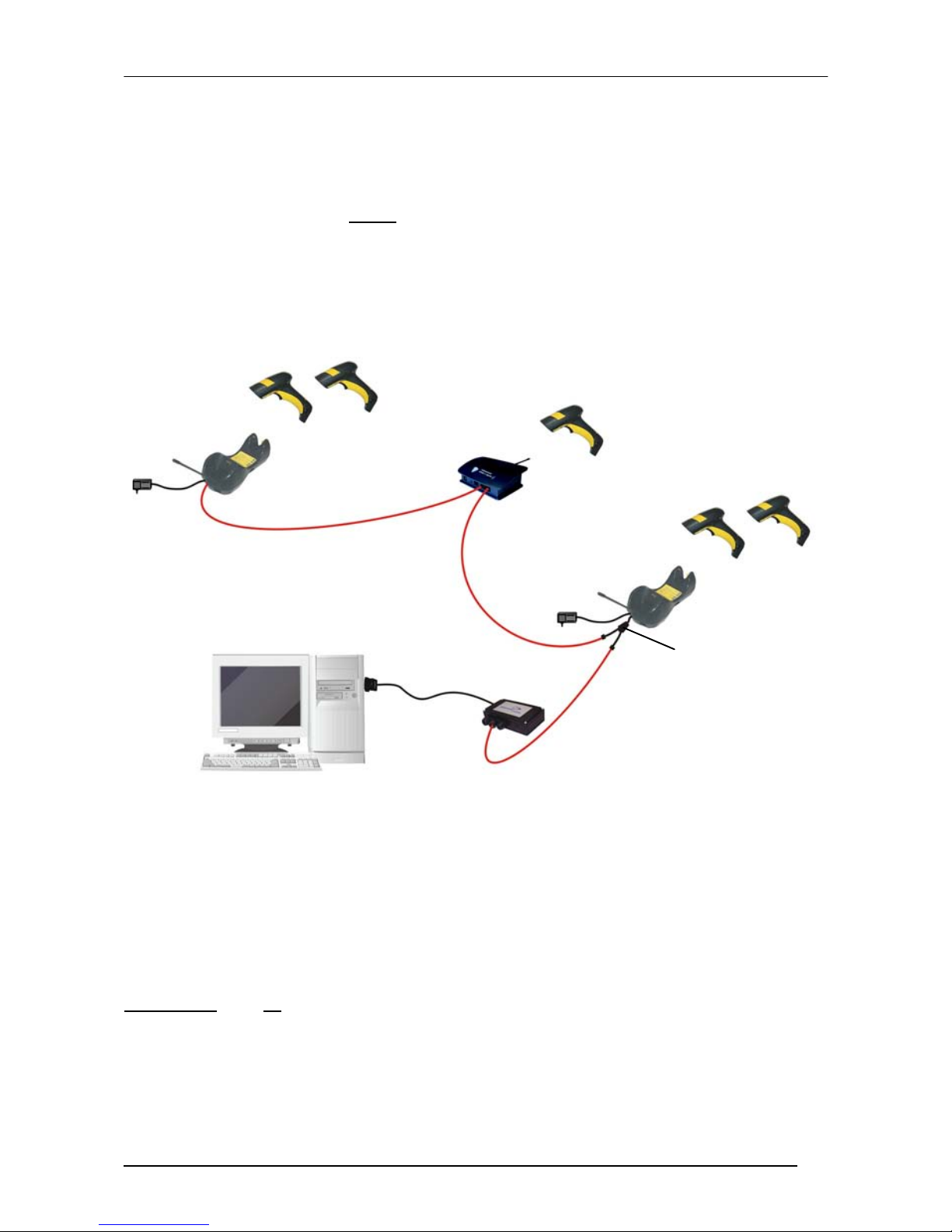

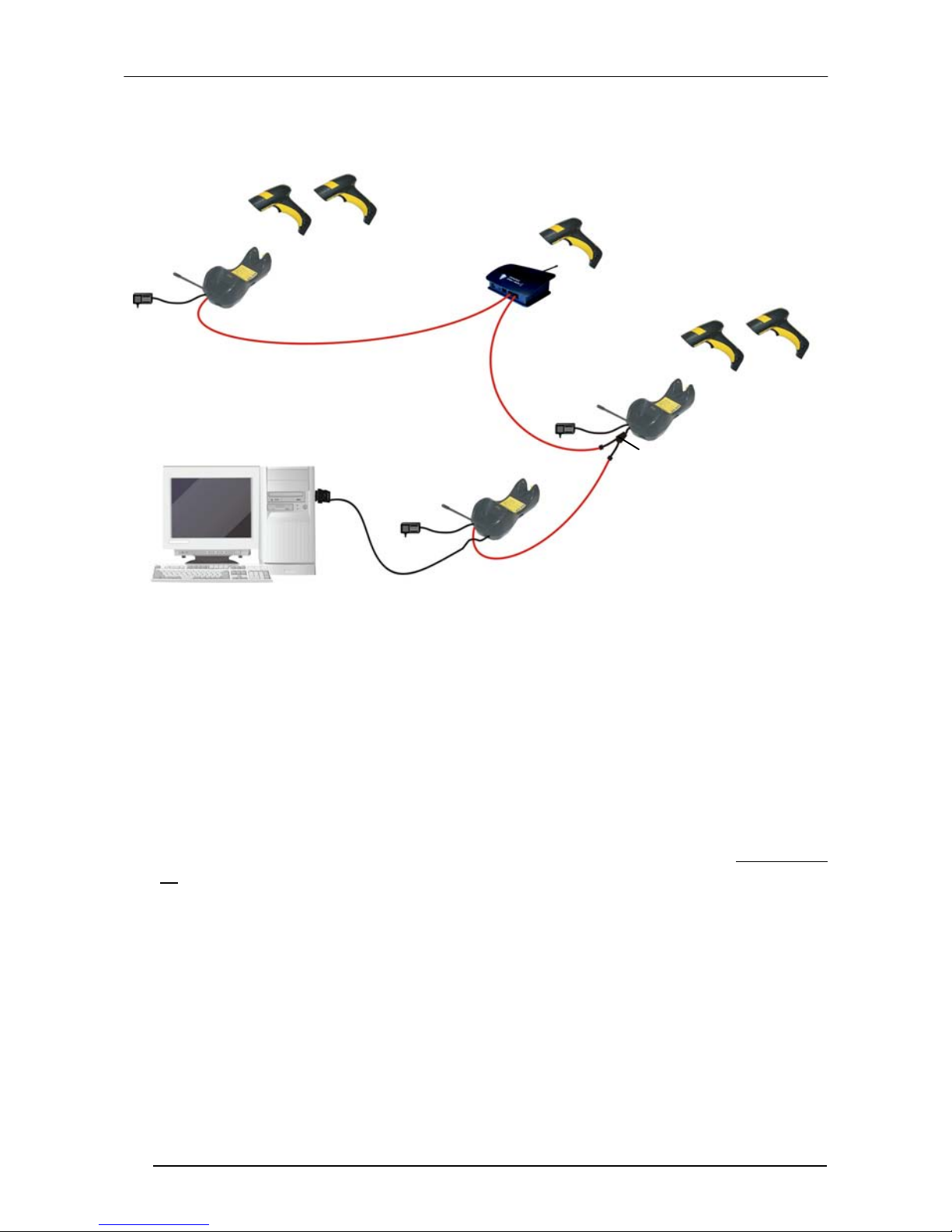

• Network: to cover a wide area, connecting up to 16 bases and 512 guns
simultaneously working in automatic roaming.
Dragon™ M is 100% compatible with STAR-System™, the new Datalogic RF narrow
band solution for mobile applications that provides the widest family of narrow band
devices on the market.
Your Dragon™ reader is supplied with its own Quick Reference Manual, which
provides connection, diagrams, reading diagrams, basic application parameter
settings, default values, and specific technical features. You can use either the Quick
Reference Manual or this Manual for initial configuration in order to set the default
values and select the interface for your application. This manual provides all the
necessary information for complete mechanical installation and system software
configuration.
1
DRAGON™ DX31/MX31
2 INSTALLATION
Connections should always be made with power OFF!
CAUTION
2.1 DRAGON™ DX31 INTERFACE CABLE CONNECTIONS
The Dragon™ D131 reader incorporates a multi-standard interface, which can be
connected to a Host by plugging the correct interface cable into the connector and
closing the cable cover.
D
E
A. Rubber boot
B. Rubber boot clip
C. Cover
D. Strain relief
E. Screw
A
B
C
2
Follow the given procedure for correct cable insertion:
INSTALLATION
Align
Align
5
2
3
4
6
7
1
Slip the cover over the cable.
Push the rubber boot completely over the connector. Take care that the rubber
boot mark is aligned to the connector clip.
Pull the rubber boot towards the connector until it covers and is flush with the
connector moulding.
Lock the rubber boot clip around the rubber boot aligning them as shown in the
figure.
Insert the assembly (connector + rubber boot locked through clip) into the reader
connector. Push the cover along the cable towards the reader handle and make it
hook over the yellow tooth therefore closing the handle.
Insert the strain relief into the cover.
Insert the screw into the strain relief and tighten to fix the whole assembly to the
reader handle.
Connections should always be made with power OFF!
CAUTION
3
DRAGON™ DX31/MX31
2.2 OM-30X0 INTERFACE CABLE CONNECTIONS
Power
Interface Cable
OM-30X0 Connectors
The OM-30X0 incorporates a multi-standard interface, which can be connected to a
Host by simply plugging the correct interface cable into the Host connector, placed on
the base of the cradle. In addition the cradle must be connected to an external power
supply.
To disconnect the cable, insert a paper clip or other similar object into the hole
corresponding to the Host connector on the body of the cradle.
Push down on the clip while unplugging the cable.
4
Disconnecting the OM-30X0 Cable
2.3 RS232 CONNECTION
INSTALLATION
2.4 USB
(if required)
5
DRAGON™ DX31/MX31
2.5 IBM USB POS
(if required)
6
2.6 WEDGE CONNECTION
2.7 PEN EMULATION CONNECTION
INSTALLATION
7
DRAGON™ DX31/MX31
2.8 NETWORK CONNECTIONS
2.8.1 OM3000 Network Connectors
The multidrop network is a bus system which is propagated from one OM-3000
cradle to another using individual cables. This is possible thanks to the RS485
connector on the front panel of the cradle.
Power Supply
RS485
(OM-3000 only)
MULTI-INTERFACE
RS232, USB, Wedge,
PEN Emulation
All cradles are connected together within the bus system through the Datalogic
RS485 splitter cable (CAB-428, part number 90A051950), which must be inserted in
the RS485 cradle connector.
Obviously cable length is to be kept to a minimum as with all bus systems.
8
INSTALLATION
V
V
V
2.8.2 Network Cabling
The Multidrop line is made using RJ45 connectors and a cable having the following
specifications:
• twisted pair AWG 24 wires
• 120 Ω impedance
• maximum network cable length 1200 meters
Pin Function Multidrop Cables
1 RS485 +
Pin 1
2 RS485 3 N.C.
4 VDC –
5 VDC –
6 N.C.
7 VDC +
8 VDC +
Data
only
Data
and
Power
Supply
Twisted Pair - Power supply
8
5
2
1 1
DC+
DC-
RS485
RS485
Twisted Pair - RS485 bus
RJ45
8
5
2
RJ45
DC-
5
2
1 1
RS485RS485+
Twisted Pair - RS485 bus
RJ45
5
2
RJ45
When wiring the multidrop cables, note the following:
Pin 8 (or 7) can be connected only if the power has to be propagated from a cradle to a
STARGATE™ base station or STAR-Box™ converter via the cable.
Pins 5 (or 4) should always be connected as reference ground.
To avoid excessive voltage drop, it is recommended not to propagate power between
OM-3000 cradles when used as battery chargers but to supply each cradle
individually. The total number of devices, which can be connected to a single power
supply, depends on the power supply voltage, the wire length and resistance and
therefore the voltage drop. Do NOT connect VDC+ between network devices that are
individually powered.
9
DRAGON™ DX31/MX31
2.8.3 Network Termination
The first and last cradles of the chain (the two ends of the bus) must be properly
terminated. The cradle has an internal terminator that can be selected via jumper.
For this selection you must open the device.
No Termination Static Dynamic
Terminator for Multidrop Network
Static termination works for all network configurations. However, the network is
always under load even when no data transmission takes place.
Dynamic termination can be used for baud rates at or above 38400 and provides less
load on the network when idle.
10
INSTALLATION
2.9 DRAGON™ MX31 BATTERY MAINTENANCE
2.9.1 Battery Charging
Once the system is connected and powered, you can place the Dragon™ Mx31 into
the cradle to charge the battery.
When the reader is correctly inserted in the cradle, the "Reader" red LED on the cradle
goes on to indicate that the battery is charging. The "Reader" green LED on the cradle
goes on when the battery is completely charged.
2.9.2 Replacing Dragon™ Mx31 Batteries
To change the batteries in your Dragon™ Mx31 scanner, press the black button or
unscrew the fixing screw on the handle cover and extract the battery pack from the
reader handle.
1
2
When the batteries are extracted from the scanner, the timer
maintains the current hour and date for about 1 minute.
NOTE
Replace the old battery pack with a new one by inserting it within the reader handle
and pushing it until it clicks.
Do not incinerate, disassemble, short terminals or expose to
high temperature. Risk of fire, explosion. Use specified
charger only. Risk of explosion if the battery is replaced by
an incorrect type. Dispose of the batteries as required by the
WARNING
relevant laws in force.
11
DRAGON™ DX31/MX31

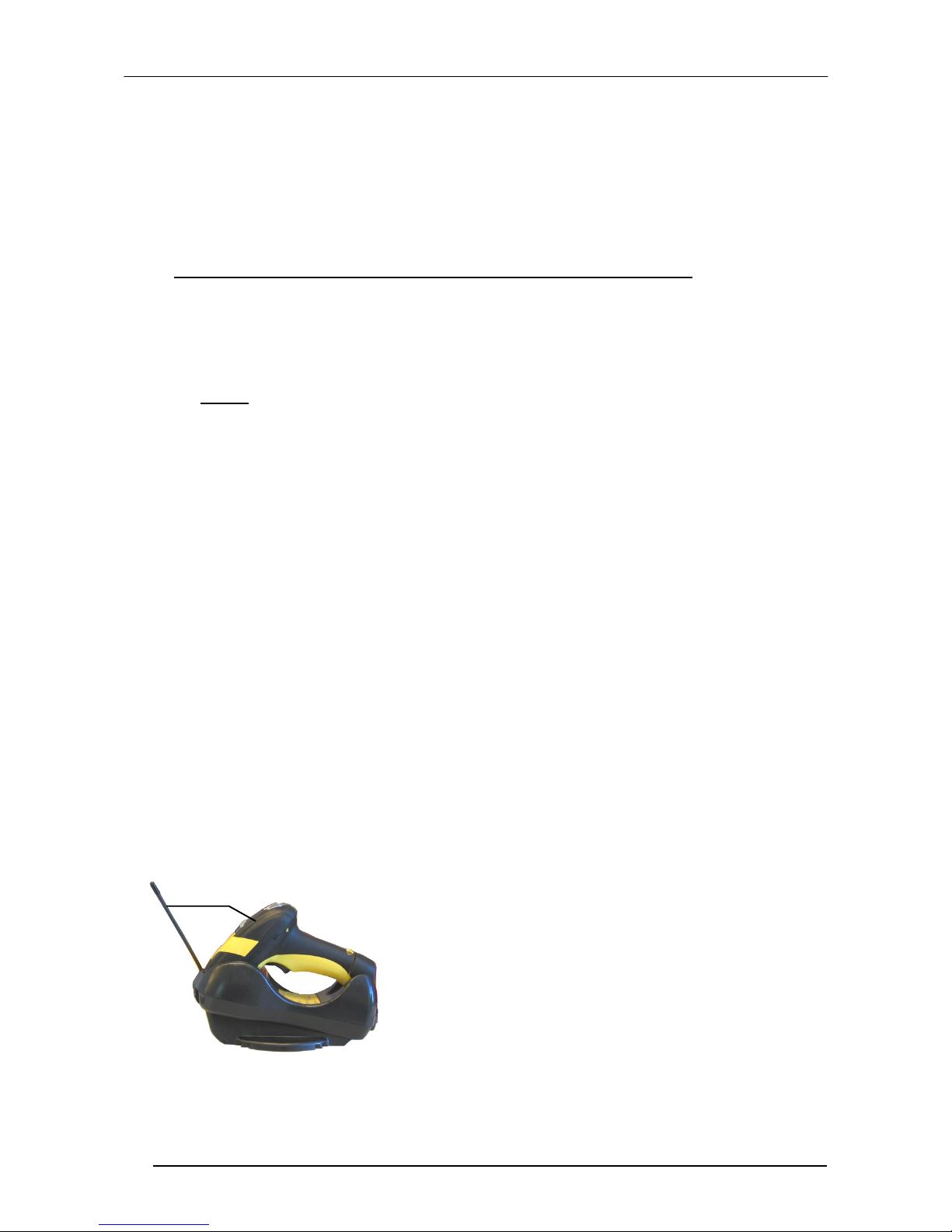

2.10 MOUNTING THE OM-30X0 / C-3000 CRADLE
The cradle package contains the following items:
OM-30X0 / C-3000 Cradle
OM-30X0 Quick Reference / C-3000 Quick Reference
OM-3000 Antenna 2 wall-mounting lock hinges
2 adhesive strips 4 rubber feet
1 horizontal base 1 inclined base
The cradle (either OM-30X0 or C-3000) can be mounted for portable or fixed desktop
usage, or it can be fixed to a wall. The horizontal base allows portable and fixed
desktop usage, while the inclined base provides desktop and wall mounting
guaranteeing a comfortable handling of the Dragon™ M131 reader.

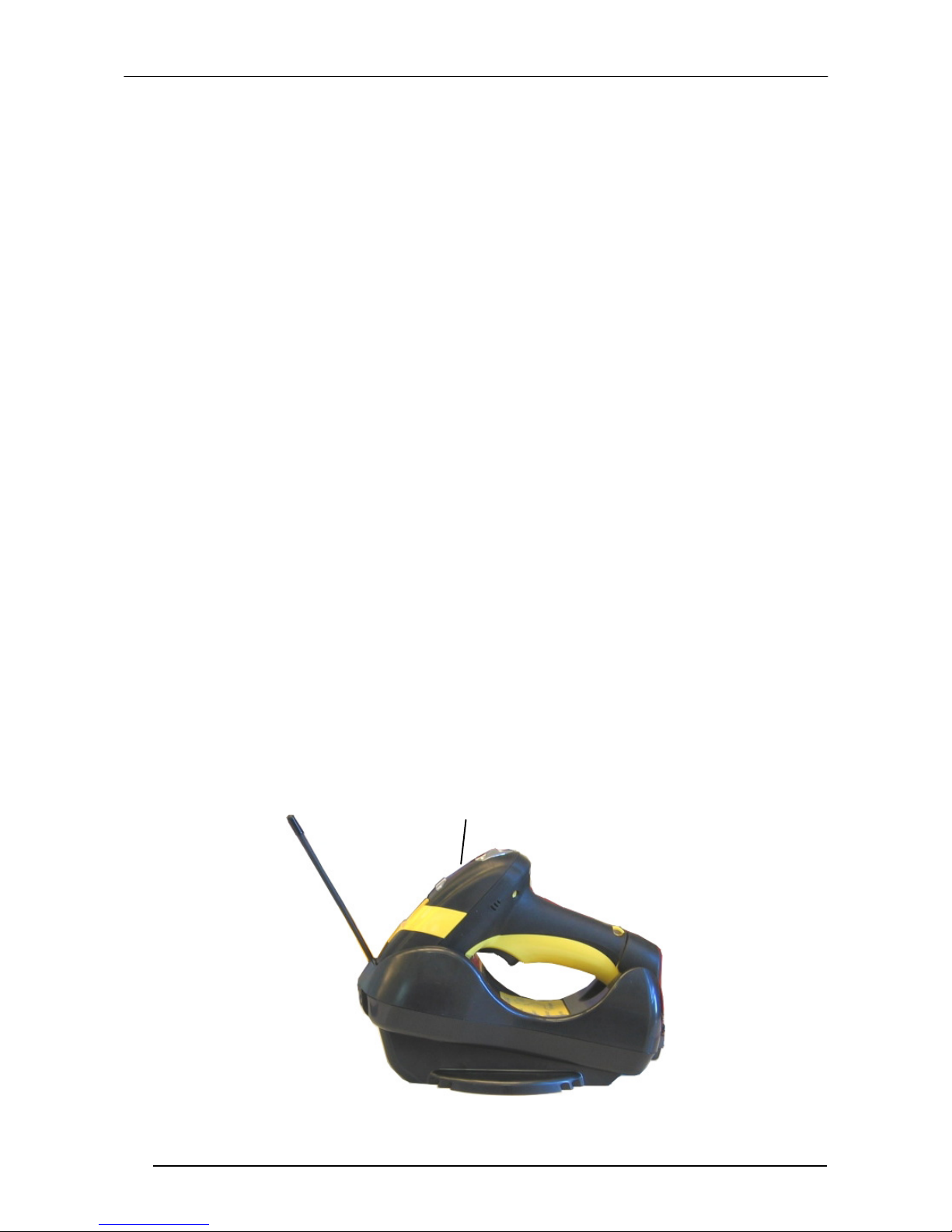

OM-30X0/C-3000 Cradle mounted on the Horizontal Base
OM-30X0/C-3000 Cradle mounted on the Inclined Base
12
INSTALLATION
A
A
2.10.1 Desktop mounting
For desktop usage, you can mount the cradle either on the horizontal base, for reduced
overall dimensions, or on the inclined base for a more ergonomic taking out and
insertion of the reader onto the cradle.
Horizontal base
Rubber Foot
Mounting
Tabs (4)
Seat (4)
Mounting
Holes (2)
Top View Bottom View
Inclined base
Mounting
Tabs (4)
dhesive Strip
Seat (2)
Cable
Channels
dhesive Strip
Seat (2)
Mounting
Holes (4)
Top View Bottom View
Rubber Foot
Seat (4)
Cable
Channels
13
DRAGON™ DX31/MX31
Portable Desktop Use
1. Correctly position the OM-30X0/C-3000 onto the base by sliding it along the
mounting tabs until aligned.
1
2
1
2
2. Carefully clean the rubber foot seats of the base to remove any impurities that
could reduce adhesion.
3. Remove the protective plastic from the rubber feet and stick them onto the
bottom surface of the base.
4. If mounting the OM-30X0 cradle, insert the antenna in the appropriate hole on
the body of the cradle and screw it clockwise until tight.
Fixed Desktop Use
For fixed desktop installation, use the adhesive strips or fixing screws (not provided)
according to your needs.
For mounting with adhesive strips:
1. Position the cradle onto the base by sliding it along the mounting tabs until
aligned.
2. Carefully clean the adhesive strip seats of the base to remove any impurities that
could reduce adhesion.
3. Remove the protective plastic from one side of the adhesive strips and stick
them onto the base surface.
14
INSTALLATION
4. Position the cables to be connected to the OM-30X0/C-3000 cradle along the
dedicated channels, as shown in the figures below:
Horizontal Base Inclined Base
5. Remove the plastic from the other side of the strips and affix the base to the
table.
6. If mounting the OM-30X0 cradle, insert the antenna in the appropriate hole on
the body of the cradle and screw it clockwise until tight.
For mounting with screws:
1. Position the cables to be connected to the OM-30X0/C-3000 cradle along the
dedicated channels, as shown in the figures below:
2. Position the base on the table and affix it by means of the screws (not provided).
3. Position the cradle on the base by sliding it along the mounting tabs until
aligned.
4. If mounting the OM-30X0 cradle, insert the antenna in the appropriate hole on
the body of the cradle and screw it clockwise until tight.
15
DRAGON™ DX31/MX31
2.10.2 Wall Mounting
1. Remove the yellow caps and insert the two wall mounting lock hinges provided
with your cradle.
2. Position the cables to be connected to the OM-30X0/C-3000 cradle along the
dedicated channels (see figures at page 14).
16
If using the adhesive strips:
INSTALLATION
If using the mounting screws:
3. Carefully clean the adhesive strip
seats of the base to remove any
impurities that could reduce
adhesion.
4. Remove the protective plastic from
one side of the adhesive strips and
stick them onto the base surface.
5. Remove the plastic from the other
side of the strips and affix the base
to the wall as indicated in the figure
below.
3. Using the mounting holes on the
base as a pattern, mark the wall
where you desire to mount the OM30X0/C-3000.
4. Drill the appropriate size holes and
insert the threaded dowels (not
provided) into the holes.
5. Position the base on the wall as
indicated in the figure below and
affix it by means of the screws (not
provided).
6. Attach the cradle on the base by sliding it along the mounting tabs until aligned.
7. If mounting the OM-30X0 cradle, insert the antenna in the appropriate hole on
the body of the cradle and screw it clockwise until tight.
Inclined Base Wall-mounting
17
DRAGON™ D131/M131
g
3 DRAGON™ M131 SYSTEM AND NETWORK
LAYOUTS
There are two basic system layouts that can be employed: Stand Alone systems
(including Point-to-Point layouts) and Multidrop STAR-System™ Networks.
3.1 STAND ALONE LAYOUTS
3.1.1 Point-to-Point Reader Layout
Dragon™ M
BIND
Host
OM-30X0
3.1.2 Stand Alone Layout with Multiple Readers
on™ M
Dra
JOIN
BIND
Host
In stand alone systems, each cradle is connected to a single Host.
18
OM-30X0
DRAGON™ M131 SYSTEM AND NETWORK LAYOUTS
3.1.3 Multiple Stand Alone Layouts
Many stand alone connections can operate in the same physical area without
interference, provided all readers and cradles in the system have different addresses.
Host
Dragon™ M
JOIN
OM-30X0
Host
BIND
JOIN
Dragon™ M
Host
BIND
OM-30X0
Dragon™ M
BIND
OM-30X0
Multiple Stand Alone Systems in the Same Area
Since the cradles can communicate to multiple Dragon™ M131 readers, you might
find it useful to employ one or more C-3000 battery chargers in addition to the
OM-30X0 cradle, so that the battery re-charging operation can be performed for
several scanners at the same time.
19
DRAGON™ D131/M131
r
3.1.4 C-BOX Layout
Dragon™ M
JOIN
Scanne
BIND
C-Box
OM-30X0
System cables to Host
In this layout the OM-30X0 cradle is connected by a dedicated cable using the RS232
interface to a C-BOX connection box as part of a fixed scanner network. This allows the
flexibility of a hand-held reading station integrated into a variety of fixed scanning
applications so that all readers (both fixed and hand-held), in the system provide
communications to the Host.
The various C-BOX models provide many interface types for the Host system such as
RS232, RS485, Profibus.
