Dascom 1325 User Manual [en, ru, de, es, fr, it]

Tally Dascom 1325

Important Safety Instructions (English)

Read the following instructions thoroughly before starting up your printer.

• Never carry out maintenance or repair work yourself. Always contact a qualified service technician.

• Keep this Operator’s Manual in a place which is easily accessible at all times.

• Place the printer on a solid and even base so that it cannot fall.

• Never place the printer in the vicinity of inflammable gas or explosive substances.

• Ensure the printer is connected to a socket with the correct mains voltage.

• Always disconnect the printer from the mains before opening the device to perform maintenance work or
remedy errors.

• Do not expose the printer to high temperatures, direct sunlight or dust.

• Keep all liquids away from the printer.

• Protect the printer from shock, impact and vibration.

• Make sure that the printer and computer are switched off before connecting the data cable.

• The print head will become very hot during printing; avoid contact with the print head after printing has
finished.

• Do not perform any operation or action in any way other than those provided in this manual. When in
doubt, contact your dealer or your customer support.

I

Tally Dascom 1325

Wichtige Sicherheitshinweise (German)

Lesen Sie bitte diese Sicherheitshinweise durch, bevor sie den Drucker in Betrieb nehmen.

 Führen Sie Wartungsarbeiten und Reparaturen keinesfalls selbst aus, sondern verständigen Sie

immer einen qualifizierten Servicetechniker.

 Bewahren Sie diese Dokumentation an einem jederzeit zugänglichen Ort auf.

 Den Drucker auf stabilem und ebenem Untergrund so aufstellen, dass er nicht zu Boden fallen kann.

 Stellen Sie den Drucker keinesfalls in der Nähe von leicht entzündlichen Gasen oder explosiven

Stoffen auf.

 Den Drucker nur an eine Steckdose mit der richtigen Spannung anschließen.

 Wenn Sie den Drucker vom Netz trennen wollen, den Drucker ausschalten und immer den

Netzstecker an der Steckdose ziehen.

 Den Drucker weder hohen Temperaturen noch direktem Sonnenlicht und Staub aussetzen.

 Keine Flüssigkeiten mit dem Drucker in Berührung bringen.

 Den Drucker keinen Erschütterungen, Stößen oder Vibrationen aussetzen.

 Sicherstellen, dass der Drucker und der Computer ausgeschaltet sind, bevor das Datenkabel

angeschlossen wird.

 Der Druckkopf wird während des Druckens heiß. Vor dem Berühren deshalb einige Zeit abkühlen

lassen.

 Weichen Sie bei der Bedienung des Druckers nicht von den Anweisungen in der Dokumentation ab.

Bei Unklarheiten wenden Sie sich bitte an Ihren Händler oder Ihren Kundendienst.

II

Tally Dascom 1325

Consignes importantes de sécurité (French)

Lire attentivement les instructions suivantes avant de mettre l’imprimante en service.

 Ne jamais effectuer soi-même les travaux d’entretien et de réparations. Contacter toujours un

dépanneur qualifié.

 Placer l’imprimante sur un support stable de façon à ce qu’elle ne puisse pas tomber.

 Ne jamais placer l’imprimante à proximité de sources de gaz aisément inflammables ou de

substances explosives.

 Ne connecter l’imprimante à une prise que lorsque la tension est correcte.

 Pour déconnecter l’imprimante de l’alimentation principale, mettre l’imprimante hors tension et

toujours débrancher le connecteur secteur de la prise murale.

 Ne pas exposer l’imprimante à des températures élevées, à la lumière directe du soleil ou à la

poussière.

 Ne pas mettre l’imprimante en contact avec des liquides.

 Ne pas exposer l’imprimante à des chocs, impacts ou vibrations.

 S’assurer que l’imprimante et l’ordinateur sont hors tension avant de connecter le câble de données.

 La tête d’impression est brûlante pendant l’impression. C’est pourquoi laissez-la refroidir quelques

instants avant d’y toucher.

 N'exécutez aucune opération ni action d'une autre manière que celle indiquée dans ce manuel. En

cas de doute, veuillez contacter votre distributeur ou service après-vente.

III

Tally Dascom 1325

Indicazioni di sicurezza importanti (Italian)

Prima di mettere in funzione la stampante, leggere attentamente le seguenti indicazioni.

Non eseguire mai da sé gli interventi di manutenzione e riparazione, ma rivolgersi sempre a un tecnico di
assistenza qualificato.

 Conservare le presenti istruzioni per l’uso in un luogo sempre accessibile.

 Collocare la stampante su una superficie stabile, per evitare che cada a terra.

 Non collocare la stampante in prossimità di gas facilmente infiammabili o di sostanze esplosive.

 Collegare la stampante a una presa di corrente con tensione adeguata.

 Per scollegare la stampante dalla rete di alimentazione, spegnere la stampante e disinserire sempre il

connettore di rete dalla presa.

 Non esporre la stampante ad elevate temperature né alla luce solare diretta e alla polvere.

 Evitare il contatto della stampante con liquidi.

 Non esporre la stampante a colpi, scosse o vibrazioni.

 Verificare che la stampante e il computer siano spenti prima di collegare il cavo di trasmissione dati.

 Durante la stampa, la testina si surriscal-da notevolmente. Prima di toccarla, se necessario opportuno

quindi lasciarla raffreddare qualche istante.

 Non eseguire alcuna operazione o azione se non nella maniera descritta nel presente manuale. In

caso di dubbio, contattare il rivenditore o dalla società incaricata dell’assistenza.

IV

Tally Dascom 1325

Instrucciones de seguridad importantes (Spanish)

Lea las siguientes instrucciones con esmero antes de poner la impresora en servicio.

Nunca lleve a cabo trabajos de mantenimiento o reparación Ud. mismo, sino consulte a un técnico de servicio
calificado.

 Guarde las presentes instrucciones de servicio en un lugar de fácil acceso en cualquier momento.

 Ponga la impresora sobre un base estable de manera que no pueda caer al suelo.

 Nunca coloque la impresora en la vecindad de gases de fácil inflamabilidad o sunstancias explosivas.

 Asegure conectar la impresora sólo a un enchufe con un voltaje correcto.

 Cuando quiera desconectar la impresora de la red, apague la impresora y siempre tire la clavija de

alimentación del enchufe.

 No exponga la impresora a temperaturas altas, a la luz solar directa y al polvo.

 No ponga la impresora en contacto con fluidos.

 Nunca exponga la impresora a sacudidas, choques o vibraciones.

 Asegúrese de que la impresora y el ordenador estén apagdos antes de conectar el cable de datos.

 La cabeza de impresión se pone muy caliente durante la impresión. Por lo tanto, deje enfriarlo algún

tiempo antes de tocarla.

 No permita que se realice cualquier operación o acción de una forma diferente a lo que se señala en

el manual. En caso de duda, póngase en contacto con su comerciante o con su servicio post-venta.

V

Tally Dascom 1325

Правила по технике безопасности. (Russian)

Прочитайте, пожалуйста, инструкцию по технике безопасности перед включением в работу принтера.

 Не выполняйте технические работы и ремонт техники самостоятельно, но сообщайте о

неисправностях квалифицированным сервисным техникам.

 Данная инструкция должна быть всегда доступна каждому пользователю.

 Установите принтер на ровном и стабильном месте так, чтобы он не смог упасть

 Ни в коем случае не ставьте принтер вблизи легко воспламеняющихся газов и взрывчатых

веществ.

 Включайте принтер в розетку только с соответствующим напряжением.

 Если Вы хотите отключить принтер от напряжения, сначала выключите принтер сам и затем

выньте штекер из розетки.

 Берегите принтер от нагревания, от попадания

 Не допускайте попадания жидкости на принтер.

 Нельзя подвергать принтер тряске, ударам и вибрации.

 Убедитесь, что принтер и компьютер выключены, только после этого соедините принтер с

компьютером.

 Печатающая головка нагревается во время работы принтера. Поэтому подождите какое-то

время, прежде

 Пользуйтесь принтером так, как это написано в документации. Если у Вас возникают неясности,

обращайтесь с вопросами к Вашим продавцам или в сервисный центр.

чем дотронуться до нее.

на него прямых солнечных лучей и пыли.

на пол.

VI

Tally Dascom 1325

Instruções Importantes sobre Segurança (Portuguese)

Leia as instruções de segurança antes de usar a impressora.

 Consulte sempre um técnico qualificado para executar uma reparação .

 Coloque a impressora sobre uma base sólida e nivelada, para que ela não sofra quedas.

 Jamais instale a impressora nas proximidades de lugares onde haja gás inflamável ou substâncias

explosivas.

 Assegure-se de conectar a impressora à tomada elétrica com a voltagem apro-priada.

 Quando desligar a impressora da rede, desligue sempre a impressora e retire o cabo da tomada.

 Não exponha a impressora a temperaturas altas ou luz solar direta.

 Não aproxime substâncias líquidas da impressora.

 Proteja a impressora de choques, impactos e vibrações.

 Desligue a impressora e o computador antes de conectar o cabo da rede.

 A cabeça da impressora pode ficar muito quente . Portanto, espere algum tempo antes de tocá-la.

 Não faça nenhuma operação ou ação além das recomendadas neste manual. Em caso de dúvida,

contate seu revendedor ou companhia de serviço.

VII

Tally Dascom 1325

Önemli Güvenlik Talimatları (Turkish)

Lütfen, yazıcıyı işletime geçirmeden önce bu güvenlik talimatlarını bütünüyle dikkatle okuyun.

 Bakım ve tamir çalışmalarını kesinlikle ve hiçbir surette kendi başınıza yapmayın; her zaman kalifiye

bir uzman servis-teknisyenine haber verin.

 Yazıcıyı, üzerinden yere düşmesi mümkün olmayacak sabit ve düz bir zemine yerleştirin.

 Yazıcıyı kesinlikle ve hiçbir surette kolayca yanabilecek gaz veya patlayıcı maddeler içeren nesnelerin

yakınına koymayın.

 Yazıcı akım kablosunu sadece doğru gerilime sahip bir prize takın.

 Yazıcıyı şebeke ağından ayırmak istediğinizde, yazıcıyı kapatın ve a

çıkartın.

 Yazıcıyı ne yüksek ısılı ne de doğrudan güneş ışığına ve toza mâruz kalan mekânlarda bulundurun.

 Yazıcı hiçbir sıvı maddeyle temasta olmamalıdır.

 Yazıcı hiçbir sarsıntıya, darbeye veya titreşime mâruz kalmamalıdır.

 Veri kablosu bağlanmadan önce hem yazıcının hem de bilgisayarın kapalı olduklarından emin

olmalısınız.

 Yazıcının başı basma esnasında yüksek ıs

soğumasını bekleyin.

 Yazıcının işletimi ve kullanımında bu dokümantasyondaki talimatların hiç dışına çıkmayın. Sorunlu

görünen hususlarda lütfen imâlatçınıza veya müşteri hizmetleri servisinize başvurun.

ıya ulaşıyor. Bu yüzden lütfen dokunmadan önce kısa süre

ğ-fişini her zaman prizden

VIII

Tally Dascom 1325

TRADEMARK ACKNOWLEDGEMENTS

“IBM” is a trademark of International Business Machines Corporation.
“EPSON” is a trademark of Epson America Incorporated.
“DEC” is a trademark of Digital Equipment Corporation.
“Centronics” is a trademark of Centronics Data Computer Corporation.
“DOS” is a trademark of Microsoft Corporation.
“SAP” is a trademark of SAP AG.
“Windows”, “Windows 7”, “Windows 95”, “Windows 98“, “Windows NT”, “Windows 2000”, “Windows 2003/2008
Server”, “Windows XP” and “Windows Vista” are trademarks of Microsoft Corporation.
All other product names and company names appearing in this manual are the registered trademarks or
trademarks of the individual companies.

IX

Tally Dascom 1325

X

Tally Dascom 1325

TABLE OF CONTENTS

1 UNPACKING GUIDE ........................................................................................................................................ 1

PLACING THE PRINTER ........................................................................................................................................ 2

PRINTER COMPONENTS ...................................................................................................................................... 2

2 SETTING UP PRINTER .................................................................................................................................... 4

INSTALL RIBBON .................................................................................................................................................. 4

INSTALL THE PAPER LOADER ............................................................................................................................... 5

CONNECTING THE INTERFACE CABLE ................................................................................................................... 5

CONNECTING THE MAINS POWER ........................................................................................................................ 6

INSTALLING THE WINDOWS DRIVER ...................................................................................................................... 7

3 PAPER INSTALLATION GUIDE .................................................................................................................... 10

ADJUSTING THE PRINT GAP LEVER .................................................................................................................... 10

FRICTION FEED HANDLING ................................................................................................................................ 11

TRACTOR FEED HANDLING ................................................................................................................................ 11

4 CONTROL PANEL OPERATION ................................................................................................................... 12

PANEL OPERATION ............................................................................................................................................ 14

Online State ................................................................................................................................................ 15

Offline State ................................................................................................................................................ 16

Power-On State .......................................................................................................................................... 17

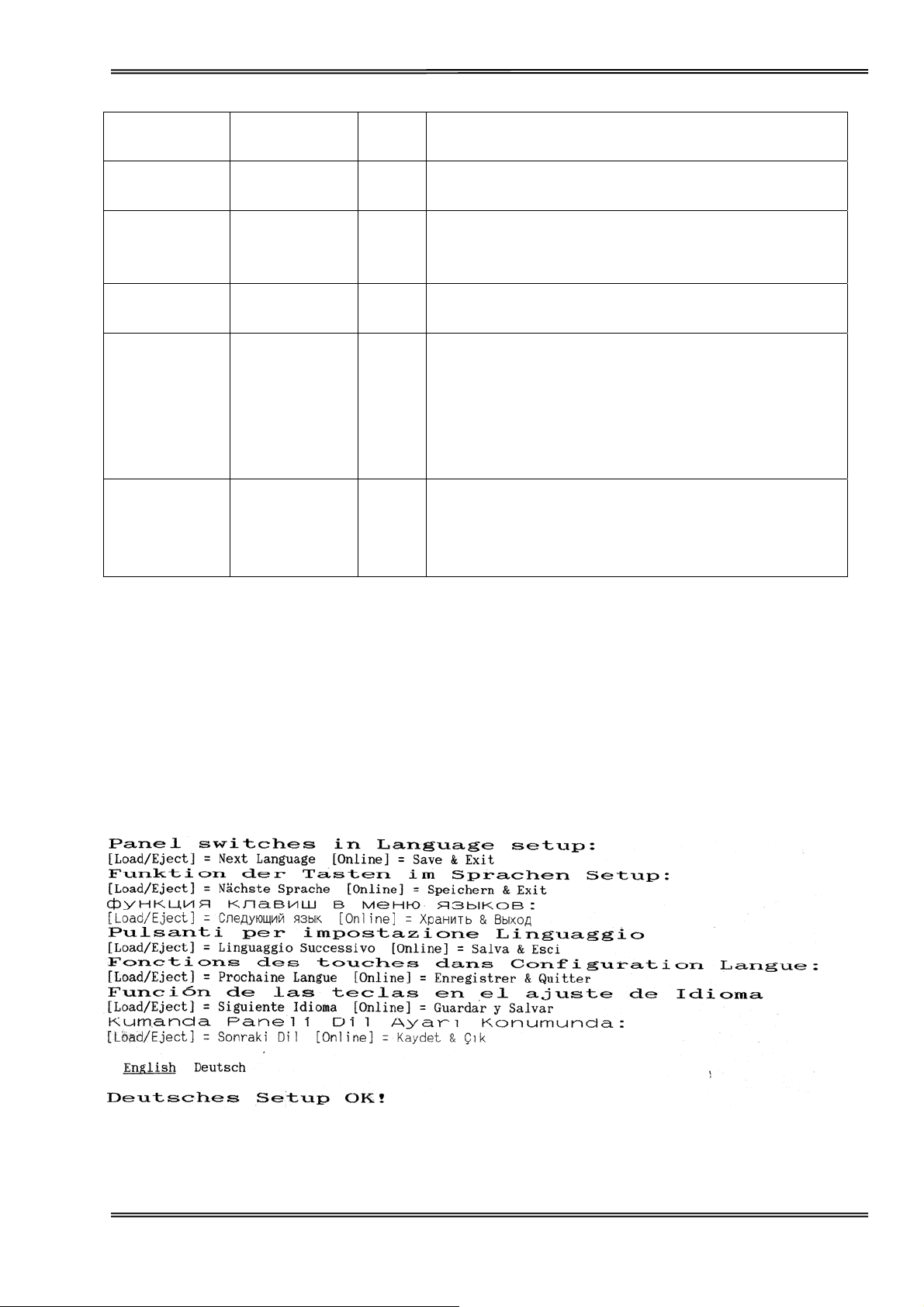

LANGUAGE SETUP ............................................................................................................................................ 18

SLIP SETUP ...................................................................................................................................................... 19

5. PRINTER SETTING CHANGES .................................................................................................................... 20

SYSTEM SETUP ................................................................................................................................................ 20

PRINT SETUP .................................................................................................................................................... 20

PAGE SETUP .................................................................................................................................................... 22

INTERFACE SETUP ............................................................................................................................................ 23

ADVANCED SETUP ............................................................................................................................................ 23

VERTICAL ALIGNMENT ....................................................................................................................................... 32

CHANGE PIN FUNCTION .................................................................................................................................... 33

ADJUST PHYSICAL MARGINS ............................................................................................................................. 34

6 MAINTENANCE .............................................................................................................................................. 36

CLEANING AND VACUUMING THE PRINTER .......................................................................................................... 36

CLEANING THE PAPER ROLLERS ........................................................................................................................ 36

7 TROUBLESHOOTING .................................................................................................................................... 38

PRINT QUALITY PROBLEMS AND SOLUTIONS ....................................................................................................... 38

PAPER HANDLING PROBLEMS AND SOLUTIONS ................................................................................................... 39

OPERATING PROBLEMS AND SOLUTIONS ............................................................................................................ 39

ERROR INDICATIONS ON LEDS .......................................................................................................................... 40

XI

Tally Dascom 1325

DIAGNOSTIC FUNCTIONS ................................................................................................................................... 41

FIRMWARE UPDATE ........................................................................................................................................... 42

8 GENERAL SPECIFICATIONS ....................................................................................................................... 43

9 INTERFACES ................................................................................................................................................. 48

PARALLEL INTERFACE ........................................................................................................................................ 48

USB INTERFACE ............................................................................................................................................... 48

10 CHARACTER SETS & CODE PAGES ........................................................................................................ 49

CHARACTER SETS ............................................................................................................................................ 49

INTERNATIONAL CHARACTER SETS ..................................................................................................................... 51

INTERNATIONAL CHARACTER SET COMMANDS .................................................................................................... 51

CHARACTER TABLES ......................................................................................................................................... 52

CODE PAGE COMMANDS ................................................................................................................................... 54

CODE PAGE TABLES .......................................................................................................................................... 56

11 CONTROL CODES SUMMARY ................................................................................................................... 80

EPSON EMULATION COMMAND LIST ................................................................................................................... 80

IBM EMULATION COMMAND LIST ....................................................................................................................... 82

XII

Tally Dascom 1325

1 Unpacking Guide

 Place your packaged printer on a solid base.
 Make sure that the “Up” symbols point in the correct direction.
 Open the packaging, lift the printer out of the cardboard box and remove the remaining packaging

material.

 Check the printer for any visible transport damage and missing items. If you find any transport

damage or if any accessories are missing, please contact your dealer. The following items should be
included:

o Printer
o Paper feed knob
o Paper feed tray
o Power cord
o Ribbon cartridge
o CD-ROM
o Installation Guide

Remove the packaging materials from the printer as follows:

1. Remove the tape on the paper feed lever.

2. Remove other visible tape on the printer.

3. Open the front cover of the printer.

4. Remove the shipping cardboard from around the print head.

5. Install the paper feed knob.

1

Tally Dascom 1325

Placing the Printer

Place the printer on a solid, flat, stable surface; ensuring that the printer is positioned in such a way that it
cannot move, and that there is easy access to the control panel and paper input devices. Also ensure that there
is enough space for sufficient ventilation and for the printed output.

When selecting the printer location, observe the following additional instructions:

 Never place the printer near to any flammable gas or explosive substances.
 Do not expose the printer to direct sunlight. If you cannot avoid placing the printer near a window, protect it

from the sunlight with a curtain.

 When connecting a computer to the printer, make sure the maximum recommended cable length is not

exceeded.

 Ensure sufficient distance between the printer and any heating devices/radiators.
 Avoid exposing the printer to extreme temperature or air humidity fluctuations. Avoid exposure to dusty

environments.

 It is recommended the printer is installed in a position which reduces noise exposure to the work place

during printing.

Printer Components

2

Tally Dascom 1325

Component Function

Gap Lever

Paper Guides
Paper Loader For single sheet.

Paper Holder For single sheet in larger sizes.

Paper Slot For friction feed (forward).

Print Head
Cover

Control Panel
Paper Feed Lever

Paper Feed Knob

Power Switch

Ribbon Cartridge

Controls printing impact or density.
Adjusts the print gap lever according to the thickness of paper.

Adjust positioning of single sheet paper.

24-pin printing mechanism

Protects print head and other components inside, and reduce noise.
Shows printer status, for printer setup.
Two positions: = continuous forms; = single sheet paper

Manual feed or vertical positioning of paper

Power printer ON or OFF

Install ribbon in the printer.

Ribbon Frame

Tractors

Power Receptacle

Interface

For guiding ribbon installation on print head.

For feeding and adjustment of continuous forms.

Connects power cord to the printer.

Connects interface cable from the host.

3

Tally Dascom 1325

2 Setting Up Printer

Install Ribbon

1. Ensure the power to the printer is off and the print gap lever “A” is set to the furthest open position. Move

the carriage to the centre of the print platen.

2. Install the recess positions

3. Press the ribbon frame

4. Turn the ribbon knob

to ensure the carriage and ribbon fabric can move smoothly.

5. Ensure the print gap lever “A” is set to the original position.

6. Close the printer’s front cover. When printer is in operation, ensure the printer’s front cover is closed to

keep the noise level to a minimum.

 and ② on the ribbon cassette into the printer mounting.

 onto the print head.

④ in clockwise direction until the ribbon fabric is taut. Move the carriage left and right

Notes on Ribbon Cartridge Removal:

1. Eject any paper loaded in the printer.

2.

Turn off the printer power.

3. Set the gap lever to the most open position labeled “RIBBON”.

4.

Open the front cover.

5. Move the carriage to the middle. Be careful not to touch the print head if printing had just been performed,

as the print head may be hot.

6. Remove the blue ribbon frame from the print head.

7. Use fingers to take hold of the handle on the ribbon cartridge firmly, and pull the cartridge towards you to

unlatch it. Some force may be needed to unlatch the cartridge.

8. Remove the ribbon fabric from the print head carefully without entangling it.

4

Tally Dascom 1325

Install the Paper Loader

As shown in the picture below, ensure the sheet feeder fingers fit into the slots in front of the printer. Push in the
sheet feeder until its sides latch on the fixed bolts in the printer. The sheet feeder is now installed successfully.

To remove the sheet feeder, use one hand to hold the printer and the other hand to pull and unlatch the sheet
feeder.

Connecting the Interface Cable

The 36-pin Centronics parallel and USB ports are located at the rear of the printer. IMPORTANT: Make sure
the printer and the computer are switched off before connecting or disconnecting the interface cable to
prevent electrical damage to the interface ports.

5

Tally Dascom 1325

Connecting the Mains Power

Checking the printer voltage

Make sure that the device has been set according to your country’s power supply voltage. To do this, check the
rating plate at the back of the printer. Contact your dealer if the setting is incorrect.

Never switch on the printer if the voltage setting is incorrect; this may result in electrical
damage to the printer.

Make sure that the power switch
“A”, located to the right side of the
printer, is in the OFF position.

Connect the power cord to the
power inlet of the printer. Connect
the power cord plug to a mains
socket. Switch on the printer.

6

Tally Dascom 1325

Installing the Windows Driver

(Windows 2000/2003/2008 Server/XP/Vista/7)

1. Your printer CDROM comes with
Windows drivers. Go to the Drivers
folder and run the Installer
“DriverSetup.exe”. You will see the
screen on the right. Click “Next” to
continue.

2. A list of ports available on your
system will be displayed as shown
on the right. Choose the desired
port to use. Click “Next” to continue.

3. Select the desired printer model as
shown on the right. Click “Next” to
continue.

7

Tally Dascom 1325

4. Here you can choose whether to
set the driver as the system
default driver, and whether you
want to print the Test Page after
installation is completed. If the
driver had been installed before,
it would be listed in the white box
on the right. Select the listed
driver (if any) if you want to
replace it; otherwise a copy of
the driver will be installed. Click
“Next” to continue.

5. Click “Finish” to start the
installation process.

6. If the driver is not yet Microsoft
Certified, the message on the right
would appear. Click “Continue
Anyway”. (As we continue to
expand our product portfolio, not all
of our drivers may be certified yet.
Please check our website

www.dascom.com

certified drivers.)

for the latest

8

Tally Dascom 1325

7. Installation in progress.

8. After installation is completed
successfully, you will see the
message on the right.

9

Tally Dascom 1325

3 Paper Installation Guide

The printer can handle either single sheets or continuous forms. Single sheets, also called cut sheets, include
envelopes and non-continuous, multipart forms. Continuous forms include labels and multipart forms fed into
the printer using the forms tractors. The printer is able to print 1~7 plies multipart paper.

Do not load paper that has been folded or is damaged, wrinkled, or curled.

Adjusting the Print Gap Lever

The print gap lever is on the right side of the printer. Take care to adjust the print gap lever to a suitable
position whenever you change the number of copies being printed. Using the wrong print gap may cause print
head damage or paper jams.

Paper type Weight (g/m

Single sheet

2-ply

3-ply

4-ply

5-ply

6-ply

7-ply

Print Gap Lever

2

) / ply Thickness (mm) Gap lever position

52～100 0.06～0.12

40～52 0.12～0.14

40～52 0.17～0.22

40～52 0.23～0.27

40～52 0.28～0.33

40～52 0.34～0.38

40～52

0.39～0.45

1P～2P

3P～4P

5P～6P

7P

7-ply above

40～52 0.45～0.58

10

Change ribbon

Tally Dascom 1325

There are 2 paper feed modes: friction feed and tractor feed.

Friction Feed Handling

1. Move the paper-feed lever forward to “ ” for friction feed mode.

2. Adjust the print gap lever if necessary.

3. Align the left paper guide with the mark on the left of the single sheet feeder. Adjust the right paper guide to
the width of the paper used.

4. Insert a sheet of paper. Make sure that the bottom edge of the paper engages snugly with the platen.

5. The paper should advance automatically to the print position. The printer is now ready to print in the online
state.

Paper Feed Lever

Paper Guides

Tractor Feed Handling

1. Move the paper-feed lever backward to “ ” for continuous paper position.

2. Adjust the print gap lever if necessary.

3. Raise the tractor doors and fit the first 3 paper holes onto the left tractor pins. Close the left tractor door. In
the same way, install the paper on the right tractor.

4. Adjust the right tractor to the width of the paper until the paper is flat. Do not stretch the paper too taut.
Push the right lock lever down to secure the right tractor in place.

5. Press the【Load/Eject】key to load the paper to the starting print position. The printer is now ready to print
in the online state.

11

Tally Dascom 1325

4 Control Panel Operation

There are 4 switches S1~S4 and 4 LEDs L1~L4. The meaning and application of each switch and LED
are described below.

LED Indicators

“Power/Paper Out” LED:
On: Power on
Flashing: Paper out
Flashing + buzzer: Paper jam

“Online” LED:
On: The printer is in online state and ready to receive data from the computer.
Off: The printer is in offline state and cannot receive data.

“Front Exit” LED:
On: After printing, single sheet paper exits at the front.
Off: After printing, single sheet paper exits at the rear.

“Slip” LED:
On: Slip paper profile is selected.
Off: Slip paper profile is not selected.
(Note: “Slip” refers to a small paper form.)

12

Tally Dascom 1325

Control Panel Keys

“Online” Key:
This key switches the printer between online and offline states. Printing is stopped when the printer is
switched to offline state. When printer is switched to online state again, printing will resume.

“Load/Eject” Key:
When paper is loaded, pressing this key will eject the paper (single sheet mode) or park the paper
(continuous paper mode). When paper is not loaded, pressing this key will load the paper to the starting
print position.

“LF/FF” Key:
Pressing this key will feed paper one line forward. By holding down this key, the printer will initially feed a
few lines, then perform a form feed (continuous paper mode) or eject the form (single sheet mode).

“Tear Off” Key:
When online, this key will move any loaded continuous paper to the tear-off position. When offline, this
key is used to select the Slip paper profile.

Table 4.1

Switch Top Label Bottom Label

S1 Tear Off Slip

S2 LF/FF Exit Dir
S3 Load/Eject ­S4 Online -

Table 4.2

LED Function

L1 Power/Paper Out
L2 Slip
L3 Front exit
L4 Online

13

Tally Dascom 1325

Panel Operation

There are 3 states of operation: Online, Offline and Power On.

In the Online state, the keys provide the following functions: Go to Tear Off position, Line Feed/Form feed,
Load/Eject, and switch to Offline state.

In the Offline state, the keys provide the following functions: Select Slip paper profile, select paper exit
direction, Load/Eject, switch to Online state, micro feed, clear buffer and restore factory defaults.

To enter the Power On state, the user holds down a key or a combination of keys while powering up the printer.
This state provides the following functions: Configure Slip paper profile, Main Menu setup, Hex-dump, print
Main Menu, access Service Menu, adjust page margins, restore factory defaults, and firmware update.

The followings describe the 3 states in details.

Legend:
[A] = press and hold switch A
{B} = press and then release switch B
[A]+ {B} = press switch B while holding A

14

Tally Dascom 1325

Online State

Function Name

Tear Off {S1} -

LF {S2} - Feeds a line with every press of S2.

FF [S2] -

Load/Eject {S3} -

Switch

Operation

LED Function Description

This is valid for tractor mode only. It feeds the form to the
tear-off position. After tearing off the form, printing starts
on the next TOF by:

 pressing S1 once, or
 receiving print data from the host.

By holding S2, the printer initially feeds a few lines; then
feeds the form to the next TOF for rear tractor or ejects
the form for cut sheets.

 Load: Automatically loads the paper (according to path

selection) when no paper is on the platen.

 Eject: For rear tractor, it retracts the form from the

platen to allow users to install cut sheets. (NOTE:
Users have to toggle the path selection lever.)
For cut sheets, it ejects the form on the platen.

Online {S4} L4 Toggles between Online and Offline states.

15

Tally Dascom 1325

Offline State

Function Name

Slip [S1] L2

Exit Dir {S2} L3 This is valid for single sheet mode only. It controls the exit

Load/Eject {S3} -

Online {S4} L4 Toggles between Online and Offline states
Micro Forward {S3}+[S4] - While holding down S4, press S3 to micro feed paper up.
Micro Reverse {S2}+[S4] - While holding down S4, press S2 to micro feed paper down.
Clear Buffer and
Reset

Switch

Operation

{S1}+[S4] -

LED Function Description

 Press and hold this key until printer beeps twice to activate

the Slip profile mode. L2 will turn on.

 Press and hold this key until printer beeps twice to exit the

Slip profile mode. L2 will turn off.

direction of the friction sheet paper.
 Load: Automatically loads the paper (according to path

selection) when no paper is on the platen.

 Eject: For rear tractor, it retracts the form from the platen to

allow users to install cut sheets. (NOTE: Users have to
toggle the path selection lever.)
For cut sheets, it ejects the form on the platen.

 Clears the print buffer. Beeps once upon completion.
 Pressing S1 longer initializes the printer to default settings.

Beeps 3 times upon completion.

16

Tally Dascom 1325

Power-On State

Function

Name

Menu Setup /

EDS

Slip Setup [S2]

Hex Dump [S3]

Switch

Operation

[S1]

LED Function Description

- Allows for Main Menu setting changes. Please read the
instructions printed on how to change settings when this
mode is activated. (EDS: Electronic DIP Switch)

- Configures the Slip paper profile such as top and left
margins. Refer to Slip Setup section below for details.

- Beeps once to indicate going into hex dump mode:

 Prints data from host in hexadecimal representation.
 Pressing S4 suspends the printing.
 When the hex dump has finished, pressing S4 forces the

printing of the last line of data, as any line termination
control code from host has no function.

 Switch off the power to terminate the hex dump.

17

Tally Dascom 1325

Self Test /

Status Page

Service Menu [S1]+[S2]

Adjust Page

Margins

Restore Factory

Defaults

Firmware

Update

Language

Setup

[S4]

[S3]+[S4]

[S2]+[S3]+[S4]

[S1]+[S2]+[S3]+

[S4]

[S2]+[S3]

­Prints the printer settings and self-test pattern.

- Vertical Alignment, Change Pin Function and Endless Self
Test

- Includes Adjust Fanfold Top Margin, Adjust Single Top
Margin, Adjust Fanfold Left Margin, Adjust Single Left
Margin and Adjust Tear-Off position.

- Restore settings to factory defaults except for Change Pin,
Vertical Alignment and Adjust Page Margin Parameters.

L1, L4

 Alternate flashing of L1 and L4 indicates ready for

firmware update from host.

 When new firmware is being received: L1 and L4 flash

together, followed by L1 and L3 flash together.

 When downloading is completed, the carriage returns to

home position. Printer initializes normally.

 Allows user to select one of the following languages:

English, German, Russian, Italian, French, Spanish and
Turkish. Factory default is English. Refer to Language
Setup section below for details.

Language Setup

The panel menu can display the following languages: English, German, Russian, Italian, French, Spanish and
Turkish. Factory default setting is English. To change it to another language, hold down the [LF/FF] and
[Load/Eject] keys on the panel and power-on. Upon exiting the Language Setup Menu, a listing of the current
configuration is printed, and this is followed by Main Menu Setup.

Below is an example of changing from English to German language:

18

Tally Dascom 1325

Slip Setup

Slip media refers customized forms specific to each application. Each slip may have its own unique top margin
or left margin. This is called the slip profile. The Slip setting provides a convenient way to set the printer top
and left margin settings to the slip profile at the press of a panel key without the need to manually change the
top and left margins, whenever you want to do your slip printing. Likewise, should you decide to print on
standard paper forms, you can exit from the slip profile easily at the press of a panel key.

To configure the slip top and left margin parameters, please do the followings:

1. Power up printer while pressing 【LF / FF】 key until the print head starts moving, then let go.

2. Load paper. The printer prints the few lines below.

Slip Setup
【LF / FF】 = OK 【Tea r Off】 = Back 【Load / Eject】 = Next 【Online】 = Exit

Current Setting: Fanfold Top Margin

3. Press the 【Load / Eject】 key to scroll to the item you want to change. The available items are Fanfold
Top Margin, Fanfold Left Margin, Single Top Margin and Single Left Margin. To select the item, press 【LF
/ FF】 key. In the above example, the printer will print out:

Fanfold Top Margin
【LF / FF】 Press: PrevSetup

Fanfold Top Margin 0mm

4. Press the 【Load / Eject】 key to increase by 1 mm, or press the 【Tear Off】 key to reduce 1 mm. The
range is 0~65 mm.

5. Press the 【LF / FF】 key to confirm the current selection. To save selection into memory, press the 【LF
/ FF】 key. If you do not want to save, use the 【Load / Eject】 key to scroll to “No” before pressing the 【LF
/ FF】 key to confirm.

6. Press the 【Online】 key to exit from Slip Setup.

19

Tally Dascom 1325

5. Printer Setting Changes

In order to meet individual print requirements, the printer configurations may be changed as follows: Hold
down the Tear Off key while powering on the printer, release the Tear Off key when the print head starts to
move. The printer will enter Main Menu setup state. Follow the instructions printed on how to make setting
changes. When a new setting is saved, it is retained after the printer has been powered off.

The Main Menu is grouped into 5 sub-menus: System Setup, Page Setup, Print Setup, Interface Setup and
Advanced Setup. A detailed description of the sub-menus is given below. The settings in bold and italic refer to
the default settings.

System Setup

System

Setup

Emulation

Auto CR
(IBM)
Auto LF

Print Dir

Top Print
Dir
Impact
IBM AGM

Valid Settings Function

ESC/P2, IBM 2390
Plus

Yes, No

Yes, No

Bi-Dir, Uni-Dir,
Auto

Bi-Dir, Uni-Dir

Normal, Heavy

Yes, No

Selects the printer emulation. This should be the same as the host
printer driver.
Yes: LF = LF+CR; No: LF = LF
(Applies to IBM emulation only)
Yes: CR = CR+LF; No: CR = CR
Auto: Text & graphics in bi-direction; double height in uni-direction.
Uni-Dir: Prints everything in uni-direction. Bi-dir: Prints everything in
bi-direction. Note: Top position print direction may be affected by Top
Print Dir setting.
Bi-dir: Prints top position according to Print Dir setting. Uni-dir: Prints
top position in uni-direction regardless of Print Dir setting.
Heavy: Higher impact force for multipart printing
Selects the IBM graphic mode. Applies to IBM emulation only

Print Setup

Print Setup Valid Settings Function

Font

Pitch

Zero

HS-Draft

Draft, Roman, Sans Serif, Courier, Prestige, Script,
OCR-B, OCR-A, ORATOR, GOTHIC, SOUVENIR

10cpi, 12cpi, 15cpi, 17cpi, 20cpi, PS

0,Ø

On, Off

20

Controls the characters per
inch setting.

Selects slashed or no-slash
zero.

On: Prints High Speed Draft
when Draft font is selected.

Tally Dascom 1325

Graphic
Speed

IBM Set 1/2

Normal, Fast, Ultra

Set 1, Set 2

When printing 180x180 DPI
graphics: Normal – prints in
180x180 DPI, Fast – prints in
90x180 DPI, Ultra – prints in
60x180 DPI.
Selects the IBM character
set. 1: Normal; 2: Extended

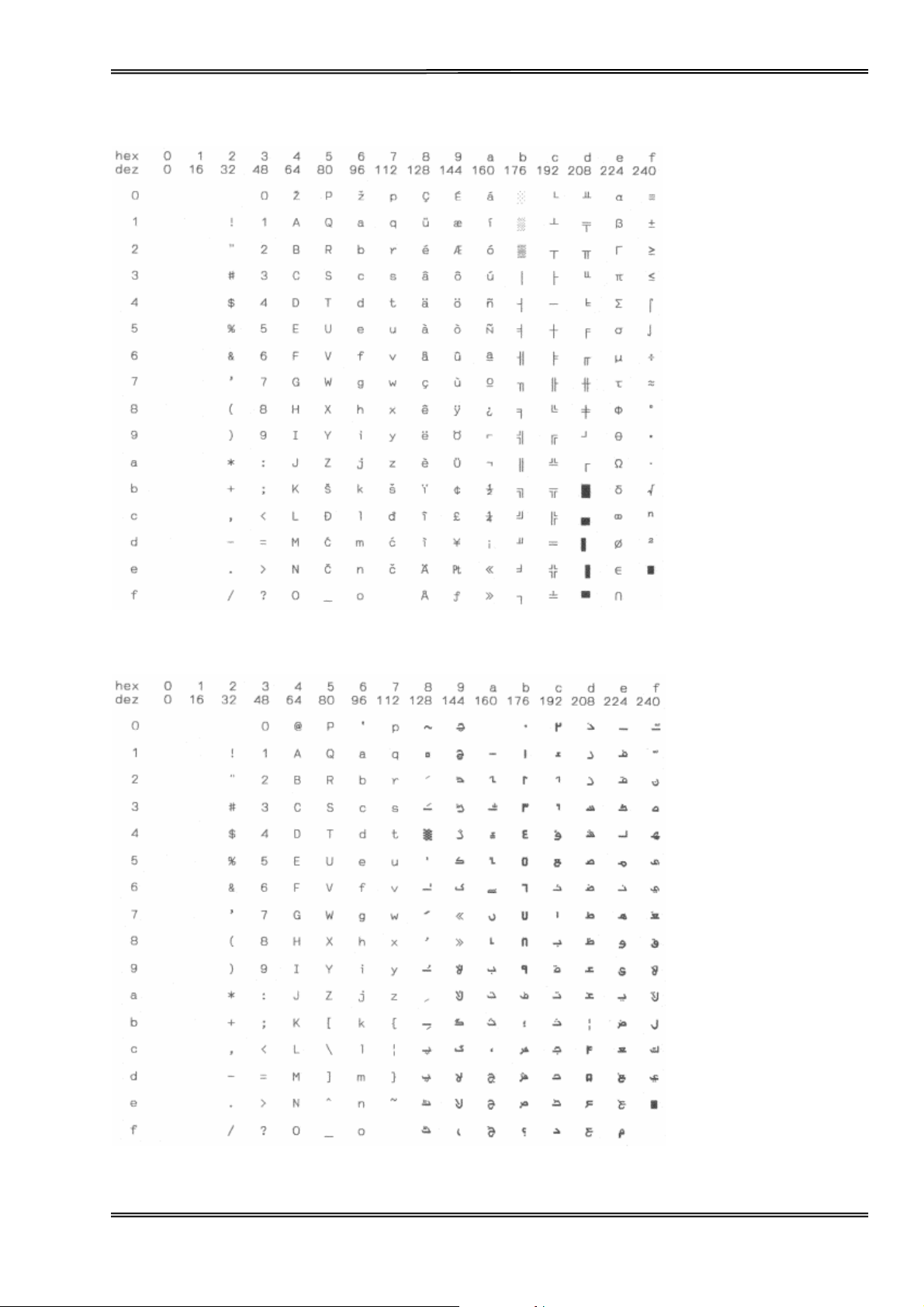

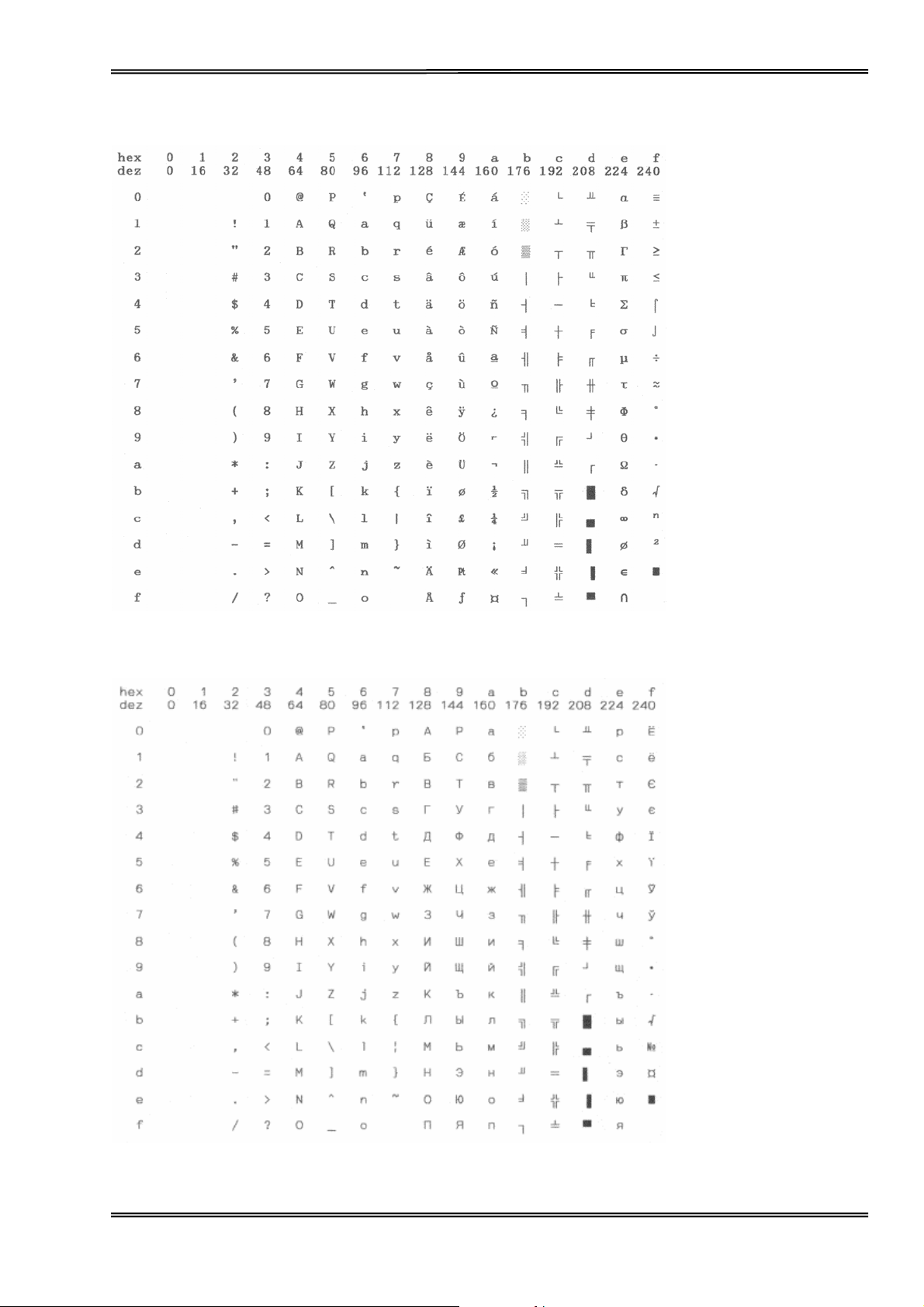

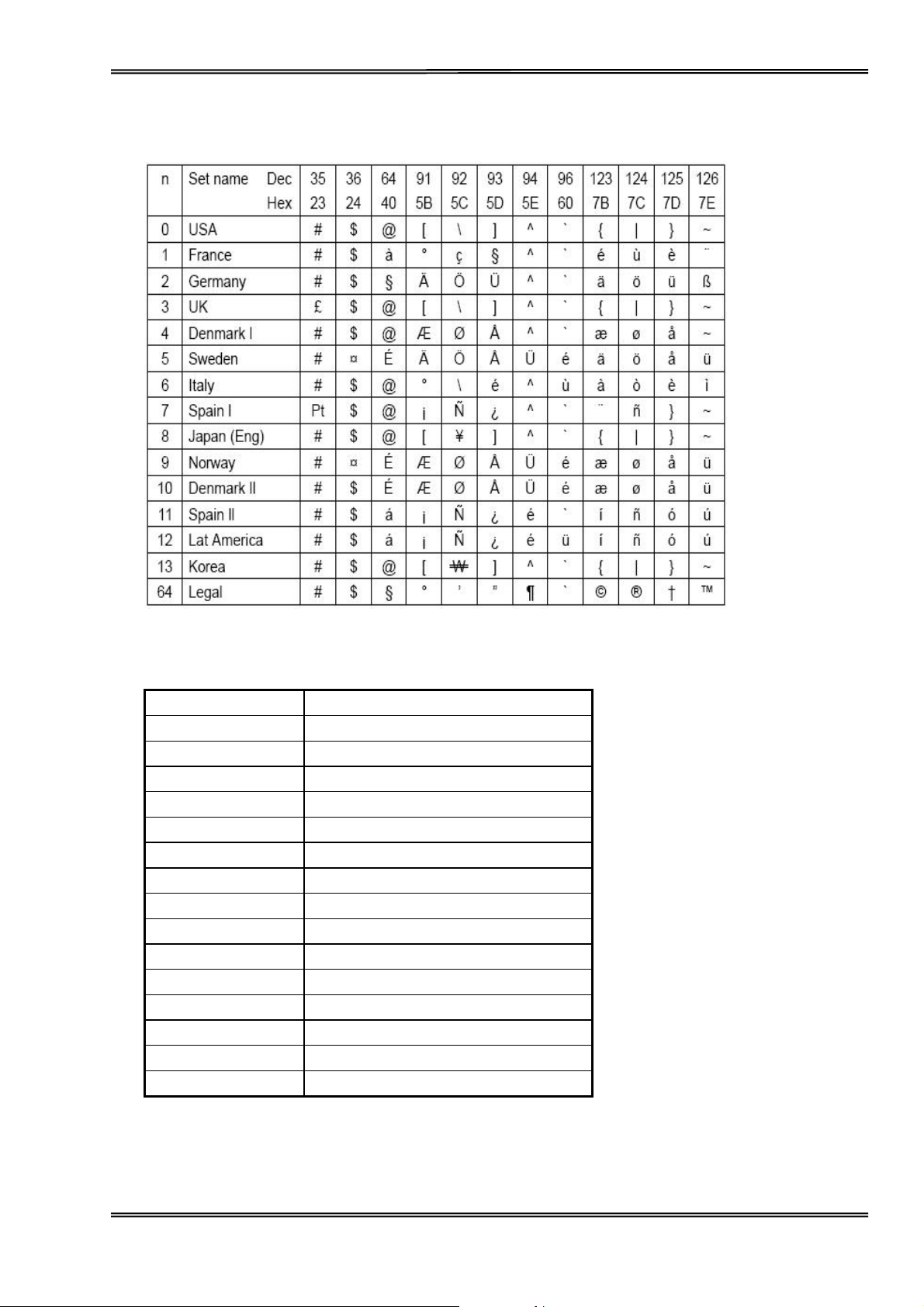

Int'l Char Set

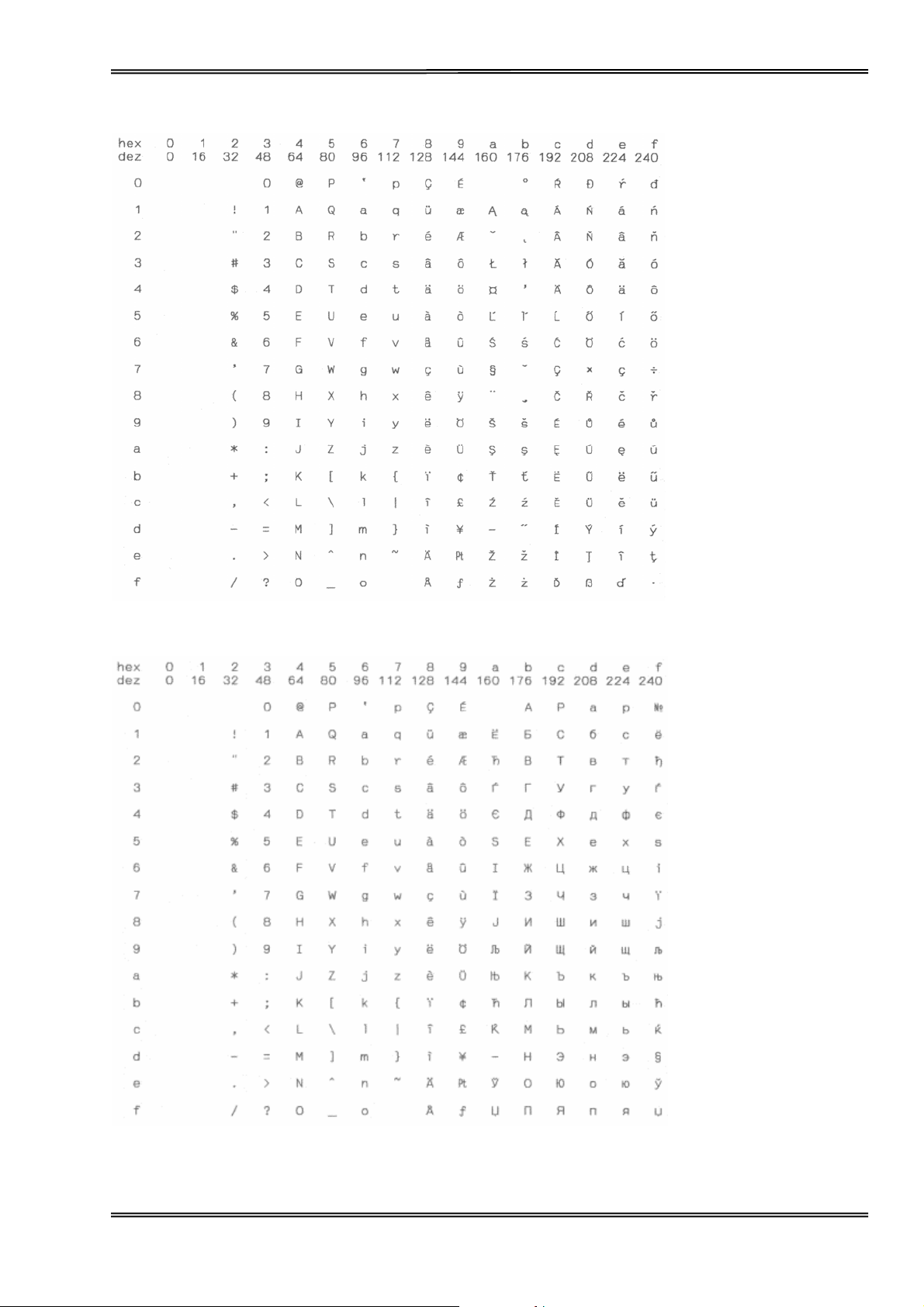

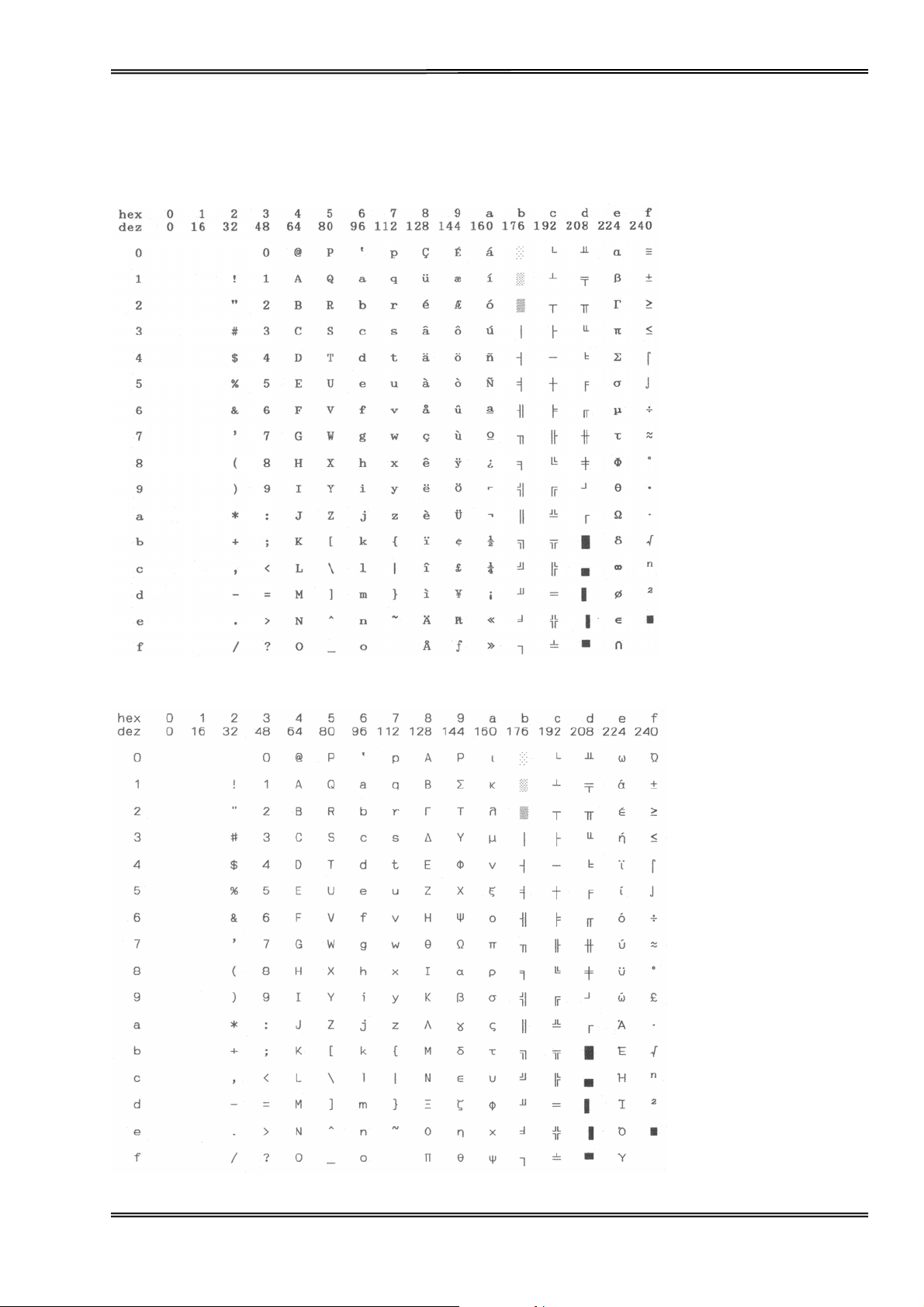

Code Page

USA, France, Germany, UK, Denmark, Sweden, Italy,
Spain, Japan, Norway, Denmark II, Spain II, Latin AM,
Korea, Legal

1. CP 437

2. CP 737

3. CP 850

4. CP 851

5. CP 852

6. CP 857

7. CP 858

8. CP 860

9. CP 861

10. CP 863

11. CP 864

12. CP 864 Extended

13. CP 865

14. CP 866 Cyrillic

15. CP 866 Bulgaria

16. CP 1250

17. CP 1251

18. CP 1252

19. CP 1253

20. CP 1254

21. 8859-1

22. 8859-1 (SAP)

23. 8859-2

24. 8859-5

25. 8859-7

26. 8859-9

27. 8859-15

28. BRASCII

29. Abicomp

30. Roman8

31. Coax/Twinax

32. New-437

14+1 international character
set selections

National code page
selections

21

Tally Dascom 1325

33. New-Dig 850

34. Old-Code 860

35. Flarro 863

36. 865 Hebrew

37. CP 1257

38. 866 Ukraine

39. 866 Kazakhstan

40. Kamenicky

41. Mazovia

42. CP 775

43. CRO-ASCII

44. Arabic Farsi

45. Arabic Urdo

46. Greek DEC

47. Greek ELOT 928

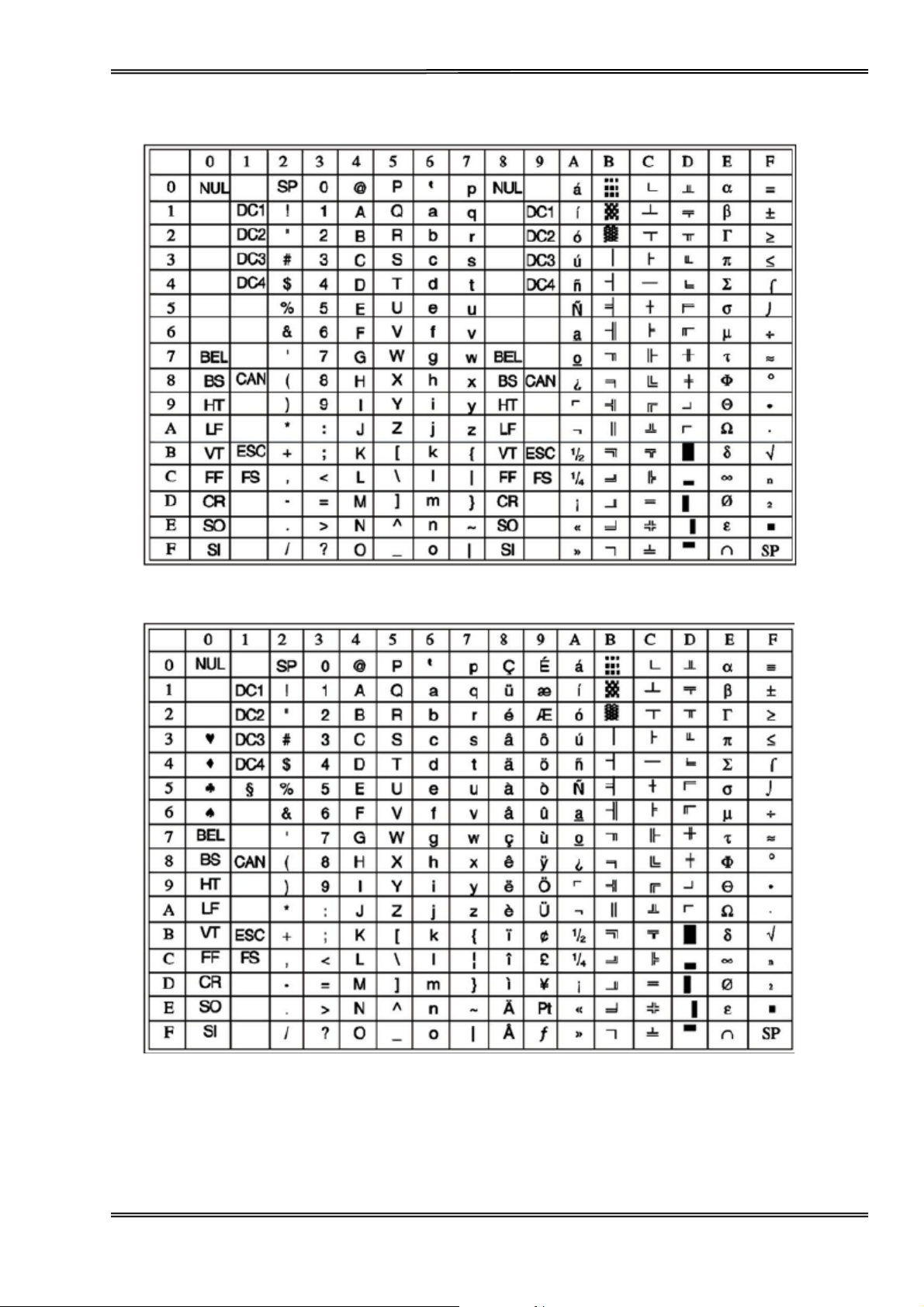

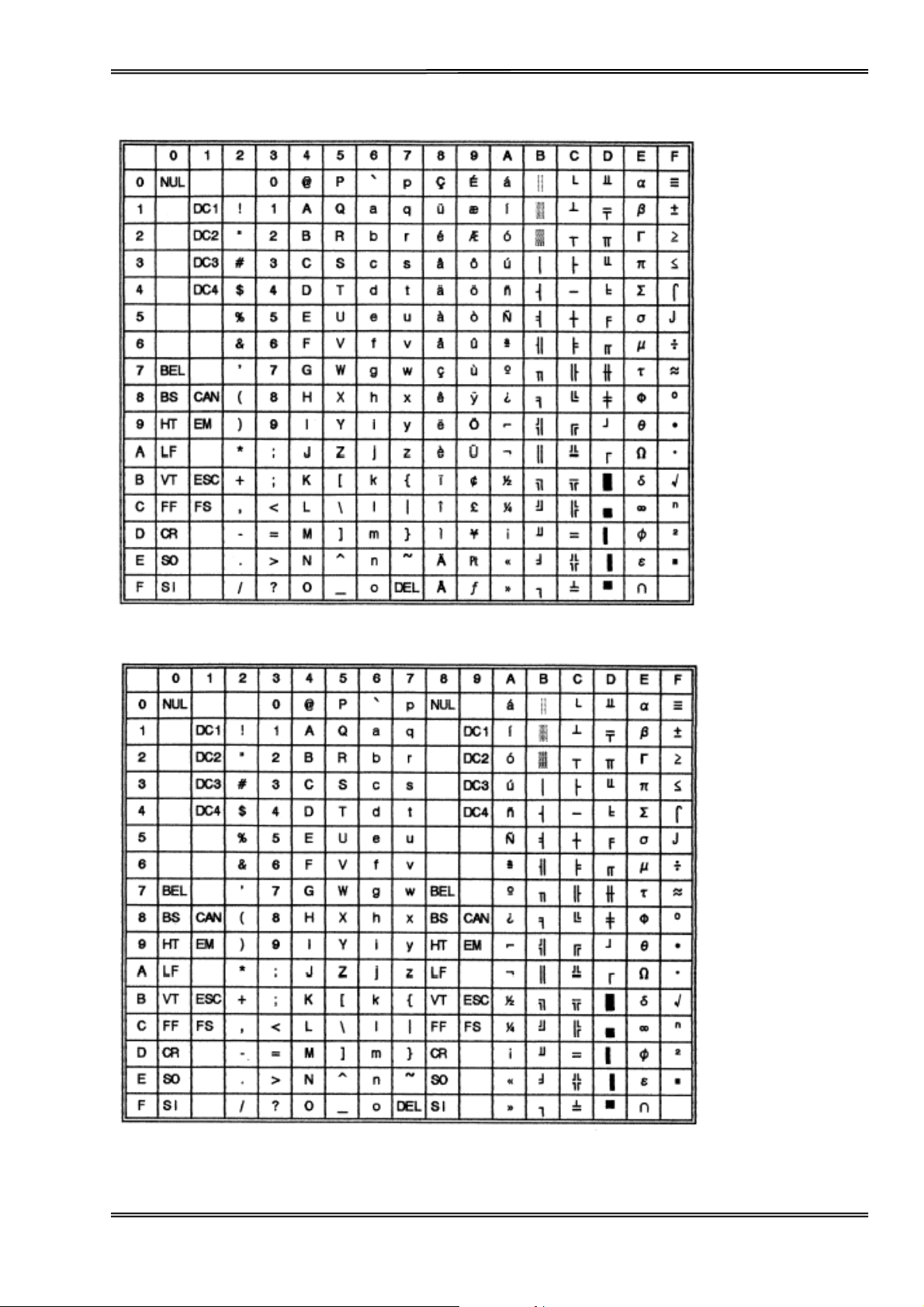

Character
Table

Graphic Table, Italic Table

Character table type
selection

Page Setup

Page Setup Valid Settings Function

Line Per Inch

Fanfold Form Length

Fanfold Top Margin

Fanfold Bottom
Margin

Single Form Length

Single Top Margin

Single Bottom Margin

Perforation Skip

Auto Tear

Exit Direction
Slip

1, 2, 3, 4, 5, 6, 7, 8
3",3.5",11/3", 4", 5", 5.5"
6",7",8", 8.5",11", 70/6", 12",
14", 17"

0/60" … 10/60"…99/60"

0/60"…10/60"...30/60"

3", 3.5", 11/3", 4", 5", 5.5", 6",
7", 8", 8.5", 11", 70/6", 12", 14",
17"

0/60" … 10/60"…99/60"

0/60"…10/60"...30/60"

Yes, No

Manual, 0.5s, 1s, 2s, 3s, 4s, 5s

Front, Rear
Off, On

Sets the line spacing

Sets the page length for tractor mode

Sets the top margin for tractor mode. Due to
mechanical tolerance, 0/60” is not guaranteed.
Sets the bottom margin for tractor mode. Due to
mechanical tolerance, 0/60” is not guaranteed.

Sets the page length for friction mode

Sets the top margin for friction mode. Due to
mechanical tolerance, 0/60” is not guaranteed.
Sets the bottom margin for friction mode. Due to
mechanical tolerance, 0/60” is not guaranteed.
Skips printing on perforation area
Specifies the waiting time before feeding the
page to tear-off position automatically. Manual:
Auto tear mode is off. (Applies to tractor mode
only)
Selects eject direction for friction loaded papers.
Selects the Slip profile mode.

22

Tally Dascom 1325

Interface Setup

Interface

Setup

Interface
I-PRIME
Auto IF
Delay

RAM Usage

Valid Settings Function

For multi-host connection. Auto: First come first served;

Auto, Parallel, USB
Yes, No

10s, 30s

User Font, Buffer

Parallel/USB: Serves the designated host only.
Yes: Host I-Prime signal resets the printer.
Determines the waiting time before receiving data from another
interface.
User Font: Part of RAM is used for user download characters;
Buffer: Disables user character download function; uses RAM for
expanded buffer size up to 92KB.

Advanced Setup

Advanced Setup Valid Settings Function

Specifies the waiting time before loading a cut

Auto Load

Paper Jam
Prevention

Paper End Detect

Manual, 0.5s, 1s, 1.5s, 2s

Yes, No

Yes, No

sheet automatically. Manual: Auto load mode is
off. (Applies to friction mode only)
Flattens paper edges by carriage movement
before printing starts.
Yes: Detects paper out and halts printing;
otherwise, ignores paper out and continues

printing.
Form Length Ctrl
Pitch Ctrl
Font Ctrl
Quality Ctrl
Buzzer

Software, Ignore
Software, Ignore

Software, Ignore
Software, Ignore
Yes, No

Ignore: Ignores form length commands.

Ignore: Ignores CPI commands.

Ignore: Ignores font select commands.

Ignore: Ignores print quality commands.

Yes: Sounds buzzer on all hardware errors.

23

Tally Dascom 1325

German (Deutsch)

System Setup Valid Settings

Emulation
Auto CR (IBM)
Auto LF
Druck Dir
Top Druck Dir
Anschlag
IBM AGM

Druck Setup Valid Settings

ESC/P2, IBM 2390 Plus
Ja, Nein
Ja, Nein

Bi-Dir, Uni-Dir, Auto
Bi-Dir, Uni-Dir
Normal, Stark

Ja, Nein

Font (Andere)

Zeichenteilung
Null

HS-Draft

Graphikgeschw.

IBM Set ½

Land

Zeichensatz
Zeichentabelle

Seiten Setup

Zeilen Pro Zoll

Endlos Formularlänge

Endlos Oberer Rand
Endlos Unterer Rand

Einzel Formularlänge

Einzel Oberer Rand
Einzel Unterer Rand
Rollenpapier
Perforationssprung
Abreissen

OCR-B,OCR-A,ORATOR,GOTHIC,SOUVENIR

10cpi, 12cpi, 15cpi, 17cpi, 20cpi, PS
0,Ø

An, Aus

Normal, Schnell, Ultra
Set 1, Set 2

USA, France, Germany, UK, Denmark, Sweden, Italy, Spain,

Japan, Norway, Denmark II, Spain II, Latin AM, Korea, Legal

CP 437, CP 857…
Graphik, Italic

Valid Settings

1, 2, 3, 4, 5, 6, 7, 8

3",3.5",11/3", 4", 5", 5.5" 6",7",8", 8.5",11", 70/6", 12", 14", 17"

0/60" … 10/60"…99/60"
0/60"…10/60"...30/60"
3", 3.5", 11/3", 4", 5", 5.5", 6", 7", 8", 8.5", 11", 70/6", 12", 14",
17"
0/60" … 10/60"…99/60"
0/60"…10/60"...30/60"
Ja, Nein
Ja, Nein
Manuell, 0.5s, 1s, 2s, 3s, 4s, 5s

Auswurfrichtung

Beleg

Schnittstellen Setup

Schnittstelle
I-PRIME

Vorne, Hinten

Aus, An

Valid Settings

Auto, Parallel, USB
Ja, Nein

24

Tally Dascom 1325

Auto IF Delay
RAM Nutzung

Erweitertes Setup

Auto Laden

Papierstau Vorbeugung
Papierende Detekt
Formularlänge Strg

Zeichenteilung Strg

Font Strg

Qualität Strg
Summer

Russian (Россия)

Системные установки Valid Settings

Эмуляция
Авто CR (IBM)
Авто LF
Направление печати
Направление печати загл. букв
Удар

IBM AGM

10s, 30s
Ladbarer Font, Puffer

Valid Settings

Manuell, 0.5s, 1s, 1.5s, 2s

Ja, Nein
Ja, Nein
Software, Ignoriere

Software, Ignoriere

Software, Ignoriere

Software, Ignoriere
Ja, Nein

ESC/P2, IBM 2390 Plus

Да, Нет
Да, Нет

Двунаправленная, Однонаправленная, Авто
Двунаправленная, Однонаправленная
Нормальный, Сильный
Да, Нет

Настройка печати

Дополнительный шрифт

знаков/дюйм

Перечеркнутый ноль

Высокая скорость
Скорость графики

Символы IBM 1/2

Набор знаков

Кодовая таблица

Таблица знаков

Параметры страницы

Строк на дюйм
Длина формы для непрерывной
бумаги
Отступ сверху для непрерывной

Valid Settings

OCR-B,OCR-A,ORATOR,GOTHIC,SOUVENIR

10cpi, 12cpi, 15cpi, 17cpi, 20cpi, PS

0,Ø

Вкл, Выкл
Нормальная, Быстрая, Очень быстрая

Уст. 1, Уст. 2

USA, France, Germany, UK, Denmark, Sweden, Italy, Spain,

Japan, Norway, Denmark II, Spain II, Latin AM, Korea, Legal

CP 437, CP 857…

Графика, Курсив

Valid Settings

1, 2, 3, 4, 5, 6, 7, 8

3",3.5",11/3", 4", 5", 5.5" 6",7",8", 8.5",11", 70/6", 12", 14", 17"

0/60" … 10/60"…99/60"

25

Tally Dascom 1325

бумаги
Отступ снизу для непрерывной бумаги

Длина формы для отдельных листов

Отступ сверху для отдельных листов
Отступ снизу для отдельных листов
Рулонная бумага
Пропуск перфорации
Авто прогон

0/60"…10/60"...30/60"
3", 3.5", 11/3", 4", 5", 5.5", 6", 7", 8", 8.5", 11", 70/6", 12", 14",
17"
0/60" … 10/60"…99/60"
0/60"…10/60"...30/60"

Да, Нет
Да, Нет

Ручной, 0.5s, 1s, 2s, 3s, 4s, 5s

Выход бумаги

Спящий режим

Установки интерфейса

Интерфейс

Паралел. порт

Время ожидания

Назначение RAM

Дополнительные установки

Автозагрузка
Датчик движ. бумаги
Датчик конца бумаги

Контоль длины формы

Контроль знаков/дюйм

Контроль шрифта

Перед, Зад

Выкл, Вкл

Valid Settings

Авто, Паралел, USB

Да, Нет

10s, 30s

Пользов. шрифт, Буфер

Valid Settings

Ручная, 0.5s, 1s, 1.5s, 2s

Да, Нет
Да, Нет

Програмный, Игнор.

Програмный, Игнор.

Програмный, Игнор.

Контроль качества
Звук

Italian (Italiano)

Menu Sistema Valid Settings

Emulazione
Auto CR (IBM)
Auto LF
Direz. Stampa
Top Print Dir
Impatto
IBM AGM

Програмный, Игнор.
Да, Нет

ESC/P2, IBM 2390 Plus
Si, No
Si, No

Bi-Dir, Uni-Dir, Auto
Bi-Dir, Uni-Dir
Normale, Pesante

Si, No

26

Tally Dascom 1325

Menù Stampa Valid Settings

Fonte (Altre)

OCR-B,OCR-A,ORATOR,GOTHIC,SOUVENIR

Spaziatura

Zero
HS-Bozza
Veloc. Grafica
IBM Set 1/2

Set Carat. Int.

Code Page
Tab.Carattere

Menù Pagina Valid Settings

Interlinea
Lungh. Mod. Continuo
Margine Sup. Continuo
Margine Inf. Continuo

Lunghezza Foglio

Margine Sup. Foglio
Margine Infer. Foglio
Rullo Carta
Salto Perforazione
Autostrappo
Uscita Carta
Scontrino

Menù Interfacc. Valid Settings

Interfaccia
I-PRIME
Ritardo Auto IF

10cpi, 12cpi, 15cpi, 17cpi, 20cpi, PS

0,Ø
Si, No
Normale, Veloce, Ultra
Set 1, Set 2
USA, France, Germany, UK, Denmark, Sweden, Italy, Spain,

Japan, Norway, Denmark II, Spain II, Latin AM, Korea, Legal

CP 437, CP 857…
Tab. Grafica, Italico

1, 2, 3, 4, 5, 6, 7, 8
3",3.5",11/3", 4", 5", 5.5" 6",7",8", 8.5",11", 70/6", 12", 14", 17"
0/60" … 10/60"…99/60"
0/60"…10/60"...30/60"
3", 3.5", 11/3", 4", 5", 5.5", 6", 7", 8", 8.5", 11", 70/6", 12", 14",
17"
0/60" … 10/60"…99/60"
0/60"…10/60"...30/60"
Si, No
Si, No

Manuale, 0.5s, 1s, 2s, 3s, 4s, 5s
Frontale, Posteriore
Si, No

Auto, Parallela, USB
Si, No
10s, 30s

Uso RAM

Menù Avanzato Valid Settings

Autocaricamento

Previene Inceppamento
Rileva Fine Carta

Control. Lungh. Carta

Control. Spaziatura

Controllo Fonti

Controllo Qualità

Fonti utente, Memoria

Manuale, 0.5s, 1s, 1.5s, 2s

Si, No
Si, No

Software, Ignora

Software, Ignora
Software, Ignora

Software, Ignora

27

Tally Dascom 1325

Cicalino

French (Français)

Setup système Valid Settings

Emulation
RC-Auto (IBM)
SL-Auto
Dir Impr.
Sup. Dir Impr.
Frappe
IBM AGM

Setup impression Valid Settings

Si, No

ESC/P2, IBM 2390 Plus

Oui, Non
Oui, Non

Bidir, Unidir, Auto
Bidir, Unidir
Normal, Forte

Oui, Non

Polices (Autres)
Densités caract.
Zéro
HS-Draft
Vitesse graphiq.
IBM Set 1/2

Pays

Jeu de caractèr.
Tabl.de caract.

Setup page

Lignes par pouce

Papier continu Longueur formulaire

Papier continu Bord supérieure
Papier continu Bord inférieure

Feuille à feuille Longueur formulaire

Feuille à feuille Bord supérieur
Feuille à feuille Bord inférieur
Papier du rouleau
Sauter la perforation
Coupe Auto
Direction de sortie
Slip

Setup interface Valid Settings

OCR-B,OCR-A,ORATOR,GOTHIC,SOUVENIR
10cpi, 12cpi, 15cpi, 17cpi, 20cpi, PS
0,Ø
Oui, Non
Normal, Rapide, Ultra
Set 1, Set 2
USA, France, Germany, UK, Denmark, Sweden, Italy, Spain,

Japan, Norway, Denmark II, Spain II, Latin AM, Korea, Legal

CP 437, CP 857…
Graphque, Italique

Valid Settings

1, 2, 3, 4, 5, 6, 7, 8

3",3.5",11/3", 4", 5", 5.5" 6",7",8", 8.5",11", 70/6", 12", 14", 17"

0/60" … 10/60"…99/60"
0/60"…10/60"...30/60"
3", 3.5", 11/3", 4", 5", 5.5", 6", 7", 8", 8.5", 11", 70/6", 12", 14",
17"
0/60" … 10/60"…99/60"
0/60"…10/60"...30/60"
Oui, Non
Oui, Non

Manuel, 0.5s, 1s, 2s, 3s, 4s, 5s
Avant, Arrière
Arrêt, Marche

Interface

I-PRIME

Auto, Parallel, USB
Oui, Non

28

Tally Dascom 1325

Auto IF Delay

Utilisation RAM

Setup élargi Valid Settings

Chargem. Autom.

Prévention bourrage
Détec.fin de pap
Long.formul.Strg

Densi.caract.Strg

Police Strg

Qualité Strg
Vibrateur

Spanish (Español)

System Setup Valid Settings

Emulación
Auto CR(IBM)
Auto LF
ModoImpresión
ModoImp.Borde
Impacto
IBM AGM

10s, 30s
User Font, Buffer

Manuel, 0.5s, 1s, 1.5s, 2s

Qui, Non
Qui, Non
Software, Ignorer

Software, Ignorer

Software, Ignorer

Software, Ignorer
Qui, Non

ESC/P2, IBM 2390 Plus

Si, No
Si, No

Bi-Dir, Uni-Dir, Auto
Bi-Dir, Uni-Dir
Normal, Fuerte
Si, No

Print Setup Valid Settings

Fuente (Otros)

Tamaño Letra

Cero

Alta Velocidad

Imp. Grafica

IBM Juego 1/2

Carácter Local

Tabla Carácter
Tipo Tabla

Page Setup Valid Settings
Lineas Por Pulgada
Tamaño Papel Continuo
Margen Sup. Pap Cont.

OCR-B,OCR-A,ORATOR,GOTHIC,SOUVENIR

10cpp, 12cpp, 15cpp, 17cpp, 20cpp, PS

0,Ø

Activado, Desactivado

Normal, Rápido, Ultra

Juego 1, Juego 2
USA, Francia, Alemania, UK, Dinamarca, Suecia, Italia, España,

Japón, Noruega, Dinamarca II, España II, AmericaLatina, Corea,
Legal

CP 437, CP 857…
Tabla Gráfica, Italica

1, 2, 3, 4, 5, 6, 7, 8
3",3.5",11/3", 4", 5", 5.5" 6",7",8", 8.5",11", 70/6", 12", 14", 17"
0/60" … 10/60"…99/60"

29

Tally Dascom 1325

Margen Inf. Pap.Cont.

Tamaño Hojas Sueltas

Margen Sup. Folios
Margen Inf. Folios
Rollo de Papel
Salto perforación
Mover a PosiciónCorte

Expulsión de papel
Ajustes

Interface Setup Valid Settings

0/60"…10/60"...30/60"
3", 3.5", 11/3", 4", 5", 5.5", 6", 7", 8", 8.5", 11", 70/6", 12", 14",
17"
0/60" … 10/60"…99/60"
0/60"…10/60"...30/60"
Si, No
Si, No

Manual, 0.5s, 1s, 2s, 3s, 4s, 5s
Delante, Atrás
Apagado, Encendido

Interface

I-Prime

Auto retraso

Uso de RAM

Advanced Setup Valid Settings

Auto Carga
Prevención Atascos
Detección Fin Papel
Control Tamaño Papel

Control Tamaño Letra

Control Fuente

Control Calidad
Alarma

Turkish (Türkce)

Sistem Ayarı Valid Settings

Benzetim/Emulation
Otom. Satırbaşı (IBM)
Otom. Satır besleme
Yazd ırma yönü
Üstte yazdırma yönü
Vuruş
IBM AGM

Yazdırma Ayarları Valid Settings

Yazı Tipi (Diğer)

Auto, Paralelo, USB

Si, No

10s, 30s

Font Usuario, Buffer

Manual, 0.5s, 1s, 1.5s, 2s
Si, No

Si, No
Software, Ignorar

Software, Ignorar

Software, Ignorar

Software, Ignorar
Si, No

ESC/P2, IBM 2390 Plus

Evet, Hayır
Evet, Hayır

İ

ki-Yöne, Tek-Yöne, Otom.

İ

ki-Yöne, Tek-Yöne

Normal, Güçlü

Evet, Hayır

OCR-B,OCR-A,ORATOR,GOTHIC,SOUVENIR

Karakter Sıklığı

10cpi, 12cpi, 15cpi, 17cpi, 20cpi, PS

30

Tally Dascom 1325

Sıfır

Yük.Hız-Taslak

Grafik Hızı

IBM Karakter Seti 1/2

Uluslararası Kar. Seti

Kod Sayfası

Karakter Tablosu

Sayfa Düzeni Ayarı Valid Settings

İnç başına satır

Sürekli-kağıt Form Uzunluğu

Sürekli-kağıt Üst kenar boşluğu
Sürekli-kağıt Alt kenar boşluğu

Tek-kağıt Form uzunluğu

Tek-kağıt Üst kenar boşluğu
Tek-kağıt Alt kenar boşluğu
Rulo kağıt
Delik atlama
Otom. Koparma
Çıkartma Yönü
Makbuz/Fiş

Arabirim Ayarları Valid Settings
Arabirim
I-Prime

0,Ø

On, Off

Normal, Hızlı, Ultra

Set 1, Set 2
USA, France, Germany, UK, Denmark, Sweden, Italy, Spain,

Japan, Norway, Denmark II, Spain II, Latin AM, Korea, Legal
CP 437, CP 857…
Grafik Tablosu, İtalik

1, 2, 3, 4, 5, 6, 7, 8

3",3.5",11/3", 4", 5", 5.5" 6",7",8", 8.5",11", 70/6", 12", 14", 17"

0/60" … 10/60"…99/60"
0/60"…10/60"...30/60"
3", 3.5", 11/3", 4", 5", 5.5", 6", 7", 8", 8.5", 11", 70/6", 12", 14",
17"
0/60" … 10/60"…99/60"
0/60"…10/60"...30/60"
Evet, Hayır
Evet, Hayır

Elle/Manuel, 0.5s, 1s, 2s, 3s, 4s, 5s
Önden, Arkadan
Kapalı, Açık

Otom., Paralel, USB

Evet, Hayır

Otom. Arabirim gecikmesi

RAM Kullanımı

Geliştirilmiş Ayarlar

Otom. Yükleme

Kağıt Sıkışmasını Önleme
Kağıt Sonunu Algılama
Form Uzunl. Kont.

Karak.Sıkl. Kont.

Yazı Tipi Kont.
Kalite Kont.
Alarm Zili

10s, 30s

Kullanıcı Yazı Tipi, Arabellek

Valid Settings

Elle/Manuel, 0.5s, 1s, 1.5s, 2s
Evet, Hayır

Evet, Hayır
Yazılım, Yoksay

Yazılım, Yoksay
Yazılım, Yoksay

Yazılım, Yoksay
Evet, Hayır

31

Tally Dascom 1325

Vertical Alignment

The vertical alignment function is used to resolve any vertical line misalignments in bi-directional printing.

Adjust Vertical Alignment Procedure:

1. Enter the Service Menu by holding down the【Tear/Off】and【LF/FF】keys while powering up.

2. Load paper.

3. The printer will print as follows:

Service Menu

【LF/FF】= OK 【Tear/Off】= Back 【Load/Eject】= Next 【Online】= Exit

Current Setting：Vertical Alignment

4. Press【LF/FF】key to select the current setting. The printer will print as follows:

Vertical Alignment

【LF/FF】= OK 【Tear/Off】= Back 【Load/Eject】= Next 【Online】= Exit

Please select Paper Type：Single Ply

For single ply paper, press【LF/FF】key to select. For multipart paper, press 【Load/Eject】key to go
to “Multipart”，then press【LF/FF】key to select.

5. If single ply is selected for paper type, the following will print:

Single Ply

Current Print Mode: LQ

Press 【Load/Eject】key to scroll to other print modes if required.

6. If LQ is selected, the following will print:

LQ

【LF/FF】= lower ½ to left 【Load/Eject】= lower ½ to right 【Online】= Exit

LQ -2:

||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

Pressing 【LF/FF】or 【Load/Eject】 key will allow you to adjust the alignment of the vertical lines

32

Tally Dascom 1325

printed above.

7. Once the setting which gives the best alignment is found, press 【Online】 key to exit current level.
Printer will print “Save settings? Yes”. Press 【LF/FF】 key to save setting. Press 【Online】 key a
few times until the printer exits the Service Menu.

Change Pin Function

When printer has been used for a long time or the print volume is high, the frequently used print head pins may
fail. The Change Pin function enables the user to continue using the printer for a while without compromise in
print quality until a suitable print head replacement is available. This function will reduce the print speed if
activated.

Change Pin Procedure:

1. Enter the Service Menu by holding down the【Tear/Off】and【LF/FF】keys while powering up.

2. Load paper.

3. The printer will print as below:
Service Menu

【LF/FF】=OK 【Tear/Off】= Back 【Load/Eject】= Next 【Online】= Exit
Current Menu：Vertical Alignment

Press 【Load/Eject】 key to scroll to “Change Pin”，then press 【LF/FF】 key to select. The status
of each pin will be printed as follows:

Change Pin
1 ---------- Is this pin OK? Yes / No
2 ---------- Is this pin OK? Yes / No
3 ---------- Is this pin OK? Yes / No
:
24 ---------- Is this pin OK? Yes / No

Press 【Load/Eject】 key to choose whether the pin is Yes or No，then press 【LF/FF】 key to confirm
selection.

4. When all the 24 pins are evaluated, press 【Online】. The printer will print “Save settings? Yes”.
Press 【LF/FF】 key to confirm selection. Press 【Online】 key a few times until the printer exits the
Service Menu.

33

Tally Dascom 1325

Adjust Physical Margins

Adjust Page Margins allows for adjustments of physical left, top margins and tear-off position. Warning: Once
these settings are changed, resetting the printer to factory defaults will not initialize these settings back to the
original settings; so it is not advisable to perform this adjustment unless it is absolutely necessary.

Adjust Top Margin Procedure:

1. Enter the Adjust Page Margins function by holding down the【Load/Eject】and【Online】keys while
powering up until the printer beeps twice.

2. Load paper.

3. The printer will print as below:
Adjust Page Margins:

【LF/FF】=OK 【Tear/Off】= Back 【Load/Eject】= Next 【Online】= Exit

Current Setting: Adjust Fanfold Top Margin

Press【LF/FF】key to confirm selection if the paper used is fanfold type. The printer will print as follows:
Procedure：

Install fanfold paper to tractors
【LF/FF】 = Add 【Load/Eject】 = Reduce 【Online】 = Exit

Each step is 0.5 mm

Function of keys:

【Tear Off】key: Decrease 0.5mm
【Load/Eject】key: Increase 0.5mm

4. Press 【LF/FF】 key, printer will print “Save settings？Yes”. Press 【Load/Eject】 key to choose
Yes or No，then press 【LF/FF】 key to confirm selection and exit “Adjust Page Margins” mode by
pressing 【Online】. The print head moves to the left side and the printer beeps twice, then the print
head moves to the middle position.

Adjust Left Margin Procedure:

1. Enter the Adjust Page Margins function by holding down the【Load/Eject】and【Online】keys while
powering up until the printer beeps twice.

2. Load paper.

3. The printer will print as below:
Adjust Page Margins:

【LF/FF】=OK 【Tear/Off】= Back 【Load/Eject】= Next 【Online】= Exit

Current Setting: Adjust Fanfold Top Margin

4. Press【Load/Eject】key until the current setting is “Adjust Fanfold Left Margin”. Press【LF/FF】key to
confirm selection if the paper used is fanfold type. The printer will print as follows:

Adjust Fanfold Left Margin 0

Function of keys:
【Tear Off】key: Decrease 0.5mm

34

Tally Dascom 1325

【Load/Eject】key: Increase 0.5mm

5. Press 【LF/FF】 key, printer will print “Save settings？Yes”. Press 【Load/Eject】 key to choose
Yes or No，then press 【LF/FF】 key to confirm selection and exit “Adjust Page Margins” mode by
pressing 【Online】. The print head moves to the left side and the printer beeps twice, then the print
head moves to the middle position.

Adjust Tear-Off Position Procedure:

1. Enter the Adjust Page Margins function by holding down the【Load/Eject】and【Online】keys while
powering up until the printer beeps twice.

2. Load fanfold paper

3. The printer will print as below:
Adjust Page Margins:

【LF/FF】=OK 【Tear/Off】= Back 【Load/Eject】= Next 【Online】= Exit

Current Setting: Adjust Fanfold Top Margin

4. Press【Load/Eject】key until the current setting is “Adjust Tear-Off Position”. Press【LF/FF】key to
confirm selection. The printer will print as follows:

Procedure：

Install fanfold paper to tractors
【LF/FF】 = Add 【Load/Eject】 = Reduce 【Online】 = Exit

Each step is 0.5 mm

Function of keys:

【Tear Off】key: Decrease 0.5mm
【Load/Eject】key: Increase 0.5mm

5. Press 【LF/FF】 key, printer will print “Save settings？Yes”. Press 【Load/Eject】 key to choose
Yes or No，then press 【LF/FF】 key to confirm selection and exit “Adjust Page Margins” mode by
pressing 【Online】. The print head moves to the left side and the printer beeps twice, then the print
head moves to the middle position.

35

Tally Dascom 1325

6 Maintenance

Your printer requires very little care. Occasional cleaning and replacement of the ribbon cartridge are all that is
required. Cleaning is recommended approximately every 6 months or 300 hours of operation, whichever is
sooner. Lubrication of the printer is not usually necessary. If the print head carriage does not move smoothly
back and forth, clean the printer in the manner described in this chapter. If the problem continues, contact your
dealer to determine whether lubrication may be necessary.

Switch printer off and unplug the power cord from

the mains before doing any maintenance work.

Cleaning

The housing and the top cover of the printer help protect it against dust, dirt, and other contaminants. However,
paper produces small particles that accumulate inside the printer. This section explains how to clean and
vacuum the printer and how to clean the paper bail rollers. It is easier to clean the printer when the cover is
open.

Cleaning and Vacuuming the Printer

If the print head carriage does not move smoothly back and forth or paper particles have accumulated in the
printer, clean the printer.

To clean and vacuum the printer:

1. Remove any paper from the printer. Make sure that the power is off, and then disconnect the printer power
cord.

2. Using a soft vacuum brush, vacuum the exterior of the printer. Also vacuum the cut sheet edge.

3. Use a soft, damp cloth to wipe the exterior of the printer, including the cover. A mild detergent may be used.
Do not use solvents, kerosene, or abrasive cleaning materials that may damage the printer.

4. Open the cover of the printer and remove the ribbon cartridge. Using a soft vacuum brush, gently vacuum
the platen, the print head carriage and shaft, and surrounding areas. You can easily slide the print head to
the left or right when the power is off. Be careful not to press too hard on the flat head cable that extends
from the print head carriage.

5. Re-install the ribbon cartridge.

6. Remove the single sheet feeder and clean the form tractors and the surrounding areas.

7. Re-install the single sheet feeder.

Cleaning the Paper Rollers

Clean the platen and paper bail rollers occasionally or when stains or smudges appear on the paper. Use a
mild detergent as appropriate. Do not use alcohol to clean the platen or the rollers. Alcohol may cause the
rubber to harden.

To clean the rollers and the platen:

1. Apply a small amount of water to a soft cloth. Avoid spilling liquid inside the printer.

2. Place the cloth against the platen and manually rotate the paper feed knob.

3. Repeat this procedure for each roller.

36

Tally Dascom 1325

4. To dry the platen, place a dry cloth against the platen and the rollers and manually rotate the paper feed
knob.

37

Tally Dascom 1325

7 Troubleshooting

Your printer is extremely reliable, but occasionally problems may occur. This chapter provides information on
some of the common problems you may encounter and how you may solve them. If you encounter problems
that you cannot resolve, contact your dealer or service partner for assistance.

Print Quality Problems and Solutions

Problem Solution

• Make sure that the ribbon cartridge is properly installed and that
the ribbon feeds smoothly.

Printing is too light or too dark.

Smears and stains appear on the
page.

Printing is erratic or the wrong
characters are printed. Many “?” or
unexpected characters are printed.

The page is blank.

• Replace the ribbon if necessary.

• Make sure that the print gap lever is set for the thickness of your
paper.

• Make sure that the print gap lever is set for the thickness of your
paper.

• Check for ribbon wear. Replace the ribbon if necessary.

• Check whether the tip of the print head is dirty. Clean the head
with a soft cloth if necessary.

• The print head may need to be replaced.

• Make sure that the interface cable is securely connected to both
the printer and computer.

• Make sure that the printer driver selected in your software is the
same as the emulation selected on the printer.

• Check the length of the interface cable. (Maximum Parallel &
USB: 2 metres)

• Try another interface cable.

• Make sure that the ribbon cartridge is properly installed.

• Make sure the gap lever is set correctly.

Printing is vertically misaligned
(jagged).

The top margin is wrong.

Lines are double spaced instead of
single spaced.
The printer overprints on the same
line.

The next print line starts where the
previous line ended instead of at
the left margin.

Use the printer's vertical alignment function to check the vertical
print alignment. If necessary, adjust the print alignment.

• Check the application top margin setting.

• Adjust the Top Margin setting in Page Setup menu if necessary.

Change the Auto LF setting in the System Setup menu to No.

Change the Auto CR setting in the System Setup menu to No.

Change the Auto CR setting in the System Setup menu to Yes.

38

Tally Dascom 1325

Paper Handling Problems and Solutions

Problem Solution

• Make sure that the paper select lever located on the top right of

Paper cannot be loaded or fed.

Paper jams while loading.

Paper jams while printing.

the printer is set correctly. Move the lever to the front for single
sheets or to the rear for continuous forms.

• Make sure that the paper covers the paper-out sensor.

• Turn off the printer and remove the jammed paper. Remove any
obstructions from the paper path.

• Make sure that the Print Gap lever is set for the thickness of your
paper.

• Make sure that the paper is not folded, creased, or torn.

• Make sure that the left and right tractors are set so that the
continuous forms are stretched taut.

• Turn off the printer and remove the jammed paper. Remove any
obstructions from the paper path.

• Make sure that the Print Gap lever is set for the thickness of your
paper.

• For continuous forms, make sure that the incoming and outgoing
paper stacks are correctly placed. Paper should feed straight.

Paper slips off the forms tractors or
the perforated holes of the paper
tear during printing.

Make sure that the forms tractors are positioned correctly for the
width of your paper and that the perforated holes of the paper fit
directly over the tractor pins.

Operating Problems and Solutions

Problem Solution

• Check whether the mains voltage is correct.

• Make sure that the power cord is securely connected to both the
printer and the mains power outlet.

The power does not turn on.

The printer is on but it will not print.

• Make sure that the power outlet is functional. If not so, use other
outlet.

• Turn the power off. Wait a minute and then turn the printer on
again. If the printer still has no power, contact your dealer.

• Make sure that the Online indicator is lit.

• If you use the interface cable, make sure it is securely connected
to both the printer and the computer.

• Make sure paper is loaded.

• Run the printer Status Page. If printing executes normally, the
problem is caused by: the interface, the computer, incorrect printer
settings, or incorrect software settings.

• Make sure that the printer driver selected in your software is the
same as the emulation selected on the printer.

39

Tally Dascom 1325

If paper is loaded and the paper select lever is moved to the

Paper select lever error

incorrect position, the printer turns offline, and the buzzer sounds
continuously. Switch the paper select lever back to its correct
position.

Printer Failures

A user cannot generally resolve a problem involving defective printer hardware. Power off and on again the
printer to recover any fatal error. If the problem cannot be resolved, contact your dealer or service partner.

Error Indications on LEDs

Error Description

Paper jammed Suspend Flash Off Flash Once

Friction feed /Tractor feed Suspend Flash Flash No change Continuously

Print head hot Normal

Carriage initial position Stop Flash Off Off Once

EEPROM Normal Off Flash Flash Once

Print head cold Suspend Flash Flash No change --

ROM error Stop Flash Flash Flash Once

Operation
Status

Paper
Out LED

No
change

Online
LED

Flash No change --

Tear Off
LED

Buzzer
Sound

40

Tally Dascom 1325

Diagnostic Functions

The printer diagnostic functions are Self-Test page, hex-dump mode and print alignment adjustment.

 Self-Test page: Tells you whether the printer hardware is functioning correctly. If the printer hardware

is functional, any problems you are having are probably caused by incorrect printer settings, incorrect
software settings, the interface, or the computer.

 HEX-DUMP MODE: Allows you to determine whether the computer is sending the correct commands

to the printer, and whether the printer is executing the commands correctly. This function is useful to
programmers or others who understand how to interpret hex dumps.

 PRINTING ALIGNMENT ADJUSTMENT: Allows you to check and, if necessary, correct the printer’s

vertical line print alignment in bi-directional mode.

For details on using these functions, please refer to chapters 4 and 5.

41

Tally Dascom 1325

Firmware Update

Sometimes it is necessary update the firmware to solve a problem. The latest firmware file may be obtained
from your dealer or downloaded from our website www.dascom.com
recommended to print the Main Menu page to keep a record of the old settings.

Note: Firmware update should only be performed by an authorized service person. We disclaim any
responsibility for any damage caused if it is performed by any other person.

To load new firmware, proceed as follows:

1. Switch off the printer. Connect your PC to the parallel port on the printer.

2. Press and hold down 4 keys (S1, S2, S3, S4) while powering on the printer.

3. Alternate flashing of L1 and L4 LEDs indicates printer is ready for firmware update.

4. Go to the DOS prompt window. Copy the firmware file (with extension .MOT) to your printer as follows:

COPY /B <filename>.mot PRN

5. When new firmware is being received, L1 and L4 will flash together, followed by L1 and L3 flashing

together.

Note: Do not interrupt the downloading process to prevent possible flash memory corruption.

6. When downloading is completed, the carriage returns to home position. Printer initializes normally.

. Before upgrading firmware, it is strongly

42

Tally Dascom 1325

8 General Specifications

Print System

Print Technology

Print Speed

Font Matrix

Print Head

Mono-chrome serial impact dot matrix

Uni-/bi-directional logic seeking for text and graphics

Pitch HS Draft Draft LQ (CPS/DPI)
10 CPI 375/80H 250/120H 83/360H
12 CPI 300/120H 300/120H 100/360H
15 CPI 375/120H 375/120H 125/360H

17.1 CPI 426/120H 426/120H 142/360H
20 CPI 498/120H 498/120H 166/360H

Pitch HS Draft Draft LQ (Matrix/DPI)
10 CPI 8x24/80H 12x24/120H 36x24/360H
12 CPI 10x24/120H 10x24/120H 30x24/360H
15 CPI 8x16/120H 8x16/120H 24x16/360H

17.1 CPI 7x24/120H 7x24/120H 21x24/360H
20 CPI 6x24/120H 6x24/120H 18x24/360H
Proportional Nx24/360H Nx24/360H Nx24/360H

Number of pins: 24 pins
Firing frequency: Normal mode: 1500 Hz
Pin diameter: 0.2 mm
Life: 400 million strokes/pin @ Draft mode

Graphics

Paper
Feed Speed

Resolution

Printable
Columns

8-bit mode: 8V x 60H, 80H, 90H, 120H, 240H (DPI)
24-bit mode: 24V x 60H, 90H, 120H, 180H, 360H (DPI)

Continuous feed: 5.0 IPS (inches per second)

360 x 360 DPI maximum

Characters per line (CPL)
10 CPI: 80 CPL
12 CPI: 96 CPL
15 CPI: 120 CPL

17.1 CPI: 137 CPL
20 CPI: 160 CPL

43

Tally Dascom 1325

Bitmap Fonts:

Built-In Fonts

Barcodes

Code Pages

1. Draft 10, 12, 15, 17, 20 CPI

2. Roman 10, 12, 15, 17, 20 CPI, Proportional

3. Sans Serif 10, 12, 15, 17, 20 CPI, Proportional

4. Courier 10, 12, 15, 17, 20 CPI, Proportional

5. Prestige 10, 12, 15, 17, 20 CPI

6. OCR-B 10, 12, 17, 20 CPI

7. OCR-A 10, 12, 17, 20 CPI

8. Orator 10, 12, 15, 17, 20 CPI, Proportional

9. SOUVENIR 10, 12, 15, 17, 20 CPI, Proportional

10. GOTHIC 10, 12, 15, 17, 20 CPI, Proportional

11. Script 10, 12, 15, 17, 20 CPI

1. EAN-13

2. EAN-8

3. Interleaved 2 of 5

4. UPC-A

5. UPC-E

6. Code 39

7. Code 128

8. POSTNET

9. Codabar

10. Industrial 2 of 5

1. CP 437

2. CP 737

3. CP 850

4. CP 851

5. CP 852

6. CP 857

7. CP 858

8. CP 860

9. CP 861

10. CP 863

11. CP 864

12. CP 864 Extended

13. CP 865

14. CP 866 Cyrillic

15. CP 866 Bulgaria

16. CP 1250

17. CP 1251

18. CP 1252

19. CP 1253

20. CP 1254

44

Tally Dascom 1325

Code Pages

International
Character Sets

21. 8859-1

22. 8859-1 (SAP)

23. 8859-2

24. 8859-5

25. 8859-7

26. 8859-9

27. 8859-15

28. BRASCII

29. Abicomp

30. Roman8

31. Coax/Twinax

32. New-437

33. New-Dig 850

34. Old-Code 860

35. Flarro 863

36. 865 Hebrew

37. CP 1257

38. 866 Ukraine

39. 866 Kazakhstan

40. Kamenicky

41. Mazovia

42. CP 775

43. CRO-ASCII

44. Arabic Farsi

45. Arabic Urdo

46. Greek DEC

47. Greek ELOT 928

1. USA

2. France

3. Germany

4. UK

5. Denmark I

6. Sweden

7. Italy

8. Spain I

9. Japan

10. Norway

11. Denmark II

12. Spain II

13. Latin America

14. Korea

15. Legal

45

Tally Dascom 1325

Line Spacing

Paper
Specifications

Paper
Specifications

1/6", 1/8", n/60", n/180", n/360"

Fanfold Paper

Cut Sheet

Single ply Multi-part

Width:
55mm～297mm
（2.2"～11.7"）

Length:
55mm～363.2mm

（2.2"～14.3"）

Weight: 52～100g/㎡
Thickness:

0.065～0.14mm
(0.0026"～0.0055”)

Weight: 52～100 g/㎡
Thickness:

0.065～0.14mm
(0.0026"～0.0055")

Width: 55mm～297mm (2.2"～11.7"）

Length: 139.7mm min (5.5" min)

Weight: 40～58g/㎡
Thickness: 0.45 mm max
(0.0177” max)

Feeding method: Friction and Tractor

Paper Handling

Copy Capability

Emulation ESC/P2, IBM 2390 Plus

Ribbon Type Cartridge; Monochrome

Ribbon Life

Input Data Buffer

Windows Drivers

Interface

Operation Panel

Paper path: Cut sheets: Front in, front or rear out
Fanfold: Rear in, front out

Original + 6 copies

7 million characters (rolling Draft 10 CPI)

Up to 92KB

Windows Server 2000/2003/2008
Windows Vista
Windows XP
Windows 98
Windows 7

Parallel (Bi-directional IEEE-1284 nibble mode)
USB 2.0 (B type connector)

Switches: 4 pcs
LED indicators: 4 pcs

Noise Level

< 53 dBA in 10CPI draft ASCII (Conforming to ISO7779)

46

Tally Dascom 1325

Temperature Operating: +5 to +40 °C.
Stand-by: -20 to +55 °C

Ambient
Conditions

Humidity Operating: 10 to 90%RH

(No condensation)

Stand-by: 10 to 85%RH

(No condensation)

Dimensions

Weight 5 kg

Power Supply

MTTR < 20 minutes

MTBF 10000 hours @ 25% duty cycle

404 mm (W) x 322 mm (D) x 203 mm (H)

Unit type: Switching mode power supply
Power cord: Detachable
Voltage rating: AC 230V (180V~264V)/50Hz to 60Hz
Stand by: Less than 5.9W
ESD: Comply with IEC801-2
Contact discharge: 4kV
Air discharge: 8kV

47

Tally Dascom 1325

9 Interfaces

Parallel Interface

Parallel Interface Pin Assignment

Pin Signal Name Signal Transmission

1 STROBE¯¯¯¯¯¯ Printer  Computer

2~9 DATA Printer  Computer

10 ACK¯¯¯ Printer  Computer

11 BUSY Printer  Computer

12 PE Printer  Computer

13 SELECT Printer  Computer

14 AFXT¯¯¯¯ Printer  Computer

15 Unused Unused

16 GND Printer  Computer

17 F-GND Printer  Computer

18 +5V Printer  Computer

19~30 GND Printer  Computer

31 INIT¯¯¯¯ Printer  Computer

32 FAULT¯¯¯¯¯ Printer  Computer

33 GND Printer  Computer

34 Unused Unused

35 FUSE Printer  Computer

36 SLCTIN¯¯¯¯¯¯ Printer  Computer

Parallel Interface Connector Diagram

Note: Any external devices connected to the parallel port should not draw current exceeding 200 mA from pin
18; otherwise it may affect the printer operation.

USB Interface

The USB interface conforms to the Universal Serial Bus 2.0 Specifications. It supports the Full Speed mode at
12 Mbps. It uses the “B” type USB connector.

48

Tally Dascom 1325

10 Character sets & Code Pages

Character Sets

Standard Character Set 1

Standard Character Set 2

49

Tally Dascom 1325

IBM Character Set 1

IBM Character Set 2

50

Tally Dascom 1325

International character sets

International Character Set Commands

Country Command

USA

France

Germany

UK

Denmark1

Sweden

Italy

Spain1

Japan

Norway

Denmark2

Spain2

Lat America

Korea

Legal

＜ESC＞“R”CHR＄（0）

＜ESC＞“R”CHR＄（1）
＜ESC＞“R”CHR＄（2）
＜ESC＞“R”CHR＄（3）
＜ESC＞“R”CHR＄（4）
＜ESC＞“R”CHR＄（5）
＜ESC＞“R”CHR＄（6）
＜ESC＞“R”CHR＄（7）
＜ESC＞“R”CHR＄（8）

＜ESC＞“R”CHR＄（9）
＜ESC＞“R”CHR＄（10）
＜ESC＞“R”CHR＄（11）
＜ESC＞“R”CHR＄（12）
＜ESC＞“R”CHR＄（13）
＜ESC＞“R”CHR＄（64）

51

Tally Dascom 1325

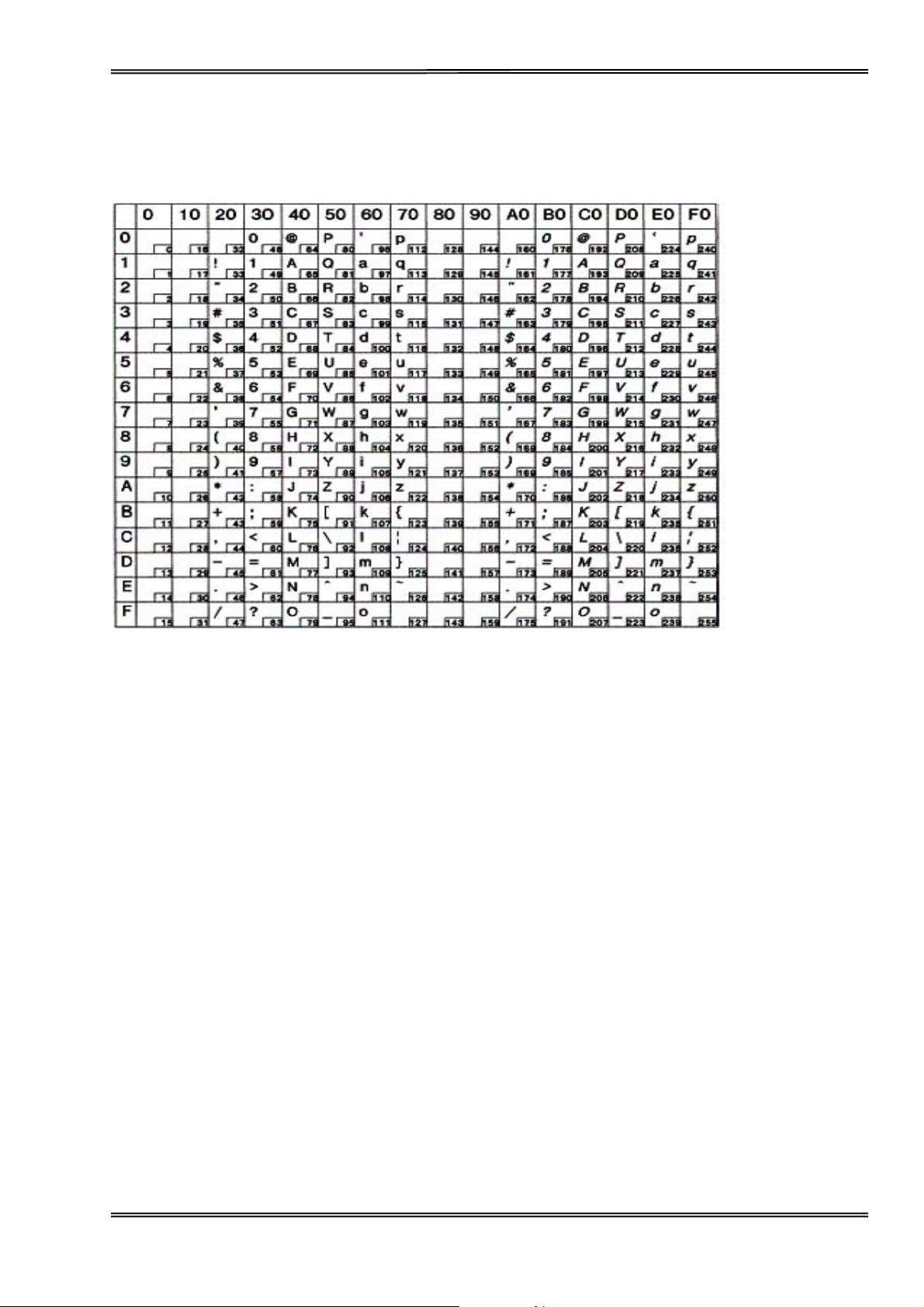

Character Tables

Italic

52

Tally Dascom 1325

Graphic 1

Graphic 2

53

Tally Dascom 1325

Code Page Commands

Code Page ESC R Parameter

CRO-ASCII

Arabic Farsi

Arabic Urdo

Greek DEC

Greek ELOT 928

CP437 Latin US

CP737 Greek

CP850 Latin 1

CP851 Greek

CP852 Latin 2

CP857 Turkish

CP858 (IBM with €)

CP860 Portugal

CP861 Icelandic

CP863 French Canada

CP864 Arabic

CP864 Arab. Extended

CP865 Nordic

CP866 Cyrillic

CP866 Bulgaria

Siemens Turkish

DEC Turkish

CP1250 Win Latin 2

CP1251 Win Cyrillic

CP1252 Win Latin 1

CP1253 Win Greek

CP1254 Win Turkish

8859-1 Latin 1

8859-1 Latin 1 (SAP)

8859-2 Latin 2

8859-5 Cyrillic

8859-7 Greek

8859-9 Turkish

8859-15 Latin 9 (Euro)

BRASCII

Abicomp

Roman 8

3C

96
97
46

6C

80
93
82
88

87
8D
9E

84

94

85
8C

95

86
8E
9D
9B
9C

70

71

72

73

74

25
2B

26
2A
2D
2E

2F
6D
6E
4D

54

Tally Dascom 1325

Coax/Twinax(Hebrew)

New-437 (Hebrew)

New-DIG 850 (Hebr.)

Old-Code 860 (Hebr.)

Flarro 863 (Hebrew)

Table 865 (Hebrew)

CP775 Baltic

CP1257 Baltic

Mazovia (Poland)

Kamenicky (Czech)

CP866 Ukraine

CP866 Kazakhstan

4F

81

83

98

99
9A
A6

77

92

91

8F

90

55

Tally Dascom 1325

Code Page Tables

CP 437 (US)

CP 737 Greek

56

Tally Dascom 1325

CP 850 (Multilingual)

CP 851

57

Tally Dascom 1325

CP 852 (Eastern Europe)

CP 857 (Turkish)

58

Tally Dascom 1325

CP 858

CP 860 (Portugal)

59

Tally Dascom 1325

CP 861 (Iceland)

CP 863 (French-Canadian)

60

Tally Dascom 1325

CP 864 Arabic

CP 864 Arabic Extended

61

Tally Dascom 1325

CP 865 (Norway)

CP 866 (Cyrillic)

62

Tally Dascom 1325

CP 866 Bulgaria

CP 1250 Win Latin 2

63

Tally Dascom 1325

CP 1251 Win Cyrillic

CP 1252 Win Latin 1

64

Tally Dascom 1325

CP 1253 Win Greek

CP 1254 Win Turkish

65

Tally Dascom 1325

8859-1 Latin 1

8859-1 Latin 1 (SAP)

66

Tally Dascom 1325

ISO 8859-2 (ISO Latin 2)

ISO 8859-5 Cyrillic

67

Tally Dascom 1325

ISO 8859-7 (Latin/Greek)

ISO 8859-9 (Turkish)

68

Tally Dascom 1325

ISO 8859-15 Euro (Code Page 923)

BRASCII

69

Tally Dascom 1325

Abicomp

Roman 8

70

Tally Dascom 1325

Coax/Twinax (Hebrew)

New-437 (Hebrew)

71

Tally Dascom 1325

New-Dig 850 (Hebrew)

Old-Code 860 (Hebrew)

72

Tally Dascom 1325

Flarro 863 (Hebrew)

865 Hebrew

73

Tally Dascom 1325

CP 1257

866 Ukraine

74

Tally Dascom 1325

866 Kazakhstan

Kamenicky

75

Tally Dascom 1325

Mazovia

CP 775

76

Tally Dascom 1325

CRO-ASCII

Arabic Farsi

77

Tally Dascom 1325

Arabic Urdo

Greek DEC

78

Tally Dascom 1325

Greek ELOT 928

79

Tally Dascom 1325

11 Control Codes Summary

Epson Emulation Command List

Command Sequence Function

BEL Beeper
BS Backspace
HT Tab horizontally
LF Line feed
VT Tab vertically
FF Form feed
CR Carriage return
SO Select double-width printing (one line)
SI Select condensed mode
DC1 Online
DC2 Cancel condensed mode
DC3 Offline
DC4 Cancel double-wide mode(one line)
CAN Cancel line
DEL Delete character
ESC SO Select double-width printing (one line)
ESC SI Select condensed mode
ESC SP n Set intercharacter space
ESC EM n NA
ESC ! n Print mode setup
ESC ( - n1 n2 m d1 d2 Choose character lineation
ESC $ n1 n2 Select absolute horizontal print position
ESC | n Set left margin
ESC % n Select user-defined set
ESC & Define user-defined set
ESC ( ^ n m d1 d2… Print data in character style
ESC (G NUL d Select graphics mode
ESC * m n1 n2… Select image mode
ESC . c v h m nL nH d1 d2… Print raster graphics
ESC + n Select n/360″line spacing
ESC – n Underline on/off
ESC / n Select vertical orientation channel
ESC ( C NUL n m Set page length
ESC ( c NUL nt mt nb mb Page setup
ESC ( U NUL n Set unit
ESC 0 Set 1/8″line spacing
ESC 2 Set 1/6″line spacing
ESC 3 n Set n/180″line spacing
ESC 4 Set Italic
ESC 5 Cancel Italic
ESC 6 Enable printable characters
ESC 7 Enable upper control characters

80

Tally Dascom 1325

ESC : Copy ROM to RAM
ESC ＜
ESC > Set MSB to 1
ESC = Set MSB to 0
ESC # Cancel MSB control
ESC ？n m
ESC @ Initialize printer
ESC ＼n1 n2
ESC A n Set n/60″line spacing
ESC B…NUL Set/cancel vertical tabs
ESC C n Set page length in lines
ESC D…NUL Set/cancel horizontal tabs
ESC E Select Bold
ESC F Cancel Bold
ESC G Select double-strike mode
ESC H Cancel double-strike mode
ESC J n Perform tactic n/180″line feed
ESC K n1 n2 … Select 8 pins single-density graphics
ESC L n1 n2 … Select 8 pins double–density graphics
ESC M
ESC N n Set bottom margin
ESC O Cancel bottom margin
ESC P
ESC Q n Set right margin
ESC R n International character set
ESC S n Select superscript/subscript
ESC T Cancel superscript/subscript
ESC U n Select unidirectional/bidirectional printing mode
ESC ( V NUL n m Select absolute vertical print position
ESC W n Turn Double-wide mode on/off
ESC X n1 n2 Select font by pitch and point
ESC Y n1 n2 … Select 8 pins, high speed ,double –density graphics
ESC Z n1 n2 … Select 8 pins, high speed fourfold –density graphics
ESC a n Select justification
ESC b n Select vertical orientation channel
ESC c n m Set horizontal intercharacter space
ESC g Select 15CPI
ESC j n Perform reverse n/180″line feed
ESC k n Select typeface
ESC p n Turn proportional mode on/off
ESC q n Select character style
ESC r n Select printing colour
ESC t n Select character table
ESC (t nL nH d1 d2 d3 Assign character table
ESC ( v NUL n m Set relative vertical print position
ESC w n Turn double-high mode on/off
ESC x n Select print quality
ESC( B n1 n2 k m s v1 v2 c Barcode print

Unidirectional mode(1 line)

Reassign graphics mode

Set relative horizontal print position

Select ELITE（12CPI）

Select PICA（10CPI）

81

Tally Dascom 1325

IBM Emulation Command List

Command Sequence Function
BEL Beeper
BS Backspace
HT Tab horizontally
LF Line feed
VT Tab vertically
FF Form feed
CR Enter
SO Select double-wide mode
SI Select condensed mode
DC1 Online
DC2 Select 10CPI
DC3 Offline
DC4 Cancel double-wide mode(one line)
CAN Cancel buffer
ESC BEL Beeper
ESC BS Backspace
ESC HT Tab horizontally
ESC CR Enter
ESC LF Line feed
ESC SO Select double-wide mode
ESC SI Select condensed mode
ESC DC1 Online
ESC DC2 Select 10CPI
ESC DC3 Offline
ESC DC4 Cancel double-wide mode(one line)
ESC CAN Cancel buffer
ESC FF Form feed
ESC EM n Automatically Feed Paper mode
ESC : Set 12CPI
ESC VT Tab vertically
ESC 0 Select 1/8″line spacing
ESC 1 Select 7/72″line spacing
ESC 2 Select 1/6″line spacing or activate ESC A n command
ESC 3 n Select n/216″or 1/180″line spacing
ESC 4 Set top margin
ESC 5 n Automatic Line Feed
ESC 6 Select character set 2
ESC 7 Select character set 1
ESC = NA
ESC \ Print continuously from all character chart
ESC ^ Print single character from all character chart
ESC A n Select n/72″or n/60″line spacing
ESC B n Select Tab vertically
ESC C n Set page length in lines

82

Tally Dascom 1325

ESC C NUL n Set page length in inches
ESC D Select Tab horizontally
ESC E Select bold
ESC F Cancel bold
ESC G Select double-strike mode
ESC H Cancel double-strike mode
ESC I n Select printing mode
ESC J n Perform n/180″or n/216″single line feed
ESC K n1 n2 V1 V2 …Vn Normal density graphics
ESC L n1 n2 V1 V2 …Vn Dual-Density Bit Image Graphics (Half Speed)
ESC N n Select bottom margin
ESC O Cancel bottom margin
ESC P n Set proportional intercharacter
ESC Q n Offline
ESC R Clear tab
ESC S n Select superscript/subscript
ESC T Cancel superscript/subscript
ESC U n Select bidirectional printing on/off
ESC W n Select double-wide printing mode(continuous)
ESC X n m Set left and right margin
ESC Y n1 n2 V1 V2 …Vn Select double -density graphics
ESC Z n1 n2 V1 V2 …Vn Select fourfold -density graphics
ESC [- n1 n2 m1 m2 Select line
ESC [@ n1 n2 m1 m2 m3 m4 Select printing mode
ESC [I n1 n2 Hf Ls Hs Lf Sm NUL Hc Lc Select font and pitch
ESC [ K n1 n2 init id para1 para2 …paran Set initialization condition
ESC [ T n1 n2 n3 n4 Hc Lc Set code page
ESC [\ Set vertical unit
ESC [d Select printing quality
ESC [f n1 n2 k m s v1 v2c Set barcode parameters
ESC [g n1 n2 m Select high-density graphics printing
ESC [p n1 n2 Set barcode data
ESC ] Feed paper in reverse direction
ESC_ n Print upper-line
ESC- n Print underline
ESC d n m Move the current printing position
ESC j Stop printing
ESC r n Select printing colour
ESC * m Select graphic mode

If you need more details regarding the emulation commands, please contact us.
