Dascom 1125 User Manual

User Guide 1125 Matrix Printer

Tally Dascom 1125

Important Safety Instructions (English)

Read the following instructions thoroughly before starting up your printer.

• Never carry out maintenance or repair work yourself. Always contact a qualified service technician.

• Keep this Operator’s Manual in a place which is easily accessible at all times.

• Place the printer on a solid and even base so that it cannot fall.

• Never place the printer in the vicinity of inflammable gas or explosive substances.

• Ensure the printer is connected to a socket with the correct mains voltage.

• Always disconnect the printer from the mains before opening the device to perform maintenance work or
remedy errors.

• Do not expose the printer to high temperatures, direct sunlight or dust.

• Keep all liquids away from the printer.

• Protect the printer from shock, impact and vibration.

• Make sure that the printer and computer are switched off before connecting the data cable.

• The print head will become very hot during printing; avoid contact with the print head after printing has
finished.

• Do not perform any operation or action in any way other than those provided in this manual. When in
doubt, contact your dealer or your customer support.

I

Tally Dascom 1125

Wichtige Sicherheitshinweise (German)

Lesen Sie bitte diese Sicherheitshinweise durch, bevor sie den Drucker in Betrieb nehmen.

 Führen Sie Wartungsarbeiten und Reparaturen keinesfalls selbst aus, sondern verständigen Sie

immer einen qualifizierten Servicetechniker.

 Bewahren Sie diese Dokumentation an einem jederzeit zugänglichen Ort auf.
 Den Drucker auf stabilem und ebenem Untergrund so aufstellen, dass er nicht zu Boden fallen kann.
 Stellen Sie den Drucker keinesfalls in der Nähe von leicht entzündlichen Gasen oder explosiven

Stoffen auf.

 Den Drucker nur an eine Steckdose mit der richtigen Spannung anschließen.
 Wenn Sie den Drucker vom Netz trennen wollen, den Drucker ausschalten und immer den

Netzstecker an der Steckdose ziehen.

 Den Drucker weder hohen Temperaturen noch direktem Sonnenlicht und Staub aussetzen.
 Keine Flüssigkeiten mit dem Drucker in Berührung bringen.
 Den Drucker keinen Erschütterungen, Stößen oder Vibrationen aussetzen.
 Sicherstellen, dass der Drucker und der Computer ausgeschaltet sind, bevor das Datenkabel

angeschlossen wird.

 Der Druckkopf wird während des Druckens heiß. Vor dem Berühren deshalb einige Zeit abkühlen

lassen.

 Weichen Sie bei der Bedienung des Druckers nicht von den Anweisungen in der Dokumentation ab.

Bei Unklarheiten wenden Sie sich bitte an Ihren Händler oder Ihren Kundendienst.

II

Tally Dascom 1125

Consignes importantes de sécurité (French)

Lire attentivement les instructions suivantes avant de mettre l’imprimante en service.

 Ne jamais effectuer soi-même les travaux d’entretien et de réparations. Contacter toujours un

dépanneur qualifié.

 Placer l’imprimante sur un support stable de façon à ce qu’elle ne puisse pas tomber.
 Ne jamais placer l’imprimante à proximité de sources de gaz aisément inflammables ou de

substances explosives.

 Ne connecter l’imprimante à une prise que lorsque la tension est correcte.
 Pour déconnecter l’imprimante de l’alimentation principale, mettre l’imprimante hors tension et

toujours débrancher le connecteur secteur de la prise murale.

 Ne pas exposer l’imprimante à des températures élevées, à la lumière directe du soleil ou à la

poussière.

 Ne pas mettre l’imprimante en contact avec des liquides.
 Ne pas exposer l’imprimante à des chocs, impacts ou vibrations.
 S’assurer que l’imprimante et l’ordinateur sont hors tension avant de connecter le câble de données.
 La tête d’impression est brûlante pendant l’impression. C’est pourquoi laissez-la refroidir quelques

instants avant d’y toucher.

 N'exécutez aucune opération ni action d'une autre manière que celle indiquée dans ce manuel. En

cas de doute, veuillez contacter votre distributeur ou service après-vente.

III

Tally Dascom 1125

Indicazioni di sicurezza importanti (Italian)

Prima di mettere in funzione la stampante, leggere attentamente le seguenti indicazioni.

Non eseguire mai da sé gli interventi di manutenzione e riparazione, ma rivolgersi sempre a un tecnico di
assistenza qualificato.

 Conservare le presenti istruzioni per l’uso in un luogo sempre accessibile.
 Collocare la stampante su una superficie stabile, per evitare che cada a terra.
 Non collocare la stampante in prossimità di gas facilmente infiammabili o di sostanze esplosive.
 Collegare la stampante a una presa di corrente con tensione adeguata.
 Per scollegare la stampante dalla rete di alimentazione, spegnere la stampante e disinserire sempre il

connettore di rete dalla presa.

 Non esporre la stampante ad elevate temperature né alla luce solare diretta e alla polvere.
 Evitare il contatto della stampante con liquidi.
 Non esporre la stampante a colpi, scosse o vibrazioni.
 Verificare che la stampante e il computer siano spenti prima di collegare il cavo di trasmissione dati.
 Durante la stampa, la testina si surriscal-da notevolmente. Prima di toccarla, se necessario opportuno

quindi lasciarla raffreddare qualche istante.

 Non eseguire alcuna operazione o azione se non nella maniera descritta nel presente manuale. In

caso di dubbio, contattare il rivenditore o dalla società incaricata dell’assistenza.

IV

Tally Dascom 1125

Instrucciones de seguridad importantes (Spanish)

Lea las siguientes instrucciones con esmero antes de poner la impresora en servicio.

Nunca lleve a cabo trabajos de mantenimiento o reparación Ud. mismo, sino consulte a un técnico de servicio
calificado.

 Guarde las presentes instrucciones de servicio en un lugar de fácil acceso en cualquier momento.
 Ponga la impresora sobre un base estable de manera que no pueda caer al suelo.
 Nunca coloque la impresora en la vecindad de gases de fácil inflamabilidad o sunstancias explosivas.
 Asegure conectar la impresora sólo a un enchufe con un voltaje correcto.
 Cuando quiera desconectar la impresora de la red, apague la impresora y siempre tire la clavija de

alimentación del enchufe.

 No exponga la impresora a temperaturas altas, a la luz solar directa y al polvo.
 No ponga la impresora en contacto con fluidos.
 Nunca exponga la impresora a sacudidas, choques o vibraciones.
 Asegúrese de que la impresora y el ordenador estén apagdos antes de conectar el cable de datos.
 La cabeza de impresión se pone muy caliente durante la impresión. Por lo tanto, deje enfriarlo algún

tiempo antes de tocarla.

 No permita que se realice cualquier operación o acción de una forma diferente a lo que se señala en

el manual. En caso de duda, póngase en contacto con su comerciante o con su servicio post-venta.

V

Tally Dascom 1125

Правила по технике безопасности. (Russian)

Прочитайте, пожалуйста, инструкцию по технике безопасности перед включением в работу принтера.

 Не выполняйте технические работы и ремонт техники самостоятельно, но сообщайте о

неисправностях квалифицированным сервисным техникам.

 Данная инструкция должна быть всегда доступна каждому пользователю.
 Установите принтер на ровном и стабильном месте так, чтобы он не смог упасть на по
 Ни в коем случае не ставьте принтер вблизи легко воспламеняющихся газов и взрывчатых

веществ.

 Включайте принтер в розетку только с соответствующим напряжением.
 Если Вы хотите отключить принтер от напряжения, сначала выключите принтер сам и затем

выньте штекер из розетки.

 Берегите принтер от нагревания, от попадания на нег
 Не допускайте попадания жидкости на принтер.
 Нельзя подвергать принтер тряске, ударам и вибрации.
 Убедитесь, что принтер и компьютер выключены, только после этого соедините принтер с

компьютером.

 Печатающая головка нагревается во время работы принтера. Поэтому подождите какое-то

время, прежде чем до

 Пользуйтесь принтером так, как это написано в документации. Если у Вас возникают неясности,

обращайтесь с вопросами к Вашим продавцам или в сервисный центр.

тронуться до нее.

о прямых солнечных лучей и пыли.

л.

VI

Tally Dascom 1125

Instruções Importantes sobre Segurança (Portuguese)

Leia as instruções de segurança antes de usar a impressora.

 Consulte sempre um técnico qualificado para executar uma reparação .
 Coloque a impressora sobre uma base sólida e nivelada, para que ela não sofra quedas.
 Jamais instale a impressora nas proximidades de lugares onde haja gás inflamável ou substâncias

explosivas.

 Assegure-se de conectar a impressora à tomada elétrica com a voltagem apro-priada.
 Quando desligar a impressora da rede, desligue sempre a impressora e retire o cabo da tomada.
 Não exponha a impressora a temperaturas altas ou luz solar direta.
 Não aproxime substâncias líquidas da impressora.
 Proteja a impressora de choques, impactos e vibrações.
 Desligue a impressora e o computador antes de conectar o cabo da rede.
 A cabeça da impressora pode ficar muito quente . Portanto, espere algum tempo antes de tocá-la.
 Não faça nenhuma operação ou ação além das recomendadas neste manual. Em caso de dúvida,

contate seu revendedor ou companhia de serviço.

VII

Tally Dascom 1125

Önemli Güvenlik Talimatları (Turkish)

Lütfen, yazıcıyı işletime geçirmeden önce bu güvenlik talimatlarını bütünüyle dikkatle okuyun.

 Bakım ve tamir çalışmalarını kesinlikle ve hiçbir surette kendi başınıza yapmayın; her zaman kalifiye bir

uzman servis-teknisyenine haber verin.

 Yazıcıyı, üzerinden yere düşmesi mümkün olmayacak sabit ve düz bir zemine yerleştirin.
 Yazıcıyı kesinlikle ve hiçbir surette kolayca yanabilecek gaz veya patlayıcı maddeler içeren nesnelerin

yakınına koymayın.

 Yazıcı akım kablosunu sadece doğru gerilime sahip bir prize takın.
 Yazıcıyı şebeke ağından ayırmak istediğinizde, yazıcıyı kapatın ve ağ-fişini her zaman prizden çıkartın.
 Yazıcıyı ne yüksek ısılı ne de doğrudan güneş ışığına ve toza mâruz kalan mekânlarda bulundurun.
 Yazıcı hiçbir sıvı maddeyle temasta olmamalıdır.
 Yazıcı hiçbir sarsıntıya, darbeye veya titreşime mâruz kalmamalıdır.
 Veri kablosu bağlanmadan önce hem yazıcının hem de bilgisayarın kapalı olduklarından emin

olmalısınız.

 Yazıcının başı basma esnasında yüksek ısıya ulaşıyor. Bu yüzden lütfen dokunmadan önce kısa süre

soğumasını bekleyin.

 Yazıcının işletimi ve kullanımında bu dokümantasyondaki talimatların hiç dışına çıkmayın. Sorunlu

görünen hususlarda lütfen imâlatçınıza veya müşteri hizmetleri servisinize başvurun.

VIII

Tally Dascom 1125

TRADEMARK ACKNOWLEDGEMENTS

“IBM” is a trademark of International Business Machines Corporation.
“EPSON” is a trademark of Epson America Incorporated.
“DEC” is a trademark of Digital Equipment Corporation.
“Centronics” is a trademark of Centronics Data Computer Corporation.
“DOS” is a trademark of Microsoft Corporation.
“SAP” is a trademark of SAP AG.
“Windows”, “Windows 7”, “Windows 95”, “Windows 98“, “Windows NT”, “Windows 2000”, “Windows
2003/2008 Server”, “Windows XP” and “Windows Vista” are trademarks of Microsoft Corporation.
All other product names and company names appearing in this manual are the registered trademarks or
trademarks of the individual companies.

IX

Tally Dascom 1125

X

Tally Dascom 1125

TABLE OF CONTENTS

1 UNPACKING GUIDE ........................................................................................................................................ 1

PLACING THE PRINTER .......................................................................................................................................... 2

PRINTER COMPONENTS ........................................................................................................................................ 2

2 SETTING UP PRINTER .................................................................................................................................... 4

INSTALL RIBBON .................................................................................................................................................. 4

INSTA LL THE SINGLE SHEET FEEDER ....................................................................................................................... 5

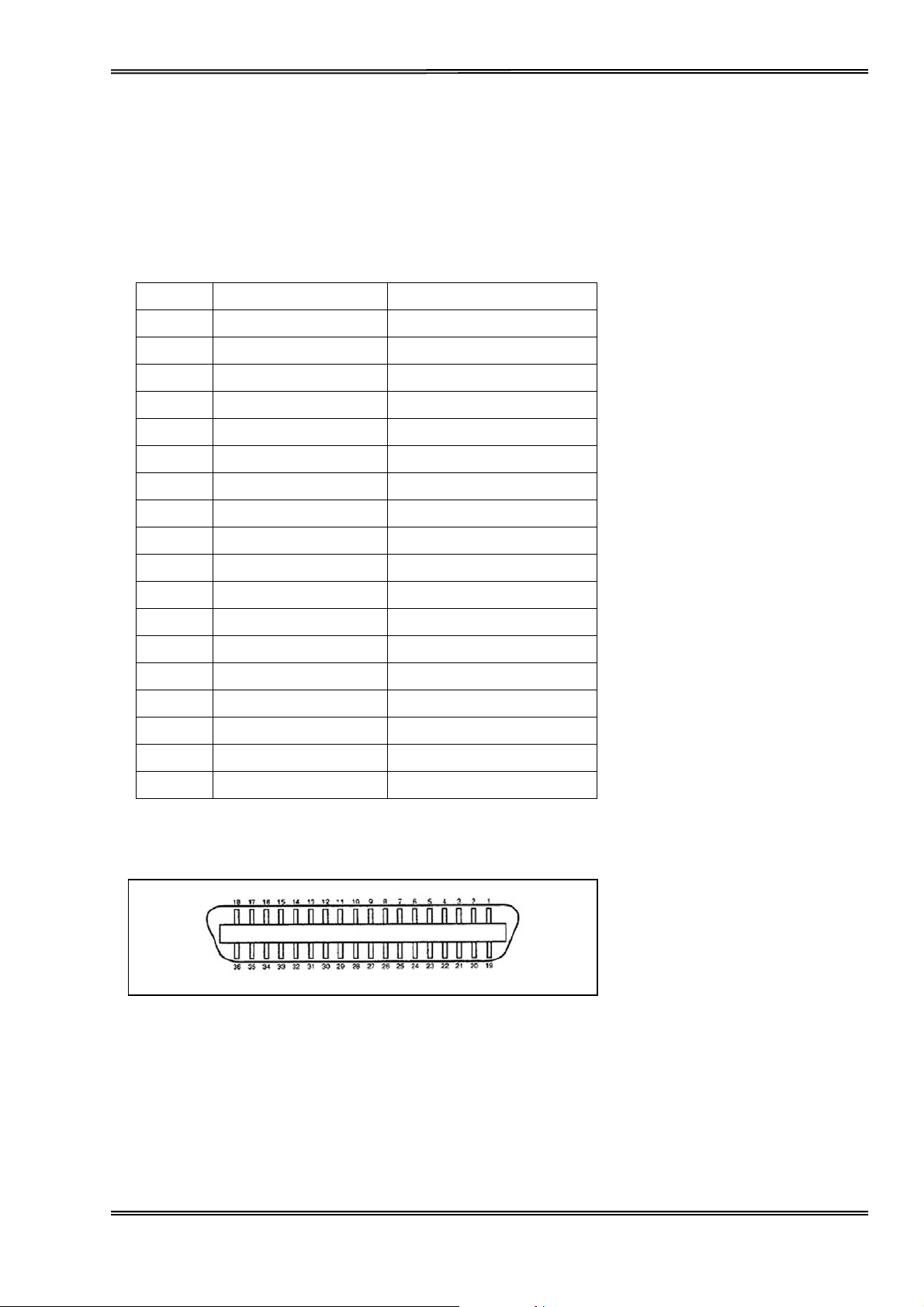

CONNECTING THE INTERFACE CABLE ...................................................................................................................... 5

CONNECTING THE MAINS POWER .......................................................................................................................... 6

INSTALLING THE WINDOWS DRIVER ........................................................................................................................ 7

3 PAPER INSTALLATION GUIDE ..................................................................................................................... 10

ADJUSTING THE PRINT GAP LEVER ....................................................................................................................... 10

FRICTION FEED HANDLING .................................................................................................................................. 1 1

TRACTOR FEED HANDLING .................................................................................................................................. 12

CONTINUOUS PAPER PLACEMENT ........................................................................................................................ 12

4 CONTROL PANEL OPERATION .................................................................................................................... 14

PANEL OPERATION ............................................................................................................................................. 16

Online State ............................................................................................................................................................ 17

Setup State ............................................................................................................................................................. 18

Power-On State ...................................................................................................................................................... 19

LANGUAGE SETUP .............................................................................................................................................. 20

5 PRINTER SETTING CHANGES ..................................................................................................................... 21

SYSTEM SETUP .................................................................................................................................................. 21

PRINT SETUP ..................................................................................................................................................... 21

PAGE SETUP ...................................................................................................................................................... 23

INTERFACE SETUP .............................................................................................................................................. 24

ADVANCED SETUP .............................................................................................................................................. 24

VERTICAL ALIGNMENT ........................................................................................................................................ 34

CHANGE PIN FUNCTION ...................................................................................................................................... 35

ADJUST PHYSICAL MARGINS ............................................................................................................................... 36

DASCOM PRINTER SETUP TOOL ........................................................................................................................... 38

6 MAINTENANCE ............................................................................................................................................. 39

CLEANING AND VACUUMING THE PRINTER ............................................................................................................. 39

CLEANING THE PAPER ROLLERS ........................................................................................................................... 39

7 TROUBLESHOOTING .................................................................................................................................... 41

PRINT QUALITY PROBLEMS AND SOLUTIONS ........................................................................................................ 41

PAPER HANDLING PROBLEMS AND SOLUTIONS ..................................................................................................... 42

OPERATING PROBLEMS AND SOLUTIONS .............................................................................................................. 42

XI

Tally Dascom 1125

ERROR INDICATIONS ON LEDS ............................................................................................................................ 43

DIAGNOSTIC FUNCTIONS .................................................................................................................................... 44

FIRMWARE UPDATE .............................................................................................................................. ............. 45

8 GENERAL SPECIFICATIONS ......................................................................................................................... 46

9 INTERFACES .................................................................................................................................................. 51

PARALLEL INTERFACE ......................................................................................................................................... 51

USB INTERFACE ................................................................................................................................................ 52

SERIAL INTERFACE ............................................................................................................................................. 52

10 CHARACTER SETS & CODE PAGES .......................................................................................................... 53

CHARACTER SETS .............................................................................................................................................. 53

INTERNATIONAL CHARACTER SETS ........................................................................................................................ 55

INTERNATIONAL CHARACTER SET COMMANDS ...................................................................................................... 55

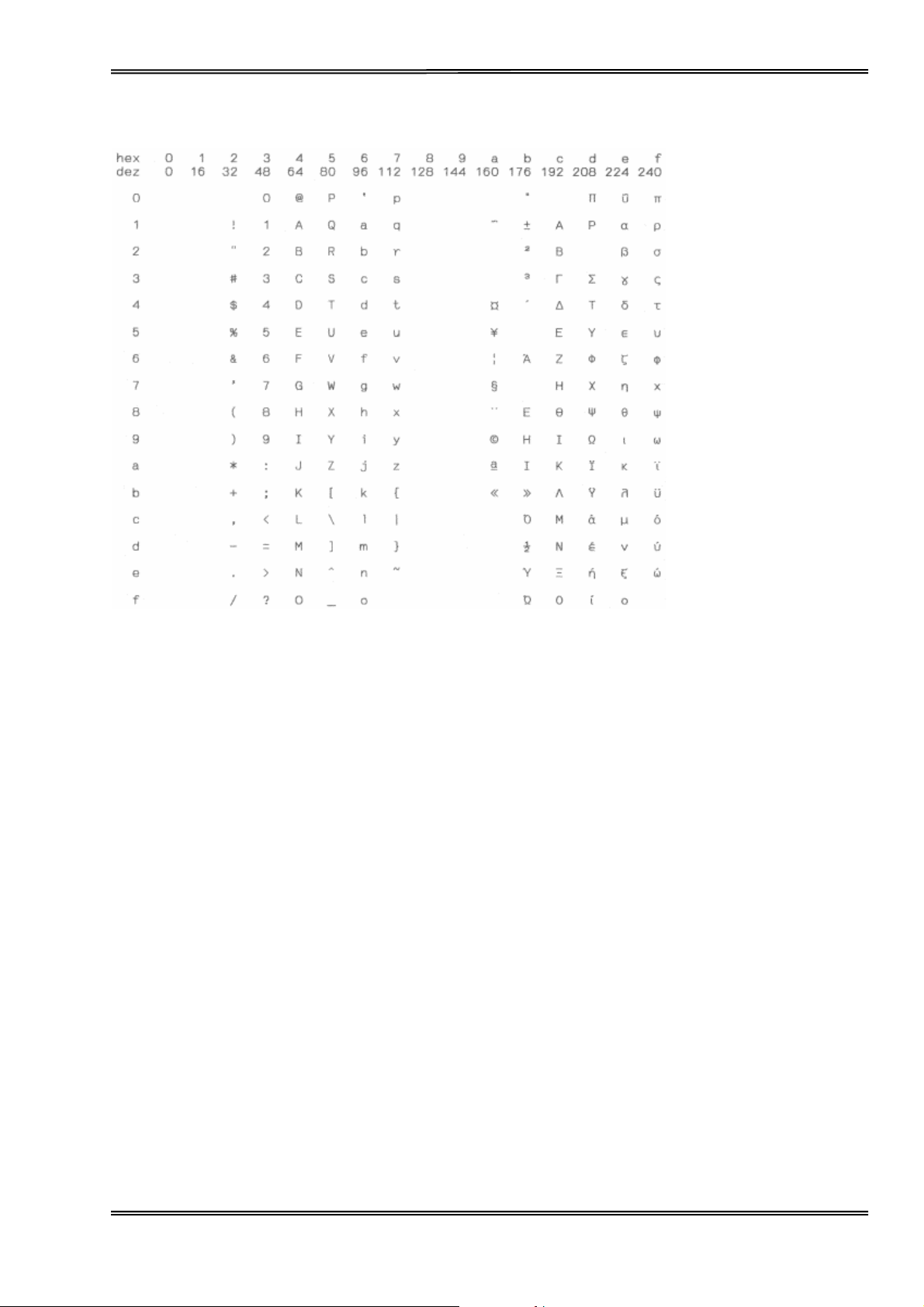

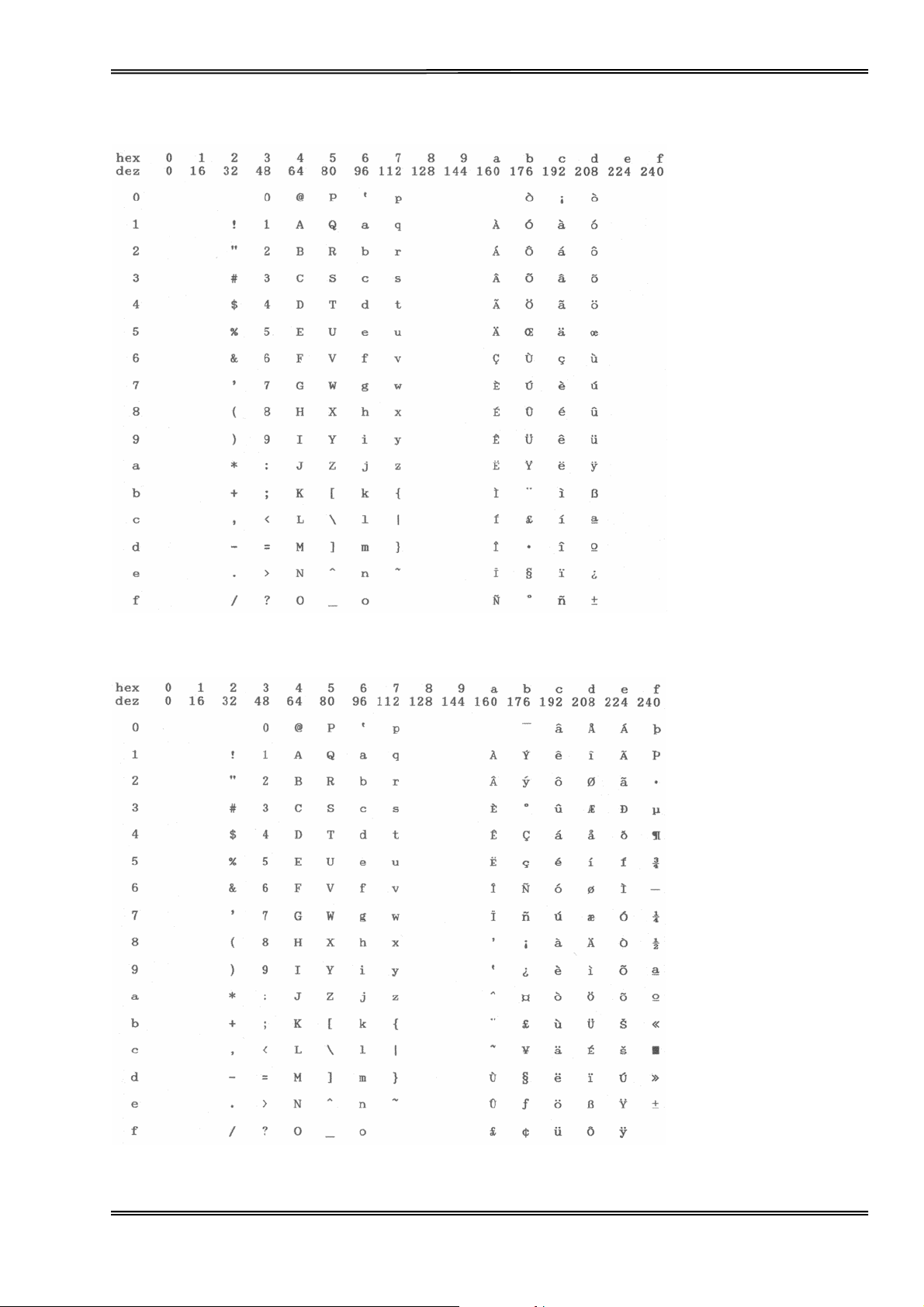

CHARACTER TABLES ........................................................................................................................................... 56

CODE PAGE COMMANDS .................................................................................................................................... 58

CODE PAGE TABLES ........................................................................................................................................... 60

11 CONTROL CODES SUMMARY ................................................................................................................... 84

EPSON EMULATION COMMAND LIST .................................................................................................................... 84

IBM EMULATION COMMAND LIST ....................................................................................................................... 86

FCC STATEMENT ............................................................................................................................................. 88

XII

Tally Dascom 1125

1 Unpacking Guide

 Place your packaged printer on a solid base.
 Make sure that the “Up” symbols point in the correct direction.
 Open the packaging, lift the printer out of the cardboard box and remove the remaining packaging

material.

 Check the printer for any visible transport damage and missing items. If you find any transport

damage or if any accessories are missing, please contact your dealer. The following items should be
included:

o Printer
o Paper feed knob
o Paper feed tray
o Power cord
o Ribbon cartridge
o CD-ROM
o Installation Guide

Remove the packaging materials from the printer as follows:

1. Remove the tape on the paper feed lever.

2. Remove other visible tape on the printer.

3. Open and remove the top cover of the printer.

4. Remove the shipping cardboard from around the print head.

5. Install the paper feed knob.

1

Tally Dascom 1125

Placing the Printer

Place the printer on a solid, flat, stable surface; ensuring that the printer is positioned in such a way that it
cannot move, and that there is easy access to the control panel and paper input devices. Also ensure that
there is enough space for sufficient ventilation and for the printed output.

When selecting the printer location, observe the following additional instructions:

 Never place the printer near to any flammable gas or explosive substances.
 Do not expose the printer to direct sunlight. If you cannot avoid placing the printer near a window, protect

it from the sunlight with a curtain.

 When connecting a computer to the printer, make sure the maximum recommended cable length is not

exceeded.

 Ensure sufficient distance between the printer and any heating devices/radiators.
 Avoid exposing the printer to extreme temperature or air humidity fluctuations. Avoid exposure to dusty

environments.

 It is recommended the printer is installed in a position which reduces noise exposure to the work place

during printing.

Printer Components

2

Tally Dascom 1125

Component Function

Gap Lever

Paper Guides
Print Head

Top Cover Protects print head and other components inside, and reduce noise.

Control Panel

Paper Feed Lever

Paper Feed Knob

Power Switch
Ribbon Cartridge

Ribbon Frame

Tractors
Power Receptacle
Interface

Controls printing impact or density.
Adjusts the print gap lever according to the thickness of paper.

Adjusts positioning of single sheet paper.
24-pin printing mechanism

Shows printer status, for printer setup.
Two positions: = continuous forms; = single sheet paper

Manual feed or vertical positioning of paper

Power printer ON or OFF
Install ribbon in the printer.

For guiding ribbon installation on print head.

For feeding and adjustment of continuous forms.
Connects power cord to the printer.
Connects interface cables from the host.

3

Tally Dascom 1125

2 Setting Up Printer

Install Ribbon

1. Ensure the power to the printer is off and the print gap lever “A” is set to the furthest open position. Move

the carriage to the centre of the print platen.

2. Install the recess positions

3. Press the ribbon frame

4. Turn the ribbon knob

right to ensure the carriage and ribbon fabric can move smoothly.

5. Ensure the print gap lever “A” is set to the original position.

6. Close the printer’s top cover. When printer is in operation, ensure the printer’s top cover is closed to keep

the noise level to a minimum.

 on the ribbon cassette into the printer mounting.

 onto the print head.

 in clockwise direction until the ribbon fabric is taut. Move the carriage left and

Notes on Ribbon Cartridge Removal:

1. Eject any paper loaded in the printer.

Turn off the printer power.

2.

Open and remove the top cover.

3.

Lift up the tear bar.

4.

5. Set the gap lever to the most open position labeled “RIBBON”.

6. Move the carriage to the middle. Be careful not to touch the print head if printing had just been performed,

as the print head may be hot.

7. Remove the blue ribbon frame from the print head.

8. Use fingers to take hold of the handle on the ribbon cartridge firmly, and lift the cartridge upwards to

unlatch it. Some force may be needed to unlatch the cartridge.

4

Tally Dascom 1125

Install the Single Sheet Feeder

Install the single sheet feeder into the rear of the printer.

Connecting the Interface Cable

The 36-pin Centronics parallel, 25-pin serial RS-232C and USB ports are located at the rear of the printer.
IMPORTANT: Make sure the printer and the computer are switched off before connecting or disconnecting
the interface cable to prevent electrical damage to the interface ports.

5

Tally Dascom 1125

Connecting the Mains Power

Checking the printer voltage

Make sure that the device has been set according to your country’s power supply voltage. To do this, check
the rating plate at the back of the printer. Contact your dealer if the setting is incorrect.

Never switch on the printer if the voltage setting is incorrect; this may result in electrical

damage to the printer.

Make sure that the power switch
“A”, located to the right side of the
printer, is in the “O” (off) position.

Connect the power cord to the
power inlet of the printer. Connect
the power cord plug to a mains
socket. Switch on the printer.

6

Tally Dascom 1125

Installing the Windows Driver

(Windows 2000/2003/2008 Server/XP/Vista/7)

1. Your printer CDROM comes with

Windows drivers. Go to the Drivers
folder and run the Installer
“DriverSetup.exe”. You will see the
screen on the right. Click “Next” to
continue.

2. A list of ports available on your

system will be displayed as shown
on the right. Choose the desired
port to use. Click “Next” to
continue.

3. Select the desired printer model

as shown on the right. Click
“Next” to continue.

7

Tally Dascom 1125

4. Here you can choose whether to

set the driver as the system
default driver, and whether you
want to print the Test Page after
installation is completed. If the
driver had been installed before,
it would be listed in the white box
on the right. Select the listed
driver (if any) if you want to
replace it; otherwise a copy of
the driver will be installed. Click
“Next” to continue.

5. Click “Finish” to start the

installation process.

6. If the driver is not yet Microsoft

Certified, the message on the right
would appear. Click “Continue
Anyway”. (As we continue to
expand our product portfolio, not
all of our drivers may be certified
yet. Please check our website
www.dascom.com for the latest
certified drivers.)

8

Tally Dascom 1125

7. Installation in progress.

8. After installation is completed

successfully, you will see the
message on the right.

9

Tally Dascom 1125

3 Paper Installation Guide

The printer can handle either single sheets or continuous forms. Single sheets, also called cut sheets, include
envelopes and non-continuous, multipart forms. Continuous forms include labels and multipart forms fed into
the printer using the forms tractors. The printer is able to print 1~5 plies multipart paper.

Do not load paper that has been folded or is damaged, wrinkled, or curled.

Adjusting the Print Gap Lever

The print gap lever is on the left side of the printer inside the top cover. Take care to adjust the print gap lever
to a suitable position whenever you change the number of copies being printed. Using the wrong print gap
may cause print head damage or paper jams.

2

Paper type Weight (g/m

Single sheet

2-ply
3-ply
4-ply
5-ply

Change ribbon --- Above 0.45

52～100 0.06～0.12

40～52 0.12～0.14
40～52 0.17～0.22
40～52 0.23～0.27
40～52 0.28～0.33

) / ply Thickness (mm) Gap lever position

10

1P～2P

3P～4P

5P

Tally Dascom 1125

There are 2 paper feed modes: friction feed and tractor feed.

Friction Feed Handling

1. Move the paper-feed lever forward to “ ” for friction feed mode.

2. Adjust the print gap lever if necessary.

3. Raise the single sheet feeder until it locks into its mounting. Align the left paper guide with the mark on the

left of the single sheet feeder. Adjust the right paper guide to the width of the paper used.

4. Insert a sheet of paper. Make sure that the bottom edge of the paper engages snugly with the platen.

5. The paper should advance automatically to the print position. The printer is now ready to print in the online

state.

11

Tally Dascom 1125

Tractor Feed Handling

1. Move the paper-feed lever backward to “ ” for continuous paper position.

2. Adjust the print gap lever if necessary.

3. Raise the tractor doors and fit the first 3 paper holes onto the left tractor pins. Close the left tractor door. In

the same way, install the paper on the right tractor.

4. Adjust the right tractor to the width of the paper until the paper is flat. Do not stretch the paper too taut.

Push the right lock lever down to secure the right tractor in place.

5. Press the【Load/Eject】key to load the paper to the starting print position. The printer is now ready to print

in the online state.

12

Tally Dascom 1125

Continuous Paper Placement

1. Place the printer on a solid base. The minimum suitable height of the solid base is 75 cm.

2. Left and right positioning: The direction of continuous paper should be parallel with the paper guide. The

tolerance should be less than 3 cm.

3. Front and back positioning: The distance between the rear of printer and the wall should be more than 60

cm. To avoid paper jam, the distance between the continuous paper and the edge of desk should be
10~15 cm.

13

Tally Dascom 1125

4 Control Panel Operation

There are 4 switches S1~S4 and 4 LEDs L1~L4. The meaning and application of each switch and LED are
described below.

LED Indicators

“Power/Paper Out” LED:
On: Power on
Flashing: Paper out
Flashing + buzzer: Paper jam

“Online” LED:
On: The printer is in online state and ready to receive data from the computer.
Off: The printer is in offline state and cannot receive data.
Flashing: The printer is in setup state and cannot receive data.

“Tear Off” LEDs:
Flashing: Indicates continuous paper is at tear-off position; otherwise it indicates the selected font.

Control Panel Keys

“Online” Key:
This key switches the printer between online and offline states. Printing is stopped when the printer is
switched to offline state. When printer is switched to online state again, printing will resume.
When printer is offline, pressing it for 3 seconds or longer will enter the setup state. This is indicated by a
beep sound and the flashing Online LED. By pressing the Online key again will exit the setup state back
to offline state.

“Load/Eject” Key:
When paper is loaded, pressing this key will eject the paper (single sheet mode) or park the paper
(continuous paper mode). When paper is not loaded, pressing this key will load the paper to the starting
print position. In the setup state, this key performs a forward micro feed.

14

Tally Dascom 1125

“LF/FF” Key:
Pressing this key will feed paper one line forward. By holding down this key, the printer will initially feed a
few lines, then perform a form feed (continuous paper mode) or eject the form (single sheet mode). In
the setup state, this key performs a reverse micro feed.

“Tear Off” Key:
When online, this key will move any loaded continuous paper to the tear-off position. When in setup state,
this key is used to select the desired font.

Table 4.1

Font Selection Label L1 State L2 State

Draft Off Off
Draft Condensed Off Flash
Roman Off On
Sans Serif On Off
Courier On Flash
Prestige On On
Script Flash Off
Others (see Menu setting) Flash ON
Tear Off Flash Flash

Table 4.2

Switch Top Label Bottom Label

S1 Tear Off Font
S2 LF/FF Micro Feed

S3 Load/Eject Micro Feed
S4 Online 3sec

Table 4.3

LED Label

L3 Power/Paper Out
L4 Online

15

Tally Dascom 1125

Panel Operation

There are 3 states of operation: Online, Setup and Power On.

In the Online state, the keys provide the following functions: Go to Tear Off position, Line Feed/Form feed,
Load/Eject, clear buffer and switch to offline state for access to Setup state.

In the Setup state, the keys provide font selection and micro feed functions.

To enter the Power On state, the user holds down a key or a combination of keys while powering up the
printer. This state provides the following functions: Language Setup, Main Menu setup, Hex-dump, print Main
Menu, access Service Menu, adjust page margins, restore factory defaults, and firmware update.

The followings describe the 3 states in details.

Legend:
[A] = press and hold switch A
{B} = press and then release switch B
[A]+ {B} = press switch B while holding A

16

Tally Dascom 1125

Online State

Function Name

Switch

Operation

LED Function Description

This is valid for tractor mode only. It feeds the form to the
tear-off position. After tearing off the form, printing starts

Tear Off {S1} L1, L2 flash

LF {S2}

FF [S2] -

Load/Eject {S3} -

Setup state [S4] > 3 secs L4 Toggles to Setup state. Indicated by flashing L4.
Clear Buffer [S4]+{S1} - Clears the print buffer and beeps once when completed.

-

on the next TOF by:

 pressing S1 once, or
 receiving print data from the host.

Feeds a line with every press of S2.

By holding S2, the printer initially feeds a few lines; then
feeds the form to the next TOF for rear tractor or ejects
the form for cut sheets.
 Load: Automatically loads the paper (according to path

selection) when no paper is on the platen.

 Eject: For rear tractor, it retracts the form from the

platen to allow users to install cut sheets. (NOTE:
Users have to toggle the path selection lever.)
For cut sheets, it ejects the form on the platen.

Reset

[S4]+[S1] for
longer time

-

Initializes the printer to the factory default settings. Beeps
3 times when completed.

17

Tally Dascom 1125

Setup State

Function Name

Online state {S4} L4

Micro Up {S3} - Feeds up in 1/360” steps until the release of S3.
Micro Down {S2} - Feeds down in 1/360” steps until the release of S2.

Font Select {S1} L1, L2

Switch

Operation

LED Function Description

Toggling to the Online state will cause the printer to go into a
ready-to-print state. Any changes made in Setup state will be
saved permanently. Lighting up L4 indicates the Online state.

Refer to Table 4.1 for details.

18

Tally Dascom 1125

Power-On State

Function

Name

Status Page /
Self Test

Hex Dump [S3] L4

Firmware
Update

Switch

Operation

[S4] -

[S1]+[S2]+
[S3]+[S4]

L1, L2,
L3, L4

LED Function Description

Prints the printer settings and self-test pattern.
Pressing S1 can change the font.
Beeps once to indicate going into hex dump mode:

 Prints data from host in hexadecimal representation.
 Lights up L4.
 Pressing S4 suspends the printing.
 When the hex dump has finished, pressing S4 forces the

printing of the last line of data, as any line termination
control code from host has no function.

 Pressing S1 can change the font.
 Switch off the power to terminate the hex dump.
 Alternate flashing of L3 and L4 indicates printer is ready

for firmware update. L1 and L2 are ON and OFF
respectively.

 When new firmware is being received, L3 and L4 are set

to ON. L1 flashes a few times and then sets to ON. L2
flashing indicates downloading in progress.

 When downloading is completed, the carriage returns to

home position. Printer initializes normally.

19

Tally Dascom 1125

Adjust Physical
Margins

Service Menu [S1]+[S2]

Restore Factory
Defaults

Menu Setup /
EDS

Language
Setup

[S3]+[S4]

[S2]+[S3]+[S4]

[S1]

[S2]+[S3]

L1, L2,
L3, L4

L1, L2,
L3, L4

 Flashing of L3.
 Lights up L4.and L3.
 Lights up L1 or L2 according to current fonts.
 Includes Adjust Fanfold Top Margin, Adjust Single Top

Margin, Adjust Fanfold Left Margin, Adjust Single Left
Margin and Adjust Tear-Off position

 Flashing of L3.
 Lights up L4.and L3.
 Lights up L1 or L2 according to current fonts.
 Functions are: Vertical Alignment, Change Pin, and

Endless Self-Test.

 Flashing of L3 then extinguish.
 Lights up L4.
 Lights up L1 or L2 according to current fonts.
 Restore Factory Defaults parameters except Change Pin,

Vertical Alignment and Adjust Page Margin Parameters
Allows for Main Menu setting changes. Please read the
instructions printed on how to change settings when this
mode is activated. (EDS: Electronic DIP Switch)
Allows user to select one of the following languages:
English, German, Russian, Italian, French, Spanish and
Turkish. Factory default is English. Refer to Language Setup
section below for details.

Language Setup

The panel menu can display the following languages: English, German, Russian, Italian, French, Spanish and
Turkish. Factory default setting is English. To change it to another language, hold down the [LF/FF] and
[Load/Eject] keys on the panel and power-on. Upon exiting the Language Setup Menu, a listing of the current
configuration is printed, and this is followed by Main Menu Setup.

Below is an example of changing from English to German language:

20

Tally Dascom 1125

5 Printer Setting Changes

To meet your own print requirements, the printer configurations may be changed as follows: Hold down the
Tear Off key while powering on the printer, release the Tear Off key when the print head starts to move. The
printer will print out the current settings and then enter Main Menu setup state. Follow the instructions
printed on how to make setting changes. When a new setting is saved, it is retained after the printer has been
powered off.

The Main Menu is grouped into 5 sub-menus: System Setup, Page Setup, Print Setup, Interface Setup and
Advanced Setup. A detailed description of the sub-menus is given below. The settings in bold and italic refer
to the default settings.

German, Russian, Italian, French, Spanish and Turkish.

System Setup

System

Setup

Emulation

Auto CR
(IBM)
Auto LF

Print Dir

Top Print
Dir
Impact
IBM AGM

ESC/P2, IBM 2390
Plus

Yes, No

Yes, No

Bi-Dir, Uni-Dir,
Auto

Bi-Dir, Uni-Dir

Normal, Heavy

Yes, No

The settings below are provided in the following order of languages: English,

Valid Settings Function

Selects the printer emulation. This should be the same as the host
printer driver.
Yes: LF = LF+CR; No: LF = LF
(Applies to IBM emulation only)
Yes: CR = CR+LF; No: CR = CR
Auto: Text & graphics in bi-direction; double height in uni-direction.
Uni-Dir: Prints everything in uni-direction. Bi-dir: Prints everything in
bi-direction. Note: Top position print direction may be affected by Top
Print Dir setting.
Bi-dir: Prints top position according to Print Dir setting. Uni-dir: Prints
top position in uni-direction regardless of Print Dir setting.
Heavy: Higher impact force for multipart printing
Selects the IBM graphic mode. Applies to IBM emulation only

Print Setup

Print Setup Valid Settings Function

The setting here will only be

Font (Others)

Pitch

Zero

OCR-B, OCR-A, ORATOR, GOTHIC, SOUVENIR

10cpi, 12cpi, 15cpi, 17cpi, 20cpi, PS

0,Ø

21

active when “Font” is set to
“Others” on control panel,

Controls the characters per
inch setting.

Selects slashed or no-slash
zero.

Tally Dascom 1125

HS-Draft

Graphic
Speed

IBM Set 1/2

Int'l Char Set

Code Page

On, Off

Normal, Fast, Ultra

Set 1, Set 2

USA, France, Germany, UK, Denmark, Sweden, Italy,

Spain, Japan, Norway, Denmark II, Spain II, Latin AM,
Korea, Legal

1. CP 437

2. CP 737

3. CP 850

4. CP 851

5. CP 852

6. CP 857

7. CP 858

8. CP 860

9. CP 861

10. CP 863

11. CP 864

12. CP 864 Extended

13. CP 865

14. CP 866 Cyrillic

15. CP 866 Bulgaria

16. CP 1250

17. CP 1251

18. CP 1252

19. CP 1253

20. CP 1254

21. 8859-1

22. 8859-1 (SAP)

23. 8859-2

24. 8859-5

25. 8859-7

26. 8859-9

27. 8859-15

28. BRASCII

29. Abicomp

On: Prints High Speed Draft
when Draft font is selected.

When printing 180x180 DPI
graphics: Normal – prints in
180x180 DPI, Fast – prints in
90x180 DPI, Ultra – prints in
60x180 DPI.
Selects the IBM character
set. 1: Normal; 2: Extended

14+1 international character
set selections.

National code page
selections.

22

Tally Dascom 1125

30. Roman8

31. Coax/Twinax

32. New-437

33. New-Dig 850

34. Old-Code 860

35. Flarro 863

36. 865 Hebrew

37. CP 1257

38. 866 Ukraine

39. 866 Kazakhstan

40. Kamenicky

41. Mazovia

42. CP 775

43. CRO-ASCII

44. Arabic Farsi

45. Arabic Urdo

46. Greek DEC

47. Greek ELOT 928

Character
Table

Graphic Table, Italic Table

Character table type
selection.

Page Setup

Page Setup Valid Settings Function

Line Per Inch

Fanfold Form Length

Fanfold Top Margin

Fanfold Bottom
Margin

Single Form Length

Single Top Margin

Single Bottom
Margin

Roll Paper

Perforation Skip

1, 2, 3, 4, 5, 6, 7, 8
3",3.5",11/3", 4", 5", 5.5" 6",7",8",

8.5",11", 70/6", 12", 14", 17"

0/60" … 10/60"…99/60"

0/60"…10/60"...30/60"

3", 3.5", 11/3", 4", 5", 5.5", 6", 7",
8", 8.5", 11", 70/6", 12", 14", 17"

0/60" … 10/60"…99/60"

0/60"…10/60"...30/60"

Yes, No

Yes, No

Sets the line spacing

Sets the page length for tractor mode

Sets the top margin for tractor mode. Due to
mechanical tolerance, 0/60” is not guaranteed.
Sets the bottom margin for tractor mode. Due
to mechanical tolerance, 0/60” is not
guaranteed.

Sets the page length for friction mode

Sets the top margin for friction mode. Due to
mechanical tolerance, 0/60” is not guaranteed.
Sets the bottom margin for friction mode. Due
to mechanical tolerance, 0/60” is not
guaranteed.
In friction mode, [LF/FF] will not eject the paper
and feed to next page. (Assume roll paper)
Skips printing on perforation area

23

Tally Dascom 1125

Auto Tear

Manual, 0.5s, 1s, 2s, 3s, 4s, 5s
View1s, View2s, View3s

Interface Setup

Specifies the waiting time before feeding the
page to tear-off position automatically. Manual:
Auto tear mode is off. View1s, View2s, View3s:
After printing is completed, the printer will feed
the paper until the last printed line is at the
tear-off position. (Applies to tractor mode only)

Interface

Setup

Interface

RAM Usage
I-PRIME
Protocol
Data
Length
Stop Bit
Parity

Baud Rate
Auto IF
Delay

CX Bid

Valid Settings Function

Auto, Parallel, USB,
Serial

User Font, Buffer
Yes, No
Xon/Xoff, DTR

8, 7

1, 2
None, Odd, Even

9600, 19200, 38400,
300, 600, 1200, 2400,
4800

10s, 30s

Yes, No

For multi-host connection. Auto: First come first served;
Parallel/USB/Serial: Serves the designated host only.
User Font: Part of RAM is used for user download characters;
Buffer: Disables user character download function; uses RAM for
expanded buffer size up to 68KB.
Yes: Host I-Prime signal resets the printer.
Serial RS-232C communication protocol selection.

Number of data bits per data byte selection.

Number of stop bits per data byte selection.
Selects the parity check mode.

Selects the baud rate (transmission speed).

Determines the waiting time before receiving data from another
interface.
Yes: Sets the parallel interface of the printer to bidirectional
mode (IEEE 1284, Nibble mode), e.g. for Windows Plug & Play.
No: Sets the interface to compatibility mode in order to ensure
reliable operation with special external boxes.

Advanced Setup

Advanced Setup Valid Settings Function

Specifies the waiting time before loading a cut

Auto Load

Paper Jam
Prevention

Paper End Detect

Manual, 0.5s, 1s, 1.5s, 2s

Yes, No

Yes, No

sheet automatically. Manual: Auto load mode is
off. (Applies to friction mode only.)
Flattens paper edges by carriage movement
before printing starts.

Yes: Detects paper out and halts printing;
otherwise, ignores paper out and continues

24

Tally Dascom 1125

printing.

Form Length Ctrl
Pitch Ctrl
Font Ctrl
Quality Ctrl
Buzzer

German (Deutsch)

System Setup Valid Settings

Emulation
Auto CR (IBM)
Auto LF
Druck Dir
Top Druck Dir
Anschlag
IBM AGM

Druck Setup Valid Settings

Software, Ignore
Software, Ignore
Software, Ignore
Software, Ignore
Yes, No

Ignore: Ignores form length commands
Ignore: Ignores CPI commands
Ignore: Ignores font select commands
Ignore: Ignores print quality commands
Yes: Sounds buzzer on all hardware errors

ESC/P2, IBM 2390 Plus
Ja, Nein
Ja, Nein

Bi-Dir, Uni-Dir, Auto
Bi-Dir, Uni-Dir
Normal, Stark

Ja, Nein

Font (Andere)

Zeichenteilung
Null
HS-Draft

Graphikgeschw.
IBM Set ½

Land

Zeichensatz
Zeichentabelle

Seiten Setup

Zeilen Pro Zoll

Endlos Formularlänge

Endlos Oberer Rand
Endlos Unterer Rand

OCR-B,OCR-A,ORATOR,GOTHIC,SOUVENIR

10cpi, 12cpi, 15cpi, 17cpi, 20cpi, PS
0,Ø
An, Aus

Normal, Schnell, Ultra
Set 1, Set 2

USA, Frankreich, Deutschland, UK, Dänemark, Schweden,

Italien, Spanien, Japan, Norwegen, Dänemark II, Spanien II,
Latein-Amerika, Korea, Legal

CP 437, CP 857…
Graphik, Italic

Valid Settings

1, 2, 3, 4, 5, 6, 7, 8

3",3.5",11/3", 4", 5", 5.5" 6",7",8", 8.5",11", 70/6", 12", 14", 17"

0/60" … 10/60"…99/60"
0/60"…10/60"...30/60"

Einzel Formularlänge

Einzel Oberer Rand
Einzel Unterer Rand
Rollenpapier

3", 3.5", 11/3", 4", 5", 5.5", 6", 7", 8", 8.5", 11", 70/6", 12", 14", 17"

0/60" … 10/60"…99/60"
0/60"…10/60"...30/60"
Ja, Nein

25

Tally Dascom 1125

Perforationssprung
Abreissen

Schnittstellen Setup Valid Settings

Schnittstelle
I-PRIME
Protokoll

Datenlänge
Stopp Bit
Parity

Ja, Nein

Manuell, 0.5s, 1s, 2s, 3s, 4s, 5s, view1s, view 2s, view 3s

Auto, Parallel, USB, Serial
Ja, Nein
Xon/Xoff, DTR

8, 7
1, 2
None, Odd, Even

Baud Rate

Auto IF Delay
RAM Nutzung
CX Bid

Erweitertes Setup

Auto Laden
Papierstau Vorbeugung

Papierende Detekt
Formularlänge Strg

Zeichenteilung Strg
Font Strg
Qualität Strg
Summer

Russian (Россия)

Системные установки Valid Settings

Эмуляция
Авто CR (IBM)
Авто LF
Направление печати
Направление печати загл. букв
Удар

IBM AGM

9600, 19200, 38400, 300, 600, 1200, 2400, 4800

10s, 30s
Ladbarer Font, Puffer
Ja, Nein

Valid Settings

Manuell, 0.5s, 1s, 1.5s, 2s
Ja, Nein

Ja, Nein
Software, Ignoriere

Software, Ignoriere
Software, Ignoriere
Software, Ignoriere
Ja, Nein

ESC/P2, IBM 2390 Plus

Да, Нет
Да, Нет

Двунаправленная, Однонаправленная, Авто
Двунаправленная, Однонаправленная
Нормальный, Сильный
Да, Нет

Настройка печати

Дополнительный шрифт
знаков/дюйм

Перечеркнутый ноль
Высокая скорость

Valid Settings

OCR-B,OCR-A,ORATOR,GOTHIC,SOUVENIR
10cpi, 12cpi, 15cpi, 17cpi, 20cpi, PS

0,Ø

Вкл, Выкл

26

Tally Dascom 1125

Скорость графики

Нормальная, Быстрая, Очень быстрая

Символы IBM 1/2

Набор знаков

Кодовая таблица
Таблица знаков

Параметры страницы

Строк на дюйм
Длина формы для непрерывной
бумаги
Отступ сверху для непрерывной
бумаги
Отступ снизу для непрерывной бумаги

Длина формы для отдельных листов
Отступ сверху для отдельных листов

Отступ снизу для отдельных листов
Рулонная бумага
Пропуск перфорации
Авто прогон Ручной, 0.5s, 1s, 2s, 3s, 4s, 5s, view1s, view 2s, view 3s

Уст. 1, Уст. 2

USA, France, Germany, UK, Дания, Sweden, Italy, Spain,
Japan, Норвегия, Дания II, Spain II, Латин
ская Америка, Korea, Legal

CP 437, CP 857…
Графика, Курсив

Valid Settings

1, 2, 3, 4, 5, 6, 7, 8
3",3.5",11/3", 4", 5", 5.5" 6",7",8", 8.5",11", 70/6", 12", 14", 17"

0/60" … 10/60"…99/60"
0/60"…10/60"...30/60"

3", 3.5", 11/3", 4", 5", 5.5", 6", 7", 8", 8.5", 11", 70/6", 12", 14",
17"
0/60" … 10/60"…99/60"
0/60"…10/60"...30/60"

Да, Нет
Да, Нет

Установки интерфейса

Интерфейс
Паралел. порт
Протокол RS-232

Кол-во бит
Стоп бит
Четность

Скорость передачи данных
Время ожидания

Назначение RAM

CX Bid

Дополнительные установки

Автозагрузка
Датчик движ. бумаги
Датчик конца бумаги

Valid Settings

Авто, Паралел, USB, RS-232
Да, Нет

Xon/Xoff, DTR
8, 7
1, 2

Нет, Чет, Нечет
9600, 19200, 38400, 300, 600, 1200, 2400, 4800

10s, 30s

Пользов. шрифт, Буфер
Да, Нет

Valid Settings

Ручная, 0.5s, 1s, 1.5s, 2s

Да, Нет
Да, Нет

27

Tally Dascom 1125

Контоль длины формы
Контроль знаков/дюйм

Контроль шрифта
Контроль качества
Звук

Italian (Italiano)

Menu Sistema Valid Settings

Emulazione
Auto CR (IBM)
Auto LF
Direz. Stampa
Top Print Dir
Impatto
IBM AGM

Menù Stampa Valid Settings

Fonte (Altre)

Програмный, Игнор.
Програмный, Игнор.

Програмный, Игнор.
Програмный, Игнор.
Да, Нет

ESC/P2, IBM 2390 Plus
Si, No
Si, No

Bi-Dir, Uni-Dir, Auto
Bi-Dir, Uni-Dir
Normale, Pesante

Si, No

OCR-B,OCR-A,ORATOR,GOTHIC,SOUVENIR

Spaziatura

Zero
HS-Bozza
Veloc. Grafica
IBM Set 1/2

Set Carat. Int.

Code Page
Tab.Carattere

Menù Pagina Valid Settings

Interlinea
Lungh. Mod. Continuo
Margine Sup. Continuo
Margine Inf. Continuo
Lunghezza Foglio
Margine Sup. Foglio
Margine Infer. Foglio
Rullo Carta
Salto Perforazione
Autostrappo

10cpi, 12cpi, 15cpi, 17cpi, 20cpi, PS

0,Ø
Si, No
Normale, Veloce, Ultra
Set 1, Set 2
USA, Francia, Germania, Regno Unito, Danimarca, Svezia,

Italia, Spagna, Giappone, Norvegia, Danimarca II, Spagna II,
America Latina, Korea, Legal

CP 437, CP 857…
Tab. Grafica, Italico

1, 2, 3, 4, 5, 6, 7, 8
3",3.5",11/3", 4", 5", 5.5" 6",7",8", 8.5",11", 70/6", 12", 14", 17"
0/60" … 10/60"…99/60"
0/60"…10/60"...30/60"
3", 3.5", 11/3", 4", 5", 5.5", 6", 7", 8", 8.5", 11", 70/6", 12", 14", 17"
0/60" … 10/60"…99/60"
0/60"…10/60"...30/60"
Si, No
Si, No
Manuale, 0.5s, 1s, 2s, 3s, 4s, 5s, view1s, view 2s, view 3s

28

Tally Dascom 1125

Menù Interfacc. Valid Settings

Interfaccia
I-PRIME
Protocollo
Lunghezza dati
Stop Bit
Parità
Velocità
Ritardo Auto IF

Auto, Parallela, USB, Seriale
Si, No
Xon/Xoff, DTR
8, 7
1, 2
No, Dispari, Pari
9600, 19200, 38400, 300, 600, 1200, 2400, 4800
10s, 30s

Uso RAM

CX Bid

Menù Avanzato Valid Settings

Autocaricamento

Previene Inceppamento
Rileva Fine Carta

Control. Lungh. Carta
Control. Spaziatura
Controllo Fonti

Controllo Qualità
Cicalino

French (Français)

Setup système Valid Settings

Emulation
RC-Auto (IBM)
SL-Auto
Dir Impr.
Sup. Dir Impr.
Frappe
IBM AGM

Fonti utente, Memoria

Si, No

Manuale, 0.5s, 1s, 1.5s, 2s

Si, No
Si, No

Software, Ignora
Software, Ignora
Software, Ignora

Software, Ignora
Si, No

ESC/P2, IBM 2390 Plus

Oui, Non
Oui, Non

Bidir, Unidir, Auto
Bidir, Unidir
Normal, Forte
Oui, Non

Setup impression

Polices (Autres)
Densités caract.
Zéro
HS-Draft
Vitesse graphiq.
IBM Set 1/2
Pays

Valid Settings

OCR-B,OCR-A,ORATOR,GOTHIC,SOUVENIR
10cpi, 12cpi, 15cpi, 17cpi, 20cpi, PS
0,Ø
Oui, Non
Normal, Rapide, Ultra
Set 1, Set 2
USA, France, Allemagne, Royaume-Uni, Denmark, Suède, Italie,

29

Tally Dascom 1125

Jeu de caractèr.
Tabl.de caract.

Setup page

Lignes par pouce

Espagne, Japon, Norvège, Denmark II, Espagne II, Amerique
latine, Korea, Legal

CP 437, CP 857…
Graphque, Italique

Valid Settings

1, 2, 3, 4, 5, 6, 7, 8
Papier continu Longueur formulaire
Papier continu Bord supérieure

Papier continu Bord inférieure

Feuille à feuille Longueur formulaire

Feuille à feuille Bord supérieur
Feuille à feuille Bord inférieur
Papier du rouleau
Sauter la perforation
Coupe Auto

Setup interface Valid Settings

Interface
I-PRIME

Protocole
Long. de données
Bits d’arrêt
Parité

3",3.5",11/3", 4", 5", 5.5" 6",7",8", 8.5",11", 70/6", 12", 14", 17"

0/60" … 10/60"…99/60"

0/60"…10/60"...30/60"

3", 3.5", 11/3", 4", 5", 5.5", 6", 7", 8", 8.5", 11", 70/6", 12", 14", 17"

0/60" … 10/60"…99/60"

0/60"…10/60"...30/60"

Oui, Non

Oui, Non

Manuel, 0.5s, 1s, 2s, 3s, 4s, 5s, view1s, view 2s, view 3s

Auto, Parallel, USB, Serial

Oui, Non

Xon/Xoff, DTR

8, 7

1, 2

None, Odd, Even

Vitesse baud

Auto IF Delay
Utilisation RAM
CX Bid

Setup élargi Valid Settings

Chargem. Autom.
Prévention bourrage

Détec.fin de pap
Long.formul.Strg

Densi.caract.Strg

Police Strg

Qualité Strg
Vibrateur

9600, 19200, 38400, 300, 600, 1200, 2400, 4800

10s, 30s

User Font, Buffer

Oui, Non

Manuel, 0.5s, 1s, 1.5s, 2s

Qui, Non

Qui, Non

Software, Ignorer

Software, Ignorer

Software, Ignorer

Software, Ignorer

Qui, Non

30

Tally Dascom 1125

Spanish (Español)

System Setup Valid Settings

Emulación
Auto CR(IBM)
Auto LF
ModoImpresión
ModoImp.Borde
Impacto
IBM AGM

Print Setup Valid Settings

ESC/P2, IBM 2390 Plus

Si, No

Si, No

Bi-Dir, Uni-Dir, Auto

Bi-Dir, Uni-Dir

Normal, Fuerte

Si, No

Fuente (Otros)
Tamaño Letra
Cero
Alta Velocidad
Imp. Grafica
IBM Juego 1/2

Carácter Local

Tabla Carácter
Tipo Tabla

Page Setup Valid Settings
Lineas Por Pulgada
Tamaño Papel Continuo
Margen Sup. Pap Cont.
Margen Inf. Pap.Cont.

Tamaño Hojas Sueltas

OCR-B,OCR-A,ORATOR,GOTHIC,SOUVENIR

10cpp, 12cpp, 15cpp, 17cpp, 20cpp, PS
0,Ø
Activado, Desactivado
Normal, Rápido, Ultra
Juego 1, Juego 2

USA, Francia, Alemania, Reino Unido, Dinama rca, Suecia, Italia,

España, Japón, Noruega, Dinamarca II, España II,
AméricaLatina, Corea, Legal

CP 437, CP 857…
Tabla Gráfica, Italica

1, 2, 3, 4, 5, 6, 7, 8
3",3.5",11/3", 4", 5", 5.5" 6",7",8", 8.5",11", 70/6", 12", 14", 17"
0/60" … 10/60"…99/60"
0/60"…10/60"...30/60"

3", 3.5", 11/3", 4", 5", 5.5", 6", 7", 8", 8.5", 11", 70/6", 12", 14", 17"

Margen Sup. Folios
Margen Inf. Folios
Rollo de Papel
Salto perforación

Mover a PosiciónCorte

Interface Setup Valid Settings

Interface
I-Prime

0/60" … 10/60"…99/60"
0/60"…10/60"...30/60"
Si, No
Si, No

Manual, 0.5s, 1s, 2s, 3s, 4s, 5s, view1s, view 2s, view 3s

Auto, Paralelo, USB, Serie

Si, No

31

Tally Dascom 1125

Protocolo
LongitudDatos
Bit Parada
Paridad

Xon/Xoff, DTR
8, 7
1, 2
Ninguna, Impar, Par

Tasa Baudios
Auto retraso
Uso de RAM
CX Bid

Advanced Setup Valid Settings

Auto Carga
Prevención Atascos
Detección Fin Papel
Control Tamaño Papel

Control Tamaño Letra
Control Fuente
Control Calidad

Alarma

Turkish (Türkce)

Sistem Ayarı Valid Settings

Benzetim/Emulation
Otom. Satırbaşı (IBM)
Otom. Satır besleme
Yazdırma yönü
Üstte yazdırma yönü
Vuruş
IBM AGM

Yazdırma Ayarları Valid Settings

Yazı Tipi (Diğer)

9600, 19200, 38400, 300, 600, 1200, 2400, 4800

10s, 30s
Font Usuario, Buffer
Si, No

Manual, 0.5s, 1s, 1.5s, 2s
Si, No
Si, No
Software, Ignorar
Software, Ignorar

Software, Ignorar
Software, Ignorar
Si, No

ESC/P2, IBM 2390 Plus

Evet, Hayır
Evet, Hayır

İ

ki-Yöne, Tek-Yöne, Otom.

İ

ki-Yöne, Tek-Yöne

Normal, Güçlü

Evet, Hayır

OCR-B,OCR-A,ORATOR,GOTHIC,SOUVENIR
Karakter Sıklığı

Sıfır
Yük.Hız-Taslak
Grafik Hızı
IBM Karakter Seti 1/2

Uluslararası Kar. Seti

Kod Sayfası

10cpi, 12cpi, 15cpi, 17cpi, 20cpi, PS

0,Ø

On, Off

Normal, Hızlı, Ultra

Set 1, Set 2

Amerika Bir.Devleti, Fransa, Almanya, İngiltere, Danimarka,

İsveç, İtalya, İspanya, Japonya, Norveç, Danimarka II, İspanya

II, Latin Amerika, Korea, Legal

CP 437, CP 857…

32

Tally Dascom 1125

Karakter Tablosu

Sayfa Düzeni Ayarı Valid Settings

İnç başına satır

Grafik Tablosu, İtalik

1, 2, 3, 4, 5, 6, 7, 8

Sürekli-kağıt Form Uzunluğu

Sürekli-kağıt Üst kenar boşluğu
Sürekli-kağıt Alt kenar boşluğu
Tek-kağıt Form uzunluğu
Tek-kağıt Üst kenar boşluğu
Tek-kağıt Alt kenar boşluğu
Rulo kağıt
Delik atlama
Otom. Koparma

Arabirim Ayarları Valid Settings
Arabirim
I-Prime
İletişim Kuralları
Veri Uzunluğu
Durma Biti
Eşlik

Baud Hızı

3",3.5",11/3", 4", 5", 5.5" 6",7",8", 8.5",11", 70/6", 12", 14", 17"

0/60" … 10/60"…99/60"
0/60"…10/60"...30/60"
3", 3.5", 11/3", 4", 5", 5.5", 6", 7", 8", 8.5", 11", 70/6", 12", 14", 17"
0/60" … 10/60"…99/60"
0/60"…10/60"...30/60"
Evet, Hayır
Evet, Hayır

Elle/Manuel, 0.5s, 1s, 2s, 3s, 4s, 5s, view1s, view 2s, view 3s

Otom., Paralel, USB, Seri

Evet, Hayır
Xon/Xoff, DTR
8, 7
1,2
Yok, Çift, Tek

9600, 19200, 38400, 300, 600, 1200, 2400, 4800
Otom. Arabirim gecikmesi
RAM Kullanımı
CX Bid

Geliştirilmiş Ayarlar

Otom. Yükleme
Kağıt Sıkışmasını Önleme

Kağıt Sonunu Algılama
Form Uzunl. Kont.

Karak.Sıkl. Kont.
Yazı Tipi Kont.

Kalite Kont.
Alarm Zili

10s, 30s

Kullanıcı Yazı Tipi, Arabellek

Evet, Hayır

Vali d Se t t in g s

Elle/Manuel, 0.5s, 1s, 1.5s, 2s

Evet, Hayır

Evet, Hayır

Yazılım, Yoksay

Yazılım, Yoksay

Yazılım, Yoksay

Yazılım, Yoksay

Evet, Hayır

33

Tally Dascom 1125

Vertical Alignment

The vertical alignment function is used to resolve any vertical line misalignments in bi-directional printing.

Adjust Vertical Alignment Procedure:

1. Enter the Service Menu by holding down the【Tear/Off】and【LF/FF】keys while powering up.

2. Load paper.

3. The printer will print as follows:

Service Menu

【LF/FF】= OK 【Tear/Off】= Back 【Load/Eject】= Next 【Online】= Exit

Current Setting：Vertical Alignment

4. Press【LF/FF】key to select the current setting. The printer will print as follows:

Vertical Alignment

【LF/FF】= OK 【Tear/Off】= Back 【Load/Eject】= Next 【Online】= Exit

Please select Paper Type：Single Ply

For single ply paper, press【LF/FF】key to select. For multipart paper, press 【Load/Eject】key to go
to “Multipart”，then press【LF/FF】key to select.

5. If single ply is selected for paper type, the following will print:

Single Ply

Current Print Mode: LQ

Press 【Load/Eject】key to scroll to other print modes if required.

6. If LQ is selected, the following will print:

LQ

【LF/FF】= lower ½ to left 【Load/Eject】= lower ½ to right 【Online】= Exit

LQ -2:

||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

Pressing 【LF/FF】or 【Load/Eject】 key will allow you to adjust the alignment of the vertical lines

34

Tally Dascom 1125

printed above.

7. Once the setting which gives the best alignment is found, press 【Online】 key to exit current level.

Printer will print “Save settings? Yes”. Press 【LF/FF】 key to save setting. Press 【Online】 key a few
times until the printer exits the Service Menu.

Change Pin Function

When printer has been used for a long time or the print volume is high, the frequently used print head pins
may fail. The Change Pin function enables the user to continue using the printer for a while without
compromise in print quality until a suitable print head replacement is available. This function will reduce the
print speed if activated.

Change Pin Procedure:

1. Enter the Service Menu by holding down the【Tear/Off】and【LF/FF】keys while powering up.

2. Load paper.

3. The printer will print as below:

Service Menu

【LF/FF】=OK 【Tear/Off】= Back 【Load/Eject】= Next 【Online】= Exit
Current Menu：Vertical Alignment

Press 【Load/Eject】 key to scroll to “Change Pin”，then press 【LF/FF】 key to select. The status
of each pin will be printed as follows:

Change Pin
1 ---------- Is this pin OK? Yes / No
2 ---------- Is this pin OK? Yes / No
3 ---------- Is this pin OK? Yes / No
:
24 ---------- Is this pin OK? Yes / No

Press 【Load/Eject】 key to choose whether the pin is Ye s or No，then press 【LF/FF】 key to confirm
selection.

4. When all the 24 pins are evaluated, press 【Online】. The printer will print “Save settings? Yes”. Press

【LF/FF】 key to confirm selection. Press 【Online】 key a few times until the printer exits the Service
Menu.

35

Tally Dascom 1125

Adjust Physical Margins

Adjust Page Margins allows for adjustments of physical left, top margins and tear-off position. Warning: Once
these settings are changed, resetting the printer to factory defaults will not initialize these settings back to
the original settings; so it is not advisable to perform this adjustment unless it is absolutely necessary.

Adjust Top Margin Procedure:

1. Enter the Adjust Page Margins function by holding down the【Load/Eject】and【Online】keys while

powering up until the printer beeps twice.

2. Load paper.

3. The printer will print as below:

Adjust Page Margins:

【LF/FF】=OK 【Tear/Off】= Back 【Load/Eject】= Next 【Online】= Exit

Current Setting: Adjust Fanfold Top Margin

Press【LF/FF】key to confirm selection if the paper used is fanfold type. The printer will print as
follows:

Procedure：

Install fanfold paper to tractors

【LF/FF】 = Add 【Load/Eject】 = Reduce 【Online】 = Exit

Each step is 0.5 mm

Function of keys:

【Te ar Of f】key: Decrease 0.5mm
【Load/Eject】key: Increase 0.5mm

4. Press 【LF/FF】 key, printer will print “Save settings？Ye s ”. Press 【Load/Eject】 key to choose Yes

or No，then press 【LF/FF】 key to confirm selection and exit “Adjust Page Margins” mode by
pressing 【Online】. The print head moves to the left side and the printer beeps twice, then the print
head moves to the middle position.

Adjust Left Margin Procedure:

1. Enter the Adjust Page Margins function by holding down the【Load/Eject】and【Online】keys while

powering up until the printer beeps twice.

2. Load paper.

3. The printer will print as below:

Adjust Page Margins:

【LF/FF】=OK 【Tear/Off】= Back 【Load/Eject】= Next 【Online】= Exit

Current Setting: Adjust Fanfold Top Margin

4. Press【Load/Eject】key until the current setting is “Adjust Fanfold Left Margin”. Press【LF/FF】key to

confirm selection if the paper used is fanfold type. The printer will print as follows:

Adjust Fanfold Left Margin 0

36

Tally Dascom 1125

Function of keys:

【Te ar Of f】key: Decrease 0.5mm
【Load/Eject】key: Increase 0.5mm

5. Press 【LF/FF】 key, printer will print “Save settings？Ye s ”. Press 【Load/Eject】 key to choose Yes

or No，then press 【LF/FF】 key to confirm selection and exit “Adjust Page Margins” mode by
pressing 【Online】. The print head moves to the left side and the printer beeps twice, then the print
head moves to the middle position.

Adjust Tear-Off Position Procedure:

1. Enter the Adjust Page Margins function by holding down the【Load/Eject】and【Online】keys while

powering up until the printer beeps twice.

2. Load fanfold paper.

3. The printer will print as below:

Adjust Page Margins:

【LF/FF】=OK 【Tear/Off】= Back 【Load/Eject】= Next 【Online】= Exit

Current Setting: Adjust Fanfold Top Margin

4. Press【Load/Eject】key until the current setting is “Adjust Tear-Off Position”. Press【LF/FF】key to

confirm selection. The printer will print as follows:

Procedure：

Install fanfold paper to tractors

【LF/FF】 = Add 【Load/Eject】 = Reduce 【Online】 = Exit

Each step is 0.5 mm

Function of keys:

【Te ar Of f】key: Decrease 0.5mm
【Load/Eject】key: Increase 0.5mm

5. Press 【LF/FF】 key, printer will print “Save settings？Ye s ”. Press 【Load/Eject】 key to choose Yes

or No，then press 【LF/FF】 key to confirm selection and exit “Adjust Page Margins” mode by
pressing 【Online】. The print head moves to the left side and the printer beeps twice, then the print
head moves to the middle position.

37

Tally Dascom 1125

Dascom Printer Setup Tool

In the CDROM is a software utility called “Dascom Printer Setup”. This application enables a convenient,
simple and fast way to control your printer without touching any keys on the operation panel.

1. Start the tool installation by double clicking the “Dascom Printer Setup.exe”.

2. Connect the printer to the system using USB cable

3. Power up the printer.

4. Load paper into the printer. (Note: The tool cannot get connected to the printer when the printer is

offline.)

5. Run the tool from the Windows Start menu by selecting All Programs, then Dascom Printer Setup,

and then Tally Dascom Printer Setup.

6. For more information on how to use the tool, go to the Help menu and select User Guide.

38

Tally Dascom 1125

6 Maintenance

Your printer requires very little care. Occasional cleaning and replacement of the ribbon cartridge are all that is
required. Cleaning is recommended approximately every 6 months or 300 hours of operation, whichever is
sooner. Lubrication of the printer is not usually necessary. If the print head carriage does not move smoothly
back and forth, clean the printer in the manner described in this chapter. If the problem continues, contact
your dealer to determine whether lubrication may be necessary.

Switch printer off and unplug the power cord from

the mains before doing any maintenance work.

Cleaning

The housing and the top cover of the printer help protect it against dust, dirt, and other contaminants.
However, paper produces small particles that accumulate inside the printer. This section explains how to clean
and vacuum the printer and how to clean the paper bail rollers. It is easier to clean the printer when the cover
is open.

Cleaning and Vacuuming the Printer

If the print head carriage does not move smoothly back and forth or paper particles have accumulated in the
printer, clean the printer.

To clean and vacuum the printer:

1. Remove any paper from the printer. Make sure that the power is off, and then disconnect the printer

power cord.

2. Using a soft vacuum brush, vacuum the exterior of the printer. Also vacuum the cut sheet edge.

3. Use a soft, damp cloth to wipe the exterior of the printer, including the cover. A mild detergent may be

used. Do not use solvents, kerosene, or abrasive cleaning materials that may damage the printer.

4. Open the cover of the printer and remove the ribbon cartridge. Using a soft vacuum brush, gently vacuum

the platen, the print head carriage and shaft, and surrounding areas. You can easily slide the print head to
the left or right when the power is off. Be careful not to press too hard on the flat head cable that extends
from the print head carriage.

5. Re-install the ribbon cartridge.

6. Remove the single sheet feeder and clean the form tractors and the surrounding areas.

7. Re-install the single sheet feeder.

Cleaning the Paper Rollers

Clean the platen and paper bail rollers occasionally or when stains or smudges appear on the paper. Use a mild
detergent as appropriate. Do not use alcohol to clean the platen or the rollers. Alcohol may cause the rubber to
harden.

To clean the rollers and the platen:

1. Apply a small amount of water to a soft cloth. Avoid spilling liquid inside the printer.

2. Place the cloth against the platen and manually rotate the paper feed knob.

3. Repeat this procedure for each roller.

39

Tally Dascom 1125

4. To dry the platen, place a dry cloth against the platen and the rollers and manually rotate the paper feed

knob.

40

Tally Dascom 1125

7 Troubleshooting

Your printer is extremely reliable, but occasionally problems may occur. This chapter provides information on
some of the common problems you may encounter and how you may solve them. If you encounter problems
that you cannot resolve, contact your dealer or service partner for assistance.

Print Quality Problems and Solutions

Problem Solution

• Make sure that the ribbon cartridge is properly installed and that
the ribbon feeds smoothly.

Printing is too light or too dark.

Smears and stains appear on the
page.

Printing is erratic or the wrong
characters are printed. Many “?”
or unexpected characters are
printed.

The page is blank.

• Replace the ribbon if necessary.

• Make sure that the print gap lever is set for the thickness of your
paper.

• Make sure that the print gap lever is set for the thickness of your
paper.

• Check for ribbon wear. Replace the ribbon if necessary.

• Check whether the tip of the print head is dirty. Clean the head
with a soft cloth if necessary.

• The print head may need to be replaced.

• Make sure that the interface cable is securely connected to both
the printer and computer.

• Make sure that the printer driver selected in your software is the
same as the emulation selected on the printer.

• Check the length of the interface cable. (Maximum Parallel &
USB: 2 meters, Serial: 15 meters)

• Try another interface cable.

• Make sure that the ribbon cartridge is properly installed.

• Make sure the gap lever is set correctly.

Printing is vertically misaligned
(jagged).

The top margin is wrong.

Lines are double spaced instead of
single spaced.
The printer overprints on the same
line.

The next print line starts where
the previous line ended instead of
at the left margin.

Use the printer's vertical alignment function to check the vertical
print alignment. If necessary, adjust the print alignment.

• Check the application top margin setting.

• Adjust the Top Margin setting in Page Setup menu if necessary.

Change the Auto LF setting in the System Setup menu to No.

Change the Auto CR setting in the System Setup menu to No.

Change the Auto CR setting in the System Setup menu to Yes.

41

Tally Dascom 1125

Paper Handling Problems and Solutions

Problem Solution

• Make sure that the paper select lever located on the top right of

Paper cannot be loaded or fed.

Paper jams while loading.

Paper jams while printing.

the printer is set correctly. Move the lever to the front for single
sheets or to the rear for continuous forms.

• Make sure that the paper covers the paper-out sensor.

• Turn off the printer and remove the jammed paper. Remove any
obstructions from the paper path.

• Make sure that the Print Gap lever is set for the thickness of
your paper.

• Make sure that the paper is not folded, creased, or torn.

• Make sure that the left and right tractors are set so that the
continuous forms are stretched taut.

• Turn off the printer and remove the jammed paper. Remove any
obstructions from the paper path.

• Make sure that the Print Gap lever is set for the thickness of
your paper.

• For continuous forms, make sure that the incoming and
outgoing paper stacks are correctly placed. Paper should feed
straight.

Paper slips off the forms tractors
or the perforated holes of the
paper tear during printing.

Make sure that the forms tractors are positioned correctly for the
width of your paper and that the perforated holes of the paper fit
directly over the tractor pins.

Operating Problems and Solutions

Problem Solution

• Check whether the mains voltage is correct.

• Make sure that the power cord is securely connected to both
the printer and the mains power outlet.

The power does not turn on.

• Make sure that the power outlet is functional. If not so, use
other outlet.

• Turn the power off. Wait a minute and then turn the printer on
again. If the printer still has no power, contact your dealer.

42

Tally Dascom 1125

The printer is on but it will not
print.

Paper select lever error

Printer Failures

• Make sure that the Online indicator is lit.

• If you use the interface cable, make sure it is securely
connected to both the printer and the computer.

• Make sure paper is loaded.

• Run the printer Status Page. If printing executes normally, the
problem is caused by: the interface, the computer, incorrect
printer settings, or incorrect software settings.

• Make sure that the printer driver selected in your software is the
same as the emulation selected on the printer.

If paper is loaded and the paper select lever is moved to the
incorrect position, the printer turns offline, and the buzzer sounds
continuously. Switch the paper select lever back to its correct
position.

A user cannot generally resolve a problem involving defective printer hardware. Power off and on again the
printer to recover any fatal error. If the problem cannot be resolved, contact your dealer or service partner.

Error Indications on LEDs

Error Description

Paper out Normal Flash Off No change Once
Paper jammed Suspend Flash Off Flash Once
Friction feed /Tractor feed Suspend On Off Flash Continuously
Print head hot Normal On Flash No change -­Carriage initial position Stop Off Off Flash Once

Memory Stop Off Off Flash -­EEPROM Normal Off Flash No change Once

CMOS chip Stop Off Flash Flash --

Operation

Status

Paper

Out LED

Online

LED

Tear Off

LED

Buzzer
Sound

43

Tally Dascom 1125

Diagnostic Functions

The printer diagnostic functions are Self-Test page, hex-dump mode and print alignment adjustment.

 Self-Test page: Tells you whether the printer hardware is functioning correctly. If the printer hardware

is functional, any problems you are having are probably caused by incorrect printer settings, incorrect
software settings, the interface, or the computer.

 HEX-DUMP MODE: Allows you to determine whether the computer is sending the correct commands

to the printer, and whether the printer is executing the commands correctly. This function is useful to
programmers or others who understand how to interpret hex dumps.

 PRINTING ALIGNMENT ADJUSTMENT: Allows you to check and, if necessary, correct the printer’s

vertical line print alignment in bi-directional mode.

For details on using these functions, please refer to chapters 4 and 5.

44

Tally Dascom 1125

Firmware Update

Sometimes it is necessary update the firmware to solve a problem. The latest firmware file may be obtained
from your dealer or downloaded from our website www.dascom.com. Before upgrading firmware, it is
strongly recommended to print the Main Menu page to keep a record of the old settings.

Note: Firmware update should only be performed by an authorized service person. We disclaim any
responsibility for any damage caused if it is performed by any other person.

To load new firmware, proceed as follows:

1. Switch off the printer. Connect your PC to the parallel port on the printer.

2. Press and hold down all 4 keys (S1, S2, S3, S4) while powering on the printer.

3. Alternate flashing of L3 and L4 LEDs indicates printer is ready for firmware update. L1 and L2 LEDs

are ON and OFF respectively.

4. Go to the DOS prompt window. Copy the firmware file (with extension .MOT) to your printer as

follows:

COPY /B <filename>.mot PRN

5. When new firmware is being received, L3 and L4 LEDs are set to ON. L1 LED flashes a few times,

then sets to ON. L2 LED flashing indicates downloading in progress.

Note: Do not interrupt the downloading process to prevent possible flash memory corruption.

6. When downloading is completed, the carriage returns to home position. Printer initializes normally.

Alternatively, you can use the Firmware Flash Tool version 3.5 or higher which is available in the CDROM and
our website as well. Upon starting up the tool, choose the correct file and press "Update".

45

Tally Dascom 1125

8 General Specifications

Print System

Print Technology

Print Speed

Font Matrix

Print Head

Mono-chrome serial impact dot matrix

Uni-/bi-directional logic seeking for text and graphics

Pitch HS Draft Draft LQ (CPS/DPI)
10 CPI 375/80H 250/120H 83/360H
12 CPI 300/120H 300/120H 100/360H
15 CPI 375/120H 375/120H 125/360H

17.1 CPI 426/120H 426/120H 142/360H
20 CPI 498/120H 498/120H 166/360H

Pitch HS Draft Draft LQ (Matrix/DPI)
10 CPI 8x24/80H 12x24/120H 36x24/360H
12 CPI 10x24/120H 10x24/120H 30x24/360H
15 CPI 8x16/120H 8x16/120H 24x16/360H

17.1 CPI 7x24/120H 7x24/120H 21x24/360H
20 CPI 6x24/120H 6x24/120H 18x24/360H
Proportional Nx24/360H Nx24/360H Nx24/360H

Number of pins: 24 pins
Firing frequency: Normal mode: 1500 Hz
Pin diameter: 0.2 mm
Life: 400 million strokes/pin @ Draft mode

Graphics

Paper
Feed Speed

Resolution

Printable
Columns

8-bit mode: 8V x 60H, 80H, 90H, 120H, 240H (DPI)
24-bit mode: 24V x 60H, 90H, 120H, 180H, 360H (DPI)

Continuous feed: 5.0 IPS (inches per second)

360 x 360 DPI maximum

Characters per line (CPL)
10 CPI: 80 CPL
12 CPI: 96 CPL
15 CPI: 120 CPL

17.1 CPI: 137 CPL
20 CPI: 160 CPL

46

Tally Dascom 1125

Bitmap Fonts:

1. Draft 10, 12, 15, 17, 20 CPI

2. Roman 10, 12, 15, 17, 20 CPI, Proportional

3. Sans Serif 10, 12, 15, 17, 20 CPI, Proportional

4. Courier 10, 12, 15, 17, 20 CPI, Proportional

Built-In Fonts

Barcodes

Code Pages

5. Prestige 10, 12, 15, 17, 20 CPI

6. OCR-B 10, 12, 17, 20 CPI

7. OCR-A 10, 12, 17, 20 CPI

8. Orator 10, 12, 15, 17, 20 CPI, Proportional

9. SOUVENIR 10, 12, 15, 17, 20 CPI, Proportional

10. GOTHIC 10, 12, 15, 17, 20 CPI, Proportional

11. Script 10, 12, 15, 17, 20 CPI

1. EAN-13

2. EAN-8

3. Interleaved 2 of 5

4. UPC-A

5. UPC-E

6. Code 39

7. Code 128

8. POSTNET

9. Codabar

10. Industrial 2 of 5

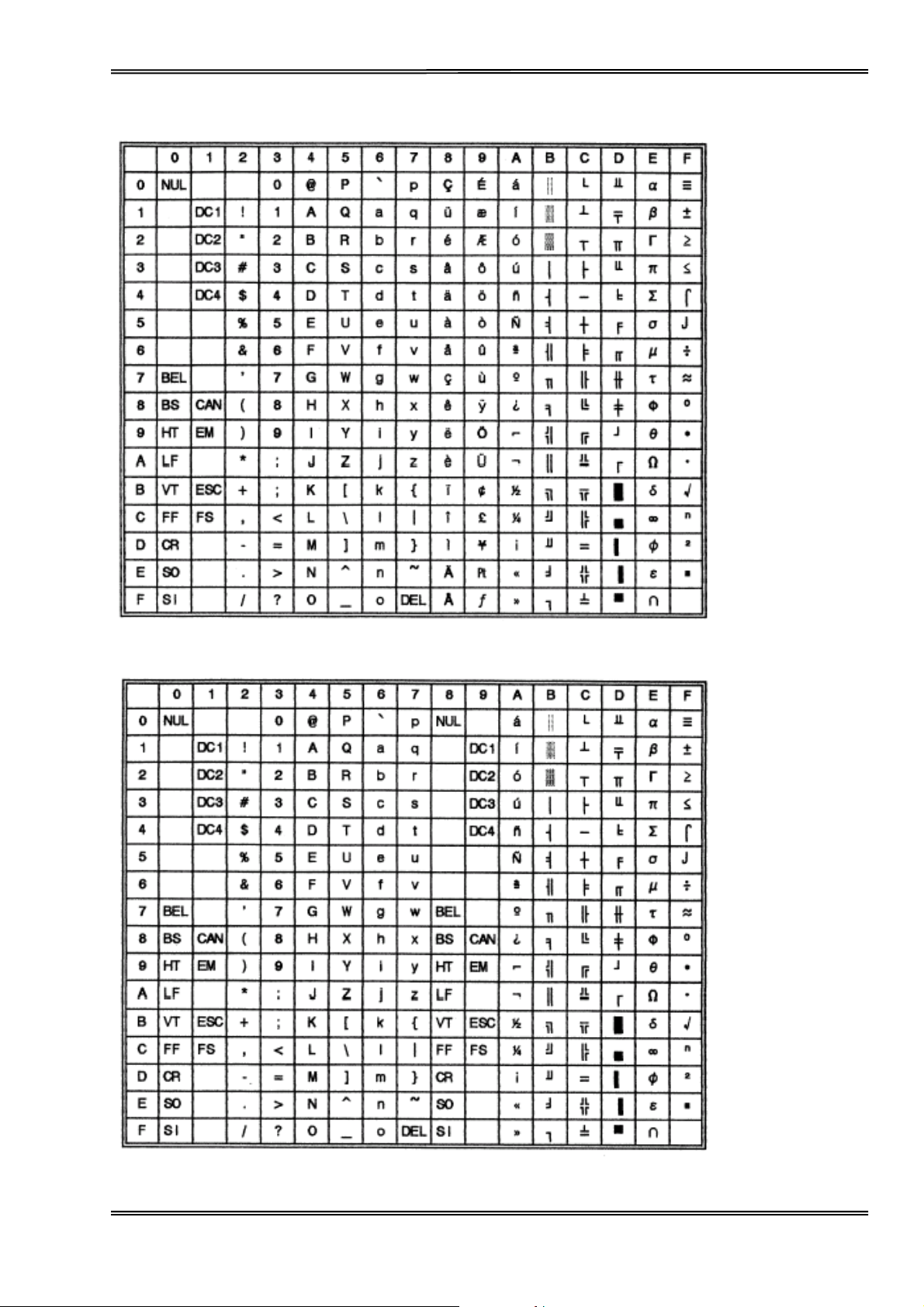

1. CP 437

2. CP 737

3. CP 850

4. CP 851

5. CP 852

6. CP 857

7. CP 858

8. CP 860

9. CP 861

10. CP 863

11. CP 864

12. CP 864 Extended

13. CP 865

14. CP 866 Cyrillic

15. CP 866 Bulgaria

16. CP 1250

17. CP 1251

18. CP 1252

19. CP 1253

20. CP 1254

47

Tally Dascom 1125

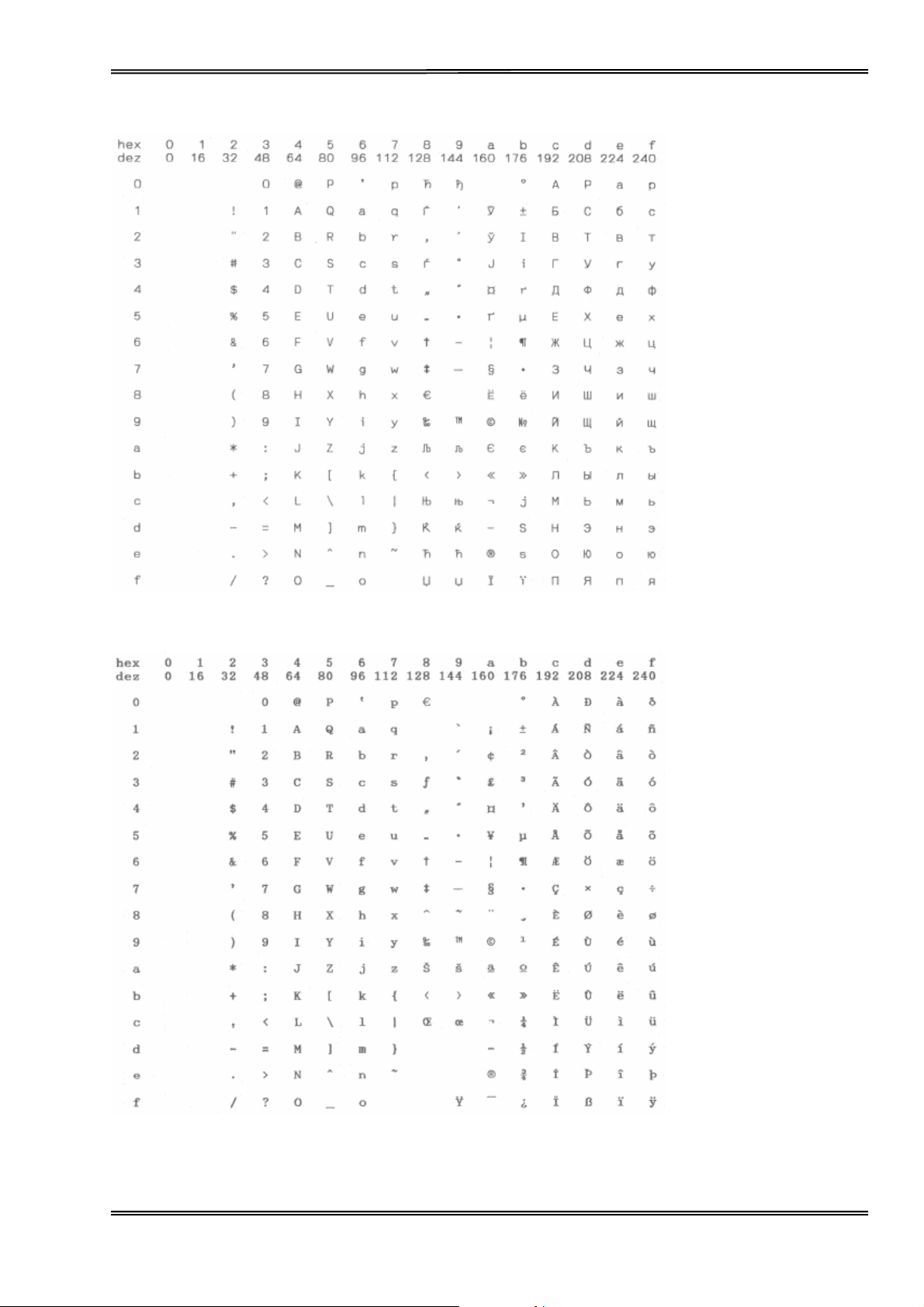

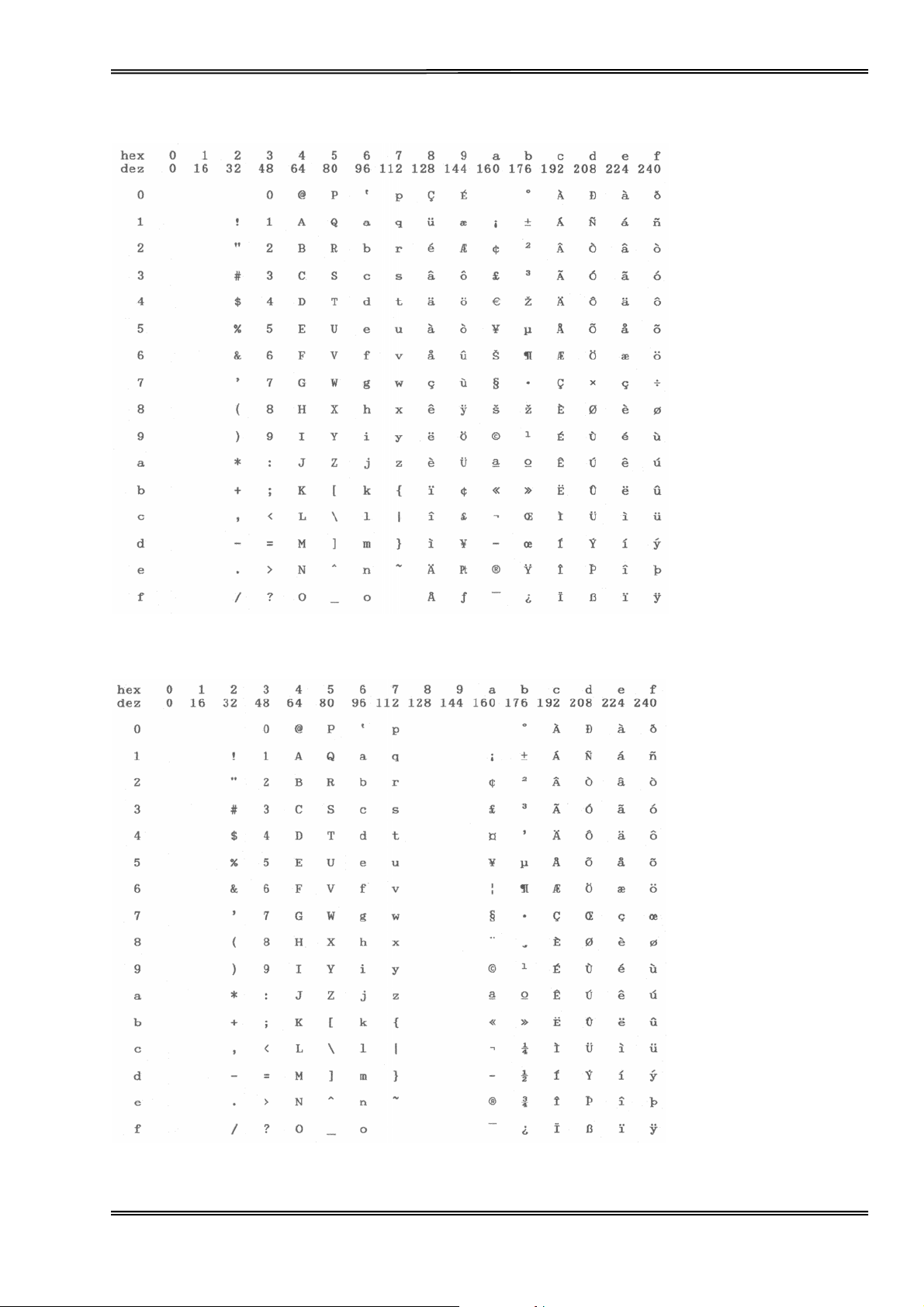

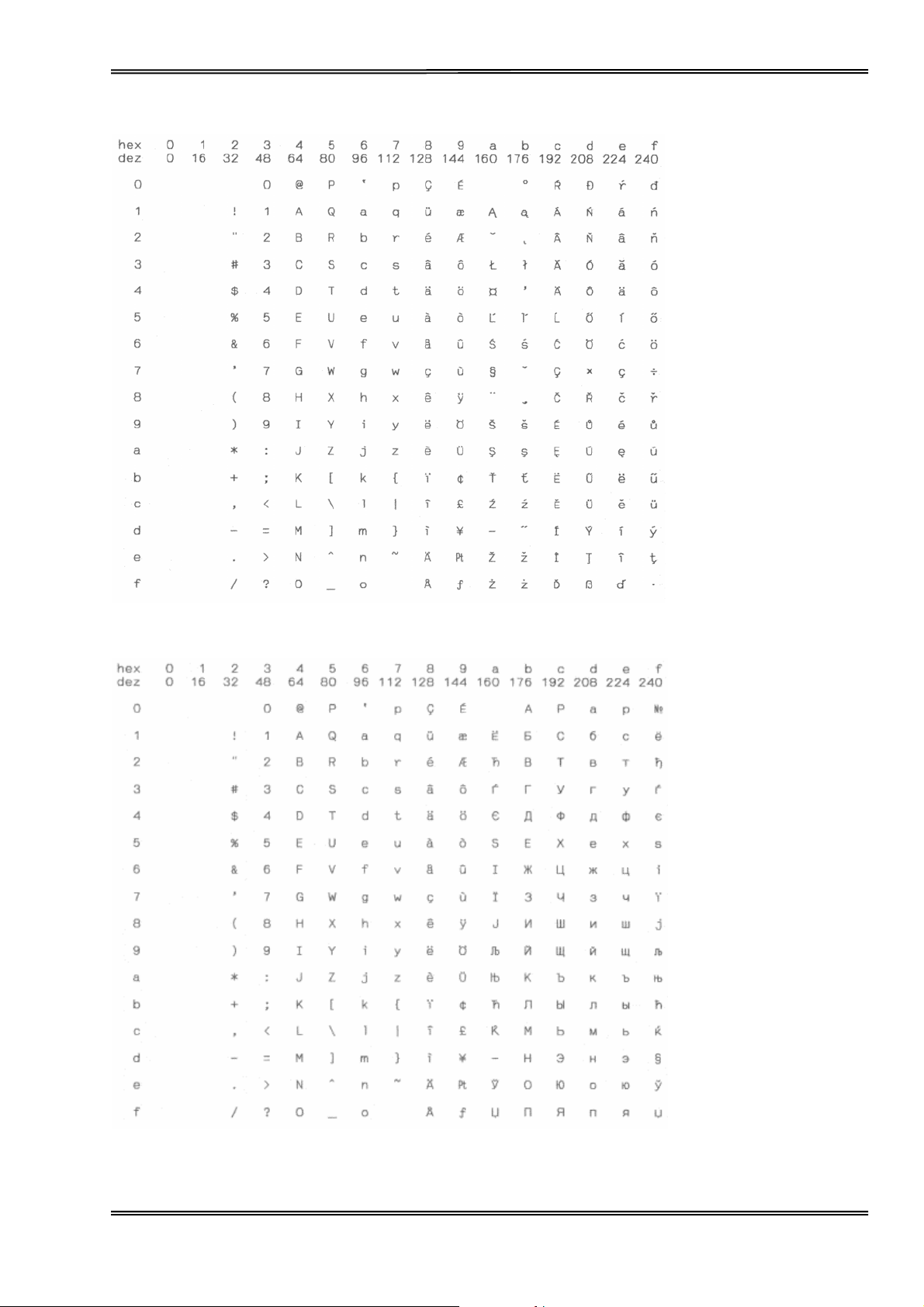

Code Pages

International
Character Sets

21. 8859-1

22. 8859-1 (SAP)

23. 8859-2

24. 8859-5

25. 8859-7

26. 8859-9

27. 8859-15

28. BRASCII

29. Abicomp

30. Roman8

31. Coax/Twinax

32. New-437

33. New-Dig 850

34. Old-Code 860

35. Flarro 863

36. 865 Hebrew

37. CP 1257

38. 866 Ukraine

39. 866 Kazakhstan

40. Kamenicky

41. Mazovia

42. CP 775

43. CRO-ASCII

44. Arabic Farsi

45. Arabic Urdo

46. Greek DEC

47. Greek ELOT 928

1. USA

2. France

3. Germany

4. UK

5. Denmark I

6. Sweden

7. Italy

8. Spain I

9. Japan

10. Norway

11. Denmark II

12. Spain II

13. Latin America

14. Korea

15. Legal

48

Tally Dascom 1125

Line Spacing

Paper
Specifications

Paper
Specifications

Paper Handling

1/6", 1/8", n/60", n/180", n/360"

Cut Sheet

Width:

76.2mm～256.5mm
（3"～10.1"）

Length:

101.6mm～363.2mm
（3.9"～14.3"）

Weight: 52～100g/㎡
Thickness:

0.065～0.14mm

(0.0026"～0.0055”)

Feeding method: Friction and Tractor
Paper path: Cut sheets: Top load and top out

Fanfold Paper

Single ply Multi-part

Width: 76.2mm～254mm (3"～10"）

Length: 101.6mm min (4" min)

Weight: 52～100 g/㎡
Thickness:

0.065～0.14mm
(0.0026"～0.0055")

Fanfold: Rear in and top out

Weight: 40～58g/㎡
Thickness: 0.45 mm max
(0.0177” max)

Copy Capability

Emulation

Ribbon Type

Ribbon Life

Input Data Buffer

Windows Drivers

Interface

Operation Panel

Noise Level

Ambient
Conditions

Original + 4 copies

ESC/P2, IBM 2390 Plus

Cartridge; Monochrome

7 million characters (rolling Draft 10 CPI)

Up to 68KB
Windows Server 2000/2003/2008

Windows Vista
Windows XP
Windows 98
Windows 7
Parallel (Bi-directional IEEE-1284 nibble mode)
USB 2.0 (B type connector)
Serial RS-232C
Switches: 4 pcs
LED indicators: 4 pcs

< 51 dBA in 10CPI draft ASCII (Conforming to ISO7779)
Temperature Operating: +5 to +40 °C.

Stand-by: -20 to +55 °C
Humidity Operating: 10 to 80%RH

(No condensation)

Stand-by: 5 to 85%RH

(No condensation)

Dimensions

359 mm (W) x 285 mm (D) x 159 mm (H)

49

Tally Dascom 1125

Weight

Power Supply

Power
consumption

MTTR

MTBF

Certification

5 kg
Unit type: Switching mode power supply

Power cord: Detachable
Voltage rating: AC 230V (180V~264V), 50Hz to 60Hz
AC 110V/120V, 60Hz (factory option)
Stand by: Less than 3.8W
ESD: Comply with IEC801-2
Contact discharge: 4kV
Air discharge: 8kV

28.2 W (standard ECMA-132)

< 20 minutes
10000 hours @ 25% duty cycle
CE, UL, FCC, ES, ISTA, RoHS, WEEE, REACH, ChemVerbotsV,
Microsoft Certified for Windows 7

50

Tally Dascom 1125

9 Interfaces

Parallel Interface

Parallel Interface Pin Assignment

Pin Signal Name Signal Tr a n s m i s s i o n

1 STROBE¯¯¯¯¯¯ Printer  Computer

2~9 DATA Printer  Computer

10 ACK¯¯¯ Printer  Computer
11 BUSY Printer  Computer
12 PE Printer  Computer
13 SELECT Printer  Computer
14 AFXT¯¯¯¯ Printer  Computer
15 Unused Unused
16 GND Printer  Computer
17 F-GND Printer  Computer

18 +5V Printer  Computer

19~30 GND Printer  Computer

31 INIT¯¯¯¯ Printer  Computer
32 FAULT¯¯¯¯¯ Printer  Computer
33 GND Printer  Computer
34 Unused Unused
35 FUSE Printer  Computer
36 SLCTIN¯¯¯¯¯¯ Printer  Computer

Parallel Interface Connector Diagram

Note: Any external devices connected to the parallel port should not draw current exceeding 200 mA from pin
18; otherwise it may affect the printer operation.

51

Tally Dascom 1125

USB Interface

The USB interface conforms to the Universal Serial Bus 2.0 Specifications. It supports the Full Speed mode at
12 Mbps. It uses the “B” type USB connector.

Serial Interface

Serial RS-232C Interface Pin Assignment

Pin Signal Symbol Signal Name Signal

Transmission

1 CG Chassis Ground —
2 TXD Send Data OUT
3 RXD Receive Data IN
4 RTS Request to Send OUT
7 SG Signal Ground —
20 DTR Data Terminal Ready OUT
25 +5V Power —

Serial RS-232 Connector Diagram

52

Tally Dascom 1125

10 Character sets & Code Pages

Character Sets

Standard Character Set 1

Standard Character Set 2

53

Tally Dascom 1125

IBM Character Set 1

IBM Character Set 2

54

Tally Dascom 1125

International character sets

International Character Set Commands

Country Command

USA

France

Germany

UK

Denmark1

Sweden

Italy

Spain1

Japan

Norway

Denmark2

Spain2

Lat America

Korea

Legal

＜ESC＞“R”CHR＄（0）

＜ESC＞“R”CHR＄（1）
＜ESC＞“R”CHR＄（2）
＜ESC＞“R”CHR＄（3）
＜ESC＞“R”CHR＄（4）
＜ESC＞“R”CHR＄（5）
＜ESC＞“R”CHR＄（6）
＜ESC＞“R”CHR＄（7）
＜ESC＞“R”CHR＄（8）

＜ESC＞“R”CHR＄（9）
＜ESC＞“R”CHR＄（10）
＜ESC＞“R”CHR＄（11）
＜ESC＞“R”CHR＄（12）
＜ESC＞“R”CHR＄（13）
＜ESC＞“R”CHR＄（64）

55

Tally Dascom 1125

Character Tables

Italic

56

Tally Dascom 1125

Graphic 1

Graphic 2

57

Tally Dascom 1125

Code Page Commands

Code Page ESC R Parameter

CRO-ASCII

Arabic Farsi

Arabic Urdo

Greek DEC

Greek ELOT 928

CP437 Latin US

CP737 Greek

CP850 Latin 1

CP851 Greek

CP852 Latin 2

CP857 Turkish

CP858 (IBM with €)

CP860 Portugal

CP861 Icelandic

CP863 French Canada

CP864 Arabic

CP864 Arab. Extended

CP865 Nordic

CP866 Cyrillic

CP866 Bulgaria

Siemens Turkish

DEC Turkish

CP1250 Win Latin 2

CP1251 Win Cyrillic

CP1252 Win Latin 1

CP1253 Win Greek

CP1254 Win Turkish

8859-1 Latin 1

8859-1 Latin 1 (SAP)

8859-2 Latin 2

8859-5 Cyrillic

8859-7 Greek

8859-9 Turkish

8859-15 Latin 9 (Euro)

BRASCII

Abicomp

Roman 8

3C
96
97
46
6C
80
93
82
88
87
8D
9E
84
94
85
8C
95
86
8E
9D
9B
9C
70
71
72
73
74
25
2B
26
2A
2D
2E
2F
6D
6E
4D

58

Tally Dascom 1125

Coax/Twinax(Hebrew)

New-437 (Hebrew)

New-DIG 850 (Hebr.)

Old-Code 860 (Hebr.)

Flarro 863 (Hebrew)

Table 865 (Hebrew)

CP775 Baltic

CP1257 Baltic

Mazovia (Poland)

Kamenicky (Czech)

CP866 Ukraine

CP866 Kazakhstan

4F
81
83
98
99
9A
A6
77
92
91
8F
90

59

Tally Dascom 1125

Code Page Tables

CP 437 (US)

CP 737 Greek

60

Tally Dascom 1125

CP 850 (Multilingual)

CP 851

61

Tally Dascom 1125

CP 852 (Eastern Europe)

CP 857 (Turkish)

62

Tally Dascom 1125

CP 858

CP 860 (Portugal)

63

Tally Dascom 1125

CP 861 (Iceland)

CP 863 (French-Canadian)

64

Tally Dascom 1125

CP 864 Arabic

CP 864 Arabic Extended

65

Tally Dascom 1125

CP 865 (Norway)

CP 866 (Cyrillic)

66

Tally Dascom 1125

CP 866 Bulgaria

CP 1250 Win Latin 2

67

Tally Dascom 1125

CP 1251 Win Cyrillic

CP 1252 Win Latin 1

68

Tally Dascom 1125

CP 1253 Win Greek

CP 1254 Win Turkish

69

Tally Dascom 1125

8859-1 Latin 1

8859-1 Latin 1 (SAP)

70

Tally Dascom 1125

ISO 8859-2 (ISO Latin 2)

ISO 8859-5 Cyrillic

71

Tally Dascom 1125

ISO 8859-7 (Latin/Greek)

ISO 8859-9 (Turkish)

72

Tally Dascom 1125

ISO 8859-15 Euro (Code Page 923)

BRASCII

73

Tally Dascom 1125

Abicomp

Roman 8

74

Tally Dascom 1125

Coax/Twinax (Hebrew)

New-437 (Hebrew)

75

Tally Dascom 1125

New-Dig 850 (Hebrew)

Old-Code 860 (Hebrew)

76

Tally Dascom 1125

Flarro 863 (Hebrew)

865 Hebrew

77

Tally Dascom 1125

CP 1257

866 Ukraine

78

Tally Dascom 1125

866 Kazakhstan

Kamenicky

79

Tally Dascom 1125

Mazovia

CP 775

80

Tally Dascom 1125

CRO-ASCII

Arabic Farsi

81

Tally Dascom 1125

Arabic Urdo

Greek DEC

82

Tally Dascom 1125

Greek ELOT 928

83

Tally Dascom 1125

11 Control Codes Summary

Epson Emulation Command List

Command Sequence Function

BEL Beeper
BS Backspace
HT Tab horizontally
LF Line feed
VT Tab vertically
FF Form feed
CR Carriage return
SO Select double-width printing (one line)
SI Select condensed mode
DC1 Online
DC2 Cancel condensed mode
DC3 Offline
DC4 Cancel double-wide mode(one line)
CAN Cancel line
DEL Delete character
ESC SO Select double-width printing (one line)
ESC SI Select condensed mode
ESC SP n Set intercharacter space
ESC EM n NA
ESC ! n Print mode setup
ESC ( - n1 n2 m d1 d2 Choose character lineation
ESC $ n1 n2 Select absolute horizontal print position
ESC | n Set left margin
ESC % n Select user-defined set
ESC & Define user-defined set
ESC ( ^ n m d1 d2… Print data in character style
ESC (G NUL d Select graphics mode
ESC * m n1 n2… Select image mode
ESC . c v h m nL nH d1 d2… Print raster graphics
ESC + n Select n/360″line spacing
ESC – n Underline on/off
ESC / n Select vertical orientation channel
ESC ( C NUL n m Set page length
ESC ( c NUL nt mt nb mb Page setup
ESC ( U NUL n Set unit
ESC 0 Set 1/8″line spacing
ESC 2 Set 1/6″line spacing
ESC 3 n Set n/180″line spacing
ESC 4 Set Italic
ESC 5 Cancel Italic
ESC 6 Enable printable characters
ESC 7 Enable upper control characters

84

Tally Dascom 1125

ESC : Copy ROM to RAM
ESC ＜
ESC > Set MSB to 1
ESC = Set MSB to 0
ESC # Cancel MSB control
ESC ？n m
ESC @ Initialize printer
ESC ＼n1 n2
ESC A n Set n/60″line spacing
ESC B…NUL Set/cancel vertical tabs
ESC C n Set page length in lines
ESC D…NUL Set/cancel horizontal tabs
ESC E Select Bold
ESC F Cancel Bold
ESC G Select double-strike mode
ESC H Cancel double-strike mode
ESC J n Perform tactic n/180″line feed
ESC K n1 n2 … Select 8 pins single-density graphics
ESC L n1 n2 … Select 8 pins double–density graphics
ESC M
ESC N n Set bottom margin
ESC O Cancel bottom margin
ESC P
ESC Q n Set right margin
ESC R n International character set
ESC S n Select superscript/subscript
ESC T Cancel superscript/subscript
ESC U n Select unidirectional/bidirectional printing mode
ESC ( V NUL n m Select absolute vertical print position
ESC W n Turn Double-wide mode on/off
ESC X n1 n2 Select font by pitch and point
ESC Y n1 n2 … Select 8 pins, high speed ,double –density graphics
ESC Z n1 n2 … Select 8 pins, high speed fourfold –density graphics
ESC a n Select justification
ESC b n Select vertical orientation channel
ESC c n m Set horizontal intercharacter space
ESC g Select 15CPI
ESC j n Perform reverse n/180″line feed
ESC k n Select typeface
ESC p n Turn proportional mode on/off
ESC q n Select character style
ESC r n Select printing colour
ESC t n Select character table
ESC (t nL nH d1 d2 d3 Assign character table
ESC ( v NUL n m Set relative vertical print position
ESC w n Turn double-high mode on/off
ESC x n Select print quality
ESC( B n1 n2 k m s v1 v2 c Barcode print

Unidirectional mode(1 line)

Reassign graphics mode

Set relative horizontal print position

Select ELITE（12CPI）

Select PICA（10CPI）

85

Tally Dascom 1125

IBM Emulation Command List

Command Sequence Function
BEL Beeper
BS Backspace
HT Tab horizontally
LF Line feed
VT Tab vertically
FF Form feed
CR Enter
SO Select double-wide mode
SI Select condensed mode
DC1 Online
DC2 Select 10CPI
DC3 Offline
DC4 Cancel double-wide mode(one line)
CAN Cancel buffer
ESC BEL Beeper
ESC BS Backspace
ESC HT Tab horizontally
ESC CR Enter
ESC LF Line feed
ESC SO Select double-wide mode
ESC SI Select condensed mode
ESC DC1 Online
ESC DC2 Select 10CPI
ESC DC3 Offline
ESC DC4 Cancel double-wide mode(one line)
ESC CAN Cancel buffer
ESC FF Form feed
ESC EM n Automatically Feed Paper mode
ESC : Set 12CPI
ESC VT Tab vertically
ESC 0 Select 1/8″line spacing
ESC 1 Select 7/72″line spacing
ESC 2 Select 1/6″line spacing or activate ESC A n command
ESC 3 n Select n/216″or 1/180″line spacing
ESC 4 Set top margin
ESC 5 n Automatic Line Feed
ESC 6 Select character set 2
ESC 7 Select character set 1
ESC = NA
ESC \ Print continuously from all character chart
ESC ^ Print single character from all character chart
ESC A n Select n/72″or n/60″line spacing
ESC B n Select Tab vertically
ESC C n Set page length in lines

86
