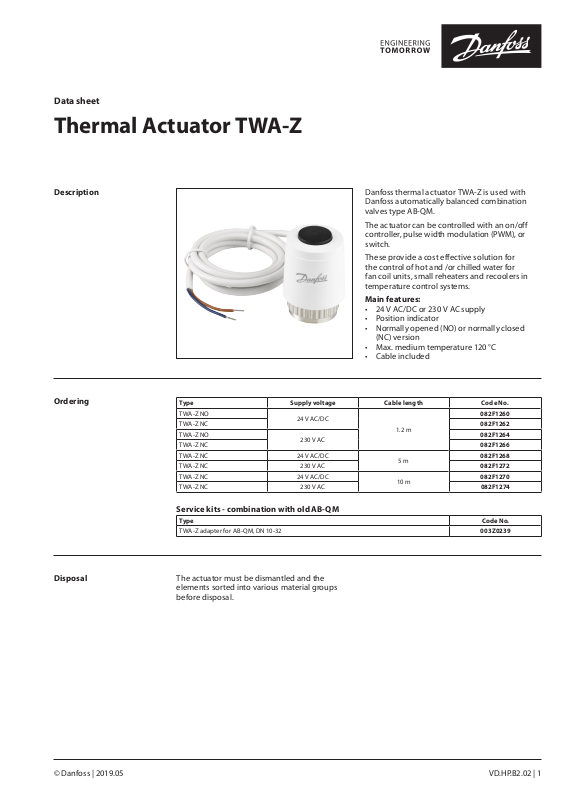

Data sheet
Thermal Actuator TWA-Z
Description |
|
|
|
|
Danfoss thermal actuator TWA-Z is used with |
|||
|
|
|
||||||
|
|
|
|
|
Danfoss automatically balanced combination |
|||
|
|
|
|
|
valves type AB-QM. |
|
||
|
|
|
|
|
The actuator can be controlled with an on/off |
|||
|
|
|
|
|
controller, pulse width modulation (PWM), or |
|||
|
|
|
|
|
switch. |
|
||
|
|
|
|
|
These provide a cost effective solution for |
|||
|
|
|
|
|
the control of hot and /or chilled water for |
|||
|
|
|
|
|
fan coil units, small reheaters and recoolers in |
|||
|
|
|
|
|
temperature control systems. |
|
||
|
|
|
|
|
Main features: |
|
||
|
|
|
|
|
• 24 V AC/DC or 230 V AC supply |
|||
|
|
|
|
|
• |
Position indicator |
|
|
|
|
|
|
|
• Normally opened (NO) or normally closed |
|||
|
|
|
|
|
|
(NC) version |
|
|
|
|
|
|
|
• Max. medium temperature 120 °C |
|||
|
|
|
|
|
• |
Cable included |
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
Ordering |
|
|
|
|
|
|
|
|
Type |
|
Supply voltage |
|
Cable length |
|
Code No. |
||
|
TWA-Z NO |
|
24 V AC/DC |
|
|
|
082F1260 |
|
|
TWA-Z NC |
|
|
1.2 m |
|
082F1262 |
||
|
|
|
|
|
|
|||
|
TWA-Z NO |
|
230 V AC |
|
|
082F1264 |
||
|
|
|
|
|
||||
|
TWA-Z NC |
|
|
|
|
082F1266 |
||
|
|
|
|
|
|
|
||
|
TWA-Z NC |
|
24 V AC/DC |
|
5 m |
|
082F1268 |
|
|
TWA-Z NC |
|
230 V AC |
|
|
082F1272 |
||
|
|
|
|
|
||||
|
TWA-Z NC |
|
24 V AC/DC |
|
10 m |
|
082F1270 |
|
|
TWA-Z NC |
|
230 V AC |
|
|
082F1274 |
||
|
|
|
|
|
||||
|
Service kits - combination with old AB-QM |
|
|
|
||||
|
Type |
|
|
|
|
|
Code No. |
|
|
TWA-Z adapter for AB-QM, DN 10-32 |
|
|
|
|
|
003Z0239 |
|
|
|
|
|
|
|
|
|
|
Disposal |
The actuator must be dismantled and the |
|
|
|
||||
|
elements sorted into various material groups |
|
|
|
||||
|
before disposal. |
|
|
|
|
|
|
© Danfoss | 2019.05 |
VD.HP.B2.02 | 1 |
Data sheet |
Thermal Actuator TWA-Z |
|
|
|
|
|
|
|
|
|
|
Technical Data |
|
|
|
|
|
Power supply |
V |
24 AC/DC, ± 25% |
|
230 AC, ± 25% |
|
|
|
|
|
|
|
|
Max. inrush current |
mA |
< 350 |
|
< 250 |
|
Power consumption |
W |
|
2 |
|
|
|
|
|
|
|
|
Frequency |
Hz |
|
50/60 |
|
|
Control input |
|
|
On/off and PWM |
|
|
|
|
|
|
|
|
Closing force |
N |
|
90 |
|
|
Min. stroke |
mm |
|
2.8 |
|
|
|
|
|
|
|
|
Full stroke time1) |
min. |
|
3 |
|
|
Max. medium temperature |
|
|
120 |
|
|
|
|
|
|
|
|
Ambient temperature |
° C |
|
2 … 60 |
|
|
Storage and transport temperature |
|
|
-40 … 70 |
|
|
|
|
|
||
|
Ambient humidity |
|
95% r.h., non-condensing |
||
|
Protection class |
|
III |
|
II |
|
|
|
|
|
|
|
Grade of enclosure |
|
|
IP 41 |
|
|
Cable length |
m |
|
1.2, 5 or 10 |
|
|
|
|
|
|
|
|
Weight |
kg |
|
0.15 |
1) When heating the actuator full stroke time increases up to some minutes – it depends on the ambient temperature.
Operation |
TWA-Z actuator works on the thermal expansion |
|
principle: |
|
• moves actuator stem in one direction in case |
|
of heating of the actuator and |
|
• moves actuator stem in another direction in |
|
case of no heating of the actuator |
Two versions of actuators are available:
•TWA-Z NO version, in the non-energized state actuator’s stem is retracted
•TWA-Z NC version, in the non-energized state actuator’s stem is extracted
Both versions are available in 24V (SELV) or 230V.
The TWA-Z NC has an internal spring, which is factory fixed with a split ring (Fig.1) to hold the spring retracted in its off -the-shelf state.
The use of split ring allows the actuator to be mounted to the valve. Once mounted, the split ring has to be removed.
Note:
In case the actuator has been dismounted and split ring removed, split ring can be added back to the actuator after the heating of the actuator.
The actuator is equipped with a position indicator to show the position of the actuator stem (Fig.2).
The AB-QM valve is closed in stem down position. Without actuator force the internal spring opens the valve.
Combination, TWA-Z NO & AB-QM (Fig.3)
•in the non-energized state the valve is open
•in the energized state the valve is closed
Combination, TWA-Z NC & AB-QM (Fig.4)
•in the non-energized state the valve is closed in the energized state the valve is opened.
Fig. 1: NC version
Actuator stem up |
Actuator stem down |
Fig. 2
Blue/Brown
Max.. NO
60°˚ C
Fig. 3: TWA-Z NO & AB-QM
Blue/Brown
Max.. NC
60°˚ C
Fig. 4: TWA-Z NC & AB-QM
2 | VD.HP.B2.02 |
© Danfoss | 2019.05 |
