Data sheet
Thermostatic Mixing Valve
TVM-H
Description / Application |
|
Limits and maintains constant Ievels of |
|
|
mixing temperatures in systems. |
|
|
The thermostatic valve ensures a constant |
|
|
temperature of the mixed water at the outlet. |
|
|
The mixing valve can be used with different |
|
|
types of storage and instant water heaters for |
|
|
heating applications. |
|
|
Advantages |
|
|
• Constant temperature of the water at the |
|
|
outlet |
|
|
• Variable setting of the nominal |
|
|
temperature range: 30 oC ... 70 oC |
|
|
• Special design with anti-scalding coating |
|
|
• System components: |
|
|
accessories and spare parts |
|
|
|
taco
IMX
+
-
Fig. 1 Floor heating application
Standard design:
A thermostatic cartridge and a return spring ensure the constant blend temperature at the outlet. Thanks to the design of the mixing valve, the thermostatic cartridge can be easily replaced in the installed valve if the performance decreases, which occurs due to normal wear and tear.
SIBC
VD.D1.F1.02 © Danfoss 05/02 |
1 |
|
|
|
|
|
|
Data sheet |
Thermostatic Mixing Valve TVM-H |
|
|||
|
|
|
|
|
|

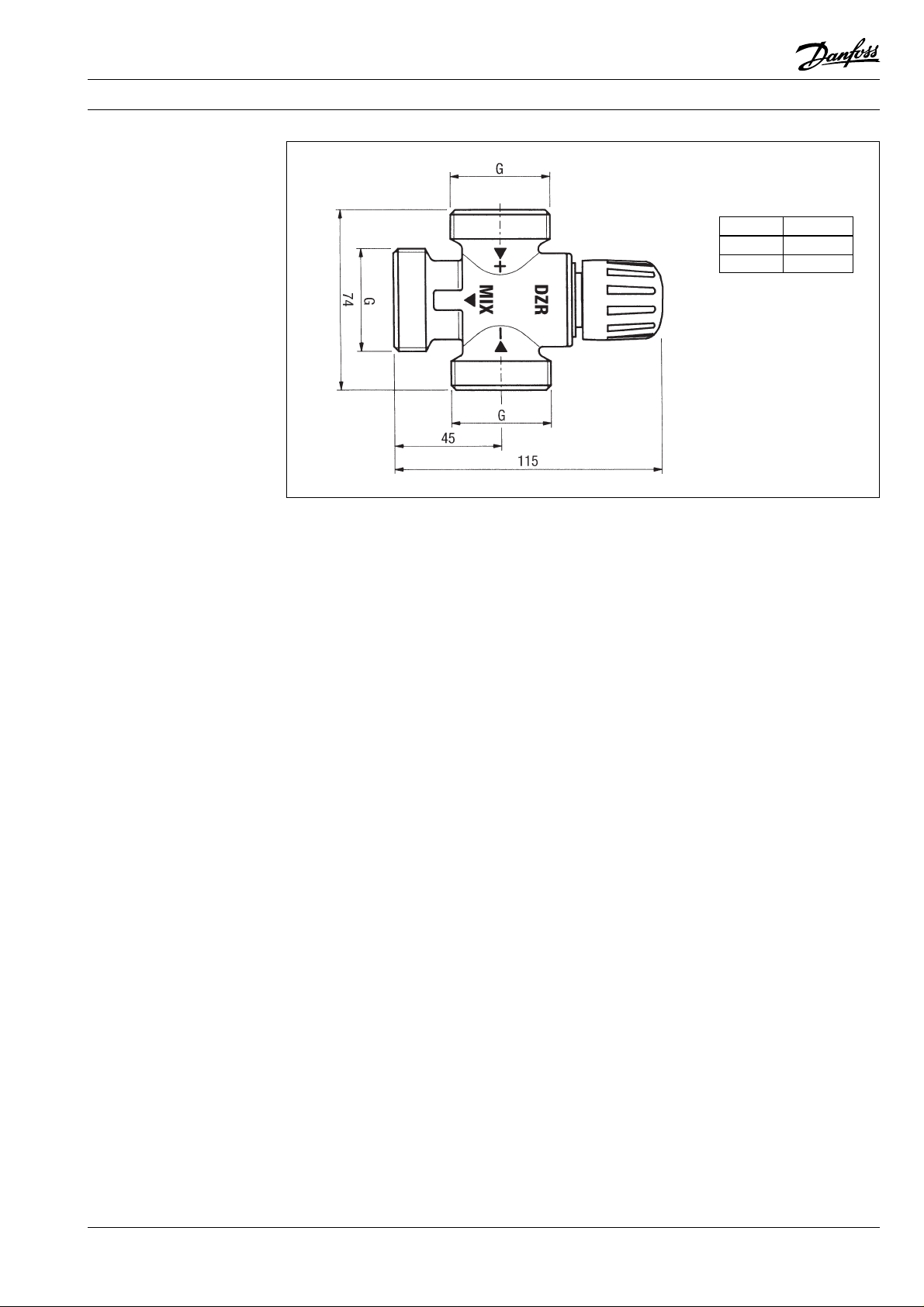

Technical Data |
|
|
|
|
|
Max. operating pressure |
10 bar |
|
|
|
|
|
Max. operating temp. |
100 oC |
|
|
|
|
Valve housing, trim |
DZR + |
|
|
|
|
|
antilimescale |
|
|
|
|
|
treatment |
|
|
|
|
Sealing |
EPDM |
|
|
|
1000 |
|
|
|
<![if ! IE]> <![endif]>loss mbar |
100 |
|
|
|
|
20 |
|
|
|
<![if ! IE]> <![endif]>e |
DN |
|
|
|
|
25 |
|
||
<![if ! IE]> <![endif]>Pressur |
DN |
|
||
10 |
|
|
||
|
|
|
||
|
|
|
|
|
|
1 |
|
10 |
100 |
|
1 |
|
||
|
|
Flow rate l /min |
||
|
|
|
|
Ordering
E = extracted (outlet) quantity at ∆ p = 1.5 bar
kvs 2 = with check valve
kvs 1 = without check valve
Thermostatic mixing valve
DN |
G |
Temperature |
E |
kvs 1 |
kvs 2 |
Code No. |
|
range |
(I/min) |
||||||
|
|
|
|
|
|||
20 |
1" |
30 ... 70 °C |
39 |
1.9 |
1.65 |
003Z1120 |
|
25 |
1 1/4" |
30 ... 70 °C |
61 |
3.0 |
2.6 |
003Z1127 |
To be mounted in the warm and cold water inlet.
Accessories and spare parts
|
Typ |
Max. pressure |
Max. temperature |
Code No. |
|
Check valve DN 20 |
10 bar |
95 oC |
003Z1130 |
|
Check valve DN 25 |
10 bar |
95 oC |
003Z1131 |
|
Thermostatic element |
|
|
003Z1132 |
2 |
VD.D1.F1.02 © Danfoss 05/02 |
SIBC
