TPOne-S
Electronic Programmable Room Thermostat
Danfoss Heating
Installation Guide
ErP Class
The products represented within this document are classified according to, and allow completion of, the Energy Related Product (ErP) Directive System Package fiche and the ErP system data label. ErP Labelling obligation is applicable from 26th September 2015.
Additional ERP Class Product Function and ErP Description efficiency
gain
|
|
Modulating Room Thermostat, for use with |
|
V |
|
modulating heaters |
3% |
|
|
An electronic room thermostat that varies the |
|
ErP |
flow temperature of the water leaving the |
|
|
heater dependent upon measured room tem- |
|
||
Product |
5 |
perature deviation from room thermostat set |
|
Class |
point. Control is achieved by modulating the |
|
|
|
|
output of the heater. |
|
SIMPLIFIED EU DECLARATION OF CONFORMITY
The simplified EU declaration of conformity referred to in Article 10(9) shall be provided as follows:
Hereby, Danfoss A/S declares that the radio equipment type TPOne-S are in compliance with Directive 2014/53/EU
The full text of the EU declaration of conformity is available at the following internet address: heating.danfoss.com
Danfoss can accept no responsibility for possible errors in catalogues, brochures, and other printed material. All trademarks in this material are property of the respective companies. Danfoss and the Danfoss logotype are trademarks of Danfoss A/S. All rights reserved.
2 |
TPOne-S |
Installation Instructions
Specifications |
TPOne-S |
DBR |
|
|
|
|
|
Operating Voltage |
230V AC, 50 Hz |
||
|
|
|
|
Setting temperature range |
5-35°C |
- |
|
Operating temprature range |
0-45°C |
||
Switch rating |
- |
3A (1) at 230Vac |
|
Switch type |
- |
SPST Type 1A |
|
Transmission frequency |
868.42 MHz |
||
WiFi Specification |
802.11b/g (2.4GHz) |
- |
|
Transmission range (in |
up to 30m |
||
normal buildings) |
|||
|
|
||
Transmission power |
Max 1 mW |
||
|
|
|
|
IP rating |
IP20 |
IP40 |
|
|
|
|
|
On/off control |
Yes |
|
|
|
|
|
|
Chrono-proportional control |
Yes |
|
|
|
|
|
|
Operating mode |
Heating |
- |
|
|
|
|
|
Construction |
EN 60730-2-9 |
EN 60730-1 |
|
Control pollution situation |
Degree 2 |
||
|
|
|
|
Rated impulse voltage |
2.5kV |
||
|
|
|
|
Ball pressure test |
75°C |
||
Dimensions (mm) |
H66 x W155 x D30 |
H84 x W84 x D30 |
|
Software Classification |
A |
|
Important note RF products: Ensure that there are no large metal objects, such as boiler cases or other large appliances, in line of sight between the transmitter and receiver as these will prevent communication between thermostat and receiver.
Danfoss Heating |
3 |
Mounting
Please note: This product should only be installed by a qualified electrician or competent heating installer and should be in accordance with the local wiring regulations.
Thermostat positioning:
30 |
30m MAX |
cm |
|
MIN |
|
Note: These products use RF (Radio Frequency) technology to communicate with each other and it is important that care is taken during installation to ensure good wireless connection. Building structure and materials may influence performance and large metal objects such as boiler cases, appliances or mirrors in line of sight between the thermostat and the receiver will prevent communication.
The receiver should be mounted near to the heat source leaving a minimum distance of 30cm away from any metal enclosures or
appliance and positioned so that no large metal obstruction is between the receiver and thermostat. The thermostat can be mounted remotely up to 30m from the receiver while considering signal strength will
be reduce as it passes through walls and ceilings. Walls and ceilings containing steel reinforcement or with metal foil lined insulation will also have a significant effect on communication distance and may block signal completely.
It is recommended that the RF connection should be checked before permanently mounting the thermostat and where necessary the location of the thermostat must be moved to ensure reliable communication. The thermostat should be mounted at a height of approximately 1.5m from the floor and away from draughts or heat sources such as radiators, open fires or direct sunlight.
4 |
TPOne-S |
Wiring
DBR Receiver
N L |
1 2 3 |
4 |
|
(Not Used) |
|
230 Vac |
COM |
OUT |
DBR Receiver
TPOne-S wiring
N L
230 Vac
Note: When using the table stand ONLY USE the power supply and USB cable provided.
Danfoss Heating |
5 |
User Interface
Comfort modes Display |
Navigation |
Comfort Modes
Heating made easy: TPOne Comfort Modes simplify the way you plan your heating day to day. You define your comfort modes in the user schedule and manually override when you need, allowing you to adapt your schedule to the way you live.
The Home, Away and Asleep comfort modes are linked to your defined comfort temperatures. The schedule follows the daily routine you have set or you just choose the comfort mode required and TPOne will recall the settings you have defined.
The TPOne Standby Mode allows you to switch your heating off when not required although the thermostat continues to monitor the room temperature and call for heating should there be a risk of frost damage.
6 |
TPOne-S |
Comfort Modes
Home Mode selects the home comfort temperature typically when the home is occupied during the day. The required temperatures for Home mode are selectable in the Temperature setting (see User Menu > Temperatures.) A separate Home AM and Home PM temperature can be chosen and
Home these are automatically set according to the time of the day.
Note: When in Home mode if the home button is pressed again a 1, 2 or 3 hour heating boost is selected and the current home period is extended by the chosen time period. The chosen boost period is displayed under the Home icon on the display.
Away Mode selects the away comfort temperature typically when the home is
Away unoccupied during the day. The required temperature for Away mode is selectable in the Temperature setting (see User Menu > Temperatures).
Asleep Mode selects the nightime comfort temperature which is set between the end of the last home period of the day and the
Asleep beginning of the first home period of the following day. The required temperature for Asleep mode is selectable in the Temperature setting (see User Menu > Temperatures).
The TPOne can be placed in Standby Mode. While in Standby the TPOne will not control the heating system other than to protect against frost damage (see User Menu > Installer Settings > Frost Protect for information on frost protect). Standby can
Standby be cancelled by pressing the Standby button again or by selecting another comfort mode.
Note: the standby option places the heating control in standby only, if Hot Water is set up this is not affected. To switch Hot Water
control off see User Menu > Hot Water > Mode
Danfoss Heating |
7 |
Navigation
|
|
|
|
Press Menu to access the intuitive text menu. |
|
|
|
|
The common feature User Menu will be |
|
|
|
Menu |
displayed first. Additional settings can found |
|
|
|
in the User Setting option and more advance |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
settings can be found in the Installer Setting |
|
|
|
|
option. |
|
OK |
Select / |
Press OK to select menu options or confirm |
|
|
settings. OK will be shown on the display |
|||
|
|
|
Confirm |
when it can be used or is required. |
|
|
|
|
Press Oto exit a menu option. Pressing O |
|
|
Menu |
while in a setting will result in that setting |
|
|
change not be accepted. Owill also exit the |
|||
|
Back |
|||
|
menu system. Owill be shown on the display |
|||
|
|
|
|
|
|
|
|
|
when it can be used |
|
|
|
|
The Navigation buttons are used to navigate |
|
|
|
|
the TPOne menus and change setting values. |
|
|
|
Naviga- |
The up & down buttons are also used to |
|
OK |
tion |
manually change the required temperature. |
|
|
|
|
|
Navigation arrows will be shown on the |
|
|
|
|
display when these buttons can be used. |
8 |
TPOne-S |
Display
16:35 Mon
21.5°
Info & Settings |
Status Icons |
Dates & |
|
|
Warnings |
Indicates that Button Lock has been activated to
Button
avoid unintentional setting changes. To activate
Lock buttons while button lock is active press the OK button for 5 seconds. The Button Lock setting is found in the Installer Menu.
When the current room temperature is below the Heat required room set temperature the TPOne will call Calling for heating from the connected heat source. This is
indicated by the Heat Calling icon.
Where the TPOne-S has been set up for control
Hot of domestic hot water the TPOne will call for
Water hot water heating according to the user set
Calling schedule. This is indicated by the Hot Water
Calling icon.
The TPOne-S is connected by radio signal to a receiver. The Radio Frequency icon will be displayed to confirm that this connection is active and that the TPOne-S is controlling the heating.
If connection is lost the icon will go off and a warning will be shown at the top of the display.
Important Note: Ensure that there are no large metal objects, such as boiler cases, other large appliances or mirrors in line of sight between the transmitter and receiver as these will prevent communication between the TPOne-S and receiver.
NOTE:
TPOne monitors several conditions and will provide warning or information messages when necessary. Details on these can be found on pages 26-29.
Danfoss Heating |
9 |

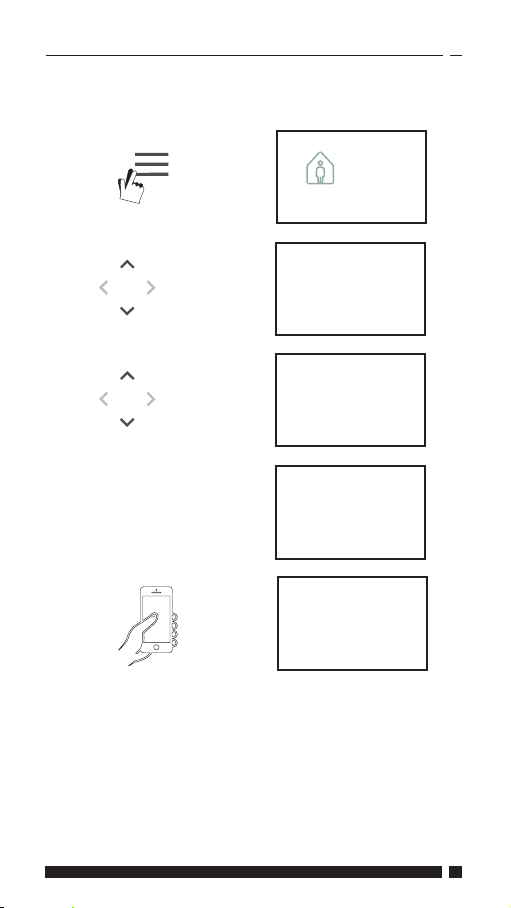

Setup Wizard/ Unit
The setup wizard will run when power is first applied to the TPOne. Once set the further changes can be made in the user and installer setting menus.
OK OK
OK |
OK |
OK |
|
|
OK |
OK |
OK |
|
|
OK OK
OK
Language
English
OK
Set Date
- 02 - 2016
OK 04
Set Time
OK24hr - 10 : 45
Hot Water Setup
OFF
OK
RF Pairing
Press OK to pair
OK
DBR Receiver |
RF Pairing |
|
Press button on |
|
reciever to confirm |
|
10:45 Thurs |
READY |
21.5o |
10 |
TPOne-S |
